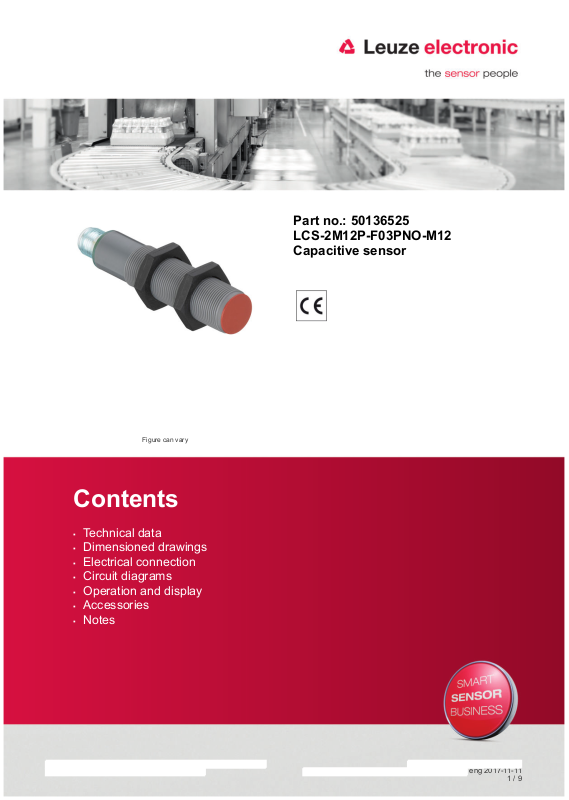

Leuze 50136525 Data Sheet

Figure can vary

Part no.: 50136525
LCS-2M12P-F03PNO-M12
Capacitive sensor

Contents

▪ Technical data
▪ Dimensioned drawings
▪ Electrical connection
▪ Circuit diagrams
▪ Operation and display
▪ Accessories
▪ Notes

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

Technical data

Basic data

Series LCS-2

Switching distance S

Assured switching distance 2.4 mm

Electrical data

Protective circuit Polarity reversal protection

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 10 %

Open-circuit current 10 mA

Rated operating current 200 mA

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching output 1

Assignment Connection 1, pin 2

Switching element Transistor, PNP

Switching principle NO (normally open)

n

1 ... 3 mm

Short circuit protected

Timing

Switching frequency 100 Hz

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Connector

Thread size M12

Type Male

Material Metal

No. of pins 4 -pin

Encoding A-coded

Mechanical data

Design Cylindrical

Thread size M12 x 1 mm

Dimension (Ø x L) 12 mm x 68 mm

Type of installation Embedded

Housing material Plastic, Polybutylene (PBT)

Sensing face material Plastic, Polybutylene (PBT)

Cover material Plastic, Polybutylene (PBT)

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

eng 2017-11-11

2 / 9

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

Switching distance, adjustable Yes

Environmental data

Ambient temperature, operation -25 ... 70 °C

Certifications

Degree of protection IP 67

Protection class III

Standards applied IEC 60947-5-2

Correction factors

Acetone 0.75

Acrylic resin 0.1 ... 0.25

Alcohol 0.85

Ammonia 0.7 ... 0.85

Aniline 0.4

Gasoline 0.1

Celluloid 0.15

Liquid chlorine 0.1

Ebonite 0.15

Epoxy resin 0.15 ... 0.35

Crude oil 0.05

Ethanol 0.85

Ethylene glycol 0.93

Freon R22 and 502 (liquid) 0.35

Grain 0.15 ... 0.3

Glass 0.2 ... 0.55

Glycerin 0.98

Rubber 0.15 ... 0.9

Wood, wet 0.6 ... 0.85

Wood, dry 0.1 ... 0.4

Marble 0.5

Flour 0.05

Melamine resin 0.25 ... 0.55

Milk powder 0.2

Nylon 0.2 ... 0.3

Oil-containing paper 0.25

Paper 0.1

Polyamide 0.3

Polyester resin 0.15 ... 0.5

Pressboard 0.1 ... 0.3

PTFE 0.1

Quartz glass 0.2

Salt 0.35

Sand 0.15 ... 0.3

Water 1

Cement dust 0.25

Sugar 0.15

eng 2017-11-11

3 / 9

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

Classification

eCl@ss 8.0 27270102

eCl@ss 9.0 27270102

ETIM 5.0 EC002715

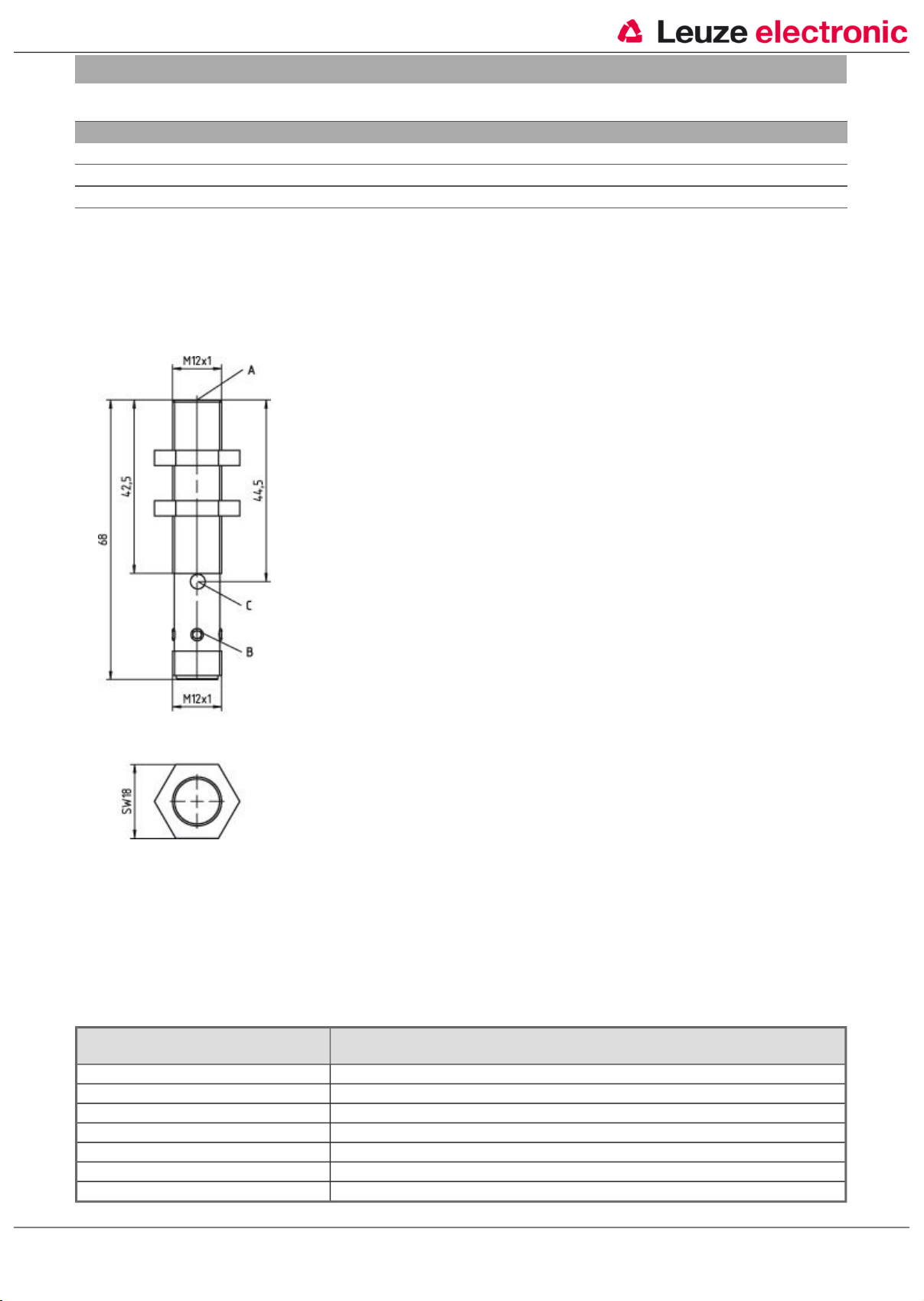

Dimensioned drawings

All dimensions in millimeters

A Active surface
B Yellow LED
C Potentiometer

Electrical connection

Connection 1

Type of connection Connector

Function

Thread size M12

Type Male

Material Metal

No. of pins 4 -pin

Encoding A-coded

eng 2017-11-11

4 / 9

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

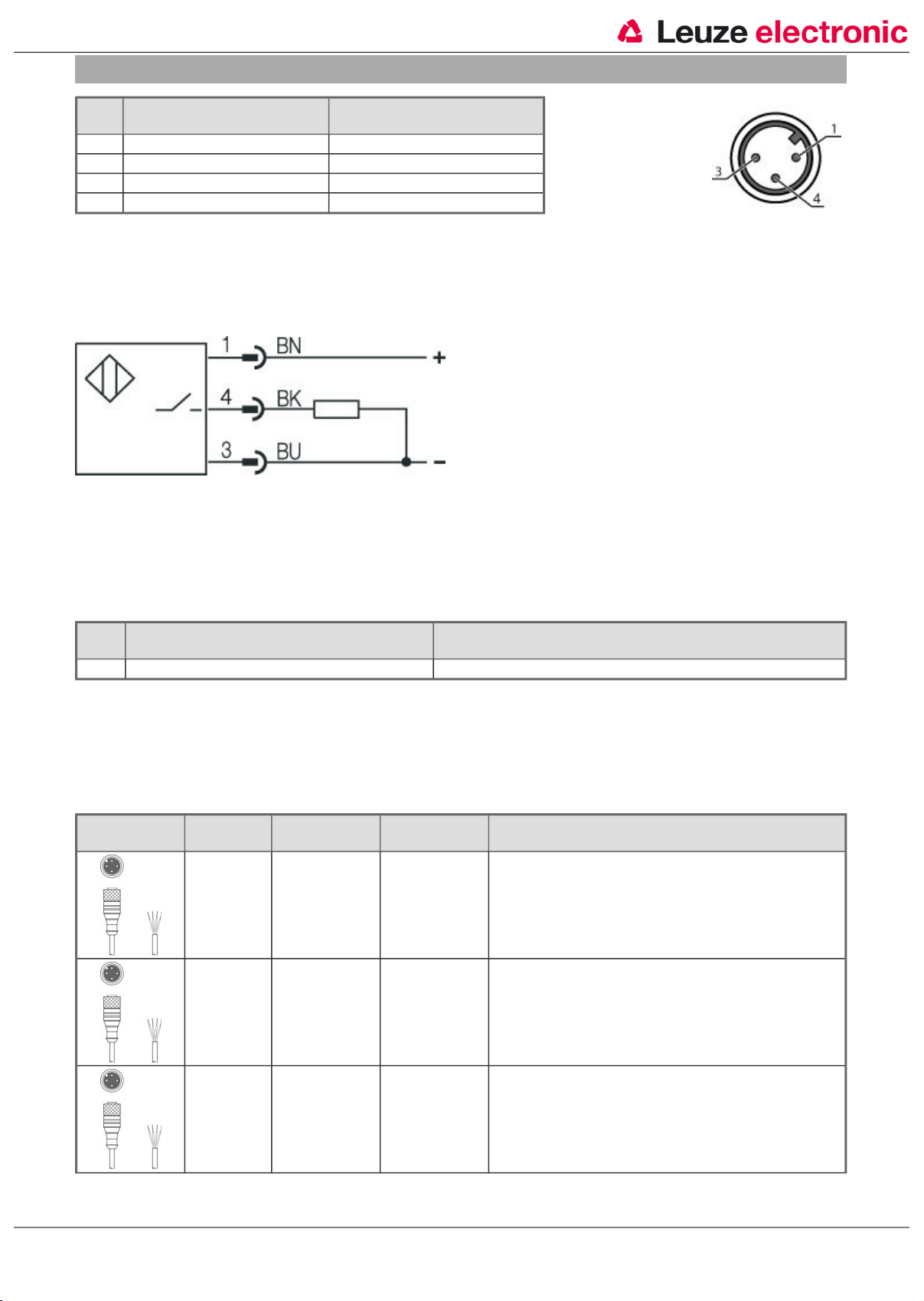

Pin Pin assignment Conductor color

1 +10...30 V DC Brown

2 n.c. -

3 GND Blue

4 OUT Black

Circuit diagrams

Operation and display

LEDs

LED Display Meaning

1 Yellow, continuous light Switching output/switching state

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50112960 K-D

M12A-4P-10m­FAB

50104570 K-D M12A-4P-2m-

FAB

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: FAB

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: FAB

50104572 K-D M12A-4P-5m-

FAB

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: FAB

eng 2017-11-11

5 / 9

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

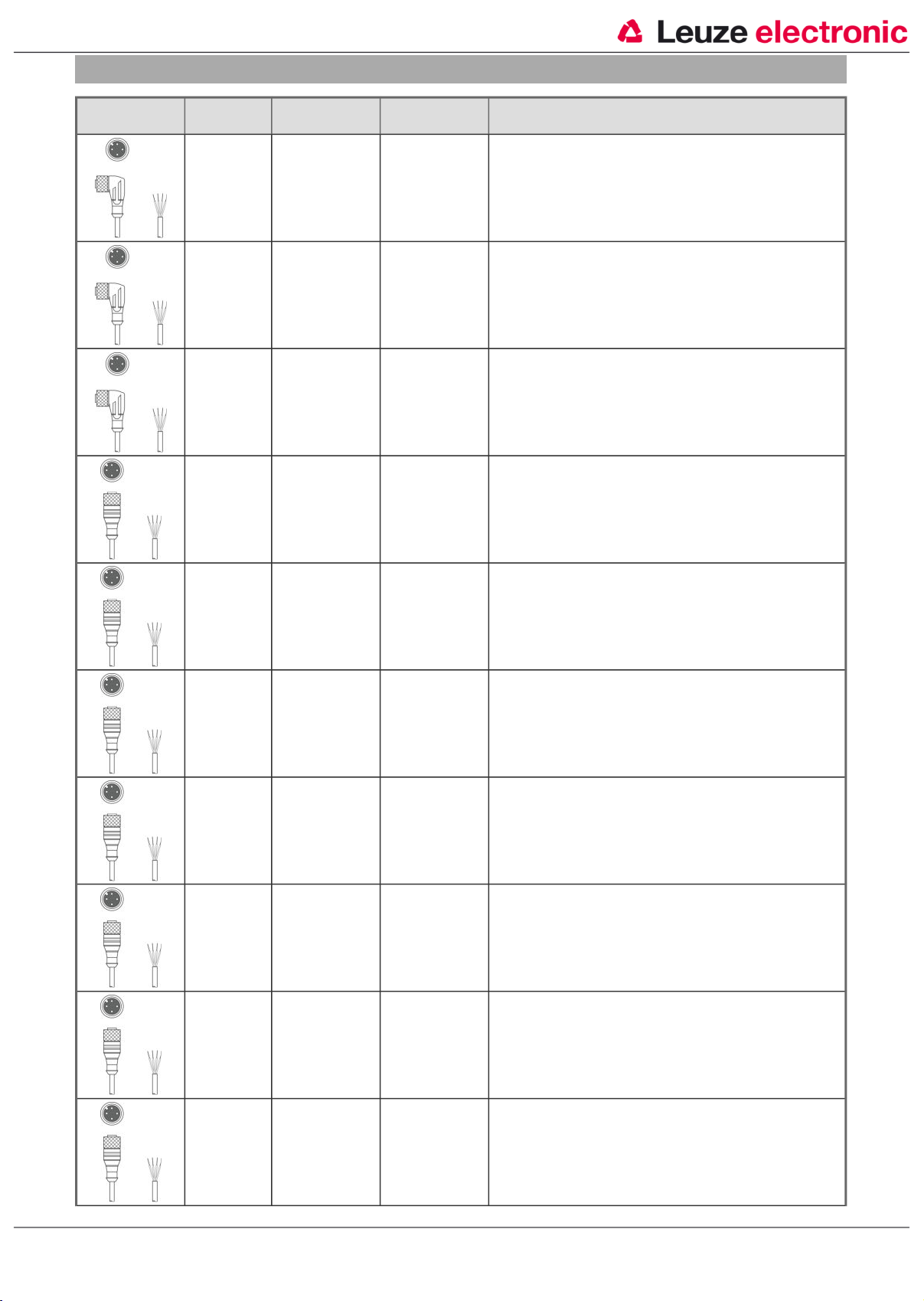

Part no. Designation Article Description

50112961 K-D

M12W-4P-10m­FAB

50104571 K-D

M12W-4P-2m­FAB

50104573 K-D

M12W-4P-5m­FAB

50130654 KD U-M12-4A-

P1-020

50130672 KD U-M12-4A-

P1-020-DP

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: FAB

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: FAB

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: FAB

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR

50130657 KD U-M12-4A-

P1-050

50130675 KD U-M12-4A-

P1-050-DP

50130658 KD U-M12-4A-

P1-100

50130676 KD U-M12-4A-

P1-100-DP

50130648 KD U-M12-4A-

V1-020

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC

eng 2017-11-11

6 / 9

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

Part no. Designation Article Description

50130652 KD U-M12-4A-

V1-050

50130653 KD U-M12-4A-

V1-100

50132431 KD U-M12-4A-

V1-200

50132430 KD U-M12-4A-

V1-300

50130692 KD U-M12-4W-

P1-020

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 30,000 mm
Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR

50130718 KD U-M12-4W-

P1-020-DP

50130694 KD U-M12-4W-

P1-050

50130720 KD U-M12-4W-

P1-050-DP

50130695 KD U-M12-4W-

P1-100

50130721 KD U-M12-4W-

P1-100-DP

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR

eng 2017-11-11

7 / 9

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

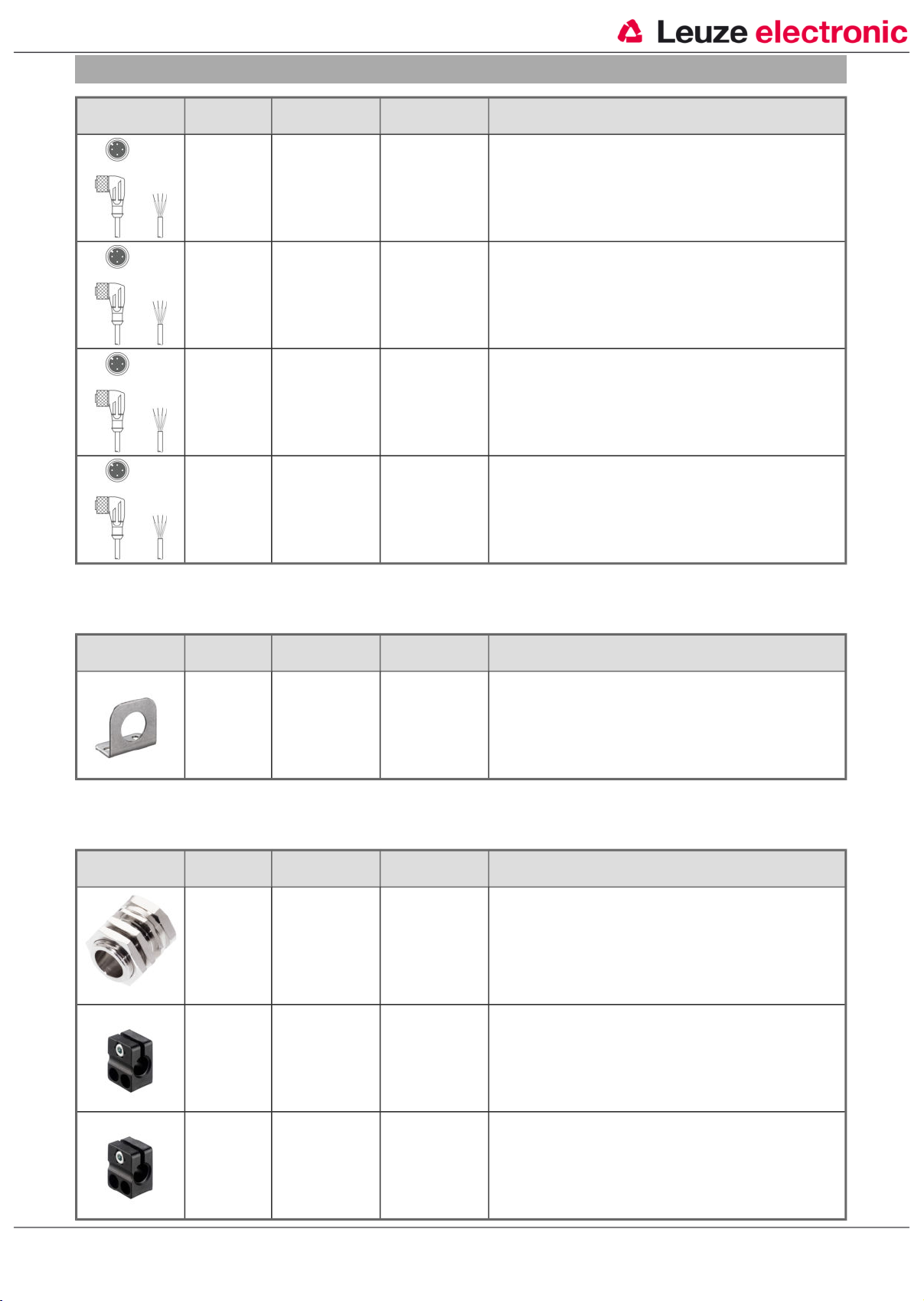

Part no. Designation Article Description

50130688 KD U-M12-4W-

V1-020

50130690 KD U-M12-4W-

V1-050

50130691 KD U-M12-4W-

V1-100

50132641 KD U-M12-4W-

V1-200

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PVC

Mounting technology - Mounting brackets

Part no. Designation Article Description

50113549 BT D12M.5 Mounting bracket Diameter, inner: 12 mm

Mounting technology - Other

Part no. Designation Article Description

50132729 AC D18M-CS Clamp Contains: 2x M24 mounting nut

50111499 MC 012K Clamp Diameter, inner: 12 mm

Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Rigid
Material: Stainless steel

Diameter, inner: 18 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Screw type, Through-hole
mounting
Mounting bracket, at device: Insertable, Clampable with limit
stop
Type of mounting device: Clampable, With limit stop
Material: Metal

Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic

50111500 MC 012K-LS Clamp Diameter, inner: 12 mm

Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable with limit stop
Type of mounting device: Rigid
Material: Plastic

eng 2017-11-11

8 / 9

Part no.: 50136525 – LCS-2M12P-F03PNO-M12 – Capacitive sensor

Notes

Observe intended use!

• This product is not a safety sensor and is not intended as personnel protection.

• The product may only be put into operation by competent persons.

• Only use the product in accordance with its intended use.
