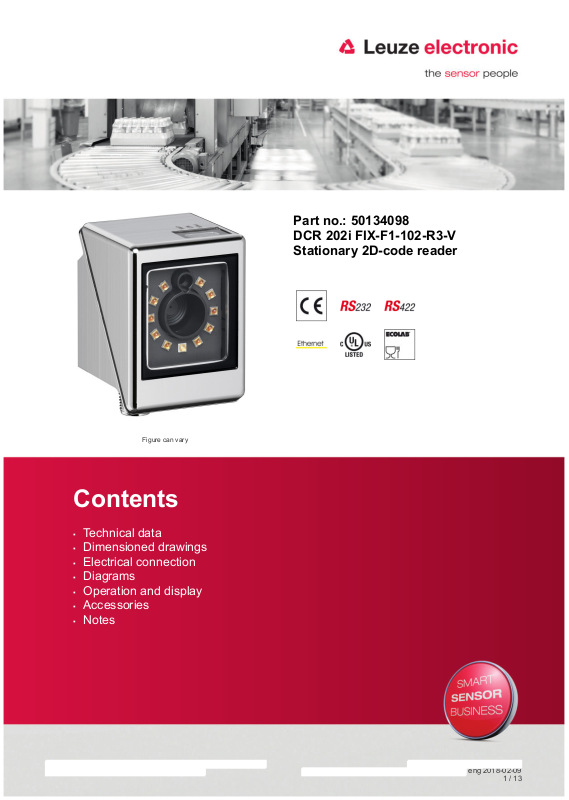

Figure can vary
Part no.: 50134098
DCR 202i FIX-F1-102-R3-V
Stationary 2D-code reader
Contents
▪ Technical data
▪ Dimensioned drawings
▪ Electrical connection
▪ Diagrams
▪ Operation and display
▪ Accessories
▪ Notes
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader
Technical data
Basic data
Series DCR 200i
Functions
Software functions Reading of 2D codes
Read data
Code types, readable EAN 128
Reading of 1D codes
GS1 Databar Omnidirectional
GS1 Databar
GS1 Databar Stacked
Code 128
Pharma Code
2/5 Interleaved
Code 39
EAN 8/13
GS1 Databar QR code
Code 93
Code 32
Data Matrix Code
Aztec
QR code
Codabar
UPC
PDF417
Optical data
Reading distance 70 ... 360 mm
Light source LED, Red
Transmitted-signal shape Pulsed
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 960 px
Chip CMOS
Module size 0.19 ... 0.5 mm
Electronic shutter speed 0.068 ... 5 ms
Camera type Monochrome
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 18 ... 30 V, DC
Average power consumption 8 W
Inputs
Number of digital switching inputs 1 Piece(s)
Switching inputs
Type Digital switching input
Voltage type DC
Polarity reversal protection
eng 2018-02-09
2 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching current, max. 100 mA
Switching output 1
Switching element Transistor,
Switching principle +24 V switching
Inputs/outputs selectable
Number of inputs/outputs selectable 2 Piece(s)
Type Inputs/outputs selectable
Voltage type DC
Voltage type DC
Interface
Type RS 232, RS 422, Ethernet
RS 232
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 8 data bits
Stop bit 1 stop bit
Parity None
Transmission protocol <STX><data><CR><LF>
Data encoding Binary
RS 422
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 7, 8 data bits
Stop bit 1, 2 stop bits
Parity Adjustable
Data encoding Binary
Ethernet
Architecture Server
Address assignment DHCP
Transmission speed 100 Mbit/s
Function Process
Switch functionality None
Transmission protocol TCP/IP , UDP
ASCII
ASCII
Client
Manual address assignment
10 Mbit/s
Service interface
Type Ethernet
eng 2018-02-09
3 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader
Ethernet
Function Service
Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Function Data interface
Thread size M12
Type Male
Material Stainless steel
No. of pins 12 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Function Configuration interface
Thread size M12
Type Female
Material Stainless steel
No. of pins 4 -pin
Encoding D-coded
Voltage supply
Signal OUT
Signal IN
Data interface
Mechanical data
Design Cubic
Dimension (W x H x L) 46 mm x 61 mm x 46 mm
Housing material Stainless steel, V4A
Lens cover material Plastic
Net weight 392 g
Housing color Silver
Type of fastening Mounting thread
Compatibility of materials ECOLAB
Operation and display
Type of display LED
Number of LEDs 3 Piece(s)
Type of configuration Configuration codes
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -20 ... 70 °C
Relative humidity (non-condensing) 90 %
Via optional mounting device
Teach-in
Via web browser
Certifications
Degree of protection IP 67
IP 69K
eng 2018-02-09
4 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader
Protection class III
Certifications c UL US
Test procedure for EMC in accordance with standard EN 61000-6-2
Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb
Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc
Classification
eCl@ss 8.0 27280103
eCl@ss 9.0 27280103
ETIM 5.0 EC002550

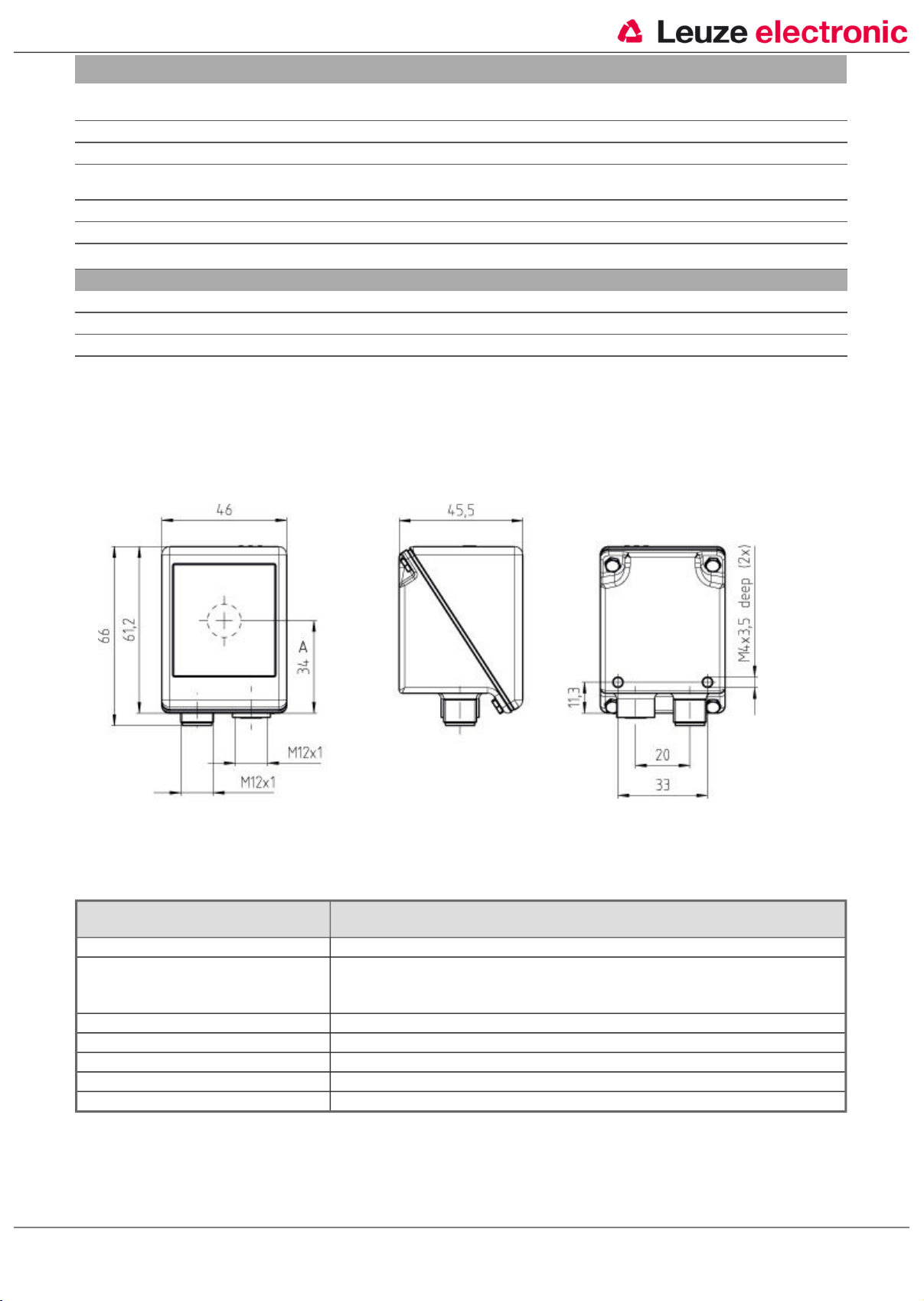

Dimensioned drawings
All dimensions in millimeters
EN 61000-6-4
Electrical connection
Connection 1 PWR / SWIO
Type of connection Connector
Function Data interface
Voltage supply
Signal OUT
Signal IN
Thread size M12
Type Male
Material Stainless steel
No. of pins 12 -pin
Encoding A-coded
eng 2018-02-09
5 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader

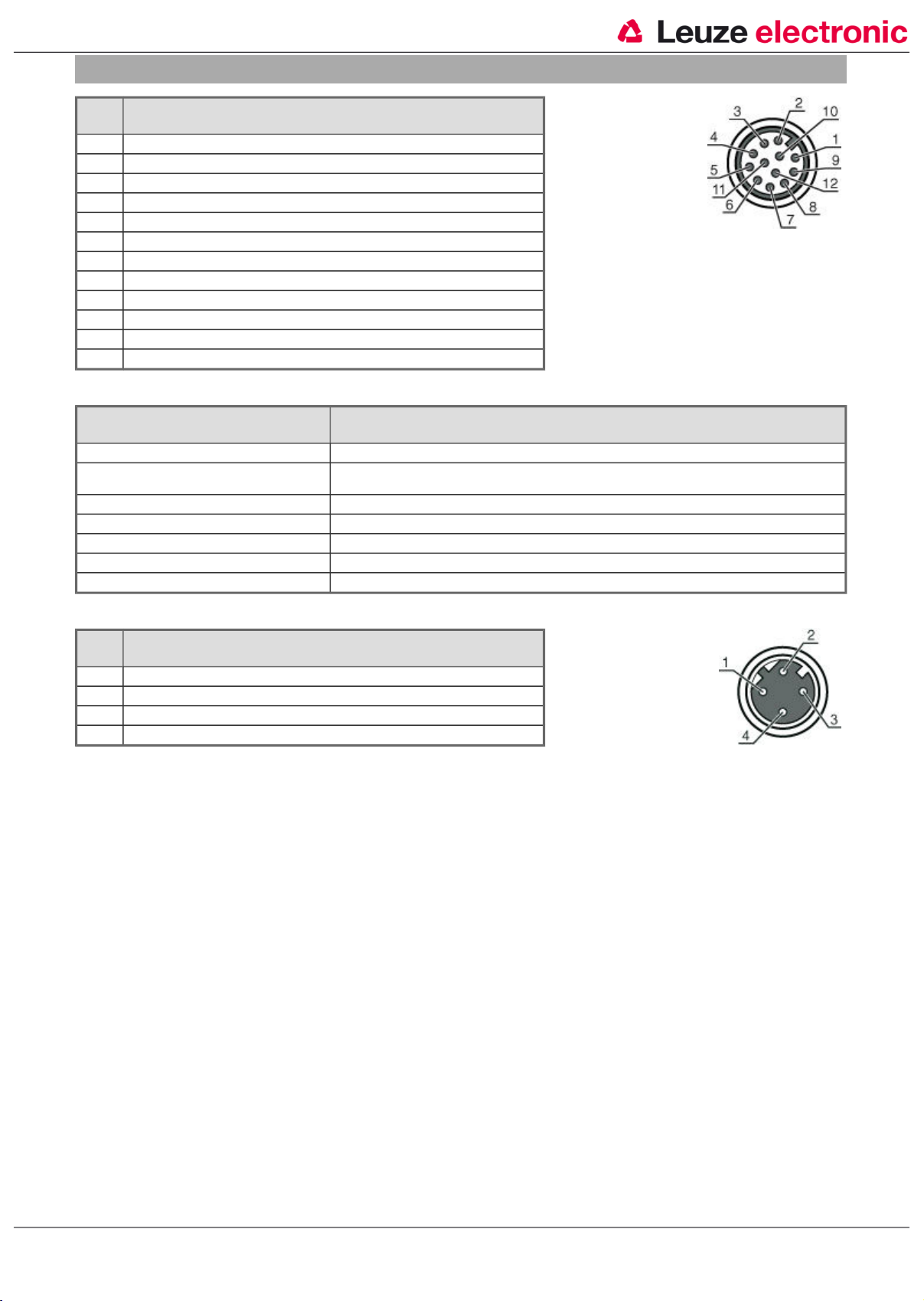

Pin Pin assignment
1 VIN
2 GNDIN
3 SWIN 1
4 SWOUT 2
5 FE
6 GND RS 232 / GND RS 422
7 Rx-
8 Tx-
9 RxD/Rx+
10 TxD/Tx+
11 SWIO 3
12 SWIO 4
Connection 2 HOST
Type of connection Connector
Function Configuration interface
Thread size M12
Type Female
Material Stainless steel
No. of pins 4 -pin
Encoding D-coded
Data interface
Pin Pin assignment
1 TD+
2 RD+
3 TD-
4 RD-
eng 2018-02-09
6 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader
Diagrams

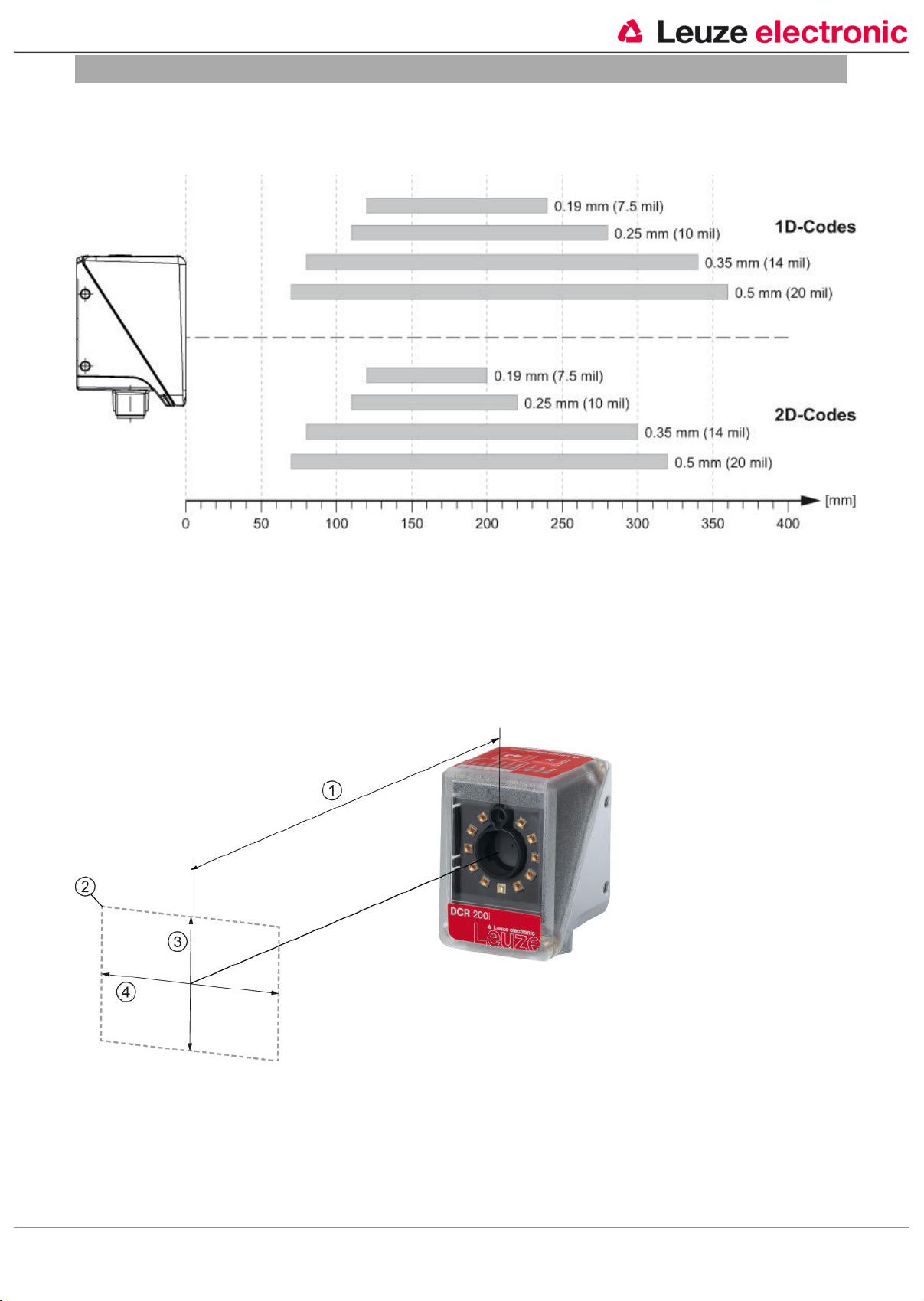

Reading distances
Relationship between camera distance and reading field size
1 Camera distance
2 Reading field
3 Reading field height [mm]
4 Reading field width [mm]
eng 2018-02-09
7 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader

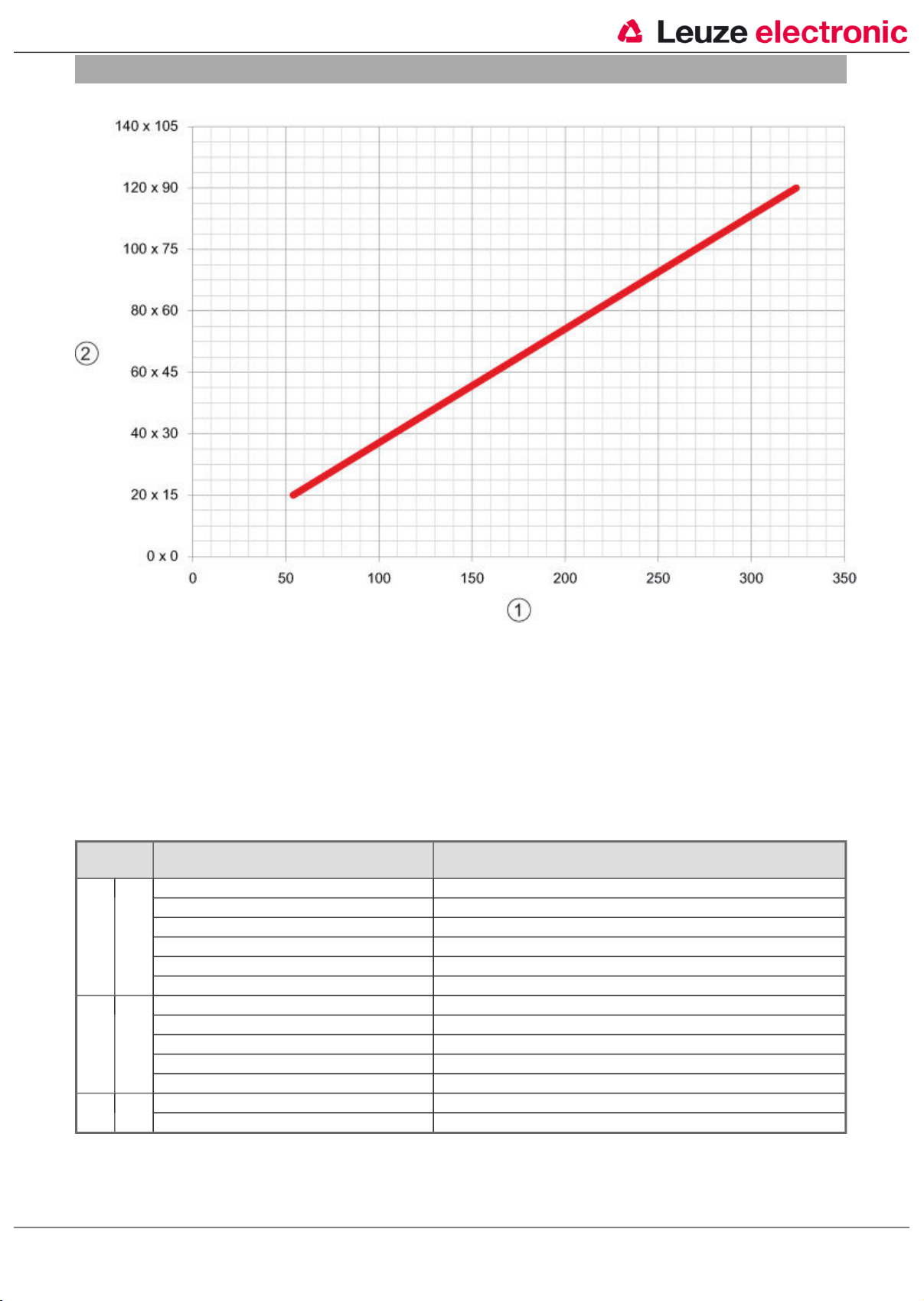

1 Camera distance [mm]
2 Reading field: width x height [mm]
Operation and display
LEDs
LED Display Meaning
1 PWR Off No supply voltage
Green, flashing Initialization
Green, continuous light Operational readiness
Orange, continuous light Service operation
Red, flashing Device OK, warning set
Red, continuous light Device error
2 NET Off No supply voltage
Green, flashing Initialization
Green, continuous light Operational readiness
Red, flashing Communication error
Red, continuous light Network error
3 LINK Green, continuous light Ethernet connection is established
Yellow, flashing Data exchange active
eng 2018-02-09
8 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader

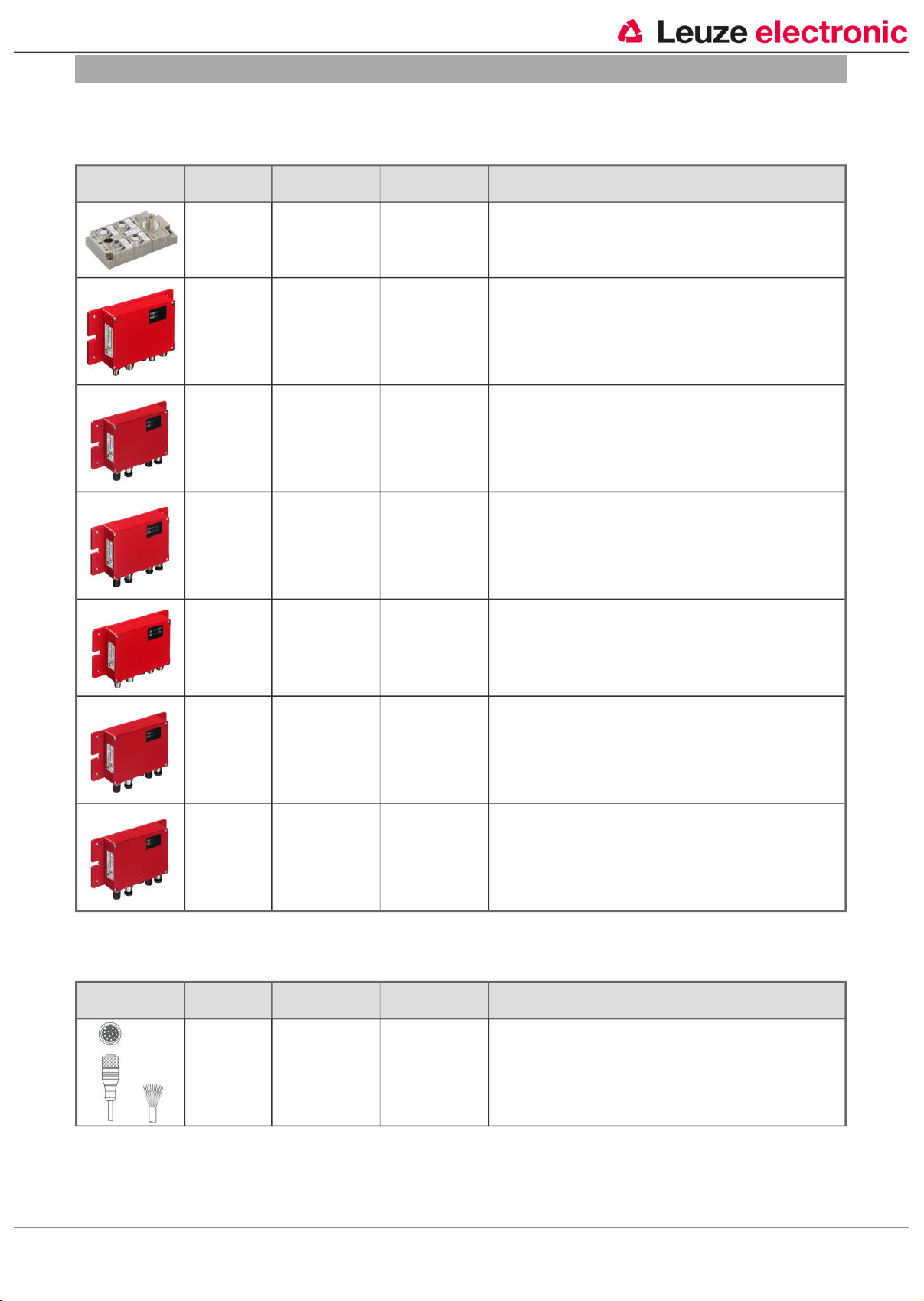

Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50130109 MA 150 Modular
50112893 MA 204i Profibus
Gateway
50114154 MA 235i
CANopen
Gateway
50114155 MA 238i EtherCAT
Gateway
50112891 MA 248i Profinet
Gateway
connection unit
Modular
connection unit
Modular
connection unit
Modular
connection unit
Modular
connection unit
Supply voltage: 18 ... 30 V
Current consumption, max.: 150 mA
Connections: 5 Piece(s)
Degree of protection: IP 67
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: PROFIBUS DP, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: CANopen, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: EtherCAT, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: PROFINET, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
50114156 MA 255i
DeviceNet
Gateway
50114157 MA 258i EtherNet/
IP Gateway
Modular
connection unit
Modular
connection unit
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: RS 232, DeviceNet
Connections: 6 Piece(s)
Degree of protection: IP 67
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: EtherNet IP, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Connection technology - Connection cables
Part no. Designation Article Description
50130281 KD S-M12-CA-
P1-020
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
eng 2018-02-09
9 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader

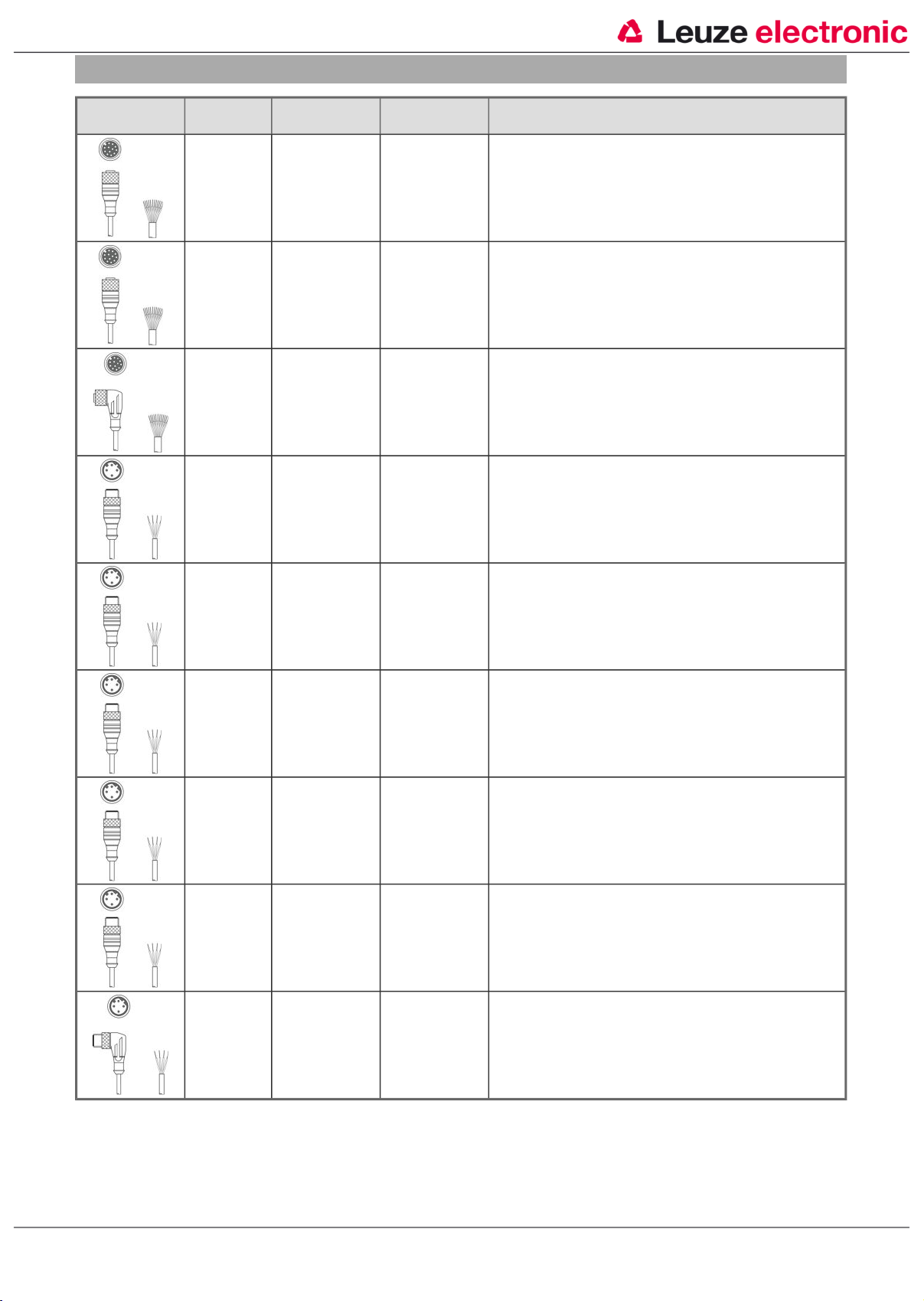

Part no. Designation Article Description
50130282 KD S-M12-CA-
P1-050
50130283 KD S-M12-CA-
P1-100
50134943 KD S-M12-CW-
P1-050
50135073 KS ET-M12-4A-
P7-020
50135074 KS ET-M12-4A-
P7-050
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 12 -
pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50135075 KS ET-M12-4A-
P7-100
50135076 KS ET-M12-4A-
P7-150
50135077 KS ET-M12-4A-
P7-300
50134942 KS ET-M12-4W-
P7-050
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Angled, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
eng 2018-02-09
10 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader

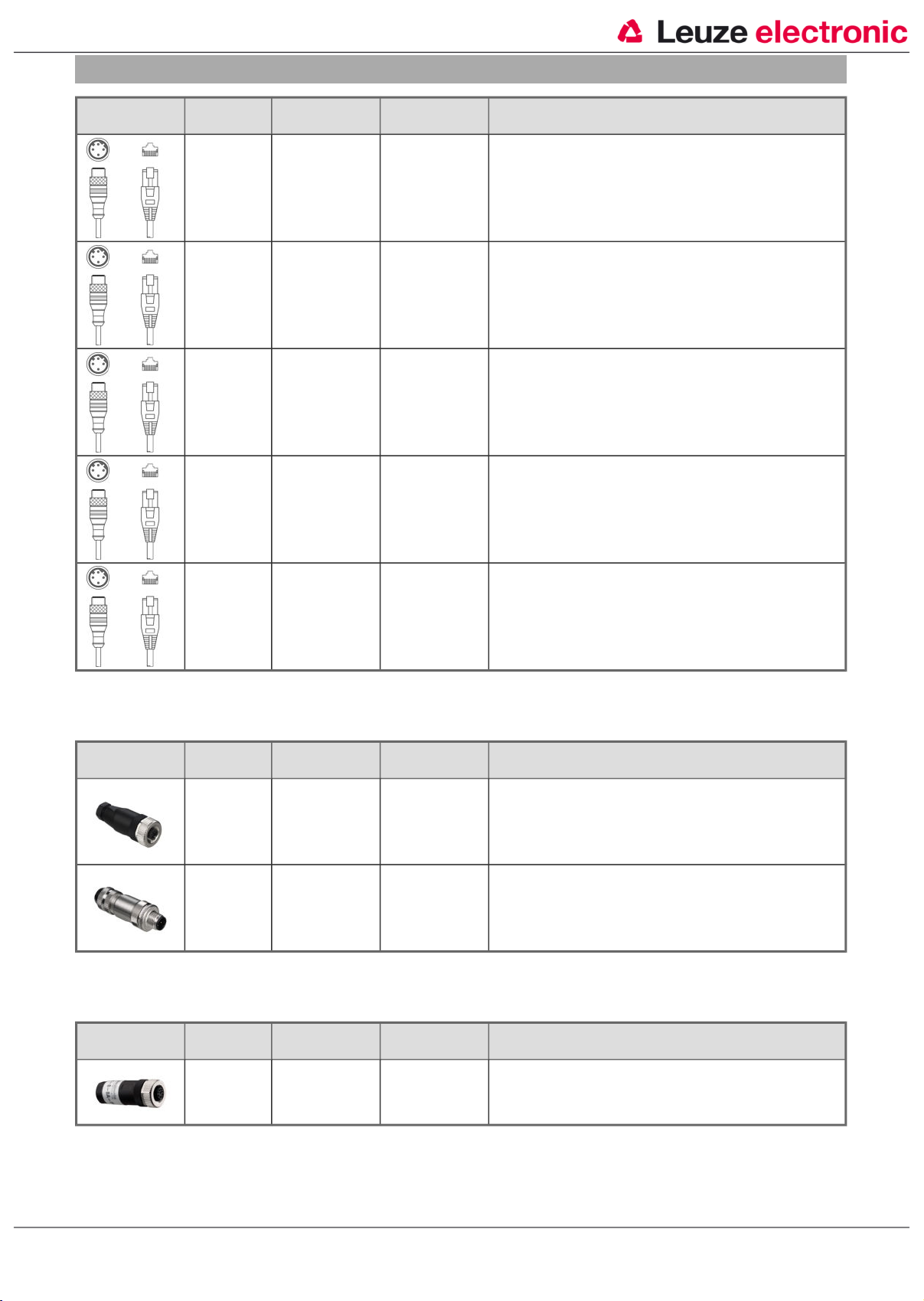

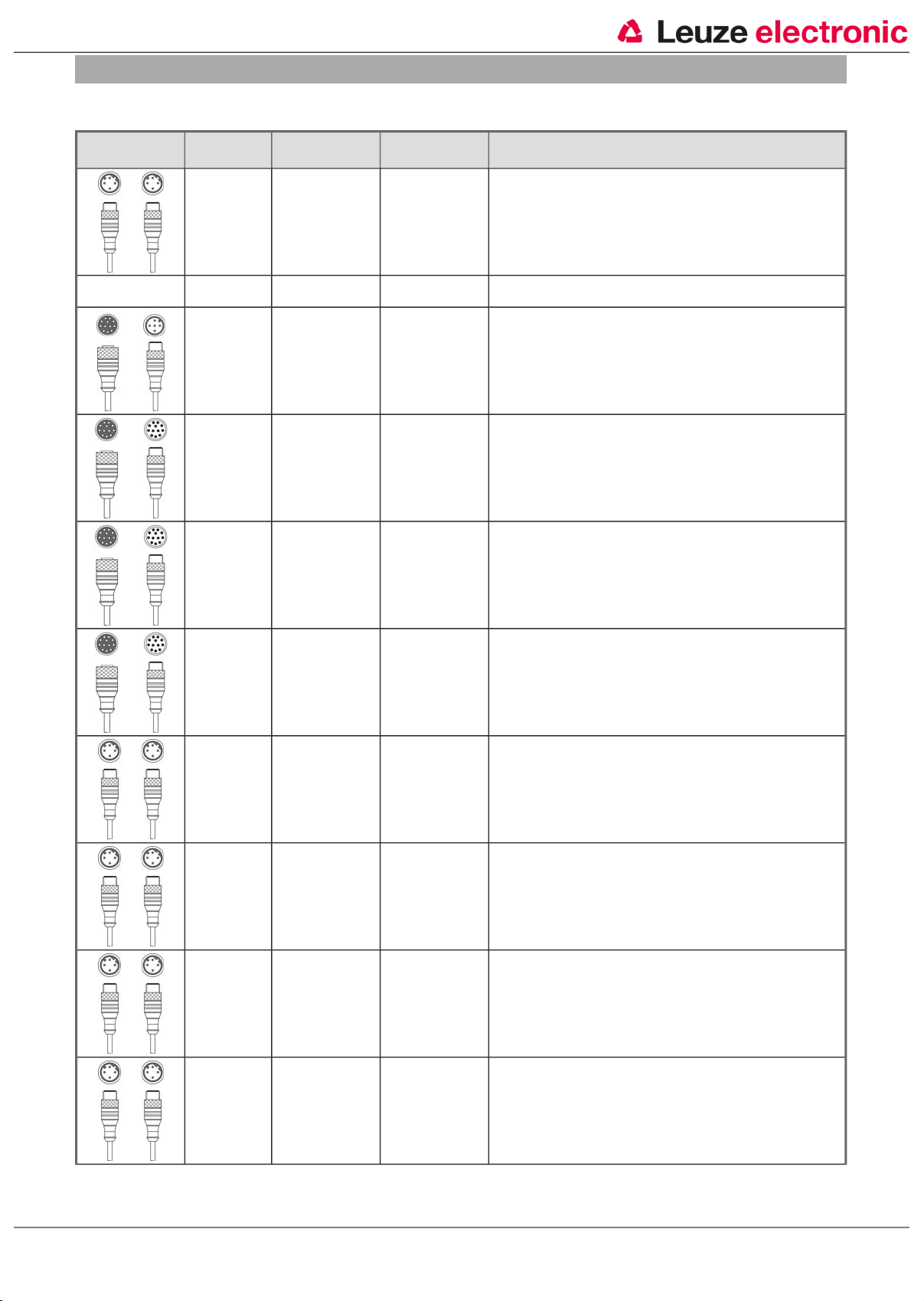

Connection technology - Interconnection cables
Part no. Designation Article Description
50106905 KB
ET-30000-SSA
50132488 KB JST-
M12A-12P-50
50137694 KDS S-M12-CA-
M12-5AP1-004-23X
50130284 KDS S-M12-CA-
M12-CA-P1-020
50130285 KDS S-M12-CA-
M12-CA-P1-050
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Connector, M12, Axial, Male, A-coded, 5 -pin
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 400 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50130286 KDS S-M12-CA-
M12-CA-P1-100
50137077 KSS ET-M12-4A-
M12-4A-P7-020
50137078 KSS ET-M12-4A-
M12-4A-P7-050
50137079 KSS ET-M12-4A-
M12-4A-P7-100
50137080 KSS ET-M12-4A-
M12-4A-P7-150
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 1,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 1,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
eng 2018-02-09
11 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader
Part no. Designation Article Description
50135080 KSS ET-M12-4A-
RJ45-A-P7-020
50135081 KSS ET-M12-4A-
RJ45-A-P7-050
50135082 KSS ET-M12-4A-
RJ45-A-P7-100
50135083 KSS ET-M12-4A-
RJ45-A-P7-150
50135084 KSS ET-M12-4A-
RJ45-A-P7-300
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 2,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 5,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 15,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 30,000 mm
Sheathing material: PUR
Connection technology - Connectors
Part no. Designation Article Description
50132254 D M12A-12P Connector Connection: Connector with solder connection, M12, Axial,
50112155 S-M12A-ET Connector Suitable for interface: Ethernet
Connection technology - Adapters
Part no. Designation Article Description
50132255 D M12A-12P-
PWR
Adapter Number of connections: 2 Piece(s)
Female, A-coded, 12 -pin
Connection: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Jack socket
eng 2018-02-09
12 / 13
Part no.: 50134098 – DCR 202i FIX-F1-102-R3-V – Stationary 2D-code reader

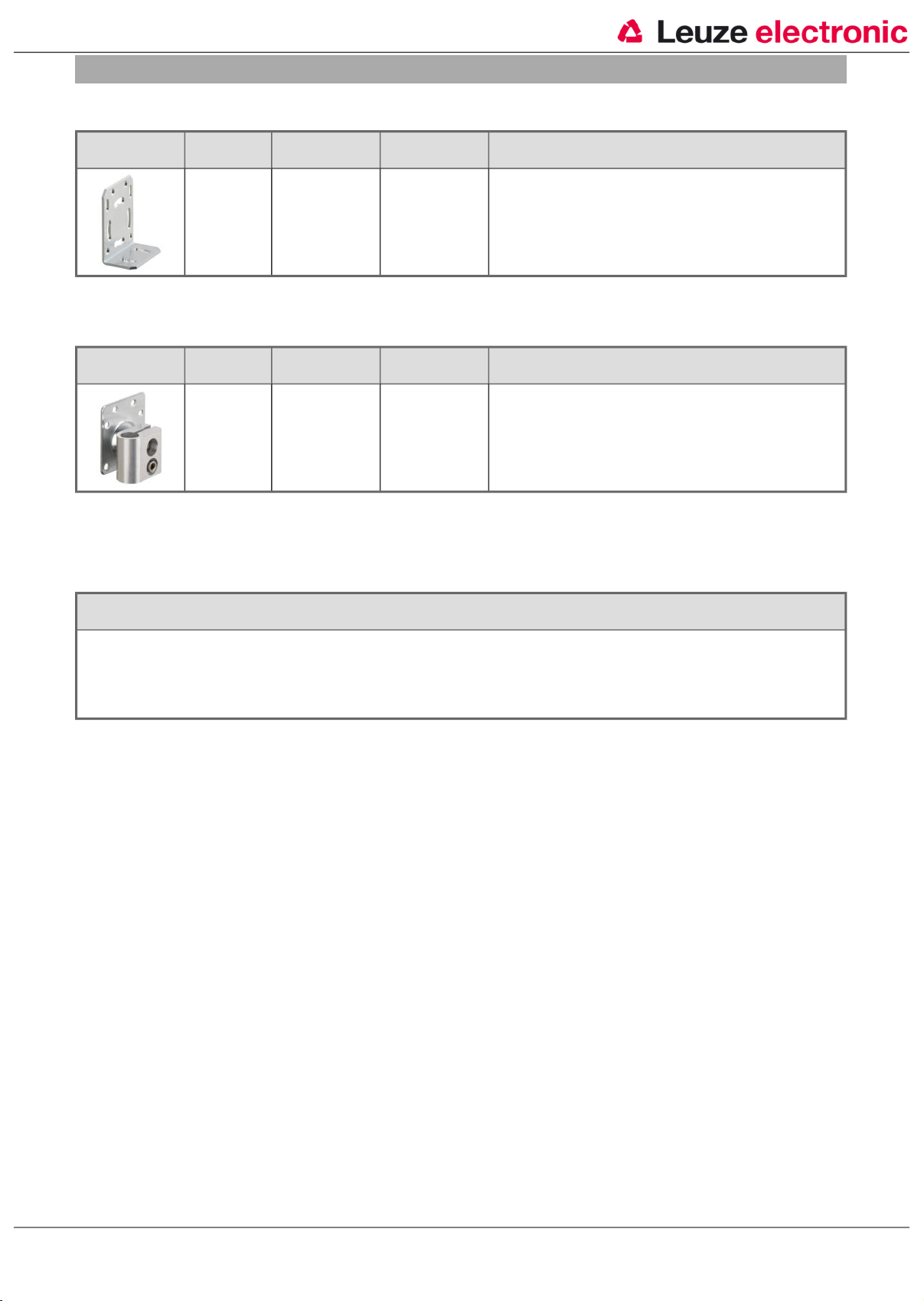

Mounting technology - Mounting brackets
Part no. Designation Article Description
50132151 BT 320M Mounting bracket Design of mounting device: Angle, L-shape
Mounting technology - Rod mounts
Part no. Designation Article Description
50132150 BTU 320M-D12 Mounting system Contains: 4x M4 x 6 screws
Notes
Observe intended use!
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Rigid
Material: Metal
Design of mounting device: Mounting system
Mounting bracket, at system: For 12 mm rod
Mounting bracket, at device: Screw type
Type of mounting device: Clampable, Adjustable, Turning, 360°
Material: Metal
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
eng 2018-02-09
13 / 13
Loading...
