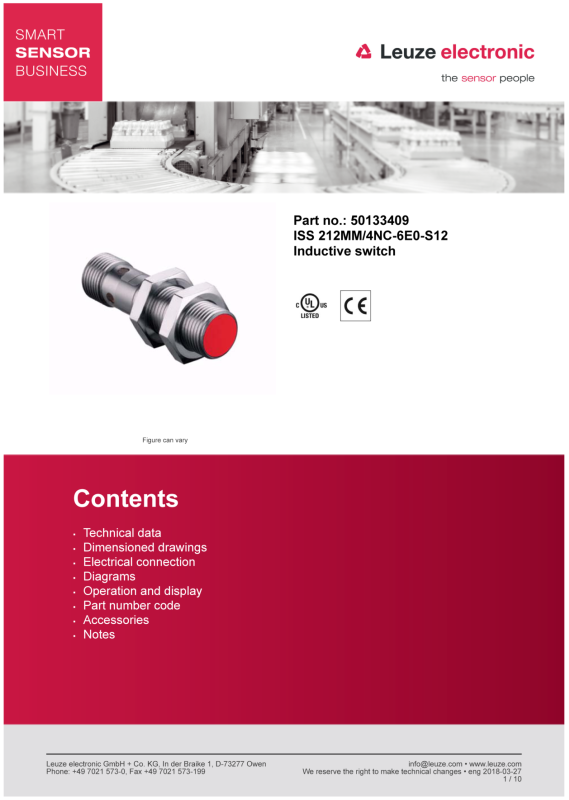

Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch
Technical data
Basic data
Series 212
Typ. operating range limit S
Operating range S
Characteristic parameters
MTTF 890 years
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 20 %, From U
Open-circuit current 0 ... 10 mA
Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature
Switching hysteresis 10 %
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Voltage type DC
Switching current, max. 200 mA
Switching voltage Low: ≤2V
Residual current, max. 0.1 mA
Voltage drop 2 V
Switching output 1
Switching element Transistor, PNP
Switching principle NC (normally closed)
a
n
6 mm
0 ... 4.8 mm
Polarity reversal protection
Inductive protection
B
Ta= 23 °C ± 5 °C
Timing
Switching frequency 800 Hz
Readiness delay 50 ms
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Function Signal OUT
Voltage supply
Thread size M12
Type Male
Material Metal
No. of pins 4 -pin
Encoding A-coded
Mechanical data
eng 2018-03-27
2 / 10
Page 3
Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch
Design Cylindrical
Thread size M12 x 1 mm
Dimension (Ø x L) 12 mm x 45 mm
Type of installation Embedded
Housing material Metal, Chromed brass
Sensing face material Plastic, Polybutylene (PBT)
Net weight 18 g
Housing color Red, RAL 3000
Type of fastening Mounting thread
Standard measuring plate 18 x 18 mm², Fe360
Operation and display
Type of display LED
Number of LEDs 1 Piece(s)
Environmental data
Ambient temperature, operation -25 ... 70 °C
Ambient temperature, storage -25 ... 70 °C
Silver
Certifications
Degree of protection IP 67
Protection class II
Certifications c UL US
Test procedure for EMC in accordance with standard IEC 61000-4-4
Standards applied IEC 60947-5-2
Correction factors
Aluminum 0.3
Stainless steel 0.8
Copper 0.25
Brass 0.4
Fe360 steel 1
Classification
eCl@ss 8.0 27270101
eCl@ss 9.0 27270101
ETIM 5.0 EC002714
IEC 61000-4-2
IEC 61000-4-3

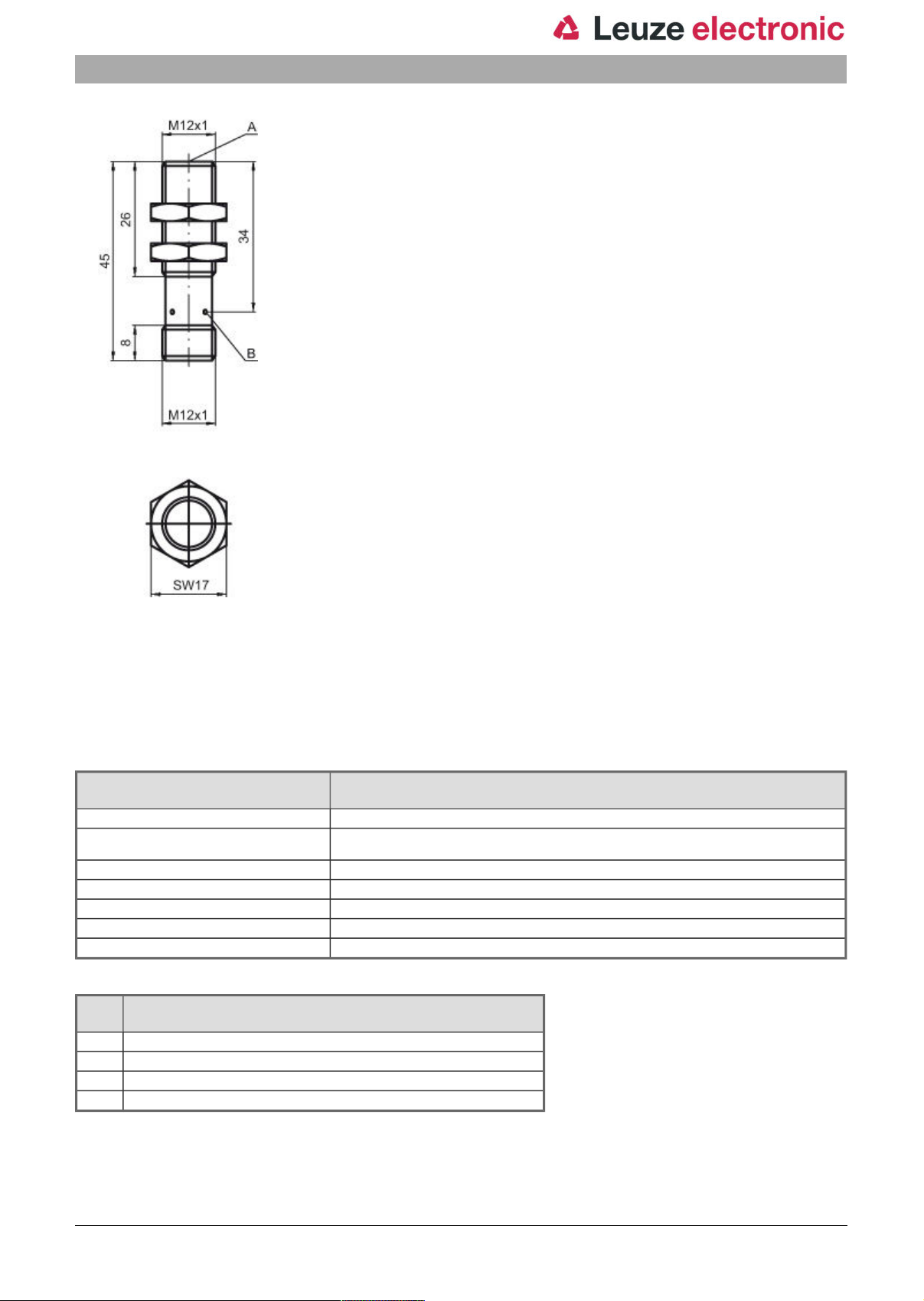

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-27
3 / 10
Page 4
Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch
A Active surface
B Yellow LED
Electrical connection
Connection 1
Type of connection Connector
Function Signal OUT
Thread size M12
Type Male
Material Metal
No. of pins 4 -pin
Encoding A-coded
Pin Pin assignment
1 V+
2 n.c.
3 GND
4 OUT 1
Voltage supply
eng 2018-03-27
4 / 10
Page 5
Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch

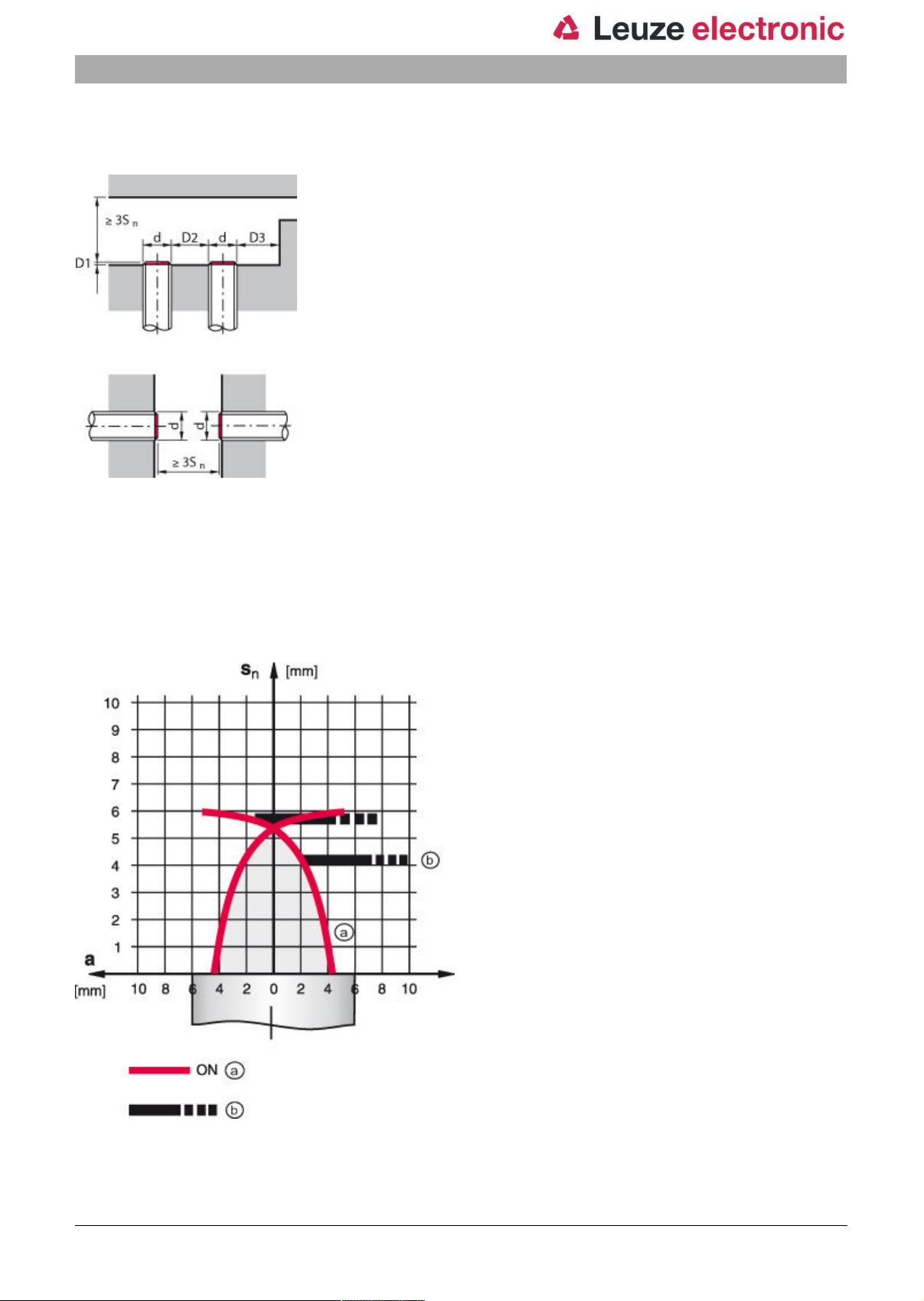

Diagrams
Embedded installation
Sn[mm]
D1 [mm] 2
D2 [mm] 18
D3 [mm] 6
6
Types with Sn= 6.0 mm
a Inductive switch
b
Standard measuring plate
eng 2018-03-27
5 / 10
Page 6
Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch
Operation and display
LEDs
LED Display Meaning
1 Yellow, continuous light Switching output/switching state
Part number code
Part designation: ISX YYY ZZ/AAA.BB-CCC-DDD-DDD
ISX Operating principle / construction:
YYY Series:
ZZ Housing / thread:
AAA Output current / supply:
BB Special equipment:
CCC Measurement range / type of installation:
DDD Electrical connection:
IS: inductive switch, standard design
ISS: inductive switch, short construction
203: series with Ø 3 mm
204: series with Ø 4 mm
205: series with M5 x 0.5 external thread
206: series with Ø 6.5 mm
208: series with M8 x 1 external thread
212: series with M12 x 1 external thread
218: series with M18 x 1 external thread
230: series with M30 x 1.5 external thread
240: series in cubic design
244: series in cubic design
255: series with 5 x 5 mm² cross section
288: series with 8 x 8 mm² cross section
MM: metal housing (active surface: plastic) / metric thread
FM: full-metal housing (active surface: stainless steel AISI 316L) / metric thread
4NO: PNP transistor, NO contact
4NC: PNP transistor, NC contact
2NO: NPN transistor, NO contact
2NC: NPN transistor, NC contact
1NO: relay, NO contact / AC/DC
1NC: relay, NC contact / AC/DC
n/a: no special equipment
5F: food version
5: housing material V2A (1.4305, AISI 303)
1E0: typ. scanning range limit 1.0 mm / embedded installation
1E5: typ. scanning range limit 1.5 mm / embedded installation
2E0: typ. scanning range limit 2.0 mm / embedded installation
3E0: typ. scanning range limit 3.0 mm / embedded installation
4E0: typ. scanning range limit 4.0 mm / embedded installation
5E0: typ. scanning range limit 5.0 mm / embedded installation
6E0: typ. scanning range limit 6.0 mm / embedded installation
8E0: typ. scanning range limit 8.0 mm / embedded installation
10E: typ. scanning range limit 10.0 mm / embedded installation
12E: typ. scanning range limit 12.0 mm / embedded installation
20E: typ. scanning range limit 20.0 mm / embedded installation
22E: typ. scanning range limit 22.0 mm / embedded installation
2N5: typ. scanning range limit 2.5 mm / non-embedded installation
4N0: typ. scanning range limit 4.0 mm / non-embedded installation
8N0: typ. scanning range limit 8.0 mm / non-embedded installation
10N: typ. scanning range limit 10.0 mm / non-embedded installation
12N: typ. scanning range limit 12.0 mm / non-embedded installation
15N: typ. scanning range limit 15.0 mm / non-embedded installation
20N: typ. scanning range limit 20.0 mm / non-embedded installation
25N: typ. scanning range limit 25.0 mm / non-embedded installation
40N: typ. scanning range limit 40.0 mm / non-embedded installation
n/a: cable, PVC, standard length 2000 mm
S12: M12 connector, 4-pin, axial
200-S12: cable, PVC, length 200 mm with M12 connector, 4-pin, axial
Note
A list with all available device types can be found on the Leuze electronic website at www.leuze.com.
eng 2018-03-27
6 / 10
Page 7
Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch

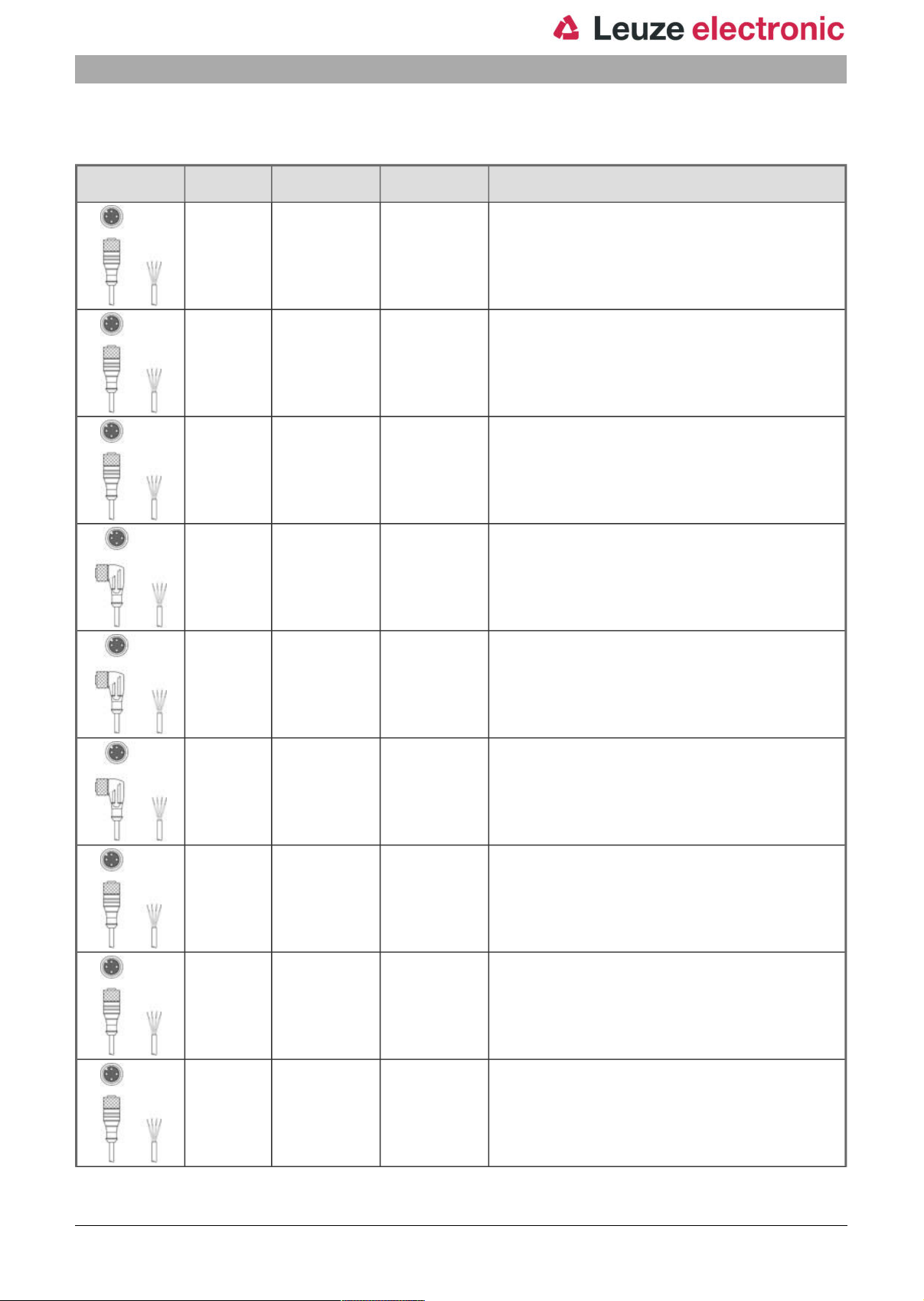

Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50112960 K-D
M12A-4P-10mFAB
50104570 K-D M12A-4P-2m-
FAB
50104572 K-D M12A-4P-5m-
FAB
50112961 K-D
M12W-4P-10mFAB
50104571 K-D
M12W-4P-2mFAB
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: FAB
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: FAB
50104573 K-D
M12W-4P-5mFAB
50130654 KD U-M12-4A-
P1-020
50130672 KD U-M12-4A-
P1-020-DP
50130657 KD U-M12-4A-
P1-050
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: FAB
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
eng 2018-03-27
7 / 10
Page 8

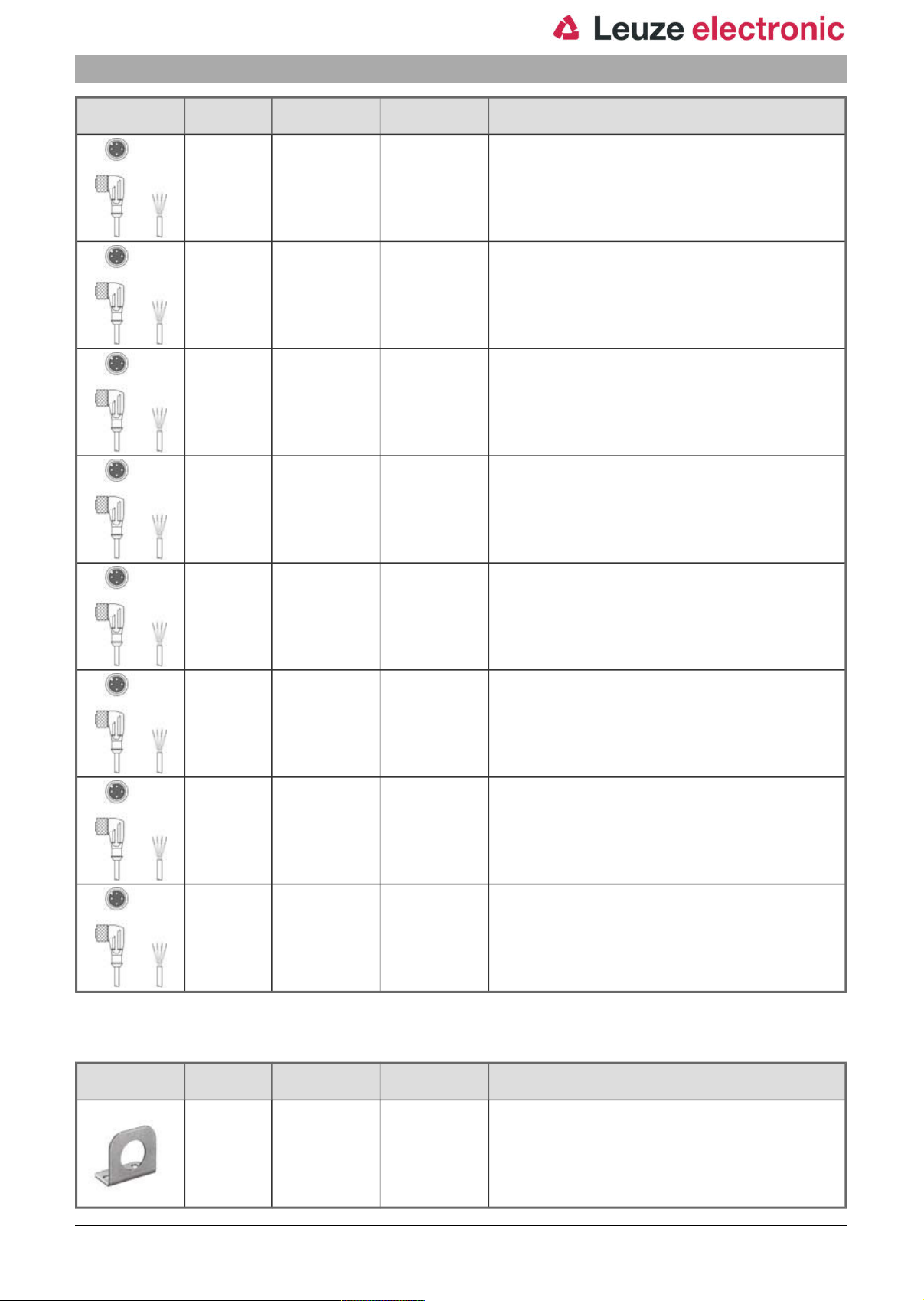

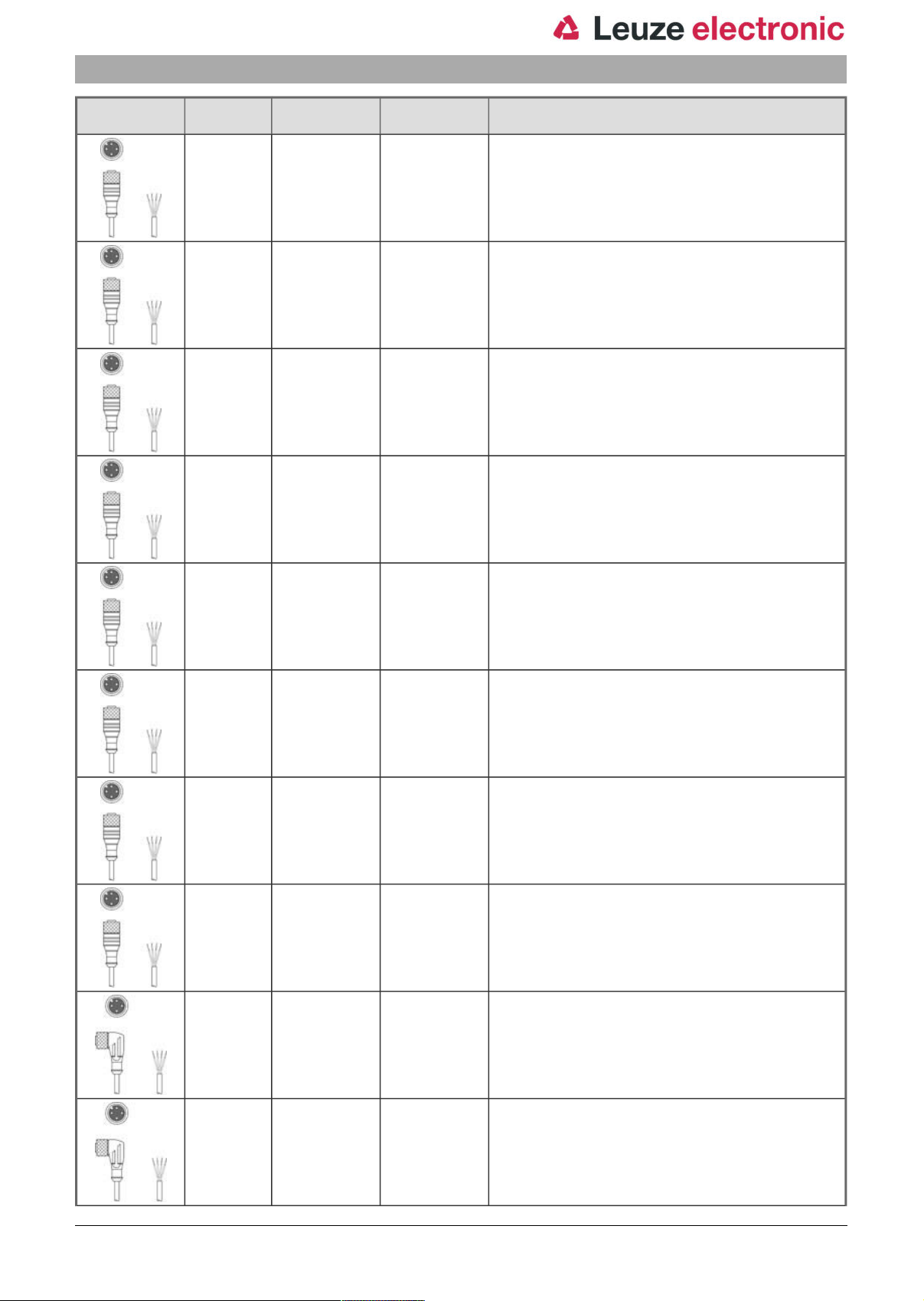

Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch
Part no. Designation Article Description
50130675 KD U-M12-4A-
P1-050-DP
50130658 KD U-M12-4A-
P1-100
50130676 KD U-M12-4A-
P1-100-DP
50130648 KD U-M12-4A-
V1-020
50130652 KD U-M12-4A-
V1-050
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
50130653 KD U-M12-4A-
V1-100
50132431 KD U-M12-4A-
V1-200
50132430 KD U-M12-4A-
V1-300
50130692 KD U-M12-4W-
P1-020
50130718 KD U-M12-4W-
P1-020-DP
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 30,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
eng 2018-03-27
8 / 10
Page 9
Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch
Part no. Designation Article Description
50130694 KD U-M12-4W-
P1-050
50130720 KD U-M12-4W-
P1-050-DP
50130695 KD U-M12-4W-
P1-100
50130721 KD U-M12-4W-
P1-100-DP
50130688 KD U-M12-4W-
V1-020
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
50130690 KD U-M12-4W-
V1-050
50130691 KD U-M12-4W-
V1-100
50132641 KD U-M12-4W-
V1-200
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin
Mounting technology - Mounting brackets
Part no. Designation Article Description
50113549 BT D12M.5 Mounting bracket Diameter, inner: 12 mm
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PVC
Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Rigid
Material: Stainless steel
eng 2018-03-27
9 / 10

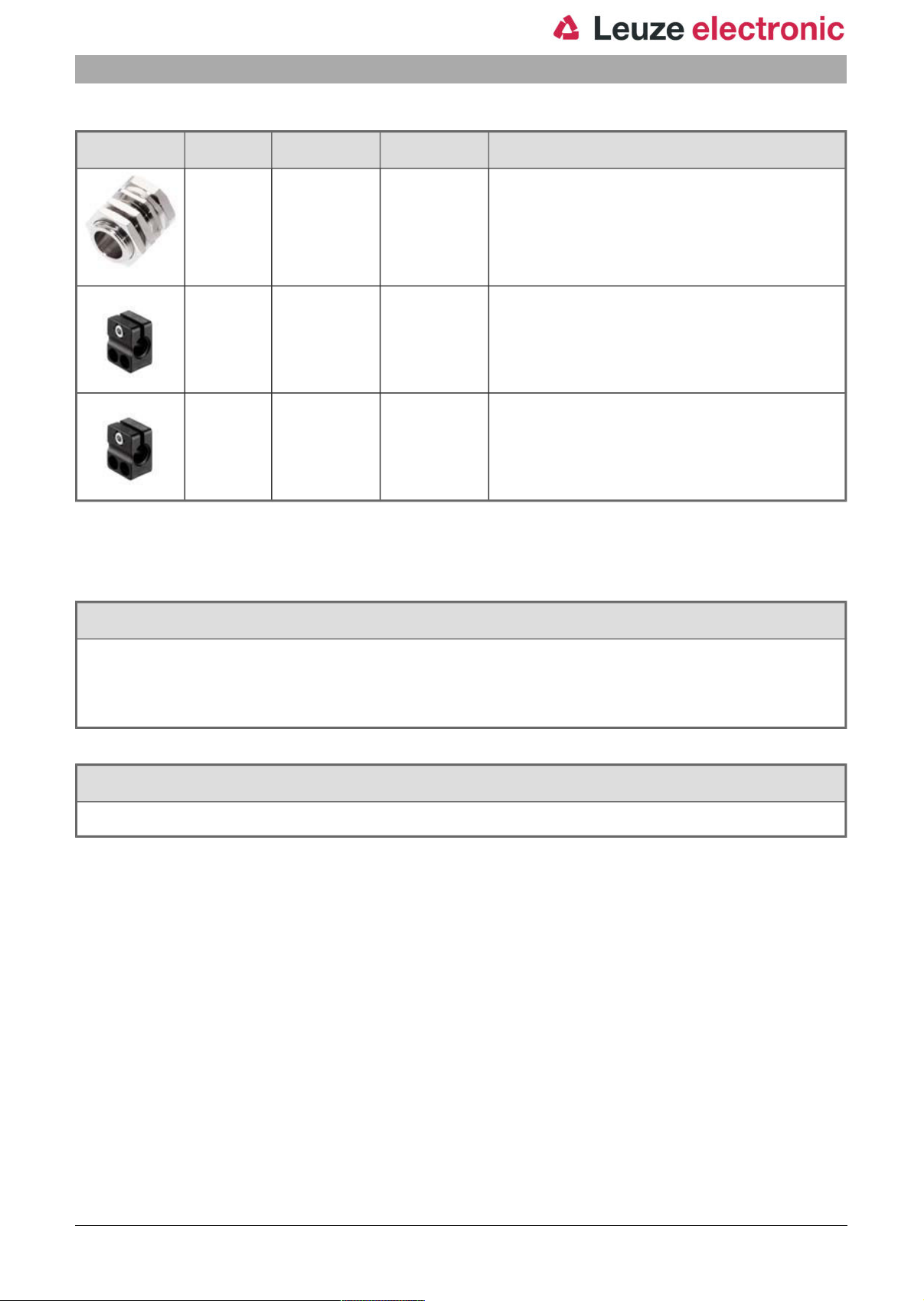

Page 10
Part no.: 50133409 – ISS 212MM/4NC-6E0-S12 – Inductive switch
Mounting technology - Other
Part no. Designation Article Description
Notes
Observe intended use!
50132729 AC D18M-CS Clamp Contains: 2x M24 mounting nut
Diameter, inner: 18 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Screw type, Through-hole
mounting
Mounting bracket, at device: Insertable, Clampable with limit
stop
Type of mounting device: Clampable, With limit stop
Material: Metal
50111499 MC 012K Clamp Diameter, inner: 12 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic
50111500 MC 012K-LS Clamp Diameter, inner: 12 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable with limit stop
Type of mounting device: Rigid
Material: Plastic
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
For UL applications:
• For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).
eng 2018-03-27
10 / 10
Loading...
