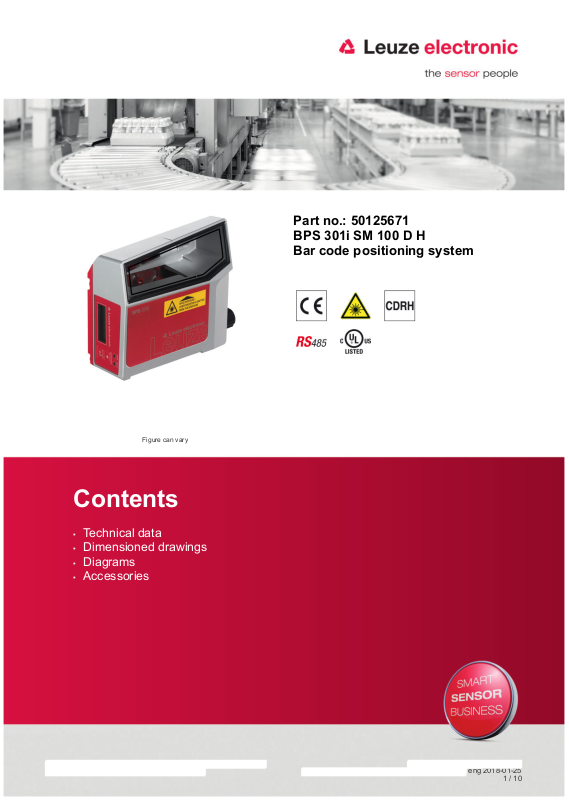

Part no.: 50125671
BPS 301i SM 100 D H
Bar code positioning system
Contents
▪ Technical data
▪ Dimensioned drawings
▪ Diagrams
▪ Accessories
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
Technical data
Basic data
Series BPS 300i
Order guide Bar code tape must be ordered separately
Functions
Functions Heating
Optical data
Depth of field 50 ... 170 mm
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2007
Light beam exit Lateral
Measurement data
Measurement range 0 ... 10,000,000 mm
Geometric resolution 0.01 ... 10 mm
Reproducibility (1 sigma) 0.15 mm
Measurement value output 1 ... 30 ms
Max. traverse rate 10 m/s
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 18 ... 30 V, DC
Power consumption, max. 17.7 W
Inputs/outputs selectable
Current, max. 60 mA
Number of inputs/outputs selectable 2 Piece(s)
Input current, max. 8 mA
Interface
Type RS 485
RS 485
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 8 data bits
Stop bit 1, 2 stop bits
Parity Adjustable
Data encoding Binary
Short circuit protected
Service interface
Type USB
USB
Function Service
eng 2018-01-25
2 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
Mechanical data
Dimension (W x H x L) 100 mm x 108.7 mm x 48.3 mm
Housing material Metal, Diecast aluminum
Lens cover material Glass
Net weight 580 g
Housing color Red
Type of fastening Dovetail grooves
Operation and display
Type of display LED
Type of configuration Via web browser
Environmental data
Ambient temperature, operation -35 ... 50 °C
Ambient temperature, storage -35 ... 70 °C
Relative humidity (non-condensing) 90 %
Silver
Fastening on back
Via optional mounting device
Certifications
Degree of protection IP 65, EN 60529 with various connectors or screwed-on caps
Protection class III
Certifications c UL US
Classification
eCl@ss 8.0 27280190
eCl@ss 9.0 27280190

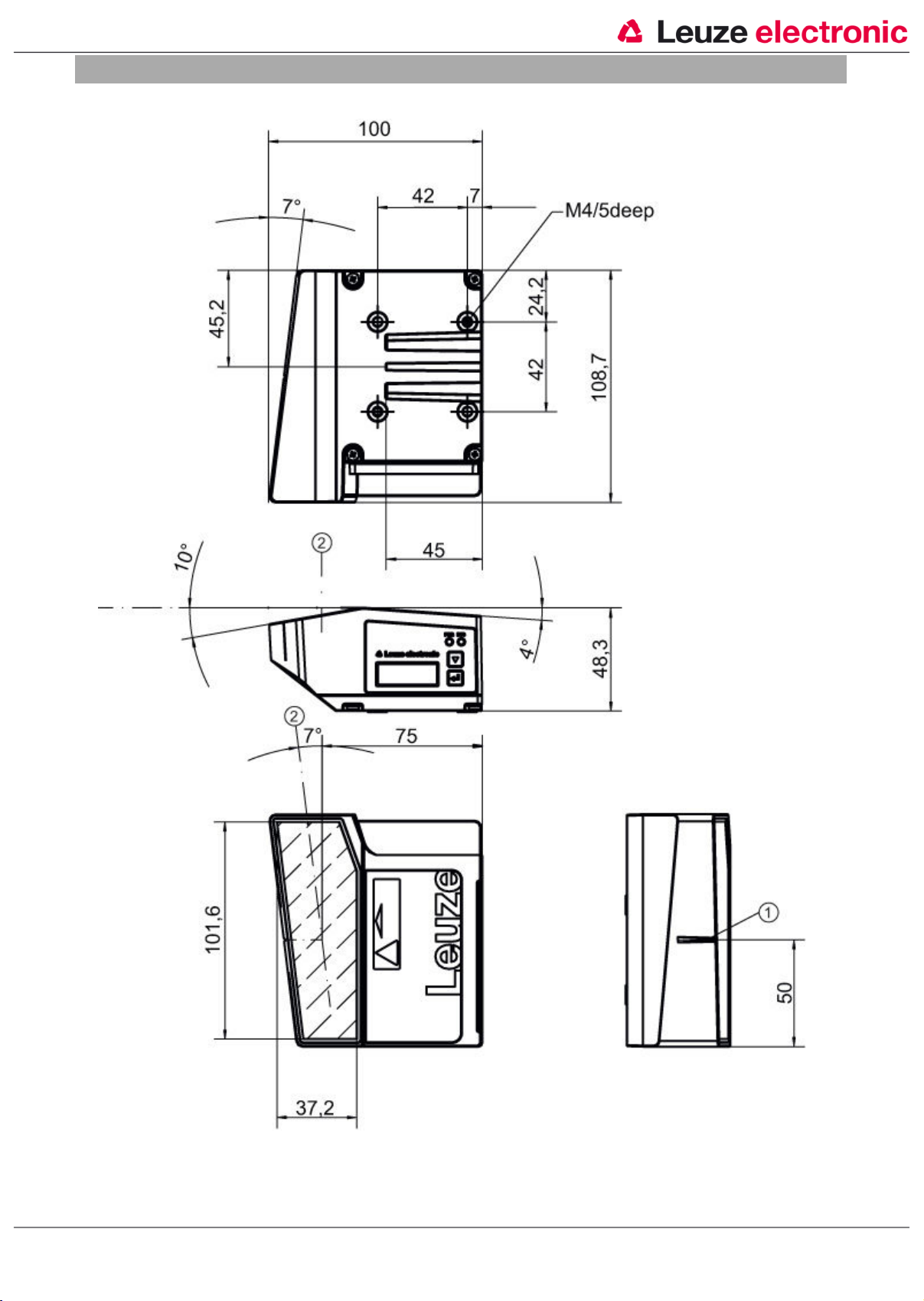

Dimensioned drawings
All dimensions in millimeters
eng 2018-01-25
3 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
eng 2018-01-25
4 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system

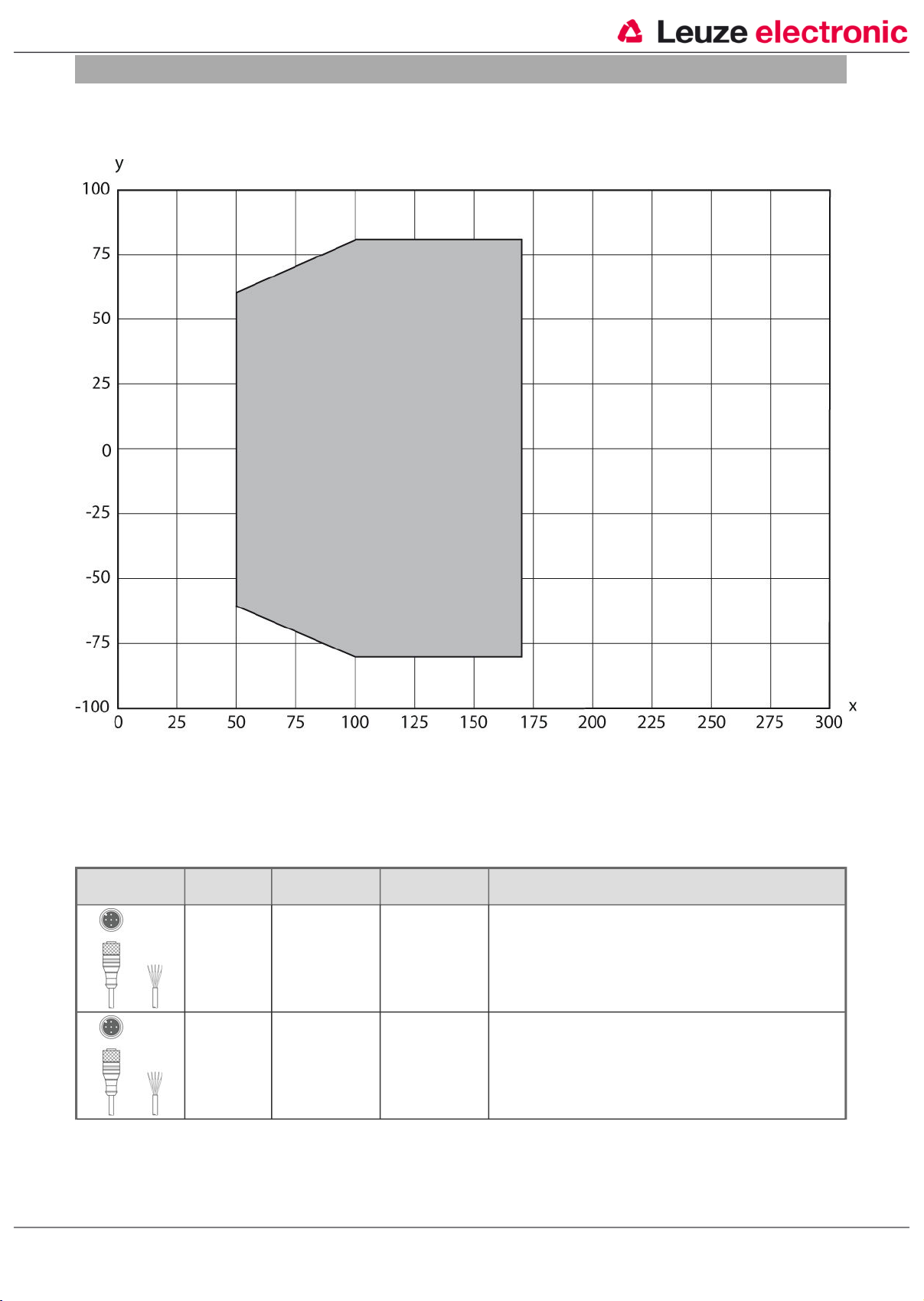

Diagrams
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50132077 KD U-M12-5A-
V1-020
50132079 KD U-M12-5A-
V1-050
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
eng 2018-01-25
5 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
Part no. Designation Article Description

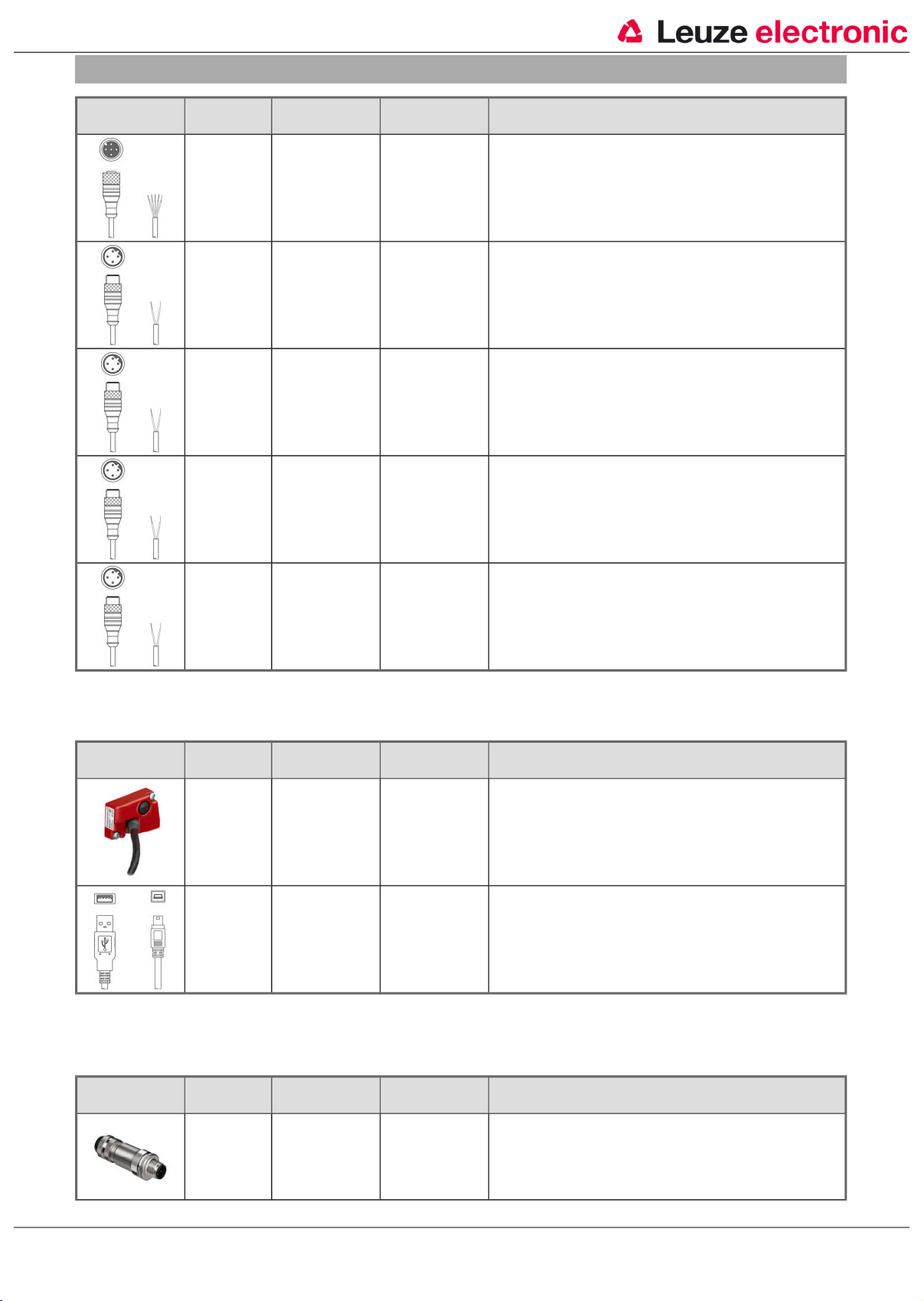

50132080 KD U-M12-5A-
V1-100
50135248 KS PB-M12-4A-
P3-050
50135249 KS PB-M12-4A-
P3-100
50135250 KS PB-M12-4A-
P3-150
50135251 KS PB-M12-4A-
P3-300
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection cable Suitable for interface: PROFIBUS DP
Connection 1: Connector, M12, Axial, Male, B-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: PROFIBUS DP
Connection 1: Connector, M12, Axial, Male, B-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: PROFIBUS DP
Connection 1: Connector, M12, Axial, Male, B-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: PROFIBUS DP
Connection 1: Connector, M12, Axial, Male, B-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
Connection technology - Interconnection cables
Part no. Designation Article Description
50114571 * KB 301-3000 Interconnection
50117011 KB USB A - USB
miniB
* Necessary accessories, please order separately
cable
Service line Suitable for interface: USB
Suitable for interface: RS 232
Connection 1: Socket connector
Connection 2: JST ZHR, 10 -pin, 6 -pin
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
Connection 1: USB
Connection 2: USB
Shielded: Yes
Cable length: 1,500 mm
Sheathing material: PVC
Connection technology - Connectors
Part no. Designation Article Description
50038537 KD 02-5-SA Connector Suitable for interface: PROFIBUS DP, MultiNet Plus
Connection: Connector, M12, Axial, Male, B-coded, 5 -pin
eng 2018-01-25
6 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
Part no. Designation Article Description

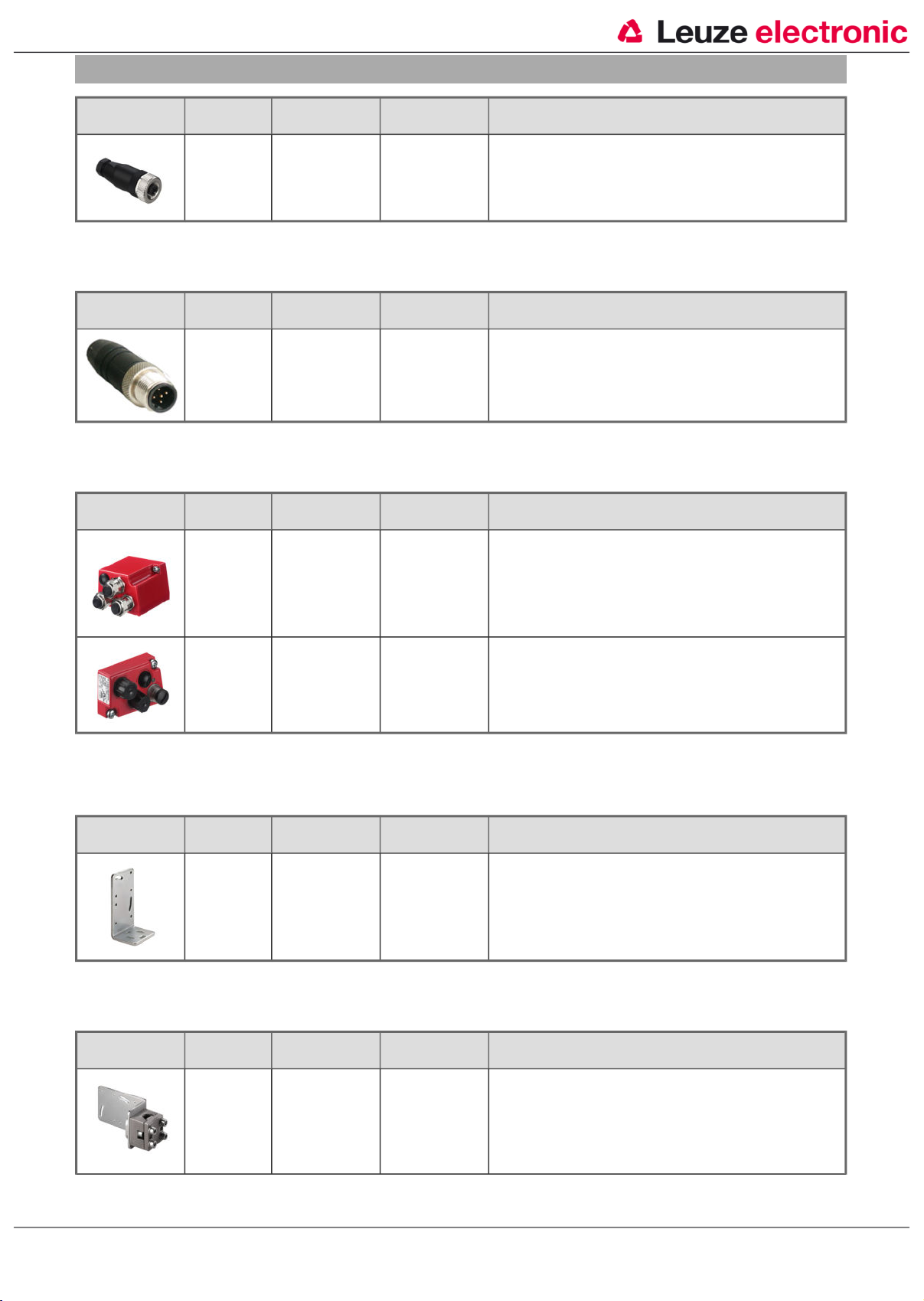

50020501 KD 095-5A Connector Connection: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection technology - Terminating resistors
Part no. Designation Article Description
50038539 TS 02-4-SA Terminator plug Suitable for: MultiNet Plus, PROFIBUS DP
Connection technology - Terminal boxes
Part no. Designation Article Description
50116464 * MK 301 Connection unit Suitable for: BCL 301i, BPS 301i
50116469 * MS 301 Connection unit Suitable for: BCL 301i, BPS 301i
* Necessary accessories, please order separately
Connection 1: Connector, M12, Axial, Male, B-coded, 4 -pin
Function: Bus termination
Suitable for interface: MultiNet Plus
Number of connections: 4 Piece(s)
Connection: Terminal
Suitable for interface: MultiNet Plus
Number of connections: 5 Piece(s)
Connection: Connector, M12
Mounting technology - Mounting brackets
Part no. Designation Article Description
50121433 BT 300 W Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock
Mounting technology - Rod mounts
Part no. Designation Article Description
50121434 BT 300 - 1 Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock
washers
Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Adjustable
Material: Metal
washers
Design of mounting device: Mounting system
Mounting bracket, at system: For 12 mm rod, For 14 mm rod,
For 16 mm rod
Mounting bracket, at device: Screw type
Type of mounting device: Turning, 360°, Adjustable
Material: Metal
eng 2018-01-25
7 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
Part no. Designation Article Description

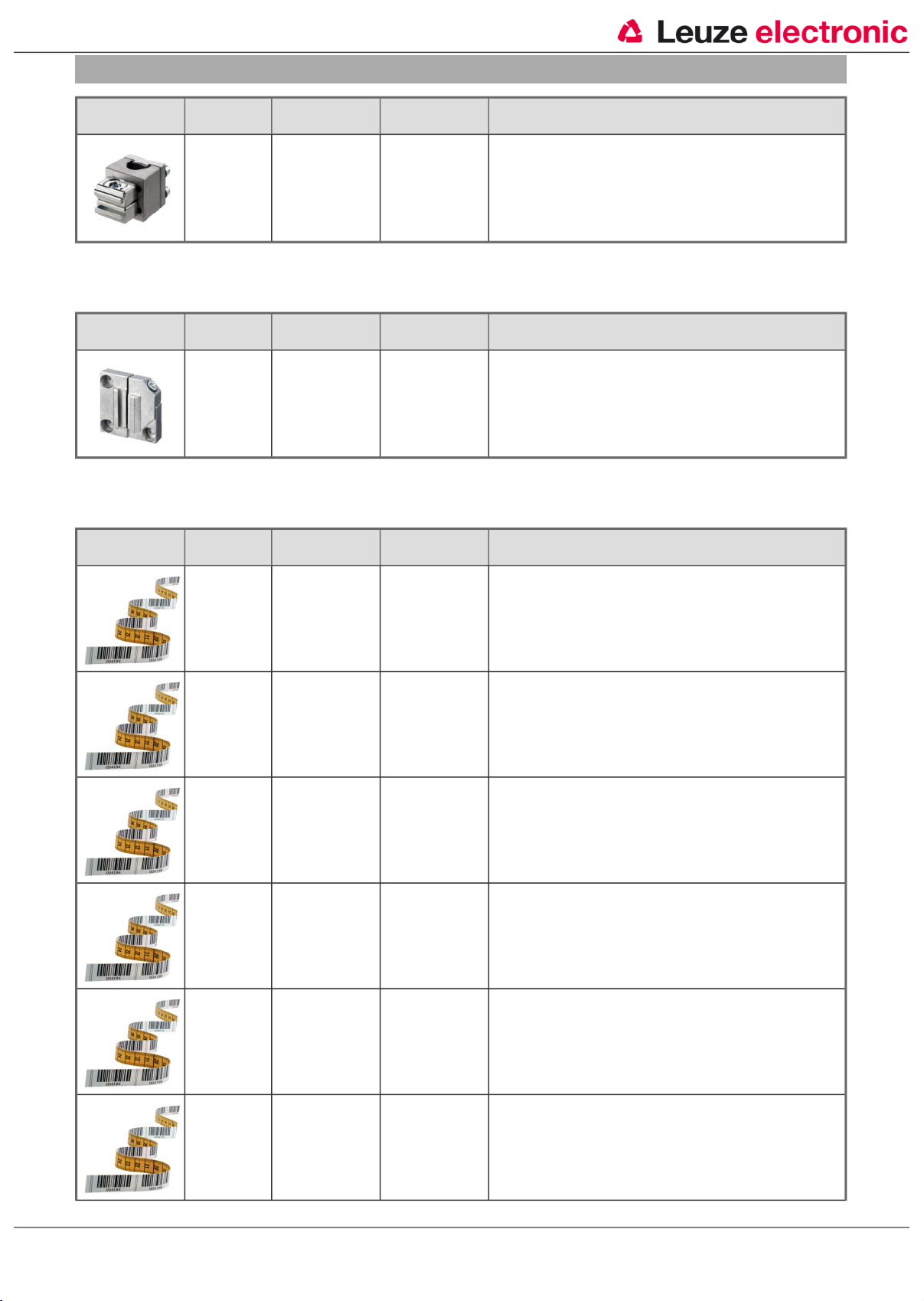

50027375 BT 56 Mounting device Design of mounting device: Mounting system
Mounting technology - Other
Part no. Designation Article Description
50124941 BTU 0300M-W Mounting device Mounting bracket, at system: Through-hole mounting
Bar code tape
Part no. Designation Article Description
50038895 BCB 005 Bar code tape Dimensions: 47 mm x 5,000 mm
Mounting bracket, at system: For 16 mm rod, For 18 mm rod,
For 20 mm rod
Mounting bracket, at device: Clampable
Material: Metal
Tightening torque of the clamping jaws: 8 N·m
Functions: Static applications
Mounting bracket, at device: Clampable, Groove mounting
Material: Metal
Grid dimension: 40 mm
50040041 BCB 010 Bar code tape Dimensions: 47 mm x 10,000 mm
50037489 BCB 020 Bar code tape Dimensions: 47 mm x 20,000 mm
50037491 BCB 030 Bar code tape Dimensions: 47 mm x 30,000 mm
50037492 BCB 040 Bar code tape Dimensions: 47 mm x 40,000 mm
50038894 BCB 050 Bar code tape Dimensions: 47 mm x 50,000 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
eng 2018-01-25
8 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
Part no. Designation Article Description
50038893 BCB 060 Bar code tape Dimensions: 47 mm x 60,000 mm
50038892 BCB 070 Bar code tape Dimensions: 47 mm x 70,000 mm
50038891 BCB 080 Bar code tape Dimensions: 47 mm x 80,000 mm
50038890 BCB 090 Bar code tape Dimensions: 47 mm x 90,000 mm
50037493 BCB 100 Bar code tape Dimensions: 47 mm x 100,000 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
50040042 BCB 110 Bar code tape Dimensions: 47 mm x 110,000 mm
50040043 BCB 120 Bar code tape Dimensions: 47 mm x 120,000 mm
50040044 BCB 130 Bar code tape Dimensions: 47 mm x 130,000 mm
50040045 BCB 140 Bar code tape Dimensions: 47 mm x 140,000 mm
50040046 BCB 150 Bar code tape Dimensions: 47 mm x 150,000 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
eng 2018-01-25
9 / 10
Part no.: 50125671 – BPS 301i SM 100 D H – Bar code positioning system
Part no. Designation Article Description
50037494 BCB 200 Bar code tape Dimensions: 47 mm x 200,000 mm
50102600 BCB special
length 25mm
height
50037495 BCB special
length 47mm
height
50126134 MV0 Label 40mm
10er Pack
50106478 MVS label 40mm
10 pieces
Bar code tape Dimensions: 25 mm
Bar code tape Dimensions: 47 mm
Label set Dimensions: 47 mm x 40 mm
Label set Dimensions: 47 mm x 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
Grid dimension: 40 mm
eng 2018-01-25
10 / 10
