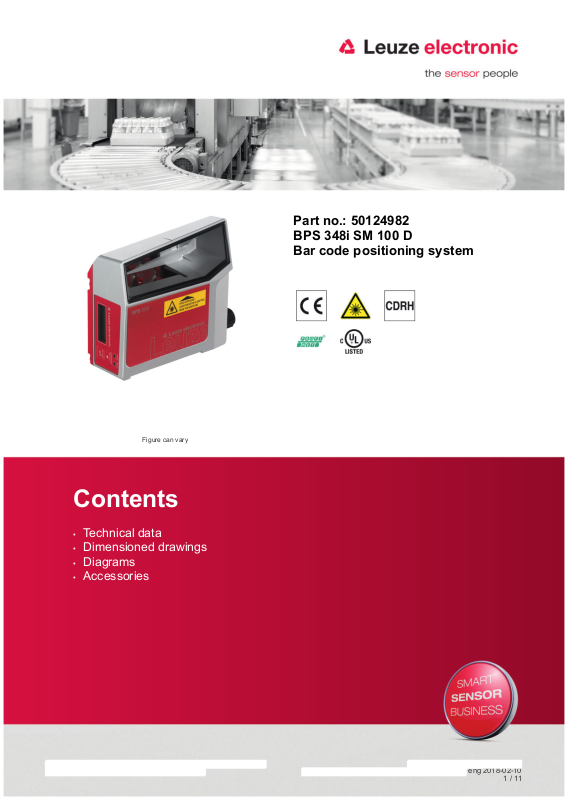

Leuze 50124982 Data Sheet

Figure can vary

Part no.: 50124982 BPS 348i SM 100 D Bar code positioning system

Technical data

Basic data

Series BPS 300i

Order guide Bar code tape must be ordered separately

Optical data

Depth of field 50 ... 170 mm

Light source Laser, Red

Laser class 2, IEC/EN 60825-1:2007

Light beam exit Lateral

Measurement data

Measurement range 0 ... 10,000,000 mm

Geometric resolution 0.001 ... 10 mm

Reproducibility (1 sigma) 0.15 mm

Measurement value output 2 ms

Max. traverse rate 10 m/s

Operation only possible in combination with MS 3xx, MK 3xx or ME 348 103 connection unit

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 18 ... 30 V, DC

Power consumption, max. 3.7 W

Inputs/outputs selectable

Output current, max. 60 mA

Number of inputs/outputs selectable 2 Piece(s)

Input current, max. 8 mA

Interface

Type PROFINET

Profinet

Conformance class B

Protocol PROFINET RT

Switch functionality Integrated

Transmission speed 100 Mbit/s

Service interface

Type USB

USB

Function Configuration via GSDML modules

Polarity reversal protection

Service

Mechanical data

Dimension (W x H x L) 100 mm x 108.7 mm x 48.3 mm

Housing material Metal, Diecast aluminum

Lens cover material Glass

Net weight 580 g

eng 2018-02-10

2 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

Housing color Silver

Type of fastening Dovetail grooves

Operation and display

Type of display LED

Type of configuration Via web browser

Environmental data

Ambient temperature, operation -5 ... 50 °C

Ambient temperature, storage -35 ... 70 °C

Relative humidity (non-condensing) 90 %

Certifications

Degree of protection IP 65, EN 60529 with various connectors or screwed-on caps

Protection class III

Certifications c UL US

Classification

eCl@ss 8.0 27280190

eCl@ss 9.0 27280190

Red

Fastening on back Via optional mounting device

Dimensioned drawings

All dimensions in millimeters

eng 2018-02-10

3 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

eng 2018-02-10

4 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

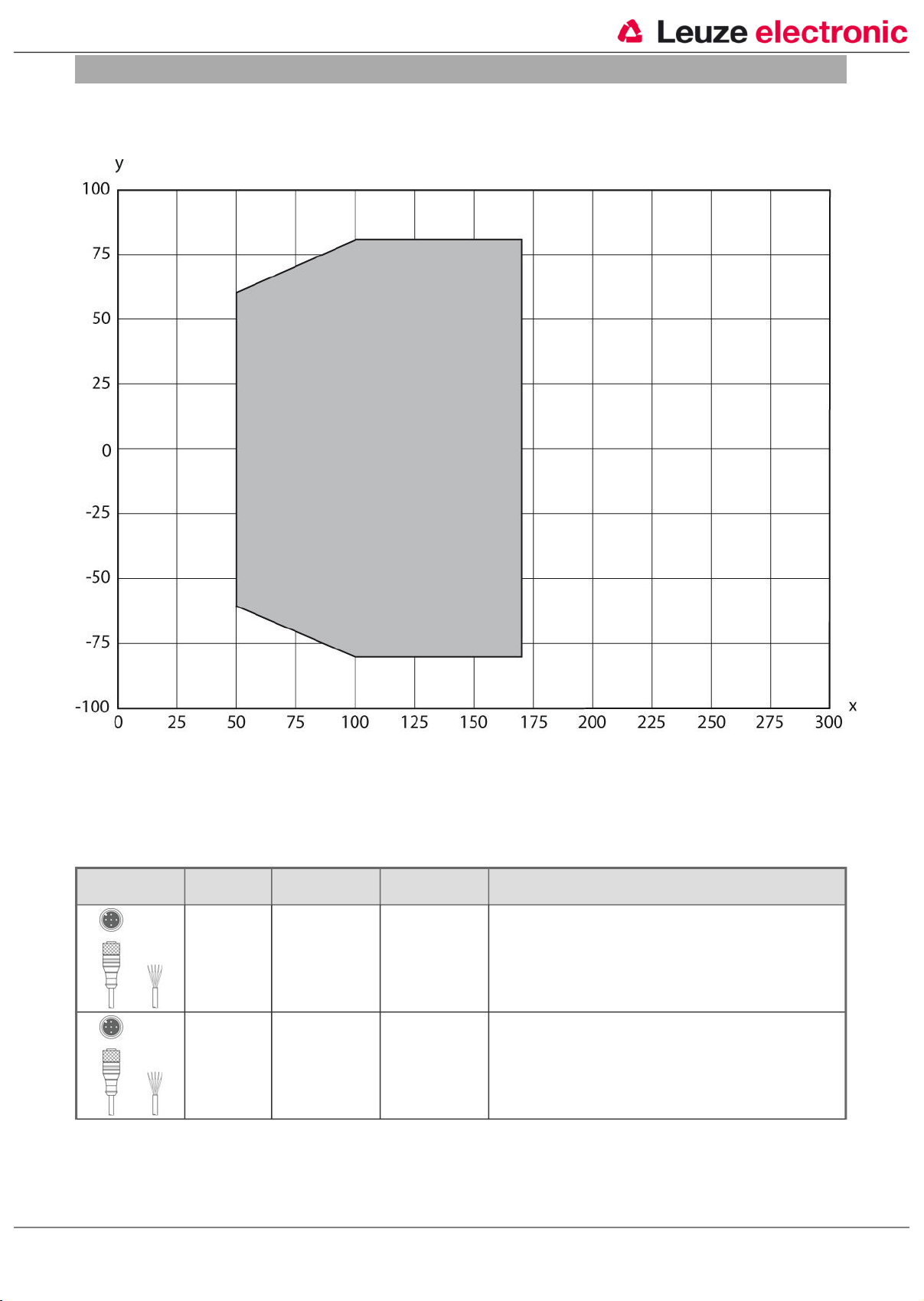

Diagrams

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50132077 KD U-M12-5A-

V1-020

50132079 KD U-M12-5A-

V1-050

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

eng 2018-02-10

5 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

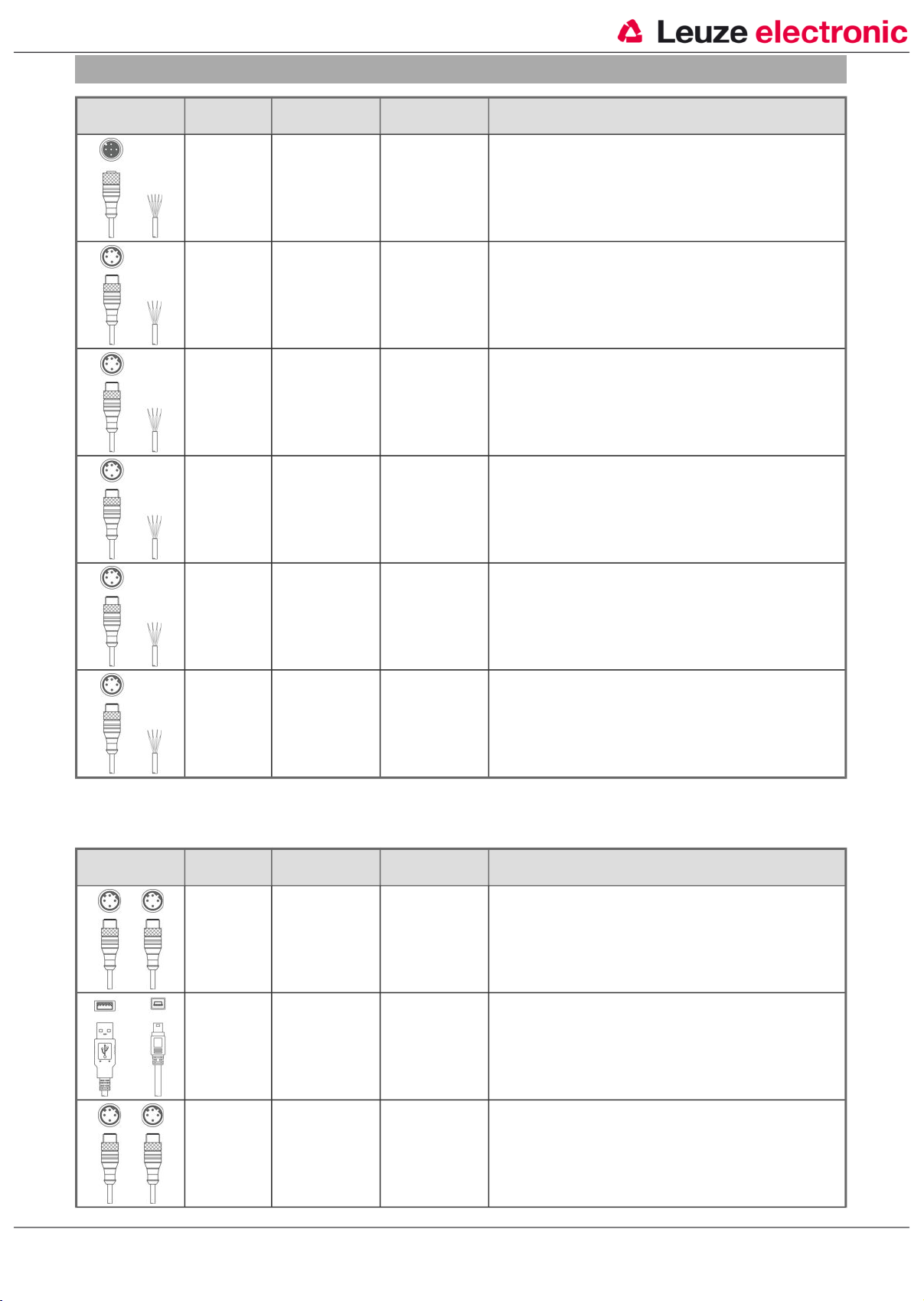

Part no. Designation Article Description

50132080 KD U-M12-5A-

V1-100

50135073 KS ET-M12-4A-

P7-020

50135074 KS ET-M12-4A-

P7-050

50135075 KS ET-M12-4A-

P7-100

50135076 KS ET-M12-4A-

P7-150

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

Connection 2: Open end Shielded: No Cable length: 10,000 mm Sheathing material: PVC

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 2,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 10,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 15,000 mm Sheathing material: PUR

50135077 KS ET-M12-4A-

P7-300

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 30,000 mm Sheathing material: PUR

Connection technology - Interconnection cables

Part no. Designation Article Description

50106905 KB

ET-30000-SSA

50117011 KB USB A - USB

miniB

50137077 KSS ET-M12-4A-

M12-4A-P7-020

Interconnection cable

Service line Suitable for interface: USB

Interconnection cable

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 30,000 mm Sheathing material: PUR

Connection 1: USB Connection 2: USB Shielded: Yes Cable length: 1,500 mm Sheathing material: PVC

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 1,000 mm Sheathing material: PUR

eng 2018-02-10

6 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

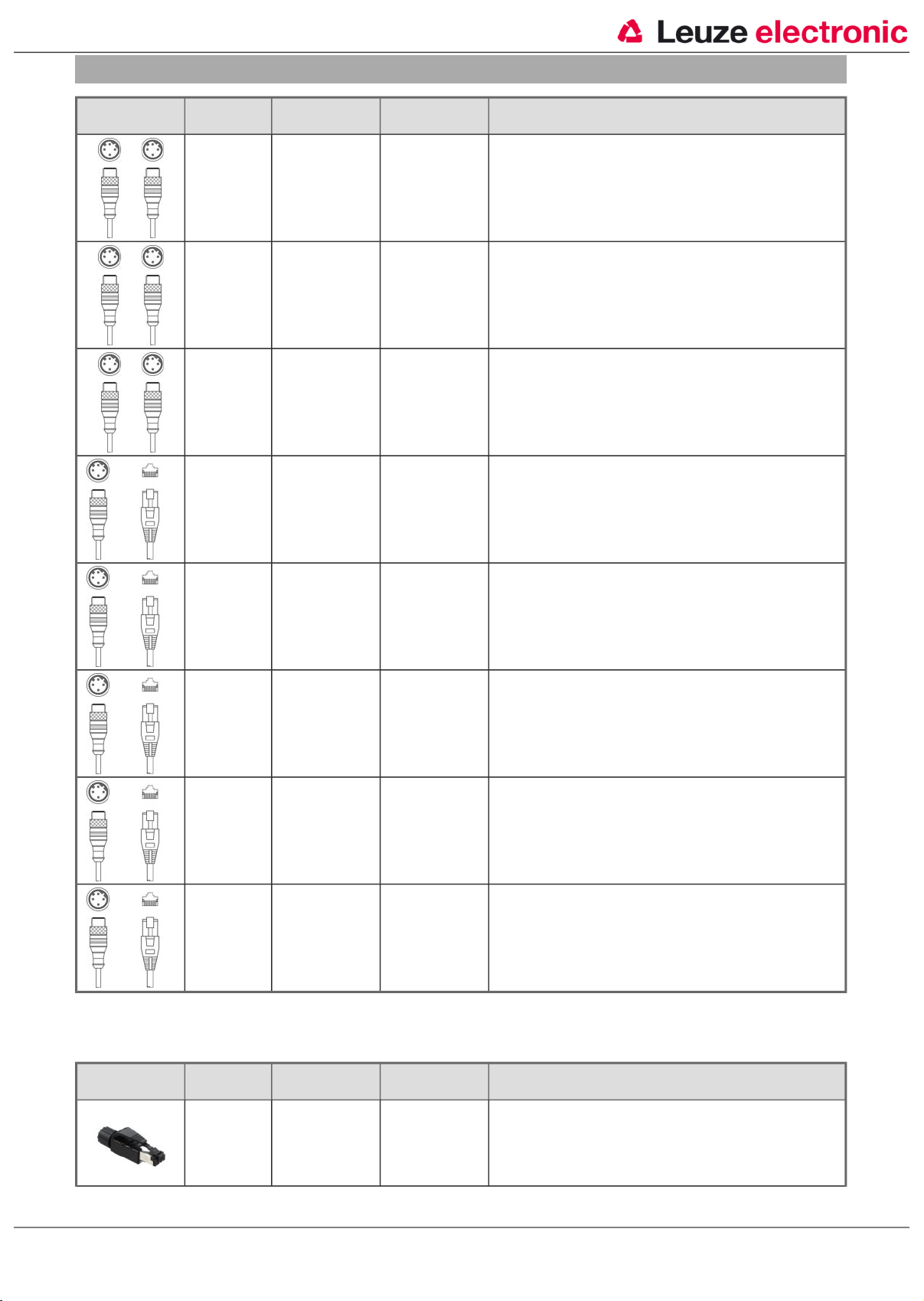

Part no. Designation Article Description

50137078 KSS ET-M12-4A-

M12-4A-P7-050

50137079 KSS ET-M12-4A-

M12-4A-P7-100

50137080 KSS ET-M12-4A-

M12-4A-P7-150

50135080 KSS ET-M12-4A-

RJ45-A-P7-020

50135081 KSS ET-M12-4A-

RJ45-A-P7-050

Interconnection cable

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 1,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 10,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 15,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 2,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 5,000 mm Sheathing material: PUR

50135082 KSS ET-M12-4A-

RJ45-A-P7-100

50135083 KSS ET-M12-4A-

RJ45-A-P7-150

50135084 KSS ET-M12-4A-

RJ45-A-P7-300

Interconnection cable

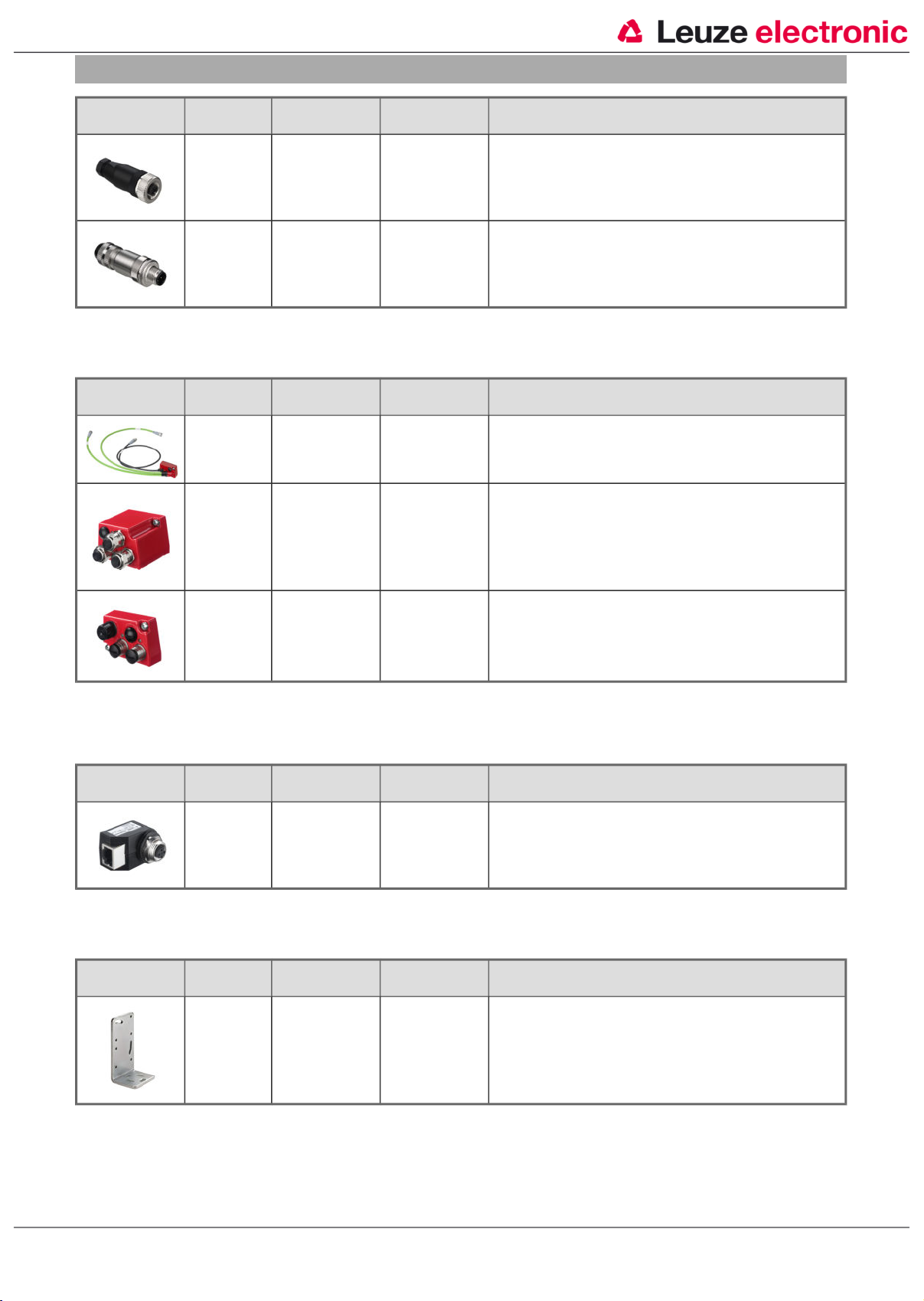

Connection technology - Connectors

Part no. Designation Article Description

50108991 D-ET1 Connector Suitable for interface: Ethernet

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 10,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 15,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 30,000 mm Sheathing material: PUR

Connection: RJ45

eng 2018-02-10

7 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

Part no. Designation Article Description

50020501 KD 095-5A Connector Connection: Connector, M12, Axial, Female, A-coded, 5 -pin

50112155 S-M12A-ET Connector Suitable for interface: Ethernet

Connection technology - Terminal boxes

Part no. Designation Article Description

50131256 * ME 348 103 Connection unit Suitable for: BCL 348i

50116467 * MK 348 Connection unit Suitable for: BCL 348i, BPS 348i

50116471 * MS 348 Connection unit Suitable for: BCL 348i, BPS 348i

Connection: Connector, M12, Axial, Male, D-coded, 4 -pin

Suitable for interface: PROFINET Number of connections: 4 Piece(s) Connection: Cable with connector, M12, 900 mm

Suitable for interface: PROFINET Number of connections: 4 Piece(s) Connection: Terminal

Suitable for interface: PROFINET Number of connections: 4 Piece(s) Connection: Connector, M12

* Necessary accessories, please order separately

Connection technology - Adapters

Part no. Designation Article Description

50109832 KDS ET-M12 /

RJ45 W-4P

Adapter Suitable for: Ethernet

Mounting technology - Mounting brackets

Part no. Designation Article Description

50121433 BT 300 W Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock

Number of connections: 2 Piece(s) Connection 1: Connector, M12, Angled, Female, D-coded, 4 -pin Connection 2: RJ45

washers Design of mounting device: Angle, L-shape Mounting bracket, at system: Through-hole mounting Mounting bracket, at device: Screw type Type of mounting device: Adjustable Material: Metal

eng 2018-02-10

8 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

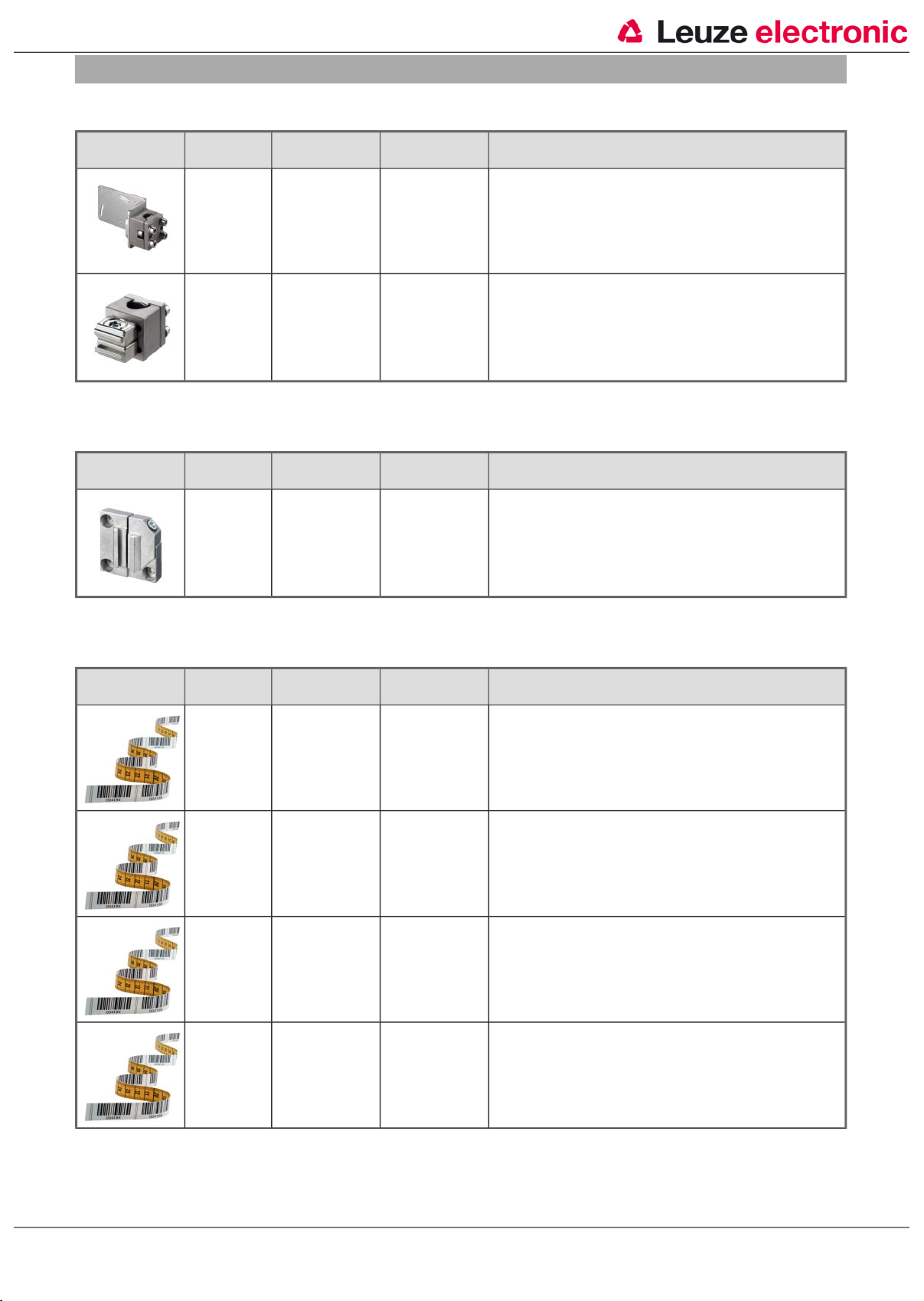

Mounting technology - Rod mounts

Part no. Designation Article Description

50121434 BT 300 - 1 Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock

50027375 BT 56 Mounting device Design of mounting device: Mounting system

Mounting technology - Other

Part no. Designation Article Description

50124941 BTU 0300M-W Mounting device Mounting bracket, at system: Through-hole mounting

washers Design of mounting device: Mounting system Mounting bracket, at system: For 12 mm rod, For 14 mm rod, For 16 mm rod Mounting bracket, at device: Screw type Type of mounting device: Turning, 360°, Adjustable Material: Metal

Mounting bracket, at system: For 16 mm rod, For 18 mm rod, For 20 mm rod Mounting bracket, at device: Clampable Material: Metal Tightening torque of the clamping jaws: 8 N·m Functions: Static applications

Mounting bracket, at device: Clampable, Groove mounting Material: Metal

Bar code tape

Part no. Designation Article Description

50038895 BCB 005 Bar code tape Dimensions: 47 mm x 5,000 mm

50040041 BCB 010 Bar code tape Dimensions: 47 mm x 10,000 mm

50037489 BCB 020 Bar code tape Dimensions: 47 mm x 20,000 mm

50037491 BCB 030 Bar code tape Dimensions: 47 mm x 30,000 mm

Grid dimension: 40 mm

eng 2018-02-10

9 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

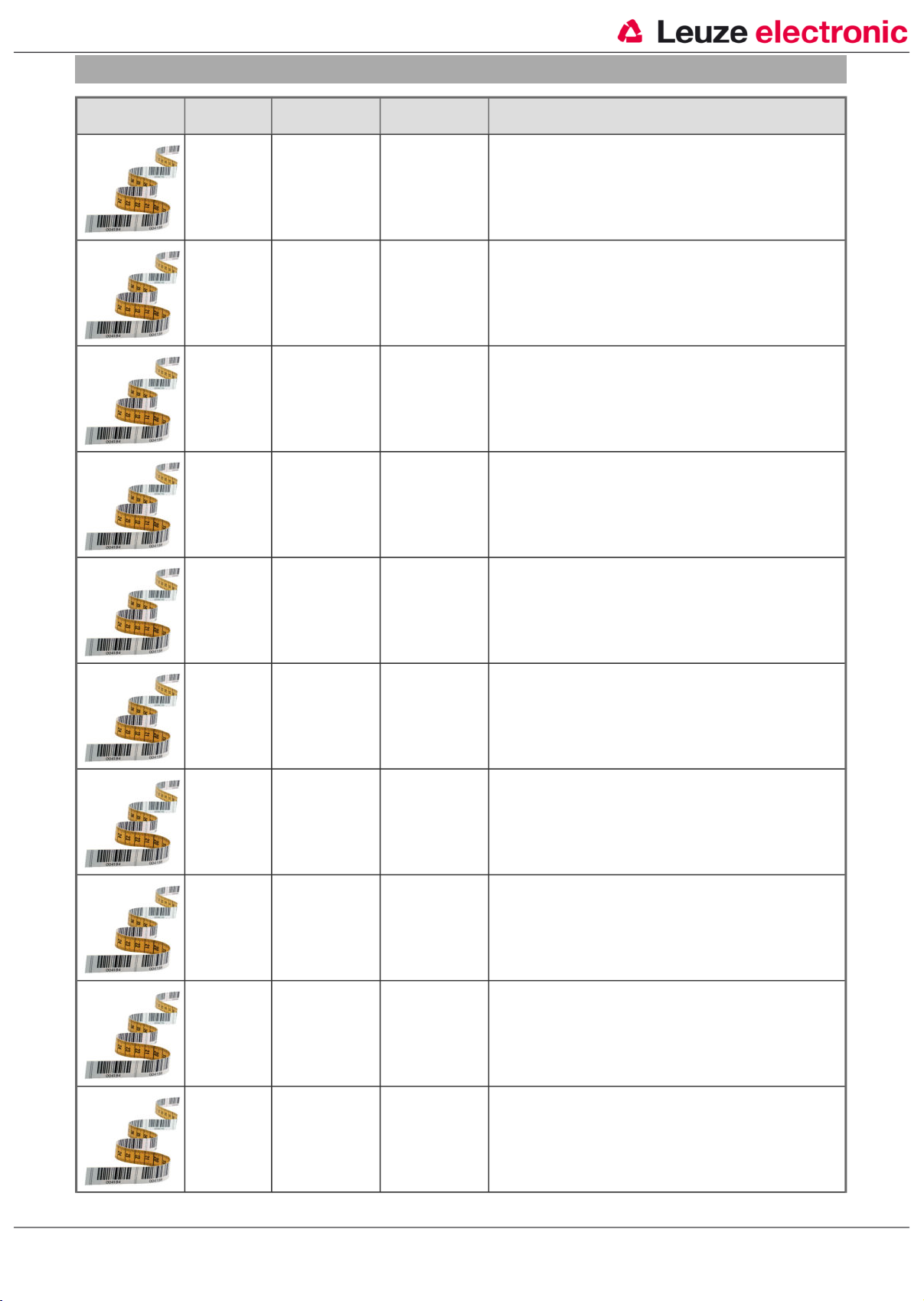

Part no. Designation Article Description

50037492 BCB 040 Bar code tape Dimensions: 47 mm x 40,000 mm

50038894 BCB 050 Bar code tape Dimensions: 47 mm x 50,000 mm

50038893 BCB 060 Bar code tape Dimensions: 47 mm x 60,000 mm

50038892 BCB 070 Bar code tape Dimensions: 47 mm x 70,000 mm

50038891 BCB 080 Bar code tape Dimensions: 47 mm x 80,000 mm

Grid dimension: 40 mm

50038890 BCB 090 Bar code tape Dimensions: 47 mm x 90,000 mm

50037493 BCB 100 Bar code tape Dimensions: 47 mm x 100,000 mm

50040042 BCB 110 Bar code tape Dimensions: 47 mm x 110,000 mm

50040043 BCB 120 Bar code tape Dimensions: 47 mm x 120,000 mm

50040044 BCB 130 Bar code tape Dimensions: 47 mm x 130,000 mm

Grid dimension: 40 mm

eng 2018-02-10

10 / 11

Part no.: 50124982 – BPS 348i SM 100 D – Bar code positioning system

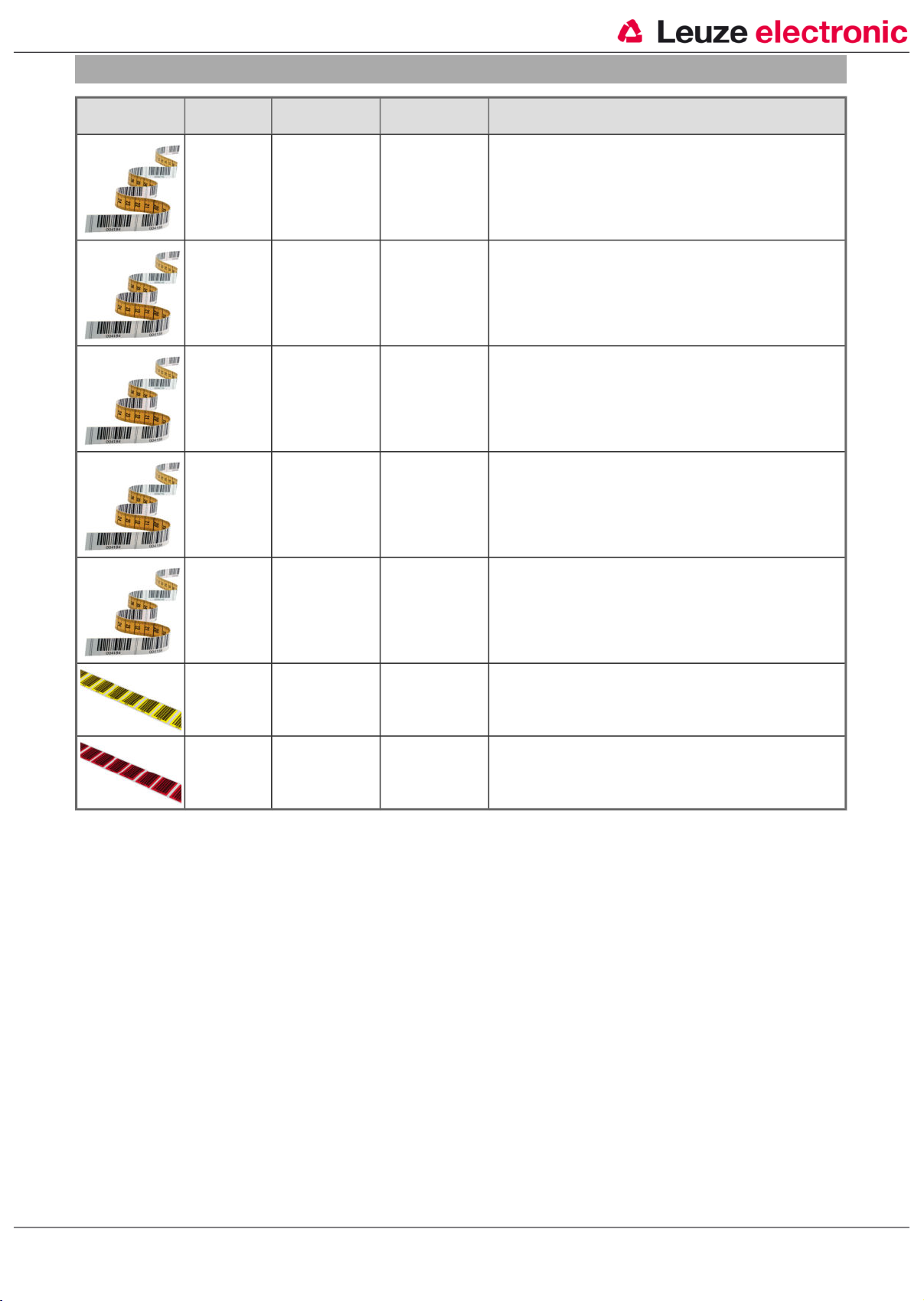

Part no. Designation Article Description

50040045 BCB 140 Bar code tape Dimensions: 47 mm x 140,000 mm

50040046 BCB 150 Bar code tape Dimensions: 47 mm x 150,000 mm

50037494 BCB 200 Bar code tape Dimensions: 47 mm x 200,000 mm

50102600 BCB special

length 25mm height

50037495 BCB special

length 47mm height

Bar code tape Dimensions: 25 mm

Bar code tape Dimensions: 47 mm

Grid dimension: 40 mm

50126134 MV0 Label 40mm

10er Pack

50106478 MVS label 40mm

10 pieces

Label set Dimensions: 47 mm x 40 mm

Grid dimension: 40 mm

Label set Dimensions: 47 mm x 40 mm

Grid dimension: 40 mm

eng 2018-02-10

11 / 11
