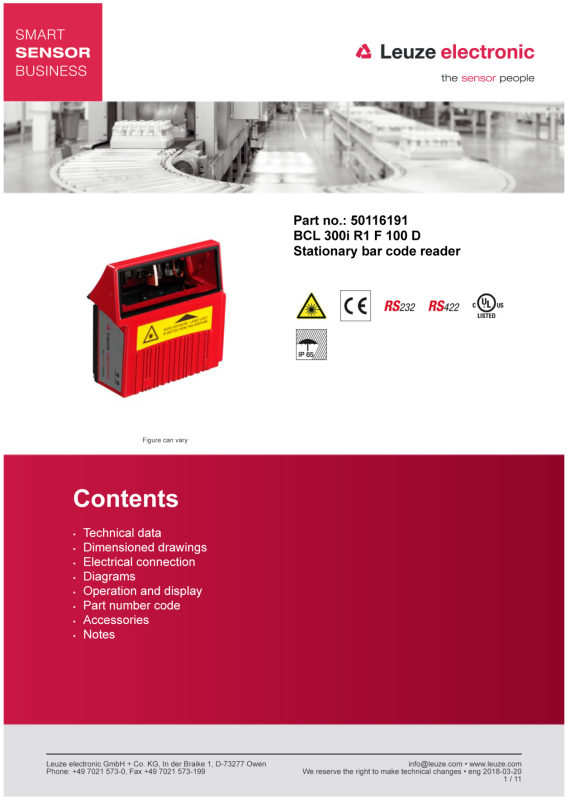

Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader
Technical data
Basic data
Series BCL 300i
Functions
Functions Alignment mode
Characteristic parameters
MTTF 110 years
Read data
Code types, readable Codabar
Scanning rate, typical 1,000 scans/s
Bar codes per reading gate, max. number 64 Piece(s)
Code fragment technology
Reference code comparison
AutoReflAct
LED indicator
AutoControl
AutoConfig
GS1 Databar Omnidirectional
EAN 8/13
Code 93
UPC
GS1 Databar Limited
GS1 Databar Expanded
Code 128
Code 39
2/5 Interleaved
Optical data
Reading distance 70 ... 440 mm
Light source Laser, Red
Laser light wavelength 655 nm
Laser class 2, IEC/EN 60825-1:2007
Transmitted-signal shape Continuous
Usable opening angle (reading field opening) 60 °
Module size 0.3 ... 0.5 mm
Reading method Raster scanner with deflecting mirror
Beam deflection By means of rotating polygon mirror wheel + deflecting mirror
Light beam exit Lateral with deflecting mirror
Raster (number of lines) 8 Piece(s)
Scanning field at scanner distance of 100 mm 17 mm
Scanning field at scanner distance of 200 mm 27 mm
Scanning field at scanner distance of 300 mm 38 mm
Scanning field at scanner distance of 400 mm 48 mm
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 18 ... 30 V, DC
Power consumption, max. 4.5 W
eng 2018-03-20
2 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader
Inputs/outputs selectable
Output current, max. 60 mA
Number of inputs/outputs selectable 2 Piece(s)
Input current, max. 8 mA
Interface
Type RS 232, RS 422
RS 232
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 7,8
Stop bit 1, 2 stop bits
Parity Adjustable
Transmission protocol <STX><data><CR><LF>
Data encoding ASCII
RS 422
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 7, 8 data bits
Stop bit 1, 2 stop bits
Transmission protocol Adjustable
Data encoding ASCII
Service interface
Type USB
USB
Function Configuration via software
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Plug connector
Function Service interface
No. of pins 32 -pin
Type Male
Mechanical data
Design Cubic
Dimension (W x H x L) 103 mm x 44 mm x 96 mm
Housing material Metal, Diecast aluminum
Lens cover material Glass
Net weight 350 g
Data interface
Connection to device
BUS OUT
PWR / SW IN/OUT
eng 2018-03-20
3 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader
Housing color Red
Type of fastening Fastening on back
Operation and display
Type of display Monochromatic graphic display, 128 x 32 pixels
Number of LEDs 2 Piece(s)
Type of configuration Via web browser
Environmental data
Ambient temperature, operation 0 ... 40 °C
Ambient temperature, storage -20 ... 70 °C
Relative humidity (non-condensing) 0 ... 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
Test procedure for EMC in accordance with standard EN 61000-4-2, 3, -4, -6
Test procedure for shock in accordance with standard IEC 60068-2-27, test Ea
Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb
Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc
Black
Dovetail grooves
Via optional mounting device
LED
EN 55022
Classification
eCl@ss 8.0 27280102
eCl@ss 9.0 27280102
ETIM 5.0 EC002550

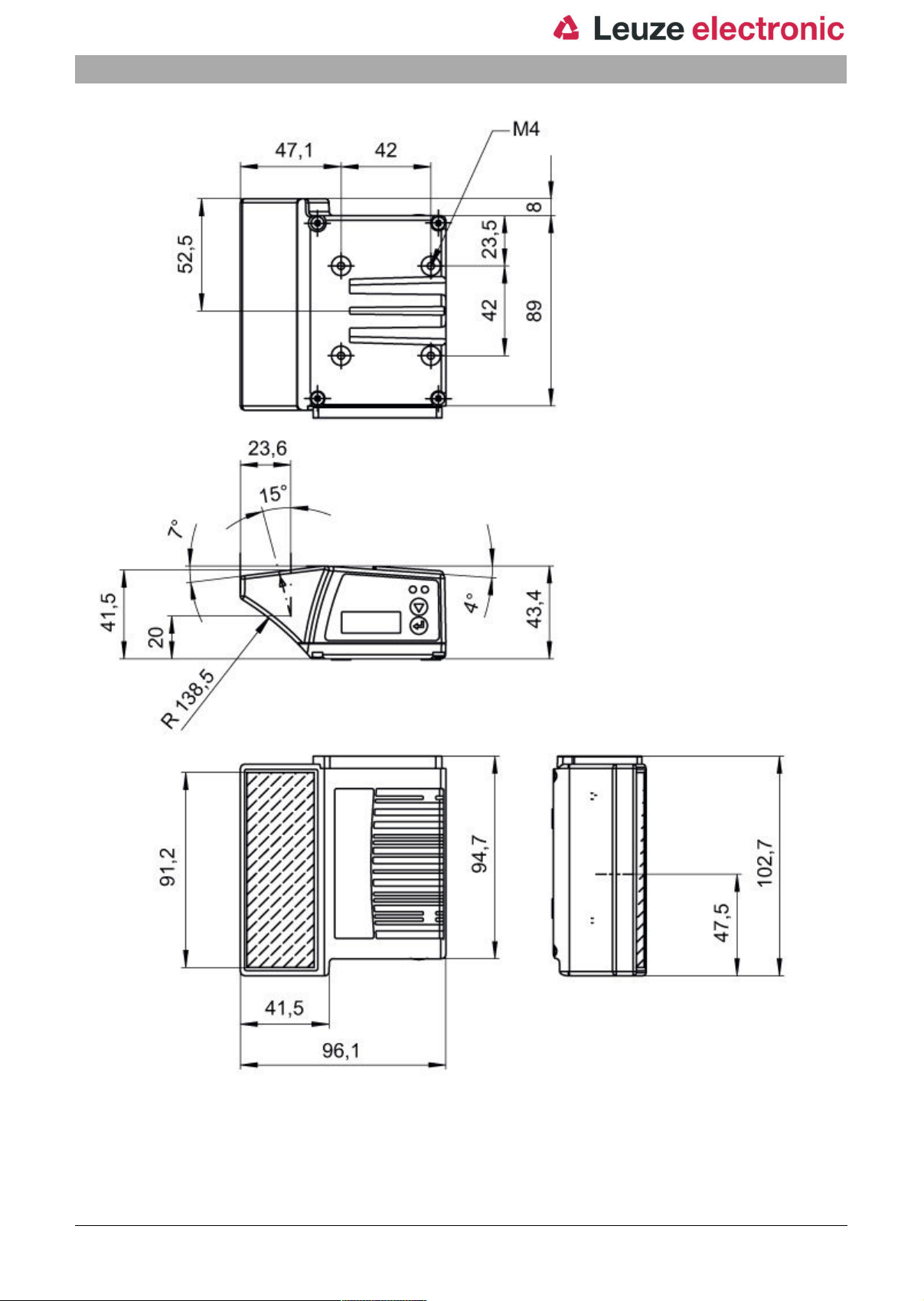

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-20
4 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader
eng 2018-03-20
5 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader
Electrical connection
Connection 1
Type of connection Plug connector
Function Service interface
No. of pins 32 -pin
Type Male
Diagrams

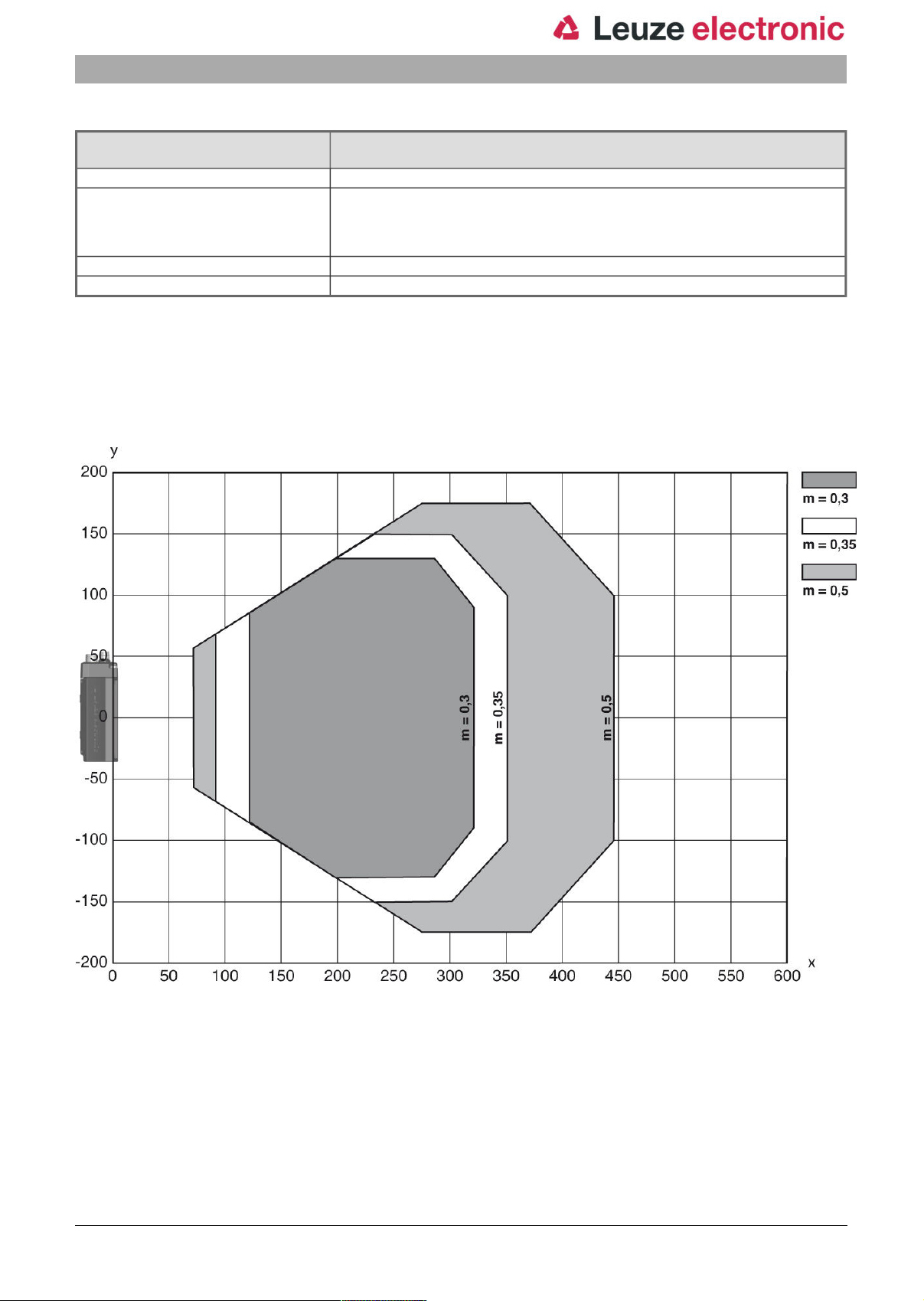

Reading field curve
Data interface
Connection to device
BUS OUT
PWR / SW IN/OUT
x Reading field distance [mm]
y Reading field width [mm]
eng 2018-03-20
6 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader

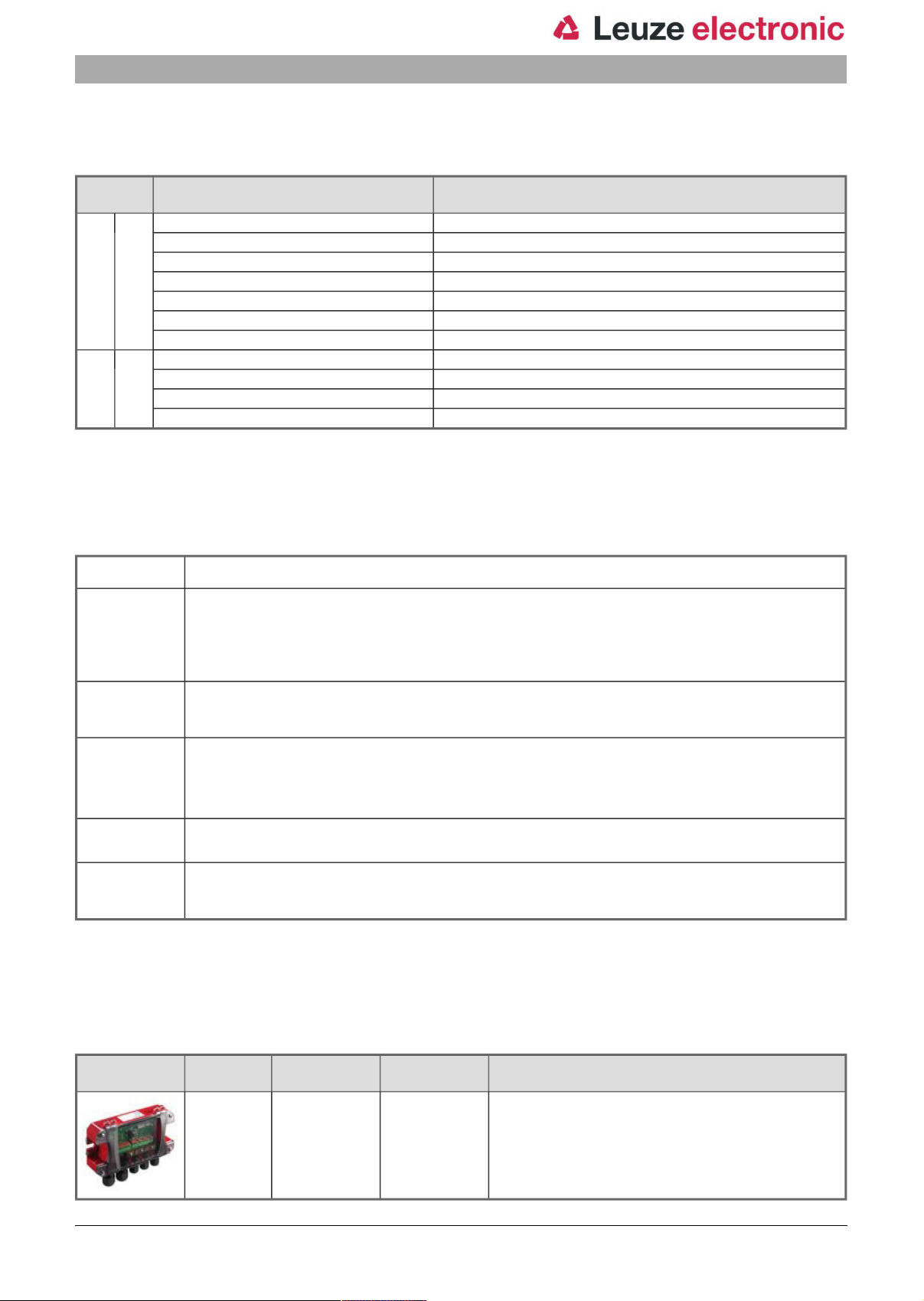

Operation and display
LEDs
LED Display Meaning
1 PWR Green, flashing Device ok, initialization phase
Green, continuous light Device OK
Green, briefly off - on Reading successful
green, briefly off - briefly red - on Reading not successful
Orange, continuous light Service mode
Red, flashing Device OK, warning set
Red, continuous light Error, device error
2 BUS Green, flashing Initialization
Green, continuous light Bus operation ok
Red, flashing Communication error
Red, continuous light Bus error
Part number code
Part designation: BCL XXXX YYZ AAA BB
BCL Operating principle:
XXXX Series/interface (integrated fieldbus technology)::
YY Scanning principle:
Z Optics:
AAA Beam exit:
BB Special equipment:
BCL: bar code reader
300i: RS 232 / RS 422 (stand-alone)
301i: RS 485 (multiNet slave)
304i: PROFIBUS DP
308i: EtherNet TCP/IP, UDP
348i: PROFINET RT
358i: EtherNet/IP
S: line scanner (single line)
R1: line scanner (raster)
O: oscillating-mirror scanner (oscillating mirror)
N: High Density (close)
M: Medium Density (medium distance)
F: Low Density (remote)
L: Long Range (very large distances)
J: ink-jet (depending on the application)
100: lateral
102: front
D: with display
H: with heating
DH: optionally with display and heating
Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50114369 MA 100 Modular
connection unit
Interface: RS 232, RS 485
Connections: 1 Piece(s)
Degree of protection: IP 54
eng 2018-03-20
7 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader

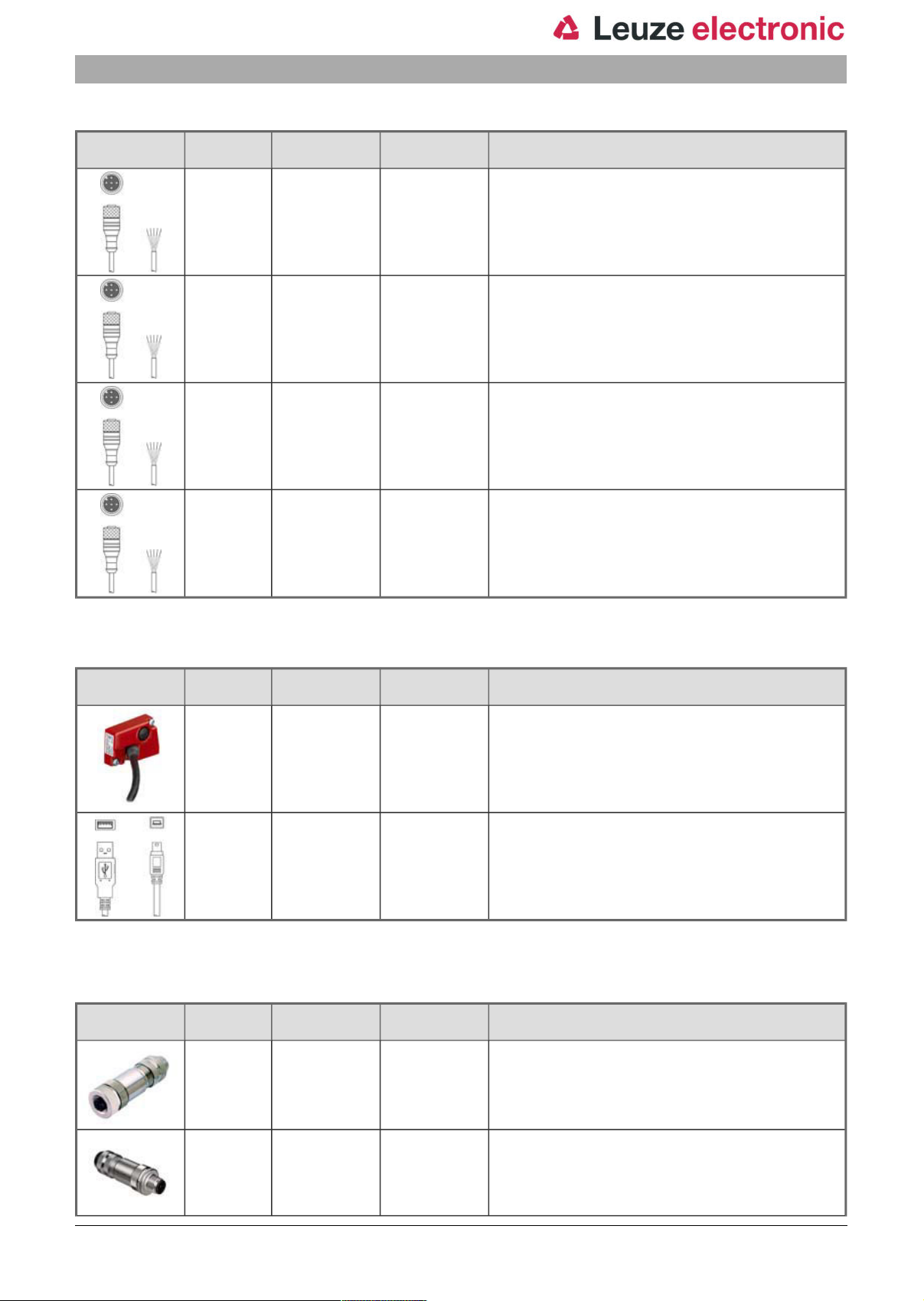

Connection technology - Connection cables
Part no. Designation Article Description
50132077 KD U-M12-5A-
V1-020
50132079 KD U-M12-5A-
V1-050
50132080 KD U-M12-5A-
V1-100
50132432 KD U-M12-5A-
V1-300
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 30,000 mm
Sheathing material: PVC
Connection technology - Interconnection cables
Part no. Designation Article Description
50114571 * KB 301-3000 Interconnection
50117011 KB USB A - USB
miniB
* Necessary accessories, please order separately
cable
Service line Suitable for interface: USB
Suitable for interface: RS 232
Connection 1: Socket connector
Connection 2: JST ZHR, 10 -pin, 6 -pin
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
Connection 1: USB
Connection 2: USB
Shielded: Yes
Cable length: 1,500 mm
Sheathing material: PVC
Connection technology - Connectors
Part no. Designation Article Description
50038538 KD 02-5-BA Connector Suitable for interface: PROFIBUS DP, MultiNet Plus
Connection: Connector, M12, Axial, Female, B-coded, 5 -pin
50038537 KD 02-5-SA Connector Suitable for interface: PROFIBUS DP, MultiNet Plus
Connection: Connector, M12, Axial, Male, B-coded, 5 -pin
eng 2018-03-20
8 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader

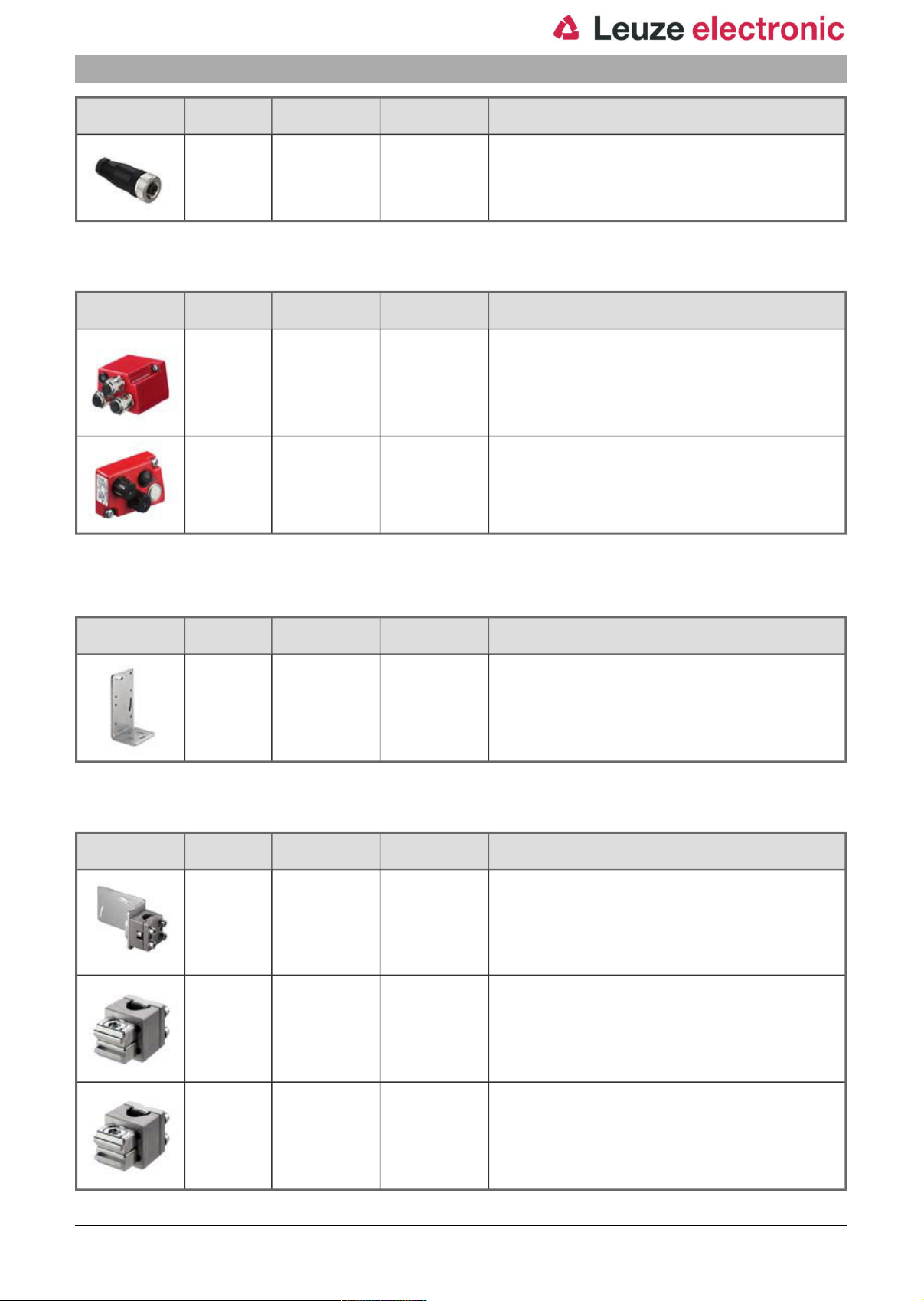

Part no. Designation Article Description
50020501 KD 095-5A Connector Connection: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection technology - Terminal boxes
Part no. Designation Article Description
50116463 * MK 300 Connection unit Suitable for: BCL 300i, BPS 300i
50116468 * MS 300 Connection unit Suitable for: BCL 300i, BPS 300i
* Necessary accessories, please order separately
Mounting technology - Mounting brackets
Part no. Designation Article Description
50121433 BT 300 W Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock
Suitable for interface: RS 232
Number of connections: 3 Piece(s)
Connection: Terminal
Suitable for interface: RS 232
Number of connections: 3 Piece(s)
Connection: Connector, M12
washers
Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Adjustable
Material: Metal
Mounting technology - Rod mounts
Part no. Designation Article Description
50121434 BT 300 - 1 Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock
50027375 BT 56 Mounting device Design of mounting device: Mounting system
50121435 BT 56 - 1 Mounting device Design of mounting device: Mounting system
washers
Design of mounting device: Mounting system
Mounting bracket, at system: For 12 mm rod, For 14 mm rod,
For 16 mm rod
Mounting bracket, at device: Screw type
Type of mounting device: Turning, 360°, Adjustable
Material: Metal
Mounting bracket, at system: For 16 mm rod, For 18 mm rod,
For 20 mm rod
Mounting bracket, at device: Clampable
Material: Metal
Tightening torque of the clamping jaws: 8 N·m
Functions: Static applications
Mounting bracket, at system: For 12 mm rod, For 14 mm rod,
For 16 mm rod
Mounting bracket, at device: Clampable
Material: Metal
Tightening torque of the clamping jaws: 8 N·m
Functions: Static applications
eng 2018-03-20
9 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader

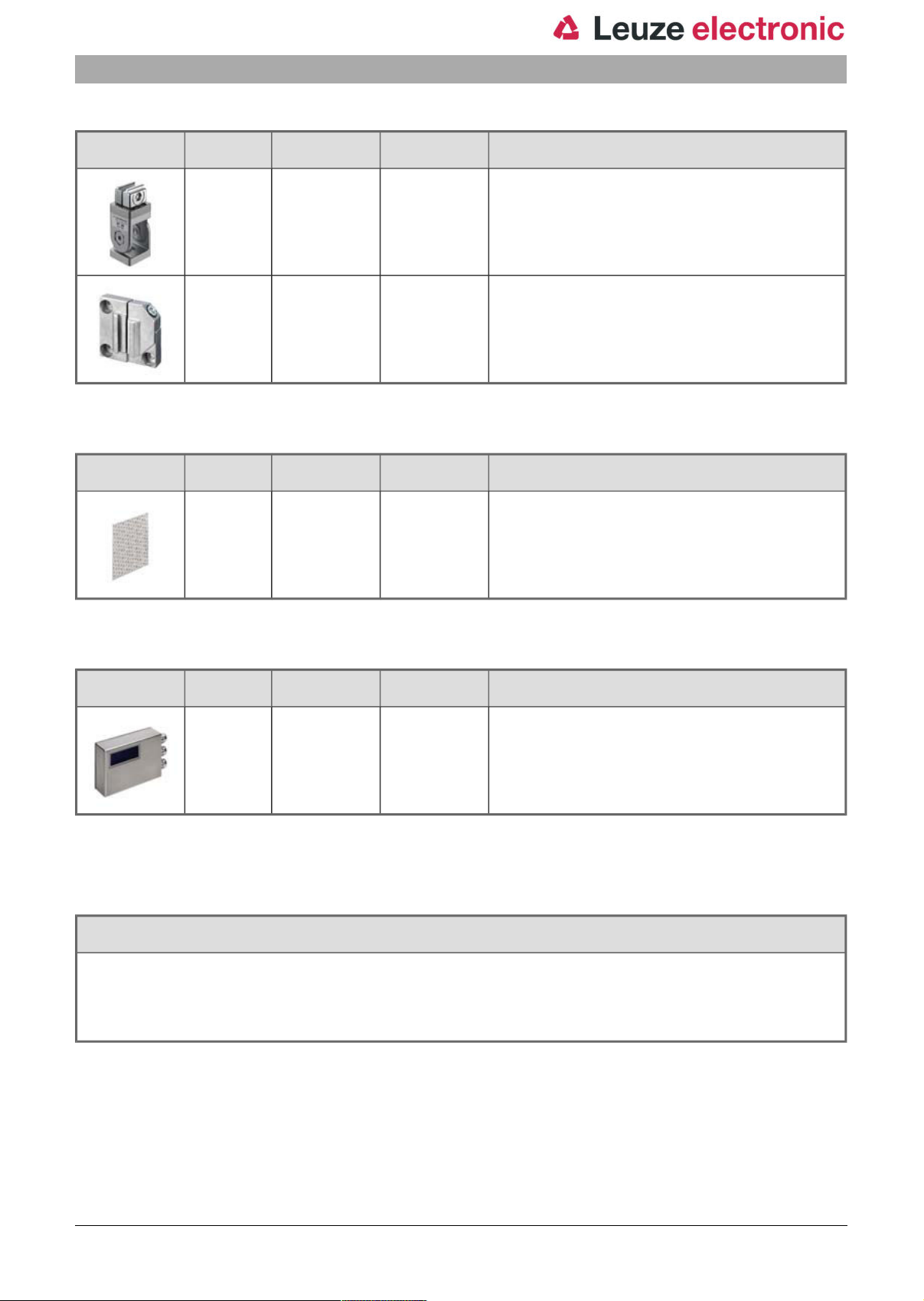

Mounting technology - Other
Part no. Designation Article Description
50111224 BT 59 Mounting bracket Mounting bracket, at system: Groove mounting
50124941 BTU 0300M-W Mounting device Mounting bracket, at system: Through-hole mounting
Reflective tapes for standard applications
Part no. Designation Article Description
50106119 REF 4-A-100x100 Reflective tape Design: Rectangular
Mounting bracket, at device: Clampable
Material: Metal
Mounting bracket, at device: Clampable, Groove mounting
Material: Metal
Reflective surface: 100 mm x 100 mm
Material: Plastic
Chemical designation of the material: PMMA
Fastening: Self-adhesive
General
Part no. Designation Article Description
50120731 Housing BCL 300i
V2A
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
Protective housing Suitable for: BCL 3xxi series bar code reader, deflecting mirror
Length: 63 mm
Housing material: Stainless steel
Standard designation, housing: V2A
Lens cover material: Glass
Degree of protection: IP 67, IP 69K
eng 2018-03-20
10 / 11
Part no.: 50116191 – BCL 300i R1 F 100 D – Stationary bar code reader
WARNING! LASER RADIATION – LASER CLASS 2
Never look directly into the beam!
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 2 as well as
the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
• Never look directly into the laser beam or in the direction of reflected laser beams! If you look into the beam path over a longer time
period, there is a risk of injury to the retina.
• Do not point the laser beam of the device at persons!
• Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.
• When mounting and aligning the device, avoid reflections of the laser beam off reflective surfaces!
• CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light
exposure.
• Observe the applicable statutory and local laser protection regulations.
• The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
NOTE
Affix laser information and warning signs!
Laser information and warning signs are affixed to the device. In addition, self-adhesive laser information and warning signs (stick-on labels)
are supplied in several languages.
• Affix the laser information sheet to the device in the language appropriate for the place of use. When using the device in the US, use
the stick-on label with the "Complies with 21 CFR 1040.10" note.
• Affix the laser information and warning signs near the device if no signs are attached to the device (e.g. because the device is too
small) or if the attached laser information and warning signs are concealed due to the installation position.
• Affix the laser information and warning signs so that they are legible without exposing the reader to the laser radiation of the device or
other optical radiation.
eng 2018-03-20
11 / 11
Loading...
