Page 1
12 - 30 V
DC
50 Hz
20 Hz
IEC 60947...
IEC 60947...
IP 67
AB

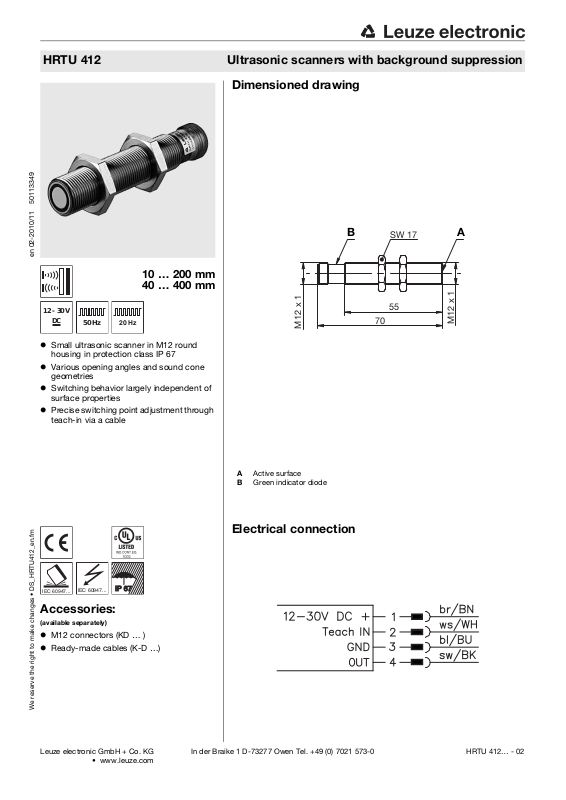

HRTU 412 Ultrasonic scanners with background suppression
Dimensioned drawing
SW 17
en 02-2010/11 50113349
10 … 200 mm
40 … 400 mm
55
M12 x 1
70
M12 x 1
z Small ultrasonic scanner in M12 round
housing in protection class IP 67
z Various opening angles and sound cone
geometries
z Switching behavior largely independent of
surface properties
z Precise switching point adjustment through
teach-in via a cable
Accessories:
(available separately)
z M12 connectors (KD … )
z Ready-made cables (K-D …)
A Active surface
B Green indicator diode
Electrical connection
We reserve the right to make changes • DS_HRTU412_en.fm
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
• www.leuze.com
HRTU 412… - 02
Page 2
Distance x [mm]
Misalignment y [mm]
Typ. response behavior (object 15 x 15mm)
Distance x [mm]
Misalignment y [mm]
Typ. response behavior (object 30 x 30mm)
HRTU 412
Specifications
Ultrasonic data HRTU 412/…-S… HRTU 412/…
Scanning range 10 … 200mm 40 … 400mm
Adjustment range of the switching point 30 … 200mm 60 … 400mm
Opening angle narrow standard
Sound frequency 380kHz 290kHz
Repeatability ≤ 0.5mm (relative to the switching point)
Temperature drift ≤ 0.18%/K (relative to the switching point)
Hysteresis typ. 4% (relative to the switching point)
Timing
Switching frequency 50 Hz 20Hz
Response time ≤ 10ms ≤ 25ms
Decay time ≤ 10ms ≤ 25ms
Delay before start-up ≤ 200ms
Electrical data
Operating voltage UB
Residual ripple ≤ 10% of U
Bias current ≤ 35mA
Switching output/function …/4NO… pin 4: PNP transistor, make-contact (NO)
Output current ≤ 200mA
Load C
Teach input pin 2: active high
Signal voltage high/low ≥ (U
Indicators
Green LED switching state (on = object detected)
Green LED slowly flashing teach event active
Green LED quickly flashing teaching error
Mechanical data
Housing brass nickel-plated
Active surface plastic (PC)
Standard measurement object
Attachment in through hole or thread M12x1
Weight approx. 10g
Connection type M12 connector, 4-pin
Environmental data
Ambient temp. (operation/storage) -10°C … +60°C/-40°C … +85°C
Protective circuit
VDE safety class III
Protection class IP 67
Standards applied IEC/EN 60947-5-2
Certifications UL 508
1) Observe the safety regulations and installation instructions regarding power supply and wiring;
for UL applications: only for use in "Class 2" circuits acc. to NEC
2) Aligned perpendicular to sensor reference axis
3) 1=polarity reversal protection, 2=short circuit protection, 3=overload protection for all outputs
1)
…/4NC… pin 4: PNP transistor, break-contact (NC)
…/2NO… pin 4: NPN transistor, make-contact (NO)
12 … 30VDC incl. taking into account the residual ripple
B
…/2NC… pin 4: NPN transistor, break-contact (NC)
= 10nF, L
max
-2V)/≤ 2V
B
2)
3)
15 x15mm 30 x30mm
1, 2, 3
max
= 20μH
Tables
1
10 200
240 400
HRTU 412/…-S…
1
HRTU 412/…
2
Scanning range [mm]
Diagrams
HRTU 412/…-S…
15
12
9
6
3
0
-3
-6
-9
-12
-15
0 50 100 150 200
HRTU 412/…
30
24
18
12
6
0
-6
-12
-18
-24
-30
0 100 200 300 400
x
y2
y1
y2
y1
y2
y1
Remarks
z Approved purpose:
This product may only be used by qualified personnel and must only be used for the
approved purpose. This sensor is not a safety sensor and is not to be used for the protection
of persons.
HRTU 412… - 02 2010/11
Page 3
HRTU 412 Ultrasonic scanners with background suppression
Type key
HRTU 412 / 4NO. 2-S-S12
Operating principle / construction
HRTU Ultrasonic scanner (proximity switch) with background suppression
Series
412 Cylindrical sensor design with thread M12x1
Output function
4NO PNP transistor, make-contact (NO)
4NC PNP transistor, break-contact (NC)
2NO NPN transistor, make-contact (NO)
2NC NPN transistor, break-contact (NC)
Equipment
.2 Teach input
Sound cone geometry
N/A Sound cone with standard opening angle
-S Sound cone with narrow opening angle
Electrical connection
S12 M12 connector, 4-pin, axial
Order guide
The sensors listed here are preferred types; current information at www.leuze.com.
Opening angle of the ultrasonic cone Designation Part No.
HRTU 412/4NO.2-S-S12 50113993
Narrow
Standard
HRTU 412/4NC.2-S-S12 50113995
HRTU 412/2NO.2-S-S12 50113997
HRTU 412/2NC.2-S-S12 50113999
HRTU 412/4NO.2-S12 50113994
HRTU 412/4NC.2-S12 50113996
HRTU 412/2NO.2-S12 50113998
HRTU 412/2NC.2-S12 50114000
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HRTU 412… - 02
• www.leuze.com
Page 4
UB for approx. 2s,
LED flashes
UB briefly ends the
teach event; LED on
Position
object
UB for at least 6s,
LED flashes quickly
HRTU 412

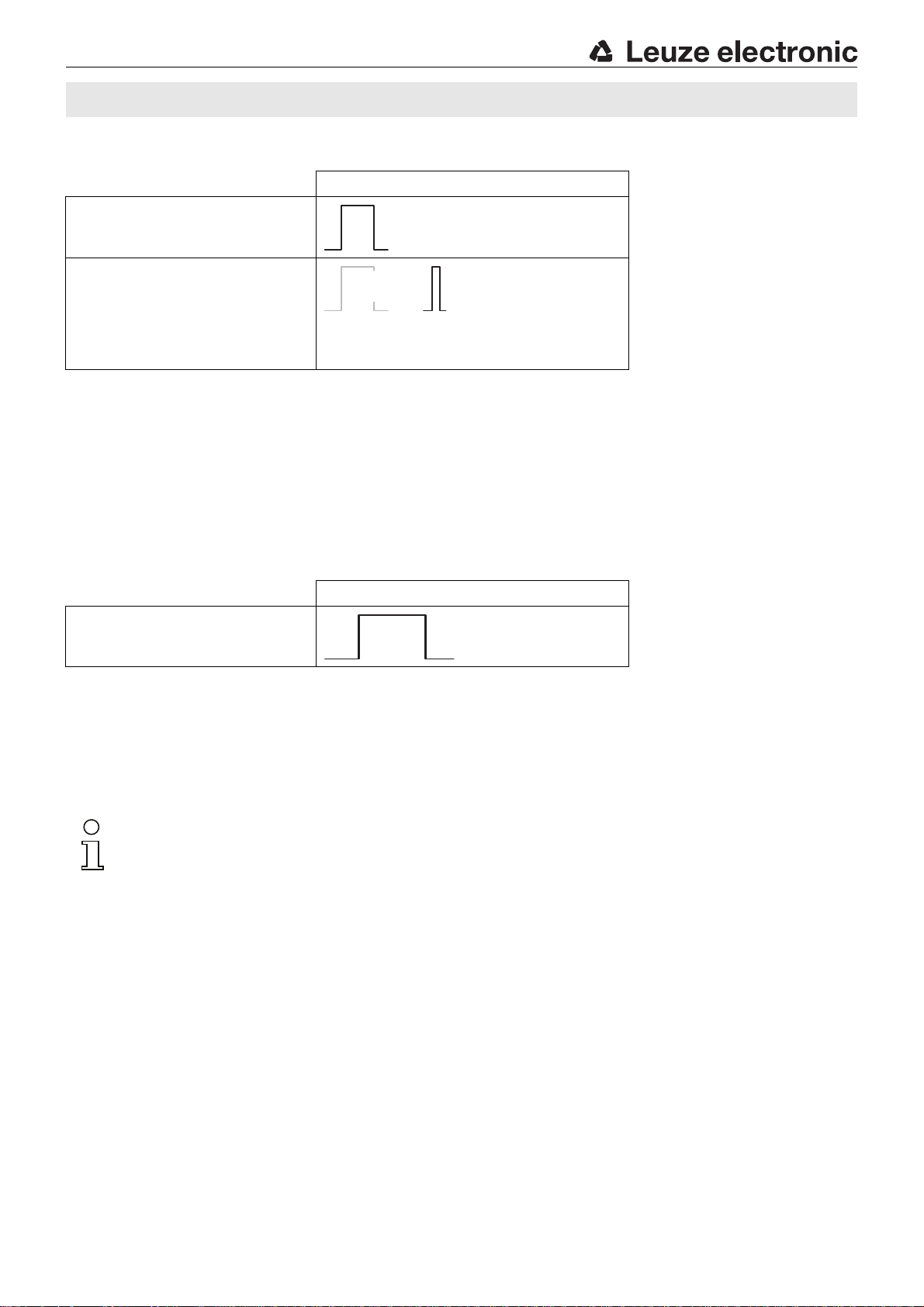

Switching point adjustment via teach-in
Teach-in input PIN 2
Activate teach-in
c
Place the object at the desired switching
d
position and conclude the teach event
The teach event ends after 2s, the sensor detects the object at this
position and the LED is on.
If the object is removed, the LED must be switched off.
Teaching error
If the object is located outside of the scanning range during the teach event, a teaching error occurs.
The LED flashes quickly and the switching output is reset to the factory setting (switching point at the max. scanning range).
Resetting the sensor to factory setting
Teach-in input PIN 2
Restoring the factory setting
Locking the teach input
The sensor automatically locks the teach input after either 5 min. after power-on or 5min. after the last teach event is ended.
A new teach event is only possible after disconnecting the sensor from voltage.
If the Teach-IN input is not used,
it must be connected to GND!
HRTU 412… - 02 2010/11
