Part no.: 50113733 – AMS 384i 40 – Optical distance sensor
Technical data
Basic data
Series AMS 300i
Application Positioning of high-bay storage devices
Characteristic parameters
MTTF 48 years
Optical data
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2007
Measurement data
Measurement range 200 ... 40,000 mm
Absolute measurement accuracy 2 mm
Reproducibility (3 sigma) 0.9 mm
Max. traverse rate 10 m/s
Positioning of electroplating plants
Positioning of skillet systems and side-tracking skates
Collision protection of cranes / gantry cranes
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Interface
Type Interbus-S
Interbus-S
Transmission speed 2 Mbit/s
Connection
Number of connections 4 Piece(s)

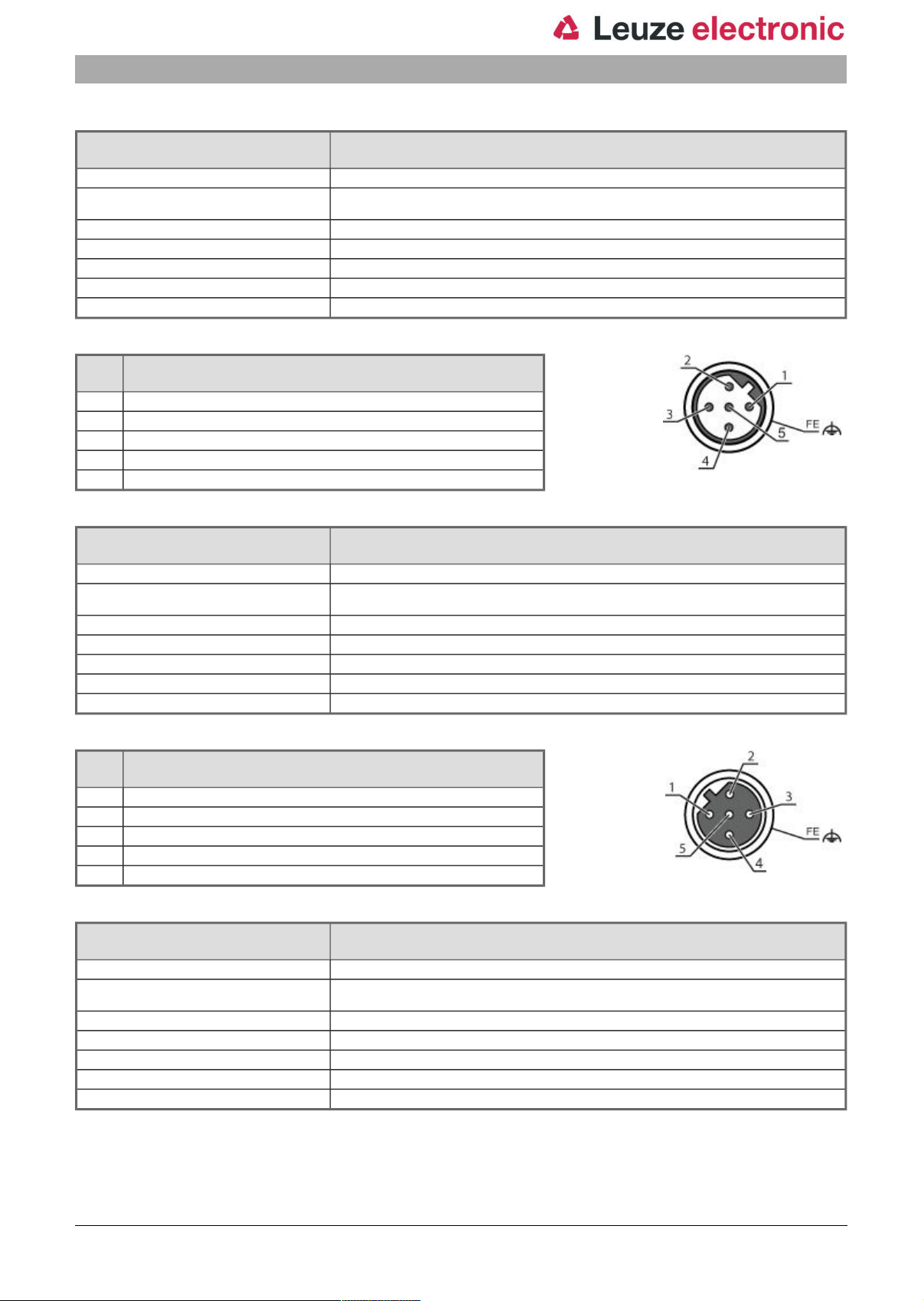

Connection 1
Type of connection Connector
Designation on device BUS IN
Function Data interface
Thread size M12
Type Male
No. of pins 5 -pin
Encoding B-coded
Connection 2
Type of connection Connector
Designation on device BUS OUT
Function Data interface
Thread size M12
Type Female
No. of pins 5 -pin
Encoding B-coded
BUS IN
BUS OUT
eng 2018-04-06
2 / 11
![](/html/dc/dc70/dc70a9d0f3335b26cfdbf2846db5bdac95a71e0a118ecbdb291b1f5a89466ff6/bg3.png)
Part no.: 50113733 – AMS 384i 40 – Optical distance sensor

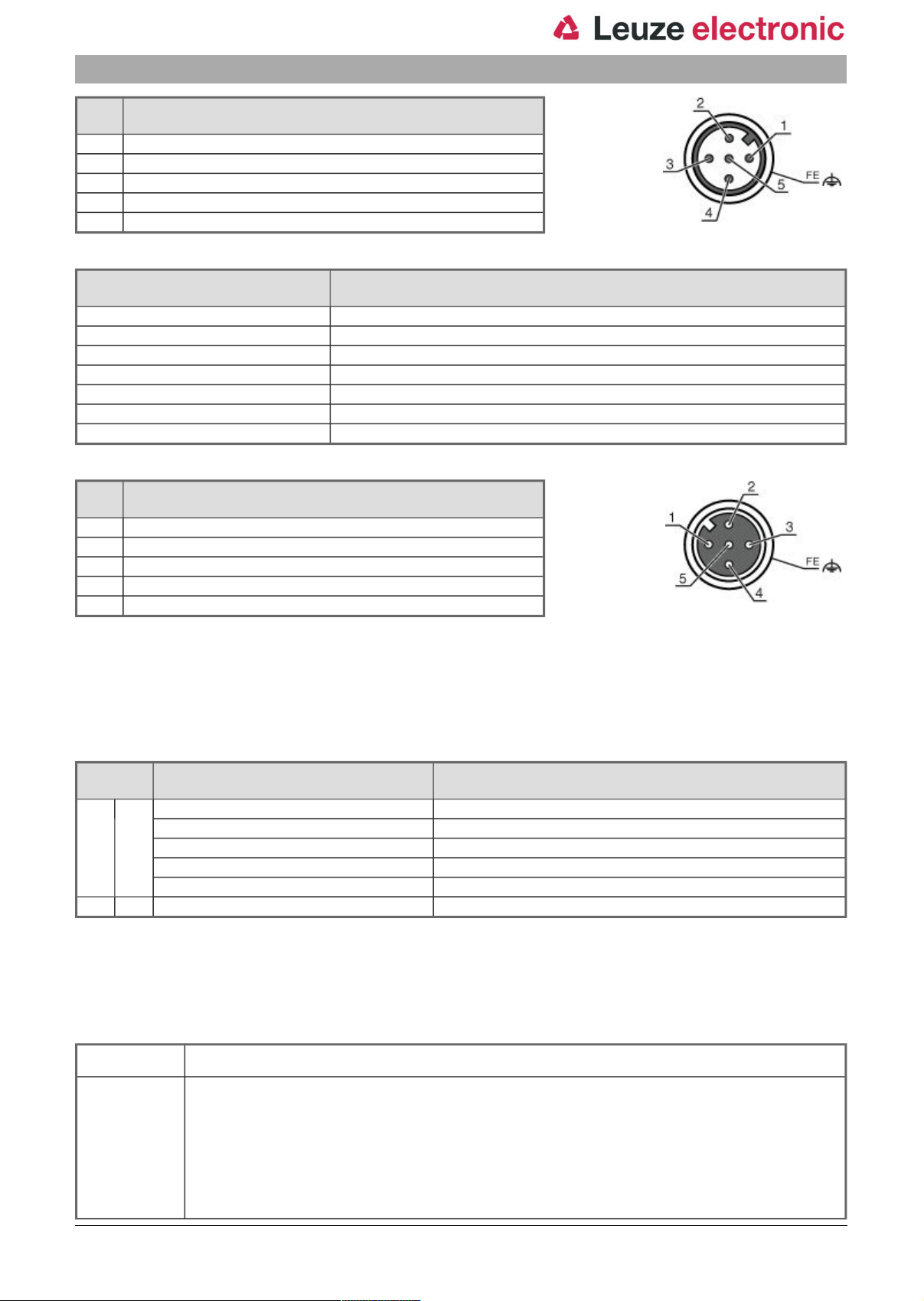

Connection 3
Type of connection Connector
Designation on device PWR
Function Voltage supply
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
Connection 4
Type of connection Connector
Designation on device SERVICE
Function Service interface
Thread size M12
Type Female
No. of pins 5 -pin
Encoding A-coded
PWR / SW IN/OUT
Mechanical data
Design Cubic
Dimension (W x H x L) 84 mm x 166.5 mm x 159 mm
Housing material Metal
Net weight 2,450 g
Type of fastening Through-hole mounting
Operation and display
Type of display LED
Operational controls Membrane keyboard
Environmental data
Ambient temperature, operation -5 ... 50 °C
Ambient temperature, storage -30 ... 70 °C
Relative humidity (non-condensing) 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
LC Display
Classification
eCl@ss 8.0 27270801
eCl@ss 9.0 27270801
ETIM 5.0 EC001825
Dimensioned drawings
All dimensions in millimeters
eng 2018-04-06
3 / 11
![](/html/dc/dc70/dc70a9d0f3335b26cfdbf2846db5bdac95a71e0a118ecbdb291b1f5a89466ff6/bg4.png)
Part no.: 50113733 – AMS 384i 40 – Optical distance sensor
A M 5 screw for alignment
B Knurled nut with WAF 4 hexagon socket and M 5 nut for securing
C Optical axis
D Zero point of the distance to be measured
