Leuze 50113707 Data Sheet
Part no.: 50113707 – AMS 338i 200 H – Optical distance sensor
Technical data
Basic data
Series AMS 300i
Application Collision protection of cranes / gantry cranes
Functions
Functions Heating
Characteristic parameters
MTTF 48 years
Optical data
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2007
Positioning of high-bay storage devices
Positioning of electroplating plants
Positioning of skillet systems and side-tracking skates
Measurement data
Measurement range 200 ... 200,000 mm
Absolute measurement accuracy 3 mm
Reproducibility (3 sigma) 2.1 mm
Max. traverse rate 10 m/s
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Interface
Type EtherCAT
EtherCAT
Switch functionality Integrated
Transmission speed 100 Mbit/s

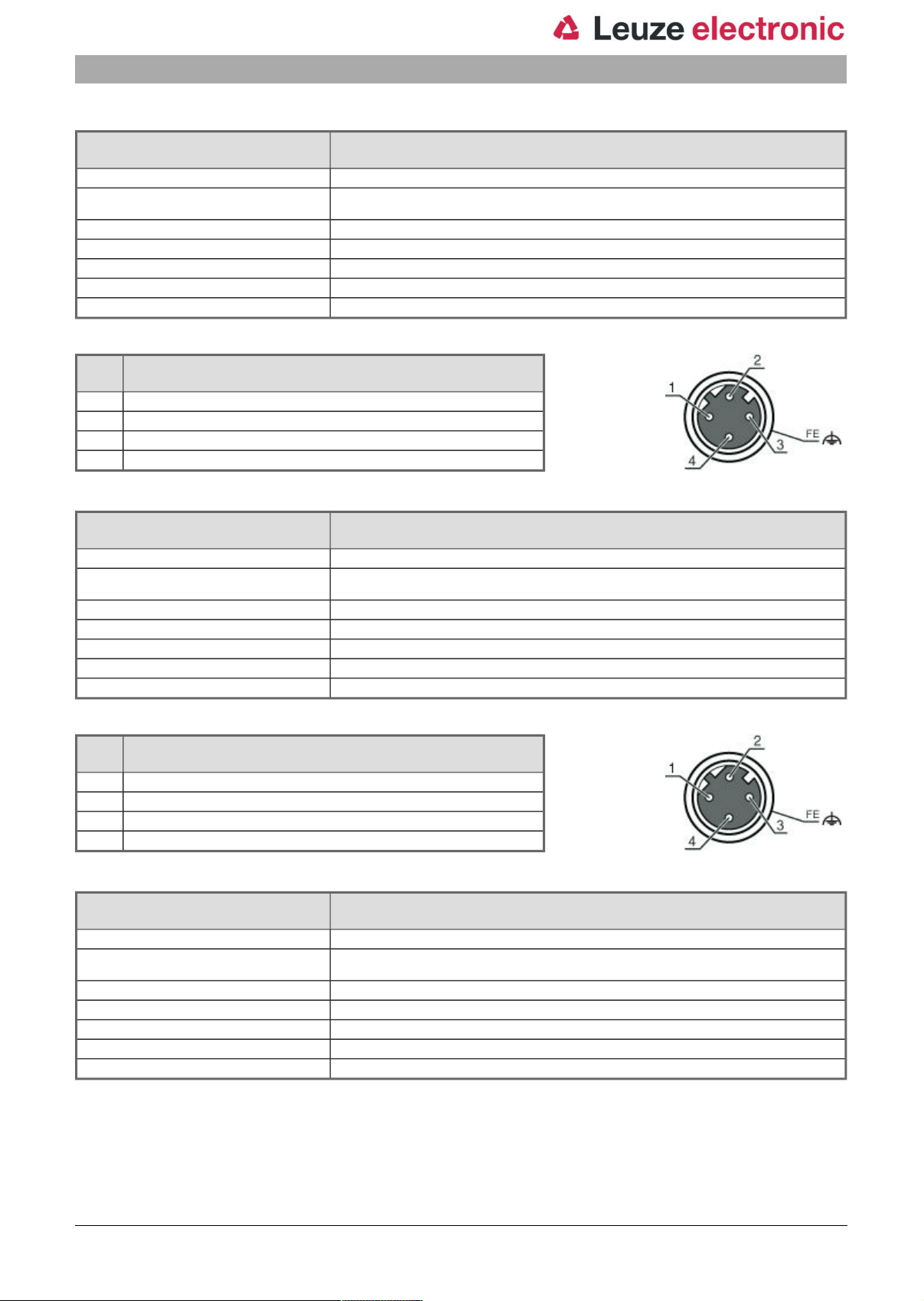

Connection
Number of connections 4 Piece(s)
Connection 1
Type of connection Connector
Designation on device BUS IN
Function Data interface
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
BUS IN
eng 2018-03-27
2 / 13
Part no.: 50113707 – AMS 338i 200 H – Optical distance sensor
Connection 2
Type of connection Connector
Designation on device BUS OUT
Function BUS OUT
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
Connection 3
Type of connection Connector
Designation on device PWR
Function PWR / SW IN/OUT
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded

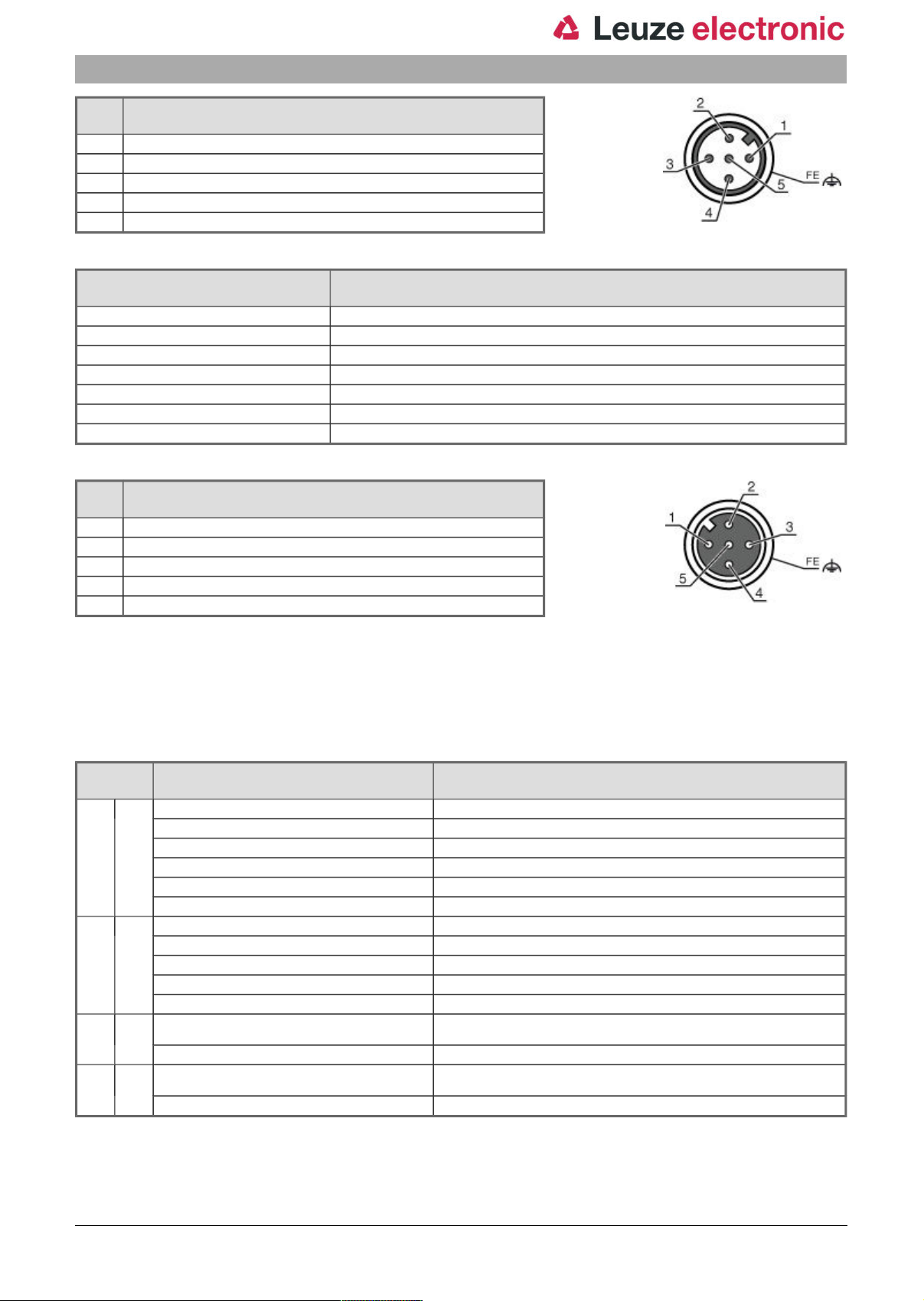

Connection 4
Type of connection Connector
Designation on device SERVICE
Function Service interface
Thread size M12
Type Female
No. of pins 5 -pin
Encoding A-coded
Data interface
Voltage supply
Mechanical data
Design Cubic
Dimension (W x H x L) 84 mm x 166.5 mm x 159 mm
Housing material Metal
Net weight 2,450 g
Type of fastening Through-hole mounting
Operation and display
Type of display LED
Operational controls Membrane keyboard
Environmental data
Ambient temperature, operation -30 ... 50 °C
Ambient temperature, storage -30 ... 70 °C
Relative humidity (non-condensing) 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
LC Display
Classification
eng 2018-03-27
3 / 13
Part no.: 50113707 – AMS 338i 200 H – Optical distance sensor
eCl@ss 8.0 27270801
eCl@ss 9.0 27270801
ETIM 5.0 EC001825

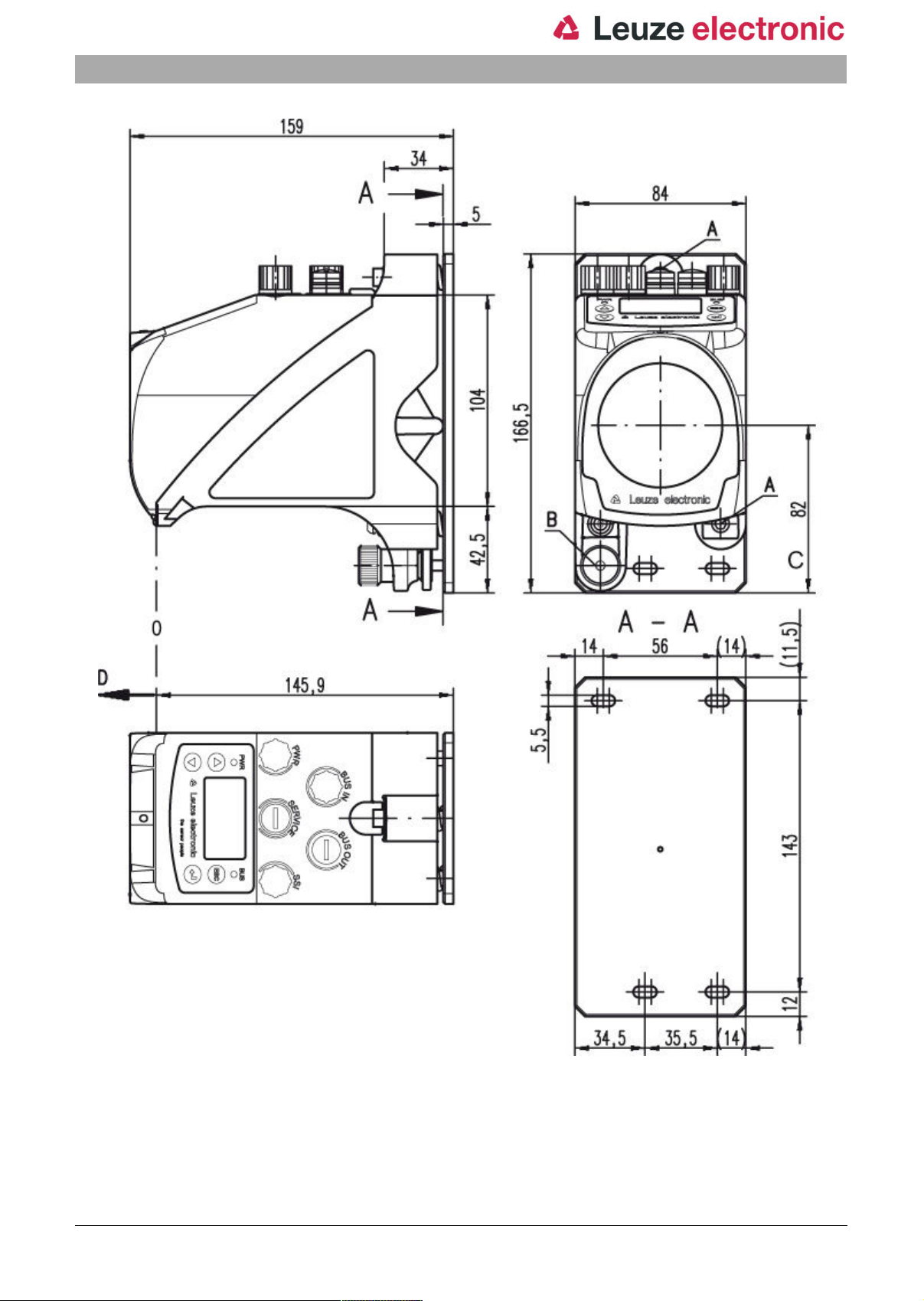

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-27
