Part no.: 50113699 – AMS 335i 200 H – Optical distance sensor
Technical data
Basic data
Series AMS 300i
Application Collision protection of cranes / gantry cranes
Functions
Functions Heating
Characteristic parameters
MTTF 48 years
Optical data
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2007
Positioning of high-bay storage devices
Positioning of skillet systems and side-tracking skates
Positioning of electroplating plants
Measurement data
Measurement range 200 ... 200,000 mm
Absolute measurement accuracy 3 mm
Reproducibility (3 sigma) 2.1 mm
Max. traverse rate 10 m/s
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Interface
Type CANopen
CANopen
Transmission speed 10 ... 1,000 kBit/s
Connection
Number of connections 4 Piece(s)
Connection 1
Type of connection Connector
Designation on device BUS IN
Function Data interface
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
BUS IN
eng 2018-03-27
2 / 12
Part no.: 50113699 – AMS 335i 200 H – Optical distance sensor
Connection 2
Type of connection Connector
Designation on device BUS OUT
Function BUS OUT
Thread size M12
Type Female
No. of pins 5 -pin
Encoding A-coded
Connection 3
Type of connection Connector
Designation on device PWR
Function Voltage supply
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
Connection 4
Type of connection Connector
Designation on device SERVICE
Function Service interface
Thread size M12
Type Female
No. of pins 5 -pin
Encoding A-coded
Data interface
PWR / SW IN/OUT
Mechanical data
Design Cubic
Dimension (W x H x L) 84 mm x 166.5 mm x 159 mm
Housing material Metal
Net weight 2,450 g
Type of fastening Through-hole mounting
Operation and display
Type of display LED
Operational controls Membrane keyboard
Environmental data
Ambient temperature, operation -30 ... 50 °C
Ambient temperature, storage -30 ... 70 °C
Relative humidity (non-condensing) 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
LC Display
Classification
eng 2018-03-27
3 / 12
Part no.: 50113699 – AMS 335i 200 H – Optical distance sensor
eCl@ss 8.0 27270801
eCl@ss 9.0 27270801
ETIM 5.0 EC001825
Dimensioned drawings
All dimensions in millimeters
eng 2018-03-27
4 / 12
Part no.: 50113699 – AMS 335i 200 H – Optical distance sensor

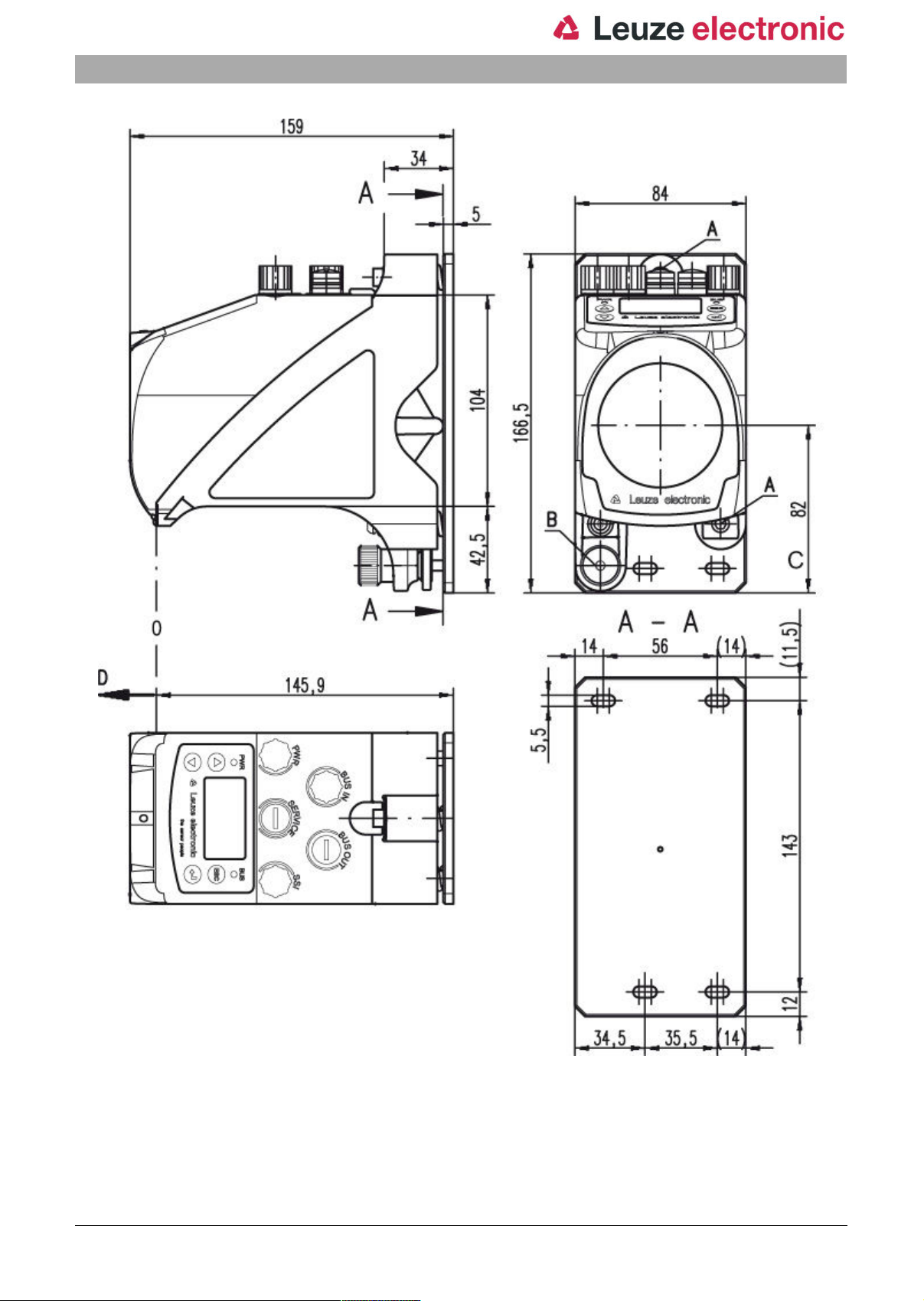

A M 5 screw for alignment
B Knurled nut with WAF 4 hexagon socket and M 5 nut for securing
C Optical axis
D Zero point of the distance to be measured
eng 2018-03-27
5 / 12
Part no.: 50113699 – AMS 335i 200 H – Optical distance sensor

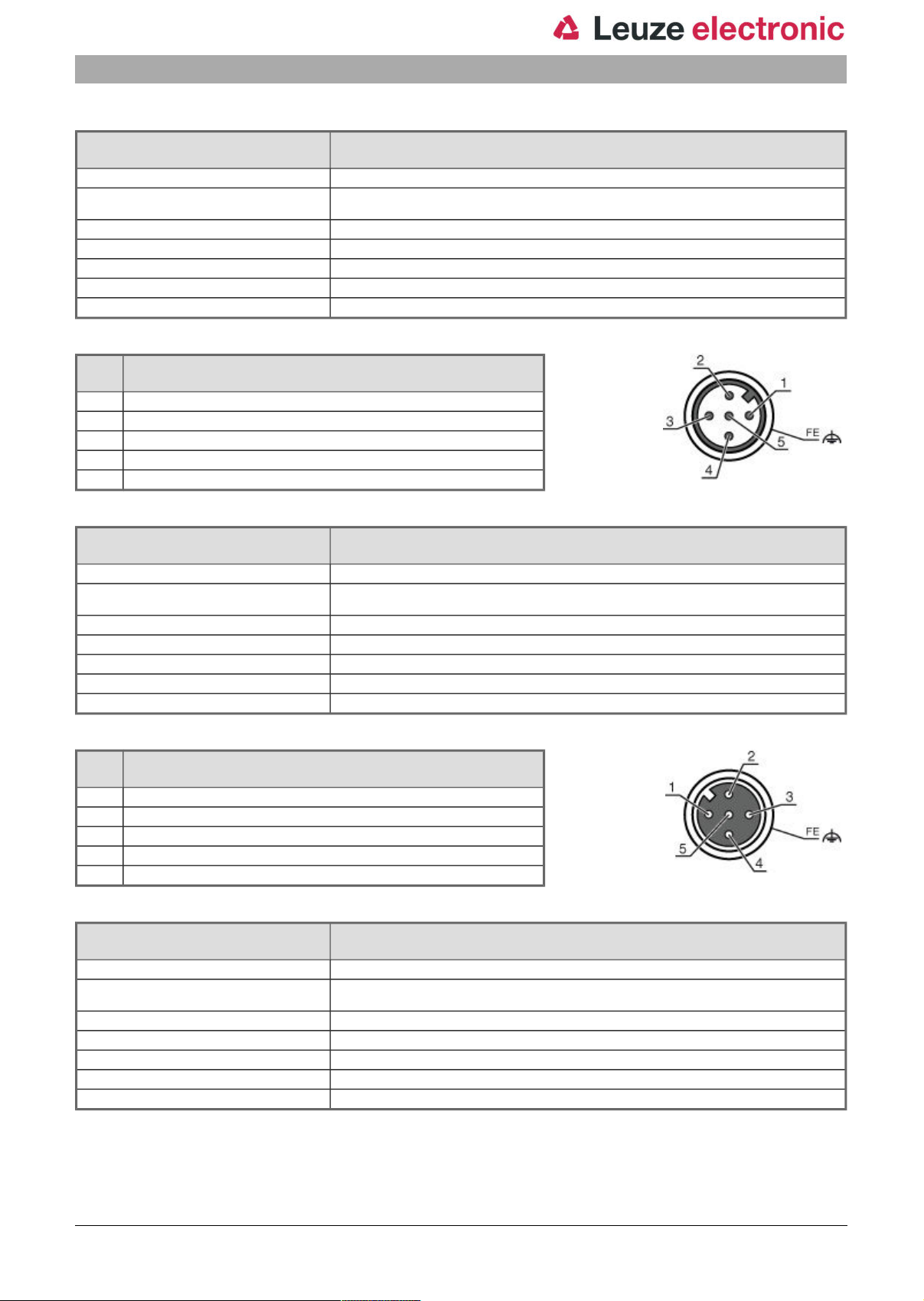

Electrical connection
Connection 1 BUS IN
Type of connection Connector
Function Data interface
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding A-coded

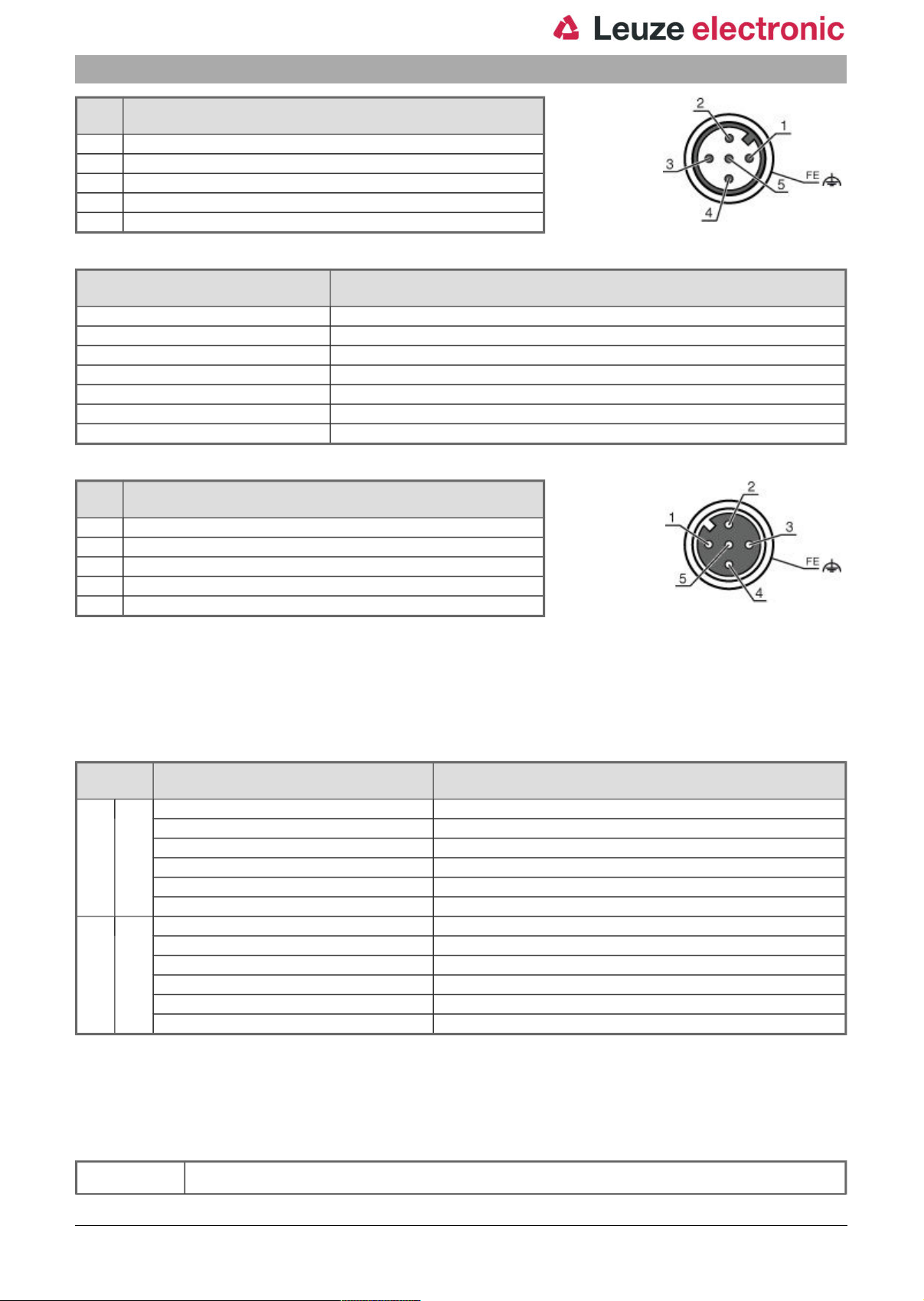

Pin Pin assignment
1 Drain
2 NC
3 NC
4 CAN H
5 CAN L
BUS IN
Connection 2 BUS OUT
Type of connection Connector
Function BUS OUT
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding A-coded
Pin Pin assignment
1 Drain
2 n.c.
3 n.c.
4 CAN H
5 CAN L
Connection 3 PWR
Type of connection Connector
Function Voltage supply
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding A-coded
Data interface
PWR / SW IN/OUT
eng 2018-03-27
6 / 12
Part no.: 50113699 – AMS 335i 200 H – Optical distance sensor
Pin Pin assignment
1 VIN
2 I/O 1
3 GND
4 I/O 2
5 FE
Connection 4 SERVICE
Type of connection Connector
Function Service interface
Thread size M12
Type Female
Material Metal
No. of pins 5 -pin
Encoding A-coded
Pin Pin assignment
1 n.c.
2 RS 232-TX
3 GND
4 RS 232-RX
5 n.c.
Operation and display
LEDs
LED Display Meaning
1 PWR Off No supply voltage
Green, flashing Voltage connected / no measurement value output / initialization running
Green, continuous light Device OK, measurement value output
Red, flashing Device OK, warning set
Red, continuous light No measurement value output
Orange, continuous light No data transmission
2 BUS Off No supply voltage
Green, flashing "PRE-OPERATIONAL" and "STOPPED" state
Green, continuous light "OPERATIONAL" state
Red, flashing Configuration error
Red, continuous light Device not on the bus
Red/green, flashing alternately Bus error
Part number code
Part designation: AMS 3XXi YYY Z AAA
AMS Operating principle:
AMS: absolute measurement system
eng 2018-03-27
7 / 12
Part no.: 50113699 – AMS 335i 200 H – Optical distance sensor
3XXi Series/interface (integrated fieldbus technology)::
YYY Operating range:
Z Special equipment:
AAA Interface:
300i: RS 422/RS 232
301i: RS 485
304i: PROFIBUS DP / SSI
308i: TCP/IP
335i: CANopen
338i: EtherCAT
348i: PROFINET RT
355i: DeviceNet
358i: EtherNet/IP
384i: Interbus
40: max. operating range in m
120: max. operating range in m
200: max. operating range in m
300: max. operating range in m
H: with heating
SSI: with SSI interface
