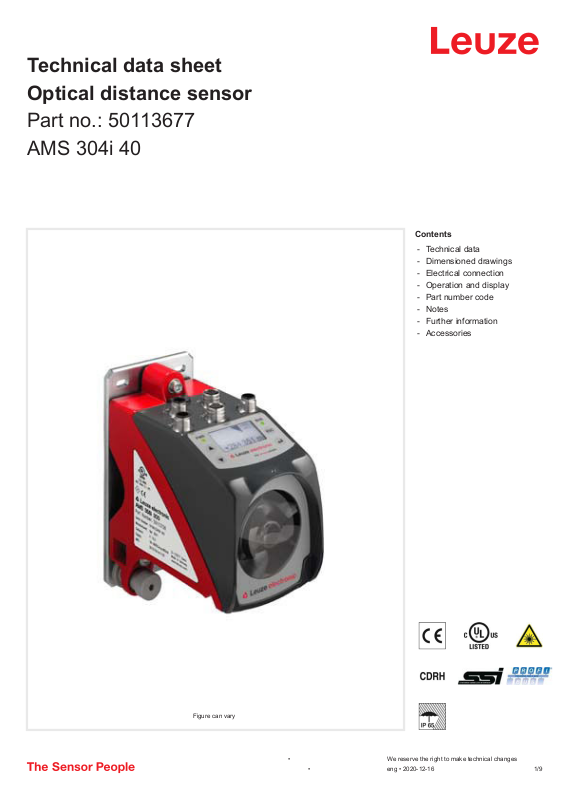

Page 1

Technical data sheet Optical distance sensor

Part no.: 50113677 AMS 304i 40

Contents

echnical data

Dimensioned drawings

Electrical connection

Operation and display

Part number code

Notes

Further information

Accessories

Figure can vary

• We reserve the right to make technical changes

• eng • 2020-12-16

1 /9

Page 2

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

Technical data

Basic data

Series AMS 300i

Application Collision protection of cranes / gantry

cranes

Positioning of electroplating plants

Positioning of high-bay storage devices

Positioning of skillet systems and sidetracking skates

Characteristic parameters

MTTF 31 years

Optical data

Light source Laser, Red

Laser class 2, IEC/EN 60825-1:2007

Measurement data

Measurement range 200 ... 40,000 mm

Accuracy 2 mm

Reproducibility (3 sigma) 0.9 mm

Max. traverse rate 10 m/s

Electrical data

Performance data

Supply voltage U

18 ... 30 V, DC

Interface

Type PROFIBUS DP, SSI

PROFIBUS DP

Transmission speed

0.0096 ... 12 Mbit/s

SSI

Clock frequency 50 ... 800 kHz

Connection

Number of connections 5 Piece(s)

Connection 1

Function

ype of connection Connector

Designation on device BUS IN

Thread size M12

Type Male

No. of pins 5 -pin

Encoding B-coded

BUS IN

Data interface

PROFIBUS IN

Connection 2

Function

ype of connection

Designation on device BUS OUT

Thread size M12

Type Female

No. of pins 5 -pin

Encoding

BUS OUT

Data interface

PROFIBUS OUT

Connector

B-coded

Connection 3

Function PWR / SW IN / OUT

Voltage supply

Type of connection Connector

Designation on device PWR

Thread size M12

Type

No. of pins 5 -pin

Encoding A-coded

Male

Connection 4

Function

Type of connection Connector

Designation on device

Thread size

Type

No. of pins 5 -pin

Encoding A-coded

Service interface

SERVICE

M12

Female

Connection 5

Function Data interface

SSI

Type of connection Connector

Designation on device

Thread size M12

Type Male

No. of pins 5 -pin

Encoding B-coded

SSI

Mechanical data

Design Cubic

Dimension (W x H x L) 84 mm x 166.5 mm x 159 mm

Housing material Metal

Net weight 2,450 g

Type of fastening Through-hole mounting

Operation and display

Type of display LC Display

LED

Operational controls Membrane keyboard

Environmental data

Ambient temperature, operation -5 ... 50 °C

Ambient temperature, storage -30 ... 70 °C

Relative humidity (non-condensing) 90 %

Certifications

Degree of protection IP 65

Protection class III

Certifications c UL US

• We reserve the right to make technical changes

• eng • 2020-12-16

2 /9

Page 3

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

Technical data

Customs tariff number 90318020

eCl@ss 5.1.4 27270801

eCl@ss 8.0 27270801

eCl@ss 9.0 27270801

eCl@ss 10.0 27270801

eCl@ss 11.0 27270801

ETIM 5.0 EC001825

ETIM 6.0 EC001825

ETIM 7.0 EC001825

• We reserve the right to make technical changes

• eng • 2020-12-16

3 /9

Page 4

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

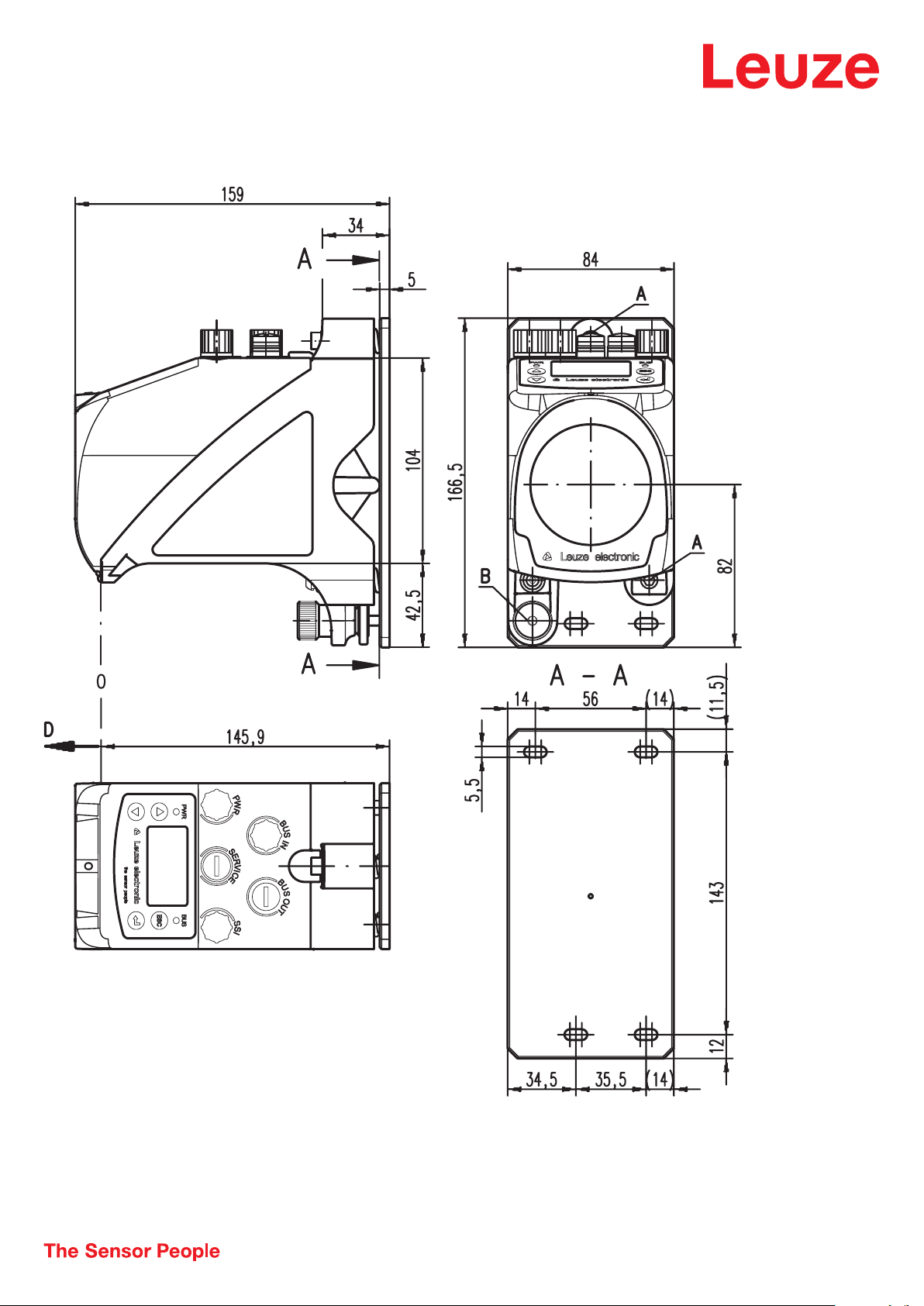

Dimensioned drawings

All dimensions in millimeters

A M 5 screw for alignment

B Knurled nut with WAF 4 hexagon socket and M

5 nut for securing

C Optical axis

D Zero point of the distance to be measured

• We reserve the right to make technical changes

• eng • 2020-12-16

4 /9

Page 5

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

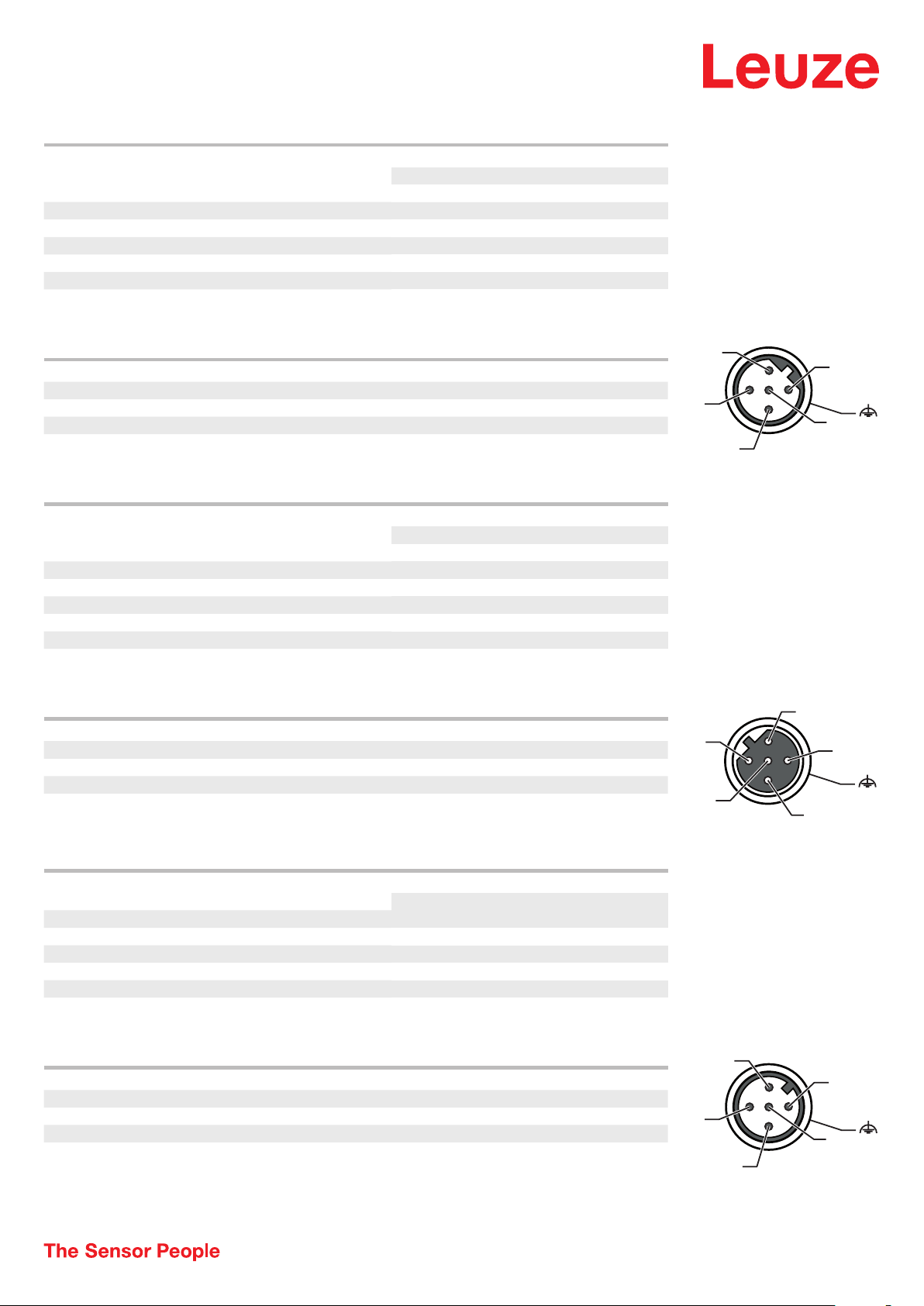

Electrical connection

Connection 1 BUS IN

Function BUS IN

Data interface

PROFIBUS IN

Type of connection Connector

Thread size M12

Type Male

Material

No. of pins 5 -pin

Encoding B-coded

Pin Pin assignment

1 NC

2 A (N)

3 GND P

4 B (P)

5 Shield

Connection 2 BUS OUT

Metal

Function BUS OUT

Data interface

PROFIBUS OUT

Type of connection Connector

Thread size M12

Type

Material

No. of pins

Encoding B-coded

Female

Metal

5 -pin

Pin Pin assignment

1 VP

2 A (N)

3 GND P

4 B (P)

5 Shield

Connection 3 PWR

Function PWR / SW IN / OUT

Voltage supply

Type of connection Connector

Thread size

Type

Material

No. of pins 5 -pin

Encoding A-coded

M12

Male

Metal

Pin Pin assignment

1 VIN

2 I/O 1

3 GND

4 I/O 2

5 FE

• We reserve the right to make technical changes

• eng • 2020-12-16

5 /9

Page 6

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

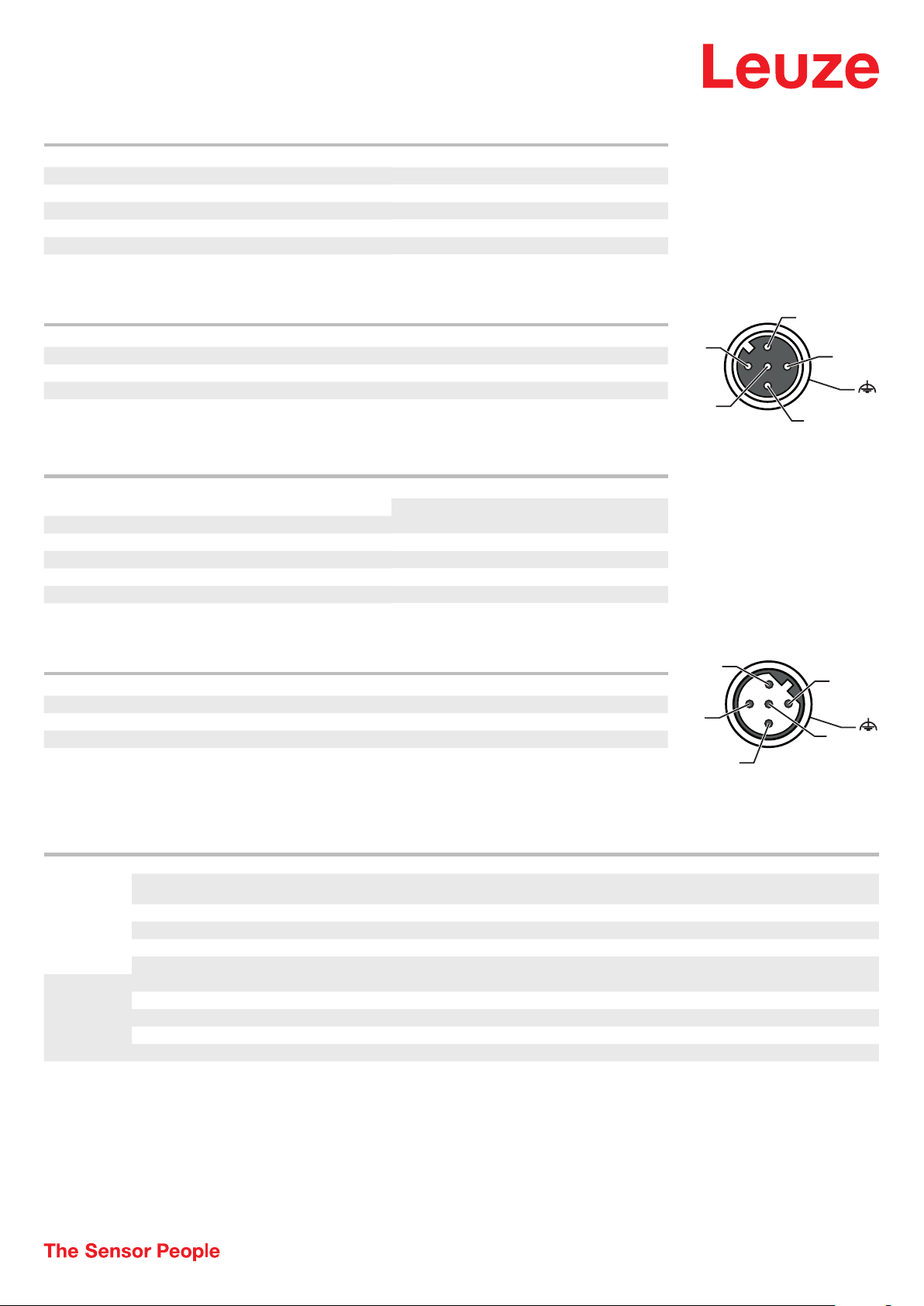

Electrical connection

Connection 4 SERVICE

Function Service interface

Type of connection Connector

Thread size M12

Type Female

Material

No. of pins 5 -pin

Encoding A-coded

Pin Pin assignment

Metal

1 n.c.

2 RS 232-TX

3 GND

4 RS 232-RX

5 n.c.

Connection 5 SSI

Function Data interface

SSI

Type of connection Connector

Thread size M12

Type

Material

No. of pins

Encoding B-coded

Male

Metal

5 -pin

Pin Pin assignment

1 DATA +

2 DATA -

3 CLK+

4 CLK-

5 FE

Operation and display

LED Display Meaning

1 PWR Off No supply voltage

Green, flashing Voltage connected / no measurement value output / initialization

Green, continuous light Device OK, measurement value output

Red, flashing Device OK, warning set

Red, continuous light No measurement value output

Orange, continuous light No data transmission

2 BUS Off No supply voltage

Green, continuous light Bus operation ok

Green, flashing Device not on the bus

Red, flashing No data transmission

Red, continuous light Bus error

• We reserve the right to make technical changes

running

• eng • 2020-12-16

6 /9

Page 7

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

Part number code

Part designation: AMS 3XXi YYY Z AAA

AMS Operating principle

3XXi Series/interface (integrated fieldbus technology)

YYY Operating range

Z Special equipment

AAA Interface

AMS: absolute measurement system

300i: RS 422/RS 232 301i: RS 485 304i: PROFIBUS DP / SSI 308i: TCP/IP 335i: CANopen 338i: EtherCAT 348i: PROFINET RT 355i: DeviceNet 358i: EtherNet/IP 384i: Interbus

40: max. operating range in m 120: max. operating range in m 200: max. operating range in m 300: max. operating range in m

H: with heating

SSI: with SSI interface

Note

ª A list with all available device types can be found on the Leuze website at

Notes

Observe intended use!

ª This product is not a safety sensor and is not intended as personnel protection.

ª The product may only be put into operation by competent persons.

ª Only use the product in accordance with its intended use.

WARNING! LASER RADIATION – CLASS 2 LASER PRODUCT

Do not stare into beam! The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 2 as well as the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.

ª Never look directly into the laser beam or in the direction of reflected laser beams! If you look into the beam path over a longer time period, there is a risk

of injury to the retina.

ª Do not point the laser beam of the device at persons!

ª Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.

ª When mounting and aligning the device, avoid reflections of the laser beam of

ª CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light exposure.

ª Observe the applicable statutory and local laser protection regulations.

ª The device must not be tampered with and must not be changed in any way.

There are no user-serviceable parts inside the device. Repairs must only be performed by

f reflective surfaces!

• We reserve the right to make technical changes

• eng • 2020-12-16

7 /9

Page 8

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

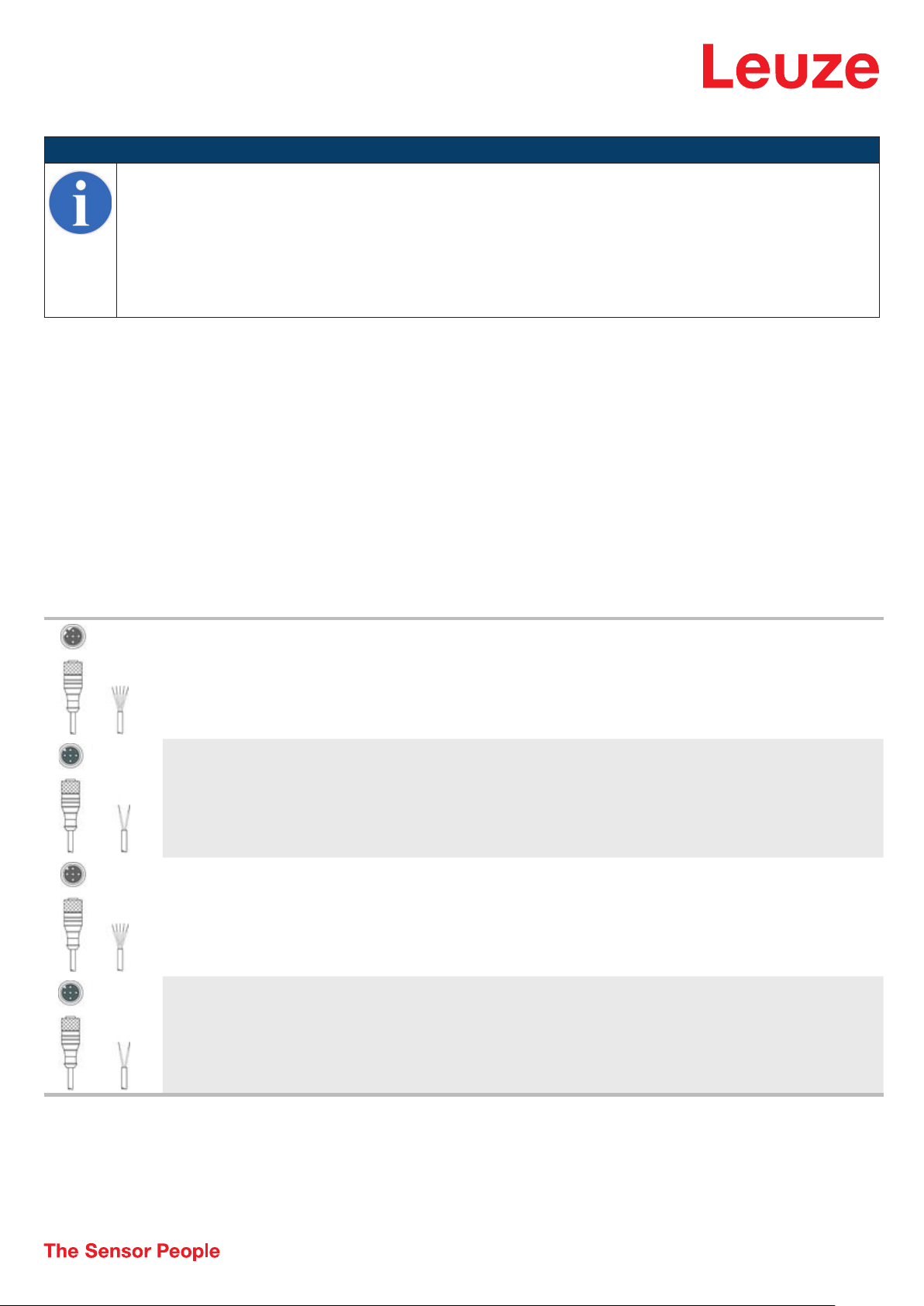

Notes

NOTE

Affix laser information and warning signs! Laser information and warning signs are affixed to the device. In addition, self-adhesive laser information and warning signs (stick-on labels) are supplied in several languages.

ª Affix the laser information sheet to the device in the language appropriate for the place of use. When using the device in the US, use the stick-on label

with the "Complies with 21 CFR 1040.10" note.

ª Affix the laser information and warning signs near the device if no signs are attached to the device (e.g. because the device is too small) or if the attached

laser information and warning signs are concealed due to the installation position.

ª Affix the laser information and warning signs so that they are legible without exposing the reader to the laser radiation of the device or other optical

radiation.

Further information

• For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).

• Use as safety-related component within the safety function is possible, if the component combination is designed correspondingly by the machine manufacturer.

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50104171 KB SSI/IBS-5000-BA Connection cable Suitable for interface: SSI, Interbus-S

50135243 KD PB-M12-4A-P3-

050

50132079 KD U-M12-5A-V1-

050

Connection cable Suitable for interface: PROFIBUS DP

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

Connection 1: Connector, M12, Axial, Female, B-coded, 5 -pin Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

Connection 1: Connector, M12, Axial, Female, B-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

50135248 KS PB-M12-4A-P3-

050

Connection cable Suitable for interface: PROFIBUS DP

Connection 1: Connector, M12, Axial, Male, B-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

• We reserve the right to make technical changes

• eng • 2020-12-16

8 /9

Page 9

Optical distance sensor • Part no.: 50113677 • AMS 304i 40

Accessories

Reflective tapes for distance sensors

Part no. Designation Article Description

Services

50104361 Reflexfolie

200x200mm-S

Reflective tape Design: Rectangular

Reflective surface: 200 mm x 200 mm Chemical designation of the material: PMMA Fastening: Adhesive

Part no. Designation Article Description

S981001 CS10-S-110 Start-up support Details: Performed at location of customer's choosing, duration: max. 10

S981005 CS10-T-110 Product training Details: Location and content to be agreed upon, duration: max. 10 hours.

hours. Conditions: Devices and connection cables are already mounted, price not including travel costs and, if applicable, accommodation expenses. Restrictions: No mechanical (mounting) and electrical (wiring) work performed, no changes (attachments, wiring, programming) to third-party components in the nearby environment.

Conditions: Price not including travel costs and, if applicable, accommodation expenses. Restrictions: Travel costs and accommodation expenses charged separately and according to expenditure.

Note

ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
