Leuze 50113666 Data Sheet

Part no.: 50113666 – AMS 300i 120 H – Optical distance sensor

Technical data

Basic data

Series AMS 300i

Application Positioning of electroplating plants

Functions

Functions Heating

Characteristic parameters

MTTF 48 years

Optical data

Light source Laser, Red

Laser class 2, IEC/EN 60825-1:2007

Positioning of high-bay storage devices
Positioning of skillet systems and side-tracking skates
Collision protection of cranes / gantry cranes

Measurement data

Measurement range 200 ... 120,000 mm

Absolute measurement accuracy 2 mm

Reproducibility (3 sigma) 1.5 mm

Max. traverse rate 10 m/s

Electrical data

Performance data

Supply voltage 18 ... 30 V, DC

Interface

Type RS 232, RS 422

RS 232

Transmission speed 19,200 ... 115,200 Bd

RS 422

Transmission speed 19,200 ... 115,200 Bd

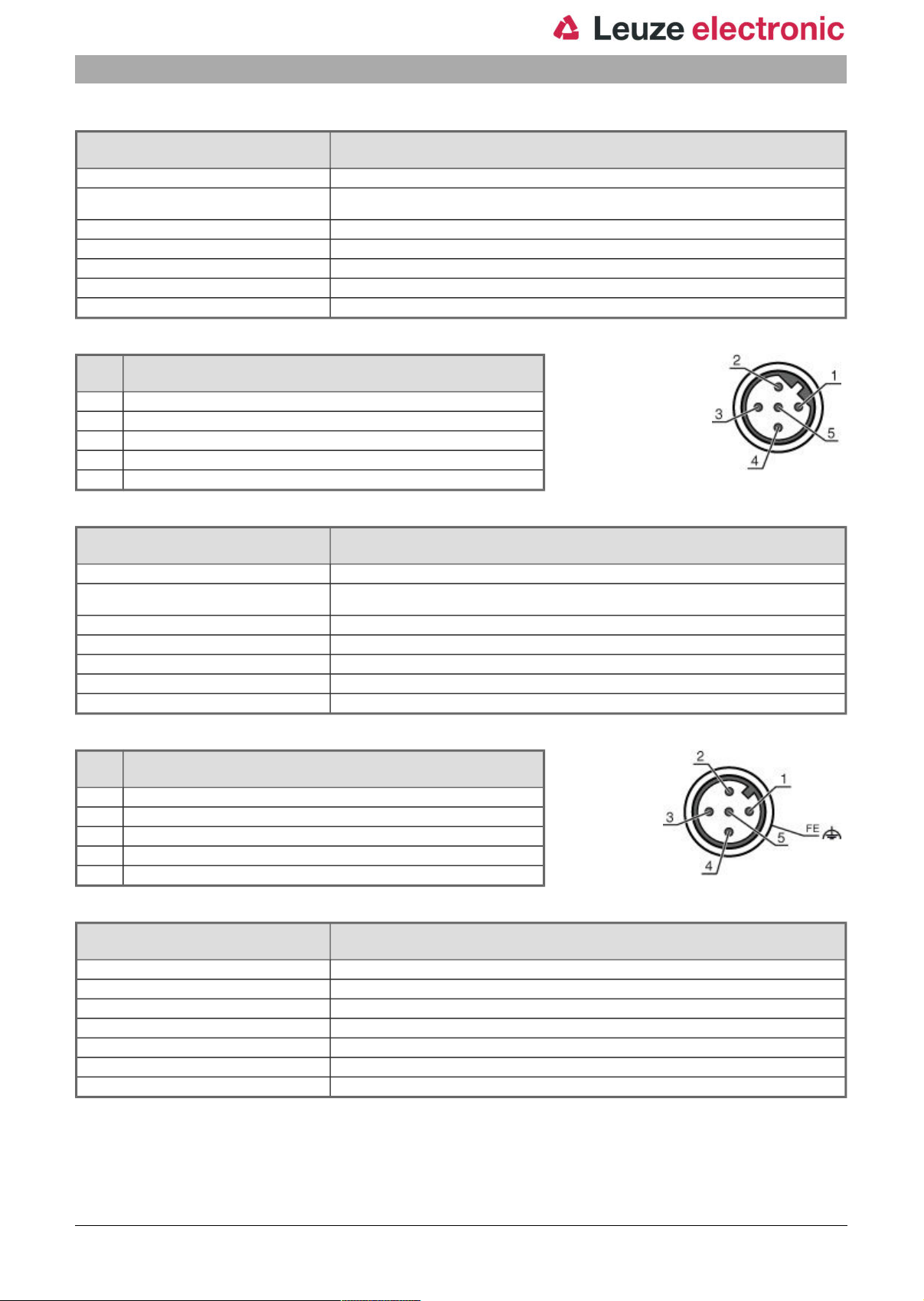

Connection

Number of connections 3 Piece(s)

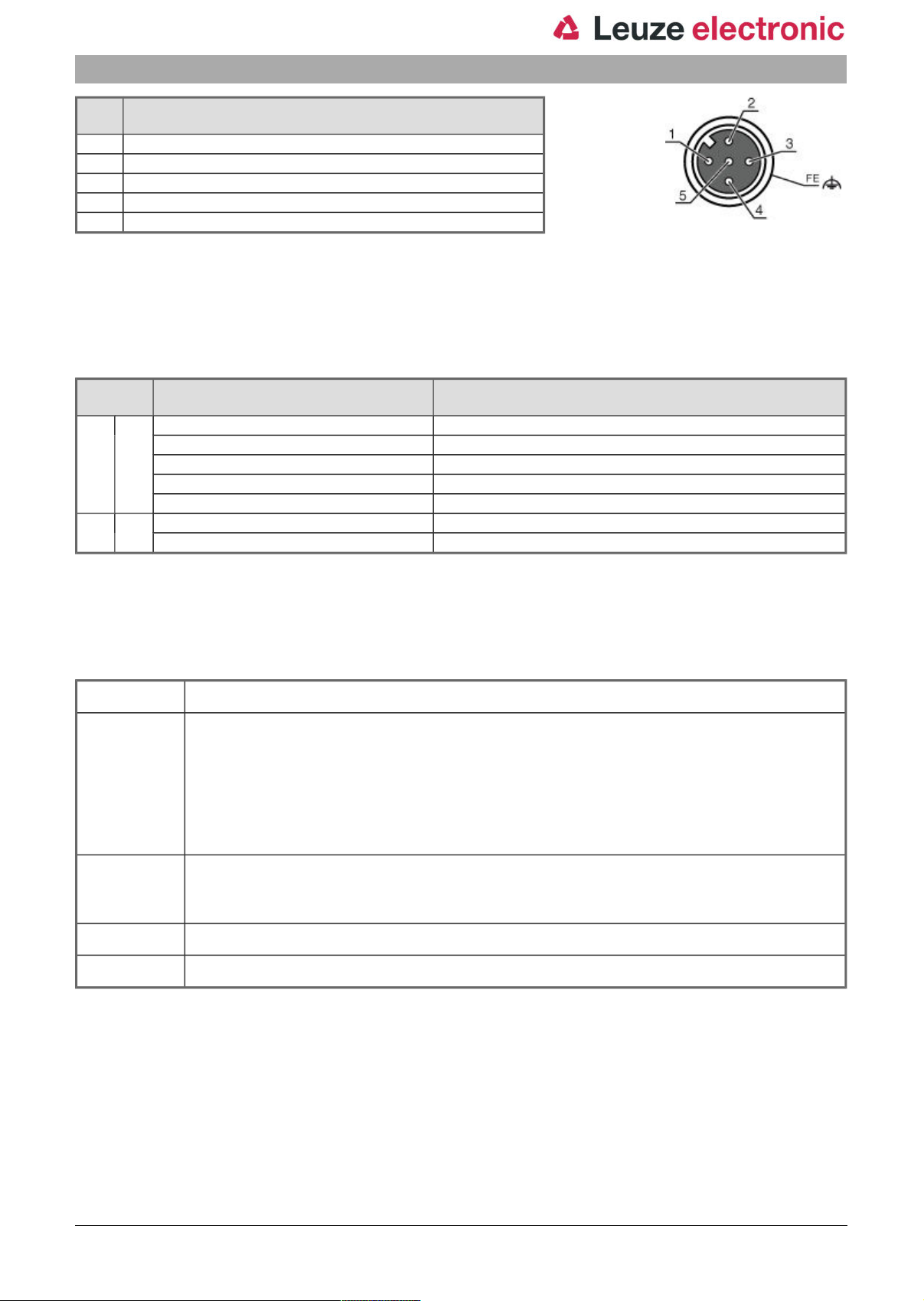

Connection 1

Type of connection Connector

Designation on device BUS IN

Function Data interface

Thread size M12

Type Male

No. of pins 5 -pin

Encoding B-coded

BUS IN

eng 2018-03-27

2 / 10

Part no.: 50113666 – AMS 300i 120 H – Optical distance sensor

Connection 3

Type of connection Connector

Designation on device PWR

Function PWR / SW IN/OUT

Thread size M12

Type Male

No. of pins 5 -pin

Encoding A-coded

Connection 4

Type of connection Connector

Designation on device SERVICE

Function Service interface

Thread size M12

Type Female

No. of pins 5 -pin

Encoding A-coded

Voltage supply

Mechanical data

Design Cubic

Dimension (W x H x L) 84 mm x 166.5 mm x 159 mm

Housing material Metal

Net weight 2,450 g

Type of fastening Through-hole mounting

Operation and display

Type of display LED

Operational controls Membrane keyboard

Environmental data

Ambient temperature, operation -30 ... 50 °C

Ambient temperature, storage -30 ... 70 °C

Relative humidity (non-condensing) 90 %

Certifications

Degree of protection IP 65

Protection class III

Certifications c UL US

LC Display

Classification

eCl@ss 8.0 27270801

eCl@ss 9.0 27270801

ETIM 5.0 EC001825

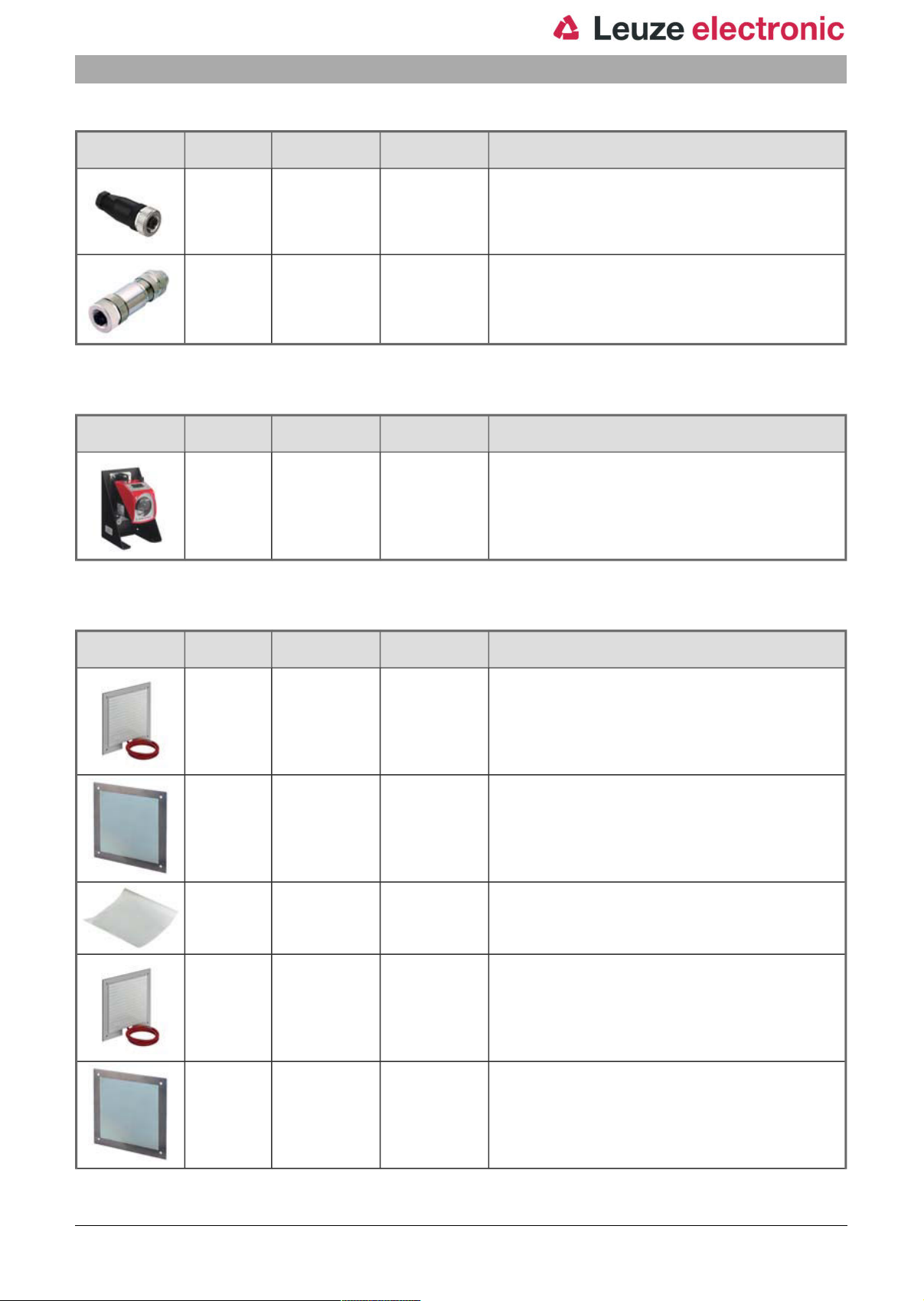

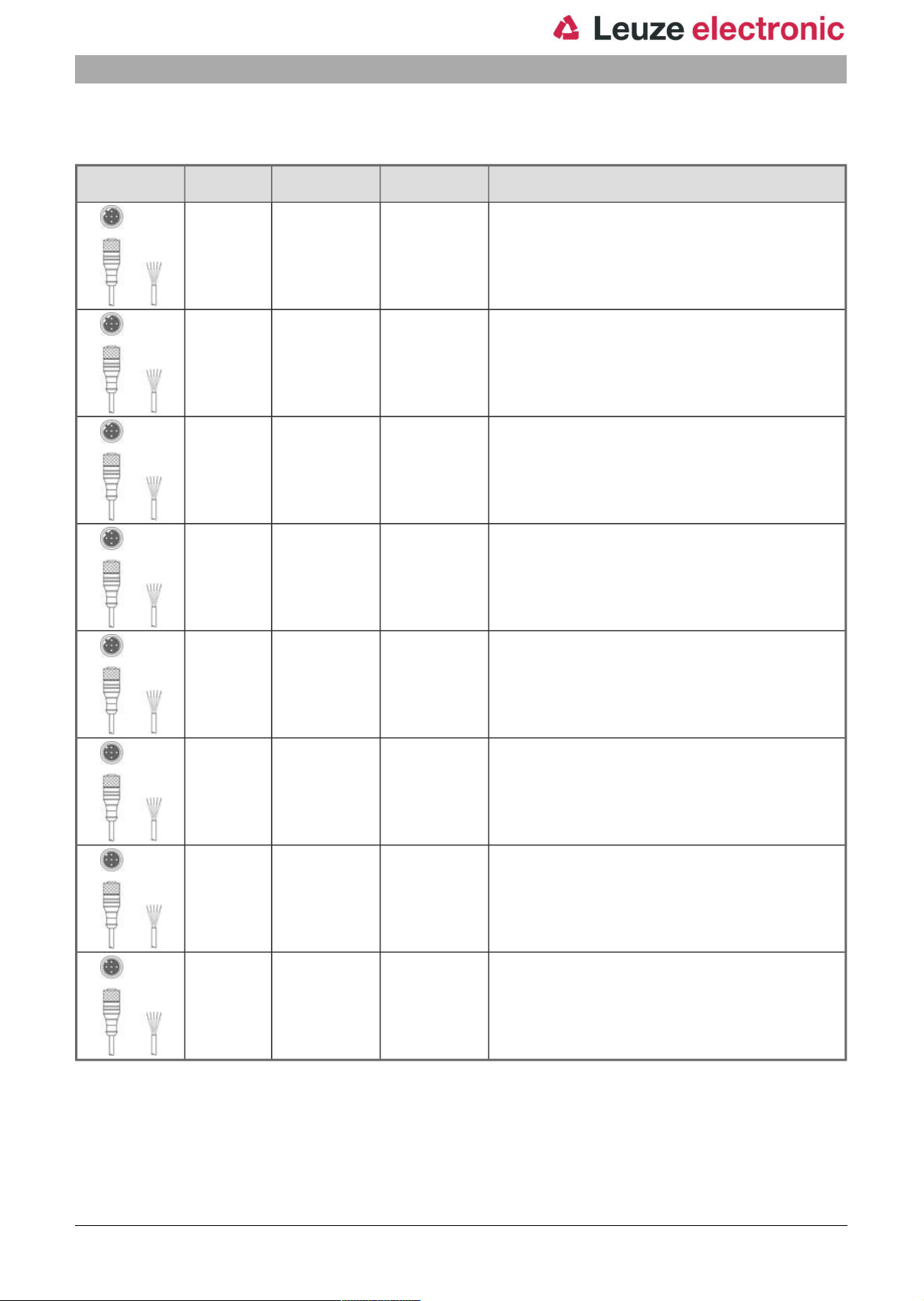

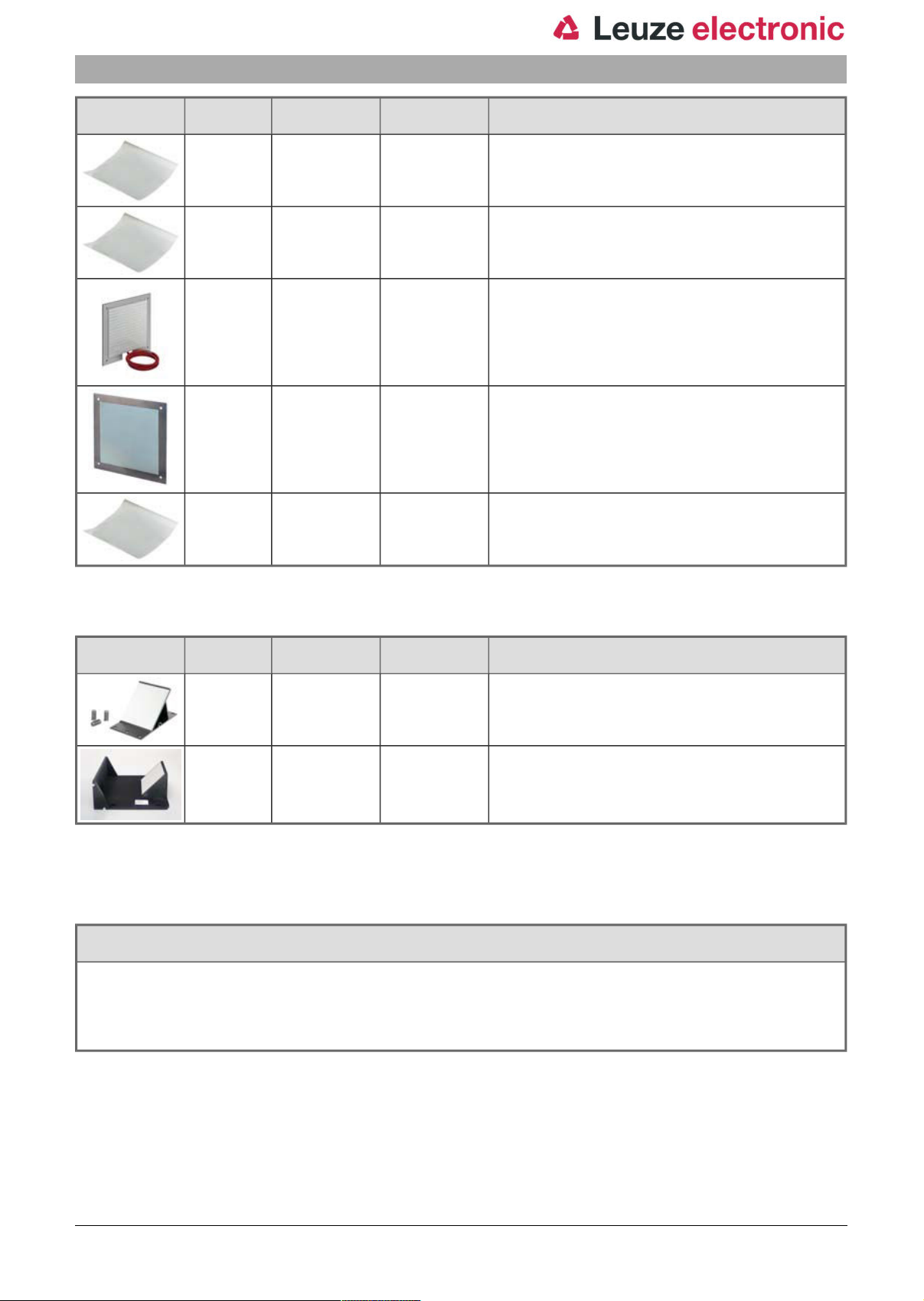

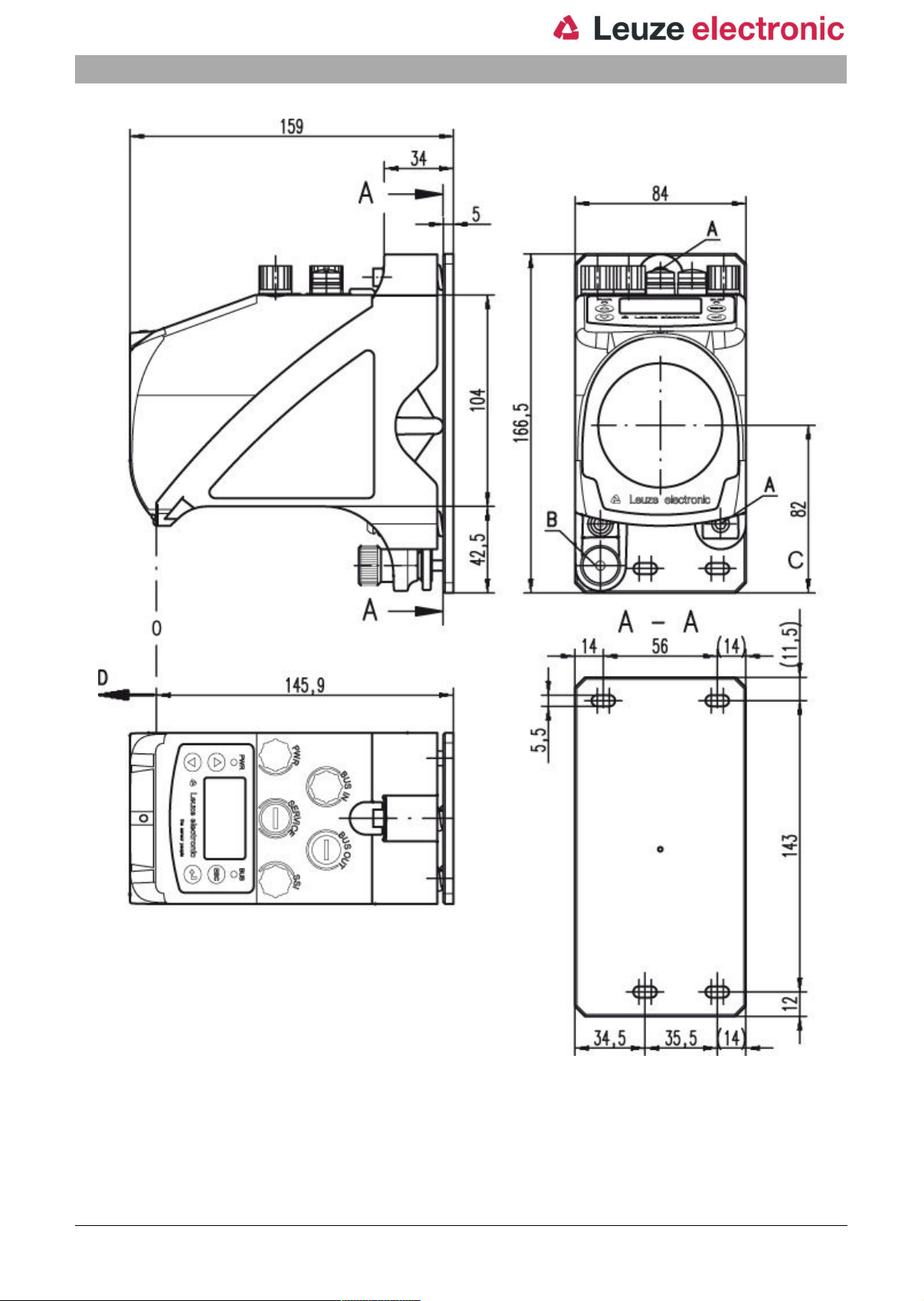

Dimensioned drawings

All dimensions in millimeters

eng 2018-03-27

3 / 10
