Leuze 50113205 Data Sheet

Technical data sheet
Stationary bar code reader

Part no.: 50113205
BCL 548i OF 100

Contents

-

T

echnical data

-

Dimensioned drawings

-

Electrical connection

-

Diagrams

-

Operation and display

-

Part number code

-

Notes

-

Accessories

Figure can vary

• We reserve the right to make technical changes

• eng • 2020-12-16

1 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

Technical data

Basic data

Series BCL 500i

Functions

Functions Alignment mode

AutoConfig

AutoControl

AutoReflAct

Code fragment technology

Reference code comparison

Characteristic parameters

MTTF 42.4 years

Read data

Code types, readable 2/5 Interleaved

Codabar

Code 128

Code 39

Code 93

EAN 128

EAN 8/13

EAN Addendum

GS1 Databar Expanded

GS1 Databar Limited

GS1 Databar Omnidirectional

UPC

Scanning rate, typical 1,000 scans/s

Bar codes per reading gate, max.
number

64 Piece(s)

Optical data

Reading distance 400 ... 1,600 mm

Light source Laser, Red

Laser light wavelength 650 nm

Laser class 2, IEC/EN 60825-1:2007

Transmitted-signal shape Continuous

Bar code contrast (PCS) 60 %

Modulus size 0.5 ... 1 mm

Reading method Oscillating-mirror scanner

Scanning rate 800 ... 1,200 scans/s

Beam deflection Via rotating polygon wheel + stepping

Light beam exit Zero position at side at angle less than

Oscillating mirror frequency 10 Hz

Max. swivel angle 40 °

motor with mirror

90°

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage U

Power consumption, max. 14 W

B

10 ... 30 V, DC

Inputs/outputs selectable

Output current, max. 100 mA

Number of inputs/outputs selectable 4 Piece(s)

Voltage type, outputs DC

Switching voltage, outputs Typ. UB / 0 V

Voltage type, inputs

Switching voltage, inputs

Input current, max.

DC

Typ. UB / 0 V

8 mA

Interface

Type PROFINET

Profinet

Function

Conformance class B

Protocol PROFINET RT

Switch functionality Integrated

Transmission speed 100 Mbit/s

Process

Service interface

Type USB

USB

Function Configuration via software

Service

Connection

Number of connections 5 Piece(s)

Connection 1

Function Service interface

Type of connection USB

Designation on device SERVICE

Connector type USB 2.0 Standard-A

Connection 2

Function

Type of connection Connector

Designation on device SW IN/OUT

Thread size M12

Type Female

Material Metal

No. of pins 5 -pin

Encoding

Signal IN

Signal OUT

A-coded

Connection 3

Function PWR / SW IN / OUT

Type of connection Connector

Designation on device PWR

Thread size M12

Type Male

Material

No. of pins 5 -pin

Encoding A-coded

Metal

• We reserve the right to make technical changes

• eng • 2020-12-16

2 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

Technical data

Connection 4

Function BUS IN

Type of connection Connector

Designation on device HOST / BUS IN

Thread size M12

Type

Material

No. of pins

Encoding D-coded

Female

Metal

4 -pin

Connection 5

Function

Type of connection

Designation on device

Thread size

Type Female

No. of pins 4 -pin

BUS OUT

Connector

BUS OUT

M12

Mechanical data

Design Cubic

Dimension (W x H x L) 173 mm x 84 mm x 147 mm

Housing material Metal

Metal housing Aluminum

Lens cover material Glass

Net weight 1,500 g

Housing color Black, RAL 9005

Red, RAL 3000

Type of fastening Dovetail grooves

Mounting thread

Via optional mounting device

Operation and display

Type of display LED

Monochromatic graphical display,
128x64 pixel, with background lighting

Number of LEDs 2 Piece(s)

Type of configuration Via web browser

Operational controls Button(s)

Via service interface

Environmental data

Ambient temperature, operation 0 ... 40 °C

Ambient temperature, storage -20 ... +70 °C

Relative humidity (non-condensing) 90 %

Extraneous light tolerance on the bar
code, max.

2,000 lx

Certifications

Degree of protection IP 65

Protection class III

Certifications c UL US

Test procedure for EMC in accordance
with standard

Test procedure for shock in
accordance with standard

Test procedure for continuous shock
in accordance with standard

Test procedure for vibration in
accordance with standard

EN 55022

EN 61000-4-2, -3, -4, -6

EN 61000-6-2

IEC 60068-2-27, test Ea

IEC 60068-2-29, test Eb

IEC 60068-2-6, test Fc

Classification

Customs tariff number 84719000

eCl@ss 5.1.4 27280102

eCl@ss 8.0 27280102

eCl@ss 9.0 27280102

eCl@ss 10.0 27280102

eCl@ss 11.0 27280102

ETIM 5.0 EC002550

ETIM 6.0 EC002550

ETIM 7.0 EC002550

• We reserve the right to make technical changes

• eng • 2020-12-16

3 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

1

4

3

2

82,5

43

M4/6deep

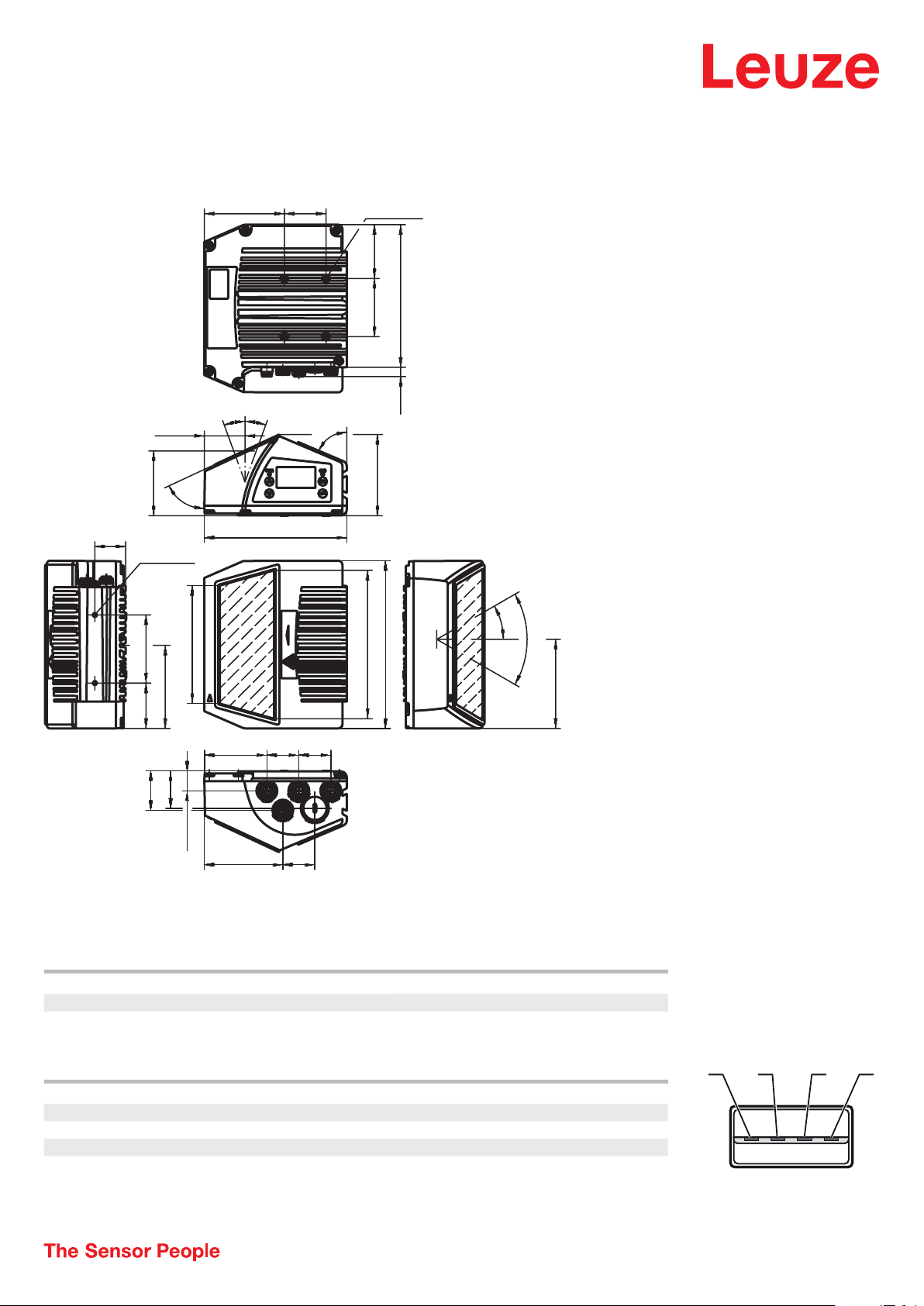

Dimensioned drawings

All dimensions in millimeters

20°

20°

B

41,9

A

65°

66,9

67°

55,5

60

83,8

147,19,6

31,9

146,9

M4/7deep

70,5

121,7

153,1

173

85,7

46,7

33

33

40,5

64,4

38,5

20,5

3381

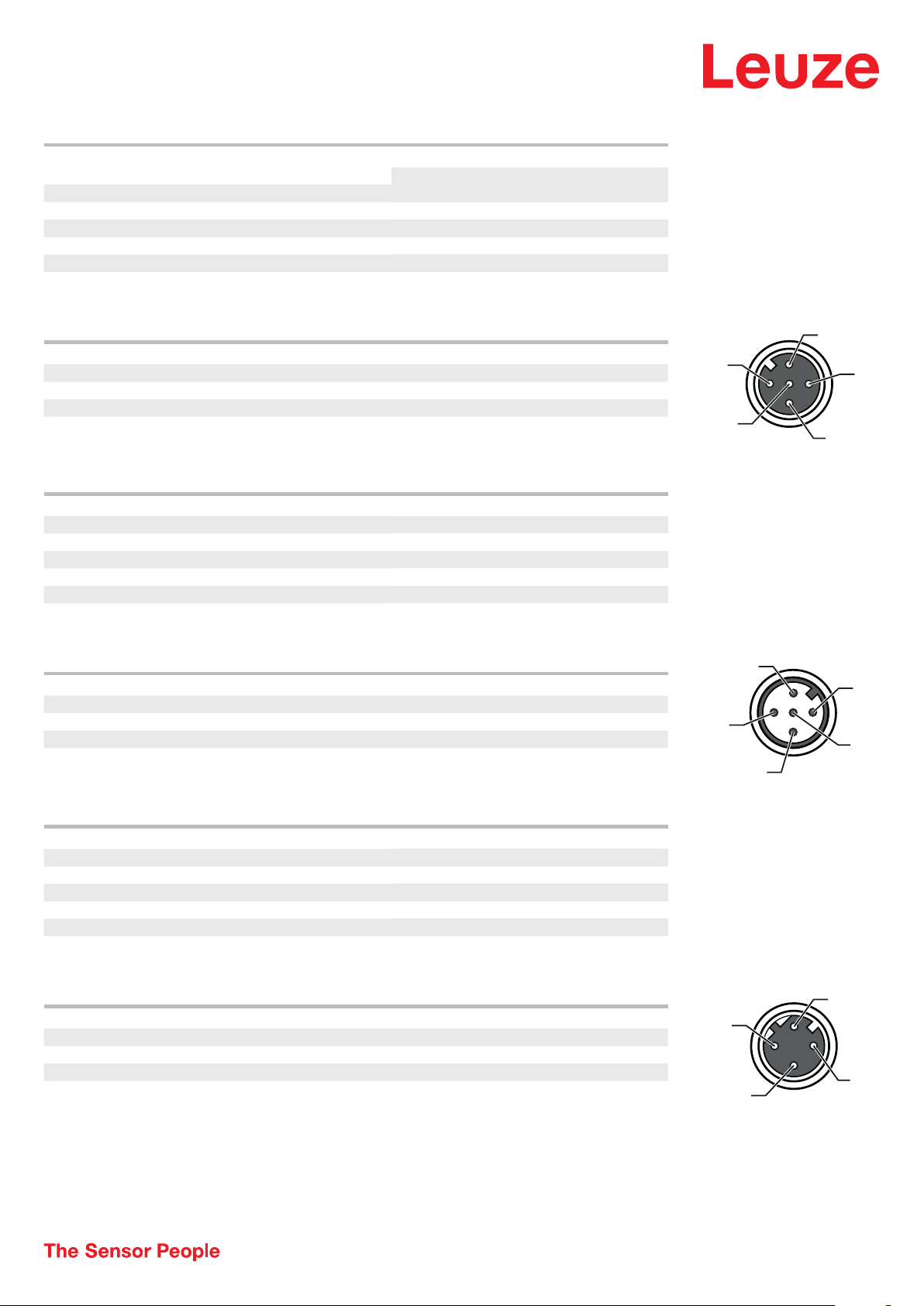

Electrical connection

Connection 1 SERVICE

30°

C

60°

91,9

A

Function Service interface

Type of connection USB

Connector type USB 2.0 Standard-A

Pin Pin assignment

1 +5 V DC

2 D- - Data

3 D+ - Data

4 GND

• We reserve the right to make technical changes

• eng • 2020-12-16

4 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

2

2

2

Electrical connection

Connection 2 SW IN/OUT

Function Signal IN

Signal OUT

Type of connection Connector

Thread size M12

Type

Material Metal

No. of pins 5 -pin

Encoding A-coded

Pin Pin assignment

Female

1 VOUT

2 SWIO 1

3 GND

4 SWIO 2

5 FE

Connection 3 PWR

Function PWR / SW IN / OUT

Type of connection Connector

Thread size M12

Type Male

Material

No. of pins 5 -pin

Encoding A-coded

Metal

Pin Pin assignment

1 VIN

2 SWIO 3

3 GND

4 SWIO 4

5 FE

1

3

5

4

1

3

5

4

Connection 4 HOST / BUS IN

Function BUS IN

Type of connection Connector

Thread size M12

Type Female

Material

No. of pins 4 -pin

Encoding D-coded

Metal

Pin Pin assignment

1 TD+

2 RD+

3 TD-

4 RD-

1

4

• We reserve the right to make technical changes

• eng • 2020-12-16

3

5 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

2

100 200-100 0 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700

-100

-200

-300

-400

-500

-600

-700

700

Electrical connection

Connection 5 BUS OUT

Function BUS OUT

Type of connection Connector

Thread size M12

Type Female

Material

No. of pins 4 -pin

Encoding D-coded

Pin Pin assignment

Metal

1 TD+

2 RD+

3 TD-

4 RD-

Diagrams

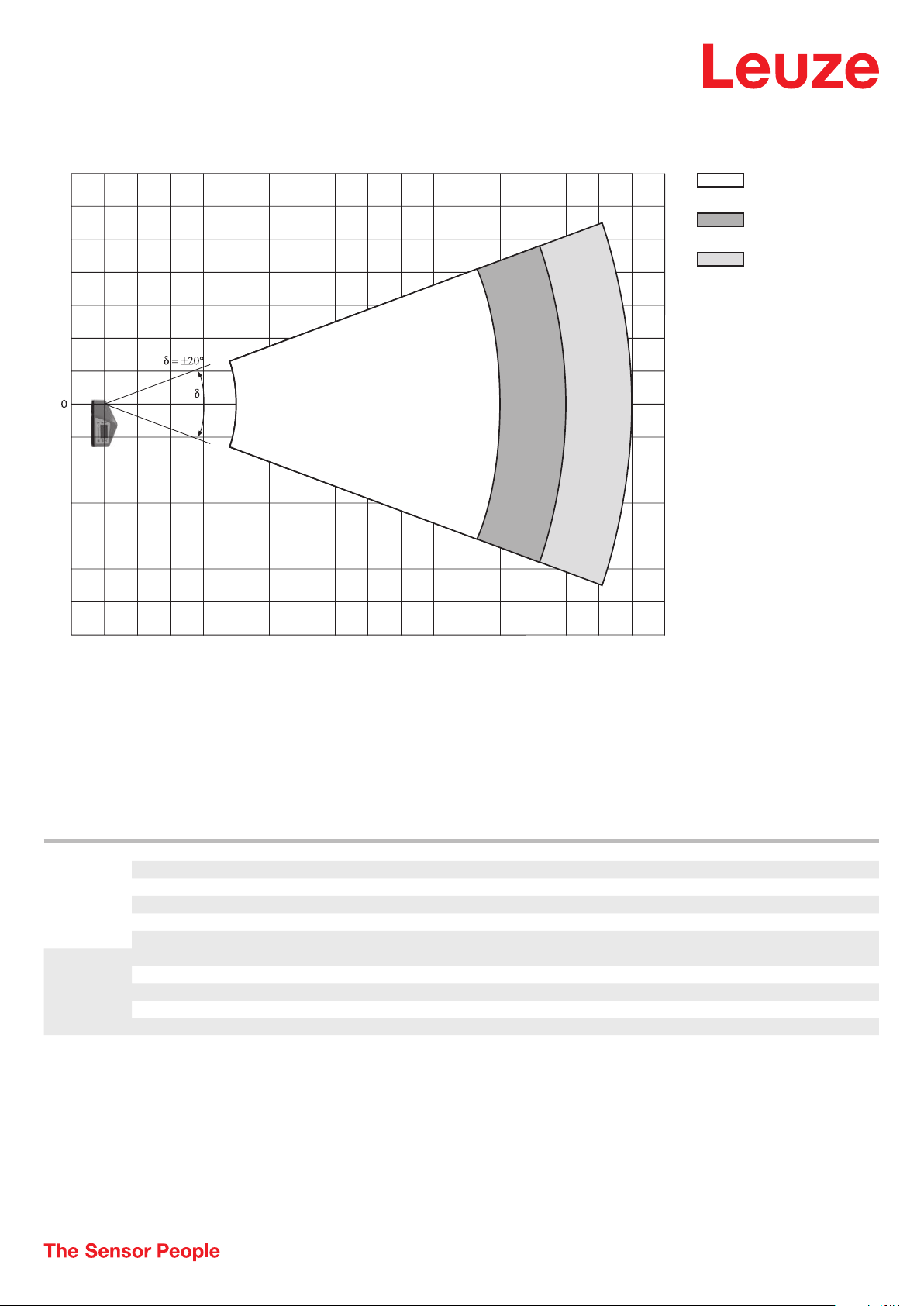

Reading field curve

600

500

400

300

200

100

m = 0,5

m = 0,8

1

3

4

m = 0,5

m = 0,8

m = 1,0

m = 1,0

x Reading field distance [mm]

y Reading field width [mm]

• We reserve the right to make technical changes

• eng • 2020-12-16

6 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

-100

-200

-300

-400

-500

-600

-700

700

Diagrams

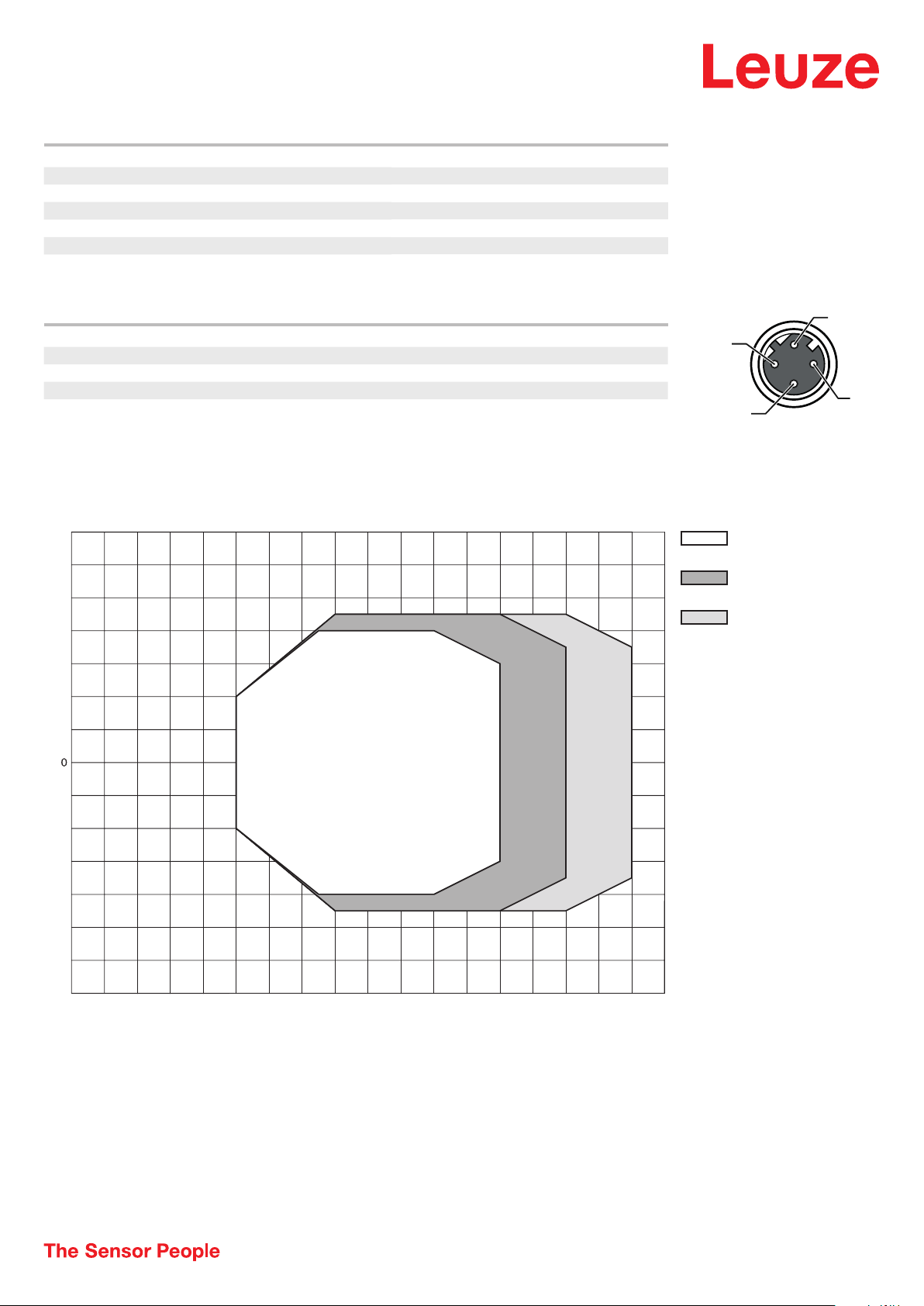

Lateral reading field curve

600

500

400

300

200

100

-100

0 100

m = 0,5

200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500

m = 0,8

m = 1,0

1600

m = 0,5

m = 0,8

m = 1,0

1700

x Reading field distance [mm]

y Reading field height [mm]

Operation and display

LED Display Meaning

1 PWR Off Device switched off

Green, flashing Device ok, initialization phase

Green, continuous light Device OK

Orange, continuous light Service operation

Red, flashing Device OK, warning set

Red, continuous light Device error

2 BUS Off No supply voltage

Green, flashing Initialization

Green, continuous light Bus operation ok

Red, flashing Communication error

Red, continuous light Network error

• We reserve the right to make technical changes

• eng • 2020-12-16

7 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

Part number code

Part designation: BCL XXXX YYZ AAA B

BCL Operating principle

XXXX Series/interface (integrated fieldbus technology)

YY Scanning principle

Z Optics

AAA Beam exit

B Special equipment

BCL: bar code reader

500i: RS 232 / RS 422 / RS 485 (multiNet master)
501i: RS 485 (multiNet slave)
504i: PROFIBUS DP
508i: EtherNet TCP/IP, UDP
548i: PROFINET RT
558i: EtherNet/IP

S: line scanner (single line)
O: oscillating-mirror scanner (oscillating mirror)

N: High Density (close)
M: Medium Density (medium distance)
F: Low Density (remote)
L: Long Range (very large distances)

100: lateral
102: front

H: with heating

Note

ª A list with all available device types can be found on the Leuze website at

Notes

Observe intended use!

ª This product is not a safety sensor and is not intended as personnel protection.

ª The product may only be put into operation by competent persons.

ª Only use the product in accordance with its intended use.

WARNING! LASER RADIATION – CLASS 2 LASER PRODUCT

Do not stare into beam!
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 2 as well as the
U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.

ª Never look directly into the laser beam or in the direction of reflected laser beams! If you look into the beam path over a longer time period, there is a risk

of injury to the retina.

ª Do not point the laser beam of the device at persons!

ª Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.

ª When mounting and aligning the device, avoid reflections of the laser beam of

ª CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light exposure.

ª Observe the applicable statutory and local laser protection regulations.

ª The device must not be tampered with and must not be changed in any way.

There are no user-serviceable parts inside the device.
Repairs must only be performed by

f reflective surfaces!

• We reserve the right to make technical changes

• eng • 2020-12-16

8 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

Notes

NOTE

Affix laser information and warning signs!
Laser information and warning signs are affixed to the device. In addition, self-adhesive laser information and warning signs (stick-on labels) are
supplied in several languages.

ª Affix the laser information sheet to the device in the language appropriate for the place of use. When using the device in the US, use the stick-on label

with the "Complies with 21 CFR 1040.10" note.

ª Affix the laser information and warning signs near the device if no signs are attached to the device (e.g. because the device is too small) or if the attached

laser information and warning signs are concealed due to the installation position.

ª Affix the laser information and warning signs so that they are legible without exposing the reader to the laser radiation of the device or other optical

radiation.

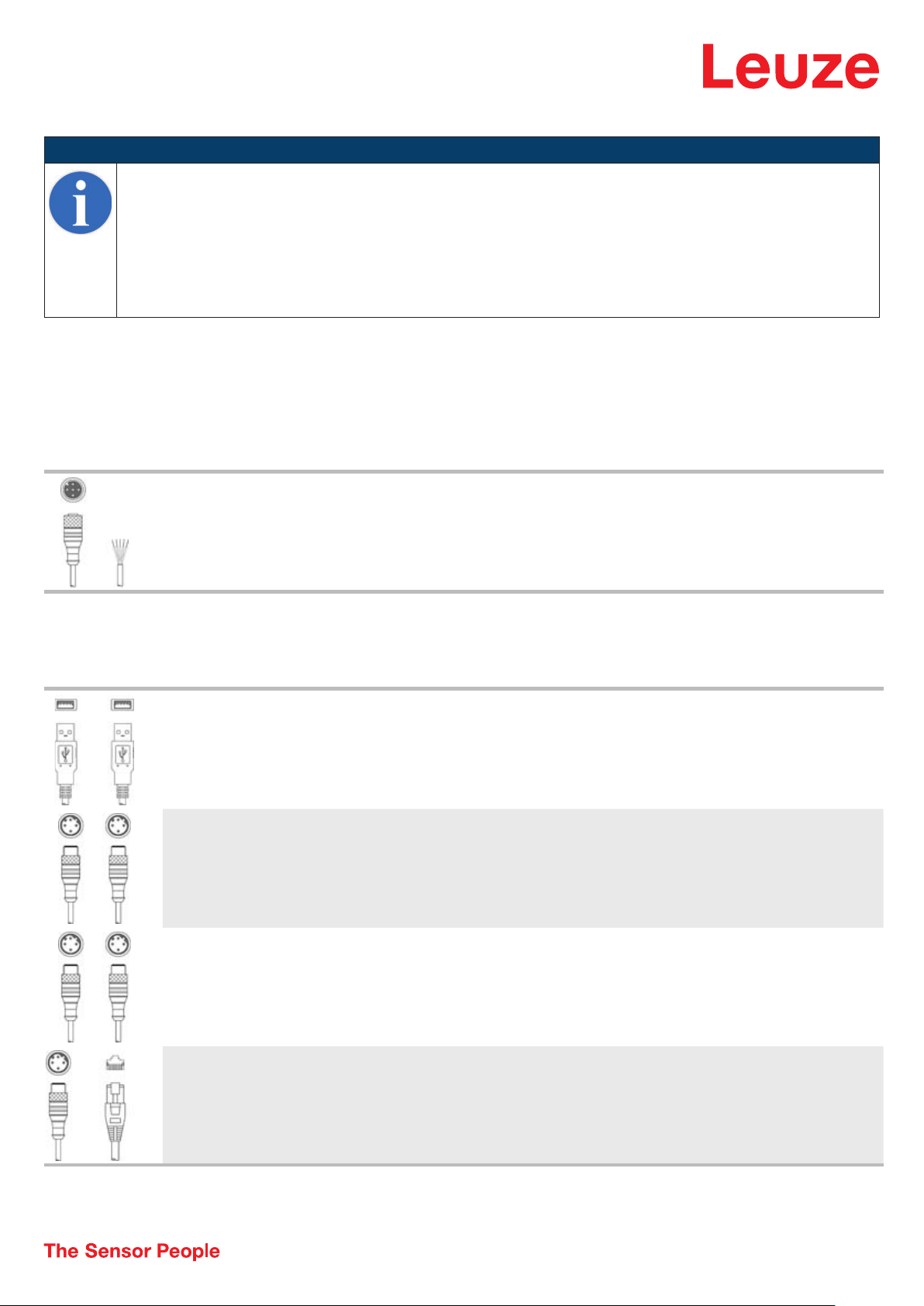

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50132079 KD U-M12-5A-V1-

Connection technology - Interconnection cables

050

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC

Part no. Designation Article Description

50107726 KB USB A - USB A Interconnection cable Suitable for interface: USB

50137077 KSS ET-M12-4A-

M12-4A-P7-020

Interconnection cable Suitable for interface: Ethernet

Connection 1: USB
Connection 2: USB
Shielded: Yes
Cable length: 1,800 mm
Sheathing material: PVC

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 1,000 mm
Sheathing material: PUR

50137078 KSS ET-M12-4A-

M12-4A-P7-050

50135081 KSS ET-M12-4A-

RJ45-A-P7-050

Interconnection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 1,000 mm
Sheathing material: PUR

Interconnection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR

• We reserve the right to make technical changes

• eng • 2020-12-16

9 /10

Stationary bar code reader • Part no.: 50113205 • BCL 548i OF 100

Accessories

Mounting technology - Other

Part no. Designation Article Description

Services

50111224 BT 59 Mounting bracket Fastening, at system: Groove mounting

Mounting bracket, at device: Clampable
Material: Metal

Part no. Designation Article Description

S981020 CS30-E-212 Hourly rate for

"Configuration"

S981014 CS30-S-110 Start-up support Details: Performed at location of customer's choosing, duration: max. 10

S981019 CS30-T-110 Product training Details: Location and content to be agreed upon, duration: max. 10 hours.

Details: Compilation of the application data, selection and suggestion of
suitable sensor system, drawing prepared as assembly sketch.
Conditions: Completed questionnaire or project specifications with a
description of the application have been provided.
Restrictions: Travel and accommodation charged separately and according to
expenditure.

hours.
Conditions: Devices and connection cables are already mounted, price not
including travel costs and, if applicable, accommodation expenses.
Restrictions: No mechanical (mounting) and electrical (wiring) work
performed, no changes (attachments, wiring, programming) to third-party
components in the nearby environment.

Conditions: Price not including travel costs and, if applicable, accommodation
expenses.
Restrictions: Travel costs and accommodation expenses charged separately
and according to expenditure.

S981021 CS30-V-212 Hourly rate for "Bar

code qualification"

Details: REA evaluation with creation of a test report, evaluation of the code
quality.
Conditions: Original bar codes to be provided by the client.

Note

ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.

• We reserve the right to make technical changes

• eng • 2020-12-16

10 /10
