Leuze 50109707 Data Sheet

Technical data sheet
Inductive switch

Part no.: 50109707
ISS 218MM/4NO-12E-S12

Contents

-

T

echnical data

-

Dimensioned drawings

-

Electrical connection

-

Diagrams

-

Operation and display

-

Part number code

-

Notes

-

Accessories

Figure can vary

• We reserve the right to make technical changes

• eng • 2020-12-15

1 /7

Inductive switch • Part no.: 50109707 • ISS 218MM/4NO-12E-S12

Technical data

Basic data

Series 218

Typ. operating range limit S

Operating range S

a

n

12 mm

0 ... 9.7 mm

Characteristic parameters

MTTF 480 years

Electrical data

Protective circuit Inductive protection

Polarity reversal protection

Short circuit protected

Performance data

Supply voltage U

Residual ripple

Open-circuit current

Temperature drift, max. (in % of Sr) 10 %, Over the entire operating

Repeatability, max. (in % of Sr) 5 %, For UB = 20 … 30 V DC, ambient

Switching hysteresis 10 %

B

10 ... 30 V, DC

0 ... 20 %, From U

0 ... 10 mA

tempera ture range

temperature Ta = 23 °C ± 5 °C

B

Outputs

Number of digital switching outputs

1 Piece(s)

Switching outputs

Voltage type DC

Switching current, max. 200 mA

Residual current, max. 0.1 mA

Voltage drop ≤ 2 V

Mechanical data

Design Cylindrical

Thread size M18 x 1 mm

Dimension (Ø x L) 18 mm x 48.5 mm

Type of installation Embedded

Housing material Metal

Metal housing Chromed brass

Sensing face material Plastic, Polybutylene (PBT)

Net weight 49 g

Housing color Red, RAL 3000

Silver

Type of fastening Mounting thread

Standard measuring plate 36 x 36 mm², Fe360

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

Environmental data

Ambient temperature, operation -25 ... 70 °C

Ambient temperature, storage -25 ... 70 °C

Certifications

Degree of protection IP 67

Protection class II

Certifications c UL US

Test procedure for EMC in accordance
with standard

Standards applied IEC 60947-5-2

IEC 61000-4-2

IEC 61000-4-3

IEC 61000-4-4

Switching output 1

Switching element Transistor, PNP

Switching principle NO (normally open)

Timing

Switching frequency 600 Hz

Readiness delay 40 ms

Connection

Number of connections 1 Piece(s)

Connection 1

Function

Type of connection Connector

Thread size M12

Type

Material Metal

No. of pins 4 -pin

Encoding A-coded

Signal OUT

Voltage supply

Male

Correction factors

Aluminum 0.3

Stainless steel 0.67

Copper 0.26

Brass 0.4

Fe360 steel 1

Classification

Customs tariff number 85365019

eCl@ss 5.1.4 27270101

eCl@ss 8.0 27270101

eCl@ss 9.0 27270101

eCl@ss 10.0 27270101

eCl@ss 11.0 27270101

ETIM 5.0 EC002714

ETIM 6.0 EC002714

ETIM 7.0 EC002714

• We reserve the right to make technical changes

• eng • 2020-12-15

2 /7

Inductive switch • Part no.: 50109707 • ISS 218MM/4NO-12E-S12

2

M18x1

A

48,5

Dimensioned drawings

All dimensions in millimeters

A Active surface

B Yellow LED

32

35,5

37,5

8

B

M12x1

SW24

Electrical connection

Connection 1

Function Signal OUT

Voltage supply

Type of connection Connector

Thread size M12

Type

Material

No. of pins

Encoding A-coded

Male

Metal

4 -pin

Pin Pin assignment

1 V+

2 n.c.

3 GND

4 OUT 1

3

4

• We reserve the right to make technical changes

• eng • 2020-12-15

1

3 /7

Inductive switch • Part no.: 50109707 • ISS 218MM/4NO-12E-S12

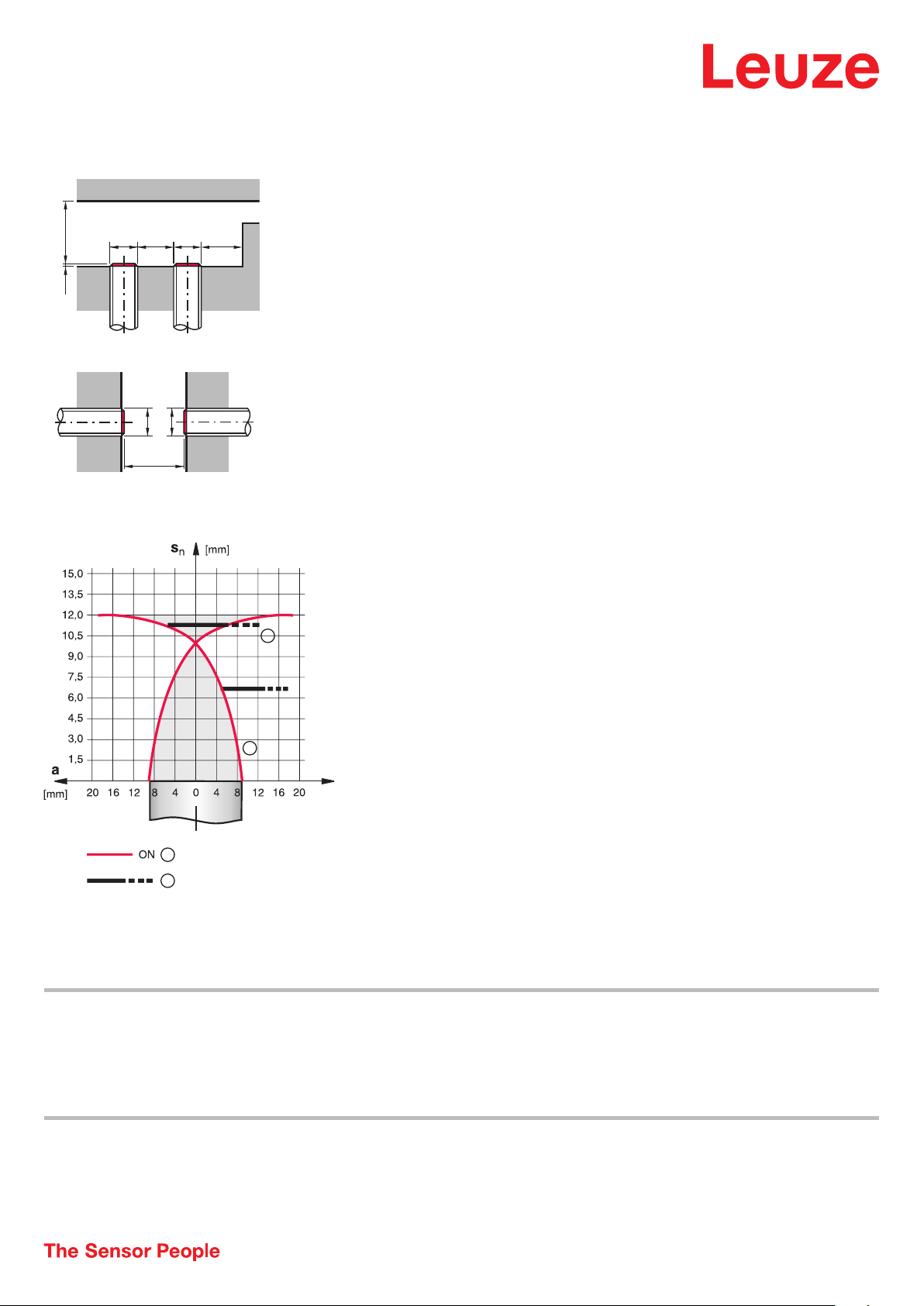

D1

Diagrams

Embedded installation

Sn [mm] 12

D1 [mm] 4

≥ 3S

n

D2

d

d

≥ 3S

n

D3d

d

D2 [mm] 26

D3 [mm] 9

Types with Sn = 12.0 mm

a Inductive switch

b Standard measuring plate

b

a

a

b

Operation and display

LED Display Meaning

1 Yellow, continuous light Switching output/switching state

Part number code

Part designation: ISX YYY ZZ/AAA.BB-CCC-DDD-DDD

ISX Operating principle / construction

IS: inductive switch, standard design
ISS: inductive switch, short construction

• We reserve the right to make technical changes

• eng • 2020-12-15

4 /7

Inductive switch • Part no.: 50109707 • ISS 218MM/4NO-12E-S12

Part number code

YYY Series

ZZ Housing / thread

AAA Output current / supply

BB Special equipment

CCC Measurement range / type of installation

DDD Electrical connection

203: series with Ø 3 mm
204: series with Ø 4 mm
205: series with M5 x 0.5 external thread
206: series with Ø 6.5 mm
208: series with M8 x 1 external thread
212: series with M12 x 1 external thread
218: series with M18 x 1 external thread
230: series with M30 x 1.5 external thread
240: series in cubic design
244: series in cubic design
255: series with 5 x 5 mm² cross section
288: series with 8 x 8 mm² cross section

MM: metal housing (active surface: plastic) / metric thread
FM: full-metal housing (active surface: stainless steel AISI 316L) / metric thread
MP: metal housing (active surface: plastic) / smooth (without thread)

4NO: PNP transistor, NO contact
4NC: PNP transistor, NC contact
2NO: NPN transistor, NO contact
2NC: NPN transistor, NC contact
1NO: relay, NO contact / AC/DC
1NC: relay, NC contact / AC/DC
44: 2 PNP transistor switching outputs, antivalent (NO + NC)
22: 2 NPN transistor switching outputs, antivalent (NO + NC)

n/a: no special equipment
5F: food version
5: housing material V2A (1.4305, AISI 303)

1E0: typ. range limit 1.0 mm / embedded installation
1E5: typ. range limit 1.5 mm / embedded installation
2E0: typ. range limit 2.0 mm / embedded installation
3E0: typ. range limit 3.0 mm / embedded installation
4E0: typ. range limit 4.0 mm / embedded installation
5E0: typ. range limit 5.0 mm / embedded installation
6E0: typ. range limit 6.0 mm / embedded installation
8E0: typ. range limit 8.0 mm / embedded installation
10E: typ. range limit 10.0 mm / embedded installation
12E: typ. range limit 12.0 mm / embedded installation
15E: typ. range limit 15.0 mm / embedded installation
20E: typ. range limit 20.0 mm / embedded installation
22E: typ. range limit 22.0 mm / embedded installation
2N5: typ. range limit 2.5 mm / non-embedded installation
4N0: typ. range limit 4.0 mm / non-embedded installation
8N0: typ. range limit 8.0 mm / non-embedded installation
10N: typ. range limit 10.0 mm / non-embedded installation
12N: typ. range limit 12.0 mm / non-embedded installation
14N: typ. range limit 14.0 mm / non-embedded installation
15N: typ. range limit 15.0 mm / non-embedded installation
20N: typ. range limit 20.0 mm / non-embedded installation
22N: typ. range limit 22.0 mm / non-embedded installation
25N: typ. range limit 25.0 mm / non-embedded installation
40N: typ. range limit 40.0 mm / non-embedded installation

n/a: cable, standard length 2000 mm
S12: M12 connector, 4-pin, axial
200-S12: cable, length 200 mm with M12 connector, 4-pin, axial
200-S8.3: cable, length 200 mm with M8 connector, 3-pin, axial
S8.3: M8 connector, 3-pin, axial
005-S8.3: cable, length 500 mm with M8 connector, 3-pin, axial
050: cable, standard length 5000 mm, 3-wire

Note

ª A list with all available device types can be found on the Leuze website at

• We reserve the right to make technical changes

• eng • 2020-12-15

5 /7

Inductive switch • Part no.: 50109707 • ISS 218MM/4NO-12E-S12

Notes

Observe intended use!

ª This product is not a safety sensor and is not intended as personnel protection.

ª The product may only be put into operation by competent persons.

ª Only use the product in accordance with its intended use.

For UL applications:

ª For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).

Accessories

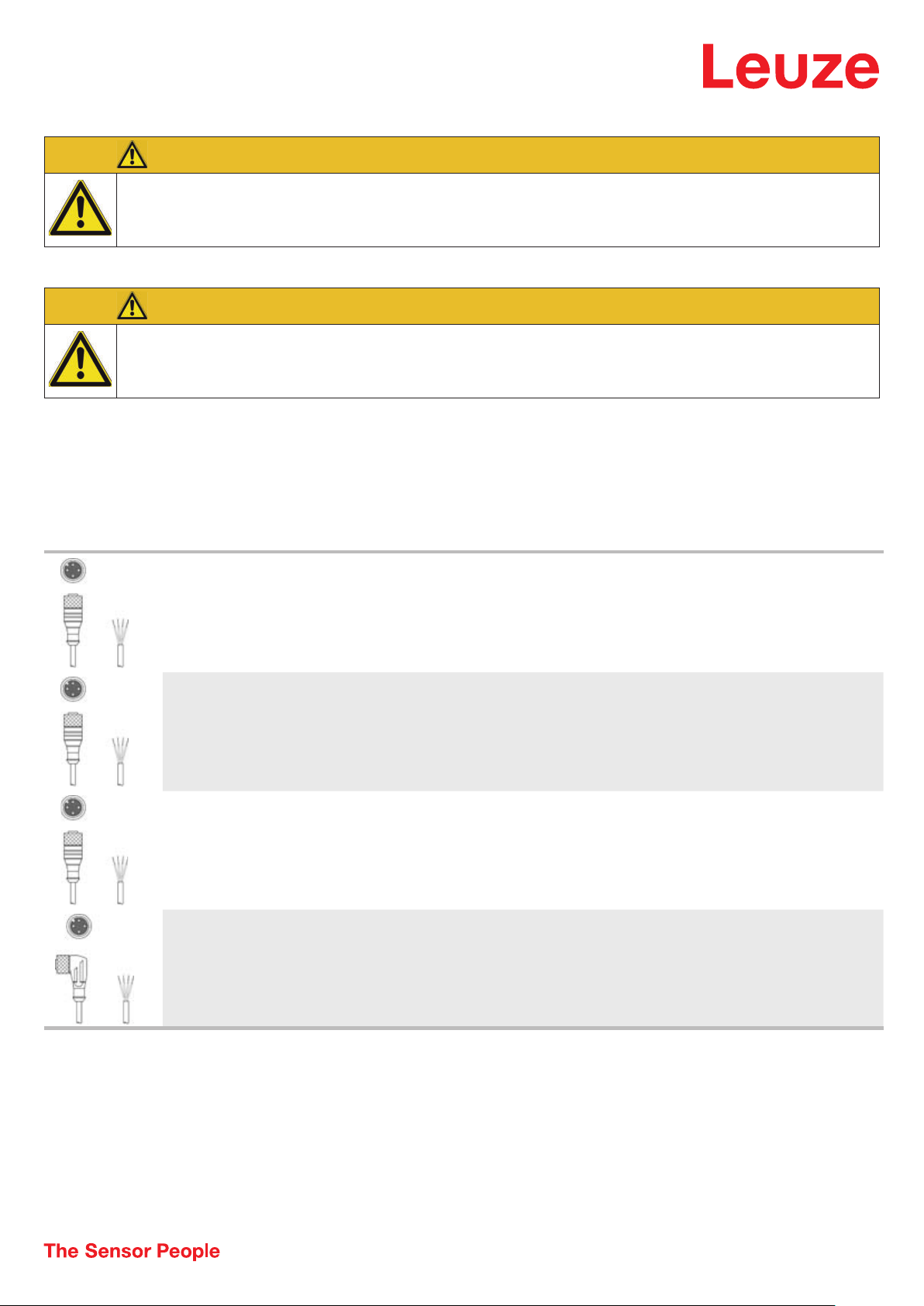

Connection technology - Connection cables

Part no. Designation Article Description

50130654 KD U-M12-4A-P1-

020

50130657 KD U-M12-4A-P1-

050

50130648 KD U-M12-4A-V1-

020

50130688 KD U-M12-4W-V1-

020

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR

Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC

Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC

• We reserve the right to make technical changes

• eng • 2020-12-15

6 /7

Inductive switch • Part no.: 50109707 • ISS 218MM/4NO-12E-S12

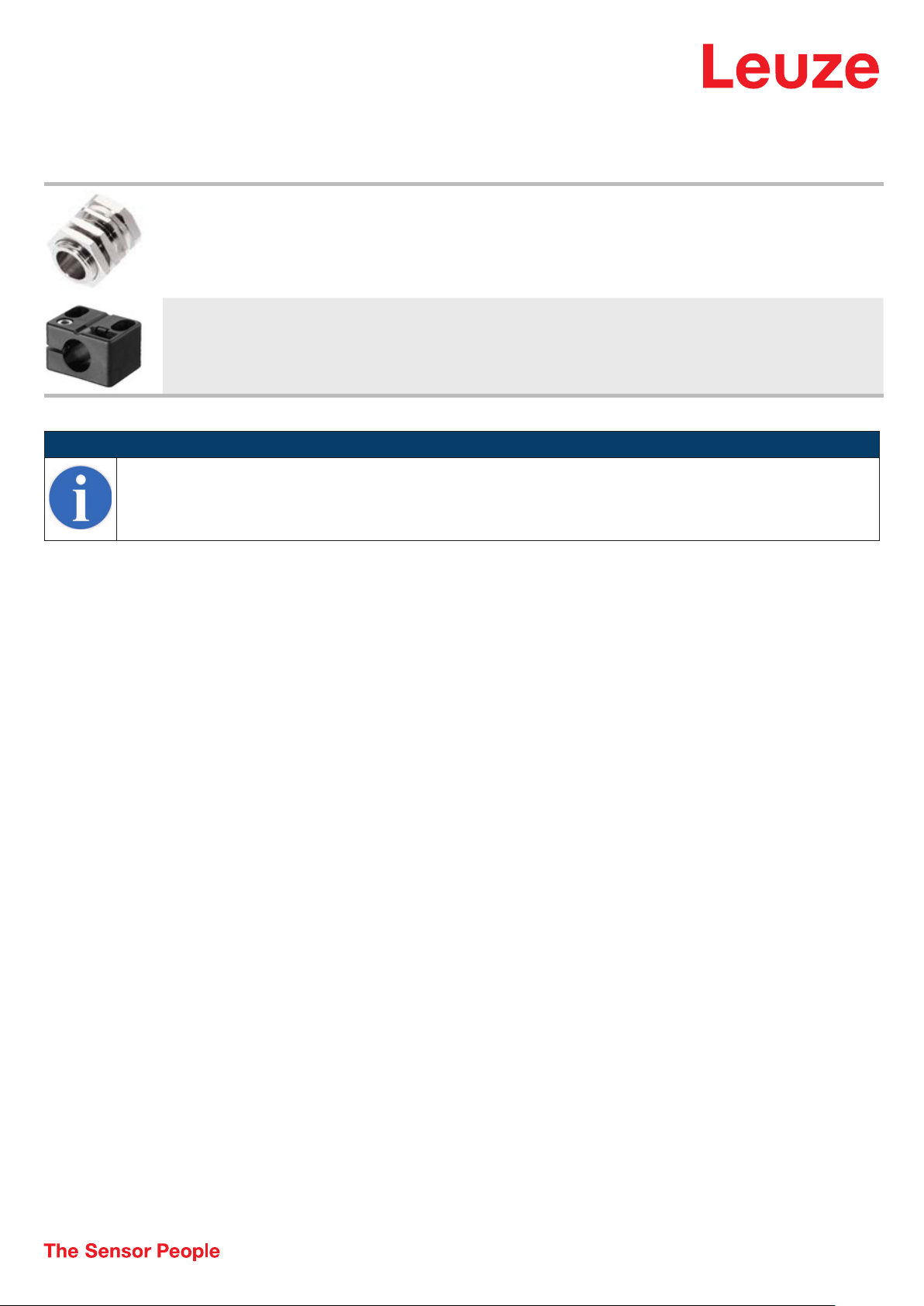

Accessories

Mounting technology - Other

Part no. Designation Article Description

50132729 AC D18M-CS Clamp Diameter, inner: 18 mm

50111501 MC 018K Clamp Diameter, inner: 18 mm

Design of mounting device: Mounting clamp
Fastening, at system: Screw type, Through-hole mounting
Mounting bracket, at device: insertable, Clampable with limit stop
Type of mounting device: Clampable, With limit stop
Material: Metal

Design of mounting device: Mounting clamp
Fastening, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic

Note

ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.

• We reserve the right to make technical changes

• eng • 2020-12-15

7 /7
