Leuze 50109686 Data Sheet

Part no.: 50109686 – IS 206MP/4NO-3E0 – Inductive switch

Technical data

Basic data

Series 206

Typ. operating range limit S

Operating range S

Characteristic parameters

MTTF 1,050 years

Electrical data

Protective circuit Polarity reversal protection

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 20 %, From U

Open-circuit current 0 ... 10 mA

Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range

Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature

Switching hysteresis 10 %

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Voltage type DC

Switching current, max. 200 mA

Switching voltage Low: ≤2V

Residual current, max. 0.1 mA

Voltage drop 2 V

Switching output 1

Switching element Transistor, PNP

Switching principle NO (normally open)

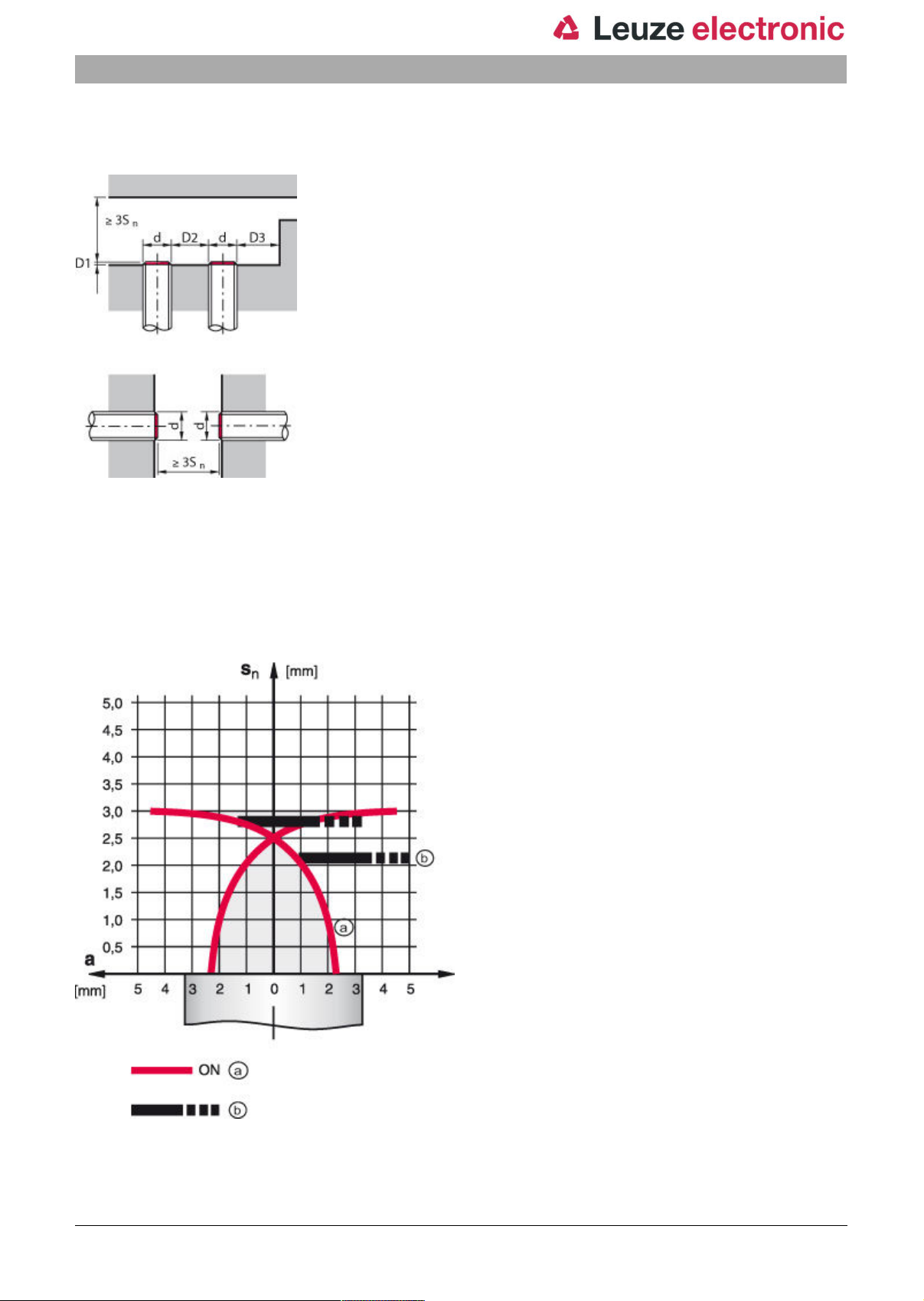

a

n

3 mm

0 ... 2.4 mm

Short circuit protected
Inductive protection

B

Ta= 23 °C ± 5 °C

Timing

Switching frequency 1,000 Hz

Readiness delay 50 ms

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Cable

Function Signal OUT

Voltage supply

Cable length 2,000 mm

Sheathing material PVC

Cable color Gray

Number of conductors 3 -wire

Wire cross section 0.14 mm²

Mechanical data

eng 2018-03-27

2 / 7

Part no.: 50109686 – IS 206MP/4NO-3E0 – Inductive switch

Design Cylindrical

Dimension (Ø x L) 6.5 mm x 45 mm

Type of installation Embedded

Housing material Metal, V2A

Sensing face material Plastic, Polybutylene (PBT)

Net weight 38 g

Housing color Silver

Type of fastening Via optional mounting device

Standard measuring plate 6.5 x 6.5 mm², Fe360

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

Environmental data

Ambient temperature, operation -25 ... 70 °C

Ambient temperature, storage -25 ... 70 °C

Red, RAL 3000

Certifications

Degree of protection IP 67

Protection class III

Certifications c UL US

Test procedure for EMC in accordance with standard IEC 61000-4-3

Standards applied IEC 60947-5-2

Correction factors

Aluminum 0.3

Stainless steel 0.7

Copper 0.25

Brass 0.4

Fe360 steel 1

Classification

eCl@ss 8.0 27270101

eCl@ss 9.0 27270101

ETIM 5.0 EC002714

IEC 61000-4-4
IEC 61000-4-2

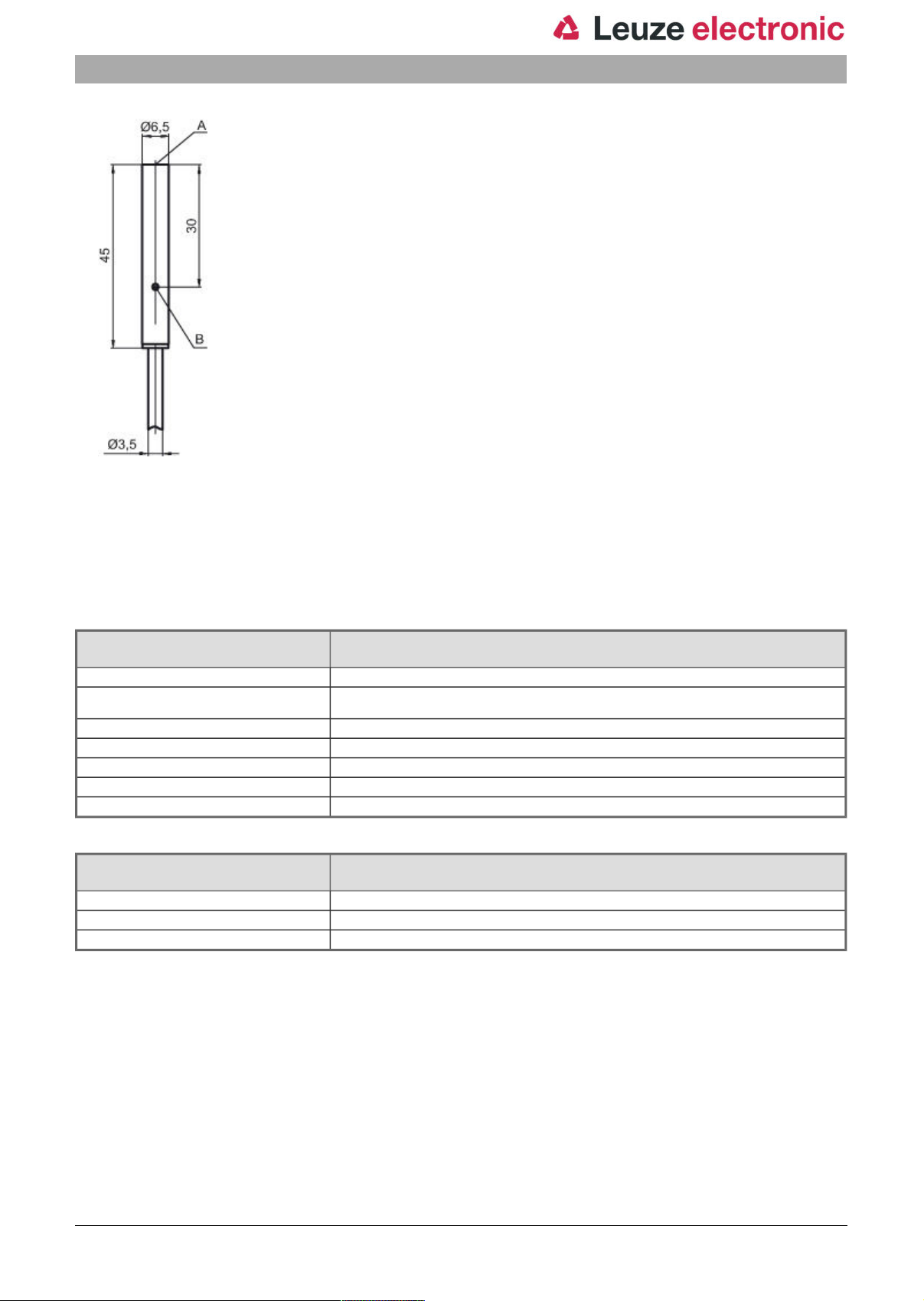

Dimensioned drawings

All dimensions in millimeters

eng 2018-03-27

3 / 7
