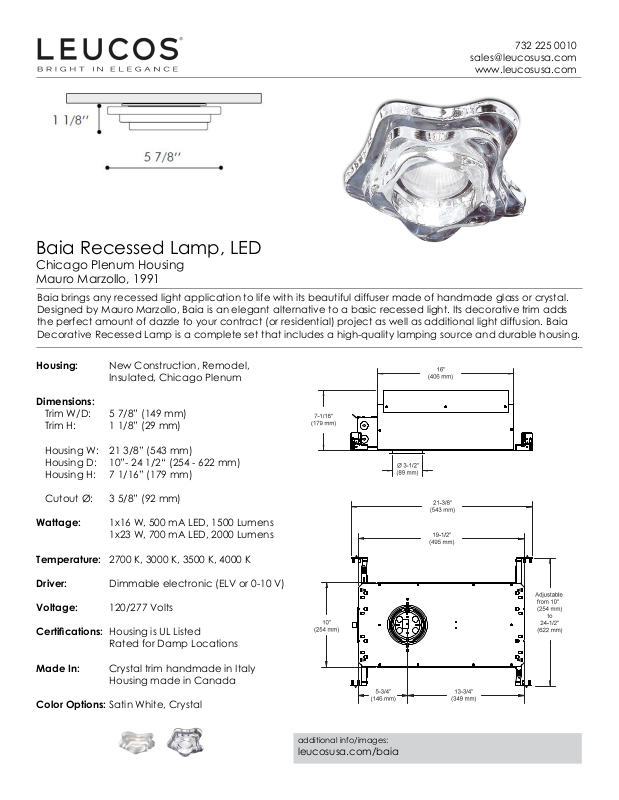

Baia Recessed Lamp, LED
Chicago Plenum Housing
Mauro Marzollo, 1991
Baia brings any recessed light application to life with its beautiful diffuser made of handmade glass or crystal.
Designed by Mauro Marzollo, Baia is an elegant alternative to a basic recessed light. Its decorative trim adds
the perfect amount of dazzle to your contract (or residential) project as well as additional light diffusion. Baia
Decorative Recessed Lamp is a complete set that includes a high-quality lamping source and durable housing.
Housing: New Construction, Remodel,
Insulated, Chicago Plenum
Dimensions:
Trim W/D: 5 7/8” (149 mm)
Trim H: 1 1/8” (29 mm)
Housing W: 21 3/8” (543 mm)
Housing D: 10”- 24 1/2“ (254 - 622 mm)
Housing H: 7 1/16” (179 mm)
Cutout Ø: 3 5/8” (92 mm)
Wattage: 1x16 W, 500 mA LED, 1500 Lumens
1x23 W, 700 mA LED, 2000 Lumens
Temperature: 2700 K, 3000 K, 3500 K, 4000 K
Driver: Dimmable electronic (ELV or 0-10 V)
Voltage: 120/277 Volts
Certications: Housing is UL Listed
Rated for Damp Locations
Made In: Crystal trim handmade in Italy
Housing made in Canada
Color Options: Satin White, Crystal
additional info/images:
leucosusa.com/baia
