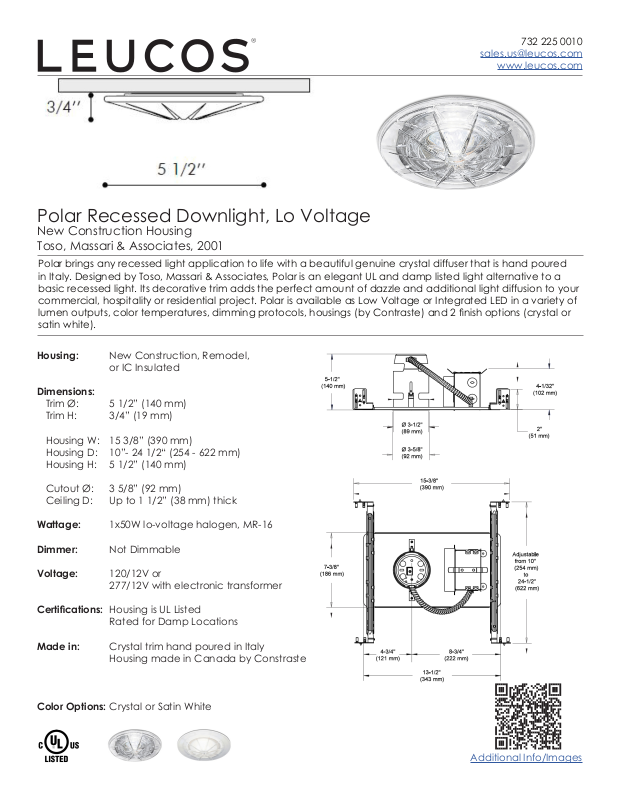

Polar Recessed Downlight, Lo Voltage
New Construction Housing
Toso, Massari & Associates, 2001
Polar brings any recessed light application to life with a beautiful genuine crystal diffuser that is hand poured
in Italy. Designed by Toso, Massari & Associates, Polar is an elegant UL and damp listed light alternative to a
basic recessed light. Its decorative trim adds the perfect amount of dazzle and additional light diffusion to your
commercial, hospitality or residential project. Polar is available as Low Voltage or Integrated LED in a variety of
lumen outputs, color temperatures, dimming protocols, housings (by Contraste) and 2 nish options (crystal or
satin white).
Housing: New Construction, Remodel,
or IC Insulated
Dimensions:
Trim Ø: 5 1/2” (140 mm)
Trim H: 3/4” (19 mm)
Housing W: 15 3/8” (390 mm)
Housing D: 10”- 24 1/2“ (254 - 622 mm)
Housing H: 5 1/2” (140 mm)
Cutout Ø: 3 5/8” (92 mm)
Ceiling D: Up to 1 1/2” (38 mm) thick
Wattage: 1x50W lo-voltage halogen, MR-16
Dimmer: Not Dimmable
Voltage: 120/12V or
277/12V with electronic transformer
Certications: Housing is UL Listed
Rated for Damp Locations
Made in: Crystal trim hand poured in Italy
Housing made in Canada by Constraste
Color Options: Crystal or Satin White
