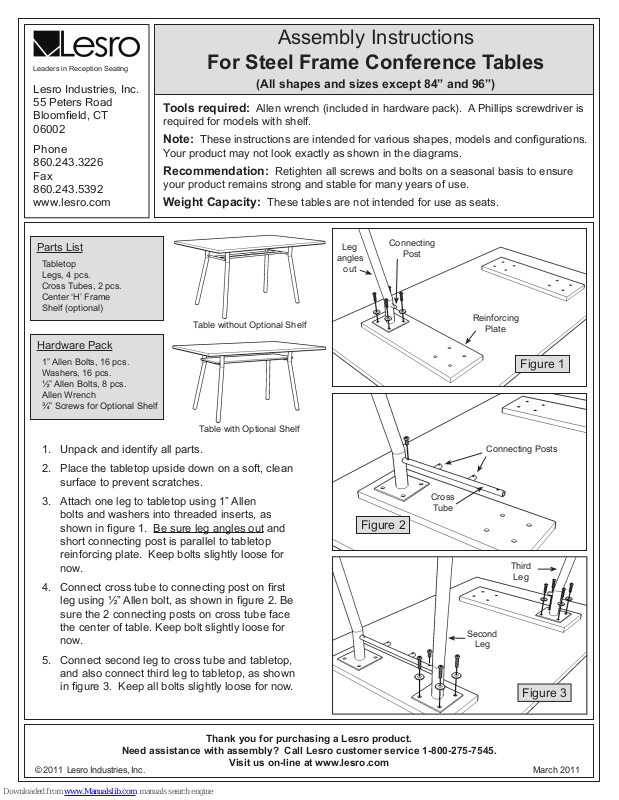

Lesro Steel Frame Conference Table Assembly Instructions Manual
Assembly Instructions
Leaders in Reception Seating
Lesro Industries, Inc.
55 Peters Road
Bloomeld, CT
06002
Phone
860.243.3226
Fax
860.243.5392
www.lesro.com
Parts List
Tabletop
Legs, 4 pcs.
Cross Tubes, 2 pcs.
Center ‘H’ Frame
Shelf (optional)
Hardware Pack
1” Allen Bolts, 16 pcs.
Washers, 16 pcs.
½” Allen Bolts, 8 pcs.
Allen Wrench
¾” Screws for Optional Shelf
For Steel Frame Conference Tables
(All shapes and sizes except 84” and 96”)
Tools required: Allen wrench (included in hardware pack). A Phillips screwdriver is
required for models with shelf.
Note: These instructions are intended for various shapes, models and congurations.
Your product may not look exactly as shown in the diagrams.
Recommendation: Retighten all screws and bolts on a seasonal basis to ensure
your product remains strong and stable for many years of use.
Weight Capacity: These tables are not intended for use as seats.
Leg
angles
out
Table without Optional Shelf
Connecting
Post
Reinforcing
Plate
Figure 1
Table with Optional Shelf
1. Unpack and identify all parts.
2. Place the tabletop upside down on a soft, clean
surface to prevent scratches.
3. Attach one leg to tabletop using 1” Allen
bolts and washers into threaded inserts, as
shown in gure 1. Be sure leg angles out and
short connecting post is parallel to tabletop
reinforcing plate. Keep bolts slightly loose for
now.
4. Connect cross tube to connecting post on rst
leg using ½” Allen bolt, as shown in gure 2. Be
sure the 2 connecting posts on cross tube face
the center of table. Keep bolt slightly loose for
now.
5. Connect second leg to cross tube and tabletop,
and also connect third leg to tabletop, as shown
in gure 3. Keep all bolts slightly loose for now.
Connecting Posts
Cross
Tube
Figure 2
Third
Leg
Second
Leg
Figure 3
Thank you for purchasing a Lesro product.
Need assistance with assembly? Call Lesro customer service 1-800-275-7545.
© 2011 Lesro Industries, Inc. March 2011
Visit us on-line at www.lesro.com
Assembly Instructions
Leaders in Reception Seating
Lesro Industries, Inc.
For Steel Frame Conference Tables
(All shapes and sizes except 84” and 96”)
Optional Shelf – If your table came with a shelf, now is the
time to insert it.
A. Using 2 or more people, carefully place the shelf between
the 3 legs with the nished surface facing the tabletop, as
shown in gure 4. Use care in handling to avoid damage.
Suggestion: Place soft cloths or similar material between
tabletop and shelf to prevent scratches. Allow the shelf to
rest on the tabletop. Continue with table assembly step 6.
6. Connect ‘H’ frame to rst cross tube and
connect second cross tube to ‘H’ frame and
to third leg as shown in gure 5. Keep all
bolts slightly loose for now.
7. Connect fourth leg to second cross tube
and to tabletop, also as shown in gure 5.
8. Tighten all leg and cross tube bolts securely
at this time.
‘H’ Frame
Shelf
Fourth
Leg
Figure 4
Third
Leg
9. Using 2 or more people, carefully ip table
to upright position. Important: If you have
a table with shelf, use care that shelf does
not slide out when ipping table or damage
may occur.
10. If your table has a shelf, please continue
with shelf installation instructions below. If
your table does not have a shelf, it is now
assembled and ready to use.
First
Cross
Tube
Optional Shelf – If your table came with a shelf, now is the
time to screw it into place.
B. Table should be fully assembled and in the upright
position before screwing shelf in place. All leg bolts
should be tightened securely before starting.
C. Center the shelf accurately between leg frames.
D. Attach shelf to cross tubes using wood screws as
shown in gure 6. Tighten all screws securely using
care not to strip.
E. Your product is now assembled and ready to use.
Second
Cross
Tube
Figure 5
Figure 6
Thank you for purchasing a Lesro product.
Need assistance with assembly? Call Lesro customer service 1-800-275-7545.
© 2011 Lesro Industries, Inc. March 2011
Visit us on-line at www.lesro.com
