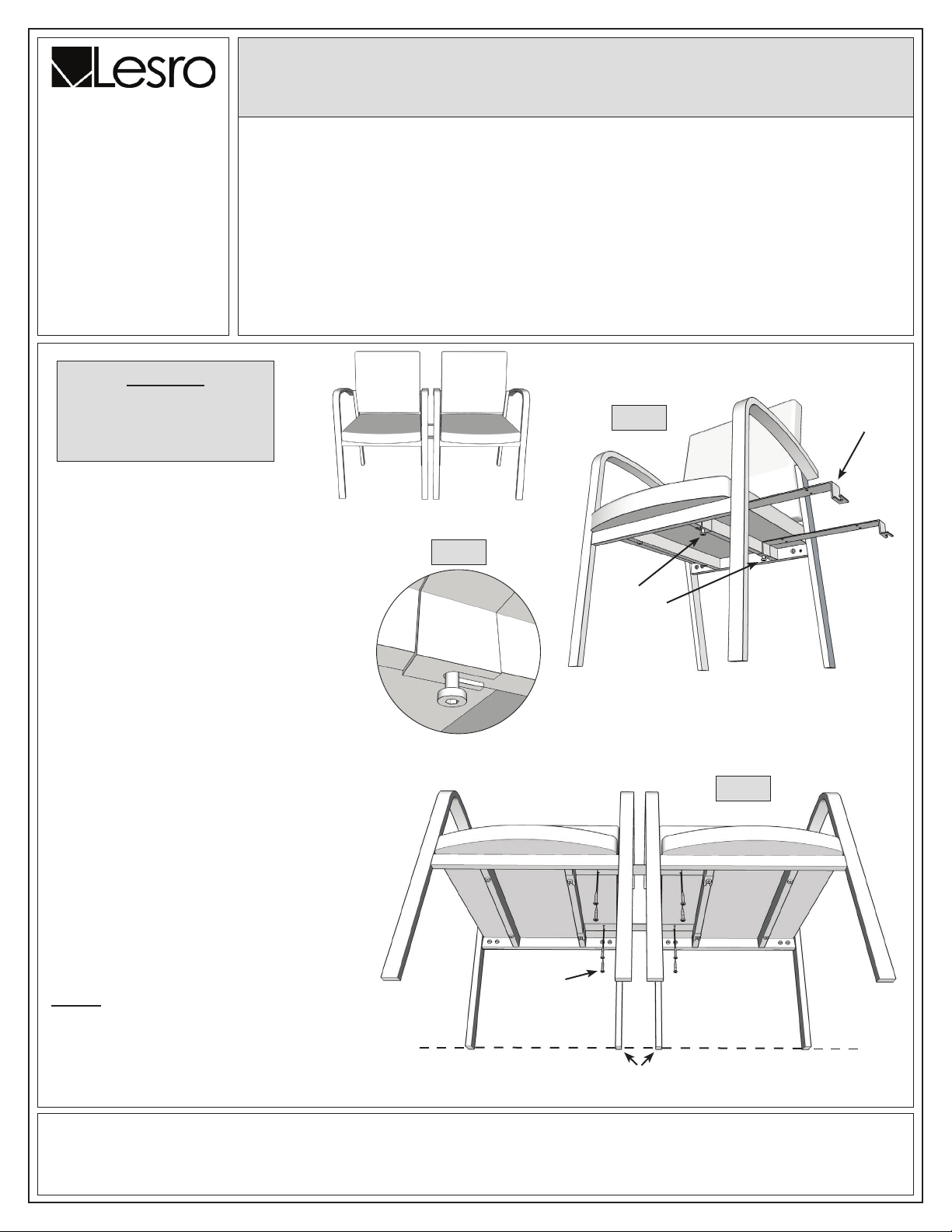

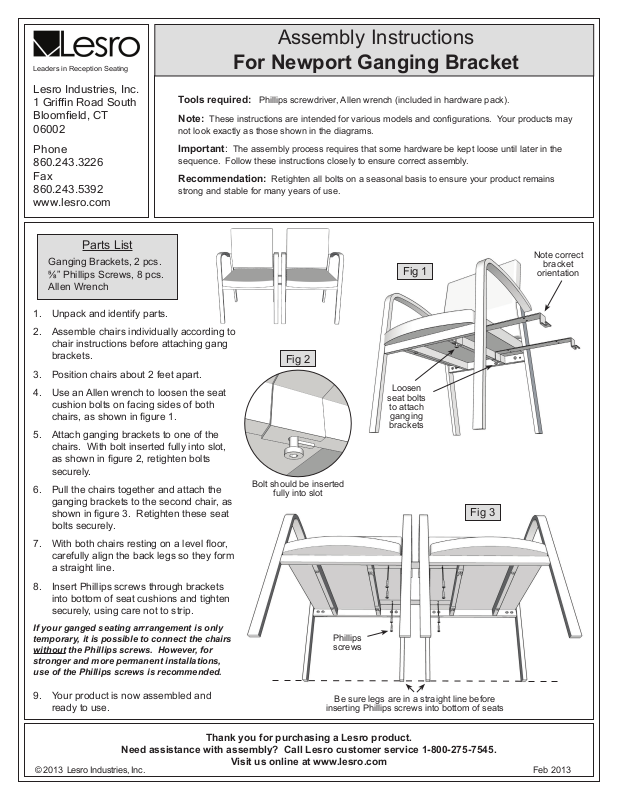

Assembly Instructions
Leaders in Reception Seating
Lesro Industries, Inc.
1 Grifn Road South
Bloomeld, CT
06002
Phone
860.243.3226
Fax
860.243.5392
Tools required: Phillips screwdriver, Allen wrench (included in hardware pack).
Note: These instructions are intended for various models and congurations. Your products may
not look exactly as those shown in the diagrams.
Important: The assembly process requires that some hardware be kept loose until later in the
sequence. Follow these instructions closely to ensure correct assembly.
Recommendation: Retighten all bolts on a seasonal basis to ensure your product remains
strong and stable for many years of use.
www.lesro.com
Parts List
Ganging Brackets, 2 pcs.
⅝” Phillips Screws, 8 pcs.
Allen Wrench
1. Unpack and identify parts.
2. Assemble chairs individually according to
chair instructions before attaching gang
brackets.
3. Position chairs about 2 feet apart.
4. Use an Allen wrench to loosen the seat
cushion bolts on facing sides of both
chairs, as shown in gure 1.
5. Attach ganging brackets to one of the
chairs. With bolt inserted fully into slot,
as shown in gure 2, retighten bolts
securely.
6. Pull the chairs together and attach the
ganging brackets to the second chair, as
shown in gure 3. Retighten these seat
bolts securely.
For Newport Ganging Bracket
Fig 1
Fig 2
Loosen
seat bolts
to attach
ganging
brackets
Bolt should be inserted
fully into slot
Fig 3
Note correct
bracket
orientation
7. With both chairs resting on a level oor,
carefully align the back legs so they form
a straight line.
8. Insert Phillips screws through brackets
into bottom of seat cushions and tighten
securely, using care not to strip.
If your ganged seating arrrangement is only
temporary, it is possible to connect the chairs
without the Phillips screws. However, for
stronger and more permanent installations,
use of the Phillips screws is recommended.
9. Your product is now assembled and
ready to use.
Thank you for purchasing a Lesro product.
Need assistance with assembly? Call Lesro customer service 1-800-275-7545.
© 2013 Lesro Industries, Inc. Feb 2013
Visit us online at www.lesro.com
Phillips
screws
Be sure legs are in a straight line before
inserting Phillips screws into bottom of seats
