lepow Pie Maintenance Manual
Le po w X Combined
Type Power Bank
Thanks for your support to LEPOW!
Please read the guide for Maintenance carefully in order to protect your legal interests.
Tips: As magnet is provided only on one side of the power bank, be
sure to align it to the proper side. Please recharge your power bank
regularly (at least once every six months) to make its service life
longer.
You can also have "PIE"magnetic suite
Clause of warranty
Warranty period for the product is one year since the date of sales.
Within this time period, customer may receive the maintenance
service at the sales spot by presenting the buying record. In case
beyond the warranty time, customer may acquire the paid
maintenance service at sales spot by presenting the buying record.

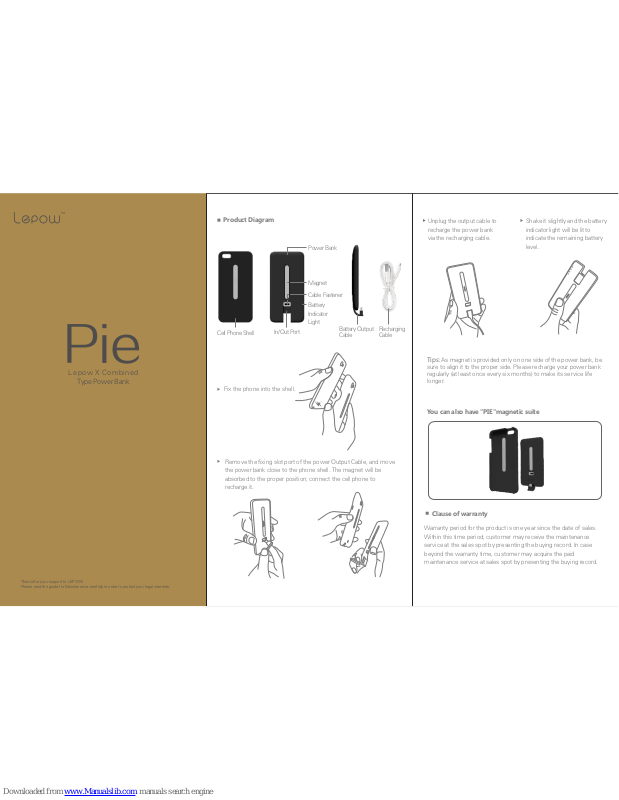

Product Diagram
Cell Phone Shell
Power Bank
Magnet
Cable Fastener
Battery
Indicator
Light
Battery Output
Cable
Recharging
Cable
In/Out Port
Unplug the output cable to
recharge the power bank
via the recharging cable.
Shake it slightly and the battery
indicator light will be lit to
indicate the remaining battery
level.
Fix the phone into the shell.
Remove the fixing slot port of the power Output Cable, and move
the power bank close to the phone shell. The magnet will be
absorbed to the proper position; connect the cell phone to
recharge it.
Sku# : 851792&851785
Cell type: Li-Polymer
Capacity: 3000mAh
Dimensions: 124 mm *60 mm *13mm
Operating temp: 5℃~45℃
Output voltage: DC5V
Output Current (Max) : 800mA
Input voltage: DC5V
Input Current (Max) : 1000mA
Input voltage (Standard): 5.0 V
Input voltage (Threshold): 5.0V±0.25V
Standard: GB4706.18-2005
Product parameter
X
X
Table of Hazardous Substances
means the content of such hazardous substance among all
homogeneous materials in this part is under the limit rated by
the standard of S/T1363-2006.
means the content of such hazardous substance in some
kind of homogeneous material in this part is beyond the limit
rated by the standard of S/T1363-2006, but still fits the
clause of exemption in RoHs.
The Name and Purity of harmful substance or
element in the product
Pb
Hg
Cd
Cr(Vi)
PBB PBDE
Products
Name
PIE
The package contains User Manual, LEPOW mobile power bank
PIE, Battery Output Cable(fixed on top ends of the power bank)、
Recharging Cable、Felt package、Qualified certificate.Please
contact the distributor immediately in case of any part missing or
broken.
Produced under authorization by Hongkong Lepow
(International) Co., Ltd.
Add: Suite 603, 6/F, Hang Pont Commercial Building, 31
Tonkin Street, Cheung Sha Wan, Kowloon, Hong Kong
Shenzhen Lepow Innovative Technology Co., Ltd.
Suite 1622, Haosheng Commercial Center, Dongbin Road,
Nanshan District, Shenzhen, China
Zip: 518000 Web: www.lepow.hk
Prevent from severe shock, impact or squeezing; avoid sunshine or
rain;
Storage temperature: -5℃～35℃, relative humidity ≤ 75%;Store in
clean, dry indoor place with good ventilation,Avoid contact with
corrosive substance and fire;
Never abandon as a household garbage, but bring it as a salvaged
equipment to proper recycling place in order to recycle such kind of
electric appliance and electronic equipment.
Our company reserves right of the final interpretation For
above clauses.
Safety instruction
(Our company shall not be responsible for any legal obligations
on body injury or damage of property due to consumer's
misuse by breach towards the above warning.)
The maintenance service is unavailable for the situations as below:
Product not produced by our company;
Product not distributed by our company;
Malfunction or damage caused by natural disasters e.g. Force
majeure (like earthquake, fire emergency, etc.), etc;
Malfunction or damage caused by artificial reason e.g. unauthorized
disassembly, modification of any element, mis-installation without
following the User Manual, maintenance or use without following
the User Manual, input of unsuitable voltage or current, etc;
Unauthorized alteration or damage towards the product identity
code by the customer;
Equipment or part beyond the warranty period.
