Leonics NB S-, NBP S-, NB-2KS, NB-3KS, NBP-5KS User Manual

...

Download

USER'S GUIDE

LEN.MAN.UPS.146 Rev.2.00/2009

CONTENTS

1. SAFETY INSTRUCTIONS 1

2. INTRODUCTION 2

3. DISPLAY PANEL AND COMPONENTS 5

3.1 Display panel 5

3.2 Components 7

4. INSTALLATION 12

5. OPERATION 17

5.1 Start-up the UPS 17

5.2 Turning on and turning off the UPS for the next time 17

5.3 When blackout or power fails 17

5.4 When UPS is overloaded 18

5.5 No load shutdown mode 18

5.6 Economy mode 18

5.7 Sleep mode 18

5.8 UPS self-test 18

5.9 Self-test cancellation 18

5.10 Mute alarm sound 19

5.11 Force bypass 19

5.12 Maunal maintenance bypass 19

5.13 Emergency Power Off (EPO) 19

6. LCD DISPLAY DESCRIPTION 20

7. SETTING 23

7.1 Enter password 23

7.2 System control setting 24

7.3 Time and date setting 24

7.4 Parameter setting 26

8. MAINTENANCE 27

9. TROUBLESHOOTING 28

10. SOFTWARE INSTALLATION 30

- 1 -

SAFETY INSTRUCTIONS

Please read carefully and follow this LEONICS NB S-series/NBP S-series UPS guide.

Important : Please keep this manual for reference in order to use the LEONICS UPS properly and safely. This

user's guide contains instructions for installation, maintenance, operation and unit etc.

For product safety, please check this product annually by our service qualified personnel or if there are any symptoms of problems which are not mentioned in this guide or any queries, please contact your LEONICS local distributors, LEONICS Service Center, send e-mail to support@leonics.com or visit www.leonics.com.

For your convenience and quick reference for LEONICS UPS service, please fill the requested information in the blanks below. LEONICS UPS model: ___________________________________________ Serial number: ________________________________________________ Purchased date: ________________________________________________ Purchased from: ________________________________________________

CAUTION

Risk of electric shock, DO NOT remove cover. No user serviceable part inside, please refer servicing to qualified service personnel.

1.1 Electrical Safety

1.1.1 Do not work alone where there is danger of shock.

1.1.2 Contact with live conductors will cause burns and dangerous electric shock.

1.1.3 Please allow ONLY a certified electrician to wire your system permanently.

1.1.4 Periodically check your cable, outlets and power source to make sure that they are in good condition.

1.1.5 To reduce risk from electric shock if you can not find the electrical ground (

the UPS from the AC source before plug in your load at the rear side of the UPS. Then, plug in the UPS to AC source.

1.1.6 Do not touch any metal parts or any electrical connection when UPS is operating.

1.1.7 It is recommended to connect the UPS to a three wire AC source (two live wires and ground) which connects to a protected circuit such as employs a fuse or circuit breaker.

1.2 CAUTION ! Safety guide for installation and operation

1.2.1 Before installation or using this unit, read all instructions, caution markings on the UPS and all connected load, and all sections of this user guide.

1.2.2 Install this unit in a temperature and humidity controlled indoor area with adequate air flow and away from chemical particles or flammable substances. Avoid installing the unit near radio transmission station, heat dissipation equipment and direct sunlight.

1.2.3 This unit has ventilation grills. Ensure that sufficient ventilation is provided. DO NOT block the ventilation grills.

1.2.4 Use insulated tools to reduce your risk of electric shock.

1.2.5 Remove all jewelry or other metal objects such as rings, necklace, bracelets and watches when installing this product.

1.2.6 Properly wiring the cables as shown in the wiring diagram.

)of the building, unplug

- 2 -

1.2.7 Before connecting the communication interface signal cable to computer, turn off the UPS and disconnect it from the utility line.

1.2.8 Turn on the UPS before turn on the load to prevent surge from the loads.

1.2.9 DO NOT connect utility power to the UPS OUTPUT. This may cause the UPS damaged.

1.2.10When heavy rain, avoid using electronic instruments including

1.2.11Use soft cloth to clean the UPS when it is OFF. DO NOT clean it with solvent.

1.2.12DO NOT use the UPS with life recovery instruments. The failure of UPS may cause life recovery instruments failure or effect to their performance or

1.3 Warning ! Battery Safety

1.3.1 The UPS has hazardous voltages inside, do not disassemble any parts of UPS except for the battery.

1.3.2 Users are not allowed to repair, recondition or disassemble the UPS. This must be done by LEONICS qualified technicians only.The battery that is inside your UPS can be recycled. It contains LEAD, which is harmful to health and the environment. If It can not be disposed of properly.

1.3.3 Do not dispose of batteries in a fire. They may be exploded.

1.3.4 Do not disassemble batteries. They contains poisonous electrolyte which is harmful to your skin and

eyes.

1.3.5 Replace batteries with the same type and rating and follow the proper battery replacement procedure.

1.3.6 When replacing a battery, use tools with insulated handles and remove any watch, rings or other metal objects that you wear in order to avoid electric shock.

1.3.7 If user has to keep the UPS or does not use if for long time, recharge the battery every 3 months in order to preserve the battery. To recharge the battery, connect it to the AC utility and turn on the UPS for 8 hours.

effect

UPS to pre

to the safety system of those instruments.

vent it from lightning.

Voc abulary

Load: Any equipment which is plugged into the UPS and gets power from the UPS such

as a computer, printer, fax machine or modem.

UPS : NB S-Series / NBP S-series UPS

VA : The unit of UPS power rating showing its capacity.

INTRODUCTION

2.1 General

LEONICS NB S-series/NPB S-series UPS is a True On-line Double conversion uninterruptible power supply which is the highest quality power protection system to protect against all utility power problems. With LED and LCD displays, user can view the UPS operating status anytime.

True On-Line Double conversion system has two operation steps. First, it convert alternative current (AC) to direct current (DC) Some of the direct current will flow to charge the battery to be backup power and the rest will invert to alternative current and then supply to load. If the AC input is disconnected, the UPS will invert the direct current from battery to alternative current and supply to load. UPS will supply AC power to load continuously.

2.2 Features

-True On-line pure sine wave

-Microprocessor controller

-Stable output frequency (Crystal control)

-Over current and short circuit protection

-Built-in output isolation transformer

-Load safe battery test (available in NBP S-series only)

- EMI/RFI and power line noise protection

-Automatic bypass overload protection

-Automatic bypass transfer switch (zero transfer time)

- DC start (AC start without battery (option))

-Manual self-test

- RS-232 communication port

-Sealed lead acid maintenance free battery

- LED indicator and LCD display

2.3 UPS Operation

- 3 -

2.3.1

2.3.2

When utility power and loads are normal

Above diagram shows how UPS works when utility power (AC line) is normal and UPS has less than100% load. UPS converts utility power from alternative current (AC) to direct current (DC) at RECTIFIER. Some of the DC power flow to charge battery to be backup power and the rest flow directly to INVERTER to invert power to high quality and stable AC power. Then, supply to load.

When utility power is normal but overload.

- 4 -

Above diagram shows how UPS works when utility power is normal and UPS has more than 100%

load. UPS converts utility power at RECTIFIER / CHARGER section to charge battery only. The power supplied to load directly is from utility line.

2.3.3

When utility power fail but loads are normal

Above diagram shows how UPS works when utility power fails such as blackout, brownout, under

voltage, over voltage or frequency fault and UPS has less than 100% load. UPS draws backup power from battery to invert to AC power and continuously supplies to load.

Use maintenance bypass switch when UPS is malfunction (option)

2.3.4

Above diagram shows how system works when UPS is malfunction. User is allow to temporary run

the system by turning the manual bypass switch from position A to B or at BYPASS position. All loads will get power supplied directly from utility line. Then, contact us or our nearest service center.

3.1 Display panel

- 5 -

DISPLAY PANEL AND COMPONENTS

3.1.11

3.1.10

3.1.9

3.1.8

3.1.7

3.1.6

3.1.5

3.1.13

3.1.4

3.1.3

3.1.12

3.1.14

3.1.15

3.1.16

3.1.17

3.1.1

3.1.2

3.1.1 ON button: The button to turn on the UPS, test the operation and mute alarm sound.

3.1.2

OFF button: The button to turn off the UPS and force the UPS to bypass the power source.

3.1.3

3.1.4

3.1.5

, , and buttons: The buttons to show the UPS parameters on LCD display.

LCD display: The screen to display parameter values. LINE indicator: Indicate status of main power source.

Lit means the input voltage is normal. Off means the input voltage of the main power source is out of range.

BYPASS indicator: Indicates status of bypass power source.

3.1.6 Lit means the voltage and frequency of the bypass power source is in the range. Off means the voltage of the bypass power source is out of range or the frequency is out of

synchronized range.

RECTIFIER/CHARGER indicator: Indicates status of RECTIFIER and CHARGER section.

3.1.7 Lit means RECTIFIER and CHARGER operate normally. Blink means RECTIFIER and CHARGER are just starting the operation. Off means RECTIFIER and CHARGER stop operating.

3.1.8

INVERTER indicator: Indicates status of INVERTER section.

Lit means INVERTER section is operating and synchronizing frequency with the bypass power

source.

Blink means INVERTER section is operating but does not synchronize frequency with the bypass

power source.

Off means INVERTER section stop operating.

- 6 -

3.1.9 INV. SUPPLY indicator: Indicates status of power from INVERTER section which supplies to loads. Lit means loads consume protected power from the UPS. Off means the protected power from the UPS does not supply to loads.

AUTO BYPASS indicator: Indicates status of BYPASS power source which is supplying to loads

3.1.10

directly when overload, inverter fault or force bypass condition.

Lit means loads consume power from BYPASS power source directly by press and hold

OFF button to force bypass condition. Slow blink means loads consume power from BYPASS power source directly automatically. Off means there is no power from BYPASS power source supplying to load.

3.1.11

MAINTENANCE BYPASS indicator: Indicates status of BYPASS power source which is supplying to loads

directly when MAINTENANCE BYPASS SWITCH is set at position BYPASS (B)

Lit means loads consume power through MAINTENANCE BYPASS SWITCH. Blink means MAINTENANCE BYPASS SWITCH is set at position AUTO (A) .

LOAD LEVEL indicator: Indicates the load quantity comparing to full capacity of the UPS. The indicator

3.1.12 shows from 25% (bottom LED) to OVERLOAD (top LED).

(bottom) lamp is lit means total load quantity is higher than no load condition level.

1 2 lamps are lit means total load quantity is between 26-49%. 3 lamps are lit means total load quantity is between 50-74%. 4 lamps are lit means total load quantity is between 75-99%. 5 lamps are lit means total load quantity is over 100%. The UPS is overloaded.

Recommend to reduce some loads.

BATTEY LEVEL indicator: Indicates the level of battery power comparing to the full level. The indicator

3.1.13 shows from replace battery (bar left LED) to full battery (bar right LED).

(left) lamp is lit means the battery power is very low and blinks when the battery should be

replaced. 2 lamps are lit means the battery power is low and blinks to alarm. 3 lamps are lit means the battery power is moderate. 4 lamps are lit means the battery power is full.

3.1.14

ON indicator: Indicates the UPS operation normally.

Lit means the UPS is operating normally. Very slow blink means loads consume power from BYPASS power source directly by press and

hold OFF button to force bypass condition. Slow blink means the UPS stop operating and waits to restart by startup schedule. Fast blink means the UPS is testing the operation. Off means the UPS stop operating.

3.1.15

SHUTDOWN indicator: Indicates the UPS stop operation or standby operation.

Lit means the UPS stop operating or UPS is in standby mode. Slow blink means the UPS is going to shutdown due to a command from the computer. Fast blink means the UPS is going to shutdown due to low battery or overload. Off means the UPS does not standby or is not going to shutdown.

3.1.16

OVER TEMP./FAULT indicator: Indicates the UPS is over temperature or UPS is malfunction.

Lit means the UPS operates abnormally. Fast blink means the UPS is over temperature. Off means the UPS operates normally or is normal temperature.

ALARM indicator: Indicates the UPS has fault.

3.1.17 Blink means the UPS alarms fault. Off means the UPS operates normally.

3.2 Components

- 7 -

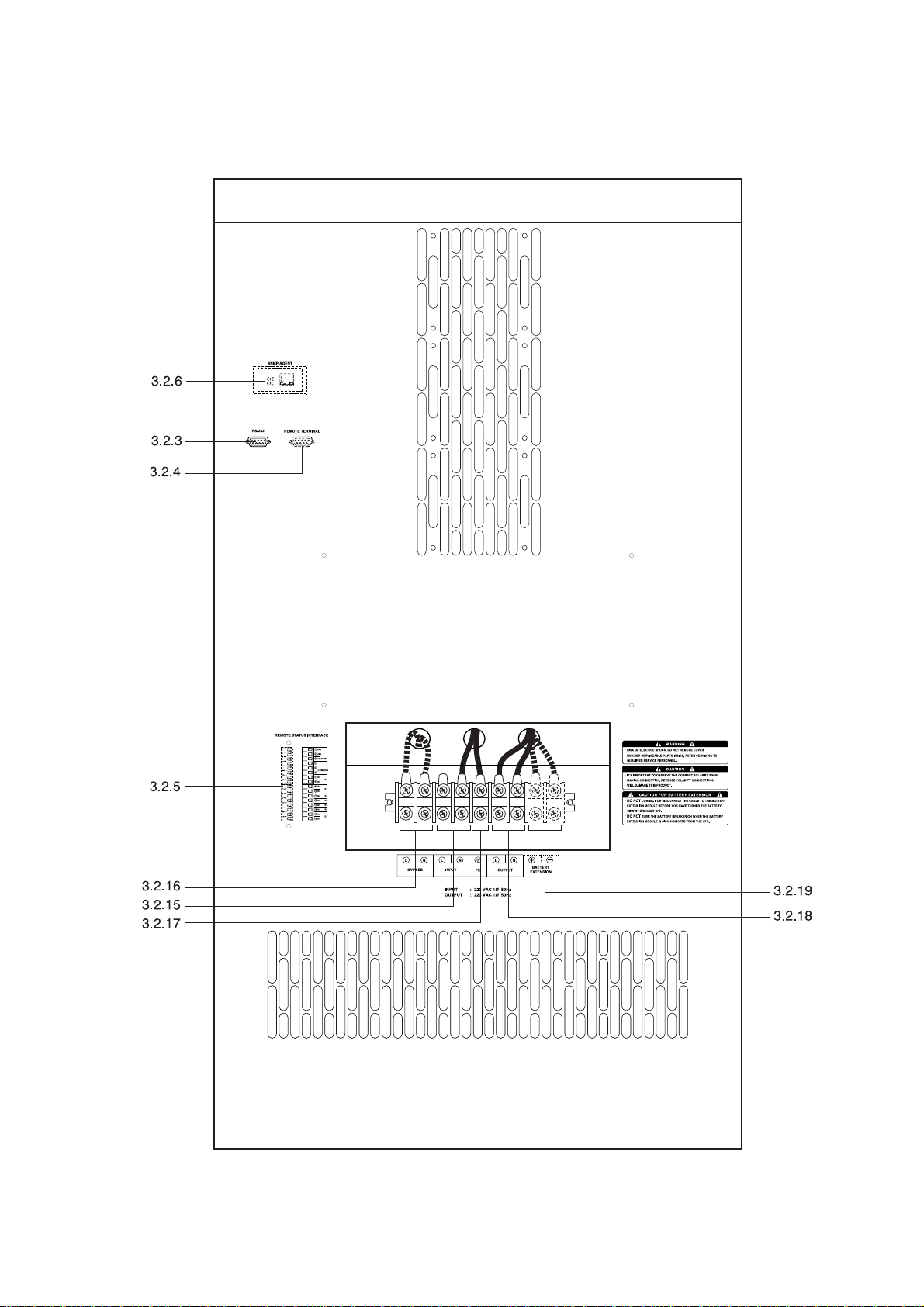

3.2.5

3.2.6

3.2.3

3.2.4

3.2.2

SNMP AGENT

RS-232

REMOTE TERMINAL

NORMAL

MANUAL BYPASS

INPUT 220 VAC 1Ø 50Hz

BYPASS

REMOTE STATUS INTERFACE

2134567891011 12 13 14

DI 2DI 1

NO NC

COMMON

GROUND

K1 K2 K4K3 K5 K6

RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NO NC NO NONO NO

15 16

NO NC

WARNING

PRECHARGE

OUTPUT 220 VAC 1Ø 50Hz

3.2.1

3.2.15

3.2.19

3.2.14

3.2.11

LN LN

INPUT

CIRCUIT BREAKER

OFFOFF OFFOFF

IT'S IMPORTANT TO OBSERVE THE CORRECT POLARITY WHEN MAKING CONNECTION. REVERSE POLARITY CONNECTIONS WILL DAMAGE THIS PRODUCT.

DO NOT

TURN THE BATTERY CIRCUIT BREAKER ON BEFORE PRE-CHARGE UPS, AS IT MAY CAUSE DAMAGE TO THE UPS. PRESS AND HOLD "PRECHARGE" BUTTON FOR 15 SECONDS AND THEN TURN ON THE BATTERY CIRCUIT BREAKER.

CAUTION FOR BATTERY EXTENSION

DO NOT

CONNECT OR DISCONNECT THE CABLE TO THE BATTERY EXTENSION MODULE BEFORE YOU HAVE TURNED THE BATTERY CIRCUIT BREAKER OFF.

DO NOT

TURN THE BATTERY BREAKER ON WHEN THE BATTERY

EXTENSION MODULE IS DISCONNECTED FROM THE UPS.

BATTERY

CIRCUIT BREAKER

CAUTION

BATTERY EXTENSION

OUTPUT FUSE

15A 250VAC

OUTPUT

220 VAC 1Ø 50Hz

Rear panel of NB-2KS UPS

3.2.18

3.2.9

3.2.10

- 8 -

Rear panel of NBP-3KS, NBP-5KS and NBP-6KS UPS

- 9 -

Front panel of NBP-8KS and NBP-10KS UPS

- 10 -

Rear panel of NBP-8KS and NBP-10KS UPS

- 11 -

3.2.1 PRECHARGE: A button to press and hold for 5 seconds before turn on BATTERY circuit breaker every time for safety. The capacitor will first charge in order to protect surge or spark when urn on BATTERY circuit breaker. MAINTENANCE MANUAL BYPASS SWITCH (option) : The switch to switch power source from AC utility

3.2.2 power to BYPASS power source for maintenance.

- NORMAL/AUTO: Select this position to tranfer loads to consume the protected power from UPS.

- BYPASS: Select this position to transfer loads to consume power from bypass power source when

the UPS need to maintenance.

3.2.3

RS232-PC: The port for connecting RS-232 cable from UPS to computer to send and receive electricity data with Easy-Mon X (download Easy-Mon X at www.leonics.com). REMOTE TERMINAL (option): The port to send and receive remote signal to display the operation of

3.2.4 the UPS via remote display or website. REMOTE STATUS INTERFACE (option) : The terminal for sending remote contact signal; normally open

3.2.5 (NO), normally close (NC) and common (COM) to display the operating status of the UPS. The descriptions of each signal pin are as follow.

3.2.5.1 DI1: Reserved.

3.2.5.2 DI1: Reserved.

3.2.5.3 GROUND: ground of digital input signal.

3.2.5.4 COMMON: COMMON pin of the contact signal.

3.2.5.5 K1 (NO, NC): UPS Normal / Fault (NO and NC contacts of K1 relay).

3.2.5.6 K2 (NO, NC): Loads are protected. (NO and NC contacts of K2 relay).

3.2.5.7 K3 (NO): Run on battery signal (NO contact of K3 relay).

3.2.5.8 K4 (NO): Bypass signal (NO contact of K4 relay).

3.2.5.9 K5 (NO): Low battery signal (NO contact of K5 relay).

3.2.5.10 K6 (NO): Overload signal (NO contact of K6 relay).

3.2.5.11 K7 (NO, NC): Alarm signal (NO and NC contacts of K7 relay).

3.2.6

SNMP AGENT (option): The socket for connecting computer network LAN cable to view electricity data and UPS status via SNMP/HTTP (Read more details in Net Agent manual). AC INPUT: The cable for connecting to AC outlet or AC power source (specific models only).

3.2.7

3.2.8

INPUT FUSE: The component for protecting from overload or short circuit current at the UPS input. OUTPUT FUSE: The component for protecting loads from overload or short circuit current at the UPS

3.2.9 output (specific models only).

UPS OUTPUT: The socket to supply protect backup power to loads (specific models only).

3.2.10

3.2.11

INPUT circuit breaker: The circuit breaker for protecting from overload or short circuit current at the

main AC power source.

BYPASS INPUT circuit breaker (option): The circuit breaker for protecting from overload or short circuit

3.2.12 current at bypass power source.

OUTPUT circuit breaker (option): The circuit breaker for protecting loads from overload or short circuit

3.2.13 current at the UPS output.

BATTERY circuit breaker: The circuit breaker for protecting from overload or short circuit current at the

3.2.14 battery system.

INPUT terminal: The terminal for connecting input power from main AC power source to the UPS.

3.2.15

3.2.16

BYPASS INPUT terminal: The terminal for connecting input power from bypass power source to the

UPS.

PE/EARTH terminal ( ) : The terminal for connecting to ground system.

3.2.17

3.2.18

OUTPUT terminal: The terminal for connecting to loads. BATTERY EXTENSION terminal(option): The terminal for connecting to external battery bank to

3.2.19 extend backup time.

- 12 -

INSTALLATION

4.1 Preparation

4.1.1 Before you install the UPS, give it a through visual examination to ensure it has not been subjected to shipping damage. If it is not in perfect condition, please contact your local distributor or service center or e-mail to support@leonics.com.

4.1.2 Installation of the UPS must be done by professional technicians only. Before installing or using this unit, read all instructions, caution markings on the UPS and all connected load, and all sections of this user guide.

4.1.3 Check the mains input voltage and alll connected load power rating to suit for UPS power rating. Transportation

4.1.4

4.1.4.1 UPS has been fitted with casters to allow ease of transportation. UPS must be moved vertically.

4.1.4.2 Transport the UPS with its packaging until it arrive the installation location to avoid shipping

damages.

4.1.4

Location

4.1.5.1 For 2000 VA model or lower: Install the UPS at least 20 cm at the side and back to enable easy

access for installation, operation and maintenance.

4.1.5.2 For 3000 VA model or higher: Install the UPS at least 80 cm free space around the UPS to enable

easy access for installation, operation and maintenance.

4.1.5.3 Install at the floor that is capable of supporting the weight of the UPS.

4.1.5.4 Battery Extension Modules must be installed near by the UPS. Working with Battery Extension Modules

4.1.6

Batteries are connected in series which have hazardous voltage upto 306-400 Vdc. Any battery

connection must be done by qualified technician only.

Warning: DO NOT work with batteries when UPS is operating.

Cable size

4.1.7

The cable sizes in the following table are calculated based on TIS. 11-2531 PVC insulated copper wire, 70 degree Celsius conductor temperature, 750 Volt 40 degree Celsius ambient temperature and maximum 3 wires per conduit.

Power rating

Main input cable (sq.mm.)

Bypass input cable (sq.mm.)

Output cable (sq.mm.)

PE/Earth cable ( (sq.mm.)

Note: -Maximum cable length must not exceed 10 metres. If in need of cable longer than 10 metres,

)

properly increase cable size to accommodate excessive length.

-For your safety, all cables should be wire in the suitable size conduits.

-The above data is for standard product only.

-For the battery extension module installation, please contact us.

1000 VA or lower

Power cord

2000 VA

2.5

1.5

3000 VA

2.5

5000 VA

6000 VA

8000 VA

6-10

10000 VA

4.2 Installation

- 13 -

SNMP/HTTP

Network

Computer

Remote Panel

or Monitoring

SNMP AGENT

RS-232

REMOTE TERMINAL

NORMAL

MANUAL BYPASS

INPUT

220 VAC

1Ø 50Hz

BYPASS

REMOTE STATUS INTERFACE

213456789101112 13 14

DI 2DI 1

NO NC

COMMON

GROUND

K1 K2 K4K3 K5 K6

RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

NO NC NO NONO NO

15 16

NO NC

WARNING

PRECHARGE

OUTPUT 220 VAC 1Ø 50Hz

Main

Power Supply

Battery

Extension

Modules

(option)

L N PE

LN LN

INPUT

CIRCUIT BREAKER

OFFOFF OFFOFF

IT'S IMPORTANT TO OBSERVE THE CORRECT POLARITY WHEN MAKING CONNECTION. REVERSE POLARITY CONNECTIONS WILL DAMAGE THIS PRODUCT.

DO NOT

TURN THE BATTERY CIRCUIT BREAKER ON BEFORE PRE-CHARGE UPS, AS IT MAY CAUSE DAMAGE TO THE UPS. PRESS AND HOLD "PRECHARGE" BUTTON FOR 15 SECONDS AND THEN TURN ON THE BATTERY CIRCUIT BREAKER.

CAUTION FOR BATTERY EXTENSION

DO NOT

CONNECT OR DISCONNECT THE CABLE TO THE BATTERY EXTENSION MODULE BEFORE YOU HAVE TURNED THE BATTERY CIRCUIT BREAKER OFF.

DO NOT

TURN THE BATTERY BREAKER ON WHEN THE BATTERY

EXTENSION MODULE IS DISCONNECTED FROM THE UPS.

BATTERY

CIRCUIT BREAKER

CAUTION

BATTERY EXTENSION

OUTPUT FUSE

15A 250VAC

OUTPUT

220 VAC 1Ø 50Hz

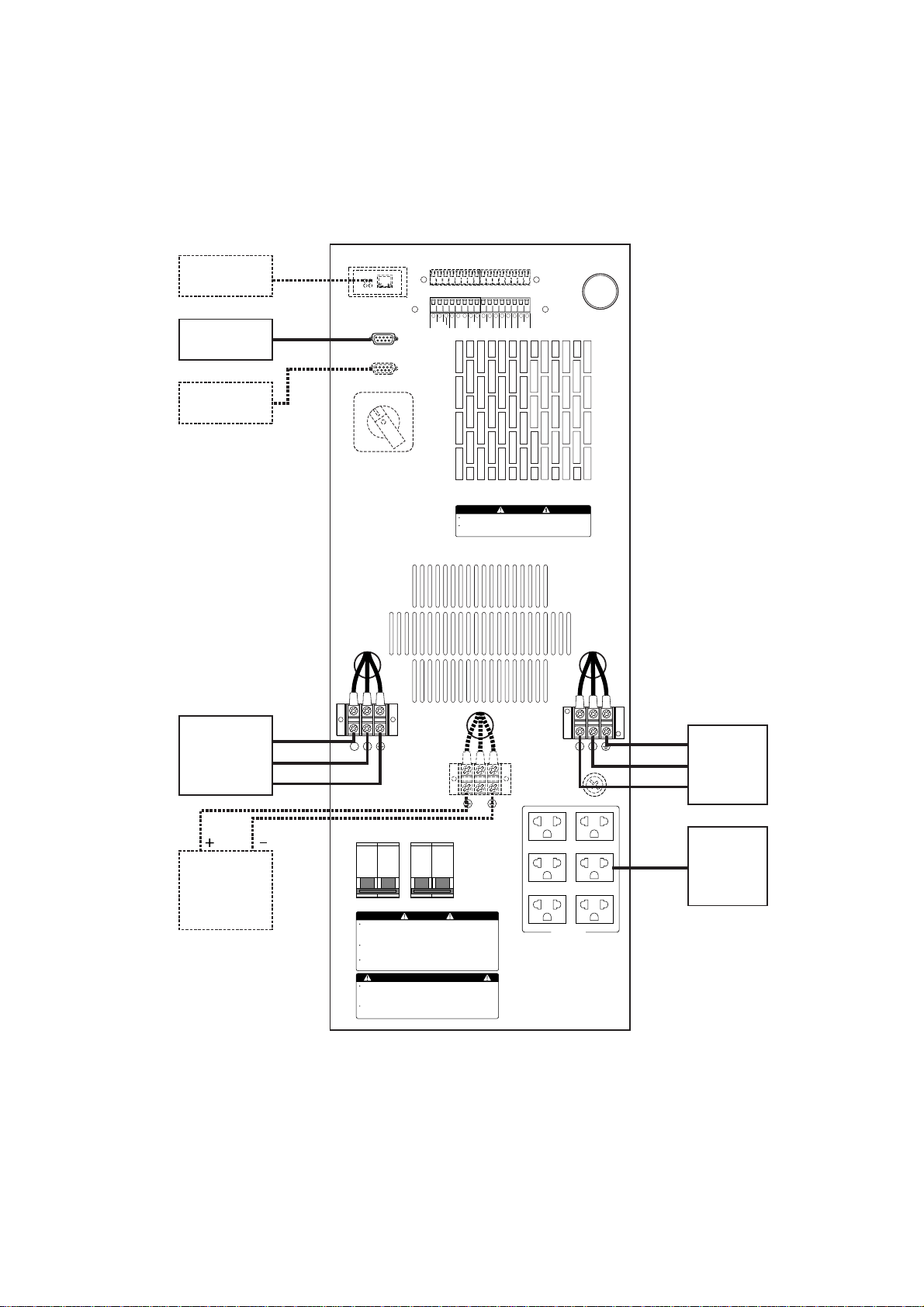

Installation diagram of NB-2KS UPS

Load Panel

AC Loads

OFF

- 14-

Computer

Remote Panel or Monitoring

Bypass

Power Supply

(option)

Main

Power Supply

SNMP/HTTP

Network

BYPASS INPUT

CIRCUIT BREAKER

OFF OFF

OFF

L N

OUTPUT

CIRCUIT BREAKER

Battery

Extension

Modules

(option)

L N

AC Loads

Installation diagram of NBP- 3KS, NBP -5KS and NBP-6KS UPS

SNMP/HTTP

Network

Computer

Remote Panel

or Monitoring

- 15-

Bypass

Power Supply

(option)

Main

Power Supply

L N

AC Loads

Installation diagram of NBP- 8KS and NBP-10KS UPS

Note: -For the single power source, it has to jump the cables between BYPASS INPUT terminal and

MAIN INPUT terminal of the UPS as shown in the installation diagram figures.

-If there are two power sources, it has to disconnect the jumping cables between BYPASS INPUT terminal and MAININPUT terminal.

Battery

Extension

Modules

(option)

- 16 -

4.2.1 Turn off all loads.

4.2.2 For 2000VA model or higher, Turn off all AC power source which supplies power to the UPS .

4.2.3 Turn off INPUT, BYPASS INPUT (if available), OUTPUT (if available) and BATTERY circuit breakers.

4.2.4 Connect RS-232 signal cable (if available) from the computer serial port to RS-232-PC port of the UPS.

4.2.5 Connect Remote terminal signal cable (if available) from remote panel or modem to REMOTE TERMINAL port of the UPS.

4.2.6 Connect interface signal cables (if available) at REMOTE STATUS INTERFACE terminal to send and receive remote contact signal (NO, NC, COM) for control or alarm such as PLC or buzzer. Sample

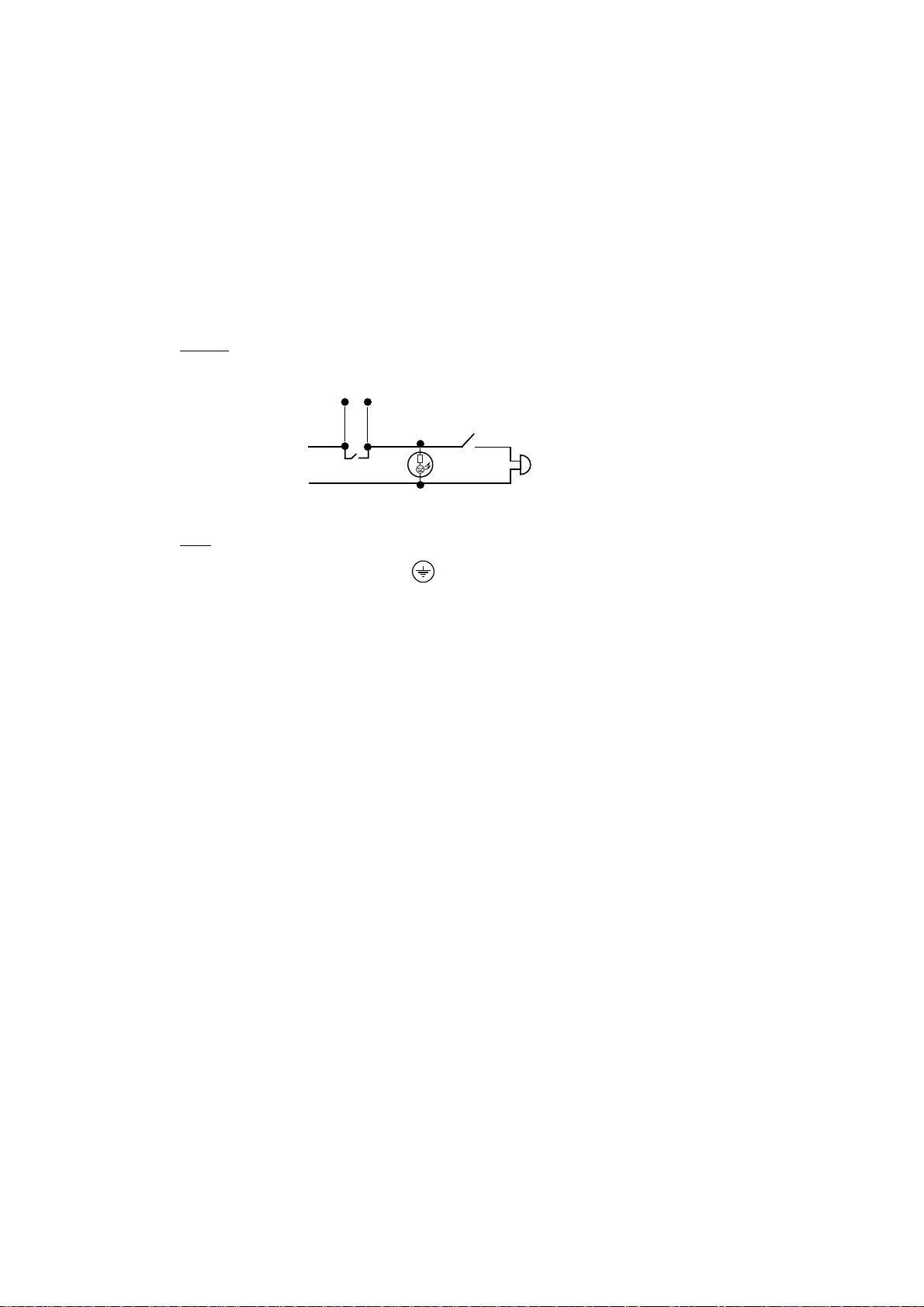

UPS contact signal

COM

Mute Sw.

+ 12 Vdc

Test Sw.

GND

12V indicator

12V Bazzer

Note: Contact rating 5A 250Vac / 5A 30Vdc

4.2.7 Connect earth cable at PE / EARTH (

) terminal.

4.2.8 Connect input cable from AC power source to the UPS.

For 1500 VA model or higher, connect the cable from AC power source at INPUT terminal of the UPS.

Connect NEUTRAL at N terminal of the UPS and connect LINE at L terminal of the UPS.

If there is single power source, jump BYPASS input terminal to INPUT terminal. If there is other power

source which is not primary power source, connect to BYPASS input terminal.

4.2.9 Connect loads to UPS.

4.2.9.1 For 1000 VA model or lower, connect loads to UPS OUTPUT outlets at the rear side of the UPS.

4.2.9.2 For 1500 VA model or higher, connect the cable from OUTPUT terminal of the UPS to loads. Connect NEUTRAL at N terminal of the UPS and connect LINE at L terminal of the UPS.

4.2.10In case of battery extension, remove fuse from the fuse holder or turn off circuit breaker at the battery extension unit before connecting to the UPS. Then connect the positive (+) of the battery extension unit to the positive (+) terminal of the UPS. And connect the negative (-) of the battery extension unit to the negative (-) terminal of the UPS.

4.2.11 Verify all connections.

5.1 Start-up the UPS

5.1.1

For 1000 VA model or lower

5.1.1.1 Turn off all loads.

5.1.1.2 Press and hold PRECHARGE button for 5 seconds or until the LCD lit, then release. Turn on

BATTERY circuit breaker. BATTERY LEVEL indicator shows battery level.

Caution: DO NOT turn on BATTERY circuit breaker before precharge the UPS because the

Note: In case of battery extension, turn on BATTERY circuit breaker or FUSE circuit breaker

(if available) of the battery extension unit before pressing PRECHARGE button and turning on BATTERY circuit breaker at the UPS.

5.1.1.3 Plug input cable or input power cord to AC receptacle. INPUT, BYPASS and RECTIFIER/CHARGER

indicators are lit.

5.1.1.4 Press and hold ON button for 2 seconds or until alarm beep sound to turn on the UPS.

The ON indicator blinks and UPS start up self-test automatically. After self test, if the UPS operates normally, the display will show the operating status

5.1.1.5 Turn on connected loads.

5.1.2

For 1500 VA model or higher

5.1.2.1 Turn off all loads.

5.1.2.2 Press and hold PRECHARGE button for 5 seconds or until the LCD lit, then release. Turn on

BATTERY circuit breaker. BATTERY LEVEL indicator shows battery level.

- 17 -

OPERATION

UPS may be damaged.

Caution: DO NOT turn on BATTERY circuit breaker before precharge the UPS because the

UPS may be damaged.

Note: In case of battery extension, turn on BATTERY circuit breaker or FUSE circuit breaker

(if available) of the battery extension unit before pressing PRECHARGE button and turning on BATTERY circuit breaker at the UPS.

5.1.2.3 Turn on INPUT circuit breaker and BYPASS circuit breaker (if available). INPUT, BYPASS and

RECTIFIER/CHARGER indicators are lit.

5.1.2.4 Press and hold ON button for 2 seconds or until alarm beep sound to turn on the UPS.

The ON indicator blinks and UPS start up self-test automatically. After self test, if the UPS operates normally, the display will show the operating status

5.1.2.5 Turn on OUTPUT circuit breaker (if available).

5.1.2.6 Turn on connected loads.

5.2 Turning on and off the UPS for the next time

After finished the start-up procedure, press and hold OFF button until alarm beep sound once then

release to turn off the UPS. To turn on the UPS at the next time, Only press and hold ON button untilalarm beep sound once then release.

5.3 When blackout or power fails

When blackout or power fails, the UPS continuously supplies power to loads for 15-90 minutes

(depending on load quantity and UPS power rating). UPS draw backup power from battery (INV. SUPPLY and ALARM indicators blink and alarm sound). When the backup power in the battery is low, LOW BATT. indicator

(the 2

from left) will blink and alarm sound rapidly to warn that the UPS will shutdown in a few minutes (Low

- 18 -

Battery Shutdown status). If the power returns to normal before the UPS goes to Low Battery Shutdown mode, UPS will switch back to consume power from AC utility power and charge battery automatically.

5.4 When UPS is overloaded

When UPS is overloaded (OVERLOAD indicator lit, ALARM indicator blinks and alarm sound), the AUTO-

MATIC TRANSFER SWITCH will transfer load to consume power from bypass power source direclty (AUTO BYPASS indicator blinks and alarm sound) for preventing the UPS damage. User should reduce some loads until load quantity is about 75% and control the quantity not exceed 100% in order to make the loads consume power from the UPS all the time.

5.5 No load shutdown mode

When the UPS is supplying backup power and there is no connected loads, UPS will shutdown auto-

matically after supplies backup power for 10 minutes in order to reserve the battery power. This feature is set disabled in the standard product. (This feature is available in the UPS with Battery save / No Load Shutdown mode)

5.6 Economy mode

Economy mode is an energy saving mode. In this operating mode, UPS transfer loads to consume power from bypass power source when the bypass power source is normal and run the INVERTER operation to be the backup source when the bypass power source fails.

5.7 Sleep mode

Sleep mode is an energy saving mode. In this operating mode, UPS transfer loads to consume power from bypass power source and stop the INVERTER operation when UPS found no connected load or load consume power from the UPS is lower than no load condtion setting. During Sleep mode, If there are loads greater than set value, the INVERTER section will restart automatically and exit from sleep mode.

When UPS found no load and bypass power source fails, UPS will start INVERTER section and stand by to be the backup power source when there is load.

5.8 UPS self-test

UPS tests the operation of RECTIFIER, CHARGER and INVERTER section. There are 4 types of self-test.

5.8.1

Start-up self-test

When press ON button to start-up the UPS, it tests the operation automatically.

5.8.2

Manual self-test

When the UPS is operating, double click the ON button to start manual self-test.

Schedule self-test (option)

5.8.3

User can set UPS self-test schedule via Easy-Mon X (Read more details in Easy-Mon X user’s guide in

the CD-ROM or at www.leonics.com).

5.8.4

Auto self-test (option)

User can set UPS self-test automatically every 2 weeks or every day. This feature is disabled in the

standard product.

Every test, if the battery is fully charged, the UPS will also check if the battery is still in good condition

or need to be replaced.

5.9 Self-test cancellation

Before the UPS starts INVERTER section test, user can double click the ON button to cancel the self-test.

- 19 -

5.10Mute alarm sound

Press the ON button once to mute the alarm sound. User can notice the alarm from ALARM indicator.

5.11 Force bypass

Press and hold OFF button for 8 seconds or until AUTO BYPASS indicator is lit and then release to force bypass. The UPS will alarm to inform the user that loads are consuming power directly from bypass power source. To transfer loads to consume protected power from the UPS again, press and hold ON button for 2 seconds or until alarm beep sound then release.

5.12 Manual maintenance bypass

5.12.1 Press and hold OFF button for 8 seconds or until AUTO BYPASS indicator is lit and then release to force

bypass. The UPS will alarm to inform the user that loads are consuming power directly from bypass

power source.

5.12.2 Turn the MAINTENANCE MANUAL BYPASS switch to position BYPASS (B). MAINTENANCE BYPASS

indicator is lit.

5.12.3 Press and hold OFF button until alarm beep sound to turn off the UPS.

5.12.4 Turn off INPUT circuit breaker.

5.12.5 Turn off BATTERY circuit breaker.

5.12.6 Contact service center.

Once the UPS is recovered, start-up the UPS following the start-up procedure. Then turn the MAINTENANCE MANUAL BYPASS switch to position AUTO (A).

5.13 Emergency power off (EPO)

The Emergency Power Off is controlled by microprocessor. Press ON and OFF button simultaneously for 3 seconds. UPS will stop all operations include INVERTER, RECTIFIER and CHARGER operation, but the battery still supply power to microprocessor. To maintain battery power, turn off all circuit breakers by turn off the BATTERY circuit breaker at last.

- 20 -

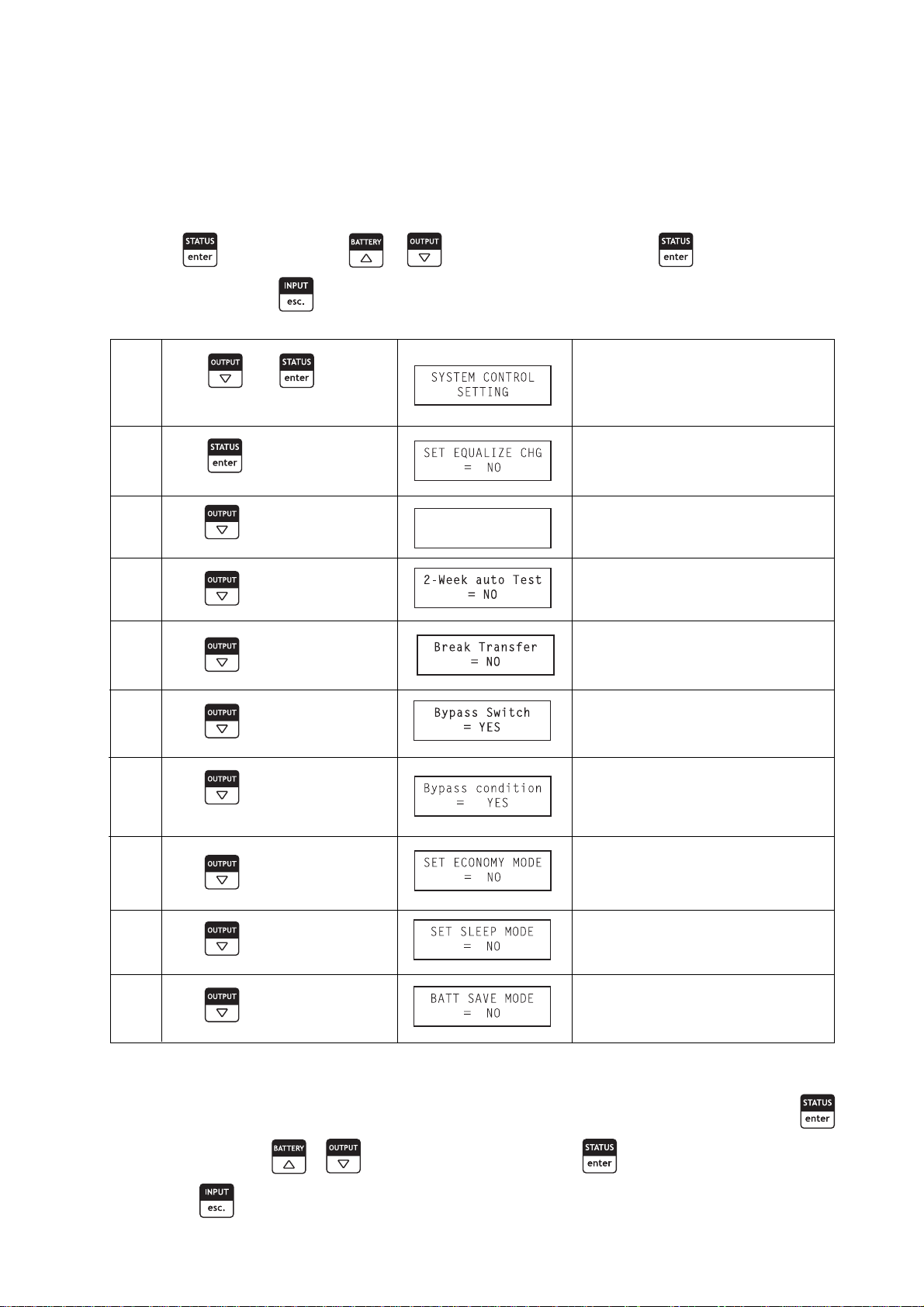

LCD DISPLAY DESCRIPTION

Press , , or to display data on the LCD display.

6.1

button

6.1.1 Press buttons once

6.1.2 Press

6.1.3 Press

6.1.4 Press

6.1.5 Press

6.1.6 Press

buttons once again

MX Input= 264 V MN Input= 165 V

Displays MAIN INPUT voltage.

Displays BYPASS INPUT voltage and input frequency.

Displays the set value of high and low BYPASS INPUT voltage.

Displays the set value of maximum and minimum acceptable input voltage of the UPS.

Displays the setting of ECONOMY and SLEEP energy saving mode.

Displays the set value of battery mode (no load shutdown) and break transfer (allow break transfer in not synchronize condition).

6.1.7 Press

6.1.8 Press

buttons once again

Displays the set value of STATIC BYPASS SWITCH (enable/disable) and BYPASS condition check before transfer loads from MAIN input to BYPASS input.

Return to the first screen.

6.2 button

- 21 -

6.2.1 Press

6.2.2 Press

6.2.3 Press

6.2.4 Press

6.2.5 Press

6.2.6 Press

6.3 button

buttons once

buttons once again

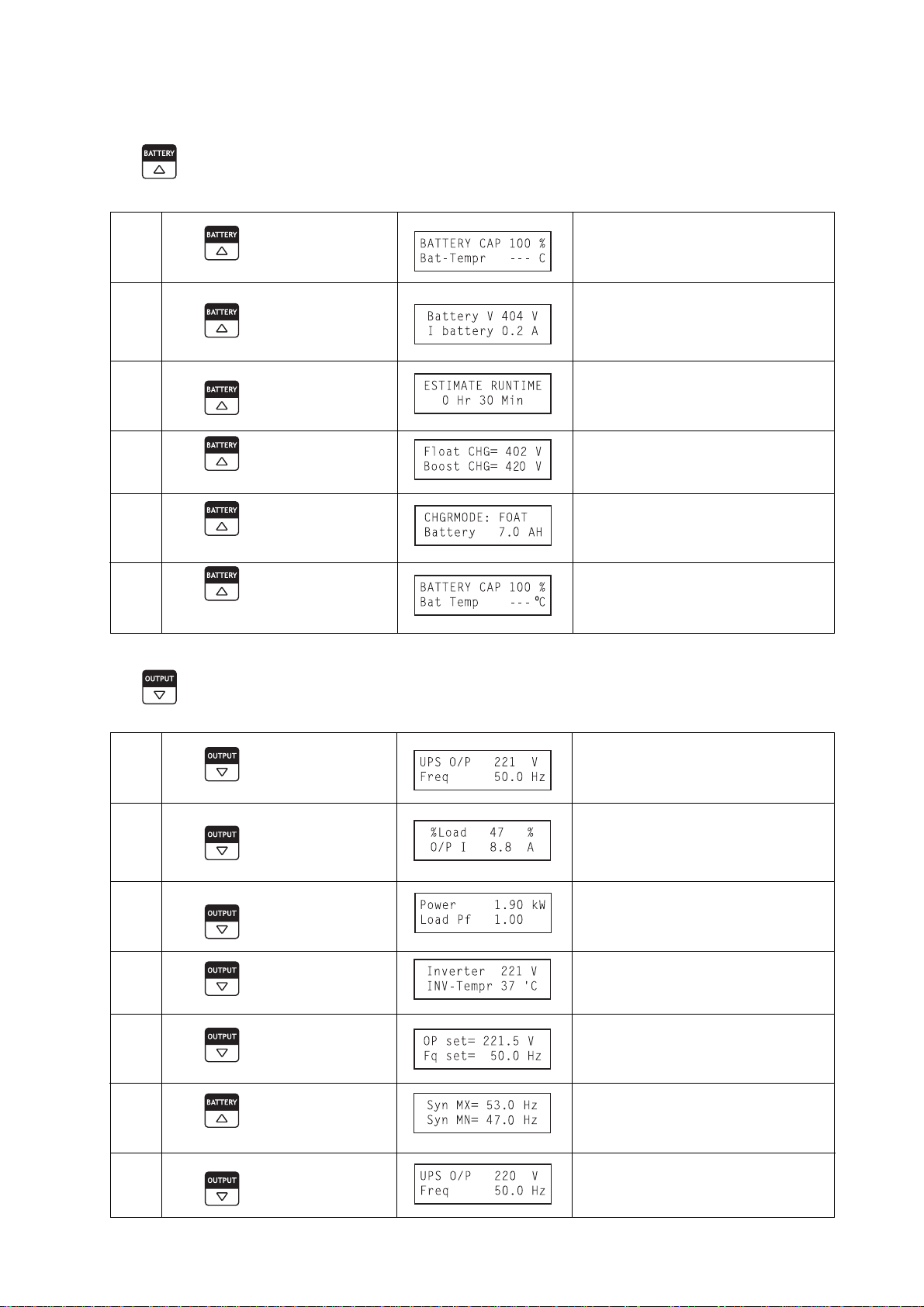

Displays battery capacity in percentage and battery temperature(option).

Displays battery voltage and battery current.

Displays estimated backup time.

Displays the set value of float charge voltage and boost charge voltage.

Displays charging mode and battery capacity.

Return to the first screen.

6.3.1 Press

6.3.2 Press

6.3.3 Press

6.3.4 Press

6.3.5 Press

6.3.6 Press

6.3.7 Press

buttons once

buttons once again

Displays UPS output voltage and output frequency.

Displays load level in percentage and output current.

Displays load power and load power factor(option).

Displays inverter voltage and inverter temperature.

Displays the set value of output inverter voltage and output inverter frequency. Displays the set value of maximum and minimum acceptable frequency of Bypass power source.

Return to the first screen.

6.4 button

6.4.1 Press buttons once

6.4.2 Press

6.4.3 Press

buttons once again

- 22 -

Displays the present operation and the status of the UPS.

Displays the status of INVERTER, CHARGER, TRANSFER SWITCH and RECTIFIER section.

Displays the condition of INVERTER, CHARGER, TRANSFER SWITCH and RECTIFIER section. ( “OK” means “normal”.)

6.4.4 Press

buttons once again

Displays present date and time.

Displays firmware version.

6.4.5 Press

buttons once again

(option)

Return to the first screen.

6.4.6 Press

buttons once again

Note: If there is fault event recorded in the event log, while user presses button, the message will

show on the screen. Press

button again to view more events. At the end of the fault event lists,

the screen will return the first screen.

6.5

and button (Option)

Displays date, time and fault event.

6.5.1 Press and hold

buttons simultaneously for 3

and

Press other events.

or button to view

seconds

Note: - “ ^ “ is shown at the latest event.

- The meaning of the first alphabet of the second row are as following

1 : Event happened

0 : Return to normal

A : Automatic run

R : Receive command via RS-232 or remote terminal

P : Self test passed

F : Self test failed

M : Manual control

- 23 -

Display the order of the event. 0 is the

6.5.2 Press button once

latest event. Maximum events are 256 records

SETTING

To enter system control setting, press buttons simultaneously for 3 seconds. Press button to

confirm the new set value or press

press

and buttons simultaneously once or leave it for 30 seconds, the UPS will return to main screen

or button to toggle menu. To exit system control setting menu,

automatically.

Note: Any parameter changes must be done by Leonics certified technicians only.

7.1 Enter password

User must enter the password before change the system control set value. Press

simultaneously for 3 seconds. To confirm the new set value, press

and buttons simultaneously once.

Example: Password is 2468.

7.1.1 Press and buttons

Enter password input screen.

simultaneously for 3 seconds.

Enters the 1

7.1.2 Press

button

and buttons

digit of password.

7.1.3 Press

7.1.4 Press

7.1.5 Press

7.1.6 Press

button simultaneously once

button

and

Enters the 2

Enters the 3

digit of password.

digit of password

Enters the last digit of password.

Confirms password. If the input password is correct, the next screen will be shown.

7.2 System control setting

After user inputs the correct password, system control set values can be changed. To change the value,

- 24-

press

new setting or press

7.2.1 Press

simultaneously once.

7.2.2 Press

7.2.3 Press

7.2.4 Press

7.2.5 Press

button. Then press or button to toggle the value. Press button to confirm the

button to cancel.

and buttons

Enters system control setting.

Confirms to enter system control

button once.

setting. Then, sets equalize charge system.

button once again.

Daily auto Test

= NO

Sets daily automatic self-test (option).

Sets 2-week automatic self-test

button once again.

(option).

Sets break transfer (allow break during

button once again.

transfer in not synchronize condition.

7.2.6 Press

7.2.7 Press

7.2.8 Press

7.2.9 Press

7.2.10 Press

button once again.

7.3 Time and date setting

After user inputs the correct password, time and date can be changed. To change the value, press

Sets static bypass switch (enable/ disable).

Sets bypass condition check before transfer loads from MAIN input to BYPASS input.

Sets ECONOMY energy saving mode.

Sets SLEEP energy saving mode.

Sets battery saving mode (no load shutdown).

button. Then press or button to toggle the value. Press button to confirm the new setting

or press

button to cancel.

7.3.1 Time setting

7.3.1.1 Press and buttons

simultaneously once.

- 25 -

Enters system control setting.

7.3.1.2 Press

7.3.1.3 Press

7.3.1.4 Press

7.3.1.5 Press

7.3.1.6 Press

7.3.1.7 Press

7.3.2 Date setting

button once.

button once .

button once again.

Select time and date setting menu.

Confirms to enter time and date setting menu. Then enters time setting.

Confirms to enter time setting. Sets hour.

Confirms new time (hour). Sets minute.

Confirms new time (minute). Sets second.

Confirms new time (second). .

7.3.2.1 Press

simultaneously once.

7.3.2.2 Press

7.3.2.3 Press

7.3.2.4 Press

7.3.2.5 Press

7.3.2.6 Press

and buttons

button once.

button once .

button once.

button once again.

Enters system control setting.

Select time and date setting menu.

Confirms to enter time and date setting menu.

Select date setting menu.

Confirms to enter date setting. Sets year.

Confirms date (year). Sets month.

- 26 -

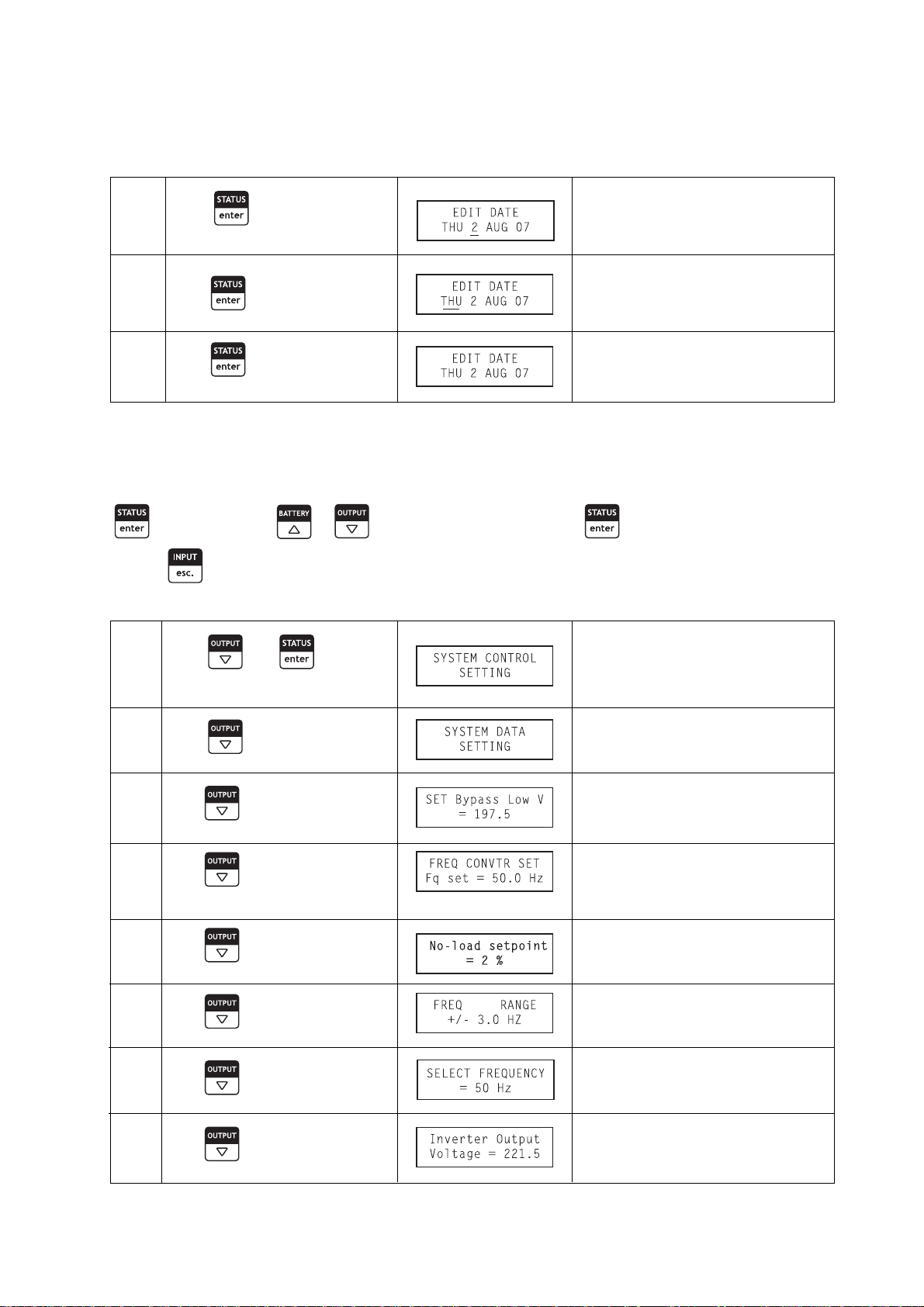

7.3.2.7 Press

7.3.2.8 Press

7.3.2.9 Press

buttons once again.

button once again.

Confirms date (month). Sets date.

Confirms date (date). Sets day.

Confirms day.

7.4 Parameter setting

After user inputs the correct password, parameter values can be changed. To change the value, press

button. Then press or button to toggle the value. Press button to confirm the new setting

or press

7.4.1 Press

button to cancel.

and buttons

Enters system control setting.

simultaneously once.

7.4.2 Press

7.4.3 Press

7.4.4 Press

7.4.5 Press

7.4.6 Press

7.4.7 Press

7.4.8 Press

button twice.

button once.

button once again.

SYNC

Enters system data setting.

Confirms to enter system data setting and displays set value of low bypass input voltage.

Displays special converter output frequency set value. The value can be set to one decimal place.

Displays set value of no load condition in percentage.

Displays set value of synchronize output frequency range.

Displays set value of output frequency.

Displays set value of inverter output voltage.

- 27 -

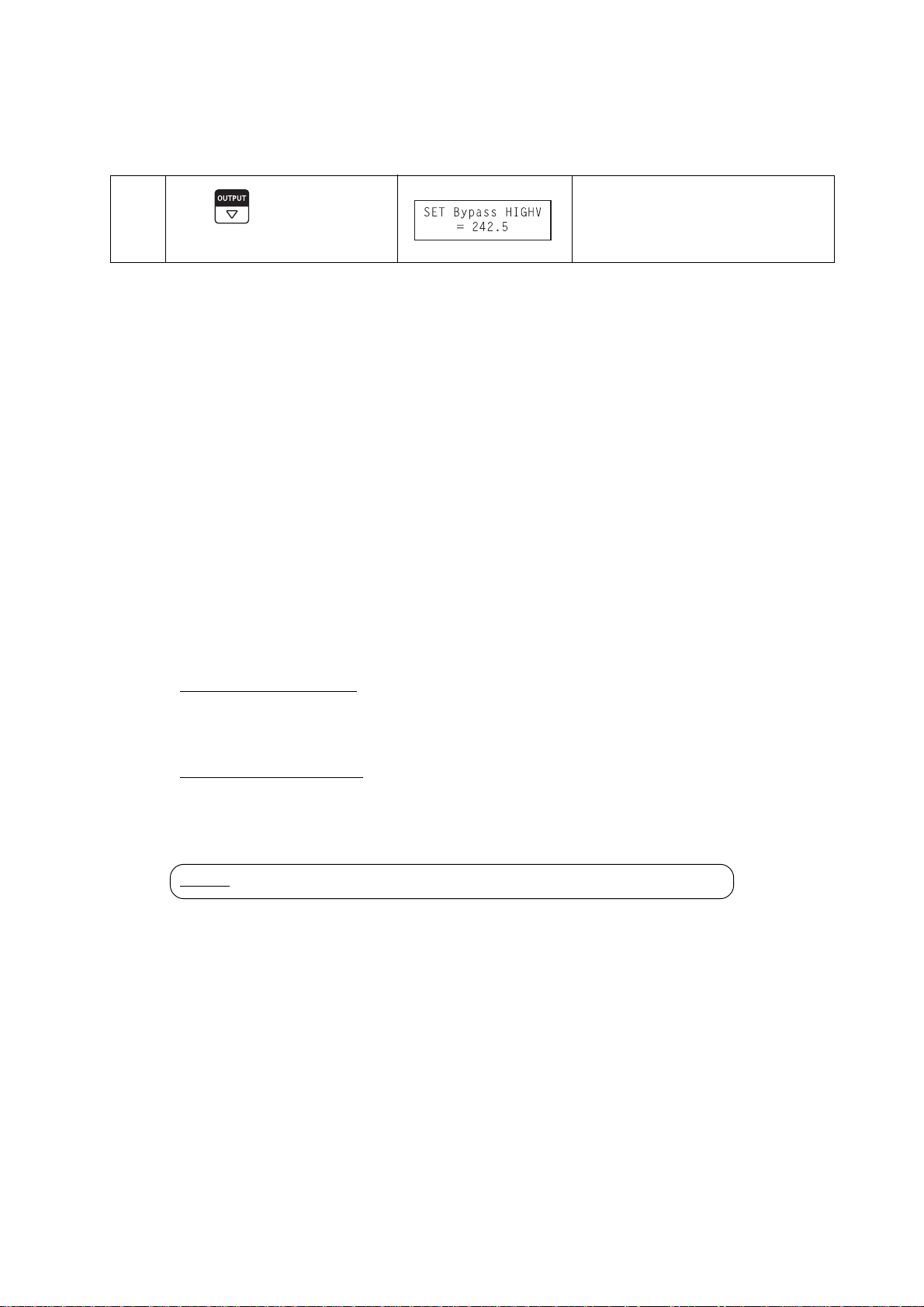

7.4.9 Press

buttons once again.

Displays set value of high bypass input voltage.

MAINTENANCE

8.1 UPS

LEONICS UPS does not need any special maintenance. Just only keep it away from dust and humidity. Anyway, if any of following items occurred, please contact us or our nearest service center.

-Part of the cable is cut, broken or damaged.

-The inside is wet with and kind of liquids.

-The metal cabinet is broken, dropped, fallen, crashed or hit.

-User notices abnormal conditions under normal use.

8.2 Battery

Even though the backup batteries are maintenance free, user still need to check them every year to make sure that they are at good condition. Always use the batteries and recharge them immediately when the power is low. If the UPS is not used or keep for long time, recharge the UPS for 8 hours every 3 months. Follow the following the procedure below to recharge the battery.

8.2.1

For 1000 VA model or lower

8.2.1.1 Press and hold PRECHARGE button for 5 seconds or until the LCD lit, then release. Turn on BATTERY circuit breaker. BATTERY LEVEL LEDs shows battery level.

8.2.1.2 Plug input cable or input power cord to AC receptacle. Charge the UPS for 8 hours.

For 1500 VA model or higher

8.2.2

8.2.2.1 Press and hold PRECHARGE button for 5 seconds or until the LCD lit, then release. Turn on BATTERY circuit breaker. BATTERY LEVEL LEDs shows battery level.

8.2.2.2 Turn on INPUT circuit breaker and BYPASS circuit breaker (if any). Charge the UPS for 8 hours.

Caution: Do not do anything with the battery while the UPS is operating.

- 28 -

TROUBLESHOOTING

If the UPS does not operate properly and you cannot solve the problems using this troubleshooting information in this userís guide, please contact you LEONICS local distributor, LEONICS Service Center, send e-mail to support@leonics.com or visit www.leonics.com.

Symptoms Possible causes Solutions

Press and hold PRECHARGE button for 5-8 seconds. No any indicator is lit.

Once the UPS started, MAIN TENANCE BYPASS indicator is lit, ALARM indicator blinks and alarm sound.

2 BATTERY LEVEL indicators are lit, ALARM indicator blinks and alarm sound.

The UPS shuts down. SHUTDOWN indicator is lit, 1-2 BATTERY LEVEL indicator are lit, ALARM indicator blinks and alarm sound.

1 BATTERY LEVEL indicator is lit, ALARM indicator blinks and alarm sound.

Reverse battery polarity connection

MAINTENANCE BYPASS switch is at position BYPASS (B).

Low battery power.

The UPS supplied power from battery until the battery power is very low and then the UPS shuts down automatically.

Battery capacity is too low and need to be replaced.

Reconnect battery system and verify the poles.

Turn MAINTENANCE BYPASS switch is at position AUTO (A) .

1. Press ON button to mute the alarm sound.

2. Turn off loads.

3. Wait until the battery is fully charged then turn on loads again.

1. Press ON button to mute alarm sound.

2. Turn off loads.

3. Restart the UPS

4. Wait until the battery is fully charged

then turn on loads again.

1. Press ON button to mute the alarm sound.

2. Turn off loads.

3. Turn off the UPS.

4. Turn off OUTPUT (if any), INPUT, BYPASS INPUT (if available) and BATTERY circuit

breakers.

5. For 1000 VA model or lower, unplug

AC power cord from utility power.

6. Replace new battery that is same type and rating.

7. Start-up the UPS again .

OVERLOAD indicator lit, ALARM indicator blinks and alarm sound.

OVERLOAD indicator is lit, ALARM indicator blinks and alarm sound.

UPS is overloaded.

The UPS was overloaded for long time until shutdown automatically.

Disconnect some loads until the load quantity is less than the UPS power rating.

1. Press ON button to mute alarm sound.

2. Disconnect some loads until the load quantity is less than the UPS capacity.

3. Press ON button to start and reset the UPS.

- 29 -

Symptoms Possible causes Solutions

SHUTDOWN indicator is lit, ALARM indicator blinks, OVER TEMP./FAULT is lit or blinks and alarm sound.

Once the UPS started, UPS alarms a short beep sound periodically.

The UPS operates normally but sound a short beep peroidically or the UPS supplies backup power for a short time and returns to normal operating.

The UPS is over temperature.

The UPS has fault.

A power sag occurred in too short a period for the user to sense. But the UPS can detect that abnormal condition.

1. Press ON button to mute the alarm

sound.

2. Turn off loads.

3. Press OFF button to shutdown the UPS.

4. Wait until the temperature is cool then restart the UPS again.

1. Press ON button to mute the alarm

sound.

2. Press

button to view fault events.

Then contact service center.

1. Press ON button to mute the alarm sound.

2. Press

button to view fault events.

Then contact service center.

No need to do anything.

Blackout occured and UPS supplies backup power. But when the utility power returns to normal, the UPS still supplies backup power.

Once start-up the UPS, any circuit breaker has tripped.

The UPS operates normally but does not supplies power to loads.

Power source is normal but the UPS supplies backup power.

The input voltage is out of range which is too high or too low voltage.

UPS is overloaded or short circuited or the circuit breaker is improper rating.

OUTPUT circuit breaker (if available) is turned off.

OUTPUT FUSE is blown.

INPUT circuit breaker is turned off.

INPUT FUSE is blown (if available).

1. Press ON button to mute alarm sound.

2. Turn off loads and wait until the input power is in the acceptable range (the UPS operates normally) then turn on

loads again.

1. Turn off the UPS.

2. Recalculate and verify the system.

3. Check circuit breaker rating.

4. If the circuit breaker trips again when restart the UPS, contact service center.

Turn on OUTPUT circuit breaker (if available).

1. Turn off the UPS

2. Check if the fuse is blown, replace new one with same type and rating.

Turn on INPUT circuit breaker.

1. turn off the UPS

2. Check if the fuse is blown, replace new one with same type and rating.

- 30 -

SOFTWARE INSTALLATION

10.1 Turn off computer and UPS before connecting RS-232 cable from the computer to the UPS.

10.2 Turn on the UPS and then turn on the computer. Then insert the Easy-Mon X Software CD into CD-ROM Drive or download at www.leonics.com.

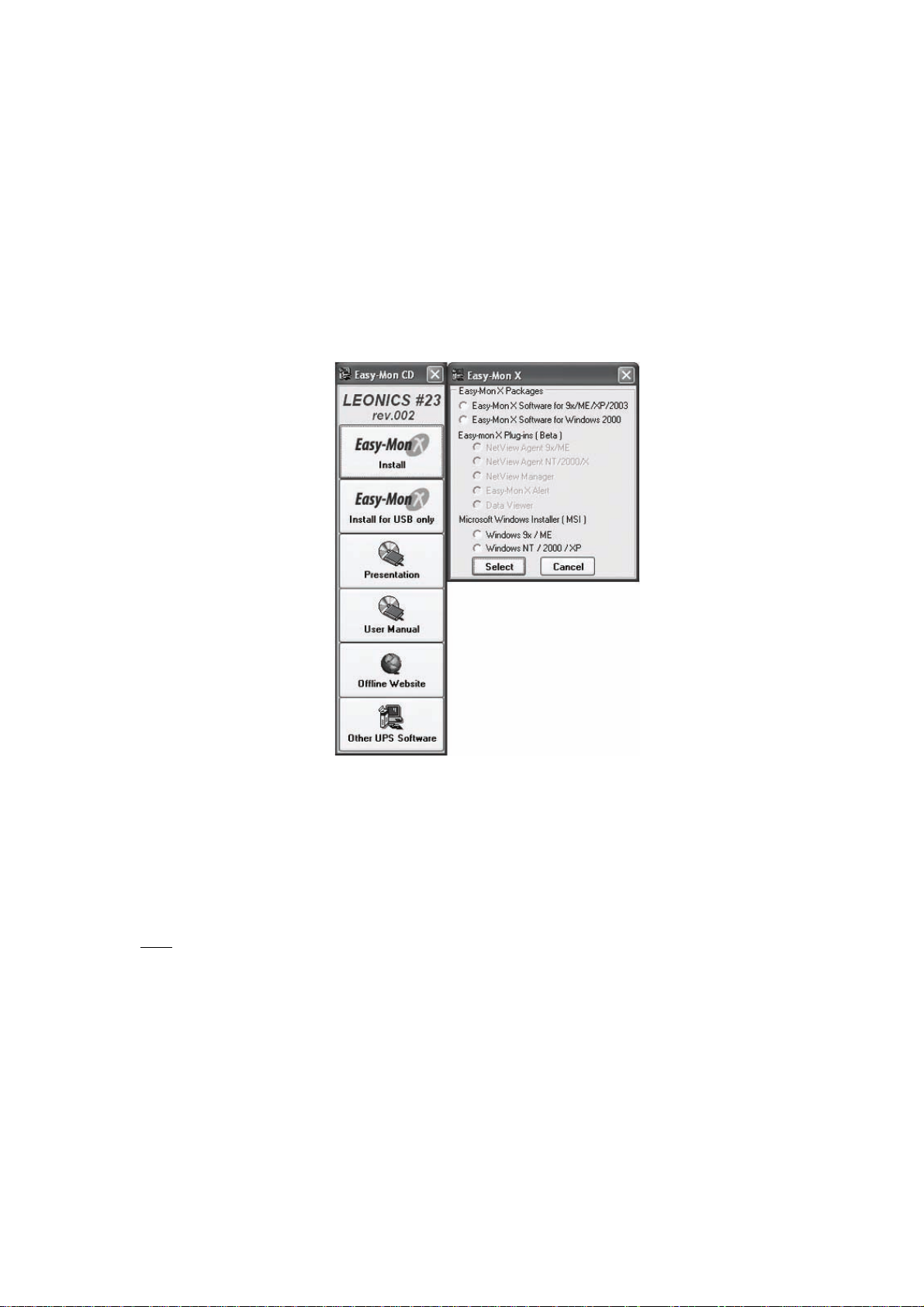

10.3 The Macromedia Flash presentation program will shown automatically. Press ESC button on the keyboard to exit the Macromedia Flash presentation. Then the Easy-Mon X window will be shown on screen.

10.4 Click the "Easy-Mon X Install" button and then install Easy-Mon X Package which relates to your computer operating system.

10.5 Follow the instruction as shown on screen.

10.6 After finished the Easy-Mon X installation, restart the computer.

10.7 Start the "Easy-Mon X Setup" program and then click the "Auto Detect UPS" to search for the UPS model and communication port automatically.

10.8 Once you know the communication port, start the "Easy-Mon X Spy"program to monitor the UPS data.

Note :- The values of input (Vin) and output ( Vout) voltages read from the Easy-Mon X Software from many

UPSs in the same network may be different, even though connected to the same power source. Possible causes of these happenings are the voltage over each branch circuit is not equal, or ± 1% accuracy of input and output voltage measuring circuit, or the UPSs are connected to different power phases of the same source.

- You can find more information about Easy-Mon X in the Easy-Mon X Software CD.

Leonics NB S-, NBP S-, NB-2KS, NB-3KS, NBP-5KS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
