XP14 Heat Pump ◆ Up to 16.00 SEER and 9.50 HSPF
LENNOX’ ELITE® SERIES
Home Comfort Systems
XP14
Reliable and responsible home comfort
Compatible with the exclusive Humiditrol®
whole-home dehumidification system—
indoor air quality you can feel
5
Elite® Series XP14 Heat Pump
Precision-engineered scroll
™
compressor with special
compressor sound
dampening system assures
smooth, quiet operation
Efficient design can result in
significant energy savings
Ozone-responsible
R410A meets the EPA’s
(Environmental Protection
Agency) most stringent
environmental guidelines
SmartHinge™ louvered access
panels provide improved coil
protection and fast, efficient
servicing
Compatible with the exclusive
Humiditrol® whole-home
dehumidification system
Innovation never felt so good.
ENERGY STAR® qualified
The XP14 heat pump proves that home comfort and environmental
responsibility can go hand in hand. Engineered with the chlorine-free
R410A refrigerant, the XP14 provides exceptional comfort and is
environmentally responsible. R410A meets the EPA’s
strictest standards for ozone and climate protection.
THE IDEAL CHOICE FOR YOUR HOME ENVIRONMENT
AND THE GLOBAL ENVIRONMENT
Designed to deliver more comfort for your energy dollar,
the XP14 has efficiency ratings of up to 16.00 SEER and 9.50 HSPF. At
the heart of the system is a scroll compressor, which provides smooth,
efficient and reliable operation.
EFFICIENCY RATING
Up to 16.00 SEER (Seasonal
Energy Efficiency Ratio) and
9.50 HSPF (Heating Seasonal
Performance Factor).
WARRANTY*
10-year limited warranty
on the compressor.
5-year limited warranty
on all remaining covered
components.
* Applies to residential applications only.
2
See actual warranty certificate for details.
Efficient Compared
to an older heat pump, the
XP14 heat pump can save you
hundreds of dollars each year
The XP14 heat pump provides
cooling efficiencies of up to 16.00
SEER and heating efficiencies of
up to 9.50 HSPF. The higher the
efficiency rating, the higher your
energy savings. In the case of the
XP14 heat pump, those savings
can translate to hundreds of
dollars each year.
5-YEAR COOLING SAVINGS
$1200
$1000
$800
$600
$400
seer
16.00 SEER XP14 heat pump,
compared to older, less efficient units
This chart compares the 5-year savings you can expect from
a 16 SEER heat pump vs. units with lower efficiency
ratings. The regions used to calculate household fuel and
utility costs reflect a cross-section of cities in the U.S. using
2006 Department of Energy national average energy rates. In
addition to geography, cooling costs are based on 3-ton capacity
specifications, with 1,600 cooling hours per year. Your actual
costs will vary depending on the weather, local fuel rates,
systems settings and your personal lifestyle.
$1190
$455
0
16.00 vs. 10.00 16.00 vs. 13.00
INNOVATIVE FEATURES FOR ENHANCED COMFORT AND EFFICIENCY
13.00-16.00
22.0
THIS MODEL
Precision-Balanced Direct-Drive Fan –
Provides a quieter environment outside your home.
High-Efficiency Outdoor Coil –
Provides exceptional heat transfer and
low air resistance for high-efficiency operation
that can lower your cooling bills.
Dependable Scroll Compressor –
Provides smooth, efficient and reliable operation.
Durable Steel Cabinet –
Made to last with an attractive,
high-quality textured paint finish.
Drainage Holes –
Prevent damaging moisture from collecting
inside the basepan, ensuring longer product life.
SmartHinge™ Louvered Coil Protection –
Allows quick, easy access to interior
components from all sides, so the unit can be
serviced in minimal time, saving you money.
XP14
Up to 16.00 SEER
Up to 9.50 HSPF
Quality you can trust.
Constructed of heavy-gauge, pre-painted steel
and tested in the most extreme environments
to ensure maximum durability.
Elite® Series XP14 Specifications
XP14 018 024 030 036 042 048 060
SEER Up to 15.00 Up to 16.00 Up to 15.00 Up to 16.00 Up to 15.00 Up to 15.00 15.00
HSPF Up to 8.00 Up to 9.00 Up to 9.00 Up to 9.00 Up to 9.50 Up to 9.00 Up to 9.00
Sound Rating – dB 71 71 71 71 71 73 73
Dimensions HxWxD (in.) 31 x 27 x 28 31 x 27 x 28 35 x 27 x 28 31 x 35-1/2 x 39-1/2 39 x 35-1/2 x 39-1/2 39 x 35-1/2 x 39-1/2 45 x 35-1/2 x 39-1/2
HxWxD (mm) 787 x 686 x 711 787 x 686 x 711 889 x 686 x 711 787 x 902 x 1003 991 x 902 x 1003 991 x 902 x 1003 1143 x 902 x 1003
Note: Due to Lennox’ ongoing commitment to quality, all specifications, ratings and dimensions are subject to change without notice.
Proper sizing and installation of equipment
is critical to achieve optimal performance.
Split system air conditioners and heat
pumps must be matched with appropriate
coil components to meet ENERGY STAR®
criteria. Ask your Lennox dealer for details,
or visit www.energystar.gov.
3
3

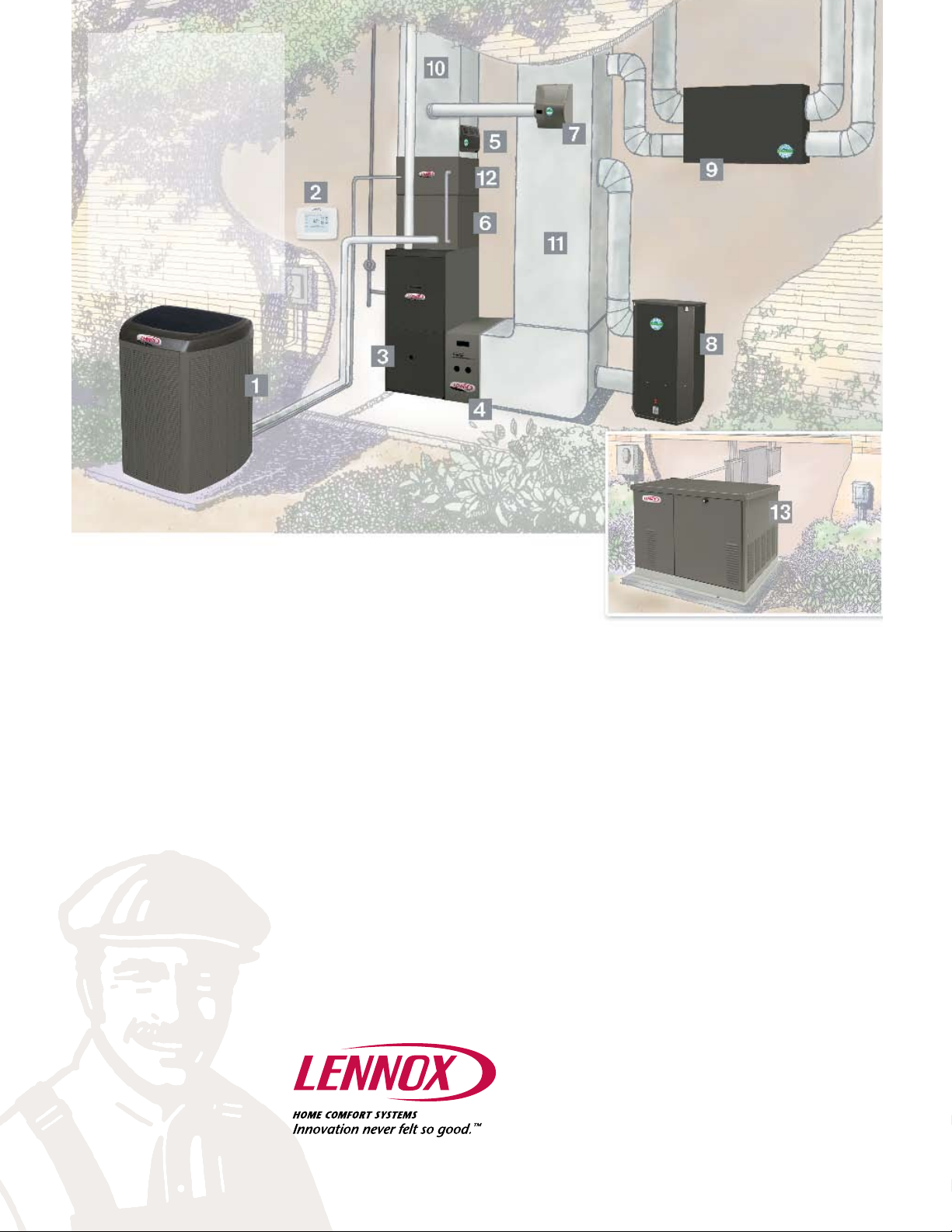

1 Air conditioner or heat pump
2 Thermostat
3 Furnace or air handler
4 Filtration device
5 Germicidal light
6 Indoor coil
7 Humidifier
8 HEPA bypass filtration system
9 Energy recovery ventilator
Supply duct
Return duct
Dehumidifier system
Residential generator
CUSTOMIZE YOUR COMFORT
Lennox® heating, cooling and indoor air quality products are designed to
provide efficient, economical comfort—not only as individual units, but also
together as an integrated system. This combined network of products delivers
on every comfort count, from consistent temperatures and balanced humidity to improved indoor air quality. Lennox
also offers a line of residential generators, which provide safe, reliable standby power in the event of outages.
DEALERS YOU CAN COUNT ON
Choosing the right dealer for your home’s heating, cooling and air quality needs is every bit as important as choosing the
right brand. We think you’ll agree our independent dealers are a big reason you can count on quality customer service
whenever you call. Your Lennox dealer’s dedication to quality shows in his knowledge, training and expertise in designing
the right system for your home, installing it properly and keeping it running perfectly for many years to come.
(32W33) XP 14 04/ 08
4
© Lennox Industries Inc. 2008
Visit us at www.lennox.com, or contact us at 1-800-9-LENNOX.
PC53869
