Lenoxx Electronics PH559 User Manual

13 MEMORY CALL WAITING CALLER ID

SPEAKER TELEPHONE

MODEL PH-559

OPERATING INSTRUCTIONS

 CALL WAITING CALLER ID FUNCTION*

70 NAME & NUMBER CALLER ID MEMORY



HANDS-FREE SPEAKERPHONE



TONE/PULSE SWITCHABLE DIALING



AUTOMATIC TIME & DATE DISPLAY



ONE-TOUCH CALLER ID CALL BACK



3 ONE-TOUCH SPEED DIAL BUTTONS

  10 TWO-TOUCH SPEED DIAL MEMORY LOCATIONS

WALL/DESK USABLE



REQUIRES 4 AA BATTERIES OR AC ADAPTOR



(BOTH NOT INCLUDED)

TO USE THE CALLER ID AND CALL WAITING FEATURES OF THIS PHONE,

YOU MUST SUBSCRIBE TO CALL WAITING CALLER ID SERVICE FROM

YOUR PHONE COMPANY, AND REMEMBER TO INSTALL BATTERIES

NOTE: READ AND FOLLOW THESE INSTRUCTIONS BEFORE USING YOUR TELEPHONE

IB-PH559(9803C)-WM-E-042602

TABLE OF CONTENTS

Important Safety Instructions 1

Battery Safety Instructions 2

Important Telephone Company & FCC Information 3

Location of Controls 4

○○○○○○○○○○○○○○○○○○○○○○○○○○○

Getting Started

Step 1: Checking the Package Contents 5 Step 2: Powering the Phone 6

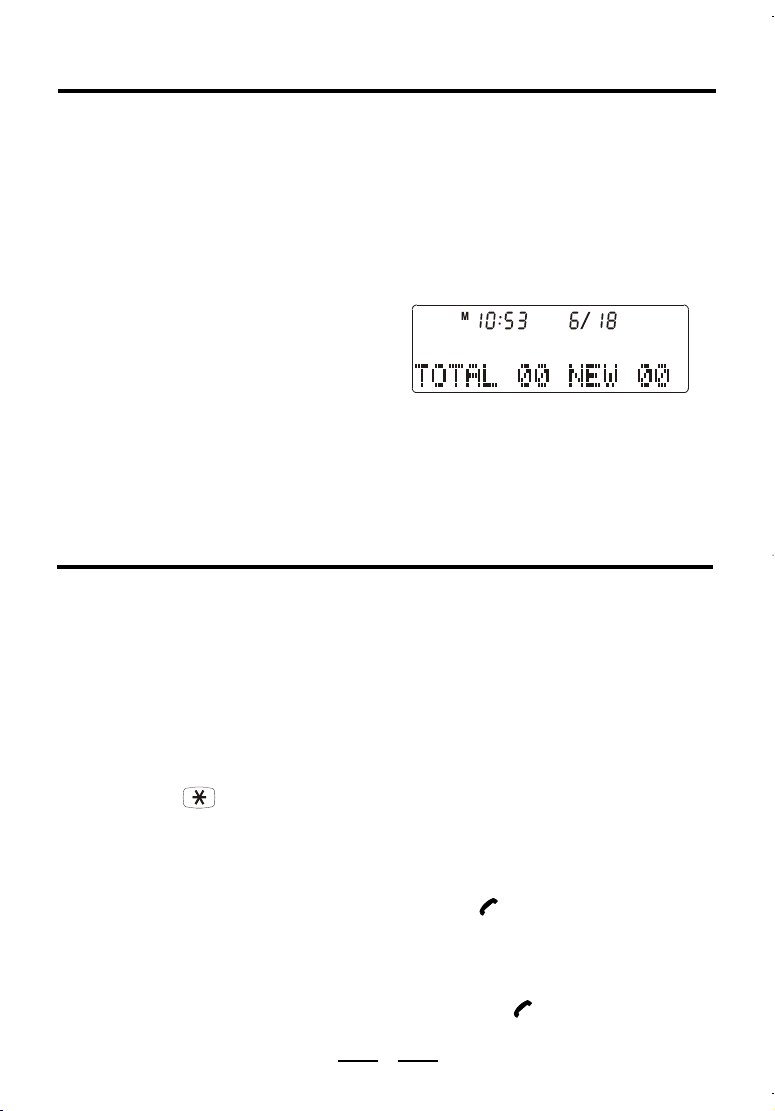

Step 3: Telephone Installation 7 Step 4: Setting up the Telephone 7

(Reset the phone) 8

Basics

Choosing Tone or Pulse Dialing 8 Making and Receiving Calls 8 Hands-Free (Speakerphone) Operation 9 Volume Control and Ringer Setting 9 Last Number Redialing and Pause Function 9

Telephone Features

Memory Dialing 10

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Storing Phone Numbers into Memory 10 Making Calls with 3 One-Touch Speed Dialing Buttons 10 Making Calls with 10 Two-Touch Speed Dialing Memory Buttons 10

○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○

○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○

○○○○○○

Caller ID Features

Understanding the Caller ID Service 11 When you Receive a Call 11 Call Waiting 11

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Viewing the Caller ID List 11

○○○○○○○○○○○○○○○○○○○○○○○○

Calling back from the Caller ID List 12 Storing the Phone Numbers from the Caller ID List 12 Deleting the Data from the Caller ID List 13 Using Message Waiting/Mailbox 13

Wall Mounting 14

Trouble Shooting 16

Limited Warranty 18

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○

IB-PH559(9803C)-WM-E-042602

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following:

1. Read and follow all instructions and warnings.

2. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a slightly dampened cloth only.

3. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

4. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the phone.

5. Slots and openings in back or bottom of the phone are for ventilation, and should not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator, heat register or a built-in installation such as a bookcase or cabinet unless proper ventilation is provided.

6. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind on the product.

7. To reduce the risk of electric shock, do not take this telephone apart. When service or repair work is required, take it to a qualified service representative, Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

8. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions because improper adjustment of other controls may result in damage and will often require

extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance.

9. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

10 . Do not use the telephone to report a gas leak in the vicinity of the leak.

11. Do not allow anything to rest on the telephone cord. Do not locate this product where the cord will be damaged by persons walking on it.

12 . Never install telephone wiring during a lightning storm. 13 . Never install telephone jacks in wet locations unless the jack is specially designed for

wet locations.

14. Never touch uninsulated telephone wires or terminals, unless the telephone line has been disconnected at the network interface.

15. Be careful when installing or modifying telephone lines.

SAVE THESE INSTRUCTIONS

For customer service

Dial 1-800-315-5885 (MONDAY - THURSDAY 9:00 AM - 5:00 PM, FRIDAY 9:00 AM - 1:00 PM EST) or Visit Our Website: http://www.lenoxx.com

IB-PH559(9803C)-WM-E-042602

BATTERY SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY, READ AND

1. Use only the following type and size of batteries: 4 size AA alkaline batteries (not included).

2. Do not dispose of the batteries into a fire. The cells may explode. Check with local codes for possible special disposal instructions.

3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may over heat and cause burns.

5. Do not attempt to recharge the batteries that are used with this product. The batteries may leak corrosive electrolyte or explode.

6. Do not attempt to rejuvenate the batteries identified for use with this product by heating them. Sudden release of the battery electrolyte may cause burns or irritation to eyes or skin.

7. All batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the batteries.

8. When inserting batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries may result in leakage or explosion.

9. Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the batteries could leak, damaging the product.

10. Discard weak or dead batteries as soon as possible since they are more likely to leak in the product. Batteries should be replaced when the display gets dim or if the Low Battery Indicator appears in the display.

11. Do not store this product in high temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting. Batteries should be stabilized at room temperature prior to use after cold storage.

12. If this product does not operate normally, see TROUBLE SHOOTING on pages 16 and 17. If you cannot resolve the problem, or if the product is damaged, refer to the LENOXX WARRANTY INFORMATION on the last page. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

13. Installation of batteries should only done by an adult.

FOLLOW THESE INSTRUCTIONS.

SAVE THESE INSTRUCTIONS

IB-PH559(9803C)-WM-E-042602

IMPORTANT TELEPHONE COMPANY & FCC INFORMATION

CAUTION : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

AND PERSONAL INJURY, DO NOT OPEN CABINET.

WE SUGGEST THAT YOU REVIEW THE FOLLOWING INFORMATION PROVIDED BY THE FCC (FEDERAL COMMUNICATIONS COMMISSION).

FCC REGISTRATION

This telephone set is registered with the FCC based upon compliance with Part 68 of its rules. Connection of this telephone to the nationwide telecommunications network must be through a standard network jack (RJ11W or RJ11C) which you can order from your telephone company, if not already installed.

NOTE : FCC registration does not constitute an expressed or implied guarantee of performance. Only

the Lenoxx warranty in this booklet covers the performance of this telephone set.

IMPORTANT FCC INFORMATION

In the event that terminal equipment causes harm to the telephone network, the telephone company should notify the customer, if possible, that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service providing that they:

1. Promptly notify the customer.

2. Give the customer an opportunity to correct the problem with their equipment.

3. Inform the customer of the right to bring a complaint to the Federal Communications Commission pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68.

The telephone company may make changes in its communications facilities, equipment, operations or procedures, where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible, the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain uninterrupted service.

RINGER EQUIVALENCE NO. (REN)

The REN is useful to determine the quantity of devices you may connect to your telephone line and still have all of those devices ring when your telephone number is called. In most, but not all areas, the sum of the RENs of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to determine the maximum REN for your calling area.

NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, try the following:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for assistance.

GENERAL

The FCC prohibits customer-provided terminal equipment to be connected to party lines or to be used in conjunction with coin telephone service. This phone is hearing aid compatible.

IB-PH559(9803C)-WM-E-042602

LOCATION OF CONTROLS

BACK OF THE PHONE

IB-PH559(9803C)-WM-E-042602

1. COMFORTABLE ROUNDED HANDSET - for comfortable use even during long calls.

2. HANDSET VOLUME CONTROL - adjusts the volume of handset receiver.

3. DIAL BUTTON - dials the number currently displayed.

4. OPTION BUTTON - used for dialing the correct number of digits (7-digits, 10-digits or 11-digits).

5. DELETE BUTTON - erases an individual record or all records from the Caller ID Memory, also used to accept time, date, and area code during initial setup.

6. NEW CALL INDICATOR - flashes when new calls have come in.

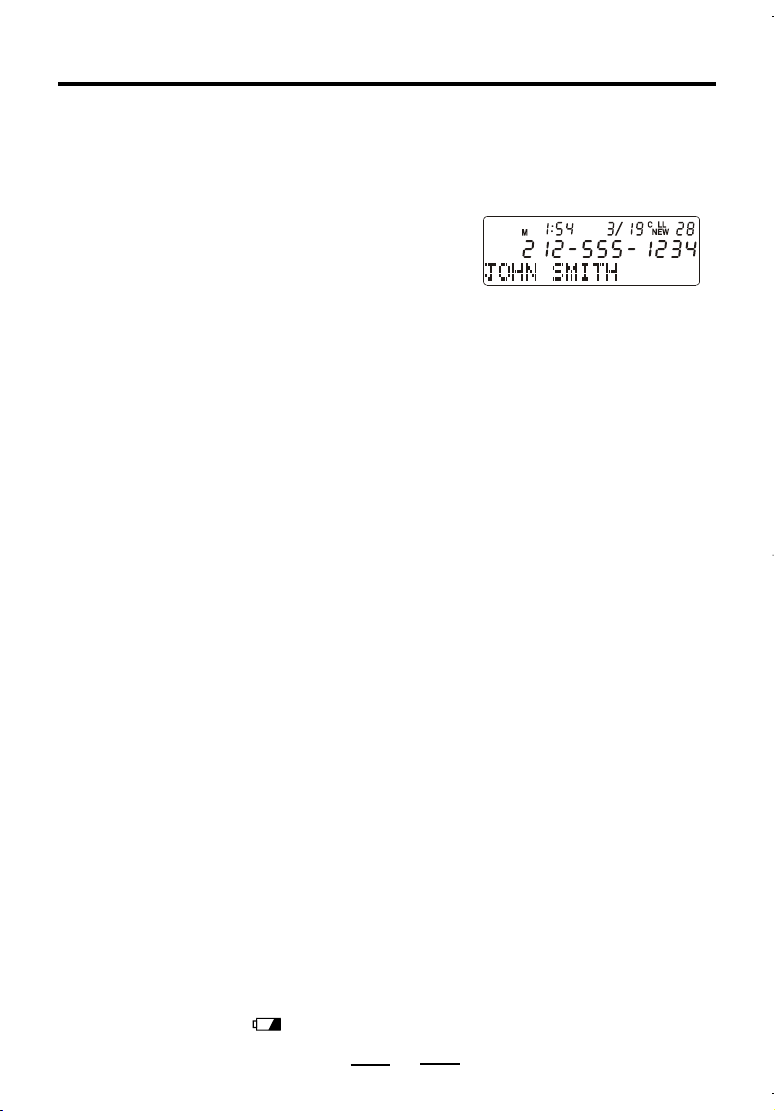

7. CALLER ID DISPLAY - shows the callers name, number, and calling time & date (and more).

8. UP/DOWN BUTTONS - reviews all calls received.

9. ONE-TOUCH SPEED DIAL BUTTONS - allows you to store numbers and quickly dial them from memory.

10. SPEAKERPHONE VOLUME CONTROL - adjusts the volume of the speaker.

11. STORE (MEMORY) BUTTON - used for storing numbers into the one-touch or two-touch Speed Dial memories.

12. AUTO (MEMORY) BUTTON - allows you to store & dial numbers from 10 two-touch memory locations.

13. MUTE BUTTON - allows you to hear the other party without them hearing you (while pressed).

14. SPEAKERPHONE - allows you to make or receive a call without lifting the handset.

15. SPEAKERPHONE MICROPHONE - for speakerphone use.

16. REDIAL/PAUSE BUTTON - get a new dial tone, then press this button to dial the last dialed number (also if you need a pause for PABX).

17. FLASH BUTTON - press to switch calls for call waiting or to get a new dial tone.

18. TONE/PULSE SWITCH - selects the desired dialing mode.

19. RINGER ON/OFF SWITCH - normally on, allows you to turn the ringer off for undisturbed privacy.

20. AC ADAPTOR JACK - allows you to use home AC power supply (AC adaptor not included).

21. LINE CORD JACK - insert one end of the telephone line cord here when connecting the telephone.

22. HOOK SWITCH - press down to release the line, hold it down and then release it to get a new dial tone or for call waiting.

23. HANDSET CLIP - holds the Handset in place when the telephone is mounted on a wall.

24. COILED CORD JACK - Insert COILED CORD from HANDSET here.

25. BATTERY COMPARTMENT - place 4 size AA alkaline batteries inside according to the polarities as shown on the bottom of the phone.

26. RESET SWITCH - to reset your phone by inserting a pin into the small hole on the bottom of the phone.
