MODEL PDV-709
PORTABLE DVD PLAYER
INSTRUCTION MANUAL
Plays DVDs, Audio CDs, CD-R/RW, MP3 CDs and Picture CDs
•
Includes Rechargeable Battery for Portable Use Anywhere
•
Includes AC Adaptor
•
Includes Car Adaptor for Travel
•
Connects to Your Larger Screen Home TV (cable included)
•
PLEASE READ CAREFULLY BEFORE USE
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM1
IB-PDV709-WM-E-061006
S3152A
SAFETY INSTRUCTIONS
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE
BLADE PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
Rating plate and caution marking are marked on the bottom enclosure of the apparatus.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR
BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
IMPORTANT SAFETY INSTRUCTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings, install in accordance with the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
15.This appliance shall not be exposed to dripping or splashing water and that no object filled with
liquid such as vases shall be placed on the apparatus.
1
IB-PDV709-WM-E-061006
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM2
SAFETY INSTRUCTIONS
Do not apply oil or petroleum products or solvents to any part of this set.
FCC NOTE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesirable operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures.
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect this equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE
This product incorporates copyright protection technology that is protected by method claims
of U.S. patent numbers 4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132 and
other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only, unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
CAUTION
Use of controls or adjustments or
performance of procedures other than
those specified herein may result in
hazardous radiation exposure. Do not
open covers and do not repair yourself.
Refer servicing to qualified personnel.
This DVD VIDEO player is classified as
CLASS 1 LASER PRODUCT as stated
on the bottom of the set.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM3
INCLUDED ACCESSORIES
The following items are included with your
DVD player:
-Remote Control
-AAA Batteries (2)
-Rechargeable battery
-AC adaptor
- Car adaptor
-Audio/Video cable
-User’s Guide
-Product Registration Card
2
IB-PDV709-WM-E-061006
TABLE OF CONTENTS
• Getting Started:
Safety Instructions------------------------------------------------------------------------------------------1
Controls Overview --------------------------------------------------------------------------------------4
Power Supply ----------------------------------------------------------------------------------------------7
Remote Control Operation -----------------------------------------------------------------------------8

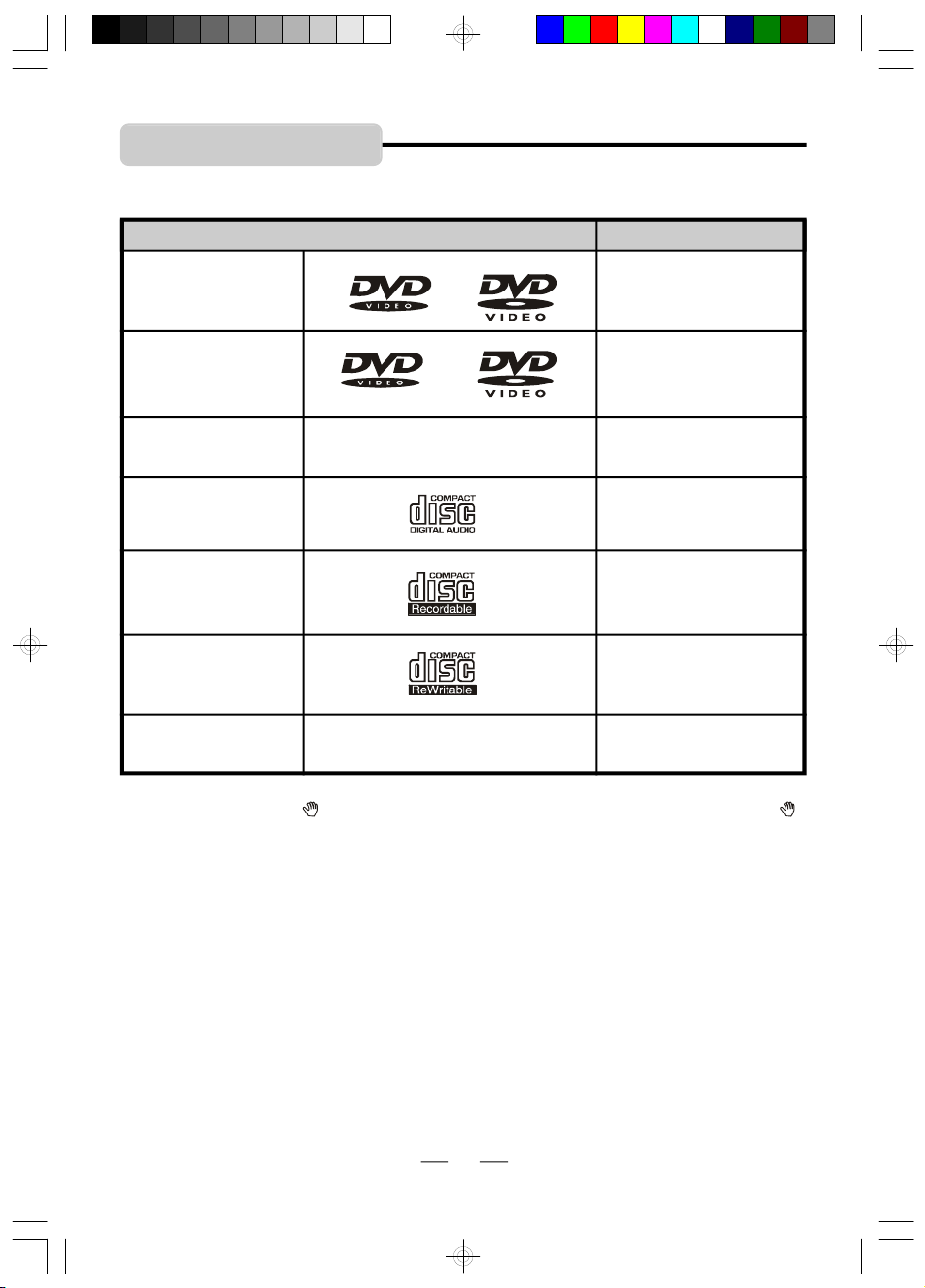

Notes on Discs ---------------------------------------------------------------------------------------------9
• Basic Operation:
1.Playing a Disc -------------------------------------------------------------------------------------10
2.Using the Search Functions---------------------------------------------------------------------11
3.Selecting Audio Mode---------------------------------------------------------------------------11
4.Changing Subtitle Language------------------------------------------------------------------11
5.Displaying Disc Information--------------------------------------------------------------------12
6.Repeat Play-------------------------------------------------------------------------------------------13
7.Slow-Motion Play----------------------------------------------------------------------------------13
8.Zoom Play-------------------------------------------------------------------------------------------14
9.Search for Preferred Play-----------------------------------------------------------------------14
10.Viewing Angle Shots-----------------------------------------------------------------------------15
11.Programmed Play---------------------------------------------------------------------------------15
12.MP3 Disc Operation------------------------------------------------------------------------------16
13.JPEG or Picture Disc Operation---------------------------------------------------------------16
• Connection
System Connections -------------------------------------------------------------------------------------17
Watching a DVD on Your TV --------------------------------------------------------------------------19
• Initial Setting:

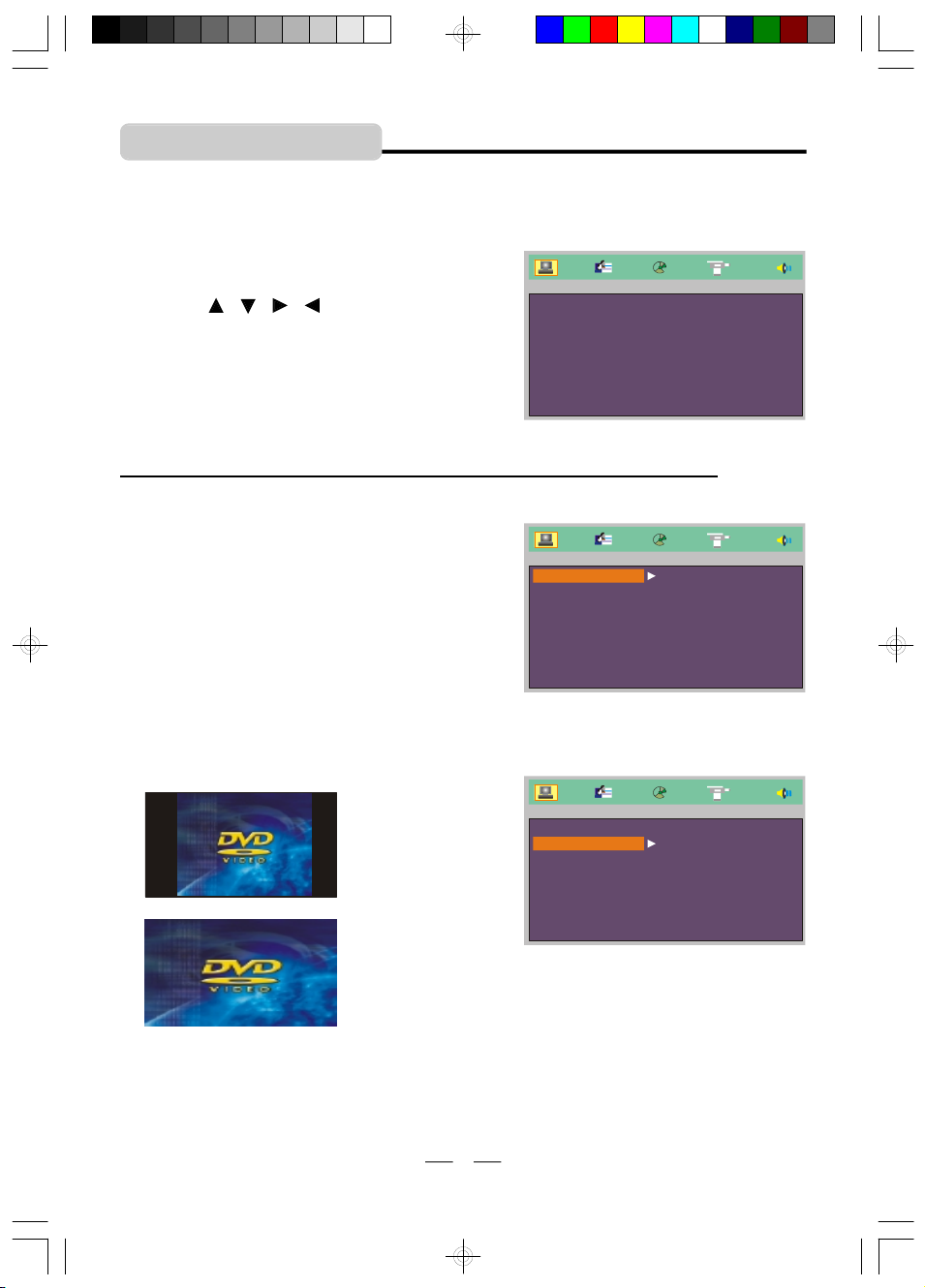

System Setup (TV System, LCD Mode, TV Type & Default)
Setting the TV System -----------------------------------------------------------------------------20
Setting the LCD Mode ----------------------------------------------------------------------------20
Selecting the TV Type -----------------------------------------------------------------------------21
Default - Resetting the Functions to Factory Defaults-------------------------------------21
Language Setup (OSD, Audio, Subtitle & Menu) ------------------------------------------------22
Audio Setup ------------------------------------------------------------------------------------------------22
Video Setup ------------------------------------------------------------------------------------------------22
Speaker Setup ---------------------------------------------------------------------------------------------22
• Precautions ------------------------------------------------------------------------------------------------23
• Trouble Shooting -----------------------------------------------------------------------------------------24
• Glossary -----------------------------------------------------------------------------------------------------27
• Specifications ---------------------------------------------------------------------------------------------28
3
IB-PDV709-WM-E-061006
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM4
CONTROLS OVERVIEW
Front View
1
2
12
13
14
15
16
17
18
19
20
21
3
5 6 7 8 9
4
11
10
3
1.TFT LCD SCREEN – Provides a high resolution picture.
2.DISC DOOR – Open the door by pressing the open button and set the disc inside it.
3.SPEAKERS – Provide stereo sound.
4.ON/STANDBY INDICATOR – The indicator lights up in red when the set is in standby
mode and in green when the set is on.
5.SKIP/SEARCH BACKWARD – Press to skip to the previous title, chapter or track.
Press and hold to scan backwards.
6.SKIP/SEARCH FORWARD – Press to skip to the next title, chapter or track. Press
and hold to scan forwards.
7.VOLUME BUTTONS – Press to adjust the volume (up is +, down is –).
8.STOP BUTTON – Stops playback, press twice for full stop.
9. PLAY/PAUSE BUTTON – Press to start or pause play..
10.REMOTE SENSOR – Receives signals from the remote control.
11.OPEN BUTTON – Press to open the disc door.
12.SCREEN OFF BUTTON – When you fold down the LCD screen, the LCD panel will push
this button and turn off the LCD screen but keeps the set working for viewing DVDs on
your TV. This is useful when the AUDIO/VIDEO cable is connected.
13.TITLE BUTTON – Press to display the title menu (only if it is present on the disc).
14. MENU BUTTON – Press to display the disc’s menu (only if your disc has a menu).
15. SETUP BUTTON – Press to display the DVD player’s setup menu.
16. GOTO BUTTON – Press to display the GOTO menu then press the direction buttons to
select the desired disc starting time, track or title for playback.
17.OK BUTTON – Press to confirm a selection.
18.DIRECTION BUTTONS – Used to select options and DVD menus and MP3 tracks.
19.SUBTITLE BUTTON – Press to select or change the subtitles (if available on your disc).
20. AUDIO BUTTON – Press to select the audio channel (or director’s cut channel).
21. DISPLAY BUTTON – Press to view the disc information and times.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM5
4
IB-PDV709-WM-E-061006
CONTROLS OVERVIEW
Right Side View
1 2 5 6
1.PHONES JACK – Insert your headphones (not included) to enjoy the sound without disturbing
others.
2.COAXIAL JACK – Connects the DVD player to your home theater system using a coaxial
cable (coaxial cable is not included).
3.VIDEO OUT JACK – Connects the DVD player to your large screen TV using the supplied
video cable.
4. AUDIO OUT JACKS – Connect the DVD player to your TV or home theater system using
the supplied audio cables.
5.S-VIDEO JACK – Connects the DVD player to your TV using an S-Video cable (S-Video
cable is not included).
6. POWER ON/OFF SWITCH – Slide to switch the DVD player ON or OFF.
7. DC IN JACK – For connecting to the supplied AC adaptor or car adaptor.
3 4
7
Rechargeable Battery
1 2
3
1.RECHARGEABLE BATTERY – For DC power supply.
2.BATTERY TAB – Push to remove the battery.
3.BATTERY LED INDICATOR – Will flash when battery is charging and remain steadily on
when battery is fully charged.
5
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM6
IB-PDV709-WM-E-061006
CONTROLS OVERVIEW
SCREEN ON/OFF
AUDIO
REPEAT
VOLUME
PLAY/PAUSE
REMOTE CONTROL
20
1.ON/STANDBY button – Press to turn the set
ON or STANDBY.
2.SCREEN ON/OFF button – To turn the LCD
screen ON or OFF (for external TV use only),
1
2
3
TITLE
BRI/COL
MENU
4
5
6
SETUP
STOP
ON/STANDBY
DISPLAY
12
13
14
press and hold this button. To adjust the color or
brightness level of the LCD screen, press this
button to display the LCD screen color or
brightness function, then press the left or right
direction button to adjust the level.
3.MENU button – Press to display the disc’s menu
(only if your disc has a menu).
4.TITLE button – Displays the title menu (only if
7
8
SUBTITLE
9
10
PROGRAM
ANGLE
ZOOM
SLOW
GOTO
11
RC-709
15
16
17
18
19
it is present on the disc).
5. / button – Press to skip to previous
title, chapter or track / press and hold more than
1 second to scan backward.
6. / button – Press to skip to next title,
chapter or track / press and hold more than 1
second to scan forward.
7.DIRECTION buttons – Used in DVD menus &
audio MP3 track selection.
8.OK button – Press to start/pause play or
confirm a selection or command.
9.NUMERIC buttons – Used in DVD menus
& audio CD/MP3 track selection.
10.ANGLE / PROGRAM button – In DVD mode, press to display angle menu (if present on the
DVD disc); Press to program your favorite track in CD/MP3 mode.
11.VOLUME buttons – Press to adjust the volume level (remember to also adjust your TV’s
volume).
12.SETUP button – Press to display the DVD player’s setup menu.
13.DISPLAY button – Press this button to view the elapsed time, title or chapter
information and the track numbers during play.
14.STOP button – Stops play, press twice to full stop.
15.SUBTITLE button – Press to setup the subtitle (if available on your disc).
16.AUDIO button – Press to select the desired audio channels.
17.GOTO button – Allows you to select the desired disc starting time, track or title for playback.
18.REPEAT button – Press this button to repeat the current track, chapter, title, a chosen
section (A to B), or all of the disc.
19.ZOOM/SLOW button – Press to zoom (enlarged) the playing picture in DVD mode or hold
more than 1 second to view slow motion playback.
20.REMOTE CONTROL lens – Sends the signal to the set. Do not block or cover this,
keep this clean for best operation.
NOTE: The remote control will only work when power is on. Please turn on power with the
switch on the right side of the set.
6
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM7
IB-PDV709-WM-E-061006
I
D
E
2
3
POWER SUPPLY
You can power this portable DVD player by connecting the AC adaptor, the car adaptor or the
rechargeable battery (all included).
A. Using the AC adaptor
This player is supplied with an AC adaptor for powering the
unit and charging the battery.
Insert the AC adaptor plug to the DC IN jack on the portable
DVD player and connect the adaptor to a wall outlet.
B. Using the car adaptor (12V)
This player is supplied with a 12V car adaptor for powering
the unit and recharging the battery while in a vehicle that
has a 12V power system.
Insert the car adaptor plug to the DC IN jack on the
portable DVD player and connect the car adaptor
to the vehicle’s 12V accessory / cigarette lighter
socket, the car adaptor indicator will light up.
CAUTION:
1.The included car adaptor is for use with this unit only. Do not use it with other equipment.
2. Use this unit only with the included car adaptor, using with other car adaptors could damage
the unit and the unit may not work.
3.Do not operate this unit or view video movies while driving a vehicle.
4. If some lines appear on the screen during the startup of the vehicle, please turn the unit off
and turn it on again after the vehicle is running.
5.Place the unit in a proper position for viewing.
6.When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may
become hot or not work due to poor contact. Be sure to clean the cigarette lighter socket before use.
7.Disconnect the car adaptor from both the unit and the cigarette lighter socket when the
battery is fully charged and the unit is not in use.
C. Using the rechargeable battery
The rechargeable battery pack is suitable for portable use which allows you to enjoy the
unique functions of this unit outdoors.
Remember to charge the battery fully before
initial use (about 5 hours).
Attaching the Battery (refer to the diagram on the right)
1.Make sure the player is off and the AC adaptor or car adaptor is
disconnected.
2.Place the DVD player on a soft and smooth surface with the bottom
of the unit facing up.
3.With one hand on the DVD player to prevent it from moving, take the
battery and align the plastic tabs on the battery with slots on the
player, and slide it forward to lock, The battery will click into place.
Detaching the Battery (refer to the diagram on the right)
1.Make sure the player is off and the AC adaptor or car
adaptor is disconnected.
2.Push the tab on the battery down.
3.Slide and lift the battery out.
To charge the battery
1.Insert the AC adaptor’s plug into the DC IN jack on the DVD player and connect the AC
adaptor to a wall outlet. After 5 seconds, the battery LED indicator will turn on and start to flash.
7
slot
S
L
tab
IB-PDV709-WM-E-061006
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM8
2.The battery LED indicator will flash when the battery is charging and remain steadily on
when the battery is fully charged.
3.Charging time is about 5 hours. A fully charged battery delivers about 2.5 hours of viewing time.
4. To charge the battery using the supplied car adaptor, follow point B on the previous page.
NOTE: When inserting the battery while the set is AC powered or car powered, there will be a
delay of several seconds before the LED lights up. This is because the battery charging
circuit needs to reset and detect the battery status.
Working conditions and precautions for the rechargeable battery
New batteries should be fully charged before initial use (about 5 hours).
•
Battery should be changed by an adult for safety.
•
Battery should only be used and charged when temperatures are between 32 -100OF.
•
•Never put the battery in fire or water.
•Do not expose the battery to high temperatures or store in hot, sunny places.
•Do not short the battery terminals.
•Do not open the battery.
•When the battery is weak, the ON/STANDBY indicator will flash and the Low Power icon
“ ” will appear on the LCD screen and then the power automatically turns off. If this
occurs, please use the AC adaptor to recharge the battery or play the set on AC power.
REMOTE CONTROL OPERATION
1.Push the tab to open the battery cover.
2.Insert 2 size “AAA” alkaline batteries
(included) into the battery compartment
according to the + and – markings
inside the battery compartment, then
replace the battery cover.
NOTE:
Point the remote control unit from less than 20 feet (6 m) from the remote sensor and within
•
about 60o of the front of the unit.
Batteries should be changed by an adult for safety.
•
Reversing polarities will damage the batteries and possibly your remote. Be sure to follow
•
polarities ( + and –) as indicated.
Do not mix different types of batteries together (Alkaline, Carbon-Zinc, Nickel-Cadmium
•
etc.), or old batteries with new ones.
When the batteries have become discharged,they must be disposed of in a safe manner that
•
complies with all applicable laws.
When the batteries becomes weak, the operating distance of the remote control decreases
•
and you will need to replace the batteries.
When the remote control is not to be used for a long time (2 months or more), remove the
•
batteries to avoid possible damage that may be caused by battery leakage.
Avoid keeping the remote control in extremely hot or humid locations.
•
Do not point bright lights at the remote control sensor (like laser pointers).
•
Do not place objects between the remote control unit and the remote control sensor.
•
Do not use this remote control while using the remote control unit of any other equipment at
•
the same time, the signals may mix.
8
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM9
IB-PDV709-WM-E-061006
NOTES ON DISCS
Discs that can be played
DISC TYPE & LOGO MARK
DVD Video
(Region 1)
DVD-R / DVD-RW
JPEG disc
Music CD
CD-R disc
CD-RW disc
MP3 disc
“.JPG” or “JPEG”
MP-3
RECORDED CONTENT
Video + Audio
Video + Audio
Video only (Photos)
or Audio / Video
Audio only
Audio only
or Audio / Video
Audio only
or Audio / Video
Audio only
NOTE: A hand symbol “ ” may appear on the screen when pressing some buttons. A “ ”
means that the operation is not permitted by the DVD player for the disc in that mode
or at that time. Sometimes, the set needs to be in stop mode or other modes for that
button to work.
Discs that cannot be played
CD-Is, CD-ROMs (including computer software discs and game discs), data part of CD-Extras,
DVD-ROMs, DVD Audio discs, DIVX, MPEG 4 DVD discs, HD layer on SACDs or discs recorded
in another format such as SECAM, and regions other than your region. This set will also not play
damaged, scratched or dirty discs.
9
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM10
IB-PDV709-WM-E-061006
1. PLAYING A DISC
1 Lift the LCD screen.
2 Slide the DVD player’s POWER switch to the ON position, the DVD logo (start-up picture) will
appear on the screen.
3 Press the OPEN button on the DVD player to open the disc
door. Place a disc gently on the tray with the label side up, make
sure the disc is seated on the spindle by pressing down in the center,
then close the door by pushing it down. The DVD player starts to
read the disc’s table of contents (this may take a few seconds).
NOTE 1: Load the disc with the label side facing up, when
NOTE 2: “NO DISC” will show in the display if the disc is upside
4 Some discs will start playing automatically, and others will display the Disc Contents Menu on
the screen. If the menu is shown, use the ( , , & ) direction buttons to highlight your
selection and press the OK button to confirm, otherwise you may press play.
5 Press the VOLUME + or VOLUME – button to adjust the volume level.
6 Press the SCREEN ON/OFF button on the remote control, then press the left and right
direction buttons to adjust the brightness and the color of the LCD screen if needed.
7 To stop playback, press the STOP button.
8 To pause the playback, press the OK button on the remote control or the PLAY/PAUSE
button on the player. To resume playback, press the OK button on the remote control
or thePLAY/PAUSE button on the player again.
NOTE 1: During play, pressing the STOP button once will show “PRE STOP ” in the
display, if you press the STOP button the second time, the display will show
“STOP ”, and now your system is in the full STOP mode.
NOTE 2: Leaving the set in the stop mode for a longer time will drain the battery the same
as during normal play, remember to shut off the power after use.
9 To skip to another track/chapter, press the SKIP/SEARCH or SKIP/SEARCH button
repeatedly during playback.
10 To access the disc menu or title menu during DVD play, press the MENU or TITLE button
on the remote control or on the DVD player.
11 Remember to shut off the player by sliding the POWER switch to the OFF position when
the movie finishes playing.
playing a double-sided disc, load it with the desired
playing side face down.
down or the disc is badly scratched or dirty, it will not
play. Please clean it or change the disc before use.
Also you can buy a disc polisher to try to repair the
scratched disc.
NOTE: This player has a screen saver which will display a bouncing DVD logo if no video is
played for a while.
10
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM11
IB-PDV709-WM-E-061006
2. USING THE SEARCH FUNCTIONS
During play, you can search quickly through a chapter or track.
Search through a chapter or a track
1 During play, press and hold the SKIP/SEARCH button to search forward at a faster
speed, the fast search speed changes as follows:
FORWARD X2 FORWARD X4 FORWARD X8 FORWARD X20
PLAY
2 During play, press and hold the SKIP/SEARCH button to search backward at a faster
speed, the search speed changes as follows:
BACKWARD X2 BACKWARD X4 BACKWARD X8 BACKWARD
X20 PLAY Y
NOTE: In any fast forward or fast backward mode, press the OK button on the remote control
or press the PLAY/PAUSE button on the player to return to normal play mode immediately.
3. SELECTING AUDIO MODE
If a DVD disc contains a Multi-Audio soundtrack feature, you can select the desired audio
language by pressing the AUDIO button on the set or on the remote control repeatedly during
play, playback status will be displayed on the screen. The AUDIO button can also select
director’s cuts dialogue and other disc dialogue.
NOTE 1: If you press the AUDIO button for several times, but the desired language is not
NOTE 2:This DVD player does not support DTS decoding. For discs with DTS decoding,
4. CHANGING SUBTITLE LANGUAGE
You can select a desired subtitle quickly and easily with the SUBTITLE button on the set or on
the remote control.
NOTE: This operation works only with DVD discs on which multiple subtitle languages are
To remove the subtitles display, press the SUBTITLE button again until “ : [OFF] ” shows.
selected, it means a second language is not available on the disc.
please press the AUDIO button to select another audio output mode, such as
AC-3 or until you hear the sound.
(DVD ONLY)
recorded. Some DVDs have no subtitles, some may have 5 or more. If no subtitles are
recorded on your DVD, pressing this button will not change the subtitles.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM12
11
IB-PDV709-WM-E-061006
5. DISPLAYING DISC INFORMATION
If you want to know disc information during play, press the DISPLAY button on the remote
control or on the set, the disc information will appear on the top of the screen as shown below:
For DVD Play
DVD TT 1/2 CH 6/12 00:02:35
The information about the title/chapter number
and chapter elapsed time is shown.
o)) 1/3ENG 5.1CH 2/3ENG OFF
DVD TT 1/2 CH 6/12 C-00:06:41
DVD TT 1/2 CH 6/12 T 00:18:05
DVD TT 1/2 CH 6/12 T-01:05:40
OFF
For CD Play
CD TRK 2/12 00:01:03
CD TRK 2/12 C-00:02:42
CD TRK 2/12 T 00:10:49
CD TRK 2/12 T-00:40:35
OFF
The information about the AUDIO, SUBTITLE
and ANGLE is shown.
The information about the chapter remaining
time is shown.
The information about the title elapsed time is
shown.
The information about the title remaining time
is shown.
The information display goes off.
The information about the current track
elapsed time is shown.
The information about the current track
remaining time is shown.
The information about the total track elapsed
time is shown.
The information about the total track remaining
time is shown.
The information display goes off.
For MP3 Play
MP3 TRK 2/124 00:03:03
MP3 TRK 2/124 C-00:01:36
OFF
NOTE 1: “TT” stands for title, “CH” stands for chapter, and “TRK” stands for track.
NOTE 2: Depending on the disc, the above information may not appear on your screen or you
may not be able tochange the display.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM13
The information about the current track
elapsed time is shown.
The information about the current track
remaining time is shown.
The information display goes off.
12
IB-PDV709-WM-E-061006
6. REPEAT PLAY
The REPEAT button allows you to repeat the current track, chapter, title, a chosen section (A-B), or
all of the disc.
Each time you press the REPEAT button on the remote control repeatedly, the repeat mode
changes as follows:
For DVD
REP: [CHAPTER] REP: [TITLE]
REP: [REP ALL]
REP: [OFF]
WILL REPEAT THIS
CHAPTER OVER AND OVER
WILL REPEAT THIS
TITLE OVER AND OVER
A-B CANCEL
“A-B CANCEL” SHOWS AND
NORMAL PLAY RESUMES
WILL REPEAT THIS
DISC OVER AND OVER
REPEAT A TO B SEGMENT OVER AND OVER.
NORMAL PLAY
REPEAT A-REPEAT A-B
NOTE: When you select “A TO B” repeat play:
1. Press the REPEAT button until “REPEAT A- ” appears at the beginning of the segment
(point A) you want to play repeatedly.
2.Press REPEAT button again at the end of the segment (point B), “REPEAT A-B” will
appear on the display.
3.The DVD player will automatically play the selected segments A to B over and over till
you press REPEAT button again.
For CD
REP: [REP 1] REP: [REP ALL] REP: [OFF] REPEAT A - REPEAT A-B
A-B CANCEL
For MP3
REP: [REP 1] REP: [REP DIR] REP: [REP ALL] REP: [OFF] REPEAT A -
REPEAT A-B A-B CANCEL
7. SLOW-MOTION PLAY
(JUST FOR DVD)
A disc can also be played in slow-motion by pressing the ZOOM/SLOW button.
1 Each time you press and hold the ZOOM/SLOW button on the remote control during play, the
playback speed will change as follows:
SF 1/2 SF 1/3 SF 1/4 SF 1/5 SF 1/6 SF 1/7 PLAY Y
2 Press the OK button on the remote control to resume normal play from any slow-motion
mode.
NOTE 1: Sound will be silent during slow motion play.
NOTE 2: SF stands for SLOW FORWARD.
13
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM14
IB-PDV709-WM-E-061006
8. ZOOM PLAY
The ZOOM/SLOW button allows you to do a minimal zoom into a picture as well as shift the
zoom point.
(FOR DVD)
1 Press the ZOOM/SLOW button on the remote control repeatedly to enlarge or reduce a picture.
The display will show as follows:
ZOOM 2 ZOOM 3 ZOOM 4 ZOOM 1/2 ZOOM1/3 ZOOM1/4 ZOOM: OFF
2 Press the direction buttons ( , , & ) to move the enlarged picture up, down, left or right.
3 To return to normal play from the ZOOM mode, press the ZOOM/SLOW button repeatedly till
the icon shows “ZOOM: OFF”.
NOTE 1: Some discs may not respond to the zoom feature and during some zoom functions
NOTE 2: When reducing to smaller sizes, the black area around the picture will enlarge, this
the picture edges may seem fuzzy, this is normal.
is normal.
9. SEARCH FOR PREFERRED PLAY
To select a scene with the title, the chapter,
the track number or the time during play use
the GOTO button.
1 Press the GOTO button during play, the
screen will show as on the right:
2 Move the LEFT and RIGHT direction
buttons ( & ) and press the number
buttons on the remote control or UP and
DOWN direction buttons ( & ) to
select the title, the track, or the time,
then press the OK button to confirm.
3 The player will jump to play the section
you selected and the menu display
disappears from the screen.
NOTE:
The search function may not work during
the opening screens of many DVDs, such
as the FBI warnings etc.
Press GOTO for DVD
for searching by title, chapter & time
DVD TT 01/02 CH 002/013 00:02:03
title you want
to jump to
chapter you want
to jump to
time you want
to jump to
Press GOTO for CD
CD TRK 02/12 00:03:111
track you want
to jump to
input the minute
you want to jump to
input the second
you want to jump to
Press GOTO for MP3
MP3 TRK 0016/154 00:01:21
track you want
to jump to
input the minute
you want to jump to
input the second
you want to jump to
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM15
14
IB-PDV709-WM-E-061006
10. VIEWING ANGLE SHOTS
Some DVD video discs may contain scenes which have been shot simultaneously from a few
different angles. This icon 3 will be on the DVD case if it contains these multi-angle shots.
Certain scenes can be viewed from many different angles by pressing the PROGRAM/ANGLE
button on the remote control.
ANGLE 1 ANGLE 2 ANGLE 3
NOTE: 1. The recorded angles differ depending on the disc used.
2.Only some DVD discs have this feature (very few).
3.If this feature is not available on your DVD, a hand “ ” will show in the top left corner
when the PROGRAM/ANGLE button is pressed.
(DVD ONLY)
11. PROGRAMMED PLAY
You can make a program of up to 16 tracks in the order you want them to be played. This feature
can be used on CD and MP3.
1 Press the PROGRAM/ANGLE button on the remote control, the screen will display the program
menu:
PROG
1 _ _ _ _ 5 _ _ _ _ 9 _ _ _ _ 13_ _ _ _
2 _ _ _ _ 6_ _ _ _ 10 _ _ _ _ 14_ _ _ _
3 _ _ _ _ 7 _ _ _ _ 11 _ _ _ _ 15_ _ _ _
4 _ _ _ _ 8 _ _ _ _ 12 _ _ _ _ 16_ _ _ _
PLAY CLEAR
2 Use the number buttons and the direction buttons to enter the track numbers of the songs on
the disc into the numbered positions. The positions represent the order in which you would like
the songs to be played in.
3 After programming, press the direction buttons to select PLAY, then press OK button on the
remote control, the player will start to play the disc in the programmed order you selected.
4 To skip to the next (programmed) track, press the SKIP/SEARCH button.
5 To stop programmed playback, press STOP button twice, or open the disc door.
15
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM16
IB-PDV709-WM-E-061006
12. MP3 DISC OPERATION
[MP3]01-------MP3
02.02
03.03
04.04
05.05
06.06
07.07
08.08
09.09
10.10
01.01
This allows you to play your MP3 audio recorded disc you made on this set. This set will not
play WMA format songs. When recording your MP3 disc on your computer, please record the
songs in MP3 format.
1 Load your recorded MP3 disc into the player, a menu will
01.MP3
show on the screen.
2 Select the desired folder by pressing the UP or DOWN button.
3 Press the OK button to open the folder.
4 Select the desired track by pressing the UP or DOWN button.
5 Press the OK button to start playback.
6 You may use the SKIP/SEARCH or button to skip to the previous or next track.
7 Press and hold the SKIP/SEARCH or for fast backward or fast forward play..
8 Press STOP button to stop playing.
13. JPEG OR PICTURE DISC OPERATION
You can play your JPEG or picture disc on this set.
1 Load a JPEG disc or picture CD disc into the player, a menu will show on the screen.
2 Go to the menu of directory which you want to view by using the direction buttons, press
the OK button to start the JPEG play.
3 During the picture show, use the ( / / / ) direction buttons to rotate, invert, or mirror
the picture left or right.
4 Press the PROGRAM/ANGLE button on the remote control to change the picture display
directions, the picture display will start from the top, or the bottom or the left or the right or
any of the corners.
5 Press the ZOOM/SLOW button on the remote repeatedly to enlarge or reduce a picture. The
display will show as follows:
ZOOM 2 ZOOM 3 ZOOM 4 ZOOM 1/2 ZOOM1/3 ZOOM1/4 ZOOM: OFF
To move the enlarged picture in any direction, press any of the ( / / / ) direction
buttons.
To return to normal view, press the ZOOM/SLOW button till “ZOOM: OFF” shows on the screen.
6 Press the SKIP/SEARCH button to see the next image in your folder..
7 Each picture in the current directory will be displayed consecutively in a slide show
presentation.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM17
16
IB-PDV709-WM-E-061006
SYSTEM CONNECTIONS
YOUR TV
AUDIO IN
VIDEO IN
AUDIO IN
S-VIDEO
L
RED
RED
WHITE
WHITE
For TV Connection
This DVD player can also be used to view movies on your large screen TV. When viewing on
your TV, you may fold the screen down to shut off the TFT LCD display.
Always ensure when connecting cables, the DVD player, TV and any other electrical equipment
are turned off and not plugged into the AC outlet.
Ensure that you observe the color coding when connecting audio and video cables.
1. Connecting the DVD player to your TV
Using the attached A/V cables
Connect one end of the audio/video cable plugs to the audio/video out jacks on the DVD player
and other end to the audio/video in jacks on your TV by following the color codes on the jacks
and plugs (refer to diagram A).
Diagram A
YELLOW
WHITERED
Please follow the
cable plug colors.
YELLOW
RED
R L
WHITE
S-Video connection (S-VIDEO cable is not included)
S-Video will provide sharper images than normal video.
Insert the audio plugs (white and red) into the audio out jacks on your DVD player and the audio in
jacks on your TV by following the color of the plugs and jacks (refer to diagram B).
Connect the DVD player’s S-VIDEO jack and your TV’s S-VIDEO jack by using an S-VIDEO
cable (not included).
Diagram B
YOUR TV
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM18
R
17
IB-PDV709-WM-E-061006
SYSTEM CONNECTIONS
VIDEO IN
YOUR TV
For TV Connection
Connecting to a digital home theater system using a coaxial cable
Refer to your home theater system’s manual before connection.
For Video, insert the video plugs into the video out jack on your DVD player and the video in
jack on your TV.
For Audio, connect the DVD player’s COAXIAL jack and your home theater system’s COAXIAL
jack by a coaxial cable (not included).
YELLOW
YELLOW
YOUR HOME
THEATER SYSTEM
OR AMPLIFIER
NOTE: Coaxial connection will provide a higher quality sound effect.
COAXIAL
2. Connecting to your headphones (headphones are not included)
Turn down the volume of the DVD player and connect the headphones (optional, not included)
to the DVD player’s PHONES jack, when headphones are connected, the speakers of your
DVD player will automatically turn off. Adjust the volume to your taste (but not too loud).
18
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM19
IB-PDV709-WM-E-061006
WATCHING A DVD ON YOUR TV
After all the connections have been done, please follow steps below to watch a DVD on your TV.
1 Make sure all of the equipment is plugged back into the AC outlet.
2 Lift the DVD LCD screen.
3 Slide the DVD player’s POWER switch to the ON position, the DVD logo (start-up picture) will
appear on the screen.
4 Turn on your TV and set it to DVD mode (please see box below), the DVD logo will appear on
your TV’s screen.
5 Press the OPEN button on the DVD player to open the disc door. Place a disc gently on the
tray with the label side up, make sure the disc is seated on the spindle by pressing down in
the center, close the door by pushing it down. The DVD player starts to read the disc’s table
of contents (this may take a few seconds).
6 Some discs will start playing automatically, and others will display the Disc Contents Menu on
the screen. If the menu is presented, use the ( , , & ) direction buttons to highlight your
selection and press OK button to confirm.
7 Press the VOLUME + or VOLUME – button on the DVD’s remote control and on your TV’s
remote control to adjust the volume level.
8 Fold down the LCD screen cover, the DVD player will continue to work, but the screen will
be dark.
9 To stop playback, press the STOP button.
10 To pause the playback, press the OK button on the remote control. To resume playback,
press the OK button again.
NOTE 1: During play, press the STOP button once, the display will show “ PRE STOP ” .
NOTE 2: Leaving the set in the stop mode for a longer time will drain the battery the same
11 To skip to another track/chapter, press the SKIP/SEARCH or button repeatedly
during playback.
12 To access the disc menu or title menu during DVD play, press the MENU or TITLE button
on the remote control.
13 If you want to use other DVD play functions, please see pages 11-16.
14 Remember to shut off the player by sliding the POWER switch to the OFF position when
the movie finishes playing.
If you press the STOP button the second time, the display will show “ STOP ”,
and now your system is in the full STOP mode.
as during normal play, remember to shut off the power after use.
Make sure you have made all the connections (see page 17), you may need to change
your TV’s video input mode to see the DVD player’s menu and movies, also double check
that both TV and player are plugged into the AC outlet.
1.Set your TV to the correct video input. For example, if you connect this player to the
VIDEO 1 input on your TV, switch your TV to video 1.
2.Switch your TV to the correct video input channel. The video input channel varies with
different TV brands and models, many TV remote controls have a TV/VIDEO button
which can be used to change to different video inputs and back to TV for normal
broadcast viewing, on some older TVs, you may need to press channel 3 or 4 on your
TV’s remote. Once you selected the correct channel, your TV will show the opening
DVD screen. For more details, please see your TV’s manual.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM20
How to Find your TV’s Video Input Channel
19
IB-PDV709-WM-E-061006
INITIAL SETTING
SYSTEM SETUP
SYSTEM SETUP
For TV or Portable Use
When using the DVD player for the first time, you may need to set some of the settings and
adjustments according to your TV and favorite preferences.
You can get to the SETUP menu by following the below steps.
1 Press the SETUP button, a SETUP menu will
appear on the TV screen.
2 Use the / / / direction buttons on the
DVD player or on the remote control to highlight
your selection.
SYSTEM SETUP
TV SYSTEM
LCD MODE
TV TYPE
DEFAULT
3 Press the OK button to confirm your selection.
4 When the setup has been done, press the
SETUP button to exit the SETUP mode.
SYSTEM SETUP (TV SYSTEM, LCD MODE, TV TYPE & DEFAULT)
Setting the TV SYSTEM (only when you are using your TV to watch the picture).
- NTSC
A USA video standard. If your TV is NTSC system,
select this mode.
- AUTO
If the connected TV is multi-system, select this
mode. The output format will be in accordance
with the video signal of the disc.
EXIT SETUP
TV SYSTEM NTSC
LCD MODE
TV TYPE
DEFAULT
EXIT SETUP
AUTO
Setting the LCD MODE
This allows you to set the aspect ratio of the LCD
screen.
4:3
16:9
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM21
20
TV SYSTEM
LCD MODE
TV TYPE
DEFAULT
EXIT SETUP
4:3
16:9
IB-PDV709-WM-E-061006
INITIAL SETTING
16X9 Widescreen
4X3 Standard
4X3 Letterbox
SYSTEM SETUP
SYSTEM SETUP
Selecting the TV TYPE
Select the aspect ratio of the movie to match the
LCD screen and your TV set. There are three types
of screen sizes you may select.
NOTE: If your DISC is not encoded to allow you to
change the aspect ratio, the TV display
cannot be changed.
4 X 3 Standard (4:3 PS PAN and SCAN) - Choose this setting if
you want to see the movie fill the entire screen of your TV. This
might mean that parts of the picture (the left and right edges)
won’t be seen.
Most discs produced in a WIDESCREEN format can’t be cropped
in this fashion.
4 X 3 Letterbox (4:3 LB LETTER BOX) - Choose this setting if
you want to see movies in their original aspect ratio (width-toheight ratio). You’ll see the entire frame of the movie, but it will
take up a smaller portion of the screen vertically. The movie will
appear with black bars at the top and bottom of the screen, but you
will see everything to the left & right of the center as in a movie
theater.
16 X 9 Widescreen (16:9) - Choose this setting if your DVD
Player is connected to a WIDESCREEN TV. If you choose this
setting and you don’t have a widescreen TV, the images on the
screen may appear distorted due to vertical compression (faces
may seem long and thin).
If you play a disc recorded in 4 X 3 format on a widescreen TV, the
left and right side of the screen will appear black. Press SETUP
button to change to 4:3 ratio or match the type of TV you have.
NOTE: For 16:9 Widescreen TV TYPE, you need to adjust both
the LCD mode and the TV TYPE to 16:9 (see page 20 for Setting
the LCD MODE).
TV SYSTEM
LCD MODE
TV TYPE
DEFAULT
EXIT SETUP
4:3 PS
4:3 LB
16:9
Default - Resetting the functions to factory defaults
In case you fiddled around with your set’s controls
and you cannot return the set to its normal operation;
you can reset the major options on this set.
NOTE: If you set “DEFAULT” , all items in the setup
menu will be reset to default setting.
21
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM22
TV SYSTEM
LCD MODE
TV TYPE
DEFAULT
EXIT SETUP
RESTORE
IB-PDV709-WM-E-061006
INITIAL SETTING
LANGUAGE SETUP
AUDIO SETUP
SPEAKER SETUP
VIDEO SETUP
12
10
LANGUAGE SETUP (On Screen Display, AUDIO, SUBTITLE & MENU)
These items allow you to preset the OSD language (OSD
= On Screen Display), audio language, subtitle language,
and menu language that will always be used for every
disc on this player (if the language selected is available).
NOTE 1: If the language selected is not available on
the disc, the original language designated
by each disc will be selected.
NOTE 2: You can change the AUDIO or SUBTITLE
language easily by pressing the AUDIO or
SUBTITLE button (refer to page 11).
AUDIO SETUP (DIGITAL OUT) - Only for COAXIAL connection mode
Your DVD player can be connected to a home theater system with a coaxial digital audio jack for high
quality sound. Digital audio output allows you to select SPDIF/RAW or SPDIF/PCM digital signal.
A. SPDIF/RAW
The coaxial output is connected to a receiver that
accepts Dolby Digital or other signals. It works for
most of the coaxial connections.
B. SPDIF/PCM
The coaxial output is connected to a receiver that
accepts PCM SIGNALS.
VIDEO SETUP
These settings allow you to set the video signal
Brightness, Contrast, Hue, and Saturation.
BRIGHTNESS – The brightness of the video signal
(how light the picture is).
CONTRAST – The contrast of the video signal (the
dark portions of pictures).
HUE – The hue of the video signal (the color of the
pictures).
SATURATION – The saturation of the video signal
(the vividness of the color).
All above can be adjusted to your tastes.
OSD LANGUAGE ENGLISH
SUBTITLE LANG
MENU LANG
EXIT SETUP
AUDIO OUTPUT SPDIF/RAW
EXIT SETUP
BRIGHTNESS
CONTRAST
HUE
SATURATION
EXIT SETUP
SPANISHAUDIO LANG
FRENCH
SPDIF/PCM
8
6
4
2
0
SPEAKER SETUP (DOWNMIX)
Whether you use the DVD player standalone, connect
DOWNMIX LT/RT
STEREO
to a TV or a home theater with the supplied A/V cables,
you can select the audio output by entering SPEAKER
SETUP and setting the DOWNMIX.
EXIT SETUP
- LT/RT
LT/RT stands for left and right soundtrack. Select this item when the disc supports Pro Logic
Dolby Stereo. You have the opportunity to hear a program’s soundtrack in the most accurate
and realistic presentation possible.
- STEREO
For 5-channel output, the left and right track signals are output simultaneously. For your home
theater, set the menu to stereo.
22
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM23
IB-PDV709-WM-E-061006
PRECAUTIONS
Safety
As the laser beam used in the DVD player
•
may be harmful to the eyes, do not attempt
to disassemble the cabinet. Refer servicing
to qualified personnel only (it is perfectly
safe if you don’t unscrew and open the
cabinet).
Should any solid object or liquid fall into
•
the player, unplug the player, and have it
checked by qualified personnel before
operating it any further.
Placement of Your DVD Player
Do not leave the player in a location near a
•
heat source, or in a place subject to direct
sunlight, excessive dust or mechanical
shock.
Do not place the player on an incline or
•
unstable place, it may fall and break.
Do not place anything within 2 inches of
•
the sides or back of the cabinet. The
ventilation holes must not be covered for
the player to operate properly and to prolong
the life of its components.
Don’t place this DVD player on lacquer
•
finished furniture without a cloth, wood or
glass protector in between.
Exposure to extreme hot or cold temperatures
•
may cause damage to the player or cause
it to malfunction. Do not expose the player
to direct sunlight continuously or leave it in
a vehicle with the doors and windows
closed. The case may become deformed
or discolored or the player may malfunction.
Cleaning the Cabinet
Clean the cabinet, panel and controls with
•
a soft cloth slightly moistened with a very
mild detergent solution or a plain damp
cloth. Do not use any type of abrasive pad,
scouring powder, or solvent, such as
alcohol or benzine.
Never touch the lens with your fingers, if
•
the lens gets dirty, it will not play. Clean the
disc before use.
Operation
If moving from a cold environment to a warm
•
environment, let the player’s temperature
stabilize before operation. Moisture may
condense on the lens inside. Remove the
disc and wait about an hour for the moisture
to evaporate.
If the player has not been used for a long
•
time, turn the set to ON to warm it up for a
few minutes before inserting a disc.
Handling Discs
Do not touch the playback side of the disc.
•
Every fingerprint can cause playback
problems. Do not scratch the disk.
Do not store the Discs in a place subject
•
to direct sunlight or near heat sources.
Cleaning Discs
Before playing, make sure the disc is
•
clean. If not, clean the disc with a cleaning
cloth. Wipe the disc in a straight motion
from the center out.
Do not use solvents such as benzine,
•
thinner, commercially available cleaners or
anti-static spray intended for vinyl LPs.
If the disc is scratched, it will not play.
•
Sometimes a scratched disc can be
repaired with a disc polishing machine
available in many stores.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM24
23
IB-PDV709-WM-E-061006
TROUBLE SHOOTING
Symptom
No power.
Battery is fully charged
but does not work.
Battery drains too fast
in stop mode.
• Play fails to start even
when PLAY is pressed.
• Play starts but then
stops immediately.
No image on the LCD
General
screen.
No picture on your
external TV’s screen.
The picture is distorted.
Some lines appear on
the screen during the
startup of the vehicle.
The picture seems
squeezed or stretched.
Remedy
1.The battery is depleted, please recharge the battery or use
the AC adaptor or car adaptor, make sure the AC outlet has power.
2.The fuse in the car adaptor is blown. To change the fuse,
unscrew the tip, replace only with same 3A 250V fuse.
3.The POWER switch is at the OFF position, please slide it to ON.
The battery protective circuit may have shut down the battery
for safety. To reactivate the battery, charge it for a while.
The set continues to be on even in stop mode. If you plan on
leaving the disc stopped for a longer time, turn the set’s power
off to conserve battery power or use the AC adaptor.
1.The disc may be damaged or scratched.
2.This player cannot play a DVD disc other than region 1 standard.
3.The disc may be dirty and may require cleaning.
4.Ensure that the disc is installed with the label side up (facing you).
5.If your disc is rented, it may be scratched or damaged from a
previous renter. Return it or polish it.
6.Condensation may have formed on your disc. Wait about 1
hour to allow the player to dry out.
The player’s LCD may be turned off (as when you are using the
external TV).
1. Press the little button marked SCREEN OFF #12 on page 4.
2. Press and hold the SCREEN ON/OFF button on the remote.
1.Ensure that the equipment is connected properly. Double
check all cables and AC power.
2.Select the proper video channel on your TV set, VIDEO 1, 2, 3, etc.
3.Check if the proper AV input is selected on your TV set video
inputs (some TV sets have 3 or 4 different inputs).
4.Make sure both the TV and DVD player are on.
1.Picture is distorted during rapid advance or rapid reverse. The
picture may be somewhat distorted occasionally, this is normal.
2.Did you connect your DVD player to your VCR? Please
connect the player directly to your TV and disconnect the VCR.
This player has Macrovision copy protection, this will distort
pictures when used with VCRs.
Please turn the unit off and turn it on again after the vehicle is
running.
The LCD mode and TV type you are in may be wrong for this
movie, try changing the LCD and TV type setting for standard
or widescreen. See pages 20 & 21.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM25
24
IB-PDV709-WM-E-061006
TROUBLE SHOOTING
Symptom
No sound from your TV or
speakers.
There is no function or less
function when you adjust the
color or the brightness of
the LCD screen using the
SCREEN ON/OFF and the
General
left or right direction buttons.
The REMOTE CONTROL
unit does not work.
No rapid advance or
rapid reverse play.
A specific disc does not
play.
The player’s controls
don’t work or the player
cannot work properly.
Remedy
1.Press AUDIO button several times. The disc may have been
set to DTS output or a blank audio channel on multiple
language, please select AC-3 output or reset to the main
language (refer to page 11).
2.Adjust the DVD player’s volume.
3.Make sure the AUDIO output connection and setting are
correct. See details on pages 17,18 and 22.
4.Ensure that the equipment is connected properly.
5.Ensure that the input setting for the TV and stereo system
are correct.
6.Adjust the volume setting on your TV’s remote.
7.Make sure the headphones are detached from the DVD player.
8.The movie is paused, press play.
9.The movie is in search or fast play or other speed related play.
Audio is heard only during normal play.
The disc you used is a copied one, please replace it with a
fresh original disc.
1.Check that the remote’s batteries are installed correctly.
2.The remote’s batteries are weak or depleted, replace them
with new ones (refer to page 8).
3.Use the remote control at a distance of less than 20 feet
(6m) from the DVD player.
4.Remove any obstacles between the remote control and
remote control sensor, also make sure the lens on the
remote control is not dirty.
Some discs may have sections which prohibit rapid advance
(or rapid reverse), especially on opening screens or during FBI
warnings.
This is normal for high speed reading of DVD discs.Cabinet vibrates or hums.
1.The disc may be dirty, try cleaning the disc.
2.Make sure the disc is not upside down.
3.The region code is not 1, the disc cannot be used.
4.Disc may not be industry standard or it may be an illegal
copy. Only use legally sold movies not pirated copies.
Set needs to be reset.
Reset the DVD player by removing the battery pack and
disconnecting the AC adaptor for 1 minute. Replace the battery
pack and AC adaptor to resume normal use. (The player may
not be operating properly due to lightning, static electricity,
damaged or wrong discs, or some other external factors).
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM26
25
IB-PDV709-WM-E-061006
TROUBLE SHOOTING
Symptom
No sound during fast
forward or other speed
functions.
Cannot change a menu
Gene r a l
item.
The LCD picture is not
16:9 widescreen even
you have set the TV
TYPE to 16:9.
Audio soundtrack and/
or subtitle language is
not at the initial settings.
No subtitles.
Alternative audio
soundtrack (or subtitle)
language does not show.
Angle cannot be
DVD
changed.
Picture is frozen.
Screen saver appears
on TV screen.
Cannot copy discs to
VHS video tapes.
Display shows numbers
on top of screen.
Foreign language is
heard on the disc.
Foreign language is
seen in menus.
Remedy
This is normal. Normal sound only happens during normal play.
Try changing this item with the DVD door open (not during play).
You need to adjust both the LCD mode and the TV type mode to
16:9 (see pages 20 and 21).
If the audio soundtrack and / or subtitle language does not exist
on the disc, the language selected at the initial setting will not be
heard/seen. Try setting it up again, see Page 22.
Subtitles appear only on discs which contain them. If subtitles
don’t show, press the SUBTITLE button to display the subtitles.
Some discs only have one language available. On some discs, the
alternate language cannot be selected by operating the AUDIO or
SUBTITLE buttons, try selecting it from the DVD menu if one is
available.
This function relies on the DVD disc. Only scenes recorded at
several angles can be viewed. Please refer to your DVD cover.
If a button is pressed too fast over and over, the signals may jam
the circuits inside. To restore to normal, press the STOP button
and unplug the set from the AC outlet. Also remove the battery.
Turn off screen saver by pressing any button on the remote
control or on the set.
You can’t copy most commercial movie discs due to copyright
protection built into the disc and player.
Press the DISPLAY button several times until the numbers
display disappears.
Press the AUDIO button until your preferred language is heard.
Reset the default language to your preferred language by pressing
the SUBTITLE button.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM27
26
IB-PDV709-WM-E-061006
GLOSSARY
TITLE
The longest sections of a picture or a music
piece on a DVD, or a movie, etc.. Each title is
assigned a title number enabling you to locate
the title you want.
CHAPTER
Sections of a picture or a music piece on a
DVD that are smaller than titles. A title is
composed of several chapters. Each chapter
is assigned a chapter number enabling you to
locate the chapter you want.
JPEG
JPEG is short for the “Joint Photographic Experts Group”, a group of experts nominated
to produce standards for continuous tone image coding. In other words, your DVD player
can view digital picture CDs or CDs you made
on your computer with file names that end in
the “.JPG” format. This set will not play pictures encoded in formats other than JPG.
VIDEO INPUT
This is a jack which accepts the picture portion
of a signal. In order to use this DVD player,
your TV set must have an S-Video (better) or
video input (standard) jack.
S-VIDEO CABLE
This cable can connect to your S-Video input
of your TV. It allows for sharper pictures for
TV sets with this jack.
VIDEO CABLE
This is a wire with plugs on each end which is
used to transfer the picture information into
your TV set.
NTSC
National TV Systems Committee for TV
broadcasts: a video standard used in the USA
and Canada.
JACK
This is another term for socket.
ABOUT DVD REGION
MANAGEMENT
The DVD inventors and motion
picture makers have decided to
break up the world’s DVDs into
regions so that one country’s
DVDs should not be able to play in another
country.
This is a legal issue and that is why your
DVD player is restricted to play only region 1
DVDs.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM28
27
IB-PDV709-WM-E-061006
SPECIFICATIONS
General Description
TFT LCD screen size:
Power source:
Power consumption:
Signal system:
9"
AC adaptor: 100 - 240V, 50/60Hz, DC 9V, 2A output (included)
Car adaptor: 12V input, 12V, 2A output (included), fuse 3A, 250V
17 Watts [normal household current] (approx. 3W when the set is in
the standby mode).
NTSC TV system
Video output level:
Audio output level:
Dimensions (Approx.): Length: 259 mm 10 3/16"
1.0 Vp-p
1 Vrms (1 kHz, 0dB)
Width: 181 mm 7 1/8"
Height: 50 mm 1 15/16"
Weight: 1.35 kg 3 lbs
Audio Signal Output Characteristics:
DVD (linear audio):
(1)Frequency response:
4Hz-22kHz (48 kHz sampling)
4Hz-44kHz (96 kHz sampling)
(2)S/N ratio: 100dB
(3)Dynamic range: 90 dB
(4)Wow and flutter: below measurable level
CD audio:
(1)Frequency response: 20 Hz - 20 kHz
(2)S/N ratio: 65dB
(3)Dynamic range: 90 dB
(4)Wow and flutter: below measurable level
We reserve the right to make design and specification changes for product improvement.
The descriptions and characteristics given in this document are given as a general indication
and not as a guarantee. In order to provide the highest quality product possible, we reserve
the right to make any improvement or modification without prior notice. The English version
serves as the final reference on all product and operation details should any discrepancies
arise in other languages.
Pickup: Wave length: 650nm~660nm
Laser power: Class 1
PROTECT YOUR FINE FURNITURE!
WE RECOMMEND A PROTECTIVE MATERIAL BE PLACED UNDER THE SET WHEN PLACING
IT ON SURFACE WITH A NATURAL OR LACQUER FINISH.
28
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM29
IB-PDV709-WM-E-061006
LIMITED WARRANTY
We warrant this product to be free from defects in material and workmanship under normal
use for a period of 1 year after purchase, and we will repair it free of charge or replace it at no
charge, should it become defective under this warranty, providing you submit proof of purchase
(sales slip) with the set.
During the initial 1 year period after original purchase, we will service the set that is returned
to LENOXX ELECTRONICS CORP., prepaid, at no charge. After the initial 1 year period expires,
we will exchange, at no charge, any part that is defective, but will charge for the cost of labor,
return postage paid by Lenoxx.
This warranty does not apply to any product which has been subject to misuse, neglect or
accident. This warranty does not cover a broken cord or cabinet. UNDER NO CIRCUMSTANCES
WILL LENOXX ELECTRONICS CORP. BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. The following charges apply to repairs beyond the warranty period: $ 30.00.
Be sure to pack carefully and return postage paid insured together with your money
order (personal checks will not be accepted) and sales receipt to:
LENOXX ELECTRONICS CORP., 35 BRUNSWICK AVENUE, EDISON, N.J. 08817, USA
For Customer Service
Dial: 1-800-315-5885
(MONDAY - THURSDAY 8:00 AM - 5:00 PM, FRIDAY 8:00 AM - 1:30 PM EST)
or Visit Our Website: http://www.lenoxx.com
or Email: evergo@att.net
© 2006 LENOXX ELECTRONICS CORP.
IB-PDV709-WM-E-061006.pmd 8/3/2006, 11:00 AM30
35 BRUNSWICK AVENUE
EDISON, N.J. 08817, USA
MADE & PRINTED IN CHINA
29
IB-PDV709-WM-E-061006
Loading...
