PROGRAMMABLE COMPACT DISC PLAYER
®
MODEL CD-57
OPERATING INSTRUCTIONS
PLAYS MUSIC COMPACT DISCS
•
6 DIGIT LCD VISUAL DISPLAY
•
TRACK REPEAT & DISC REPEAT
•
BASS BOOST SYSTEM
•
DELUXE STEREO HEADPHONES INCLUDED
•
USES 2 SIZE “AA” BATTERIES (NOT INCLUDED)
•
PLEASE READ CAREFULLY BEFORE USE
IB-CD57-FD-E-063004
LOCATION OF CONTROLS
1
2
3
4
5
6
13
11
10
9
8
7
12
1.PROGRAM BUTTON
2.BACKWARD SKIP/SEARCH BUTTON (
3.FORWARD SKIP/SEARCH BUTTON (
4.HEADPHONE JACK
5.CD DOOR OPEN BUTTON (SLIDE TO OPEN)
6.VOLUME CONTROL
7.PLAY/PAUSE BUTTON ( )
8.STOP & POWER OFF BUTTON (
9.REPEAT BUTTON
10.LCD VISUAL DISPLAY
11.BATTERY DOOR
12.AC ADAPTOR JACK (AC ADAPTOR NOT INCLUDED)
13.BASS BOOST SWITCH
1
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM2
)
)
)
IB-CD57-FD-E-063004
POWER SOURCES
Power this CD player by inserting 2 size “AA” fresh alkaline batteries.
USING WITH BATTERIES
Insert two size “AA” alkaline batteries
according to the + and - markings on the
bottom of the set.
TIPS ON BATTERY USE
Reversing polarities will damage the batteries and possibly this set. Be
•
sure to follow polarity ( + and - ) as indicated.
Do not mix different types together (Alkaline, Carbon-Zinc, Nickel-
•
Cadmium etc.), or old batteries with new ones.
When not in use for an extended period of time, or while internal batteries
•
will not be used, remove them to prevent possible acid leakage or
corrosion resulting in damage to this player.
When the batteries have become discharged, they must be disposed
•
of in a safe manner that complies with all applicable laws.
Installation of batteries should only be done by an adult (for safety).
•
ALKALINE BATTERY LIFE
Bear in mind that battery life expectancy is based upon volume and bass
listening levels.
Maximum battery power consumption happens at maximum settings.
Typical life for 2 size “AA” fresh alkaline batteries is above 8 hours of
continuous CD play.
AC ADAPTOR (OPTIONAL)
You can also power this CD player by connecting an optional AC adaptor.
Before you buy an optional AC Adaptor, please note, the only AC ADAPTOR
suitable for this player is DC 4.5V 600mA, with polarity , others
may damage this player. Please check voltage & current (mA) before buying
an AC ADAPTOR.
WHEN
While the CD is playing, if the alkaline batteries are weak or discharged,
this symbol “ ” shows or flashes in the display, then the power
automatically turns off. If this occurs, replace both alkaline batteries (also
if the display does not show anything, the batteries are dead).
NOTE: You may use rechargeable batteries on this set. However,
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM3
SHOWS OR FLASHES IN THE DISPLAYY
because rechargeable batteries generally have lower voltage
(1.2 volts instead of 1.5 volts), your playing time will be much less
than normal fresh alkaline batteries.
2
IB-CD57-FD-E-063004
CD PLAYING
VOLUME
1 Load the disc.
Disc
Push
here
LABEL SIDE UP
SLIDE TO OPEN
2 Connect the headphones.
STEREO
HEADPHONES
TO PHONES JACK
3 Press the PLAY/PAUSE button ( ).
TRACK NUMBER
CURRENTLY
PLAYING
ELAPSED PLAYING
TIME OF THE
CURRENT TRACK
4 Adjust the volume.
PLAY/PAUSE
BUTTON
MAXIMUM MINIMUM
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM4
VOLUME CONTROL
3
IB-CD57-FD-E-063004
OTHER OPERATIONS
Operation
To pause play
To release pause
and resume play
To stop play
To turn off the power
To skip to the next
track(s)
To skip to the previous
track(s)
To go ahead at high
speed (search forward)
To go back at high
speed (search backward)
Press
PLAY/PAUSE button
PLAY/PAUSE button
STOP button
Display window shows
TRACK NUMBER
CURRENTLY
PLAYING
TRACK NUMBER
CURRENTLY
PLAYING
TOTAL TRACKS TOTAL PLAYING
Press the STOP button once and wait 30
seconds, or press STOP button twice
quickly.
once (or repeatedly)
once (or repeatedly)
Keep depressed and release it when
the desired music section of the disc is found.
If you press and hold the SKIP button ( )
•
while the last track is playing, and the end
of the track is reached, the music stops
and the display will show the total tracks
and total playing time of the CD, then the
power will shut itself off after 30 seconds.
Keep depressed and release it when
the desired music section of the disc is found.
PLAYING TIME
FLASHES
PLAYING TIME
ADVANCES
TIME
BASS BOOST switch
This switch enhances the low frequency (bass) sound at low listening
levels. Switch the BASS BOOST switch (on the bottom of the set) ON or
OFF to suit your taste.
4
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM5
BASS BOOST
ON
OFF
IB-CD57-FD-E-063004
REPEAT, INTRO AND RANDOM PLAY
REPEAT ALL
x 1
x 2
x 3
x 4
You may have repeat, intro or random play using the REPEAT button. Press
the REPEAT button several times, and the display will show the followings in
turn:
REPEAT 1 REPEAT ALL INTRO SHUFF NORMAL PLAY
SINGLE TRACK REPEAT
Plays one song over and over till you press STOP.
During play, select the song you want to repeat with
either of the SKIP/SEARCH buttons ( or ),
then press the REPEAT button once, the symbol
REPEAT 1
The song currently playing will repeat over and over,
until you press STOP.
appears in the display.
ALL TRACKS REPEAT (DISC REPEAT)
Repeats all songs in order till you press STOP.
During play, press the REPEAT button twice, the
symbol
All songs will keep playing in sequence 1, 2, 3, etc.
and when finished, will start all over again until you
press the STOP.
REPEAT ALL
will show in the display.
INTRO PLAY
This plays the first 10 seconds of songs in
sequential order.
1.During play, press the REPEAT button three
times, the word INTRO will flash in the display.
2.Press the PLAY button, the word INTRO will
stop flashing and the first 10 seconds of each
song on the CD will play in sequential order.
3.When you find a song you like, press the PLAY
button, normal play will be resumed, that song
(and the following songs) will play normally.
INTRO
REPEAT 1
RANDOM PLAY
This plays the songs on the disc in a random
order.
1.During play, press the REPEAT button four
times, the word SHUFF will flash.
2.Press the PLAY button, this will play all of the
songs in random order selected by the CD
player. The SHUFF will stop flashing.
3.Press the SKIP/SEARCH button to skip to
the next random song.
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM6
SHUFF
5
IB-CD57-FD-E-063004

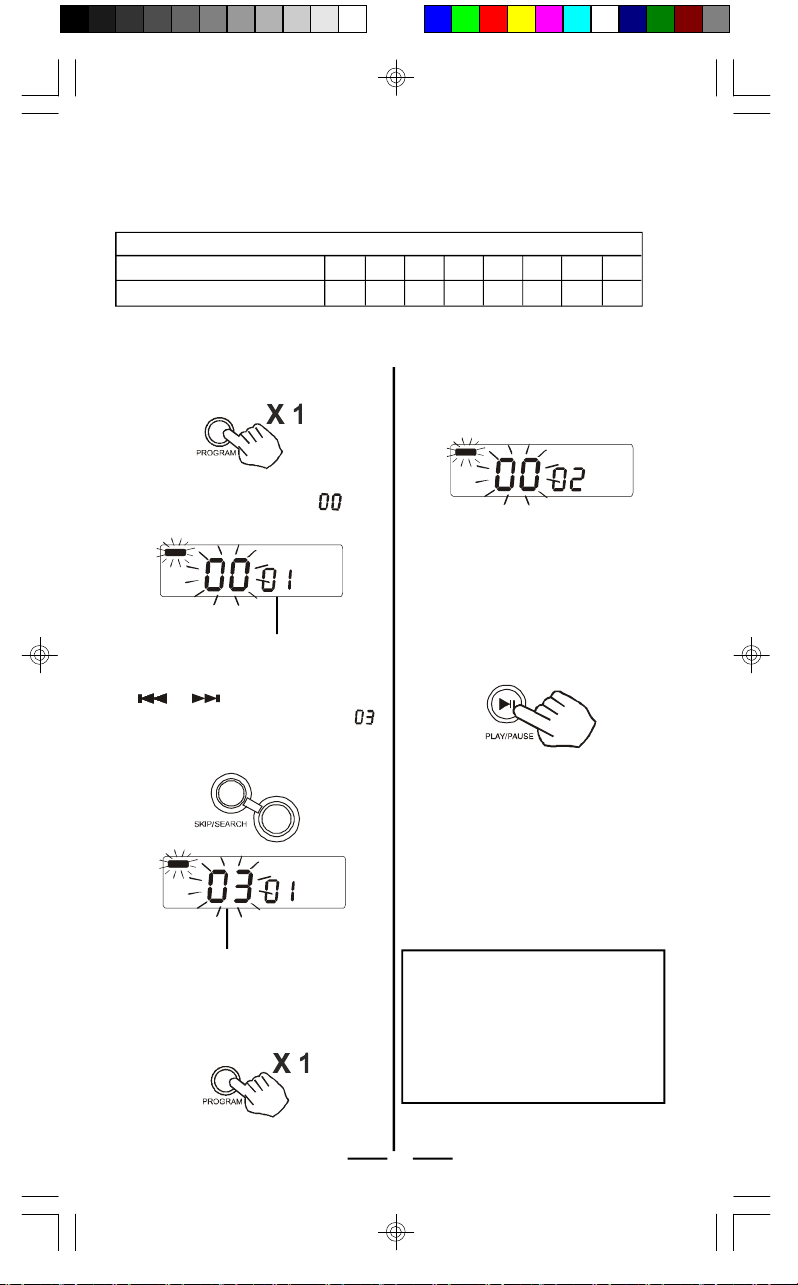

PROGRAMMED PLAY
The tracks (songs) on the disc can be programmed (arranged in advance)
to play in any order you prefer (up to 20 tracks can be programmed).
Programming Example
Program Number
1 2538415264718
Track Number (song number) 3
During programming, the word
PROG
(program) flashes in the display. To
program songs to play in your preferred order, follow steps below:
1.Press the PROGRAM button.
Program #2 will now show in the
display, ready for your next
selection of track.
PROG
etc.
etc.
1
The word
“PROG ”
and “ ” will
flash in the DISPLAY.
PROG
Program number
2.Press the SKIP/SEARCH button
( or ) to select track number
3 (example). the
“PROG”
and “ ”
will flash in the display.
PROG
Track number
3.Press the PROGRAM button to
confirm. The track 3 is now
programmed.
4.Repeat steps 2 and 3 to program
other tracks till you finish (up to
20 selections).
5.After programming is finished,
press PLAY to begin programmed
play. The word
PROG
shows in
the display and music begins.
NOTE:
-The player will stop automatically
after all programmed tracks have
been played.
-To quit programmed play, press
STOP button once. Then you may
press PLAY button to re-start
normal play.
Your programmed memory will
be lost:
When the power is off, or the CD
•
Door is opened.
When the alkaline batteries are
•
exhausted or removed, or the AC
ADAPTOR is disconnected.
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM7
6
IB-CD57-FD-E-063004
MAINTENANCE
Cleaning the lens
A dirty lens will cause sound
skipping. If the lens is very dirty,
the player may not work. We
suggest using a special cleaning
disk (not included) available in most
music and Hi-Fi stores. However,
if you do not have one, you may
use the instructions below.
Use a cotton swab very slightly
dampened with alcohol to clean the
lens.
Cleaning the cabinet
Wipe with a soft cloth. If the cabinet
is very dirty, dampen (not dripping
wet) the cloth with a weak solution
of soapy water, and then wipe
clean.
Cleaning the Discs
Fingerprints should be carefully
•
wiped from the surface of disc
with a soft cloth. Unlike
conventional records, compact
discs have no grooves to collect
dust and microscopic dirt, so
gently wiping them with a soft
cloth should remove most
particles. Wipe in a straight
motion from the center to the
edge.
Handling Compact
Discs
Dirty, scratched or warped discs
•
may cause skipping or noise.
Handle the disc only by the edges.
•
To keep clean, do not touch its
surface.
Discs should be stored in their
•
cases after use to avoid scratches.
Do not expose discs to direct
•
sunlight, high humidity, high
temperatures, or dust, etc.
Prolonged exposure to extreme
temperatures can warp the disc
(such as leaving the discs in your
car during summertime).
Do not stick or write anything on
•
either side of disc. Sharp writing
instruments, or the inks used in
some felt-tipped pens, may
damage its surface.
To remove the Disc
Open the CD DOOR by sliding the
CD DOOR OPEN button, hold the
disc by the edge while slightly
pressing on the center spindle as
illustrated, then lift it from the edge
to release and remove.
Never use thinner, benzine,
•
record cleaner or antistatic spray
on a compact disc. Such chemicals
can damage its plastic surface.
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM8
NOTE:
Always press the STOP button and
wait for the disc to stop rotating
before sliding the CD DOOR OPEN
button to remove the disc.
7
IB-CD57-FD-E-063004
SAFETY PRECAUTIONS
Do not take the set apart. The laser beam used in the set may harm your
eyes. Refer servicing to qualified service personnel only.
Do not insert pins or coins, clips, or any objects inside the set.
This set is equipped with a safety device which automatically turns the
laser beam off when the disc door is opened.
Do not drop the set or subject it to strong shocks. Doing so could result in
damage.
Do not place the set in locations where the temperature is high, or in humid
or dusty locations, or locations with long heavy vibrations, or tilted surfaces.
The set’s cabinet may warp or the set may otherwise be damaged if it is
placed in direct sunlight, near heaters (where the temperature is 1400F/
600C or higher) or in cars with the windows closed. In the summer, the
temperature may get as high as 2120F/1000C or more.
Use the set within a temperature range of 410F/50C to 950F/350C.
Use ONLY the optional DC 4.5V 600mA AC Adaptor with polarity ,
others may damage this set. Disconnect the Adaptor from the wall outlet
when the set is not to be used for an extended period of time (3 days or
more).
When cleaning this set, use a soft dry cloth. Do not use solvents or
commercially available cleaners, as they may damage or discolor the finish.
Do not wear headphones while operating a motor vehicle. This could create
a traffic hazard and is illegal in many areas. Do not use this set when
bicycling or running.
The headphones supplied with this set provide superb stereo listening
while allowing you to hear some outside sounds when listening at normally
low volume levels. Listening at extremely high volume levels minimizes the
intrusion of outside noise/sounds. In the interest of safety, it is strongly
advised against the use while engaging in activities where the exclusion of
external sounds (whistles, horns, sirens, traffic, etc.) could be hazardous.
Also loud volume can hurt your ears. If you notice that the sound has
become weak or distorted or if tracks do not change, this is an indication
that the batteries are low. Replace both batteries at the same time (see
BATTERY OPERATION).
This CD-57 is identified by a serial number located in the BATTERY
COMPARTMENT. Record this number in the space provided below.
Model CD-57 Serial No. Date Purchased:
This Instruction Manual contains detailed information on its safety and
use. Please read it carefully so that you may take full advantage of its
many features, and ensure a safe reliable operation. Keep this Instruction
Manual for future reference.
CONDENSATION
If cold water is poured into a glass, water droplets form on the outside of the
glass. This is called condensation. Condensation may occur on internal
operating parts of the lens.
Condensation occurs:
When the set is brought from the cold outdoors into a warm room, or if it is in
a cold room to a room which is heated, or in the summer, if the set is moved
from an air-conditioned room or car to a hot or humid location.
Should condensation occur, the set may not operate properly. Open the CD
DOOR and wait for about 20 minutes (to allow the internal parts to adjust to
the surrounding temperature) before using the set.
8
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM9
IB-CD57-FD-E-063004
IMPORTANT INFORMATION REQUIRED BY THE FCC
Since the CD circuitry may cause interference to other radios nearby,
switch this set off when not in use or move it away from the affected
radios.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesirable operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
SAFETY CERTIFICATION
This Compact Disc Player is made and tested to meet safety standards of
the FCC requirements and compliance with safety performance of the U.S.
Department of Health and Human Services, and also with FDA Radiation
Performance Standards 21 CFR Subchapter J.
WARNING
To prevent fire or shock hazard, do not expose this appliance to rain or
•
moisture.
LASER SAFETY
THIS SET EMPLOYS AN OPTICAL LASER BEAM SYSTEM IN THE CD
MECHANISM, DESIGNED WITH BUILT-IN SAFEGUARDS. DO NOT ATTEMPT
TO DISASSEMBLE. EXPOSURE TO THIS INVISIBLE LASER LIGHT BEAM
MAY BE HARMFUL TO HUMAN EYES. THIS IS A CLASS-1 LASER PRODUCT.
USE OF ADJUSTMENTS OTHER THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS LASER LIGHT BEAM EXPOSURE. THIS COMPACT
DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT QUALIFIED SERVICE PERSONNEL. THE LASER MECHANISM IN
THE SET CORRESPONDS TO THE STYLUS (NEEDLE) OF A RECORD
PLAYER. ALTHOUGH THIS PRODUCT USES A LASER PICK-UP LENS, IT IS
COMPLETELY SAFE WHEN OPERATED ACCORDING TO DIRECTIONS.
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM10
9
IB-CD57-FD-E-063004
TROUBLE SHOOTING
Symptoms
Tracks do not
change or set
does not play
normally.
CD Player will not
turn on.
Disc will not
play.
Causes
Batteries are weak (they
may test OK on tester
but they are weak for CD
operation).
Dead or weak batteries.
The optional AC
ADAPTOR not connected
properly.
Disc inserted incorrectly.
Defective compact disc.
CD DOOR not closed.
Solutions
Replace both batteries with
fresh alkaline batteries.
Battery life with fresh batteries
is above 8 hours for
continuous CD play
(rechargeable batteries have
1/2 of that life).
Replace both batteries with
fresh ones.
Check the optional AC
ADAPTOR connection at AC
outlet and the rear of the set.
Re-insert disc with label side
facing up.
Try another compact disc.
Close the door securely.
No sound from
headphones.
Sound is skipping
or sound stops.
Sound is
distorted.
Buttons do not
work.
Moisture has formed
inside the CD deck.
VOLUME control set to
minimum.
Weak batteries.
The compact disc or lens
is dirty or CD is scratched.
Music is too loud.
BASS BOOST is ON.
Weak batteries.
Electronic or static error
caused circuitry to lock.
10
Take out the CD disc and
leave the CD Door open for
about 20 minutes to dry the
moisture condensation.
Increase the volume.
Replace with fresh batteries
or use the optional AC
ADAPTOR.
Clean or replace the
compact disc or clean the
lens.
Lower the VOLUME control.
Slide BASS BOOST switch to
OFF.
Replace both batteries or use
the optional AC ADAPTOR.
Remove batteries and the
optional AC ADAPTOR. Wait
15 seconds and re-insert.
Make sure batteries are fresh
or the optional AC ADAPTOR
has power.
IB-CD57-FD-E-063004
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM11
TECHNICAL SPECIFICATIONS
General
Maximum output
(stereo headphones).................
Power Supply
AC Adaptor Input.......................
DC ............................................
Set Dimensions (approximate)
Width ......................................
Depth .....................................
Height ....................................
Weight (approximate) .................
20mW + 20mW
120V/60Hz-4.5V DC Output (optional)
3V: Using 2 size “AA” alkaline batteries
5 3/4"
5 3/4"
1"
9.5oz. (270g) (set only)
CD Player Section
Frequency response ..................
Sampling frequency .....................
D/A converter ..............................
Error correction method ..............
Pickup .........................................
Laser diode material GaAIAs
Laser output less than 44.6mW
50Hz - 15kHz +1/-2dB
44.1kHz
1-bit
CIRC
Optical 3-beam semiconductor laser
(780 nm wavelength)
NOTE: This CD player will only play NORMAL music CDs (or CD-R CDs).
Because the products are subject to continuous improvement, LENOXX
reserves the right to modify product designs and specifications without
notice and without incurring any obligation.
This set will not play CD-RW encoded discs.
11
IB-CD57-FD-E-063004
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM12
LIMITED WARRANTY
We warrant this product to be free from defects in material and
workmanship under normal use for a period of 1 year after purchase and
we will repair it free of charge or replace it at no charge, should it become
defective under this warranty, providing you submit proof of purchase
(sales slip) with the set.
During the initial 1 year period after original purchase, we will service
or exchange, at no charge, the set that is returned to LENOXX
ELECTRONICS CORP. After the initial 1 year period expires, we will
repair the unit covering any part(s) that need to be replaced at no charge,
but will charge for the cost of labor, return postage paid by Lenoxx.
This warranty does not apply to any products which have been
subject to misuse, neglect or accident. This warranty does not cover
broken headphones or cabinet. UNDER NO CIRCUMSTANCES WILL
LENOXX ELECTRONICS CORP. BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitations
or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. The following charges
apply to repairs beyond the warranty period: $8.00. Be sure to pack
carefully and return postage paid insured together with your money order
(personal checks will not be accepted) and sales receipt to:
LENOXX ELECTRONICS CORP., 2 GERMAK DRIVE, CARTERET N.J.
07008.
For customer service Dial: 1-800-315-5885
(MONDAY - THURSDAY 9:00 AM - 5:00 PM, FRIDAY 9:00 AM - 1:00 PM EST)
http://www.lenoxx.com
© 2004 LENOXX ELECTRONICS CORP.
2 GERMAK DRIVE
CARTERET, N.J. 07008
MADE & PRINTED IN CHINA
12
IB-CD57-FD-E-063004.P65 7/1/2004, 4:06 PM13
IB-CD57-FD-E-063004
Loading...
