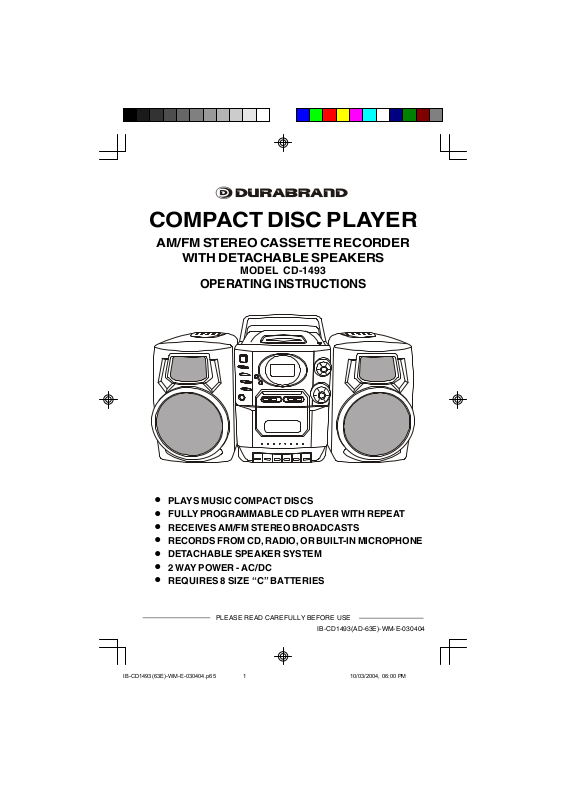

Lenoxx Electronics CD-1493 User Manual

COMPACT DISC PLAYER

AM/FM STEREO CASSETTE RECORDER

WITH DETACHABLE SPEAKERS

MODEL CD-1493

OPERATING INSTRUCTIONS

PLAYS MUSIC COMPACT DISCS

•

FULLY PROGRAMMABLE CD PLAYER WITH REPEAT

•

RECEIVES AM/FM STEREO BROADCASTS

•

RECORDS FROM CD, RADIO, OR BUILT-IN MICROPHONE

•

DETACHABLE SPEAKER SYSTEM

•

2 WAY POWER - AC/DC

•

REQUIRES 8 SIZE “C” BATTERIES

•

PLEASE READ CAREFULLY BEFORE USE

IB-CD1493(AD-63E)-WM-E-030404

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

See bottom of the set.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with dry cloth.

7.Do not block any ventilation openings, install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12.Unplug this apparatus during lightning storms or when unused for long periods of time.

13.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

14.This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shall be placed on the apparatus.

IB-CD1493(AD-63E)-WM-E-030404

ADDITIONAL SAFETY INSTRUCTIONS

1. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

2. Wall or Ceiling Mounting - The appliance should not be mounted to a wall or ceiling.

3. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

4. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

It is the intent of Lenoxx that this product be used in full compliance with the copyright laws of the United States and that prior permission be obtained from copyright owners whenever recording songs from the RADIO or CD’s.

Do not apply oil or petroleum products or solvents to any part of this set.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This compact disc player is classified as CLASS 1 LASER PRODUCT as stated on the bottom of the set.

CAUTION

IB-CD1493(AD-63E)-WM-E-030404

BATTERY SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE

TO YOUR SET, READ AND FOLLOW THESE INSTRUCTIONS.

1.Use only the type and size of batteries mentioned in the operating instructions

booklet (batteries are not included with this set, please buy the proper batteries).

2.Do not dispose the batteries into a fire. The cells may explode. Check with local

codes for possible special disposal instructions.

3.Do not open or mutilate the batteries. Released electrolyte is corrosive and may

cause damage to the eyes or skin. It may be toxic if swallowed.

4.Be careful when handling batteries in order not to short the battery with

conducting materials such as rings, bracelets and keys. The battery or conductor may over heat and cause burns.

5.Do not attempt to recharge non-rechargeable batteries. The batteries may leak

corrosive electrolyte or explode.

6.Do not attempt to rejuvenate the batteries identified for use with this product by

heating them. Sudden release of the battery electrolyte may cause burns or irritation to eyes or skin.

7.All batteries should be replaced at the same time. Mixing fresh and discharged

batteries could increase internal cell pressure and rupture the batteries.

8.When inserting batteries into this product, the proper polarity ( and ) or

direction must be observed. Reverse insertion of some or all of the batteries may result in battery electrolyte leakage or explosion.

9.Remove the batteries from this product if the product will not be used for a long

period of time (several months or more) since during the period the batteries could leak, damaging the product.

10.Discard weak or dead batteries as soon as possible since they are more likely

to leak in the product. Batteries should be replaced (depending on the product) when the display gets dim or if the Low Battery Indicator shows or if the sound gets distorted.

11.Do not store this product in high temperature areas. Batteries that are stored in

a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting. Batteries should be stabilized at room temperature prior to use after cold storage.

12.If this product does not operate normally, see TROUBLE SHOOTING in this

instruction manual. If you can’t resolve the problem, or if the product is damaged, refer to the LENOXX WARRANTY INFORMATION. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

13.If liquid leaks from the batteries, carefully wipe this liquid. Do not allow it to touch

your skin, and discard the leaking batteries.

14.Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).

15.The use of rechargeable batteries is not recommended for this set because

their voltage and life is lower than standard batteries.

16.Installation of batteries should be done by an adult only.

SAVE THESE INSTRUCTIONS

IB-CD1493(AD-63E)-WM-E-030404

LOCATION OF CONTROLS

FRONT VIEW

1. FOLDING HANDLE

2. CD DOOR

3. COMPACT DISC DISPLAY

4. CD DOOR PUSH/OPEN AREA

5. AM/FM DIAL SCALE

6. TUNING CONTROL

7. VOLUME CONTROL

8. DETACHABLE SPEAKERS

9. BUILT-IN CONDENSER MICROPHONE

10. BAND SWITCH

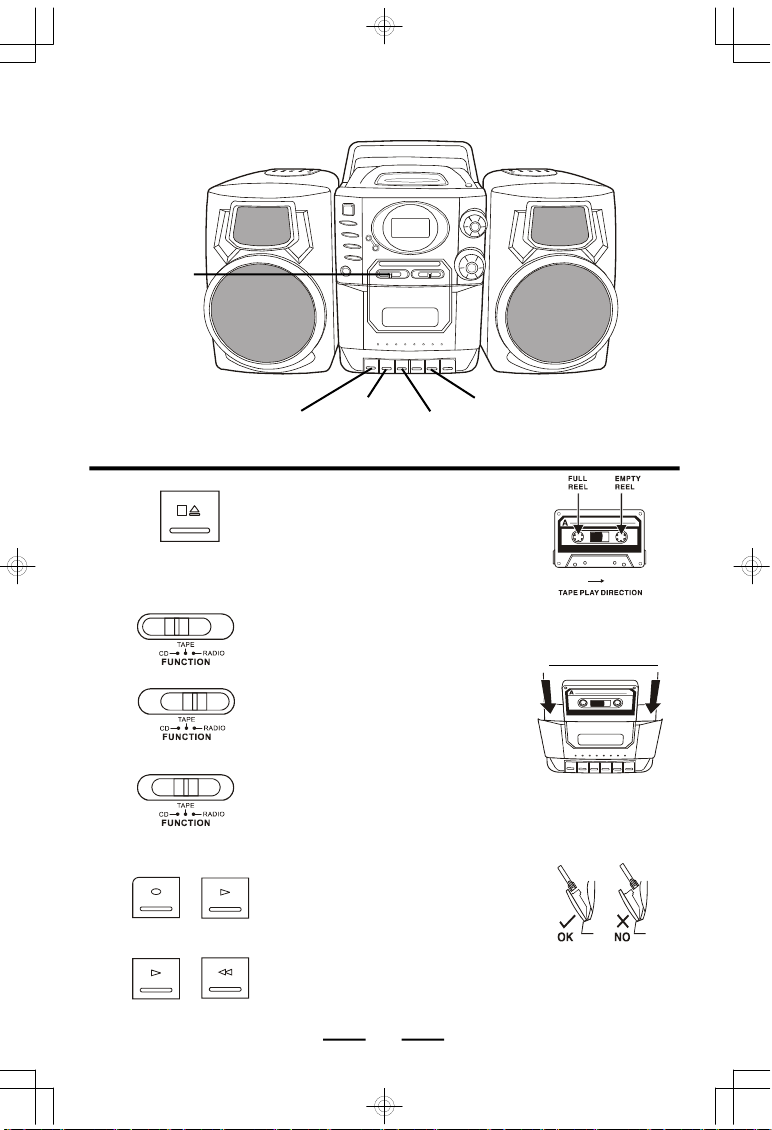

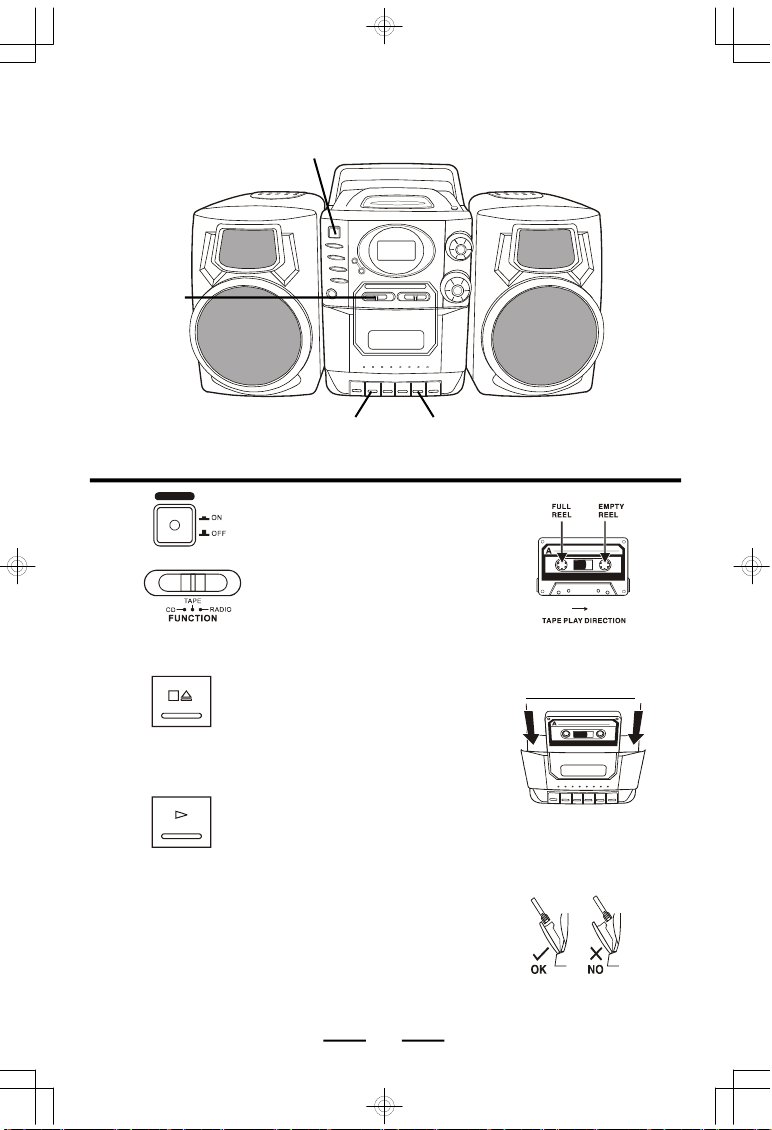

11.CASSETTE DOOR

12. CASSETTE PAUSE BUTTON

13.CASSETTE STOP/EJ. BUTTON

14. CASSETTE FAST FORWARD BUTTON

15. CASSETTE REWIND BUTTON

16. CASSETTE PLAY BUTTON

17. CASSETTE RECORD BUTTON

1516

REAR VIEW

18.FUNCTION SWITCH

19.CD RANDOM BUTTON

20.PHONES JACK

21.CD FORWARD SKIP/SEARCH BUTTON

22. CD BACKWARD SKIP/SEARCH BUTTON

23.CD STOP BUTTON

24.CD PLAY/PAUSE BUTTON

25.POWER BUTTON

26.CD PROG./REPEAT BUTTON

27.DETACHABLE SPEAKER LOCKS

28.SPEAKER PLUGS

29.AC SOCKET

30.FM TELESCOPING ANTENNA

31.SPEAKER JACKS

32. BATTERY COMPARTMENT DOOR

IB-CD1493(AD-63E)-WM-E-030404

CHOOSING THE POWER SOURCES

You can use the AC power or batteries as a power source.

Battery compartment

To a wall outlet

NOTE:One blade of plug

AC SOCKET

and outlet is wider.

TIP

If the plug of the AC

•

power cord does not match your outlet, do not force it. Reverse it and try again. The plug is polarized and only fits one way into the wall outlet and back of the set.

•

Replace the batteries when the POWER lamp dims or when the player stops operating. Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the CD from the player and remember to check the Battery Safety Instructions on Page 3.

If the CD does not play

•

on batteries, this means the batteries are almost used up. But the radio may continue to play on these weak batteries because it uses less power than the CD player.

1.Connecting the AC power cord

Insert one end of the supplied AC power cord (located in the battery compartment) into the socket located at the rear of the player, and the other end to the wall outlet.

2.Using the player on batteries

Insert 8 size “C” batteries (not supplied) into the battery compartment.

To use the player on batteries, disconnect the AC power cord both from the outlet and the back of the player.

IB-CD1493(AD-63E)-WM-E-030404

ATTACHING THE SPEAKERS

NOTE: The right and left speakers are NOT

interchangeable. The right speaker fits only on the right side (as shown in FIG. 1). The left speaker fits only on the left side.

1.Bring the right speaker to the right side of the set.

2.Raise the right speaker box about 4 inches above the set. Align the tracks (rails).

3.Fit speaker over the side rails.

4.When speaker fits over the rails, lower the speaker as shown in FIG. 2, and make sure the tabs snap into the speaker box (locks in the back).

5.Repeat above steps 1 to 4 for the left speaker box.

6.Carefully unwind the speaker wire from behind each speaker box and plug the right plug into SPEAKER JACK R, also plug the left plug into SPEAKER JACK L (as shown in FIG. 3). Wrap the remaining wire behind each speaker box.

FIG.1

FIG.2

FIG.3

LOCK TAB

NOTE: This set can be used with speaker boxes attached to the main set or

separated, just make sure both speaker plugs are plugged into the jacks.

To remove the speakers, press the lock tab and raise the speakers.

IB-CD1493(AD-63E)-WM-E-030404
