COMPACT DISC PLAYER
AM/FM STEREO CASSETTE RECORDER
MODEL CD-104
OPERATING INSTRUCTIONS
PLAYS MUSIC COMPACT DISCS
FULLY PROGRAMMABLE CD PLAYER WITH REPEAT
RECEIVES AM/FM STEREO BROADCASTS
RECORDS FROM CD, RADIO, OR BUILT-IN MICROPHONE
FM STEREO AND POWER LED INDICATORS
2 WAY POWER - AC/DC
REQUIRES 8 SIZE C BATTERIES (not included)
PLEASE READ CAREFULLY BEFORE USE
IB-CD104(TA)-FD-E-043002
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert the user to
the presence of uninsulated
dangerous voltage within
the products enclosure that
may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER
SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying
the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the manufacturers
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightening storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no
object filled with liquid such as vases shall be placed on the apparatus.
1
IB-CD104(TA)-FD-E-043002
ADDITIONAL SAFETY INSTRUCTIONS
1. Power Sources - The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
2. Wall or Ceiling Mounting - The appliance should not be mounted to a wall or ceiling.
3. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids
are not spilled into the enclosure through openings.
4. Servicing - The user should not attempt to service the appliance beyond that described in
the operating instructions. All other servicing should be referred to qualified service personnel.
It is the intent of Lenoxx that this product be used in full compliance with the
copyright laws of the United States and that prior permission be obtained from
copyright owners whenever recording songs from the RADIO or CDs.
Do not apply oil or petroleum products or solvents to any part of this set.
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
This compact disc player is classified as CLASS 1 LASER PRODUCT as stated
on the bottom of the set.
CAUTION
2
IB-CD104(TA)-FD-E-043002
BATTERY SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE TO
1. Use only the type and size of batteries mentioned in the operating instructions
booklet (batteries are not included with this set, please buy the proper batteries).
2. Do not dispose the batteries into a fire. The cells may explode. Check with local
codes for possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
4. Be careful when handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may over
heat and cause burns.
5. Do not attempt to recharge non-rechargeable batteries. The batteries may leak
corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the batteries identified for use with this product by
heating them. Sudden release of the battery electrolyte may cause burns or
irritation to eyes or skin.
7. All batteries should be replaced at the same time. Mixing fresh and discharged
batteries could increase internal cell pressure and rupture the batteries.
8. When inserting batteries into this product, the proper polarity (
direction must be observed. Reverse insertion of some or all of the batteries may
result in battery electrolyte leakage or explosion.
9. Remove the batteries from this product if the product will not be used for a long
period of time (several months or more) since during the period the batteries could
leak, damaging the product.
10. Discard weak or dead batteries as soon as possible since they are more likely to
leak in the product. Batteries should be replaced (depending on the product) when
the display gets dim or if the Low Battery Indicator shows or if the sound gets
distorted.
11. Do not store this product in high temperature areas. Batteries that are stored in a
freezer or refrigerator for the purpose of extending shelf life should be protected
from condensation during storage and defrosting. Batteries should be stabilized at
room temperature prior to use after cold storage.
12. If this product does not operate normally, see TROUBLE SHOOTING in this
instruction manual. If you cant resolve the problem, or if the product is damaged, refer to the
LENOXX WARRANTY INFORMATION. Opening or removing covers may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause electric shock when
the appliance is subsequently used.
13. If liquid leaks from the batteries, carefully wipe this liquid. Do not allow it to touch your skin,
and discard the leaking batteries.
14. Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).
15. The use of rechargeable batteries is not recommended for this set because their
voltage and life is lower than standard batteries.
16. Installation of batteries should be done by an adult only.
YOUR SET, READ AND FOLLOW THESE INSTRUCTIONS.
and ) or
SAVE THESE INSTRUCTIONS
3
IB-CD104(TA)-FD-E-043002
CHOOSING THE POWER SOURCES
C
C
C
C
You can use the AC power or batteries as a power source.
To a wall outlet
BATTERY
COMPARTMENT
TIP
If the plug of the AC power
cord does not match your
outlet, do not force it.
Reverse it and try again.
The plugs are polarized
and only fit one way into
the wall outlet and back of
the set.
TIP
Replace the batteries
when the POWER lamp
dims or when the player
stops operating. Replace
all the batteries with new
ones. Before you replace
the batteries, be sure to
take out the CD from the
player and remember to
check the Battery Safety
Instructions on Page 3.
AC SOCKET
NOTE: One blade of plug
and outlet is wider.
1. Connecting the AC power
cord
Insert one end of the supplied AC power cord
(located in the battery compartment) into the socket
located at the rear of the player, and the other end
to the wall outlet.
2. Using the player on batteries
Insert 8 size C batteries (not supplied) into the
battery compartment.
To use the player on batteries, disconnect the AC
power cord from the player.
4
IB-CD104(TA)-FD-E-043002
PLAYING A CD
1
Connect the supplied AC power cord or batteries (see page 4).
Slide the FUNCTION switch to CD position
1
(power on), the POWER lamp will be on.
Lift the right corner of the CD DOOR
2
marked OPEN to open it and place the
CD in the CD compartment. The label side
of the CD should face upward.
2
4
POWER lamp
Close the CD DOOR by pushing it down.
3
The display will show the total tracks on
that CD.
Press the CD PLAY button, the track
4
number and PLAY will show steady on,
the player plays all the tracks once.
Track number
5
IB-CD104(TA)-FD-E-043002
PLAYING CD TRACKS REPEATEDLY
(REPEAT PLAY)
You can play CD tracks over and over in normal or programmed play mode (see
page 7).
FUNCTION
SWITCH
REPEAT
1. Slide the FUNCTION switch to CD position.
2. Select the track by pressing or , and then press .
3. Press the CD REPEAT button.
To repeat Press
a single track (song) Press the REPEAT button once
all the tracks (all songs)
programmed tracks
Press the REPEAT button twice
During programmed play, press
the REPEAT button twice
Display shows:
REP.
REP.A
REP.A
&
PROG. flashing
To cancel Repeat Play
Press the REPEAT button until REP. and REP.A go off in the display.
6
IB-CD104(TA)-FD-E-043002
SELECTING YOUR OWN MUSIC PLAYING ORDER
(Programmed Play)
You can make a program of up to 19
tracks in the order you want them to
be played.
NOTE: Programming is only done during
stop mode.
PROGRAM
1. Slide the FUNCTION switch to CD position.
2. Press the PROGRAM button. The PROG. and
00 will flash in the display.
3. Press or to select the tracks you want to
program in the order you want.
4. Press the PROGRAM button to confirm.
5. Repeat steps 3 and 4. You can program up to 19
tracks, and the display will show if you
continue to program.
6. Press to start programmed play. The PROG.
will flash in the display.
To check the order of tracks before play
Press the PROGRAM button, the programmed track number appear in the display
automatically every time you press the PROGRAM button.
PROGRAM
To change the current program
Just create a new program following the programming procedure.
PROGRAM
To cancel Programmed Play
Press the STOP button in programming mode.
7
IB-CD104(TA)-FD-E-043002
TIP
When CD play is
paused, PLAY will
flash and no music
will play.
USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
VOLUME CONTROL
(at the left side of the set)
FUNCTION
SWITCH
BASS BOAST
SWITCH
To Press or Adjust
Adjust the volume
OPEN THE CD DOOR
BY LIFTING HERE
VOLUME control
To resume play,
Stop playback
press the PAUSE
button again,
PLAY will stop
flashing and music
Pause playback
will play.
TIP FORWARDS
If you bump the set
during CD play, the
music will stop or
Go to the next track
Go back to the previous
track
skip for a few
seconds. This is
normal for this type
Locate a point in a song
of player.
Remove the CD
Turn off the power
Hear more bass
8
PLAY will flash during
pause. Press again to
resume play after pause.
BACKWARDS
or
Press and hold down while
playing until you find the
point.
Lift the CD DOOR (press
STOP first).
Slide the FUNCTION switch
to TAPE position.
Slide the BASS BOOST
switch to ON position.
IB-CD104(TA)-FD-E-043002
LISTENING TO THE RADIO
1
2
3
Connect the supplied AC power cord or batteries (see page 4).
4
1
2
3
4
FM STEREO
Slide the FUNCTION switch to
RADIO position, the POWER lamp
will be on.
Slide the BAND switch to AM, FM
or FM ST. you prefer.
Tune into the station you prefer
using the TUNING control (at the
right side of the set). Adjust for
the clearest sound.
This FM STEREO indicator will
light up when receiving FM
Stereo broadcasts.
9
IB-CD104(TA)-FD-E-043002
USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
VOLUME
CONTROL
FUNCTION
SWITCH
TIP
Next time you want to
•
listen to the radio, just
slide the FUNCTION
switch to RADIO. The
player automatically
starts playing the
previously tuned
station.
To
Adjust the volume
Turn off the Radio
To improve broadcast reception
Change position of the antenna for FM or FM Stereo.
Slide or Adjust
VOLUME control (at the
left side of the set)
Slide the FUNCTION
switch to TAPE position
Move the set itself for AM.
10
IB-CD104(TA)-FD-E-043002
PLAYING A TAPE
1
2
2
3
1
Connect the supplied AC power cord or batteries (see page 4).
Slide the FUNCTION
switch to TAPE position.
Press the STOP/EJECT
button to open the tape
compartment and insert
a recorded tape. Close
the door.
TAPE PLAY DIRECTION
A
EMPTY
FULL
REEL
REEL
INSERT TAPE THIS WAY
FULL REEL ON RIGHT
3
4
AUTO STOP
Press the PLAY button.
The player turns on and
starts playing.
When the set finishes
playing this side of the
tape, the set will stop.
To hear the other side
of the tape, flip the tape
over, then insert and
press PLAY.
11
OK
OK
IB-CD104(TA)-FD-E-043002
NO
NO
USE THESE BUTTONS FOR ADDITIONAL
OPERATIONS
VOLUME
CONTROL
PAUSE
PLAY
STOP/EJECT
FAST F.&REWIND
To
Adjust the volume
Stop playback
Fast forward or rewind
the tape
Pause playback
Eject the cassette
To shut power off
Press or Adjust
VOLUME control (at the left side
of the set)
STOP/EJECT button
FAST FORWARD button or
REWIND button
PAUSE button
Press again to resume play after
pause.
STOP/EJECT button
Make sure cassette buttons are
all up (stop) and FUNCTION switch
is in the TAPE position (power off).
12
IB-CD104(TA)-FD-E-043002

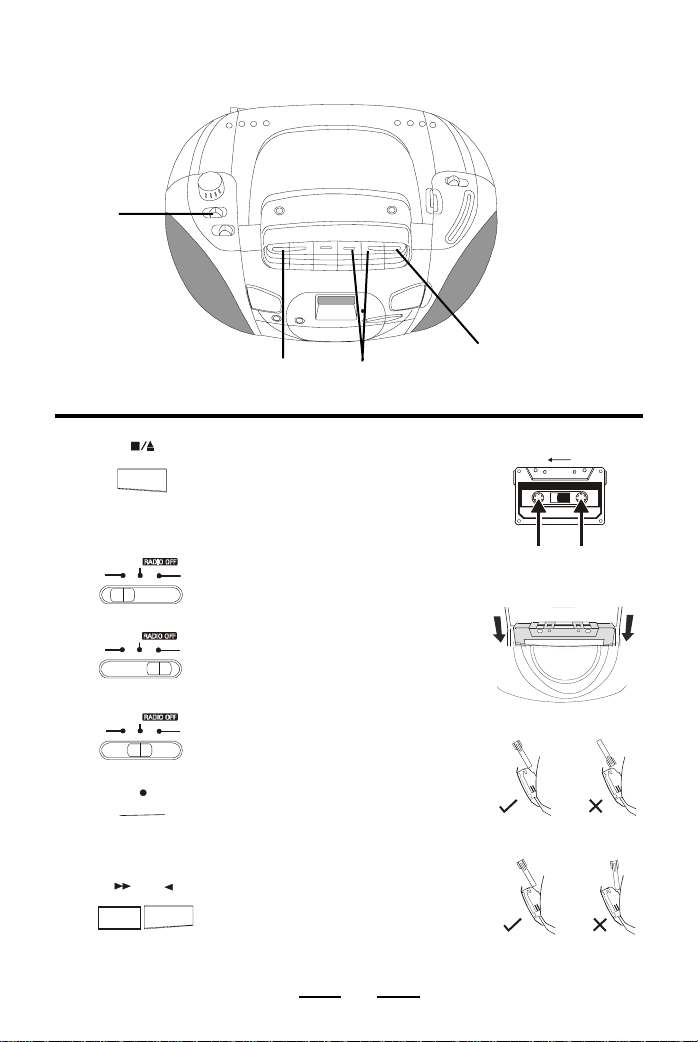

RECORDING ON A TAPE
2
1
2
3
4
1
Connect the supplied AC power cord or batteries (see page 4).
Press the STOP/EJECT button to
open the tape compartment and
insert a blank tape. Select the
program source (AM, FM, CD, or
built-in microphone) you want to
record.
To record from the CD player, insert
a CD and follow the steps to play a
CD (see page 5).
To record from a radio, slide the
FUNCTION switch to RADIO
position, and tune into the station
you want (see page 9).
To record from the built-in
microphone, leave the FUNCTION
switch at the TAPE position, and
speak in front of the set.
Press the RECORD button to start
recording. (The PLAY button is
depressed automatically.)
To hear what you recorded, slide
the FUNCTION switch to TAPE
position, then press REWIND and
PLAY.
4
TAPE PLAY DIRECTION
EMPTY
FULL
REEL
REEL
OK
OK
3
A
NO
NO
13
IB-CD104(TA)-FD-E-043002
TIP
• For best recording
effect, use the AC
power instead of
batteries.
USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
PAUSE
STOP/EJECT
• To erase a
recording, just start
a new recording,
and the old one is
automatically
replaced.
To
Stop recording
Pause recording
Turn off the power
14
Press or Adjust
STOP/EJECT button
PAUSE button
Press the button again to
resume recording.
Press the STOP/EJECT
button.
IB-CD104(TA)-FD-E-043002
PRECAUTIONS
On Safety
As the laser beam used in the CD
player section may be harmful to the
eyes, do not attempt to disassemble
the cabinet. Refer servicing to
qualified personnel only.
Should any solid object or liquid fall
into the player, unplug the player, and
have it checked by qualified personnel
before operating it any further.
On Power Sources
For battery operation, use 8 size C
batteries. We recommend alkaline
batteries for longer life.
When the batteries will not be used
for a few weeks or more, remove them
to avoid damage that can be caused
by battery leakage or corrosion.
On Placement
Do not leave the player in a location
near a heat source, or in a place
subject to direct sunlight, excessive
dust or mechanical shock.
Do not place the player on an inclined
or unstable place.
Do not place anything within 1 inch of
the back of the cabinet. The
ventilation holes must not be covered
for the player to operate properly and
prolong the life of its components.
If the player is left in a car parked in
the sun, be sure to choose a location
in the car where the player will not be
subjected to the direct rays of the
sun.
Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or springwound
watches away from the player to
prevent possible damage from the
magnets.
On Operation
If the player is brought directly from a
cold to a warm location, or is placed
in a very damp room, moisture may
condense on the lens inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour for the moisture to
evaporate. If the player has not been
used for a long time, set it in the
playback mode to warm it up for a few
minutes before inserting a cassette.
This CD player is designed to be
played on a stable no vibration
position. If you bump the set during
CD play, the music will stop or skip for
a few seconds. This is normal for this
type of player.
15
IB-CD104(TA)-FD-E-043002
PRECAUTIONS (continued)
Notes on CDs
Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out.
Do not use solvents such as benzene,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature inside
the car.
Do not stick paper or stickers on the
CD, nor scratch the CD.
After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints
on the CD, it may cause a tracking
error or skipping.
Notes on Cassettes
Break off the cassette tab from side A
or B to prevent accidental recording.
Side A
Tab for side B
To record on a tape with its tab broken
off, cover the respective tab hole for
side A or B with adhesive tape.
The use of a cassette with more than
90 minutes of play time is not
recommended except for long
continuous recording or playback.
To reduce the chances of tape
jamming or tangling, you should check
that there are no loose layers of tape
visible through the cassette center
window. If any, tighten these loose
layers of tape using a pencil before
inserting the cassette into the set.
Tab for side A
16
IB-CD104(TA)-FD-E-043002
MAINTENANCE
Cleaning the Lens
If the lens becomes dirty, it may cause a
skipping of sound during CD operation.
Clean with a commercially available lens
cleaner and blower.
Cleaning the Tape Heads
Wipe the heads, the pinch roller and
the capstan with a cleaning swab slightly
moistened with cleaning fluid or alcohol
after every 10 hours of operation for
optimum playback and recording quality.
After cleaning, insert a tape when the
areas cleaned are completely dry.
RECORD/PLAY BACK HEAD
PINCH ROLLER
ERASE HEAD
Notes for Storing
Cassette Tapes
1. Do not put a tape near a magnetic
field, such as a TV, or speaker.
Magnetic fields may reduce the tape
sensitivity or even erase the
recording.
2. Do not store tape for any length of
time in a hot, moist or dusty place.
Cleaning the Cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
benzene.
CAPSTAN COTTON SWAB
NOTE: In order to see and clean the
head, you may have to press
PLAY first.
17
IB-CD104(TA)-FD-E-043002
TROUBLE SHOOTING
Problem
The power is not on.
There is no sound.
GeneralCD player
appears in the display
even when a CD is in place.
CD does not play.
The sound drops out.
The sound is weak or has
poor quality.
Radio
The RECORD button does
not function/The tape does
not play.
The tape does not erase
completely.
The tape does not record.
Tape player
The sound is weak/The
sound quality is poor.
Cassette PLAY button pops
up.
Remedy
Connect the AC power cord to a wall
outlet securely.
Make sure the batteries are inserted
correctly and they are fresh.
Make sure the FUNCTION switch is at the
right position as you want.
Adjust the volume.
Insert the CD with the label side up.
Make sure that the CD compartment is
closed.
Place the CD with the label side up.
Clean the CD.
Take out the CD and leave the CD DOOR
open for about an hour to dry moisture
condensation.
Make sure the FUNCTION switch is at CD
position.
Clean the CD, or replace it if the CD is
badly damaged.
Place the player in a location free from
vibration.
Check if your batteries are fresh.
Replace all the batteries with new ones if
they are weak, or bring the set near a
window, or rotate the set.
Make sure the safety tab on the cassette
is in place.
Make sure the FUNCTION switch is at tape
position.
Clean the erasing head (see page 17).
Replace all the batteries with new ones
if they are weak.
Make sure the tape is inserted properly.
Make sure the safety tab of the cassette
is in place.
Clean the heads, pinch roller and capstan
(see page 17).
The tape has reached its end. Remove
it, flip to the other side and re-insert.
18
IB-CD104(TA)-FD-E-043002
SPECIFICATION
General Description
Power source:
Speakers:
Output power:
Dimensions: Width: 12
AC 120V, 60Hz 12 Watts
DC 12V (8 size C batteries)
(Alkaline batteries are recommended)
2 - 31/
1.5W/channel
Depth: 8
Height: 6
Weight: 5LBs (without batteries)
8 ohm
2
CD Section
Plays disc type:
Laser wavelength:
Tracking method:
Frequency response:
NOTE: This CD player will only play NORMAL music CDs (or CD-R CDs).
This set will not play CDRW encoded discs.
Any normal CD used in portable players
760 - 800 NM
3 - spot error detection 3.86 mm lens
50Hz - 15kHz (+1/-2 dB)
Tape Recorder Section
Frequency response: Standard normal bias cassette tape,
70Hz - 10kHz
Radio Section
Frequency range: FM: 88 - 108 MHz
AM: 530 - 1700 kHz
LENOXX reserves the right to make design and specification changes for
product improvement.
PROTECT YOUR FINE FURNITURE!
WE RECOMMEND A CLOTH OR OTHER PROTECTIVE MATERIAL BE PLACED
UNDER THE SET WHEN PLACING IT ON SURFACE WITH A NATURAL OR
LACQUER FINISH.
© 2002 LENOXX ELECTRONICS CORP.
2 GERMAK DRIVE
CARTERET, N.J. 07008
MADE & PRINTED IN CHINA
19
IB-CD104(TA)-FD-E-043002
Loading...
