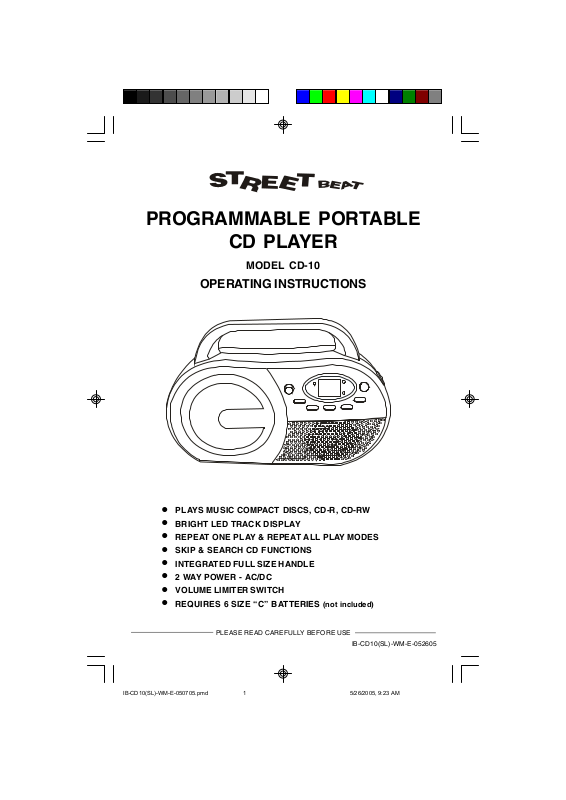

PROGRAMMABLE PORTABLE
CD PLAYER
MODEL CD-10
OPERATING INSTRUCTIONS
PLAYS MUSIC COMPACT DISCS, CD-R, CD-RW
•
BRIGHT LED TRACK DISPLAY
•
REPEAT ONE PLAY & REPEAT ALL PLAY MODES
•
SKIP & SEARCH CD FUNCTIONS
•
INTEGRATED FULL SIZE HANDLE
•
2 WAY POWER - AC/DC
•
VOLUME LIMITER SWITCH
•
REQUIRES 6 SIZE “C” BATTERIES (not included)
•
PLEASE READ CAREFULLY BEFORE USE
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM1
IB-CD10(SL)-WM-E-052605
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE
RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE
PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the
presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may
be of sufficient magnitude to
constitute a risk of electric
shock to persons.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user
to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
SEE BACK OF THE SET
IMPORTANT SAFETY INSTRUCTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings, install in accordance with the manufacturer’s
instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Unplug this apparatus during lightning storms or when unused for long periods of time.
13.Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally or
has been dropped.
14.This appliance shall not be exposed to dripping or splashing water and that no
object filled with liquid such as vases shall be placed on the apparatus.
1
IB-CD10(SL)-WM-E-052605
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM2
IMPORTANT SAFETY INSTRUCTIONS
15.Power Sources - This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supply to your
home, consult your product dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the operating instructions.
16.Overloading - Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
17.Servicing - Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
18.Safety Check - Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks to determine that the product is in proper
operating condition.
Do not apply oil or petroleum products or solvents to any part of this set.
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
This compact disc player is classified as CLASS 1 LASER PRODUCT as stated
on the back of the set.
Please read important information displayed on the rating plate located on the back
enclosure before connecting to AC power or any operation.
CAUTION
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM3
2
IB-CD10(SL)-WM-E-052605
BATTERY SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE
1.Use only the type and size of batteries mentioned in the operating instructions booklet
2.Do not dispose the batteries into a fire. The cells may explode. Check with local
3.Do not open or mutilate the batteries. Released electrolyte is corrosive and may
4.Be careful when handling batteries in order not to short the battery with conducting
5.Do not attempt to recharge non-rechargeable batteries. The batteries may leak
6.Do not attempt to rejuvenate the batteries identified for use with this product by
7.All batteries should be replaced at the same time. Mixing fresh and discharged
8.When inserting batteries into this product, the proper polarity ( and ) or direction
9.Remove the batteries from this product if the product will not be used for a long period
10.Discard weak or dead batteries as soon as possible since they are more likely to leak
11.Do not store this product in high temperature areas. Batteries that are stored in a
12.If this product does not operate normally, see TROUBLE SHOOTING in this
13.If liquid leaks from the batteries, carefully wipe this liquid. Do not allow it to touch
14.Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).
15.The use of rechargeable batteries is not recommended for this set because their
16.Installation of batteries should be done by an adult only.
TO YOUR SET, READ AND FOLLOW THESE INSTRUCTIONS.
(batteries are not included with this set, please buy the proper batteries).
codes for possible special disposal instructions.
cause damage to the eyes or skin. It may be toxic if swallowed.
materials such as rings, bracelets and keys. The battery or conductor may over heat
and cause burns.
corrosive electrolyte or explode.
heating them. Sudden release of the battery electrolyte may cause burns or irritation
to eyes or skin.
batteries could increase internal cell pressure and rupture the batteries.
must be observed. Reverse insertion of some or all of the batteries may result in
battery electrolyte leakage or explosion.
of time (several months or more) since during the period the batteries could leak,
damaging the product.
in the product. Batteries should be replaced (depending on the product) when the
display gets dim or if the Low Battery Indicator shows or if the sound gets distorted.
freezer or refrigerator for the purpose of extending shelf life should be protected from
condensation during storage and defrosting. Batteries should be stabilized at room
temperature prior to use after cold storage.
instruction manual. If you can’t resolve the problem, or if the product is damaged,
refer to the LENOXX WARRANTY INFORMATION. Opening or removing covers
may expose you to dangerous voltages or other risks. Incorrect reassembly can
cause electric shock when the appliance is subsequently used.
your skin, and discard the leaking batteries.
voltage and life is lower than standard batteries.
SAVE THESE INSTRUCTIONS
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM4
3
IB-CD10(SL)-WM-E-052605
CHOOSING THE POWER SOURCES
You can use the AC power or batteries as a power source.
To a wall outlet
BATTERY DOOR
(on the back of the set)
NOTE:One blade of plug
and outlet is wider.
TIP
If the plug of the AC power
•
cord does not match your
outlet, do not force it.
Reverse it and try again.
The plug is polarized and
only fits one way into the
wall outlet and socket on
the set’s rear.
Replace the batteries
•
when the POWER lamp
dims or when the player
stops operating. Replace
all the batteries with new
ones. Remember to
check the Battery Safety
Instructions on Page 3.
1.Connecting the AC power
Insert one end of the supplied AC power cord into
the socket located at the rear of the set, and the
other end into the 120V, 60Hz standard household
outlet.
2.Using the player on batteries
Insert 6 size “C” batteries (not supplied) into the
battery compartment as shown, observe + and
polarities.
To use the player on batteries, disconnect the AC
power cord from both the wall outlet and the back of
the player.
Install batteries as illustrated
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM5
4
IB-CD10(SL)-WM-E-052605
PLAYING A CD
PLAY/PROG.
PLAY/PROG.
PLAY/PROG.
PLAY/PAUSE
OPEN button
1
2
3
PLAY/PAUSE
button
VOLUME/POWER OFF
switch (at the right side
of the set)
Connect the supplied AC power cord or batteries (refer to page 4).
POWER
OFF
V
O
L
U
M
E
Rotate the VOLUME/POWER
OFF switch (on the right side of
the set) downwards past the click
to turn on the set, the POWER
lamp will be on, the display will show
2 dashes “ ” flashing, then “ ”.
POWER
Press the OPEN button to open
the CD door and place a CD into
the CD compartment. The label
side of the CD should face
outward. Make sure the disc is
seated on the spindle by pressing
down in the center (clicks into
place).
Close the CD DOOR by pushing
the “close” area of the door. The
POWER
display will show the total tracks
of that CD.
example (disc with
15 songs)
REPEAT
REPEAT
4
Press the CD PLAY/PAUSE
button, the PLAY/PROG. lamp will
POWER
REPEAT
be steadily on, the player will play
all the music tracks once.
Track number playing
NOTE: In order to avoid the music playing too loudly, we suggest you switch the
volume limiter switch (in the battery compartment) to the ON position before playing
the set. If you want to increase the volume even more, you can stop play and switch
the volume limiter switch to OFF position.
TIP: “ ” will show in the display if there is no CD disc in the CD compartment or the
CD disc is inserted the wrong way or not “clicked” onto the spindle.
5
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM6
IB-CD10(SL)-WM-E-052605
USE THESE BUTTONS FOR
PLAY/PROG.
ADDITIONAL OPERATIONS
PLAY/PAUSE button
PHONES jack
POWER
TIP
When CD play is
•
paused, the PLAY/
PROG. lamp will be
off, the track number
will flash and no music
will play.
To resume play, press
•
the PLAY/PAUSE button
again, the track number
will stop flashing, the
PLAY/PROG. lamp will
be on and music will
play.
If you bump the set
•
during CD play, the
music will stop or skip
for a few seconds.
This is normal for this
type of player.
REPEAT
SKIP/SEARCH
To
Adjust the volume
Stop playback
Pause playback
Go to the next track
Go back to the previous
track
Locate a point in a song
To enjoy the music
without disturbing others.
Remove the CD
Turn off the power
VOLUME/
POWER OFF
switch
STOP button
buttons
Press or Adjust
VOLUME/OFF switch
STOP button
PLAY/PAUSE button
The track number will flash,
the PLAY/PROG. lamp will be
off during pause. Press again
to resume play after pause.
SKIP/SEARCH
FORWARD button
SKIP/SEARCH
BACKWARD button
or
Press and hold down while
playing until you find the point
of the song you want.
Insert your headphones (not
included) plug into the
PHONES jack (on the
right side of the set).
Press the STOP button first,
then press the OPEN button.
Rotate the VOLUME/POWER
OFF switch upwards past
click, the power lamp goes off.
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM7
6
IB-CD10(SL)-WM-E-052605
PLAYING CD TRACKS REPEATEDLY
PLAY/PROG.
PLAY/PROG.
PLAY/PROG.
(REPEAT PLAY)
You can play CD tracks over and over in normal or programmed play mode (refer to
page 8).
PLAY/PAUSE button
VOLUME/POWER
OFF switch
REPEAT/PROGRAM button
SKIP/SEARCH buttons
1. Turn on the set, the POWER lamp will be steadily on.
2.Select the track by pressing or , and then press PLAY/PAUSE button.
3.Press the REPEAT/PROGRAM button.
To repeat
A single track (song)
Press
Press the REPEAT/
PROGRAM button once,
Display shows
POWER
REPEAT
the REPEAT lamp will flash.
All the tracks (all songs)
on this disc
Press the REPEAT/
PROGRAM button twice, the
REPEAT lamp will be
POWER
REPEAT
steadily on.
During programmed play,
press the REPEAT/
Programmed tracks
PROGRAM button twice,
the REPEAT lamp will be
POWER
REPEAT
steadily on and the PLAY/
PROG. lamp will flash.
To cancel Repeat Play
Press the REPEAT button until the REPEAT lamp goes off.
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM8
7
IB-CD10(SL)-WM-E-052605
PLAYING CD TRACKS IN PROGRAMMED ORDER OR
PLAY/PROG.
PLAY/PROG.
PLAY/PROG.
IN RANDOM ORDER
1.Programmed play
You can make a program of up to 20 tracks in the order you want them to be played.
PLAY/PAUSE button
STOP button
VOLUME/OFF
switch
RANDOM button
1.Turn on the CD player by rotating the VOLUME/POWER
OFF switch downward past click. Make sure the CD is
REPEAT/PROGRAM button
SKIP/SEARCH buttons
POWER
REPEAT
stopped.
2.Press the REPEAT/PROGRAM button. The letters “ ”
and the PLAY/PROG. lamp will flash.
3.Press or to select the track you want to program in
the order you want.
POWER
REPEAT
4.Press the REPEAT/PROGRAM button to confirm. The
letters “ ” and the PLAY/PROG. lamp will flash.
5.Repeat above steps 3 and 4. You can program up to 20 tracks,
then the display will show the track numbers you programmed.
POWER
REPEAT
6.Press PLAY/PAUSE button to start programmed play. The
PLAY/PROG. lamp will flash.
NOTE:
1.Programming can only be done while in STOP mode.
2.The programmed memory will be lost if the STOP button is pressed twice or the power
is shut off, or the CD door is opened.
To change the current program
Just create a new program following the programming procedure.
To cancel Programmed Play
Press the STOP button twice.
2.Random play
To play the songs in random order
Press the RANDOM button in STOP mode or during playing, the set will play all of the
songs in random order. The floating symbol “ ”and the current
track number will show in turn in the display.
To resume normal play
Press the RANDOM button again, the player will start playing normally.
8
IB-CD10(SL)-WM-E-052605
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM9
PRECAUTIONS
On Safety
As the laser beam used in the CD player
•
section may be harmful to the eyes, do
not attempt to disassemble the cabinet.
Refer servicing to qualified personnel only.
Should any solid object or liquid fall into
•
the player, unplug the player, and have it
checked by qualified personnel before
operating it any further.
On Placement
Do not leave the player in a location
•
near a heat source, or in a place subject
to direct sunlight, excessive dust or
mechanical shock.
Do not place the player on an inclined
•
or unstable place.
Do not place anything within 1 inch of the
•
back of the cabinet. The ventilation holes
must not be covered for the player to
operate properly and prolong the life of
its components.
If the player is left in a car parked in the
•
sun, be sure to choose a location in the
car where the player will not be subjected
to the direct rays of the sun.
Since a strong magnet is used for the
•
speakers, keep personal credit cards
using magnetic coding or springwound
watches away from the player to prevent
possible damage from the magnets.
On Power Sources
For battery operation, use 6 size “ C”
•
batteries. We recommend alkaline
batteries for longer life.
When the batteries will not be used for a
•
few weeks or more, remove them to avoid
damage that can be caused by battery
leakage or corrosion.
This CD player is designed to be played
•
on a stable no vibration position. If you
bump the set during CD play, the music
will stop or skip for a few seconds. This
is normal for this type of player.
Notes on CDs
Before playing, clean the CD with a
•
cleaning cloth. Wipe the CD from the
center out.
Do not use solvents such as benzine,
•
thinner, commercially available cleaners
or anti-static spray intended for vinyl LPs.
Do not expose the CD to direct sunlight
•
or heat sources such as hot air ducts,
nor leave it in a car parked in direct
sunlight as there can be a considerable
rise in temperature inside the car.
Do not stick paper or stickers on the CD,
•
nor scratch the CD.
After playing, store the CD in its case. If
•
there is a scratch, dirt or fingerprints on
the CD, it may cause a tracking error or
skipping.
MAINTENANCE
Cleaning the Lens
If the lens becomes dirty, it may cause a
skipping of sound during CD operation.
Clean with a commercially available lens
cleaner and blower.
On Operation
If the player is brought directly from a
•
cold to a warm location, or is placed in a
very damp room, moisture may condense
on the lens inside the CD player section.
Should this occur, the player will not
operate properly. In this case, remove
the CD and wait about an hour for the
moisture to evaporate.
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM10
Cleaning the Cabinet
Clean the cabinet, panel and controls with
a soft cloth slightly moistened with a mild
detergent solution. Do not use any type
of abrasive pad, scouring powder, or
solvent, such as alcohol or benzine.
9
IB-CD10(SL)-WM-E-052605
TROUBLE SHOOTING
Problem
The power is not on.
There is no sound.
“ ” appears in the display
even when a CD is in place.
CD does not play.
The sound drops out.
Remedy
Insert the AC plug into a wall outlet securely.
•
Make sure the batteries are installed correctly
•
and that they are fresh.
Rotate the VOLUME/POWER OFF switch
•
downwards to turn on the set.
Adjust the volume.
•
Unplug the headphones when listening through
•
speaker.
Check the batteries.
•
Insert the CD with the label side outward.
•
Make sure the CD is inserted onto the spindle
•
and “clicked” into place & close the door.
Make sure the CD is seated on the center spindle
•
and “clicked” into place before closing the door.
Make sure that the CD compartment is closed
•
properly.
Clean the CD or try another CD, this set will
•
not play MP3 or WMA discs.
Replace the disc (this set will not play damaged
•
or scratched CDs), or buy a disc repair
polisher to repair the scratched disc yourself.
Take out the CD and leave the CD DOOR open
•
for about an hour to dry moisture condensation.
Clean the CD, or replace it if the CD is badly
•
damaged.
Place the player in a location free from vibration.
•
Check if your batteries are fresh.
•
No sound on battery
power or weak sound.
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM11
Your batteries are weak or dead. Replace all
•
batteries with new ones.
10
IB-CD10(SL)-WM-E-052605
SPECIFICATION
General Description
Power source:
Output power:
Dimensions:
CD Section
Plays disc type: Any normal music CD used in portable players, including CD-R & CD-RW.
Laser wavelength:
Tracking method:
Frequency response:
Lenoxx reserves the right to make design and specification changes for product improvement.
PROTECT YOUR FINE FURNITURE!
WE RECOMMEND A CLOTH OR OTHER PROTECTIVE MATERIAL BE PLACED UNDER THE SET
WHEN PLACING IT ON SURFACE WITH A NATURAL OR LACQUER FINISH.
We warrant this product to be free from defects in material and workmanship under normal use for a
period of 90 days after purchase and we will repair it free of charge or replace it at no charge, should it
become defective under this warranty, providing you submit proof of purchase (sales slip) with the set.
During the initial 90 day period after original purchase, we will service or exchange, at no charge, the
set that is returned to LENOXX ELECTRONICS CORP. After the initial 90 day period expires, and for a
period of 12 months from original purchase, we will repair the unit covering any part(s) that need to be
replaced at no charge, but will charge for the cost of labor, return postage paid by Lenoxx.
This warranty does not apply to any products which have been subject to misuse, neglect or accident.
This warranty does not cover broken cord or cabinet. UNDER NO CIRCUMSTANCES WILL LENOXX
ELECTRONICS CORP. BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some
states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. The following charges apply to repairs beyond the warranty period: $10.00. Be sure to pack
carefully and return postage paid insured together with your money order (personal checks will not be
accepted) and sales receipt to:
LENOXX ELECTRONICS CORP., 2 GERMAK DRIVE, CARTERET N.J. 07008
AC 120V, 60Hz
DC 6 size “C” batteries (not included)
(Alkaline batteries are recommended)
1.1 Watts
Width: 111/2”
Depth: 35/8”
Height: 8”
Weight: 2.6 LBs (without batteries)
760 - 800 NM
3 - spot error detection 3.86 mm lens
50Hz - 15kHz +1/-2dB
LIMITED WARRANTY
For customer service
Dial 1-800-315-5885
IB-CD10(SL)-WM-E-050705.pmd 5/26/2005, 9:23 AM12
(MONDAY - THURSDAY 8:00 AM - 5:00 PM, FRIDAY 8:00 AM - 1:00 PM EST)
or Visit Our Website: http://www.lenoxx.com
© 2005 LENOXX ELECTRONICS CORP.
MADE & PRINTED IN CHINA
2 GERMAK DRIVE
CARTERET, N.J. 07008
11
IB-CD10(SL)-WM-E-052605
Loading...
