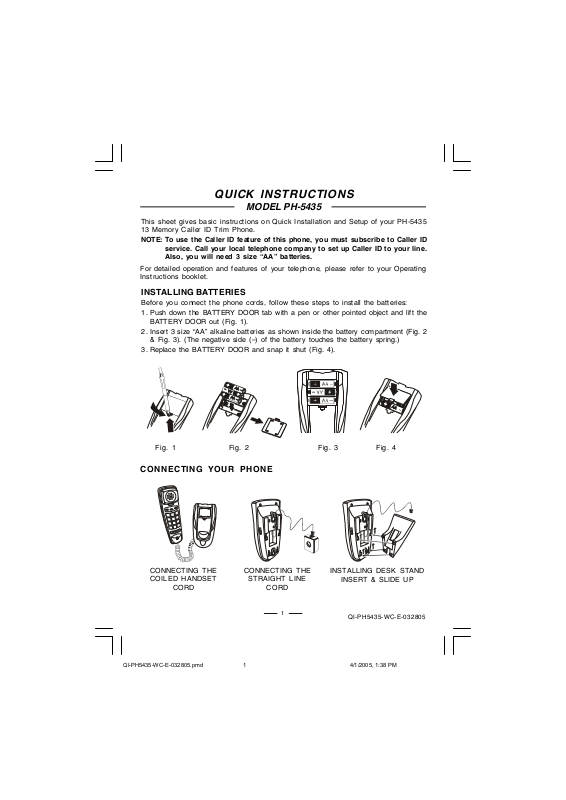

Lenoxx PH-5435 Instruction

QI-PH5435-WC-E-032805
For detailed operation and features of your telephone, please refer to your Operating Instructions booklet.
Fig. 1 Fig. 2 Fig. 3
CONNECTING YOUR PHONE
CONNECTING THE COILED HANDSET
CONNECTING THE
STRAIGHT LINE
1
This sheet gives basic instructions on Quick Installation and Setup of your PH-5435 13 Memory Caller ID Trim Phone.
NOTE:To use the Caller ID feature of this phone, you must subscribe to Caller ID
service. Call your local telephone company to set up Caller ID to your line. Also, you will need 3 size AA batteries.
QUICK INSTRUCTIONS
MODEL PH-5435
Before you connect the phone cords, follow these steps to install the batteries:
1.Push down the BATTERY DOOR tab with a pen or other pointed object and lift the BATTERY DOOR out (Fig. 1).
2.Insert 3 size AA” alkaline batteries as shown inside the battery compartment (Fig. 2 & Fig. 3). (The negative side (–) of the battery touches the battery spring.)
3.Replace the BATTERY DOOR and snap it shut (Fig. 4).
INSTALLING BATTERIES
INSTALLING DESK STAND
INSERT & SLIDE UP
Fig. 4
QI-PH5435-WC-E-032805.pmd 4/1/2005, 1:38 PM1
QI-P H
5435-WC-E-032805
QUICK INSTRUCTIONS
2
SETTING UP LCD CONTRAST, LANGUAGE, AREA CODE, TIME & DATE, AND TONE OR PULSE MODE
You may need to set up the LCD contrast, language, area code, time and date, and tone or pulse mode for your telephone when you install the batteries for the first time or when you move to an area that has a different area code. This is necessary because the phone must distinguish local or long distance calls to properly dial calls from the Caller ID list.
NOTE: During setup, if you do not press the DELETE button
within 20 seconds, the display will get back to normal display mode.
Press and hold the
DELETE
button, then press the DOWN button, the LCD CONTRAST (5-grey level) will show on the display. Use the UP or DOWN button to select the suitable grey-level and press the DELETE button to accept. If you see all numbers, adjust your viewing angle.
Then SET LANGUAGE will show in the display, the default language E (English) will flash. Press UP or DOWN to choose your desired language (flashing). Press the DELETE button to confirm and accept.
E = English;F = French;S = Spanish
Your phone now will ask you to set your Area Code:
While the first digit is flashing, you should:
1.Press the UP or DOWN button till the first digit of your area
code is displayed (flashing).
2.Press the DELETE button to accept and go to the next
digit.
3.Repeat above steps 1 and 2 to set the 2nd and 3rd digits of
your area code.
Afterwards, your phone will now go to the Time and Date mode, press the UP or DOWN button to get the correct number and press the DELETE button to accept. Then the phone will ask you to select Tone or Pulse mode, press the UP or DOWN button to select your desired dialing mode(> flashes before it) and press the DELETE button to confirm until the normal display shows.
Example: Area code 718
Press UP/DOWN & DELETE
Press UP/DOWN & DELETE
Press UP/DOWN & DELETE
QI-PH5435-WC-E-032805.pmd 4/1/2005, 1:38 PM2
5435-WC-E-032805
1.Press the STORE button.
(short for programming) appears in the display..
2.Dial the phone number you want to store. You can dial up to 22 digits, including
a Tone ( ) and a PAUSE
(REDIAL/PAUSE
), each of which is counted as one digit.
MEMORY DIALING
1. Pick up the handset.
QUICK INSTRUCTIONS
STORING PHONE NUMBERS INTO MEMORY
VIEWING THE CALLER ID LIST
You can look through the data in the Caller ID list to check the numbers and names of the calls received.
1.Press the DOWN button. Data of the newest call appears for 20 seconds.
2.Press the DOWN button to display data from new to old or the UP button to display from
old to new.
You can also view the Caller ID list during conversation by following the above steps.
3. The phone will dial the numbers you stored into that memory.
3
CALLER ID OPERATION
Your PH-5435 has Caller ID feature and if you subscribe to Caller ID service, the Callers telephone number (if available), Name, Time and Date of the call will be displayed between the first and second ring of the phone. The phone stores the data of the last 70 calls received. It keeps track of all calls received, even if they were not answered.
For 3 one-touch dialing: For 10 two-touch dialing:
Press one of the 3 one-touch speed dial buttons (M1 to M3).
For 10 two-touch dialing:
For 3 one-touch dialing:
DELETING THE DATA FROM THE CALLER ID LIST
Press AUTO button, and then press one of the dialing keys (0 to 9) to store the number in.
4.The stored number and the location will show in the display.
5.Repeat steps 1-4 to store numbers into other memory locations.
Press AUTO button, and then press one of the dialing keys (0 to 9).
Press one of the 3 one-touch speed dial buttons (M1 to M3).
TO DELETE THE CALLER ID MEMORY ONE BY ONE ONLY
TO DELETE ALL THE CALLER ID MEMORIES
1.Display the callers ID you want to delete.
2.Press the DELETE button, the display will show DELETE CALL?, press the
DELETE button once more, the display changes to show the next or previous call, and the data is deleted.
1. When the handset is on the base only, press the DELETE button and hold for 3
seconds, the display shows DELETE ALL?.
2.Press the DELETE button once more, the display changes to NO CALLS and all
the Caller ID memories (including the new call memories) are deleted.
Note: You can delete the data either when the handset is on the base or it is picked up.
3
2
QI-PH5435-WC-E-032805.pmd 4/1/2005, 1:38 PM3
5435-WC-E-032805
QUICK INSTRUCTIONS
CALLING BACK FROM THE CALLER ID LIST
4
RESET THE PHONE
IN THE RARE CASE OF ABNORMAL TELEPHONE LINE INTERFERENCE, YOUR PHONE MAY NOT WORK PROPERLY (NO DIAL TONE OR LOW DIAL TONE, OR CAN NOT DIAL OUT, ETC.). YOU CAN RESET YOUR PHONE TO NORMAL OPERATION BY REMOVING THE BATTERIES FOR 30 SECONDS AND THEN REPLACING THEM.
NOTE: YOU MAY NEED TO REPROGRAM YOUR SPEED DIAL MEMORIES AND
CALLER ID AREA CODE AS IF YOUR PHONE IS BEING INSTALLED FOR THE FIRST TIME.
IMPORTANT!
CHANGE BATTERIES
YOUR TELEPHONE IS NOW FULLY SET UP AND YOUR CALLER ID TELEPHONE SHOULD WORK PROPERLY. REMEMBER TO REPLACE ALL 3 SIZE AA
BATTERIES WHEN THE LOW BATTERY INDICATOR
LOW
APPEARS IN THE
DISPLAY.
A. When Handset is on the Base
1.Display the phone number you want to call back using the UP or DOWN button.
2.Press the CALLBACK/ADJUST button.
3.If the number is only 7-digit (local call), the display will show
PICK UP OR ADJ
and the phone displayed is 7-digit; if you want the phone number to be 10-digit or 11-digit, press the CALLBACK/ADJUST button once or twice more.
4.If the phone number is 10-digit, the display will show
PICK UP OR ADJ
and the phone number displayed is 11-digit (“1” is added automatically in front of the 10-digit phone number); if you want the phone number to be 10-digit or 7-digit, press the CALLBACK/ADJUST button once or twice more.
5.Pick up the handset, the displayed number will dial out automatically.
B. When Handset Is Picked Up
1.Display the phone number you want to call back using the UP or DOWN button.
2.Press the CALLBACK/ADJUST button.
3.If the number is only 7-digit (local call), the display will show DIALING OR ADJ” and the phone displayed is 7-digit; if you want the phone number to be 10-digit or 11-digit, press the CALLBACK/ADJUST button once or twice more, the displayed phone number will dial out automatically .
4.If the phone number is 10-digit, the display will show DIALING OR ADJ and the phone number displayed is 11-digit (“1” is added automatically in front of the 10-digit phone number); if you want the phone number to be 10-digit or 7-digit, press the CALLBACK/ADJUST button once or twice more; then after 2 seconds, the displayed phone number will dial out automatically.
