MODEL HT-3916
Home Theater System
Turns Your DVD Player Into
A Home Theater Surround Sound System
The Perfect Sound System for Your DVD Player
Just add your TV & DVD player; everything else is in the box.
•
Incredible surround sound, perfect for DVD viewing & enhanced TV game experience.
•
Also provides superior sound for your computer & MP3 player
•
PLEASE READ CAREFULLY BEFORE USE
IB-HT3916-WM-E-022505
SAFETY INSTRUCTIONS
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO
PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE
BLADE PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the presence
of uninsulated “ dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
SEE BOTTOM OF THE SET
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings, install in accordance with the
manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10.Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Unplug this apparatus during lightning storms or when unused for long
periods of time.
13.Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
14.This appliance shall not be exposed to dripping or splashing water and
that no object filled with liquid such as vases shall be placed on the
apparatus.
Do not apply oil or petroleum products or solvents to any part of this set.
Cleaning the Cabinet
Clean the cabinet and controls with a very dry or slightly moistened soft
cloth. Do not use any type of abrasive pad, scouring powder, or solvents,
such as alcohol or benzine.
Please read important information displayed on
the rating plate located on the bottom enclosure
before connecting to AC Mains or any operation.
FCC NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures.
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect this equipment into an outlet on a
circuit different from that to which the receiver
is connected.
-consult the dealer or an experienced radio/
TV technician for help.
CAUTION
FCC Regulations state that unauthorized
changes or modifications to this equipment
may void the user’s authority to operate it.
PRECAUTIONS
ON SAFETY
Should any solid object or liquid fall into the
Home Theater System, unplug the player, and
have it checked by qualified personnel before
operating it any further.
ON PLACEMENT OF YOUR HOME
THEATER SYSTEM
Do not leave the Home Theater in a location
•
near a heat source, or in a place subject to
direct sunlight, excessively dusty rooms or
rooms with very high humidity.
Do not place the Home Theater system on
•
an inclined or unstable place.
Do not place anything within 1 inch of the sides
•
or 2 inches from the back of the cabinet. The
heat sink fins must not be covered for the
set to operate properly and prolong the life
of its components.
1
IB-HT3916-WM-E-022505
INTRODUCTION
Thank you for purchasing this Home Theater Surround Sound System. This deluxe audio theater system turns your home into a
virtual theater. In addition to the incredible surround sound of your current DVD player, this system also superbly enhances your
other audio sources, such as a CD player, computer, MP3 player, VCR, or a cassette deck. The only thing you need to add is your
own TV or other devices. We have designed this system to be easy to set up, but please, review this manual before you operate
your system. Please have it handy while you are setting the system up; and keep it available for future reference, or in the
unlikely event that you encounter any unexpected questions or problems. We have tried to keep this manual as simple as
possible. It begins with how to connect the speakers, your TV, and other optional devices. It also includes instructions on how to
position the speakers for the most natural surround sound. If you follow the instructions carefully you can have the system set up
in about an hour.
This system was designed to provide you with many years of reliable operation with a minimum of care and maintenance. Every
component in your system was perfect when it left our factory. If you experience any problem with the set-up or operation of this
system, please review the Trouble Shooting Guide at the end of this manual before you contact the Customer Service Department
at 1-800-315-5885.
All of the adjustable system settings have been preset at our factory for normal operation of the system. All you have to do is to
sit back and enjoy the great home theater experience.
Later on, you may want to change some of the optional settings like speaker volume and balance settings. Instructions for
changing them, are found later in this manual.
Basic Features & Benefits of this Home Theater System:
1.TV Game / Video Camera input jacks.
2.Includes audio inputs for DVD, MP3/AUX and GAME/CAMERA.
3.Customizable speaker level controls with indicators.
4.Powerful subwoofer provides real BOOM in your bass.
5.Deluxe easy-to-use remote control with batteries included.
6.LED indicators for DVD, MP3/AUX or GAME/CAMERA functions.
7.Designed for easy, mistake-proof color-coded speaker setup.
8.Compatible with computer sound systems - audio cable is included.
1 Remote Control
1 Set of Audio cables with green
3.5mm plug for Computer or MP3
Connection (or any other Source
with 3.5mm Jack)
1 Main Set (Subwoofer)
THIS SYSTEM CONTAINS
5 Satellite Speakers
1 Set of Audio Cables
for DVD or AUX IN
(Red & White)
2
Video Cable
1 Yellow
2 “AAA” batteries
1 Spare
Fuse
IB-HT3916-WM-E-022505
TABLE OF CONTENTS
• Getting Started
Safety Instructions-------------------------------------------------------------------------------------------------------------------------------------1
Introduction-----------------------------------------------------------------------------------------------------------------------------------------------2
Location of Controls-----------------------------------------------------------------------------------------------------------------------------------4,5
Remote Control Operation---------------------------------------------------------------------------------------------------------------------------6
• Connections

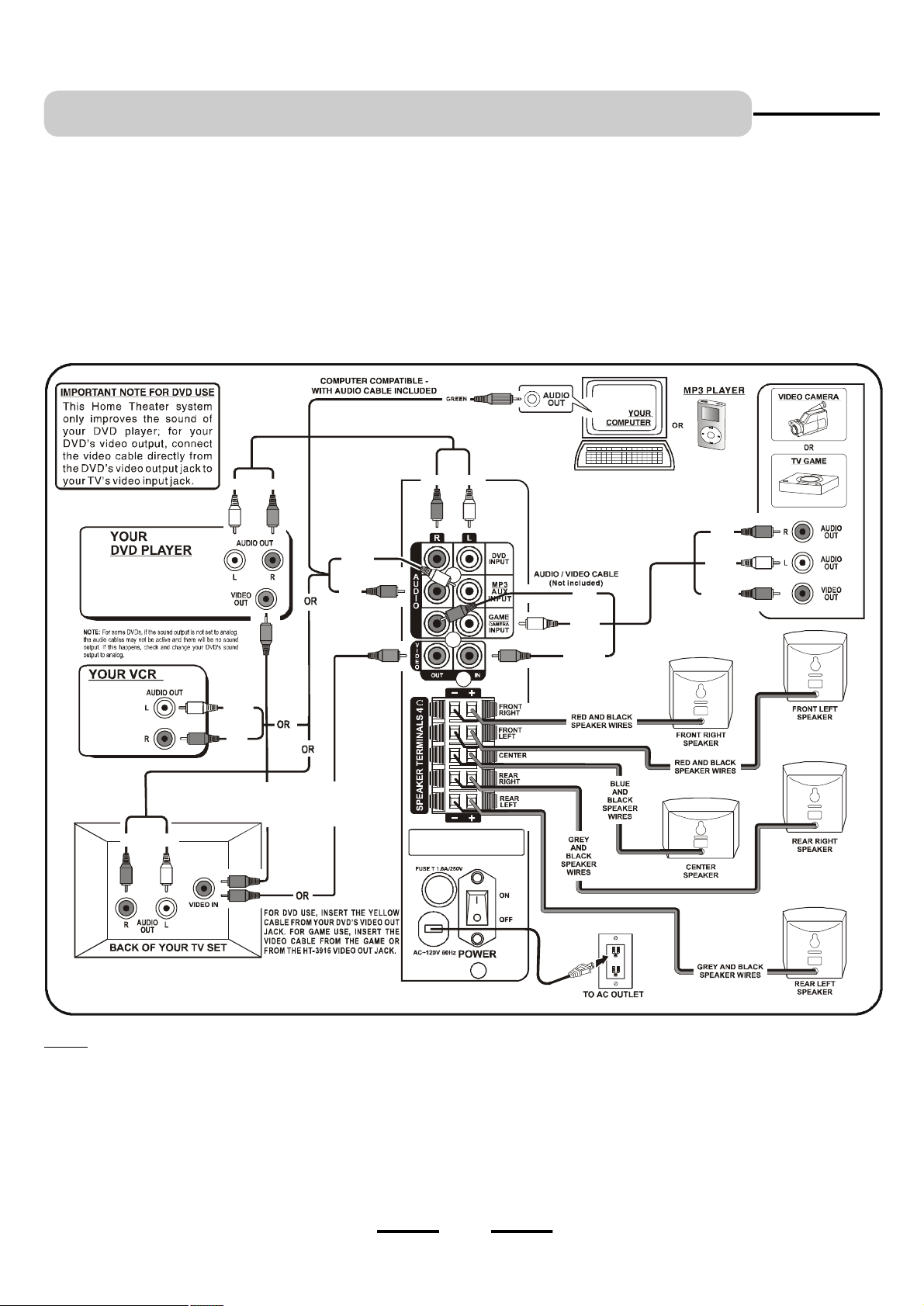

Choose Your Connection-----------------------------------------------------------------------------------------------------------------------------7
Cables Needed to Connect Components to Your Home Theater System --------------------------------------------------------7
Speaker System Connections:
Speaker System Connections---------------------------------------------------------------------------------------------------------------------8,9
Speaker Positioning Information------------------------------------------------------------------------------------------------------------------10,11
TV Connections ----------------------------------------------------------------------------------------------------------------------------------------12
TV + DVD Connections -----------------------------------------------------------------------------------------------------------------------------13
TV + VCR Connections -----------------------------------------------------------------------------------------------------------------------------14
TV + VCR + Satellite Receiver Connections ------------------------------------------------------------------------------------------------15
TV + TV Game Connections ----------------------------------------------------------------------------------------------------------------------16
TV + Video Camera Connections ----------------------------------------------------------------------------------------------------------------17
AUX IN & MP3 Connections ----------------------------------------------------------------------------------------------------------------------18
AM/FM Tuner Connections ------------------------------------------------------------------------------------------------------------------------19
Computer & MP3 Sound Connections --------------------------------------------------------------------------------------------------------- 20
Amplifier in Main set
General -----------------------------------------------------------------------------------------------------------------------------------------------------21
Volume Adjustment-------------------------------------------------------------------------------------------------------------------------------------22
• Listening Mode
5.1 Channel and Stereo Modes -------------------------------------------------------------------------------------------------------------------23
• Trouble Shooting ------------------------------------------------------------------------------------------------------------------------24
• Specifications -------------------------------------------------------------------------------------------------------------------------------25
3
IB-HT3916-WM-E-022505
ON/STANDBY
LOCATION OF CONTROLS
DVD
CAMERA
.
.
1. - Receives the signal from the REMOTE CONTROL
REMOTE SENSOR
(aim the REMOTE control towards this sensor).
2.ON/STANDBY button - Press to switch the set to on or standby mode (if
CONTROL PANEL
(ON THE FRONT OF THE SUBWOOFER)
1
2
3
4
5
6
7
8
9
STANDBY
2.1 CH
5.1 CH
VOLUME -
SOURCE
CHANNELS
VOLUME +
VOLUME -
DVD
MP3
GAME
VOLUME +
10
BACK OF MAIN SET (SUBWOOFER)
11
12
13
14
the main POWER of the set is ON).
3.STANDBY indicator - This indicator has 2 modes: flashing and steadily
on (slow flashing indicates the set is in standby, steadily on indicates the
set is on). When the set is turned to ON, pressing the ON/STANDBY
button on the main set or on the REMOTE CONTROL will turn the set to
the standby mode, the indicator will become slow flashing.
NOTE: The rear main power switch must be ON.
4.SOURCE button - Press several times to select the sound input
source you want: DVD, MP3/AUX or GAME/CAMERA.
5.2.1 CHANNEL indicator - When the listening mode is 2.1 channel
(stereo, 3 speakers sound), this indicator will light up. To change,
press the CHANNELS button on the main set or on the remote control.
6.CHANNELS button - Press to select 2.1 channel or 5.1 channel
listening mode.
7.5.1 CHANNEL indicator - When the listening mode is 5.1 channel (all
speakers sound), this indicator will light up. To change, press the
CHANNELS button on the main set or on the remote control.
8.VOLUME + button - Increases the volume level of all speakers.
9.VOLUME - indicator - This indicator lights up when the MASTER
VOLUME is at its minimum level, also it will flash confirming you pressed
the VOLUME DOWN button of “ ” either the SUBWOOFER, or FRONT or
CENTER, or REAR, or the MASTER.
10.VOLUME - button - Decreases the volume level of all speakers.
11.DVD indicator - For DVD sound use, press the SOURCE button on the
main set or on the remote control till this lights.
12.MP3 indicator - For MP3 or other component’s output sound use, press
the SOURCE button on the main set or on the remote control till this lights.
13.GAME indicator - For TV GAME or VIDEO CAMERA use, press the
SOURCE button on the main set or on the remote control till this lights.
14.VOLUME + indicator - This indicator lights up when the MASTER
VOLUME is at its maximum level, also it will flash confirming you
pressed the VOLUME UP button of “+” either the SUBWOOFER, or FRONT,
or CENTER, or REAR, or the MASTER.
17
20
21
22
23
24
15
19
26
27
INPUT
MP3
AUX
INPUT
GAME
INPUT
16
18
20
21
22
23
24
25
15.DVD AUDIO INPUT jacks - Connect to the audio output of a DVD player
to have 5.1 channel surround sound.
16.MP3/AUX INPUT jacks - Connect to the audio output of an MP3 or tape
deck or other component’s output.
17.GAME/CAMERA AUDIO INPUT jacks - Connect to the audio output jack
of a TV game or video camera.
18.VIDEO INPUT jack - For connection of a video signal from a TV
game, or video camera, or other source.
19.VIDEO OUT jack - Connect to your TV’s video input jack. (If your TV has
no VIDEO jack, you have to buy a VIDEO RF MODULATOR.)
20.FRONT RIGHT SPEAKER jacks - Connect the FRONT RIGHT SPEAKER
to the red and black terminals.
21.FRONT LEFT SPEAKER jacks - Connect the FRONT LEFT SPEAKER
to the red and black terminals.
22.CENTER SPEAKER jacks - Connect only the CENTER SPEAKER to the
blue and black terminals.
23.REAR RIGHT SPEAKER jacks - Connect the REAR RIGHT SPEAKER
to the grey and black terminals.
24.REAR LEFT SPEAKER jacks - Connect the REAR LEFT SPEAKER
to the grey and black terminals.
25.POWER switch - Press to power the set on or off.
NOTE: This switch must be ON in order to be able to use the ON/STANDBY
button on the main set or on the REMOTE CONTROL.
26.FUSE HOLDER with screw cover.
27.AC LINE CORD - Connect to a 120V/60Hz AC standard wall outlet.
4
IB-HT3916-WM-E-022505
LOCATION OF CONTROLS
1.IR DIODE - Sends the signal to the set. Do not block or cover this.
REMOTE CONTROL
5
8
10
11
1
2
3
46
7
9
2.ON/STANDBY button - Switches the player from STANDBY to ON
or ON to STANDBY (if the main POWER of the set is ON).
3.SOURCE button - Press to select the sound input source you want:
DVD, MP3/AUX or GAME/CAMERA.
4.RESET button - Press to adjust all speakers’ output to the factory’s
default settings.
5.MUTE button - Instantly turns off the sound. Press again to restore the
sound.
6.CHANNELS button - Press to select 2.1 channel or 5.1 channel
listening mode.
7.FRONT UP & DOWN VOLUME buttons - Press to adjust the individual
FRONT LEFT/RIGHT speakers’ sound level.
8.CENTER UP & DOWN VOLUME buttons - Press to adjust the
individual CENTER speaker’s sound level.
9.REAR UP & DOWN VOLUME buttons - Press to adjust the REAR
LEFT/RIGHT speakers’ sound level.
10.SUBWOOFER UP & DOWN VOLUME buttons - Press to adjust the
individual SUBWOOFER’s sound level.
11. MASTER VOLUME UP & DOWN buttons - Press to adjust the sound
level of all speakers.
SEE NEXT PAGE FOR REMOTE CONTROL BATTERY INSTALLATION.
5
IB-HT3916-WM-E-022505
REMOTE CONTROL OPERATION
Battery Installation Remote Control Operating Range
Remove the BATTERY COMPARTMENT DOOR of the REMOTE
CONTROL and insert 2 size “AAA” alkaline batteries (included)
according to the “ + ” and “ ” markings inside the BATTERY
COMPARTMENT of the REMOTE CONTROL unit.
Gently push here and slide to
open the BATTERY DOOR.
Slide door
down.
Insert 2 size “AAA” batteries
as shown (included).
Point the REMOTE CONTROL unit within 20 feet from the
remote control sensor and facing the front of the HOME
THEATER SYSTEM.
Remember, the spring touches the “ ” side of each
battery.
4
Replace the door.
Tips on Battery Use
Reversing polarities will damage the batteries and possibly
•
your REMOTE. Be sure to follow polarity “ ” and “ ” as indicated.
Do not mix different types of batteries together (Alkaline,
•
Carbon-Zinc, Nickel-Cadmium etc.), or old batteries with new
ones.
When not in use for an extended period of time (over 60
•
days), remove the batteries to prevent possible acid leakage
or corrosion resulting in possible damage to your REMOTE
CONTROL.
When the batteries have become discharged, they must be
•
disposed of in a safe manner that complies with all applicable
laws.
Installation of batteries should only be done by an adult
•
(for safety).
Remember to point the
REMOTE CONTROL in
the direction of the HOME
THEATER’s sensor, not
the TV set or the DVD
player.
Point the REMOTE CONTROL at the
Home Theater’s Front
Make sure there is a clear path between the REMOTE
CONTROL and the HOME THEATER SYSTEM so that the
signal is not blocked.
Tips on REMOTE CONTROL Operation
The REMOTE control’s operating distance may vary
•
according to the brightness of the room.
Do not point bright lights at the REMOTE CONTROL
•
SENSOR (like laser pointers).
Do not place objects between the REMOTE CONTROL unit
•
and the REMOTE SENSOR.
Do not use this REMOTE CONTROL while simultaneously
•
using the remote control unit of any other equipment, the
signals may mix.
Sometimes your TV’s remote may cause an LED to flash,
•
you can ignore this.
6
IB-HT3916-WM-E-022505
CONNECTIONS
TAPE RECORDER/PLAYER
CD/MP3 PLAYER
Choose Your Connection
There are several ways to connect your Home Theater System. Please use the following chart to determine which
connection is the best for you. Turn to the appropriate page and connect your Home Theater System.
COMPONENTS
CABLES
GO TO ...
NEEDED
NOTE:
This only applies if your
TV has audio out jacks.
R
E
T
A
E
H
T
E
M
O
H
U
S
D
N
U
O
R
R
T
S
Y
S
D
N
U
O
S
M
E
HOME THEATER
HOME THEATER
HOME THEATER
TV
+
(only)
TV/DVD
+
TV/VCR
+
TV/VCR
+
HOME
THEATER
+
SATELLITE
• Audio (included)
• Video (included)
• Audio (included)
• Video (included)
• Audio (included)
• Video (included)
• Audio (included)
Page 12
Page 13
Page 14
Page 15
• Video
(special,
not included)
• Audio
(special,
not included)
• Audio (included)
Page 16,17
Page
18,19,20
PC
TV
+
HOME THEATER
+
TV GAME
or
VIDEO CAMERA
AM/FM TUNER
or
other AUX
DEVICE
+
HOME THEATER
Cables Needed to Connect Components to Your Home Theater System
The pictures below show the cables needed for the connections represented in this booklet.
NOTE:Audio cables are usually sold as a bundled set, but the connection sketches in this booklet show each cable separately for better
visibility. You will need additional cables to connect everything shown above. Check your other equipments’ booklets to see
what cables are needed.
Yellow Video cable
(one set included)
Red & White Audio cables
(one set included, most installations
will need these)
1 Set of Audio cables with
green 3.5mm plug for Computer
Connection (or other Source
with 3.5mm Jack)
7
Speaker Wires (5 sets
are attached to the back
of the speakers)
IB-HT3916-WM-E-022505
SPEAKER SYSTEM CONNECTIONS
Remember to flip this main
WHITE
WHITE
RED
YELLOW
RED
WHITE
YELLOW
Speaker System Connections
Connect the supplied speaker system by matching the colors
of the terminals to those of the cords.
IMPORTANT:
Before making connections, make sure the power is off.
QUICK SETUP DIAGRAM
The speaker wires and connectors are color-coded for easier
set up.
• Connect the Front Left speaker to the Front Left terminals.
• Connect the Front Right speaker to the Front Right terminals.
• Connect the Center speaker to the Center speaker terminals.
• Connect the Rear Left speaker to the Rear Left terminals.
• Connect the Rear Right speaker to the Rear Right terminals.
REDWHITE
WHITE
WHITE
RED
RED
W
O
L
L
E
Y
RED
W
O
L
L
E
Y
RED
WHITE
switch to the ON position.
NOTE: In order to have TV sound come through your home theater system, your TV must have AUDIO OUTPUT jacks. These jacks will
always be in the rear of the TV (and not in the front). If your TV does not have these output jacks, you have to use a cable box or a
satellite receiver to get the audio.
IB-HT3916-WM-E-022505
8
SPEAKER SYSTEM CONNECTIONS
Tips for connecting the speaker wires
Unwind and stretch out the speaker wires attached with each
speakers, then push and hold down the set terminal tab on the
back of the main set to insert each wire. Make sure the wire is fully
inserted, but the insulation is not covering the inserted part of the
speaker wires.
SET TERMINALS
PUSH AND HOLD THE COLORED TAB OF TERMINAL.
To avoid short-circuiting the speakers
Make sure the stripped end of each speaker wire does not
•
touch another set terminal or the stripped end of
another speaker wire.
Examples of poor connection of the
speaker wires
LOOSE STRANDS TOUCHING
(This will short out the sound)
Stripped speaker wire is touching another set terminal.
•
Make sure not even 1 strand of wire touches the other
wire!
WIRES SHORTED TO EACH OTHER
(This will short out the sound)
WHILE HOLDING THE TAB OF THE TERMINAL, STICK
THE EXPOSED PART OF THE WIRE INTO THE HOLE
OF THE TERMINAL.
REMOVE YOUR FINGER FROM THE TERMINAL TO
LOCK THE WIRE INSIDE THE TERMINAL.
GO ON TO THE NEXT WIRE & REPEAT ABOVE.
MAKE SURE POWER IS OFF WHEN DOING THE ABOVE.
NOTE:
Be sure to match the speaker wire to the appropriate terminal on
the back of the main set: (+) to (+) (color), and (-) to (-) (black). If the
wires are reversed, the sound will be distorted and will lack some
tones. Follow the color codes of each terminals.
Stripped wires are touching each other due to excessive
•
removal of insulation. Do not allow the above to happen on
your set.
MAKE SURE ABOVE DOES NOT HAPPEN
NOTE: If longer wires are needed, you may buy any good quality
speaker wire and splice the wires yourself. Please make sure
the wires are not shorting to each other and observe the correct
color polarity.Many speaker wires have a dotted line or solid line
or raised rib on one side to identify each side.
Also make sure you use electrical tape to cover your splices.
9
IB-HT3916-WM-E-022505
SPEAKER POSITIONING INFORMATION
Your system is supplied with 5 compact sized satellite speakers and
one large subwoofer (main set). The satellite speakers and the center
speaker reproduce only the mid range and higher frequencies. All of
the low frequency (bass) sounds are produced by the subwoofer. Proper
positioning and placement of the speakers is important in order to provide
the best surround sound experience. We understand that due to the
size and shape of your listening room, and the location of your furniture,
you may not be able to set up the speakers exactly as per these
diagrams. However these simple guidelines will help you maximize
your home theater experience.
Your Usual Seat
• Note the speaker levels are preset at the factory and most people will
not need to fine tune the sound of each speaker. We suggest you skip
this part at first. Later on you can adjust the sound level of each
individual speaker. See Page 22.
• Although all 5 satellites are almost of the same size, the speakers
inside the cabinets are different. The speaker wires on the back of the
cabinets are color-coded, as are the speaker terminals on the back of
the main set. Refer to the connection diagram on page 8. Be sure
you are using the correct satellite speaker in each location, front,
POSITION ALL 5 SPEAKERS APPROXIMATELY AT THE
SAME DISTANCE FROM YOUR LISTENING POSITION.
POSITION THE SUBWOOFER AS BELOW.
NOTE:You may only place the CENTER speaker (blue terminals) or the FRONT speakers (red terminals) on or near your TV
set or computer monitor. These speakers have magnetic shielding inside. If you put the REAR speakers near your TV
set or computer monitor, the colors on your TV or computer monitor may change.
rear and center. Please follow the colors for best results.
• For best surround sound effects, all 4 of the satellite speakers and the
center speaker should be roughly at the same distance from your
usual listening position.
POSITION THE SPEAKERS LIKE THIS FOR OPTIMAL LISTENING EXPERIENCE
• The 4 satellite speakers and the center speaker should be placed approximately the same distance from your listening
position.
• The center speaker should be placed directly above (or below) the TV set. Left and right front speakers should be
approximately at the same height as the center speaker.
• The rear speakers should be either in line with, or behind your listening position, approximately at ear level, or slightly
above.
• The subwoofer (main set) should be on the floor near the TV, or in any corner, but remember you need a clear path to
your remote (don’t block this set with a curtain).
• All speakers must be visible. Do not hide them behind curtains, furniture, etc, as this will affect the sound.
• You may only place the center speaker (blue wires) or front speaker (red wires) near or above the TV set because these
speakers are magnetically shielded.
10
IB-HT3916-WM-E-022505
SPEAKER POSITIONING INFORMATION
· The left front, right front, and center speakers should be
placed at roughly the same height. The center speaker
reproduces most of the dialog spoken by the actors on the
TV screen, therefore it should be placed either directly above
or below the center of the TV set. Once you position the
center speaker, try to position the left front and right front
speakers at the same height. It is not recommended to place
any of the satellite speakers on the floor. Many people prefer
to place the center speaker horizontally above the TV set.
· The left rear and right rear speakers can be placed in line
with your listening position or behind your listening position.
Ideally they should be placed slightly above your ear level
when you are seated in your normal listening position.
· We have provided one keyhole opening on the backs of all
the satellite speakers that allow the satellite speakers to be
wall mounted in a vertical position.
· The subwoofer will provide the most dramatic bass effects
(low frequency sounds like explosions and thunder) when it
is placed on the floor. Do not place the subwoofer on a
stand or table. The subwoofer should be placed in the front
of the room so that it is facing towards your listening position.
It can be placed on either side of the TV or even in the
corner of the room, as far away as the cable will allow. The
bass sounds from the subwoofer are non-directional. You
will not really be able to tell where the bass is coming from.
SATELLITE SPEAKERS
Left Front
(usually kept above the TVset)
POSITION FRONT & CENTER SPEAKERS
APPROXIMATELY AT THE SAME HEIGHT
Center
SUBWOOFER
Right Front
· LONG ROOMS - In case your room is unusually long and
longer wire are needed, you may buy any good quality
speaker wire and splice the wires yourself for adding wire
length to your speakers. Be careful not to allow the plus +
and minus - wires to touch each other. Many speaker wires
have a dotted line or solid line or raised rib on one side to
identify each side.
Remember to cover the splices with electrical tape.
OK
for best
sound effect
NO
GOOD
11
NOT ON STAND
IB-HT3916-WM-E-022505
TV CONNECTIONS
(If you don’t have a DVD player yet)
Home Theater System + TV (if your TV has Audio Output jacks)
NOTE:In order to have TV sound come through your home theater
system, your TV must have AUDIO OUTPUT jacks. These jacks will
always be in the rear of the TV (and not in the front). If your TV does not
have these output jacks, you have to use a cable box or a satellite
receiver to get the audio.
If you have a cable box or satellite receiver, you can connect the receiver
AUDIO OUTPUT directly to your MP3/AUX INPUT or any available set of
audio input jacks on the back of the HOME THEATER SYSTEM.
CONNECT ALL SPEAKERS AS SHOWN ON PAGE 8 (OR THE QUICK SETUP DIAGRAM SHEET).
1. Connect the 5 satellite speakers as shown on Page 8 (or the QUICK SETUP DIAGRAM packed with the set).
2. Insert the stereo audio cables (included) into the MP3/AUX INPUT L (left=white) and R (right=red) jacks or any
available set of audio input jacks on the back of your HOME THEATER SYSTEM, and into the corresponding
AUDIOOUT jacks on your TV, this will allow your TV’s sound to play through your HOME THEATER SYSTEM.
NOTE: On some TVs, you may have to activate the audio out jacks of your TV. See your TV’s booklet.
3. Insert the AC power cord into an AC outlet.
4. Make sure the POWER switch on the back of the main set is at “ON” position. Next press the ON/STANDBY button
on the front of the main set or on the REMOTE CONTROL to switch the set on (or standby).
5. Press the SOURCE button several times till the MP3 (or DVD or GAME, according to which audio input jacks are
connected) indicator lights.
NOTE:The factory’s default input source is DVD with 5.1 channel sound output. When the set is turned to
ON, the DVD indicator and 5.1 channel indicator will be on and sound will come out of 5 speakers plus
the subwoofer. To change 5.1 channel to 2.1 channel output, press the CHANNELS button. The sound
will come out of only 2 front speakers plus the subwoofer.
6. Go to Page 21 for other detailed instructions.
NOTE: Your cable or antenna connection to your TV are not touched with this connection. Leave your antenna cable
to your TV as you normally would. No changes will be made to your current antenna connections.
12
IB-HT3916-WM-E-022505
Loading...
