Lenoxx DVB-620 User Manual

Download

MODEL DVB-620

PORTABLE DVD PLAYER

INSTRUCTION MANUAL

6.2" Diagonal LCD Display

•

Plays DVDs, Audio CDs, CD-R/RW, MP3 CDs and Picture CDs

•

Built-in Dolby Digital Decoder

•

Connects to Your Larger Screen Home TV (cable included)

•

Receives AM/FM/FM Stereo Broadcasts

•

Microphone Input Jack for Sing Along Function

•

Audio-in Jack for Playing Any other Audio Device (or MP3 Player)

•

Dual Power AC/DC (uses 8 size “C” batteries, not included)

•

PLEASE READ CAREFULLY BEFORE USE

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM1

IB-DVB620-WM-E-082106

SAFETY INSTRUCTIONS

S3152A

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Rating plate and caution marking are marked on the bottom enclosure of the apparatus.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1.Read these instructions. 2.Keep these instructions.

3.Heed all warnings. 4.Follow all instructions.

5.Do not use this apparatus near water. 6.Clean only with dry cloth.

7.Do not block any ventilation openings, install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12.Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

15.This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shall be placed on the apparatus.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM2

IB-DVB620-WM-E-082106

SAFETY INSTRUCTIONS

Do not apply oil or petroleum products or solvents to any part of this set.

FCC NOTE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

WARNING:

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE

This product incorporates copyright protection technology that is protected by method claims of U.S. patent numbers 4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132 and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open covers and do not repair yourself. Refer servicing to qualified personnel. This DVD VIDEO player is classified as CLASS 1 LASER PRODUCT as stated on the bottom of the set.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM3

INCLUDED ACCESSORIES

The following items are included with your DVD player:

-Remote Control

-AAA Batteries (2)

-Audio/Video Cable

- AC cord

-User’s Guide

-Product Registration Card

IB-DVB620-WM-E-082106

BATTERY SAFETY INSTRUCTIONS

CAUTION:TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE TO YOUR SET, READ AND FOLLOW THESE INSTRUCTIONS.

1.Use only the type and size of batteries mentioned in the operating instructions booklet (batteries are not included with this set, please buy the proper batteries).

2.Do not dispose the batteries into a fire. The cells may explode. Check with local codes for possible special disposal instructions.

3.Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

4.Be careful when handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may over heat and cause burns.

5.Do not attempt to recharge non-rechargeable batteries. The batteries may leak corrosive electrolyte or explode.

6.Do not attempt to rejuvenate the batteries identified for use with this product by heating them. Sudden release of the battery electrolyte may cause burns or irritation to eyes or skin.

7.All batteries should be replaced at the same time. Mixing fresh and discharged batteries could increase internal cell pressure and rupture the batteries.

8.When inserting batteries into this product, the proper polarity ( and ) or direction must be observed. Reverse insertion of some or all of the batteries may result in battery electrolyte leakage or explosion.

9.Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during the period the batteries could leak, damaging the product.

10.Discard weak or dead batteries as soon as possible since they are more likely to leak in the product. Batteries should be replaced (depending on the product) when the display gets dim or if the Low Battery Indicator shows or if the sound gets distorted.

11.Do not store this product in high temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting. Batteries should be stabilized at room temperature prior to use after cold storage.

12.If this product does not operate normally, see TROUBLE SHOOTING in this instruction manual. If you can’t resolve the problem, or if the product is damaged, refer to the LENOXX WARRANTY INFORMATION. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

13.If liquid leaks from the batteries, carefully wipe this liquid. Do not allow it to touch your skin, and discard the leaking batteries.

14.Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).

15.The use of rechargeable batteries is not recommended for this set because their voltage and life is lower than standard batteries.

16.Installation of batteries should be done by an adult only for safety.

SAVE THESE INSTRUCTIONS

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM4

IB-DVB620-WM-E-082106

TABLE OF CONTENTS

• Getting Started

Safety Instructions ----------------------------------------------------------------------------------1 Battery Safety Instructions -------------------------------------------------------------------------3 Controls Overview ----------------------------------------------------------------------------------5 Power Supply ----------------------------------------------------------------------------------------8 DVD Remote Control Operation -------------------------------------------------------------------9 Using the Folding Legs to Adjust the Viewing Angle ---------------------------------------------9 Notes on Discs --------------------------------------------------------------------------------------10

• DVD Play

1. Playing a Disc ---------------------------------------------------------------------------------11

2. Using the Search Functions -----------------------------------------------------------------12

3. Selecting Audio Mode -------------------------------------------------------------------------12

4. Changing Subtitle Language -----------------------------------------------------------------12

5. Displaying Disc Information ------------------------------------------------------------------13

6. Repeat Play ------------------------------------------------------------------------------------14

7. Slow-Motion Play ------------------------------------------------------------------------------14

8. Zoom Play --------------------------------------------------------------------------------------15

9. Search for Preferred Play -------------------------------------------------------------------15

10. Viewing from a Desired Angle ---------------------------------------------------------------16

11. Programmed Play -----------------------------------------------------------------------------16

12. MP3 Disc Operation --------------------------------------------------------------------------17

13. JPEG or Picture Disc Operation ------------------------------------------------------------17

• Connection

Connecting the DVD Player to Your TV ----------------------------------------------------------18 Watching a DVD on Your TV ----------------------------------------------------------------------19

• Initial Setting

System Setup (TV System, LCD Mode, TV Type & Default)

Setting the TV System ------------------------------------------------------------------------20 Setting the LCD Mode ------------------------------------------------------------------------20 Selecting the TV Type ------------------------------------------------------------------------21

Default - Resetting the Functions to Factory Defaults-------------------------------------21 Language Setup (OSD, Audio, Subtitle & Menu) ------------------------------------------------22 Audio Setup ------------------------------------------------------------------------------------------22 Video Setup ------------------------------------------------------------------------------------------22 Speaker Setup ---------------------------------------------------------------------------------------22

• Other Functions

Playing Another Audio Device Through Your Set -----------------------------------------------23 Karaoke Function -----------------------------------------------------------------------------------23 AM/FM/FM Stereo Radio Reception -------------------------------------------------------------24 Connecting to Your Headphones -----------------------------------------------------------------24

• Precautions -----------------------------------------------------------------------------------------25

• Trouble Shooting ----------------------------------------------------------------------------------26

• Glossary ---------------------------------------------------------------------------------------------29

• Specifications ---------------------------------------------------------------------------------------30

• Limited Warranty -----------------------------------------------------------------------------------31

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM5

IB-DVB620-WM-E-082106

CONTROLS OVERVIEW

Front View

5 67 8 9

1.POWER INDICATOR – Lights up when the set is on.

2.REMOTE SENSOR – Receives signals from the remote control.

3.FOLDING HANDLE – For easily carrying of the set.

4.FM STEREO INDICATOR – Lights up when receiving an FM stereo broadcast.

5.SPEAKERS – Provide stereo sound.

6.AUDIO-IN JACK – For playing another audio device through this set.

7.MICROPHONE JACK – For inserting a microphone (microphone is not included).

8.MICROPHONE LEVEL CONTROL – Rotate to adjust the input level of the microphone.

9.LCD SCREEN – Provides a high resolution picture.

10.FOLDING LEGS (not shown, on the bottom of the set) – For adjusting the set to a

suitable viewing position (level with your eyes).

11.VOLUME CONTROL – Turn left or right to adjust the volume.

12.FUNCTION SWITCH – Rotate to select DVD (AUDIO IN) or OFF or RADIO function.

13.DISC DOOR – Open the door by lifting the right corner and set the disc inside it.

14.RADIO BAND SWITCH – Rotate to select AM, FM or FM STEREO.

15.RADIO TUNING CONTROL – Turn left or right to tune the radio station.

16.ADJUST BUTTON – Press to display the LCD screen color, brightness or contrast

function, then press the PREVIOUS or NEXT button to adjust the level.

17.PREVIOUS BUTTON – Press to skip to the previous title, chapter or track.

18.NEXT BUTTON – Press to skip to the next title, chapter or track.

19.BASS BOOST BUTTON – Press to turn on or turn off the bass boost function.

20.BACKWARD BUTTON – Press to scan backward.

21.STOP BUTTON – Stops playback, press twice for full stop.

22.PLAY/PAUSE BUTTON – Press to start or pause play..

23.FORWARD BUTTON – Press to scan forward.

Top View

16171219 20212223

13 14 15

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM6

IB-DVB620-WM-E-082106

CONTROLS OVERVIEW

Back View

2 3 4 5 6 7 8

1.FM ANTENNA – Change the position of the antenna for FM or FM stereo reception.

2.VIDEO JACK – Connect the DVD player to your TV video input jack with the supplied video

cable.

3.AUDIO JACKS – Connect the DVD player to your TV or home theater system with the supplied audio cables.

4. S-VIDEO JACK – Connect the DVD player to your TV using an S-Video cable (S-Video cable is not included).

5.COAXIAL JACK – Connect the DVD player to your home theater system using a coaxial cable (coaxial cable is not included).

6.BATTERY COMPARTMENT – Insert 8 size “C” batteries into it for DC power.

7.DISPLAY ON/OFF SWITCH – Switch the LCD screen on or off (for external TV use only).

8.AC SOCKET – For connecting the AC cord.

9.PHONES JACK – Insert your headphones (not included) to enjoy the sound without disturbing

others.

IB-DVB620-WM-E-082106

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM7

SUBTITLE

AUDIO

REPEAT

PLAY/PAUSE

CONTROLS OVERVIEW

1.DISPLAY button – Press this button to view

REMOTE CONTROL

(Used only for DVD play)

1 2 3

6 7

DISPLAY

TITLE

ANGLE

PROGRAMCLEAR

RC-620N

MUTE

SETUP

STOPSLOW

ZOOM

2.MENU button – Press to display the disc’s

3.TITLE button – Displays the title menu (only

4. / button – Press to skip to previous

5. / button – Press to skip to next title,

6.DIRECTION buttons – Used in DVD menus

7.OK button – Press to start, pause play or

8.NUMERIC buttons – Used in DVD menus

9.ANGLE button – In DVD mode, press to display

10.PROGRAM button – Press to program your

the elapsed time, title or chapter information and the track numbers during play.

menu (only if your disc has a menu).

if it is present in the disc).

title, chapter or track / press and hold more than 1 second to scan backward.

chapter or track / press and hold more than 1 second to scan forward.

& audio MP3 track selection.

or confirm a selection or command.

& audio CD/MP3 track selection.

angle menu (if present on the DVD disc).

favorite track in CD/MP3 mode.

11.MUTE button – Instantly turns off the sound, press again to restore the sound.

12.SETUP button – Press to display the DVD player’s setup menu.

13.STOP button – Stops play, press twice to full stop.

14.SLOW button – Press to view slow motion playback in DVD mode.

15.SUBTITLE button – Press to setup the subtitle (if available on your disc).

16.AUDIO button – Press to select the desired audio channel(s).

17.SEARCH button – Allows you to select the desired disc starting time, track or title for playback.

18.REPEAT button – Press this button to repeat the current track, chapter, title, a chosen

section (A to B), or all of the disc.

19.ZOOM button – Press to zoom (enlarge) the playing picture in DVD mode.

20.CLEAR button – Press to clear the selection in the program function.

21.REMOTE CONTROL’S lens – Sends the signal to the set. Do not block or cover this,

keep this clean for best operation.

NOTE: The remote control will only work on DVD play mode. Please turn on the power and set the

function switch to DVD (AUDIO IN) position.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM8

IB-DVB620-WM-E-082106

POWER SUPPLY

You can power this portable DVD player by AC power or 8 size “C” batteries.

1.Connecting the AC power cord

Insert one end of the supplied AC power cord into the socket located at the rear of the player, and the other end to the wall outlet.

To AC outlet

NOTE:

One blade of plug and outlet is wider. If the plug of the AC power cord does not match your outlet, do not force it, reverse it and try again. The plug is polarized and only fits one way into the wall outlet and back of the set.

2.Using the player on batteries

Insert 8 size “C” batteries (not supplied) into the battery compartment. To use the player on batteries, disconnect the AC power cord both from the outlet and the back of the player.

NOTE 1:

Replace the batteries when the low power icon “ ” appears on the LCD screen and the player stops operating. If there is

no power indicator at all on the DC power (but OK on AC power), this means the batteries are completely dead. Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the disc from the player and remember to check the Battery Safety Instructions on Page 3.

NOTE 2:

If the low power icon “ ” appears on the LCD screen and the DVD does not play on batteries, this means the batteries are almost used up. But the radio may continue to play on these weak batteries because it uses less power than the DVD player.

Install batteries as shown

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM9

IB-DVB620-WM-E-082106

DVD REMOTE CONTROL OPERATION

Used only for DVD play

Insert 2 size “AAA” alkaline batteries (included) into the battery compartment according to the + and – markings inside the battery compartment.

NOTE:

Point the remote control unit from less than 20 feet (6 m) from the remote sensor and within

•

about 60o of the front of the unit. When the batteries become weak, the operating distance of the remote control decreases

•

and you will need to replace the batteries. When the remote control is not to be used for a long time (1 month or more), remove the

•

batteries to avoid possible damage that may be caused by battery leakage. Avoid keeping the remote control in extremely hot or humid locations.

•

Do not point bright lights at the remote control sensor (such as laser pointers).

•

Do not place objects between the remote control unit and the remote control sensor.

•

Do not use this remote control while using the remote control unit of any other equipment at

•

the same time, the signals may mix.

USING THE FOLDING LEGS TO ADJUST THE VIEWING ANGLE

You can unfold the two legs on the bottom of the set to adjust the viewing angle. The best viewing angle is looking at the screen straight on, level with your eyes.

Folding legs

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM10

IB-DVB620-WM-E-082106

NOTES ON DISCS

Discs that can be played

DISC TYPE & LOGO MARK

DVD Video

(Region 1)

DVD-R / DVD-RW

JPEG disc

Music CD Audio only

CD-R disc

CD-RW disc

MP3 disc

“.JPG” or “JPEG”

MP-3

RECORDED CONTENT

Video + Audio

Video only (Photos)

or Audio / Video

Audio only

or Audio / Video

Audio only

or Audio / Video

Audio only

NOTE: A hand symbol “ ” may appear on the screen when pressing some buttons. A “ ”

means that the operation is not permitted by the DVD player for the disc in that mode or at that time. Sometimes, the set needs to be in stop mode or other modes for that button to work.

Discs that cannot be played

CD-Is, CD-ROMs (including computer software discs and game discs), data part of CD-Extras, DVD-ROMs, DVD Audio discs, DIVX, MPEG 4 DVD discs, HD layer on SACDs or discs recorded in another format such as SECAM, and regions other than your region. This set will also not play damaged, scratched or dirty discs.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM11

IB-DVB620-WM-E-082106

DVD PLAY

1. PLAYING A DISC

1 Connect the DVD player to a wall outlet or power it with 8 size “C” batteries.

2 Switch the DISPLAY ON/OFF switch (on the back of the set) to the ON position.

3 Turn the function switch to the DVD (AUDIO IN) position, the DVD logo (start-up picture) will

appear on the screen.

4 Lift the right corner of the DVD player to open the disc door.

Place a disc gently on the tray with the label side up, make sure the disc is seated on the spindle by pressing down in the center, close the door by pushing it down. The DVD player starts to read the disc’s table of contents (this may take a few seconds).

NOTE 1: Load the disc with the label side facing up, when playing a double-sided disc,

NOTE 2: “NO DISC” will show in the display if the disc is upside down or the disc is badly

5 Some discs will start playing automatically, and others will display the Disc Contents

Menu on the screen. If the menu is shown, use the ( , , & ) direction buttons on the remote to highlight your selection and press the OK button to confirm. If your remote is not handy you can press the PLAY/PAUSE button on the set.

6 Turn the volume control on the set to adjust the volume level. 7 Press the ADJUST and NEXT/PREVIOUS buttons on the set to adjust the color, brightness

and the contrast of the LCD screen if needed.

9 To stop playback, press the STOP button.

10 To pause the playback, press the OK button on the remote or the PLAY/PAUSE button

on the player. To resume playback, press the OK button on the remote or the PLAY/PAUSE button on the player again.

NOTE 1: During play, pressing the STOP button once will show “PRE STOP ” in the

NOTE 2: Leaving the set in the stop mode for a longer time will drain the batteries the

11 To skip to another track/chapter, press the NEXT or PREVIOUS button

repeatedly during playback.

12 To access the disc menu or title menu during DVD play, press the MENU or TITLE button

on the remote control.

13 Remember to shut off the player by turning the FUNCTION switch to the OFF position

when the movie finishes playing.

NOTE: This player has a screen saver which will display a bouncing DVD logo if no video is

load it with the desired playing side face down.

scratched or dirty, it will not play. Please clean it or change the disc before use. Also you can buy a disc polisher to try to repair the scratched disc.

8 Unfold the 2 legs on the bottom of the set to adjust the

viewing angle. The best viewing angle is looking at the screen straight on, level with your eyes.

display, if you press the STOP button the second time, the display will show “STOP ”, and now your system is in the full STOP mode.

same as during normal play. Remember to shut the power after use.

played for a while.

IB-DVB620-WM-E-082106

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM12

2. USING THE SEARCH FUNCTIONS

During play, you can search quickly through a chapter or track.

Search through a chapter or a track

1 During play, press the FORWARD button on the player or press and hold the FORWARD

button on the remote to search forward at a faster speed, the fast search speed changes as follows:

FORWARD X2 FORWARD X4 FORWARD X8 FORWARD X20

PLAY

2 During play, press the BACKWARD button on the player or press and hold the BACKWARD

button on the remote to search backwards at a faster speed, the search speed changes

as follows:

BACKWARD X2 BACKWARD X4 BACKWARD X8 BACKWARD X20 PLAY Y

NOTE: In any fast forward or fast backward mode, press the OK button on the remote or

press the PLAY/PAUSE button on the player to return to normal play mode immediately.

3. SELECTING AUDIO MODE

If a DVD disc contains a Multi-Audio soundtrack feature, you can select the desired audio language by pressing the AUDIO button on the remote repeatedly during play, playback status will be displayed on the screen. The AUDIO button can also select director’s cuts dialogue and other disc dialogue.

NOTE 1: If you press the AUDIO button for several times, but the desired language is not

NOTE 2:This DVD player does not support DTS decoding. For discs with DTS decoding,

selected, it means a second language is not available on the disc.

please press the AUDIO button to select another audio output mode, such as AC-3 or until you hear the sound.

4. CHANGING SUBTITLE LANGUAGE (DVD ONLY)

You can select a desired subtitle quickly and easily with the SUBTITLE button on the remote.

NOTE: This operation works only with DVD discs on which multiple subtitle languages are

recorded. Some DVDs have no subtitles, some may have 5 or more. If no subtitles are recorded on your DVD, pressing this button will not change the subtitles.

To remove the subtitles display, press the SUBTITLE button again until “ : [OFF] ” shows.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM13

IB-DVB620-WM-E-082106

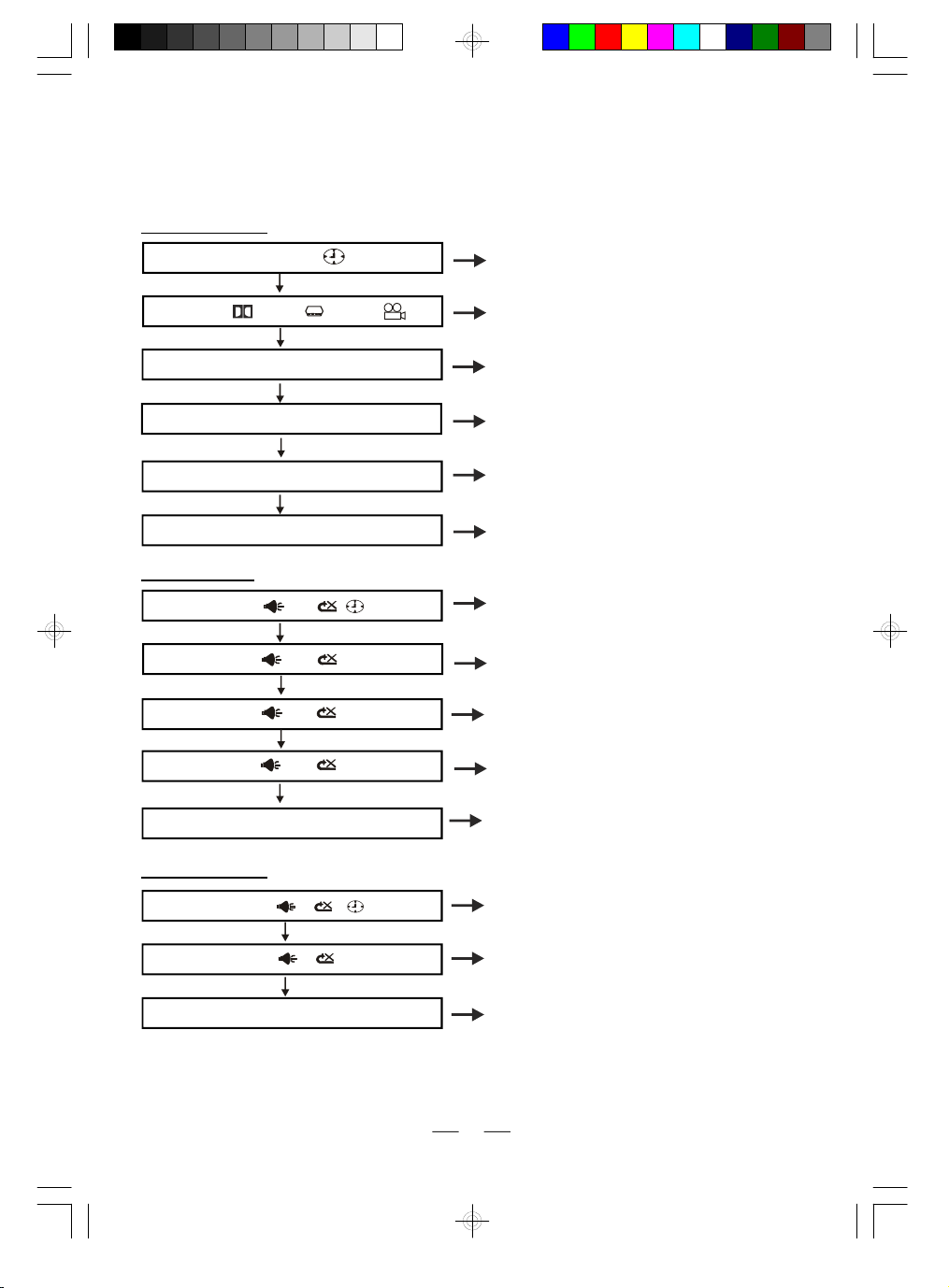

5. DISPLAYING DISC INFORMATION

If you want to know the disc information during play, press the DISPLAY button on the remote, the disc information will appear on the top of the screen as shown below:

For DVD Play

DVD TT 1/2 CH 6/12 00:02:35

The information about the title/chapter number and chapter elapsed time is shown.

o)) 1/3ENG 5.1CH 2/3ENG OFF

DVD TT 1/2 CH 6/12 C-00:06:41

DVD TT 1/2 CH 6/12 T 00:18:05

DVD TT 1/2 CH 6/12 T-01:05:40

OFF

For CD Play

CD TRK 2/12 00:01:03

CD TRK 2/12 C-00:02:42

CD TRK 2/12 T 00:10:49

CD TRK 2/12 T-00:40:35

OFF

The information about the AUDIO, SUBTITLE and ANGLE is shown.

The information about the chapter remaining time is shown.

The information about the title elapsed time is shown.

The information about the title remaining time is shown.

The information display goes off.

The information about the current track elapsed time is shown.

The information about the current track remaining time is shown.

The information about the total track elapsed time is shown.

The information about the total track remaining time is shown.

The information display goes off.

For MP3 Play

MP3 TRK 2/124 00:03:03

MP3 TRK 2/124 C-00:01:36

OFF

NOTE 1: “TT” stands for title, “CH” stands for chapter, and “TRK” stands for track.

NOTE 2: Depending on the disc, the above information may not appear on your screen or you

may not be able tochange the display.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM14

The information about the current track elapsed time is shown.

The information about the current track remaining time is shown.

The information display goes off.

IB-DVB620-WM-E-082106

6. REPEAT PLAY

Allows you to repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. Each time you press the REPEAT button on the remote control repeatedly, the repeat mode

changes as follows:

For DVD

REP: [CHAPTER] REP: [TITLE]

REP: [REP ALL]

REP: [OFF]

WILL REPEAT THIS

CHAPTER OVER AND OVER

WILL REPEAT THIS

TITLE OVER AND OVER

A-B CANCEL

“A-B CANCEL” SHOWS AND

NORMAL PLAY RESUMES

WILL REPEAT THIS

DISC OVER AND OVER

REPEAT A TO B SEGMENT OVER AND OVER.

NORMAL PLAY

REPEAT A-REPEAT A-B

NOTE: When you select “A TO B” repeat play:

1. Press the REPEAT button until “REPEAT A- ” appears at the beginning of the segment (point A) you want to play repeatedly.

2.Press REPEAT button again at the end of the segment (point B), “REPEAT A-B” will appear on the display.

3.The DVD player will automatically play the selected segments A to B over and over till you press REPEAT button again.

For CD

REP: [REP 1] REP: [REP ALL] REP: [OFF] REPEAT A - REPEAT A-B A-B CANCEL

For MP3

REP: [REP 1] REP: [REP DIR] REP: [REP ALL] REP: [OFF] REPEAT A -

REPEAT A-B A-B CANCEL

7. SLOW-MOTION PLAY (JUST FOR DVD)

A disc can also be played in slow-motion by pressing the SLOW button.

1 Each time you press the SLOW button on the remote during play, the playback speed will

change as follows:

SF 1/2 SF 1/3 SF 1/4 SF 1/5 SF 1/6 SF 1/7 PLAY Y

2 Press the OK button to resume normal play from any slow-motion mode.

NOTE 1: Sound will be silent during slow motion play.

NOTE 2: SF stands for SLOW FORWARD.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM15

IB-DVB620-WM-E-082106

8. ZOOM PLAY (FOR DVD)

The ZOOM button allows you to do a minimal zoom into a picture as well as shift the zoom point.

1 Press the ZOOM button on the remote repeatedly to enlarge or reduce a picture. The

display will show as follows:

ZOOM 2 ZOOM 3 ZOOM 4 ZOOM 1/2 ZOOM1/3 ZOOM1/4 ZOOM: OFF

2 Press the DIRECTION buttons ( , , & ) to move the enlarged picture up, down, left or

right.

3 To return to normal play from the ZOOM mode, press ZOOM button repeatedly till the icon

shows “ZOOM: OFF”.

NOTE 1: Some discs may not respond to the zoom feature and during some zoom functions

NOTE 2: When reducing to smaller sizes, the black area around the picture will enlarge, this

the picture edges may seem fuzzy, this is normal.

is normal.

9. SEARCH FOR PREFERRED PLAY

To select a scene with the title, the chapter, the track number or the time during play use the SEARCH button.

1 Press the SEARCH button on the remote

during play, the screen will show as on the right:

2 Move the LEFT & RIGHT DIRECTION

buttons ( & ) and press the number buttons on the remote to select the title, the track, or the time, then press the OK button to confirm.

3 The player will jump to play the section

you selected and the menu display disappears from the screen.

NOTE:

The search function may not work during the opening screens of many DVDs, such as the FBI warnings etc.

Press SEARCH for DVD

for searching by title, chapter & time

DVD TT 01/02 CH 002/013 00:02:03

title you want

to jump to

chapter you want

to jump to

time you want

to jump to

Press SEARCH for CD

CD TRK 02/12 00:03:111

track you want

to jump to

input the minute

you want to jump to

input the second you want to jump to

Press SEARCH for MP3

MP3 TRK 0016/154 00:01:21

track you want

to jump to

input the minute

you want to jump to

input the second you want to jump to

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM16

IB-DVB620-WM-E-082106

10. VIEWING FROM A DESIRED ANGLE (DVD ONLY)

Some DVD video discs may contain scenes which have been shot simultaneously from a few

different angles. This icon 3 will be on the DVD case if it contains these multi-angle shots. Certain scenes can be viewed from many different angles by pressing the ANGLE button on

the remote.

ANGLE 1 ANGLE 2 ANGLE 3

NOTE: 1. The recorded angles differ depending on the disc used.

2.Only some DVD discs have this feature (very few).

3.If this feature is not available on your DVD, a hand “ ” will show in the top left corner when the ANGLE button is pressed.

11. PROGRAMMED PLAY

You can make a program of up to 16 tracks in the order you want them to be played. This feature can be used on CD and MP3.

1 Press the PROGRAM button on the remote control, the screen will display the program menu:

PROG

1 _ _ _ _ 5 _ _ _ _ 9 _ _ _ _ 13_ _ _ _

2 _ _ _ _ 6_ _ _ _ 10 _ _ _ _ 14_ _ _ _

3 _ _ _ _ 7 _ _ _ _ 11 _ _ _ _ 15_ _ _ _

4 _ _ _ _ 8 _ _ _ _ 12 _ _ _ _ 16_ _ _ _

PLAY CLEAR

2 Use the number buttons and the direction buttons to enter the track numbers of the songs on

the disc into the numbered positions. The positions represent the order in which you would like the songs to be played. If you want to change the track number, press the CLEAR button to clear it, then input a new track number.

3 After programming, press the direction buttons to select PLAY, then press OK button on the

remote, the player will start to play the disc in the programmed order you selected.

4 To skip to the next (programmed) track, press the NEXT button. 5 To stop programmed playback, press STOP button twice, or open the disc door.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM17

IB-DVB620-WM-E-082106

12. MP3 DISC OPERATION

[MP3]01-------MP3

02.02

03.03

04.04

05.05

06.06

07.07

08.08

09.09

10.10

01.01

This allows you to play your MP3 audio recorded disc you made on this set. This set will not play WMA format songs. When recording your MP3 disc on your computer, please record the songs in MP3 format.

1 Load your recorded MP3 disc into the player, a menu will

01.MP3

show on the screen.

2 Select the desired folder by pressing the direction buttons ( / / / ). 3 Press the OK button to open the folder.

4 Select the desired track by pressing the direction buttons ( / / / ). 5 Press the OK button to start playback. 6 You may use the PREVIOUS or NEXT button to skip to the previous or next track. 7 Press the BACKWARD or FORWARD button on the player for fast backward or fast

forward play.

8 Press STOP button to stop playing.

13. JPEG OR PICTURE DISC OPERATION

You can play your JPEG or picture disc on this set.

1 Load a JPEG disc or picture CD disc into the player, a menu will show on the screen. 2 Go to the menu of directory which you want to view by using the DIRECTION buttons, press

the OK button to start the JPEG play.

3 During the picture show, use the ( / / / ) direction buttons to rotate, invert, or mirror

the picture right or left.

4 Press the PROGRAM button on the remote to change the picture display directions, the picture

display will start from the top, or the bottom or the left or the right or any of the corners.

5 Press the ZOOM button on the remote repeatedly to enlarge or reduce a picture. The display will

show as follows: ZOOM 2 ZOOM 3 ZOOM 4 ZOOM 1/2 ZOOM1/3 ZOOM1/4 ZOOM: OFF To move the enlarged picture in any direction, press any of the ( / / / ) direction buttons. To return to normal view, press ZOOM button till “ZOOM: OFF” shows on the screen.

6 Press the NEXT button to see the next image in your folder.. 7 Each picture in the current directory will be displayed consecutively in a slide show

presentation.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM18

IB-DVB620-WM-E-082106

CONNECTING THE DVD PLAYER TO YOUR TV

AUDIO INLR

WHITE

S-VIDEO

AUDIO IN

VIDEO INLR

WHITE

VIDEO IN

YELLOW

This DVD player can also be used to view movies on your large screen TV. When viewing on your TV, you may switch the DISPLAY ON/OFF switch to the OFF position to shut off the TFT LCD display.

Always ensure when connecting cables, the DVD player, TV and any other electrical equipment are turned off and not plugged into the AC outlet. Ensure that you observe the color coding when connecting audio and video cables.

1. Using the attached audio and video cables

YELLOW

RED

YOUR TV

YELLOW

RED

2.S-Video connection (better picture, S-Video cable is not included)

RED

YOUR TV

NOTE 1: Please follow the cable plug colors during connection.

NOTE 2: If you connect the DVD player to your large screen TV follow above two ways, the

sound will come out from both the DVD player and your TV set. You can adjust both the DVD player’s and your TV’s volume control to adjust the volume, or you can only connect the DVD player to your TV using the video or s-video cable, the sound will come out from the DVD player only.

NOTE 3: S-Video will provide sharper images than normal video.

3. Connecting to a digital home theater system using a coaxial cable (not included)

YOUR TV

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM19

YOUR HOME

THEATER SYSTEM

OR AMPLIFIER

COAXIAL

NOTE 1:

Coaxial connection will provide a higher quality sound.

NOTE 2:

Refer to your home theater system’s manual before connection.

NOTE 3:

In this connection, in order to enjoy the best sound, please turn the volume control on the DVD player to minimum.

IB-DVB620-WM-E-082106

WATCHING A DVD ON YOUR TV

After all the connections have been done, please follow steps below to watch a DVD on your TV.

1 Make sure all of the equipment is plugged back into the AC power. 2 Turn the function switch to the DVD (AUDIO IN) position. 3 Turn on your TV and set it to DVD mode (please see box below), when the correct channel

or input is found, the DVD logo will appear on your TV’s screen.

4 Lift the right corner of the DVD player to open the disc door. Place a disc gently on the

tray with the label side up, make sure the disc is seated on the spindle by pressing down in the center, close the door by pushing it down. The DVD player starts to read the disc’s table of contents (this may take a few seconds).

5 Some discs will start playing automatically, and others will display the Disc Contents

Menu on the screen. If the menu is presented, use the ( , , & ) direction buttons on the remote to highlight your selection and press OK button to confirm.

6 Adjust the volume control of your DVD player and your TV’s remote to adjust the volume level. 7 Switch the DISPLAY ON/OFF switch to OFF position, the DVD player will continue to

work, but the screen will be dark.

8 To stop playback, press the STOP button. 9 To pause the playback, press the OK button on the remote. To resume playback, press

the OK button again.

NOTE 1: During play, press the STOP button once, the display will show “ PRE STOP ”.

NOTE 2: If using battery power, leaving the set in the stop mode for a longer time will

10 To skip to another track/chapter, press the NEXT or PREVIOUS button repeatedly

during playback.

11 To access the disc menu or title menu during DVD play, press the MENU or TITLE button

on the remote control.

12 If you want to use other DVD play functions, please see pages 12-17. 13 Remember to shut off the player by turning the FUNCTION switch to the OFF position

when the movie finishes playing.

If you press the STOP button the second time, the display will show “ STOP ”, and now your system is in the full STOP mode.

drain the batteries the same as during normal play. Remember to shut the power after use.

How to Find your TV’s Video Input Channel

Make sure you have made all the connections (see page 18), you may need to change your TV’s video input mode to see the DVD player’s menu and movies, also double check that both TV and player are plugged into the AC outlet.

1.Set your TV to the correct video input. For example, if you connect this player to the VIDEO 1 input on your TV, switch your TV to video 1.

2.Switch your TV to the correct video input channel. The video input channel varies with different TV brands and models, many TV remote controls have a TV/VIDEO button which can be used to change to different video inputs and back to TV for normal broadcast viewing, on some older TVs, you may need to press channel 3 or 4 on your TV’s remote. Once you selected the correct channel, your TV will show the opening DVD screen. For more details, please see your TV’s manual.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM20

IB-DVB620-WM-E-082106

INITIAL SETTING

SYSTEM SETUP

For TV or Portable Use

When using the DVD player for the first time, you may need to set some of the settings and adjustments according to your TV and favorite preferences.

You can get to the SETUP menu by following the below steps.

1 Press the SETUP button, a SETUP menu will

appear on the TV screen.

2 Use the / / / buttons on the remote

control to highlight your selection.

SYSTEM SETUP

TV SYSTEM

LCD MODE

TV TYPE DEFAULT

3 Press the OK button to confirm your selection. 4 When the setup has been done, press the

SETUP button to exit the SETUP mode.

SYSTEM SETUP (TV SYSTEM, LCD MODE, TV TYPE & DEFAULT)

Setting the TV SYSTEM (only when you are using your TV to watch the picture).

- NTSC

A USA video standard. If your TV is NTSC system, select this mode.

- AUTO

If the connected TV is multi-system, select this mode. The output format will be in accordance with the video signal of the disc.

Setting the LCD MODE

This allows you to set the aspect ratio of the LCD screen.

EXIT SETUP

TV SYSTEM NTSC

LCD MODE

TV TYPE DEFAULT

EXIT SETUP

AUTO

Normal TV type screen

Widescreen

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM21

4:3

16:9

TV SYSTEM

LCD MODE

TV TYPE DEFAULT

EXIT SETUP

4:3

16:9

IB-DVB620-WM-E-082106

INITIAL SETTING

16X9 Widescreen

4X3 Standard

4X3 Letterbox

SYSTEM SETUP

Selecting the TV TYPE

Select the aspect ratio of the movie to match the LCD screen and your TV set. There are three types of screen sizes you may select.

NOTE: If your DISC is not encoded to allow you to

change the aspect ratio, the TV display cannot be changed.

4 X 3 Standard (4:3 PS PAN and SCAN) - Choose this setting if you want to see the movie fill the entire screen of your TV. This might mean that parts of the picture (the left and right edges) won’t be seen. Most discs produced in a WIDESCREEN format can’t be cropped in this fashion.

4 X 3 Letterbox (4:3 LB LETTER BOX) - Choose this setting if you want to see movies in their original aspect ratio (width-toheight ratio). You’ll see the entire frame of the movie, but it will take up a smaller portion of the screen vertically. The movie will appear with black bars at the top and bottom of the screen, but you will see everything to the left and right of the center as in a movie theater.

16 X 9 Widescreen (16:9) - Choose this setting if your DVD Player is connected to a WIDESCREEN TV. If you choose this setting and you don’t have a widescreen TV, the images on the screen may appear distorted due to vertical compression (faces may seem long and thin). If you play a disc recorded in 4 X 3 format on a widescreen TV, the left and right side of the screen will appear black. Press SETUP button to change to 4:3 ratio or match the type of TV you have.

NOTE: For 16:9 Widescreen TV TYPE, you need to adjust both the LCD mode and the TV TYPE to 16:9 (see page 20 for Setting the LCD MODE).

TV SYSTEM

LCD MODE

TV TYPE DEFAULT

EXIT SETUP

4:3 PS

4:3 LB

16:9

Default - Resetting the functions to factory defaults

In case you fiddled around with your set’s controls and you cannot return the set to its normal operation; you can reset the major options on this set.

NOTE:

If you set “DEFAULT ”, all items in the setup menu will be reset to default setting.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM22

TV SYSTEM

LCD MODE

TV TYPE DEFAULT

EXIT SETUP

RESTORE

IB-DVB620-WM-E-082106

INITIAL SETTING

LANGUAGE SETUP

AUDIO SETUP

SPEAKER SETUP

VIDEO SETUP

LANGUAGE SETUP (On Screen Display, AUDIO, SUBTITLE & MENU)

These items allow you to preset the OSD language (OSD = On Screen Display), audio language, subtitle language, and menu language that will always be used for every disc on this player (if the language selected is available).

NOTE 1: If the language selected is not available on

the disc, the original language designated by each disc will be selected.

NOTE 2: You can change the AUDIO or SUBTITLE

language easily by pressing the AUDIO or SUBTITLE button (refer to page 12).

AUDIO SETUP (DIGITAL OUT) - Only for COAXIAL connection mode

Your DVD player can be connected to a home theater system with a coaxial digital audio jack for high quality sound. Digital audio output allows you to select SPDIF/RAW or SPDIF/PCM digital signal.

A. SPDIF/RAW

The coaxial output is connected to a receiver that accepts Dolby Digital or other signals. It works for most of the coaxial connections.

B. SPDIF/PCM

The coaxial output is connected to a receiver that accepts PCM signals.

VIDEO SETUP

These settings allow you to set the video signal Brightness, Contrast, Hue, and Saturation.

BRIGHTNESS - The brightness of the video signal, (how light the picture is). CONTRAST - The contrast of the video signal, (the dark portions of pictures). HUE - The hue of the video signal, (the color of the pictures). SATURATION - The saturation of the video signal, (the vividness of the color). All above can be adjusted to your tastes.

OSD LANGUAGE ENGLISH

SUBTITLE LANG MENU LANG

EXIT SETUP

AUDIO OUTPUT SPDIF/RAW

EXIT SETUP

BRIGHTNESS CONTRAST HUE SATURATION

EXIT SETUP

SPANISHAUDIO LANG FRENCH

SPDIF/PCM

8 6 4 2 0

SPEAKER SETUP (DOWNMIX)

Whether you use the DVD player standalone, connect

DOWNMIX LT/RT

STEREO

to a TV or a home theater with the supplied A/V cables, you can select the audio output by entering SPEAKER

SETUP and setting the DOWNMIX.

EXIT SETUP

- LT/RT

LT/RT stands for left and right soundtrack. Select this item when the disc supports Pro Logic Dolby Stereo. You have the opportunity to hear a program’s soundtrack in the most accurate and realistic presentation possible.

- STEREO

For 5-channel output, the left and right track signals are output simultaneously. For your home theater, set the menu to stereo.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:16 PM23

IB-DVB620-WM-E-082106

PLAYING ANOTHER AUDIO DEVICE THROUGH YOUR SET

You can enjoy the music of a digital MP3 player, computer or any other external audio device (with a 3.5mm stereo jack) through the set.

1.Insert an audio cable (not included) with 3.5mm plugs on each end into the HEADPHONES jack or LINE OUT jack of your MP3 player or computer, and the other end into the AUDIO IN jack of the set. This cable is available in any electronic store.

(3.5 mm)

NOTE:

When connecting an audio player to the set while the set is playing a DVD, the set will exit DVD mode and switch to AUDIO IN mode automatically.

2.Connect the supplied AC power cord.

3.Turn the FUNCTION switch to DVD/AUDIO IN position.

4.Turn on your MP3 player or computer, adjust the VOLUME control of the MP3 player/ computer and the set to the desired level. (If no sound, raise your MP3 player’s volume).

5.Turn the function switch to OFF position after use.

(3.5 mm)

(Sing along function)

KARAOKE FUNCTION

This DVD player supports KARAOKE (sing along microphone) function, only the 3.5 mm plug microphone can be used on this DVD player.

1.Place a KARAOKE disc into the disc tray by following the steps for playing discs on page 11.

2.Insert a 3.5 mm plug microphone into the microphone jack (the microphone is not included).

3.Turn on your microphone.

4.Adjust the volume of the microphone by turning the microphone volume level control and the VOLUME control of the DVD player.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM24

Microphone volume

level control

IB-DVB620-WM-E-082106

AM/FM/FM STEREO RADIO RECEPTION

FM antenna

Radio band switch

Function switch

Volume control

1.Connect the supplied AC power cord.

2.Turn the function switch to RADIO position.

3.Turn the radio band switch to your desired band position (AM, FM or FM STEREO).

4. Adjust the volume.

5.Tune into the station you prefer using the TUNING control. Adjust for the clearest sound. If you are listening to an FM STEREO radio, the FM STEREO indicator lights up.

6.To improve the radio reception, change the position of the antenna for FM and FM STEREO, move the set itselt for AM.

7. In FM stereo mode, you may hear hissing if the station is weak. Adjust the antenna or switch to FM (mono) position.

8.Turn the function to the OFF position after use.

Tuning control

CONNECTING TO YOUR HEADPHONES

Turn down the volume of the DVD player and connect the headphones (optional, not included) to the DVD player’s PHONES jack. When headphones are connected, the speakers of your DVD player will automatically turn off. Adjust the volume to your taste (but not too loud).

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM25

IB-DVB620-WM-E-082106

PRECAUTIONS

Safety

As the laser beam used in the DVD player

•

may be harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only (it is perfectly safe if you don’t unscrew and open the cabinet).

Should any solid object or liquid fall into

•

the player, unplug the player, and have it checked by qualified personnel before operating it any further.

Placement of Your DVD Player

Do not leave the player in a location near a

•

heat source, or in a place subject to direct sunlight, excessive dust or mechanical shock.

Do not place the player on an incline or

•

unstable place, it may fall and break. Do not place anything within 2 inches of

•

the sides or back of the cabinet. The ventilation holes must not be covered for the player to operate properly and to prolong the life of its components.

Don’t place this DVD player on lacquer

•

finished furniture without a cloth, wood or glass protector in between.

Exposure to extreme hot or cold temperatures

•

may cause damage to the player or cause it to malfunction. Do not expose the player to direct sunlight continuously or leave it in a vehicle with the doors and windows closed. The case may become deformed or discolored or the player may malfunction.

Cleaning the Cabinet

Clean the cabinet, panel and controls with

•

a soft cloth slightly moistened with a very mild detergent solution or a plain damp cloth. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.

Never touch the lens with your fingers, if

•

the lens gets dirty, it will not play. Clean the disc before use.

Operation

If moving from a cold environment to a warm

•

environment, let the player’s temperature stabilize before operation. Moisture may condense on the lens inside. Remove the disc and wait about an hour for the moisture to evaporate.

If the player has not been used for a long

•

time, turn the set to ON to warm it up for a few minutes before inserting a disc.

Handling Discs

Do not touch the playback side of the disc.

•

Every fingerprint can cause playback problems. Do not scratch the disk.

Do not store the discs in a place subject

•

to direct sunlight or near heat sources.

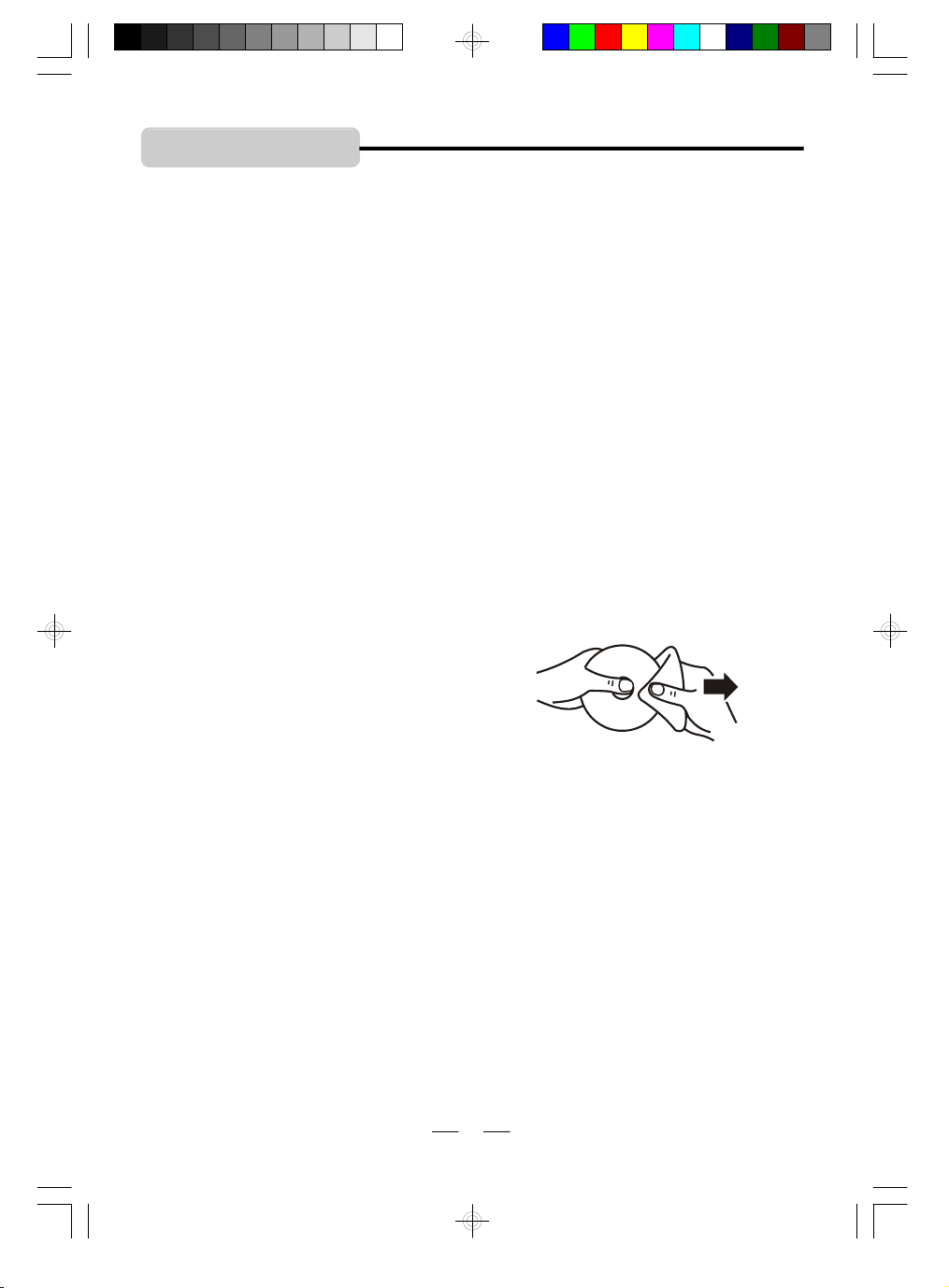

Cleaning Discs

Before playing, make sure the disc is

•

clean. If not, clean the disc with a cleaning cloth. Wipe the disc in a straight motion from the center out.

Do not use solvents such as benzine,

•

thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

If the disc is scratched, it will not play.

•

Sometimes a scratched disc can be repaired with a disc polishing machine available in many stores.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM26

IB-DVB620-WM-E-082106

TROUBLE SHOOTING

Symptom

No power.

Batteries drain too fast in stop mode.

• Play fails to start even

when PLAY is pressed.

• Play starts but then

stops immediately.

General

No image on the LCD screen.

No picture on your external TV’s screen.

The picture is distorted.

The picture seems squeezed or stretched.

There is no function or less function when you adjusting the color, brightness or contrast of the LCD screen.

Remedy

1.Make sure the AC outlet has power.

2.The batteries are exhausted, please replace the batteries or use AC power.

3.The function switch is at the OFF position, please slide it to DVD /AUDIO IN or radio position.

The set continues to be on even in stop mode. If you plan on leaving the disc stopped for a longer time, turn the power switch to OFF position to conserve battery power or use the AC power.

1.The disc may be damaged or scratched.

2.This player cannot play a DVD disc other than region 1 standard.

3.The disc may be dirty and may require cleaning.

4.Ensure that the disc is installed with the label side up (facing you).

5.If your disc is rented, it may be scratched or damaged from a previous renter. Return it or polish it.

6.Condensation may have formed on your disc. Wait about 1 hour to allow the player to dry out.

7.Make sure no other audio device’s plug is inserted into the AUDIO IN jack.

1.The player’s LCD may be turned off (as when you are using the external TV). Turn the DISPLAY ON/OFF switch to ON position.

2.The batteries are weak, they may be OK for radio play, but they are weak for the DVD play, low batteries may affect the quality during play. Please replace all the batteries with fresh ones or use AC power.

1.Ensure that the equipment is connected properly. Double check all cables and AC power.

2.Select the proper video channel on your TV set, VIDEO 1, 2, 3, etc.

3.Check if the proper AV input is selected on your TV set video inputs (some TV sets have 3 or 4 different inputs).

4.Make sure both the TV and DVD player are on.

1.Picture is distorted during rapid advance or rapid reverse. The picture may be somewhat distorted occasionally, this is normal.

2.Did you connect your DVD player to your VCR? Please connect the player directly to your TV and disconnect the VCR. This player has Macrovision copy protection, this will distort pictures when used with VCRs.

The LCD mode and TV type you are in may be wrong for this movie, try changing the LCD and TV type setting for standard or widescreen. See pages 20 & 21.

The disc you used is a copied one, please replace it with a fresh original disc.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM27

IB-DVB620-WM-E-082106

TROUBLE SHOOTING

Symptom

No sound from your TV or speakers.

The remote control does not work.

General

No rapid advance or rapid reverse play.

A specific disc does not play.

Remedy

1.Press AUDIO button several times. The disc may have been set to DTS output or a blank audio channel on multiple language, please select AC-3 output or reset to the main language (refer to page 12).

2.Adjust the DVD player’s volume.

3.Make sure the AUDIO output connection and setting are correct. See details on pages 18, 22.

4.Ensure that the equipment is connected properly.

5.Ensure that the input setting for the TV and stereo system are correct.

6.Adjust the volume setting on your TV’s remote.

7.Make sure the headphones are detached from the DVD player.

8.The movie is paused, press play.

9.The movie is in search or fast play or other speed related play. Audio is heard only during normal play.

1.The remote is used on DVD play mode only, it is not used for radio, audio in and Microphone.

2.Check that the remote’s batteries are installed correctly.

3.The remote’s batteries are weak or depleted, replace them with new ones (refer to page 9).

4.Use the remote control at a distance of less than 20 feet (6m) from the DVD player.

5.Remove any obstacles between the remote control unit and remote control sensor, also make sure the lens on the remote is not dirty.

Some discs may have sections which prohibit rapid advance (or rapid reverse), especially on opening screens or during FBI warnings.

This is normal for high speed reading of DVD discs.Cabinet vibrates or hums.

1.The disc may be dirty, try cleaning the disc.

2.Make sure the disc is not upside down.

3.The region code is not 1, the disc cannot be used.

4.Disc may not be industry standard or it may be an illegal copy. Only use legally sold movies not pirated copies.

The player’s controls don’t work or the player cannot work properly.

No sound during fast forward or other speed functions.

Cannot change a menu item.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM28

Set needs to be reset. Reset the DVD player by removing the batteries and disconnecting AC power for 1 minute. Replace the batteries and connect the AC power to resume normal use. (The player may not be operating properly due to lightning, static electricity, damaged or wrong discs, or some other external factors).

This is normal. Normal sound only happens during normal play.

Try changing this item with the DVD door open (not during play).

IB-DVB620-WM-E-082106

TROUBLE SHOOTING

Symptom

The LCD picture is not 16:9 widescreen even you have set the TV TYPE to 16:9.

Audio soundtrack and/ or subtitle language is not at the initial settings.

No subtitles.

Alternative audio soundtrack (or subtitle) language does not show.

Angle cannot be

DVD

changed.

Picture is frozen.

Screen saver appears on TV screen.

Cannot copy discs to VHS video tapes.

Display shows numbers on top of screen.

Foreign language is heard on the disc.

Remedy

You need to adjust both the LCD mode and the TV type mode to 16:9 (see pages 20 and 21).

If the audio soundtrack and / or subtitle language does not exist on the disc, the language selected at the initial setting will not be heard/seen. Try setting it up again, see Page 22.

Subtitles appear only on discs which contain them. If subtitles don’t show, press the SUBTITLE button to display the subtitles.

Some discs only have one language available. On some discs, the alternate language cannot be selected by operating the AUDIO or SUBTITLE buttons, try selecting it from the DVD menu if one is available.

This function relies on the DVD disc. Only scenes recorded at several angles can be viewed. Please refer to your DVD cover.

If a button is pressed too fast over and over, the signals may jam the circuits inside. To restore to normal, press the STOP button and unplug the set from the AC outlet. Also remove the batteries.

Turn off screen saver by pressing any button on the remote control or on the set.

You can’t copy most commercial movie discs due to copyright protection built into the disc and player.

Press the DISPLAY button several times until the numbers display disappears.

Press the AUDIO button until your preferred language is heard.

Foreign language is seen in menus.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM29

Reset the default language to your preferred language by pressing the SUBTITLE button.

IB-DVB620-WM-E-082106

GLOSSARY

TITLE

The longest sections of a picture or a music piece on a DVD, or a movie, etc.. Each title is assigned a title number enabling you to locate the title you want.

CHAPTER

Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

JPEG

JPEG is short for the “Joint Photographic Experts Group”, a group of experts nominated to produce standards for continuous tone image coding. In other words, your DVD player can view digital picture CDs or CDs you made on your computer with file names that end in the “.JPG” format. This set will not play pictures encoded in formats other than JPG.

VIDEO INPUT

This is a jack which accepts the picture portion of a signal. In order to use this DVD player, your TV set must have an S-Video (better) or video input (standard) jack.

S-VIDEO CABLE

This cable can connect to your S-Video input of your TV. It allows for sharper pictures for TV sets with this jack.

VIDEO CABLE

This is a wire with plugs on each end which is used to transfer the picture information into your TV set.

NTSC

National TV Systems Committee for TV broadcasts: a video standard used in the USA and Canada.

JACK

This is another term for socket.

ABOUT DVD REGION

MANAGEMENT

The DVD inventors and motion picture makers have decided to break up the world’s DVDs into regions so that one country’s DVDs should not be able to play in another country. This is a legal issue and that is why your DVD player is restricted to play only region 1 DVDs.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM30

IB-DVB620-WM-E-082106

SPECIFICATIONS

General Description

TFT LCD screen size:

Power source:

6.2 "

AC 120V, 60Hz

DC 12V (8 size “C” batteries, not included)

Power consumption:

Signal system:

Video output level:

Audio output level:

Dimensions (Approx.): Length: 406 mm 16 "

25 Watts [normal household current]

NTSC TV system

1.0 Vp-p

1 Vrms (1 kHz, 0dB)

Width: 222 mm 8 3/4" Height: 146 mm 5 3/4" Weight: 2.7 kg 6 lbs

Audio Signal Output Characteristics:

DVD (linear audio):

(1)Frequency response:

4Hz-22kHz (48 kHz sampling)

4Hz-44kHz (96 kHz sampling) (2)S/N ratio: 100dB (3)Dynamic range: 90 dB (4)Wow and flutter: below measurable level

CD audio:

(1)Frequency response: 20 Hz - 20 kHz (2)S/N ratio: 65dB (3)Dynamic range: 90 dB (4)Wow and flutter: below measurable level

Pickup: Wave length: 650nm~660nm

Laser power: Class 1

Radio:

Frequency range: FM: 88 - 108 MHz AM: 530 - 1700 kHz

PROTECT YOUR FINE FURNITURE!

WE RECOMMEND A PROTECTIVE MATERIAL BE PLACED UNDER THE SET WHEN PLACING IT ON SURFACE WITH A NATURAL OR LACQUER FINISH.

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM31

IB-DVB620-WM-E-082106

LIMITED WARRANTY

We warrant this product to be free from defects in material and workmanship under normal use for a period of 1 year after purchase, and we will repair it free of charge or replace it at no charge, should it become defective under this warranty, providing you submit proof of purchase (sales slip) with the set.

During the initial 1 year period after original purchase, we will service the set that is returned to LENOXX ELECTRONICS CORP., prepaid, at no charge. After the initial 1 year period expires, we will exchange, at no charge, any part that is defective, but will charge for the cost of labor, return postage paid by Lenoxx.

This warranty does not apply to any product which has been subject to misuse, neglect or accident. This warranty does not cover a broken cord or cabinet. UNDER NO CIRCUMSTANCES WILL LENOXX ELECTRONICS CORP. BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. The following charges apply to repairs beyond the warranty period: $ 30.00. Be sure to pack carefully and return postage paid insured together with your money order (personal checks will not be accepted) and sales receipt to: LENOXX ELECTRONICS CORP., 35 BRUNSWICK AVENUE, EDISON, N.J. 08817, USA

We reserve the right to make design and specification changes for product improvement. The descriptions and characteristics given in this document are given as a general indication and not as a guarantee. In order to provide the highest quality product possible, we reserve the right to make any improvement or modification without prior notice. The English version serves as the final reference on all product and operation details should any discrepancies arise in other languages.

For Customer Service

Dial: 1-800-315-5885

(MONDAY - THURSDAY 8:00 AM - 5:00 PM, FRIDAY 8:00 AM - 1:30 PM EST)

or Visit Our Website: http://www.lenoxx.com or Email: evergo@att.net

35 BRUNSWICK AVENUE EDISON, N.J. 08817, USA

MADE & PRINTED IN CHINA

IB-DVB620-WM-E-06106.pmd 9/4/2006, 6:17 PM32

IB-DVB620-WM-E-082106

Lenoxx DVB-620 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
