IB-CD511(TA)-SW-E-091002
COMPACT DISC PLAYER
MW/FM DUAL CASSETTE RECORDER
WITH REMOTE CONTROL
MODEL CD-511
INCLUDES FULL FEATURE REMOTE CONTROL
MULTI-COLOURED FLUORESCENT DISPLAY
PLAYS MUSIC COMPACT DISCS
SING ALONG WITH KARAOKE
FULLY PROGRAMMABLE CD PLAYER WITH REPEAT PLAY
FUNCTION
RECEIVES MW/FM STEREO BROADCASTS
ROTARY BASS & TREBLE CONTROLS
RECORDS FROM CD, TAPE OR RADIO
2 WAY POWER - AC/DC
REQUIRES 8 X LR20 (SIZE D ) BATTERIES (NO INCLUDED)
OPERATING INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE USE
Imported and distributed by Worldwide Retail Sourcing (UK) Limited
491 Holloway Road London N19 4DD
email address: WWRetailSourcing@AOL.COM
®
IB-CD511(TA)-SW-E-091002
1
CAUTION
This compact disc player is classified as a CLASS 1 LASER PRODUCT as
stated on the back of the player.
WARNINGS
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
LASER PRODUCT
CLASS 1
This player uses a laser. Only a qualified service person should remove
the cover or attempt to service the player, due to possible eye injury.
Invisible laser radiation may occur when the player is opened or
interlocks are by-passed. Avoid exposure to laser beam. Use of
controls, adjustments or procedures other than those specified herein
may result in hazardous radiation exposure.
Do not expose the player to direct sunlight or heat sources.
The exclamation mark within a triangle is a warning sign alerting the
user of important instructions accompanying the product.
The lightning flash with arrowhead symbol within a triangle is a warning
sign alerting the user of dangerous voltage inside the player.
To reduce the risk of electric shocks, do not remove the cover. No userserviceable parts inside the player. Refer all servicing to qualified
personnel.
This player operates on 12V and PSU = 240V. If it is not to be used for
a long time, the AC power cord should be unplugged.
The player must not be exposed to moisture or rain.
The player should not be exposed to dripping or splashing and objects
containing liquids, such as vases, should never be placed on top of it.
The power switch for the player is mounted on a secondary circuit and
does not disconnect the whole player from the mains in OFF position.
Please ensure all connections are properly made before operating.
The player should be positioned so that it is properly ventilated. Avoid
placing it, for example, close to curtains, on a carpet or inside a builtin fixture such as a bookcase.
Openings for ventilation must not be blocked or covered during use.
WARNINGS
IB-CD511(TA)-SW-E-091002
PLEASE SAVE THESE INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE, PERSONAL INJURY OR DAMAGE TO THE
PLAYER, PLEASE READ AND FOLLOW THESE INSTRUCTIONS.
BATTERY SAFETY INSTRUCTIONS
2
1. Use only the type and size of batteries stated in the operating instructions
booklet (Batteries are not included with the player. Please buy the correct
batteries).
2. Do not dispose of the batteries by burning them as they may explode.
Check with local regulations for any special instructions on the disposal of
batteries.
3. Do not open or dismantle batteries. Do not recharge non-rechargeable
batteries.
4. Be careful when handling batteries in order not to short-circuit them with
conducting materials such as rings, bracelets and keys. The battery or
conductor may overheat and cause burns.
5. Do not attempt to extend the life of batteries for use with this product by
heating them.
6. All batteries should be replaced at the same time. Mixing old and new
batteries could increase internal cell pressure and damage the batteries.
7. When inserting batteries into this product, the correct polarity ( or ) or
direction must be observed.
8. Remove the batteries from the product if it is not to be used for a long period
of time (several weeks or more).
9. Remove old or flat batteries as soon as possible as they are more likely to
leak in the product.
10. Do not store the product in high temperature areas.
11. Opening or removing covers may expose you to dangerous voltages or
other risks. Incorrect reassembly may cause electric shocks when the
appliance is subsequently used.
12. If any liquid leaks from the batteries, wipe it up immediately. Do not let any
of the liquid come into contact with your skin and discard the leaking
batteries.
13. Do not mix batteries (OLD and NEW or CARBON and ALKALINE etc.).
14. The use of rechargeable batteries is not recommended for this player
because their voltage and life is lower than those of standard batteries.
15. Installation of batteries should only be done by an adult.
IB-CD511(TA)-SW-E-091002
CHOOSING A POWER SOURCE
AC power or batteries may be used as a power source.
TIP
Replace the batteries
when the display dims or
when the player stops
operating. Replace all
batteries with new ones.
Before replacing
batteries, make sure
there is no CD in the
player and remember to
check the Battery Safety
Instructions on Page 2.
3
AC SOCKET
VFD DISPLAY
The VFD display only lights up when using AC
power.
LOWER
UPPER
1. Connecting the AC power
cord
•
If the CD does not play
on batteries, this means
the batteries are almost
used up. But the radio
may continue to play on
these weak batteries
because it uses less
power than the CD
player.
Insert one end of the supplied AC power cord (located
in the polyfoam) into the socket located at the back
of the player, and the other end into a wall outlet.
2. Using battery power
Insert 8 X LR20 (size D) batteries (not included)
into the battery compartment.
To use the player on batteries, disconnect the AC
power cord from the player.
IB-CD511(TA)-SW-E-091002
ATTACHING THE SPEAKERS
1.Position one of the speakers to the right
of the main unit.
2.Align the tracks (rails) on the speaker with
the main unit as shown in FIG. 1.
3.When the speaker tracks (rails) are lined
up, push the speaker into the tracks (rails)
on the main unit as shown in FIG. 2.
4.Repeat steps 1 to 3 above for the left side.
5.Carefully unwind the speaker wire from behind each speaker and insert the
right plug into Speaker Jack R and the left plug into Speaker Jack L (as shown
in FIG. 3). Wrap the remaining wire behind each speaker.
FIG.1
FIG.2
FIG.3
NOTE: This player can be used with the speakers either attached to the main unit
or standing alone so long as both speaker plugs are plugged into the
jacks.
4
LOCK TAB
To detach the speakers, press the lock tab and push the speakers out of
the tracks (rails).
PROG.
PROG.
IB-CD511(TA)-SW-E-091002
REMOTE CONTROL
The CD PLAYER can be operated with the REMOTE CONTROL provided (includes
the following controls: POWER ON/OFF, MUTE, VOLUME, CD REPEAT and PLAY).
Slide the battery cover off to remove the batteries. Insert 2 X LR4 (size AAA)
batteries (not included) correctly so that the + and - polarities match the polarity
indicators inside the battery compartment.
NOTE:
About half a year of normal operation can be expected when using alkaline
batteries.
When the batteries are worn out, the remote control will stop working.
Replace both batteries with new ones.
When the remote control is not to be used for a long time (2 months or
more), the batteries should be removed to avoid possible damage that may
be caused by battery leakage.
Avoid keeping the remote control in extremely hot or humid locations.
The remote control will operate at a distance of between about 0.2m (8
inches) and 6m (20 feet) from the remote sensor.
1. POWER ON/OFF
2. MUTE
3. REPEAT - ONE & ALL SONGS
4. PROGRAMME
5. VOLUME UP/DOWN
6. SKIP/SEARCH BACKWARD
7. SKIP/SEARCH FORWARD
8. STOP
9. PLAY/PAUSE
5
7
8
5
“AA A”
“AAA”
NOTE: When you press the POWER
ON/OFF button to switch the
player off, the VFD display will
go out and the STANDBY
indicator on the main unit will
come on.
NOTE: When you use the REMOTE CONTROL to operate the CD PLAYER,
make sure the POWER button on the main unit is turned on.
Otherwise, the REMOTE CONTROL will not work.
1
2
3
4
6
9
IB-CD511(TA)-SW-E-091002
PLAYING A CD
1
Press the POWER button for the
VFD display and AUDIO LEVEL to
come on.
1
3
Open the CD DOOR by pressing the
bottom righthand corner of the CD
door marked OPEN/CLOSE and
place the CD in the CD
compartment. The label side of the
CD should face upward.
2
5
Connect the supplied AC power cord or batteries (see page 3).
3
Slide the FUNCTION switch to the
CD position. Two dashes, -- , will
appear on the VFD display.
2
Close the CD DOOR by pushing it
down. The display will show the total
number of tracks (songs) on that
CD.
5
Press the CD PLAY button. The
player will play all the songs (tracks)
once in order.
TIP: WILL APPEAR IN THE DISPLAY IF THERE IS NO DISC IN THE CD
COMPARTMENT OR IF THE DISC IS UPSIDE DOWN.
6
To change the sound effect, adjust
the BASS and TREBLE knobs as
desired.
6
6
4
PROG.
CLOSE
OPEN
CLOSE
IB-CD511(TA)-SW-E-091002
USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To Press or Adjust
Adjust the volume VOLUME control
Stop playback
Pause playback
will flash when a CD is in
pause mode. Press again to
resume play.
Go to the next track
Go back to the previous
track
Locate a point in a song
or
Press and hold down while
playing until you find the
point.
TIP
When CD play is
paused, will
flash and the CD
will stop playing.
Remove the CD
Press the bottom righthand
corner of the CD DOOR
marked OPEN/CLOSE
(press STOP first).
VOLUME CONTROL
FUNCTION SWITCH
Turn off the player
Press the POWER button
and the display will go off.
To resume play,
press the PAUSE
button again,
will stop flashing
and the CD will play.
7
If the player or the
table it is sitting on
is knocked while a
CD is playing, the
CD will stop or skip
for a few seconds.
This is normal for
this type of player.
TIP
FORWARD
BACKWARD
STOP
PLAY/PAUSE
This set has an
electronic volume
control. The
volume can be
raised or lowered
by pressing the
VOLUME UP or
DOWN button.
TIP
PROG.
TIP
The AUDIO LEVEL
will light up when the
power is on and
the pointer will
indicate any
changes in audio
levels.
To turn off the sound
instantly
Press the MUTE button on
the REMOTE CONTROL.
IB-CD511(TA)-SW-E-091002
REPEAT PLAY
PLAYING CD SONGS (TRACKS) REPEATEDLY
To repeat
Press
a single track (song)
Press the REPEAT
button once
all the tracks (all songs)
CD tracks can be played over and over again in either normal or programmed play
mode (see page 9). (NOTE: To use this feature, you need to operate the set with
the REMOTE CONTROL, because there is no REPEAT button on the main unit.)
Press the REPEAT
button twice
programmed tracks
Press the REPEAT
button twice while
programmed tracks are
being played
FUNCTION
SWITCH
Display shows
To cancel Repeat Play
Press the REPEAT button until REP goes off.
8
POWER
BUTTON
REPEAT
2. Set the FUNCTION switch to the CD position.
3. Select the track by pressing or , and then press .
4. Press the CD REPEAT button on the REMOTE CONTROL.
1. Press the POWER button for the display to light up.
REP will flash.
REP will stay
on continuously
REP
REP
REP will stay
on continuously
IB-CD511(TA)-SW-E-091002
9
Up to 19 tracks may be programmed to play
in whatever order you wish.
PROGRAMME
PROGRAMMED CD PLAY
SELECTING YOUR OWN MUSIC PLAYING ORDER
NOTE: Programming is only done during
STOP mode.
1
2
3
4
5
During STOP mode, press the
PROGRAMME button. and
PRG. will flash in the display.
Press the SKIP/SEARCH
buttons,
or
,
until the
desired track shows in the
display.
Press the PROGRAMME button.
and PRG. will flash in the
display.
Repeat steps 2 and 3 until all the
desired tracks are programmed.
Press the PLAY button to start
programmed play. , PRG.
and the track number being
played will show in the display.
To change the current programme
Simply create a new programme by following the programing procedure.
To cancel Programmed Play
Press the STOP button twice and PRG. will disappear from the display.
IB-CD511(TA)-SW-E-091002
LISTENING TO THE RADIO
Connect the supplied AC power cord or batteries (see page 3).
Set the FUNCTION switch to the
RADIO position.
1
2
3
1
2
3

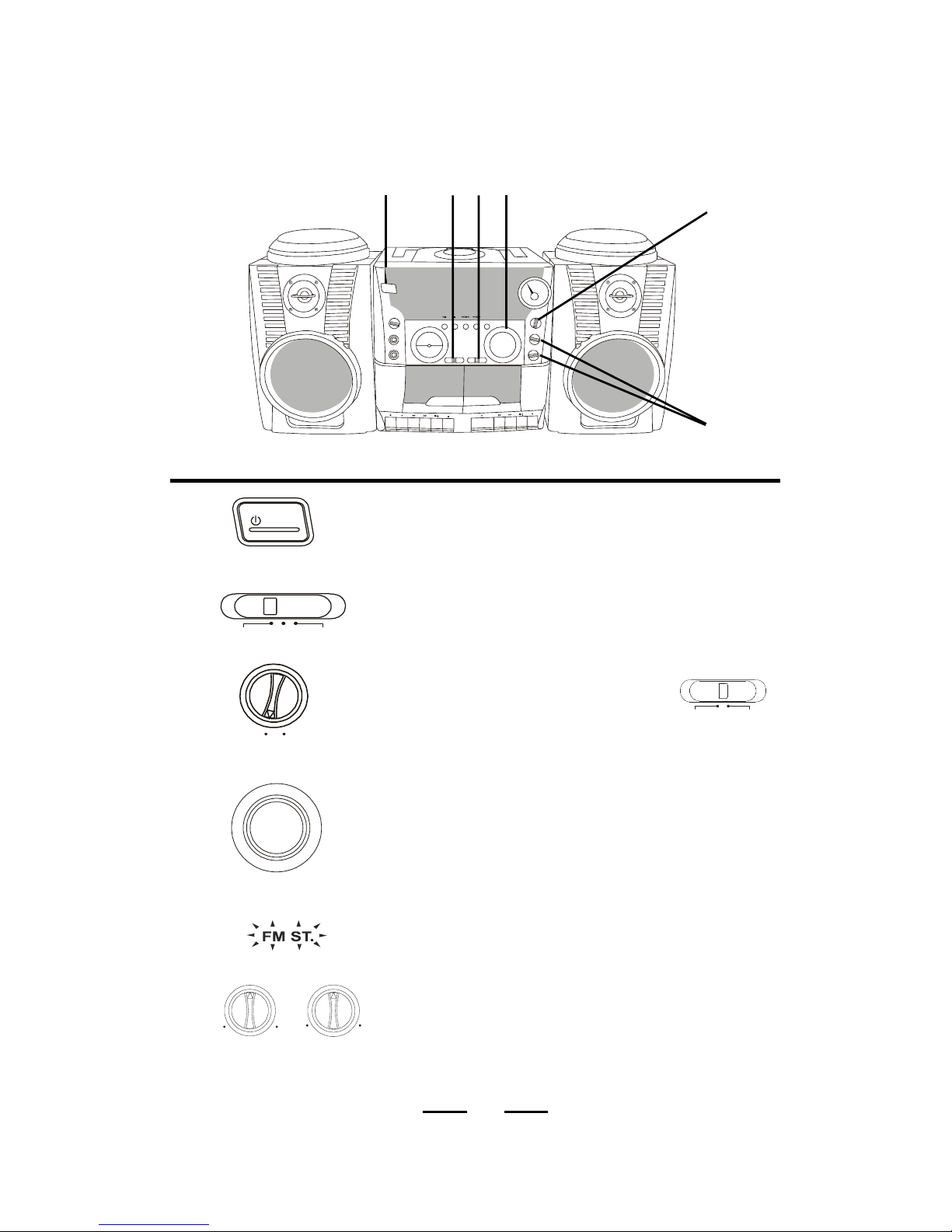

Set the BAND switch to the proper
band position (MW or FM), and the
FM MODE switch to STEREO or
MONO.
Tune into the station of your choice
using the TUNING control. Adjust for
the clearest sound.
4
FM ST. will appear in the VFD
display when receiving FM Stereo
broadcasts.
10
4
Press the POWER button for the VFD
display and the AUDIO LEVEL to
come on.
5
6
To change the tone, adjust the
BASS and TREBLE controls as
desired.
6
MW FM
PROG.
3
IB-CD511(TA)-SW-E-091002
USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To
Press or Set
Adjust the volume
VOLUME control (UP or
DOWN).
TIP
•
If an FM broadcast is
noisy, move the FM
MODE switch from
STEREO to MONO.
Turn off the Radio
Set the FUNCTION switch
to the TAPE position or
press the POWER button.
To improve broadcast reception
Change position of the antenna for FM or FM Stereo.
Move the player itself for MW.
VOLUME
11
FM MODE
FUNCTION
•
This player has an
electronic volume
control. The volume
can be raised or
lowered by pressing
the VOLUME UP or
DOWN button.
PROG.
PROG.
PROG.
IB-CD511(TA)-SW-E-091002
PLAYING A TAPE
Connect the supplied AC power cord or batteries (see page 3).

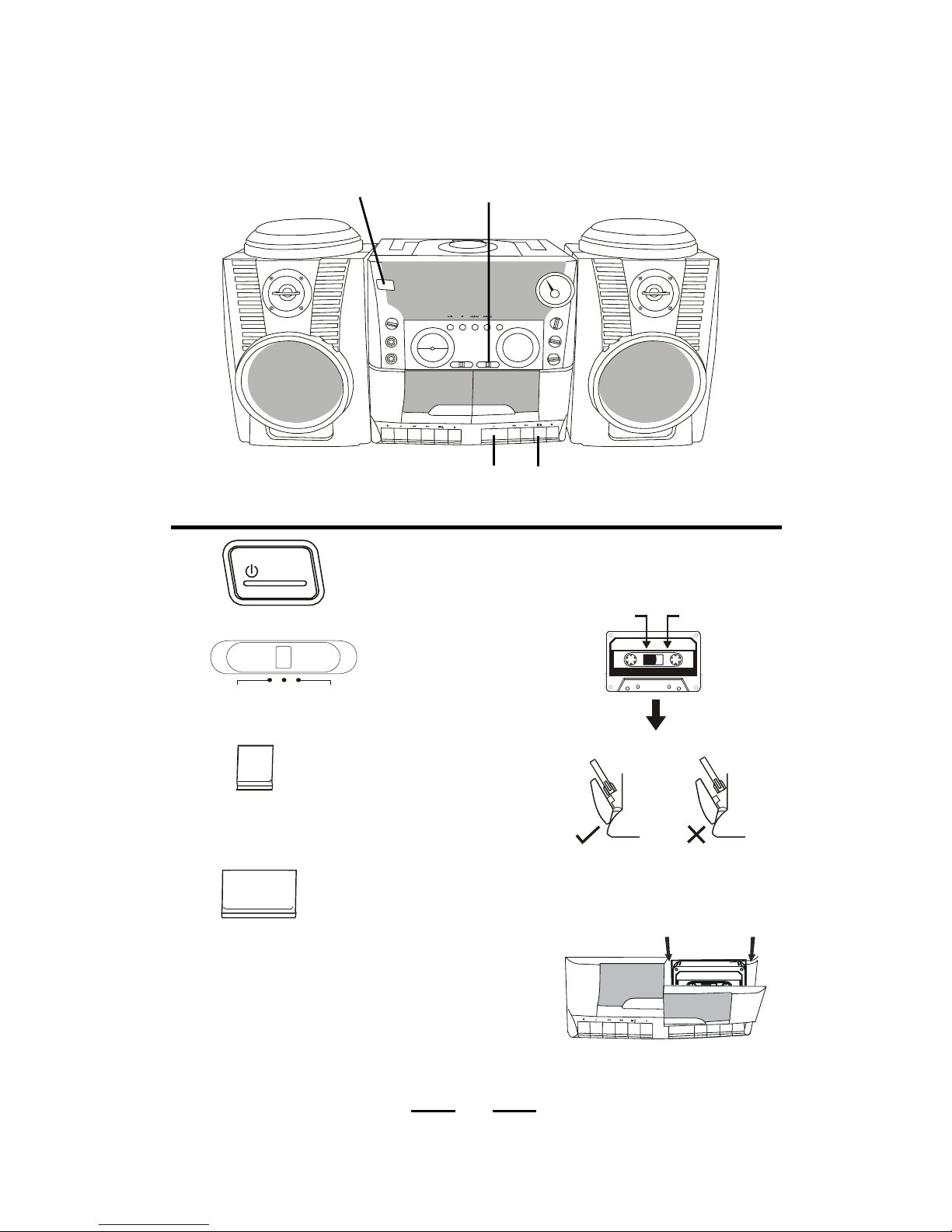

Press the STOP/EJECT
button (DECK A or
DECK B) to open the
tape compartment and
insert a recorded tape.
Close the door.
4
2
2
3
Press the PLAY button.
The player will come on
and start playing the
tape.
PLAY
Set the FUNCTION
switch to the TAPE
position.
1
4
When the player comes
to the end of one side of
the tape, it will stop. To
listen to the other side
of the tape, turn the tape
over, insert and press
PL AY.
AUTO STOP
STOP/EJECT
12
1
Press the POWER
button for the VFD
display to come on.
5
A
EMPTY
REEL
INSERT THIS WAY
FULL
REEL
PROG.
3
IB-CD511(TA)-SW-E-091002
RELAY PLAY
3
2
4
Press the cassette PAUSE button on
DECK B.
3
1
Press the cassette PLAY button on
DECK A for the tape in DECK A to play.
5
Connect the supplied AC power cord or batteries (see page 3).
To play tapes in DECK A and then DECK B, follow the steps below:
Press the cassette PLAY button on
DECK B. When DECK A finishes playing,
DECK B will automatically start playing.
When the player reaches the end of
the tape in DECK B, it will stop.
2
Set the FUNCTION switch to the TAPE
position.
1
Press the POWER button for the VFD
display and AUDIO LEVEL to come on.
5
PLAY
PAUSE
PLAY
4
6
13
PROG.
IB-CD511(TA)-SW-E-091002
USE THESE BUTTONS FOR ADDITIONAL
CASSETTE TAPE OPERATIONS
To
Stop playback
Eject the cassette
Press or Adjust
Adjust the volume
Press the VOLUME button
(UP or DOWN)
Fast forward or rewind FAST FO RWARD button or
REWIND button
Pause playback
PAUSE button
Press again to resume play
STOP/EJECT button
VOLUME
CONTROL
PAUSE
STOP/EJECT
FAST F.&REWIND
PLAY
To enjoy music without
disturbing others
(headphones are not
included)
Insert your headphone plug

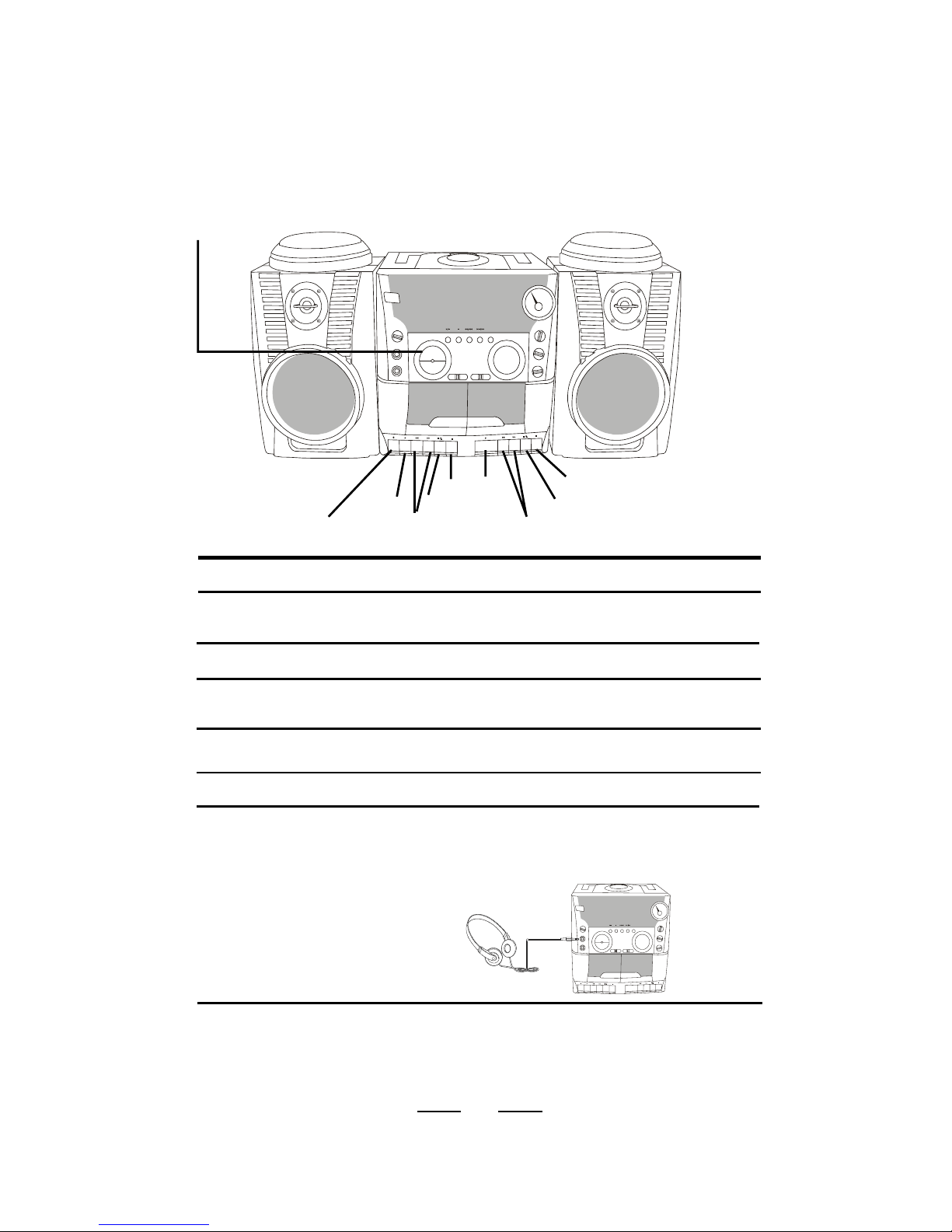

into the HEADPHONE jack (at
the front of the player).
14
To turn the power off
Make sure none of the cassette
buttons are down (on) and the
POWER button is off.
STOP/EJECT
FAST F.&REWIND
RECORD
PLAY
PROG.
L
PROG.
STOP/EJECT button
PAUSE
IB-CD511(TA)-SW-E-091002
RECORDING ONTO A TAPE
Connect the supplied AC power cord or batteries (see page 3).
Press the STOP/EJECT button (DECK
B) to open the tape compartment and
insert a blank tape. Select the source
(MW, FM, CD, or microphone) you wish
to record from.
2
4
3
STOP/EJECT
To record from the CD player, set the FUNCTION switch to
the CD position, insert a CD and follow the steps for playing
a CD (see page 6).
To record from the radio, set the FUNCTION switch to the
RADIO position, and tune into the desired station (see page
10).
To record from the microphone, set the FUNCTION switch to
the TAPE position, and plug the microphone (not included)
into the MICROPHONE JACK. Speak into the microphone.
To listen to what you have recorded, set the FUNCTION
switch to the TAPE position, press REWIND and then
PLAY.
5
REWIND
PLAY
15
To record from DECK A, set the FUNCTION switch to the
TAPE position and follow the steps for playing a TAPE (see
page 12).
OK NO
2
1
Press the POWER button for the VFD display and AUDIO
LEVEL to come on.
Press the RECORD button to start recording. (The PLAY
button will automatically be depressed.)
1
3
MICROPHONE JACK
OR
OR
THEN
PROG.
4
RECORD
IB-CD511(TA)-SW-E-091002
USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To
Turn off the power
Press the STOP/EJECT
button and the POWER
button. The VFD display
will go off.
TIP
Press or Set
Stop recording STOP/EJECT button
PAUSE button
Press the button again to
resume recording.
Pause recording
• For best recording
effect, use AC power
instead of batteries.
• To erase a recording,
simply start a new
recording, and the
old one will automatically be erased.
PAUSE
STOP/EJECT
16
DUBBING SPEED
switch from NORMAL to
HIGH speed.
Adjust recording
speed when copying
tapes
• See page 20 for
notes on cassettes.
PROG.
DOUBLE SPEED SWITCH
IB-CD511(TA)-SW-E-091002
SING ALONG WITH KARAOKE FUNCTION
Connect the supplied AC power cord or batteries (see page 3).
1
2
3
4
Insert the microphone plug into the microphone
jack. To avoid howling from the microphone, lower
the volume level first.
To sing along with the CD player, set the FUNCTION
switch to the CD position, insert a KARAOKE CD
disc and follow the steps for playing a CD (see
page 6).
To sing along with a tape, set the FUNCTION switch
to the TAPE position, insert a KARAOKE TAPE
into Deck A or B, and follow the steps for playing a
TAPE (see page 12).
Press the CD PLAY/PAUSE button on the CD
player or the PLAY button on Deck A or B.
Adjust the volume controls (both the VOLUME
control on the player and the MICROPHONE
VOLUME control) to achieve the best effect.
PLAY
17
NOTE: Microphone is not included. You can
purchase one at the shop where you
purchased your player.
2
MICROPHONE JACK
MIC
VOLUME
VOLUME
PROG.
IB-CD511(TA)-SW-E-091002
PROG.
USE THESE BUTTONS FOR ADDITIONAL
OPERATIONS
To

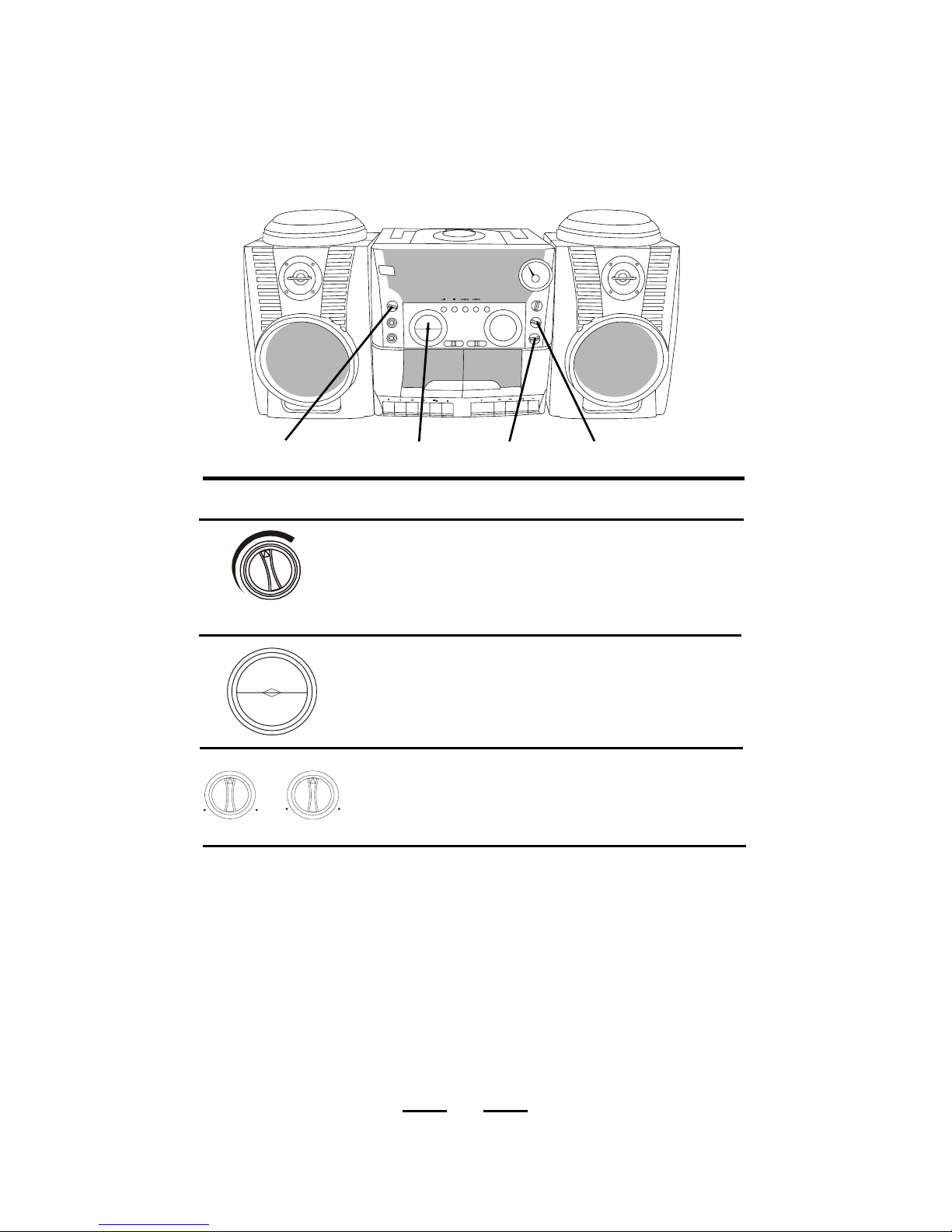

Press or Adjust
Adjust the MIC volume
MIC. VOLUME
VOLUME control
VOLUME
CONTROL
18
Adjust the sound effect
for low or high tones.
TIP: If any squealing or howling (feedback) occurs during KARAOKE
use, move the microphone away from the speakers or turn down
the volume.
Adjust the CD or TAPE
volume
BASS or TREBLE
control.
BASS
TREBLE
MIC VOLUME
IB-CD511(TA)-SW-E-091002
PRECAUTIONS
Safety
Power Sources
For battery operation, use 8 X LR20
(size D) batteries (not included). We
recommend alkaline batteries for
longer life.
When the batteries will not be used
for several weeks or more, they should
be removed to avoid damage that
could be caused by battery leakage
or corrosion.
19
Operation
If the player is moved directly from a
cold to a warm location or is placed
in a very damp room, moisture may
condense on the lens in the CD player
section. Should this occur, the player
will not operate properly. In this case,
remove the CD and wait about an hour
for the moisture to evaporate. If the
player has not been used for a long
time, put it in playback mode to warm
up for a few minutes before inserting
a CD.
Location
Do not leave the player near a heat
source in direct sunlight or where it
might be exposed to excessive dust
or mechanical shocks.
Do not place anything within one inch
of the back of the cabinet. The
ventilation holes must not be covered
for the player to operate properly and
to prolong the life of its components.
Powerful magnets are used in the
speakers so personal credit cards
using magnetic coding and springwound watches should be kept away
from the player to prevent possible
damage from the magnets.
The laser beam used in the CD player
section could damage your eyes so
you should never attempt to take the
cabinet apart. Refer servicing to
qualified personnel only.
If any solid object or liquid gets into
the player, unplug it, and have it
checked by qualified personnel before
operating it again.
If the player is left in a car parked in
the sun, be sure to put it somewhere
in the car where it will not be in direct
sunlight.
This CD player is designed to be
played on a stable, vibration-free
surface. If it is knocked while a CD is
playing, the CD will stop or skip for a
few seconds. This is normal for this
type of player.
Do not place the player on a sloping
or unstable surface.
IB-CD511(TA)-SW-E-091002
PRECAUTIONS (continued)
CDs
Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
centre out.
Do not use solvents such as benzene,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
Do not attach paper or stickers to CDs
or scratch them.
To record on a tape with its tab broken
off, cover the respective tab hole for
Side A or B with adhesive tape.
Side A
Tab for side A
Tab for side B
20
Cassettes
Break off the cassette tab from Side
A or B to prevent accidental recording.
Do not expose CDs to direct sunlight
or heat sources such as hot air ducts,
or leave them in a car parked in direct
sunlight as the temperature inside the
car could get extremely hot and cause
damage to the CDs.
After playing, CDs should be stored in
their cases. If there is a scratch, dirt
or fingerprints on the CD, tracking
errors or skipping may occur.
Use of a cassette with more than 90
minutes, such as C-120 (120
minutes), is not recommended. The
extreme thinness of this tape may
damage this set.
To reduce the chance of tapes
jamming or tangling, check that there
is no tape slack visible through the
window in the centre of the cassette.
Any tape slack should be taken up
with a pencil before inserting the
cassette into the player.
IB-CD511(TA)-SW-E-091002
MAINTENANCE
Cleaning the Lens
If the lens is dirty, skipping may occur
while the CD is playing. Clean with a
commercially available lens cleaner and
blower.
Cleaning the Tape Heads
Wipe the heads, the pinch roller and
the capstan with a cleaning swab slightly
moistened with cleaning fluid or alcohol
after every 10 hours of operation for
optimum playback and recording quality.
After cleaning, wait until the areas
cleaned are completely dry before
inserting a tape.
Cleaning the Cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzene.
RECORD/PLAY BACK HEAD
PINCH ROLLER
CAPSTANCOTTON SWAB
ERASE HEAD
21
Storage Cassette
Tapes
1. Never place tapes near a magnetic
field such as a TV, or speaker.
Magnetic fields may reduce tape
sensitivity or even erase recording.
2. Do not store tapes for any length of
time in hot, damp or dusty locations.
NOTE: In order to see and clean the
head(s), you may have to
press PLAY first.
IB-CD511(TA)-SW-E-091002
TROUBLE SHOOTING
Problem
The power is not on.
Connect the AC power cord securely to a wall outlet.
Make sure the batteries are inserted correctly and
are not worn out.
There is no sound.
Make sure the FUNCTION switch is in the correct
position.
Adjust the volume.
Unplug the headphones when listening
through the speakers.
appears in the display even
when a CD is in place.
Insert the CD with the label side up.
CD does not play.
Make sure that the CD compartment is closed.
Clean the CD.
Remove the CD and leave the CD DOOR open for
about an hour to get rid of moisture condensation.
Make sure the FUNCTION switch is in the CD position.
Sound is weak or sound quality is
poor.
Replace all the batteries with new ones if
they are low, move the player close to a
window for better MW reception or rotate it
for better FM reception.
The RECORD button does not
function/The tape does not play.
Make sure the safety tab on the cassette
is in place (see page 20).
Make sure the FUNCTION switch is in the
TAPE position.
The tape does not erase
completely.
Clean the erasing head (see page 21).
Replace all the batteries with new ones if they are
low.
The tape does not record.
Make sure the tape is inserted correctly.
Make sure the safety tab on the cassette is in place.
Sound is weak or sound quality is
poor.
Clean the heads, pinch roller and capstan
(see page 21).
General
CD player
Radio
Tape player
Cassette PLAY button pops up.
The tape has reached the end of one side. Remove,
turn over and re-insert.
22
VFD display does not light up.
You may be using battery power. The VFD display
will only light up when AC power is used.
Remedy
It is normal since the radio uses less power than
the CD player.
The sound drops out.
CD does not play while radio may
continue to play.
Clean the CD or replace it if it is badly damaged.
Place the player in a location free from vibrations.
Check that the batteries are not worn out.
Tape jamming or tangling
Use only better quality tapes.
Do not use a cassette with more than 90 minutes.
Make sure there are no loose layers of tape visible
before inserting the cassette.
IB-CD511(TA)-SW-E-091002
SPECIFICATION
General Description
Power source:
AC 240V, 50Hz 20Watts
DC 8 X LR20 (size D) batteries (not included) for
player
DC 2 X LR4 (size AAA) batteries (not included) for
Remote Control
Speakers (2 ways):
50 - 125mm 4 ohm woofers
50 - 75mm 4 ohm tweeters with crossover
5.0W/channel
Dimensions (approx.): MAIN UNIT SPEAKER
Width: 265MM 172MM
Depth: 220MM 195MM
Height: 260MM 315MM
Weight: 2.0KG 1.3KG
CD Section
Type of disc played:
Any normal CD used in portable players
Laser wavelength: 760 - 800 NM
Tracking method: 3 - spot error detection 3.86 mm lens
Tape Recorder Section
Frequency response: Standard normal bias cassette tapes
70Hz - 10kHz
Radio Section
Tuning range: FM: 88 - 108 MHz
MW: 530 - 1600 kHz
LENOXX reserves the right to make design and specification changes for
product improvement.
PROTECT YOUR FINE FURNITURE!
WE RECOMMEND A CLOTH OR OTHER PROTECTIVE MATERIAL IS PUT UNDER
THE PLAYER WHEN IT IS PLACED ON SURFACE WITH A NATURAL OR LACQUER
FINISH.
Frequency response: 50Hz - 15kHz +1/-2 dB
NOTE: This CD player will only play NORMAL music CDs (or CD-R CDs).
It will not play CDRW encoded discs.
(Alkaline batteries are recommended)
Output power:
23
Loading...
