Lenovo ZUK Z1 Quick Start Guide

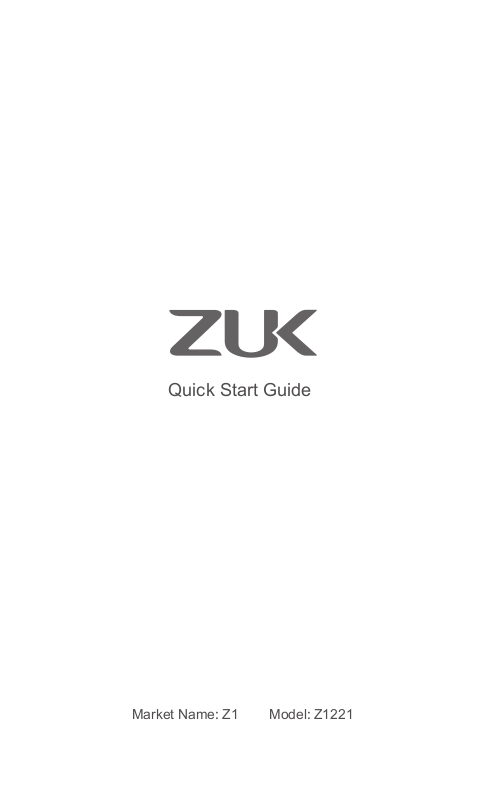

Quick Start Guide

Market Name: Z1

Model: Z1221

Front view

Note: Your actual product may look a little bit different from the images in this
guide. The images are for your reference only.

Front camera

Receiver

Volume
buttons

Power
button

Touch
screen

Nano-SIM
card tray

Indicator

Menu button

U-Touch button

Back button

Back view

Headset jack

Rear
camera

Flashlight

Speaker Microphone

USB 3.0 Type-C port

Anti-noise
Microphone

Getting started

Installing the Nano-SIM card

A Nano-SIM card provided by your carrier is required in order to
use celluar services.

CAUTION: Use standard Nano-SIM cards only. Inserting a modified card
may cause the card to damage the card slot.

1. Insert the SIM eject tool that comes with your phone into the
hole in the Nano-SIM card tray.

2. Pull out the card tray and position one or two Nano-SIM
cards with the gold contacts facing down into the tray.

3. Insert the card tray back into the slot.

SIM2

SIM1

SIM2

SIM1

Turning on or turning off your phone

Turn on Press and hold the Power button until the

Turn off

Restart

Taking screenshots

Press and hold the Power button and the volume down button
at the same time to take a screenshot.

To view the screenshots, open the Gallery app and find the
Screenshot album.

screen lights up.

Press and hold the Power button for a few
seconds, then tap Power off.

Press and hold the Power button for a few
seconds, then tap Reboot.

To force restart your phone, press and hold
the Power button for about 10 seconds.

Charging the battery

Charge the battery by one of the following methods:

Connect your phone to a power outlet using the cable and



USB power adapter that come with your phone.

Connect your phone to a computer using the cable that



comes with your phone.

Low battery power Fully chargedCharging

Using the U-Touch button

Touch the U-Touch button to go back.



Press the U-Touch button to go to the Home screen.



Double-tap the U-Touch button to show the recent apps list.



Swipe the U-Touch button horizontally to switch between



running apps.

Downloading publications

To obtain the latest publications for your phone, go to
http://support.lennovo.com and follow the instructions on the
screen.
