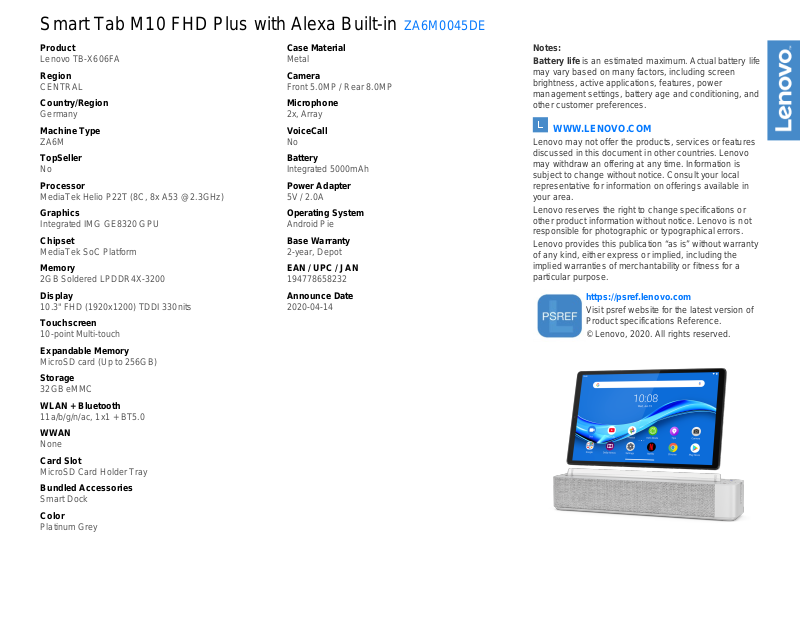

Lenovo ZA6M0045DE Technical data

Smart Tab M10 FHD Plus with Alexa Built-in ZA6M0045DE

Product

Lenovo TB-X606FA

Region

CENTRAL

Country/Region

Germany

Machine Type

ZA6M

TopSeller

No

Processor

MediaTek Helio P22T (8C, 8x A53 @2.3GHz)

Graphics

Integrated IMG GE8320 GPU

Chipset

MediaTek SoC Platform

Memory

2GB Soldered LPDDR4X-3200

Display

10.3" FHD (1920x1200) TDDI 330nits

Touchscreen

10-point Multi-touch

Expandable Memory

MicroSD card (Up to 256GB)

Storage

32GB eMMC

WLAN + Bluetooth

11a/b/g/n/ac, 1x1 + BT5.0

WWAN

None

Card Slot

MicroSD Card Holder Tray

Bundled Accessories

Smart Dock

Color

Platinum Grey

Case Material

Metal

Camera

Front 5.0MP / Rear 8.0MP

Microphone

2x, Array

VoiceCall

No

Battery

Integrated 5000mAh

Power Adapter

5V / 2.0A

Operating System

Android Pie

Base Warranty

2-year, Depot

EAN / UPC / JAN

194778658232

Announce Date

2020-04-14

Notes:
Battery life is an estimated maximum. Actual battery life

may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.

WWW.LENOVO.COM

Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.

Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.

Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.

https://psref.lenovo.com

Visit psref website for the latest version of
Product specifications Reference.

© Lenovo, 2020. All rights reserved.

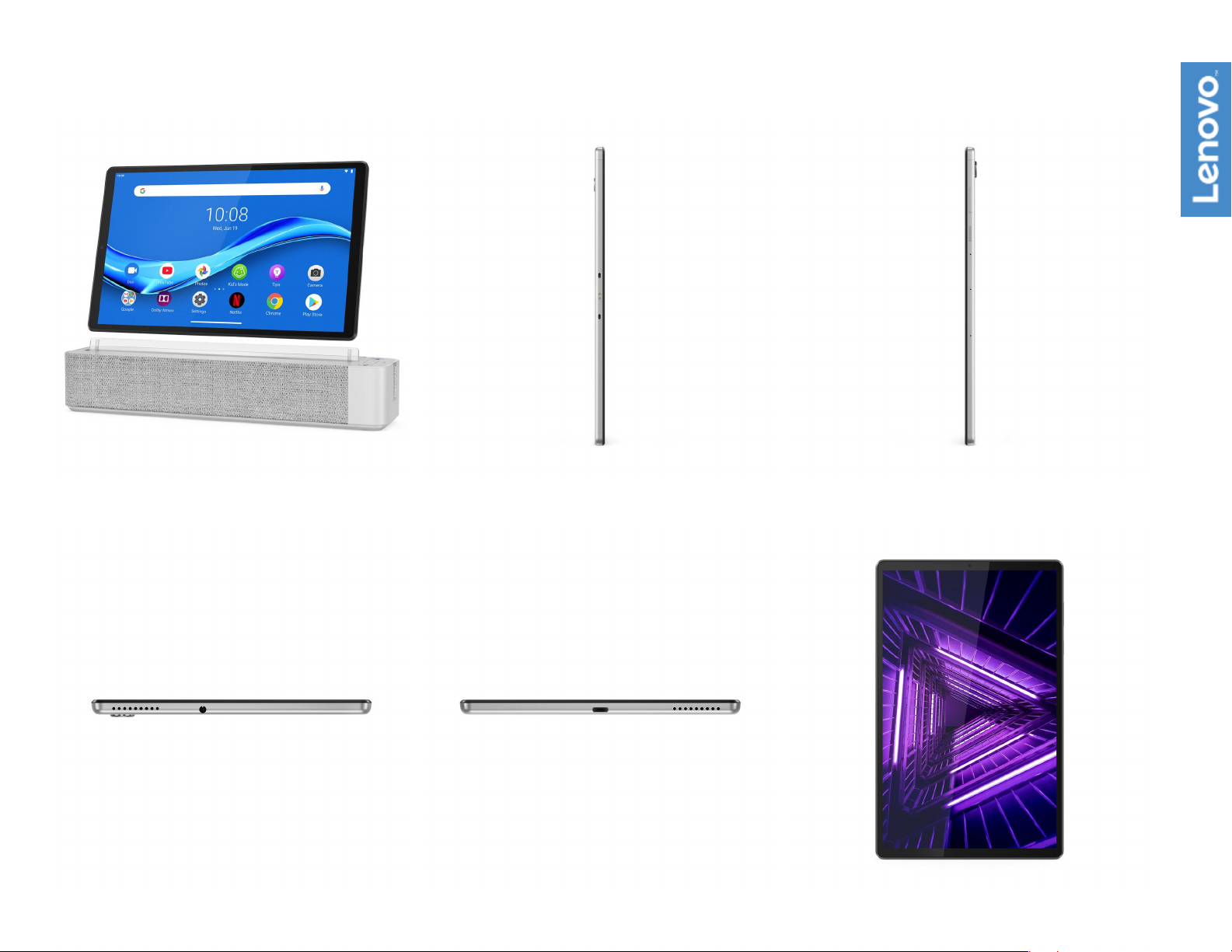

Smart Tab M10 FHD Plus with Alexa Built-in Platform Specifications

Product Specifications Reference (PSREF)

Processor MediaTek® Processor

MediaTek Helio P22T (8xARM Cortex-A53, up to 2.3GHz)
Graphics Integrated IMG GE8320 GPU
Display

Multi-touch

Size Resolution Type Brightness

10.3"

(261.62mm)

FHD (1920 x 1200) TDDI

Typ. 330nits Typ. 70.3% NTSC
Min. 280nits Min. 65% NTSC

Capacitive-type multi-touch, supports 10-point touch

Color

Gamut

Memory 2GB or 4GB / 3200MHz LPDDR4X, soldered to systemboard
Storage

32GB, 64GB or 128GB eMMC (Embedded Multi Media Card),

flash memory on board
Card slot

Bluetooth
WLAN
WWAN (Optional)
LTE Band

One single card slot (WiFi model) or one dual-card slot (

supports Nano-SIM card + MicroSD card

(up to 256GB, FAT32)

LTE

Bluetooth 5.0

802.11 a/b/g/n/ac, 1x1, 2.4 GHz / 5 GHz Wi-Fi Dual Bands

4G LTE connectivity

GSM: B2/B3/B5/B8

model),

WCDMA: B1/B2/B5(B6/B19)/B8

FDD LTE: B1/B2/B3(expanded Band3)/B4/B5(B19)/B7/B8/B20

TDD LTE: B38/B40

NFC
WIFI Direct
WIFI Display
WHDI
FM Radio
A-GPS
GPS
Glonass
Beidou

Vibrator
G-sensor
P-sensor
L-sensor
E-compass
Hall Sensor
Gyroscope
Proofing

Dimensions

None

Yes

Yes

None

Yes

Yes (LTE

model)
Yes
Yes
Yes

Yes
Accelerometer sensor
Proximity sensor
Ambient sensor
None
Yes
None
None

Tablet (WxDxH): 6.04" x 9.61" x 0.32"; 153.3mm x 244.2mm x 8.15mm
Smart Dock (WxDxH): 1.96" x 11.16" x 2.58"; 50mm x 283.6mm x 65.5mm

Weight

Tablet: 460g / 1.01lb
Smart Dock: 520g / 1.14lb

Case color

Case material
Ports

Buttons

The specifications above may not be available in all regions and might change by region.

Tablet: Platinum Grey
Smart Dock: Graphite Grey

Metal
Two Pogo Pin, one USB Type-C 2.0, supports OTG,

3.5mm (0.14inch) combo audio / microphone jack,
(supports MicroSD card)

* Depending on many factors, actual data transfer speed may be lower than theoretical speed

one single card slot,

Power key, volume key

Viewing

Angle

160°

Camera

Front /

Focus Mode

Rear /

Focus Mode

Type Zoom Flash Light

5.0MP Fixed Focus 8.0MP Auto Focus CMOS Digital No

Audio

Dual side speaker, tuned with Dolby Atmos®,
Dual array microphones (with dedicated DSP),

Keyboard
Touchpad
Bundled Accy

3.5mm (0.14inch) combo audio / microphone jack
None
None
Smart Dock, automatically switch to Show Mode with Amazon Alexa when Tablet
docks in, and supports charging

Security chip
Fingerprint reader
VoiceCall

Battery type
Battery life

None
None
None

Li-ion Polymer 5000mAh (Minimum) / 5100mAh (Typical)
Standby Time: 1048hrs
Online Video playback Time: up to 8.5hrs
Browsing Time: up to 9hrs

AC adapter
Charging time

* Battery life varies significantly with hardware configurations, settings, usage, & other factors

5V/2A
Over 3.5hrs

Preload Android® Pie

Lenovo applications

• Tips

• Kid’s Mode

Third-party applications

• Netflix

• Dolby Atmos

• Google

• Gmail

• Google Chrome

• Google Photos

• Google Play Store

• Amazon Alexa-related Apps

*Applications vary from different Android Pie versions

Limited warranty

One of the following, configurable by model:

• 1-year courier / depot service

• 2-year/1-yr battery courier / depot service

• 1-year customer carry-in service

Environment Energy Star® 8.0; RoHS-compliant; TÜV Rheinland Low Blue Light

Lenovo

July 2020
