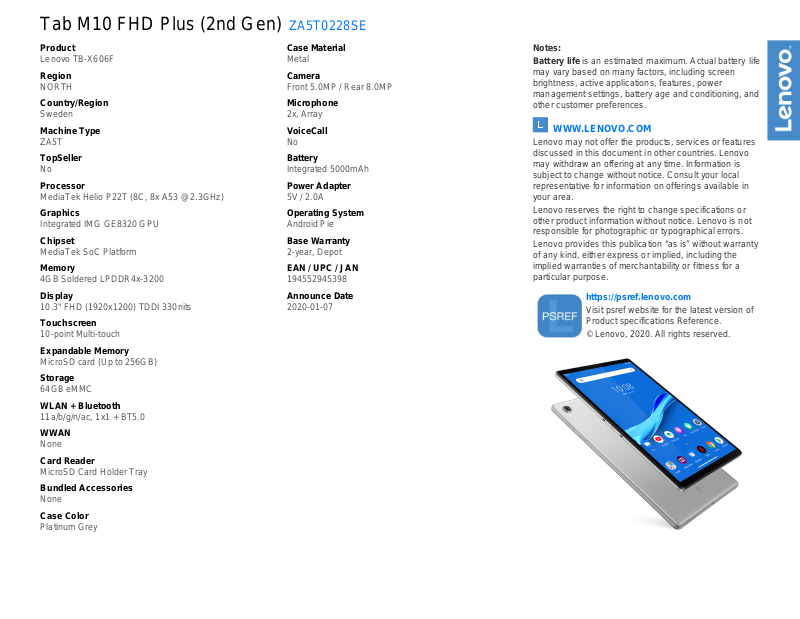

Lenovo ZA5T0228SE Technical data

Tab M10 FHD Plus (2nd Gen) ZA5T0228SE

Product

Lenovo TB-X606F

Region

NORTH

Country/Region

Sweden

Machine Type

ZA5T

TopSeller

No

Processor

MediaTek Helio P22T (8C, 8x A53 @2.3GHz)

Graphics

Integrated IMG GE8320 GPU

Chipset

MediaTek SoC Platform

Memory

4GB Soldered LPDDR4x-3200

Display

10.3" FHD (1920x1200) TDDI 330nits

Touchscreen

10-point Multi-touch

Expandable Memory

MicroSD card (Up to 256GB)

Storage

64GB eMMC

WLAN + Bluetooth

11a/b/g/n/ac, 1x1 + BT5.0

WWAN

None

Card Reader

MicroSD Card Holder Tray

Bundled Accessories

None

Case Color

Platinum Grey

Case Material

Metal

Camera

Front 5.0MP / Rear 8.0MP

Microphone

2x, Array

VoiceCall

No

Battery

Integrated 5000mAh

Power Adapter

5V / 2.0A

Operating System

Android Pie

Base Warranty

2-year, Depot

EAN / UPC / JAN

194552945398

Announce Date

2020-01-07

Notes:
Battery life is an estimated maximum. Actual battery life

may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.

WWW.LENOVO.COM

Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.

Lenovo reserves the right to change specifications or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.

Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.

https://psref.lenovo.com

Visit psref website for the latest version of
Product specifications Reference.

© Lenovo, 2020. All rights reserved.

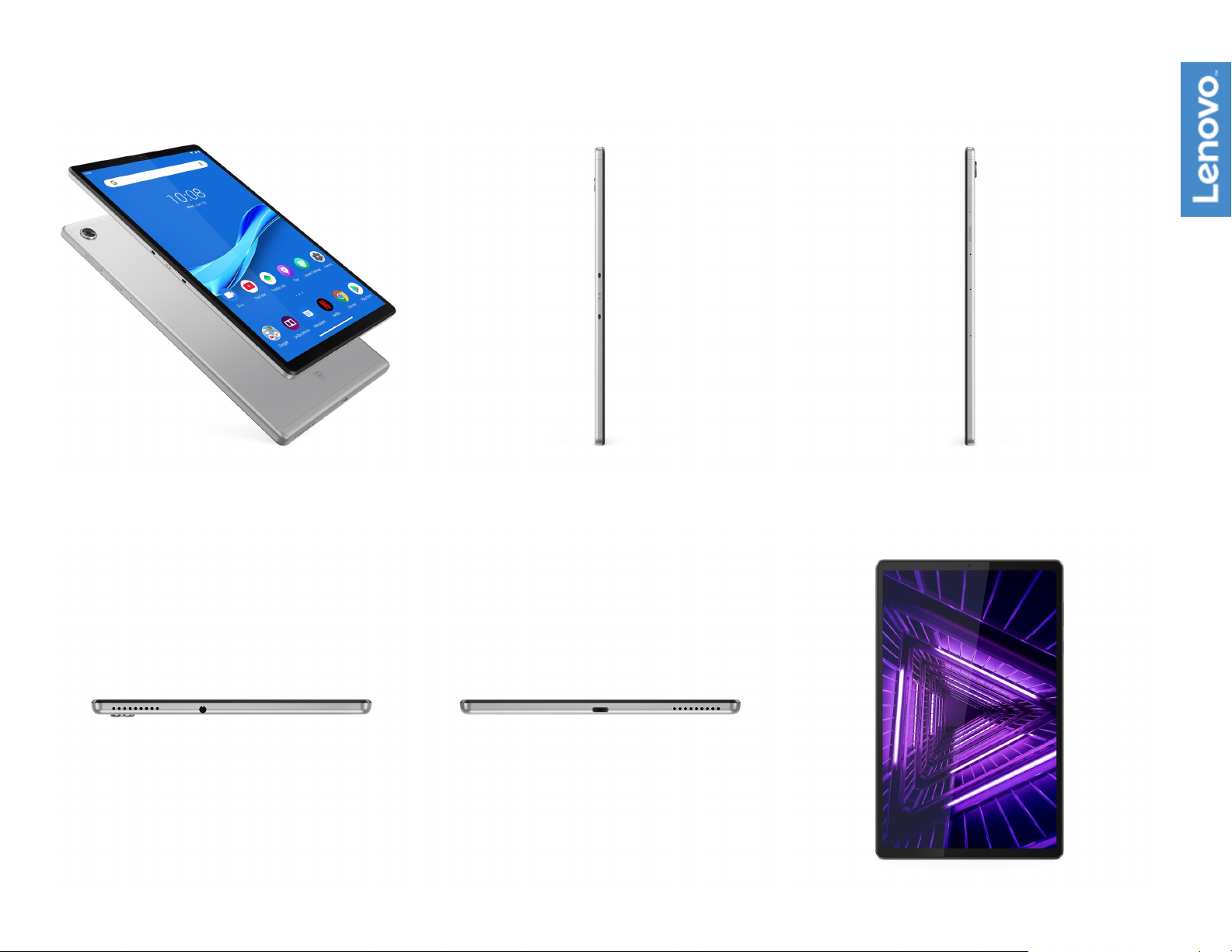

Lenovo Tab M10 FHD Plus (2nd Gen) Platform Specifications

Product Specifications Reference (PSREF)

Processor MediaTek® Processor

MediaTek Helio P22T (8xARM Cortex-A53, up to 2.3GHz)
Graphics Integrated IMG GE8320 GPU
Display

Multi-touch

Size Resolution Type Brightness

10.3"

(261.62mm)

FHD (1920 x 1200) TDDI

Ty p. 330nits Ty p. 70.3% NTSC
Min. 280nits Min. 65% NTSC

Capacitive-type multi-touch, supports 10-point touch
Memory 2GB or 4GB / 3200MHz LPDDR4X, soldered to systemboard
Storage

32GB, 64GB or 128GB eMMC (Embedded Multi Media Card),

flash memory on board
Card slot

Bluetooth
WLAN

®

WWAN (Optional)
LTE Band

One single card slot (WiFi model) or one dual-card slot (

supports Nano-SIM card + MicroSD card

(up to 256GB, FAT32)

LTE

Bluetooth 5.0

802.11 a/b/g/n/ac, 1x1, 2.4 GHz / 5 GHz Wi-Fi Dual Bands

4G LTE connectivity

GSM: B2/B3/B5/B8

WCDMA: B1/B2/B5(B6/B19)/B8

FDD LTE: B1/B2/B3(expanded Band3)/B4/B5(B19)/B7/B8/B20

TDD LTE: B38/B40

NFC
WIFI Direct
WIFI Display
WHDI
FM Radio
A-GPS (Optional)
GPS (Optional)
Glonass (Opt)
Beidou (Optional)

Vibrator
G-sensor
P-sensor
L-sensor
E-compass
Hall Sensor
Gyroscope
Proofing

Dimensions
Weight
Case color
Case material

Ports

Buttons

Note: The specifications above may not be available in all regions

None

Ye s

Ye s

None

Ye s

Yes (LTE

Ye s (LTE

Ye s (LTE

Ye s (LTE

model)
model)
model)
model)

Ye s

Accelerometer sensor

Proximity sensor

Ambient sensor

None

Ye s

None

None

WxDxH: 9.61" x 6.03" x 0.32"; 244.2mm x 153.3mm x 8.15mm

460g / 1.01lbs

Iron Grey or Platinum Grey

Metal

Two Pogo Pin, one USB Type-C 2.0, supports OTG,

3.5mm (0.14inch) combo audio / microphone jack (CTIA),

One single card slot (WiFi model) or one dual-card slot (

supports Nano-SIM card + MicroSD card

* Depending on many factors, actual data transfer speed may be lower than theoretical speed

(up to 256GB, FAT32)

LTE

Power key, volume key

Color

Gamut

model),

model),

Viewing

Angle

160°

Camera

Audio

Front /

Focus Mode

5.0MP

Fixed

Focus

Rear /

Focus Mode

8.0MP

Type Zoom

Auto

CMOS Digital No

Focus

Dual side speaker, tuned with Dolby Atmos®,

Flash

Light

Dual array microphones (with dedicated DSP),

Keyboard
Touchpad

Security chip
Fingerprint reader
VoiceCall (Opt)

Battery type
Battery life

3.5mm (0.14inch) combo audio / microphone jack (CTIA)
None
None

None
None
Yes (TB-X606V only)

Li-ion Polymer 5000mAh (Minimum) / 5100mAh (Typical)
Standby Time: 1048hrs
Online Video playback Time: Up to 8.5hrs
Browsing Time: Up to 9hrs

AC adapter
Charging time

* Battery life varies significantly with hardware configurations, settings, usage, & other factors

5V/2A (USB Type-C)
Over 3.5hrs

Preload Android® Pie

Lenovo applications

• Tips

• Kid’s Mode

Third-party applications

• Netflix

• Dolby Atmos

• Google

• Gmail

• Google Chrome

• Google Photos

• Google Play Store

*Applications vary from different Android Pie versions

Limited warranty

One of the following, configurable by model:

• 1-year mail-in service

• 2-year/1-yr battery mail-in service

• 1-year courier / depot service

• 2-year/1-yr battery courier / depot service

• 1-year customer carry-in service

• 2-year/1-yr battery customer carry-in service

• 2-year/1-yr battery courier / depot or customer carry-in service

Environment Energy Star® 8.0 (TB-X606F, TB-X606X); RoHS-compliant

Lenovo

March 2020
