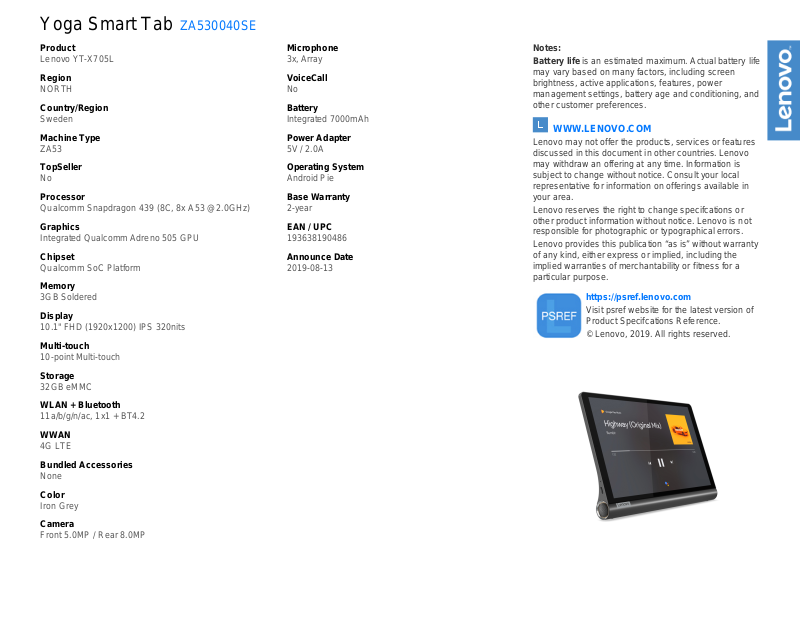

Lenovo ZA530040SE, ZA530018CH Technical data
Yoga Smart Tab ZA530040SE
Product
Lenovo YT-X705L
Region
NORTH
Country/Region
Sweden
Machine Type
ZA53
TopSeller
No
Processor
Qualcomm Snapdragon 439 (8C, 8x A53 @2.0GHz)
Graphics
Integrated Qualcomm Adreno 505 GPU
Chipset
Qualcomm SoC Platform
Memory
3GB Soldered
Display
10.1" FHD (1920x1200) IPS 320nits
Multi-touch
10-point Multi-touch
Microphone
3x, Array
VoiceCall
No
Battery
Integrated 7000mAh
Power Adapter
5V / 2.0A
Operating System
Android Pie
Base Warranty
2-year
EAN / UPC
193638190486
Announce Date
2019-08-13
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.
Storage
32GB eMMC
WLAN + Bluetooth
11a/b/g/n/ac, 1x1 + BT4.2
WWAN
4G LTE
Bundled Accessories
None
Color
Iron Grey
Camera
Front 5.0MP / Rear 8.0MP
Yoga Smart Tab Platform Specifications
Product Specifications Reference (PSREF)
Processor Qualcomm® Snapdragon™ 439 Processor
64-bit Octa-Core Processor (8xARM Cortex-A53, up to 2.0GHz)
Graphics Qualcomm Adreno
Display
Multi-touch
10.1" (256mm) FHD (1920x1200), IPS display, color gamut 70%, 320nits
TDDI Technology, Capacitive 10-point multi-touch
505 graphics in processor
Memory 3GB or 4GB / LPDDR3, soldered to systemboard
Storage
Card slot
Ethernet
Bluetooth
WLAN
®
WWAN (optional)
LTE Band
32GB or 64GB eMMC (Embedded Multi Media Card), flash memory on board
WiFi model:
LTE model:
MicroSD™ card slot, Expandable up to 256GB
Nano-SIM card + microSD card
(Expandable up to 256GB)
None
Bluetooth 4.2
802.11 a/b/g/n/ac, 1x1, dual-band (2.4GHz & 5GHz)
4G LTE connectivity
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B3/B5 (B6/B19)/B8
FDD LTE: B1/B2/B3/B4/B5 (B19)/B7/B8/B20
TDD LTE: B38/B40
NFC
GPS
A-GPS
WiFi Direct
WiFi Display
FM Radio
Vibrator
G-sensor
P-sensor
L-sensor
E-compass
Hall Sensor
Gyroscope
Proofing
Face Unlock
Dimensions
Weight
Case color
Case material
Note: The specifications above may not be available in all regions
None
ROW: GPS+GLONASS; PRC: GPS+Beidou
Optional: A-GPS
None
WiFi Display
FM Radio
Vibrator
Accelerometer sensor
None
Ambient light sensor
None
None
Gyroscope sensor
IP52 (Waterproof)
2D Face recognition
WxHxT: 9.53" x 6.54" x 0.22"; 242mm x 166mm x 5.5mm (curved back cover)
1.26lbs / 570g;
Iron grey
Plastic
Ports
One USB Type-C™ 2.0, 3.5mm (0.14inch) combo audio / microphone jack,
One microSD card slot (WiFi model) or
Separated slot for Nano-SIM card and microSD card (LTE model)
Buttons
Camera
*Depending on many factors, actual data transfer speed may be lower than theoretical speed
Power key, volume key
Front camera: 5.0-megapixel, Fixed-focus with Wide Angle 86 degrees
Rear camera: 8.0-megapixel, Auto-focus
Audio support
2 x 2W JBL® paper diaphragm Hi-Fi speakers with Dolby Atoms® /
3 digital far-field microphones, 3.5mm (0.14inch) combo audio / microphone jack
Keyboard
Touchpad
Security chip
Fingerprint reader
VoiceCall (opt)
Battery type
Battery life
AC adapter
Charging time
Preload Android
None
None
None
None
Ye s
Li-ion Polymer 7000mAh
Standby Time : Over 4 weeks
Video (720p) playback Time : Over 10 hrs
* Battery life varies significantly with settings, usage, & other factors
5V/2A
Less than 5 hrs to fully charged
®
Pie
Lenovo applications
• SYNCit
• Lenovo Push out
• Lenovo Account
• Lenovo User Experience
*Availability of apps may vary with different models
Limited warranty
1-year or 2-year limited warranty
Environment RoHS-compliant
Included / Third-party applications
• Google Messages
• Google Contacts
• Google Chrome
• Google Play Music
• Google Photos
• Google Calendar
• Google
• Google Gboard
• Google FilesGo
• Google Assistant
• Wallpapers
• Skype, Outlook
• Netflix
• Amazon Assistant*
• Yandex Browser*, Yandex Search*
• Fskaren*
Lenovo
August 2019
