Page 1
Lenovo
User Guide
V3.0
IdeaPad Y450
User Guide
V3.0
Page 2
Note
Before using this information and the product it supports, be sure to read the following:
• Chapter 6. Safety, use, and care information on page 63.
• Appendix D. Notices on page 116.
• OneKey Rescue System User Guide included in the package with this publication.
Third Edition (May 2009)
© Copyright Lenovo 2009.
LENOVO products, data, computer software, and services have been developed exclusively at private expense
and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and
restricted rights to use, reproduction and disclosure. LIMITED AND RESTRICTED RIGHTS NOTICE: If
products, data, computer software, or services are delivered pursuant a General Services Administration
“GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.
GS-35F-05925.
Page 3
ENERGY STAR model information
ENERGY STAR® is a joint program of the U.S. Environmental Protection
Agency and the U.S. Department of Energy aimed at saving money and
protecting the environment through energy efficient products and practices.
®
Lenovo
compliant designation. Lenovo computers of the following machine types,
if the ENERGY STAR mark is affixed, have been designed and tested to
conform to the ENERGY STAR 4.0 program requirements for computers.
• 20020
• 4189
By using ENERGY STAR compliant products and taking advantage of the
power-management features of your computer, you reduce the consumption
of electricity. Reduced electrical consumption contributes to potential
financial savings, a cleaner environment, and the reduction of greenhouse
gas emissions.
is proud to offer our customers products with an ENERGY STAR
Page 4
For more information about ENERGY STAR, visit
http://www.energystar.gov
.
Lenovo encourages you to make efficient use of energy an integral part of
your day-to-day operations. To help in this endeavor, Lenovo has preset
the following power-management features to take effect when your
computer has been inactive for a specified duration:
Table 1. ENERGY STAR power-management features, by operating system
Windows® XP Windows Vista
•Turn off monitor: After 10
minutes
•Turn off hard disks: After 30
minutes
•System standby: After 20 minutes
•System hibernates: After 2 hours
Power plan: Balanced
•Turn off the display: After 10
minutes
•Put the computer to sleep: After 25
minutes
•Advanced power settings:
®
- Turn off hard disks: After 20
minutes
- Hibernate: After 1 hour
To awaken your computer from sleep or standby mode, press the power
button on your keyboard. For more information about these settings, refer to
your Windows Help and Support information system.
Page 5
Explanation of hard disk capacity
Dear user,
While using your computer, you may discover that the nominal hard
disk capacity indicated is somewhat different from the disk capacity
displayed by the operating system. For example, a nominal 40GB hard
disk will appear as less than 40GB in the operating system. This
discrepancy is not an error in hard disk installation nor any other
problem, but a normal phenomenon of computers. This phenomenon is
primarily due to the following reasons:
I. Different standards used by the manufacturer and operating
system when calculating hard disk capacity
Hard disk manufacturers use a radix of 1000, i.e. 1GB = 1,000MB,
1MB = 1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk
capacity, operating systems use a radix of 1024, i.e. 1GB = 1,024MB,
1MB = 1,024KB, 1KB = 1,024 bytes. The standard adopted by your
computer is that of the hard disk manufacturers. Since the standards
adopted by the hard disk manufacturer and operating system are different,
the hard disk capacity displayed by the operating system will be different
from the nominal hard disk capacity.
For example, if the hard disk is nominally X GB, even when it is completely
empty, the capacity displayed by the operating system will be:
X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) ≈ X × 0.931
Page 6
If a portion of the hard disk space has been used for some specific purpose,
then the capacity indicated by the operating system will be even less than
X × 0.931 GB.
II. A portion of the hard disk space is used for specific purposes
Lenovo computers come with preinstalled OneKey™ Rescue System, so
the hard disk has a special portion partitioned before delivery, which is
used to store hard disk mirror and OneKey Rescue System program files.
The size of the reserved space for this partition varies according to the
model, operating system and software of the computer. For the sake of
safety, this partition is not evident, which is commonly referred to as a
“hidden partition”.
In addition, after the hard disk is partitioned or formatted, the system will
assign a certain amount of hard disk space for the system files.
For the above reasons, the available hard disk space indicated by the
operating system is always less than the computer’s nominal hard disk
capacity.
Page 7
Contents
Chapter 1. Getting to know your computer .................................................... 1
Top view.................................................................................................................1
Left-side view ........................................................................................................3
Right-side view .....................................................................................................5
Front view..............................................................................................................7
Bottom view...........................................................................................................9
Chapter 2. Using your computer.................................................................... 11
Using the touchpad ............................................................................................11
Using the keyboard ............................................................................................14
Special keys and buttons....................................................................................17
Using the optical drive.......................................................................................19
Using memory cards ..........................................................................................20
Using Lenovo remote (specific models only) .................................................22
Using the integrated camera .............................................................................22
Using the Internet ...............................................................................................23
Securing your computer ....................................................................................29
Installing device drivers ....................................................................................31
Using battery and AC adapter ..........................................................................31
Chapter 3. Using external devices................................................................. 35

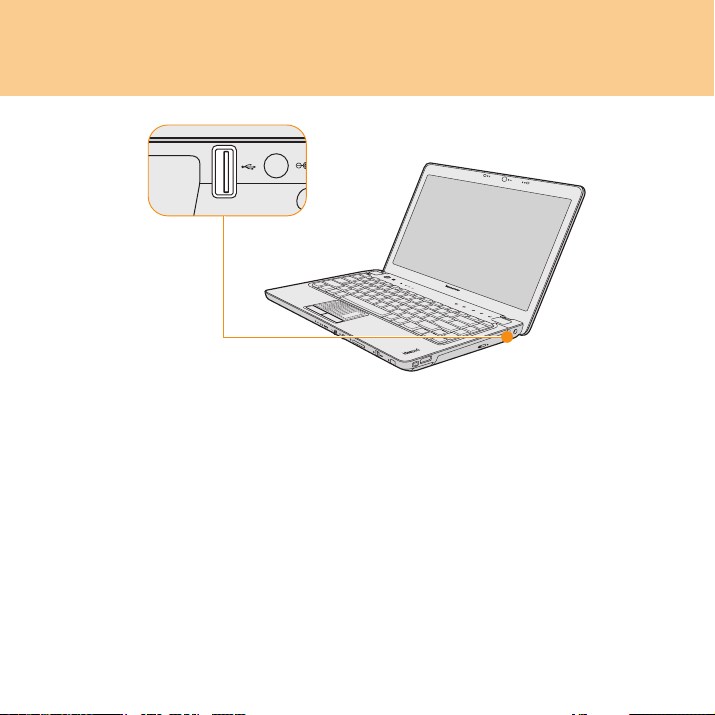

Connecting a Universal Serial Bus (USB) device ...........................................35
Connecting an eSATA device ...........................................................................37
Connecting an IEEE 1394 device ......................................................................38
Connecting an ExpressCard/34 device ...........................................................39
Connecting an external display ........................................................................41
i
Page 8
Contents
Connecting a headphone and audio device ................................................... 43
Connecting an external microphone................................................................ 45
Connecting Bluetooth enabled devices (specific models only) .....................46
Chapter 4. Troubleshooting............................................................................ 47
Frequently asked questions .............................................................................. 47
Troubleshooting.................................................................................................. 49
Chapter 5. Getting help and service .............................................................. 58
Getting help and service.................................................................................... 58
Getting help on the Web.................................................................................... 59
Calling the Customer Support Center............................................................. 59
Getting help around the world.........................................................................62
Chapter 6. Safety, use, and care information ............................................... 63
Important safety information ...........................................................................63
Caring your computer .......................................................................................82
Accessibility and comfort .................................................................................. 90
Maintenance ........................................................................................................93
Appendix A. Lenovo limited warranty ...........................................................97
Warranty Information......................................................................................107
Lenovo warranty service telephone numbers .............................................. 111
Appendix B. Customer Replaceable Units (CRUs)..................................... 113
Appendix C. Specifications .......................................................................... 114
Specifications.....................................................................................................114
ii
Page 9
Contents
Appendix D. Notices ..................................................................................... 116
Notices................................................................................................................116
Wireless related information...........................................................................119
Electronic emissions notices ............................................................................122
WEEE and recycling statements .....................................................................128
Turkish statement of compliance ...................................................................129
EU WEEE statements .......................................................................................129
Japan recycling statements ..............................................................................130
Notice for users in the U.S.A. ..........................................................................132
Notice on deleting data from your hard disk...............................................132
Trademarks........................................................................................................134
Index ............................................................................................................... 135
iii
Page 10
Chapter 1. Getting to know your computer
Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Y450
* The illustrations in this manual may differ from the actual product.
Please refer to the actual product.
1
Page 11
Chapter 1. Getting to know your computer
Wireless LAN antennas
An isotropic antenna system is built into the display.
Integrated camera ............................................................................ 22
Array microphone (built-in)
The built-in microphone can be used for video conferencing, voice
narration, or simple audio recordings.
Computer display
The color display with LED-backlit technology provides clear and
brilliant text and graphics.
Speakers
System status indicators
Touch inductive panel ..................................................................... 17
OneKey Rescue System button...................................................... 19
Power button
2
Page 12
Chapter 1. Getting to know your computer
Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3
Page 13
Chapter 1. Getting to know your computer
Security keyhole
Your computer comes with a security keyhole. You can purchase a
security cable and lock to fit this keyhole.
Note:
Before purchasing any security product, verify that it is compatible
with this type of security keyhole.
VGA port ........................................................................................... 41
HDMI™ port ...................................................................................... 42
USB port ........................................................................................... 35
Fan louvers
Important:
Make sure that any of the fan louvers are not blocked or else
overheating of the computer may occur.
RJ-45 port ......................................................................................... 23
4
Page 14
Chapter 1. Getting to know your computer
Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
5
Page 15
Chapter 1. Getting to know your computer
IEEE 1394 connector ....................................................................... 38
eSATA/USB combo port .................................................................. 37
Optical drive ..................................................................................... 19
AC power adapter jack
Connect the power adapter here to supply power to the computer and
charge the battery pack.
Note:
To prevent damage to the computer and battery pack, use the supplied
AC adapter only.
ExpressCard
USB port ........................................................................................... 35
®
/34 slot....................................................................... 39
6
Page 16
Chapter 1. Getting to know your computer
Front view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
7
Page 17
Chapter 1. Getting to know your computer
System status indicators
Microphone jack (external) ............................................................. 45
Headphone jack (S/PDIF) (external) ............................................... 43
Memory card slot ............................................................................. 20
Integrated wireless device switch
Use this switch to disable the wireless radio of all the integrated
wireless devices on your computer.
CIR port............................................................................................. 22
CIR port, used for Lenovo remote controller.
8
Page 18
Chapter 1. Getting to know your computer
Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
9
Page 19
Chapter 1. Getting to know your computer
Battery latch - spring loaded
The spring-loaded battery latch keeps the battery pack secured in
place. When you insert a battery pack, this latch automatically secures
the battery in place. To remove the battery, hold this latch in the
unlocked position.
Battery latch - manual
The manual battery latch is used to keep the battery pack secured.
Move the manual battery latch to the unlocked position to insert or
remove the battery pack. Move the manual latch to the locked position
after inserting the battery pack.
Central Processing Unit (CPU)/ Memory (RAM) compartment
Hard Disk compartment
Important:
Do not disassemble any component by yourself! If you do need to,
ask a Lenovo authorized service center or dealer to disassemble it.
Battery pack ..................................................................................... 31
SIM card slot (inside the battery bay, specific models only)
10
Page 20
Chapter 2. Using your computer
Using the touchpad - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The touchpad consists of a pad and two click buttons at the bottom of
the keyboard. To move the cursor on the screen, slide your fingertip
over the pad in the direction in which you want the cursor to move. The
functions of the left and right click buttons correspond to those of
the left and right mouse buttons on a conventional mouse.
11
%
Y450
$
'&
Page 21
Chapter 2. Using your computer
Note:
You can also attach and use a USB mouse through the USB connector.
For details, see “Connecting a Universal Serial Bus (USB) device” on
page 35.
Gestures
Your computer touchpad is equipped with gestures technology which
provides an innovative alternative to conventional scrolling and buttons,
enabling users to get to the functionality they need more quickly.
The touchpad can recognize some gestures and make actions like zoom in/
out, or scroll up/down easily.
ChiralMotion™
Slide your finger to the right side of the touchpad until you see the scroll
mark, then draw on the touchpad in a twisting motion. Draw clockwise or
counterclockwise to scroll the page down or up.
Pinch
Use two fingers and make a pinch gesture on the touch pad to zoom out;
reverse the gesture to zoom in.
You will find pinch gesture very useful when you are viewing pictures or
portable document format (PDF) files.
12
Page 22
Chapter 2. Using your computer
Palm Check
To prevent mis-touch, the touch pad ignores big active area motions, like
any movement at the touchpad with your palm, you may set the area size
by clicking Synaptics Pointing Device icon in the system tray in the lower
right corner of the desktop.
You can also change other gesture settings (e.g., enable/disable
ChiralMotion) by clicking the Synaptics Pointing Device icon.
13
Page 23
Chapter 2. Using your computer
Using the keyboard - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer has a numeric keypad and function keys incorporated in
the standard keyboard.
Numeric keypad
The keyboard has keys that, when enabled, work as a 10-key numeric
keypad.
To enable or disable the numeric keypad, press Fn + F8.
* The illustrations in this manual may differ from the actual product. Please
refer to the actual product.
14
Page 24
Chapter 2. Using your computer
Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold the Fn key ; then press one
of the function keys .
Y450
$
%
15
Page 25
Chapter 2. Using your computer
The following describes the features of each function key.
Fn + Esc: Turn on/off the integrated camera.
Fn + F1: Put your computer in sleep mode.
Fn + F2: Turn on/off the LCD screen.
Fn + F3: Shift to other connected display devices.
Fn + F4: Open the interface for display resolution settings.
Fn + F5: Open the interface for integrated wireless devices settings
(enable/disable).
Fn + F6: Enable/disable the touchpad.
Fn + F8: NumLk function.
Fn + F9: Pause function.
Fn + F10: Break function.
Fn + F11: ScrLk function.
Fn + F12: Insert function.
Fn + P
rtSc/SysRq: System request.
/
Fn + : Increase/decrease display brightness.
Fn + : Increase/decrease computer volume.
/
16
Page 26
Chapter 2. Using your computer
Special keys and buttons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer has several special keys and buttons.
Touch inductive panel with multi-media buttons
17
& ' (
Y450
)
Page 27
Chapter 2. Using your computer
Lenovo SlideNav bar:
Quick launch customized applications by the slide and release at the
Lenovo SlideNav bar when Lenovo SlideNav is installed.
OneKey Theater:
OneKey Theater will optimize the color and volume setting of your
computer, bringing you greater visual and aural impact when enjoying
movies.
Open Dolby function setup screen.
Mute/unmute the sound.
Increase computer volume.
Decrease computer volume.
18
Page 28
Chapter 2. Using your computer
OneKey Rescue System button
Press the OneKey Rescue System button to enter the main interface of
OneKey Rescue System while the power is off.
Attention:
When you press OneKey Rescue System button to turn on the computer,
please ensure that your computer is not connected with other peripherals
(such as a USB storage device, etc.), otherwise the system may not operate
properly.
For details, see OneKey Rescue System User Guide.
Note:
When your computer is running Windows Vista, and if you have the
OneKey Recovery application installed, you can start the application by
pressing the OneKey Rescue System button.
Using the optical drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with an optical drive, such as a CD/DVD/Blu-ray
drive.
19
Page 29
Chapter 2. Using your computer
Using memory cards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with a memory card slot used to insert a
memory card, such as an SD/SDHC Card, a MultiMediaCard, an
xD-Picture Card or a Memory Stick/Memory Stick Pro.
Y450
Note:
Only use the memory cards listed above; for more information about the
usage, read the instructions shipped with the memory card.
20
Page 30
Chapter 2. Using your computer
Inserting a memory card
Gently slide the memory card with the arrow facing upward and pointing
toward the memory card slot. Slide until it clicks into place.
Removing a memory card
1 Push the memory card until you hear a click.
2 Gently pull the memory card out of the memory card slot.
21
Page 31
Chapter 2. Using your computer
Using Lenovo remote (specific models only) - - - - - - - - - - - - - - -
You can use the remote control with Windows Media Center for convenient
media enjoyment.
For details of the remote control operation, see the instructions supplied
with it.
Using the integrated camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
With the built-in camera, you can take photos or movies and use with various
applications, such as EasyCapture, Windows Live Messenger or Yahoo!
Messenger, and so on.
Note:
If you use Windows Vista, you need to install a separate third party
dedicated application, because Windows Vista does not include a program
for taking pictures or movies with the integrated camera.
22
Page 32
Chapter 2. Using your computer
Using the Internet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Using RJ-45 port
The RJ-45 port supports a standard RJ-45 connector, and allows you to
connect the computer to an Ethernet connection and local area network
(LAN).
Y450
23
Page 33
Chapter 2. Using your computer
Attention:
As the voltage of a telephone connection is higher than that of a network,
do not attempt to connect a telephone cable to the RJ-45 port or else a short
circuit of the computer might occur.
Using wireless LAN
Depending on your model, a wireless LAN PCI Express Mini Card may be
pre-installed at the factory, which enables your computer hardware ready
for accessing wireless LANs.
Note:
An isotropic antenna system is built into the display for optimal reception,
enabling wireless communication wherever you are.
To enable wireless communications, do the following;
1 Slide the integrated wireless device switch to the right.
2 Press Fn + F5 to make configuration.
24
Page 34
Chapter 2. Using your computer
Using Mobile Broadband (specific models only)
Note:
Before using the Mobile Broadband, be sure to see “Safety information
related to Mobile Broadband” in Chapter 6 first.
What is Mobile Broadband
A Mobile Broadband network, also known as a Wireless Wide Area
Network (WWAN), provides Internet access to laptop computers, cell
phones and other devices over a large geographic area. Cellular networks
are used for data transmission, and access is usually provided by a mobile
network operator.
The biggest advantage of Mobile Broadband is that it is accessible from
anywhere you can get a signal from your carrier. Laptop computers with
Mobile Broadband access can stay online on the move, and will not be tied
down by a wired Internet connection.
Various standards are in use by mobile operators to provide Mobile
Broadband service. Depending on the model, your Mobile Broadband
module may support one or more of the following standards:
GSM (Global System for Mobile Communications)
TD-SCDMA (Time Division-Synchronous Code Division Multiple
Access)
SCDMA (Synchronous Code Division Multiple Access)
EV-DO (Evolution Data Optimized)
HSPA (High Speed Packet Access)
25
Page 35
Chapter 2. Using your computer
Note:
A mobile network operator, also known as mobile carrier, is a telephony
company that provides mobile telecommunication service to its
subscribers.
Mobile Broadband is a subscription service. Refer to your local mobile
network operator for availability, cost and other information.
Getting started with Mobile Broadband
Before getting started with Mobile Broadband, you first need to choose a
mobile network operator and make sure you are in the coverage area of the
network. After that, you also need:

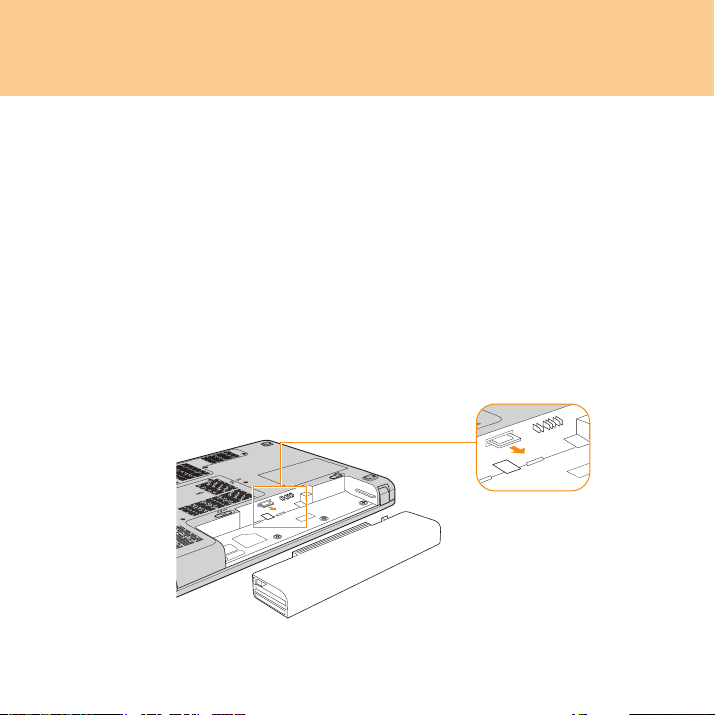

To activate Mobile Broadband service through your local mobile
network operator. You will get a Subscriber Identity Module (SIM) card
after activation. For instructions on inserting the SIM card, refer to the
“Inserting the SIM card” on page 27.
Note:
A SIM card is a type of smart card used by mobile network operators to
identify their service subscribers on the mobile network. You will get the
SIM card from your mobile network operator after you have activated the
Mobile Broadband service.
A connection management utility to connect/disconnect to your Mobile
Broadband network.
Note:
In general, your mobile service provider will provide this utility.
26
Page 36
Chapter 2. Using your computer
Inserting the SIM card
To insert the SIM card:
1 Turn off the computer; then disconnect the AC adapter and all cables
from the computer.
2 Close the computer display and turn it over.
3 Remove the battery.
4 Insert the SIM card to the card slot until it clicks into place as shown in
the drawing.
Note:
Be careful when inserting the SIM card, only insert in the direction
shown below. Inserting the SIM card in the wrong direction may
damage the SIM card slot.
5 Put the battery back in place, turn the computer over again, and
reconnect the cables.
27
Page 37
Chapter 2. Using your computer
Important:
Never insert or remove the SIM card while the computer is on. Doing so may
cause permanent damage to the SIM card as well as the SIM card reader.
Be sure to lock the card holder when the SIM card is inserted.
Removing the SIM card
To remove the SIM card:
1 Turn off the computer; then disconnect the AC adapter and all cables
from the computer.
2 Close the computer display and turn it over.
3 Remove the battery.
4 Push the SIM card in until you hear a click, and then pull the SIM card
out.
28
Page 38
Chapter 2. Using your computer
5 Put the battery back in place, turn the computer over again, and
reconnect the cables.
Important:
Be sure to lock the card holder when the SIM card is removed.
Securing your computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section provides information about how to help protect your
computer from theft and unauthorized use.
Attaching a security lock (optional)
You can attach a security lock to your computer to help prevent it from
being removed without your permission.
Attach a security lock to the keyhole of the computer; then secure the chain
on the lock to a stationary object. Refer to the instructions shipped with the
security lock.
Refer to the “Left-side view” on page 3 for the location of the security
keyhole.
Note:
You are responsible for evaluating, selecting, and implementing the
locking devices and security features. Lenovo makes no comments,
judgements, or warranties about the function, quality, or performance of
locking devices and security features.
29
Page 39
Chapter 2. Using your computer
Using VeriFace™
VeriFace is a face recognition software which takes a digital snapshot,
extracts key features of your face, and creates a digital map that becomes
the system’s “password”.
Note:
The face registration and verification works best in the environment with
steady and even light.
For more instructions on VeriFace, see the help file on your software.
Using passwords
Using passwords helps prevent your computer from being used by others.
Once you set a password and enable it, a prompt appears on the screen
each time you power on the computer. Enter your password at the prompt.
The computer cannot be used unless you enter the correct password.
Make sure that only authorized individuals access your computer.
Establishing different kinds of passwords requires that other possible users
know the proper passwords in order to access your computer or your data.
This password can be from two to eight alphanumeric characters in any
combination.
For details about how to set the password, see the Help to the right of the
screen in BIOS Setup Utility.
30
Page 40
Chapter 2. Using your computer
Installing device drivers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
A compatible device driver is a requirement to ensure correct operation
and performance of each component in your computer. If your computer is
pre-installed with an operating system, Lenovo provides all drivers that
you need in your hard disk.
Using battery and AC adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
When you cannot use the AC adapter to power your computer, you may
depend on battery power to keep your computer running.
Note:
The operating system may run slower when using the battery mode.
Checking battery status
You can determine the percentage of battery power remaining by using
Windows Power options.
As each computer user has different habits and needs, it is difficult to
predict how long a battery charge will last. There are two main factors:
The amount of energy stored in the battery when you begin to work.
The way you use your computer: for example, how often you access the
hard disk drive and how bright you make the computer display.
31
Page 41
Chapter 2. Using your computer
Using the AC adapter
The power to run your computer can come either from the battery pack or
from AC power through the AC adapter.
Attention:
Using an improper power cord could cause severe damage to your computer.
To use the AC adapter, do the following. Be sure to take these steps in the
order in which they are given here.
1 Connect the power cord to the transformer pack.
2 Plug the power cord into an electrical outlet.
3 Connect the AC adapter to the AC power adapter jack of the computer.
You can check the status of your battery at any time by looking at the
battery meter at the bottom of your display.
Note:
When you do not use the AC adapter, disconnect it from the electrical outlet.
Do not wrap the power cord tightly around the AC power transformer
pack when it is connected to the transformer.
You can charge the battery when the AC adapter is connected to the
computer and the battery is installed. You need to charge it in any of the
following conditions:
When you purchase a new battery
If the battery status indicator starts blinking
If the battery has not been used for a long time
32
Page 42
Chapter 2. Using your computer
When you charge the battery, make sure that its temperature is between 0°
and 60°C (32° - 140°F).
Charging the battery
When you check the battery status and find that the battery is low, you
need to charge the battery or replace it with a charged battery.
If an AC outlet is convenient, first, connect the power cord to the
transformer pack; second, plug the power cord into an electrical outlet; and
then connect the AC adapter to the power jack of the computer.
The charging time is affected by the physical environment.
Note:
To increase the life of the battery, the computer does not start recharging
the battery immediately when it drops from fully-charged.
33
Page 43
Chapter 2. Using your computer
Handling the battery
Danger:
Do not attempt to disassemble or modify the battery pack.
Attempting to do so can cause an explosion, or liquid leakage from the
battery pack.
A battery pack other than the one specified by Lenovo, or a disassembled
or modified battery pack is not covered by the warranty.
Danger:
If the rechargeable battery pack is incorrectly replaced, there is danger of
an explosion. The battery pack contains a small amount of harmful
substances. To avoid possible injury:
Replace only with a battery of the type recommended by Lenovo.
Keep the battery pack away from fire.
Do not expose the battery pack to water or rain.
Do not attempt to disassemble the battery pack.
Do not short-circuit the battery pack.
Keep the battery pack away from children.
Danger:
Do not put the battery pack in trash that is disposed of in landfills. When
disposing of the battery, comply with local ordinances or regulations and
your company’s safety standards.
34
Page 44
Chapter 3. Using external devices
Your computer has many built-in features and connection capabilities.
Attention:
Do not connect or disconnect any external device cables other than USB,
eSATA and 1394 cables while the computer power is on; otherwise, you
might damage your computer. To avoid possible damage to attached
devices, wait at least five seconds after the computer is shut down to
disconnect external devices.
Connecting a Universal Serial Bus (USB) device - - - - - - - -
Your computer comes with USB ports compatible with USB devices such as
a keyboard, mouse, camera, external hard disk drive, printer and scanner.
Y450
35
Page 45
Chapter 3. Using external devices
Y450
Attention:
When using high power consumption USB devices, use external device
power adapter. Otherwise, it will cause the device unable to be recognized
and used, or system shut down.
36
Page 46
Chapter 3. Using external devices
Connecting an eSATA device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with an eSATA/USB combo port used for
connecting devices that are compatible with the eSATA/USB interface,
such as external hard disk drives.
Y450
Note:
Both the eSATA and USB connectors can fit into this port.
37
Page 47
Chapter 3. Using external devices
Connecting an IEEE 1394 device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with an IEEE 1394 connector used for connecting
devices that are compatible with the IEEE 1394 interface, such as digital
video cameras and external hard disk drives.
Y450
38
Page 48
Chapter 3. Using external devices
Connecting an ExpressCard/34 device - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with an ExpressCard slot used for connecting
ExpressCard devices that are compatible with the ExpressCard interface.
Y450
39
Page 49
Chapter 3. Using external devices
Inserting an ExpressCard device
Gently slide the ExpressCard device with the front label facing upward.
Slide until it clicks into place.
Removing an ExpressCard device
1 Push the ExpressCard device until you hear a click.
2 Gently pull the ExpressCard device out of the ExpressCard slot.
Note:
Before removing the ExpressCard device, stop it from working by
Windows Safely Remove Hardware utility, otherwise it may corrupt your
data or even damage the device.
40
Page 50
Chapter 3. Using external devices
Connecting an external display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
You can connect an external display to your computer.
Connecting a VGA monitor
You can connect a VGA monitor by using a VGA port. To connect a VGA
monitor, plug the display cable to VGA port on your computer. To shift to
other connected display devices, press Fn + F3.
Y450
41
Page 51
Chapter 3. Using external devices
Connecting an HDMI monitor
You can connect an HDMI monitor by using an HDMI port. To shift to
other connected display devices, press Fn + F3.
Y450
42
Page 52
Chapter 3. Using external devices
Connecting a headphone and audio device - - - - - - - - - - - - - - - - -
Your computer comes with a headphone jack (S/PDIF) used for connecting
headphones, speakers, and audio devices that are compatible with the
S/PDIF interface.
Y450
43
Page 53
Chapter 3. Using external devices
Warning:
Listening to music at high volume over extended periods of time may
damage your hearing.
Excessive use of headphones or earphones for a long period of time at high
volume can be dangerous if the output of the headphones or earphone
connectors do not comply with specifications of EN 50332-2. The
headphone output connector of your computer complies with EN 50332-2
Sub clause 7. This specification limits the computer's maximum wide band
true RMS output voltage to 150 mV. To help protect against hearing loss,
ensure that the headphones or earphones you use also comply with EN
50332-2 (Clause 7 limits) for a wide band characteristic voltage of 75 mV.
Using headphones that do not comply with EN 50332-2 can be dangerous
due to excessive sound pressure levels.
44
Page 54
Chapter 3. Using external devices
Connecting an external microphone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with an external microphone jack used for
connecting an external microphone.
Y450
45
Page 55
Chapter 3. Using external devices
Connecting Bluetooth enabled devices
(specific models only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If your computer has an integrated Bluetooth adapter card, it can connect to
and transfer data wirelessly to other Bluetooth enabled devices, such as
laptop computers, PDAs and cell phones.
Enabling Bluetooth communications
1 Slide the integrated wireless device switch to the right.
2 Press Fn + F5 to make configuration.
Note:
When you do not need to use the Bluetooth function, turn it off to save
battery power.
For details on connecting other Bluetooth enabled devices (market
available), please refer to the instructions shipped with the devices that you
have purchased separately.
46
Page 56
Chapter 4. Troubleshooting
Frequently asked questions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section lists frequently asked questions and tells where you can find
detailed answers. For details about each publication included in the package with
your computer, see Lenovo IdeaPad Y450 Setup Poster.
What safety precautions should I follow when using my computer?
See “Chapter 6. Safety, use, and care information” for detailed
information about safety.
How can I prevent problems with my computer?
See “Chapter 6. Safety, use, and care information” on page 63 of this
guide. More tips can be found in Chapter 1 and 2.
What are the main hardware features of my new computer?
More information can be found in Chapter 1 and 2.
Where can I find the detailed specifications for my computer?
See http://consumersupport.lenovo.com
I need to upgrade a device or I need to replace one of the following: the hard
disk drive, memory, or the keyboard.
See “Appendix B. Customer Replaceable Units (CRUs)” on page 113 of
this guide.
My computer is not operating properly.
Study the relevant information in Chapter 2.
47
.
Page 57
Chapter 4. Troubleshooting
Where are the recovery discs?
Your computer did not come with a recovery disc. For an explanation of
the alternative recovery methods offered by Lenovo, see OneKey Rescue
System User Guide.
How can I contact the Customer Support Center?
See “Chapter 5. Getting help and service” on page 58 of this Guide. For
the phone numbers of the Customer Support Center nearest to you, see
“Lenovo warranty service telephone numbers” on page 111.
Where can I find warranty information?
For the warranty applicable to your computer, including the warranty
period and type of warranty service, see “Appendix A. Lenovo limited
warranty” on page 97.
48
Page 58
Chapter 4. Troubleshooting
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you do not find your problem here, see Chapter 2. The following section only
describes problems that might prevent you from accessing the comprehensive
information in Chapter 2.
Display problems
When I turn on the computer, nothing appears on the screen.
Note:
If you are using an external monitor, see “Computer screen problems” on
page 53.
If the screen is blank, make sure that:
- The battery is installed correctly.
- The AC adapter is connected to the computer and the power cord is
plugged into a working electrical outlet.
- The computer power is on. (Press the power button again for
confirmation.)
- The memory is installed correctly.
If these items are properly set, and the screen remains blank, have the
computer serviced.
49
Page 59
Chapter 4. Troubleshooting
When I turn on the computer, only a white cursor appears on a blank
screen.
Restore backed-up files to your Windows environment or the entire
contents of your hard disk to the original factory contents using OneKey
Recovery. If you still see only the cursor on the screen, have the computer
serviced.
My screen goes blank while the computer is on.
Your screen saver or power management may be enabled. Do one of the
following to exit from the screen saver or to resume from sleep or
hibernation mode:
Touch the touchpad.
Press any key on the keyboard.
Press the power button.
50
Page 60
Chapter 4. Troubleshooting
A password problem
I forgot my password.
If you forgot your user password, you must take your computer to a
Lenovo authorized servicer or a marketing representative to have the
password canceled.
If you forgot your HDD password, Lenovo authorized servicer cannot
reset your password or recover data from the hard disk. You must take
your computer to a Lenovo authorized servicer or a marketing
representative to have the hard disk drive replaced. Proof of purchase
is required, and a fee will be charged for parts and service.
If you forget your supervisor password, Lenovo authorized servicer
cannot reset your password. You must take your computer to a
Lenovo authorized servicer or a marketing representative to have the
system board replaced. Proof of purchase is required, and a fee will be
charged for parts and service.
Keyboard problems
A number appears when you enter a letter.
The numeric lock function is on. To disable it, press Fn + F8.
51
Page 61
Chapter 4. Troubleshooting
Sleep or hibernation problems
The computer enters sleep mode unexpectedly.
If the processor overheats, the computer automatically enters sleep mode
to allow the computer to cool and to protect the processor and other
internal components. Check the settings for sleep mode.
The computer enters sleep mode (the sleep indicator turns on)
immediately after Power-on self-test (POST).
Make sure that:
The battery is charged.
The operating temperature is within the acceptable range. See
“Specifications” on page 114.
If the battery is charged and the temperature is within range, have the
computer serviced.
The critical low-battery error message appears, and the computer
immediately turns off.
The battery power is getting low. Connect the AC adapter to the
computer, or replace the battery with a fully charged one.
The computer does not return from sleep mode, or the sleep
indicator stays on and the computer does not work.
If the computer does not return from sleep mode, it may have entered
hibernation mode automatically because the battery is depleted. Check
the sleep indicator.
52
Page 62
Chapter 4. Troubleshooting
If the sleep indicator is on, your computer is in sleep mode. Connect the
AC adapter to the computer; then press any key or the power button.
If the sleep indicator is off, your computer is in sleep/hibernation
mode or power-off state. Connect the AC adapter to the computer;
then press the power button to resume operation.
If the system still does not return from sleep mode, your system has
stopped responding, and you cannot turn off the computer; reset the
computer. Unsaved data may be lost. To reset the computer, press and
hold the power button for 4 seconds or more. If the computer is still not
reset, remove the AC adapter and the battery.
Computer screen problems
The screen is blank.
Do the following:
If you are using the AC adapter, or using the battery, and the battery
status indicator is on, press Fn + to make the screen brighter.
If the power indicator is in blinking, press any key or the power button
to resume from the sleep mode.
If you still have the problem, do the Solution in the following problem
“The screen is unreadable or distorted.”
53
Page 63
Chapter 4. Troubleshooting
The screen is unreadable or distorted.
Make sure that:
The display device driver is installed correctly.
The screen resolution and color quality are correctly set.
The monitor type is correct.
Incorrect characters appear on the screen.
Did you install the operating system or application program correctly? If
they are installed and configured correctly, have the computer serviced.
A message, “Unable to create overlay window,” appears when you
try to start DVD playback.
-or-
You get poor or no playback while running video playback, DVD
playback, or game applications.
Do either of the following:
If you are using 32-bit color mode, change the color depth to 16-bit
mode.
If you are using a display resolution of 1366
display resolution and the color depth.
×768 or larger, reduce the
54
Page 64
Chapter 4. Troubleshooting
Sound problems
No sound can be heard from the speaker even when the volume is
turned up.
Make sure that:
The Mute function is off.
The headphone jack is not used.
Speakers is selected as a playback device.
Battery problems
Your computer shuts down before the battery status indicator shows
empty.
-or-
Your computer operates after the battery status indicator shows
empty.
Discharge and recharge the battery.
The operating time for a fully charged battery is short.
For details, see “Handling the battery” in Chapter 2.
The computer does not operate with a fully charged battery.
The surge protector in the battery might be active. Turn off the computer
for one minute to reset the protector; then turn on the computer again.
55
Page 65
Chapter 4. Troubleshooting
The battery does not charge.
For details, see “Handling the battery” in Chapter 2.
A hard disk drive problem
The hard disk drive does not work.
Make sure that the hard disk drive is included in the Boot menu in BIOS
Setup Utility correctly.
A startup problem
The Microsoft® Windows operating system does not start.
Use the OneKey Recovery to help solve or identify your problem. For
details about OneKey Recovery, see OneKey Rescue System User Guide.
56
Page 66
Chapter 4. Troubleshooting
Other problems
Your computer does not respond.
To turn off your computer, press and hold the power button for 4
seconds or more. If the computer still does not respond, remove the
AC adapter and the battery.
Your computer might lock when it enters sleep mode during a
communication operation. Disable the sleep timer when you are
working on the network.
The computer does not start from a device you want.
See the Boot menu of the BIOS Setup Utility. Make sure that the startup
sequence in the BIOS Setup Utility is set so that the computer starts from
the device you want. Also make sure that the device from which the
computer starts is enabled.
57
Page 67
Chapter 5. Getting help and service
Getting help and service - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you need help, service, technical assistance, or just want more
information about Lenovo computers, you will find a wide variety of
sources available from Lenovo to assist you. This section contains
information about where to go for additional information about Lenovo
computers, what to do if you experience a problem with your computer,
and whom to call for service should it be necessary.
Microsoft Service Packs are the latest software source for Windows product
updates. They are available by means of a Web download (connection
charges may apply) or from a disc. For more specific information and links,
go to the Microsoft Web site at http://www.microsoft.com
Up and Running technical assistance with installation of, or questions
related to, Service Packs for your Lenovo-preinstalled Microsoft Windows
product.
. Lenovo offers
58
Page 68
Chapter 5. Getting help and service
Getting help on the Web - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The Lenovo Web site on the World Wide Web has up-to-date information
about Lenovo computers and support. The address for the Lenovo home
page is http://consumersupport.lenovo.com
You can find support information for your Lenovo IdeaPad™ computer at
http://consumersupport.lenovo.com
to solve problems, find new ways to use your computer, and learn about
options that can make working with your Lenovo computer even easier.
.
. Research this Web site to learn how
Calling the
If you have tried to correct the problem yourself and still need help, during
the warranty period, you can get help and information by telephone
through the Customer Support Center. The following services are available
during the warranty period:
Problem determination - Trained personnel are available to assist you
with determining if you have a hardware problem and deciding what
action is necessary to fix the problem.
Lenovo hardware repair - If the problem is determined to be caused by
Lenovo hardware under warranty, trained service personnel are
available to provide the applicable level of service.
Customer Support Center
- - - - - - - - - - - - - - - - - - - - - - - - - - - - -
59
Page 69
Chapter 5. Getting help and service
Engineering change management - Occasionally, there might be changes
that are required after a product has been sold. Lenovo or your reseller, if
authorized by Lenovo, will make selected Engineering Changes (ECs)
available that apply to your hardware.
The following items are not covered:
Replacement or use of parts not manufactured for or by Lenovo or non
warranted parts
Identification of software problem sources
Configuration of BIOS as part of an installation or upgrade
Changes, modifications, or upgrades to device drivers
Installation and maintenance of network operating systems (NOS)
Installation and maintenance of application programs
To determine if your Lenovo hardware product is under warranty and
when the warranty expires, go to http://consumersupport.lenovo.com
and click Warranty, then follow the instructions on the screen.
Refer to your Lenovo hardware warranty for a full explanation of Lenovo
warranty terms. Be sure to retain your proof of purchase to obtain
warranty service.
If possible, be near your computer when you make your call in case the
technical assistance representative needs to help you resolve a computer
problem. Please ensure that you have downloaded the most current drivers
and system updates, and recorded information before you call. When
,
60
Page 70
Chapter 5. Getting help and service
calling for technical assistance, please have the following information
available:
Machine Type and Model
Serial numbers of your computer, monitor, and other components, or
your proof of purchase
Description of the problem
Hardware and software configuration information for your system
The telephone numbers for your Customer Support Center location are
located in “Appendix A. Lenovo limited warranty” on page 97.
Note:
Telephone numbers are subject to change without notice. For the latest list
of Customer Support Center telephone numbers and hours of operation,
visit the support Web site at http://consumersupport.lenovo.com
number for your country or region is not listed, contact your Lenovo
reseller or Lenovo marketing representative.
. If the
61
Page 71
Chapter 5. Getting help and service
Getting help around the world - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you travel with your computer or relocate it to a country where your
Lenovo machine type is sold, your computer might be eligible for
International Warranty Service, which automatically entitles you to obtain
warranty service throughout the warranty period. Service will be
performed by service providers authorized to perform warranty service.
Service methods and procedures vary by country, and some services might
not be available in all countries. Service centers in certain countries might
not be able to service all models of a particular machine type. In some
countries, fees and restrictions might apply at the time of service.
To determine whether your computer is eligible for International Warranty
Service and to view a list of the countries where service is available, go to
http://consumersupport.lenovo.com
instructions on the screen.
, click Warranty, and follow the
62
Page 72
Chapter 6. Safety, use, and care information
Important safety information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This information can help you safely use your notebook personal
computer. Follow and retain all information included with your computer.
The information in this document does not alter the terms of your purchase
agreement or the Lenovo Limited Warranty. For more information, see
“Appendix A. Lenovo limited warranty” on page 97.
Customer safety is important. Our products are developed to be safe and
effective. However, personal computers are electronic devices. Power
cords, power adapters, and other features can create potential safety risks
that can result in physical injury or property damage, especially if misused.
To reduce these risks, follow the instructions included with your product,
observe all warnings on the product and in the operating instructions, and
review the information included in this document carefully. By carefully
following the information contained in this document and provided with
your product, you can help protect yourself from hazards and create a safer
computer work environment.
Note:
This information includes references to power adapters and batteries. In
addition to notebook computers, some products (such as speakers and
monitors) ship with external power adapters. If you have such a product,
this information applies to your product. In addition, computer products
contain a coin-sized internal battery that provides power to the system
clock even when the computer is unplugged, so the battery safety
information applies to all computer products.
63
Page 73
Chapter 6. Safety, use, and care information
Conditions that require immediate action
Products can become damaged due to misuse or neglect. Some product
damage is serious enough that the product should not be used again until it
has been inspected and, if necessary, repaired by an authorized servicer.
As with any electronic device, pay close attention to the product when it is
turned on. On very rare occasions, you might notice an odor or see a puff of
smoke or sparks vent from your product. Or you might hear sounds like
popping, cracking, or hissing. These conditions might merely mean that an
internal electronic component has failed in a safe and controlled manner.
Or, they might indicate a potential safety issue. However, do not take risks
or attempt to diagnose the situation yourself. Contact the Customer
Support Center for further guidance. For a list of Service and Support
phone numbers, see http://consumersupport.lenovo.com
Frequently inspect your computer and its components for damage or wear
or signs of danger. If you have any question about the condition of a
component, do not use the product. Contact the Customer Support Center
or the product manufacturer for instructions on how to inspect the product
and have it repaired, if necessary.
In the unlikely event that you notice any of the following conditions, or if
you have any safety concerns with your product, stop using the product
and unplug it from the power source and telecommunication lines until
you can speak to the Customer Support Center for further guidance.
Power cords, plugs, power adapters, extension cords, surge protectors,
or power supplies that are cracked, broken, or damaged.
Signs of overheating, smoke, sparks, or fire.
.
64
Page 74
Chapter 6. Safety, use, and care information
Damage to a battery (such as cracks, dents, or creases), discharge from a
battery, or a buildup of foreign substances on the battery.
A cracking, hissing, or popping sound, or strong odor that comes from
the product.
Signs that liquid has been spilled or an object has fallen onto the
computer product, the power cord, or power adapter.
The computer product, power cord, or power adapter has been exposed
to water.
The product has been dropped or damaged in any way.
The product does not operate normally when you follow the operating
instructions.
Note:
If you notice these conditions with a product (such as an extension cord)
that is not manufactured for or by Lenovo, stop using that product until
you can contact the product manufacturer for further instructions, or until
you get a suitable replacement.
Safety guidelines
Always observe the following precautions to reduce the risk of injury and
property damage.
65
Page 75
Chapter 6. Safety, use, and care information
Service and upgrades
Attention:
Do not attempt to service a product yourself unless instructed to do so by
the Customer Support Center or your documentation. Only use a service
provider who is approved to repair your particular product.
Note:
Some computer parts can be upgraded or replaced by the customer.
Upgrades typically are referred to as options. Replacement parts approved
for customer installation are referred to as Customer Replaceable Units, or
CRUs. Lenovo provides documentation with instructions when it is
appropriate for customers to install options or replace CRUs. You must
closely follow all instructions when installing or replacing parts. The Off
state of a power indicator does not necessarily mean that voltage levels
inside a product are zero. Before you remove the covers from a product
equipped with an ac power cord, always make sure that the power is
turned off and that the product is unplugged from any power source. For
more information on CRUs, see “Appendix B. Customer Replaceable Units
(CRUs)” on page 113. If you have any questions or concerns, contact the
Customer Support Center.
Although there are no moving parts in your computer after the power cord
has been disconnected, the following warnings are required for your
safety.
Danger:
Hazardous moving parts. Keep fingers and other body parts away.
66
Page 76
Chapter 6. Safety, use, and care information
Attention:
Before replacing any CRUs, turn off the computer and wait three to five
minutes to let the computer cool before opening the cover.
Power cords and power adapters
Danger:
Use only the power cords and power adapters supplied by the product
manufacturer. The power cord and power adapter are intended for use
with this product only. They should never be used with any other product.
The power cords shall be safety approved. For Germany, it shall be
H03VV-F, 3G, 0.75 mm
shall be used accordingly.
Never wrap a power cord around a power adapter or other object. Doing
so can stress the cord in ways that can cause the cord to fray, crack, or
crimp. This can present a safety hazard.
Always route power cords or any other cables so that they will not be
walked on, tripped over, or pinched by objects.
Protect power cords and power adapters from liquids. For instance, do not
leave your power cord or power adapter near sinks, tubs, toilets, or on
floors that are cleaned with liquid cleansers. Liquids can cause a short
circuit, particularly if the power cord or power adapter has been stressed
by misuse. Liquids also can cause gradual corrosion of power cord
2
, or better. For other countries, the suitable types
67
Page 77
Chapter 6. Safety, use, and care information
terminals and/or the connector terminals on a power adapter, which can
eventually result in overheating.
Always connect power cords and signal cables in the correct order and
ensure that all power cord connectors are securely and completely plugged
into receptacles.
Do not use any power adapter that shows corrosion at the ac input pins or
shows signs of overheating (such as deformed plastic) at the ac input or
anywhere on the power adapter.
Do not use any power cords where the electrical contacts on either end
show signs of corrosion or overheating or where the power cord appears to
have been damaged in any way.
68
Page 78
Chapter 6. Safety, use, and care information
Extension cords and related devices
Danger:
Ensure that extension cords, surge protectors, uninterruptible power
supplies, and power strips that you use are rated to handle the electrical
requirements of the product. Never overload these devices. If power strips
are used, the load should not exceed the power strip input rating. Consult
an electrician for more information if you have questions about power
loads, power requirements, and input ratings.
Plugs and outlets
Danger:
If a receptacle (power outlet) that you intend to use with your computer
equipment appears to be damaged or corroded, do not use the outlet until
it is replaced by a qualified electrician.
Do not bend or modify the plug. If the plug is damaged, contact the
manufacturer to obtain a replacement.
Do not share an electrical outlet with other home or commercial appliances
that draw large amounts of electricity; otherwise, unstable voltage might
damage your computer, data, or attached devices.
Some products are equipped with a three-pronged plug. This plug fits only
into a grounded electrical outlet. This is a safety feature. Do not defeat this
safety feature by trying to insert it into a non-grounded outlet. If you
cannot insert the plug into the outlet, contact an electrician for an approved
69
Page 79
Chapter 6. Safety, use, and care information
outlet adapter or to replace the outlet with one that enables this safety
feature. Never overload an electrical outlet. The overall system load should
not exceed 80 percent of the branch circuit rating. Consult an electrician for
more information if you have questions about power loads and branch
circuit ratings.
Be sure that the power outlet you are using is properly wired, easily
accessible, and located close to the equipment. Do not fully extend power
cords in a way that will stress the cords.
Be sure that the power outlet provides the correct voltage and current for
the product you are installing.
Carefully connect and disconnect the equipment from the electrical outlet.
Power supply statement
Danger:
Never remove the cover on a power supply or any part that has the
following label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no serviceable parts
inside these components. If you suspect a problem with one of these parts,
contact a service technician.
70
Page 80
Chapter 6. Safety, use, and care information
Lithium coin cell battery notice
Danger:
Danger of explosion if battery is incorrectly replaced.
When replacing the lithium coin cell battery, use only the same or an
equivalent type that is recommended by the manufacturer. The battery
contains lithium and can explode if not properly used, handled, or
disposed of.
Do not:
Throw or immerse into water
Heat to more than 100°C (212°F)
Repair or disassemble
Dispose of the battery as required by local ordinances or regulations.
The following statement applies to users in the state of California, U.S.A.
California Perchlorate Information:
Products containing CR (manganese dioxide) lithium coin cell batteries
may contain perchlorate.
Perchlorate Material — special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate
.
71
Page 81
Chapter 6. Safety, use, and care information
Heat and product ventilation
Danger:
Computers, AC adapters, and many accessories can generate heat when
turned on and when batteries are charging. Notebook computers can
generate a significant amount of heat due to their compact size. Always
follow these basic precautions:
When your computer is turned on or the battery is charging, the base,
the palm rest, and some other parts may become hot. Avoid keeping
your hands, your lap, or any other part of your body in contact with a
hot section of the computer for any extended length of time. When you
use the keyboard, avoid keeping your palms on the palm rest for a
prolonged period of time. Your computer generates some heat during
normal operation. The amount of heat depends on the amount of system
activity and the battery charge level. Extended contact with your body,
even through clothing, could cause discomfort or even a skin burn.
Periodically take breaks from using the keyboard by lifting your hands
from the palm rest; and be careful not to use the keyboard for any
extended length of time.
Do not operate your computer or charge the battery near flammable
materials or in explosive environments.
Ventilation slots, fans and/or heat sinks are provided with the product
for safety, comfort, and reliable operation. These features might
inadvertently become blocked by placing the product on a bed, sofa,
carpet, or other flexible surface. Never block, cover, or disable these
features.
72
Page 82
Chapter 6. Safety, use, and care information
When the AC adapter is connected to an electrical outlet and your
computer, it generates heat. Do not place the adapter in contact with any
part of your body while using it. Never use the AC adapter to warm
your body. Extended contact with your body, even through clothing,
may cause a skin burn.
For your safety, always follow these basic precautions with your computer:
Keep the cover closed whenever the computer is plugged in.
Regularly inspect the outside of the computer for dust accumulation.
Remove dust from vents and any perforations in the bezel. More
frequent cleanings might be required for computers in dusty or hightraffic areas.
Do not restrict or block any ventilation openings.
Do not operate your computer inside furniture, as this might increase the
risk of overheating.
Airflow temperatures into the computer should not exceed 35° C (95° F).
73
Page 83
Chapter 6. Safety, use, and care information
Safety information related to Mobile Broadband
Do not use the Mobile Broadband feature on your computer in highly
flammable areas (e.g. gas station) or near blasting. Though it is rare, the
Mobile Broadband module, like other cellular network devices, could
generate a spark.
Avoid using Mobile Broadband feature outdoors during a
thunderstorm.
Use of mobile devices on board aircraft is explicitly prohibited by many
airlines companies, especially during take-off and landing. The built-in
Mobile Broadband module on your computer is a low-power radio
transceiver. When it is turned on, it intermittently receives and transmits
radio frequency (RF) energy which could cause interference with the
operation of the airplane communication or navigation system. Refer to
rules or regulations of your airline company for Mobile Broadband use.
Never enable Mobile Broadband feature on your computer unless you
are explicitly permitted to do so.
Follow restrictions when using your computer in hospitals. Some
equipments in hospitals are sophisticated and are susceptible to
electromagnetic interference. Do not enable Mobile Broadband feature
near medical equipment without requesting permission.
74
Page 84
Chapter 6. Safety, use, and care information
The Mobile Broadband communication may affect the operation of
implanted cardiac pacemakers and other medically implanted
equipment. Patients with cardiac pacemakers should be well aware that
use of Mobile Broadband feature on this computer may cause the
implanted device to malfunction. If patients have any doubt that there is
interference taking place, immediately disable the wireless radio on the
computer and contact the doctor for more information.
The Mobile Broadband module embedded in your computer does not
support voice calls, hence their use for essential communications is not
possible. Therefore you should never rely upon the device for essential
communications.
75
Page 85
Chapter 6. Safety, use, and care information
CD and DVD drive safety
Danger:
CD and DVD drives spin discs at a high speed. If a CD or DVD is cracked
or otherwise physically damaged, it is possible for the disc to break apart or
even shatter when the CD drive is in use. To protect against possible injury
due to this situation, and to reduce the risk of damage to your computer,
do the following:
Always store CD/DVD discs in their original packaging.
Always store CD/DVD discs out of direct sunlight and away from direct
heat sources.
Remove CD/DVD discs from the computer when not in use.
Do not bend or flex CD/DVD discs, or force them into the computer or
their packaging.
Check CD/DVD discs for cracks before each use. Do not use cracked or
damaged discs.
76
Page 86
Chapter 6. Safety, use, and care information
Electrical current safety information
Danger:
Electric current from power, telephone, and communication cables is
hazardous.
To avoid a shock hazard:
Do not use your computer during a lightning storm.
Do not connect or disconnect any cables or perform installation,
maintenance, or reconfiguration of this product during an electrical
storm.
Connect all power cords to a properly wired and grounded electrical
outlet.
Connect to properly wired outlets any equipment that will be attached to
this product.
Whenever possible, use one hand only to connect or disconnect signal
cables.
Never turn on any equipment when there is evidence of fire, water, or
structural damage.
Disconnect the attached power cords, battery pack, and all the cables
before you open the device covers, unless instructed otherwise in the
installation and configuration procedures.
Do not use your computer until you have closed the cover. Never use the
computer when the cover is open.
77
Page 87
Chapter 6. Safety, use, and care information
Connect and disconnect cables as described in the following procedures
when installing, moving, or opening covers on this product or attached
devices.
To connect:
1.Turn everything OFF.
2.First, attach all cables to devices.
3.Attach signal cables to connectors.
4.Attach power cords to outlets.
5.Turn devices ON.
To disconnect:
1.Turn everything OFF.
2.First, remove power cords from outlets.
3.Remove signal cables from connectors.
4.Remove all cables from devices.
The power cord must be disconnected from the wall outlet or receptacle
before installing all other electrical cables connected to your computer.
The power cord may be reconnected to the wall outlet or receptacle only
after all other electrical cables have been connected to the computer.
78
Page 88
Chapter 6. Safety, use, and care information
Laser compliance statement
Some personal computer models are equipped from the factory with a CD
or DVD drive. CD and DVD drives are also sold separately as options. CD
and DVD drives are laser products. The drive’s classification label (shown
below) is on the surface of the drive.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
APPAREIL A LASER DE CLASSE 1
KLASS 1 LASER APPARAT
Example of the label
79
Page 89
Chapter 6. Safety, use, and care information
These drives are certified in the U.S. to conform to the requirements of the
Department of Health and Human Services 21 Code of Federal Regulations
(DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, these
drives are certified to conform to the requirements of the International
Electrotechnical Commission (IEC) 60825-1 and CENELEC EN 60825-1 for
Class 1 laser products.
Class 1 laser products are not considered hazardous. The design of the
laser system and the optical storage drive ensures that there is no exposure
to laser radiation above a Class 1 level during normal operation, user
maintenance, or servicing.
When a CD or DVD drive is installed, note the following handling
instructions.
Danger:
Use of controls, adjustments, or performance of procedures other than
those specified herein might result in hazardous radiation exposure.
Do not remove the drive covers. Removing the covers of the CD or DVD
drive could result in exposure to hazardous laser radiation. There are no
serviceable parts inside the CD or DVD drive.
Some CD and DVD drives contain an embedded Class 3A or Class 3B
laser diode. Note the following statement.
Danger:
Laser radiation when open. Do not stare into the beam, do not view directly
with optical instruments, and avoid direct exposure to the beam.
80
Page 90
Chapter 6. Safety, use, and care information
Liquid Crystal Display (LCD) notice
Attention:
Mercury Information (does not apply to LED backlit models):
The fluorescent lamp in the liquid crystal display contains mercury;
dispose according to local, state or federal laws.
The LCD is made of glass, and rough handling or dropping the computer
can cause the LCD to break. If the LCD breaks and the internal liquid
crystal material contacts the eyes, mouth or clothing, take the following
actions immediately :
In case contact to the eyes or mouth, rinse with large amount of running
water for more than 15 minutes. If any symptoms are present after
washing, get medical care.
In case contact to the skin or clothing, wipe it immediately and wash with
soap and large amount of running water for more than 15 minutes. The
skin or clothing maybe damaged if liquid crystal material is left adhered.
81
Page 91
Chapter 6. Safety, use, and care information
Caring your computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Though your computer is designed to function reliably in normal work
environments, you need to use common sense in handling it. By following
these important tips, you will get the most use and enjoyment out of your
computer.
Be careful about where and how you work
Do not leave the base of your computer, or any other part that becomes
hot during operation, in contact with your lap or any part of your body
for an extended period when the computer is functioning or when the
battery is charging. Your computer dissipates some heat during normal
operation. This heat is a function of the level of system activity and
battery charge level. Extended contact with your body, even through
clothing, could cause discomfort or, eventually, a skin burn.
When the AC adapter is connected to an electrical outlet and your
computer, it generates heat. Do not place the adapter in contact with any
part of your body while using it. Never use the AC adapter to warm
your body. Extended contact with your body, even through clothing,
may cause a skin burn.
Route the cables of an AC adapter, a mouse, a keyboard, a printer, or any
other electronic device, or communication lines, so that they cannot be
walked on, tripped over, pinched by your computer or other objects, or in
any way subjected to treatment that could disturb the operation of your
computer. Applying strong force to the cables may damage or break them.
82
Page 92
Chapter 6. Safety, use, and care information
Place liquids away from your computer to avoid spills, and keep your
computer away from water (to avoid the danger of electrical shock).
Do not eat or smoke over your keyboard. Particles that fall into your
keyboard can cause damage.
Store packing materials safely out of the reach of children to prevent the
risk of suffocation from plastic bags.
Keep your computer away from magnets, activated cellular phones,
electrical appliances, or speakers (within 13 cm or 5 in).
Avoid subjecting your computer to extreme temperatures (below 5°C/
41°F or above 35°C/95°F).
Some appliances, such as certain portable desktop fans or air purifiers,
can produce negative ions. If a computer is close to such an appliance,
and is exposed for an extended time to air containing negative ions, it
may become electrostatically charged. Such a charge may be discharged
through your hands when you touch the keyboard or other parts of the
computer, or through connectors on I/O devices connected to it. Even
though this kind of electrostatic discharge (ESD) is the opposite of a
discharge from your body or clothing to the computer, it poses the same
risk of a computer malfunction.
Your computer is designed and manufactured to minimize any effects of
electrostatic charge. An electrostatic charge above a certain limit,
however, can increase the risk of ESD. Therefore, when using the
computer close to an appliance that can produce negative ions, give
special attention to the following:
- Avoid directly exposing your computer to the air from an appliance
that can produce negative ions.
- Keep your computer and peripherals as far as possible from such an
appliance.
83
Page 93
Chapter 6. Safety, use, and care information
- Wherever possible, ground your computer to facilitate safe
electrostatic discharge.
Note:
Not all such appliances cause a significant electrostatic charge.
When you handle options or CRUs, or perform any work inside the
computer, take the following precautions to avoid static-electricity
damage:
- Limit your movement. Movement can cause static electricity to build
up around you.
- Always handle components carefully. Handle adapters, memory
modules, and other circuit boards by the edges. Never touch exposed
circuitry.
- Prevent others from touching components.
- When you install a static-sensitive option or CRU, touch the staticprotective package containing the part to a metal expansion-slot cover
or other unpainted metal surface on the computer for at least two
seconds. This reduces static electricity in the package and your body.
- Whenever possible, remove the static-sensitive part from the staticprotective packaging and install the part without setting it down.
When this is not possible, place the static-protective packaging on a
smooth, level surface and place the part on it.
- Do not place the part on the computer cover or other metal surface.
84
Page 94
Chapter 6. Safety, use, and care information
Be gentle with your computer
Avoid placing any objects (including paper) between the display and the
keyboard or under the keyboard.
Do not drop, bump, scratch, twist, hit, vibrate, push, or place heavy
objects on your computer, display, or external devices.
Avoid turning the display by over 130°.
Carry your computer properly
Before moving your computer, be sure to remove any media, turn off
attached devices, and disconnect cords and cables.
Be sure your computer is in sleep or hibernation mode, or turned off,
before moving it. This will prevent damage to the hard disk drive and
data loss.
When picking up your open computer, hold it by the bottom. Do not
pick up or hold your computer by the display.
Use a quality carrying case that provides adequate cushion and
protection. Do not pack your computer in a tightly packed suitcase or
bag.
For outdoor use
Backup your critical data before you take your computer outdoors.
Ensure that the battery is full.
Be sure to turn off the power and close the LCD well.
Do not leave anything between the closed LCD and the keyboard.
85
Page 95
Chapter 6. Safety, use, and care information
When you leave the computer in your car, place it on the back seat to
avoid being insolated.
Carry the AC adapter and power cord with the computer.
Handle storage media and drives properly
If your computer comes with an optical drive, do not touch the surface of
a disc or the lens on the tray.
Wait until you hear the CD or DVD click into the center pivot of an
optical drive before closing the tray.
When installing your hard disk, follow the instructions shipped with
your hardware, and apply pressure only where needed on the device.
Data safety
Do not delete unknown files or change the name of files or directories
that were not created by you; otherwise, your computer software might
fail to work.
Be aware that accessing network resources can leave your computer
vulnerable to computer viruses, hackers, spyware, and other malicious
activities that might damage your computer, software, or data.
It is your responsibility to ensure that you have adequate protection in
the form of firewalls, antivirus software, and anti-spyware software and
keep this software up to date.
86
Page 96
Chapter 6. Safety, use, and care information
Take care in setting passwords
Remember your passwords. If you forget a supervisor or hard disk
password, Lenovo authorized service providers will not reset it, and you
might have to replace your system board or hard disk drive.
Other important tips
Your computer might have both an Ethernet connector and a modem
connector. If so, be sure to connect your communication cable to the
correct one, so your connector is not damaged.
Register your Lenovo products with Lenovo (refer to the Web page:
http://consumersupport.lenovo.com
computer to you if it is lost or stolen. Registering your computer also enables
Lenovo to notify you about possible technical information and upgrades.
Only an authorized Lenovo repair technician should disassemble and
repair your computer.
Do not modify or tape the latches to keep the display open or closed.
Take care not to turn your computer over while the AC adapter is
plugged in. This could break the adapter plug.
Turn off your computer if you are replacing a device, or else verify that
the device is warm- or hot-swappable.
Before you install any of the following devices, touch a metal table or a
grounded metal object. This action reduces any static electricity from
your body. The static electricity could damage the device.
- ExpressCard
). This can help authorities return your
87
Page 97
Chapter 6. Safety, use, and care information
- Memory card, such as SD Card, MultiMediaCard, xD-Picture Card,
and Memory Stick/Memory Stick Pro.
- Memory module
When transferring data to or from a flash memory card, such as an SD
card, do not put your computer in sleep or hibernation mode before the
data transfer is complete. To do so might cause damage to your data.
Cleaning the cover of your computer
Occasionally clean your computer as follows:
1 Prepare a mixture of a gentle kitchen-use detergent (one that does not
contain abrasive powder or strong chemicals such as acid or alkaline).
Use 5 parts water to 1 part detergent.
2 Absorb the diluted detergent into a sponge.
3 Squeeze excess liquid from the sponge.
4 Wipe the cover with the sponge, using a circular motion and taking
care not to let any excess liquid drip.
5 Wipe the surface to remove the detergent.
6 Rinse the sponge with clean running water.
7 Wipe the cover with the clean sponge.
8 Wipe the surface again with a dry, soft lint-free cloth.
88
Page 98
Chapter 6. Safety, use, and care information
9 Wait for the surface to dry completely and remove any cloth fibers
from the computer surface.
Note:
Shut down the computer and then disconnect the power cord before
cleaning the computer.
Cleaning your computer keyboard
1 Absorb some isopropyl rubbing alcohol on a soft, dust-free cloth.
2 Wipe each keytop surface with the cloth. Wipe the keys one by one; if
you wipe several keys at a time, the cloth may hook onto an adjacent
key and possibly damage it. Make sure that no liquid drips onto or
between the keys.
3 Allow to dry.
4 To remove any crumbs and dust from beneath the keys, you can use a
camera blower with a brush or cool air from a hair drier.
Note:
Avoid spraying cleaner directly on the display or the keyboard.
89
Page 99
Chapter 6. Safety, use, and care information
Cleaning your computer display
1 Gently wipe the display with a dry, soft lint-free cloth. If you see a
scratchlike mark on your display, it might be a stain transferred from
the keyboard when the cover was pressed from the outside.
2 Wipe or dust the stain gently with a soft, dry cloth.
3 If the stain remains, moisten a soft, lint-free cloth with water or a 50-50
mixture of isopropyl alcohol and water that does not contain
impurities.
4 Wring out as much of the liquid as you can.
5 Wipe the display again; do not let any liquid drip into the computer.
6 Be sure to dry the display before closing it.
Accessibility and comfort - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
As your computer enables you to work in so many places, it is important
that you remain attentive to good posture, good lighting, and proper
seating. By keeping these considerations in mind, you can improve
performance and achieve greater comfort. Lenovo is committed to
providing the latest information and technology to our customers with
disabilities.
90
Page 100
Chapter 6. Safety, use, and care information
Ergonomic information
Working in the virtual office may mean adapting to frequent changes in
your environment. Following some simple rules will make things easier
and bring you the maximum benefits of your computer. Keeping in mind
such basics as good lighting and proper seating, for example, can help you
improve your performance and achieve greater comfort.
Note:
This example shows someone in a conventional setting. Even if you work
in a casual, less conventional setting, many of the tips in this section still
apply. Develop good habits, and they will serve you well.
91
Loading...
