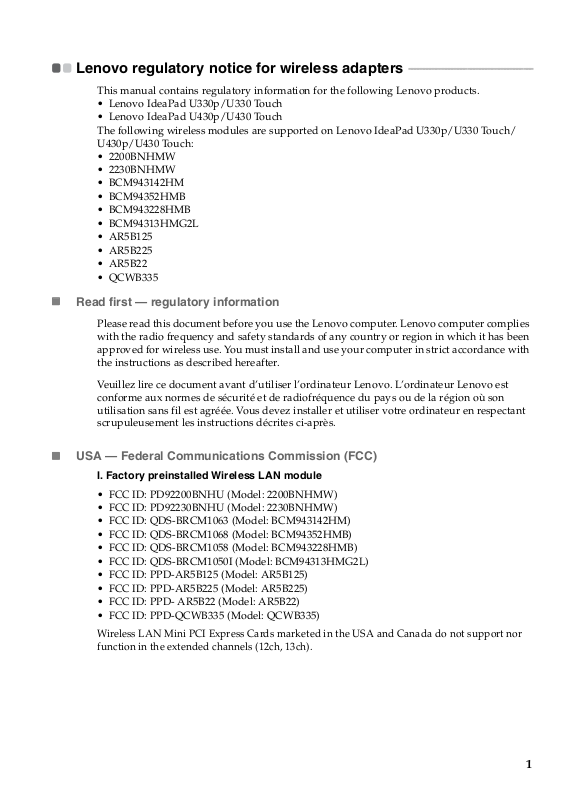

Lenovo regulatory notice for wireless adapters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This manual contains regulatory information for the following Lenovo products.

• Lenovo IdeaPad U330p/U330 Touch

• Lenovo IdeaPad U430p/U430 Touch
The following wireless modules are supported on Lenovo IdeaPad U330p/U330 Touch/
U430p/U430 Touch:

• 2200BNHMW

• 2230BNHMW

• BCM943142HM

• BCM94352HMB

• BCM943228HMB

• BCM94313HMG2L

•AR5B125

•AR5B225

•AR5B22

•QCWB335

 Read first — regulatory information

Please read this document before you use the Lenovo computer. Lenovo computer complies
with the radio frequency and safety standards of any country or region in which it has been
approved for wireless use. You must install and use your computer in strict accordance with
the instructions as described hereafter.

Veuillez lire ce document avant d’utiliser l’ordinateur Lenovo. L’ordinateur Lenovo est
conforme aux normes de sécurité et de radiofréquence du pays ou de la région où son
utilisation sans fil est agréée. Vous devez installer et utiliser votre ordinateur en respectant
scrupuleusement les instructions décrites ci-après.

 USA — Federal Communications Commission (FCC)

I. Factory preinstalled Wireless LAN module

• FCC ID: PD92200BNHU (Model: 2200BNHMW)

• FCC ID: PD92230BNHU (Model: 2230BNHMW)

• FCC ID: QDS-BRCM1063 (Model: BCM943142HM)

• FCC ID: QDS-BRCM1068 (Model: BCM94352HMB)

• FCC ID: QDS-BRCM1058 (Model: BCM943228HMB)

• FCC ID: QDS-BRCM1050I (Model: BCM94313HMG2L)

• FCC ID: PPD-AR5B125 (Model: AR5B125)

• FCC ID: PPD-AR5B225 (Model: AR5B225)

• FCC ID: PPD- AR5B22 (Model: AR5B22)

• FCC ID: PPD-QCWB335 (Model: QCWB335)

Wireless LAN Mini PCI Express Cards marketed in the USA and Canada do not support nor
function in the extended channels (12ch, 13ch).

1

i) The FCC RF Exposure compliance:

The radiated output power of the Wireless LAN Mini PCI Express Card authorized to use for
the your Lenovo computer is far below the FCC radio frequency exposure limits.
Nevertheless, it shall be used in such a manner that the potential for human contact during
normal operation is minimized as follows:

Note: The transmission diversity function is implemented for this product. For WLAN cards (Model:

2200BNHMW, 2230BNHMW, BCM943142HM, BCM94352HMB, BCM943228HMB,
BCM94313HMG2L, AR5B125, AR5B225, AR5B22, QCWB335) using Main and Auxiliary
antennas for transmission in the IEEE 802.11 b/g transmission mode, radio frequency energy is
not emitted simultaneously from both Main and Auxiliary antennas. One of the antennas is
selected automatically or manually (by users) to have good quality of radiocommunication
(transmission diversity function). For WLAN cards 2200BNHMW, 2230BNHMW,
BCM943142HM, BCM94352HMB, BCM943228HMB, BCM94313HMG2L, AR5B125, AR5B225,
AR5B22, QCWB335 in the IEEE 802.11 a/b/g, or MIMO (Multiple In Multiple Out ) transmission
mode, the radio frequency energy is emitted from Main antenna.

ii) FCC ID of wireless module:

On the bottom side of your Lenovo computer, you will find an indicator label of the format
“Contains Transmitter Module: FCC ID XXXX”, where XXXX represents the FCC ID that
corresponds to your preinstalled Wireless LAN module.

iii) Radio Frequency interference requirement:

Each device has been tested and found to comply with the limits for a Class B digital device
pursuant to FCC Part 15 Subpart B. Refer to “Electronic emission notices” on page 5.

When you use a wireless LAN adapter in the 802.11 a/n transmission mode:

• Each device is restricted to indoor use due to its operation in the 5150 to 5250 MHz
frequency range. FCC requires these products to be used indoors for the frequency range
5150 to 5250 MHz to reduce the potential for harmful interference to co-channel Mobile
Satellite systems.

• High power radars are allocated as primary users of the 5250 to 5350 MHz and 5650 to
5850 MHz bands. These radar stations can cause interference with and/or damage this
device.

II. Simultaneous use of RF transmitters

Please make sure of the following conditions on use of wireless features:

1. When you use any other RF option device, all wireless features in your Lenovo computer
are required to be turned off.

2. Users must follow the RF Safety instructions on wireless option devices that are included
in the RF option device's user's manual.

2

 Canada — Industry Canada (IC)

IC Certification number

I) Factory preinstalled Wireless LAN modules:

• IC: 1000M-2200BNHU (Model: 2200BNHMW)

• IC: 1000M-2230BNHU (Model: 2230BNHMW)

• IC: 4324A-BRCM1063 (Model: BCM943142HM)

• IC: 4324A-BRCM1068 (Model: BCM94352HMB)

• IC: 4324A-BRCM1058 (Model: BCM943228HMB)

• IC: 4324A-BRCM1050 (Model: BCM94313HMG2L)

• IC: 4104A-AR5B125 (Model: AR5B125)

• IC: 4104A-AR5B225 (Model: AR5B225)

• IC: 4104A-AR5B22 (Model: AR5B22)

• IC: 4104A-QCWB335 (Model: QCWB335)

Wireless LAN Mini PCI Express Cards marketed in the USA and Canada do not support nor
function in the extended channels (12ch, 13ch).

There is no certification number of Industry Canada for Mini PCI Express Card shown on the
enclosure of your Lenovo computer. Instead you will find an indicator label pointing to the
location of the IC Certification number on the bottom side of your Lenovo computer. This label
will be of the format “Contains Transmitter Module: Canada IC: XXXX”, where XXXX
represents the IC ID that corresponds to your preinstalled WLAN module.

II) Low power license-exempt radiocommunication devices (RSS-210):

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. this device must accept any interference, including interference that may cause undesired
operation of the device.

The transmitter devices have been designed to operate with the antennas integrated in
Lenovo computer, and having a maximum gain of within 3 dBi.

III) Exposure of humans to RF fields (RSS-102):

Lenovo computers employ low gain integral antennas that do not emit RF field in excess of
Health Canada limits for the general population; consult Safety Code 6, obtainable from
Health Canada’s Web site at www.hc-sc.gc.ca/rpb

The radiated energy from the antennas connected to the wireless adapters conforms to the
IC limit of the RF exposure requirement regarding IC RSS-102, Issue 2 clause 4.2.

The maximum antenna gain permitted for devices in the 5250-5350 MHz, 5470-5725 MHz,
and 5725-5825 MHz bands complies with the e.i.r.p. limit in section A9.2 of RSS-210.

When you use a wireless LAN adapter in the 802.11 a/n transmission mode:

• The devices for the band 5150-5250 MHz are only for indoor usage to reduce potential for
harmful interference to co-channel Mobile Satellite systems.

3

• High power radars are allocated as primary users (meaning they have priority) of
5250-5350 MHz and 5650-5850 MHz bands and these radars could cause interference
and/or damage to LELAN (Licence-Exempt Local Area Network) devices.

Numéro d’homologation IC

I) Modules de réseaux local sans fil pré-installé à l’usine:

• IC: 1000M-2200BNHU (Model: 2200BNHMW)

• IC: 1000M-2230BNHU (Model: 2230BNHMW)

• IC: 4324A-BRCM1063 (Model: BCM943142HM)

• IC: 4324A-BRCM1068 (Model: BCM94352HMB)

• IC: 4324A-BRCM1058 (Model: BCM943228HMB)

• IC: 4324A-BRCM1050 (Model: BCM94313HMG2L)

• IC: 4104A-AR5B125 (Model: AR5B125)

• IC: 4104A-AR5B225 (Model: AR5B225)

• IC: 4104A-AR5B22 (Model: AR5B22)

• IC: 4104A-QCWB335 (Model: QCWB335)

Les cartes de réseau local sans fil Express mini-PCI commercialisées aux Etats-Unis et au
Canada ne prennent pas en charge les canaux étendus (12ch, 13ch) et ne fonctionnent donc
pas sur de tels canaux.

Le boîtier de votre ordinateur Lenovo ne comporte pas de numéro d’homologation IC (Industry
Canada) pour la carte mini-PCI Express ; mais sous votre Lenovo, vous trouverez une étiquette
indicatrice pointant vers l’emplacement du numéro d’homologation IC. L’étiquette se présente
sous la forme “Contains Transmitter Module: Canada IC: XXXX” où XXXX représente l’ID IC qui
correspond au module WLAN préinstallé.

II) Remarque relative aux appareils de communication radio de faible puissance sans
licence (CNR-210):

Le fonctionnement de ce type d’appareil est soumis aux deux conditions suivantes:

1. Cet appareil ne doit pas perturber les communications radio, et

2. cet appareil doit supporter toute perturbation, y compris les perturbations qui pourraient
provoquer son dysfonctionnement.

Les périphériques d’émission sont conçus pour fonctionner avec des antennes intégrées aux
Lenovo et ayant un gain maximal de moins de 3 dBi.

III) Exposition des êtres humains aux champs radioélectriques (RF) (CNR-102):

L’ordinateur Lenovo utilise des antennes intégrales à faible gain qui n’émettent pas un
champ électromagnétique supérieur aux normes imposées par le Ministére de la santé
canadien pour la population. Consultez le Safety Code 6 sur le site Web du Ministére de la
santé canadien à l’adresse “www.hc-sc.gc.ca/rpb”.

L’énergie émise par les antennes reliées aux adaptateurs sans fil respecte la limite d’exposition
aux radiofréquences telle que définie par Industrie Canada dans la clause 4.2 du document
CNR-102.

Le gain d'antenne maximal autorisépour les appareils dans les bandes de fréquence 5250-5350
MHz, 5470-5725 MHz et 5725-5825 MHz est conforme àla limite p.i.r.e (puissance isotrope
rayonnée équivalente) définie dans la section A9.2 du CNR-210.

4

Lorsque vous utilisez une carte de réseau local sans fil dans le mode de transmission 802.11
a/n:

• Les appareils destinés àla bande 5150-5250 MHz devront être exclusivement utillsés en
intérieur afin de réduire les risques de perturbations électromagnétiques gênantes sur les
systèmes de satellite mobile dans un même canal.

• Les radars àforte puissance sont désignés comme les utilisateurs principaux (c'est-à-dire
qu'ils sont prioritaires) des bandes 5250-5350 MHz et.

5650-5850 MHz. lls peuvent provoquer des perturbations électromagnétiques sur les appareils
de type LELAN (réseau de communication local sans licence) ou les endommager.

 Electronic emission notices

Federal Communications Commission (FCC) Statement

Note: The compliance of the FCC Part 15 Subpart B for Models: 2200BNHMW, 2230BNHMW,

BCM943142HM, BCM94352HMB, BCM943228HMB, BCM94313HMG2L, AR5B125, AR5B225,
AR5B22, QCWB335 was proceeded by certification, thus the FCC ID: PD92200BNHU,
PD92230BNHU, QDS-BRCM1063, QDS-BRCM1068, QDS-BRCM1058, QDS-BRCM1050I,
PPD-AR5B125, PPD-AR5B225, PPD- AR5B22, PPD-QCWB335, respectively include both
compliances of Part 15 Subpart B and C/E.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult an authorized dealer or service representative for help.

Lenovo is not responsible for any radio or television interference caused by unauthorized
changes or modifications to this equipment. Unauthorized changes or modifications could
void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

5

Responsible Party:

Lenovo (United States) Incorporated
1009 Think Place - Building One
Morrisville, NC 27560
Telephone: [phone]

Industry Canada Class B Emission Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Avis de conformité à la réglementation d’Industrie Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

6

 Europe — EU Declaration of Conformity

Products intended for sale within the European Union are marked with the Conformité
Européenne (CE) Marking, which indicates compliance with the applicable Directives and
European Norms, and amendments, identified below.

For model: 2200BNHMW

For model: 2230BNHMW

For model: BCM943142HM

For model: BCM94352HMB

For model: BCM943228HMB

For model: BCM94313HMG2L

For model: AR5B125

For model: AR5B195

For model: AR5B22

6

 English

Hereby, Lenovo® (Singapore) Pte. Ltd., declares that the modem and wireless
equipment listed in this section are in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.

EU Frequency band restriction for a wireless LAN Mini PCI Express Card

• Usage of this device is limited to indoor in the band 5150 to 5350 MHz (channels 36, 40,
44, 48, 52, 56, 60, 64).

 Bulgarian

 Czech

 Danish

Lenovo (Singapore) Pte. Ltd. erklærer hermed, at modem og trådløst udstyr, der
er nævnt i dette afsnit, overholder de væsentlige krav og andre relevante
bestemmelser i EU-direktiv 1999/5/EC.

Restriktioner for frekvensbånd i EU for Mini PCI Express-kort til trådløst LAN

• Brug af denne enhed er begrænset til indendørs brug i frekvensbåndet 5150 til 5350 MHz
(kanal 36, 40, 44, 48, 52, 56, 60, 64).

7

 German

Hiermit erklärt Lenovo (Singapur) Pte. Ltd., dass der Modem und die drahtlosen
Geräte, die in diesem Abschnitt aufgeführt sind, die Voraussetzungen und
andere relevanten Richtlinien der Direktive 1999/5/EC erfüllen.

EU-Frequenzbandeinschränkung für eine Wireless LAN Mini-PCI-ExpressCard

• Die Verwendung dieses Geräts ist im Innenbereich auf das Frequenzband von 5.150 bis

5.350 MHz (Kanäle 36, 40, 44, 48, 52, 56, 60, 64) beschränkt.

 Estonian

Lenovo (Singapore) Pte. Ltd. kinnitab selles jaotises nimetatud modemi ja
traadita side seadmete vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele muudele asjakohastele sätetele.

EL-i sagedusvahemiku piirang raadiokohtvõrgu mini-PCI-ekspresskaardi kohta

• Seadet on lubatud kasutada siseruumides sagedusalas 5150–5350 MHz (kanalid 36, 40,
44, 48, 52, 56, 60, 64).

 Spanish

En este documento, Lenovo (Singapore) Pte. Ltd., declara que el módem y el
equipo inalámbrico que aparecen en esta sección cumplen los requisitos
esenciales y otras exigencias relevantes de la Directiva 1999/5/EC.

Restricción de banda de frecuencia de la UE para una Tarjeta Express Mini PCI
de LAN inalámbrica

• La utilización de este dispositivo está limitada a interiores en la banda de 5150 a
5350 MHz (canales 36, 40, 44, 48, 52, 56, 60, 64).

 Greek

8

 French

Par la présente, Lenovo (Singapore) Pte. Ltd. déclare que le modem et le
matériel sans fil répertoriés dans cette section sont conformes aux exigences
essentielles ainsi qu’aux autres dispositions applicables de la Directive 1999/5/
CE.

Restriction liée à la bande de fréquence pour une carte mini-PCI Express pour
réseau local sans fil au sein de l’Union Européenne

• Ce périphérique doit être utilisé exclusivement à l’intérieur, dans la bande de fréquence
de 5150 à 5350 MHz (canaux 36, 40, 44, 48, 52, 56, 60, 64).

 Icelandic

Hér með lýsir Lenovo (Singapore) Pte. Ltd. því yfir að mótaldið og þráðlausi
búnaðurinn sem getið er í þessum hluta uppfylla allar kröfur og önnnur
viðkomandi ákvæði tilskipunar 1999/5/EC.

ESB Takmarkanir á tíðnisviði þráðlauss LAN Mini PCI staðarnetkorts

• Notkun þessa tækis er takmörkuð við innanhússnotkun á tíðnisviðinu 5150 til 5350 MHz
(rásir 36, 40, 44, 48, 52, 56, 60, 64).

 Italian

Hereby, Lenovo (Singapore) Pte. Ltd., dichiara che l’equipaggiamento modem e
wireless elencato in questa sezione è conforme ai requisiti essenziali e ad altre
disposizioni rilevanti della direttiva 1999/5/EC.

Restrizioni UE sulla banda di frequenza per una scheda wireless LAN Mini PCI
Express

• L’utilizzo di questo dispositivo è limitato ad ambienti chiusi in banda compresa tra 5150 e
5350 MHz (canali 36, 40, 44, 48, 52, 56, 60, 64).

 Latvian

9

 Lithuanian

 Dutch

Hierbij verklaart Lenovo (Singapore) Pte. Ltd., dat de modem en draadloze
apparatuur die in dit gedeelte worden genoemd, voldoen aan de essentiële
vereisten en andere relevante bepalingen van Directive 1999/5/EC.

EU-beperking van frequentieband voor een draadloze LAN Mini PCI Express
Card

• Gebruik van dit apparaat is beperkt tot binnenshuis gebruik in de band van 5150 tot 5350
MHz (kanalen 36, 40, 44, 48, 52, 56, 60, 64).

 Norwegian

Lenovo (Singapore) Pte. Ltd. erklærer herved at modemet og det trådløse
utstyret er i samsvar med de viktigste kravene og andre relevante
bestemmelser i EU-direktiv 1999/5/EØF.

Begrensinger for frekvensbånd i EU for et Mini PCI Express-kort for trådløst
lokalnett (LAN)

• Denne enheten er begrenset til innendørs bruk i frekvensbåndet 5150 til 5350 MHz (kanal
36, 40, 44, 48, 52, 56, 60, 64).

 Hungarian

10

 Polish

 Portuguese

A Lenovo (Singapore) Pte. Ltd., declara por este meio que o modem e o
equipamento sem fios listado nesta secção se encontram em conformidade
com os requisitos essenciais e com outras provisões relevantes da Directiva
1999/5/EC.

Restrição de frequência de bandas da EU para placas Mini PCI Express Card de
rede local sem fios

• A utilização deste dispositivo está limitada à utilização no interior, na banda de 5150 a
5350 MHz (canais 36, 40, 44, 48, 52, 56, 60, 64).

 Romanian

 Slovenian

11

 Slovakian

 Finnish

Lenovo (Singapore) Pte. Ltd. ilmoittaa täten, että tässä jaksossa mainittu
modeemi ja langaton laitteisto ovat direktiivin 1999/5/EY pakollisten
vaatimusten ja direktiivin muiden asiaankuuluvien määräysten mukaiset.

Taajuusalueita koskeva Euroopan unionin asettama rajoitus Wireless LAN Mini
PCI Express -kortille

• Tämä laite on tarkoitettu käytettäväksi sisätiloissa taajuusalueella 5150 - 5320 MHz
(kanavat 36, 40, 44, 48, 52, 56, 60 ja 64).

 Swedish

Härmed intygar Lenovo (Singapore) Pte. Ltd att det modem och den trådlösa
utrustning som anges i detta avsnitt överensstämmer med väsentliga krav och
andra relevanta bestämmelser i direktiv 1999/5/EG.

Frekvensområdesbegränsning inom EU för ett PCI Express-minikort för
radio-LAN

• Enheten är avsedd för inomhusbruk i frekvensområdet 5150 till 5350 MHz (kanal 36, 40,
44, 48, 52, 56, 60, 64).

12

For model: 2200BNHMW

13

For model: 2230BNHMW

14

For model: BCM943142HM

15

For model: BCM94352HMB

16

For model: BCM943228HMB

17

For model: BCM94313HMG2L

18

For model: AR5B125

y

y

y

r

y

y

y

We, the undersigned,

Compan
Address, Cit

Countr
Phone number
Fax number

certify and declare under our sole responsibility that the following equipm ent:

Product description / Intended use
EU / EFTA member states intended
for use
Member states with restrictive use
Manufacture

Type

is tested to and conforms with the essential requirements for protection of health and the safety of the user and any
other person and Electromagnetic Compatibility, as included in following standards:

and is tested to and conforms with the essential radio test suites so that it effectively uses the frequency spectrum
allocated to terrestrial/space radio communication and orbital resources so to as to avoid harmful interference, as
included in following standards:

and theref ore complies with the essential re quirements and provis ions of the Directive 1999/5/EC of the European
Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications Terminal Equipment
and the mutual recognition of their conformity and with the provisions of Annex IV (Conformity Assessment
procedure referred to in article 10). The device complies with the RF Exposure Requirement 1999/519/EC,
COUNCIL RECOMMENDATION of 12 July 1999 on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz).

The technical documentation as required by the Conformity Assessment procedure is kept at the following address:

Compan
Address, Cit
Countr
Phone number
Fax number
Contact
Email

Technical File ref. nr. AR5B125
Drawn up in San Jose
Date 7th Aug 2012

Declaration of Conformity

Qualcomm Atheros, Inc.

1700 Technology Drive, San Jose, CA 95100, U.S.A.
U.S.A.
1-408-773-5200
1-408-773-9940

1x1 802.11b/g/n PCIe module
All Member Countries

See Enclosed User Instructions Regarding operation in 2.4GHz bands
HON HAI Precision IND.CO.,LTD. & HONG FU JIN Precision Industry
CO.,LTD

AR5B125

etad eussI dradnatS

1.1.2 noisreV 71-984 103 NE
1102 1-05906 NE
8002 11326 NE

etad eussI dradnatS

1.7.1 noisreV 823 003 NE

QUALCOMM ATHEROS GMBH

Braunschweiger Str. 8, 45886 Gelsenkirchen

Germany

[phone]
[phone]

Peter Grabienski

[e-mail]

Name and position Michael Green, Manager Global Product Compliance

19

For model: AR5B225

We, the undersigned,

Company
Address, City

Country
Phone number
Fax number

certify and declare under our sole responsibility that the following equipment:

Product description / Intended use
EU / EFTA member states intended
for use
Member states with restrictive use
Manufacturer

Type

is tested to and conforms with the essential requirements for protection of health and the safety of the user and any
other person and Electromagnetic Compatibility, as included in following standards:

Standard Issue date
EN 301 489-17 Version 2.1.1
EN 60950-1 2011
EN 62311 2008

and is tested to and conforms with the essential radio test suites so that it effectively uses the frequency spectrum
allocated to terrestrial/space radio communication and orbital resources so to as to avoid harmful interference, as
included in following standards:

Standard Issue date
EN 300 328 Version 1.7.1

and therefore complies with the essential requirements and provisions of the Directive 1999/5/EC of the European
Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications Terminal Equipment
and the mutual recognition of their conformity and with the provisions of Annex IV (Conformity Assessment
procedure referred to in article 10). The device complies with the RF Exposure Requirement 1999/519/EC,
COUNCIL RECOMMENDATION of 12 July 1999 on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz).

The technical documentation as required by the Conformity Assessment procedure is kept at the following address:

Company Qualcomm Atheros GmbH
Address, City Braunschweiger Str. 8, 45886 Gelsenkirchen
Country Germany
Phone number [phone]
Fax number [phone]
Contact Peter Grabienski
Email [e-mail]

Technical File ref. nr. AR5B225
Drawn up in San Jose
Date 4 September. 2012

Declaration of Conformity

Qualcomm Atheros, Inc.

1700 Technology Drive, San Jose, CA 95100, U.S.A.
U.S.A.
1-408-773-520 0
1-408-773-994 0

1x1 802.11b/g/n – BT Combo PCIe minicard
All Member Countries

See Enclosed User Instructions Regarding operation in 2.4GHz bands
HON HAI Precision IND.CO.,LTD. & HONG FU JIN Precision Industry
CO.,LTD

AR5B225

20

Name and position Michael Green, Manager Global Product Compliance

For model: AR5B22

r

r

We, the undersigned,

Company Qualcomm Atheros, Inc.
Address, City 1700 Technology Drive, San Jose, CA 95100, U.S.A.
Country U.S.A.
Phone number 1-408-773-5200
Fax number 1-408-773-9940

certify and declare under our sole responsibility that the following equipment:

Product description / Intended use PCIE 802.11a/b/g/n 2.4GHz/5GHz + USB BT 4.0 card
EU / EFTA member states intended
for use
Member states with restrictive use See Enclosed User Instructions Regarding operation in 2.4GHz & 5 GHz

Manufacturer & .DTL,.OC.DNI noisicerP IAH NOH HONG FU JIN Precision Industry

Type 22B5RA

is tested to and conforms with the essential requirements for protection of health and the safety of the user and any
other person and Electromagnetic Compatibility, as included in following standards:

and is tested to and conforms with the essential radio test suites so that it effectively uses the frequency spectrum
allocated to terrestrial/space radio communication and orbital resources so to as to avoid harmful interference, as
included in following standards:

and therefore complies with the essential requirements and provisions of the Directive 1999/5/EC of the European
Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications Terminal Equipment
and the mutual recognition of their conformity and with the provisions of Annex IV (Conformity Assessment
procedure referred to in article 10). The device complies with the RF Exposure Requirement 1999/519/EC,
COUNCIL RECOMMENDATION of 12 July 1999 on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz).

The technical documentation as required by the Conformity Assessment procedure is kept at the following address:

Company
Address, City
Country
Phone numbe
Fax numbe
Contact
Email

Technical File ref. nr. ARS263
Drawn up in San Jose
Date 9 Dec. 2011

Declaration of Conformity

All Member Countries

bands

CO.,LTD

etad eussI dradnatS

1.1.2 noisreV 71-984 103 NE

8002 11326 NE

etad eussI dradnatS

QUALCOMM ATHEROS GMBH

Braunschweiger Str. 8, 45886 Gelsenkirchen

Germany

[phone]
[phone]

Peter Grabienski

[e-mail]

0102 :1A+ 9002:11A+6002 1-05906 NE

1.7.1 noisreV 823 003 NE

1.5.1 noisreV 398 103 NE

Name and position Michael Green, Manager Global Product Compliance

21

For model: QCWB335

y

y

y

r

y

y

y

We, the undersigned,

Compan
Addre ss, Cit
Countr
Phone number
Fax number

certify and declare under our sole responsibility that the following equipment:

Product description / Intended use
EU / EFTA member states intended
for use
Member states with restrictive use

Manufacture

Type

is tested to and conforms with the essential requirements for protection of health and the safety of the user and any
other person and Electromagnetic Compatibility, as included in following standards:

and is tested to and conforms with the essential radio test suites so that it effectively uses the frequency spectrum
allocated to terrestrial/space radio communication and orbital resources so to as to avoid harmful interference, as
included in following standards:

and theref ore complies with the essential re quirements and provis ions of the Directive 1999/5/EC of the European
Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications Terminal Equipment
and the mutual recognition of their conformity and with the provisions of Annex IV (Conformity Assessment
procedure referred to in article 10). The device complies with the RF Exposure Requirement 1999/519/EC,
COUNCIL RECOMMENDATION of 12 July 1999 on the limitation of exposure of the general public to
electromagnetic fields (0 Hz to 300 GHz).

The technical documentation as required by the Conformity Assessment procedure is kept at the following address:

Compan
Address, Cit
Countr
Phone number
Fax number
Contact
Email

Technical File ref. nr. QCWB335
Drawn up in San Jose
Date May 23. 2012

Declaration of Conformity

Qualcomm Atheros, Inc.
1700 Technology Drive, San Jose, CA 95100, U.S.A.
U.S.A.
1-408-773-5200
1-408-773-9940

1X1 802.11b/g/n-BT4.0 Combo PCIe minicard
All Member Countries

See Enclosed User Instructions Regarding operation in 2.4GHz & 5GHz
bands
HON HAI Precision IND.CO.,LTD. & HONG FU JIN Precision Industry
CO.,LTD
QCWB335

etad eussI dradnatS

1.1.2 noisreV 71-984 103 NE

8002 11326 NE

etad eussI dradnatS

1.7.1 noisreV 823 003 NE

QUALCOMM ATHEROS GMBH

Braunschweiger Str. 8, 45886 Gelsenkirchen

Germany

[phone]
[phone]

Peter Grabienski

[e-mail]

1102:21A+ 0102 :1A+ 9002:11A+6002 1-05906 NE

Name and position Michael Green, Manager Global Product Compliance

22

 Notice for users in Saudi Arabia

For model: 2200BNHMW

26

For model: 2230BNHMW

27

For model: BCM943142HM

28

For model: BCM94352HMB

29

For model: BCM943228HMB

30

For model: BCM94313HMG2L

31

For model: AR5B125

32

For model: AR5B225

33

For model: AR5B22

34

For model: QCWB335

35

 Notice for users in the UAE

For model: 2200BNHMW

TRA

REGISTERED NO.

ER0075996/11
DEALER NO.

0018841/09

For model: 2230BNHMW

TRA

REGISTERED NO.

ER0075991/11
DEALER NO.

0018841/09

For model: BCM943142HM

TRA

REGISTERED NO.

ER0076028/11
DEALER NO.

0030000/10

For model: BCM94352HMB

TRA

REGISTERED NO.

ER0095484/12
DEALER NO.

0030000/10

For model: BCM943228HMB

TRA

REGISTERED NO.

ER0070198/11
DEALER NO.

0030000/10

36

For model: BCM94313HMG2L

TRA

REGISTERED NO.

0019812/09

DEALER NO.

0030000/10

For model: AR5B125

TRA

REGISTERED NO.

0019997/09

DEALER NO.

0014005/08

For model: AR5B225

TRA

REGISTERED NO.

0019997/09

DEALER NO.

0014005/08

For model: AR5B22

TRA

REGISTERED NO.

0019997/09

DEALER NO.

0014005/08

For model: QCWB335

TRA

REGISTERED NO.

ER0089126/12
DEALER NO.

0014005/08

 Notice for users in Pakistan

Following adapters are Pakistan Telecommunication Authority (PTA) approved:
2200BNHMW, 2230BNHMW, BCM943142HM, BCM94352HMB, BCM943228HMB,
BCM94313HMG2L, AR5B125, AR5B225, AR5B22, QCWB335

 Notice for users in Morocco

For Models: 2200BNHMW, 2230BNHMW, BCM943142HM, BCM94352HMB,
BCM943228HMB, BCM94313HMG2L, AR5B125, AR5B225, AR5B22, QCWB335

The operation of this product in the radio channel 2 (2417 MHz) is not
authorized in the following cities: Agadir, Assa-Zag, Cabo Negro, Chaouen, Goulmima,
Oujd a , Ta n Tan, Taouri r t , Ta roudant a n d Ta z a.

The operation of this product in the radio channels 4, 5, 6 and 7 (2425 - 2442 MHz) is not
authorized in the following cities: Aéroport Mohamed V, Agadir, Aguelmous, Anza,
Benslimane, Béni Hafida, Cabo Negro, Casablanca, Fès, Lakbab, Marrakech, Merchich,
Moha mmédia , R a b a t , Salé, Ta n g e r, Ta n Tan, Taou nate , Tit Mel l i l , Zag.

Due to the channel restrictions above, the operation of this product using the fat channel
mode (40MHz of channel bandwidth) is not allowed at the 2.4GHz frequency band.

37

 Notice for users in Serbia

The models: 2200BNHMW, 2230BNHMW, BCM943142HM, BCM943228HMB,
BCM94313HMG2L, AR5B125, AR5B225, AR5B22 are certified by Ratel.

 Notice for users in South Africa

For model: 2200BNHMW

TA-2011/1332

APPRO VED

For model: 2230BNHMW

TA-2011/1332

APPRO VED

For model: BCM943142HM

TA-2011/1361

APPRO VED

For model: BCM94352HMB

TA-2012/1025

APPRO VED

For model: BCM943228HMB

TA-2011/816

38

APPRO VED

For model: BCM94313HMG2L

TA-2009/1149

APPRO VED

For model: AR5B125

TA-2011/081

APPRO VED

For model: AR5B225

TA-2011/080

APPRO VED

For model: AR5B22

TA-2011/1678

APPRO VED

For model: QCWB335

TA-2012/795

APPRO VED

 Notice for users in Nigeria

For models: 2200BNHMW, 2230BNHMW, BCM943142HM, BCM94352HMB,
BCM943228HMB, BCM94313HMG2L, AR5B125, AR5B225, AR5B22, QCWB335

 Notice for users in India

For model: 2200BNHMW

ETA-285/2011

For model: 2230BNHMW

ETA-286/2011

For model: BCM943142HM

ETA-1573/2011/WRLO

For model: BCM94352HMB

ETA-2346/2012/WRLO

For model: BCM943228HMB

ETA-1343/2011/WRLO

For model: BCM94313HMG2L

ETA-287/2009/WRLO

For model: AR5B125

ETA-1062/2011/WRLO

For model: AR5B225

ETA-1063/2011/WRLO

For model: AR5B22

ETA-1661/2011/WRLO

39

For model: QCWB335

ETA-2023/2012/WRLO

 Notice for users in Thailand

This wireless communication equipment has the specific absorption rate (SAR) of 0.047 W/
kg as related to the equipment, which is in compliance with the Safety Standard for the Use
of Wireless Communication Devices on Human Health announced by the National
Telecommunications Commission.

 Notice for users in Malaysia

For model: 2200BNHMW

Complies with SIRIM
Registration number: SQASI/TA/11/2304

For model: 2230BNHMW

Complies with SIRIM
Registration number: SQASI/TA/11/2300

For model: BCM943142HM

Complies with SIRIM
Registration number: SQASI/TA/12/0578

For model: BCM943228HMB

Complies with SIRIM
Registration number: SQASI/TA/11/1570

For model: BCM94313HMG2L

Complies with SIRIM
Registration number: SQASI/NA/09/2065

For model: AR5B125

Complies with SIRIM
Registration number: SQASI/TA/11/1229

For model: AR5B225

Complies with SIRIM
Registration number: SQASI/TA/12/0795

For model: AR5B22

Complies with SIRIM
Registration number: SQASI/TA/12/0592

For model: QCWB335

Complies with SIRIM
Registration number: SQASI/TA/12/2217

40

 Notice for users in Taiwan

For models: 2200BNHMW, 2230BNHMW, BCM943142HM, BCM94352HMB,
BCM943228HMB, BCM94313HMG2L, AR5B125, AR5B225, AR5B22, QCWB335

41

㪉㪉㪇㪇㪙㪥㪟㪤㪮 㪇㪇㪊㪮㪮㪘㪈㪈㪈㪉㪇㪏

㪉㪉㪊㪇㪙㪥㪟㪤㪮 㪇㪇㪊㪮㪮㪘㪈㪈㪈㪉㪏㪌

㪙㪚㪤㪐㪋㪊㪈㪋㪉㪟㪤

㪙㪚㪤㪐㪋㪊㪌㪉㪟㪤㪙

㪙㪚㪤㪐㪋㪊㪉㪉㪏㪟㪤㪙

㪙㪚㪤㪐㪋㪊㪈㪊㪟㪤㪞㪉㪣

㪘㪩㪌㪙㪉㪉

㪨㪚㪮㪙㪊㪊㪌

㪛㪈㪈㪈㪉㪇㪐㪇㪇㪊

㪇㪇㪊㪮㪮㪘㪈㪈㪈㪉㪏㪍
㪛㪈㪈㪈㪉㪏㪎㪇㪇㪊

㪉㪇㪈㪮㪮㪈㪈㪉㪈㪌㪋㪉㪇
㪉㪇㪈㪞㪰㪈㪈㪉㪈㪌㪋㪊㪇
㪛㪈㪉㪇㪉㪇㪍㪇㪇㪊

㪇㪇㪎㪄㪘㪘㪇㪉㪉㪏

㪇㪇㪎㪄㪘㪘㪇㪉㪉㪍

㪇㪇㪊㪄㪈㪉㪇㪇㪏㪌
㪛㪇㪐㪈㪈㪏㪍㪇㪇㪊
㪇㪇㪊㪮㪮㪘㪈㪈㪇㪊㪈㪏
㪇㪇㪊㪞㪱㪘㪈㪈㪇㪊㪈㪐
㪛㪈㪈㪇㪊㪉㪇㪇㪇㪊

㪇㪇㪊㪮㪮㪘㪈㪈㪇㪊㪈㪋
㪇㪇㪊㪞㪱㪘㪈㪈㪇㪊㪈㪌
㪇㪇㪊㪮㪮㪘㪈㪈㪇㪊㪈㪍

㪇㪇㪊㪮㪮㪘㪈㪈㪈㪊㪐㪊㩷㩷㩷㩷㩷㩷㩷㩷㩷
㪇㪇㪊㪮㪮㪘㪈㪈㪈㪊㪐㪋
㪇㪇㪊㪞㪰㪘㪈㪈㪈㪊㪐㪌
㪇㪇㪊㪯㪮㪘㪈㪈㪈㪊㪐㪍
㪇㪇㪊㪱㪮㪘㪈㪈㪈㪊㪐㪎
㪛㪈㪈㪈㪊㪐㪏㪇㪇㪊

㪇㪇㪊㪄㪈㪉㪇㪉㪇㪇㩷㩷㩷㩷㩷㩷㩷㩷㩷
㪛㪈㪉㪇㪈㪌㪍㪇㪇㪊

43

44

For models: 2200BNHMW, 2230BNHMW, BCM943142HM, BCM94352HMB,

BCM943228HMB, BCM94313HMG2L, AR5B125, AR5B225, AR5B22, QCWB335

45

 Notice for Users in Mexico (Nota para Uso en Mexico)

For model: 2200BNHMW

Intel Centrino Wireless N2220
Cofetel RCPIN2211-0893

For model: 2230BNHMW

Intel Centrino Wireless N2230
Cofetel RCPIN2211-0892

For model: BCM943142HM

Tarjeta WLAN MiniPCI-E con Bluetooth
Cofetel RCPBRBC12-0020

For model: BCM94352HMB

MODULO WLAN CON BLUETOOTH
Cofetel RCPBRBC12-1405

For model: BCM943228HMB

MODULO WLAN Tarjeta inalambrica PCI-E con Bluetooth
Cofetel RCPBRBC11-0766

For model: BCM94313HMG2L

Tarjeta inalambrice MiniPCI para red
Cofetel RCPBRBC09-1196

For model: AR5B125

Modulo PCIe 1x1 802.11 b/g/n
Cofetel RCPATAR11-0220

For model: AR5B225

Mini tarjeta PCIe 1x1 802.11 b/g/- BT Combo
Cofetel RCPATAR11-0210

For model: QCWB335

Mini tarjeta PCIe 1x1 802.11 b/g/n- BT Combo
Cofetel RCPATQC12-0924

Advertensia:
En Mexico la operación de este equipo está sujeta a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o
dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su oper­ación no deseada

Trademarks

Lenovo, Ideapad, the Lenovo logo are trademarks of Lenovo in the United States, other
countries, or both.
Other company, product, or service names may be trademarks or service marks of others.

46
