Page 1
SAVE ENERGY AND MONEY
FEATURES FOR EFFICIENT POWER
CONSUMPTION AND HIGH COST SAVINGS
SUCCEED WITH STYLE
BRIGHT MONITOR WITH
CRYSTAL-CLEAR DISPLAY
AND HIGH DYNAMIC
CONTRAST RATIO
COLLABORATE AND INNOVATE
FULL HD LED SCREENS
EASE COLLABORATION
AND DATA SHARING TO
HELP YOU INNOVATE
www.lenovo.com
A WIDE AND COLOR-RICH MONITOR
FOR AN IDEAL OFFICE SETUP

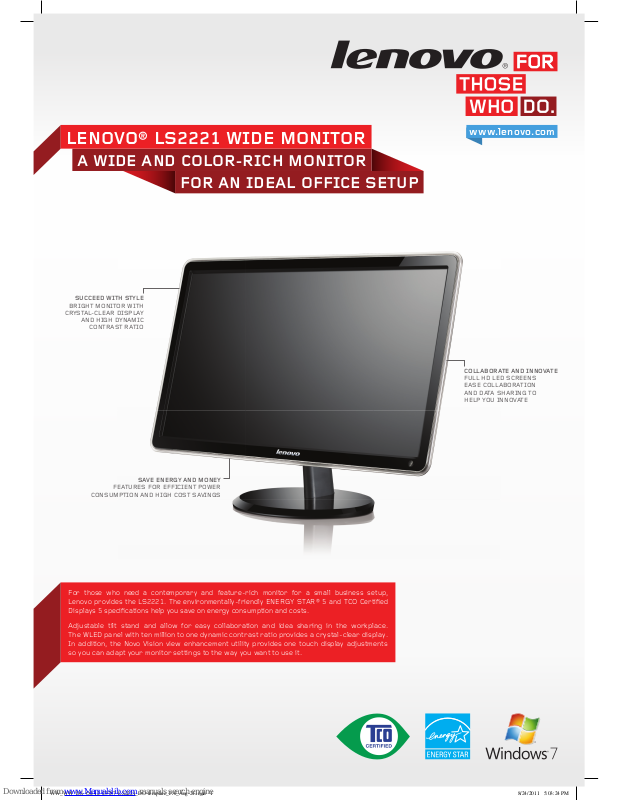

LENOVO® LS2221 WIDE MONITOR
For those who need a contemporary and feature-rich monitor for a small business setup,
Lenovo provides the LS2221. The environmentally-friendly ENERGY STAR® 5 and TCO Certifi ed
Displays 5 specifi cations help you save on energy consumption and costs.
Adjustable tilt stand and allow for easy collaboration and idea sharing in the workplace.
The WLED panel with ten million to one dynamic contrast ratio provides a crystal-clear display.
In addition, the Novo Vision view enhancement utility provides one touch display adjustments
so you can adapt your monitor settings to the way you want to use it.
WW_WW_DS_Q2-12_23787_LS2221_DO-template_FA_Aug-24.indd 1 8/24/2011 5:03:24 PM
Page 2
©2011 Lenovo. All rights reserved.
Availability: O ers, prices, specifi cations and availability may change without notice. Lenovo is not responsible for photographic or typographic errors. Warranty: For a copy of applicable warranties, write to: Warranty Information, 500 Park O ces Drive, RTP, NC,
27709, Attn: Dept. ZPYA/B600. Lenovo makes no representation or warranty regarding third-party products or services. Trademarks: Lenovo, the Lenovo logo, Rescue and Recovery, ThinkStation, ThinkVantage and ThinkVision are trademarks or registered trademarks
of Lenovo. Microso , Windows and Vista are registered trademarks of Microso Corporation. Intel, the Intel logo, Intel Core, Core Inside, Xeon and Xeon Inside are registered trademarks of Intel Corporation in the U.S and other countries. Other company, product
and service names may be trademarks or service marks of others.
Visit Lenovo.com/safecomputing periodically for the latest information on safe and e ective computing.
SPECIFICATIONS
LED PANEL MECHANICAL
Panel Size
Aspect Ratio
Resolution
Screen Dimensions (W x H)
Pixel Pitch
Dot/Pixel Per Inch (DP/PPI)
Brightness
Contrast Ratio
Dynamic Contrast Ratio
Viewing Angle (H/V at CR 10:1)
Response Time (Typical)
Panel Type
Color Gamut
Number of Colors
Novo Vision
21.5" Wide
Wide (16:9)
1920 x 1080
476.64 x 268.11mm
0.2482 x 0.2482mm
102
250cd/m
2
1000:1
10,000,000:1
170°/160°
5ms
TN - White LED BLU
72% NTSC
16.7M
Yes
Tilt Angle (front/back)
Swivel Angle (le /right)
Li
Pivot
VESA Mount
Kensington Lock Slot
USB Hub
Multimedia
Bezel Color
Bezel Width (Side)
-5°~20°
No
N/A
N/A
100 x 100mm
Yes
No
No
High gloss black
23.5mm
SIGNAL INPUT COMPLIANCE
Video Input Signals
Cables Supplied
Sync on Green
Plug ‘n’ Play
Preset/User Modes
OSD Buttons
Lockable Controls
OSD Languages
VGA, DVI-D (HDCP)
Power/Signal cable
No
Yes
32/20
Capacitive Touch
Yes
8
TCO Certifi ed Displays
EPEAT™
ENERGY STAR® Rating
Windows® Certifi cation
5
No
5
Windows® XP / Windows Vista® /
Windows® 7
POWER CONSUMPTION DIMENSIONS
Power Consumption (Typ./Max)
Power Consumption Sleep/O Mode
Heat Dissipation (Typ./Max)
Power Supply
18/30
<1W
NA
Internal
Size Unpacked (W x D x H)
Weight Unpacked
587mm x 151mm x 452mm
3.95kg
PART NUMBERS WARRANTY
Part Number
EAN EMEA
UPC US
UPC ASEAN
UPC ANZ
JAN Code
0886605-26742-6
886605-26738-9
886605-26743-3
886605-26739-6
4560209-88288-4
Warranty 3 Years
WWW.LENOVO.COM
WW_WW_DS_Q2-12_23787
LENOVO® LS2221 WIDE MONITOR
