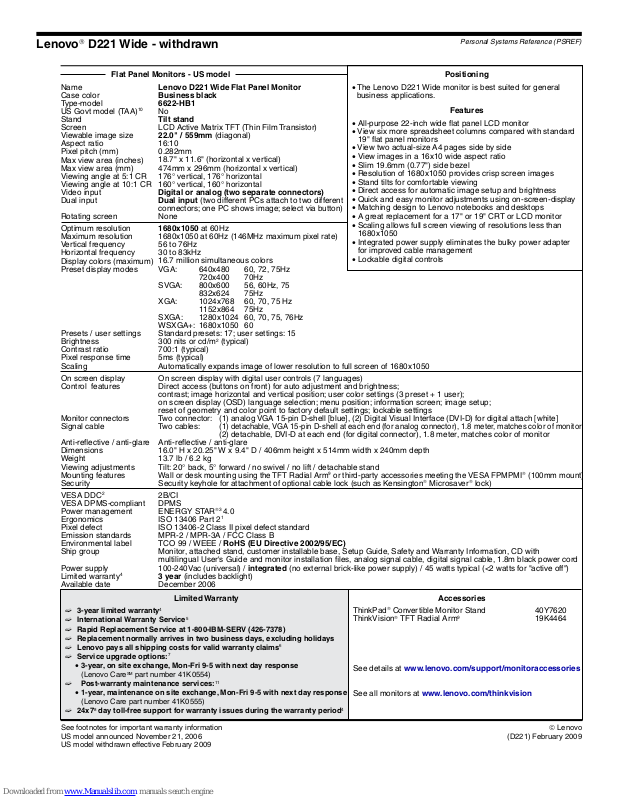

Lenovo® D221 Wide - withdrawn
Personal Systems Reference (PSREF)
Flat Panel Monitors - US model
Name
Case color
Type-model
US Govt model (TAA)
Stand
Screen
Viewable image size
Aspect ratio
Pixel pitch (mm)
Max view area (inches)
Max view area (mm)
Viewing angle at 5:1 CR
Viewing angle at 10:1 CR
Video input
Dual input
Rotating screen
Optimum resolution
Maximum resolution
Vertical frequency
Horizontal frequency
Display colors (maximum)
Preset display modes
Lenovo D221 Wide Flat Panel Monitor
Business black
6622-HB1
10
No
Tilt stand
LCD Active Matrix TFT (Thin Film Transistor)
22.0" / 559mm (diagonal)
16:10
0.282mm
18.7" x 11.6" (horizontal x vertical)
474mm x 296mm (horizontal x vertical)
176° vertical, 176° horizontal
160° vertical, 160° horizontal
Digital or analog (two separate connectors)
Dual input (two different PCs attach to two different
connectors; one PC shows image; select via button)
None
1680x1050 at 60Hz a
1680x1050 at 60Hz (146MHz maximum pixel rate)
56 to 76Hz
30 to 83kHz
16.7 million simultaneous colors
VGA: 640x480 60, 72, 75Hz
720x400 70Hz
SVGA: 800x600 56, 60Hz, 75
832x624 75Hz
XGA: 1024x768 60, 70, 75 Hz
1152x864 75Hz
SXGA: 1280x1024 60, 70, 75, 76Hz
WSXGA+: 1680x1050 60
Presets / user settings
Brightness
Contrast ratio
Pixel response time
Scaling
On screen display
Control features
Standard presets: 17; user settings: 15
300 nits or cd/m2 (typical)
700:1 (typical)
5ms (typical)
Automatically expands image of lower resolution to full screen of 1680x1050
On screen display with digital user controls (7 languages)
Direct access (buttons on front) for auto adjustment and brightness;
contrast; image horizontal and vertical position; user color settings (3 preset + 1 user);
on screen display (OSD) language selection; menu position; information screen; image setup;
reset of geometry and color point to factory default settings; lockable settings
Monitor connectors
Signal cable
Anti-refl ective / anti-glare
Dimensions
Weight
Viewing adjustments
Mounting features
Security
VESA DDC
2
VESA DPMS-compliant
Power management
Ergonomics
Pixel defect
Emission standards
Environmental label
Ship group
Power supply
Limited warranty
4
Available date
Two connector: (1) analog VGA 15-pin D-shell [blue], (2) Digital Visual Interface (DVI-D) for digital attach [white]
Two cables: (1)
detachable, VGA 15-pin D-shell at each end (for analog connector), 1.8 meter, matches color of monitor
(2) detachable, DVI-D at each end (for digital connector), 1.8 meter, matches color of monitor
Anti-refl ective / anti-glare
16.0" H x 20.25" W x 9.4" D / 406mm height x 514mm width x 240mm depth
13.7 lb / 6.2 kg
Tilt: 20° back, 5° forward / no swivel / no lift / detachable stand
Wall or desk mounting using the TFT Radial Arm9 or third-party accessories meeting the VESA FPMPMI® (100mm mount)
Security keyhole for attachment of optional cable lock (such as Kensington® Microsaver® lock)
2B/CI
DPMS
ENERGY STAR
ISO 13406 Part 2
®3
4.0
1
ISO 13406-2 Class II pixel defect standard
MPR-2 / MPR-3A / FCC Class B
TCO 99 / WEEE / RoHS (EU Directive 2002/95/EC)
Monitor, attached stand, customer installable base, Setup Guide, Safety and Warranty Information, CD with
multilingual User's Guide and monitor installation fi les, analog signal cable, digital signal cable, 1.8m black power cord
100-240Vac (universal) / integrated (no external brick-like power supply) / 45 watts typical (<2 watts for "active off")
3 year (includes backlight)
December 2006
Limited Warranty
➫ 3-year limited warranty
➫ International Warranty Service
➫ Rapid Replacement Service at 1-800-IBM-SERV (426-7378)
➫ Replacement normally arrives in two business days, excluding holidays
➫ Lenovo pays all shipping costs for valid warranty claims
➫ Service upgrade options:
• 3-year, on site exchange, Mon-Fri 9-5 with next day response
(Lenovo CareSM part number 41K0554)
➫ Post-warranty maintenance services:
• 1-year, maintenance on site exchange, Mon-Fri 9-5 with next day response
(Lenovo Care part number 41K0555)
➫ 24x78 day toll-free support for warranty issues during the warranty period
See footnotes for important warranty information
US model announced November 21, 2006
US model withdrawn effective February 2009
4
5
6
7
11
Positioning
• The Lenovo D221 Wide monitor is best suited for general
business applications.
Features
• All-purpose 22-inch wide fl at panel LCD monitor
• View six more spreadsheet columns compared with standard
19" fl at panel monitors
• View two actual-size A4 pages side by side
• View images in a 16x10 wide aspect ratio
• Slim 19.6mm (0.77") side bezel
• Resolution of 1680x1050 provides crisp screen images
• Stand tilts for comfortable viewing
• Direct access for automatic image setup and brightness
• Quick and easy monitor adjustments using on-screen-display
• Matching design to Lenovo notebooks and desktops
• A great replacement for a 17" or 19" CRT or LCD monitor
• Scaling allows full screen viewing of resolutions less than
1680x1050
• Integrated power supply eliminates the bulky power adapter
for improved cable management
• Lockable digital controls
Accessories
ThinkPad® Convertible Monitor Stand 40Y7620
ThinkVision® TFT Radial Arm9 19K4464
See details at
See all monitors at www.lenovo.com/thinkvision
4
www.lenovo.com/support/monitoraccessories
© Lenovo
(D221) February 2009
