Lenovo ThinkPad X1 Fold Setup Guide

Printed in China PN:
Fold
The world’s rst foldable OLED screen PC
Your X1 Fold is designed with a foldable OLED screen that can be folded in half. The Lenovo Fold Mini Keyboard is the only thing that should be stored inside the folded device.
Unrivaled authentic design
The leather folio is not removable. At tempting to remove the folio might cause permanent damage.

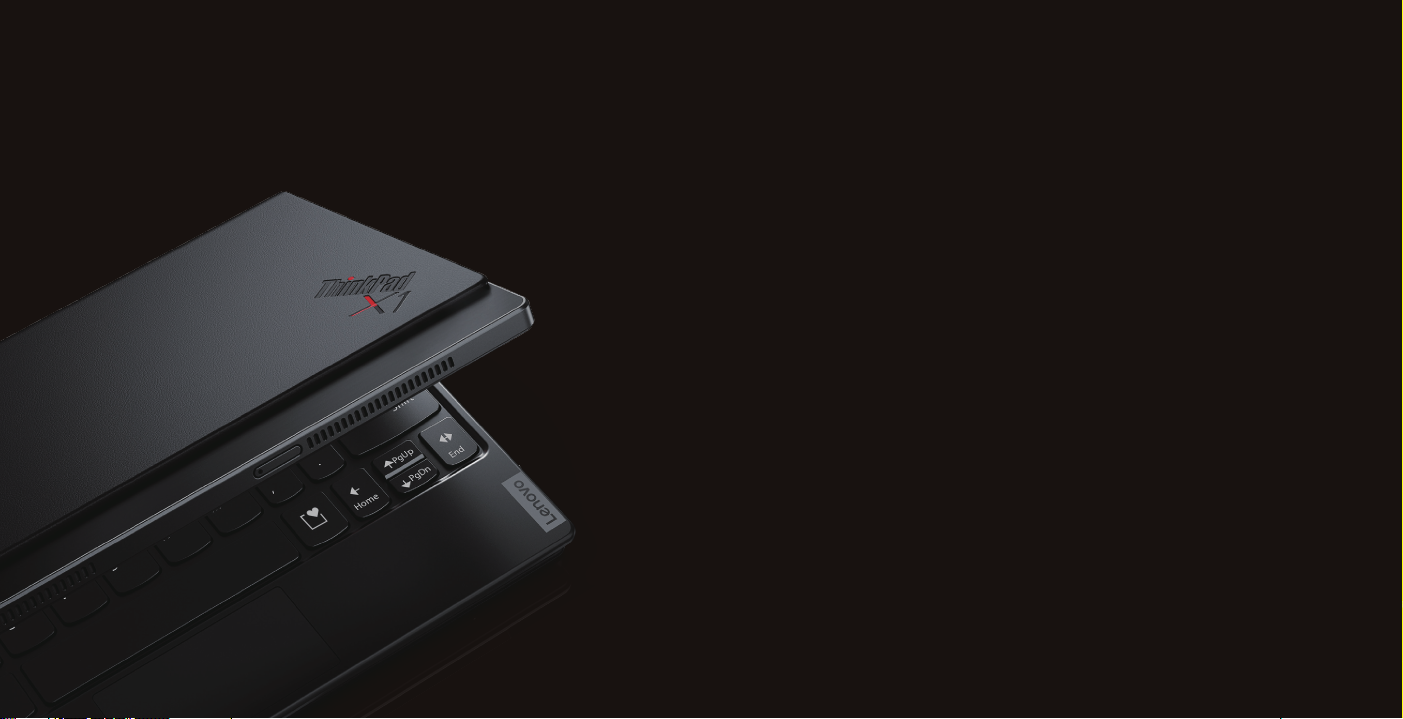

Equipped with a fully integrated tactile keyboard
Your X1 Fold may come with an optional Lenovo Fold Mini Keyboard that is thoughtfully designed for mobile productivity. The keyboard is designed to attach magnetically to the side opposite of the camera. Place the keyboard in the device when folded for transport and inductive charging (inductive charging is available on some models).

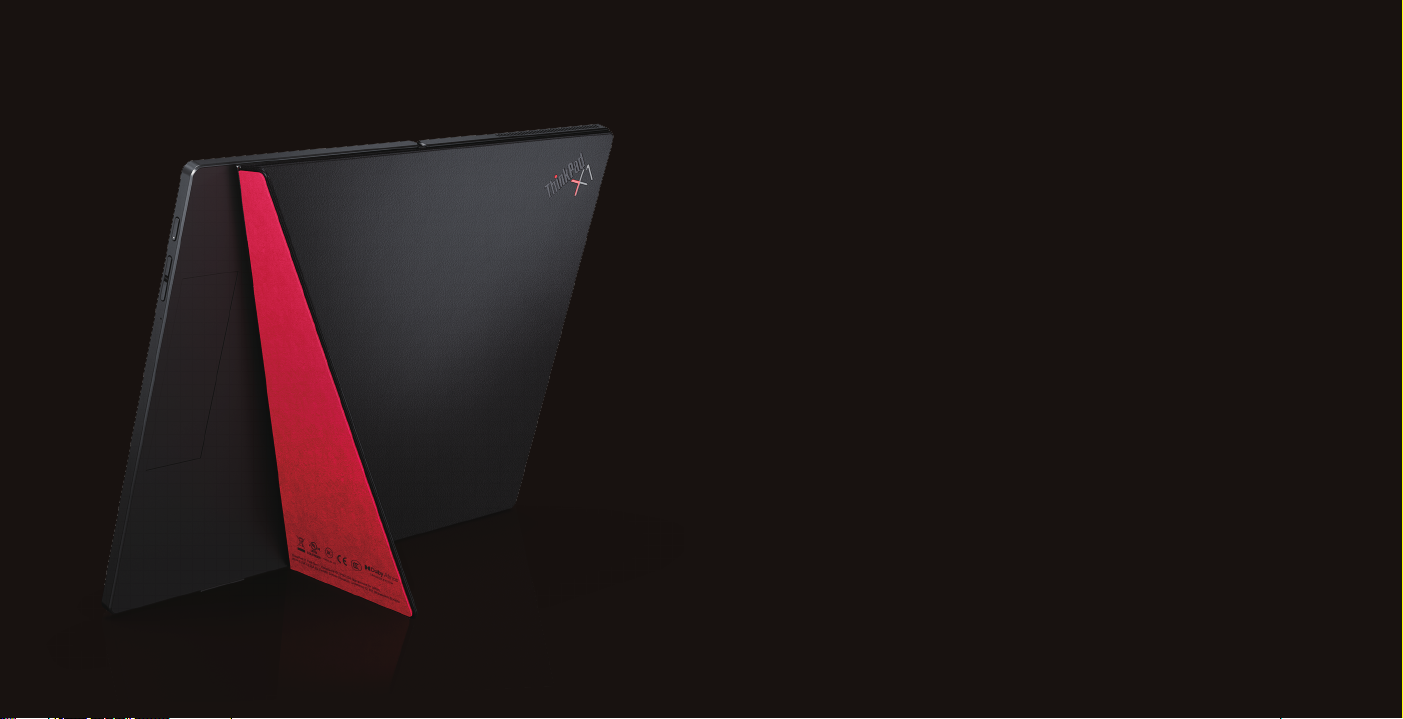

Ultimate productivity with the built-in kickstand
The leather folio includes an integrated kickstand that allows for full screen usage without having to hold the device.

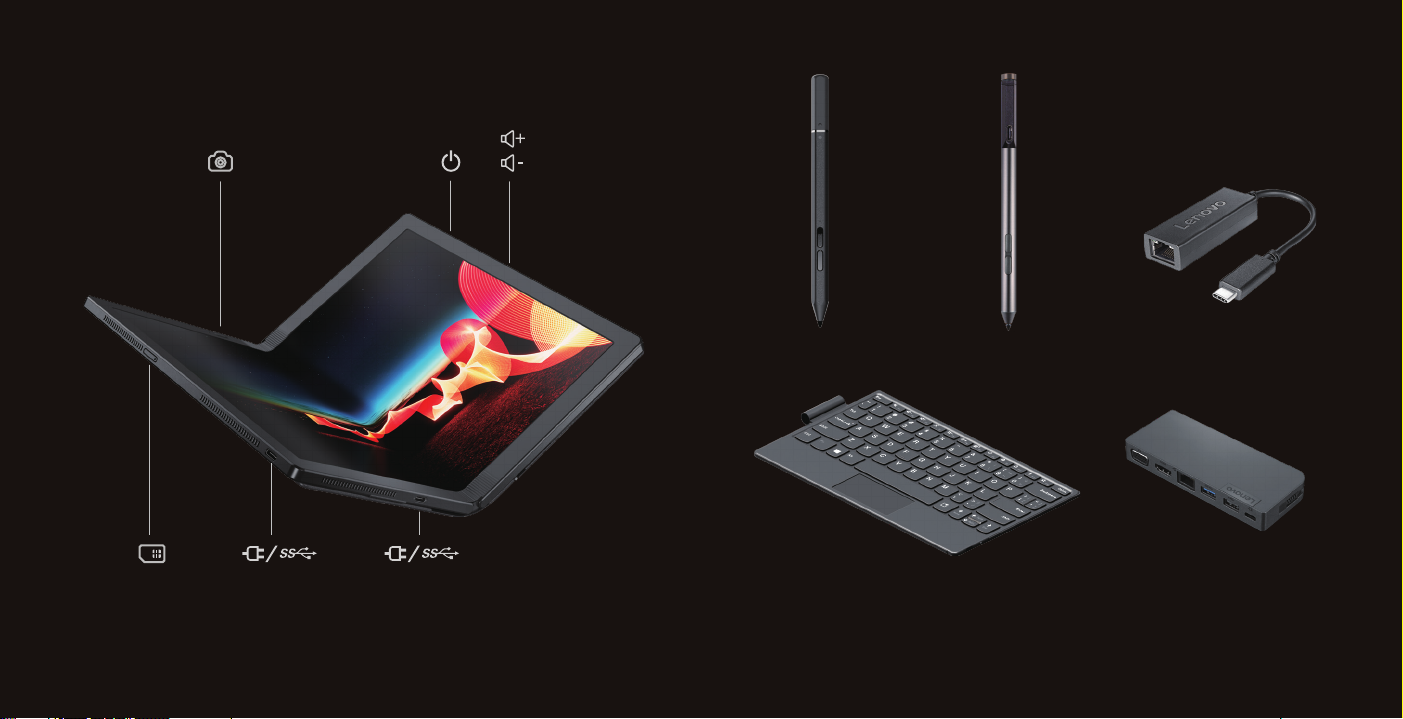

Lenovo Mod Pen* Lenovo Pen Pro*
Lenovo USB-C to Ethernet Adapter
*
USB- C 3.2 Gen 2Nano SIM USB- C 3.2 Gen 2
Lenovo Fold Mini Keyboard*
* for selected models
Lenovo Powered USB-C Travel Hub
*
1
ON
2 3
3s

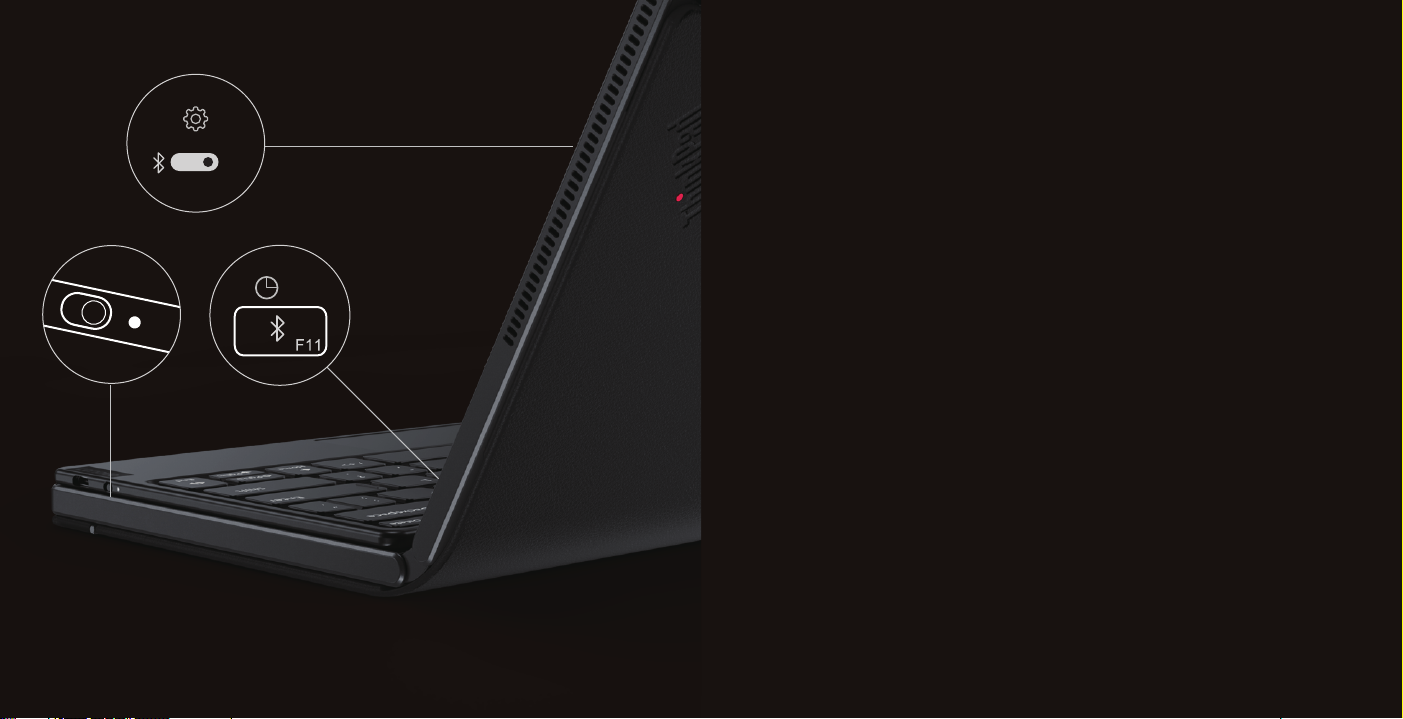

Pair your mini keyboard [English]
1. Enable Bluetooth and Swift Pair on Windows OS settings.
2. Turn on the keyboard. The keyboard indicator turns to green.
3. Press F11 key for three seconds until the keyboard indicator ashes in blue. Follow the on-screen instructions to pair your keyboard.
These functions might vary by apps.
Status indicator
Right click
Eraser
Foldable OLED screen properties
You may notice a crease or pattern at the center of the screen due to the unique display materials but it is a normal characteristic of the foldable OLED display. It will not affect the display’s quality, lifespan, and performance and will not hinder the experience when using the device.
USB transfer rate
Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.
Specic absorption rate (SAR)
YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES. Your device is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic elds) recommended by international guidelines. 10g SAR limit: 2 W/kg (body-worn SAR); 4 W/kg (limb SAR) Maximum SAR with 0 mm separation distance: 1.585 W/kg (body-worn SAR); 3.089 W/kg (limb SAR) To limit exposure from radio waves, use the device under good radio signal conditions and keep the antennas furthest from your body and that of other people. Pregnant women should keep the antennas away from their stomach and adolescences away from their lower abdomen. Wearers of electronic implant devices (pacemakers, insulin pumps, neurostimulators, etc.) should maintain a distance greater than 15 centimeters between the radio device and the implant device. Obey all local restrictions when using your device in public areas, such as hospitals, airplanes, or schools. For more information, go to: https://support.lenovo.com/us/en/solutions/sar.
European Union - compliance with the Radio Equipment Directive
Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type ThinkPad X1 Fold Gen 1 is in compliance with Directive 2014/53/EU. The full text of the system EU declaration of conformity is available at the following Internet address: https://www.lenovo.com/us/en/compliance/eu-doc
This radio equipment operates with the following frequency bands and maximum radio-frequency power:
Technology
WLAN 802.11b/g/n/ax 2400 - 2483.5
WLAN 802.11a/n/ac/ax
WLAN 802.11a/n/ac/ax
Bluetooth BR/EDR/LE
WWAN UMTS
WWAN LTE
WWAN LTE
WWAN 5G NR WWAN 5G NR
Wireless Charger 13.553 - 13.567
Usage of all the radio devices is limited to indoor in the band 5150 MHz to 5350 MHz (channels 36, 40, 44, 48, 52, 56, 60,
64).
Frequency band [MHz]
5150 - 5725
5725 - 5875
2400 - 2483.5
1/8
1/3/7/34/38/40/42
8/20/28
1/3/7/8/20/28/38 41/77/78
Maximum transmit power
< 20 dBm
< 23 dBm
< 13.98 dBm
< 20 dBm
< 24.5 dBm
< 24 dBm
< 24.5 dBm
< 24 dBm < 27 dBm < -13.86 dBμA/m @10m
First Edition (September 2020)
© Copyright Lenovo 2020.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a
General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to
restrictions set forth in Contract No. GS-35F-05925.
Reduce I Reuse I Recycle
