ThinkCentre M58e 7259
Specifications
4 pgs3.13 Mb0

Lenovo ThinkCentre M58e 7259, ThinkCentre M58e Specifications

Download

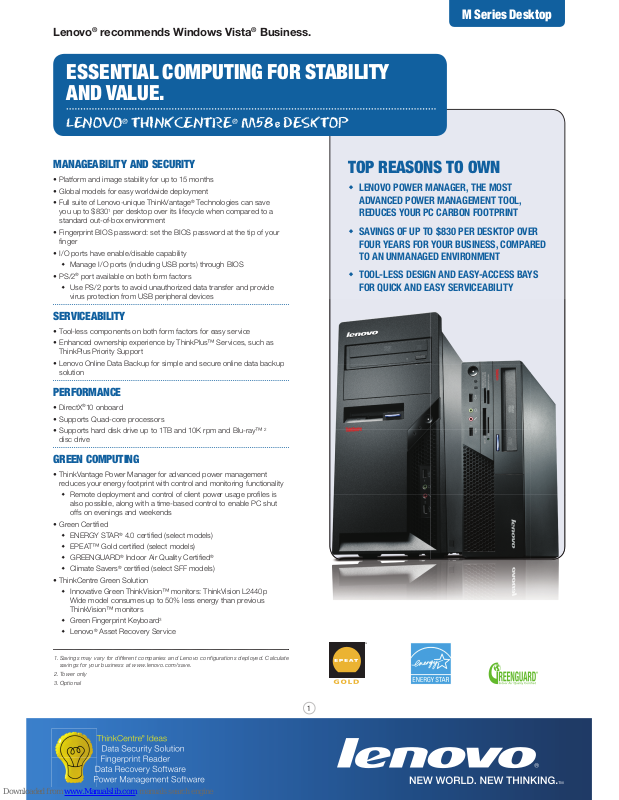

Page 1
1
Lenovo® recommends Windows Vista® Business.
M Series Desktop
MANAGEABILITY AND SECURITY
®
Technologies can save
you up to $830
1
per desktop over its lifecycle when compared to a
standard out-of-box environment Fingerprint BIOS password: set the BIOS password at the tip of your •
finger I/O ports have enable/disable capability•
Manage I/O ports (including USB ports) through BIOS
®
port available on both form factors
Use PS/2 ports to avoid unauthorized data transfer and provide virus protection from USB peripheral devices
SERVICEABILITY
ThinkPlus Priority Support Lenovo Online Data Backup for simple and secure online data backup •
solution
PERFORMANCE
®
10 onboard Supports Quad-core processors• Supports hard disk drive up to 1TB and 10K rpm and Blu-ray™ •
2
disc drive
GREEN COMPUTING
Remote deployment and control of client power usage profiles is also possible, along with a time-based control to enable PC shut offs on evenings and weekends
ENERGY STAR
®
4.0 certified (select models) EPEAT™ Gold certified (select models) GREENGUARD
®
Indoor Air Quality Certified
®
Climate Savers
®
certified (select SFF models)
Innovative Green ThinkVision™ monitors: ThinkVision L2440p Wide model consumes up to 50% less energy than previous ThinkVision™ monitors
Green Fingerprint Keyboard
3
Lenovo
®
Asset Recovery Service
ESSENTIAL COMPUTING FOR STABILITY AND VALUE.
LENOVO® THINKCENTRE® M58e DESKTOP
TOP REASONS TO OWN
LENOVO POWER MANAGER, THE MOST ADVANCED POWER MANAGEMENT TOOL, REDUCES YOUR PC CARBON FOOTPRINT
SAVINGS OF UP TO $830 PER DESKTOP OVER FOUR YEARS FOR YOUR BUSINESS, COMPARED TO AN UNMANAGED ENVIRONMENT
TOOL-LESS DESIGN AND EASY-ACCESS BAYS FOR QUICK AND EASY SERVICEABILITY
Savings may vary for dif ferent companies and Lenovo configurati ons deploy ed. C alcul ate 1. savings for you r busi ness at www.le novo.com /save.
Tower only2.
Optional3.
Page 2
2
Lenovo® recommends Windows Vista® Business.
Lenovo’s leadership in thermals, acoustics and energy effi ciency are promoted through the ThinkCentre M58e desktop’s GREENGUARD certifi cation on both form factors and EPEAT Gold rating on select models. Added to these stand-out qualities is a full suite of our competitive ThinkVantage Technologies (TVTs), including Power Manager and Client Security Solution, offering truly manageable security. Just as impressive is the ThinkCentre’s low power consumption, ensuring that the ThinkCentre M58e delivers a low total cost of ownership ( TCO).
Additionally, the ThinkCentre M58e ownership experience is enhanced by ThinkPlus Services, such as ThinkPlus Priority Support. ThinkPlus Services deliver the same reliable, secure solutions that are synonymous with the Think
®
brand. They are the industry’s highest quality services backing the highest quality products. Lenovo Online Data Backup, for example, is a more comprehensive solution over those offered by competitors. Hard Disk Drive Retention lets you keep your old drive under warranty and hold on to your data if your hard drive fails. ThinkPlus Warranty service upgrades enhance the service levels provided under your hardware’s standard warranty and can provide additional years of hardware service once the standard warranty has expired. ThinkPlus Priority 4 offers a service level with even faster response time: on-site support in four hours or less, following phone-based troubleshooting. You can even turn your current PC trash into cash with a new set of Asset Recovery Services for take-back, data destruction, refurbishment and recycling.
ThinkCentre M58e desktops are engineered to meet your practical needs on performance, manageability and security. Equipped with the latest Intel
®
dual and quad-core processors, the ThinkCentre M58e supports a hard disk drive up to 1TB and 10K rpm, dual independent display through a DVI card, a PCIex16 slot, serial port, Blu-ray, DisplayPort graphic adapters and DirectX 10 graphics cards.
THE PLATFORM STABILITY YOU NEED AT A PRICE YOU WANT
®
Technologies
for a smooth roll-out with large deployments ThinkCentre M58e gives you all the essential computing tools you need •
to grow your business at an attractive price through the elimination of unnecessary manageability and security features
ENERGY EFFICIENCY IS TOP-OF-MIND
®
5.0 criteria
MANAGEABILITY AND SECURITY ARE CRITICAL TO YOUR OPERATIONS
THE LATEST TECHNOLOGY IS A MUST
ThinkCentre M58e offers next-generation with the latest Intel•
®
Core™ 2 Quad processors at competitive acquisition costs. It also supports other latest technologies such as an optional Blu-ray™ optical drive
1
,
10k rpm Hard disk drive and onboard DirectX
®
10 graphics for
mission-critical users
SECURITY AND MANAGEABILITY IN A STABLE, COST-EFFECTIVE, ENERGY EFFICIENT DESIGN.
LENOVO® THINKCENTRE® M58e DESKTOP
Tower only1.
Page 3
3
Lenovo® recommends Windows Vista® Business.
THINKCENTRE® M58e DESKTOP SPECIFICATIONS AND SERVICES
Processor
Intel
®
Core™2 Quad Processor Q9x50 (12MB L2, 1333 MHz FSB) Intel
®
Core™2 Quad Processor Q9x00 (6MB L 2, 1333 MHz FSB) Intel
®
Core™2 Quad Processor Q8x00 (4MB L2, 1333 MHz FSB ) Intel
®
Core™2 Quad Processor Q6x00 (8MB L2, 1066 MHz FSB) Intel
®
Core™2 Duo Processor E8x00 (6MB L 2, 1333 MHz FSB) Intel
®
Core™2 Duo Processor E7x0 0 (3MB L2, 1066 MHz FSB) Intel
®
Core™2 Duo Processor E6x50 (4MB L2, 1333 MHz FSB ) Intel
®
Pentium® Dual-Core Processor E5x00 (2MB L2, 80 0 MHz FSB ) Intel
®
Pentium® Dual-Core Processor E2xx0 (1MB L2, 800 MHz FSB ) Intel
®
Celeron® Dual-Core Processor E1x00 (512KB L2, 800 MHz FSB ) Intel
®
Celeron® Processor 4x0 (512KB L2, 800 MHz FSB )
Prelo aded O peratin g System
Genuine Windows Vista
®
Ultimate 32bit SP1
Genuine Windows Vista
®
Business 32bit SP1
Genuine Windows Vista
®
Business 64bit SP1
Genuine Windows Vista
®
Home Premium 32bit SP1
Genuine Windows Vista
®
Home Basic 32bit SP1
Genuine Windows Vista
®
Business Downgrade to
Genuine Windows
®
XP Professional
Genuine Windows Vista
®
Ultimate Downgrade to
Genuine Windows
®
XP Professional
Chipset
Intel
®
G41 Chipset
Machine Type
Tow er:
7258, 7260, 7268, 7270, 7280, 7296, 7298, 7304, 7307, 7413, 7491, 7508
SFF:
7259, 7267, 7269, 7279, 7290, 7297, 7303, 7306, 7408, 7487, 7506, 7514
Serial ATA Hard Dri ve
160GB, 250GB, 320GB, 500GB, 1TB/7200rpm and 150GB/10k rpm
Memory
512MB/1GB/2GB DDR2 667MHz/800MHz
Opti cal Dr ive
DVD-ROM, DVD Recordable, Blu-ray™ Recorder (Tower only)
Integ rated Comm unications
Marvell 8057, 10M/100M/1000M Gigabit Ethernet
Ports
Tower/SFF:
(8) USB 2.0 (2 Front/4 Rear/2 Internal), (2) PS/2, (2) Serial (1 standard, 1 optional), (1) Parallel, (2) Front audio ports: Headphone and Microphone, (3) Rear audio ports: Line in, Line out and Microphone, (1) VGA, (1) RJ-45
Slots
Tow er:
(2) Full Height PCI slots, (1) Full Height PCI-e x1 slot, (1) Full Height PCI-e x16 slot
SFF:
(1) Low Profi le PCI slot, (1) Low Profi le PCI-e x16 slot
Bays
Tow er:
Internal: (2) 3.5 inch, External: (2) 5.25 inch Half Height, (1) 3.5 inch;
SFF:
Internal: (1) 3.5 inch, External: (1) 5.25 inch Half Height, (1) 3.5 inch Slim – for media card reader
Power Su pply
Tow er:
280W standard (Manual ), 280W 80% Ef fi ciency (Auto-sensing ), 450W 80% Effi ciency (Auto-sensing)
SFF:
280W standard (Auto-sensing), 280W 85% Effi ciency (Auto-sensing)
Dimensions
Tow er:
Height: 402 mm (15.8 in.) Width: 175 mm (6.9 in.) Depth: 440 mm (17.3 in.)
SFF:
Height: 99 mm (3.9 in.) Width: 317 mm (12.5 in.) Depth: 355 mm (14.0 in.)
Keyboa rd
Preferred Pro Full Size Keyboard (PS2) Preferred Pro Full Size Keyboard (USB ) Preferred Pro USB Fingerprint Keyboard
Grap hic Ca rd
Integ rated:
Intel
®
GMA X4500 ( DX 10)
Discrete : Tow er:
NVIDIA
®
GeForce G100 256MB DDR2 FH with VGA + DVI-I, ATI
®
Radeon® HD3470 256MB GDDR3 FH with VGA + DisplayPort, NVIDIA GeForce 9500GT 512MB GDDR3 FH with DVI + DisplayPort
SFF:
NVIDIA GeForce G100 256MB DDR2 LP with DVI-I ATI Radeon HD3470 256MB GDDR3 LP with VGA + DisplayPort
Security
BIOS enable/disable of all USB ports Computrace support Chassis Intrusion Switch (select models only)
Limit ed Warrant y
Up to 3 years
Soft ware Application ( pre load ed in Vista )
ThinkVantage
®
Productivity Center
ThinkVantage Rescue and Recover y
™
ThinkVantage Client Security Solution ThinkVantage System Update ThinkVantage Fingerprint Software ThinkVantage Power Manager Microsoft
®
Window Live™ Portal
Microsoft
®
Offi ce Professional 2007 60-Day Trial Version Lenovo System Toolbox for Windows
®
and PC Doctor for WINPE Adobe
®
Acrobat Reader
®
McAfee® VirusScan® Plus with 30 days of virus defi nitions Intervideo
®
WinDVD
®
Roxio® Creator™ Business Edition
GO GREEN WITH THE THINKCENTRE M58e DESKT O P
Th e M58 e is an EPE AT G old c er tifi ed Thin kCen t re f or l ow e n ergy use a nd m i nima l imp act o n th e envi ronm e nt, e xc e edin g the r equ irement s of t h e wo rld' s mo s t widel y kno wn e c o label s. A ll f orm f act ors h ave select mod els t hat a re a lso E N E RGY STA R
®
4.0 certi fi ed and GREENGUAR D® Indoor A ir Quality Certifi ed®. The M58 e h as ThinkVantage® Power Manager, the most advanced power management tool, providing power management control and monitoring. Lenovo's ThinkCentre M58e has improved thermals over its predecessor product, and combined with Lenovo's energy-saving ThinkVision
™
monitors and keyboards provides a low energy consumption solution.
Page 4
4
Lenovo® recommends Windows Vista® Business.
Lenovo USB Headset (40Y8518 )
For internet voice conversations, and multimedia applications
©20 09 Le novo. Pr oduced in t he USA. Al l rig hts r eser ved.
Availability: Offer s, prices, spe cifications and avai labili ty may chang e witho ut notic e. Lenovo is not respon sible f or photog raphic or ty pograp hic er rors.
Pricing: Does n ot incl ude ta x, shipping a nd hand ling, o r recycl ing fee s. Reseller p rices may var y.
Warranty: For a copy of ap plicab le warranties, w rite to: War ranty In formati on, 500 Park Off ices Dr ive, RTP, NC, 27709, Attn: D ept. ZPYA/B 600. Lenovo makes n o repres entatio n or warra nty regarding th ird-par ty products
or services.
Trademarks: Lenovo, the L enovo lo go, Thi nkCent re, Thin kVisi on, Thi nkVantag e, Thin kPlus a nd Res cue and Recovery are tradem arks o r regis tered tr ademar ks of Le novo. © 20 09 Levov o. All r ights re serve d.
Intel, Core, Pentium and Cele ron a re tra demar ks or registered trademarks of In tel Co rporat ion i n the U.S. and ot her countri es. W indows, Vist a an d Dir ectX are registe red t radema rks o f Mic rosoft Corporatio n. PS /2 is a registe red trade mark of IBM C orpora tion. NVI DIA is a regi stered tra demar k of NVIDIA Co rporat ion. ATI and Rade on are trad emarks o r registe red trade marks of Ad vanced M icro Devi ces Inc. Bl u-ray is a trad emark of B lu-ray Disc Ass ociati on. Adobe a nd Acroba t are regi stered tra demar ks of Adobe S ystems In corpor ated. Win DVD is a regi stered tra demar k of Corel Co rporation. ENERGY STAR is a re gistere d tradem ark of the U.S. En vironm ental Protectio n Agency. EPEAT is a trad emark of th e Gree n Elec tronic Counci l. GREE NGUARD and In door A ir Qu ality Cert ified are re gistere d trade marks of Gre enguar d Envir onment al Ins titute. C limate Savers is a re gistered tradem ark of W WF. Othe r compa ny, produc t and se rvice name s may be tradem arks, r egister ed trad emarks or service marks o f others .
Not all the tech nolog ies lis ted with the bulb elem ent may be avail able on some /all products showcas ed in th is advertise ment.
Visit l enovo.c om/sa fecomp uting pe riodi cally f or the l atest i nformati on on s afe and e ffecti ve computing.
THINKCENTRE® M58e DESKTOP ACCESSORIES AND OPTIONS
Lenovo PC2-640 0 800MHz DDR2 Additional Memory
Lowest-cost method to boost system performance (41U 29 77 ) 1GB PC2-6400 800MHz DDR2 SDRAM UDIMM (41U 29 78 ) 2GB PC2-6400 800MHz DDR2 SDRAM UDIMM
Lenovo ADD2 DVI-D Monitor Connection Adapter
Low-cost method to attach a second digital monitor while the first analog monitor is attached to the ThinkCentre's VGA port (43R1985) DisplayPor t to Single-Link DVI-D Monitor Cable
www.lenovo.com/support/graphiccards
Kensington Twin Head Cable Lock
Help reduce theft, and increase physical asset security protection (4 5K16 20) Kensington Twin Head Cable Lock from Lenovo
www.lenovo.com/support/monitoraccessories
Lenovo 256 MB ATI® Radeon® HD3470 Disp layPort™
Boost graphics performance (4 5K16 36 ) Lenovo 256MB ATI Radeon HD3470 DisplayPort +VGA Graphics Card
www.lenovo.com/support/graphiccards
Lenovo USB Webcam (40Y8 519)
Express yourself with true-to-life video and voice calls. Video conference with colleagues.
www.lenovo.com/support/monitoraccessories
Lenovo Fingerpr int USB Keyboard (73P4730 )
Replace Windows
®
passwords with fast, secure
access using your fingerprint
Lenovo ThinkVis ion™ L1700p (9417-HE 2)
Productivity boost as an office professional or executive. Display more data, attach multiple monitors.
www.lenovo.com/support/monitoraccessories www.lenovo.com/thinkvision
www.lenovo.com THINK SAVINGS. THINK LENOVO.
For more informati on go to: www.len ovo.com/ access ories ; www.lenovo.com /accessorie sguid e
