Personal Systems Reference Lenovo® ThinkCentre Desktops

April 2009 - Version 354

Visit www.lenovo.com/psref for the latest version

Lenovo ThinkCentre M58p Eco Ultra Small

with ThinkVision 2440x Wide monitor

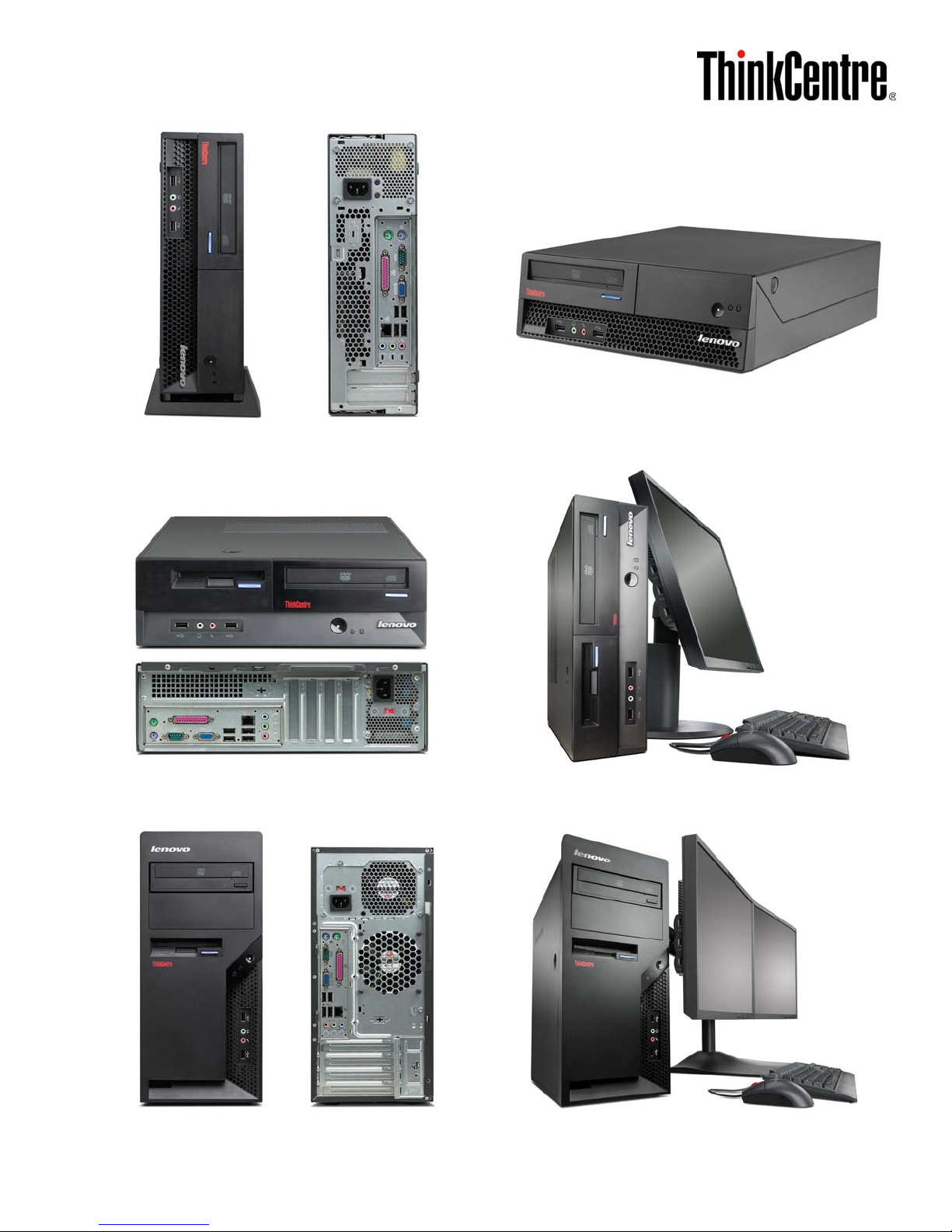

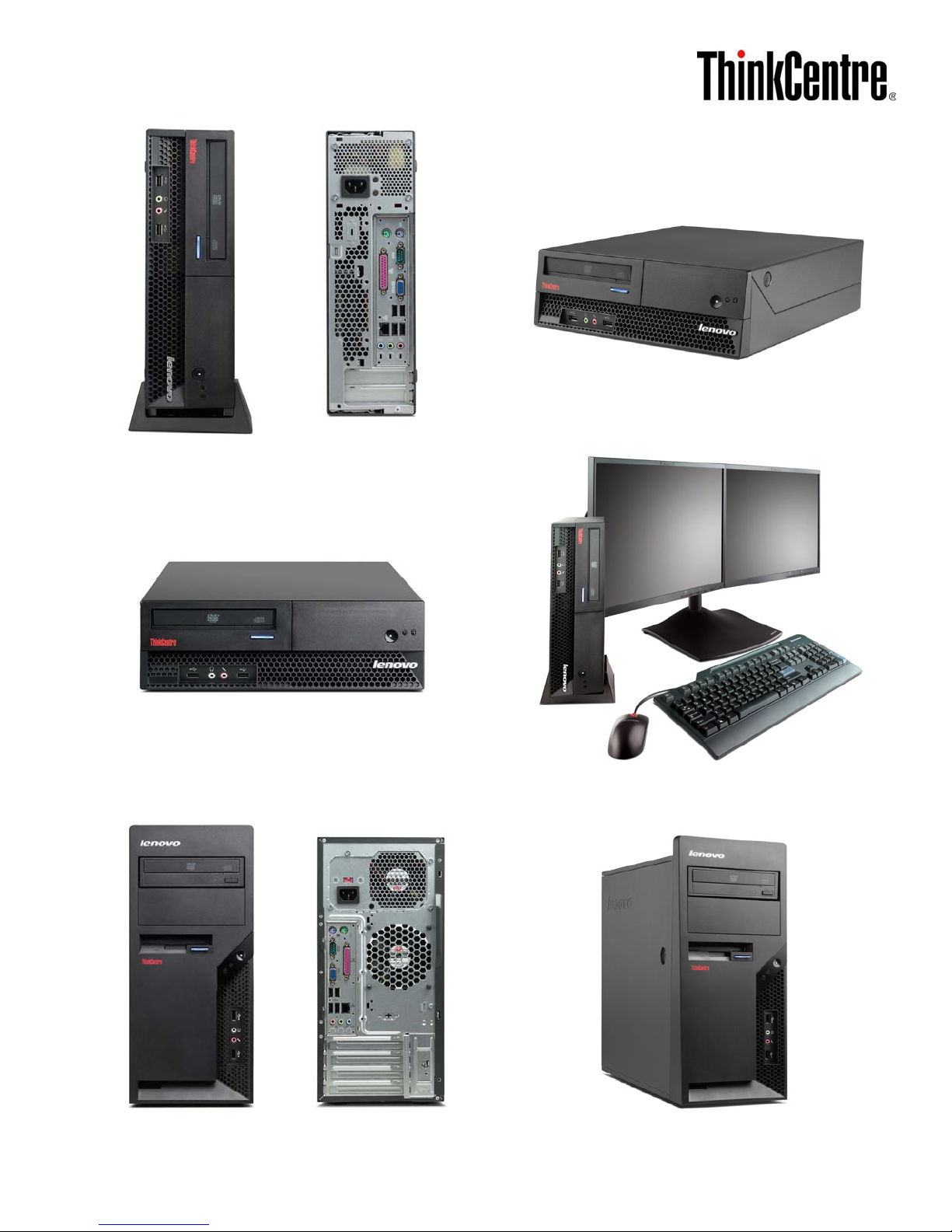

Lenovo ThinkCentre M57e Small (9482), Desktop (9481), Tower (9439)

Lenovo ThinkCentre M57e Small

Lenovo ThinkCentre M57e Desktop

Lenovo ThinkCentre M57e Tower

Lenovo ThinkCentre M57e Desktop

with Lenovo ThinkVision monitor

Lenovo ThinkCentre M57e Tower

with dual Lenovo ThinkVision monitors

ThinkCentre® M57e Small (6305) - TopSeller

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Core

8

SATA

disk

SATA

optical Graphics

Preload

Vista

logo

Global

Educ

Avail

dateName

M57e 6305-B1U 2x3 Pentium E2200 2.20 1MB Dual 1GB 160GB2 DVD GMA XP Pro None Jun 08 M57e 6305-B2U 2x3 Pentium E2200 2.20 1MB Dual 2GB 160GB DVD ±RW GMA XP Pro None Jun 08 M57e 6305-B4U 2x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB DVD GMA XP Pro None Jun 08 M57e 6305-B3U 2x3 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB DVD ±RW GMA XP Pro None Jun 08 M57e 6305-B5U 2x3 Core 2 Duo E8400 3.00 6MB Dual 2GB 160GB DVD ±RW GMA XP Pro None Jun 08 M57e 6305-B6U 2x3 Core 2 Quad Q6600 2.40 8MB Quad 2GB 160GB DVD ±RW GMA XP Pro None Jun 08

☞

M57e 6305-B7U 2x3 Pentium E2200 2.20 1MB Dual 1GB 160GB DVD GMA Business32 Premium None Sep 08

☞

M57e 6305-B8U 2x3 Pentium E2200 2.20 1MB Dual 2GB 160GB DVD ±RW GMA Business32 Premium None Sep 08

☞

M57e 6305-B9U 2x3 Core 2 Quad Q6600 2.40 8MB Quad 2GB 160GB DVD ±RW GMA Business32 Premium None Sep 08

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Stability and manageability for small and medium businesses

®

Intel

Pentium® Dual-Core Processor E2200 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST,

1

Small

optical

disk (in rear)

800MHz system bus, and 1MB L2 cache or

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Intel Core™ 2 Duo Processor E7200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, 1333MHz system bus, and 6MB L2 cache or Intel Core 2 Quad Processor Q6600 with quad-core (dual-core on dual-die), Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, and 1066MHz system bus with 8MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus /

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (32-bit)

Preloaded applications

some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

• Diskeeper® Home

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information ☞ US models announced August 19, 2008; previous models on June 24, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978

5

(all OSes; only

USB 2.0 Lenovo Multimedia Headset 40Y8518 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA2-4) August 2008

1

9

7

1

ThinkCentre® M57e Small (6305) - TopSeller (October 2008)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Preload

Vista

logo

Global

Educ

Avail

dateName

M57e 6305-BBU 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA XP Pro Premium None Nov 08 M57e 6305-BCU 2x3 Pentium E5200 2.50 2MB 2 2GB 160GB DVD ±RW GMA XP Pro Premium None Nov 08 M57e 6305-BEU 2x3 Core 2 Duo E7300 2.66 3MB 2 1GB 160GB DVD GMA XP Pro Premium None Nov 08 M57e 6305-BDU 2x3 Core 2 Duo E7300 2.66 3MB 2 2GB 160GB DVD ±RW GMA XP Pro Premium None Nov 08

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Stability and manageability for small and medium businesses

®

Intel

Pentium® Dual-Core Processor E5200 with dual-core,

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk (in rear)

Intel Core™ 2 Duo Processor E7300 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

®

COA ✧ Disk-to-Disk Recovery (in hidden protected area)

5

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Reader

Home

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

PC2-5300 667MHz DDR2,

dampening mounts

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

®

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA3-4) October 2008

1

9

7

1

ThinkCentre® M57e Small (9482)

Personal Systems Reference (PSREF)

Type-model Processor Memory

✂

M57e 9482-BGU 2x3 Pentium E2160 1.80 1MB Dual 1GB 160GB2 DVD GMA XP Pro 3-yr Mar 08

✂

M57e 9482-BHU 2x3 Pentium E2160 1.80 1MB Dual 1GB 160GB Combo GMA XP Pro 3-yr Mar 08

✂

M57e 9482-BKU 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB DVD GMA XP Pro 3-yr Mar 08

✂

M57e 9482-BJU 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Combo GMA XP Pro 3-yr Mar 08

✂

M57e 9482-BLU 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Combo GMA XP Pro 3-yr K12 Mar 08

✂

M57e 9482-BMU 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Combo GMA XP Pro 3-yr HE Mar 08

Slot x

bay

GHz

L2

cache

Core

SATA

8

disk

SATA

optical Graphics

Preload

Limited

warranty

Global

1

Educ

M57e 9482-BPU 2x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB DVD GMA XP Pro 3-yr Mar 08 M57e 9482-BNU 2x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB Combo GMA XP Pro 3-yr Mar 08

☞

M57e 9482-DAU 2x3 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Combo GMA XP Pro 3-yr Mar 08

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2160 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST,

Small

optical

disk (in rear)

800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4500 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E6550 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, 1333MHz system bus, and 4MB shared L2 cache or Intel Core 2 Duo Processor E8200 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D SATA Combo SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Some (K12): K-12 education software

- VitalSource Library School Edition

- Adobe® Instructor Resource Center

- Adobe Digital School Collection

− Photoshop Elements 5 (and CD)

− Premier Elements 3 (and DVD)

− Acrobat 8 Professional (and CD)

− Contribute 4 (and CD)

• Some (HE): Higher education software

- VitalSource Library College Edition

- Adobe Instructor Resource Center

- Adobe Photoshop Elements 5 (and CD)

- Adobe Premier Elements 3 (and DVD)

• Rescue and Recovery™

See footnotes for important warranty information ☞ US models announced March 18, 2008; previous models on February 26, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

®

COA

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978

5

(only some listed)

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

y ③ 3.5", .5" high, access, open (reader/diskette)

Ba

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

®

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA1-4) March 2008

1

9

7

1

✂ US models withdrawn effective September 2008 or January 2009

Avail

dateName

vo

ThinkCentre® M57e Small (9482) - August 2008

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

SATA

optical Graphics

Preload

Limited

warranty

Global

1

Educ

Avail

date

M57e 9482-HJU 2x3 Pentium E2180 2.00 1MB Dual 1GB 160GB2 DVD GMA XP Pro 3-yr None Sep 08 M57e 9482-HKU 2x3 Pentium E2200 2.20 1MB Dual 1GB 160GB DVD GMA XP Pro 3-yr None Sep 08 M57e 9482-HLU 2x3 Pentium E2200 2.20 1MB Dual 2GB 160GB DVD ±RW GMA XP Pro 3-yr None Sep 08 M57e 9482-HHU 2x3 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB DVD GMA XP Pro 3-yr None Sep 08 M57e 9482-HFU 2x3 Core 2 Duo E7300 2.66 3MB Dual 1GB 160GB DVD ±RW GMA+ADD2 XP Pro 3-yr None Sep 08 M57e 9482-HGU 2x3 Core 2 Duo E7300 2.66 3MB Dual 2GB 160GB DVD GMA XP Pro 3-yr None Sep 08

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2180 or E2200 with

dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

Small

optical

disk (in rear)

800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7200 or E7300 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

1066MHz system bus with 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

All: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-D Monitor Connection (HDCP), PCI Express® adapter in PCIe x16 slot, provides DVI-D connector to support second monitor, HDCP-compliant

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-D in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced August 19, 2008

PC2-5300 667MHz DDR2,

dampening mounts

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max)* Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA2-12) August 2008

1

9

7

1

ThinkCentre® M57e Small (9482) - Vista

®

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

SATA

optical Graphics

Vista

preload

Limited

warranty

Global

1

Educ

M57e 9482-AUU 2x3 Celeron 420 1.60 512KB Single 1GB 160GB2 DVD GMA Bus32 3-yr None Mar 08 M57e 9482-AAU 2x3 Celeron 430 1.80 512KB Single 1GB 80GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9482-ABU 2x3 Pentium E2160 1.80 1MB Dual 1GB 80GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9482-ACU 2x3 Pentium E2160 1.80 1MB Dual 1GB 80GB Combo GMA Bus32 3-yr None Mar 08

✂

M57e 9482-AVU 2x3 Pentium E2160 1.80 1MB Dual 1GB 160GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9482-AWU 2x3 Pentium E2160 1.80 1MB Dual 1GB 160GB Combo GMA Bus32 3-yr None Mar 08

✂

M57e 9482-ADU 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 80GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9482-AEU 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 80GB Combo GMA Bus32 3-yr None Mar 08

✂

M57e 9482-B1U 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9482-B2U 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Combo GMA Bus32 3-yr None Mar 08

M57e 9482-AFU 2x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 80GB Combo GMA Bus32 3-yr None Mar 08 M57e 9482-AGU 2x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 80GB DVD ±RW GMA Bus32 3-yr None Mar 08 M57e 9482-B6U 2x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB DVD GMA Bus32 3-yr None Mar 08 M57e 9482-B5U 2x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB Combo GMA Bus32 3-yr None Mar 08

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Celeron® Processor 420 or 430 with single-core,

Intel 64 Technology, EDBit, 800MHz bus, and 512KB L2 cache or

Small

optical

disk (in rear)

Intel Pentium® Dual-Core Processor E2160 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4500 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E6550 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 4MB shared L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

80GB or 160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

• Diskeeper® Home

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD, DVD±RW)

See footnotes for important warranty information US models announced February 19, 2008

dampening

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty

®

➫ 3-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA1-1) February 2008

1

7

1

✂ US models withdrawn effective September 2008 or January 2009

Avail

dateName

vo

ThinkCentre® M57e Small (9482) - Vista® (March 2008)

Personal Systems Reference (PSREF)

Type-model Processor Memory

☞

M57e 9482-B8U 2x3 Pentium E2180 2.00 1MB Dual 1GB 160GB2 DVD ±RW GMA Stand Bus32 Basic Sep 08 M57e 9482-E9U 2x3 Pentium E2200 2.20 1MB Dual 1GB 160GB Combo GMA Stand Bus32 Basic Gbl Mar 08

✂

M57e 9482-FLU 2x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Combo GMA Stand Bus32 Basic Educ Apr 08

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

SATA

optical Graphics

Floor

stand

Vista

preload

Vista

logo

Global

Educ

M57e 9482-FAU 2x3 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB Combo GMA+ADD2 Bus32 Basic Gbl Mar 08 M57e 9482-DBU 2x3 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Combo GMA Stand Bus32 Basic Mar 08 M57e 9482-FBU 2x3 Core 2 Duo E8400 3.00 6MB Dual 2GB 250GB DVD ±RW GMA+ADD2 Bus32 Prem Gbl Mar 08

• These models have a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2180 or E2200 with

dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

1

Small

optical

disk (in rear)

800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4500 or E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E8200 or E8400 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

All: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-I PCIe Connection Adapter, PCI Express® adapter in PCIe x16 slot, provides DVI-I connector to support second monitor, no DVI-to-VGA dongle

SATA disk SATA controller SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit)

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource Library College Edition

- Adobe® Instructor Resource Center

- Adobe Digital School Collection

− Photoshop Elements 6 (and CD)

− Premier Elements 4 (and DVD)

− Acrobat 8 Professional (and CD)

− Contribute 4 (and CD)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

• Diskeeper® Home

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD±RW)

See footnotes for important warranty information ☞ US model announced August 19, 2008; previous models on March 18 or March 25, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-I in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max)* Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• Some: system ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA1-8) August 2008

1

✂ US model withdrawn effective September 2008

Avail

dateName

vo

ThinkCentre® M57e Small (9482) - Vista® (June 2008)

Personal Systems Reference (PSREF)

Slot x

bay

L2

GHz Type-model Processor Memory

cache

Core

8

SATA

disk

SATA

optical Graphics

Vista

preload

Vista

logo

Global

Educ

M57e 9482-H1U 2x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB2 DVD ±RW GMA Business32 Basic Jul 08 M57e 9482-F9U 2x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB DVD ±RW GMA Business32 Basic Educ Jul 08

☞

M57e 9482-HCU 2x3 Core 2 Duo E7300 2.66 3MB Dual 1GB 160GB DVD ±RW GMA Business32 Premium Educ Sep 08

• These models have a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E7200 or E7300 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

1066MHz system bus with 3MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit)

Preloaded applications

• Some: Education software

- VitalSource Library College Edition

- Adobe

- Adobe Digital School Collection

− Photoshop Elements 6 (and CD)

− Premier Elements 4 (and DVD)

− Acrobat 8 Professional (and CD)

− Contribute 4 (and CD)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985

5

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015

®

Instructor Resource Center

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US model announced August 19, 2008; previous models on June 24, 2008

1

dampening mounts

Small

optical

disk (in rear)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

®

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA2-1) August 2008

1

Avail

dateName

ThinkCentre® M57e Small (9482) - Vista® (October 2008)

Personal Systems Reference (PSREF)

Slot x

bay

L2

GHz Type-model Processor Memory

cache

Cores

SATA

8

disk

SATA

optical Graphics

Vista

preload

Vista

logo

Global

Educ

Avail

dateName

M57e 9482-H8U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA Business32 Premium None Nov 08 M57e 9482-H9U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB DVD ±RW GMA Business32 Premium None Nov 08 M57e 9482-J1U 2x3 Pentium E5200 2.50 2MB 2 2GB 160GB DVD ±RW GMA Business32 Premium None Nov 08

• These models have a 3-year limited warranty

Positioning Processor

Implementation

Memory

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

- Microsoft® Windows® Vista Business Edition (32-bit)

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

®

Home

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

PC2-5300 667MHz DDR2,

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Small

optical

disk (in rear)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

®

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA3-1) October 2008

1

ThinkCentre® M57e Small (9487) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

SATA

optical Graphics

ENERGY STAR 4.0

Floor stand

Vista

preload

Vista

logo

Global

Educ

Avail

dateName

M57e 9487-ADU 2x3 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB2 Combo GMA ES40 Stand Bus32 Basic Gbl Mar 08 M57e 9487-AFU 2x3 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB Combo GMA+ADD2 ES40 Bus32 Basic Gbl Mar 08 M57e 9487-AEU 2x3 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Combo GMA ES40 Stand Bus32 Basic Gbl Mar 08 M57e 9487-AGU 2x3 Core 2 Duo E8400 3.00 6MB Dual 2GB 250GB DVD ±RW GMA+ADD2 ES40 Bus32 Prem Gbl Mar 08

1

Small

optical

disk (in rear)

Positioning Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E8200 or E8400 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

All: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-I PCIe Connection Adapter, PCI Express® adapter in PCIe x16 slot, provides DVI-I connector to support second monitor, no DVI-to-VGA dongle

SATA disk SATA controller SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-I in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

®

Business Edition (32-bit)

Preloaded applications

• Rescue and Recovery™

5

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD±RW)

See footnotes for important warranty information US models announced March 18, 2008

PC2-5300 667MHz DDR2,

dampening

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max)* Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• Some: system ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA1-7) March 2008

1

7

1

ThinkCentre® M57e Small (9487) - ENERGY STAR® 4.0 (June 2008)

Slot x

bay

☞

M57e 9487-B3U 2x3 Pentium E2180 2.00 1MB Dual 1GB 160GB2 DVD ±RW GMA ES40 XP Pro None Sep 08

☞

M57e 9487-B4U 2x3 Pentium E2200 2.20 1MB Dual 2GB 160GB DVD±RW GMA ES40 XP Pro None Sep 08

☞

M57e 9487-B5U 2x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB DVD±RW GMA ES40 XP Pro None Sep 08

☞

M57e 9487-B6U 2x3 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB DVD GMA ES40 XP Pro None Sep 08 M57e 9487-B1U 2x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB DVD ±RW GMA ES40 Bus32 Basic None Jul 08

☞

M57e 9487-B7U 2x3 Core 2 Duo E7300 2.66 3MB Dual 1GB 160GB DVD±RW GMA ES40 Bus32 Prem None Sep 08

• These models have a 3-year limited warranty

L2

GHz Type-model Processor Memory

cache

Core

SATA

8

disk

1

SATA

optical Graphics

Personal Systems Reference (PSREF)

ENERGY STAR 4.0

Preload

Vista

logo

Global

Educ

Avail

dateName

Positioning Processor

Mainstream enterprise stability and manageability

Intel® Pentium® Dual-Core Processor E2180 or E2200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7200 or E7300 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and 1066MHz system bus with 3MB L2 cache

Implementation

Memory

Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15)

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista

- Some: Microsoft Windows Vista Business Edition

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information ☞ US models announced August 19, 2008; previous model on June 24, 2008

Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

(32-bit)

®

COA

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Small

optical

disk (in rear)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA2-2) August 2008

1

ThinkCentre® M57e Small (6178) - ENERGY STAR® 4.0 (GMP)

Personal Systems Reference (PSREF)

Slot x

bay

L2

GHz Type-model Processor Memory

cache

Core

8

SATA

disk

SATA

optical Graphics

ENERGY STAR 4.0

Vista

preload

Limited

warranty

Global (G)

1

GMP (P)

Avail

dateName

M57e 6178-B1U 2x3 Core 2 Duo E8400 3.00 6MB Dual 1GB 160GB2 DVD ±RW GMA ES40 Business32 3-yr G P Jul 08

3

3-year limited warranty

optical

disk (in rear)

Positioning Processor

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Mainstream enterprise stability and manageability

Intel® Core™ 2 Duo Processor E8400 with dual-core,

Small

Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 6MB L2 cache

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced June 24, 2008

Processor in FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977

5

2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MONA2-3) June 2008

9

1

ThinkCentre® M57e Small (7066) - GMP

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

SATA

8

disk

SATA

optical Graphics

Vista

preload

Vista

logo

Limited

warranty

Global (G)

1

GMP (P)

Avail

dateName

M57e 7066-AAU 2x3 Pentium E2200 2.20 1MB Dual 1GB 160GB2 Combo GMA Business32 Basic 3-yr G P Apr 08

3

3-year limited warranty

optical

disk (in rear)

Positioning Processor

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Mainstream enterprise stability and manageability

®

Pentium® Dual-Core Processor E2200 with

Intel dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

Small

and 800MHz system bus with 1MB shared L2 cache

Implementation

Memory

Graphics

SATA disk SATA controller SATA Combo SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter

Access (combo)

• Corel® WinDVD® (combo)

See footnotes for important warranty information US model announced March 18, 2008

Processor in FC-LGA6 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts Serial ATA, SATA 3.0Gb/s, integrated in ICH7 CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985

5

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9194)

14

toll-free support

(MONA1-11) March 2008

1

9

7

1

ThinkCentre® M57e Desktop (9481)

Personal Systems Reference (PSREF)

Slot x

bay

M57e 9481-A1U 4x3 Celeron 420 1.60 512KB Single 1GB 160GB2 DVD GMA XP Pro 3-yr None Mar 08

✂

M57e 9481-A6U 4x3 Pentium E2160 1.80 1MB Dual 1GB 160GB Combo GMA XP Pro 3-yr None Mar 08

✂

M57e 9481-A2U 4x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Combo GMA XP Pro 3-yr None Mar 08

M57e 9481-A7U 4x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB DVD±RW GMA XP Pro 3-yr None Mar 08

☞

M57e 9481-BAU 4x3 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Combo GMA XP Pro 3-yr None Mar 08

Positioning Processor

Mainstream enterprise stability and manageability

®

Celeron® Processor 420 with single-core, Intel 64 Tech,

Intel Execute Disable Bit, 800MHz system bus, and 512KB L2 cache or

GHz Type-model Memory

L2

cache

Intel Pentium® Dual-Core Processor E2160 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4500 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E6550 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, 1333MHz system bus, and 4MB shared L2 cache or Intel Core 2 Duo Processor E8200 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache

Implementation

Memory

Graphics

Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus /

dampening mounts

SATA

8

disk

SATA

optical

Desktop

• Business black color

PreloadCoreProcessor Graphics

Limited

warranty

Global

1

Educ

②

optical

disk

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, PCI Express x16

(35w max) Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (combo, DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information ☞ US model announced March 18, 2008; previous models on February 26, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo

®

logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

®

Supports ThinkVantage

technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

(MONA1-5) March 2008

1

9

, 8 am - 5 pm,

7

1

✂ US models withdrawn effective September 2008 or January 2009

Avail

dateName

vo

ThinkCentre® M57e Desktop (9481) - August 2008

Personal Systems Reference (PSREF)

Name

Type-model Memory

Slot x

bay

GHz

L2

cache

8

SATA

disk

SATA

optical

Graphics

PreloadCoreProcessor

Limited

warranty

Global

1

Educ

Avail

date

M57e 9481-J1U 4x3 Pentium E2180 2.00 1MB Dual 1GB 160GB2 DVD GMA XP Pro 3-yr None Aug 08 M57e 9481-J2U 4x3 Pentium E2180 2.00 1MB Dual 1GB 160GB DVD ±RW GMA+ADD2 XP Pro 3-yr None Aug 08 M57e 9481-J3U 4x3 Pentium E2200 2.20 1MB Dual 1GB 160GB DVD GMA XP Pro 3-yr None Aug 08 M57e 9481-J4U 4x3 Pentium E2200 2.20 1MB Dual 2GB 160GB DVD ±RW GMA XP Pro 3-yr None Aug 08 M57e 9481-J6U 4x3 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB DVD GMA XP Pro 3-yr None Aug 08 M57e 9481-J5U 4x3 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB DVD ±RW GMA+ADD2 XP Pro 3-yr None Aug 08 M57e 9481-J7U 4x3 Core 2 Duo E7300 2.66 3MB Dual 1GB 160GB DVD ±RW GMA XP Pro 3-yr None Aug 08

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced August 19, 2008

Mainstream enterprise stability and manageability

®

Pentium® Dual-Core Processor E2180 or E2200 with

Intel dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7200 or E7300 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and 1066MHz system bus with 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Non-italics: standard memory in one socket; one socket available

All: Intel Graphics Media Accelerator 3100 (GMA 3100),

integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-D Monitor Connection (HDCP), PCI Express® adapter in PCIe x16 slot, provides DVI-D connector to support second monitor, HDCP-compliant

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Desktop

• Business black color

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, PCI Express x16 Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-D in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978

5

250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

②

optical

disk

(35w max)*

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage

technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

(MONA2-13) August 2008

1

9

, 8 am - 5 pm,

7

1

ThinkCentre® M57e Desktop (9481) - Vista

®

Personal Systems Reference (PSREF)

Slot x

bay

M57e 9481-A5U 4x3 Celeron 420 1.60 512KB Single 1GB 160GB2 DVD GMA Business32 3-yr Mar 08

✂

M57e 9481-A4U 4x3 Pentium E2160 1.80 1MB Dual 1GB 160GB Combo GMA Business32 3-yr Mar 08

☞

M57e 9481-D5U 4x3 Pentium E2200 2.20 1MB Dual 1GB 160GB Combo GMA Business32 3-yr Gbl Mar 08

✂

M57e 9481-A3U 4x3 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Combo GMA Business32 3-yr Mar 08

☞

M57e 9481-D6U 4x3 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB Combo GMA Business32 3-yr Gbl Mar 08 M57e 9481-A8U 4x3 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB DVD±RW GMA Business32 3-yr Mar 08

☞

M57e 9481-A9U 4x3 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Combo GMA Business32 3-yr Gbl Mar 08

Positioning Processor

Mainstream enterprise stability and manageability

®

Celeron® Processor 420 with single-core, Intel 64 Tech,

Intel Execute Disable Bit, 800MHz system bus, and 512KB L2 cache or

GHz Type-model Memory

L2

cache

Intel Pentium® Dual-Core Processor E2160 or E2200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4500 or E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E6550 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, 1333MHz system bus, and 4MB shared L2 cache or Intel Core 2 Duo Processor E8200 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache

Implementation

Memory

Graphics

Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus /

dampening mounts

SATA

8

disk

SATA

optical

Desktop

• Business black color

Vista

preloadCoreProcessor Graphics

Limited

warranty

②

Global

1

Educ

optical

disk

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, PCI Express x16

(35w max) Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD,

DVD ±RW)

See footnotes for important warranty information ☞ US models announced March 18, 2008; previous models on February 19, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell

®

88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Other accessories at lenovo.com/accessories

®

Supports ThinkVantage

technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

(MONA1-2) March 2008

1

9

, 8 am - 5 pm,

7

1

✂ US models withdrawn effective September 2008 or January 2009

Avail

dateName

vo

ThinkCentre® M57e Desktop (9481) - Vista® (June 2008)

Personal Systems Reference (PSREF)

Name

Type-model Memory

Slot x

bay

Processor

GHz

L2

cache

Core

SATA

8

disk

SATA

optical

Graphics

Vista

preload

Limited

warranty

Global

1

Educ

Avail

date

M57e 9481-F2U 4x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB2 DVD ±RW GMA Business32 3-yr None Jun 08

• This model has a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E7200 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

Graphics

1066MHz system bus with 3MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, manual switch

20

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced June 24, 2008

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Desktop

• Business black color

②

optical

disk

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, PCI Express x16

(35w max) Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

®

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage

®

technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

1

9

, 8 am - 5 pm,

7

1

(MONA2-5) June 2008

ThinkCentre® M57e Desktop (9481) - Vista® (October 2008)

Personal Systems Reference (PSREF)

Name

Type-model Memory

Slot x

bay

Processor

GHz

L2

cache

Cores

8

SATA

disk

SATA

optical

Graphics

Vista

preload

Vista

logo

Global

Educ

Avail

date

M57e 9481-JCU 4x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA Business32 Premium None Nov 08 M57e 9481-JDU 4x3 Pentium E5200 2.50 2MB 2 1GB 250GB DVD±RW GMA Business32 Premium None Nov 08

• These models have a 3-year limited warranty

Positioning Processor

Implementation

Memory

Graphics

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, manual switch

20

- Microsoft® Windows® Vista Business Edition (32-bit)

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Reader

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening

Desktop

• Business black color

②

optical

disk

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, PCI Express x16

(35w max) Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

®

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage

®

technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

(MONA3-2) October 2008

1

9

, 8 am - 5 pm,

7

1

ThinkCentre® M57e Desktop (9438) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Slot x

Type-model Memory

☞

M57e 9438-AJU 4x3 Pentium E2180 2.00 1MB Dual 1GB 160GB2 DVD ±RW GMA ES40 XP Pro No Sep 08

☞

M57e 9438-AKU 4x3 Pentium E2200 2.20 1MB Dual 2GB 160GB DVD ±RW GMA ES40 XP Pro No Sep 08

☞

M57e 9438-ALU 4x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB DVD ±RW GMA ES40 XP Pro No Sep 08

☞

M57e 9438-AMU 4x3 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB DVD GMA+ADD2 ES40 XP Pro No Sep 08 M57e 9438-B1U 4x3 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB DVD±RW GMA ES40 Bus32 Basic No Jun 08

☞

M57e 9438-ANU 4x3 Core 2 Duo E7300 2.66 3MB Dual 1GB 160GB DVD ±RW GMA ES40 Bus32 Prem No Sep 08

Positioning Processor

bay

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2180 or E2200 with

GHz

L2

cache

CoreProcessor

SATA

8

disk

1

dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7200 or E7300 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

Graphics

1066MHz system bus with 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Non-italics: standard memory in one socket; one socket available

All: Intel Graphics Media Accelerator 3100 (GMA 3100),

integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-D Monitor Connection (HDCP), PCI Express® adapter in PCIe x16 slot, provides DVI-D connector to support second monitor, HDCP-compliant

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista

- Some: Microsoft Windows Vista Business Edition

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information ☞ US models announced August 19, 2008; previous model on June 24, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-D in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, autosensing, 80% PSU

20

(32-bit)

®

COA

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

SATA

optical

Graphics

ENERGY

STAR 4.0

Preload

Desktop

• Business black color

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, PCI Express x16 Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period via 800-426-7378

Vista

Global

logo

Educ

②

optical

disk

(35w max)*

®

technologies

9

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA2-6) August 2008

1

Avail

dateName

ThinkCentre® M57e Desktop (6177) - ENERGY STAR® 4.0 (GMP)

Personal Systems Reference (PSREF)

Slot x

Type-model Memory

Name

bay

GHz

L2

cache

CoreProcessor Graphics

SATA

8

disk

SATA

optical

ENERGY STAR 4.0

Vista

preload

Limited

warranty

Global (G)

1

GMP (P)

Avail

date

M57e 6177-B1U 4x3 Core 2 Duo E8400 3.00 6MB Dual 1GB 160GB2 DVD ±RW GMA ES40 Business32 3-yr G P Jul 08

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Mainstream enterprise stability and manageability

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 6MB L2 cache

Implementation

Memory

Graphics

Processor in FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, autosensing, 80% PSU

20

®

Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced June 24, 2008

Desktop

• Business black color

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

dampening mounts

Slot 1: Low Proﬁ le, PCI Express x16 Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

②

optical

disk

(35w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage

technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MONA2-7) June 2008

9

1

ThinkCentre® M57e Desktop (7065) - GMP

Personal Systems Reference (PSREF)

Slot x

bay

L2

cache

GHz Type-model Memory

SATA

8

disk

SATA

optical

Vista

preloadCoreProcessor Graphics

Limited

warranty

Global (G)

1

GMP (P)

Avail

dateName

M57e 7065-AAU 4x3 Pentium E2200 2.20 1MB Dual 1GB 160GB2 Combo GMA Business32 3-yr G P Apr 08 M57e 7065-ABU 4x3 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB Combo GMA Business32 3-yr G P Apr 08 M57e 7065-ACU 4x3 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Combo GMA Business32 3-yr G P Apr 08

3

3-year limited warranty

②

optical

disk

(35w max)

Positioning Processor

Implementation

Memory

Graphics

• These models are part of the Global Models Plus (GMP) program with limited onsite service

Mainstream enterprise stability and manageability

®

Pentium® Dual-Core Processor E2200 with dual-core,

Intel

Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E8200 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector,

Desktop

• Business black color

• 13.0" W X 16.2" D X 4.1" H

• 331mm W X 412mm D X 104mm H

• 19.4 lb (8.8 kg) in max conﬁ guration

• Toolless cover removal

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, access, open (reader/diskette) Bay ③ 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, PCI Express x16 Slot 2: Low Proﬁ le, PCI Express x1 Slot 3: Low Proﬁ le, 32-bit PCI 2.3 Slot 4: Low Proﬁ le, 32-bit PCI 2.3

supports dual independent display with optional ADD2 adapter

SATA disk SATA controller SATA Combo SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 220 watts with variable speed fan, manual switch

20

®

Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter

Access (combo)

• Corel® WinDVD® (combo)

See footnotes for important warranty information US models announced March 18, 2008

dampening mounts

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 NVIDIA® Quadro® 256MB NVS 290 43R1765 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage

technologies

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9194)

14

toll-free support

(MONA1-12) March 2008

1

9

, 8 am - 5 pm,

7

1

ThinkCentre® M57e Tower (6179) - TopSeller

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Core

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Preload

Vista

logo

Global

Educ

M57e 6179-B2U 4x4 Pentium E2200 2.20 1MB Dual 1GB 160GB2 None DVD GMA XP Pro None Jun 08 M57e 6179-B1U 4x4 Pentium E2200 2.20 1MB Dual 2GB 160GB None DVD±RW GMA XP Pro None Jun 08 M57e 6179-B3U 4x4 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB None DVD GMA XP Pro None Jun 08 M57e 6179-B4U 4x4 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB None DVD±RW GMA XP Pro None Jun 08

☞

M57e 6179-B5U 4x4 Pentium E2200 2.20 1MB Dual 1GB 160GB None DVD GMA Business32 Prem None Aug 08

☞

M57e 6179-B6U 4x4 Pentium E2200 2.20 1MB Dual 2GB 160GB None DVD±RW GMA Business32 Prem None Aug 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Positioning Processor

Stability and manageability for small and medium businesses

®

Intel

Pentium® Dual-Core Processor E2200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

Implementation

Memory

and 1066MHz system bus with 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista

- Some: Microsoft Windows Vista Business Edition

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

5

(all OSes)

®

COA

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963

®

NVIDIA NVIDIA Quadro 256MB FX 370 43R1766

Quadro® 256MB NVS 290 43R1765

NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US models announced August 19, 2008; previous models on June 24, 2008

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA2-11) August 2008

9

1

Avail

dateName

ThinkCentre® M57e Tower (6179) - TopSeller (October 2008)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Preload

Vista

logo

Global

Educ

Avail

dateName

M57e 6179-BBU 4x4 Pentium E5200 2.50 2MB 2 1GB 160GB2 None DVD GMA XP Pro Premium None Nov 08 M57e 6179-BCU 4x4 Pentium E5200 2.50 2MB 2 2GB 160GB None DVD±RW GMA XP Pro Premium None Nov 08 M57e 6179-BFU 4x4 Core 2 Duo E7300 2.66 3MB 2 1GB 160GB None DVD GMA XP Pro Premium None Nov 08 M57e 6179-BDU 4x4 Core 2 Duo E7300 2.66 3MB 2 2GB 160GB None DVD±RW GMA XP Pro Premium None Nov 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Positioning Processor

Stability and manageability for small and medium businesses

®

Intel

Pentium® Dual-Core Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

®

COA ✧ Disk-to-Disk Recovery (in hidden protected area)

5

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Reader

Home

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

PC2-5300 667MHz DDR2,

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963

®

NVIDIA NVIDIA Quadro 256MB FX 370 43R1766

Quadro® 256MB NVS 290 43R1765

NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

®

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA3-5) October 2008

9

1

ThinkCentre® M57e Tower (9439)

2nd Disk

Type-model Processor Memory

M57e 9439-B8U 4x5 Pentium E2160 1.80 1MB Dual 1GB 160GB2 Bay Combo GMA XP Pro 3-yr None Mar 08

✂

M57e 9439-B9U 4x5 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Bay Combo GMA XP Pro 3-yr None Mar 08

✂

M57e 9439-BAU 4x5 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB Bay Combo GMA XP Pro 3-yr None Mar 08

☞

M57e 9439-A2U 4x5 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Bay Combo GMA XP Pro 3-yr None Mar 08

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

Preload

Limited

warranty

Global

1

Educ

Avail

dateName

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2160 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4500 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E6550 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, 1333MHz system bus, and 4MB shared L2 cache or Intel Core 2 Duo Processor E8200 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller SATA Combo SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts Serial ATA, SATA 3.0Gb/s, integrated in ICH7 CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings

(combo)

• Sonic RecordNow and Drive Letter Access (combo)

• Corel® WinDVD® (combo)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978

5

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963

®

NVIDIA NVIDIA Quadro 256MB FX 370 43R1766

Quadro® 256MB NVS 290 43R1765

NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information

☞ US model announced March 18, 2008; previous models on February 26, 2008

✂ US models withdrawn effective September 2008 or January 2009

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

⑤

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk Bay ⑤ 3.5", 1" high, no access, opt disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA1-6) March 2008

9

1

vo

ThinkCentre® M57e Tower (9439) - August 2008

Type-model

Slot x

bay

Processor Memory

GHz

L2

cache

Core

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

Global

Preload

Educ

M57e 9439-EBU 4x5 Pentium E2180 2.00 1MB Dual 1GB 160GB2 Bay DVD GMA+ADD2 XP Pro None Aug 08 M57e 9439-E5U 4x5 Pentium E2200 2.20 1MB Dual 1GB 160GB Bay DVD GMA XP Pro None Aug 08 M57e 9439-E6U 4x5 Pentium E2200 2.20 1MB Dual 2GB 160GB Bay DVD±RW GMA XP Pro None Aug 08 M57e 9439-E7U 4x5 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB Bay DVD±RW GMA XP Pro None Aug 08 M57e 9439-E9U 4x5 Core 2 Duo E7200 2.53 3MB Dual 2GB 160GB Bay DVD GMA+ADD2 XP Pro None Aug 08 M57e 9439-E8U 4x5 Core 2 Duo E7300 2.66 3MB Dual 2GB 160GB Bay DVD±RW GMA XP Pro None Aug 08

• These models have a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2180 or E2200 with

dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7200 or E7300 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

1066MHz system bus with 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

All: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-D Monitor Connection (HDCP), PCI Express® adapter in PCIe x16 slot, provides DVI-D connector to support second monitor, HDCP-compliant

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-D in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced August 19, 2008

PC2-5300 667MHz DDR2,

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963

®

NVIDIA NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767

Quadro® 256MB NVS 290 43R1765

Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

4

Drive

Tower

• Business black color; metal case

optical

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk Bay ⑤ 3.5", 1" high, no access, opt disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA2-14) August 2008

②

③

⑤

(75w max)*

9

1

Avail

dateName

ThinkCentre® M57e Tower (9439) - Vista®

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

Limited

Vista

preload

warranty

1

M57e 9439-B1U 4x5 Celeron 420 1.60 512KB Single 1GB 160GB2 Bay Combo GMA Bus32 3-yr None Mar 08 M57e 9439-AAU 4x4 Celeron 430 1.80 512KB Single 1GB 80GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9439-ABU 4x4 Pentium E2160 1.80 1MB Dual 1GB 80GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9439-AQU 4x5 Pentium E2160 1.80 1MB Dual 1GB 160GB Bay DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9439-APU 4x5 Pentium E2160 1.80 1MB Dual 1GB 160GB Bay Combo GMA Bus32 3-yr None Mar 08

✂

M57e 9439-ACU 4x4 Core 2 Duo E4500 2.20 2MB Dual 1GB 80GB DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9439-ARU 4x5 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Bay DVD GMA Bus32 3-yr None Mar 08

✂

M57e 9439-ASU 4x5 Core 2 Duo E4500 2.20 2MB Dual 1GB 160GB Bay Combo GMA Bus32 3-yr None Mar 08

M57e 9439-AUU 4x5 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB Bay DVD GMA Bus32 3-yr None Mar 08 M57e 9439-ADU 4x4 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB Combo GMA Bus32 3-yr None Mar 08 M57e 9439-ATU 4x5 Core 2 Duo E6550 2.33 4MB Dual 1GB 160GB Bay Combo GMA Bus32 3-yr None Mar 08

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D SATA Combo SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter

Access (combo)

• Corel® WinDVD® (combo, DVD)

See footnotes for important warranty information US models announced February 19, 2008

Mainstream enterprise stability and manageability

®

Intel

Celeron® Processor 420 or 430 with single-core, Intel 64 Technology, EDBit, 800MHz bus, and 512KB L2 cache or Intel Pentium® Dual-Core Processor E2160 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4500 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E6550 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 4MB shared L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

80GB or 160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk Bay ⑤ 3.5", 1" high, no access, opt disk*

* 2nd Disk Bay is only available on some models Slot 1: half-length, full-height, PCI Express x16

Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 NVIDIA® Quadro® 256MB NVS 290 43R1765 NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Other accessories at lenovo.com/accessories

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA1-3) February 2008

✂ US models withdrawn effective September 2008 or January 2009

Global

Educ

optical

③

disk

⑤

1

Avail

②

(75w max)

9

dateName

vo

ThinkCentre® M57e Tower (9439) - Vista® (March 2008)

Type-model Processor Memory

Name

☞

M57e 9439-AWU 4x5 Pentium E2180 2.00 1MB Dual 1GB 160GB

Slot x

bay

GHz

L2

cache

Core

M57e 9439-DGU 4x4 Pentium E2200 2.20 1MB Dual 1GB 160GB

8

SATA

disk

2nd Disk

2

Bay DVD ±RW GMA Bus32 Basic Aug 08

SATA

Bay

optical

Graphics

Combo GMA Bus32 Basic Gbl Mar 08

Personal Systems Reference (PSREF)

Vista

preload

Vista logo

M57e 9439-DHU 4x4 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB Combo GMA+ADD2 Bus32 Basic Gbl Mar 08 M57e 9439-A3U 4x5 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB Bay Combo GMA Bus32 Basic Mar 08 M57e 9439-DJU 4x4 Core 2 Duo E8400 3.00 6MB Dual 2GB 250GB DVD ±RW GMA+ADD2 Bus32 Premium Gbl Mar 08

• These models have a 3-year limited warranty

1

Global

Educ

Avail

date

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2180 or E2200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E8200 or E8400 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

All: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-I PCIe Connection Adapter, PCI Express® adapter in PCIe x16 slot, provides DVI-I connector to support second monitor, no DVI-to-VGA dongle

SATA disk SATA controller SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-I in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

(32-bit)

20

5

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 NVIDIA® Quadro® 256MB NVS 290 43R1765 NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US model announced August 19, 2008; previous models on March 18, 2008

dampening

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

⑤

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk Bay ⑤ 3.5", 1" high, no access, opt disk**

** 2nd Disk Bay is only available on some models Slot 1: half-length, full-height, PCI Express x16

(75w max)* Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA1-10) August 2008

9

1

ThinkCentre® M57e Tower (9439) - Vista® (June 2008)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Core

Memory

SATA

8

disk

2nd Disk

Bay

SATA

optical

Graphics

Personal Systems Reference (PSREF)

Limited

Vista

preload

warranty

1

M57e 9439-D6U 4x4 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB2 None DVD±RW GMA Bus32 3-yr None Jun 08

Global

Educ

Avail

dateName

• This model has a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E7200 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

1066MHz system bus with 3MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

✧ Vista Basic logo

Preloaded applications

• Rescue and Recovery™

5

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced June 24, 2008

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 NVIDIA® Quadro® 256MB NVS 290 43R1765 NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA2-8) June 2008

9

1

ThinkCentre® M57e Tower (9439) - Vista® (October 2008)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

SATA

8

disk

2nd Disk

Bay

SATA

optical

Graphics

Personal Systems Reference (PSREF)

Vista

preload

logo

M57e 9439-F1U 4x4 Pentium E5200 2.50 2MB 2 1GB 160GB2 None DVD GMA Bus32 Prem None Nov 08 M57e 9439-F2U 4x4 Pentium E5200 2.50 2MB 2 1GB 250GB None DVD±RW GMA Bus32 Prem None Nov 08

Global

Educ

Avail

dateName

• These models have a 3-year limited warranty

Positioning Processor

Implementation

Memory

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition

Preloaded applications

• Rescue and Recovery™

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

5

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical

dampening

Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 NVIDIA® Quadro® 256MB NVS 290 43R1765 NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MONA3-3) October 2008

9

1

ThinkCentre® M57e Tower (9356) - ENERGY STAR® 4.0

2nd Disk

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

SATA

Bay

optical Graphics

Personal Systems Reference (PSREF)

ENERGY STAR 4.0

preload

Vista

logo

M57e 9356-ADU 4x4 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB2 None Combo GMA ES40 Bus32 Basic Gbl Mar 08 M57e 9356-AFU 4x4 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB None Combo GMA+ADD2 ES40 Bus32 Basic Gbl Mar 08 M57e 9356-AEU 4x4 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB None Combo GMA ES40 Bus32 Basic Gbl Mar 08 M57e 9356-AGU 4x4 Core 2 Duo E8400 3.00 6MB Dual 2GB 250GB None DVD±RW GMA+ADD2 ES40 Bus32 Prem Gbl Mar 08

Global

Educ

Avail

dateName

• These models have a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E8200 or E8400 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

All: Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector Some: ADD2 DVI-I PCIe Connection Adapter, PCI Express® adapter in PCIe x16 slot, provides DVI-I connector to support second monitor, no DVI-to-VGA dongle

SATA disk SATA controller SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DVI-I in some models) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

- Microsoft® Windows® Vista® Business Edition (32-bit)

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD±RW)

See footnotes for important warranty information US models announced March 18, 2008

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

PC2-5300 667MHz DDR2,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3

dampening

Slot 4: half-length, full-height, 32-bit PCI 2.3 * used in some models

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 NVIDIA® Quadro® 256MB NVS 290 43R1765 NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

optical

②

③

disk

(75w max)*

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

1

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA1-9) March 2008

9

7

1

ThinkCentre® M57e Tower (9356) - ENERGY STAR® 4.0 (June 2008)

2nd Disk

Slot x

Type-model Processor

☞

M57e 9356-B5U 4x5 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB2 Bay DVD GMA ES40 XP Pro No Sep 08 M57e 9356-B1U 4x4 Core 2 Duo E7200 2.53 3MB Dual 1GB 160GB DVD ±RW GMA ES40 Bus32 Basic No Jun 08

☞

M57e 9356-B7U 4x5 Core 2 Duo E7300 2.66 3MB Dual 1GB 160GB Bay DVD±RW GMA ES40 Bus32 Prem No Sep 08

bay

• These models have a 3-year limited warranty

GHz

L2

cache

Core

Memory

SATA

8

disk

1

Bay

SATA

optical

Graphics

Personal Systems Reference (PSREF)

ENERGY STAR 4.0

Preload

Vista

logo

Global

Educ

Avail

dateName

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E7200 or E7300 with dual-core,

Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

1066MHz system bus with 3MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (32-bit)

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings

(DVD) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918

®

Home

Reader

USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963

®

NVIDIA NVIDIA Quadro 256MB FX 370 43R1766

Quadro® 256MB NVS 290 43R1765

NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US models announced August 19, 2008; previous model on June 24, 2008

4

Drive

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

optical

②

③

disk

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

⑤

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk Bay ⑤ 3.5", 1" high, no access, opt disk*

* 2nd Disk Bay is only available on some models

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

®

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

1

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MONA2-9) August 2008

9

7

1

ThinkCentre® M57e Tower (6176) - ENERGY STAR® 4.0 (GMP)

2nd Disk

Type-model Processor Memory

Name

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

ENERGY

STAR 4.0

Vista

preload

M57e 6176-B1U 4x4 Core 2 Duo E8400 3.00 6MB Dual 1GB 160GB2 None DVD±RW GMA ES40 Business32 G P Jul 08

Global (G)

GMP (P)

Avail

date

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Implementation

Memory

Mainstream enterprise stability and manageability

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

- Microsoft® Windows® Vista® Business Edition (32-bit) ✧ Vista Basic logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced June 24, 2008

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 NVIDIA® Quadro® 256MB NVS 290 43R1765 NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MONA2-10) June 2008

9

1

ThinkCentre® M57e Tower (7064) - GMP

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

Vista

preload

Limited

warranty

1

M57e 7064-AAU 4x4 Pentium E2200 2.20 1MB Dual 1GB 160GB2 None Combo GMA Business32 3-yr G P Apr 08

Global (G)

GMP (P)

Avail

dateName

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Dual-Core Processor E2200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

Implementation

Memory

and 800MHz system bus with 1MB shared L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller SATA Combo SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista® Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

✧ Vista Basic logo

Preloaded applications

• Rescue and Recovery™

5

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter

Access (combo)

• Corel® WinDVD® (combo)

See footnotes for important warranty information US model announced March 18, 2008

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

®

Accessories

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 NVIDIA® Quadro® 256MB NVS 290 43R1765 NVIDIA Quadro 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage

®

technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MONA1-13) March 2008

9

1

ThinkCentre® M57e Accessories

Partial list of accessories supported on ThinkCentre M57e

Memory

1GB PC2-5300 CL5 NP DDR2 UDIMM 73P4984 ann 06/28/05 2GB PC2-5300 CL5 NP DDR2 UDIMM 73P4985 ann 09/26/06 512MB PC2-6400 NP DDR2 UDIMM 1GB PC2-6400 NP DDR2 UDIMM48 41U2977 ann 09/26/06 2GB PC2-6400 NP DDR2 UDIMM48 41U2978 ann 01/08/08

48

When PC2-6400 is installed with systems that have PC2-5300

memory, PC2-6400 will operate at the PC2-5300 memory speed.

Optical

DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 41N5618 ann 09/26/06 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ann 09/26/06

Storage and removable storage

160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254 ann 05/19/03 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 ann 01/24/06 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 ann 11/06/07

USB Portable Diskette Drive 05K9276 ann 06/05/00 USB 2.0 Essential Memory Key 2GB 41U4944 ann 01/23/07 USB 2.0 Essential Memory Key 4GB 45J7904 ann 06/24/08 USB 2.0 Essential Memory Key 8GB 45J7905 ann 07/15/08 USB 2.0 Essential Memory Key 32GB 45K1258 ann 10/28/08 USB 2.0 Security Memory Key 4GB 41U5120 ann 07/17/07 USB 2.0 Ultra Secure Memory Key 1GB 45J5915 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 ann 08/26/08 USB 2.0 Portable 160GB Hard Disk 43R1784 ann 09/23/08 USB 2.0 Portable 320GB Hard Disk 45K1689 ann 03/17/09 USB 2.0 Portable Secure 160GB Hard Disk 43R2018 ann 11/18/08 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ann 11/18/08 USB 2.0 CD-RW/DVD-ROM Combo II Drive 40Y8637 ann 01/05/06 USB 2.0 Super Multi-Burner Drive 41N5565 ann 01/23/07

Graphics

Small 6305/9482/9487/6178/7066 support Low Proﬁ le 35 watts max:

ADD2 DVI-I PCIe Connection Adapter 73P2516 ann 06/28/05 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ann 11/06/07 ATI Radeon HD 2400 XT 256MB 43R1962 ann 11/06/07

Desktop 9481/9438/6177/7065 support Low Proﬁ le 35 watts max:

ADD2 DVI-I PCIe Connection Adapter 73P2516 ann 06/28/05 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07 ATI Radeon HD 2400 Pro 128MB 43R1961 ann 11/06/07 ATI Radeon HD 2400 XT 256MB 43R1962 ann 11/06/07 NVIDIA® Quadro® 256MB NVS 290 43R1765 ann 12/18/07

Tower 6179/9439/9356/6176/7064 support 75 watts max:

ADD2 DVI-I PCIe Connection Adapter 73P2516 ann 06/28/05 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07 ATI Radeon HD 2400 Pro 128MB 43R1961 ann 11/06/07 ATI Radeon HD 2400 XT 256MB 43R1962 ann 11/06/07 ATI Radeon HD 2600 XT 512MB 43R1963 ann 11/06/07 NVIDIA Quadro 256MB NVS 290 43R1765 ann 12/18/07 NVIDIA Quadro 256MB FX 370 43R1766 ann 12/18/07 NVIDIA Quadro 512MB FX 1700 43R1767 ann 12/18/07

More information at www.lenovo.com/support/graphiccards

Keyboard

Preferred Pro USB Keyboard 73P5220 ann 06/21/05 Preferred Pro Full Size PS/2 Keyboard 31P7415 ann 06/04/02 Enhanced Performance USB Keyboard 73P2620 ann 03/23/04 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 ann 12/07/04 Lenovo® USB Fingerprint Keyboard 73P4730 ann 02/22/05 Lenovo USB Smartcard Keyboard 51J0155 ann 03/24/09

More information at www.lenovo.com/support/keyboards

Mouse

Optical Wheel Mouse (USB) 06P4069 ann 05/21/03 Optical ScrollPoint® Mouse (USB, PS/2) 31P7405 ann 08/27/02 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 ann 01/23/07 Lenovo Wireless Laser Mouse (blk, via USB) 45K1696 ann 11/25/08 Lenovo Wireless Laser Mouse (red, via USB) 51J0198 ann 11/25/08

More information at www.lenovo.com/support/mice

48

41U2976 ann 09/26/06

Personal Systems Reference (PSREF)

Multimedia

USB 2.0 Lenovo Multimedia Headset 40Y8518 ann 06/27/06 USB 2.0 Lenovo Webcam 40Y8519 ann 08/29/06

Security

Kensington® Cable Lock from Lenovo 73P2582 ann 12/29/03 Kensington Twin Head Cable Lock 45K1620 ann 09/30/08 USB Gemplus GemPC Smart Card Reader 41N3040 ann 02/21/06

Monitors

ThinkVision® L174 17" Monitor 9227AE1 ann 04/15/08 ThinkVision L1700p 17" Monitor 9417HE2 ann 09/17/08 ThinkVision L1900p 19" Monitor 4431HE1 ann 11/11/08 ThinkVision L1940p Wide 19" Monitor 4424HB6 ann 09/17/08 ThinkVision L200p Wide 20.1" Monitor 4438HB6 ann 04/15/08 ThinkVision L2240p Wide 22" Monitor 4422HB6 ann 09/17/08 ThinkVision L2440p Wide 24" Monitor 4420HB2 ann 09/17/08 ThinkVision L2440x Wide 24" Monitor 4421HB2 ann 09/17/08

More information at www.lenovo.com/thinkvision

Monitor Accessories

46

ThinkVision USB Soundbar 40Y7616 ann 08/23/05 ThinkVision Soundbar 45K1263 ann 09/16/08 Kensington Cable Lock from Lenovo 73P2582 ann 12/29/03 Kensington Twin Head Cable Lock 45K1620 ann 09/30/08 Radial Arm 19K4464 ann 05/05/00

46

Compatible on selected Lenovo and ThinkVision monitors.

More information at www.lenovo.com/support/monitoraccessories

Medialess License Key (MLK)

Microsoft® Ofﬁ ce 2007 Basic, English 43R1528 ann 01/31/07 Microsoft Ofﬁ ce 2007 Small Business, Engl 43R1534 ann 01/31/07 Microsoft Ofﬁ ce 2007 Professional, English 43R1531 ann 01/31/07

Other accessories at www.lenovo.com/accessories

Accessories Guide pdf at

www.lenovo.com/accessoriesguide

(O-M57E) February 2009

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

ThinkCentre® M58e Small (7259) - TopSeller

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

M58e 7259-A2U 2x3 Core 2 Quad Q9400 2.66 6MB 4 2GB 160GB2 DVD ±RW GMA XP Pro Basic None Apr 09

• This small and medium business (SMB) model is part of the US TopSeller ™ Program

• This model has a 1-year limited warranty

Stability and manageability for small and medium businesses

Intel® Core™ 2 Quad Processor Q9400 with quad-core,

Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 1GB), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

protected area)

Preloaded applications

• Rescue and Recovery™

5

• Client Security Solution™

• ThinkVantage Productivity Center

• McAfee® VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

• Corel

Creator® Business Edition

®

WinDVD® (DVD±RW)

(DVD±RW)

See footnotes for important warranty information US model announced March 24, 2009

GHz

L2

cache

Cores

1

8

SATA

disk

PC2-6400 800MHz DDR2,

dampening mounts

®

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

SATA

optical Graphics

Small

Preload

optical

Vista

logo

Global

Educ

disk

(in rear)

Avail

dateName

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9189)

14

toll-free support

(MIAM1-14) April 2009

1

9

7

1

ThinkCentre® M58e Small (7269) - TopSeller

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Preload

Vista

logo

Global

Educ

Avail

dateName

M58e 7269-B6U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA XP Pro Basic None Apr 09 M58e 7269-B7U 2x3 Pentium E5200 2.50 2MB 2 2GB 160GB DVD ±RW GMA XP Pro Basic None Apr 09 M58e 7269-A9U 2x3 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB DVD GMA XP Pro Basic None Apr 09 M58e 7269-B1U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD ±RW GMA XP Pro Basic None Apr 09

☞

M58e 7269-C2U 2x3 Core 2 Duo E7400 2.80 3MB 2 3GB 250GB DVD ±RW GMA XP Pro Basic None Apr 09

☞

M58e 7269-C4U 2x3 Core 2 Duo E7500 2.93 3MB 2 3GB 320GB DVD ±RW GMA XP Pro Basic None Apr 09

☞

M58e 7269-C3U 2x3 Core 2 Duo E8400 3.00 6MB 2 3GB 250GB DVD ±RW GMA XP Pro Basic None Apr 09 M58e 7269-B2U 2x3 Core 2 Quad Q8200 2.33 4MB 4 2GB 160GB DVD ±RW GMA XP Pro Basic None Apr 09

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Stability and manageability for small and medium businesses

®

Intel

Pentium® Processor E5200 with dual-core,

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache Intel Core 2 Quad Processor Q8200 with quad-core,

Implementation

Memory

1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 512MB [1GB models], 1GB [2GB or 3GB models]), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, 250GB, or 320GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• McAfee® VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe

®

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information ☞ US models announced April 7, 2009; previous models on March 10, 2009

Creator® Business Edition

®

WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

®

COA

20

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918

5

USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 Super Multi-Burner DL DVD±RW SATA Drive 41N5620

Reader

ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985

®

(DVD±RW)

AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

dampening mounts

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

®

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-1) April 2009

1

9

7

1

ThinkCentre® M58e Small (7279)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Vista

preload

Vista logo

Global

Educ

Avail

dateName

M58e 7279-B1U 2x3 Pentium E2220 2.40 1MB 2 2GB 160GB2 DVD ±RW GMA Business32 Basic None Apr 09 M58e 7279-A9U 2x3 Core 2 Duo E7300 2.66 3MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09 M58e 7279-A8U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09

1

Small

optical

disk

(in rear)

Positioning Processor

• These models have a 1-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E2220 with dual-core, 800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 765MB), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista® Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

(32-bit)

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee

(30 days of virus deﬁ nitions)

®

VirusScan® Plus

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

• Corel

Creator® Business Edition

®

WinDVD® (DVD±RW)

(DVD±RW)

See footnotes for important warranty information US models announced March 10, 2009

dampening mounts

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

™ part number 41C9189)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

14

toll-free support

(MIAM1-2) March 2009

1

9

7

1

ThinkCentre® M58e Small (7303)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Floor stand

Preload

Vista

logo

Global

Educ

M58e 7303-F9U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA Stand XP Pro Basic Apr 09 M58e 7303-C6U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD GMA Stand XP Pro Basic Apr 09

☞

M58e 7303-G8U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD ±RW GMA XP Pro Basic Educ Apr 09 M58e 7303-C7U 2x3 Pentium E5300 2.60 2MB 2 2GB 250GB DVD ±RW GMA Stand XP Pro Basic Apr 09 M58e 7303-C8U 2x3 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB DVD GMA Stand XP Pro Basic Apr 09 M58e 7303-D1U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD ±RW GMA Stand XP Pro Basic Apr 09 M58e 7303-C9U 2x3 Core 2 Duo E7500 2.93 3MB 2 1GB 160GB DVD GMA Stand XP Pro Basic Apr 09 M58e 7303-D2U 2x3 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB DVD ±RW GMA Stand XP Pro Basic Apr 09 M58e 7303-D3U 2x3 Core 2 Duo E8400 3.00 6MB 2 1GB 160GB DVD ±RW GMA Stand XP Pro Basic Apr 09 M58e 7303-D5U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA Stand XP Pro Basic Apr 09

☞

M58e 7303-G7U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA XP Pro Basic Educ Apr 09 M58e 7303-D4U 2x3 Core 2 Duo E8500 3.16 6MB 2 1GB 250GB DVD ±RW GMA Stand XP Pro Basic Apr 09 M58e 7303-D6U 2x3 Core 2 Duo E8500 3.16 6MB 2 2GB 250GB DVD ±RW GMA Stand XP Pro Basic Apr 09 M58e 7303-G9U 2x3 Core 2 Quad Q8200 2.33 4MB 4 2GB 250GB DVD ±RW GMA Stand XP Pro Basic Apr 09

☞

Positioning Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5200 or E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 or E8500 with dual-core, 1333MHz system bus, and 6MB L2 cache or Intel Core 2 Quad Processor Q8200 with quad-core,

Implementation

Memory

1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 512MB [1GB models], 1GB [2GB models]), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information ☞ US models announced March 24, 2009; previous models on March 10, 2009

Creator® Business Edition

®

WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985

®

(DVD±RW)

AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Some: system ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed

®

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ Other ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-3) April 2009

9

7

1

Avail

dateName

ThinkCentre® M58e Small (7303) - Vista

®

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Vista

preload

Vista

logo

Global

Educ

Avail

dateName

M58e 7303-D8U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB2 DVD GMA Business32 Basic None Apr 09 M58e 7303-D9U 2x3 Pentium E5300 2.60 2MB 2 2GB 250GB DVD ±RW GMA Business32 Basic None Apr 09 M58e 7303-E1U 2x3 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB DVD GMA Business32 Basic None Apr 09 M58e 7303-E3U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09 M58e 7303-E2U 2x3 Core 2 Duo E7500 2.93 3MB 2 1GB 160GB DVD GMA Business32 Basic None Apr 09 M58e 7303-E4U 2x3 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09 M58e 7303-E5U 2x3 Core 2 Duo E8400 3.00 6MB 2 1GB 160GB DVD ±RW GMA Business32 Basic None Apr 09 M58e 7303-E7U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09 M58e 7303-E6U 2x3 Core 2 Duo E8500 3.16 6MB 2 1GB 250GB DVD ±RW GMA Business32 Basic None Apr 09 M58e 7303-E8U 2x3 Core 2 Duo E8500 3.16 6MB 2 2GB 250GB DVD ±RW GMA Business32 Basic None Apr 09

1

Small

optical

disk

(in rear)

Positioning Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 or E8500 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration dampening Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

(32-bit)

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee

®

VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition (DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced March 10, 2009

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

®

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-4) March 2009

1

9

7

1

ThinkCentre® M58e Small (7506) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

cache

Cores

L2

8

SATA

disk

SATA

optical Graphics

ENERGY STAR 4.0

Preload

Vista

logo

Global

Educ

M58e 7506-C7U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA ES40 XP Pro Basic Apr 09 M58e 7506-B9U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD GMA ES40 XP Pro Basic Apr 09 M58e 7506-C1U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD ±RW GMA ES40 XP Pro Basic Apr 09 M58e 7506-C2U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA ES40 XP Pro Basic Apr 09

☞

M58e 7506-C9U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA ES40 XP Pro Basic Educ Apr 09

1

Small

optical

disk

(in rear)

Positioning Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5200 or E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 512MB [1GB models], 1GB [2GB models]), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• McAfee® VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition (DVD±RW)

• Roxio MyDVD

®

• Corel

See footnotes for important warranty information ☞ US model announced March 24, 2009; previous models on March 10, 2009

WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide

®

(DVD±RW)

Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

Climate Savers®-compliant EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-5) April 2009

1

9

7

1

Avail

dateName

ThinkCentre® M58e Small (7408) - GMP

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Vista

preload

Vista

logo

Global (G)

GMP (P)

Avail

dateName

M58e 7408-A1U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB2 DVD ±RW GMA Business32 Basic G P Apr 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 765MB), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista® Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

(32-bit)

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee

®

VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

Creator® Business Edition

®

(DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced March 10, 2009

Small

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

dampening mounts

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

®

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MIAM1-6) March 2009

9

1

ThinkCentre® M58e Small (7514) - ENERGY STAR® 4.0 (GMP)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

ENERGY STAR 4.0

Vista

preload

Vista

logo

Global (G)

GMP (P)

Avail

dateName

M58e 7514-A2U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB2 DVD ±RW GMA ES40 Bus32 Basic G P Apr 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 765MB), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 85% PSU

20

- Microsoft® Windows® Vista® Business Edition (32-bit)

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition (DVD±RW)

• Roxio MyDVD

®

• Corel

See footnotes for important warranty information US model announced March 10, 2009

®

WinDVD® (DVD±RW)

(DVD±RW)

Small

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

dampening mounts

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

®

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MIAM1-7) March 2009

9

1

ThinkCentre® M58e Tower (7268) - TopSeller

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Preload

Vista

logo

Global

Educ

M58e 7268-A8U 4x4 Pentium E5200 2.50 2MB 2 1GB 160GB2 None DVD GMA XP Pro Basic None Apr 09 M58e 7268-A9U 4x4 Pentium E5200 2.50 2MB 2 2GB 160GB None DVD±RW GMA XP Pro Basic None Apr 09 M58e 7268-A3U 4x4 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB None DVD GMA XP Pro Basic None Apr 09 M58e 7268-A4U 4x4 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB None DVD±RW GMA XP Pro Basic None Apr 09

☞

M58e 7268-B3U 4x4 Core 2 Duo E7400 2.80 3MB 2 3GB 320GB None DVD±RW GMA XP Pro Basic None Apr 09

☞

M58e 7268-B4U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB None DVD±RW GMA XP Pro Basic None Apr 09

☞

M58e 7268-B2U 4x4 Core 2 Duo E8400 3.00 6MB 2 3GB 320GB None DVD±RW GMA XP Pro Basic None Apr 09

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Positioning Processor

Stability and manageability for small and medium businesses

®

Intel

Pentium® Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 512MB [1GB models], 1GB [2GB or 3GB models]), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• McAfee® VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition (DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

®

COA

20

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918

5

USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620

®

(DVD±RW)

DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA Acc Guide in pdf lenovo.com/accessoriesguide

GeForce® 9500GT 512MB (DP, DVI)45K1635

Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US models announced April 7, 2009; previous models on March 10, 2009

1

dampening

®

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MIAM1-8) April 2009

9

1

Avail

dateName

ThinkCentre® M58e Tower (7270)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Memory

Media

8

reader

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

FireWire

adapterCores

Vista

preload

Global

Educ

Avail

dateName

M58e 7270-A3U 4x4 Pentium E2220 2.40 1MB 2 2GB 160GB2 No DVD±RW GMA Bus32 No Apr 09 M58e 7270-A2U 4x4 Core 2 Duo E7300 2.66 3MB 2 2GB 160GB No DVD±RW GMA Bus32 No Apr 09 M58e 7270-A1U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB No DVD±RW GMA Bus32 No Apr 09 M58e 7270-A4U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 25-in-1 160GB No DVD±RW GMA 1394 Bus32 No Apr 09

• These models have a 1-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E2220 with dual-core, 800MHz system bus, and 1MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 765MB), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None Some: 25-in-1 media reader, internal USB 2.0

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394

Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista® Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Some: FireWire PCI adapter / IEEE 1394 FireWire 400 (dual 6-pin ports on rear; 1394-1995 standard) Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

✧ Vista Basic logo

5

Preloaded applications

• Rescue and Recovery™

(only some listed)

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee

®

VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

Creator® Business Edition

®

(DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US models announced March 10, 2009

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA Acc Guide in pdf lenovo.com/accessoriesguide

GeForce® 9500GT 512MB (DP, DVI)45K1635

Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, opt reader/diskette* Bay ④ 3.5", 1" high, no access, std disk

* occupied by media reader in some models Slot 1: half-length, full-height, PCI Express x16

Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3** Slot 4: half-length, full-height, 32-bit PCI 2.3

** occupied by FireWire adapter in some models

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

®

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period via 800-426-7378

™ part number 41C9189)

14

toll-free support

optical

②

③

disk

(75w max)

9

3

, 8 am - 5 pm,

7

1

(MIAM1-9) March 2009

ThinkCentre® M58e Tower (7298)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Global

PreloadCores

Vista

logo

Educ

M58e 7298-F2U 4x4 Pentium E5200 2.50 2MB 2 1GB 160GB2 None DVD GMA XP Pro Basic Apr 09 M58e 7298-C3U 4x4 Pentium E5300 2.60 2MB 2 1GB 160GB None DVD GMA XP Pro Basic Apr 09 M58e 7298-C4U 4x4 Pentium E5300 2.60 2MB 2 2GB 250GB None DVD±RW GMA XP Pro Basic Apr 09 M58e 7298-C5U 4x4 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB None DVD GMA XP Pro Basic Apr 09 M58e 7298-C6U 4x4 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB None DVD±RW GMA XP Pro Basic Apr 09 M58e 7298-C7U 4x4 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB None DVD±RW GMA XP Pro Basic Apr 09 M58e 7298-C8U 4x4 Core 2 Duo E8400 3.00 6MB 2 1GB 160GB None DVD±RW GMA XP Pro Basic Apr 09 M58e 7298-D1U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB None DVD±RW GMA XP Pro Basic Apr 09

☞

M58e 7298-F8U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB None DVD±RW GMA XP Pro Basic Educ Apr 09 M58e 7298-C9U 4x4 Core 2 Duo E8500 3.16 6MB 2 1GB 250GB None DVD±RW GMA XP Pro Basic Apr 09 M58e 7298-D2U 4x4 Core 2 Duo E8500 3.16 6MB 2 2GB 250GB None DVD±RW GMA XP Pro Basic Apr 09

☞

M58e 7298-F9U 4x4 Core 2 Quad Q8200 2.33 4MB 4 2GB 250GB None DVD±RW GMA XP Pro Basic Apr 09

☞

M58e 7298-G1U 4x4 Core 2 Quad Q9400 2.66 6MB 4 2GB 250GB None DVD±RW GMA XP Pro Basic Apr 09

• These models have a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5200 or E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 or E8500 with dual-core, 1333MHz system bus, and 6MB L2 cache or Intel Core 2 Quad Processor Q8200 with quad-core, 1333MHz system bus, and 4MB L2 cache or Intel Core 2 Quad Processor Q9400 with quad-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 512MB [1GB models], 1GB [2GB models]), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• McAfee® VirusScan® Plus

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition (DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information ☞ US models announced March 24, 2009; previous models on March 10, 2009

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440p Wide 24" Monitor 4420HB2 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

®

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ Other ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-10) April 2009

7

optical

②

③

disk

(75w max)

1

9

Avail

dateName

ThinkCentre® M58e Tower (7298) - Vista

®

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical

Graphics

Monitor

connectors

Vista

preload

Global

Educ

Avail

dateName

M58e 7298-G2U 4x4 Core 2 Quad Q9400 2.66 6MB 4 4GB 500GB2 None BD burner 3470 VGA, DP Bus64 None Apr 09

• This model has a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Quad Processor Q9400 with quad-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

4GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Italics: standard memory in both sockets; no sockets available

Graphics

ATI™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort™ connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts

SATA disk SATA controller SATA BD burner SATA cables eSATA port Diskette drive Media reader

Chipset

500GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Blu-ray™ Burner SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None 25-in-1 media reader, internal USB 2.0

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

- Microsoft® Windows® Vista Business Edition (64-bit) ✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Corel® WinDVD® (Blu-ray)

• Ulead® DVD MovieFactory (Blu-ray)

See footnotes for important warranty information US model announced April 7, 2009

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Blu-ray Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 NVIDIA Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical

dampening mounts

Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, optional reader Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

* graphics adapter occupies slot

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

optical

②

③

disk

(75w max)*

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MIAM1-15) April 2009

9

1

ThinkCentre® M58e Tower (7491) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

ENERGY STAR 4.0Cores

Preload

Global

Educ

M58e 7491-B6U 4x4 Pentium E5300 2.60 2MB 2 1GB 160GB2 None DVD GMA ES40 XP Pro Apr 09 M58e 7491-B7U 4x4 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB None DVD±RW GMA ES40 XP Pro Apr 09 M58e 7491-B8U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB None DVD±RW GMA ES40 XP Pro Apr 09 M58e 7491-C4U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB None DVD±RW GMA ES40 XP Pro Educ Apr 09

☞

• These models have a 3-year limited warranty

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 512MB [1GB models], 1GB [2GB models]), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Basic logo

Preloaded applications

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• McAfee® VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition (DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information ☞ US model announced March 24, 2009; previous models on March 10, 2009

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918

5

USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-11) April 2009

7

optical

②

③

disk

(75w max)

1

9

Avail

dateName

ThinkCentre® M58e Tower (7307) - GMP

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Vista

preload

Vista

logo

Global (G)

GMP (P)

Avail

dateName

M58e 7307-A1U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB2 None DVD±RW GMA Business32 Basic G P Apr 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 765MB), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista® Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee

(30 days of virus deﬁ nitions)

®

VirusScan® Plus

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information US model announced March 10, 2009

Creator® Business Edition

®

WinDVD® (DVD±RW)

(DVD±RW)

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

®

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA Acc Guide in pdf lenovo.com/accessoriesguide

GeForce® 9500GT 512MB (DP, DVI)45K1635

Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MIAM1-12) March 2009

9

1

ThinkCentre® M58e Tower (7508) - ENERGY STAR® 4.0 (GMP)

Personal Systems Reference (PSREF)

Slot x

bay

L2

GHz Type-model Processor Memory

cache

2nd Disk

SATA

8

disk

Bay

SATA

optical Graphics

ENERGY STAR 4.0Cores

Vista

preload

Global (G)

GMP (P)

Avail

dateName

M58e 7508-A2U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB2 None DVD±RW GMA ES40 Bus32 G P Apr 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500), integrated graphics in G41, uses main memory (up to 765MB), one analog VGA DB-15 connector, DirectX® 10, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors None None None

Intel G41 Express Chipset (PCI Express® x16), I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB, LPC bus)

Front ports Rear ports

Rear audio ports Audio Speaker IEEE 1394 Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista® Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio None Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 80% PSU

20

(32-bit)

✧ Vista Basic logo

5

Preloaded applications

• Rescue and Recovery™

(only some listed)

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• McAfee

®

VirusScan® Plus

(30 days of virus deﬁ nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

®

• Roxio (DVD±RW)

• Roxio MyDVD

Creator® Business Edition

®

(DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced March 10, 2009

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

®

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 320GB Hard Disk 45K1689 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Preferred Pro Full Size PS/2 Keyboard 31P7415 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA Acc Guide in pdf lenovo.com/accessoriesguide

GeForce® 9500GT 512MB (DP, DVI)45K1635

Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

1

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9194)

14

toll-free support

(MIAM1-13) March 2009

9

7

1

ThinkCentre® M58e Accessories

Partial list of accessories supported on ThinkCentre M58e

Memory

1GB PC2-6400 NP DDR2 UDIMM 41U2977 ann 09/26/06 2GB PC2-6400 NP DDR2 UDIMM 41U2978 ann 01/08/08

Optical

All:

DVD-ROM DL SATA 1.5Gb/s 16X-48X Max Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ann 09/26/06

Tower 7268/7270/7298/7491/7307/7508 support: Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ann 03/31/09

Storage and removable storage

160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254 ann 05/19/03 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 ann 01/24/06 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 ann 11/06/07 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 ann 08/19/08

USB Portable Diskette Drive 05K9276 ann 06/05/00 USB 2.0 Essential Memory Key 2GB 41U4944 ann 01/23/07 USB 2.0 Essential Memory Key 4GB 45J7904 ann 06/24/08 USB 2.0 Essential Memory Key 8GB 45J7905 ann 07/15/08 USB 2.0 Essential Memory Key 32GB 45K1258 ann 10/28/08 USB 2.0 Security Memory Key 4GB 41U5120 ann 07/17/07 USB 2.0 Ultra Secure Memory Key 1GB 45J5915 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 ann 08/26/08 USB 2.0 Portable 160GB Hard Disk 43R1784 ann 09/23/08 USB 2.0 Portable 320GB Hard Disk 45K1689 ann 03/17/09 USB 2.0 Portable Secure 160GB Hard Disk 43R2018 ann 11/18/08 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ann 11/18/08 USB 2.0 Super Multi-Burner Drive 41N5565 ann 01/23/07

Graphics

Small 7269/7279/7303/7506/7408/7514 support Low Proﬁ le 35 watts max:

DisplayPort to Single-link DVI-D Cable 45J7915 ann 08/05/08 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08

Tower 7268/7270/7298/7491/7307/7508 support 75 watts max:

DisplayPort to Single-link DVI-D Cable 45J7915 ann 08/05/08 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08 NVIDIA® GeForce® 9500GT 512MB (DP, DVI) 45K1635 ann 11/18/08

More information at www.lenovo.com/support/graphiccards

Keyboard

Preferred Pro USB Keyboard 73P5220 ann 06/21/05 Preferred Pro Full Size PS/2 Keyboard 31P7415 ann 06/04/02 Enhanced Performance USB Keyboard 73P2620 ann 03/23/04 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 ann 12/07/04 Lenovo® USB Fingerprint Keyboard 73P4730 ann 02/22/05 Lenovo USB Smartcard Keyboard 51J0155 ann 03/24/09

More information at www.lenovo.com/support/keyboards

Mouse

Optical Wheel Mouse (USB) 06P4069 ann 05/21/03 Optical ScrollPoint

®

Mouse (USB, PS/2) 31P7405 ann 08/27/02 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 ann 01/23/07 Lenovo Wireless Laser Mouse (blk, via USB) 45K1696 ann 11/25/08 Lenovo Wireless Laser Mouse (red, via USB) 51J0198 ann 11/25/08

More information at www.lenovo.com/support/mice

4

41N5618 ann 09/26/06

Personal Systems Reference (PSREF)

Multimedia

USB 2.0 Lenovo Multimedia Headset 40Y8518 ann 06/27/06 USB 2.0 Lenovo Webcam 40Y8519 ann 08/29/06

Security

Kensington® Cable Lock from Lenovo 73P2582 ann 12/29/03 Kensington Twin Head Cable Lock 45K1620 ann 09/30/08 USB Gemplus GemPC Smart Card Reader 41N3040 ann 02/21/06

Monitors

ThinkVision® L174 17" Monitor 9227AE1 ann 04/15/08 ThinkVision L1700p 17" Monitor 9417HE2 ann 09/17/08 ThinkVision L1900p 19" Monitor 4431HE1 ann 11/11/08 ThinkVision L1940p Wide 19" Monitor 4424HB6 ann 09/17/08 ThinkVision L200p Wide 20.1" Monitor 4438HB6 ann 04/15/08 ThinkVision L2240p Wide 22" Monitor 4422HB6 ann 09/17/08 ThinkVision L2440p Wide 24" Monitor 4420HB2 ann 09/17/08 ThinkVision L2440x Wide 24" Monitor 4421HB2 ann 09/17/08

More information at www.lenovo.com/thinkvision

Monitor Accessories

46

ThinkVision USB Soundbar 40Y7616 ann 08/23/05 ThinkVision Soundbar 45K1263 ann 09/16/08 Kensington Cable Lock from Lenovo 73P2582 ann 12/29/03 Kensington Twin Head Cable Lock 45K1620 ann 09/30/08 Radial Arm 19K4464 ann 05/05/00

46

Compatible on selected Lenovo and ThinkVision monitors.

More information at www.lenovo.com/support/monitoraccessories

Medialess License Key (MLK)

Microsoft® Ofﬁ ce 2007 Basic, English 43R1528 ann 01/31/07 Microsoft Ofﬁ ce 2007 Small Business, Engl 43R1534 ann 01/31/07 Microsoft Ofﬁ ce 2007 Professional, English 43R1531 ann 01/31/07

Other accessories at www.lenovo.com/accessories

Accessories Guide pdf at

www.lenovo.com/accessoriesguide

(O-M58E) March 2009

Lenovo ThinkCentre M58 and M58p Eco Ultra Small, Small, Tower

Lenovo ThinkCentre M58 Eco Ultra Small

Lenovo ThinkCentre M58 Small

Lenovo ThinkCentre M58 Eco Ultra Small

with dual Lenovo ThinkVision monitors

Lenovo ThinkCentre M58 Small

with Lenovo ThinkVision monitor

Lenovo ThinkCentre M58 Tower

with dual Lenovo ThinkVision monitors

ThinkCentre® M58 Eco Ultra Small (8820) - TopSeller

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Preload

Global

Educ

Avail

dateName

M58 8820-A3U 1x2 Celeron E1200 1.60 2 1GB 160GB2 DVD GMA VGA, DP None ES40 No XP Pro No Dec 08 M58 8820-A4U 1x2 Pentium E5200 2.50 2 1GB 160GB DVD±RW GMA VGA, DP None ES40 No XP Pro No Dec 08

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Ultimate stability for small and medium businesses

Intel® Celeron® Dual-Core Processor E1200 with dual-core,

1

Eco Ultra Small

optical

disk

800MHz system bus, and 512KB L2 cache or Intel Pentium® Dual-Core Processor E5200 with dual-core,

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Basic logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced November 11, 2008

800MHz system bus, and 2MB L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB std, 4GB max8, dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

non-parity,

(notebook)

;

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 512MB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

®

COA

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276

5

USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918

®

Home

Reader

USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-17) November 2008

1

9

1

ThinkCentre® M58 Eco Ultra Small (8820) - TopSeller (January 2009)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Preload

Global

Educ

M58 8820-A8U 1x2 Pentium E5300 2.60 2 1GB 160GB2 DVD ±RW GMA VGA, DP None ES40 No XP Pro No Feb 09 M58 8820-A9U 1x2 Core 2 Duo E7500 2.93 2 1GB 160GB DVD±RW GMA VGA, DP None ES40 No XP Pro No Feb 09

M58 8820-A11 1x2 Core 2 Duo E7400 2.80 2 2GB 320GB DVD±RW GMA VGA, DP None ES40 No Bus32 No Feb 09

✂

☞

M58 8820-ADU 1x2 Core 2 Duo E7400 2.80 2 2GB 320GB DVD±RW GMA VGA, DP None ES40 No Bus32 No Apr 09

☞

M58 8820-AEU 1x2 Core 2 Duo E7500 2.93 2 2GB 160GB DVD±RW GMA VGA, DP None ES40 No Bus32 No Apr 09

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Ultimate stability for small and medium businesses

Intel® Pentium® Processor E5300 with dual-core,

1

Eco Ultra Small

optical

disk

800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista

- Some: Microsoft Windows Vista Business Edition ✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information

☞ US models announced April 7, 2009; previous models on January 20 or February 12, 2009

✂

US model withdrawn effective April 2009

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

(notebook)

non-parity,

;

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro models: up to 512MB [1GB models]; Vista models: up to 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

160GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

®

(32-bit)

5

(all OSes)

COA

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019

®

Home

Reader

USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Lenovo Vertical PC and Monitor Stand II 41R4474 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-1) April 2009

1

9

Avail

dateName

vo

ThinkCentre® M58 Eco Ultra Small (7359)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Vista

preload

Global

Educ

Avail

dateName

M58 7359-A6U 1x2 Pentium E2200 2.20 2 1GB 160GB2 DVD GMA VGA, DP ES40 No Bus32 No Dec 08 M58 7359-AGU 1x2 Pentium E2200 2.20 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 No Dec 08 M58 7359-ABU 1x2 Pentium E2220 2.40 2 1GB 160GB DVD±RW GMA VGA, DP ES40 No Bus32 No Dec 08 M58 7359-ADU 1x2 Pentium E5200 2.50 2 2GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES40 No Bus32 No Dec 08 M58 7359-AEU 1x2 Core 2 Duo E7300 2.66 2 1GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES40 No Bus32 No Dec 08 M58 7359-AFU 1x2 Core 2 Duo E7300 2.66 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 No Dec 08

1

Eco Ultra Small

optical

disk

Positioning Processor

• These models have a 3-year limited warranty

Ultimate stability for small and medium businesses

®

Intel

Pentium® Dual-Core Processor E2200 or E2220 with dual-core, 800MHz system bus, and 1MB L2 cache or Intel Pentium Dual-Core Processor E5200 with dual-core,

800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, dual-channel capable, two 204-pin SODIMM sockets

Italics: standard memory in both sockets; no sockets available; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced November 11, 2008

PC3-8500 1066MHz DDR3,

non-parity,

(notebook)

dampening mounts

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

;

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period via 800-426-7378

™ part number 41C9192)

(MLAN1-18) November 2008

1

3

, 8 am - 5 pm,

7

14

toll-free support

1

9

ThinkCentre® M58 Eco Ultra Small (7359) - January 2009

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Preload

Global

Educ

M58 7359-B5U 1x2 Pentium E5300 2.60 2 2GB 160GB2 DVD GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 7359-B8U 1x2 Pentium E5300 2.60 2 2GB 160GB DVD±RW GMA VGA, DP ES40 No XP Pro Apr 09

☞

M58 7359-B1U 1x2 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 7359-B2U 1x2 Core 2 Duo E7400 2.80 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 7359-B3U 1x2 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 7359-B4U 1x2 Core 2 Duo E7500 2.93 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 7359-B6U 1x2 Core 2 Duo E7400 2.80 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 Gbl Feb 09

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Intel

Pentium® Processor E5300 with dual-core,

1

Eco Ultra Small

optical

disk

800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

Graphics

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information ☞ US model announced April 7, 2009; previous models on January 20, 2009

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

(notebook)

non-parity,

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro models: up to 512MB [1GB models], 1GB [2GB models]; Vista models: up to 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector, HDCP, DirectX® 10, supports dual independent display Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Lenovo Vertical PC and Monitor Stand II 41R4474 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

1

9

7

1

(MLAN2-2) April 2009

Avail

dateName

ThinkCentre® M58 Eco Ultra Small (7637) - GMP

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor Memory

GHz

Cores

SATA

8

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY

STAR 4.0

Intel vPro

Vista

preload

Global (G)

GMP (P)

Avail

dateName

M58 7637-A1U 1x2 Core 2 Duo E7400 2.80 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 G P Feb 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Implementation

Memory

Ultimate stability for small and medium businesses

®

Intel

Core™ 2 Duo Processor E7400 with dual-core, 1066MHz system bus, and 3MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 765MB), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced January 20, 2009

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical

;

Bay ② 3.5", 1" high, no access, std disk Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

dampening mounts

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Lenovo Vertical PC and Monitor Stand II 41R4474 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN2-3) January 2009

1

9

7

1

ThinkCentre® M58 Small (8910) - TopSeller

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel vPro

Preload

Global

Educ

Avail

dateName

M58 8910-A8U 2x3 Pentium E5200 2.50 2 1GB 160GB2 DVD GMA VGA, DP None None XP Pro None Nov 08 M58 8910-A9U 2x3 Core 2 Duo E7300 2.66 2 1GB 160GB DVD ±RW GMA VGA, DP None None XP Pro None Nov 08 M58 8910-ABU 2x3 Core 2 Quad Q8200 2.33 4 2GB 250GB DVD ±RW GMA VGA, DP None None XP Pro None Nov 08

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Ultimate stability for small and medium businesses

®

Pentium® Dual-Core Processor E5200 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7300 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q8200 with quad-core,

Implementation

Memory

1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 512MB [1GB models], 1GB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista ✧ Disk-to-Disk Recovery (in hidden

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

®

COA

protected area) ✧ Vista Basic logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

®

Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

PC3-8500 1066MHz DDR3,

dampening

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-3) October 2008

9

1

ThinkCentre® M58 Small (8910) - TopSeller (January 2009)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel vPro

Preload

Global

Educ

M58 8910-AFU 2x3 Pentium E5300 2.60 2 1GB 160GB2 DVD GMA VGA, DP None None XP Pro None Jan 09 M58 8910-AEU 2x3 Core 2 Duo E7500 2.93 2 1GB 160GB DVD ±RW GMA VGA, DP None None XP Pro None Jan 09

✂

M58 8910-A12 2x3 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP None None Bus32 None Feb 09

✂

M58 8910-A11 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP None None Bus32 None Feb 09

☞

M58 8910-AGU 2x3 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP None None Bus32 None Apr 09

☞

M58 8910-AHU 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP None None Bus32 None Apr 09

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Ultimate stability for small and medium businesses

®

Pentium® Processor E5300 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro models: up to 512MB [1GB models]; Vista models: up to 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information

☞ US models announced April 7, 2009; previous models on January 20 or February 12, 2009

✂

US models withdrawn effective April 2009

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019

®

Home

Reader

USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-4) April 2009

9

1

Avail

dateName

vo

ThinkCentre® M58 Small (7360)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Vista

preload

Global

Educ

Avail

dateName

M58 7360-AJU 2x3 Pentium E2200 2.20 2 1GB 160GB2 DVD GMA VGA, DP No Bus32 No Nov 08 M58 7360-ADU 2x3 Pentium E2220 2.40 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D No Bus32 No Nov 08 M58 7360-AKU 2x3 Pentium E5200 2.50 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No Bus32 No Nov 08 M58 7360-ALU 2x3 Core 2 Duo E7300 2.66 2 1GB 160GB DVD GMA VGA, DP No Bus32 No Nov 08 M58 7360-APU 2x3 Core 2 Duo E7300 2.66 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No Bus32 No Nov 08 M58 7360-AQU 2x3 Core 2 Duo E7300 2.66 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D No Bus32 No Nov 08 M58 7360-ARU 2x3 Core 2 Quad Q8200 2.33 4 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D No Bus32 No Nov 08

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Pentium® Dual-Core Processor E2200 or E2220 with

Intel dual-core, 800MHz system bus, and 1MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Pentium Dual-Core Processor E5200 with dual-core,

Implementation

Memory

Graphics

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q8200 with quad-core, 1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),

integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16* Slot 2: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN

®

, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

®

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-1) October 2008

9

1

ThinkCentre® M58 Small (7360) - January 2009

Personal Systems Reference (PSREF)

Slot x

bay

M58 7360-D8U 2x3 Pentium E5300 2.60 2 1GB 160GB2 DVD GMA VGA, DP DP-to-DVI-D No XP Pro Apr 09

☞

M58 7360-BVU 2x3 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No XP Pro Feb 09

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

M58 7360-BWU 2x3 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP No XP Pro Feb 09 M58 7360-D4U 2x3 Core 2 Duo E7400 2.80 2 1GB 160GB DVD ±RW GMA VGA, DP No XP Pro Feb 09 M58 7360-D1U 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No XP Pro Feb 09 M58 7360-D5U 2x3 Core 2 Duo E7400 2.80 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D No XP Pro Feb 09 M58 7360-D2U 2x3 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP No XP Pro Feb 09 M58 7360-D3U 2x3 Core 2 Duo E7500 2.93 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No XP Pro Feb 09 M58 7360-D6U 2x3 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D No XP Pro Feb 09 M58 7360-D7U 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No Bus32 Gbl Feb 09

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Pentium® Processor E5300 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro: up to 512MB [1GB models], 1GB [2GB models]; Vista: up to 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (all OSes; only

some listed)

• Rescue and Recovery™

• Client Security Solution™

• Norton Internet Security™

• Diskeeper® Home

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information ☞ US model announced April 7, 2009; previous models on January 20, 2009

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 Other accessories at lenovo.com/accessories

dampening mounts

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16* Slot 2: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-5) April 2009

9

1

Avail

dateName

ThinkCentre® M58 Small (6258) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Vista

preload

Global

Educ

Avail

dateName

M58 6258-A7U 2x3 Celeron E1200 1.60 2 1GB 160GB2 DVD GMA VGA, DP ES40 No Bus32 No Nov 08 M58 6258-A8U 2x3 Pentium E2200 2.20 2 1GB 160GB DVD GMA VGA, DP ES40 No Bus32 No Nov 08 M58 6258-A9U 2x3 Pentium E5200 2.50 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 No Nov 08 M58 6258-ABU 2x3 Core 2 Duo E7300 2.66 2 1GB 160GB DVD GMA VGA, DP ES40 No Bus32 No Nov 08 M58 6258-ACU 2x3 Core 2 Duo E7300 2.66 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 No Nov 08 M58 6258-ADU 2x3 Core 2 Duo E7300 2.66 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES40 No Bus32 No Nov 08 M58 6258-AEU 2x3 Core 2 Quad Q8200 2.33 4 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES40 No Bus32 No Nov 08

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Celeron® Dual-Core Processor E1200 with dual-core,

Intel

800MHz system bus, and 512KB L2 cache or

1

Small

optical

disk

(in rear)

Intel Pentium® Dual-Core Processor E2200 with dual-core, 800MHz system bus, and 1MB L2 cache or Intel Pentium Dual-Core Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core, 1066MHz system bus, and 3MB L2 cache or Intel Core 2 Quad Processor Q8200 with quad-core,

Implementation

Memory

1333MHz system bus, and 4MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort connector, HDCP,

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 85% PSU

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper® Home

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16* Slot 2: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-2) October 2008

9

1

ThinkCentre® M58 Small (6258) - ENERGY STAR® 4.0 (January 2009)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Preload

Global

Educ

M58 6258-AJU 2x3 Pentium E5300 2.60 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 6258-AKU 2x3 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP ES40 No XP Pro Feb 09 M58 6258-AMU 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 6258-APU 2x3 Core 2 Duo E7400 2.80 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 6258-ALU 2x3 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP ES40 No XP Pro Feb 09 M58 6258-ANU 2x3 Core 2 Duo E7500 2.93 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 6258-AQU 2x3 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09

☞

M58 6258-ASU 2x3 Pentium E5300 2.60 2 1GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES40 No Bus32 Apr 09 M58 6258-ARU 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 Gbl Feb 09

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Pentium® Processor E5300 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro: up to 512MB [1GB models], 1GB [2GB models]; Vista: up to 253MB [1GB model], 765MB [2GB model]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (all OSes; only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper® Home

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information ☞ US model announced April 7, 2009; previous models on January 20, 2009

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond

®

WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

dampening mounts

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16* Slot 2: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

3

™ part number 41C9192)

14

toll-free support

1

9

, 8 am - 5 pm,

7

1

(MLAN2-6) April 2009

Avail

dateName

ThinkCentre® M58 Small (7638) - GMP

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel vPro

Vista

preload

Global (G)

GMP (P)

Avail

dateName

M58 7638-A1U 2x3 Core 2 Duo E7300 2.66 2 1GB 160GB2 DVD GMA VGA, DP None None Bus32 G P Jan 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Implementation

Memory

Ultimate stability for small and medium businesses

®

Core™ 2 Duo Processor E7300 with dual-core,

Intel

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Two SATA cables (each 1-drop to device), two SATA connectors One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Corel® WinDVD® (DVD)

See footnotes for important warranty information US model announced December 9, 2008

Small

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

dampening mounts

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN1-22) December 2008

9

1

ThinkCentre® M58 Tower (9960) - TopSeller

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

Avail

date

M58 9960-A8U 4x4 Pentium E5200 2.50 2 1GB 160GB2 DVD GMA VGA, DP None None XP Pro None Nov 08 M58 9960-A9U 4x4 Core 2 Duo E7300 2.66 2 1GB 160GB DVD ±RW GMA VGA, DP None None XP Pro None Nov 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Intel

Pentium® Dual-Core Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 512MB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista ✧ Disk-to-Disk Recovery (in hidden

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

®

COA

protected area) ✧ Vista Basic logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

®

Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA NVIDIA Quadro® 256MB FX 370 43R1766

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-11) November 2008

1

9

7

1

ThinkCentre® M58 Tower (9960) - TopSeller (January 2009)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel vPro

Preload

Global

Educ

M58 9960-ADU 4x4 Pentium E5300 2.60 2 1GB 160GB2 DVD GMA VGA, DP None None XP Pro None Jan 09 M58 9960-AEU 4x4 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP None None XP Pro None Jan 09 M58 9960-AFU 4x4 Core 2 Duo E7400 2.80 2 1GB 160GB DVD ±RW GMA VGA, DP None None XP Pro None Jan 09 M58 9960-AGU 4x4 Core 2 Duo E7500 2.93 2 1GB 160GB DVD ±RW GMA VGA, DP None None XP Pro None Jan 09

M58 9960-A71 4x4 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP None None Bus32 None Feb 09

✂

M58 9960-AHU 4x4 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP None None Bus32 None Apr 09

☞

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista

- Some: Microsoft Windows Vista Business Edition ✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information

☞ US model announced April 7, 2009; previous models on January 20 or February 12, 2009

✂

US model withdrawn effective April 2009

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Ultimate stability for small and medium businesses

®

Intel

Pentium® Processor E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core, 1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro models: up to 512MB [1GB models], 1GB [2GB models]; Vista models: up to 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

(32-bit)

®

COA

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518

5

(all OSes)

USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675

Reader

ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro® 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

1

7

1

(MLAN2-7) April 2009

Avail

date

9

vo

ThinkCentre® M58 Tower (7373)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel vPro

Vista

preload

Global

Educ

Avail

date

M58 7373-AMU 4x4 Celeron E1400 2.00 2 1GB 160GB2 DVD GMA VGA, DP No Bus32 No Nov 08 M58 7373-ACU 4x4 Pentium E2200 2.20 2 1GB 160GB DVD GMA VGA, DP Switch No Bus32 No Nov 08 M58 7373-AGU 4x4 Pentium E2220 2.40 2 1GB 160GB DVD ±RW GMA VGA, DP No Bus32 No Nov 08 M58 7373-ANU 4x4 Pentium E5200 2.50 2 2GB 160GB DVD ±RW GMA VGA, DP No Bus32 No Nov 08 M58 7373-ABU 4x4 Core 2 Duo E7300 2.66 2 1GB 160GB DVD GMA VGA, DP No Bus32 No Nov 08 M58 7373-APU 4x4 Core 2 Duo E7300 2.66 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No Bus32 No Nov 08

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Intel

Celeron® Dual-Core Processor E1400 with dual-core, 800MHz system bus, and 512KB L2 cache or

Intel Pentium® Dual-Core Processor E2200 or E2220 with dual-core, 800MHz system bus, and 1MB L2 cache or Intel Pentium Dual-Core Processor E5200 with dual-core,

800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

®

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

®

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2

Reader

DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro® 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information US models announced October 21, 2008

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-9) November 2008

1

9

7

1

ThinkCentre® M58 Tower (7373) - January 2009

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

M58 7373-D3U 4x4 Pentium E5300 2.60 2 1GB 160GB2 DVD GMA VGA, DP None XP Pro Apr 09

☞

M58 7373-BTU 4x4 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP None XP Pro Feb 09

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel vPro

Preload

Global

Educ

M58 7373-BUU 4x4 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP None XP Pro Feb 09 M58 7373-BWU 4x4 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D None XP Pro Feb 09 M58 7373-BVU 4x4 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP None XP Pro Feb 09 M58 7373-D1U 4x4 Core 2 Duo E7500 2.93 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D None XP Pro Feb 09 M58 7373-D2U 4x4 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D None Bus32 Gbl Feb 09

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Intel

Pentium® Processor E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro models: up to 512MB [1GB models], 1GB [2GB models]; Vista models: up to 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista

- Some: Microsoft Windows Vista Business Edition ✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

®

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information ☞ US model announced April 7, 2009; previous models on January 20, 2009

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

(32-bit)

®

COA

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518

5

(all OSes)

USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2

Reader

Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA NVIDIA Quadro NVIDIA Quadro 512MB FX 1700 43R1767

GeForce® 9500GT 512MB (DP, DVI)45K1635

Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1

dampening mounts

®

256MB FX 370 43R1766

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

1

9

7

1

(MLAN2-8) April 2009

Avail

date

ThinkCentre® M58 Tower (6239) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel vPro

Vista

preload

Global

Educ

Avail

date

M58 6239-ACU 4x4 Celeron E1400 2.00 2 1GB 160GB2 DVD GMA VGA, DP ES40 No Bus32 No Nov 08 M58 6239-ADU 4x4 Pentium E2200 2.20 2 1GB 160GB DVD ±RW GMA VGA, DP ES40 No Bus32 No Nov 08 M58 6239-AEU 4x4 Pentium E5200 2.50 2 1GB 160GB DVD ±RW GMA VGA, DP ES40 No Bus32 No Nov 08 M58 6239-AFU 4x4 Core 2 Duo E7300 2.66 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 No Nov 08

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability for small and medium businesses

®

Intel

Celeron® Dual-Core Processor E1400 with dual-core, 800MHz system bus, and 512KB L2 cache or Intel Pentium® Dual-Core Processor E2200 with dual-core, 800MHz system bus, and 1MB L2 cache or Intel Pentium Dual-Core Processor E5200 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7300 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs, 80% PSU

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

5

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro® 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-10) November 2008

1

9

7

1

ThinkCentre® M58 Tower (6239) - ENERGY STAR® 4.0 (January 2009)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

M58 6239-ALU 4x4 Pentium E5300 2.60 2 1GB 160GB2 DVD ±RW GMA VGA, DP ES40 No XP Pro Feb 09

☞

M58 6239-AQU 4x4 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP ES40 No XP Pro Apr 09

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Preload

Global

Educ

M58 6239-AMU 4x4 Core 2 Duo E7400 2.80 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09 M58 6239-ANU 4x4 Core 2 Duo E7500 2.93 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No XP Pro Feb 09

☞

M58 6239-ARU 4x4 Core 2 Duo E7500 2.93 2 2GB 160GB DVD ±RW GMA VGA, DP ES40 No XP Pro Apr 09 M58 6239-APU 4x4 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 No Bus32 Gbl Feb 09

Positioning Processor

• These models have a 3-year limited warranty

Ultimate stability for small and medium businesses

Intel® Pentium® Processor E5300 with dual-core, 800MHz system bus, and 2MB L2 cache or Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (XP Pro models: up to 512MB [1GB models], 1GB [2GB models]; Vista models: up to 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information ☞ US models announced April 7, 2009; previous models on January 20, 2009

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 None None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs, 80% PSU

20

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620

®

Home

Reader

Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1

dampening mounts

®

256MB FX 370 43R1766

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

1

9

7

1

(MLAN2-9) April 2009

Avail

date

ThinkCentre® M58p Eco Ultra Small (9961) - TopSeller

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Personal Systems Reference (PSREF)

ENERGY STAR 4.0

Intel

vPro

Preload

M58p 9961-A1U 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None ES40 vPro XP Pro No Dec 08

Global

Educ

Avail

dateName

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This small and medium business (SMB) model is part of the US TopSeller

• This model has a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for small and medium businesses

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache

Implementation

Memory

Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets Italics: standard memory in both sockets; no sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

®

COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Basic logo

Preloaded applications

• Rescue and Recovery™

5

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Home

®

Reader

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US model announced November 11, 2008

1

™ Program

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

dampening mounts

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-19) November 2008

1

9

7

1

ThinkCentre® M58p Eco Ultra Small (9961) - TopSeller (April 2009)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Personal Systems Reference (PSREF)

ENERGY STAR 4.0

Intel

vPro

Preload

M58p 9961-A3U 1x2 Core 2 Duo E8500 3.16 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES40 vPro XP Pro No Apr 09

Global

Educ

Avail

dateName

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This small and medium business (SMB) model is part of the US TopSeller

• This model has a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for small and medium businesses

®

Intel

Core™ 2 Duo Processor E8500 with dual-core, Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache

Implementation

Memory

Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

®

COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Premium logo

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

®

Home

®

Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US model announced April 7, 2009

1

™ Program

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

dampening mounts

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Lenovo Vertical PC and Monitor Stand II 41R4474 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR GREENGUARD® certiﬁ ed

®

4.0-compliant

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN2-10) April 2009

1

9

7

1

ThinkCentre® M58p Eco Ultra Small (7479)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Vista

preload

Global

Educ

Avail

dateName

M58p 7479-A4U 1x2 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP ES40 vPro Bus32 No Dec 08 M58p 7479-A3U 1x2 Core 2 Duo E8400 3.00 2 1GB 250GB DVD±RW GMA VGA, DP ES40 vPro Bus32 No Dec 08 M58p 7479-A6U 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB DVD±RW GMA VGA, DP ES40 vPro Bus32 No Dec 08 M58p 7479-A8U 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 vPro Bus32 No Dec 08 M58p 7479-A9U 1x2 Core 2 Duo E8500 3.16 2 1GB 160GB DVD GMA VGA, DP ES40 vPro Bus32 No Dec 08 M58p 7479-ABU 1x2 Core 2 Duo E8500 3.16 2 2GB 160GB DVD±RW GMA VGA, DP ES40 vPro Bus32 No Dec 08 M58p 7479-ACU 1x2 Core 2 Duo E8500 3.16 2 2GB 250GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 vPro Bus32 No Dec 08

Positioning Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Ultimate stability/manageability for large enterprise and mid-market

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Eco Ultra Small

optical

disk

and 6MB L2 cache

Implementation

Memory

Graphics

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced November 11, 2008

Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8, dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

(notebook)

non-parity,

Italics: standard memory in both sockets; no sockets available; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector, HDCP, DirectX® 10, supports dual independent display Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

®

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-20) November 2008

1

9

7

1

ThinkCentre® M58p Eco Ultra Small (7479) - April 2009

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Vista

preload

Global

Educ

Avail

dateName

M58p 7479-AJU 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 vPro XP Pro No Apr 09 M58p 7479-AKU 1x2 Core 2 Duo E8500 3.16 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES40 vPro XP Pro No Apr 09

Positioning Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Virtualization Technology, TXT, 1333MHz system bus,

1

Eco Ultra Small

optical

disk

and 6MB L2 cache

Implementation

Memory

Graphics

DP dongle

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Premium logo

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced April 7, 2009

Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8, dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

non-parity,

(notebook)

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector, HDCP, DirectX® 10, supports dual independent display DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Lenovo Vertical PC and Monitor Stand II 41R4474 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR GREENGUARD® certiﬁ ed

®

4.0-compliant

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN2-11) April 2009

1

9

7

1

ThinkCentre® M58p Eco Ultra Small (6136) - GMP

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Personal Systems Reference (PSREF)

ENERGY STAR 4.0

Intel

vPro

Vista

preload

M58p 6136-A1U 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None ES40 vPro Bus32 G P Dec 08

Global (G)

GMP (P)

Avail

dateName

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache

Implementation

Memory

Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 765MB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced November 11, 2008

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum conﬁ guration

• Hinged toolless cover for easy serviceability

dampening mounts

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 ThinkCentre Ultra Small Under Desk Mount 40Y8625 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- security slot and cover release button are combined into one latch for improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

• Chassis intrusion switch

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR

®

4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN1-21) November 2008

9

1

ThinkCentre® M58p Small (9964) - TopSeller

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

Avail

dateName

M58p 9964-A1U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 08 M58p 9964-A2U 2x3 Core 2 Quad Q9400 2.66 4 2GB 250GB DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 08

Positioning Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Ultimate stability/manageability for small and medium businesses

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Small

™ Program

optical

disk

(in rear)

and 6MB L2 cache or Intel Core 2 Quad Processor Q9400 with quad-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Italics: standard memory in two sockets; two sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Basic logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

dampening

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-5) October 2008

9

1

ThinkCentre® M58p Small (7483)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel vPro

Vista

preload

Global

Educ

Avail

dateName

M58p 7483-AEU 2x3 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP vPro Bus32 Nov 08 M58p 7483-AFU 2x3 Core 2 Duo E8400 3.00 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7483-A7U 2x3 Core 2 Duo E8400 3.00 2 1GB 250GB DVD ±RW GMA VGA, DP Switch vPro Bus32 Nov 08 M58p 7483-ACU 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Nov 08 M58p 7483-AGU 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Educ Nov 08 M58p 7483-AHU 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7483-AJU 2x3 Core 2 Duo E8500 3.16 2 1GB 250GB DVD GMA VGA, DP vPro Bus32 Nov 08 M58p 7483-AKU 2x3 Core 2 Duo E8500 3.16 2 2GB 160GB DVD 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7483-ALU 2x3 Core 2 Duo E8500 3.16 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7483-AMU 2x3 Core 2 Duo E8500 3.16 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7483-ANU 2x3 Core 2 Quad Q9400 2.66 4 2GB 160GB DVD ±RW 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

Positioning Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Ultimate stability/manageability for large enterprise and mid-market

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Small

optical

disk

(in rear)

and 6MB L2 cache or Intel Core 2 Quad Processor Q9400 with quad-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource Library College Edition

- Adobe® Instructor Resource Center

- Adobe Digital School Collection

− Photoshop Elements 6 (and CD)

− Premier Elements 4 (and DVD)

− Acrobat 8 Professional (and CD)

− Contribute 4 (and CD)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

See footnotes for important warranty information US models announced October 21, 2008

PC3-8500 1066MHz DDR3,

dampening mounts

®

, ASF2.0, DASH 1.0

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16* Slot 2: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

(MLAN1-4) October 2008

1

9

, 8 am - 5 pm,

7

1

ThinkCentre® M58p Small (7483) - April 2009

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Intel vPro

Vista

preload

Global

Educ

Avail

dateName

M58p 7483-B1U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D vPro XP Pro None Apr 09 M58p 7483-B2U 2x3 Core 2 Duo E8500 3.16 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro XP Pro None Apr 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Premium logo

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced April 7, 2009

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 AT I™ Radeon HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Small

optical

disk

(in rear)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

(MLAN2-12) April 2009

1

9

, 8 am - 5 pm,

7

1

ThinkCentre® M58p Small (7220) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Vista

preload

Global

Educ

Avail

dateName

M58p 7220-A6U 2x3 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP ES40 vPro Bus32 No Nov 08 M58p 7220-A7U 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D ES40 vPro Bus32 No Nov 08 M58p 7220-A8U 2x3 Core 2 Duo E8500 3.16 2 1GB 250GB DVD GMA VGA, DP ES40 vPro Bus32 No Nov 08 M58p 7220-A9U 2x3 Core 2 Duo E8500 3.16 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D ES40 vPro Bus32 No Nov 08 M58p 7220-ABU 2x3 Core 2 Duo E8500 3.16 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 vPro Bus32 No Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning Processor

Implementation

Memory

Ultimate stability/manageability for large enterprise and mid-market

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 85% PSU

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening

Small

optical

disk

(in rear)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16* Slot 2: Low Proﬁ le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-6) October 2008

9

1

ThinkCentre® M58p Small (7220) - ENERGY STAR® 4.0 (April 2009)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Vista

preload

Global

Educ

Avail

dateName

M58p 7220-AGU 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES40 vPro XP Pro No Apr 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model has a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,

Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 85% PSU

20

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Premium logo

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US model announced April 7, 2009

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 AT I™ Radeon HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening mounts

Small

optical

disk

(in rear)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-13) April 2009

9

1

ThinkCentre® M58p Small (6137) - GMP

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel

vPro

Vista

preload

Global (G)

GMP (P)

M58p 6137-A2U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD GMA VGA, DP None vPro Bus32 G P Jan 09 M58p 6137-A1U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP None Switch vPro Bus32 G P Nov 08

☞

M58p 6137-A3U 2x3 Core 2 Duo E8400 3.00 2 3GB 160GB DVD GMA VGA, DP None Switch vPro Bus32 G P Mar 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models are part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

Ultimate stability/manageability for large enterprise and mid-market

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

Small

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB or 3GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Italics: standard memory in two sockets; two sockets available

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 765MB [2GB models], 1277MB [3GB models]), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA Drive

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Two SATA cables (each 1-drop to device), two SATA connectors One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

®

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US model announced February 17, 2009; previous models on October 21 or December 9, 2008

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

(ThinkPlus part number 41C9195)

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

3-year limited warranty

optical

disk

(in rear)

Limited Warranty1

9

3

, 8 am - 5 pm,

7

™ part number 41C9194)

• 4-year LOR 9x5, 4 hour response

• 4-year LOR 24x7, 4 hour response

14

toll-free support

(MLAN1-7) February 2009

1

Avail

dateName

ThinkCentre® M58p Small (6234) - ENERGY STAR® 4.0 (GMP)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel

vPro

Vista

preload

Global (G)

GMP (P)

Avail

dateName

M58p 6234-A1U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None ES40 vPro Bus32 G P Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Implementation

Memory

Ultimate stability/manageability for large enterprise and mid-market

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Italics: standard memory in two sockets; two sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 765MB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), two SATA connectors One external SATA (eSATA) port None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort), e SATA Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing, 85% PSU

20

®

Business Edition (32-bit) ✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US model announced October 21, 2008

Small

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Proﬁ le, PCI Express 2.0 x16 Slot 2: Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum conﬁ guration

dampening mounts

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System ﬂ oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Security Memory Key 4GB 41U5120 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Chassis intrusion switch

Supports ThinkVantage® technologies

Climate Savers®-compliant EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN1-8) October 2008

9

1

ThinkCentre® M58p Tower (9965) - TopSeller

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel vPro

Preload

Global

Educ

Avail

date

M58p 9965-A1U 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 08 M58p 9965-A2U 4x4 Core 2 Quad Q9400 2.66 4 2GB 250GB DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for small and medium businesses

®

Intel

Core™ 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache or Intel Core 2 Quad Processor Q9400 with quad-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Italics: standard memory in two sockets; two sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

®

COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Basic logo

Preloaded applications

• Rescue and Recovery™

5

• Client Security Solution™

• ThinkVantage Productivity Center

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Home

®

Reader

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16

dampening

Slot 2: half-length, full-height, PCIe x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro

®

256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

™ Program

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-16) November 2008

1

7

1

9

ThinkCentre® M58p Tower (7484)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

SATA

8

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel

vPro

Vista

preload

Global

Educ

Avail

date

M58p 7484-A9U 4x4 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP vPro Bus32 Nov 08 M58p 7484-AHU 4x4 Core 2 Duo E8400 3.00 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7484-AEU 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Nov 08 M58p 7484-AGU 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7484-A8U 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB DVD ±RW GMA VGA, DP Switch vPro Bus32 Nov 08 M58p 7484-AJU 4x4 Core 2 Duo E8500 3.16 2 1GB 160GB DVD GMA VGA, DP vPro Bus32 Nov 08 M58p 7484-AMU 4x4 Core 2 Duo E8500 3.16 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Educ Nov 08 M58p 7484-ALU 4x4 Core 2 Duo E8500 3.16 2 2GB 250GB DVD GMA VGA, DP vPro Bus32 Nov 08 M58p 7484-AKU 4x4 Core 2 Duo E8500 3.16 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08 M58p 7484-ANU 4x4 Core 2 Quad Q9400 2.66 4 2GB 160GB DVD ±RW 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 or E8500 with dual-core, Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache or Intel Core 2 Quad Processor Q9400 with quad-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

®

Business Edition (32-bit) ✧ Vista Premium logo

5

Preloaded applications

• Some: Education software

- VitalSource Library College Edition

- Adobe

®

Instructor Resource Center

(only some listed)

- Adobe Digital School Collection

− Photoshop Elements 6 (and CD)

− Premier Elements 4 (and DVD)

− Acrobat 8 Professional (and CD)

− Contribute 4 (and CD)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

See footnotes for important warranty information US models announced October 21, 2008

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA NVIDIA Quadro

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA Quadro 512MB FX 1700 43R1767 Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

dampening

®

, ASF2.0, DASH 1.0

®

256MB FX 370 43R1766

optical

②

③

disk

(75w max)*

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ Other ThinkPlus services at lenovo.com/thinkplus/warranty ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-12) November 2008

9

1

ThinkCentre® M58p Tower (7484) - April 2009

Personal Systems Reference (PSREF)

Name

Type-model Processor Memory

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Intel

vPro

Vista

preload

Global

Educ

Avail

date

M58p 7484-B2U 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D vPro XP Pro None Apr 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model has a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

®

COA ✧ Disk-to-Disk Recovery (in hidden protected area) ✧ Vista Premium logo

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

®

Home

®

Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US model announced April 7, 2009

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 DisplayPort to Single-link DVI-D Cable 45J7915 AT I™ Radeon HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette)

dampening mounts

Bay ④ 3.5", 1" high, no access, std disk Slot 1: half-length, full-height, PCIe 2.0 x16

Slot 2: half-length, full-height, PCIe x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

®

256MB FX 370 43R1766

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN2-14) April 2009

1

9

7

1

ThinkCentre® M58p Tower (7188) - ENERGY STAR® 4.0

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel vPro

Vista

preload

Global

Educ

Avail

date

M58p 7188-A8U 4x4 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP ES40 vPro Bus32 No Nov 08 M58p 7188-ABU 4x4 Core 2 Duo E8400 3.00 2 1GB 160GB DVD ±RW GMA VGA, DP ES40 vPro Bus32 No Nov 08 M58p 7188-A9U 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D ES40 vPro Bus32 No Nov 08 M58p 7188-ACU 4x4 Core 2 Duo E8500 3.16 2 1GB 160GB DVD GMA VGA, DP ES40 vPro Bus32 No Nov 08 M58p 7188-AEU 4x4 Core 2 Duo E8500 3.16 2 1GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES40 vPro Bus32 No Nov 08 M58p 7188-ADU 4x4 Core 2 Duo E8500 3.16 2 2GB 250GB DVD 3470 VGA, DP ES40 vPro Bus32 No Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 253MB [1GB models], 765MB [2GB models]), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter, 256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs, 80% PSU

20

®

✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Reader

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

®

• Corel

See footnotes for important warranty information US models announced October 21, 2008

WinDVD® (DVD, DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 ATI Radeon HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA NVIDIA Quadro® 256MB FX 370 43R1766

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA Quadro 512MB FX 1700 43R1767 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16 Slot 2: half-length, full-height, PCIe x1

(75w max)*

Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-13) November 2008

9

1

ThinkCentre® M58p Tower (7188) - ENERGY STAR® 4.0 (April 2009)

Personal Systems Reference (PSREF)

Name

Type-

model

Slot x

bay

Processor

GHz

Cores

Mem-

ory

Media reader

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Intel

vPro

Vista

preload

Global

Educ

Avail

date

M58p 7188-AHU 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D vPro XP Pro No Apr 09 M58p 7188-AJU 4x4 Core 2 Quad Q9400 2.66 4 4GB 25-in-1 320GB DVD ±RW 9500GT DP, DVI-I vPro Bus64 No Apr 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

Intel® Core™ 2 Duo Processor E8400 with dual-core,

Virtualization Technology, TXT, 1333MHz system bus, and 6MB L2 cache or Intel Core 2 Quad Processor Q9400 with quad-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB or 4GB std, 8GB max8, non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available; Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 1GB), one analog VGA DB-15 connector, one DisplayPort™ conn, HDCP, DirectX® 10, supports dual independent display Some: NVIDIA® GeForce® 9500 GT, PCI Express® 2.0 x16 adapter, 512MB, one DisplayPort connector, one dual-link DVI-I connector, HDCP, DirectX 10.1,

DP dongle

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

PureVideo® HD technology, 45 watts Some: DisplayPort to Single-link DVI-D Cable

160GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None Some: 25-in-1 media reader, internal USB 2.0

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), AJU: monitor (DisplayPort, DVI-I)

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

Others: monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs, 80% PSU

20

- Some: Microsoft® Windows® XP Professional with Vista® COA

- Some: Microsoft Windows Vista Business Edition (64-bit) ✧ Vista Premium logo

Preloaded applications5 (all OSes; only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

• Diskeeper

®

Home

• PC-Doctor™ (diagnostics)

• Windows Live™ Toolbar

• Windows Live Search

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

See footnotes for important warranty information US models announced April 7, 2009

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 USB 2.0 Super Multi-Burner Drive 41N5565 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Kensington Twin Head Cable Lock 45K1620 DisplayPort to Single-link DVI-D Cable 45J7915 AT I™ Radeon HD 3470 256MB (DP, VGA) 45K1636 NVIDIA GeForce 9500GT 512MB (DP, DVI) 45K1635 NVIDIA Quadro® 256MB FX 370 43R1766 NVIDIA Quadro 512MB FX 1700 43R1767 Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16

(75w max)* Slot 2: half-length, full-height, PCIe x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-15) April 2009

9

1

ThinkCentre® M58p Tower (6138) - GMP

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel vPro

Vista

preload

Global (G)

GMP (P)

Avail

date

M58p 6138-A1U 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None vPro Bus32 G P Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,

Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Italics: standard memory in two sockets; two sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 765MB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

®

✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Reader

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

®

• Corel

See footnotes for important warranty information US model announced October 21, 2008

WinDVD® (DVD±RW)

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette)

dampening mounts

Bay ④ 3.5", 1" high, no access, std disk Slot 1: half-length, full-height, PCIe 2.0 x16

Slot 2: half-length, full-height, PCIe x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro NVIDIA Quadro 512MB FX 1700 43R1767

®

256MB FX 370 43R1766

Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN1-14) November 2008

9

1

ThinkCentre® M58p Tower (6209) - ENERGY STAR® 4.0 (GMP)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY STAR 4.0

Intel vPro

Vista

preload

Global (G)

GMP (P)

Avail

date

M58p 6209-A1U 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None ES40 vPro Bus32 G P Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning Processor

Ultimate stability/manageability for large enterprise and mid-market

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,

Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets; Italics: standard memory in two sockets; two sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500), integrated graphics in Q45, uses main memory (up to 765MB), one analog VGA DB-15 connector, one DisplayPort™ connector (supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10, supports dual independent display

SATA disk SATA controller S ATA DV D ±RW SATA cables

eSATA port Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), three SATA connectors and one eSATA connector on planar None None None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10 Digital Ofﬁ ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1, ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort) Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Analog Devices AD1882 codec One internal speaker for business audio Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0 Intel Active Management Technology (iAMT) None Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), black, Lenovo logo 280 watts with variable speed fan, autosensing, two diagnostic LEDs, 80% PSU

20

®

✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

Reader

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

®

• Corel

See footnotes for important warranty information US model announced October 21, 2008

WinDVD® (DVD±RW)

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette)

dampening mounts

Bay ④ 3.5", 1" high, no access, std disk Slot 1: half-length, full-height, PCIe 2.0 x16

Slot 2: half-length, full-height, PCIe x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434 2GB PC3-8500 DDR3 UDIMM 45J5435 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ThinkVision® L2440x Wide 24" Monitor 4421HB2 DisplayPort to Single-link DVI-D Cable 45J7915 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Lenovo USB Fingerprint Keyboard 73P4730 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 Kensington Twin Head Cable Lock 45K1620 AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635 NVIDIA Quadro NVIDIA Quadro 512MB FX 1700 43R1767

®

256MB FX 370 43R1766

Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Chassis intrusion switch

Supports ThinkVantage® technologies

EPEAT™ Gold rating ENERGY STAR 4.0-compliant GREENGUARD® certiﬁ ed RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN1-15) November 2008

9

1

ThinkCentre® M58, M58p Accessories

Partial list of accessories supported on ThinkCentre M58 and M58p

Memory

Eco Ultra Small 8820/7359/7637/9961/7479/6136 use notebook memory:

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 ann 08/05/08 2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 ann 08/05/08

Small 8910/7360/6258/9964/7483/7220/6137/6234, and Tower 9960/7373/6239/9965/7484/7188/6138/6209 use desktop memory:

1GB PC3-8500 DDR3 UDIMM 45J5434 ann 11/18/08 2GB PC3-8500 DDR3 UDIMM 45J5435 ann 11/18/08

Optical

All:

DVD-ROM DL SATA 1.5Gb/s 16X-48X Max Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ann 09/26/06

Tower 9960/7373/6239/9965/7484/7188/6138/6209 support: Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ann 03/31/09

Storage and removable storage

160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254 ann 05/19/03 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 ann 01/24/06 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 ann 11/06/07 1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 ann 08/19/08

USB Portable Diskette Drive 05K9276 ann 06/05/00 USB 2.0 Essential Memory Key 2GB 41U4944 ann 01/23/07 USB 2.0 Essential Memory Key 4GB 45J7904 ann 06/24/08 USB 2.0 Essential Memory Key 8GB 45J7905 ann 07/15/08 USB 2.0 Essential Memory Key 32GB 45K1258 ann 10/28/08 USB 2.0 Security Memory Key 4GB 41U5120 ann 07/17/07 USB 2.0 Ultra Secure Memory Key 1GB 45J5915 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 ann 08/26/08 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 ann 08/26/08 USB 2.0 Portable 160GB Hard Disk 43R1784 ann 09/23/08 USB 2.0 Portable 320GB Hard Disk 45K1689 ann 03/17/09 USB 2.0 Portable Secure 160GB Hard Disk 43R2018 ann 11/18/08 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ann 11/18/08 USB 2.0 CD-RW/DVD-ROM Combo II Drive 40Y8637 ann 01/05/06 USB 2.0 Super Multi-Burner Drive 41N5565 ann 01/23/07

Graphics

Small 8910/7360/6258/7638/9964/7483/7220/6137/6234 support Low Proﬁ le: AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08

Tower 9960/7373/6239/9965/7484/7188/6138/6209 support 75 watts max:

ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08 NVIDIA® GeForce® 9500 GT 512MB (DP, DVI) 45K1635 ann 11/18/08 NVIDIA Quadro® 256MB FX 370 43R1766 ann 12/18/07 NVIDIA Quadro 512MB FX 1700 43R1767 ann 12/18/07

More information at www.lenovo.com/support/graphiccards

Keyboard

Pref

erred Pro USB Keyboard 73P5220 ann 06/21/05 Preferred Pro Full Size PS/2 Keyboard 31P7415 ann 06/04/02 Enhanced Performance USB Keyboard 73P2620 ann 03/23/04 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 ann 12/07/04 USB Travel Keyboard with UltraNav™ 31P9490 ann 04/27/04 Lenovo® USB Fingerprint Keyboard 73P4730 ann 02/22/05 Lenovo USB Smartcard Keyboard 51J0155 ann 03/24/09

More information at www.lenovo.com/support/keyboards

Mouse

Optical Wheel Mouse (USB) 06P4069 ann 05/21/03 Optical ScrollPoint Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 ann 01/23/07

®

Mouse (USB, PS/2) 31P7405 ann 08/27/02

Lenovo Wireless Laser Mouse (blk, via USB) 45K1696 ann 11/25/08 Lenovo Wireless Laser Mouse (red, via USB) 51J0198 ann 11/25/08

More information at www.lenovo.com/support/mice

4

41N5618 ann 09/26/06

Personal Systems Reference (PSREF)

Multimedia

USB 2.0 Lenovo Multimedia Headset 40Y8518 ann 06/27/06 USB 2.0 Lenovo Webcam 40Y8519 ann 08/29/06

Security

Kensington® Cable Lock from Lenovo 73P2582 ann 12/29/03 Kensington Twin Head Cable Lock 45K1620 ann 09/30/08 USB Gemplus GemPC Smart Card Reader 41N3040 ann 02/21/06

Mounting Device

Eco Ultra Small

8820/7359/7637/9961/7479/6136

support under desk mounting device: ThinkCentre Ultra Small Under Desk Mount 40Y8625 ann 09/06/05

Monitors

ThinkVision® L174 17" Monitor 9227AE1 ann 04/15/08 ThinkVision L1700p 17" Monitor 9417HE2 ann 09/17/08 ThinkVision L1900p 19" Monitor 4431HE1 ann 11/11/08 ThinkVision L1940p Wide 19" Monitor 4424HB6 ann 09/17/08 ThinkVision L200p Wide 20.1" Monitor 4438HB6 ann 04/15/08 ThinkVision L2240p Wide 22" Monitor 4422HB6 ann 09/17/08 ThinkVision L2440p Wide 24" Monitor 4420HB2 ann 09/17/08 ThinkVision L2440x Wide 24" Monitor 4421HB2 ann 09/17/08

More information at www.lenovo.com/thinkvision

Monitor Accessories

Eco Ultra Small

46

8820/7359/7637/9961/7479/6136 support:

Lenovo Vertical PC and Monitor Stand II 41R4474 ann 01/27/09

All:

DisplayPort to Single-link DVI-D Cable 45J7915 ann 08/05/08 ThinkVision USB Soundbar 40Y7616 ann 08/23/05 ThinkVision Soundbar 45K1263 ann 09/16/08 Kensington Cable Lock from Lenovo 73P2582 ann 12/29/03 Kensington Twin Head Cable Lock 45K1620 ann 09/30/08 Radial Arm 19K4464 ann 05/05/00

46

Compatible on selected Lenovo and ThinkVision monitors.

More information at www.lenovo.com/support/monitoraccessories

Medialess License Key (MLK)

Microsoft® Ofﬁ ce 2007 Basic, English 43R1528 ann 01/31/07 Microsoft Ofﬁ ce 2007 Small Business, Engl 43R1534 ann 01/31/07 Microsoft Ofﬁ ce 2007 Professional, English 43R1531 ann 01/31/07

Other accessories at www.lenovo.com/accessories

Accessories Guide pdf at

www.lenovo.com/accessoriesguide

(O-M58) February 2009

Lenovo ThinkCentre A57 Small (9704) and Tower (9702)

Lenovo ThinkCentre A57 Small

Lenovo ThinkCentre A57 Tower

Lenovo ThinkCentre A57 Small

with dual Lenovo ThinkVision monitors

Lenovo ThinkCentre A57 Tower

ThinkCentre® A57 Small (9704) - TopSeller

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

SATA

8

disk

SATA

optical Graphics

Preload

Limited

warranty

Global

1

Educ

Avail

dateName

A57 9704-ALU 2x3 Pentium E2180 2.00 1MB Dual 512MB 80GB2 DVD GMA XP Pro 1-yr None Mar 08 A57 9704-AMU 2x3 Pentium E2180 2.00 1MB Dual 512MB 160GB Combo GMA XP Pro 1-yr None Mar 08 A57 9704-ANU 2x3 Pentium E2180 2.00 1MB Dual 1GB 160GB DVD ±RW GMA XP Pro 1-yr None Mar 08 A57 9704-APU 2x3 Pentium E2200 2.20 1MB Dual 1GB 160GB Combo GMA XP Pro 1-yr None Mar 08 A57 9704-BDU 2x3 Pentium E2200 2.20 1MB Dual 2GB 160GB DVD ±RW GMA XP Pro 1-yr None Mar 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (combo, DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD, DVD ±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced February 26, 2008

Quality, reliability, and security for small/medium businesses

®

Intel

Pentium® Dual-Core Processor E2180 or E2200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and 800MHz system bus with 1MB shared L2 cache Processor in FC-LGA6 package in LGA775 socket

512MB, 1GB, or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

80GB or 160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

®

COA

20

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019

Reader

USB 2.0 Super Multi-Burner Drive 41N5565 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Small

optical

disk (in rear)

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

®

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5949)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5952)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5950)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5953)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 45K5951)

14

toll-free support

(TUNS1-1) March 2008

1

9

7

1

ThinkCentre® A57 Small (9704) - TopSeller (Vista®)

Personal Systems Reference (PSREF)

Name

Type-model Processor Memory

☞

A57 9704-BRU 2x3 Pentium E2180 2.00 1MB Dual 512MB 80GB2 DVD GMA Bus32 Basic None Apr 08

☞

A57 9704-BSU 2x3 Pentium E2180 2.00 1MB Dual 1GB 160GB Combo GMA Bus32 Basic None Apr 08

☞

A57 9704-BFU 2x3 Pentium E2180 2.00 1MB Dual 2GB 160GB DVD ±RW GMA Bus32 Prem None Apr 08

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

SATA

optical Graphics

Chassis

intr switch

Vista

preload

Vista

logo

Global

Educ

A57 9704-AKU 2x3 Core 2 Duo E4600 2.40 2MB Dual 2GB 160GB Combo GMA Switch Bus32 Prem None Mar 08

Positioning Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 1-year limited warranty

Quality, reliability, and security for small/medium businesses

®

Intel

Pentium® Dual-Core Processor E2180 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

1

Small

optical

disk (in rear)

800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

800MHz system bus with 2MB shared L2 cache Processor in FC-LGA6 package in LGA775 socket

512MB, 1GB, or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

80GB or 160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition (32-bit)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD,

DVD ±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002

5

250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US models announced April 8, 2008; previous model on February 26, 2008

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

• Some: Chassis intrusion switch

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5949)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5952)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5950)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5953)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 45K5951)

14

toll-free support

(TUNS1-2) April 2008

9

1

Avail

date

ThinkCentre® A57 Small (9704) - TopSeller (October 2008)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical Graphics

Preload

Vista

logo

Limited

warranty

Global

1

Educ

Avail

dateName

A57 9704-B5U 2x3 Pentium E2200 2.20 2 512MB 160GB2 DVD GMA XP Pro Basic 1-yr None Nov 08 A57 9704-B6U 2x3 Pentium E2200 2.20 2 1GB 160GB DVD ±RW GMA XP Pro Premium 1-yr None Nov 08

☞

A57 9704-A53 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB DVD ±RW GMA Bus32 Premium 1-yr None Feb 09

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

Positioning Processor

Quality, reliability, and security for small/medium businesses

®

Intel

Pentium® Processor E2200 with dual-core, 800MHz system bus, and 1MB L2 cache or

Small

optical

disk (in rear)

Intel Core™ 2 Duo Processor E8400 with dual-core, Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

512MB, 1GB, or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® XP Professional with Vista

- Some: Microsoft Windows Vista Business Edition

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

• Windows Live™ Toolbar

®

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW) (XP)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW) (XP)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, autosensing

20

(32-bit)

®

COA

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB Portable Diskette Drive 05K9276 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 2GB 45J5916 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918

®

Home

Reader

USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US model announced February 12, 2009; previous models on October 21, 2008

Bay ① 5.25", 1.6" high, access, std optical Bay ② 3.5", 1" high, no access, std disk Bay ③ 3.5", .5" high, access, open (reader/diskette)

Slot 1: Low Proﬁ le, PCI Express x16 (35w max) Slot 2:

Low Proﬁ le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.1 lb (7.3 kg) in maximum conﬁ guration

• Bays 1, 2, 3 ﬂ ip up (latched and pivoting)

• Toolless cover ﬂ ips up and tilts backward on rear hinges

• Toolless disk, diskette drive, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Steel chassis supports 100 lb (45kg) monitor on top

• System ﬂ oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® Microsaver® cable)

- optional cable also locks the cover by deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

®

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5949)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5952)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5950)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5953)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 45K5951)

14

toll-free support

(TUNS3-1) February 2009

1

9

7

1

ThinkCentre® A57 Tower (9702) - TopSeller

Slot x

Type-model Processor Memory

A57 9702-B3U 4x4 Celeron 430 1.80 512KB Single 512MB 80GB2 None DVD GMA XP Pro 1-yr None Mar 08

✂

A57 9702-B7U 4x4 Pentium E2160 1.80 1MB Dual 1GB 160GB None DVD±RW GMA XP Pro 1-yr None Mar 08

bay

GHz

L2

cache

Core

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

Limited

Global

1

warranty

Preload

Educ

A57 9702-B5U 4x4 Pentium E2180 2.00 1MB Dual 512MB 80GB None DVD GMA XP Pro 1-yr None Mar 08 A57 9702-B6U 4x4 Pentium E2180 2.00 1MB Dual 512MB 160GB None Combo GMA XP Pro 1-yr None Mar 08

☞

A57 9702-D9U 4x4 Pentium E2180 2.00 1MB Dual 1GB 160GB None DVD±RW GMA XP Pro 1-yr None Apr 08 A57 9702-A4U 4x4 Pentium E2200 2.20 1MB Dual 1GB 160GB None Combo GMA XP Pro 1-yr None Mar 08 A57 9702-A5U 4x4 Pentium E2200 2.20 1MB Dual 2GB 160GB None DVD±RW GMA XP Pro 1-yr None Mar 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (combo, DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information ☞ US model announced April 8, 2008; previous models on February 26, 2008

Quality, reliability, and security for small/medium businesses

®

Intel

Celeron® Processor 430 with single-core, Intel 64 Tech, Execute Disable Bit, 800MHz system bus, and 512KB L2 cache or Intel Pentium® Dual-Core Processor E2160, E2180, or E2200

with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and 800MHz system bus with 1MB shared L2 cache Processor in FC-LGA6 package in LGA775 socket

512MB, 1GB, or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

80GB or 160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5949)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5952)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5950)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5953)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 45K5951)

14

toll-free support

(TUNS1-3) April 2008

✂ US model withdrawn effective January 2009

optical

②

③

disk

(75w max)

1

Avail

dateName

9

vo

ThinkCentre® A57 Tower (9702) - TopSeller (October 2008)

Personal Systems Reference (PSREF)

Slot x

Type-model Processor Memory

bay

GHz

Cores

Limited

2nd Disk

SATA

8

disk

Bay

SATA

optical Graphics

Preload

Vista logo

warranty

Global

1

Educ

Avail

dateName

A57 9702-FDU 4x4 Pentium E2200 2.20 2 512MB 160GB2 None DVD GMA XP Pro Basic 1-yr None Nov 08 A57 9702-F9U 4x4 Pentium E2200 2.20 2 1GB 160GB None DVD±RW GMA XP Pro Premium 1-yr None Nov 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information US models announced October 21, 2008

Quality, reliability, and security for small/medium businesses

®

Intel

Pentium® Dual-Core Processor E2200 with dual-core, 800MHz system bus, and 1MB L2 cache Processor in FC-LGA6 package in LGA775 socket

512MB or 1GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector None

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1700p 17" Monitor 9417HE2 ThinkVision L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5949)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5952)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5950)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5953) ➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 45K5951)

14

toll-free support

(TUNS3-2) October 2008

9

1

ThinkCentre® A57 Tower (9702) - TopSeller (Vista®)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Chassis

intr switch

Vista

preload

Vista

logo

Global

Educ

A57 9702-B4U 4x4 Celeron 430 1.80 512KB Single 512MB 80GB2 No DVD GMA Home Basic Basic No Mar 08 A57 9702-DAU 4x4 Pentium E2180 2.00 1MB Dual 512MB 80GB No DVD GMA Business32 Basic No Apr 08

☞

A57 9702-D3U 4x4 Pentium E2180 2.00 1MB Dual 1GB 160GB No Combo GMA Business32 Basic No May 08 A57 9702-D1U 4x4 Pentium E2180 2.00 1MB Dual 2GB 160GB No DVD±RW GMA Business32 Prem No Apr 08 A57 9702-AMU 4x4 Core 2 Duo E4600 2.40 2MB Dual 2GB 160GB No Combo GMA Switch Business32 Prem No Mar 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 1-year limited warranty

Positioning Processor

Quality, reliability, and security for small/medium businesses

®

Intel

Celeron® Processor 430 with single-core, Intel 64 Tech, Execute Disable Bit, 800MHz system bus, and 512KB L2 cache or Intel Pentium® Dual-Core Processor E2180 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

800MHz system bus with 2MB shared L2 cache Processor in FC-LGA6 package in LGA775 socket

512MB, 1GB, or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

80GB or 160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® Vista Home Basic Edition

- Some: Microsoft Windows Vista Business Edition

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper® Home

• PC-Doctor™ (diagnostics)

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• EarthLink Trial (Vista Home Basic)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD, DVD±RW)

See footnotes for important warranty information ☞ US model announced April 29, 2008; previous models on February 26 or April 8, 2008

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16

(75w max) Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

• Some: Chassis intrusion switch

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5949)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5952)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5950)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5953)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 45K5951)

14

toll-free support

(TUNS1-4) May 2008

9

1

Avail

dateName

ThinkCentre® A57 Tower (9702) - TopSeller (Vista®) - December 2008

Personal Systems Reference (PSREF)

Type-model Processor Memory

A57 9702-H8U 4x4 Celeron E1200 1.60 512KB Dual 1GB 160GB2 No DVD±RW GMA Home Basic Basic No Dec 08

✂

A57 9702-H9U 4x4 Pentium E2160 1.80 1MB Dual 2GB 160GB No DVD±RW GMA Home Basic Basic No Dec 08

✂

A57 9702-HBU 4x4 Pentium E2160 1.80 1MB Dual 2GB 320GB No DVD±RW GMA Home Premium Basic No Dec 08

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

Bay

optical Graphics

SATA

2nd Disk

Vista

preload

Vista

logo

Global

Educ

A57 9702-HCU 4x4 Pentium E5200 2.50 2MB Dual 2GB 160GB No DVD±RW GMA Home Basic Basic No Dec 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 1-year limited warranty

Positioning Processor

Quality, reliability, and security for small/medium businesses

Intel® Celeron® Dual-Core Processor E1200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 512KB L2 cache or Intel Pentium® Dual-Core Processor E2160 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB L2 cache or Intel Pentium Dual-Core Processor E5200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, and

Implementation

Memory

800MHz system bus with 2MB L2 cache Processor in FC-LGA6 package in LGA775 socket

1GB or 2GB std, 4GB max8, non-parity, dual-channel capable, two 240-pin DIMM sockets; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7 Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Some: Microsoft® Windows® Vista Home Basic Edition

- Some: Microsoft Windows Vista Home Premium Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

(32-bit)

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

®

Home

• Adobe® Reader

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• EarthLink Trial

• Sonic RecordNow and Drive Letter Access (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information US models announced November 25, 2008

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 NP DDR2 UDIMM 41U2977 2GB PC2-6400 NP DDR2 UDIMM 41U2978 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 4GB 45J5917 USB 2.0 Ultra Secure Memory Key 8GB 45J5918 USB 2.0 Portable 160GB Hard Disk 43R1784 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

1

dampening

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16

(75w max) Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5949)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5952)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5950)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5953)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 45K5951)

14

toll-free support

(TUNS2-1) December 2008

1

✂ US models withdrawn effective January 2009

Avail

dateName

9

vo

ThinkCentre® A57 Tower (9851) - TopSeller

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

Limited

1

warranty

Preload

A57 9851-B1U 4x4 Pentium E2180 2.00 1MB Dual 512MB 80GB2 None DVD GMA XP Pro 3-yr None Mar 08 A57 9851-B2U 4x4 Pentium E2180 2.00 1MB Dual 512MB 160GB None Combo GMA XP Pro 3-yr None Mar 08 A57 9851-B3U 4x4 Pentium E2180 2.00 1MB Dual 1GB 160GB None DVD±RW GMA XP Pro 3-yr None Mar 08 A57 9851-A6U 4x4 Pentium E2200 2.20 1MB Dual 1GB 160GB None Combo GMA XP Pro 3-yr None Mar 08

☞

A57 9851-BSU 4x4 Pentium E2200 2.20 1MB Dual 2GB 160GB None DVD±RW GMA XP Pro 3-yr None Apr 08 A57 9851-B4U 4x4 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB None Combo GMA XP Pro 3-yr None Mar 08 A57 9851-B5U 4x4 Core 2 Duo E4600 2.40 2MB Dual 2GB 160GB None DVD±RW GMA XP Pro 3-yr None Mar 08

☞

A57 9851-A7U 4x4 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB None DVD±RW GMA XP Pro 3-yr None Apr 08

Positioning Processor

Implementation

Memory

Graphics

SATA disk SATA controller S ATA DV D SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® XP Professional with Vista® COA ✧ Disk-to-Disk Recovery (in hidden protected area)

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

• Diskeeper® Home

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Multimedia Center for Think Offerings (combo, DVD, DVD±RW)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD, DVD±RW)

• Corel WinDVD Creator (DVD±RW)

See footnotes for important warranty information ☞ US models announced March 18, 2008; previous models on February 26, 2008

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

Quality, reliability, and security for small/medium businesses

®

Intel

Pentium® Dual-Core Processor E2180 or E2200 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E8200 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit, EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

512MB, 1GB, or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

80GB or 160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN

®

None

Supports ThinkVantage® technologies

RoHS-compliant

None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002 500GB SATA 3.0Gb/s (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Portable Secure 320GB Hard Disk 43R2019 DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 45K5956)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5957)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5958)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 45K5959)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period via 800-426-7378

Limited Warranty1

3

, 8 am - 5 pm,

7

™ part number 45K5955)

14

toll-free support

(TUNS1-5) April 2008

Global

Educ

optical

②

③

disk

1

Avail

dateName

(75w max)

9

ThinkCentre® A57 Tower (9851) - TopSeller (Vista®)

2nd Disk

Type-model Processor Memory

☞

A57 9851-C4U 4x4 Pentium E2180 2.00 1MB Dual 1GB 160GB2 None Combo GMA Business32 Basic None May 08 A57 9851-BYU 4x4 Pentium E2180 2.00 1MB Dual 2GB 160GB None DVD±RW GMA Business32 Premium None Apr 08

☞

A57 9851-C9U 4x4 Core 2 Duo E4600 2.40 2MB Dual 1GB 160GB None Combo GMA Business32 Basic None May 08

Slot x

bay

GHz

L2

cache

Core

8

SATA

disk

Bay

SATA

optical Graphics

Personal Systems Reference (PSREF)

Vista

preload

Vista

logo

A57 9851-CCU 4x4 Core 2 Duo E4600 2.40 2MB Dual 2GB 160GB None DVD±RW GMA Business32 Premium None Apr 08 A57 9851-CDU 4x4 Core 2 Duo E8200 2.66 6MB Dual 1GB 160GB None DVD±RW GMA Business32 Basic None Apr 08

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Positioning Processor

Quality, reliability, and security for small/medium businesses

®

Intel

Pentium® Dual-Core Processor E2180 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST,

800MHz system bus, and 1MB shared L2 cache or Intel Core™ 2 Duo Processor E4600 with dual-core, Intel 64 Technology, Execute Disable Bit, EIST, 800MHz system bus, and 2MB shared L2 cache or Intel Core 2 Duo Processor E8200 with dual-core, Intel 64 Technology, Virtualization Technology, Execute Disable Bit,

Implementation

Memory

EIST, TXT, and 1333MHz system bus with 6MB shared L2 cache Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-5300 667MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail; Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 3100 (GMA 3100), integrated graphics in G31, uses main memory (up to 256MB), one analog VGA DB-15 connector, supports dual independent display with optional ADD2 adapter

SATA disk SATA controller SATA Combo S ATA DV D ±RW SATA cables eSATA port EIDE controller Diskette drive Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: CD-RW/DVD-ROM Combo SATA 1.5Gb/s Drive Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar None Enhanced IDE, ATA-100, integrated in ICH7, one EIDE connector on planar None None

Intel G31 Express Chipset; I/O Controller Hub 7 (ICH7) for SATA 3.0Gb/s, ATA-100 EIDE, PCI Express® x1, PCI 2.3, USB, LPC bus / ITE Tech® IT8718 Super I/O for serial, parallel, keyboard, mouse functions

Front ports Rear ports

Internal connector Rear audio ports Audio Speaker Ethernet Intel AMT Modem Security chip

Keyboard Mouse Power supply

Preloaded operating system

- Microsoft® Windows® Vista Business Edition

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• System Migration Assistant

• Norton Internet Security™

(90 days of virus deﬁ nitions)

• Diskeeper

• PC-Doctor™ (diagnostics)

• Adobe

®

• Windows Live™ Toolbar

• Windows Live Search

• Picasa from Google

• Microsoft Ofﬁ ce 2007 Trial (60-day)

• Sonic RecordNow and Drive Letter Access (combo, DVD±RW)

• Corel® WinDVD® (combo, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm) Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45), monitor (VGA DB-15) Two USB 2.0 planar connectors (one used; one open for media reader) Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm) High Deﬁ nition (HD) Audio, Realtek® ALC662 codec One internal speaker for business audio Gigabit ethernet on planar, Marvell® 88E8056, PCIe x1, Wake on LAN None None None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo 280 watts with variable speed fan, manual switch

(32-bit)

20

Accessories

1GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2001 2GB PC2-5300 DDR2 UDIMM (TopSeller) 43R2002 250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 USB 2.0 Lenovo Multimedia Headset 40Y8518 USB 2.0 Lenovo Webcam 40Y8519 USB 2.0 Essential Memory Key 32GB 45K1258 USB 2.0 Ultra Secure Memory Key 8GB 45J5918

®

Home

Reader

USB 2.0 Portable Secure 320GB Hard Disk 43R2019 Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ThinkVision® L1940p Wide 19" Monitor 4424HB6 ThinkVision L2240p Wide 22" Monitor 4422HB6 ThinkVision L2440p Wide 24" Monitor 4420HB2 Wireless Kbd & Opt Wheel Mouse (via USB) 73P4067 Laser Tilt Wheel Mouse (USB, PS/2) 41U3074 Kensington Cable Lock from Lenovo 73P2582 ADD2 DVI-I PCIe Connection Adapter 73P2516 ADD2 DVI-D Monitor Connection (HDCP) 43R1985 AT I™ Radeon™ HD 2400 Pro 128MB 43R1961 ATI Radeon HD 2400 XT 256MB 43R1962 ATI Radeon HD 2600 XT 512MB 43R1963 Acc Guide in pdf lenovo.com/accessoriesguide Other accessories at lenovo.com/accessories

See footnotes for important warranty information ☞ US models announced April 29, 2008; previous models on April 8, 2008

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max conﬁ guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical Bay ② 5.25", 1.6" high, access, open Bay ③ 3.5", 1" high, access, open (reader/diskette) Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16 Slot 2: half-length, full-height, PCI Express x1 Slot 3: half-length, full-height, 32-bit PCI 2.3 Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to ﬁ xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor ➫ International Warranty Service ➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service for selected parts Mon - Fri coverage excluding holidays, next business day response time) ➫ Onsite service upgrade options (in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 45K5956)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 45K5957)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 45K5958)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 45K5959)

➫ ThinkPlus services at lenovo.com/thinkplus/warranty ➫ Post warranty maintenance services available ➫ 24 hour x 7 day during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 45K5955)

14

toll-free support

(TUNS1-6) May 2008

Global

Educ

optical

②

③

disk

(75w max)

1

Avail

dateName

9
