Personal Systems Reference
Lenovo® ThinkCentre Desktops

January 2010 - Version 370

Visit www.lenovo.com/psref for the latest version

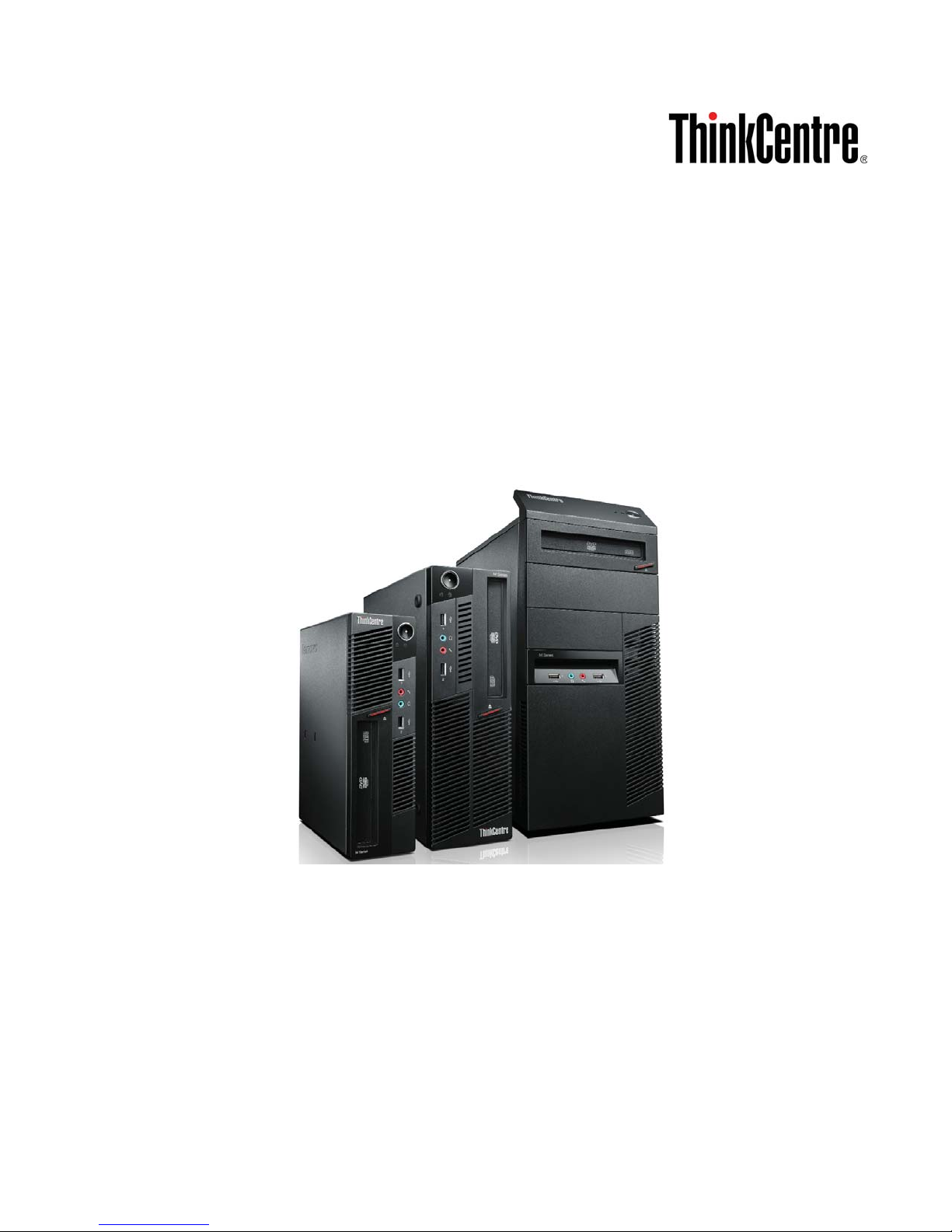

Lenovo ThinkCentre M90/M90p

(Eco Ultra Small, Small, Tower Form Factors)

®

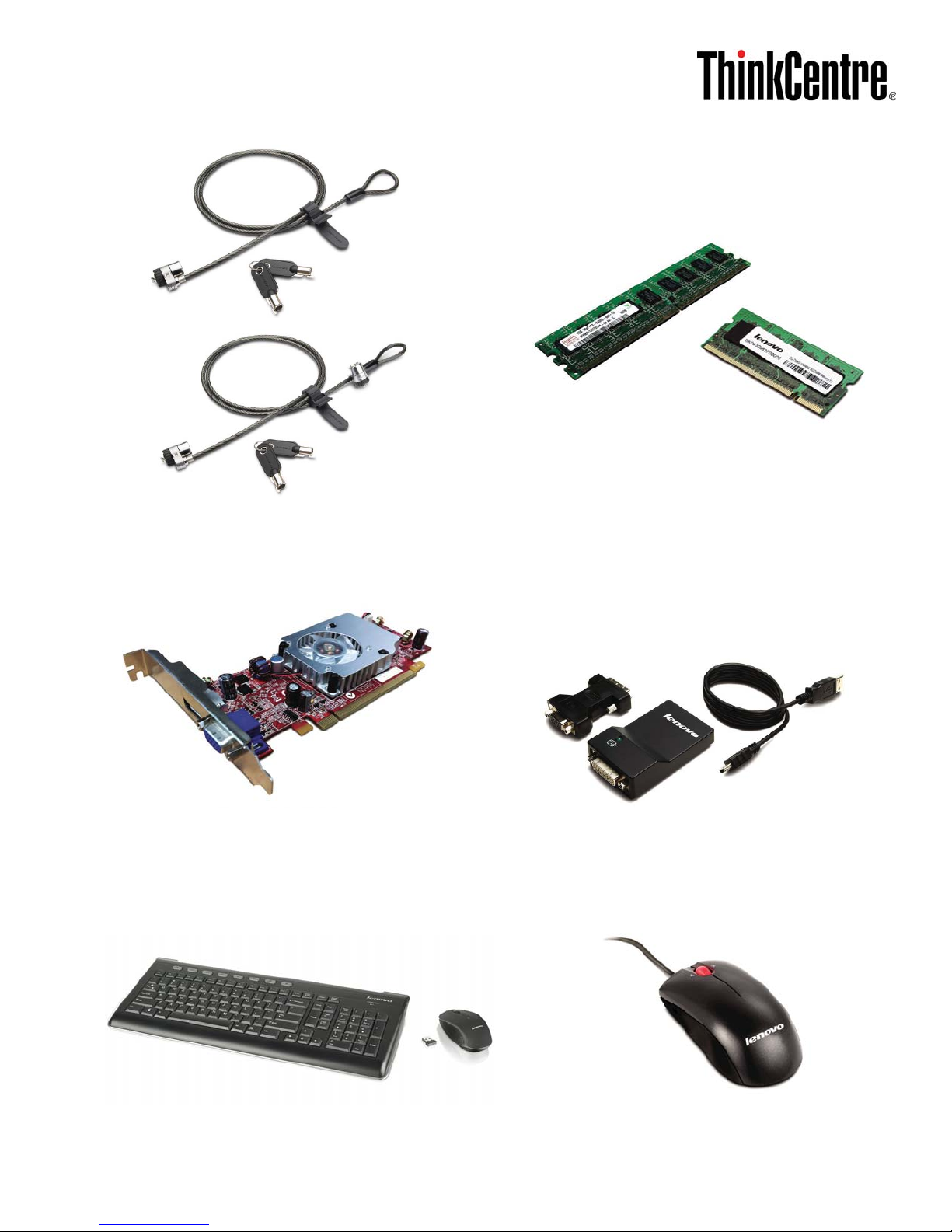

Kensington

MicroSaver® Cable Lock

73P2582

Kensington Twin Head Cable Lock

45K1620

1GB PC2-6400 NP DDR2 UDIMM 41U2977
2GB PC2-6400 NP DDR2 UDIMM

41U2978

1GB PC3-8500 DDR3 UDIMM 45J5434

2GB PC3-8500 DDR3 UDIMM 45J5435
1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988

(UDIMM for SFF, Tower only; SODIMM for Eco USFF only)

ATI™ Radeon™ HD 3470 256MB (DP, VGA)

45K1636

Ultraslim Wireless Keyboard and Mouse

57Y4700

Lenovo® USB-to-DVI Monitor Adapter

45K5296

Lenovo Laser Mouse (USB)

41U3074

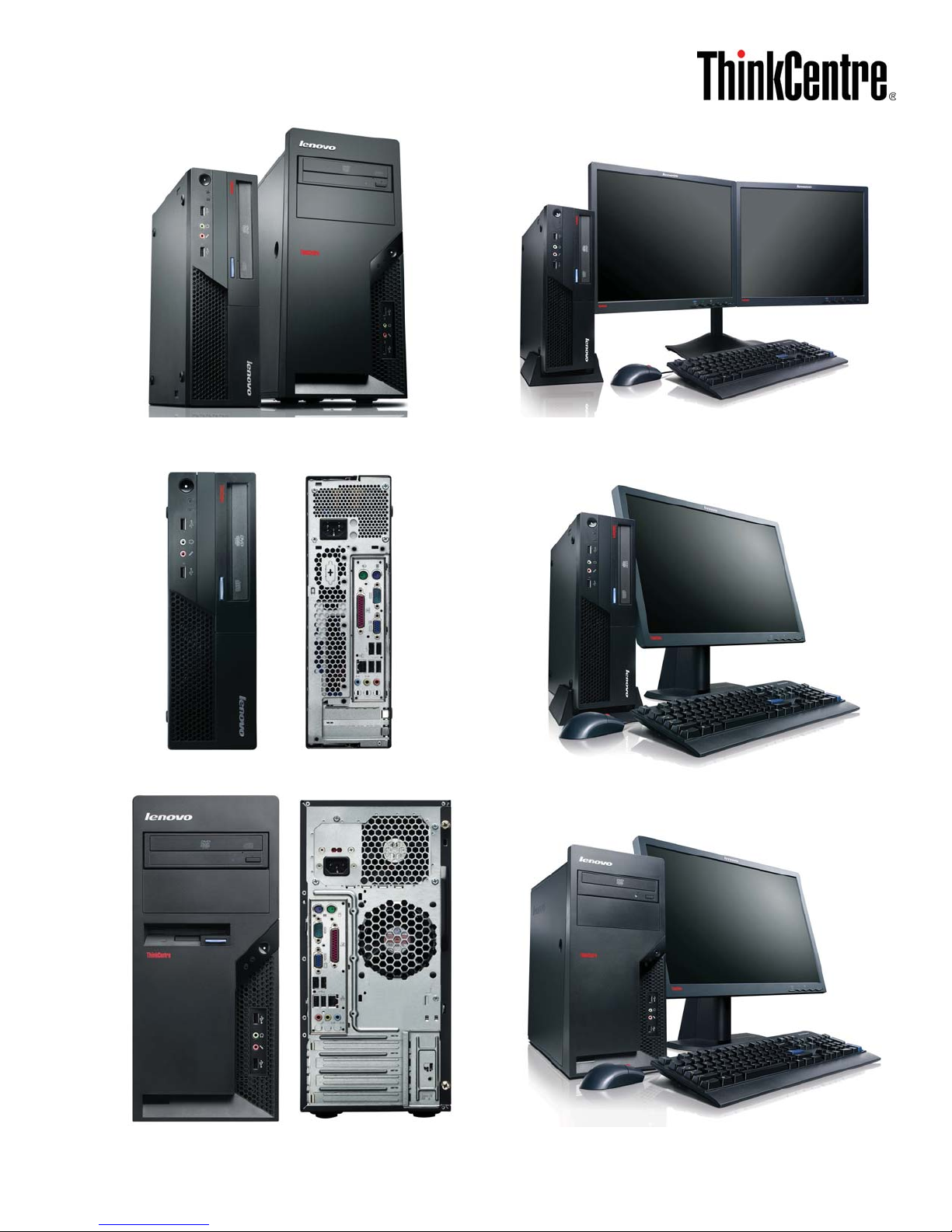

Lenovo ThinkCentre M58e Small and Tower

Lenovo ThinkCentre M58e Small and

Lenovo ThinkCentre M58e Tower

Lenovo ThinkCentre M58e Small

Lenovo ThinkCentre M58e Small

with dual Lenovo ThinkVision monitors

Lenovo ThinkCentre M58e Small
with Lenovo ThinkVision monitor

Lenovo ThinkCentre M58e Tower

Lenovo ThinkCentre M58e Tower
with Lenovo ThinkVision monitor

ThinkCentre® M58e Small (7259) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

SATA

8

disk

SATA

optical Graphics

Preload

Global

Educ

Avail

dateName

M58e 7259-B1U 2x3 Pentium E6300 2.80 2MB 2 1GB 250GB2 DVD GMA XP Pro None Nov 09
M58e 7259-B2U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD ±RW GMA XP Pro None Nov 09
M58e 7259-B3U 2x3 Pentium E6300 2.80 2MB 2 3GB 500GB DVD ±RW GMA XP Pro None Nov 09

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 1-year limited warranty

Positioning
Processor

Implementation

Memory

Mainstream enterprise stability and manageability

®

Pentium® Processor E6300 with dual-core,

Intel

1066MHz system bus, and 2MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB or 3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB or 500GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

5

Preloaded applications

• Rescue and Recovery™

(only some listed)

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD, DVD±RW)

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® Quadro® 256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

dampening

®

Small

optical

disk

(in rear)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 1-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

™ part number 41C9189)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced November 3, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-7) November 2009

ThinkCentre® M58e Small (7259) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

SATA

8

disk

SATA

optical Graphics

Win7

preload

Global

Educ

Avail

dateName

M58e 7259-D3U 2x3 Celeron E3200 2.40 1MB 2 1GB 250GB2 DVD ±RW GMA Pro 32 None Jan 10
M58e 7259-D2U 2x3 Pentium E5400 2.70 2MB 2 2GB 250GB DVD ±RW GMA Pro 32 None Jan 10
M58e 7259-D1U 2x3 Pentium E5400 2.70 2MB 2 3GB 320GB DVD ±RW GMA Pro 32 None Jan 10

Positioning
Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 1-year limited warranty

Mainstream enterprise stability and manageability

®

Celeron® Processor E3200 with dual-core,

Intel

800MHz system bus, and 1MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Pentium® Processor E5400 with dual-core,

Implementation

Memory

800MHz system bus, and 2MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 253MB [1GB models], 765MB [2GB models], or
1277MB [3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Roxio
(DVD±RW)

• Roxio MyDVD

®

Offi ce 2007 Trial (60-day)

®

Creator® Business Edition

®

(DVD±RW)

PC2-6400 800MHz DDR2,

dampening

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® Quadro® 256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 1-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

™ part number 41C9189)

1

9

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced December 15, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-11) December 2009

ThinkCentre® M58e Small (7269) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

M58e 7269-E5U 2x3 Pentium E5400 2.70 2MB 2 1GB 250GB2 DVD GMA XP Pro None Jan 10

☞

M58e 7269-D5U 2x3 Pentium E6300 2.80 2MB 2 1GB 250GB DVD GMA Switch XP Pro None Nov 09

✂

M58e 7269-D6U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD ±RW GMA Switch XP Pro None Nov 09

✂

M58e 7269-D7U 2x3 Core 2 Duo E7500 2.93 3MB 2 3GB 320GB DVD ±RW GMA XP Pro None Nov 09

Slot x

bay

GHz

cache

L2

Cores

SATA

8

disk

SATA

optical Graphics

Chassis

intr switch

Preload

Global

Educ

M58e 7269-D8U 2x3 Core 2 Quad Q9400 2.66 6MB 4 3GB 500GB DVD ±RW GMA XP Pro None Nov 09

Positioning
Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Pentium® Processor E5400 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Pentium Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB or 3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk

SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, 320GB, or 500GB, SATA 3.0Gb/s 7200 rpm,
vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft

®

• Roxio
(DVD±RW)

• Roxio MyDVD

• Corel

Creator® Business Edition

®

WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015

5

(only some listed)

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

Quadro® 256MB FX 370 LP 55Y9275

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

See footnotes for important warranty information
☞ US model announced December 15, 2009; previous models on November 3, 2009

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

®

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

(MIAM3-8) December 2009

1

9

7

1

© Leno

✂ US models withdrawn effective January 2010

Avail

dateName

vo

ThinkCentre® M58e Small (7269) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

L2

cache

Cores

SATA

8

disk

SATA

optical Graphics

Win7

preload

Global

Educ

Avail

dateName

M58e 7269-E6U 2x3 Pentium E5400 2.70 2MB 2 1GB 250GB2 DVD GMA Pro 32 None Jan 10
M58e 7269-E7U 2x3 Pentium E5400 2.70 2MB 2 2GB 250GB DVD ±RW GMA Pro 32 None Jan 10
M58e 7269-E8U 2x3 Core 2 Duo E7500 2.93 3MB 2 3GB 320GB DVD ±RW GMA Pro 32 None Jan 10
M58e 7269-E9U 2x3 Core 2 Quad Q9400 2.66 6MB 4 3GB 500GB DVD ±RW GMA Pro 32 None Jan 10

Positioning
Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Pentium® Processor E5400 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 253MB [1GB models], 765MB [2GB models], or
1277MB [3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk

SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, 320GB, or 500GB, SATA 3.0Gb/s 7200 rpm,
vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US models announced January 12, 2010

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765

Quadro® 256MB FX 370 LP 55Y9275

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

®

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM3-15) January 2010

1

9

7

1

© Lenovo

ThinkCentre® M58e Small (7279)

Personal Systems Reference (PSREF)

Type-model Processor Memory

M58e 7279-B1U 2x3 Pentium E2220 2.40 1MB 2 2GB 160GB2 DVD ±RW GMA Business32 Basic None Apr 09

✂
✂

M58e 7279-A9U 2x3 Core 2 Duo E7300 2.66 3MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Vista

preload

Vista

logo

Global

Educ

M58e 7279-A8U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09

1

Small

optical

disk

(in rear)

Positioning
Processor

• These models have a 1-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E2220 with dual-core,
800MHz system bus, and 1MB L2 cache or
Intel Core™ 2 Duo Processor E7300 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Genuine Windows® Vista® Business 32

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD±RW)

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

PC2-6400 800MHz DDR2,

dampening mounts

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

Quadro® 256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 1-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

™ part number 41C9189)

1

9

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced March 10, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Leno

(MIAM1-2) March 2009

✂ US models withdrawn effective June or August 2009

Avail

dateName

vo

ThinkCentre® M58e Small (7303)

Personal Systems Reference (PSREF)

Type-model Processor Memory

M58e 7303-F9U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA Stand XP Pro Apr 09

✂

M58e 7303-C6U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD GMA Stand XP Pro Apr 09

✂

M58e 7303-G8U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD ±RW GMA XP Pro Educ Apr 09

✂

M58e 7303-C7U 2x3 Pentium E5300 2.60 2MB 2 2GB 250GB DVD ±RW GMA Stand XP Pro Apr 09

M58e 7303-C8U 2x3 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB DVD GMA Stand XP Pro Apr 09

✂

M58e 7303-D1U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD ±RW GMA Stand XP Pro Apr 09

✂

M58e 7303-C9U 2x3 Core 2 Duo E7500 2.93 3MB 2 1GB 160GB DVD GMA Stand XP Pro Apr 09

Slot x

bay

GHz

L2

cache

Cores

SATA

8

disk

SATA

optical Graphics

Floor
stand

Preload

Global

Educ

M58e 7303-D2U 2x3 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB DVD ±RW GMA Stand XP Pro Apr 09

M58e 7303-D3U 2x3 Core 2 Duo E8400 3.00 6MB 2 1GB 160GB DVD ±RW GMA Stand XP Pro Apr 09

✂

M58e 7303-D5U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA Stand XP Pro Apr 09

M58e 7303-G7U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA XP Pro Educ Apr 09

✂

M58e 7303-D4U 2x3 Core 2 Duo E8500 3.16 6MB 2 1GB 250GB DVD ±RW GMA Stand XP Pro Apr 09

✂

M58e 7303-D6U 2x3 Core 2 Duo E8500 3.16 6MB 2 2GB 250GB DVD ±RW GMA Stand XP Pro Apr 09

M58e 7303-G9U 2x3 Core 2 Quad Q8200 2.33 4MB 4 2GB 250GB DVD ±RW GMA Stand XP Pro Apr 09

✂

Positioning
Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5200 or E5300 with dual-core,

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 or E8500 with dual-core,
1333MHz system bus, and 6MB L2 cache or
Intel Core 2 Quad Processor Q8200 with quad-core,

Implementation

Memory

1333MHz system bus, and 4MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• Microsoft

®

• Roxio
(DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information
US models announced March 10 or March 24, 2009

Creator® Business Edition

®

WinDVD® (DVD, DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977

®

Business)

2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

PC2-6400 800MHz DDR2,

dampening

®

Quadro® 256MB FX 370 LP 55Y9275

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• Some: system fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed

®

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ Other ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-3) April 2009

9

7

1

© Leno

✂ US models withdrawn effective October or December 2009

Avail

dateName

vo

ThinkCentre® M58e Small (7303) - XP with Win 7 License

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

SATA

8

disk

SATA

optical Graphics

Preload

Global

Educ

M58e 7303-R1U 2x3 Pentium E6300 2.80 2MB 2 1GB 250GB2 DVD GMA XP Pro Oct 09
M58e 7303-R2U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD ±RW GMA XP Pro Oct 09

✂

M58e 7303-R3U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD ±RW GMA XP Pro Educ Oct 09

M58e 7303-Q9U 2x3 Core 2 Quad Q8400 2.66 4MB 4 2GB 250GB DVD ±RW GMA XP Pro Oct 09

1

Small

optical

disk

(in rear)

Positioning
Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E6300 with dual-core,
Virtualization Technology, 1066MHz system bus,
and 2MB L2 cache or
Intel Core™ 2 Quad Processor Q8400 with quad-core,
Virtualization Technology, 1333MHz system bus,

Implementation

Memory

and 4MB L2 cache
Processor in LGA775 socket

1GB or 2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe Reader

• Windows Live™ Toolbar

• Microsoft

®

• Roxio
(DVD±RW)

• Roxio MyDVD

®

• Corel

®

®

Offi ce 2007 Trial (60-day)

Creator® Business Edition

®

(DVD±RW)

WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 22, 2009

PC2-6400 800MHz DDR2,

dampening mounts

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765

Quadro® 256MB FX 370 LP 55Y9275

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

(MIAM3-1) October 2009

9

7

1

© Leno

✂ US model withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58e Small (7303) - Vista

®

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Vista

preload

Vista

logo

Global

Educ

M58e 7303-D8U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB2 DVD GMA Business32 Basic None Apr 09
M58e 7303-D9U 2x3 Pentium E5300 2.60 2MB 2 2GB 250GB DVD ±RW GMA Business32 Basic None Apr 09

M58e 7303-E1U 2x3 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB DVD GMA Business32 Basic None Apr 09

✂

M58e 7303-E3U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09

✂

M58e 7303-E2U 2x3 Core 2 Duo E7500 2.93 3MB 2 1GB 160GB DVD GMA Business32 Basic None Apr 09

✂

M58e 7303-E4U 2x3 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09

M58e 7303-E5U 2x3 Core 2 Duo E8400 3.00 6MB 2 1GB 160GB DVD ±RW GMA Business32 Basic None Apr 09

✂

M58e 7303-E7U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA Business32 Basic None Apr 09

✂

M58e 7303-E6U 2x3 Core 2 Duo E8500 3.16 6MB 2 1GB 250GB DVD ±RW GMA Business32 Basic None Apr 09

✂

M58e 7303-E8U 2x3 Core 2 Duo E8500 3.16 6MB 2 2GB 250GB DVD ±RW GMA Business32 Basic None Apr 09

1

Small

optical

disk

(in rear)

Positioning
Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5300 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 or E8500 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 253MB [1GB models], 765MB [2GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration dampening
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Genuine Windows® Vista® Business 32

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD, DVD±RW)

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

See footnotes for important warranty information
US models announced March 10, 2009

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765

Quadro® 256MB FX 370 LP 55Y9275

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

®

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

(MIAM1-4) March 2009

1

9

7

1

© Leno

✂ US models withdrawn effective October or December 2009

Avail

dateName

vo

ThinkCentre® M58e Small (7303) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

SATA

8

disk

SATA

optical Graphics

Win7

preload

Global

Educ

Avail

dateName

M58e 7303-BAU 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB2 DVD ±RW GMA Pro 32 None Jan 10
M58e 7303-BBU 2x3 Core 2 Duo E7500 2.93 3MB 2 2GB 250GB DVD ±RW GMA Pro 32 None Jan 10
M58e 7303-BCU 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 250GB DVD ±RW GMA Pro 32 None Jan 10

1

Small

optical

disk

(in rear)

Positioning
Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 with dual-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Genuine Windows® 7 Professional 32

Preloaded applications

5

(only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

PC2-6400 800MHz DDR2,

dampening mounts

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765

Quadro® 256MB FX 370 LP 55Y9275

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

9

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced December 15, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-12) December 2009

ThinkCentre® M58e Small (7506)

Personal Systems Reference (PSREF)

Slot x

bay

M58e 7506-C7U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA XP Pro Apr 09

✂
✂

M58e 7506-B9U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD GMA XP Pro Apr 09

✂

M58e 7506-C1U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD ±RW GMA ES50 XP Pro Apr 09

M58e 7506-C2U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA ES50 XP Pro Apr 09

✂

M58e 7506-C9U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD ±RW GMA ES50 XP Pro Educ Apr 09

GHz Type-model Processor Memory

• These models have a 3-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5200 or E5300 with dual-core,

L2

cache

Cores

1

SATA

8

disk

800MHz system bus, and 2MB L2 cache or

SATA

optical Graphics

Small

ENERGY
STAR 5.0

optical

Preload

Global

Educ

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista

Preloaded applications

• Some: Education software

- VitalSource Library School Edition

- Adobe

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe Reader

• Windows Live™ Toolbar

• Microsoft

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977

®

Business)

5

2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618

®

Elements

Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

®

VirusScan® Plus

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

®

Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced March 10 or March 24, 2009

PC2-6400 800MHz DDR2,

dampening mounts

®

Quadro® 256MB FX 370 LP 55Y9275

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

®

Supports ThinkVantage® technologies

Climate Savers®-compliant

Some: EPEAT™ Gold rating
Some: ENERGY STAR® 5.0-compliant

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

(MIAM1-5) June 2009

1

9

7

1

© Leno

✂ US models withdrawn effective June, October, or December 2009

Avail

dateName

vo

ThinkCentre® M58e Small (7506) - ENERGY STAR® 5.0 (July 2009)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

L2

cache

Cores

SATA

8

disk

SATA

optical Graphics

ENERGY
STAR 5.0

Preload

Global

Educ

Avail

dateName

M58e 7506-M2U 2x3 Pentium E5300 2.60 2MB 2 2GB 160GB2 DVD ±RW GMA ES50 XP Pro None Jul 09
M58e 7506-M1U 2x3 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB DVD ±RW GMA ES50 XP Pro None Jul 09

1

Small

optical

disk

(in rear)

Positioning
Processor

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5300 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 1GB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista® Business)

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD±RW)

®

®

(DVD±RW)

PC2-6400 800MHz DDR2,

dampening mounts

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765

Quadro® 256MB FX 370 LP 55Y9275

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

®

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

1

9

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced July 7, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM2-5) July 2009

ThinkCentre® M58e Small (7506) - ES 5.0 (XP with Win 7 License)

Personal Systems Reference (PSREF)

Slot x

bay

L2

GHz Type-model Processor Memory

cache

Cores

SATA

8

disk

SATA

optical Graphics

ENERGY
STAR 5.0

Preload

Global

Educ

Avail

dateName

M58e 7506-N6U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB2 DVD ±RW GMA ES50 XP Pro None Oct 09

• This model has a 3-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E6300 with dual-core,
Virtualization Technology, 1066MHz system bus,

Implementation

Memory

and 2MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 1GB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft

®

• Roxio
(DVD±RW)

• Roxio MyDVD

• Corel

Creator® Business Edition

®

WinDVD® (DVD±RW)

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Small

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

dampening mounts

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

®

Quadro® 256MB FX 370 LP 55Y9275

optical

disk

(in rear)

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced October 22, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-2) October 2009

ThinkCentre® M58e Small (7408) - GMP

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

Vista

preload

Vista
logo

Global (G)

GMP (P)

Avail

dateName

M58e 7408-A1U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB2 DVD ±RW GMA Business32 Basic G P Apr 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Genuine Windows® Vista® Business 32

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD±RW)

®

®

(DVD±RW)

PC2-6400 800MHz DDR2,

dampening mounts

®

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

Quadro® 256MB FX 370 LP 55Y9275

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Small

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced March 10, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM1-6) March 2009

ThinkCentre® M58e Small (7408) - GMP (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

SATA

8

disk

SATA

optical Graphics

Win7

preload

Global (G)

GMP (P)

Avail

dateName

M58e 7408-A2U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 320GB2 DVD ±RW GMA Pro 32 G P Oct 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

PC2-6400 800MHz DDR2,

dampening mounts

®

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

Quadro® 256MB FX 370 LP 55Y9275

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Small

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced October 22, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-3) October 2009

ThinkCentre® M58e Small (7514) - ENERGY STAR® 5.0 (GMP)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

cache

L2

Cores

8

SATA

disk

SATA

optical Graphics

ENERGY
STAR 5.0

Vista

preload

Vista

logo

Global (G)

GMP (P)

Avail

dateName

M58e 7514-A2U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB2 DVD ±RW GMA ES50 Bus32 Basic G P Apr 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Genuine Windows® Vista® Business 32

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

• Corel® WinDVD® (DVD±RW)

PC2-6400 800MHz DDR2,

dampening mounts

®

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

Quadro® 256MB FX 370 LP 55Y9275

NVIDIA
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Small

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express x16 (35w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced March 10, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM1-7) March 2009

ThinkCentre® M58e Tower (7258) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

SATA

8

disk

2nd Disk

Bay

SATA

optical Graphics

Preload

Global

Educ

Avail

dateName

M58e 7258-B1U 4x4 Pentium E6300 2.80 2MB 2 1GB 250GB2 None DVD GMA XP Pro None Nov 09
M58e 7258-B2U 4x4 Pentium E6300 2.80 2MB 2 2GB 250GB None DVD±RW GMA XP Pro None Nov 09
M58e 7258-B3U 4x4 Pentium E6300 2.80 2MB 2 3GB 500GB None DVD±RW GMA XP Pro None Nov 09

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 1-year limited warranty

Positioning
Processor

Implementation

Memory

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB or 3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB or 500GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

5

(only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD, DVD±RW)

®

®

(DVD±RW)

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)

dampening

Bay ④ 3.5", 1" high, no access, std disk
Slot 1: half-length, full-height, PCI Express x16

Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

™ part number 41C9189)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced November 3, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-9) November 2009

ThinkCentre® M58e Tower (7258) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

SATA

8

disk

2nd Disk

Bay

SATA

optical Graphics

Win7

preload

Global

Educ

Avail

dateName

M58e 7258-D3U 4x4 Celeron E3200 2.40 1MB 2 1GB 250GB2 None DVD±RW GMA Pro 32 None Jan 10
M58e 7258-D2U 4x4 Pentium E5400 2.70 2MB 2 2GB 250GB None DVD±RW GMA Pro 32 None Jan 10
M58e 7258-D1U 4x4 Pentium E5400 2.70 2MB 2 3GB 320GB None DVD±RW GMA Pro 32 None Jan 10

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 1-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Celeron® Processor E3200 with dual-core,
800MHz system bus, and 1MB L2 cache or
Intel Pentium® Processor E5400 with dual-core,

Implementation

Memory

800MHz system bus, and 2MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 253MB [1GB models], 765MB [2GB models], or
1277MB [3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), four SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16

dampening

Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

™ part number 41C9189)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced December 15, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-13) December 2009

ThinkCentre® M58e Tower (7268) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model

☞

M58e 7268-D2U 4x4 Pentium E5400 2.70 2MB 2 1GB 250GB2 None DVD GMA XP Pro None Jan 10

☞

M58e 7268-D1U 4x4 Pentium E5400 2.70 2MB 2 2GB 250GB None DVD±RW GMA XP Pro None Jan 10

✂

M58e 7268-C3U 4x4 Pentium E6300 2.80 2MB 2 1GB 250GB None DVD GMA Switch XP Pro None Nov 09

✂

M58e 7268-C4U 4x4 Pentium E6300 2.80 2MB 2 2GB 250GB None DVD±RW GMA Switch XP Pro None Nov 09

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Chassis

intr switch

Preload

Global

Educ

M58e 7268-C5U 4x4 Core 2 Duo E7500 2.93 3MB 2 3GB 320GB None DVD±RW GMA XP Pro None Nov 09
M58e 7268-C6U 4x4 Core 2 Quad Q9400 2.66 6MB 4 3GB 500GB None DVD±RW GMA XP Pro None Nov 09

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5400 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Pentium Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB or 3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk

SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, 320GB, or 500GB, SATA 3.0Gb/s 7200 rpm,
vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe

®

• Windows Live™ Toolbar

• Microsoft

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA Quadro® 256MB NVS 290 43R1765

®

Reader

®

Offi ce 2007 Trial (60-day)

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
☞ US models announced December 15, 2009; previous models on November 3, 2009

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

optical

②

③

disk

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

®

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MIAM3-10) December 2009

9

1

© Leno

✂ US models withdrawn effective January 2010

Avail

dateName

vo

ThinkCentre® M58e Tower (7268) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

SATA

8

disk

2nd Disk

Bay

SATA

optical Graphics

Win7

preload

Global

Educ

Avail

dateName

M58e 7268-D3U 4x4 Pentium E5400 2.70 2MB 2 1GB 250GB2 None DVD GMA Pro 32 None Jan 10
M58e 7268-D4U 4x4 Pentium E5400 2.70 2MB 2 2GB 250GB None DVD±RW GMA Pro 32 None Jan 10
M58e 7268-D5U 4x4 Core 2 Duo E7500 2.93 3MB 2 3GB 320GB None DVD±RW GMA Pro 32 None Jan 10
M58e 7268-D6U 4x4 Core 2 Quad Q9400 2.66 6MB 4 3GB 500GB None DVD±RW GMA Pro 32 None Jan 10

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E5400 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 253MB [1GB models], 765MB [2GB models], or
1277MB [3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk

SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, 320GB, or 500GB, SATA 3.0Gb/s 7200 rpm,
vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Roxio
(DVD±RW)

• Roxio MyDVD

®

Offi ce 2007 Trial (60-day)

®

Creator® Business Edition

®

(DVD±RW)

See footnotes for important warranty information
US models announced January 12, 2010

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® Microsaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM3-16) January 2010

ThinkCentre® M58e Tower (7270)

Personal Systems Reference (PSREF)

Type-model

✂

M58e 7270-A3U 4x4 Pentium E2220 2.40 1MB 2 2GB 160GB2 No DVD±RW GMA Bus32 No Apr 09
M58e 7270-A2U 4x4 Core 2 Duo E7300 2.66 3MB 2 2GB 160GB No DVD±RW GMA Bus32 No Apr 09

✂

M58e 7270-A1U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB No DVD±RW GMA Bus32 No Apr 09

✂

M58e 7270-A4U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 25-in-1 160GB No DVD±RW GMA 1394 Bus32 No Apr 09

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

• These models have a 1-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E2220 with dual-core,

Media

8

reader

1

800MHz system bus, and 1MB L2 cache or
Intel Core™ 2 Duo Processor E7300 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), four SATA connectors
None
None
Some: 25-in-1 media reader, internal USB 2.0

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394

Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® Vista® Business 32
✧ Vista Basic logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® (DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
Some: FireWire PCI adapter / IEEE 1394 FireWire 400 (dual 6-pin ports on rear;
1394-1995 standard)
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN

®

None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978

5

250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

GeForce® 9500GT 512MB (DP, DVI)45K1635

®

®

NVIDIA Quadro
More accessories on O-M58E sheet

256MB NVS 290 43R1765

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

(DVD±RW)

2nd Disk

SATA

disk

Bay

SATA

optical Graphics

FireWire

adapter

Vista

preload

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, opt reader/diskette*
Bay ④ 3.5", 1" high, no access, std disk

* occupied by media reader in some models
Slot 1: half-length, full-height, PCI Express x16

Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3**
Slot 4: half-length, full-height, 32-bit PCI 2.3

** occupied by FireWire adapter in some models

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 1-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 1-year LOR 9x5, 4 hour response

(ThinkPlus

• 2-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9187)

• 2-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9190)

• 3-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9188)

• 3-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9191)

™ part number 41C9189)

7

Global

Educ

optical

②

③

disk

(75w max)

9

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced March 10, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Leno

(MIAM1-9) March 2009

✂ US models withdrawn effective June, August, or December 2009

Avail

dateName

vo

ThinkCentre® M58e Tower (7298)

Personal Systems Reference (PSREF)

Type-model

M58e 7298-F2U 4x4 Pentium E5200 2.50 2MB 2 1GB 160GB2 None DVD GMA XP Pro Apr 09

✂

M58e 7298-C3U 4x4 Pentium E5300 2.60 2MB 2 1GB 160GB None DVD GMA XP Pro Apr 09

✂

M58e 7298-C4U 4x4 Pentium E5300 2.60 2MB 2 2GB 250GB None DVD±RW GMA XP Pro Apr 09

M58e 7298-C5U 4x4 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB None DVD GMA XP Pro Apr 09

✂

M58e 7298-C6U 4x4 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB None DVD±RW GMA XP Pro Apr 09

✂

M58e 7298-C7U 4x4 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB None DVD±RW GMA XP Pro Apr 09

M58e 7298-C8U 4x4 Core 2 Duo E8400 3.00 6MB 2 1GB 160GB None DVD±RW GMA XP Pro Apr 09

✂

M58e 7298-D1U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB None DVD±RW GMA XP Pro Apr 09

✂

M58e 7298-F8U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB None DVD±RW GMA XP Pro Educ Apr 09

✂

M58e 7298-C9U 4x4 Core 2 Duo E8500 3.16 6MB 2 1GB 250GB None DVD±RW GMA XP Pro Apr 09

M58e 7298-D2U 4x4 Core 2 Duo E8500 3.16 6MB 2 2GB 250GB None DVD±RW GMA XP Pro Apr 09

✂

M58e 7298-F9U 4x4 Core 2 Quad Q8200 2.33 4MB 4 2GB 250GB None DVD±RW GMA XP Pro Apr 09

☞

M58e 7298-G1U 4x4 Core 2 Quad Q9400 2.66 6MB 4 2GB 250GB None DVD±RW GMA XP Pro Apr 09

Positioning
Processor

Slot x

bay

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

Intel

Processor

®

Pentium® Processor E5200 or E5300 with dual-core,

GHz

L2

cache

Cores

Memory

1

8

800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 or E8500 with dual-core,
1333MHz system bus, and 6MB L2 cache or
Intel Core 2 Quad Processor Q8200 with quad-core,
1333MHz system bus, and 4MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista® Business)

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• McAfee® VirusScan® Plus (30-day)

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro

GeForce® 9500GT 512MB (DP, DVI)45K1635

®

256MB NVS 290 43R1765

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
☞ US models announced March 24, 2009; previous models on March 10, 2009

2nd Disk

SATA

disk

Bay

SATA

optical Graphics

Preload

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

®

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ Other ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM1-10) April 2009

Global

Educ

7

optical

②

③

disk

(75w max)

1

© Leno

Avail

9

✂ US models withdrawn effective October or December 2009

dateName

vo

ThinkCentre® M58e Tower (7298) - July 2009

Personal Systems Reference (PSREF)

Type-model

M58e 7298-H9U 4x4 Pentium E5300 2.60 2MB 2 2GB 160GB2 None DVD±RW GMA XP Pro Educ Jul 09

✂

M58e 7298-H6U 4x4 Core 2 Duo E7500 2.93 3MB 2 1GB 160GB None DVD GMA XP Pro Jul 09

✂

M58e 7298-H8U 4x4 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB None DVD±RW GMA XP Pro Educ Jul 09

✂

M58e 7298-H7U 4x4 Core 2 Duo E7500 2.93 3MB 2 2GB 250GB None DVD±RW GMA XP Pro Jul 09

Positioning
Processor

Slot x

bay

• These models have a 3-year limited warranty

Mainstream enterprise stability and manageability

Intel

Processor

®

Pentium® Processor E5300 with dual-core,

GHz

L2

cache

Memory

1

8

800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista® Business)

Preloaded applications

• Some: Education software

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe Reader

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015

5

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro

®

256MB NVS 290 43R1765

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide

®

Other accessories at lenovo.com/accessories

• Windows Live™ Toolbar

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced July 7, 2009

2nd Disk

SATA

disk

Bay

SATA

optical Graphics

PreloadCores

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

®

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM2-3) July 2009

Global

Educ

7

optical

②

③

disk

(75w max)

1

1

© Leno

9

✂ US models withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58e Tower (7298) - XP with Win 7 License

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

PreloadCores

Global

Educ

M58e 7298-N1U 4x4 Pentium E6300 2.80 2MB 2 1GB 250GB2 None DVD GMA XP Pro Oct 09
M58e 7298-N2U 4x4 Pentium E6300 2.80 2MB 2 2GB 250GB None DVD±RW GMA XP Pro Oct 09

M58e 7298-N3U 4x4 Pentium E6300 2.80 2MB 2 2GB 250GB None DVD±RW GMA XP Pro Educ Oct 09

✂

M58e 7298-M9U 4x4 Core 2 Quad Q8400 2.66 4MB 4 2GB 250GB None DVD±RW GMA XP Pro Oct 09

• These models have a 3-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E6300 with dual-core,
Virtualization Technology, 1066MHz system bus,
and 2MB L2 cache or
Intel Core™ 2 Quad Processor Q8400 with quad-core,
Virtualization Technology, 1333MHz system bus,

Implementation

Memory

and 4MB L2 cache
Processor in LGA775 socket

1GB or 2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

5

Preloaded applications

• Some: Education software

(only some listed)

- VitalSource Library School Edition

- Adobe® Elements

− Photoshop Elements 7

− Premiere Elements 7

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe Reader

®

• Windows Live™ Toolbar

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 22, 2009

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro
More accessories on O-M58E sheet

GeForce® 9500GT 512MB (DP, DVI)45K1635

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16

dampening mounts

Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

™ part number 41C9192)

14

toll-free support

(MIAM3-4) October 2009

1

9

, 8 am - 5 pm,

7

1

© Leno

✂ US model withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58e Tower (7298) - Windows 7

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Win7

preload

Global

Educ

Avail

dateName

M58e 7298-Q1U 4x4 Pentium E6300 2.80 2MB 2 2GB 250GB2 None DVD±RW GMA Pro 32 None Jan 10
M58e 7298-Q2U 4x4 Core 2 Duo E7500 2.93 3MB 2 2GB 250GB None DVD±RW GMA Pro 32 None Jan 10
M58e 7298-Q3U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 250GB None DVD±RW GMA Pro 32 None Jan 10

• These models have a 3-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 with dual-core,

Implementation

Memory

1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), four SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US models announced December 15, 2009

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro® 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

®

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM3-14) December 2009

7

optical

②

③

disk

(75w max)

1

1

© Lenovo

9

ThinkCentre® M58e Tower (7847) - ES 5.0 (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

ENERGY

STAR 5.0Cores

Preload

Global

Educ

Avail

dateName

M58e 7847-A2U 4x4 Pentium E6300 2.80 2MB 2 1GB 250GB2 None DVD GMA ES50 XP Pro None Oct 09
M58e 7847-A3U 4x4 Pentium E6300 2.80 2MB 2 2GB 250GB None DVD±RW GMA ES50 XP Pro None Oct 09
M58e 7847-A4U 4x4 Core 2 Duo E7500 2.93 3MB 2 2GB 250GB None DVD±RW GMA ES50 XP Pro None Oct 09
M58e 7847-A5U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 250GB None DVD±RW GMA ES50 XP Pro None Oct 09
M58e 7847-A7U 4x4 Core 2 Quad Q9400 2.66 6MB 4 3GB 320GB None DVD±RW GMA ES50 XP Pro None Oct 09

• These models have a 3-year limited warranty

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Pentium® Processor E6300 with dual-core,
Virtualization Technology, 1066MHz system bus,
and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,
Virtualization Technology, 1066MHz system bus,
and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

1GB, 2GB, or 3GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;

Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB or 3GB models]),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), four SATA connectors on planar
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Windows Live™ Toolbar

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 22, 2009

PC2-6400 800MHz DDR2,

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA
NVIDIA Quadro® 256MB NVS 290 43R1765
More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

dampening mounts

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant

®

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MIAM3-5) October 2009

7

optical

②

③

disk

(75w max)

1

1

© Lenovo

9

ThinkCentre® M58e Tower (7307) - GMP

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor

GHz

L2

cache

Cores

Memory

8

SATA

disk

2nd Disk

Bay

SATA

optical Graphics

Vista

preload

Vista

logo

Global (G)

GMP (P)

Avail

dateName

M58e 7307-A1U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB2 None DVD±RW GMA Business32 Basic G P Apr 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), four SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, manual switch

20

- Genuine Windows® Vista® Business 32

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Windows Live™ Toolbar

• Microsoft

• Roxio® Creator® Business Edition

®

®

Offi ce 2007 Trial (60-day)

(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD±RW)

PC2-6400 800MHz DDR2,

dampening mounts

®

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

GeForce® 9500GT 512MB (DP, DVI)45K1635

®

NVIDIA Quadro
More accessories on O-M58E sheet

256MB NVS 290 43R1765

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced March 10, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MIAM1-12) March 2009

ThinkCentre® M58e Tower (7843) - ES 5.0 (GMP) - Windows 7

Personal Systems Reference (PSREF)

Slot x

bay

L2

GHz Type-model Processor Memory

cache

2nd Disk

SATA

8

disk

Bay

SATA

optical Graphics

ENERGY

STAR 5.0Cores

Win7

preload

Global (G)

GMP (P)

Avail

dateName

M58e 7843-A1U 4x4 Core 2 Duo E8400 3.00 6MB 2 2GB 250GB2 None DVD±RW GMA ES50 Pro 32 G P Oct 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Mainstream enterprise stability and manageability

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,

PC2-6400 800MHz DDR2,

non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX® 10,
supports dual independent display with optional ADD2 adapter

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), four SATA connectors
None
None
None

Intel G41 Express Chipset (PCI Express® x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)

Front ports
Rear ports

Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell® 88E8057, Wake on LAN
None
None
None

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US model announced October 22, 2009

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.7 lb (11.2 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCI Express x16
Slot 2: half-length, full-height, PCI Express x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

Accessories

1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort™ to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro

®

256MB NVS 290 43R1765

More accessories on O-M58E sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial port I/O control

• Parallel port I/O control

• USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

1

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9194)

14

toll-free support

(MIAM3-6) October 2009

9

7

1

© Lenovo

ThinkCentre® M58e Accessories

Partial list of accessories supported on ThinkCentre M58e

Memory

1GB PC2-6400 DDR2 UDIMM 41U2977 ann 09/26/06
1GB PC2-6400 DDR2 UDIMM (25-Pack) 51J0549 ann 03/17/09
2GB PC2-6400 DDR2 UDIMM 41U2978 ann 01/08/08
2GB PC2-6400 DDR2 UDIMM (25-Pack) 51J0550 ann 03/17/09

Optical

All:

DVD-ROM DL SATA 1.5Gb/s 16X-48X Max
Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ann 09/26/06

Tower 7268/7270/7298/7491/7307/7508/7847/7843/7258 support:
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ann 03/31/09

Storage and removable storage

160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254 ann 05/19/03
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 ann 01/24/06
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 ann 11/06/07
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 ann 08/19/08

USB 2.0 Essential Memory Key 4GB 45J7904 ann 06/24/08
USB 2.0 Essential Memory Key 8GB 45J7905 ann 07/15/08
USB 2.0 Essential Memory Key 32GB 45K1258 ann 10/28/08
USB 2.0 Ultra Secure Memory Key 1GB 45J5915 ann 08/26/08
USB 2.0 Ultra Secure Memory Key 2GB 45J5916 ann 08/26/08
USB 2.0 Ultra Secure Memory Key 4GB 45J5917 ann 08/26/08
USB 2.0 Ultra Secure Memory Key 8GB 45J5918 ann 08/26/08
USB 2.0 Portable 320GB Hard Disk 45K1689 ann 03/17/09
USB 2.0 Portable 500GB Hard Disk 45K1690 ann 05/26/09
USB 2.0 Portable Secure 160GB Hard Disk 43R2018 ann 11/18/08
USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ann 11/18/08
eSATA/USB 2.0 Secure 500GB Hard Drive 57Y4400 ann 01/07/10
USB 2.0 Super Multi-Burner Drive 41N5565 ann 01/23/07
USB 2.0 Portable DVD Burner 43N3264 ann 01/05/10

Graphics

Small 7269/7279/7303/7506/7408/7514/7259 support Low Profi le 35
watts max:

DisplayPort™ to Single-link DVI-D Cable50 45J7915 ann 08/05/08
ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08
NVIDIA® Quadro® 256MB NVS 290 43R1765 ann 12/18/07
NVIDIA Quadro 256MB FX 370 Low-Profi le 55Y9275 ann 07/28/09

Tower 7268/7270/7298/7491/7307/7508/7847/7843/7258 support 75
watts max:

DisplayPort to Single-link DVI-D Cable50 45J7915 ann 08/05/08
ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08
NVIDIA Quadro 256MB NVS 290 43R1765 ann 12/18/07
NVIDIA GeForce® 9500GT 512MB (DP, DVI) 45K1635 ann 11/18/08

50

Attaches to the ThinkCentre compatible DisplayPort graphics card.

More information at www.lenovo.com/support/graphiccards

Keyboard

Preferred Pro USB Keyboard 73P5220 ann 06/21/05
Preferred Pro Full Size PS/2 Keyboard 31P7415 ann 06/04/02
Enhanced Performance USB Keyboard 73P2620 ann 03/23/04
Ultraslim Wireless Keyboard and Mouse

®

USB Fingerprint Keyboard 73P4730 ann 02/22/05

Lenovo
Lenovo USB Smartcard Keyboard 51J0155 ann 03/24/09

52

Wireless via 2.4GHz technology using a micro-size USB receiver.

More information at www.lenovo.com/support/keyboards

Mouse

Lenovo Mini Optical Mouse - Black (USB) 55Y9308 ann 05/19/09
Lenovo Mini Optical Mouse - White (USB) 55Y9309 ann 05/19/09
Lenovo Optical Mouse (USB) 06P4069 ann 05/21/03
Lenovo ScrollPoint

®

Mouse (USB, Opitical) 31P7405 ann 08/27/02
Lenovo Laser Mouse (USB) 41U3074 ann 01/23/07
Lenovo Wireless Laser Mouse - Black
Lenovo Wireless Laser Mouse - Red/Black

More information at www.lenovo.com/support/mice

4

41N5618 ann 09/26/06

52

57Y4700 ann 09/15/09

52

45K1696 ann 11/25/08

52

51J0198 ann 11/25/08

Personal Systems Reference (PSREF)

Multimedia

USB 2.0 Lenovo Multimedia Headset 40Y8518 ann 06/27/06
USB 2.0 Lenovo Webcam 40Y8519 ann 08/29/06
ThinkPad® In-Ear Headphones

57Y4488 ann 01/07/10

Security

Kensington® MicroSaver® Cable Lock56 73P2582 ann 12/29/03
Kensington Twin Head Cable Lock56 45K1620 ann 09/30/08
USB Gemplus GemPC Smart Card Reader 41N3040 ann 02/21/06

56

Attaching to any form factor not only secures the ThinkCentre to
the work area, but it also prevents users from opening the chassis
itself.

Monitors

ThinkVision® L1711p 17" Monitor 5047HB2 ann 10/20/09
ThinkVision L1900p 19" Monitor 4431HE1 ann 11/11/08
ThinkVision L1951p Wide 19" Monitor 2448HB6 ann 10/20/09
ThinkVision L2250p Wide 22" Monitor 2572HB6 ann 10/20/09
ThinkVision L2251p Wide 22" Monitor 2572HD6 ann 10/20/09
ThinkVision L2251x Wide 22" Monitor 2578HB6 ann 10/20/09
ThinkVision L2440p Wide 24" Monitor 4420HB2 ann 09/17/08

More information at www.lenovo.com/thinkvision

Monitor Accessories

46

Lenovo USB-to-DVI Monitor Adapter 45K5296 ann 05/12/09
ThinkVision USB Soundbar 40Y7616 ann 08/23/05
ThinkVision Soundbar 45K1263 ann 09/16/08
Kensington MicroSaver Cable Lock56 73P2582 ann 12/29/03
Kensington Twin Head Cable Lock56 45K1620 ann 09/30/08
Radial Arm 19K4464 ann 05/05/00

46

Compatible on selected Lenovo and ThinkVision monitors.

More information at www.lenovo.com/support/monitoraccessories

Medialess License Key (MLK)

Microsoft® Offi ce 2007 Basic, English 43R1528 ann 07/03/07
Microsoft Offi ce 2007 Small Business, Engl 43R1534 ann 07/03/07
Microsoft Offi ce 2007 Professional, English 43R1531 ann 07/03/07

For more information on desktop accessories, please visit:

www.lenovo.com/support/accessories
www.lenovo.com/support/desktopaccessories
www.lenovo.com/support/security

Other accessories at www.lenovo.com/accessories

Accessories Guide pdf at

www.lenovo.com/accessoriesguide

(O-M58E) July 2009

© Lenovo

Lenovo ThinkCentre M58 and M58p Eco Ultra Small, Small, Tower

Lenovo ThinkCentre M58 Eco Ultra Small

Lenovo ThinkCentre M58 Small

Lenovo ThinkCentre M58 Eco Ultra Small

with dual Lenovo ThinkVision monitors

Lenovo ThinkCentre M58 Small

with Lenovo ThinkVision monitor

Lenovo ThinkCentre M58 Tower

Lenovo ThinkCentre M58 Tower

with dual Lenovo ThinkVision monitors

ThinkCentre® M58 Eco Ultra Small (8820) - TopS (XP with Win 7 License)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Preload

Global

Educ

Avail

dateName

M58 8820-ANU 1x2 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES50 None XP Pro None Nov 09

• This small and medium business (SMB) model is part of the US TopSeller ™ Program

• This model has a 3-year limited warranty

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

Intel® Core™ 2 Duo Processor E7500 with dual-core,

1066MHz system bus, and 3MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,
dual-channel capable, two 204-pin SODIMM sockets
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® ( DVD±RW)

®

®

(DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

non-parity,

(notebook)

dampening mounts

Eco Ultra Small

Bay ① 5.25", 1.6" high, access, std optical

;

Bay ② 3.5", 1" high, no access, std disk

optical

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

disk

9

3

, 8 am - 5 pm,

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced November 3, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-9) November 2009

ThinkCentre® M58 Eco Ultra Small (8820) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Win7

preload

Global

Educ

Avail

dateName

M58 8820-AQU 1x2 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES50 None Pro 32 None Jan 10

• This small and medium business (SMB) model is part of the US TopSeller ™ Program

• This model has a 3-year limited warranty

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

Intel® Core™ 2 Duo Processor E7500 with dual-core,

1066MHz system bus, and 3MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,
dual-channel capable, two 204-pin SODIMM sockets
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

- Genuine Windows® 7 Professional 32

Preloaded applications

5

(only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

®

(DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

non-parity,

(notebook)

dampening mounts

Eco Ultra Small

Bay ① 5.25", 1.6" high, access, std optical

;

Bay ② 3.5", 1" high, no access, std disk

optical

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR
GREENGUARD® certifi ed

®

5.0-compliant

RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

disk

9

3

, 8 am - 5 pm,

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced January 12, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-23) January 2010

ThinkCentre® M58 Eco Ultra Small (7359) - January 2009

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Preload

Global

Educ

M58 7359-B5U 1x2 Pentium E5300 2.60 2 2GB 160GB2 DVD GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09
M58 7359-B8U 1x2 Pentium E5300 2.60 2 2GB 160GB DVD±RW GMA VGA, DP ES50 No XP Pro Apr 09

☞

M58 7359-B1U 1x2 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

✂
✂

M58 7359-B2U 1x2 Core 2 Duo E7400 2.80 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

M58 7359-B3U 1x2 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09
M58 7359-B4U 1x2 Core 2 Duo E7500 2.93 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

✂

M58 7359-B6U 1x2 Core 2 Duo E7400 2.80 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES50 No Bus32 Gbl Feb 09

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor E5300 with dual-core,

1

Eco Ultra Small

optical

disk

800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

Graphics

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Some: Genuine Windows® XP
Professional (preinstalled via
downgrade rights in Windows
Vista® Business)

- Some: Genuine Windows Vista
Business 32
✧ Vista models: Vista Premium logo

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager (Vista)

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
☞ US model announced April 7, 2009; previous models on January 20, 2009

1066MHz system bus, and 3MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,
dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

(notebook)

non-parity,

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(XP Pro models: up to 512MB [1GB models], 1GB [2GB models];
Vista models: up to 765MB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display
Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

1

9

7

1

(MLAN2-2) April 2009

© Leno

✂ US models withdrawn effective October 2009

Avail

dateName

vo

ThinkCentre® M58 Eco Ultra Small (7359) - XP with Win 7 License

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Preload

Global

Educ

M58 7359-DUU 1x2 Pentium E6300 2.80 2 2GB 250GB2 DVD GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Oct 09
M58 7359-DVU 1x2 Pentium E6300 2.80 2 2GB 250GB DVD±RW GMA VGA, DP ES50 No XP Pro Oct 09

M58 7359-DWU 1x2 Pentium E6300 2.80 2 2GB 250GB DVD±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Educ Oct 09

✂

1

Eco Ultra Small

optical

disk

Positioning
Processor

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor E6300 with dual-core,

Virtualization Technology, 1066MHz system bus,

Implementation

Memory

Graphics

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource™ Library School Edition

- Adobe® Elements

− Photoshop Elements 6

− Premiere Elements 4

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 22, 2009

and 2MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,
dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

non-parity,

(notebook)

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display
Some: DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN4-1) October 2009

1

9

7

1

© Leno

✂ US model withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58 Eco Ultra Small (7359) - Windows 7

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Win7

preload

Global

Educ

Avail

dateName

M58 7359-F5U 1x2 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 No Pro 32 None Jan 10

• This model has a 3-year limited warranty

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E7500 with dual-core,

Intel

1066MHz system bus, and 3MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

- Genuine Windows® 7 Professional 32

Preloaded applications5

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US model announced December 15, 2009

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

non-parity,

(notebook)

dampening mounts

Eco Ultra Small

Bay ① 5.25", 1.6" high, access, std optical

;

Bay ② 3.5", 1" high, no access, std disk

optical

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR
GREENGUARD® certifi ed

®

5.0-compliant

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period
via 800-426-7378

™ part number 41C9192)

(MLAN4-17) December 2009

disk

1

3

, 8 am - 5 pm,

7

14

toll-free support

1

© Lenovo

9

ThinkCentre® M58 Eco Ultra Small (7637) - GMP (Windows 7)

Personal Systems Reference (PSREF)

Type-model

Slot x

bay

Processor Memory

GHz

Cores

SATA

8

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Win 7

preload

Global (G)

GMP (P)

Avail

dateName

M58 7637-A2U 1x2 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES50 No Pro 32 G P Nov 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache
Processor in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US model announced November 3, 2009

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical

;

Bay ② 3.5", 1" high, no access, std disk
Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

dampening mounts

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

14

toll-free support

(MLAN4-10) November 2009

1

9

7

1

© Lenovo

ThinkCentre® M58 Small (8910) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Slot x

bay

☞

M58 8910-APU 2x3 Pentium E5400 2.70 2 2GB 250GB2 DVD ±RW GMA VGA, DP None No XP Pro No Jan 10

✂

M58 8910-ALU 2x3 Pentium E6300 2.80 2 2GB 250GB DVD ±RW GMA VGA, DP None Switch No XP Pro No Nov 09

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel

vPro

Preload

Global

Educ

M58 8910-AMU 2x3 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW GMA VGA, DP None No XP Pro No Nov 09

Positioning
Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Pentium® Processor E5400 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Pentium Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

5

Preloaded applications

• Rescue and Recovery™

(only some listed)

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio

Creator® Business Edition

(DVD±RW)

• Roxio MyDVD

®

• Corel

WinDVD® ( DVD±RW)

®

®

(DVD±RW)

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
☞ US model announced December 15, 2009; previous models on November 3, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Leno

(MLAN4-11) December 2009

✂ US model withdrawn effective January 2010

Avail

dateName

vo

ThinkCentre® M58 Small (8910) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Intel

vPro

Win7

preload

Global

Educ

Avail

dateName

M58 8910-AQU 2x3 Pentium E5400 2.70 2 2GB 250GB2 DVD ±RW GMA VGA, DP None None Pro 32 None Jan 10
M58 8910-ARU 2x3 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW GMA VGA, DP None None Pro 32 None Jan 10

Positioning
Processor

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Pentium® Processor E5400 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 12, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-24) January 2010

ThinkCentre® M58 Small (7360) - January 2009

Personal Systems Reference (PSREF)

Slot x

bay

M58 7360-D8U 2x3 Pentium E5300 2.60 2 1GB 160GB2 DVD GMA VGA, DP DP-to-DVI-D No XP Pro Apr 09

✂

M58 7360-BVU 2x3 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No XP Pro Feb 09

✂

M58 7360-BWU 2x3 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP No XP Pro Feb 09

✂

M58 7360-D4U 2x3 Core 2 Duo E7400 2.80 2 1GB 160GB DVD ±RW GMA VGA, DP No XP Pro Feb 09

✂

M58 7360-D1U 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No XP Pro Feb 09

✂

M58 7360-D5U 2x3 Core 2 Duo E7400 2.80 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D No XP Pro Feb 09

✂

M58 7360-D2U 2x3 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP No XP Pro Feb 09

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

M58 7360-D3U 2x3 Core 2 Duo E7500 2.93 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No XP Pro Feb 09

M58 7360-D6U 2x3 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D No XP Pro Feb 09

✂

M58 7360-D7U 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D No Bus32 Gbl Feb 09

✂

Positioning
Processor

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Pentium® Processor E5300 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

1

Small

optical

disk

(in rear)

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(XP Pro: up to 512MB [1GB models], 1GB [2GB models];
Vista: up to 765MB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Some: Genuine Windows® XP
Professional (preinstalled via
downgrade rights in Windows
Vista® Business)

- Some: Genuine Windows Vista
Business 32
✧ Vista models: Vista Premium logo

Preloaded applications5 (all OSes; only

some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage Power Manager (Vista)

• McAfee® VirusScan® Plus (30-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced January 20 or April 7, 2009

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16*
Slot 2: Low Profi le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-5) April 2009

9

1

© Leno

✂ US models withdrawn effective October or December 2009

Avail

dateName

vo

ThinkCentre® M58 Small (7360) - XP with Win 7 License

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

M58 7360-EFU 2x3 Pentium E6300 2.80 2 1GB 250GB2 DVD GMA VGA, DP DP-to-DVI-D None XP Pro Nov 09
M58 7360-EDU 2x3 Pentium E6300 2.80 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D None XP Pro Nov 09

✂

M58 7360-EGU 2x3 Pentium E6300 2.80 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D None XP Pro Educ Nov 09

M58 7360-DBU 2x3 Core 2 Quad Q8400 2.66 4 2GB 250GB DVD ±RW GMA VGA, DP None XP Pro Nov 09
M58 7360-ECU 2x3 Core 2 Quad Q8400 2.66 4 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D None XP Pro Nov 09

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Pentium® Processor E6300 with dual-core,

Intel

Virtualization Technology, 1066MHz system bus,

1

Small

optical

disk

(in rear)

and 2MB L2 cache or
Intel Core™ 2 Quad Processor Q8400 with quad-core,
Virtualization Technology, 1333MHz system bus,

Implementation

Memory

and 4MB L2 cache
Processor in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
Some: DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource™ Library School Edition

- Adobe® Elements

− Photoshop Elements 6

− Premiere Elements 4

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 22, 2009

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB FX 370 LP 55Y9275
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16*
Slot 2: Low Profi le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN4-2) October 2009

9

1

© Leno

✂ US model withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58 Small (7360) - Windows 7

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Intel

vPro

Win7

preload

Global

Educ

Avail

dateName

M58 7360-EHU 2x3 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D None Pro 32 None Jan 10

• This model has a 3-year limited warranty

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E7500 with dual-core,

Intel

1066MHz system bus, and 3MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US model announced December 15, 2009

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB FX 370 LP 55Y9275
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

dampening mounts

Small

optical

disk

(in rear)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN4-18) December 2009

9

1

© Lenovo

ThinkCentre® M58 Small (6258) - ENERGY STAR® 5.0 (January 2009)

Personal Systems Reference (PSREF)

Slot x

bay

M58 6258-AJU 2x3 Pentium E5300 2.60 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

✂

M58 6258-AKU 2x3 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP ES50 No XP Pro Feb 09

✂

M58 6258-AMU 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

✂

M58 6258-APU 2x3 Core 2 Duo E7400 2.80 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

✂

M58 6258-ALU 2x3 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP ES50 No XP Pro Feb 09

✂

M58 6258-ANU 2x3 Core 2 Duo E7500 2.93 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

✂

M58 6258-AQU 2x3 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES50 No XP Pro Feb 09

✂

M58 6258-ASU 2x3 Pentium E5300 2.60 2 1GB 160GB DVD GMA VGA, DP DP-to-DVI-D ES50 No Bus32 Apr 09

✂

M58 6258-ARU 2x3 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 No Bus32 Gbl Feb 09

Positioning
Processor

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Pentium® Processor E5300 with dual-core,

Intel

800MHz system bus, and 2MB L2 cache or

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

Graphics

optical

1

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Small

vPro

optical

Intel

Preload

disk

(in rear)

Global

Educ

Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(XP Pro: up to 512MB [1GB models], 1GB [2GB models];
Vista: up to 253MB [1GB model], 765MB [2GB model]),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond

®

WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Some: Genuine Windows® XP
Professional (preinstalled via
downgrade rights in Windows
Vista® Business)

- Some: Genuine Windows Vista
Business 32
✧ Vista models: Vista Premium logo

Preloaded applications5 (all OSes; only
some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage System Update

• ThinkVantage Power Manager (Vista)

• McAfee® VirusScan® Plus (30-day)

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced January 20 or April 7, 2009

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16*
Slot 2: Low Profi le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-6) April 2009

9

1

© Leno

✂ US models withdrawn effective October or December 2009

Avail

dateName

vo

ThinkCentre® M58 Small (6258) - ES 5.0 (XP with Win 7 License)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Preload

Global

Educ

Avail

dateName

M58 6258-B1U 2x3 Pentium E6300 2.80 2 1GB 250GB2 DVD GMA VGA, DP DP-to-DVI-D ES50 No XP Pro No Oct 09
M58 6258-AWU 2x3 Pentium E6300 2.80 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro No Oct 09
M58 6258-AVU 2x3 Core 2 Quad Q8400 2.66 4 2GB 250GB DVD ±RW GMA VGA, DP ES50 No XP Pro No Oct 09

1

Small

optical

disk

(in rear)

Positioning
Processor

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Pentium® Processor E6300 with dual-core,

Intel

Virtualization Technology, 1066MHz system bus,
and 2MB L2 cache or
Intel Core™ 2 Quad Processor Q8400 with quad-core,
Virtualization Technology, 1333MHz system bus,

Implementation

Memory

and 4MB L2 cache
Processor in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
Some: DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 22, 2009

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN4-3) October 2009

9

1

© Lenovo

ThinkCentre® M58 Small (7638) - GMP (August 2009)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Vista

preload

Global (G)

GMP (P)

Avail

dateName

M58 7638-A2U 2x3 Core 2 Duo E7500 2.93 2 1GB 160GB2 DVD GMA VGA, DP None None Bus32 G P Aug 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E7500 with dual-core,

Intel

1066MHz system bus, and 3MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

1GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 253MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Corel® WinDVD® (DVD)

See footnotes for important warranty information
US model announced July 14, 2009

Small

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

dampening mounts

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB FX 370 LP 55Y9275
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN3-12) August 2009

9

1

© Lenovo

ThinkCentre® M58 Tower (9960) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Preload

Global

Educ

Avail

date

M58 9960-AKU 4x4 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP None None XP Pro None Nov 09

• This small and medium business (SMB) model is part of the US TopSeller ™ Program

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

Intel® Core™ 2 Duo Processor E7500 with dual-core,

1066MHz system bus, and 3MB L2 cache

Implementation

Memory

Processor in LGA775 socket

2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors

and one eSATA connector on planar
eSATA port
Diskette drive
Media reader

Chipset

None

None

None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10

Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,

ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)

Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),

monitor (VGA DB-15, DisplayPort)
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)

Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)

High Defi nition (HD) Audio, Analog Devices AD1882 codec

One internal speaker for business audio

Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0

None

None

Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo

Optical Wheel Mouse (USB connector), black, Lenovo logo

280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

5

(only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio
(DVD±RW)

• Roxio MyDVD

®

VirusScan® Plus

®

®

Creator® Business Edition

®

(DVD±RW)

• Corel® WinDVD® ( DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced November 3, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-12) November 2009

ThinkCentre® M58 Tower (9960) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Win7

preload

Global

Educ

Avail

date

M58 9960-ALU 4x4 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP None None Pro 32 None Jan 10

• This small and medium business (SMB) model is part of the US TopSeller ™ Program

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

Intel® Core™ 2 Duo Processor E7500 with dual-core,

1066MHz system bus, and 3MB L2 cache
Implementation

Memory

Processor in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),

integrated graphics in Q45, uses main memory (up to 765MB),

one analog VGA DB-15 connector, one DisplayPort™ connector

(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,

supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

250GB, SATA 3.0Gb/s 7200 rpm, vibration

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors

and one eSATA connector on planar
eSATA port
Diskette drive
Media reader

Chipset

None

None

None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10

Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,

ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)

Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),

monitor (VGA DB-15, DisplayPort)
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)

Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)

High Defi nition (HD) Audio, Analog Devices AD1882 codec

One internal speaker for business audio

Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0

None

None

Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo

Optical Wheel Mouse (USB connector), black, Lenovo logo

280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced January 12, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-25) January 2010

ThinkCentre® M58 Tower (7373) - January 2009

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

✂

M58 7373-D3U 4x4 Pentium E5300 2.60 2 1GB 160GB2 DVD GMA VGA, DP None XP Pro Apr 09

M58 7373-BTU 4x4 Pentium E5300 2.60 2 2GB 160GB DVD ±RW GMA VGA, DP None XP Pro Feb 09

✂

M58 7373-BUU 4x4 Core 2 Duo E7400 2.80 2 1GB 160GB DVD GMA VGA, DP None XP Pro Feb 09

✂

M58 7373-BWU 4x4 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D None XP Pro Feb 09

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

M58 7373-BVU 4x4 Core 2 Duo E7500 2.93 2 1GB 160GB DVD GMA VGA, DP None XP Pro Feb 09
M58 7373-D1U 4x4 Core 2 Duo E7500 2.93 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D None XP Pro Feb 09

M58 7373-D2U 4x4 Core 2 Duo E7400 2.80 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D None Bus32 Gbl Feb 09

✂

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor E5300 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7400 or E7500 with dual-core,

Implementation

Memory

1066MHz system bus, and 3MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(XP Pro models: up to 512MB [1GB models], 1GB [2GB models];
Vista models: up to 765MB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
Some: DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and
one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Some: Genuine Windows® XP
Professional (preinstalled via
downgrade rights in Windows
Vista® Business)

- Some: Genuine Windows Vista
Business 32
✧ Vista models: Vista Premium logo

Preloaded applications5 (all OSes)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager (Vista)

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio
(DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information
US models announced January 20 or April 7, 2009

Creator® Business Edition

®

WinDVD® (DVD, DVD±RW)

®

®

(DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1

dampening mounts

®

256MB NVS 290 43R1765

Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

1

9

7

1

(MLAN2-8) April 2009

© Leno

✂ US models withdrawn effective October or December 2009

Avail

date

vo

ThinkCentre® M58 Tower (7373) - XP with Win 7 License

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Preload

Global

Educ

M58 7373-E5U 4x4 Pentium E6300 2.80 2 1GB 250GB2 DVD GMA VGA, DP None XP Pro Nov 09
M58 7373-E6U 4x4 Pentium E6300 2.80 2 2GB 250GB DVD ±RW GMA VGA, DP None XP Pro Nov 09

M58 7373-E7U 4x4 Pentium E6300 2.80 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D None XP Pro Educ Nov 09

✂

M58 7373-E4U 4x4 Core 2 Quad Q8400 2.66 4 2GB 320GB DVD ±RW GMA VGA, DP None XP Pro Nov 09
M58 7373-E3U 4x4 Core 2 Quad Q8400 2.66 4 2GB 320GB DVD ±RW 3470 VGA, DP DP-to-DVI-D None XP Pro Nov 09

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

Intel® Pentium® Processor E6300 with dual-core,
Virtualization Technology, 1066MHz system bus,
and 2MB L2 cache or
Intel Core™ 2 Quad Processor Q8400 with quad-core,
Virtualization Technology, 1333MHz system bus,
and 4MB L2 cache

Implementation

Memory

Processor in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort
connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables

Some: DisplayPort to Single-link DVI-D Cable

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar

eSATA port
Diskette drive
Media reader

Chipset

None
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource™ Library School Edition

- Adobe® Elements

− Photoshop Elements 6

− Premiere Elements 4

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition

®

(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 22, 2009

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

dampening

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)*

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN4-4) October 2009

1

9

7

1

© Leno

✂ US model withdrawn effective December 2009

Avail

date

vo

ThinkCentre® M58 Tower (7373) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Win7

preload

Global

Educ

Avail

date

M58 7373-EGU 4x4 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D None Pro 32 None Jan 10

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

Intel® Core™ 2 Duo Processor E7500 with dual-core,

1066MHz system bus, and 3MB L2 cache

Implementation

Memory

Processor in LGA775 socket

2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar

eSATA port
Diskette drive
Media reader

Chipset

None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA
NVIDIA Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced December 15, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-19) December 2009

ThinkCentre® M58 Tower (9728) - ES 5.0 (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

date

M58 9728-A6U 4x4 Pentium E6300 2.80 2 2GB 250GB2 DVD ±RW GMA VGA, DP ES50 No XP Pro No Oct 09
M58 9728-A7U 4x4 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 No XP Pro No Oct 09
M58 9728-A8U 4x4 Core 2 Duo E7500 2.93 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES50 No XP Pro No Oct 09

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

Intel® Pentium® Processor E6300 with dual-core,
Virtualization Technology, 1066MHz system bus,
and 2MB L2 cache or
Intel Core™ 2 Duo Processor E7500 with dual-core,
Virtualization Technology, 1066MHz system bus,

Implementation

Memory

and 3MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
Some: DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information
US models announced October 22, 2009

®

®

(DVD±RW)

WinDVD® ( DVD±RW)

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

dampening mounts

®

256MB NVS 290 43R1765

* used in some models

optical

②

③

disk

(75w max)

*

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN4-5) October 2009

1

9

7

1

© Lenovo

ThinkCentre® M58 Tower (9728) - ENERGY STAR® 5.0 (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Win7

preload

Global

Educ

Avail

date

M58 9728-A5U 4x4 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES50 No Pro 32 Gbl Oct 09

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

Intel® Core™ 2 Duo Processor E7500 with dual-core,

Virtualization Technology, 1066MHz system bus,

Implementation

Memory

and 3MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

®

• Roxio

(DVD±RW)

Creator® Business Edition

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA
NVIDIA Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open

dampening mounts

Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced October 22, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-6) October 2009

ThinkCentre® M58 Tower (7639) - GMP (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Win 7

preload

Global (G)

GMP (P)

Avail

date

M58 7639-A1U 4x4 Core 2 Duo E7500 2.93 2 2GB 250GB2 DVD ±RW GMA VGA, DP None None Pro 32 G P Nov 09

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

Intel® Core™ 2 Duo Processor E7500 with dual-core,

1066MHz system bus, and 3MB L2 cache

Implementation

Memory

Processor in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar

eSATA port
Diskette drive
Media reader

Chipset

None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
None
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

®

• Roxio
(DVD±RW)

• Roxio MyDVD

See footnotes for important warranty information
US model announced November 3, 2009

Creator® Business Edition

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

dampening mounts

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA
NVIDIA Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

14

toll-free support

(MLAN4-13) November 2009

9

1

© Lenovo

ThinkCentre® M58p Eco Ultra Small (9961) - TopS (XP with Win 7 License)

Monitor

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

conn

DisplayPort

dongle

Personal Systems Reference (PSREF)

ENERGY
STAR 5.0

Intel

vPro

Preload

M58p 9961-AKU 1x2 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES50 vPro XP Pro No Nov 09

Global

Educ

Avail

dateName

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This small and medium business (SMB) model is part of the US TopSeller

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache

Implementation

Memory

Processor in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD

• Corel

®

®

(DVD±RW)

WinDVD® ( DVD±RW)

See footnotes for important warranty information
US model announced November 3, 2009

1

™ Program

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

dampening mounts

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-14) November 2009

ThinkCentre® M58p Eco Ultra Small (9961) - TopSeller (Windows 7)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Personal Systems Reference (PSREF)

ENERGY
STAR 5.0

Intel

vPro

Win7

preload

M58p 9961-ALU 1x2 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES50 vPro Pro 32 No Jan 10

Global

Educ

Avail

dateName

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This small and medium business (SMB) model is part of the US TopSeller

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache

Implementation

Memory

Processor in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

See footnotes for important warranty information
US model announced January 12, 2010

1

™ Program

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

dampening mounts

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR
GREENGUARD® certifi ed

®

5.0-compliant

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-26) January 2010

ThinkCentre® M58p Eco Ultra Small (7479)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel
vPro

Vista

preload

Global

Educ

M58p 7479-A4U 1x2 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP ES50 vPro Bus32 No Dec 08

M58p 7479-A3U 1x2 Core 2 Duo E8400 3.00 2 1GB 250GB DVD±RW GMA VGA, DP ES50 vPro Bus32 No Dec 08

✂

M58p 7479-A6U 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB DVD±RW GMA VGA, DP ES50 vPro Bus32 No Dec 08
M58p 7479-A8U 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES50 vPro Bus32 No Dec 08

✂

M58p 7479-A9U 1x2 Core 2 Duo E8500 3.16 2 1GB 160GB DVD GMA VGA, DP ES50 vPro Bus32 No Dec 08

M58p 7479-ABU 1x2 Core 2 Duo E8500 3.16 2 2GB 160GB DVD±RW GMA VGA, DP ES50 vPro Bus32 No Dec 08
M58p 7479-ACU 1x2 Core 2 Duo E8500 3.16 2 2GB 250GB DVD±RW GMA VGA, DP DP-to-DVI-D ES50 vPro Bus32 No Dec 08

Positioning
Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Eco Ultra Small

optical

disk

and 6MB L2 cache

Implementation

Memory

Graphics

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced November 11, 2008

Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 4GB max8,
dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

(notebook)

non-parity,

Italics: standard memory in both sockets; no sockets available;
Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 253MB [1GB models], 765MB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display
Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988

5

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625

®

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-20) November 2008

1

9

7

1

© Leno

✂ US models withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58p Eco Ultra Small (7479) - April 2009

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

dateName

M58p 7479-AJU 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Apr 09
M58p 7479-AKU 1x2 Core 2 Duo E8500 3.16 2 2GB 160GB DVD±RW GMA VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Apr 09

Positioning
Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Eco Ultra Small

optical

disk

and 6MB L2 cache

Implementation

Memory

Graphics

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista® Business)

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

See footnotes for important warranty information
US models announced April 7, 2009

Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,
dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

non-parity,

(notebook)

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
More accessories on O-M58 sheet

®

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN2-11) April 2009

1

9

7

1

© Lenovo

ThinkCentre® M58p Eco Ultra Small (7479) - Windows 7

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Win7

preload

Global

Educ

Avail

dateName

M58p 7479-B9U 1x2 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 vPro Pro 32 None Jan 10

Positioning
Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model has a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Eco Ultra Small

optical

disk

and 6MB L2 cache

Implementation

Memory

Graphics

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US model announced December 15, 2009

Processor in LGA775 socket

2GB std, 4GB max8,
dual-channel capable, two 204-pin SODIMM sockets

PC3-8500 1066MHz DDR3,

non-parity,

(notebook)

Non-italics: standard memory in one socket; one socket available

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
More accessories on O-M58 sheet

®

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR
GREENGUARD® certifi ed

®

5.0-compliant

RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN4-20) December 2009

1

9

7

1

© Lenovo

ThinkCentre® M58p Eco Ultra Small (6136) - GMP

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Personal Systems Reference (PSREF)

ENERGY
STAR 5.0

Intel
vPro

Vista

preload

M58p 6136-A1U 1x2 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None ES50 vPro Bus32 G P Dec 08

Global (G)

GMP (P)

Avail

dateName

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache

Implementation

Memory

Processor in FC-LGA8 package in LGA775 socket

2GB std, 4GB max8,

PC3-8500 1066MHz DDR3,

dual-channel capable, two 204-pin SODIMM sockets
Non-italics: standard memory in one socket; one socket available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports
Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

See footnotes for important warranty information
US model announced November 11, 2008

Eco Ultra Small

non-parity,

(notebook)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

;

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 10.8" W X 9.4" D X 3.1" H

• 275mm W X 238mm D X 80mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

dampening mounts

• Toolless disk and optical drive removal

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- security slot and cover release button
are combined into one latch for
improved chassis security

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Individual USB port disablement

• Chassis intrusion switch

Supports ThinkVantage® technologies

EPEAT™ Gold rating
ENERGY STAR

®

5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN1-21) November 2008

9

1

© Lenovo

ThinkCentre® M58p Small (9964) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

Avail

dateName

M58p 9964-A7U 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 09
M58p 9964-A8U 2x3 Core 2 Quad Q9400 2.66 4 4GB 320GB DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 09

Positioning
Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Small

™ Program

optical

disk

(in rear)

and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB or 4GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

See footnotes for important warranty information
US models announced November 3, 2009

PC3-8500 1066MHz DDR3,

dampening

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB FX 370 LP 55Y9275
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN4-15) November 2009

9

1

© Lenovo

ThinkCentre® M58p Small (9964) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

connectors

DisplayPort

dongle

Intel

vPro

Win7

preload

Global

Educ

Avail

dateName

M58p 9964-ABU 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP None vPro Pro 32 None Jan 10
M58p 9964-ACU 2x3 Core 2 Quad Q9400 2.66 4 4GB 320GB DVD ±RW GMA VGA, DP None vPro Pro 32 None Jan 10

Positioning
Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Small

™ Program

optical

disk

(in rear)

and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB or 4GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 765MB [2GB models] or 1759MB [4GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

See footnotes for important warranty information
US models announced January 12, 2010

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA

Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB FX 370 LP 55Y9275
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN4-27) January 2010

9

1

© Lenovo

ThinkCentre® M58p Small (7483)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel

vPro

Vista

preload

Global

Educ

M58p 7483-AEU 2x3 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP vPro Bus32 Nov 08
M58p 7483-AFU 2x3 Core 2 Duo E8400 3.00 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

✂

M58p 7483-A7U 2x3 Core 2 Duo E8400 3.00 2 1GB 250GB DVD ±RW GMA VGA, DP Switch vPro Bus32 Nov 08

M58p 7483-ACU 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Nov 08

✂

M58p 7483-AGU 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Educ Nov 08

M58p 7483-AHU 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

M58p 7483-AJU 2x3 Core 2 Duo E8500 3.16 2 1GB 250GB DVD GMA VGA, DP vPro Bus32 Nov 08

✂

M58p 7483-AKU 2x3 Core 2 Duo E8500 3.16 2 2GB 160GB DVD 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

✂

M58p 7483-ALU 2x3 Core 2 Duo E8500 3.16 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

M58p 7483-AMU 2x3 Core 2 Duo E8500 3.16 2 2GB 250GB DVD ±RW 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08
M58p 7483-ANU 2x3 Core 2 Quad Q9400 2.66 4 2GB 160GB DVD ±RW 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

Positioning
Processor

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Small

optical

disk

(in rear)

and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 253MB [1GB models], 765MB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource™ Library School Edition

- Adobe® Elements

− Photoshop Elements 6

− Premiere Elements 4

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 21, 2008

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16*
Slot 2: Low Profi le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN1-4) October 2008

1

9

7

1

© Leno

✂ US models withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58p Small (7483) - April 2009

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Intel
vPro

Preload

Global

Educ

Avail

dateName

M58p 7483-B1U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D vPro XP Pro None Apr 09
M58p 7483-B2U 2x3 Core 2 Duo E8500 3.16 2 2GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro XP Pro None Apr 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista® Business)

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

dampening mounts

Small

optical

disk

(in rear)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at

See footnotes for important warranty information
US models announced April 7, 2009

lenovo.com/thinkplus/warranty

➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN2-12) April 2009

ThinkCentre® M58p Small (7483) - Windows 7

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Intel
vPro

Win7

preload

Global

Educ

Avail

dateName

M58p 7483-BRU 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Pro 32 None Jan 10

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model has a 3-year limited warranty

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB FX 370 LP 55Y9275
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

dampening mounts

Small

optical

disk

(in rear)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at

See footnotes for important warranty information
US model announced December 15, 2009

lenovo.com/thinkplus/warranty

➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-21) December 2009

ThinkCentre® M58p Small (7220) - ENERGY STAR® 5.0

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Vista

preload

Global

Educ

M58p 7220-A6U 2x3 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP ES50 vPro Bus32 No Nov 08
M58p 7220-A7U 2x3 Core 2 Duo E8400 3.00 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D ES50 vPro Bus32 No Nov 08
M58p 7220-A8U 2x3 Core 2 Duo E8500 3.16 2 1GB 250GB DVD GMA VGA, DP ES50 vPro Bus32 No Nov 08

M58p 7220-A9U 2x3 Core 2 Duo E8500 3.16 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D ES50 vPro Bus32 No Nov 08

✂

M58p 7220-ABU 2x3 Core 2 Duo E8500 3.16 2 2GB 250GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 vPro Bus32 No Nov 08

Positioning
Processor

Implementation

Memory

Graphics

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced October 21, 2008

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 or E8500 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

1

Small

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),

integrated graphics in Q45, uses main memory
(up to 253MB [1GB models], 765MB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort
connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), two SATA connectors on planar
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16*
Slot 2: Low Profi le, 32-bit PCI 2.3

* used in some models

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

280 watts with variable speed fan, autosensing, 85% PSU

20

5

®

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

optical

disk

(in rear)

Limited Warranty1

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-6) October 2008

9

1

© Leno

✂ US model withdrawn effective December 2009

Avail

dateName

vo

ThinkCentre® M58p Small (7220) - ENERGY STAR® 5.0 (April 2009)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0 Preload

Intel

vPro

Global

Educ

Avail

dateName

M58p 7220-AGU 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Apr 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model has a 3-year limited warranty

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista® Business)

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

See footnotes for important warranty information
US model announced April 7, 2009

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Small

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

dampening mounts

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

®

Quadro® 256MB NVS 290 43R1765

optical

disk

(in rear)

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN2-13) April 2009

9

1

© Lenovo

ThinkCentre® M58p Small (6137) - GMP

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

SATA

8

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel

vPro

Vista

preload

Global (G)

GMP (P)

M58p 6137-A2U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD GMA VGA, DP None vPro Bus32 G P Jan 09
M58p 6137-A1U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP None Switch vPro Bus32 G P Nov 08

☞

M58p 6137-A3U 2x3 Core 2 Duo E8400 3.00 2 3GB 160GB DVD GMA VGA, DP None Switch vPro Bus32 G P Mar 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models are part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Implementation

Memory

Graphics

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,

Small

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB or 3GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Italics: standard memory in two sockets; two sockets available

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 765MB [2GB models], 1277MB [3GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

160GB, SATA 3.0Gb/s 7200 rpm, vibration

dampening mounts

Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA Drive

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, two diagnostic LEDs

20

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435

5

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

®

More accessories on O-M58 sheet

Quadro® 256MB NVS 290 43R1765

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
☞ US model announced February 17, 2009; previous models on October 21 or December 9, 2008

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

(ThinkPlus part number 41C9195)

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

3-year limited warranty

optical

disk

(in rear)

Limited Warranty1

9

3

, 8 am - 5 pm,

7

™ part number 41C9194)

• 4-year LOR 9x5, 4 hour response

• 4-year LOR 24x7, 4 hour response

14

toll-free support

(MLAN1-7) February 2009

1

© Lenovo

Avail

dateName

ThinkCentre® M58p Small (6234) - ENERGY STAR® 5.0 (GMP)

Personal Systems Reference (PSREF)

Slot x

bay

GHz Type-model Processor Memory

Cores

8

SATA

disk

SATA

optical

Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel
vPro

Vista

preload

Global (G)

GMP (P)

Avail

dateName

M58p 6234-A1U 2x3 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None ES50 vPro Bus32 G P Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Implementation

Memory

Ultimate security, stability, and manageability for the enterprise

®

Core™ 2 Duo Processor E8400 with dual-core,

Intel

Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Italics: standard memory in two sockets; two sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables
eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
One external SATA (eSATA) port
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort),
e SATA
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee® VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

®

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® (DVD±RW)

See footnotes for important warranty information
US model announced October 21, 2008

Small

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

dampening mounts

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless systemboard retention

• System fl oor stand for vertical orientation

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

NVIDIA
NVIDIA Quadro 256MB FX 370 LP 55Y9275

Quadro® 256MB NVS 290 43R1765

More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

disk

(in rear)

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver® cable)

- optional cable also locks the cover by
deactivating the cover release buttons

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Chassis intrusion switch

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9194)

14

toll-free support

(MLAN1-8) October 2008

9

1

© Lenovo

ThinkCentre® M58p Tower (9965) - TopSeller (XP with Win 7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Preload

Global

Educ

Avail

date

M58p 9965-A6U 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 09
M58p 9965-A7U 4x4 Core 2 Quad Q9400 2.66 4 4GB 320GB DVD ±RW GMA VGA, DP None vPro XP Pro None Nov 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB or 4GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD

• Corel

®

®

(DVD±RW)

WinDVD® ( DVD±RW)

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

PC3-8500 1066MHz DDR3,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1

dampening

Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro

®

256MB NVS 290 43R1765
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

™ Program

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

9

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced November 3, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-16) November 2009

ThinkCentre® M58p Tower (9965) - TopSeller (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Win7

preload

Global

Educ

Avail

date

M58p 9965-A9U 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP None vPro Pro 32 None Jan 10
M58p 9965-ABU 4x4 Core 2 Quad Q9400 2.66 4 4GB 320GB DVD ±RW GMA VGA, DP None vPro Pro 32 None Jan 10

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB or 4GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 765MB [2GB models] or 1759MB [4GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio
(DVD±RW)

• Roxio MyDVD

Creator® Business Edition

®

(DVD±RW)

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

PC3-8500 1066MHz DDR3,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3

dampening

Slot 4: half-length, full-height, 32-bit PCI 2.3

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA
NVIDIA Quadro

®

256MB NVS 290 43R1765
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

™ Program

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at

9

lenovo.com/thinkplus/warranty

➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 12, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-28) January 2010

ThinkCentre® M58p Tower (7484)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Chassis

intr switch

Intel

vPro

Vista

preload

Global

Educ

M58p 7484-A9U 4x4 Core 2 Duo E8400 3.00 2 1GB 160GB2 DVD GMA VGA, DP vPro Bus32 Nov 08
M58p 7484-AHU 4x4 Core 2 Duo E8400 3.00 2 1GB 160GB DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Bus32 Nov 08
M58p 7484-AEU 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Nov 08

M58p 7484-AGU 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

✂

M58p 7484-A8U 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB DVD ±RW GMA VGA, DP Switch vPro Bus32 Nov 08

M58p 7484-AJU 4x4 Core 2 Duo E8500 3.16 2 1GB 160GB DVD GMA VGA, DP vPro Bus32 Nov 08

✂

M58p 7484-AMU 4x4 Core 2 Duo E8500 3.16 2 2GB 160GB DVD ±RW GMA VGA, DP vPro Bus32 Educ Nov 08

✂

M58p 7484-ALU 4x4 Core 2 Duo E8500 3.16 2 2GB 250GB DVD GMA VGA, DP vPro Bus32 Nov 08

✂

M58p 7484-AKU 4x4 Core 2 Duo E8500 3.16 2 2GB 250GB DVD 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08
M58p 7484-ANU 4x4 Core 2 Quad Q9400 2.66 4 2GB 160GB DVD ±RW 3470 VGA, DP DP-to-DVI-D vPro Bus32 Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 or E8500 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

1GB or 2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory
(up to 253MB [1GB models], 765MB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk
SATA controller
S ATA DV D
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
Some: DisplayPort to Single-link DVI-D Cable

160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support

Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Two SATA cables (each 1-drop to device), three SATA connectors and
one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications5 (only some listed)

• Some: Education software

- VitalSource™ Library School Edition

- Adobe® Elements

− Photoshop Elements 6

− Premiere Elements 4

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio
(DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information
US models announced October 21, 2008

Creator® Business Edition

®

®

(DVD±RW)

WinDVD® (DVD, DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

dampening

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)*

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Some: Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ Other ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN1-12) November 2008

1

© Leno

✂ US models withdrawn effective December 2009

Avail

date

9

vo

ThinkCentre® M58p Tower (7484) - April 2009

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Intel

vPro

Preload

Global

Educ

Avail

date

M58p 7484-B2U 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D vPro XP Pro None Apr 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® XP Professional
(preinstalled via downgrade rights in
Windows Vista® Business)

Preloaded applications5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio® Creator® Business Edition
(DVD±RW)

• Roxio MyDVD® (DVD±RW)

• Corel® WinDVD® ( DVD±RW)

See footnotes for important warranty information
US model announced April 7, 2009

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)

dampening mounts

Bay ④ 3.5", 1" high, no access, std disk
Slot 1: half-length, full-height, PCIe 2.0 x16

Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

™ part number 41C9192)

14

toll-free support

(MLAN2-14) April 2009

1

9

7

1

© Lenovo

ThinkCentre® M58p Tower (7484) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

Intel

vPro

Win7

preload

Global

Educ

Avail

date

M58p 7484-D1U 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D vPro Pro 32 None Jan 10

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model has a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX® 10, supports dual independent display
DisplayPort to Single-link DVI-D Cable

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® 7 Professional 32

Preloaded applications5

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

• Roxio® Creator® Business Edition
(DVD±RW)

®

®

Offi ce 2007 Trial (60-day)

• Roxio MyDVD® (DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)

dampening mounts

Bay ④ 3.5", 1" high, no access, std disk
Slot 1: half-length, full-height, PCIe 2.0 x16

Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced December 15, 2009

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN4-22) December 2009

ThinkCentre® M58p Tower (3063) - ES 5.0 (XP with Win 7 License)

Personal Systems Reference (PSREF)

Name

Type-model

Slot x

bay

Processor

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel

vPro

Global

Educ

Avail

date

PreloadMemory

M58p 3063-B6U 4x4 Core 2 Duo E8400 3.00 2 2GB 320GB2 DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Oct 09
M58p 3063-B7U 4x4 Core 2 Duo E8400 3.00 2 2GB 320GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Oct 09
M58p 3063-B9U 4x4 Core 2 Duo E8500 3.16 2 2GB 320GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Oct 09
M58p 3063-B8U 4x4 Core 2 Duo E8500 3.16 2 2GB 320GB DVD ±RW 3470 VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Oct 09
M58p 3063-BBU 4x4 Core 2 Quad Q9400 2.66 4 4GB 320GB DVD ±RW GMA VGA, DP DP-to-DVI-D ES50 vPro XP Pro No Oct 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 or E8500 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB or 4GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Some: Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ conn,
HDCP, DirectX® 10, supports dual independent display
Some: ATI ™ Radeon™ HD 3470, PCI Express® 2.0 x16 adapter,
256MB, one analog VGA DB-15 connector, one DisplayPort

DP dongle

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

connector, HDCP, DirectX 10.1, ATI AvivoTM, 25 watts
DisplayPort to Single-link DVI-D Cable

320GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1 support
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors and
one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• McAfee

®

VirusScan® Plus

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

®

• Roxio
(DVD±RW)

• Roxio MyDVD

• Corel

See footnotes for important warranty information
US models announced October 22, 2009

Creator® Business Edition

®

WinDVD® ( DVD±RW)

®

®

(DVD±RW)

PC3-8500 1066MHz DDR3,

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

1

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

* used in some models

dampening mounts

®

256MB NVS 290 43R1765

optical

②

③

disk

(75w max)*

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

™ part number 41C9192)

14

toll-free support

(MLAN4-7) October 2009

9

1

© Lenovo

ThinkCentre® M58p Tower (6138) - GMP

Personal Systems Reference (PSREF)

Type-model Processor Memory

Name

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

connectors

DisplayPort

dongle

Intel
vPro

Vista

preload

Global (G)

GMP (P)

Avail

date

M58p 6138-A1U 4x4 Core 2 Duo E8400 3.00 2 2GB 160GB2 DVD ±RW GMA VGA, DP None vPro Bus32 G P Nov 08

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in FC-LGA8 package in LGA775 socket

2GB std, 8GB max8,
non-parity, dual-channel capable, four 240-pin DIMM sockets;
Italics: standard memory in two sockets; two sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

160GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, manual switch, two diagnostic LEDs

20

- Genuine Windows® Vista® Business 32
✧ Vista Premium logo

Preloaded applications

5

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• McAfee

(30 days of virus defi nitions)

• Lenovo System Toolbox

• Adobe® Reader

• Microsoft® Offi ce 2007 Trial (60-day)

• Roxio
(DVD±RW)

• Roxio MyDVD

• Corel

®

VirusScan® Plus

®

®

Creator® Business Edition

®

®

(DVD±RW)

WinDVD® (DVD±RW)

PC3-8500 1066MHz DDR3,

dampening mounts

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636
NVIDIA® GeForce® 9500GT 512MB (DP, DVI)45K1635
NVIDIA Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

• Chassis intrusion switch

Supports ThinkVantage® technologies

GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced October 21, 2008

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MLAN1-14) November 2008

ThinkCentre® M58p Tower (3285) - ES 5.0 (GMP) - Windows 7

Personal Systems Reference (PSREF)

Name

Type-model Processor Memory

Slot x

bay

GHz

Cores

8

SATA

disk

SATA

optical Graphics

Monitor

conn

DisplayPort

dongle

ENERGY
STAR 5.0

Intel
vPro

Win 7

preload

Global (G)

GMP (P)

Avail

date

M58p 3285-A1U 4x4 Core 2 Duo E8400 3.00 2 2GB 250GB2 DVD ±RW GMA VGA, DP None ES50 vPro Pro 32 G P Oct 09

• Intel Core 2 Processor with vPro™ Technology (includes Intel Active Management Technology)

• This model is part of the Global Models Plus (GMP) program with limited onsite service

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,

Implementation

Memory

and 6MB L2 cache
Processor in LGA775 socket

2GB std, 8GB max8,

PC3-8500 1066MHz DDR3,

non-parity, dual-channel capable, four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; 3 sockets available

Graphics

Intel Graphics Media Accelerator 4500 (GMA 4500),
integrated graphics in Q45, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector
(supports single-link DVI-D via cable 45J7915), HDCP, DirectX® 10,
supports dual independent display

SATA disk
SATA controller
S ATA DV D±RW
SATA cables

eSATA port
Diskette drive
Media reader

Chipset

250GB, SATA 3.0Gb/s 7200 rpm, vibration
Serial ATA, SATA 3.0Gb/s, integrated in ICH10DO, RAID 0/1
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), three SATA connectors
and one eSATA connector on planar
None
None
None

Intel Q45 Express Chipset (PCI Express® 2.0 x16), I/O Controller Hub 10
Digital Offi ce [ICH10DO] (SATA 3.0Gb/s with RAID 0/1 support, PCI Express x1,
ethernet MAC, PCI 2.3, USB, LPC bus), SMSC® SCH5617 Super I/O

Front ports
Rear ports

Internal connector
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), keyboard (PS/2), mouse (PS/2), ethernet (RJ-45),
monitor (VGA DB-15, DisplayPort)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Analog Devices AD1882 codec
One internal speaker for business audio
Gigabit ethernet on planar, Intel 82567LM, Wake on LAN®, ASF2.0, DASH 1.0
Intel Active Management Technology (iAMT)
None
Winbond® WPCT200 SafeKeeper™ Trusted Platform Module, TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Lenovo Online Data Backup

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Microsoft

®

• Roxio
(DVD±RW)

• Roxio MyDVD

See footnotes for important warranty information
US model announced October 22, 2009

Creator® Business Edition

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Tower

• Business black color; metal case

• 6.9" W X 17.3" D X 15.8" H

• 175mm W X 440mm D X 402mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Toolless cover removal

• Toolless disk, diskette drive,

optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)

dampening mounts

Bay ④ 3.5", 1" high, no access, std disk
Slot 1: half-length, full-height, PCIe 2.0 x16

Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Accessories

1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636

®

GeForce® 9500GT 512MB (DP, DVI)45K1635

NVIDIA
NVIDIA Quadro® 256MB NVS 290 43R1765
NVIDIA Quadro 256MB NVS 295 45K1669
More accessories on O-M58 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

3

3-year limited warranty

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Administrator password

• Hard disk password (user and master)

• Boot sequence control

• Boot without diskette, keyboard

• Serial port I/O control

• Individual USB port disablement

Supports ThinkVantage® technologies

Climate Savers®-compliant
EPEAT™ Gold rating
ENERGY STAR® 5.0-compliant
GREENGUARD® certifi ed
RoHS-compliant

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

3

, 8 am - 5 pm,

7

14

toll-free support

(MLAN4-8) October 2009

9

1

© Lenovo

ThinkCentre® M58, M58p Accessories

Partial list of accessories supported on ThinkCentre M58 and
M58p

Memory

Eco Ultra Small 8820/7359/7637/9961/7479/6136 use notebook
memory:

1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987 ann 08/05/08
1GB PC3-8500 DDR3 SODIMM (25-Pack) 51J0551 ann 03/17/09
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988 ann 08/05/08
2GB PC3-8500 DDR3 SODIMM (25-Pack) 51J0552 ann 03/17/09
1GB PC3-8500 DDR3 Low-Halogen SODIMM 55Y3706 ann 06/23/09
1GB PC3-8500 DDR3 L-H SODIMM (25-Pack) 57Y4385 ann 06/23/09
2GB PC3-8500 DDR3 Low-Halogen SODIMM 55Y3707 ann 06/23/09
2GB PC3-8500 DDR3 L-H SODIMM (25-Pack) 57Y4386 ann 06/23/09

Small 8910/7360/6258/7638/9964/7483/7220/6137/6234, and
Tower 9960/7373/6239/9965/7484/7188/6138/6209/3063/3285/9728/
7639 use desktop memory:

1GB PC3-8500 DDR3 UDIMM 45J5434 ann 11/18/08
1GB PC3-8500 DDR3 UDIMM (25-Pack) 57Y4421 ann 11/10/09
2GB PC3-8500 DDR3 UDIMM 45J5435 ann 11/18/08
2GB PC3-8500 DDR3 UDIMM (25-Pack) 57Y4422 ann 11/10/09

Optical

All:

DVD-ROM DL SATA 1.5Gb/s 16X-48X Max
Super Multi-Burner DL DVD±RW SATA Drive 41N5620 ann 09/26/06

Tower 9960/7373/6239/9965/7484/7188/6138/6209/3063/3285/9728/
7639 support:
Blu-ray™ Burner SATA 1.5Gb/s Drive 45K1675 ann 03/31/09

Storage and removable storage

160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254 ann 05/19/03
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015 ann 01/24/06
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990 ann 11/06/07
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918 ann 08/19/08

USB 2.0 Essential Memory Key 4GB 45J7904 ann 06/24/08
USB 2.0 Essential Memory Key 8GB 45J7905 ann 07/15/08
USB 2.0 Essential Memory Key 32GB 45K1258 ann 10/28/08
USB 2.0 Ultra Secure Memory Key 1GB 45J5915 ann 08/26/08
USB 2.0 Ultra Secure Memory Key 2GB 45J5916 ann 08/26/08
USB 2.0 Ultra Secure Memory Key 4GB 45J5917 ann 08/26/08
USB 2.0 Ultra Secure Memory Key 8GB 45J5918 ann 08/26/08
USB 2.0 Portable 320GB Hard Disk 45K1689 ann 03/17/09
USB 2.0 Portable 500GB Hard Disk 45K1690 ann 05/26/09
USB 2.0 Portable Secure 160GB Hard Disk 43R2018 ann 11/18/08
USB 2.0 Portable Secure 320GB Hard Disk 43R2019 ann 11/18/08
eSATA/USB 2.0 Secure 500GB Hard Drive 57Y4400 ann 01/07/10
USB 2.0 Super Multi-Burner Drive 41N5565 ann 01/23/07
USB 2.0 Portable DVD Burner 43N3264 ann 01/05/10

Graphics

Small 8910/7360/6258/7638/9964/7483/7220/6137/6234 support Low
Profi le:

ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07
AT I™ Radeon™ HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08
NVIDIA® Quadro® 256MB NVS 290 43R1765 ann 12/18/07
NVIDIA Quadro 256MB FX 370 Low-Profi le 55Y9275 ann 07/28/09

Tower 9960/7373/6239/9965/7484/7188/6138/6209/3063/3285/9728/
7639 support 75 watts max:

ADD2 DVI-D Monitor Connection (HDCP) 43R1985 ann 11/06/07
ATI Radeon HD 2600 XT 512MB 43R1963 ann 11/06/07
ATI Radeon HD 3470 256MB (DP, VGA) 45K1636 ann 11/18/08
NVIDIA GeForce® 9500 GT 512MB (DP, DVI) 45K1635 ann 11/18/08
NVIDIA Quadro 256MB NVS 290 43R1765 ann 12/18/07
NVIDIA Quadro 256MB NVS 295 45K1669 ann 04/21/09

More information at www.lenovo.com/support/graphiccards

Keyboard

Pref

erred Pro USB Keyboard 73P5220 ann 06/21/05
Preferred Pro Full Size PS/2 Keyboard 31P7415 ann 06/04/02
Enhanced Performance USB Keyboard 73P2620 ann 03/23/04
Ultraslim Wireless Keyboard and Mouse
Lenovo® USB Fingerprint Keyboard 73P4730 ann 02/22/05
Lenovo USB Smartcard Keyboard 51J0155 ann 03/24/09

52

Wireless via 2.4GHz technology using a micro-size USB receiver.

More information at www.lenovo.com/support/keyboards

4

41N5618 ann 09/26/06

52

57Y4700 ann 09/15/09

Personal Systems Reference (PSREF)

Mouse

Lenovo Mini Optical Mouse - Black (USB) 55Y9308 ann 05/19/09
Lenovo Mini Optical Mouse - White (USB) 55Y9309 ann 05/19/09
Lenovo Optical Mouse (USB) 06P4069 ann 05/21/03
Lenovo ScrollPoint® Mouse (USB, Optical) 31P7405 ann 08/27/02
Lenovo Laser Mouse (USB) 41U3074 ann 01/23/07
Lenovo Wireless Laser Mouse - Black52 45K1696 ann 11/25/08
Lenovo Wireless Laser Mouse - Red/Black52 51J0198 ann 11/25/08

More information at www.lenovo.com/support/mice

Multimedia

USB 2.0 Lenovo Multimedia Headset 40Y8518 ann 06/27/06
USB 2.0 Lenovo Webcam 40Y8519 ann 08/29/06
ThinkPad® In-Ear Headphones

57Y4488 ann 01/07/10

Security

Kensington® MicroSaver® Cable Lock56 73P2582 ann 12/29/03
Kensington Twin Head Cable Lock56 45K1620 ann 09/30/08
USB Gemplus GemPC Smart Card Reader 41N3040 ann 02/21/06

56

Attaching to any form factor not only secures the ThinkCentre to
the work area, but it also prevents users from opening the chassis
itself.

Mounting Device

Eco Ultra Small

8820/7359/7637/9961/7479/6136

support
under desk mounting device:
ThinkCentre Ultra Small Under Desk Mount 40Y8625 ann 09/06/05

Monitors

ThinkVision® L1711p 17" Monitor 5047HB2 ann 10/20/09
ThinkVision L1900p 19" Monitor 4431HE1 ann 11/11/08
ThinkVision L1951p Wide 19" Monitor 2448HB6 ann 10/20/09
ThinkVision L2250p Wide 22" Monitor 2572HB6 ann 10/20/09
ThinkVision L2251p Wide 22" Monitor 2572HD6 ann 10/20/09
ThinkVision L2251x Wide 22" Monitor 2578HB6 ann 10/20/09
ThinkVision L2440p Wide 24" Monitor 4420HB2 ann 09/17/08

More information at www.lenovo.com/thinkvision

Monitor Accessories

Eco Ultra Small

46

8820/7359/7637/9961/7479/6136 support:

Lenovo Vertical PC and Monitor Stand II 41R4474 ann 01/27/09

All:

Lenovo USB-to-DVI Monitor Adapter 45K5296 ann 05/12/09
DisplayPort™ to Single-link DVI-D Cable 45J7915 ann 08/05/08
DisplayPort to VGA Monitor Cable 57Y4393 ann 08/04/09
ThinkVision USB Soundbar 40Y7616 ann 08/23/05
ThinkVision Soundbar 45K1263 ann 09/16/08
Kensington MicroSaver Cable Lock56 73P2582 ann 12/29/03
Kensington Twin Head Cable Lock56 45K1620 ann 09/30/08
Radial Arm 19K4464 ann 05/05/00

46

Compatible on selected Lenovo and ThinkVision monitors.

More information at www.lenovo.com/support/monitoraccessories

Medialess License Key (MLK)

Microsoft

®

Offi ce 2007 Basic, English 43R1528 ann 07/03/07
Microsoft Offi ce 2007 Small Business, Engl 43R1534 ann 07/03/07
Microsoft Offi ce 2007 Professional, English 43R1531 ann 07/03/07

For more information on desktop accessories, please visit:

www.lenovo.com/support/accessories

.lenovo.com/support/desktopaccessories

www
www.lenovo.com/support/security

Other accessories at www.lenovo.com/accessories

Accessories Guide pdf at

www.lenovo.com/accessoriesguide

(O-M58) July 2009

© Lenovo

Lenovo ThinkCentre M90/M90p Eco USFF, SFF, Tower

Lenovo ThinkCentre M90/M90p Eco USFF

Lenovo ThinkCentre M90/M90p SFF

Lenovo ThinkCentre M90/M90p Eco USFF

Lenovo ThinkCentre M90/M90p SFF
with ThinkVision L2251x (2578-HB6)

Lenovo ThinkCentre M90/M90p Tower

Lenovo ThinkCentre M90/M90p Tower

ThinkCentre® M90 Eco Ultra Small (3244) - TopS (XP with Win7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

SATA

8

disk

3244-A1U 1x2 Core i3-530 2.93 2 2GB 250GB
3244-A2U 1x2 Pentium G6950 2.80 2 2GB 250GB

• The most powerful, stable, and manageable desktop with next generation Intel platform

Positioning
Processor

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,

1

Intel 64, Virtualization Technology, integrated 1066MHz
dual-channel DDR3 memory controller, 3MB cache or
Intel Core™ i3 Processor i3-530 with dual-core,
Intel 64, Hyper-Threading Technology, Virtualization Technology,
integrated 1333MHz dual-channel DDR3 memory controller,

Implementation

Memory

and 4MB cache
Processor in LGA1156 socket

2GB std, 4GB max, PC3-10600 1333MHz DDR3*,
two 204-pin SODIMM sockets (notebook);
Non-italics: standard memory in one socket; one socket available
* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

Graphics

Intel HD Graphics in processor,
HDCP, DirectX® 10**, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

** DirectX 10 is only available with Windows Vista and later
None

250GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset,
Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620

5

(only some listed)

DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

• Norton™ Internet Security 2009
(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Corel® Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

• Corel WinDVD

®

(DVD±RW)

®

(DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

SATA

optical

2

DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10

Integrated

graphics

Eco Ultra Small

Monitor

conn

™ Program

ENERGY
STAR 5.0

Intel

vPro

optical

Preload

disk

Global

Educ

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 11.0" W X 9.4" D X 3.1" H

• 279mm W X 238mm D X 79mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-7) January 2010

Avail

date

9

ThinkCentre® M90 Eco Ultra Small (3692) - XP with Win7 License

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

SATA

8

disk

3692-A1U 1x2 Pentium G6950 2.80 2 1GB 250GB
3692-A2U 1x2 Pentium G6950 2.80 2 2GB 250GB
3692-A3U 1x2 Core i3-530 2.93 2 2GB 250GB

Positioning
Processor

• Most powerful, stable, and manageable desktop with next generation Intel platform

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,

1

Intel 64, Virtualization Technology, integrated 1066MHz
dual-channel DDR3 memory controller, 3MB cache or
Intel Core™ i3 Processor i3-530 with dual-core,
Intel 64, Hyper-Threading Technology, Virtualization Technology,
integrated 1333MHz dual-channel DDR3 memory controller,

Implementation

Memory

and 4MB cache
Processor in LGA1156 socket

1GB or 2GB std, 4GB max, PC3-10600 1333MHz DDR3*,
two 204-pin SODIMM sockets (notebook);
Non-italics: standard memory in one socket; one socket available
* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

Graphics

Intel HD Graphics in processor,
HDCP, DirectX® 10**, uses main memory
(up to 512MB [1GB model], 1GB [2GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display

DP dongle

SATA disk
S ATA DV D
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

** DirectX 10 is only available with Windows Vista and later
None

250GB, SATA 3.0Gb/s 7200 rpm
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset,
Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618

5

(only some listed)

Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel

• Corel DVD MovieFactory® (DVD±RW)

• Corel WinDVD

®

Offi ce 2007 Trial (60-day)

®

Burn.Now™ (DVD±RW)

®

(DVD, DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

SATA

optical

2

DVD Intel HD VGA, DP ES50 None XP Pro None Feb 10
DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10

Integrated

graphics

Eco Ultra Small

Monitor

conn

ENERGY
STAR 5.0

Intel

vPro

optical

Preload

disk

Global

Educ

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 11.0" W X 9.4" D X 3.1" H

• 279mm W X 238mm D X 79mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

(MELB1-8) January 2010

Avail

date

9

© Lenovo

ThinkCentre® M90 Eco Ultra Small (3692) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

SATA

8

disk

3692-A4U 1x2 Core i3-530 2.93 2 2GB 250GB
3692-E7U 1x2 Pentium G6950 2.80 2 2GB 250GB

• The most powerful, stable, and manageable desktop with next generation Intel platform

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,
Intel 64, Virtualization Technology, integrated 1066MHz
dual-channel DDR3 memory controller, 3MB cache or
Intel Core™ i3 Processor i3-530 with dual-core,
Intel 64, Hyper-Threading Technology, Virtualization Technology,
integrated 1333MHz dual-channel DDR3 memory controller,

Implementation

Memory

and 4MB cache
Processor in LGA1156 socket

2GB std, 4GB max, PC3-10600 1333MHz DDR3*,
two 204-pin SODIMM sockets (notebook);
Non-italics: standard memory in one socket; one socket available
* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

Graphics

Intel HD Graphics in processor,
HDCP, DirectX® 10, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

supports dual independent display
None

250GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset,
Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe

®

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M90 sheet

Reader

®

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel

®

Offi ce 2007 Trial (60-day)

®

Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory® (DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

SATA

optical

2

DVD ±RW Intel HD VGA, DP ES50 None Pro 32 None Feb 10
DVD ±RW Intel HD VGA, DP ES50 None Pro 32 None Feb 10

1

Integrated

graphics

Eco Ultra Small

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

optical

Win7

preload

disk

Global

Educ

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 11.0" W X 9.4" D X 3.1" H

• 279mm W X 238mm D X 79mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

(MELB1-9) January 2010

9

© Lenovo

Avail

date

ThinkCentre® M90 Small (3245) - TopSeller (XP with Win7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

SATA

8

disk

SATA

optical Graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

date

3245-A1U 2x3 Core i3-530 2.93 2 2GB 250GB2 DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
3245-A2U 2x3 Pentium G6950 2.80 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
3245-A8U 2x3 Core i5-750 2.66 4 3GB 500GB DVD ±RW 310 VGA, DP ES50 None XP Pro None Feb 10

• The most powerful, stable, and manageable desktop with next generation Intel platform
™ Program

optical

disk

(in rear)

Positioning
Processor

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,

1

Small

Intel 64, Virtualization Technology, integrated 1066MHz
dual-channel DDR3 memory controller, 3MB cache or

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Intel Core™ i3 Processor i3-530 with dual-core,Intel 64,
Hyper-Threading Technology, Virtualization Technology, integrated
1333MHz dual-channel DDR3 memory controller, 4MB cache or
Intel Core i5 Processor i5-750 with quad-core,
Intel 64, Virtualization Technology, Turbo Boost Technology
(up to 3.20 GHz at max turbo mode), integrated 1333MHz
dual-channel DDR3 memory controller, 8MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3*,
four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

A1U/A2U: Intel HD Graphics in processor, HDCP, DirectX® 10**,
uses main memory (up to 1GB), one analog VGA DB-15 connector,
one DisplayPort™ connector, supports dual independent display
A8U: NVIDIA® GeForce® 310, PCIe x16 adapter, 512MB,
one analog VGA DB-15 connector, one DisplayPort connector,
HDCP, DirectX 10, NVIDIA PureVideo®, NVIDIA CUDA™, 30 watts
** DirectX 10 is only available with Windows Vista and later
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset,

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16 (75w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless system board retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

®

• Corel

Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory® (DVD±RW)

• Corel WinDVD

See footnotes for important warranty information
US models announced January 15, 2010

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
240 watts with 85% effi ciency, auto-sensing, active Power Factor Correction

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

(only some listed)

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA GeForce 512MB 310 (DP, VGA) 57Y4397
NVIDIA Quadro® 512MB FX380 LP (DP, DVI) 57Y4396
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Other accessories at lenovo.com/accessories

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-15) January 2010

ThinkCentre® M90 Small (5485) - XP with Win7 License

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

SATA

8

disk

SATA

optical Graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

date

5485-A1U 2x3 Pentium G6950 2.80 2 1GB 250GB2 DVD Intel HD VGA, DP ES50 None XP Pro None Feb 10
5485-A2U 2x3 Pentium G6950 2.80 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
5485-A3U 2x3 Core i3-530 2.93 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
5485-A4U 2x3 Core i5-750 2.66 4 3GB 500GB DVD ±RW 310 VGA, DP ES50 None XP Pro None Feb 10

Positioning
Processor

• The most powerful, stable, and manageable desktop with next generation Intel platform

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,

Intel 64, Virtualization Technology, integrated 1066MHz

1

Small

optical

disk

(in rear)

dual-channel DDR3 memory controller, 3MB cache or
Intel Core™ i3 Processor i3-530 with dual-core,
Intel 64, Hyper-Threading Technology, Virtualization Technology,
integrated 1333MHz dual-channel DDR3 memory controller,
4MB cache or
Intel Core i5 Processor i5-750 with quad-core,
Intel 64, Virtualization Technology, Turbo Boost Technology
(up to 3.20 GHz at max turbo mode), integrated 1333MHz

Implementation

Memory

dual-channel DDR3 memory controller, 8MB cache
Processor in LGA1156 socket

1GB, 2GB, or 3GB std, 8GB max, UDIMM,
PC3-10600 1333MHz DDR3*, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

Graphics

A1U/A2U/A3U: Intel HD Graphics in processor, HDCP, DirectX® 10**,
uses main memory (up to 512MB [1GB model],
1GB [2GB and 3GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
A4U: NVIDIA® GeForce® 310, PCI Express® 2.0 x16 adapter, 512MB,
one analog VGA DB-15 connector, one DisplayPort connector,
HDCP, DirectX 10, NVIDIA PureVideo®, NVIDIA CUDA™, 30 watts

DP dongle

SATA disk
S ATA DV D
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

** DirectX 10 is only available with Windows Vista and later
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
240 watts with 85% effi ciency, auto-sensing, active Power Factor Correction

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

5

Preloaded applications

• Rescue and Recovery™

(only some listed)

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009 (30 day)

• Microsoft

• Corel

• Corel DVD MovieFactory

®

Offi ce 2007 Trial (60-day)

®

Burn.Now™ (DVD±RW)

®

(DVD±RW)

• Corel WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA GeForce 512MB 310 (DP, VGA) 57Y4397
NVIDIA Quadro® 512MB FX380 LP (DP, DVI) 57Y4396
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16 (75w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless system board retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-16) January 2010

ThinkCentre® M90 Small (5485) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

SATA

8

disk

SATA

optical Graphics

Monitor

conn

ENERGY
STAR 5.0

Intel

vPro

Win7

preload

Global

Educ

Avail

date

5485-A5U 2x3 Core i3-530 2.93 2 2GB 250GB2 DVD ±RW Intel HD VGA, DP ES50 None Pro 32 None Feb 10
5485-E3U 2x3 Pentium G6950 2.80 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 None Pro 32 None Feb 10
5485-E4U 2x3 Core i5-750 2.66 4 3GB 500GB DVD ±RW 310 VGA, DP ES50 None Pro 32 None Feb 10

Positioning
Processor

• The most powerful, stable, and manageable desktop with next generation Intel platform

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,

Intel 64, Virtualization Technology, integrated 1066MHz

1

Small

optical

disk

(in rear)

dual-channel DDR3 memory controller, 3MB cache or

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Intel Core™ i3 Processor i3-530 with dual-core,
Intel 64, Hyper-Threading Technology, Virtualization Technology,
integrated 1333MHz dual-channel DDR3 memory controller,
4MB cache or
Intel Core i5 Processor i5-750 with quad-core,
Intel 64, Virtualization Technology, Turbo Boost Technology
(up to 3.20 GHz at max turbo mode), integrated 1333MHz
dual-channel DDR3 memory controller, 8MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM,
PC3-10600 1333MHz DDR3*, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

A5U/E3U: Intel HD Graphics in processor,
HDCP, DirectX® 10, uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
E4U: NVIDIA® GeForce® 310, PCI Express® 2.0 x16 adapter, 512MB,
one analog VGA DB-15 connector, one DisplayPort connector,
HDCP, DirectX 10, NVIDIA PureVideo®, NVIDIA CUDA™, 30 watts
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16 (75w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless system board retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo
Optical Wheel Mouse (USB connector), black, Lenovo logo
240 watts with 85% effi ciency, auto-sensing, active Power Factor Correction

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel

• Corel DVD MovieFactory

®

®

Burn.Now™ (DVD±RW)

®

Reader

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

®

®

logo

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA GeForce 512MB 310 (DP, VGA) 57Y4397
NVIDIA Quadro® 512MB FX380 LP (DP, DVI) 57Y4396
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

Supports ThinkVantage® technologies

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

(ThinkPlus part number 41C9193)

(ThinkPlus part number 41C9194)

(ThinkPlus part number 41C9195)

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period
via 800-426-7378

Environmental Features

®

5.0-compliant

®

certifi ed

Limited Warranty

3

, 8 am - 5 pm,

1

9

7

™ part number 41C9192)

• 3-year LOR 24x7, 4 hour response

• 4-year LOR 9x5, Next Business Day

• 4-year LOR 9x5, 4 hour response

• 4-year LOR 24x7, 4 hour response

14

toll-free support

1

© Lenovo

(MELB1-17) January 2010

ThinkCentre® M90 Tower (3246) - TopSeller (XP with Win7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

8

SATA

disk

3246-A1U 4x4 Pentium G6950 2.80 2 2GB 250GB

2nd Disk

Bay

2

None DVD±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10

SATA

optical Graphics

Monitor

conn

ENERGY

STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

date

3246-A2U 4x4 Core i3-530 2.93 2 2GB 250GB None DVD±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
3246-A9U 4x4 Core i5-750 2.66 4 3GB 500GB None DVD±RW 310 VGA, DP ES50 None XP Pro None Feb 10

• The most powerful, stable, and manageable desktop with next generation Intel platform
™ Program

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

optical

②

③

disk

(75w max)

Positioning
Processor

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core, Intel 64,
Virtualization Technology, integrated 1066MHz dual-channel
DDR3 memory controller, 3MB cache or
Intel Core™ i3 Processor i3-530 with dual-core,
Intel 64, Intel Hyper-Threading Technology,
Virtualization Technology, integrated 1333MHz dual-channel
DDR3 memory controller, 4MB cache or
Intel Core i5 Processor i5-750 with quad-core,
Intel 64, Virtualization Technology, Turbo Boost Technology
(up to 3.20 GHz at max turbo mode), integrated 1333MHz
dual-channel DDR3 memory controller, 8MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM,
PC3-10600 1333MHz DDR3*, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

A1U/A2U: Intel HD Graphics in processor,
HDCP, DirectX® 10**, uses main memory (up to 1GB),

1

Tower

• Business black color; metal case

• 6.9" W X 17.4" D X 16.3" H

• 175mm W X 442mm D X 414mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Power button on top handle

• Toolless cover removal

• Tilted front I/O for easy access

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
A9U: NVIDIA® GeForce® 310, PCI Express® 2.0 x16 adapter, 512MB,
one analog VGA DB-15 connector, one DisplayPort connector,
HDCP, DirectX 10, NVIDIA PureVideo®, NVIDIA CUDA™, 30 watts
** DirectX 10 is only available with Windows Vista and later
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
three SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

5

(only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009 (30 day)

• Adobe

• Adobe Flash® Player

• Microsoft® Offi ce 2007 Trial (60-day)

• Corel

• Corel DVD MovieFactory

®

®

Burn.Now™ (DVD±RW)

Reader

®

®

(DVD±RW)

• Corel WinDVD® (DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

®

logo

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA GeForce 512MB 310 (DP, VGA) 57Y4397
More accessor

ies on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

Supports ThinkVantage® technologies

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

(ThinkPlus part number 41C9193)

(ThinkPlus part number 41C9194)

(ThinkPlus part number 41C9195)

(ThinkPlus part number 41C9196)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period
via 800-426-7378

Environmental Features

®

5.0-compliant

®

certifi ed

Limited Warranty

3

, 8 am - 5 pm,

1

9

7

™ part number 41C9192)

• 3-year LOR 24x7, 4 hour response

• 4-year LOR 9x5, Next Business Day

• 4-year LOR 9x5, 4 hour response

• 4-year LOR 24x7, 4 hour response

14

toll-free support

1

© Lenovo

(MELB1-23) January 2010

ThinkCentre® M90 Tower (5474) - XP with Win7 License

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

8

SATA

disk

5474-A1U 4x4 Pentium G6950 2.80 2 1GB 250GB
5474-A2U 4x4 Pentium G6950 2.80 2 2GB 250GB
5474-A3U 4x4 Core i3-530 2.93 2 2GB 250GB
5474-A4U 4x4 Core i5-750 2.66 4 3GB 500GB

• The most powerful, stable, and manageable desktop with next generation Intel platform

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,
Intel 64, Virtualization Technology, integrated 1066MHz
dual-channel DDR3 memory controller, 3MB cache or
Intel Core™ i3 Processor i3-530 with dual-core, Intel 64,
Hyper-Threading Technology, Virtualization Technology, integrated
1333MHz dual-channel DDR3 memory controller, 4MB cache or
Intel Core i5 Processor i5-750 with quad-core,
Intel 64, Virtualization Technology, Turbo Boost Technology
(up to 3.20 GHz at max turbo mode), integrated 1333MHz

Implementation

Memory

dual-channel DDR3 memory controller, 8MB cache
Processor in LGA1156 socket

1GB, 2GB, or 3GB std, 8GB max, UDIMM,
PC3-10600 1333MHz DDR3*, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

Graphics

A1U/A2U/A3U: Intel HD Graphics in processor,
HDCP, DirectX® 10**,
uses main memor y (up to 512MB [1GB model],
1GB [2GB and 3GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
A4U: NVIDIA® GeForce® 310, PCI Express® 2.0 x16 adapter, 512MB,
one analog VGA DB-15 connector, one DisplayPort connector,
HDCP, DirectX 10, NVIDIA PureVideo®, NVIDIA CUDA™, 30 watts

DP dongle

SATA disk
S ATA DV D
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

** DirectX 10 is only available with Windows Vista and later
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm

Some: DVD-ROM DL SATA 1.5Gb/s 16X-48X Max4 Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

Serial ATA, SATA 3.0Gb/s, integrated in chipset,
three SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009 (30 day)

• Microsoft

®

• Corel

• Corel DVD MovieFactory

Burn.Now™ (DVD±RW)

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

(only some listed)

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

NVIDIA GeForce 512MB 310 (DP, VGA) 57Y4397
More accessor

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

ies on O-M90 sheet

• Corel WinDVD® (DVD, DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

2nd Disk

Bay

2

None DVD Intel HD VGA, DP ES50 None XP Pro None Feb 10
None DVD±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
None DVD±RW Intel HD VGA, DP ES50 None XP Pro None Feb 10
None DVD±RW 310 VGA, DP ES50 None XP Pro None Feb 10

1

SATA

optical Graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Tower

• Business black color; metal case

• 6.9" W X 17.4" D X 16.3" H

• 175mm W X 442mm D X 414mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

optical

②

③

disk

• Power button on top handle

• Toolless cover removal

• Tilted front I/O for easy access

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

(MELB1-21) January 2010

Avail

date

9

© Lenovo

ThinkCentre® M90 Tower (5474) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

GHz

Cores

SATA

8

disk

5474-A5U 4x4 Core i3-530 2.93 2 2GB 250GB
5474-D4U 4x4 Pentium G6950 2.80 2 2GB 250GB
5474-D5U 4x4 Core i5-750 2.66 4 3GB 500GB

• The most powerful, stable, and manageable desktop with next generation Intel platform

• These models have a 3-year limited warranty

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Pentium® Processor G6950 with dual-core,
Intel 64, Virtualization Technology, integrated 1066MHz
dual-channel DDR3 memory controller, 3MB cache or
Intel Core™ i3 Processor i3-530 with dual-core, Intel 64,
Hyper-Threading Technology, Virtualization Technology, integrated
1333MHz dual-channel DDR3 memory controller, 4MB cache or
Intel Core i5 Processor i5-750 with quad-core,
Intel 64, Virtualization Technology, Turbo Boost Technology
(up to 3.20 GHz at max turbo mode), integrated 1333MHz

Implementation

Memory

dual-channel DDR3 memory controller, 8MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM,
PC3-10600 1333MHz DDR3*, four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

* System automatically clocks down for processors with 1066MHz
DDR3 memory controller

Graphics

A5U/D4U: Intel HD Graphics in processor,
HDCP, DirectX® 10, uses main memory
(up to 765MB [2GB models], 1277MB [3GB model]),
one analog VGA DB-15 connector,
one DisplayPort™ connector, supports dual independent display
D5U: NVIDIA® GeForce® 310, PCI Express® 2.0 x16 adapter, 512MB,
one analog VGA DB-15 connector, one DisplayPort connector,

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

HDCP, DirectX 10, NVIDIA PureVideo®, NVIDIA CUDA™, 30 watts
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
three SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
None
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

®

• Corel

• Corel DVD MovieFactory® (DVD±RW)

Burn.Now™ (DVD±RW)

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393

Reader

NVIDIA GeForce 512MB 310 (DP, VGA) 57Y4397
More accessor

®

Acc Guide in pdf lenovo.com/accessoriesguide

ies on O-M90 sheet

Other accessories at lenovo.com/accessories

®

Offi ce 2007 Trial (60-day)

See footnotes for important warranty information
US models announced January 15, 2010

2nd Disk

Bay

2

None DVD±RW Intel HD VGA, DP ES50 None Pro 32 None Feb 10
None DVD±RW Intel HD VGA, DP ES50 None Pro 32 None Feb 10
None DVD±RW 310 VGA, DP ES50 None Pro 32 None Feb 10

1

SATA

optical Graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Win7

preload

Global

Educ

Tower

• Business black color; metal case

• 6.9" W X 17.4" D X 16.3" H

• 175mm W X 442mm D X 414mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

optical

②

③

disk

• Power button on top handle

• Toolless cover removal

• Tilted front I/O for easy access

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

(MELB1-22) January 2010

Avail

date

9

© Lenovo

ThinkCentre® M90p Eco Ultra Small (3257) - TopS (XP with Win7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

SATA

8

disk

3257-A1U 1x2 Core i5-650 3.20 3.46 2 3GB 500GB

SATA

optical

2

DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

date

3257-A2U 1x2 Core i5-660 3.33 3.60 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

• Next generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc
Positioning

Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,

Eco Ultra Small

optical

disk

Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel® Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

• Corel WinDVD

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

3GB std, 4GB max, PC3-10600 1333MHz DDR3,
two 204-pin SODIMM sockets (notebook);
Italics: standard memory in both sockets; no sockets available

Intel HD Graphics in processor, HDCP, DirectX® 10**,
uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
** DirectX 10 is only available with Windows Vista and later
None

500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Express Q57 Chipset,
Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620

5

(only some listed)

DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

®

Offi ce 2007 Trial (60-day)

®

®

(DVD±RW)

(DVD±RW)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 11.0" W X 9.4" D X 3.1" H

• 279mm W X 238mm D X 79mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty

1

9

➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-4) January 2010

ThinkCentre® M90p Eco Ultra Small (3853) - XP with Win7 License

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

SATA

8

disk

3853-A1U 1x2 Core i5-650 3.20 3.46 2 2GB 250GB

SATA

optical

2

DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

date

3853-A2U 1x2 Core i5-650 3.20 3.46 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10
3853-A3U 1x2 Core i5-660 3.33 3.60 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

• Next generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc
Positioning

Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,

Eco Ultra Small

optical

disk

Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

®

• Corel

• Corel DVD MovieFactory

Burn.Now™ (DVD±RW)

• Corel WinDVD® (DVD±RW)

See footnotes for important warranty information
US models announced January 15, 2010

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB or 3GB std, 4GB max, PC3-10600 1333MHz DDR3,
two 204-pin SODIMM sockets (notebook);

Italics: standard memory in both sockets; no sockets available;
Non-italics: standard memory in one socket; one socket available

Intel HD Graphics in processor,
HDCP, DirectX® 10**, uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
** DirectX 10 is only available with Windows Vista and later
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset,
Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (iAMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 11.0" W X 9.4" D X 3.1" H

• 279mm W X 238mm D X 79mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

(MELB1-3) January 2010

1

9

1

© Lenovo

ThinkCentre® M90p Eco Ultra Small (3853) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

SATA

8

disk

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY

STAR 5.0

Intel

vPro

Win7

preload

Global

Educ

Avail

date

3853-A4U 1x2 Core i5-650 3.20 3.46 2 2GB 250GB2 DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
3853-B5U 1x2 Core i5-660 3.33 3.60 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
3853-E3U 1x2 Core i5-650 3.20 3.46 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
3853-E4U 1x2 Core i5-660 3.33 3.60 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
3853-E5U 1x2 Core i5-660 3.33 3.60 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10

• Next generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,

Eco Ultra Small

optical

disk

Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Corel® Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB or 3GB std, 4GB max, PC3-10600 1333MHz DDR3,
two 204-pin SODIMM sockets (notebook);

Italics: standard memory in both sockets; no sockets available;
Non-italics: standard memory in one socket; one socket available

Intel HD Graphics in processor, HDCP, DirectX® 10,
uses main memory
(up to 765MB [2GB models], 1277MB [3GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
None

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 11.0" W X 9.4" D X 3.1" H

• 279mm W X 238mm D X 79mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• System fl oor stand for vertical orientation

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset,
Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN

®

Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M90 sheet

®

®

(DVD±RW)

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-5) January 2010

ThinkCentre® M90p Eco Ultra Small (5296) - GMP (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

8

SATA

disk

5296-A1U 1x2 Core i5-650 3.20 3.46 2 2GB 250GB

SATA

optical

2

DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 G P Feb 10

• Next generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• This model is part of the Global Models Plus (GMP) program with limited onsite service3 3-year limited warranty

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB std, 4GB max, PC3-10600 1333MHz DDR3,
two 204-pin SODIMM sockets (notebook);
Non-italics: standard memory in one socket; one socket available

Graphics

Intel HD Graphics in processor, HDCP, DirectX® 10,
uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

supports dual independent display
None

250GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset,
Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
External AC/DC adapter, 130 watts, autosensing, 87% PSU

20

Accessories

500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
Lenovo Vertical PC and Monitor Stand II 41R4474
ThinkCentre Ultra Small Under Desk Mount 40Y8625
More accessories on O-M90 sheet

®

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Corel® Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

®

(DVD±RW)

See footnotes for important warranty information
US model announced January 15, 2010

Integrated

graphics

Monitor

conn

Eco Ultra Small

ENERGY
STAR 5.0

*

Intel

vPro

optical

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk

Slot 1: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 11.0" W X 9.4" D X 3.1" H

• 279mm W X 238mm D X 79mm H

• 9.2 lb (4.2 kg) in maximum confi guration

• Hinged toolless cover for easy serviceability

• Toolless disk and optical drive removal

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage

Limited Warranty1

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,
next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

Win7

Global (G)

preload

GMP (P)

disk

®

technologies

3

, 8 am - 5 pm,

7

toll-free support

1

Avail

date

9

© Lenovo

(MELB1-6) January 2010

ThinkCentre® M90p Small (3269) - TopSeller (XP with Win7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

SATA

8

disk

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY

STAR 5.0

Intel

vPro

Preload

Global

Educ

Avail

date

3269-A1U 2x3 Core i5-650 3.20 3.46 2 3GB 500GB2 DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10
3269-A2U 2x3 Core i5-660 3.33 3.60 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These small and medium business (SMB) models are part of the US TopSeller

• These models have a 3-year limited warranty

1

™ Program

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc
Positioning

Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,

Small

optical

disk

(in rear)

Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

3GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;
Italics: standard memory in two sockets; two sockets available;

Graphics

Intel HD Graphics in processor, HDCP, DirectX® 10**,
uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

** DirectX 10 is only available with Windows Vista and later
None

500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
240 watts with 85% effi ciency, auto-sensing, active Power Factor Correction

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel

• Corel DVD MovieFactory

®

Offi ce 2007 Trial (60-day)

®

Burn.Now™ (DVD±RW)

®

(DVD±RW)

• Corel WinDVD® (DVD±RW)

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA® GeForce® 512MB 310 (DP, VGA) 57Y4397
NVIDIA Quadro
More accessories on O-M90 sheet

®

512MB FX380 LP (DP, DVI) 57Y4396

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16 (75w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless system board retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-12) January 2010

ThinkCentre® M90p Small (5536) - XP with Win7 License

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

SATA

8

disk

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

Intel

vPro

Preload

Global

Educ

Avail

date

5536-A1U 2x3 Core i5-650 3.20 3.46 2 2GB 250GB2 DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10
5536-A2U 2x3 Core i5-650 3.20 3.46 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10
5536-A3U 2x3 Core i5-660 3.33 3.60 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10
5536-E1U 2x3 Core i5-660 3.33 3.60 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc
Positioning

Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,

Small

optical

disk

(in rear)

Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

Graphics

Intel HD Graphics in processor, HDCP, DirectX® 10**,
uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

** DirectX 10 is only available with Windows Vista and later
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
240 watts with 85% effi ciency, auto-sensing, active Power Factor Correction

20

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

5

Preloaded applications

• Rescue and Recovery™

(only some listed)

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel

• Corel DVD MovieFactory® (DVD±RW)

• Corel WinDVD

®

Offi ce 2007 Trial (60-day)

®

Burn.Now™ (DVD±RW)

®

(DVD±RW)

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA® GeForce® 512MB 310 (DP, VGA) 57Y4397
NVIDIA Quadro® 512MB FX380 LP (DP, DVI) 57Y4396
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16 (75w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless system board retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-2) January 2010

ThinkCentre® M90p Small (5536) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

8

SATA

disk

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Win7

preload

Global

Educ

Avail

date

5536-A4U 2x3 Core i5-650 3.20 3.46 2 2GB 250GB2 DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
5536-B8U 2x3 Core i5-650 3.20 3.46 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
5536-B9U 2x3 Core i5-660 3.33 3.60 2 3GB 500GB DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
5536-E2U 2x3 Core i5-660 3.33 3.60 2 2GB 250GB DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,

Small

optical

disk

(in rear)

Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

Graphics

Intel HD Graphics in processor, HDCP, DirectX® 10,
uses main memory (up to 765MB [2GB models],
1277MB [3GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

supports dual independent display
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
240 watts with 85% effi ciency, auto-sensing, active Power Factor Correction

20

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel

• Corel DVD MovieFactory® (DVD±RW)

®

®

Burn.Now™ (DVD±RW)

®

Reader

®

Offi ce 2007 Trial (60-day)

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA® GeForce® 512MB 310 (DP, VGA) 57Y4397
NVIDIA Quadro

®

512MB FX380 LP (DP, DVI) 57Y4396

More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16 (75w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless system board retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-10) January 2010

ThinkCentre® M90p Small (5864) - GMP (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

8

SATA

disk

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

Intel

vPro

Win7

preload

Global (G)

GMP (P)

Avail

date

5864-A1U 2x3 Core i5-650 3.20 3.46 2 2GB 250GB2 DVD ±RW Intel HD VGA, DP ES50 vPro Pro 32 G P Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• This model is part of the Global Models Plus (GMP) program with limited onsite service3 3-year limited warranty

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc
Positioning

Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,

Small

optical

disk

(in rear)

Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; three sockets available

Intel HD Graphics in processor, HDCP, DirectX® 10,
uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
None

250GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
two SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 3.5", 1" high, no access, std disk
Bay ③ 3.5", .5" high, access, open (reader)

Slot 1: Low Profi le, PCI Express 2.0 x16 (75w max)
Slot 2: Low Profi le, 32-bit PCI 2.3

• Business black color; metal case

• 12.5" W X 14.0" D X 3.9" H

• 317mm W X 355mm D X 99mm H

• 16.5 lb (7.5 kg) in maximum confi guration

• Toolless cover fl ips up and tilts backward on rear hinges

• Toolless disk, optical drive removal

• Toolless adapter retention

• Toolless system board retention

• System fl oor stand for vertical orientation

Security

• Security chip (see information on left)

• Security slot (in rear for attachment of

optional Kensington® MicroSaver®
cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Corel® Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
240 watts with 85% effi ciency, auto-sensing, active Power Factor Correction

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA® GeForce® 512MB 310 (DP, VGA) 57Y4397
NVIDIA Quadro

®

More accessories on O-M90 sheet

®

512MB FX380 LP (DP, DVI) 57Y4396

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

(DVD±RW)

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US model announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-11) January 2010

ThinkCentre® M90p Tower (3282) - TopSeller (XP with Win7 License)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

SATA

8

disk

3282-A1U 4x4 Core i5-650 3.20 3.46 2 3GB 500GB

2nd Disk

Bay

2

None DVD±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Preload

Global

Educ

Avail

date

3282-A2U 4x4 Core i5-660 3.33 3.60 2 3GB 500GB None DVD±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These small and medium business (SMB) models are part of the US TopSeller ™ Program

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc

Positioning
Processor

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft® Offi ce 2007 Trial (60-day)

• Corel® Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

• Corel WinDVD® (DVD±RW)

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel
DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

3GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;
Italics: standard memory in two sockets; two sockets available

Intel HD Graphics in processor,
HDCP, DirectX® 10*,
uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
* DirectX 10 is only available with Windows Vista and later
None

500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,

Tower

• Business black color; metal case

• 6.9" W X 17.4" D X 16.3" H

• 175mm W X 442mm D X 414mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Power button on top handle

• Toolless cover removal

• Tilted front I/O for easy access

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3

Slot 4: half-length, full-height, 32-bit PCI 2.3
three SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA® GeForce® 512MB 310 (DP, VGA) 57Y4397
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

®

(DVD±RW)

optical

②

③

disk

(75w max)

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-19) January 2010

ThinkCentre® M90p Tower (5498) - XP with Win7 License

2nd Disk

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

8

SATA

disk

5498-A1U 4x4 Core i5-650 3.20 3.46 2 2GB 250GB

Bay

2

None DVD±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

SATA

optical

Integrated

graphics

Monitor

conn

Personal Systems Reference (PSREF)

ENERGY
STAR 5.0

Intel
vPro

Preload

5498-A2U 4x4 Core i5-650 3.20 3.46 2 3GB 500GB None DVD±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10
5498-A3U 4x4 Core i5-660 3.33 3.60 2 3GB 500GB None DVD±RW Intel HD VGA, DP ES50 vPro XP Pro None Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc

Positioning
Processor

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Windows® XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional

Preloaded applications

• Rescue and Recovery™

• Client Security Solution™

• ThinkVantage Productivity Center

• ThinkVantage System Update

• ThinkVantage Power Manager

• Lenovo System Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe® Reader

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

• Corel® Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

• Corel WinDVD

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel
DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

Intel HD Graphics in processor, HDCP, DirectX® 10**,
uses main memory (up to 1GB),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
** DirectX 10 is only available with Windows Vista and later
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
three SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990

5

(only some listed)

1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393

®

GeForce® 512MB 310 (DP, VGA) 57Y4397

NVIDIA
More accessories on O-M90 sheet

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

®

Offi ce 2007 Trial (60-day)

®

®

(DVD±RW)

(DVD±RW)

Tower

• Business black color; metal case

• 6.9" W X 17.4" D X 16.3" H

• 175mm W X 442mm D X 414mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

• Power button on top handle

• Toolless cover removal

• Tilted front I/O for easy access

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1
Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

See footnotes for important warranty information
US models announced January 15, 2010

(MELB1-18) January 2010

Global

Educ

optical

②

③

disk

(75w max)

1

9

1

© Lenovo

Avail

date

ThinkCentre® M90p Tower (5498) - Windows 7

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

8

SATA

disk

5498-A4U 4x4 Core i5-650 3.20 3.46 2 2GB 250GB

2nd Disk

Bay

2

None DVD±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

Intel
vPro

Win7

preload

Global

Educ

Avail

date

5498-B5U 4x4 Core i5-660 3.33 3.60 2 2GB 250GB None DVD±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
5498-E7U 4x4 Core i5-650 3.20 3.46 2 3GB 500GB None DVD±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
5498-E8U 4x4 Core i5-660 3.33 3.60 2 3GB 500GB None DVD±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10
5498-E9U 4x4 Core i5-660 3.33 3.60 2 2GB 250GB None DVD±RW Intel HD VGA, DP ES50 vPro Pro 32 None Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• These models have a 3-year limited warranty

1

*

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc

Positioning
Processor

Implementation

Memory

Graphics

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe

®

• Adobe Flash® Player

• Skype™ for Windows

• Microsoft

®

• Corel

Burn.Now™ (DVD±RW)

• Corel DVD MovieFactory

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 or i5-660 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel
DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB or 3GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;

Italics: standard memory in two sockets; two sockets available;
Non-italics: standard memory in one socket; three sockets available

Intel HD Graphics in processor, HDCP, DirectX® 10,
uses main memory (up to 765MB [2GB models],
1277MB [3GB models]),
one analog VGA DB-15 connector, one DisplayPort™ connector,
supports dual independent display
None

250GB or 500GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
three SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA® GeForce® 512MB 310 (DP, VGA) 57Y4397
More accessories on O-M90 sheet

®

Reader

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

®

Offi ce 2007 Trial (60-day)

®

(DVD±RW)

Tower

• Business black color; metal case

• 6.9" W X 17.4" D X 16.3" H

• 175mm W X 442mm D X 414mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

optical

②

③

disk

• Power button on top handle

• Toolless cover removal

• Tilted front I/O for easy access

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 3-year LOR 9x5, 4 hour response

(ThinkPlus

• 3-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9193)

• 4-year LOR 9x5, Next Business Day

(ThinkPlus part number 41C9194)

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9192)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance

See footnotes for important warranty information
US models announced January 15, 2010

services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-1) January 2010

ThinkCentre® M90p Tower (5852) - GMP (Windows 7)

Personal Systems Reference (PSREF)

Type-model Processor Memory

Slot x

bay

Base
GHz

Max Turbo
GHz

Cores

5852-A1U 4x4 Core i5-650 3.20 3.46 2 2GB 250GB

8

SATA

disk

2nd Disk

Bay

2

None DVD±RW Intel HD VGA, DP ES50 vPro Pro 32 G P Feb 10

• Next Generation Intel platform with latest Intel vPro™ Technology and Intel Active Management Technology

• Most manageable ThinkCentre ever: supports Lenovo Secure Managed Client version 2.0

• This model is part of the Global Models Plus (GMP) program with limited onsite service3 3-year limited warranty

* For more information on Lenovo Secure Managed Client, see lenovo.com/acc

Positioning
Processor

Ultimate security, stability, and manageability for the enterprise

®

Intel

Core™ i5 Processor i5-650 with dual-core,
Intel 64, Hyper-Threading Technology, Turbo Boost Technology,
Virtualization Technology, TXT, integrated 1333MHz dual-channel

Implementation

Memory

DDR3 memory controller, and 4MB cache
Processor in LGA1156 socket

2GB std, 8GB max, UDIMM, PC3-10600 1333MHz DDR3,
four 240-pin DIMM sockets;
Non-italics: standard memory in one socket; three sockets available

Graphics

Intel HD Graphics in processor, HDCP, DirectX® 10,
uses main memory (up to 765MB),
one analog VGA DB-15 connector, one DisplayPort™ connector,

DP dongle

SATA disk
S ATA DV D±RW
SATA Controller

eSATA port
Diskette drive
Media reader

Chipset

supports dual independent display
None

250GB, SATA 3.0Gb/s 7200 rpm
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Serial ATA, SATA 3.0Gb/s, integrated in chipset,
three SATA connectors for disk and optical
None
None
None

Intel Q57 Express Chipset

Platform Controller Hub (PCH) for PCI, ethernet, and USB,
SMSC® SCH5147 Super I/O

Front ports
Rear ports
Rear audio ports
Internal connector
Audio
Speaker
Ethernet
Intel AMT
Modem
Security chip

Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Six USB 2.0, serial (9-pin), ethernet (RJ-45), monitor (VGA DB-15, DisplayPort)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)
Two USB 2.0 planar conn (1 used; one open for media reader or 2 rear USB ports)
High Defi nition (HD) Audio, Realtek® ALC662 codec
Internal speaker for business audio
One gigabit ethernet port, Intel 82578DM, Wake on LAN®
Intel Active Management Technology 6.0 (Intel AMT 6.0)
None
STMicroelectronics ST19NP18 Trusted Platform Module (TPM),
TCG 1.2-compliant

Keyboard
Mouse
Power supply

Preloaded operating system

- Genuine Windows® 7 Professional 32

Preloaded applications5 (only some listed)

• Rescue and Recovery™

• Password Manager

• ThinkVantage System Update

• ThinkVantage Power Manager

• ThinkVantage Toolbox

• Norton™ Internet Security 2009

(30 days of virus defi nitions)

• Adobe

• Adobe Flash® Player

®

• Skype™ for Windows

• Microsoft

®

• Corel

• Corel DVD MovieFactory® (DVD±RW)

Burn.Now™ (DVD±RW)

Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo® logo
Optical Wheel Mouse (USB connector), black, Lenovo logo
280 watts with variable speed fan, autosensing, 85% PSU

20

Accessories

1GB PC3-10600 DDR3 UDIMM 57Y4389
2GB PC3-10600 DDR3 UDIMM 57Y4390
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
DisplayPort to VGA Monitor Cable 57Y4393
NVIDIA® GeForce® 512MB 310 (DP, VGA) 57Y4397
More accessories on O-M90 sheet

®

Reader

®

Offi ce 2007 Trial (60-day)

Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories

See footnotes for important warranty information
US model announced January 15, 2010

SATA

optical

Integrated

graphics

Monitor

conn

ENERGY
STAR 5.0

*

Intel

vPro

Win7

preload

Global (G)

GMP (P)

Avail

date

Tower

• Business black color; metal case

• 6.9" W X 17.4" D X 16.3" H

• 175mm W X 442mm D X 414mm H

• 24.2 lb (11.0 kg) in max confi guration

• Handle on top front

optical

②

③

disk

• Power button on top handle

• Toolless cover removal

• Tilted front I/O for easy access

• Toolless disk, optical drive removal

• Toolless adapter retention

Bay ① 5.25", 1.6" high, access, std optical
Bay ② 5.25", 1.6" high, access, open
Bay ③ 3.5", 1" high, access, open (reader/diskette)
Bay ④ 3.5", 1" high, no access, std disk

Slot 1: half-length, full-height, PCIe 2.0 x16
Slot 2: half-length, full-height, PCIe x1

(75w max)

Slot 3: half-length, full-height, 32-bit PCI 2.3
Slot 4: half-length, full-height, 32-bit PCI 2.3

Security

• Security chip (see information on left)

• One lock to secure both cover and

entire system to fi xed object:

- Padlock loop (in rear for opt padlock)

- Security slot (in rear for optional
Kensington® MicroSaver® cable)

• Power-on password

• Hard disk password

• Boot sequence control

• Boot without keyboard and mouse

• Serial port I/O control

• Individual USB port disablement

Environmental Features

• EPEAT™ Gold rating

• ENERGY STAR

• GREENGUARD

• RoHS-compliant

®

5.0-compliant

®

certifi ed

Supports ThinkVantage® technologies

Limited Warranty

➫ 3-year parts and labor
➫ International Warranty Service
➫ Customer Replaceable Unit (CRU)

parts only (with limited onsite service
for selected parts
Mon - Fri coverage excluding holidays,

3

, 8 am - 5 pm,

1

9

next business day response time)
➫ Onsite service upgrade options
(in eligible locations):

• 4-year LOR 9x5, Next Business Day

(ThinkPlus

• 4-year LOR 9x5, 4 hour response

(ThinkPlus part number 41C9195)

• 4-year LOR 24x7, 4 hour response

(ThinkPlus part number 41C9196)

™ part number 41C9194)

7

➫ ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day
during the warranty period

via 800-426-7378

14

toll-free support

1

© Lenovo

(MELB1-20) January 2010
