Lenovo S400 User Manual

Lenovo IdeaPad
S400 Touch

Hardware
Maintenance
Manual

Note:

Before using this information and the product it supports, be sure to read the general information
under “Notices” on page 75.

First Edition (July 2013)
© Copyright Lenovo 2013. All rights reserved.

LENOVO products, data, computer software, and services have been developed exclusively at private
expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with
limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are
delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclo­sure is subject to restrictions set forth in Contract No. GS-35F-05925.
© 2013 Lenovo

Contents

About this manual........................................iv

Safety information......................................... 1

General safety ...................................................... 2

Electrical safety....................................................3

Safety inspection guide ...................................... 5

Handling devices that are sensitive to

electrostatic discharge......................................... 6

Grounding requirements ...................................6

Safety notices: multilingual translations.......... 7

Laser compliance statement............................. 14

Important service information ...................16

Strategy for replacing FRUs............................. 16

Strategy for replacing a hard disk

drive .............................................................. 17

Important notice for replacing a system

board ............................................................. 17

Important information about replacing RoHS

compliant FRUs................................................. 18

General checkout ........................................ 19

What to do first.................................................. 20

Power system checkout.................................... 21

Checking the AC adapter........................... 21

Checking operational charging................. 21

Checking the battery pack ......................... 22

Related service information ....................... 23

Restoring the factory contents by using

Recovery Disc Set..............................................23

Start Recovery Disc (one disc)................... 23

Operating System Recovery Disc (one or

more discs) ................................................... 23

Applications and Drivers Recovery Disc

(one or more discs)...................................... 23

Supplemental Recovery Disc..................... 23

Passwords........................................................... 24

Power-on password.................................... 24

Hard-disk password................................... 24

Supervisor password.................................. 24

Power management .......................................... 25

Screen blank state........................................ 25

Putting your computer into sleep state or

shutting it down.......................................... 25

Lenovo IdeaPad S400 Touch ..................... 26

Specifications ..................................................... 26

Status indicators ................................................ 28

Hotkeys............................................................... 30

FRU replacement notices.................................. 31

Screw notices................................................31

Removing and replacing an FRU....................32

1010 Battery pack.........................................33

1020 Hard disk drive...................................35

1030 DIMM...................................................37

1040 PCI Express Mini Card for wireless

LAN/WAN ..................................................38

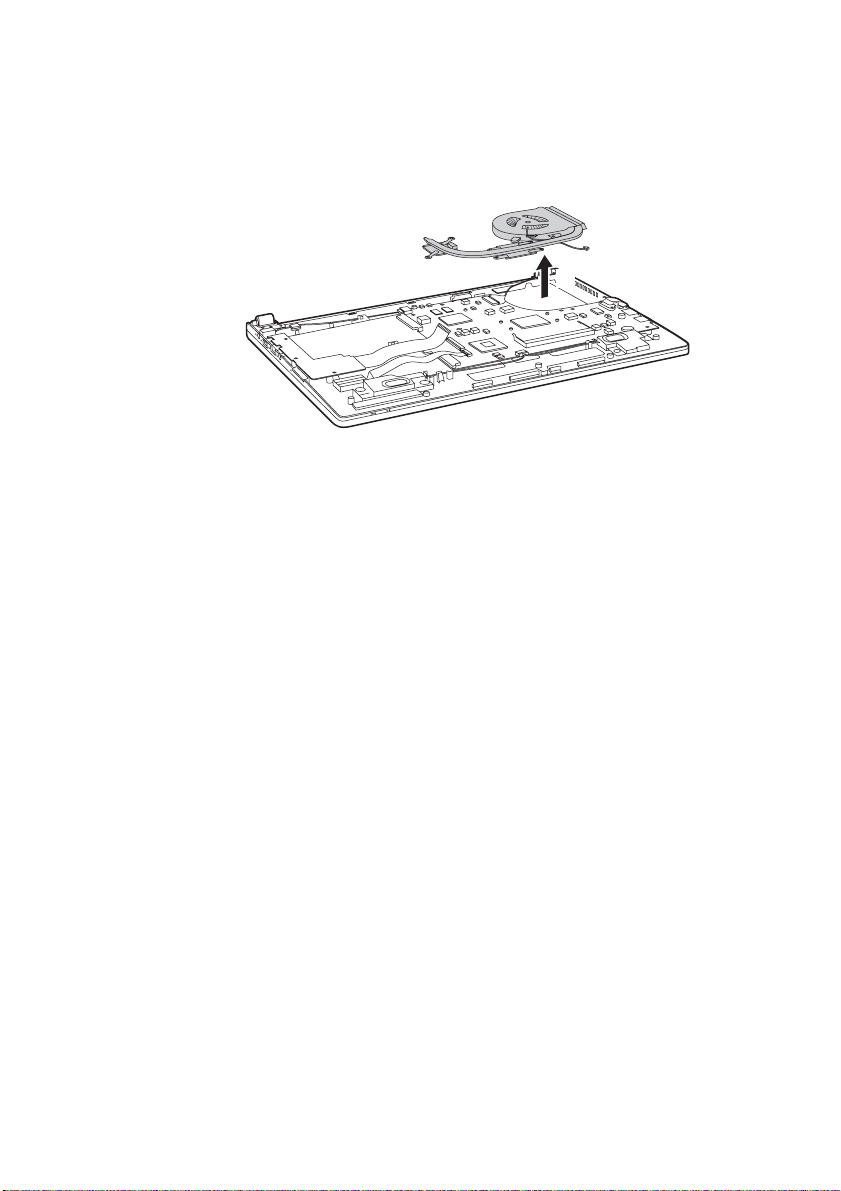

1050 Fan assembly and Heat Sink

assembly........................................................40

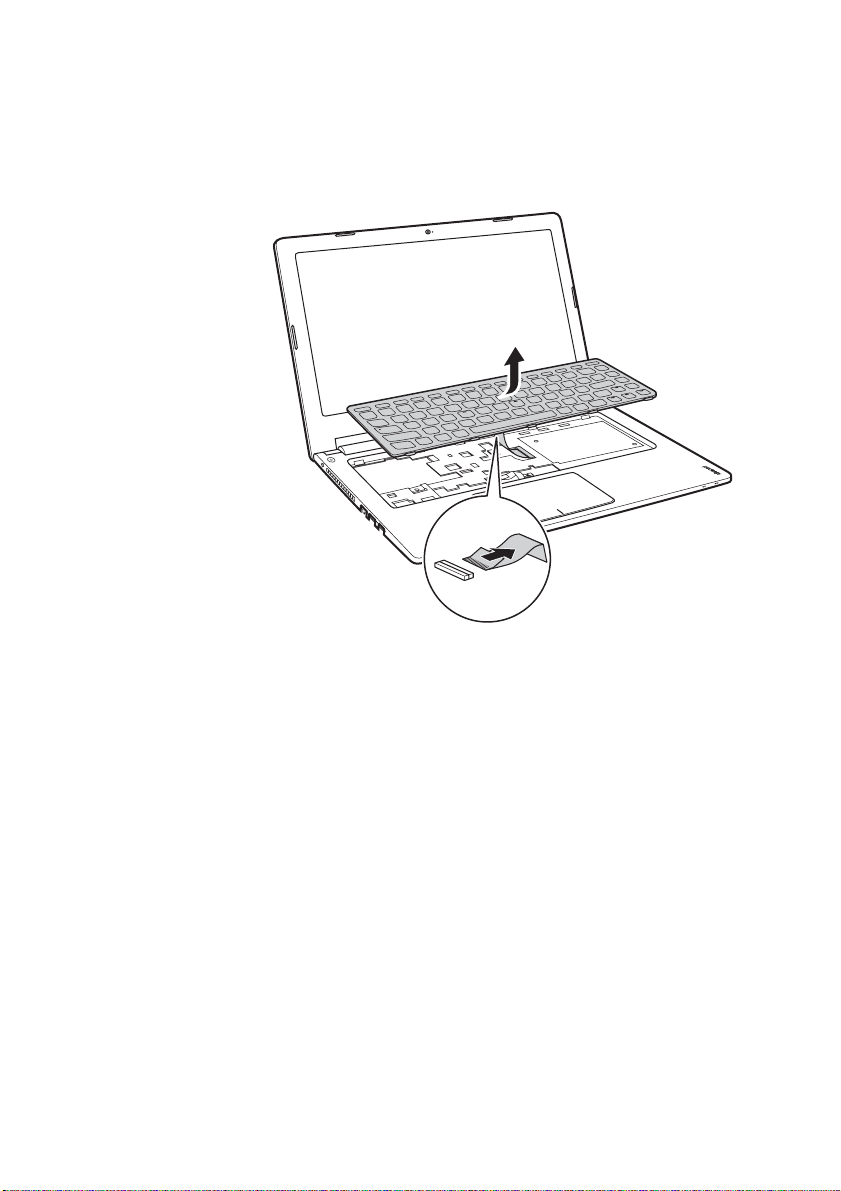

1060 Keyboard..............................................42

1070 System board.......................................44

1080 LCD unit...............................................47

1090 Speakers, base cover, USB board,

power assembly and power board............49

1100 LCD front bezel...................................52

1110 LCD panel, LCD cable........................53

1120 Integrated camera...............................54

Locations.............................................................55

Front view.....................................................55

Bottom and Right-side view.......................56

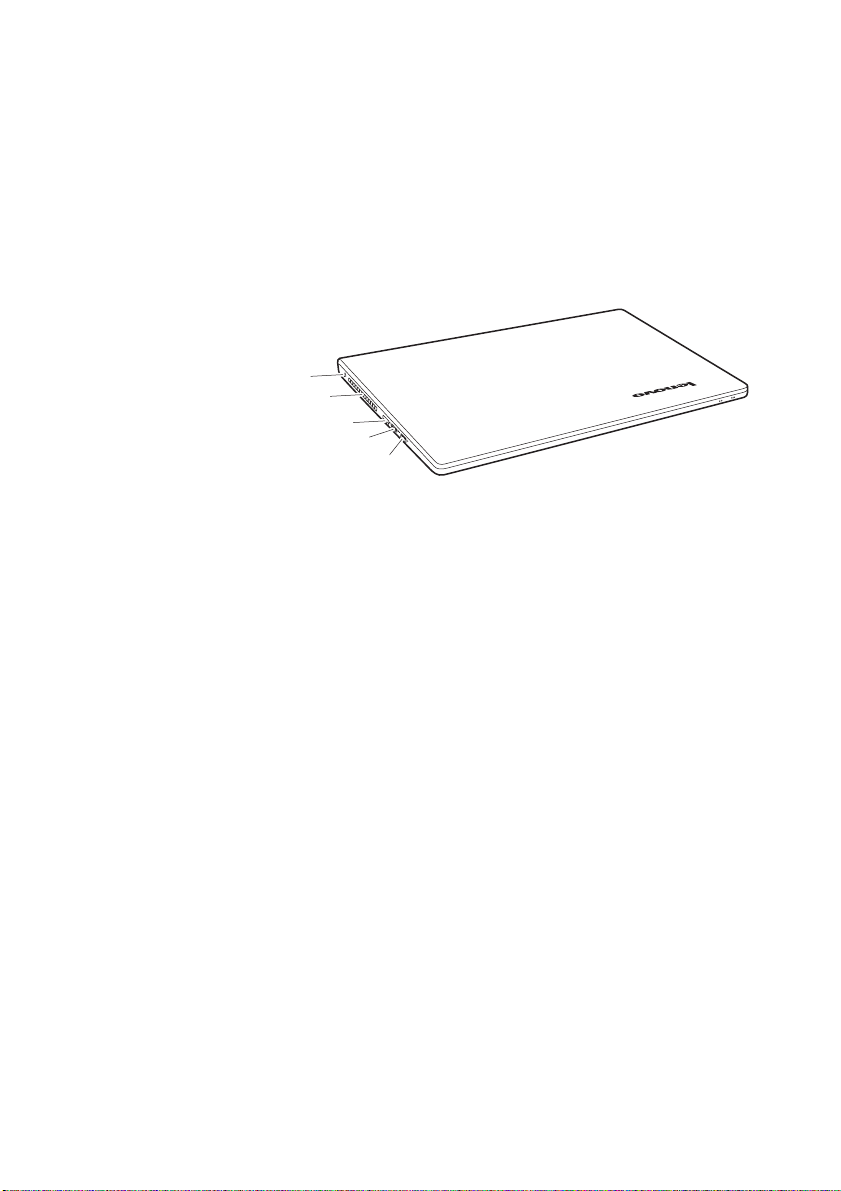

Left-side view...............................................57

Parts list...............................................................58

Overall...........................................................59

LCD FRUs.....................................................64

Keyboard.......................................................66

AC adapters..................................................71

Screws............................................................71

Power cords..................................................72

Notices ......................................................... 75

Trademarks.........................................................76

iii

About this manual

This manual contains service and reference information for the following
Lenovo product:

Lenovo IdeaPad S400 Touch

Use this manual to troubleshoot problems.
The manual is divided into the following sections:

• The common sections provide general information, guidelines, and safety
information required for servicing computers.

• The product-specific section includes service, reference, and product-specific
parts information.

Important:

This manual is intended only for trained servicers who are familiar with
Lenovo products. Use this manual to troubleshoot problems effectively.

Before servicing a Lenovo product, make sure to read all the information
under “Safety information” on page 1 and “Important service information”
on page 16.

iv

Safety information

This chapter presents the following safety information that you need to get
familiar with before you service a Lenovo computer:

• “General safety” on page 2

• “Electrical safety” on page 3

• “Safety inspection guide” on page 5

• “Handling devices that are sensitive to electrostatic discharge” on page 6

• “Grounding requirements” on page 6

• “Safety notices: multilingual translations” on page 7

• “Laser compliance statement” on page 14

Safety information

1

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

General safety

Follow these rules below to ensure general safety:

• Observe a good housekeeping in the area where the machines are put during
and after the maintenance.

• When lifting any heavy object:

1. Make sure that you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt

to lift it.

4. Lift it by standing or pushing up with your leg muscles; this action could

avoid the strain from the muscles in your back. Do not attempt to lift any
object that weighs more than 16 kg (35 lb) or that you think is too heavy for
you.

• Do not perform any action that causes hazards to the customer, or that makes
the machine unsafe.

• Before you start the machine, make sure that other service representatives
and the customer are not in a hazardous position.

• Please remove covers and other parts in a safe place, away from all
personnel, while you are servicing the machine.

• Keep your toolcase away from walk areas so that other people will not trip it
over.

• Do not wear loose clothing that can be trapped in the moving parts of the
machine. Make sure that your sleeves are fastened or rolled up above your
elbows. If your hair is long, fasten it.

• Insert the ends of your necktie or scarf inside clothing or fasten it with the
nonconductive clip, about 8 centimeters (3 inches) from the end.

• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for
your clothing.

Attention: Metal objects are good electrical conductors.

• Wear safety glasses when you are hammering, drilling, soldering, cutting
wire, attaching springs, using solvents, or working in any other conditions
that may be hazardous to your eyes.

• After service, reinstall all safety shields, guards, labels, and ground wires.
Replace any safety device that is worn or defective.

• Reinstall all covers correctly before returning the machine to the customer.

• Fan louvers on the machine help to prevent the overheating of internal
components. Do not obstruct fan louvers or cover them with labels or
stickers.

2

Electrical safety

Observe the following rules when working on electrical equipments.

Important:

Use only approved tools and test equipments. Some hand tools have
handles covered with a soft material that does not insulate you when
working with live electrical currents.

Many customers have rubber floor mats near their machines that contain
small conductive fibers to decrease electrostatic discharges. Do not use such
kind of mat to protect yourself from electrical shock.

• Find the room emergency power-off (EPO) switch, disconnecting switch, or
electrical outlet. If an electrical accident occurs, you can then operate the
switch or unplug the power cord quickly.

• Do not work alone under hazardous conditions or near the equipment that
has hazardous voltages.

• Disconnect all power before:
– Performing a mechanical inspection
– Working near power supplies
– Removing or installing main units

• Before you start to work on the machine, unplug the power cord. If you
cannot unplug it, ask the customer to power-off the wall box that supplies
power to the machine, and to lock the wall box in the off position.

• If you need to work on a machine that has exposed electrical circuits, observe
the following precautions:

– Ensure that another person, familiar with the power-off controls, is near

– Use only one hand when working with powered-on electrical equipment;

– When using testers, set the controls correctly and use the approved probe

– Stand on suitable rubber mats (obtained locally, if necessary) to insulate

Observe the special safety precautions when you work with very high voltages;
instructions for these precautions are in the safety sections of maintenance
information. Be extremely careful when you measure the high voltages.

• Regularly inspect and maintain your electrical hand tools for safe operational
condition.

• Do not use worn or broken tools and testers.

• Never assume that power has been disconnected from a circuit. First, check it
to make sure that it has been powered off.

Safety information

you.
Attention: Another person must be there to switch off the power, if
necessary.

keep the other hand in your pocket or behind your back.
Attention: An electrical shock can occur only when there is a complete

circuit. By observing the above rule, you may prevent a current from
passing through your body.

leads and accessories for that tester.

you from grounds such as metal floor strips and machine frames.

3

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

• Always look carefully for possible hazards in your work area. Examples of
these hazards are moist floors, nongrounded power extension cables, power
surges, and missing safety grounds.

• Do not touch live electrical circuits with the reflective surface of a plastic
dental mirror. The surface is conductive; such touching can cause personal
injury and machine damage.

• Do not service the following parts with the power on when they are removed
from their normal operating places in a machine:

– Power supply units
–Pumps
–Blowers and fans
– Motor generators
and similar units. (This practice ensures correct grounding of the units.)

• If an electrical accident occurs:
– Use caution: do not become a victim yourself.
–Switch off the power.
– Send the victim to get medical aid.

4

Safety inspection guide

The purpose of this inspection guide is to assist you in identifying potential
unsafe conditions. As each machine was designed and built, required safety
items were installed to protect users and service personnel from injury. This
guide addresses only those items. You should use good judgment to identify
potential safety hazards du e to attachment of non-Lenovo features or options not
covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the
apparent hazard could be and whether you can continue without first correcting
the problem.

Consider these conditions and the safety hazards they present:

• Electrical hazards, especially primary power (primary voltage on the frame
can cause serious or fatal electrical shock)

• Explosive hazards, such as a damaged CRT face or a bulging capacitor

• Mechanical hazards, such as loose or missing hardware

To determine whether there are any potential unsafe conditions, use the
following checklist at the beginning of every service task. Begin the checks with
the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Turn off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure

third-wire ground continuity for 0.1 ohm or less between the external

ground pin and the frame ground.
b. The power cord should be the type specified in the parts list.
c. Insulation must not be frayed or worn.

4. Check for cracked or bulging batteries.

5. Remove the cover.

6. Check for any obvious non-Lenovo alterations. Use good judgment as to the
safety of any non-Lenovo alterations.

7. Check inside the unit for a ny obvious unsafe conditions, such as metal filin gs,
contamination, water or other liquids, or signs of fire or smoke damage.

8. Check for worn, frayed, or pinched cables.

9. Check that the power-supply cover fasteners (screws or rivets) have not been
removed or tampered with.

Safety information

5

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Handling devices that are sensitive to electrostatic discharge

Any computer part containing transistors or integrated circuits (ICs) should be
considered sensitive to electrostatic discharge (ESD). ESD damage can occur
when there is a difference in charge between objects. Protect against ESD damage
by equalizing the charge so that the machine, the part, the work mat, and the
person handling the part are all at the same charge.

Notes:

1. Use product-specific ESD procedures when they exceed the
requirements noted here.

2. Make sure that the ESD protective devices you use have been certified
(ISO 9000) as fully effective.

When handling ESD-sensitive parts:

• Keep the parts in protective packages until they are inserted into the product.

• Avoid contact with other people.

• Wear a grounded wrist strap against your skin to eliminate static on your
body.

• Prevent the part from touching your clothing. Most clothing is insulative and
retains a charge even when you are wearing a wrist strap.

• Use the black side of a grounded work mat to provide a static-free work
surface. The mat is especially useful when handling ESD-sensitive devices.

• Select a grounding system, such as those listed below, to provide protection
that meets the specific service requirement.

Notes:

The use of a grounding system to guard against ES D damage is desirable but
not necessary.

– Attach the ESD ground clip to any frame ground, ground braid, or green-

wire ground.

– When working on a double-insulated or battery-operated system, use an

ESD common ground or reference point. You can use coax or connector­outside shells on these systems.

– Use the round ground prong of the ac plug on ac-operated computers.

Grounding requirements

Electrical grounding of the computer is required for operator safety and correct
system function. Proper grounding of the electrical outlet can be verified by a
certified electrician.

6

Safety notices: multilingual translations

The safety notices in this section are provided in English, French, German,
Hebrew, Italian, Japanese, and Spanish.

Safety notice 1

Before the computer is powered on after FRU replacement, make sure all
screws, springs, and other small parts are in place and are not left loose
inside the computer. Verify this by shaking the computer and listening for
rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l’ord inateur sous tension après remplacement d’u ne unité
en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en
place et bien fixées. Pour ce faire, secouez l’unité et assurez-vous qu’aucun
bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal
pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen
wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere
Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß
geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder­splitter können Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che é stata effettuata la sostituzione di
una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole
dimensioni siano nella corretta posizione e non siano sparse all’interno
dell’elaboratore. Verificare ciò scuotendo l’elaboratore e prestando
attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono
provocare cortocircuiti pericolosi.

Safety information

Antes de encender el sistema despues de sustituir una FRU, compruebe que
todos los tornillos, muelles y demás piezas pequeñas se encuentran en su
sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el
sistema y escuchando los posibles ruidos que provocarían. Las piezas
metálicas pueden causar cortocircuitos eléctricos.

7

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Safety notice 2

DANGER

Some standby batteries contain a small amount of nickel and cadmium. Do
not disassemble a standby battery, recharge it, throw it into fire or water, or
short-circuit it. Dispose of the battery as required by local ordinances or
regulations. Use only the battery in the appropriate parts listing. Use of an
incorrect battery can result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les
démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l’eau. Ne
les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à
la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde
ou celle de l’horloge temps r éel, veillez à n’utiliser que les modèles cités dans
la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée
risque de prendre feu ou d’exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet,
kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nicht
zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser
ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für
Sondermüll beachten. Beim Ersetzen der Bereitschafts-oder Systembatterie
nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.
Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e
cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né
cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82,
successive disposizioni e disposizioni locali). Quando si sostituisce la
batteria dell’RTC (real time clock) o la batteria di supporto, utilizzare
soltanto i tipi inseriti nell’appropriato Catalogo parti. L’impiego di una
batteria non adatta potrebbe determinare l’incendio o l’esplosione della
batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y
cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las
cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo
baterías que se encuentren en la lista de piezas. La utilización de una batería
no apropiada puede provocar la ignición o explosión de la misma.

8

Safety information

Safety notice 3

DANGER

The battery pack contains small amounts of nickel. Do not disassemble it,
throw it into fire or water, or short-circuit it. Dispose of the battery pack as
required by local ordinances or regulations. Use only the battery in the
appropriate parts listing when replacing the battery pack. Use of an
incorrect battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l’exposez ni au feu ni
à l’eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut,
conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la
batterie, veillez à n’utiliser que les modèles cités dans la liste de pièces
détachées adéquate. En effet, une batterie inappropriée risque de prendre
feu ou d’exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt,
wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt
werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll
beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der
in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel
fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in
vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando
si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato
Catalogo parti. L’impiego di una batteria non adatta potrebbe determinare
l’incendio o l’esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni
recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal
como dispone la normativa local. Utilice sólo baterías que se encuentren en
la lista de piezas al sustituir la batería. La utilización de una batería no
apropiada puede provocar la ignición o explosión de la misma.

9

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Safety notice 4

DANGER

The lithium battery can cause a fire, an explosion, or a severe burn. Do not
recharge it, remove its polarized connector, disassemble it, heat it above
100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of
the battery as required by local ordinances or regulations. Use only the
battery in the appropriate parts listing. Use of an incorrect battery can result
in ignition or explosion of the battery.
La pile de sauvegarde contient du lithium. Elle présente des risques
d’incendie, d’explosion ou de brûlures graves. Ne la rechargez pas, ne
retirez pas son connecteur polarisé et ne la démontez pas. Ne l’exposez pas
à une temperature supérieure à 100°C, ne la faites pas brûler et n’en exposez
pas le contenu à l’eau. Mettez la pile au rebut conformément à la
réglementation en vigueur. Une pile inappropriée risque de prendre feu ou
d’exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden,
explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses
Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt
werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder
der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden.
Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.
Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der
Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu
Entzündung oder Explosion führen.

10

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o
procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore
polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100
gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la
normativa in vigore (DPR 915/82, successive disposizioni e disposizioni
locali). L’impiego di una batteria non adatta potrebbe determinare
l’incendio o l’esplosione della batteria stessa.

La batería de repuesto es una batería de litio y puede provocar incendios,
explosiones o quemaduras graves. No la recargue, ni quite el conector
polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la
incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como
dispone la normativa local.

Safety information

Safety notice 5

If the LCD breaks and the fluid from inside the LCD gets into your eyes or
on your hands, immediately wash the affected areas with water at least for
15 minutes. Seek medical care if any symptoms caused by the fluid are
present after washing.

Si le panneau d’affichage à cristaux liquides se brise et que vous recevez dans
les yeux ou sur les mains une partie du fluide, rincez-les abondamment
pendant au moins quinze minutes. Consultez un médecin si des symptômes
persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der
Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der
LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er
unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn
der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in
Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen
mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden
anschließend ein Arzt aufgesucht werden.

Nel caso che caso l’LCD si dovesse rompere ed il liquido in esso contenuto
entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti
interessate con acqua corrente per almeno 15 minuti; poi consultare un
medico se i sintomi dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o
sus manos, lave inmediatamente las áreas afectadas con agua durante
15 minutos como mínimo. Obtenga atención medica si se presenta algún
síntoma del fluido despues de lavarse.

11

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Safety notice 6

DANGER

To avoid shock, do not remove the plastic cover that protects the lower part
of the inverter card.

Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en
plastique protégeant la partie inférieure de la carte d’alimentation.
Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der
Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che
avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja
de la tarjeta invertida.

Safety notice 7

DANGER

Though the main batteries have low voltage, a shorted or grounded battery
can produce enough current to burn personnel or combustible materials.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou
la mise à la masse d’une batterie peut produire suffisamment de courant
pour brûler des matériaux combustibles ou causer des brûlures corporelles
graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei
Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien
zu entzünden oder Verletzungen bei Personen hervorzurufen.

12

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in
corto circuito o a massa può fornire corrente sufficiente da bruciare materiali
combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería
cortocircuitada o con contacto a tierra puede producir la corriente suficiente
como para quemar material combustible o provocar quemaduras en el
personal.

Safety information

Safety notice 8

DANGER

Before removing any FRU, turn off the computer, unplug all power cords
from electrical outlets, remove the battery pack, and then disconnect any
interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors
tension, débranchez tous les cordons d’alimentation des socles de prise de
courant, retirez la batterie et déconnectez tous les cordons d’interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose
gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein,
bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FR U, spegnere il sistema, scollegare dalle prese
elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare
i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de
las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte
cualquier cable de conexión entre dispositivos.

13

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Laser compliance statement

Some models of Lenovo computer are equipped from the factory with an optical
storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are
also sold separately as options. If one of these drives is installed, it is certified in
the U.S. to conform to the requirements of the Department of Health and Human
Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class
1 laser products. Elsewhere, the drive is certified to conform to the requirements
of the International Electrotechnical Commission (IEC) 825 and C ENELEC EN 60
825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note
the following:

CAUTION

Use of controls or adjustments or performance of procedures other than
those specified herein might result in hazardous radiation exposure.
O uso de controles, ajustes ou desempenho de procedimentos diferentes
daqueles aqui especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d’exposition au rayon laser, respectez les consignes
de réglage et d’utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet,
kann gefährliche Laserstrahlung auftreten.

14

L’utilizzo di controlli, regolazioni o l’esecuzione di procedure diverse da
quelle specificate possono provocare l’esposizione a.

El uso de controles o ajustes o la ejecución de procedimientos distintos de los
aquí especificados puede provocar la exposición a radiaciones peligrosas.

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage
device could result in exposure to hazardous laser radiation. There are no
serviceable parts inside those drives. Do not open.

Safety information

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may
contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the
beam, do not view directly with optical instruments, and avoid direct
exposure to the beam.
Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe
diretamente por meio de instrumentos óticos e evite exposição direta com o
feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder
directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische
Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai
eszközökkel. Kerülje a sugárnyalábbal való érintkezést!

Aprendo l’unità vengono emesse radiazioni laser. Non fissare il fascio, non
guardarlo direttamente con strumenti ottici e evitare l’esposizione diretta al
fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental
óptico el haz de luz. Evite la exposición directa al haz.

15

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Important service information

This chapter presents the following important service information:

• “Strategy for replacing FRUs” on page 16
– “Strategy for replacing a hard disk drive” on page 17
– “Important notice for replacing a system board” on page 17

• “Important information about replacing RoHS compliant FRUs” on page 18

Important:

BIOS and device driver fixes are customer-installable. The BIOS and device
drivers are posted on the customer support site:
http://support.lenovo.com

Strategy for replacing FRUs

Before replacing parts:

Make sure that all software fixes, drivers, and BIOS downloads are installed
before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the
system board before completing the service action.

To download software fixes, drivers, and BIOS, follow the steps below:

1. Go to http://support.lenovo.com

2. Enter the serial number or select a product or use Lenovo smart

downloading.

3. Select the BIOS/Driver/Applications and download.

4. Follow the directions on the screen and install the necessary software.

.

.

16

Important service information

Use the following strategy to prevent unnecessary expense for replacing and
servicing FRUs:

• If you are instructed to replace an FRU, but the replacement does not solve
the problem, reinstall the original FRU before you continue.

• Some computers have both a processor board and a system board. If you are
instructed to replace either of them, and replacing one of them does not solve
the problem, reinstall that board, and then replace the other one.

• If an adapter or a device consists of more than one FRU, any of the FRUs may
be the cause of the error. Before replacing the adapter or device, remove the
FRUs one by one to see if the symptoms change. Replace only the FRU that
changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have
been customized. Running Automatic Configuration may alter the settings. No te
the current configuration settings (using the View Configuration option); then,
when service has been completed, verify that those settings remain in effect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will
cause all customer data on the hard disk to be lost. Make sure that the customer
has a current backup of the data before performing this action.

Attention: The drive startup sequence in the computer you are servicing may
have been changed. Be extremely careful during write operations such as
cop ying, sa ving, or formatt ing. I f you select a n incorr ect dr ive, data or p rogra ms
can be overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper
handling can cause damage to those components, and may cause a system
malfunction.

Attention: When handling a system board:

• Do not drop the system board or apply any excessive force to it.

• Avoid rough handling of any kind.

• Avoid bending the system board and hard pushing to prevent cracking at
each BGA (Ball Grid Array) chipset.

17

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Important information about replacing RoHS compliant FRUs

RoHS, The Restriction of Hazardous Substances in Electrical and
Electronic Equipment Directive (2002/95/EC) is a European Union legal
requirement affecting the global electronics industry. RoHS requirements
must be implemented on Lenovo products placed on the market after June

2006. Products on the market before June 2006 are not required to have

RoHS compliant parts. If the original FRU parts are non-compliant,
replacement parts can also be non-compliant. In all cases if the original
FRU parts are RoHS compliant, the replacement part must also be RoHS
compliant.

Note: RoHS and non -RoHS FRU part number s with the same fit and fu nction are

identified with unique FRU part numbers.

Lenovo plans to tr ansit to RoHS compliance well b efore the implementation date
and expects its suppliers to be ready to support Lenovo’s requirements and
schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS
compliant FRUs. The following statement pertains to these products and any
product Lenovo produces containing RoHS compliant FRUs.

RoH S complian t FRUs have unique FRU part numbers. B efore or afte r the R oHS
implementation date, faile d RoHS compliant parts must always be repla ced with
RoHS compliant ones, so only the FRUs identified as compliant in the system
HMM or direct substitutions for those FRUs may be used.

18

Products marketed before June 2006 Products marketed after June 2006

Current or
original part

Non-RoHS Can be Non-RoHS
Non-RoHS Can be RoHS
Non-RoHS Can sub to RoHS
RoHS Must be RoHS

Note: A direct substitution is a part with a different FRU part number that is
automatically shipped by the distribution center at the time of the order.

Replacement
FRU

Current or
original part

Must be RoHS Must be RoHS

Replacement
FRU

General checkout

This chapter presents the following information:

• “What to do first” on page 20

• “Power system checkout” on page 21

Before you go to the checkout, make sure to read the following important notes:

Important notes:

• Only certified trained personnel can service the computer.

• Before replacing any FRU, read the entire page on removing and

replacing FRUs.

• When you replace FRUs, use new nylon-coated screws.

• Be extremely careful during such write operations as copying,

saving, or formatting. Drives in the computer that you are servicing
sequence might have been altered. If you select an incorrect drive, data
or programs might be overwritten.

• Replace an FRU only with another FRU of the correct model. When
you replace an FRU, make sure that the machine model and the FRU part
number are correct by referring to the FRU parts list.

• An FRU should not be replaced just because of a single,
unreproducible failure. Single failures can occur for a variety of reasons

that have n othing t o do with a hard ware d efect , such as co smic radia tion,
electrostatic discharge, or software errors. Consider replacing an FRU
only when a problem recurs. If you suspect that an FRU is defective,
clear the error logs and run the test again. If the error does not recur, do
not replace the FRU.

• Be careful not to replace a nondefective FRU.

General checkout

19

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

What to do first

When you do return an FRU, you must include the following information in the
parts exchange form or parts return form that you attach to it:

1. Name and phone number of servicer

2. Date of service

3. Date on which the machine failed

4. Date of purchase

5. Procedure index and page number in which the failing FRU was detected

6. Failing FRU name and part number

7. Machine type, model number, and serial number

8. Customer’s name and address

Note for warranty: During the warranty period, the customer may be
responsible for repair costs if the computer damage was caused by misuse,
accident, modification, unsuitable physical or operating environment, or
improper maintenance by the customer.

The following is a list of some common items that are not covered under
warranty and some symptoms that might indicate that the system was subjected
to stress beyond normal use.

Before checking problems with the computer, determine whether the damage is
covered under the warranty by referring to the following list:

The following are not covered under warranty:

• LCD panel cracked from the application of excessive force or from being
dropped

• Scratched (cosmetic) parts

• Distortion, deformation, or discoloration of the cosmetic parts

• Plastic parts, latches, pins, or connectors that have been cracked or broken by
excessive force

• Damage caused by liquid spilled into the system

• Damage caused by the improper insertion of a PC Card or the installation of
an incompatible card

• Improper disk insertion or use of an optical drive

• Diskette drive damage caused by pressure on the diskette drive cover, foreign
material in the drive, or the insertion of a diskette with multiple labels

• Damaged or bent diskette eject button

• Fuses blown by attachment of a nonsupported device

• Forgotten computer password (making the computer unusable)

• Sticky keys caused by spilling a liquid onto the keyboard

• Use of an incorrect AC adapter on laptop products

20

The following symptoms might indicate damage caused by nonwarranted
activities:

• Missing parts might be a symptom of unauthorized service or modification.

• If the spindle of a hard disk drive becomes noisy, it may have been subjected
to excessive force, or dropped.

Power system checkout

To verify a symptom, follow the steps below:

1. Turn off the computer.

2. Remove the battery pack.

3. Connect the AC adapter.

4. Make sure that power is supplied when you turn on the computer.

5. Turn off the computer.

6. Disconnect the AC adapter and install the charged battery pack.

7. Make sure that the battery pack supplies power when you turn on the

computer.

If you suspect a power problem, see the appropriate one of the following power
supply checkouts:

• “Checking the AC adapter” on page 21

• “Checking operational charging” on page 21

• “Checking the battery pack” on page 22

Checking the AC adapter

You are here because the computer fails only when the AC adapter is used.

• If the power-on indicator does not turn on, check the power cord of the AC
adapter for correct continuity and installation.

• If the computer does not charge during operation, go to “Checking
operational charging”.

To check the AC adapter, follow the steps below:

1. Unplug the AC adapter cable from the computer.

2. Measure the output voltage at the plug of the AC adapter cable. See the

following figure:

General checkout

Voltage (V DC)

Pin

1

2

2

1

Note: Output voltage for the AC adapter pin No. 2 may differ from the one you
are servicing.

3. If the voltage is not correct, replace the AC adapter.

4. If the voltage is acceptable, do the following:

• Replace the system board.

• If the problem persists, go to “Lenovo IdeaPad S400 Touch” on page 26.

Note: Noise from the AC adapter does not always indicate a defect.

+20

0

Checking operational charging

To check whether the battery charges properly during operation, use a
discharged battery pack or a battery pack that has less than 50% of the total
power remaining when installed in the computer.

21

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Perform operational charging. If the battery status indicator or icon does not
light on, remove the battery pack and let it return to room temperature. Reinstall
the battery pack. If the charge indicator or icon is still off, replace the battery
pack.

If the charge indicator still does not light on, replace the system board. Then
reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95%
of the total power remains; under this condition the battery pack can charge to
100% of its capacity. This protects the battery pack from being overcharged or
from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray
of the Windows
percentage of battery power remaining is displayed. To get detailed information
about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to be charged. Remove
it from the computer and leave it at room temperature for a while. After it cools
down, reinstall and recharge it.

®

taskbar and wait for a moment (but do not click it), and the

22

Related service information

Related service information

This chapter presents the following information:

• “Restoring the factory contents by using Recovery Disc Set” on page 23

•“Passwords” on page24

• “Power management” on page 25

Restoring the factory contents by using Recovery Disc Set

When the hard disk drive or solid state drive is replaced because of a failure, no
product recovery program is on the new drive. In this case, you must use the
Recovery Disc Set for the computer. Order the Recovery Disc Set and the drive at
the same time so that you can recover the new drive with the pre-installed
software when they arrive.

The Recovery Disc Set consists of the following set of DVDs to restore the
computer to the original factory configuration.

Start Recovery Disc (one disc)

This disc is used to format the hard disk drive and initiate the recovery process.

Operating System Recovery Disc (one or more discs)

This disc restores the Microsoft Windows operating system.

Applications and Drivers Recovery Disc (one or more discs)

This disc restores the pre-installed applications and drivers on the computer.

Supplemental Recovery Disc

This disc contains additional content, such as software for specific models and
updates to the software that was preloaded on the computer. Not all recovery
disc sets come with a Supplemental Recovery Disc.

To restore the computer to the original factory configuration using the recovery
disc set, do the following:

1. Insert the bootable Start Recovery Disc into the optical drive.

2. Start the computer. When the Lenovo logo comes up, immediately press F12;

on the boot sequence menu, select the optical drive as the first boot-up device.
The computer will boot from the Start Recovery Disc. Follow the on-screen
instructions to begin the recovery process.

3. Read the license. If you agree with the terms, select I accept these terms and

conditions and then click Next.

4. Insert the Operating System Recovery Disc when prompted and click Yes to

begin the operating system recovery process.

5. Insert the Applications and Drivers Recovery Disc when prompted and then

click OK to begin the applications and drivers recovery process.

6. If you have a Supplemental Recovery Disc, insert it when prompted and click

Yes. If you do not have a Supplemental Recovery Disc, click No.

23

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

7. When all of the data has been copied from the last disc in the set, remove the

disc and restart the computer.

Note: The remainder of the recovery process is fully automated and no
action is required by you. The computer will restart into the Windows
desktop several times and you might experience periods when no activity is
apparent on the screen for several minutes at a time. This is normal.

8. When the recovery process is complete, the Welcome to the Microsoft

Windows screen is displayed. Follow the instructions on the screen to
complete the Windows setup.

Passwords

As many as three passwords may be needed for any Lenovo computer: the
power-on password (POP), the hard disk password (HDP), and the supervisor
password (SVP).

If any of these passwords has been set, a prompt for it appears on the screen
whenever the computer is turned on. The computer does not start until the
password is entered.

Exception: If only an SVP is installed, the password prompt does not appear
when the operating system is booted.

Power-on password

A power-on password (POP) protects the system from being powered on by an
unauthorized person. The password must be entered before an operating system
can be booted.

24

Hard-disk password

There are two hard-disk passwords (HDPs):
+ User HDP - for the user
+ Master HDP - for the system administrator, who can use it to get access to the

hard disk drive even if the user has changed the user HDP
Attention: If the user HDP has been forgotten, check whether a master HDP has

been set. If it has, it can be used for access to the hard disk drive. If no master
HDP is available, neither Lenovo nor Lenovo authorized service technicians
provide any services to reset either the user or the master HDP, or to recover data
from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

Supervisor password

A supervisor password (SVP) protects the system information stored in the BIOS
Setup Utility. The user must enter the SVP in order to get access to the BIOS
Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the
servicer, there is no service procedure to reset the password. The system board
must be replaced for a scheduled fee.

Power management

Note: Power management modes are not supported for APM operating system.

To reduce power consumption, the computer has three power management
modes: screen blank, sleep (standby), and hibernation.

Screen blank state

If the time set on the “Turn off monitor” timer in the operating system expires,
the LCD backlight turns off. You can also turn off the LCD backlight by pressing

.

To end screen blank state and resume normal operation, press .

Putting your computer into sleep state or shutting it down

When you finish working with your computer, you can put it into sleep state or
shut it down.

Putting your computer into sleep state

If you will be away from your computer for only a short time, put the computer
into sleep state.

When the computer is in sleep state, you can quickly wake it to resume use, and
bypass the startup process.

Related service information

To put the computer into sleep state, click and select Sleep from the Start
menu.

Note: Wait until the power indicator light starts blinking (indicating that the
computer is in sleep state) before you move your computer. Moving your
computer while the hard disk is spinning can damage the hard disk, causing loss
of data.

To wake the computer, do one of the following.

• Press the power button.

• Press any key on the keyboard.

Shutting down your computer

If you are not going to use your computer for a day or two, shut it down.To shut
down your computer, click and select Shut down or Smart Shutdown from
the Start menu.

Note:

• By selecting Smart Shutdown instead of Shut down or Hibernate, you make
your computer start more quickly next time you turn it on.

• For installed system updates to take effect, do not select Smart Update. Select
Shut down or Restart instead.

25

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Lenovo IdeaPad S400 Touch

This chapter presents the following product-specific service references and
product-specific parts information:

• “Specifications” on page 26

• “Status indicators” on page 28

• “FRU tests” on page 31

• “FRU replacement notices” on page 31

• “Removing and replacing an FRU” on page 32

•“Locations” on page55

• “Parts list” on page 58

Specifications

The following table lists the specifications of the Lenovo IdeaPad S400 Touch:

Table 1. Specifications

Feature Description

Processor See the system properties of your computer, you can do

PCH Intel Panther Point HM70, HM77, or NM70
Display 16:9 (1,366 × 768 pixels)
Standard

memory

CMOS RAM 256 bytes
Hard disk drive 2.5-inch, 7.0 mm
Optical drive NA
SSD 16G, 24G, 32G mSATA

this as follows:
Click Start, right-click Computer;
then from the pull down menu select Properties.

DDR3-1333 or DDR3-1600

4 GB

SODIMM × 1

26

Lenovo IdeaPad S400 Touch

Table 1. Specifications (continued)

Feature Description

I/O ports HDMI port × 1

USB 2.0 × 2, USB 3.0 × 1

2 in 1 slot × 1 (MMC, SD)

Audio Combo audio jack × 1

Speaker × 2

Built-in microphone
Video HDMI port × 1
AC adapter 40 W or 65 W
Pre-installed

operating system

Windows 8

27

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Status indicators

The system status indicators below show the computer status:

a b

28

Table 2. Status indicators

Indicator Meaning

Power on On (solid white):

a

Blinking:

off: The computer is powered off.

Battery On (solid white):

b

Solid amber:

Fast blinking amber:

Slow blinking amber:

Slow blinking white:

Off: The battery is detached.

Lenovo IdeaPad S400 Touch

The computer is powered on.

The computer is in sleep mode.

The battery has more than 20% charge.

The battery has between 5% and 20% charge.

The battery has less than 5% charge.

The battery is being charged. When battery charge
reaches 20%, the blinking color changes to white.

The battery has between 20% and 80% charge and is
still charging. When the battery reaches 80% charge
the light will stop blinking, but charging will
continue until the battery is fully charged.

29

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Hotkeys

The hotkeys are located in the function key row of the keyboard.By pressing the
appropriate hotkey, you can change system settings instantly.

The following describes the function of each hotkey.

Table 4. Hotkeys

Hotkeys Description

: Mute/Unmute.

: Decrease sound volume.

: Increase sound volume.

: Close active window or program.

: Refresh desktop or Web pages.

: Enable/Disable the touch pad.

:

: Enable/Disable the built-in microphone.

: Turn on/off the integrated camera.

: Open the interface for changing display devices.

: Decrease display brightness.

: Increase display brightness.

Open the interface for integrated wireless devices
settings (on/off).

30

FRU replacement notices

This section presents notices related to removing and replacing parts. Read this
section carefully before replacing any FRU.

Screw notices

Loose screws can cause a reliability problem. In the Lenovo computer, this
problem is addressed with special nylon-coated screws that have the following
characteristics:

• They maintain tight connections.

• They do not easily come loose, even with shock or vibration.

• They are harder to tighten.

• Each one should be used only once.

Do the following when you service this machine:

• Keep the screw kit in your tool bag.

• Always use new screws.

• Use a torque screwdriver if you have one.

Tighten screws as follows:

• Plastic to plastic

Turn an additional 90° after the screw head touches the surface of the plastic
part:

Lenovo IdeaPad S400 Touch

more than 90°

(Cross-section)

• Logic card to plastic

Turn an additional 180° after the screw head touches the surface of the logic
card:

more than 180°

(Cross-section)

• Torque driver

If you have a torque screwdriver , refer to the “Torque” column for each step.

• Make sure that you use the correct screws. If you have a torque screwdriver,
tighten all screws firmly to the torque shown in the table. Never use a screw

that you removed. Use a new one. Make sure that all screws are
tightened firmly.

• Ensure torque screwdrivers are calibrated correctly following country
specifications.

31

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Removing and replacing an FRU

This section presents exploded figures with the instructions to indicate how to
remove and replace the FRU. Make sure to observe the following general rules:

1. Do not attempt to service any computer unless you have been trained and

certified. An untrained person runs the risk of damaging parts.

2. Before replacing any FRU, review “FRU replacement notices” on page 31.

3. Begin by removing any FRUs that have to be removed before the failing FRU.

Any of such FRUs are listed at the top of the page. Remove them in the order
in which they are listed.

4. Follow the correct sequence in the steps to remove the FRU, as given in the

figures by the numbers in square callouts.

5. When turning a screw to replace an FRU, turn it in the direction as given by

the arrow in the figure.

6. When removing the FRU, move it in the direction as given by the arrow in the

figure.

7. To put the new FRU in place, reverse the removal procedures and follow any

of the notes that pertain to replacement. For information about connecting
and arranging internal cables, see “Locations” on page 55.

8. When replacing an FRU, use the correct screw as shown in the procedures.

DANGER

Before removing any FRU, turn off the computer, unplug all power cords
from electrical outlets, remove the battery pack, and then disconnect any of
the interconnecting cables.

32

Attention: After replacing an FRU, do not turn on the computer until you have
made sure that all screws, springs, and other small parts are in place and none
are loose inside the computer. Verify this by shaking the computer gently and
listening for rattling sounds. Metallic parts or metal flakes can cause electrical
short circuits.

Attention: The system board is sensitiv e to, and can be damaged by, elec trostatic
discharge. Before touching it, establish personal grounding by touching a
ground point with one hand or using an electrostatic discharge (ESD) strap
(P/N 6405959) to remove potential shock reasons.

Lenovo IdeaPad S400 Touch

1010 Battery pack

DANGER

•Only use the battery specified in the parts list for your computer. Any
other battery could ignite or explode.

Figure 1. Removal steps of battery pack

Unlock the manual latch . Slide the spring-loaded latch to the unlocked
position to eject the battery pack . Lift up the inner edge of the battery pack,
pivoting it on the outer edge . Slide the battery pack in the indicated direction
to remove it .

d

a

b

c

d

a

Open four rubber foot pads with a screw driver in the direction shown by arrows

, then remove nine screws , three screws .

e

f

f

e

Step Screw (quantity) Color Torque P/N

2.5 × 5 mm, flat-head, nylok-coated (9)

a

M2.0 × 3 mm, flat-head, nylok-coated
(3)

f g

g

f

g

g

f

f

e

c

b

f

f

f

e

Black
Silver

f

3.0 kgfcm

1.85 kgfcm

e

90202854

33

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

h

Figure 1. Removal steps of battery pack (continued)

Open the back cover along the device frame with a flat blade in the direction
shown by arrows and then lift the back cover in the direction shown by arrow

.

h

34

1020 Hard disk drive

For access, remove this FRU:

• “1010 Battery pack” on page 33

Attention:

• Do not drop the hard disk drive or apply any physical shock to it.

The hard disk drive is sensitive to physical shock. Improper handling
can cause damages and permanent loss of data.

• Before removing the drive, suggest the customer to backup all the

information on it if possible.

• Never remove the drive while the system is operating or is in suspend

mode.

Figure 2. Removal steps of hard disk drive

Remove the frame fixing screws .

a

Lenovo IdeaPad S400 Touch

a

a

Step Screw (quantity) Color Torque

a

Take out the hard disk drive secured in a metal frame in the direction shown by
arrow .

M2 × 3 mm, flat-head, nylok-coated (2) Silver 1.85 kgfcm

b

b

35

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Figure 2. Removal steps of hard disk drive (continued)

Remove four screws and detach the metal frame from the hard disk drive.

Step Screw (quantity) Color Torque P/N

M3.0 × 3.0 mm, flat-head, nylok-coated

c

(4)

When installing: Make sure that the HDD connector is attached firmly.

c

c

c

c

c

Silver 3.0 kgfcm 90202855

36

Lenovo IdeaPad S400 Touch

1030 DIMM

For access, remove this FRU:

• “1010 Battery pack” on page 33

Figure 3. Removal steps of DIMM

Release the two latches on both edges of the socket at the same time in the
direction shown by arrows , and then unplug the DIMM in the direction
shown by arrow .

b

a

b

aa

When installing: Insert the notched end of the DIMM into the socket. Push the
DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly
fixed in the slot and difficult to be moved.

37

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

a

1040 PCI Express Mini Card for wireless LAN/WAN

For access, remove this FRU:

• “1010 Battery pack” on page 33

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN/WAN

Disconnect the IO board connector .

a

Disconnect the two wireless LAN cables (black,white) , and then remove the
screw .

b

b

c

c

In step , unplug the jacks by using the removal tool antenna RF connector

b

(P/N: 08K7159), or pick up the connectors with your fingers and gently unplug
them in the direction shown by arrows.

Notes: wireless LAN card has 2 cables in step .
wireless LAN card in some models may have 3 cables in step .

Step Screw (quantity) Color Torque

b

M2.0 × 3.0 mm, flat-head, n ylok-coated
(1)

c

b

b

Silver 1.85 kgfcm

38

Lenovo IdeaPad S400 Touch

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN/WAN (continued)

Remove the card in the direction shown by arrow .

d

When installing:

• In models with a wireless LAN card that has two antenna connectors, plug
the black cable (1st) (MAIN) into the jack labeled 1, and the white cable (2nd)
(AUX) into jack labeled 2 on the card.

• In models with a wireless LAN card that has three antenna connectors, plug
the black cable (1st) (MAIN) into the jack labeled 1, the grey cable (3rd) into
jack labeled 3, and the white cable (2nd) (AUX) into jack labeled 2 on the
card.

d

39

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

a

1050 Fan assembly and Heat Sink assembly

For access, remove this FRU:

• “1010 Battery pack” on page 33

Figure 5. Removal steps of fan assembly and heat sink assembly

Unplug the fan connector in the direction shown by arrow .

When installing: Make sure that the fan connector is attached firmly to the
system board.

Remove six screws and two screws .

b c

b

b

b

b

a

c

b

c

b

Step Screw (quantity) Color Torque P/N

M2 × 3 mm, flat-head, nylok-coated (6)

b

M2 × 5 mm, flat-head, nylok-coated (2)

Silver
Silver

1.85 kgfcm

1.85 kgfcm

90202853

40

Lenovo IdeaPad S400 Touch

d

Figure 5. Removal steps of fan assembly and heat sink assembly (continued)

Lift the fan assembly and heat sink assembly in the direction shown by arrow

. Be careful not to damage the connector.

d

41

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

1060 Keyboard

For access, remove these FRUs in order::

• “1010 Battery pack” on page 33

• “1050 Fan assembly and Heat Sink assembly” on page 40

Figure 6. Removal steps of keyboard

Remove screws .

a

a

Step Screw (quantity) Color Torque

a

Push the back of the keyboard in the direction shown by arrow .

M2.0 × 3.0 mm, flat-head, nylok-coated
(2)

b

a

Silver 1.85 kgfcm

b

42

Lenovo IdeaPad S400 Touch

d

Figure 6. Removal steps of keyboard (continued)

Lift the keyboard a little , and then detach the connector in the direction
shown by arrow .

When installing: Make sure that the FPC connector is attached firmly.

c

c

d

43

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

1070 System board

Important notices for handling the system board:

When handling the system board, bear the following in mind.

• Be careful not to drop the system board on a bench top that has a hard
surface, such as metal, wood, or composite.

• Avoid rough handling of any kind.

• In the whole process, make sure not to drop or stack the system board.

• If you put a system board down, make sure to put it only on a padded
surface such as an ESD mat or conductive corrugated material.

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Hard disk drive” on page 35

• “1030 DIMM” on page 37

• “1040 PCI Express Mini Card for wireless LAN/WAN” on page 38

• “1050 Fan assembly and Heat Sink assembly” on page 40

• “1060 Keyboard” on page 42

44

Lenovo IdeaPad S400 Touch

Figure 7. Removal steps of system board (continued)

Remove two screws , then remove the RJ-45 door.

Step Screw (quantity) Color Torque

a

Remove five screws .

M2 × 3 mm, flat-head, nylok-coated (2) Silver 1.85 kgfcm

a

b

a

a

b

b

b

b

b

Step Screw (quantity) Color Torque

M2 × 3 mm, flat-head, nylok-coated (5) Silver 1.85 kgfcm

b

45

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

h

e

c

f

c

b

a

Figure 7. Removal steps of system board (continued)

Unplug DC-IN cable connector in the direction , speakers connector ,
disconnect the LCD connector in the direction , power board connector in the
direction , TP connector in the direction , LED board connector .

f g

h

g

c d

e

d

When installing: Make sure that all the connectors are attached firmly.

Remove the system board in the direction shown by arrow .

i

When installing: When attaching the system board to the base cover, adjust the
placement of the USB, HDMI, RJ-45 ports as shown in , and make sure
that they are attached to the holes on the base cover as shown. Improper
placement of those jacks might cause a damage.

46

i

Lenovo IdeaPad S400 Touch

1080 LCD unit

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Hard disk drive” on page 35

• “1030 DIMM” on page 37

• “1040 PCI Express Mini Card for wireless LAN/WAN” on page 38

• “1050 Fan assembly and Heat Sink assembly” on page 40

• “1060 Keyboard” on page 42

• “1070 System board” on page 44

Figure 8. Removal steps of LCD unit

Remove three screws and screw .

a

a b

a

a

b

Step Screw (quantity) Color Torque

a

When installing:

• Route the antenna cables along the cable guides. As you route the cables,

• Make sure that the LCD connector is attached firmly and make sure that you

M2 × 2 mm, flat-head, nylok-coated (1)
M2.5 × 5 mm, flat-head, nylok-coated (3)

make sure that they are not subjected to any tension. Tension could cause the
cables to be damaged by the cable guides, or a wire to be broken.

do not pinch the antenna cables when you attach the LCD assembly. Route
the LCD cable along the cable guides.

Black
Black

1.85 kgfcm

3.0 kgfcm

47

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Figure 8. Removal steps of LCD unit (continued)

Detach the LCD unit from the upper case.

48

Lenovo IdeaPad S400 Touch

1090 Speakers, base cover, USB board, power assembly and power board

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Hard disk drive” on page 35

• “1030 DIMM” on page 37

• “1040 PCI Express Mini Card for wireless LAN/WAN” on page 38

• “1050 Fan assembly and Heat Sink assembly” on page 40

• “1060 Keyboard” on page 42

• “1070 System board” on page 44

• “1080 LCD unit” on page 47

Figure 9. Speakers, base cover, USB board, power assembly and power board

Remove four screws , and then remove the speakers in the direction shown
by arrow .

b

b

a

a

a

a

a

b

Step Screw (quantity) Color Torque P/N

M2 × 2 mm, flat-head, nylok-coated (4) Black 1.85 kgfcm 90202850

a

Remove the power assembly in the direction shown by arrow .

c

When installing: Make sure that the power connector is attached firmly.

c

49

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Figure 9. Speakers, base cover, USB board, power assembly and power board (continued)

Remove two screws , and then remove the USB board in the direction shown
by arrow .

When installing: When attaching the USB board to the base cover, adjust the
placement of the USB and headphone jacks as shown , and make sure that both
of the USB and the headphone jacks are attached to the holes on the base cover
as shown. Improper placement of the jacks might cause a damage.

e

Step Screw (quantity) Color Torque P/N

M2 × 3 mm, flat-head, nylok-coated (2) Silver 1.85 kgfcm 90202851

a

d

d

d

e

50

Remove the screw to lift the power board in the direction shown by arrow

.

g

Step Screw (quantity) Color Torque

M2 × 3 mm, flat-head, nylok-coated (1) Black 1.85 kgfcm

a

f

f

g

Lenovo IdeaPad S400 Touch

Applying labels to the base cover

The new base cover FRU is shipped with a kit containing labels of several kinds.
Apply those labels when you replace the base cover. For labels which are not
shipped with the new base cover, peel them from the replaced base cover and
adhere them to the new one.

Note: If the Certificate of Authenticity (COA) label (b) is attached to a replaced
part, return the replaced part to the customer, or provide a letter to the customer
stating the original label part number, serial number, and product key.

a

h

f

c

b

e

g

d

j

k

i

The following letter shows the correct location of each label. Not all labels are
attached on the part you are servicing.

COA Label
SIRIM B/T Label
SIRIM W/L Label
W/L Label for US/CA/TW or W/L Label for US/TW or W/L Label for
INDONESIA
B/T Label for INDONESIA or B/T Label for US/CA/TW
B/T (BRAZIL)
W/L Label for BRAZIL or W/L Label for ISRAEL
PRC/MTM CODE
INDONESIA D Side Label
Rating label for China
Rating label for WW

51

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

1100 LCD front bezel

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Hard disk drive” on page 35

• “1030 DIMM” on page 37

• “1040 PCI Express Mini Card for wireless LAN/WAN” on page 38

• “1050 Fan assembly and Heat Sink assembly” on page 40

• “1060 Keyboard” on page 42

• “1070 System board” on page 44

• “1080 LCD unit” on page 47

• “1090 Speakers, base cover, USB board, power assembly and power board”
on page 49

Figure 10. Removal steps of LCD front bezel

Remove the LCD front bezel in the direction shown by arrows .

a

a

a

a

a

52

Lenovo IdeaPad S400 Touch

a

b

1110 LCD panel, LCD cable

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Hard disk drive” on page 35

• “1030 DIMM” on page 37

• “1040 PCI Express Mini Card for wireless LAN/WAN” on page 38

• “1050 Fan assembly and Heat Sink assembly” on page 40

• “1060 Keyboard” on page 42

• “1070 System board” on page 44

• “1080 LCD unit” on page 47

• “1090 Speakers, base cover, USB board, power assembly and power board”
on page 49

• “1100 LCD front bezel” on page 52

Figure 11. LCD panel, LCD cable

Remove screws .

a b

a

a

b

b

Step Screw (quantity) Color Torque P/N

2.0 × 2.5 mm, flat-head, nylok-coated(2)

2.0x3mm , flat-head, nylok-coated(2)

Disconnect the connector , lift the LCD panel in the direction shown by arrow

.

c

When installing: Make sure that the connector is attached firmly.

b

c

Silver
black

1.85 kgfcm

1.85 kgfcm

90202857

53

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

a

1120 Integrated camera

For access, remove these FRUs in order:

• “1010 Battery pack” on page 33

• “1020 Hard disk drive” on page 35

• “1030 DIMM” on page 37

• “1040 PCI Express Mini Card for wireless LAN/WAN” on page 38

• “1050 Fan assembly and Heat Sink assembly” on page 40

• “1060 Keyboard” on page 42

• “1070 System board” on page 44

• “1080 LCD unit” on page 47

• “1090 Speakers, base cover, USB board, power assembly and power board”
on page 49

• “1100 LCD front bezel” on page 52

• “1110 LCD panel, LCD cable” on page 53

Figure 12. Removal steps of integrated camera

Note: The integrated camera is stuck on the top center of the LCD cover.
Disconnect the connector , remove the integrated camera from the LCD cover

in the direction .

b

a

b

When installing: Stick the integrated camera to the top center of the LCD cover
and adjust the placement of it to make sure the connector is attached firmly.

54

Locations

c

Front view

Integrated camera

a

Wireless module antennas

b

Computer display
Power button

d

Touch pad

e

Built-in microphone

f

System status indicators

g

b

c

Lenovo IdeaPad S400 Touch

a

f

d

g

e

55

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

c

h

Bottom and Right-side view

AC power adapter jack

a

USB 2.0 port

b

Combo audio jack
Memory card slot

d

Battery latch -manual

e

Battery latch -spring loaded

f

Battery pack

g

Louvers
Speakers

i

f

h

g

e

a

b

b

c

d

i

56

Left-side view

c

Novo button

a

Fan louvers

b

RJ-45 port
HDMI port

d

USB 3.0 port

e

Lenovo IdeaPad S400 Touch

a

b

c

d

e

57

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Parts list

This section presents the following service parts:

• “Overall” on page 59

• “LCD FRUs” on page 64

• “Keyboard” on page 66

• “Miscellaneous parts” on page 70

• “AC adapters” on page 71

•“Power cords” on page72

Notes:

• Each FRU is available for all types or models, unless specific types or
models are specified.

58

Overall

Lenovo IdeaPad S400 Touch

1

2

e

3

5

9

11

12

13 (14)

15

16

17

20

6

b

b

d

4

7

8

10

a

c

18

19

59

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Table 4. Parts list—Overall

No. FRU FRU no. CRU

1 LCD unit (see “LCD FRUs” on page 64.)
2 Keyboard (see “Keyboard” on page 66.)
3 VIUS4 Upper Case Silver W/TP TS 90202795 N
3 VIUS4 Upper Case Black TS 90203270 N
4 DDR3L 1600 2GB, M471B5773DH0-YK0 2GB DDR3L

1600/SS M471B5773DH0-YK0 DDR3 1600 2GB

4 DDR3L 1600 2GB, HMT425S6AFR6A-PB 2GB DDR3L

1600
4 DDR3L 1600 2GB, RMT3170ED58F8W-1600 11201835 N
4 DDR3L 1600 2GB, MT8KTF 25664HZ-1G6M1 2GB DDR3L

1600
4 DDR3L 1600 4GB, M471B5273DH 0-YK0 4GB DDR3L 1600 11200503 *
4 DDR3L 1600 4GB, M471B5173QH0-YK0 11202079 *
4 DDR3L 1600 4GB, HMT451S6AFR8A-PB 4GB DDR3L

1600
4 DDR3L 1600 4GB, RMT3170EB68F9W-1600 4GB DDR3L

1600
4 DDR3L 1600 4GB, SM321NQ08ICF 4GB DDR3L 1600 11201834 *
4 DDR3L 1600 4GB, MT8KTF51264HZ-1G6J1 4GB DDR3L

1600
4 DDR3L 1600 8GB, M471B1G73BH0-YK0 8GB DDR3L

1600
4 DDR3L 1600 8GB, M471B1G73QH0-YK0 11202080 N
4 DDR3L 1600 8GB, HMT41GS6AFR8A-PB 8GB DDR3L

1600
4 DDR3L 1600 8GB, SM322NW08IAF 8GB DDR3L 1600 11201514 N
4 DDR3L 1600 8GB, MT16KTF1G64HZ-1G6E1 8GB DDR3L

1600
5 VIUS4 MB I3-3217 UMA TS 90002930 N
5 VIUS4 MB I3-3217 UMA TS W8P 90002931 N
5 VIUS4 MB I3-3217 UMA TS W8S 90002932 N
5 VIUS4 MB I3-3227 DIS TS 90002933 N
5 VIUS4 MB I3-3227 DIS TS W8P 90002934 N
5 VIUS4 MB I3-3227 DIS TS W8S 90002935 N
5 VIUS4 MB 1007U DIS TS 90002936 N
5 VIUS4 MB 1007U DIS TS W8P 90002937 N
5 VIUS4 MB 1007U DIS TS W8S 90002938 N
5 VIUS4 MB DIS I3-3217U 1G TS 90003422 N
5 VIUS4 MB W8P DIS I3-3217U 1G TS 90003423 N
5 VIUS4 MB W8S DIS I3-3217U 1G TS 90003424 N
5 VIUS4 MB DIS I5-3337 1G TS 90003425 N
5 VIUS4 MB W8P DIS I5-3337 1G TS 90003426 N
5 VIUS4 MB W8S DIS I5-3337 1G TS 90003427 N
5 VIUS4 MB UMA HM77 I5-3337 TS 90003575 N
5 VIUS4 MB W8P UMA HM77 I5-3337 TS 90003589 N
5 VIUS4 MB W8S UMA HM77 I5-3337 TS 90003603 N

11200502 N

11201299 **

11200346 N

11201300 *

11201512 *

11201342 N

11200504 N

11201301 N

11201304 N

ID

60

Table 4. Parts list—Overall (continued)

Lenovo IdeaPad S400 Touch

No. FRU FRU no. CRU

5 VIUS4 MB UMA HM77 I3-3227 TS 90003576 N
5 VIUS4 MB W8P UMA HM77 I3-3227 TS 90003590 N
5 VIUS4 MB W8S UMA HM77 I3-3227 TS 90003604 N
5 VIUS4 MB DIS HM77 I3-2375 1G TS 90003577 N
5 VIUS4 MB W8S DIS HM77 I3-2375 1G TS 90003605 N
5 VIUS4 MB W8P DIS HM77 I3-2375 1G TS 90003591 N
5 VIUS4 MB UMA HM77 I3-2375 TS 90003472 N
5 VIUS4 MB W8P UMA HM77 I3-2375 TS 90003473 N
5 VIUS4 MB W8S UMA HM77 I3-2375 TS 90003474 N
5 VIUS4 MB DIS HM70 2127U 1G TS 90003578 N
5 VIUS4 MB W8S DIS HM70 2127U 1G TS 90003606 N
5 VIUS4 MB W8P DIS HM70 2127U 1G TS 90003592 N
5 VIUS4 MB UMA HM70 2127U TS 90003579 N
5 VIUS4 MB W8S UMA HM70 2127U TS 90003607 N
5 VIUS4 MB W8P UMA HM70 2127U TS 90003593 N
5 VIUS4 MB UMA HM70 1007U TS 90003580 N
5 VIUS4 MB W8S UMA HM70 1007U TS 90003608 N
5 VIUS4 MB W8P UMA HM70 1007U TS 90003594 N
5 VIUS4 MB DIS HM70 987 1G TS 90003581 **
5 VIUS4 MB W8S DIS HM70 987 1G TS 90003609 N
5 VIUS4 MB W8P DIS HM70 987 1G TS 90003595 **
5 VIUS4 MB DIS HM70 1017U 1G TS 90003582 **
5 VIUS4 MB W8S DIS HM70 1017U 1G TS 90003610 **
5 VIUS4 MB W8P DIS HM70 1017U 1G TS 90003596 **
5 VIUS4 MB UMA HM70 1017U TS 90003583 **
5 VIUS4 MB W8P UMA HM70 1017U TS 90003597 **
5 VIUS4 MB W8S UMA HM70 1017U TS 90003611 **
5 VIUS4 MB DIS HM70 1037U 1G TS 90003584 **
5 VIUS4 MB W8P DIS HM70 1037U 1G TS 90003598 *
5 VIUS4 MB W8S DIS HM70 1037U 1G TS 90003612 *
5 VIUS4 MB UMA HM70 1037U TS 90003585 *
5 VIUS4 MB W8P UMA HM70 1037U TS 90003599 *
5 VIUS4 MB W8S UMA HM70 1037U TS 90003613 *
5 VIUS4 MB UMA NM70 1007U TS 90003586 *
5 VIUS4 MB W8P UMA NM70 1007U TS 90003600 *
5 VIUS4 MB W8S UMA NM70 1007U TS 90003614 *
5 VIUS4 MB UMA NM70 1017U TS 90003587 *
5 VIUS4 MB W8P UMA NM70 1017U TS 90003601 *
5 VIUS4 MB W8S UMA NM70 1017U TS 90003615 *
5 VIUS4 MB UMA NM70 1037U TS 90003588 *
5 VIUS4 MB W8P UMA NM70 1037U TS 90003602 *
5 VIUS4 MB W8S UMA NM70 1037U TS 90003616 *
5 VIUS4 MB UMA 987 3.0 TS 90003755 *
5 VIUS4 MB W8P UMA 987 3.0 TS 90003756 *
5 VIUS4 MB W8S UMA 987 3.0 TS 90003757 *

ID

61

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Table 4. Parts list—Overall (continued)

No. FRU FRU no. CRU

6 Processor, Ivy bridge core DC ULV, Intel I5-3317U 1.7G L1

3M 2cBGA

6 Processor, Ivy bridge core DC ULV, Intel I5-3337U 1.8G

3M 2cBGA

6 Processor, Ivy bridge core DC ULV, Intel I5-3427U 1.8G L1

3M 2cBGA

6 Processor, Ivy bridge core DC ULV, Intel I3-3217U 1.8G L1

3M 2cBGA

6 Processor, Ivy bridge core DC ULV, Intel I3-3227U 1.9G

3M 2cBGA

6 Processor, Ivy bridge core DC ULV, Intel 2127U 1.9G 2M

2cBGA

6 Processor, Ivy bridge core DC ULV, Intel 1007U 1.5G 2M

2cBGA

6 Processor, Ivy bridge core DC ULV, Intel 2117U 1.8G P0

2M 2cBGA

6 Processor, Ivy bridge core DC ULV, Intel 1017U 1.6G P0

2M 2cBGA QS

6 Processor, Ivy bridge core DC ULV, Intel 1037U 1.8G 2M

2cBGA

6 Processor, Sandy bridge core DC 17W, Intel I3-2365M

1.4G J1 3M 2cBGA

6 Processor, Sandy bridge core DC 17W, Intel I3-2377M

1.5G J1 3M 2cBGA

6 Processor, Sandy bridge core DC 17W, Intel I3-2375M

1.5G J1 3M 2cBGA

6 Processor, Sandy bridge core DC 17W, Intel 987 1.5G K0

2M 2cBGA

6 Processor, Sandy bridge core DC 17W, Intel 887 1.5G Q0

2M 2cBGA

6 Processor, Sandy bridge core DC 17W, Intel 997 1.6G Q0

2M 2cBGA

7 Battery, 4Cell 2200mAh 14.8V 32Wh Black, S300S400 SY

L12S4Z01 14.8V32Wh 4cell bty

7 Battery, 4Cell 2200mAh 14.8V 32Wh Silver grey,

S300S400SYL12S4Z01 14.8V32Wh4cellsilvbty

7 Battery, 4Cell 2200mAh 14.8V 32Wh Brown, S310SY

L12S4Z01 14.8V32Wh4cellbrownbty

8 WLAN, WiFi 2x2 BGN+BT4.0, Intel 7260BN 2x2BN+BT

PCIE HMC WLAN

8 WLAN, WiFi 2x2 BGN+BT4.0, Intel 2230 BGN+BT M

PCIE HMC WLAN

8 WLAN, WiFi 1x1 BGN, Cbt BCM94313HMG 1x1BGN

HMC WLAN

8 WLAN, WiFi 1x1 BGN, Liteon HB125 1x1BGN HMC

WLAN

102500314 *

102500489 *

102500315 *

102500313 *

102500490 *

102500491 *

102500492 **

102500438 **

102500551 **

102500595 **

102500409 *

102500410 *

102500518 *

102500412 *

102500434 *

102500439 *

121500104 *

121500115 **

121500195 **

20200412 **

20200078 **

20200102 **

20200223 **

ID

62

Table 4. Parts list—Overall (continued)

Lenovo IdeaPad S400 Touch

No. FRU FRU no. CRU

8 WLAN, WiFi 1x1 BGN+BT4.0, Cbt BCM943142HM

1x1BGN+BT4.0 HMC WLAN

8 WLAN, WiFi 1x1 BGN+BT4.0, Liteon WB225

1x1BGN+BT4.0 HMC WLAN

8 WLAN, WiFi 1x1 BGN+BT4.0, Liteon WB335

1x1BGN+BT4.0 HMC WLAN

8 WLAN, WiFi 1x1 BGN+BT4.0, Intel 135 1x1BGN+BT PCIE

HMC WLAN

8 WLAN, WiFi 2x2 AC+BT4.0, Intel 7260 2x2AC+BT PCIE

HMC WLAN
9 VIUS4 LED Board W/Cable 90000686 **
10 Hard disk drive, 320G 5400rpm, HTS545032A7E380 RV

7mm 5.4K 320G HDD
10 Hard disk drive, 320G 5400rpm, ST320LT012 5.4K 7mm

320G HDD
10 Hard disk drive, 500G 5400rpm, WD5000LPVT-24G33T1 16200523 **
10 Hard disk drive, 500G 5400rpm, HTS545050A7E380 RV

7mm 5.4K 500G HDD
10 Hard disk drive, 500G 5400rpm, ST500LT012 5.4K 7mm

500G HDD
10 Hard disk drive, 1TB 5400rpm, WD10SPCX-24HWST0 6G

7mm 1T HDD
10 SSHD, 500GB+8G, ST500LM000 6G 7mm 500G SSHD 16200391 **
10 SSD, 16G SSD, Samsung MZMPA016HMCD 16G mSATA

SSD
10 SSD, 16G SSD, Sandisk U100 16G mSATA SSD 16200215 **
10 SSD, 24G SSD, MZMPA024HMCD-000L1 16200256 **
10 SSD, 24G SSD, XM020C/RMS22MIMT024GACSBN311WB 16200253 **
11 VIUS3 Power Board W/Cable 90000678 **
12 VIUS3 Fan 90201489 **
13 VIUS3 HeatSink DIS 90201490 **
14 VIUS3 HeatSink UMA 90201491 **
15 VIUS3 IO Board W/Cable 90000663 **
16 VIUS4 Lower Case Brown TS 90202796 **
16 VIUS4 Lower Case Sliver TS 90203285 **
17 VIUS3 DC-IN Cable 90201492 **
18 VIUS3 Speaker L+R 90201493 **
19 VIUS3 TP Board Bracket 90201495 **
20 VIUS4 RJ-45 Door Brown TS 90202797 **

20200222 **

20200224 **

20200437 **

20200486 **

20200388 *

16200296 **

16200212 **

16200297 **

16200211 **

16200554 **

16200255 **

ID

63

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

LCD FRUs

In Lenovo IdeaPad S400 Touch, there are following types of LCDs.

• “14.0 -in. HD TFT”

1

2

3

4

7

5

6

3

64

8

8

14.0-in. HD TFT

Table 5. Parts list—14.0-in. HD TFT

Lenovo IdeaPad S400 Touch

No. FRU FRU no. CRU

1 VIUS4 LCD Bezel Silver TS 90203020 N
2 Panel+Touch, 14.0" AUO B140XTT01.0 0A HD G S LED1

NB LCD(T)

2 Panel+Touch, 14.0" BOE HB140WXA-100 HD G S LED1

NB LCD(T)
3 VIUS4 LCD Hinge L+R TS 90203021 N
4 VIUS4 LCD Cable TS 90203269 N
5 VIUS3 Camera Board 1.0M For WIN8 90001929 N
5 VAUS5 Camera Board 0.3M 90002411 N
6 VIUS4 LCD Cover Brown TS 90203019 N
7 VIUS4 Antenna*2 90201593 N
8 VIUS4 LCD Bezel Cap TS 90203022 N

18201042 N

18201133 N

ID

65

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Keyboard

Table 6. Parts list—Keyboard

Language P/N CRU

keyboard
S400 Touch

black frame
and black
keys
(Windows 8)

Indian 25208623,

Czechoslovakian 25208622,

Bulgarian 25208621,

International English 25208620,

Swiss 25208619,

Slovenian 25208618,

Icelandic 25208617,

Belgian 25208616,

Four Nordic countries 25208615,

Hungarian 25208614,

Hebrew 25208613,

Greek 25208612,

Dutch 25208611,

Japanese 25208610,

Brazilian 25208609,

25208683,
25208743

25208682,
25208742

25208681,
25208741

25208680,
25208740

25208679,
25208739

25208678,
25208738

25208677,
25208737

25208676,
25208736

25208675,
25208735

25208674,
25208734

25208673,
25208733

25208672,
25208732

25208671,
25208731

25208670,
25208730

25208669,
25208729

ID

**

66

Lenovo IdeaPad S400 Touch

Table 6. Parts list—Keyboard (continued)

Language P/N CRU

keyboard
S400 Touch
(continued)

black frame
and black
keys
(Windows 8)
(continued)

Arabic 25208608,

German 25208607,

French 25208606,

Russian 25208605,

Traditional Chinese 25208604,

Korean 25208603,

Canadian English&French 25208602,

Latin 25208601,

Portuguese 25208600,

Thai 25208599,

Turkish 25208598,

Spanish 25208597,

Italian 25208596,

U.K. English 25208595,

English 25208594,

Latin Spanish for Argentia 25211389,

25208668,
25208728

25208667,
25208727

25208666,
25208726

25208665,
25208725

25208664,
25208724

25208663,
25208723

25208662,
25208722

25208661,
25208721

25208660,
25208720

25208659,
25208719

25208658,
25208718

25208657,
25208717

25208656,
25208716

25208655,
25208715

25208654,
25208714

25211391,
25211393

ID

**

67

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Table 6. Parts list—Keyboard (continued)

Language P/N CRU

keyboard
S400 Touch
(continued)

silver frame
and black
keys
(Windows 8)

Indian 25213440,

Czechoslovakian 25213438,

Bulgarian 25213439,

International English 25213437,

Swiss 25213436,

Slovenian 25213435,

Icelandic 25213434,

Belgian 25213433,

Four Nordic countries 25213432,

Hungarian 25213431,

Hebrew 25213430,

Greek 25213429,

Dutch 25213428,

Japanese 25213427,

Brazilian 25213426,

25213470,
25213500

25213468,
25213498

25213469,
25213499

25213467,
25213497

25213466,
25213496

25213465,
25213495

25213464,
25213494

25213463,
25213493

25213462,
25213492

25213461,
25213491

25213460,
25213490

25213459,
25213489

25213458,
25213488

25213457,
25213487

25213456,
25213486

ID

**

68

Lenovo IdeaPad S400 Touch

Table 6. Parts list—Keyboard (continued)

Language P/N CRU

keyboard
S400 Touch
(continued)

silver frame
and black
keys
(Windows 8)
(continued)

Arabic 25213425,

German 25213424,

French 25213423,

Russian 25213422,

Traditional Chinese 25213421,

Korean 25213420,

Canadian English&French 25213419,

Latin 25213418,

Portuguese 25213417,

Thai 25213416,

Turkish 25213415,

Spanish 25213414,

Italian 25213413,

U.K. English 25213412,

English 25213411,

25213455,
25213485

25213454,
25213484

25213453,
25213483

25213452,
25213482

25213451,
25213481

25213450,
25213480

25213449,
25213479

25213448,
25213478

25213447,
25213477

25213446,
25213476

25213445,
25213475

25213444,
25213474

25213443,
25213473

25213442,
25213472

25213441,
25213471

ID

**

69

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Miscellaneous parts

Table 7. Parts list—Miscellaneous parts

FRU P/N CRU

System miscellaneous parts:

• (a) VIUS3 HDD Bracket

• (b) VIUS4 Rubber Foot Brown Rear TS

• (c) VIUS4 Rubber Foot Brown Front-Left TS

• (c) VIUS4 Rubber Sliver L

• (c) VIUS4 Rubber Brown L

• (d) VIUS4 Rubber Foot Brown Front-Right TS

• (d) VIUS4 Rubber Sliver R

• (d) VIUS4 Rubber Brown R

Cable miscellaneous parts:

• (e) VIUS4 TP Board Cable

Note: Italicized letters in parentheses are references to the
exploded view in “Overall” on page 71.

90201488
90202798
90202799
90203286
90203288
90202800
90203287
90203289

90201585

ID

N

N

70

AC adapters

Table 8. Parts list—3-pin AC adapters

Lenovo IdeaPad S400 Touch

FRU P/N CRU

40 W, Delta ADP-40NH B 20V2A adapter-CCC 36200398 N
40 W, Liteon PA-1400-12LC 20V2A adapter-CCC 36200405 N
40 W, Chicony LN-A0403A3C20V2A adapter-CCC 36200411 N
65W, Delta ADP-65KH BD 20V3.25A adapter-CCC 36200395 N
65W, Liteon PA-1650-56LC20V3.25A adapter-CCC 36200402 N
65W, Chicony CPA-A065 20V3.25A adapter-CCC 36200413 N

Screws

Table 9. Parts list—screws

FRU P/N CRU

VIUS3 Screw 2 2.0D 2L K 7D ZK NL+CR3+ 90202850 N
VIUS3 Screw 1.98D 3.0L K 4.6D NI NL+ 90202851 N
VIUS3 Screw 2D 3L K 4.5D ZK NL+CR3+0.4T 90202852 N
VIUS3 Screw 2D 5L K 4.6D NI NL+ 90202853 N
VIUS3 Screw 2.5D 5.0L K 4.6D ZK NL+CR3+ 90202854 N
VIUS3 Screw 3.0D 3.0L K 4.9D NI+ 90202855 N
VIUS3 Screw 2.0D 2.5L K 5D NI NL+ 90202856 N
VIUS3 Screw 1.6D 3L K 3.1D ZK NL+CR3+ 90202857 N

ID

ID

71

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Power cords

A Lenovo power cord for a specific country or region is usually available only in
that country or region:

Table 10. Parts list—3-pin power cords

Region P/N CRU

CCC

145000600 *

ID

• LINETEK PC323+RVV300/300+LS15 1m

Argentina

145000599

• LINETEK LS15+H03VV-F+LP39 1m

Danmark

145000598

• LINETEK LS15+H03VV-F+LP-38 1m

Switzerland

145000597

• LINETEK LS15+H03VV-F+LP-37 1m

Brazil

145000596

• LINETEK LS15 H03VV-F LP26A 1m

Israel

145000595

• LINETEK LS15+H03VV-F+LP-41 1m

UL

145000594

• LINETEK LP-30B + SPT-2 + LS15 1m

UK

145000593

• LINETEK LP-61L+ H03VV-F+ LS15 1m

Indian

145000592

• LINETEK PE-361+ H05VV-F+ LS15 1m

Italy

145000591

• LINETEK LS15+H03VV-F+PE-336 1m

Korea

145000590

• LINETEK LS15+H05VV-F+LP-E04A 1m

Australia

145000589

• LINETEK LS15+H03VV-F+LP-23A 1m

Taiwan

145000588

• LINETEK LS15+VCTF+LP-53 1m

Japan

145000587

• LINETEK LS15+VCTF+LP-54 1m

Africa

145000586

• LINETEK LS15+H03VV-F+PE-364 1m

CE

145000585

• LINETEK LP-34+H03VV-F + LS15 1m

CCC

145000568

• Longwell LSG-31+RVV300/300+LS-18 1m

Argentina

145000567

• Longwell LP-24+H03VV-F+LS-18 1m

Danmark

145000566

• Longwell LP-40+H03VV-F+LS-18 1m

Switzerland

145000565

• Longwell LP-37+H03VV-F+LS-18 1m

72

Lenovo IdeaPad S400 Touch

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU

Brazil

145000564 *

ID

• Longwell LP-46+H03VV-F+LS-18 1m

Israel

145000563

• Longwell LP-41+H03VV-F+LS-18 1m

UL

145000562

• Longwell LP-30B+SPT-2 18AWG+LS-18 1m

UK

145000561

• Longwell LP-61L+H03VV-F+LS-18 1m

Indian

145000560

• Longwell LP-67+BIS+LS-18 1m

Italy

145000559

• Longwell LP-22+H03VV-F+LS-18 1m

Korea

145000558

• Longwell LP-486+KTLH03VV-F+LS-5 1m

Australia

145000557

• Longwell LP-23A+LFC-3R+LS-18 1m

Taiwan

145000556

• Longwell LP-71+VCTF+LS-33 1m

Japan

145000555

• Longwell LP-54+VCTF+LS-18 1m

Africa

145000554

• Longwell LP-39+H03VV-F+LS-18 1m

CE

145000553

• Longwell LP-34A+H03VV-F+LS-18 1m

CCC

145000538

• VOLEX GB10S3+RVV 300/500+VAC5S 1m

UL

145000537

• Volex US15S3+SPT-2 +VAC5S 1m

Indian

145000536

• VOLEX IA6A3+IS694+VAC5S 1m

Italy

145000535

• VOLEX IT10S3+H03VV-F+VAC5S 1m

Denmark

145000534

• VOLEX MP233D+H03VV-F+VAC5S 1m

Korea

145000533

• VOLEX M2511+KETI IEC+VAC5S 1m

Australia

145000532

• VOLEX AU10S3+H03VV-F+VAC5S 1m

Taiwan

145000531

• VOLEX TW15CS3+VCTF+VAC5S 1m

Japan

145000530

• VOLEX VAC5S+VCTF+M755 1m

Argentina

145000528

• VOLEX VA2073+H03VV-F+VAC5S 1m

73

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Table 10. Parts list—3-pin power cords (continued)

Region P/N CRU

Brazil

145000527 *

• VOLEX CH10S3+H03VV-F+VAC5S 1m

Israel

145000526

ID

*

• VOLEX SI16S3+H03VV-F+VAC5S 1m

CE

145000525

• VOLEX M2511+H03VV-F+VAC5S 1m

Switzerland

145000524

• VOLEX MP232+H03VV-F+VAC5S 1m

UK

145000605

• VOLEX MP5004+H03VV-F+VAC5S 1m

74

Notices

Notices

Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area. Any
reference to a Lenovo product, program, or service is not intended to state or
imply that only that Lenovo product, program, or service may be used. Any
functionally equivalent product, program, or service that does not infringe any
Lenovo intellectual property right may be used instead. However, it is the user’s
responsibility to evaluate and verify the operation of any other product,
program, or service.

Lenovo may have patents or pending patent applications covering subject
matter described in this document. The furnishing of this document does not
give you any license to these patents.

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON­INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. Some jurisdictions do not allow disclaimer of express or implied
warranties in certain transactions, therefore, this statement may not apply to
you.

This information could include technical inaccuracies or typographical errors.
Changes are periodically made to the information herein; these changes will be
incorporated in new editions of the publication. Lenovo may make
improvements and/or changes in the product(s) and/or the program(s)
described in this publication at any time without notice.

The products described in this document are not intended for use in
implantation or other life support applications where malfunction may result in
injury or death to persons. The information contained in this document does not
affect or change Lenovo product specifications or warranties. Nothing in this
document shall operate as an express or implied license or indemnity under the
intellectual property rights of Lenovo or third parties. All information contained
in this document was obtained in specific environments and is presented as an
illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it
believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for
convenience only and do not in any manner serve as an endorsement of those
Web sites. The materials at those Web sites are not part of the materials for this
Lenovo product, and use of those Web sites is at your own risk.

75

Lenovo IdeaPad S400 Touch Hardware Maintenance Manual

Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating environments
may vary significantly. Some measurements may have been made on
development-level systems and there is no guarantee that these measurements
will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results
may vary. Users of this document should verify the applicable data for their
specific environment.

Trademarks

The following terms are either registered trademarks or trademarks of Lenovo in
the United States and/or other countries:

The following terms are trademarks of Microsoft Corporation in the United
States, other countries, or both:

®

Lenovo
Lenovo logo
IdeaPad
VeriFace
OneKey Rescue® (OneKey Recovery, OneKey Antivirus)
APS
Power Express
Energy Management and ReadyComm

Windows

®

®

®

®

®

®

®

Windows® 7

76

The following are trademarks of Intel Corporation or its subsidiaries in the
United States, other countries, or both:

®

Intel
Intel®Core™ 2 Duo

The following is a trademark of Advanced Micro Devices, Inc.

®

AMD

Other company, product, or service names may be the trademarks or service
marks of others.
