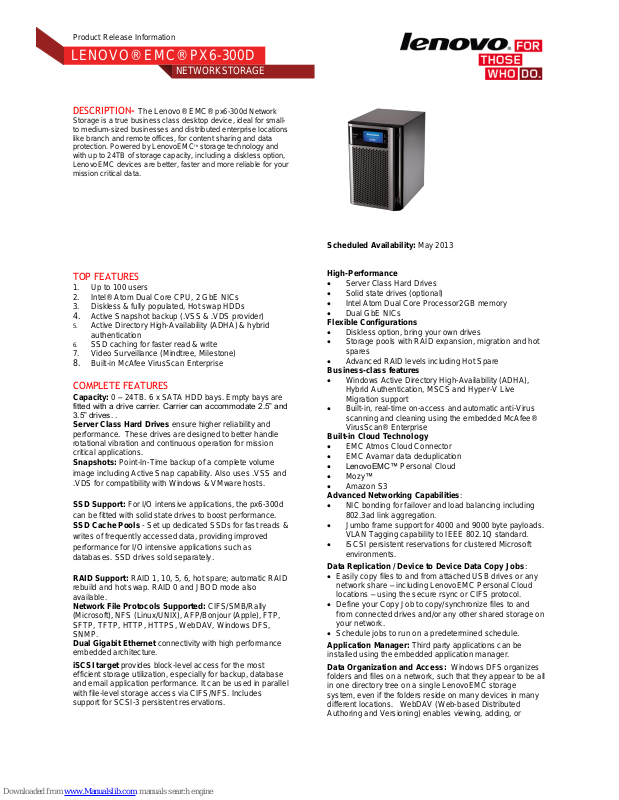

Page 1

Product Release Information

LENOVO® EMC® PX6-300D

NETWORK STORAGE

DESCRIPTION- The Lenovo® EMC® px6-300d Network

Storage is a true business class desktop device, ideal for smallto medium-sized businesses and distributed enterprise locations like branch and remote offices, for content sharing and data protection. Powered by LenovoEMC with up to 24TB of storage capacity, including a diskless option, LenovoEMC devices are better, faster and more reliable for your mission critical data.

storage technology and

TOP FEATURES

1. Up to 100 users

2. Intel® Atom Dual Core CPU, 2 GbE NICs

3. Diskless & fully populated, Hot swap HDDs

4. Active Snapshot backup (.VSS & .VDS provider)

5. Active Directory High-Availability (ADHA) & hybrid

authentication

6. SSD caching for faster read & write

7. Video Surveillance (Mindtree, Milestone)

8. Built-in McAfee VirusScan Enterprise

COMPLETE FEATURES

Capacity: 0 – 24TB. 6 x SATA HDD bays. Empty bays are

fitted with a drive carrier. Carrier can accommodate 2.5” and

3.5” drives. .

Server Class Hard Drives ensure higher reliability and performance. These drives are designed to better handle rotational vibration and continuous operation for mission critical applications. Snapshots: Point-In-Time backup of a complete volume

image including Active Snap capability. Also uses .VSS and .VDS for compatibility with Windows & VMware hosts.

SSD Support: For I/O intensive applications, the px6-300d can be fitted with solid state drives to boost performance. SSD Cache Pools - Set up dedicated SSDs for fast reads & writes of frequently accessed data, providing improved performance for I/O intensive applications such as databases. SSD drives sold separately.

RAID Support: RAID 1, 10, 5, 6, hot spare; automatic RAID rebuild and hot swap. RAID 0 and JBOD mode also available. Network File Protocols Supported: CIFS/SMB/Rally (Microsoft), NFS (Linux/UNIX), AFP/Bonjour (Apple), FTP, SFTP, TFTP, HTTP, HTTPS, WebDAV, Windows DFS, SNMP. Dual Gigabit Ethernet connectivity with high performance embedded architecture.

iSCSI target provides block-level access for the most efficient storage utilization, especially for backup, database and email application performance. It can be used in parallel with file-level storage access via CIFS/NFS. Includes support for SCSI-3 persistent reservations.

Scheduled Availability: May 2013

High-Performance

 Server Class Hard Drives  Solid state drives (optional)  Intel Atom Dual Core Processor2GB memory  Dual GbE NICs

Flexible Configurations

 Diskless option, bring your own drives  Storage pools with RAID expansion, migration and hot

spares  Advanced RAID levels including Hot Spare Business-class features  Windows Active Directory High-Availability (ADHA),

Hybrid Authentication, MSCS and Hyper-V Live

Migration support  Built-in, real-time on-access and automatic anti-Virus

scanning and cleaning using the embedded McAfee®

VirusScan® Enterprise Built-in Cloud Technology

 EMC Atmos Cloud Connector  EMC Avamar data deduplication  LenovoEMC™ Personal Cloud  Mozy™  Amazon S3

Advanced Networking Capabilities:

 NIC bonding for failover and load balancing including

802.3ad link aggregation.

 Jumbo frame support for 4000 and 9000 byte payloads.

VLAN Tagging capability to IEEE 802.1Q standard.  iSCSI persistent reservations for clustered Microsoft

environments. Data Replication / Device to Device Data Copy Jobs:

 Easily copy files to and from attached USB drives or any

network share – including LenovoEMC Personal Cloud locations – using the secure rsync or CIFS protocol.

 Define your Copy Job to copy/synchronize files to and

from connected drives and/or any other shared storage on your network.

 Schedule jobs to run on a predetermined schedule. Application Manager: Third party applications can be

installed using the embedded application manager. Data Organization and Access: Windows DFS organizes

folders and files on a network, such that they appear to be all in one directory tree on a single LenovoEMC storage system, even if the folders reside on many devices in many different locations. WebDAV (Web-based Distributed Authoring and Versioning) enables viewing, adding, or

Page 2

Product Release Information

LENOVO® EMC® PX6-300D

NETWORK STORAGE

deleting files on a LenovoEMC storage device from the web, via HTTP or HTTPS for added security.

Power Savings:

 Automatic hard drive spin-down assure the most efficient

(minimal) power consumption.

 Scheduled Power: Automatically power on or turn off

your LenovoEMC device at a pre-selected time schedule.

 Wake-On-LAN: Powers on your LenovoEMC device

when a “magic-packet” wake-up signal is sent over the network.(Wake-On-LAN magic packet application not

included) Simple Management:  Simple set up with an intuitive web-based interface.

Web interface can be accessed locally or remotely.

 Feature Selection gives admin ability to customize the

viewable features.

Configuration Backup and Restore: allows you to back up and restore system configuration information. Backing up a configuration saves various system properties, including users, groups, device identification, and Share names and permissions.

System Status: Consolidated resource on space utilization, device information, and status. In addition, you can manage controls such as device restart from here.

SMART Hard Drive Monitor: Continually monitors and reports on the health of all drives in the LenovoEMC storage system.

Built-in McAfee VirusScan Enterprise: LenovoEMC’s px Network Storage Family now includes virus scanning natively in the storage device. McAfee® VirusScan® Enterprise with px6-300d gives small businesses the ability to safely deploy network storage in places where previously there was the possibility of virus and/or malware vulnerability. McAfee VirusScan Enterprise for Linux permits on-access scanning of local file systems, mounted NFS and Samba/CIFS shares as well as a kernel-level scan cache to enhance performance. In addition, a secure browser interface with authentication and HTTPS (SSL) support is included to aid in administration. This delivers robust reporting features, including the ability to query the database by date range or individual field values, such as by virus name. Results of query can be exported to a CSV file and a diagnostic report can be generated for reporting a problem with the product.

LenovoEMC

Cloud is a web-based computing architecture that connects your LenovoEMC Network Storage devices to other individuals and/or devices via the Internet.

LenovoEMC™ Link iOS & Android application: LenovoEMC™ Link gives you a direct link to your px6-300d via your iOS or Android device. You have the ability to upload, download, browse and copy content on your network storage devices using LenovoEMC Link mobile app. (download app from iTunes or Android Market)

Software Compatibility: Compatible with today’s most

common backup software, web browsers, media devices and computers.

Warranty: 3 year limited warranty

Personal Cloud: LenovoEMC Personal

SOLUTIONS

Virtualization: LenovoEMC network storage devices are

certified for Citrix® 2003, Windows Server 2008, and Windows Server 2012 R2, VMware® vSphere ESX 5.1 which makes them the most cost-effective solution for server virtualization.

Video Surveillance Protecting your home or business has never been easier than with LenovoEMC storage’s built-in Video Surveillance Management software

 Mindtree® SecureMind VSMS software

 One free camera license included, supports up

 Built in support for hundreds of popular IP  Record, store and manage surveillance video

 Support for high-definition and configurable

 Axis Video Hosting Solution (AVHS) for local to

hosted cloud video storage and management.

Powerful Backup Functionality

 Symantec Backup: LenovoEMC network storage

products are identified as compatible disk targets for Backup Exec software.

 LenovoEMC Personal Cloud Backup: Synchronize data

between Personal Cloud member systems and the px6300d .

 Public Cloud Backup: Use one of the integrated 3rd party

cloud-based storage services such as Amazon S3 or MozyConnect™ to replicate data from your px6-300d to your public cloud account.

 Cloud Disaster Recovery: Utilize two px6-300d devices

in different locations and the LenovoEMC Personal Cloud function to create your own disaster recovery scheme.

 EMC Atmos Cloud Connector: The Atmos Connector

software lets a user backup and share data using LenovoEMC devices as the source and Atmos cloud technology as the target. Enabled by LenovoEMC’s integrated copyjob utility, customers can set up cloud folders and configure jobs to automatically copy data to any Atmos cloud.

 Deduplicating Backup with EMC Avamar – With

Avamar support on the px6-300d , users have the industry's first storage product that natively supports EMC's industry-leading Avamar sub-file deduplication for remote office/branch office (RoBo) backup.

 PC Backup with True Image Lite 2013 by Acronis –

Powerful backup software from Acronis protects content, recovers data in case of any disasters (3 licenses included),.

 Apple® Time Machine™ Backup: Compatible backup

target

Total Data Protection:  Native Security Support with robust username and

password authorized access. Create additional users and secure their content with password protection.

 Encrypted Volume: Allows you to create an encrypted

volume with an assigned password; thus securing the data on the encrypted volume.

 User Quotas: Easily manage capacity by setting

maximum limits per user.

XenServer™ 5.6, Windows® Server

to 16 cameras. (Additional licenses available for purchase)

cameras

resolution and frame rate settings, e-mail alerts, and secure access

Page 3

Product Release Information

LENOVO® EMC® PX6-300D

NETWORK STORAGE

Operating

Non-Operating

Ambient Temp

10º to 40º C

-40º to 60º C

Temp Gradient

12 º C per hour

n/a

Humidity (noncondensing)

8% to 85% R.H.

5% to 95% R.H. Max Wet Bulb

26.6ºC

29.4 ºC

Altitude

to 7500 ft.

to 40,000 ft.

Unit Information

10.125 x 6.94 x 10.625 inches

25.7 x 17.6 x 27.0 cm Weight 10.78 lbs ( 4.89kg) with no HDDs Weight 15.1 lbs (6.85 kg) with 3 x HDDs Weight 19.42 lbs (8.81 kg) with 6 x HDDs

Single Package Information

15.125 x 10.5 x 16.0 inches

38.4 x 26.7 x 40.6 cm Weight 14.85 lbs ( 6.74 kg) with no HDDs Weight 19.17 lbs (8.7 kg) with 3 x HDDs Weight 23.49 lbs (10.66 kg) with 6 x HDDs

Pallet Information 48 x 40 x 86.22 inches

121.9 x 101.6 x 219.0 cm Weight 773 lbs (350 kg) with no HDDs Weight 989 lbs (449 kg) with 3 x HDDs Weight 1205 lbs (547 kg) with 6 x HDDs

SPECIFICATIONS

 Desktop form factor  Intel Atom Dual Core CPU @ 1.8GHz with 2GB RAM  Two (2) 10/100/1000 Mbps Ethernet ports (RJ 45

connector)  6 x 3.5” Hot swap SATA-II Server Class 7200rpm hard

disk drives

 RAID Support: RAID 0, 1, 10, 5, 6, and 5+hot spare

(RAID/storage pool should be the same capacity, speed,

and manufacturer. Mixing different types of drives may

result in unpredictable behavior)  Power Consumption

o Max: 75W o Min: 35W (drives spun down) o Peak: 150W for 5s

NOTE: These values represent a fully loaded device with

the highest capacity HDD. Values may vary with other

configurations.  iSCSI: Supports both file and block storage pools, 256

hosts maximum with the following parameters;

o Block storage pools; 32 LUNS maximum per pool.

128 LUNs maximum per device.

o File storage pools; 256 LUNs Maximum per pool. 256

LUNs maximum per device.

 1 x USB 3.0 ports and 2 x USB 2.0 ports  LAN standards: IEEE 802.3, IEEE 802.3u  AC Voltage 100-240 VAC, 50-60 Hz  Acoustic noise – 32.6 dBA maximum  Temperature, Humidity and Altitude

 User interface localized for English, French, Italian,

German, Spanish, Brazilian Portuguese, Russian,

Traditional Chinese, Simplified Chinese, Korean,

Japanese, Arabic, Hebrew, Turkish, Swedish, Dutch, and

Polish

-------------------------------------------------------------

Weight and Dimensions

CERTIFICATIONS

The px6-300d Network Storage has received the following certifications:

 Windows® Server 2008 and Windows Server 2012 R2  VMware vSphere ESX 5.1 iSCSI and NAS  XenServer™ 5.5, 5.6 (w/ MPIO), iSCSI & NFS

CONTENTS

 Lenovo® EMC® px6-300d Network Storage  Ethernet cable  Power supply  Printed Quick Start Guide

SYSTEM REQUIREMENTS

 Available 10/100/1000 Mbps network Ethernet port

(required).

 Internet Explorer 7, Firefox® 3.x, Chrome 9, Safari 4 or

later browser.

 Personal Cloud and remote access specific requirements:

 Internet connection  Universal Plug and Play (UPnP™) compatible router,

or administrative rights to port forward.

 Recommended minimum sustained connection

speeds for a good Personal Cloud experience.

 Download: 2.5 Mbit/s  Upload: 500Kbit/s

 Personal Cloud is not compatible with Active
