Lenovo Notebook User Manual

Lenovo
User GuideUser Guide
Read the safety notices and important tips in the included manuals before using your computer.
First Edition (December 2013)
© Copyright Lenovo 2013.
The features described in this guide are common to most models. Some features may not be available on your computer or your computer may include features that are not described in this user guide.
Some instructions in this guide may assume that you are using Windows
®
8.1. If you are using other Windows operating system, some operations may be slightly different. If you are using other operating systems, some operations may not apply to you.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
Notes
•
•
•
The illustrations in this manual may differ from the actual product. Please refer to the actual product.
The illustrations used in this manual are for Lenovo Z50-70 unless otherwise stated.
•
•
For details, refer to Guides & Manuals at http://support.lenovo.com.
Regulatory Notice
•
Lenovo
User Guide
Instructions and technical information in this manual are applicable to the following Lenovo notebook computers unless otherwise stated.
Model name MT
Lenovo G40-30
Lenovo G40-45
Lenovo G40-70
Lenovo G40-70m
Lenovo G50-30
Lenovo G50-45
Lenovo G50-70
Lenovo G50-70m
Lenovo Z40-70
Lenovo Z50-70
20417, 80FY
20374, 80E1
20369, 80DX
20422, 80G3
20418, 80G0
20375, 80E3
20351, 80DY
20423, 80G4
20366, 80E6
20354, 80E7
i
Chapter 1. Getting to know your computer ..........................................1
Top view.......................................................................................................................1
Left-side view ..............................................................................................................9
Right-side view..........................................................................................................12

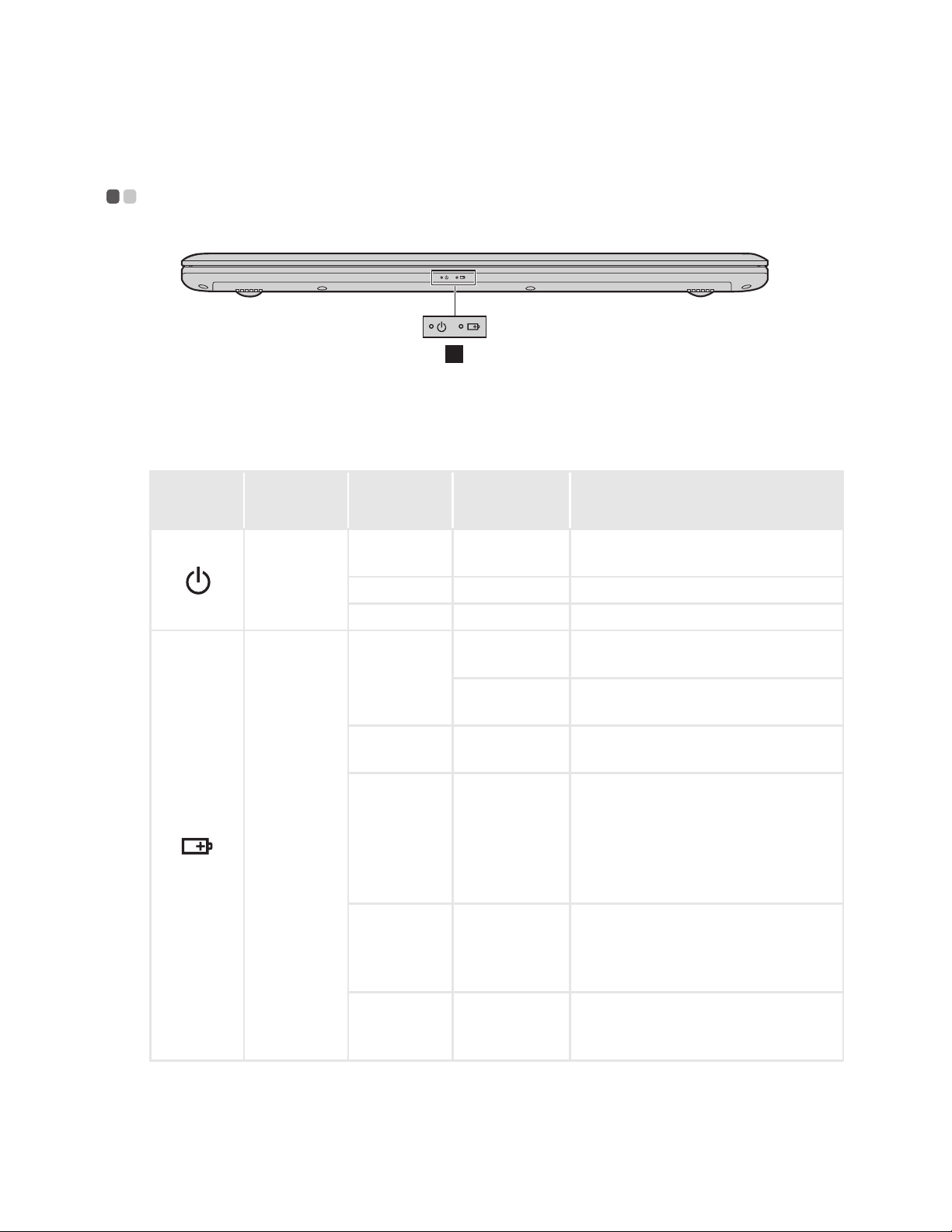

Front view ..................................................................................................................14

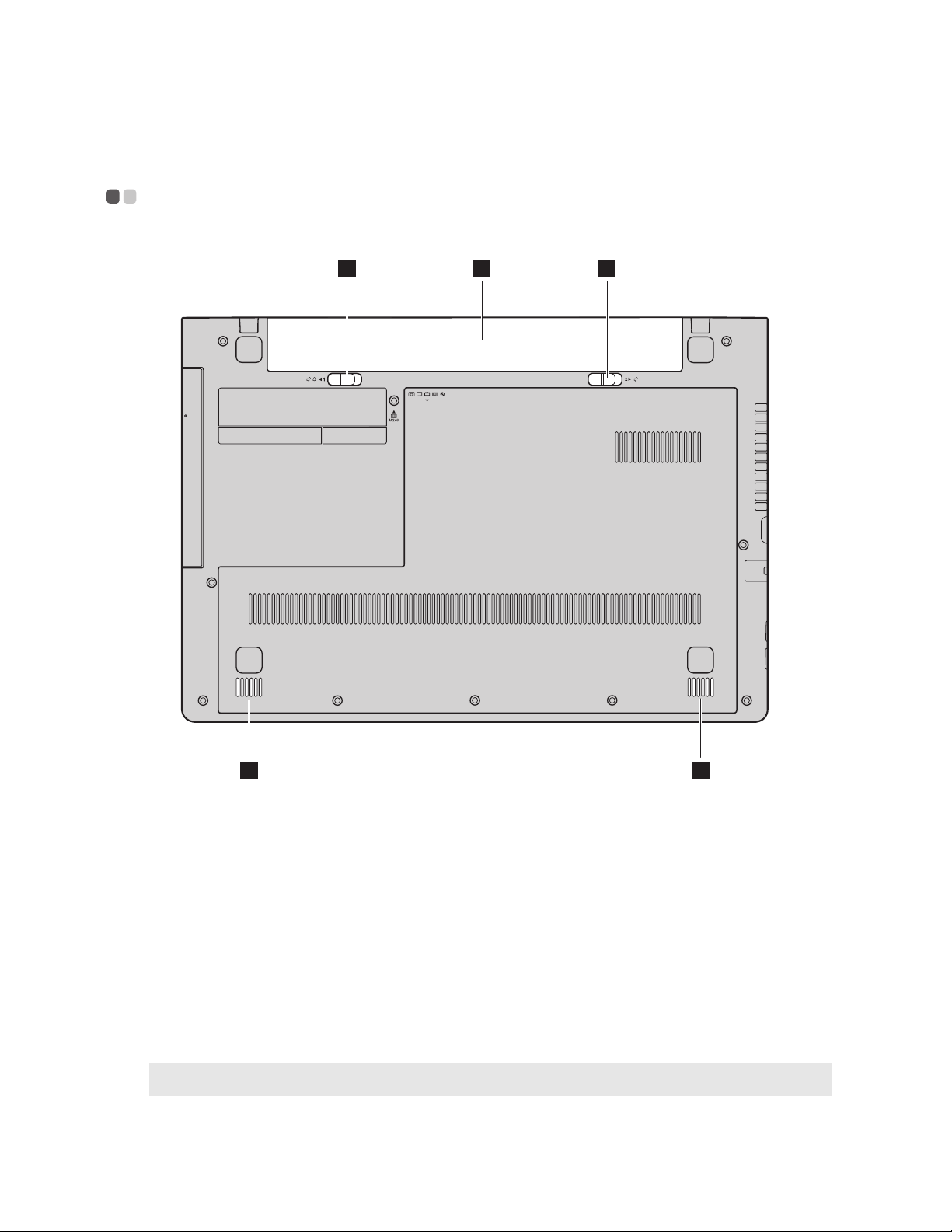

Bottom view...............................................................................................................15
Chapter 2. Starting to use Windows 8.1..............................................16
Configuring the operating system for the first time............................................ 16

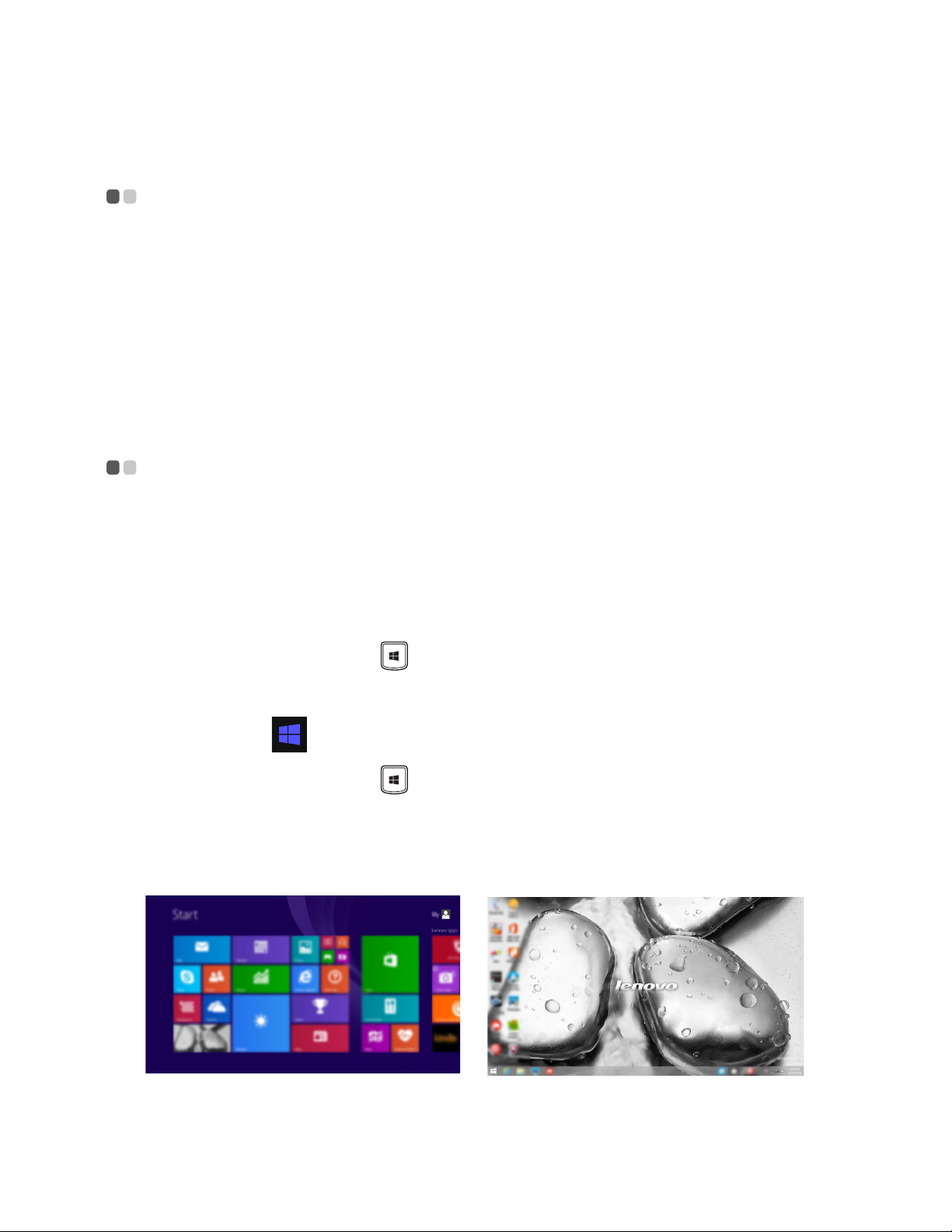

Operating system interfaces....................................................................................16

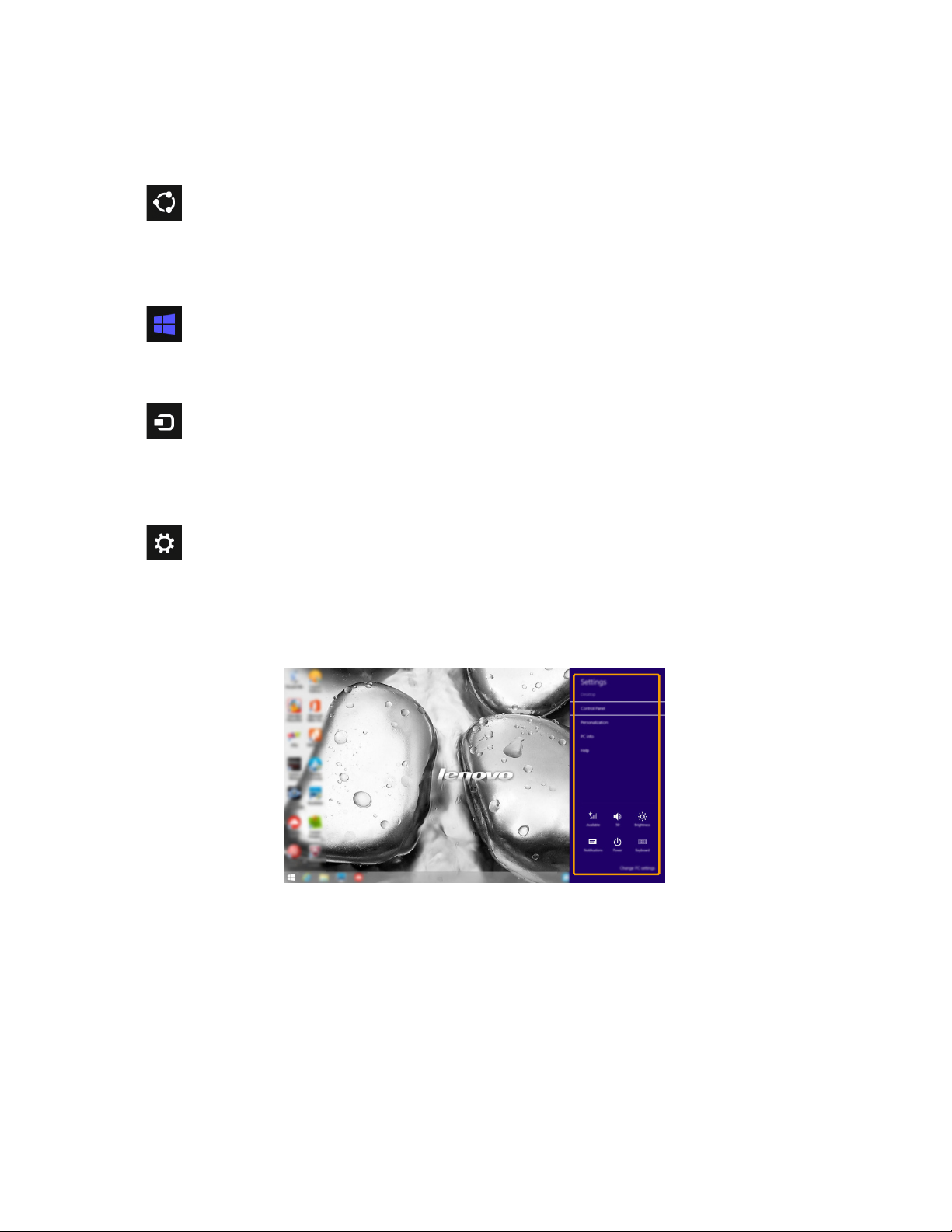

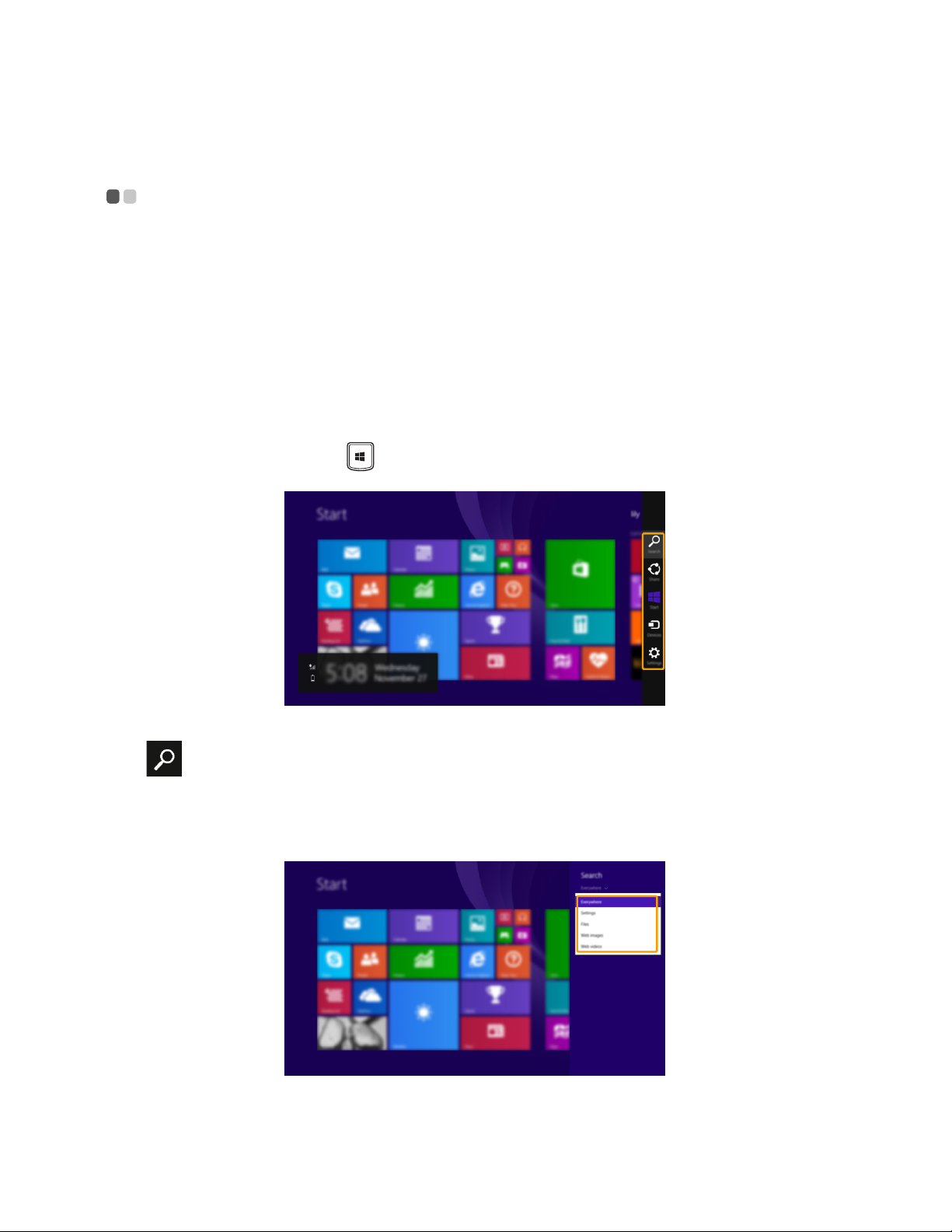

The charms.................................................................................................................17
Putting the computer to sleep or shutting it down..............................................19

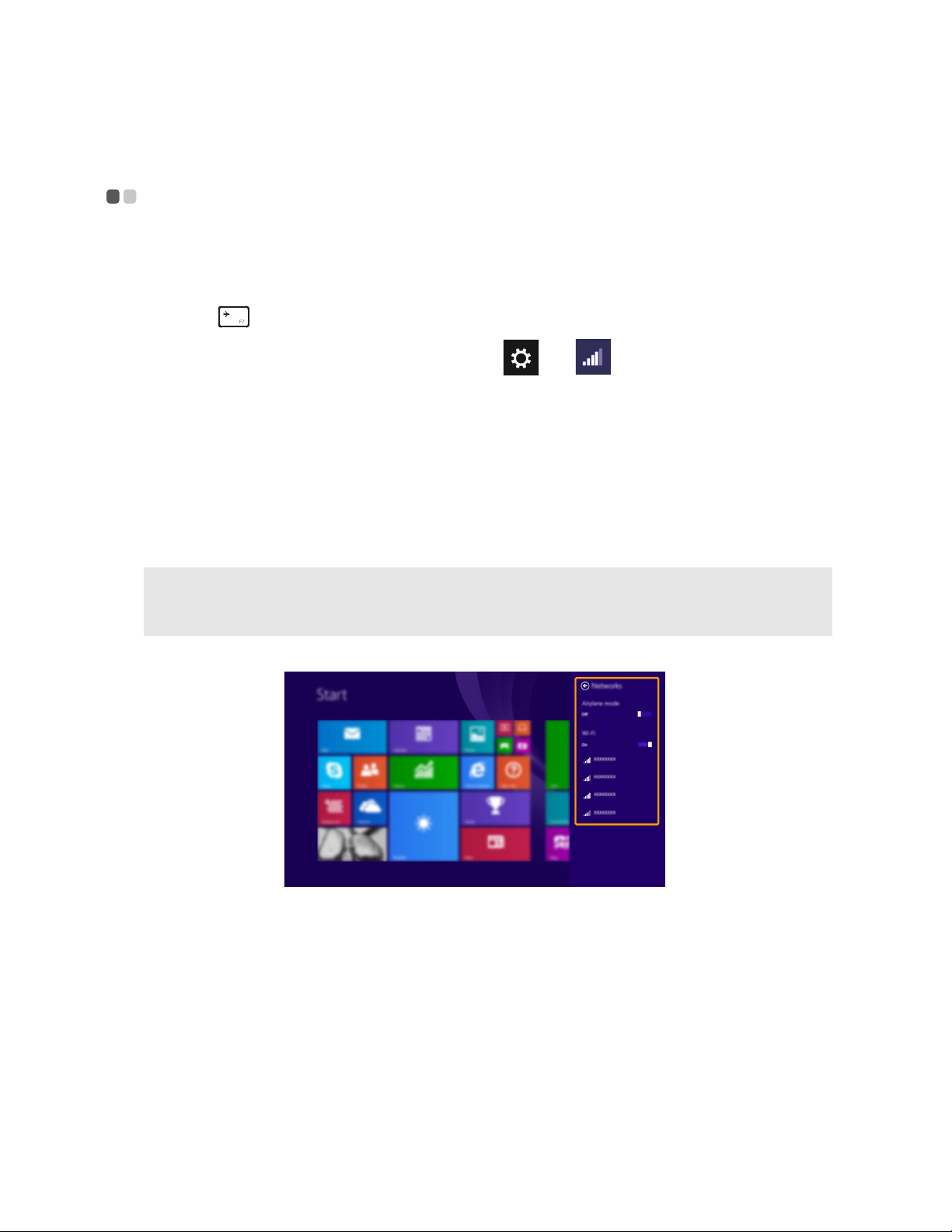

Connecting to a wireless network ..........................................................................20
Help and support......................................................................................................21
Chapter 3. Lenovo OneKey Recovery System ...................................22
Chapter 4. Troubleshooting .................................................................23
Frequently asked questions.....................................................................................23
Troubleshooting ........................................................................................................25
Appendix A. CRU instructions.............................................................29

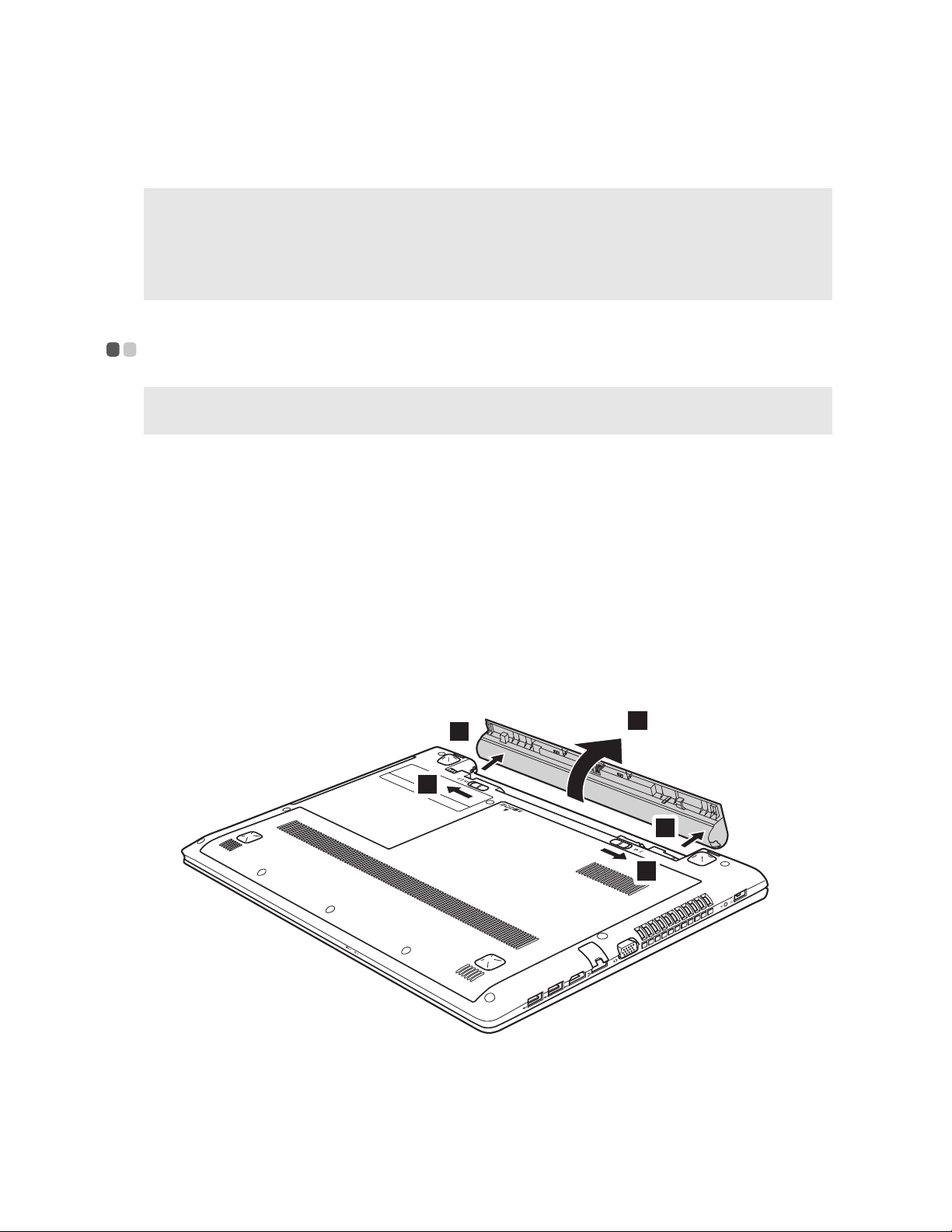

Replacing the battery pack ...................................................................................... 29

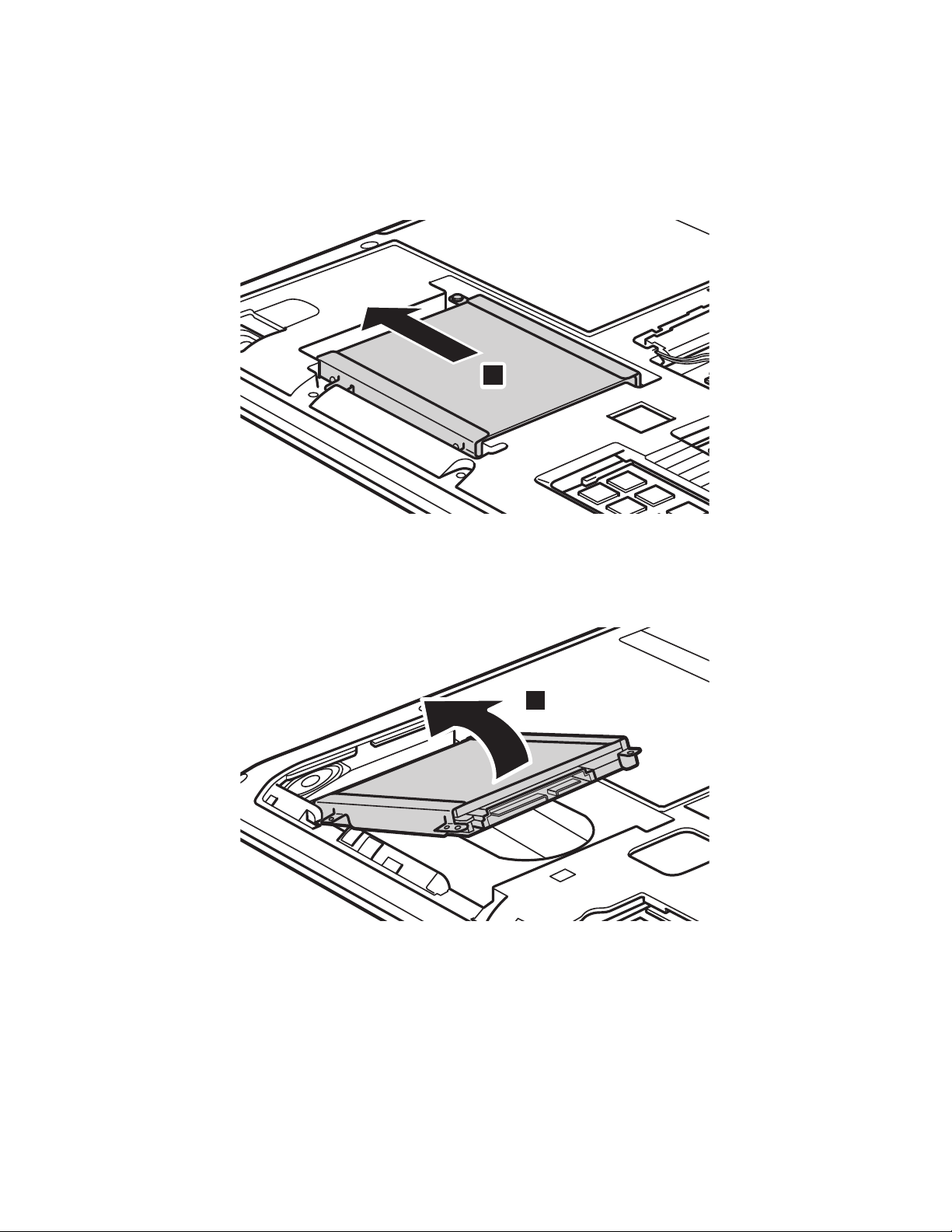

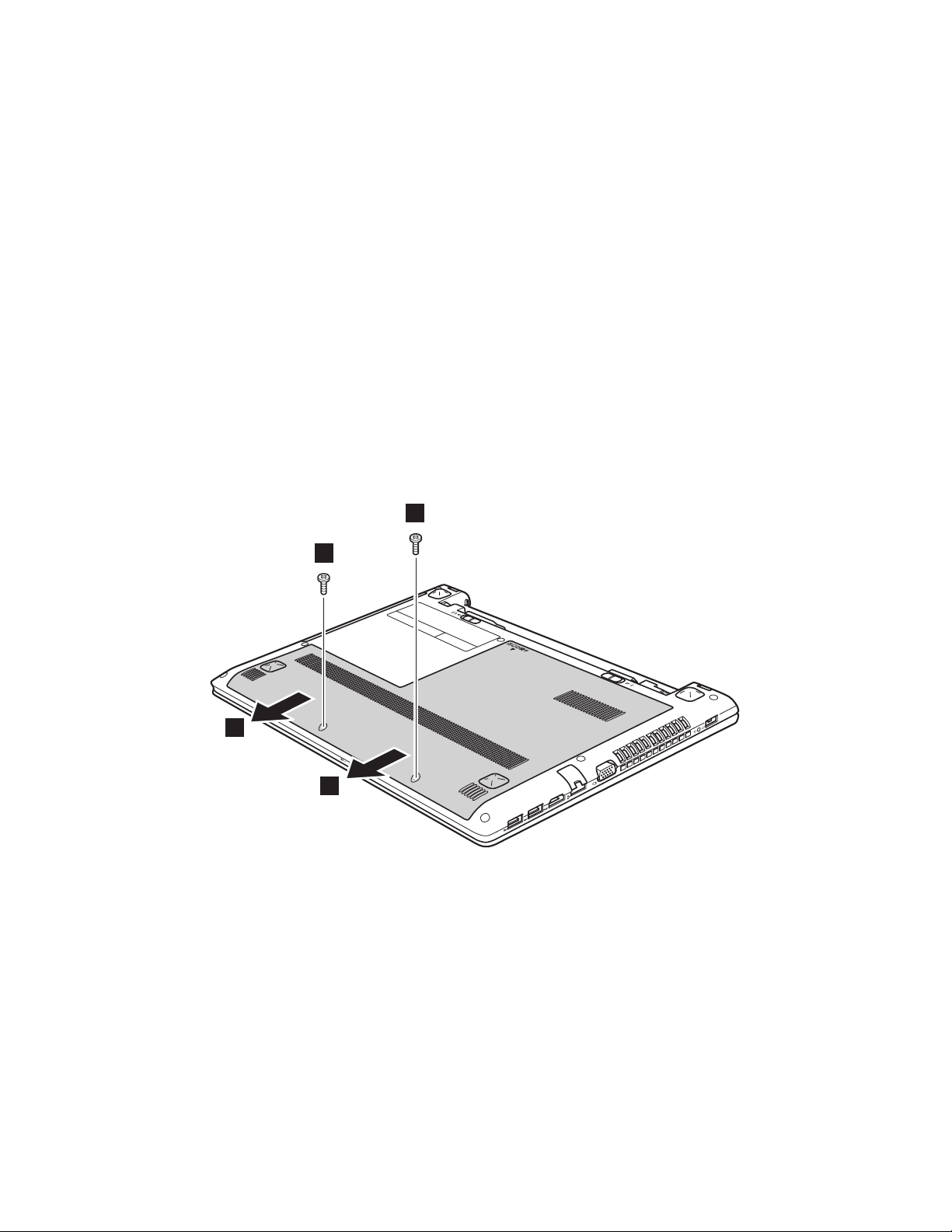

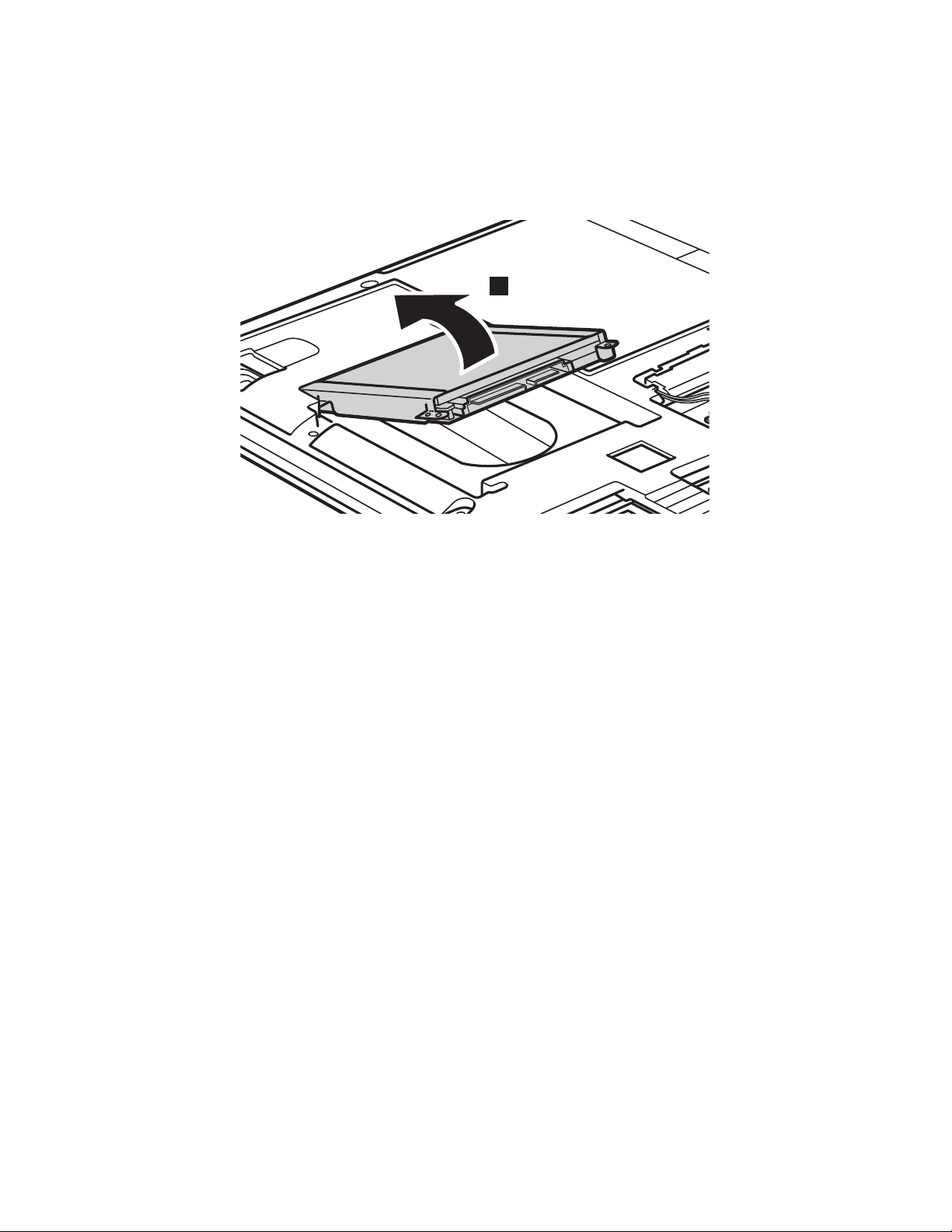

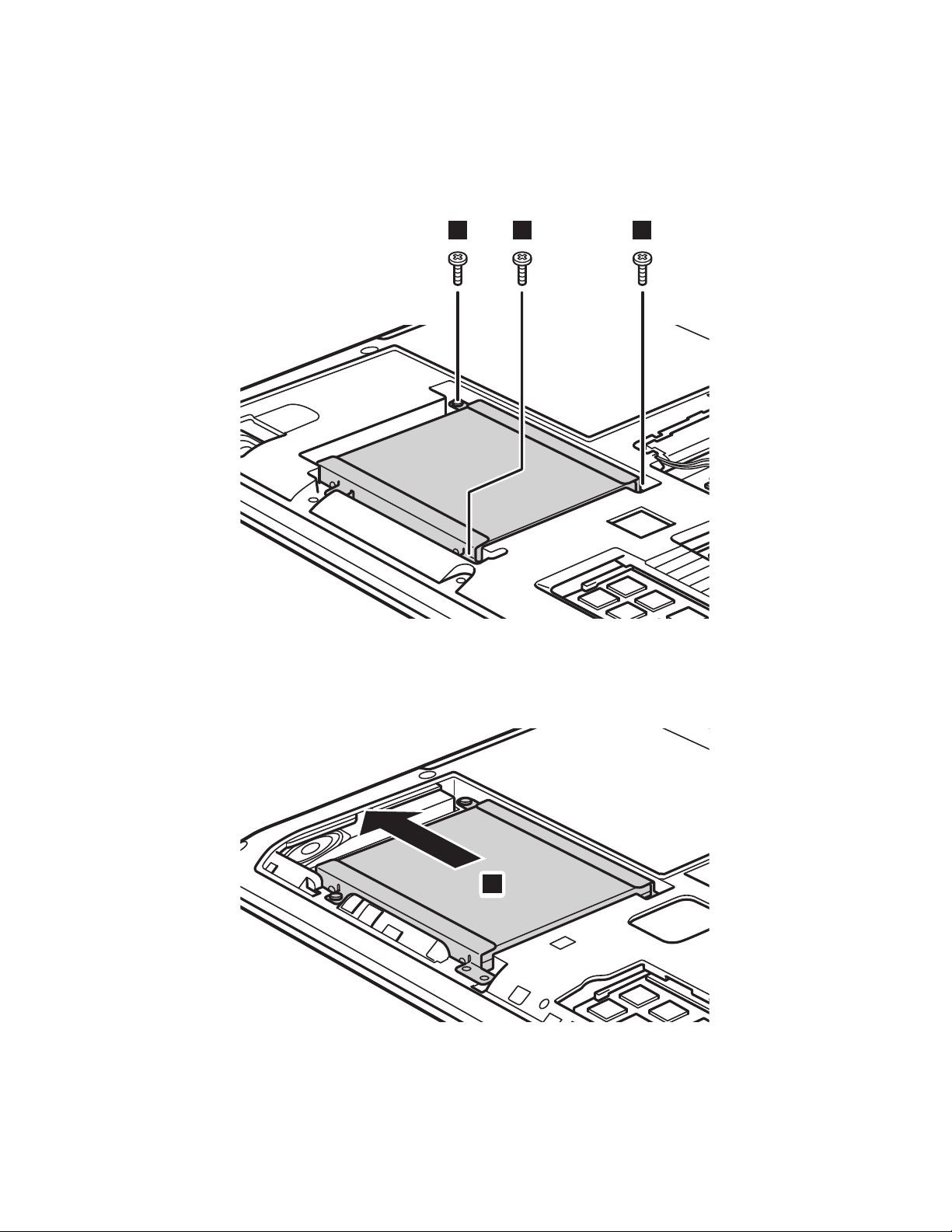

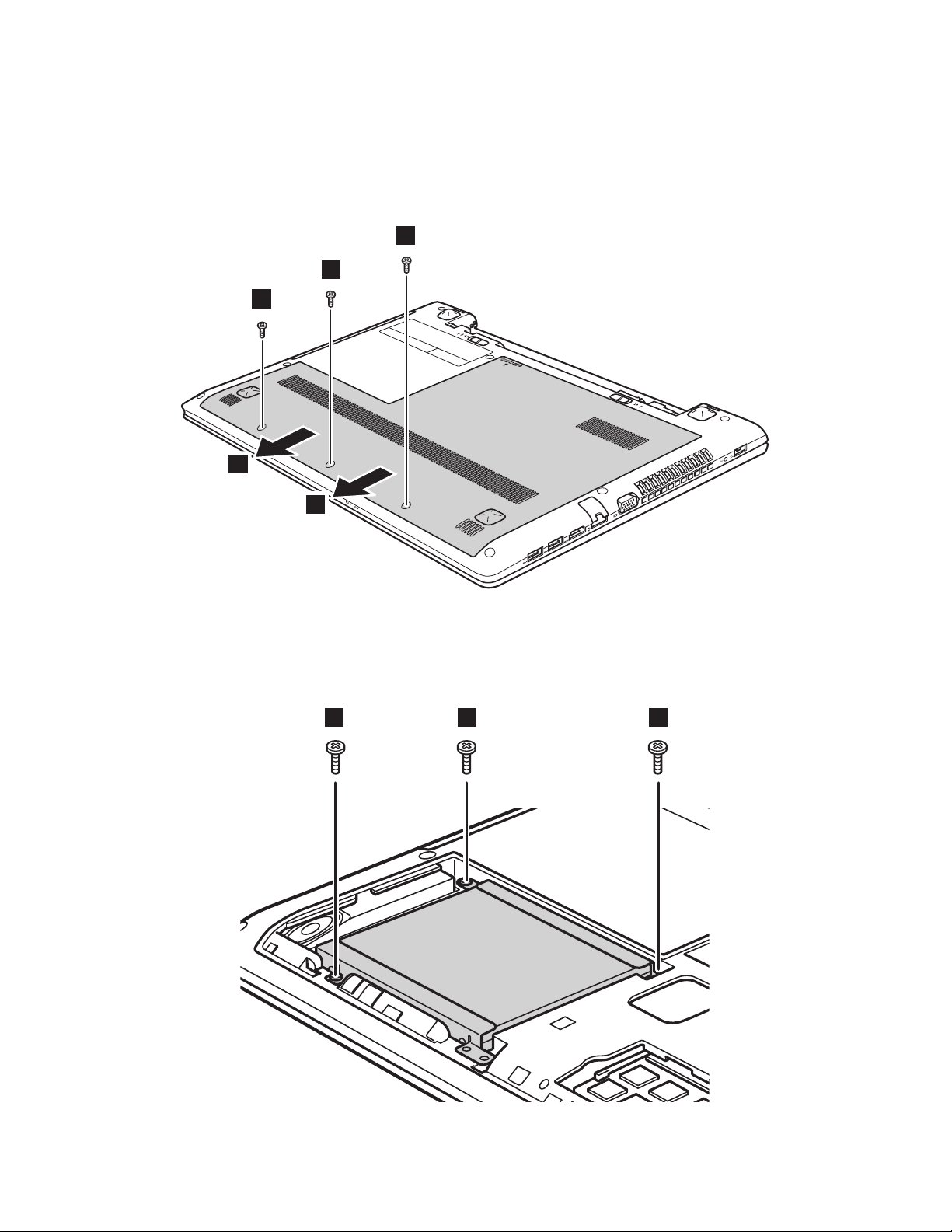

Replacing the hard disk drive.................................................................................30

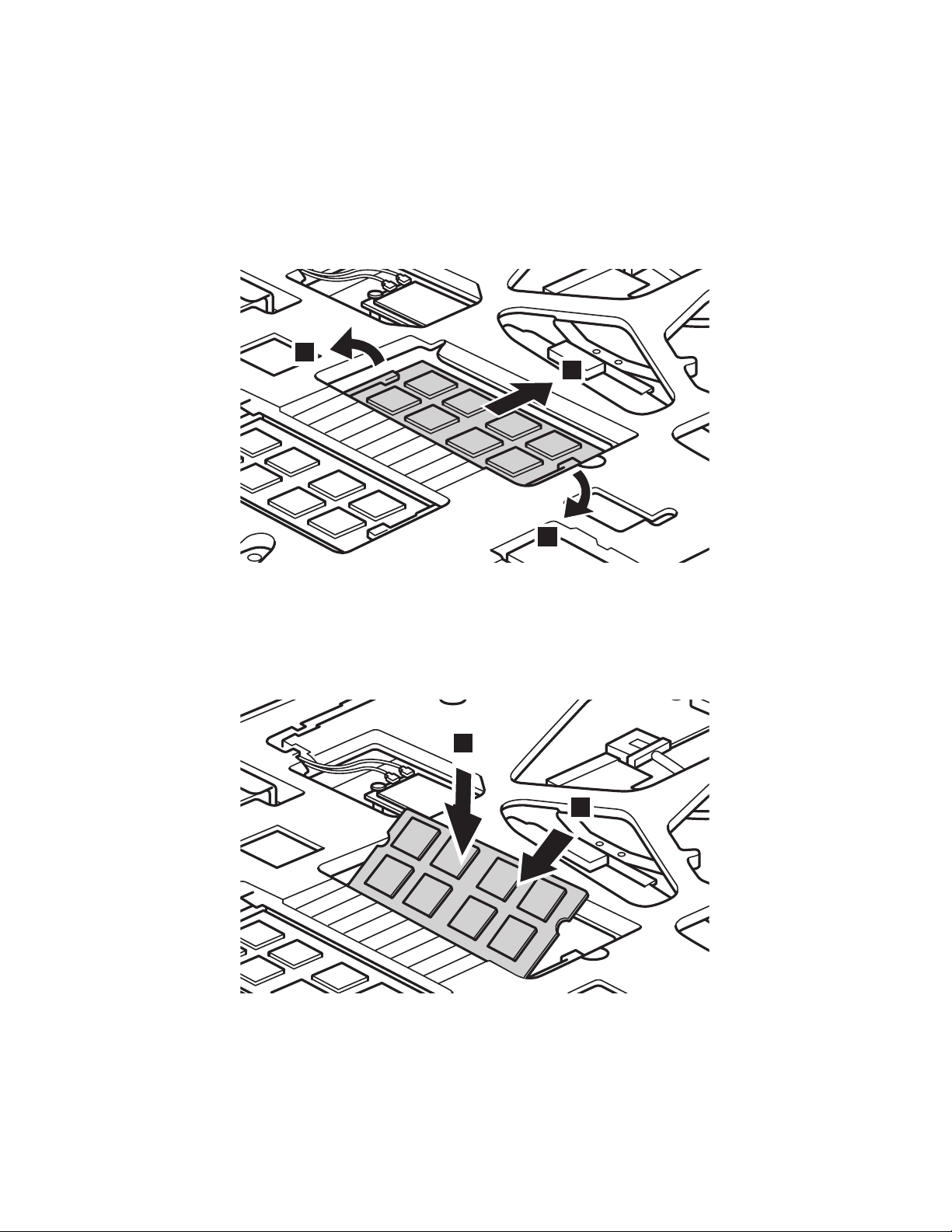

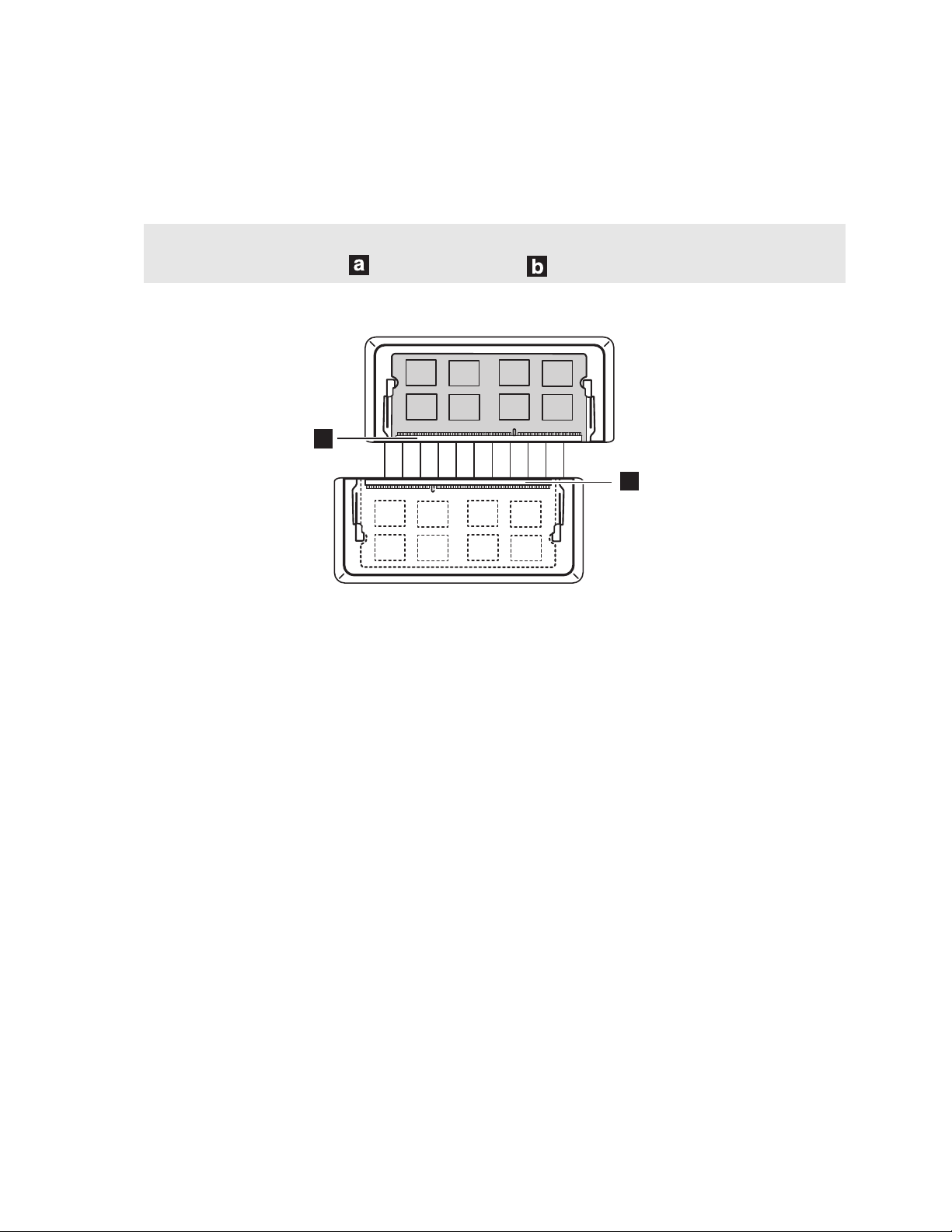

Replacing memory....................................................................................................36

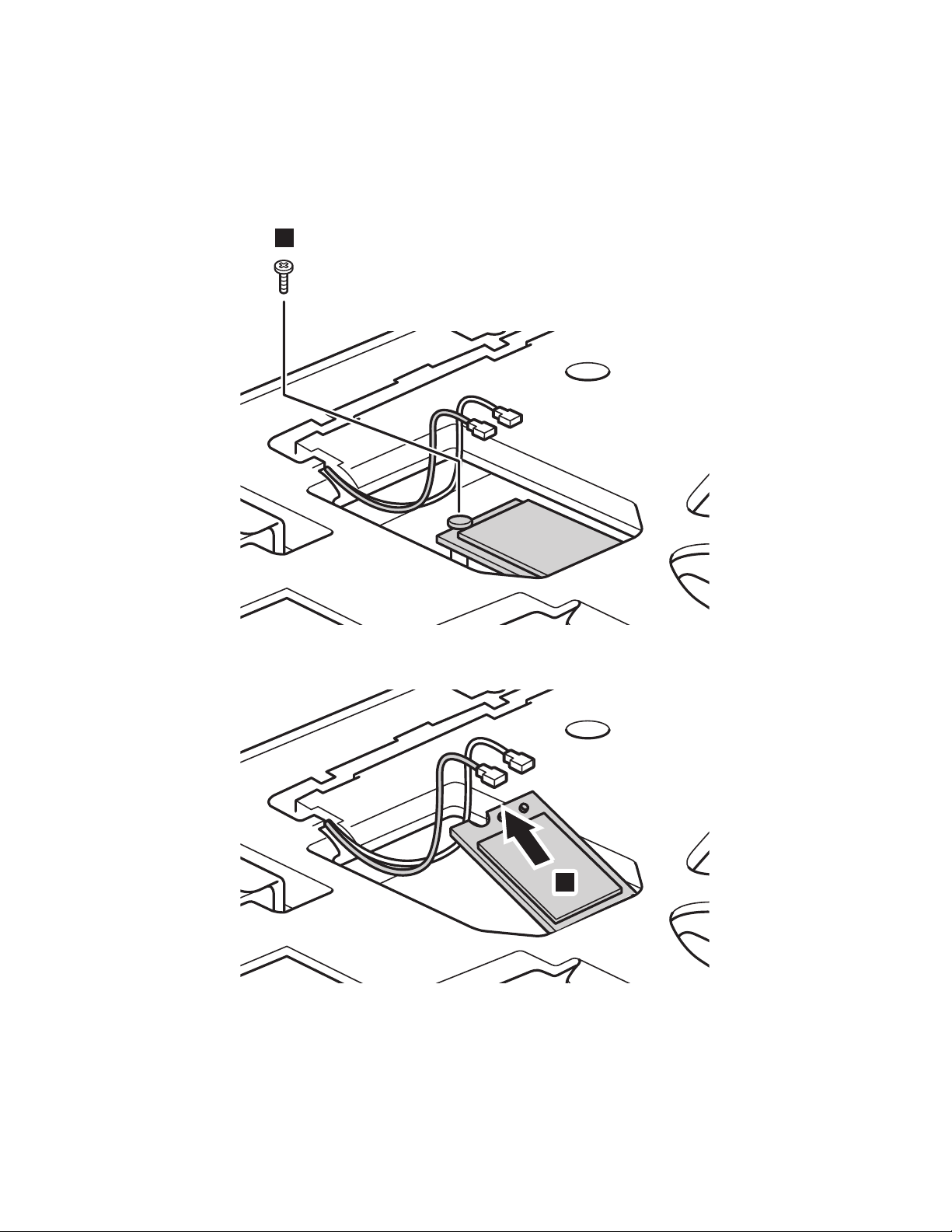

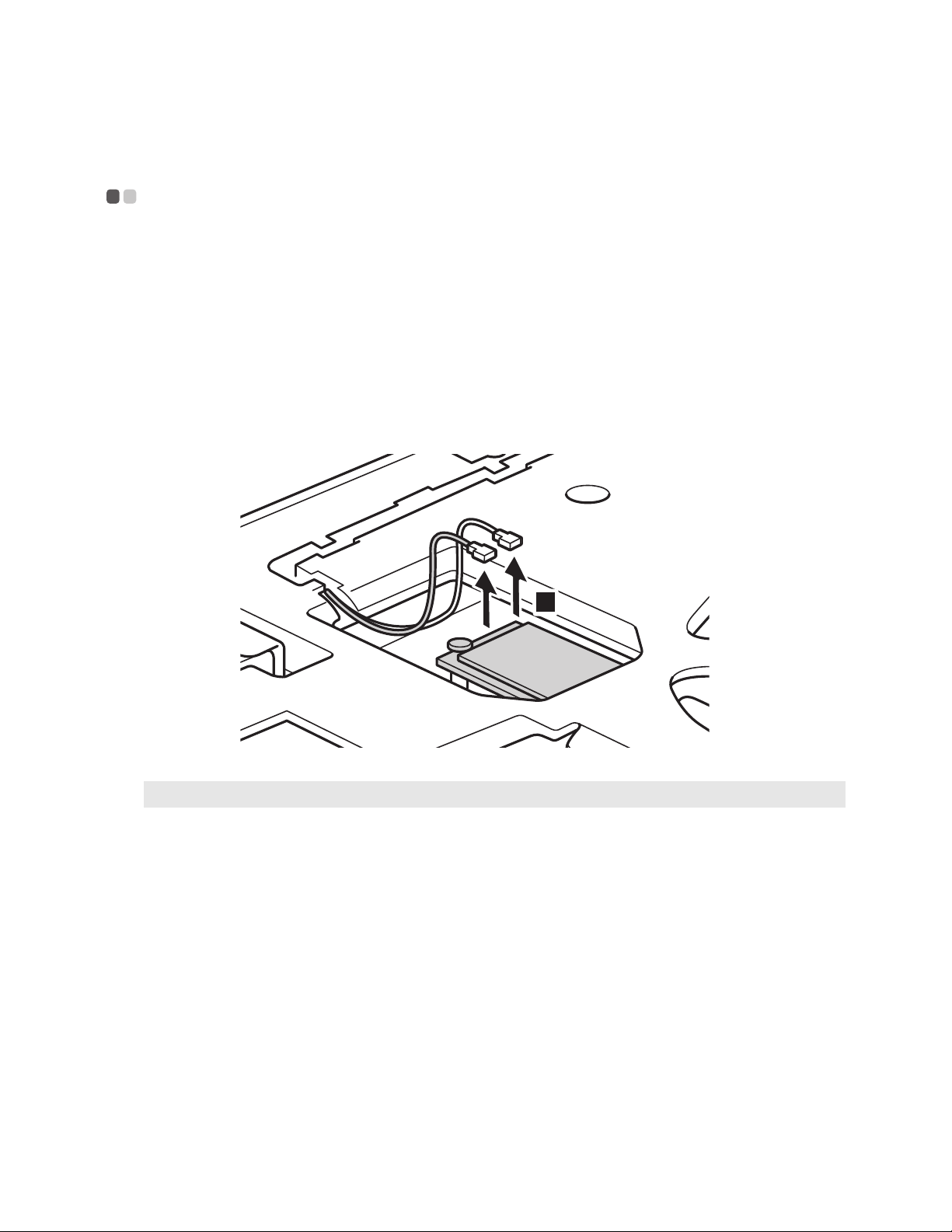

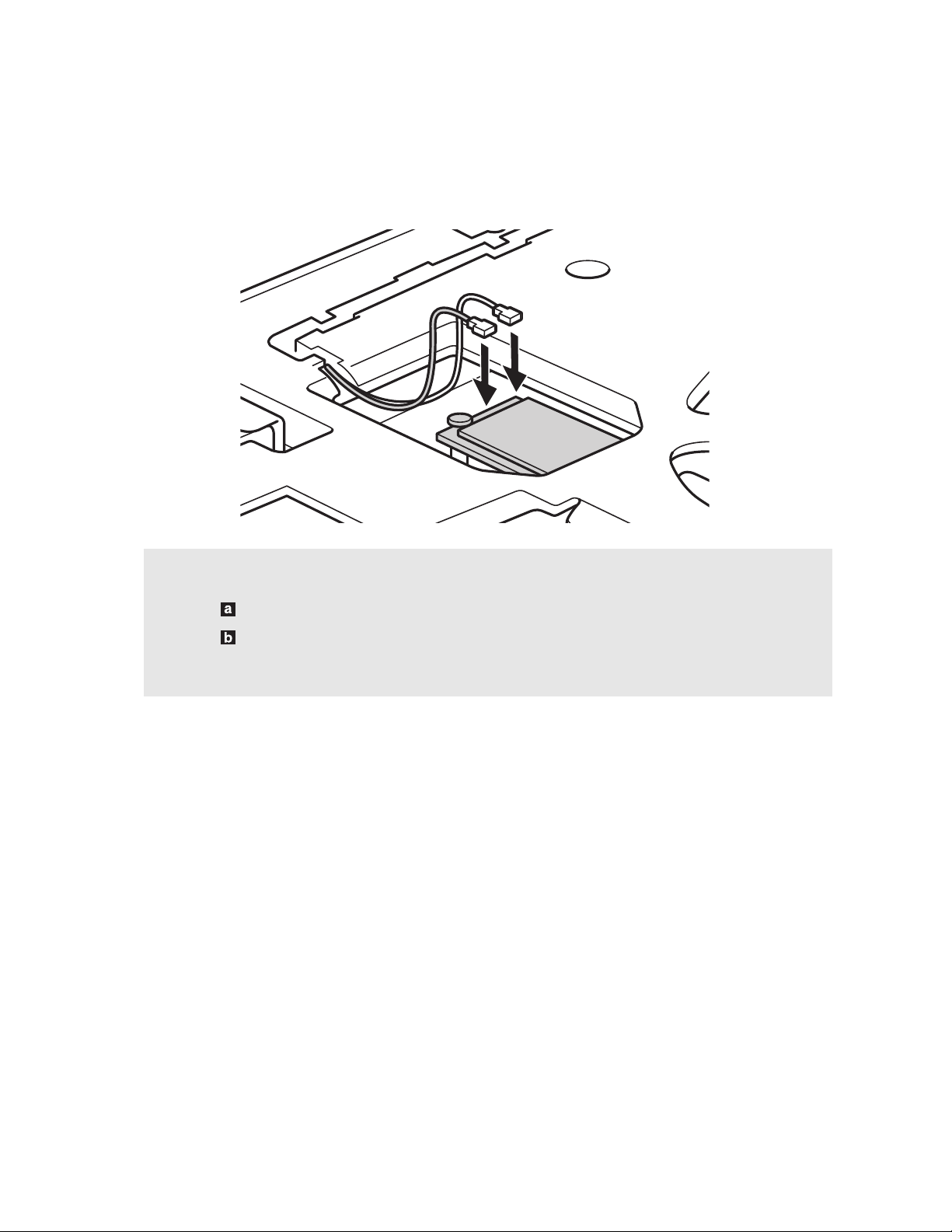

Replacing the wireless LAN card ...........................................................................39

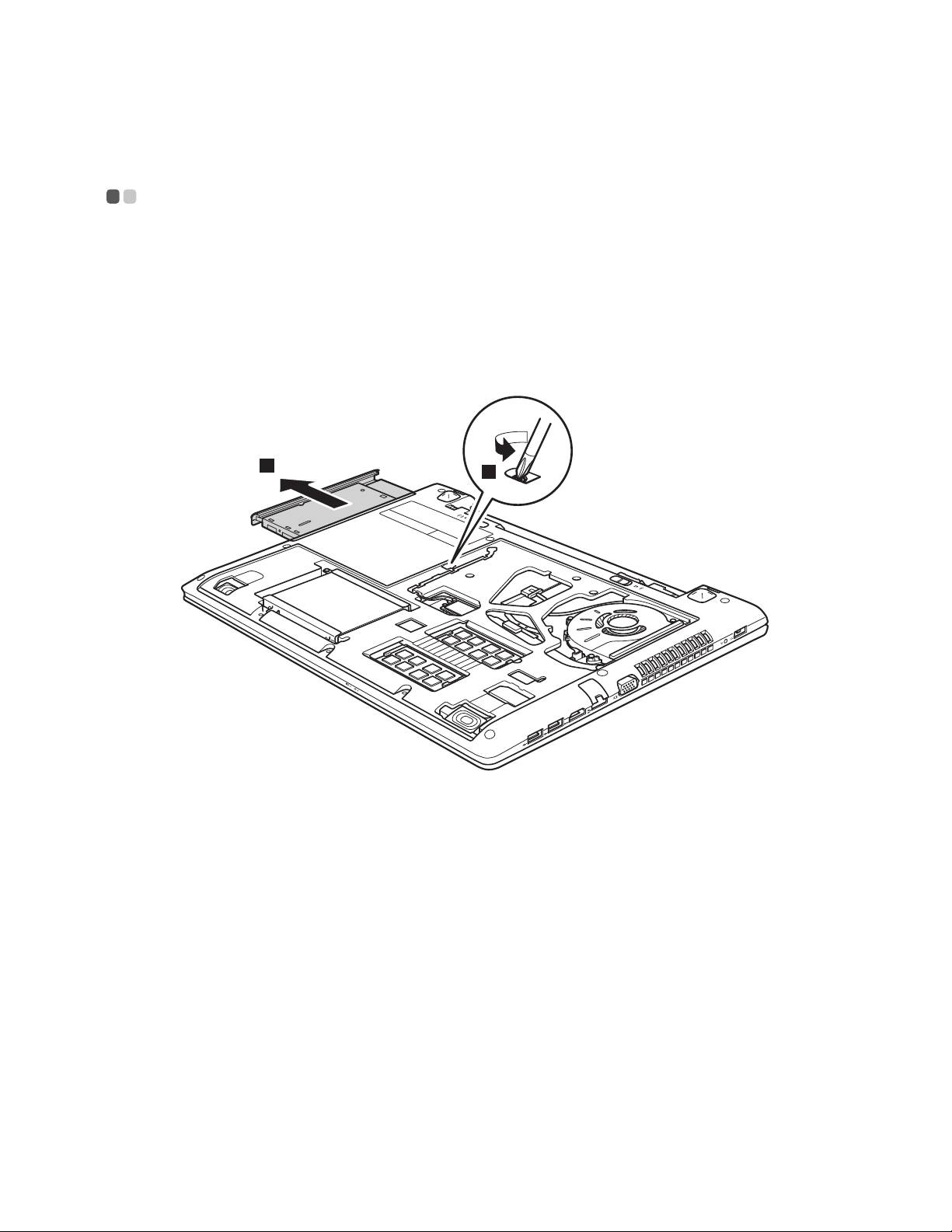

Removing the optical drive .....................................................................................42
Trademarks............................................................................................44
Contents
1
Chapter 1. Getting to know your computer
Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Lenovo G40-30/G40-45/G40-70/G40-70m/Z40-70
12 2
4
5
6
3
2
Chapter 1. Getting to know your computer
Lenovo G50-30/G50-45/G50-70/G50-70m/Z50-70
Note: The dashed areas indicate parts that are not visible externally.
Attention:
• Do not open the display panel beyond 130 degrees. When closing the display panel, be
careful not to leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel may be damaged.
12 2
4
5
6
3
Chapter 1. Getting to know your computer
3
Integrated camera
Use the camera for video communication or taking photos.
Built-in microphone
Captures sound which can be used for video conferencing, voice narration, or audio recording.
Note: Select models may have only one microphone, please refer to the actual product.
Wireless LAN antennas
Connect to a wireless LAN adapter to send and receive wireless radio signals.
Computer display
Provides brilliant visual output.
Power button
Press this button to turn on the computer.
Touchpad
The touchpad functions as a conventional mouse. Touchpad: To m ove the pointer on the screen, slide your fingertip over the pad in the direction in which you want the pointer to move. Touchpad buttons: The functions of the left/right side correspond to that of the left/right mouse button on a conventional mouse.
Note: Yo u can enable/disable the touchpad by pressing .
a
b
c
d
e
f
4
Chapter 1. Getting to know your computer
Using the keyboard
Numeric keypad (Lenovo G50-30/G50-45/G50-70/G50-70m/Z50-70)
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press the Num Lock key.
Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold Fn ; then press one of the
function keys .
Lenovo G40-30/G40-45/G40-70/G40-70m/Z40-70
The following describes the features of each function key.
Fn + Home: Activates the pause function.
Fn + End: Activates the break function.
Fn + PgUp: Enables/disables the scroll lock.
Fn + PgDn: Activates the insert function.
a
b
1
2
Chapter 1. Getting to know your computer
5
Lenovo G50-30/G50-45/G50-70/G50-70m/Z50-70
The following describes the features of each function key.
Fn + Home: Activates the pause function.
Fn + End: Activates the break function.
Fn + PgUp: Enables/disables the scroll lock.
Fn + PgDn: Activates the system request.
1
2
6
Chapter 1. Getting to know your computer
Hotkeys
You can access certain system settings quickly by pressing the appropriate hotkeys.
Lenovo G40-30/G40-45/G40-70/G40-70m/Z40-70
Lenovo G50-30/G50-45/G50-70/G50-70m/Z50-70
:
Mutes/unmutes the sound.
:
Enables/disables Airplane mode.
:
Decreases the volume level.
:
Displays all currently active apps.
:
Increases the volume level.
:
Turns on/off the backlight of the LCD screen.
:
Closes the currently active window.
:
Toggles the display between the computer and an external device.
:
Refreshes the desktop or the currently active window.
:
Decreases the display brightness.
:
Enables/disables the touchpad.
:
Increases the display brightness.
Chapter 1. Getting to know your computer
7
Setting hotkey mode
By default, the hotkey functions are accessible by pressing the appropriate hotkey. However, you can disable the hotkey mode in the BIOS setup utility. To d isable the hotkey mode:
1
Shut down the computer.
2
Press the Novo button and then select BIOS Setup.
3
In the BIOS setup utility, o p en the Configuration menu, and change the setting of HotKey Mode from Enabled to Disabled.
8
Chapter 1. Getting to know your computer
4
Open the Exit menu, and select Exit Saving Changes.
Note: When hotkey mode is disabled, press the Fn key and the appropriate hotkey to
access the corresponding hotkey function.
Chapter 1. Getting to know your computer
9
Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
AC power adapter jack
Connect the AC power adapter here.
Novo button
When the computer is off or in hibernation mode, press this button to start the Lenovo OneKey Recovery System or the BIOS setup utility, or to enter the boot menu.
Note: For details, see “Lenovo OneKey Recovery System” on page 22.
Ventilation slots
Dissipate internal heat.
Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
VGA port
Connects to external display devices.
RJ-45 port
Connects the computer to an Ethernet network.
HDMI port
Connects to devices with HDMI input such as a TV or an Ethernet display.
USB port
Connects to USB devices.
Notes:
• The blue port is a USB 3.0 port.
• For details, see “Connecting USB device” on page 10.
1 2 3 4 5 6 7
a
b
c
d
e
f
g
10
Chapter 1. Getting to know your computer
Connecting USB device
Your computer comes with three USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your computer, Windows automatically installs a driver for that device. After the driver has been installed, you can disconnect and reconnect the device without performing any additional steps.
Be
fore disconnecting a USB storage device, make sure your computer has finished transferring data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows notification area to remove the device before disconnecting.
Note: Typ ically, Windows detects a new device after it has been connected, and then installs
the driver automatically. However, some devices may require you to install the driver
before connecting. Check the documentation provided by the device’s manufacturer before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before
connecting it. Otherwise, the device may not be recognized.
