L2361p Wide Flat Panel Monitor
User’s Guide
Product numbers
L2361pwA
First Edition (ȱ2009)
© Copyright Lenovo 2009.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and are
sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to
use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.
Contents
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Chapter1. Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Shipping contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Noticet for use
Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Adjusting the tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Monitor controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Cable lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Setting up your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Connecting and turning on your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
. . . . . . . . .
. . . .
.
. . . . . . . . . . . . . . . . . . .
.
Chapter 2. Adjusting and using your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Comfort and accessibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Arranging your work area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Positioning and viewing your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Quick tips for healthy work habits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Adjusting your monitor image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Using the direct access controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Using the On-Screen Display (OSD) controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Selecting a supported display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Understanding power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Caring for your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
VESA mount using guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
.
.
. . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Chapter 3. Reference information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Monitor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Manual image setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Manually installing the monitor driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Installing the monitor driver in Windows 7 . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 3-5
Installing the monitor driver in Windows
Installing the monitor driver in Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . . . .3-7
Vista
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . . . 3-6
. . .
.
. . . . . .
.
Appendix A. Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Telephone technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B. Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Appendix C. Camera description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Appendix D. USB hub description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
Contents ii
Safety information
Before installing this product, read the Safety Information.
DANGER
To avoid shock hazard:
Do not remove the covers.
Do not operate this product unless the stand is attached.
Do not connect or disconnect this product during an electrical storm.
The power cord plug must be connected to a properly wired and
grounded power outlet.
Any equipment to which this product will be attached must also be
connected to properly wired and grounded power outlets.
To isolate the monitor from the electrical supply, you must remove
the plug from the power outlet. The power outlet should be easily
accessible.
To take special precautions to avoid the introduction of hazards when
operating, installing, servicing, transporting or storing equipment, the
necessary instructions shall be made available. Personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Handling:
If your monitor weighs more than 18 kg (39.68 lb), it is
recommended that it be moved or lifted by two people.
iii L2361p Wide Flat Panel Monitor User’s Guide
Chapter 1. Getting started
This User’s Guide contains detailed information of your Flat Panel Monitor. For a
quick overview, please see the Setup Poster that was shipped with your monitor.
Shipping contents
The product package should include the following items:
• Setup Poster
• Reference and Driver CD
• Flat Panel Monitor
• Power Cord
• Audio Cable
• USB Cable
• HDMI Cable (exclude China mainland market)
• Analog Interface Cable - Attached to monitor
Notice for use
To set up your monitor, please see the illustrations below.
Note: Do not touch the monitor within the screen area. The screen area is glass and
can be damaged by rough handling or excessive pre
1. Carefully lay the monitor on a flat surface.
2.Revolve the stand from top to bottom.
Note: To attach a VESA mount, please see
"Detaching the monitor stand" on page 2-9.
© Copyright Lenovo 2009. © 1-1
ssure.
Product overview
This section will provide information on adjusting monitor positions, setting user
controls, and using the cable lock slot.
Adjusting the tilt
The illustration below shows the tile range of the monitor. For more information,
see “Positioning your monitor” on page 2-1.
Monitor controls
Your monitor has controls on the front which are used to adjust the display.
For information on how to use these controls, please see “Adjusting your monitor
image” on page 2-3.
1-2 L2361p Wide Flat Panel Monitor User’s Guide
Cable lock slot
Your monitor is equipped with a cable lock slot located on the rear of your monitor (in
the lower position). Please see the instructions that come with the cable lock to learn
how to attach it.
Chapter 1. 1-3
Setting up your monitor
This section provides information on how to set up your monitor.
Connecting and turning on your monitor
Note: Be sure to read the Safety information located on page iii before
carrying out this procedure .
1. Power off your computer and all attached devices, and unplug the computer
power cord.
2. After monitor laid on a flat table, remove the line-corer from here.
3. Connect the cables according to below icon indication.
1-4 L2361p Wide Flat Panel Monitor User’s Guide
4.
Connect the analog signal cable to the
Note:
Place the cable into the specific hook indicated in below figure.
5.
Connect one end of the HDMI cable to the monitor HDMI connector and the other
One end of the signal cable is alre
video port on the back of the computer.
ady pre-attached to your monitor.
end to the computer if it has one HDMI output connector.
Connect the USB cable to the upstream USB port of the back of the monitor and
6.
the other end to an appropriate USB port on your computer
and
microphone work via the USB cable.
. Integrated camera
Chapter 1. 1-5
Connect the audio cable to A/I audio jack of the monitor and the other end on the
7.
back of the computer soundcard audio out jack.
8. Insert the power cord into the monitor ,then plug the monitor power cord and the
computer cord into grounded electrical outlets.
Note: A certified power supply cord has to be used with this equipment. The
relevant national installation and/or equipment regulations shall be considered. A
certified power supply cord not lighter than ordinary polyvinyl chloride flexible
cord according to IEC 60227 (designation H05VV-F 3G 0.75mm2 or H05VVH2-F2
3G0.75mm2) shall be used. Alternative a flexible cord be of synthetic rubber according
to IEC 60245 (designation H05RR-F 3G 0.75mm2) shall be used.
9. Place all cables(Power cord/ VGA/HDMI/USB/Audio) into the cable clip indicated in
below figure.
Chapter 1. 1-6
10.
Assembled line-cover as showed below.
11. Side view after all cables have been placed.
12. Power on the monitor and the computer.
Chapter 1. 1-7
13.
To install the monitor driver, insert the Reference and Driver CD, click Install
driver, and follow the on-screen instructions.
14. To optimize your monitor image, press the Automatic Image Setup key.
Automatic image setup requires that the monitor is warmed up for at least 15
minutes. This is not required for normal operation.
Note: If automatic image setup does not establish the image that you prefer, perform
manual image setup. See “Manual image setup” on page 3-4 .
Chapter 1. 1-8
Chapter 2. Adjusting and using your monitor
This section will give you information on adjusting and using your monitor.
Comfort and accessibility
Good ergonomic practice is important to get the most from your personal computer
and to avoid discomfort. Arrange your workplace and the equipment you use to suit
your individual needs and the kind of work that you perform. In addition, use
healthy work habits to maximize your performance and comfort while using your
computer. For more detailed information on any of these topics, visit the Healthy
Computing Web site at: http://www.lenovo.com/healthycomputing/
Arranging your work area
Use a work surface of appropriate height and available working area to allow you to
work in comfort.
Organize your work area to match the way you use materials and equipment. Keep
your work area clean and clear for the materials that you typically use and place the
items that you use most frequently, such as the computer mouse or telephone, within
the easiest reach.
Equipment layout and setup play a large role in your working posture. The following
topics describe how to optimize equipment setup to achieve and maintain good
working posture.
.
Positioning your monitor
Position and adjust your computer monitor for comfortable viewing by considering
the following items:
• Viewing distance: Optimal viewing distances for monitors range from
approximately 510mm to 760mm (20 in to 30 in) and can vary depending on
ambient light and time of day. You can achieve different viewing distances by
repositioning your monitor or by modifying your posture or chair position. Use a
viewing distance that is most comfortable for you.
• Monitor height: Position the monitor so your head and neck are in a comfortable
and neutral (vertical, or upright) position. If your monitor does not have height
adjustments, you might have to place books or other sturdy objects under the
base of the monitor to achieve the desired height. A general guideline is to
position the monitor such that the top of the screen is at or slightly below your
eye-height when you are comfortably seated. However, be sure to optimize your
monitor height so the line of site between your eyes and the center the monitor
suits your preferences for visual distance and comfortable viewing when your eye
muscles are in a relaxed state.
• Tilt: Adjust the tilt of your monitor to optimize the appearance of the screen
content and to accommodate your preferred head and neck posture.
• General location: Position your monitor to avoid glare or reflections on the screen
from overhead lighting or nearby windows.
The following are some other tips for comfortable viewing of your monitor:
• Use adequate lighting for the type of work you are performing.
Chapter 2. 2-1
• Use the monitor brightness, contrast, and image adjustment controls, if equipped,
to optimize the image on your screen to meet your visual preferences.
• Keep your monitor screen clean so you can focus on the screen’s contents.
Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to
periodically look away from your monitor screen and focus on a far object to allow
your eye muscles to relax. If you have questions on eye fatigue or visual discomfort,
consult a vision care specialist for advice.
Quick tips for healthy work habits
The following information is a summary of some important factors to consider to help
you remain comfortable and productive while you use your computer.
• Good posture starts with equipment setup: The layout of your work area and the
setup of your computer equipment have a large effect on your posture while
using your computer. Be sure to optimize the position and orientation of your
equipment by following the tips outlined in “Arranging your work area” on page
2-1 so you can maintain a comfortable and productive posture. Also, be sure to
use the adjustment capabilities of your computer components and office furniture
to best suit your preferences now and as your preferences change over time.
• Minor changes in posture can help avoid discomfort: The longer you sit and
work with your computer, the more important it is to observe your working
posture. Avoid assuming any one posture for an extended period of time.
Periodically make minor modifications in your posture to help deter any
discomforts that might arise. Make use of any adjustments that your office
furniture or equipment provide to accommodate changes in posture
• Short, periodic breaks help ensure healthy computing: Because computing is
primarily a static activity, it is particularly important to take short breaks from
your work. Periodically, stand up from your work area, stretch, walk for a drink
of water, or otherwise take a short break from using your computer. A short break
from work gives your body a welcome change in posture and helps to ensure you
remain comfortable and productive while you do work.
2-2 L2361p Wide Flat Panel Monitor User’s Guide
Adjusting your monitor image
This section describes the control features to adjust your monitor image.
Using the direct access controls
The direct access controls can be used when the On Screen Display (OSD) is not
displayed.
Table 2-1. Direct access controls
Icon Control Description
Volume -
Volume +
Volume switch
Input Change
DDC-CI
Exit
Image Setup
NOVO VISION
Menu
Mute setting
Decrease the volume of speaker and audio out
Increase the volume of speaker and audio out
On/off the volume of speaker and audio out
Switches the video input source
Press and hold for 10 seconds to enable or disable
the DDC-CI function
Exit from menu
Activates automatic image adjustment
Direct access to NOVO VISION adjustment
Enter menu
Press and hold key, then press key to
turn on/off the monitor volume
Chapter 2. 2-3
Using the On-Screen Display (OSD) controls
To adjust the settings, the user controls can be viewed through the OSD.
To use the controls:
1. Press
2. Use
function. If there is a sub-menu, you can move between options using
then press
save.
3. Press
4. Press and hold
adjustments to the OSD. Press and hold
allow adjustments to the OSD.
5. Enables DDC/CI by default. Use OSD Exit Key , Press and hold the button for 10
seconds to disable / enable DDC/CI function. The words "DDC/CI disable"
shows on the screen.
to open the main OSD menu.
or to move among the icons. Select an icon and press to access that
or ,
to select that function. Use or to make adjustments. Press to
to move backwards through the sub-menus and exit from the OSD.
for 10 seconds to lock the OSD. This will prevent accidental
for 10 seconds to unlock the OSD and
2-4 L2361p Wide Flat Panel Monitor User’s Guide
Table 2-2. OSD functions
OSD Icon on Main
Menu Submenu Description
Adjusts overall screen
brightness
Brightness/
Contrast
Brightness
Adjusts difference between
light and dark areas
Contrast
Moves screen image left or
Image Position
Horizontal Position
right.
Moves screen image up or
Vertical Position
down.
Optimizes image (size,position,phase and clock).
Image Setup
Automatic
Manually optimizes screen image. See “Manual
Manual
• Clock
• Phase
• Save
Adjusts intensity of red, green, and blue.
setup” on page 3-4.
Controls and
Adjustments
(Analog)
Controls and
Adjustments
(Digital)
Same as Analog
Controls Locked -
not required for
digital input
Same as Analog
Image Properties
Color
Input video signal
Preset mode
• Neutral
• sRGB
•
Reddish
• Bluish
Custom
• Red: Increases or decreases the saturation of
’red’ in the image.
• Green: Increases or decreases the saturation of
’green’ in the image.
• Blue: Increases or decreases the saturation of
’blue’ in the image.
• Save: Saves the custom color choices.
This monitor can accept video signals through two
different connectors. Most desktop computers use
a D-SUB connector. Select digital among OSD
Controls when you use HDMI connector.
- Selects D-SUB (Analog)
- Selects HDMI(Digital)
Chapter 2. 2-5
Table 2-2. OSD functions
OSD Icon on Main
Menu Submenu Description
• Selects type of scaled image
• Original AR:same aspect ratio with input
Options
Scaling
NOVO VISION
Information
Menu Language
Menu Position
signal
• Full Screen :expand image to full screen
Screen prioritization
Shows resolution, refresh rate, and product details.
Note: This screen does not allow any changes to
the settings.
Changes languages of menu.
Note: The language chosen only affects the
language of the OSD. It has no effect on any
software running on the computer.
Adjusts menu location.
Default
Default returns the menu position to the default
settings.
Controls and
Adjustments
(Analog)
Controls and
Adjustments
(Digital)
Same as Analog
Same as Analog
Same as Analog
factory default
Accessibility
Custom
• Horizontal: Changes the horizontal position of
the OSD.
• Vertical: Changes the vertical position of the
OSD.
Save
Save the custom position choices.
•
• Cancel
• Reset
Reset monitor to the original settings.
Changes button repeat rate and menu time-out
setting.
Button repeat rate:
Select or to change.
• Off
• Default
• Slow
Menu time out: Sets the length of time the
OSD will remain active after the last time a button
is pressed.
MUTE
Exit
2-6 L2361p Wide Flat Panel Monitor User’s Guide
• Mute On: Off the monitor's touchkey volume.
• Mute Off: On the monitor's touchkey volume.
Exit from menu.
Selecting a supported display mode
The display mode the monitor uses is controlled by the computer. Therefore, refer to
your computer documentation for details on how to change display modes.
The image size, position and shape might change when the display mode changes.
This is normal and the image can be readjusted using automatic image setup and the
image controls.
Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or
Flat Panel technology is inherently flicker-free.
Note: If your system has previously been used with a CRT monitor and is currently
configured to a display mode outside the range of this monitor, you may need to reattach the CRT monitor temporarily until you have re-configured the system;
preferably to 1920 x 1080 at 60 Hz, which is the Native Resolution Display mode.
The display modes shown below have been optimized at the factory.
Table 2-3. Factory set display modes
Addressability Refresh rate
NTSC 60 Hz
PAL 50 Hz
640 x 350 70 Hz
720 x 400
640 x 480 60 Hz, 72 Hz, 75 Hz
800 x 600 56 Hz, 60 Hz , 72 Hz, 75 Hz
832 x 624 75 Hz
1024 x 768
1152 x 864
70 Hz
60 Hz, 70 Hz, 75 Hz
75 Hz
1280 x 1024
1366 x 768
1440 x 900 60 Hz
1600 x 900
1680 x 1050
1920 x 1080 60 Hz
480I 60 Hz
480P 60 Hz
576P 50 Hz
720P 50 Hz, 60 Hz
1080I 50 Hz, 60 Hz
1080P 50 Hz, 60 Hz
60 Hz, 70 Hz, 75 Hz
60 Hz
60 Hz
60 Hz
Chapter 2. 2-7
Understanding power management
Power management is invoked when the computer recognizes that you have not used
your mouse or keyboard for a user-definable period. There are several states as
described in the table below.
For optimal performance, switch off your monitor at the end of each working day, or
whenever you expect to leave it unused for long periods during the day.
Table 2-4. Power indicator
State Power Indicator Screen
On Steady white Normal
Standby/Suspend
Off Off Blank Press the power
Amber
Blank
Restoring
Operation Compliance
Press a key or
move the mouse
There may be a
slight delay
before the image
reappears.
Note: Standby
also occurs if
there is no image
output to the
monitor.
button
ENERGY STAR
ENERGY STAR
There may be a
slight delay
before the image
reappears.
2-8 L2361p Wide Flat Panel Monitor User’s Guide
Caring for your monitor
Be sure to turn off the power before you perform any maintenance on the monitor.
Do not:
• Apply water or liquid directly to your monitor.
• Use solvents or abrasives.
• Use flammable cleaning materials to clean your monitor or any other electrical
equipment.
• Touch the screen area of your monitor with sharp or abrasive items. This type of
contact may cause permanent damage to your screen.
• Use any cleaner which contains an anti-static solution or similar additives. This
may harm the coating of the screen area.
Do:
• Lightly dampen a soft cloth with water and use this to gently wipe the covers and
the screen.
• Remove grease or finger marks with a damp cloth and a little mild detergent.
Wall Mounting(Optional)
Refer to the instructions that come with the base mounting kit. To convert your LCD display
from a desk-mounted to a wall-mounted display, do the following:
Step 1: Verify that the Power button is turned Off, then disconnect the power cord.
Step 2: Lay the LCD display face down on a towel or blanket.
Step 3: Revolve the stand and insure it is parallel to top of the back side. Remove the
plastic Covers from the back of the LCD display.
Step 4: Attatch the mounting bracket from the VESA compatible wall mounting kit
(100mm x100mm distance).
Step 5: Attach the LCD display to the wall, following the instructions in the wall-mounting kit.
ȱȱȱŚȱ¡ȱŗŖȱǯ
Chapter 2. 2-9
Chapter 3. Reference information
This section contains monitor specifications, instructions to manually install the
monitor driver, troubleshooting information, and service information.
Monitor specifications
Table 3-1. Monitor specifications for type-model ŘřŜŗ
Dimensions Height
Depth
Width
Stand Tilt Range: 10°, 60°
VESA mount Supported
Image Viewable image size
Maximum height
Maximum width
Pixel pitch
Power input Supply voltage
Max supply current
Power consumption
Note: Power consumption
figures are for the monitor
and the power supply
combined.
Video input (Analog) Input signal
Normal operation
Standby/Suspend
Off
Note:without
Audio in/USB/Webca
m
100mm x 100mm (3.94 in. x3.94 in.)
442.0 mm (16.61 in.)
118.0 mm (4.65 in.)
569.0 mm (22.40 in.)
Make sure the light bar is located
downside when using VESA mount
setup.
584.2 mm(23 in.)
312.0 mm (12.28 in.)
533.2 mm(20.99 in.)
0.265 mm (0.01 in.) (V)
90-264VAC (100~240VAC+/-10%)
-
1.5 A
< 45 W
<1W(Analog),< 1W(Digital)
< 0.5W at 100Vac & 240Vac
Analog Direct Drive, 75 ohm 0.7V
Horizontal
addressability
Vertical addressability
Clock frequency
© Copyright Lenovo 2009. © 3-1
1920 pixels (max)
-
1080 lines (max)
205 MHz
-
Table 3-1. Monitor specifications for type-model ŘřŜŗ
Video input (Digital) Interface
Input Signal
Horizontal
addressability
Vertical addressability
Clock frequency
Communications VESA DDC CI
Supported Display Modes
(VESA Standard modes
between noted ranges)
Temperature Operating
Humidity Operating
Horizontal frequency
Vertical frequency
Native Resolution 1920 x 1080 at 60 Hz
Storage
Shipping
Storage
Shipping
HDMI
VESA TMDS (Panel Link™)
1920 pixels (max)
-
1080 lines (max)
165 MHz
30 kHz - 83 kHz
50 Hz - 75 Hz
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
-20° to 60° C (-4° to 140° F)
8% to 80% non-condensing
5% to 95% non-condensing
5% to 95% non-condensing
3-2 L2361p Wide Flat Panel Monitor User’s Guide
Troubleshooting
If you have a problem setting up or using your monitor, you might be able to solve it
yourself. Before calling your dealer or Lenovo, try the suggested actions that are
appropriate to your problem.
Table 3-2. Troubleshooting
Problem Possible cause Suggested action Reference
The words "Out
of Range" are
shown on the
screen, and the
power indicator
is flashing white.
The image
quality is
unacceptable.
The power
indicator is not
lit and there is
no image.
Screen is blank
and power
indicator is
flashing white
The system is set to a
display mode which
is not supported by
the monitor.
The video signal cable
is not connected with
the monitor or system
completely.
The color settings
may be incorrect.
The automatic image
setup function was
not performed.
• The monitor’s
power switch is
not switched on.
• The power cord is
loose or
disconnected.
• There is no power
at the outlet.
The monitor is in
Standby/Suspend
mode
If you are replacing an
old monitor, reconnect it
and adjust the display
mode to within the
specified range for your
new monitor.
If using a Windows
system, restart the system
in safe mode, then select a
supported display mode
for your computer.
If these options do not
work, contact the Support
Center.
Be sure the signal cable is
firmly plugged into the
system and monitor.
Select another color
setting from the OSD
menu.
Perform automatic image
setup.
• Be sure the power
cord is connected
properly.
• Be sure the outlet has
power.
• Power on the
monitor.
• Try using another
power cord.
• Try using another
electrical outlet.
• Press any key on the
keyboard or move
the mouse to restore
operation.
• Check the Power
Options settings on
your computer.
“Selecting a
supported display
mode” on page 2-7
“Connecting and
turning on your
monitor” on page 1-4
“Adjusting your
monitor image” on
page 2-3
“Adjusting your
monitor image” on
page 2-3
“Connecting and
turning on your
monitor” on page 1-4
“Understanding
power management”
on page 2-8
Chapter 3. 3-3
Table 3-2. Troubleshooting
Problem Possible cause Suggested action Reference
The power
indicator is white,
but there is no
image.
The video signal cable
is loose or
disconnected from the
system or monitor.
Be sure the video cable is
connected with the
system properly.
“Connecting and
turning on your
monitor” on page 1-4
One or more of
the pixels appear
discolored
• Fuzzy lines
in text or a
blurry
image.
• Horizontal
or vertical
lines
through the
image.
The monitor
brightness and
contrast are at the
lowest setting.
This is a characteristic
of the LCD
technology and is not
an LCD defect.
• Image setup has
not been
optimized
• Your system
Display
Properties setting
have not been
optimized.
Adjust the brightness and
contrast setting on the
OSD menu.
If there are more than five
pixels missing, contact
the Support Center.
Adjust the resolution
settings on your system
to match the native
resolution for this
monitor: 1920 x 1080 at 60
Hz.
Perform automatic image
setup. If automatic image
setup does not help,
perform manual image
setup.
When working in the
native resolution, you
may find additional
improvements by
adjusting the Dots Per
Inch (DPI) setting on your
system.
“Adjusting your
monitor image” on
page 2-3
Appendix A,
“Service and
Support,” on page
A-1
“Adjusting your
monitor image” on
page 2-3
“Manual image
setup”
“Selecting a
supported display
mode” on page 2-7
See the Advanced
section of your
system’s display
properties.
Manual image setup
If automatic image setup does not establish the image that you prefer, perform
manual image setup.
Note: Have your monitor powered on for about 15 minutes, until the monitor warms
up.
1. Press
2. Use
3. Use
• Clock (pixel frequency) adjusts the number of pixels scanned by one
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
4. When the image no longer looks distorted, save the Clock and Phase adjustments.
5. Press
3-4 L2361p Wide Flat Panel Monitor User’s Guide
at the bottom of the monitor to open the OSD menu.
or to select and press to access.
or to select Clock and Phase adjustment.
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the picture does not have the correct width.
adjustment, the picture has horizontal disturbances in light picture.
to leave the OSD menu.
Manually installing the monitor driver
Below are steps for manually installing the monitor driver in Microsoft® Windows
XP Microsoft Windows Vista Microsoft Windows 7
section of the Reference and
® ®
Driver CD for automatic installation.
. Please see the Install Driver
Installing the monitor driver in Windows 7
To use the Plug and Play feature Microsoft Windows 7, do the following:
Note: You must download file from the Lenovo Monitor CD to use the Plug and Play
feature in Windows 7.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the
Windows 7 operating system.
4. Open the Display Properties window by clicking Start, Control Panel and then
double-clicking the Hardware and Sound icon.
5. Click the Personalization icon.
6. Click the Display Settings icon.
7. Click the Advanced Settings button.
8. Click the Monitor tab.
9. Click the Properties button.
10. Click the Driver tab.
11. Open the "Update Driver Software-Generic PnP Monitor" window by clicking
on Update Driver and then click the "Browse my computer for driver software"
button.
12. Select "Let me pick from a list of device drivers on my computer".
13. Click the Have Disk button. Click on the Browse button and navigate to the
following directory:
X:\Monitor Drivers\Windows 7
(where X is the drive letter designator for the CD-ROM drive).
14. Select the "LEN L2361pwA.inf" file and click the Open button. Click the OK button.
15. Select LEN L2361pwA and click Next. The files will be copied from the CD to
your hard disk drive.
16. Close all open windows and remove the CD.
17. Restart the system. The system will automatically select the maximum refresh
rate and corresponding Color Matching Profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.
Chapter 3. 3-5
Installing the monitor driver in Windows Vista
To use the Plug and Play feature in Windows Vista, files should be loaded from the
Reference and Driver CD.
Note: This section must be completed before continuing with the Windows Vista
automatic image setup.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow the system to boot into
Windows Vista.
4. Open the Display Properties window by clicking Start J Settings J Control
Panel, and then double-clicking the Display icon.
5. Click the Settings tab.
6. Click the Advanced button.
7. Click the Monitor tab.
8. Click the Properties button.
9. Click the Drivers tab.
10. Open the Hardware Update Wizard window by clicking on Update Driver, and
then click Next.
11. Select Install from a list or Specific location(Advanced), and then click Next.
12. Select "Don't search. I will choose the driver to install" option, and then click
Next.
13. Click the Have Disk button. Click on the Browse button and navigate to
the following directory:
X:\Monitor Drivers\Windows Vista
(where X is the drive letter designator for the CD-ROM drive).
14. Select the "LEN L2361pwA.inf" file and click the Open button. Click the OK button.
15. Select LEN L2361pwA and click Next. The files will be copied from the CD to
your hard disk drive.
16. Close all open windows and remove the CD.
17. Restart the system. The system will automatically select the maximum refresh
rate and corresponding Color Matching Profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.
3-6 L2361p Wide Flat Panel Monitor User’s Guide
Installing the monitor driver in Windows XP
To use the Plug and Play feature Microsoft Windows XP, do the following:
Note: You must download file from the Lenovo Monitor CD to use the Plug and Play
feature in Windows XP.
1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the
Windows XP operating system.
4. Open the Display Properties window by clicking Start, Control Panel and
Hardware and Sound icon.
5. Click the Appearance and Personalization icon.
6. Click the Display icon.
7. Click the change display Settings button.
8. Click the Advanced Settings button.
.
9 Click the Monitor tab.
10
Click the Properties button
11. Click the Driver tab.
12. Open the "Update Driver Software-Generic PnP Monitor" window by clicking
on Update Driver and then click the "Browse my computer for driver software"
button.
13. Select "Let me pick from a list of device drivers on my computer".
14. Click the Have Disk button. Click on the Browse button and navigate to the
following directory:
X:\Monitor Drivers\Windows XP
(where X is the drive letter designator for the CD-ROM drive).
15. Select the "LEN L2361pwA.inf" file and click the Open button. Click the OK button.
16. Select LEN L2361pwA and click Next. The files will be copied from the CD to
your hard disk drive.
17. Close all open windows and remove the CD.
18. Restart the system. The system will automatically select the maximum refresh
rate and corresponding Color Matching Profiles.
Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.
..
Chapter 3. 3-7
Appendix A. Service and Support
Telephone technical support
Country or Region Telephone Number
China 800-810-8888 , (010) 82879425
3Appendix A. Service and Support A-1
Appendix B. Notices
Lenovo may not offer the products, services, or features discussed in this document in all countries.
Consult your local Lenovo representative for information on the products and services currently available
in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply
that only that Lenovo product, program, or service may be used. Any functionally equivalent product,
program, or service that does not infringe any Lenovo intellectual property right may be used instead.
However, it is the user’s responsibility to evaluate and verify the operation of any other product,
program, or service.
Lenovo may have patents or pending patent applications covering subject matter described in this
document. The furnishing of this document does not give you any license to these patents. You can send
license inquiries, in writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore,
this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically
made to the information herein; these changes will be incorporated in new editions of the publication.
Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in
this publication at any time without notice.
The products described in this document are not intended for use in implantation or other life support
applications where malfunction may result in injury or death to persons. The information contained in
this document does not affect or change Lenovo product specifications or warranties. Nothing in this
document shall operate as an express or implied license or indemnity under the intellectual property
rights of Lenovo or third parties. All information contained in this document was obtained in specific
environments and is presented as an illustration. The result obtained in other operating environments
may vary.
Lenovo may use or distribute any of the information you supply in any way it believes appropriate
without incurring any obligation to you.
Any references in this publication to non-Lenovo We b sites are provided for convenience only and do not
in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part
of the materials for this Lenovo product, and use of those Web sites is at your own risk.
PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
Any performance data contained herein was determined in a controlled environment. Therefore, the
result obtained in other operating environments may vary significantly. Some measurements may have
been made on development-level systems and there is no guarantee that these measurements will be the
same on generally available systems. Furthermore, some measurements may have been estimated through
extrapolation. Actual results may vary. Users of this document should verify the applicable data for their
specific environment.
© Copyright Lenovo 2009. ©
B -1
Recycling
Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their
equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist
equipment owners in recycling their IT products. For information on recycling Lenovo products, go to:
http://www.lenovo.com/lenovo/environment/recycling

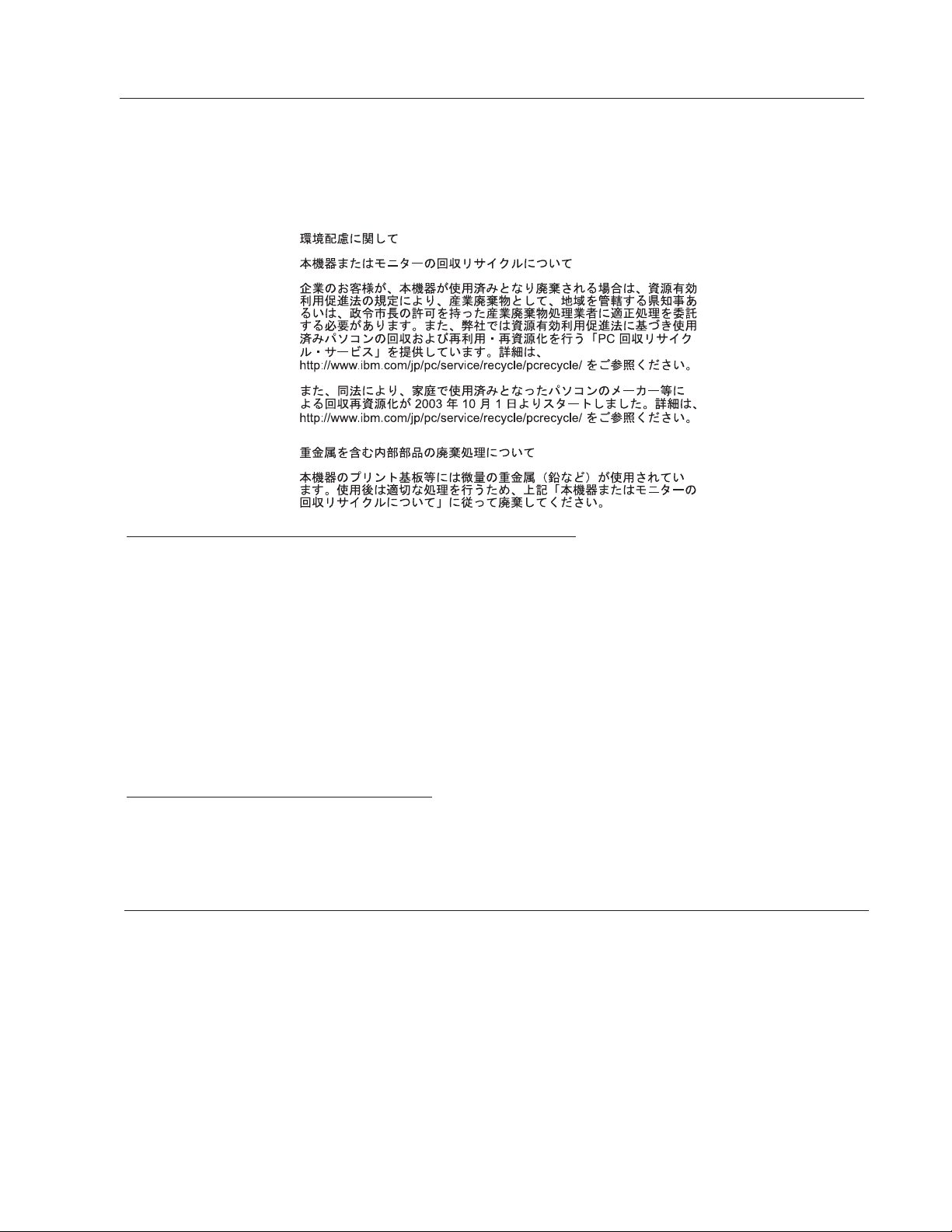

Collecting and recycling a disused Lenovo computer or monitor
If you are a company employee and need to dispose of a Lenovo computer or monitor that is the
property of the company, you must do so in accordance with the Law for Promotion of Effective
Utilization of Resources. Computers and monitors are categorized as industrial waste and should be
properly disposed of by an industrial waste disposal contractor certified by a local government. In
accordance with the Law for Promotion of Effective Utilization of Resources, Lenovo Japan provides,
through its PC Collecting and Recycling Services, for the collecting, reuse, and recycling of disused
computers and monitors. For details, visit the Lenovo Web site at www.ibm.com/jp/pc/service/recycle/
pcrecycle/.
recycling of home-used computers and monitors by the manufacturer was begun on October 1, 2003. This
service is provided free of charge for home-used computers sold after October 1, 2003. For details, visit
the Lenovo We b site at www.ibm.com/jp/pc/service/recycle/personal/.
information
Pursuant to the Law for Promotion of Effective Utilization of Resources, the collecting and
Disposing of Lenovo computer components
Some Lenovo computer products sold in Japan may have components that contain heavy metals or other
environmental sensitive substances. To properly dispose of disused components, such as a printed circuit
board or drive, use the methods described above for collecting and recycling a disused computer or
monitor.
Trademarks
The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo
The Lenovo logo
ThinkCentre
ThinkPad
ThinkVision
Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies.
Other company, product, or service names may be trademarks or service marks of others.
L2361p Wide Flat Panel Monitor User’s Guide
t
B-2
Appendix C. Camera Description
Product Feature * Using CMOS sensor, 0.35M pixels
* Software Interpolation to 2.0M
* Analog Microphone
* Auto White Balance
* Provide 640x480 (max) resolution when capture
* Provide AVI format while recording video
* 30 frame per second provide smooth image
* Flexible to change the size of preview window
System Request
Certification
Compliance
Operation
Temperature
Power Consumption * 150mA ± 5%(Work)
Lead Free Support YES
* CPU: Pentium 41.8G or above
* Momory: 512M or above
* OS: Windows XP SP1 or above,Windows VISTA
* USB 2.0 interface(USB1.1 compatible)
* USB 2.0 logo
* USB Specification rev.2.0 plus associated current ECNs
0°C ~40°C
* <=0.5mA(Idle)
© Copyright Lenovo 2009. © C-1
Appendix D. USB Hub description
This section gives you information about the USB ports that are available on the left side of your
monitor.
Note: This monitor supports High-Speed Certified USB 2.0 interface
Transfer speed Data Rate Power Consumption
High speed 480 Mbps 2.5 (Max.,each port)
Full speed 12 Mbps 2.5 (Max.,each port)
Low speed 1.5 Mbps 2.5 (Max.,each port)
USB Upstream Connector
W
W
W
USB Downstream Connector
© Copyright Lenovo 2009. © D-1
Loading...
