Lenovo KIUE0 Schematics

A

ZZZ1

ZZZ1

DAZ

DAZ

1 1

ZZZ2

ZZZ2

12.1W _PCB_LA 5191P

12.1W _PCB_LA 5191P

Part Number = DA 80000EF10

Part Number = DA 80000EF10

ZZZ3

ZZZ3

12.1W _PCB_LS 5191P

12.1W _PCB_LS 5191P

Part Number = DA 60000C410

Part Number = DA 60000C410

B

ZZZ4

ZZZ4

12.1W _PCB_LS 5192P

12.1W _PCB_LS 5192P

Part Number = DA 40000K110

Part Number = DA 40000K110

ZZZ5

ZZZ5

12.1W _PCB_LS 5193P

12.1W _PCB_LS 5193P

Part Number = DA 40000K010

Part Number = DA 40000K010

C

ZZZ6

ZZZ6

12.1W _PCB_LS 5194P

12.1W _PCB_LS 5194P

Part Number = DA 20000GH10

Part Number = DA 20000GH10

D

E

KIUE0

2 2

Schematics Document

Mobile Penryn PGA with Intel

3 3

4 4

Cantiga_GM45+ICH9-M core logic

REV:1.0

Security Class ification

Security Class ification

Security Class ification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

D

Date: Sheet of

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

Cover Sheet

Cover Sheet

Cover Sheet

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

1 43Thursday, June 25 , 2009

1 43Thursday, June 25 , 2009

1 43Thursday, June 25 , 2009

E

1.0

1.0

1.0

A

B

C

D

E

Compal confidential

Model Name : KIUE0
File Name : LA-5191P

TP Lock,HDD,Bettery Charging,Power LED on MB
CAPS ,NUM Lock,BT,Wlan,NOVO,Power LED on Sub-Brd

1 1

Mobile Penryn

uPGA-478 CPU

page4,5,6

Clock Gen.

SLG8SP556VTR
ICS9LPRS387AKLFT

page16

H_A#(3..35)
H_D#(0..63)

CRT Conn

page18

LCD Conn

page17

2 2

PCIeMini Card
3G

USB port 3

page 29

PCIeMini Card
SSD

SATA port 1,5

page 29

SIM Card

page29

RJ45

page 24

3 3

PCIeMini Card
Reserve

PCIeMini Card
WLAN

Express Card

USB port 10

Express Card

PCIe port 4

RTL8111DL Giga

PCIe port 6

LVDS I/F

USB port 8

page 29

PCIe port 3

page 29

page 29

page 24

1.5V 2.5GHz(250MB/s)

SATA port 1,5

5V 1.5GHz(150MB/s)

1.5V 2.5GHz(250MB/s)

1.5V 2.5GHz(250MB/s)

Intel Cantiga GMCH

uFCBGA 1329

page 7,8,9 ,10,11,12, 13

DMI

＊＊＊＊

4

USB

5V 480MHz

PCIe 1x

USB

5V 480MHz

PCIe 1x

PCIe 1x

Intel ICH9-M

mBGA-676

FSB
667/800/1066MHz

GM45

page 19,20,21,22

C-Link

USB

5V 480MHz

SATA port 0

5V 1.5GHz(150MB/s)

SATA port 4

5V 1.5GHz(150MB/s)

DDR3-800(1.5V)
DDR3-1067(1.5V)

Dual Channel

page 23

Int. Camera

USB port 2

page 17

FP conn

USB port 9

page 33

page 23

USB Left

USB port 4

page 23

USB Right

＊＊＊＊

6

USB port 0

page 28

CardReader USB Conn

USB port 7 USB port 11

page 25

SATA HDD0

USB port 4

5V 480MHz

eSATA

DDR3-SO-DIMM X2

BANK 0, 1, 2, 3

UP TO 8G

BT conn

USB port 6

page 28

page 28

page 14,15

Audio Codec

ALC272-GR

page30

page28

D

page26

Int MIC Conn

HP Conn

page27

AMP-TPA6017

page27

2-CH SPK
1

.5W X 2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

MB Block Diagram

MB Block Diagram

MB Block Diagram

KIUE0_LA-5191P

2 43Wednesday, June 24, 2009

2 43Wednesday, June 24, 2009

2 43Wednesday, June 24, 2009

E

1.0

1.0

1.0

Sub-Board List

HD Audio

LPC BUS

3.3V/24.576MHZ/48MHZ

EC

Finger Printer/B

Power/B

4 4

A

Switch/B

KB Light/B

ENE KB926D3

page31

Int.KBD

page32

SPI BUS

Touch Pad

page32

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

2008/03/24 2008/04/

2008/03/24 2008/04/

2008/03/24 2008/04/

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

SPI ROM

G-SENSOR

A

B

C

D

E

Voltage Rails

1 1

Power Plane Description

VIN

B+

+CPU_CORE

Adapter power supply (19V)

AC or battery power rail for power circuit.

Core voltage for CPU

+0.75VS 0.75V switched power rail for DDR terminator

+1.05VS

+1.5VS

+1.5V

+3VALW

1.05V switched power rail

1.5V switched power rail

1.8V power rail for DDR

3.3V always on power rail

S1 S3 S5

ON ON ON OFF

ON ON ON OFF

ON OFF

ON OFF

ON OFF OFF

ON OFF OFF

ON OFF

ON

ON ON

ON

VL 3.3V always on power rail ONON

+3V_SB 3.3V power rail for LAN ON ON

+3V_LAN 3.3V power rail for LAN ON ON

+3V_WLAN 3.3V power rail for LAN ON ON

+3VS

+5VALW

2 2

+5VL 5V always on power rail ON ON

+5VS

+VSB VSB always on power rail ON ON

+RTCVCC RTC power

+GPU_CORE

+1.8VS

3.3V switched power rail

5V always on power rail

5V switched power rail

Core voltage for VGA chip

1.8V power rail for NB

OFF

ON

ON

ON ON

OFF

ON

ON

ONONON

OFF

OFF

OFF

ON ON

OFF

OFF

OFF

OFF

ON ON

OFF OFF+5V_SB 5V power rail for SB ON ON

OFFON

ONON

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

ON

OFF

OFF

G3

BTO Option Table

Function

description

explain

STATE

Full ON

S1(Power On Suspend)

S3 (Suspend to RAM)

S4 (Suspend to Disk)

S5 (Soft OFF)

G3 LOWLOWLOWLOW

BTO

SIGNAL

CRT LAN

(Q)

(C)

SLP_S1# SLP_S3#

SLP_S4# SLP_S5#

HIGH HIGH HIGH HIGH

LOW

LOW

LOW

HIGH

LOWLOWLOW

LOW LOW LOW LOW

Finger printer

(F) (B)

HIGHHIGHHIGH

HIGH

HIGH

BLUE TOOTH

3G SIM slot

(3)

Mini card

(D2)

External PCI Devices

EC SM Bus1 address

3 3

Device

EC KB926 D3

+3VALW

Smart Battery+3VALW CPU THM Sen

Address Address

EC SM Bus2 address

Device

PowerPower

EC KB926 D3

+3VALW

+3VALW

SMSC SMC1402

ICH9M SM Bus address

Device

Power

ICH9M

+3V_SB

Clock Generator

+3VS

(SLG8SP556V)

DDR DIMM0

+3VS

DDR DIMM1

4 4

+3VS

+3VS

Express

A

Address

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

C

2008/03/24 2008/04/

2008/03/24 2008/04/

2008/03/24 2008/04/

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

B

B

B

Date: Sheet of

Date: Sheet of

D

Date: Sheet of

Compal Electronics, Inc.

MB Notes List

MB Notes List

MB Notes List

KIUE0_LA-5191P

3 43Wednesday, June 24, 2009

3 43Wednesday, June 24, 2009

3 43Wednesday, June 24, 2009

E

1.0

1.0

1.0

5

ME@

ME@

JCPU1A

AA4
AB2
AA3

D22

K5
M3
N2

N3
P5
P2

P4
P1
R1
M1

K3
H2
K2

Y2
U5
R3

W6

U4
Y5
U1
R4
T5

T3
W2
W5

Y4

U2

V4
W3

V1

A6

A5

C4

D5

C6

B4

A3

M4

N5

T2

V3

B2

D2

D3

F6

J4
L5
L4

J1

L2

J3
L1

JCPU1A

A[3]#
A[4]#
A[5]#
A[6]#
A[7]#
A[8]#
A[9]#
A[10]#
A[11]#
A[12]#
A[13]#
A[14]#
A[15]#
A[16]#
ADSTB[0]#

REQ[0]#
REQ[1]#
REQ[2]#
REQ[3]#
REQ[4]#

A[17]#
A[18]#
A[19]#
A[20]#
A[21]#
A[22]#
A[23]#
A[24]#
A[25]#
A[26]#
A[27]#
A[28]#
A[29]#
A[30]#
A[31]#
A[32]#
A[33]#
A[34]#
A[35]#
ADSTB[1]#

A20M#
FERR#
IGNNE#

STPCLK#
LINT0
LINT1
SMI#

RSVD[01]
RSVD[02]
RSVD[03]
RSVD[04]
RSVD[05]
RSVD[06]
RSVD[07]
RSVD[08]
RSVD[09]

Penryn

Penryn

H_A#[3..16 ]7

D D

H_ADSTB #07

H_REQ#07
H_REQ#17
H_REQ#27
H_REQ#37
H_REQ#47

H_A#[17..3 5]7

C C

H_ADSTB #17

H_A20M#20

H_FERR#20

H_IGNNE#2 0

H_STPCL K#20
H_INTR20

H_NMI20
H_SMI#20

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_ADSTB #0

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35
H_ADSTB #1

H_A20M#
H_FERR#
H_IGNNE#

H_STPCL K#
H_INTR
H_NMI
H_SMI#

RSVD pins on the CPU
should be left as NO
CONNECT

B B

XDP Reserve for debug , Please close to CPU side

+3VS

XDP_DBR ESET#

XDP_TDI

XDP_TMS

XDP_TDO

A A

XDP_TRS T#

XDP_TCK

R6 1K_0402_5%@R6 1K_0402_5%@

1 2

R8 54.9_0402_1 %R8 54.9_0402_1%

1 2

R9 54.9_0402_1 %R9 54.9_0402_1%

1 2

R10 54.9_040 2_1%@R10 54.9 _0402_1%@

1 2

R11 54.9_040 2_1%R11 54.9_040 2_1%

1 2

R12 54.9_040 2_1%R12 54.9_040 2_1%

1 2

+1.05VS

ADDR GROUP_0

ADDR GROUP_0

ADDR GROUP_1

ADDR GROUP_1

THERMAL

THERMAL

ICH

ICH

THERMTRIP#

RESERVED

RESERVED

4

ADS#
BNR#
BPRI#

DEFER#

DRDY#
DBSY#

BR0#

IERR#

INIT#

LOCK#

CONTROL

CONTROL

RESET#

RS[0]#
RS[1]#
RS[2]#

TRDY#

HIT#

HITM#

BPM[0]#
BPM[1]#
BPM[2]#
BPM[3]#

PRDY#
PREQ#

TCK

TDO
TMS

TRST#

DBR#

XDP/ITP SIGNALS

XDP/ITP SIGNALS

PROCHOT#

THERMDA
THERMDC

H CLK

H CLK

BCLK[0]
BCLK[1]

H_ADS#

H1

H_BNR#

E2

H_BPRI#

G5

H_DEFER #

H5

H_DRDY#

F21

H_DBSY#

E1

H_BR0#

F1

H_IERR#

D20

H_INIT#

B3

H_LOCK#

H4

H_RESET #

C1

H_RS#0

F3

H_RS#1

F4

H_RS#2

G3

H_TRDY#

G2

H_HIT#

G6

H_HITM#

E4

XDP_BPM #0

AD4

XDP_BPM #1

AD3

XDP_BPM #2

AD1

XDP_BPM #3

AC4

XDP_BPM #4

AC2

XDP_BPM #5

AC1

XDP_TCK

AC5

XDP_TDI

AA6

TDI

XDP_TDO

AB3

XDP_TMS

AB5

XDP_TRS T#

AB6

XDP_DBR ESET#

C20

H_PROCH OT#

D21

H_THERM DA

A24

H_THERM DC

B25

H_THERM TRIP#

C7

CLK_CPU _BCLK

A22

CLK_CPU _BCLK#

A21

H_THERMDA, H_THERMDC routing together,
Trace width / Spacing = 10 / 10 mil

H_ADS# 7
H_BNR# 7

H_BPRI# 7

H_DEFER # 7

H_DRDY# 7
H_DBSY# 7

H_BR0# 7

H_INIT# 20

H_LOCK# 7

H_RESET # 7
H_RS#0 7
H_RS#1 7
H_RS#2 7
H_TRDY# 7

H_HIT# 7
H_HITM# 7

XDP_DBR ESET# 21

H_THERM TRIP# 8,20

CLK_CPU _BCLK 16
CLK_CPU _BCLK# 16

3

H_IERR#

H_PROCH OT#

H_PROCH OT#

R1 56_0402_5%R1 56_0402_5%

R2 68_0402_5%R2 68_0402_5%

13

D

D

2

G

G

S

S

1 2

1 2

Q36

Q36
2N7002_ SOT23

2N7002_ SOT23

EC_PROC HOT

2

+1.05VS

EC_PROC HOT 3 1

1

Hardware force mechanism for throttling

+3VS+3VS

8

7

6

5

12

R3
10K_040 2_5%

10K_040 2_5%

EC_SMB_ CK2

EC_SMB_ DA2

@R3

@

EC_SMB_ CK2 31

EC_SMB_ DA2 31

1

C1

C1

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

1 2

C2 2200P_0 402_50V7KC2 2200P_0 402_50V7K

1 2

+3VS

R4 10K _0402_5%R4 10K _0402_5%

H_THERM DA

H_THERM DC

THERM#

U1

U1

1

VDD

2

DP

3

DN

4

THERM#

EMC1402 -1-ACZL-TR_MSOP 8

EMC1402 -1-ACZL-TR_MSOP 8

SMCLK

SMDATA

ALERT#

GND

Address:100_1100

FAN1 Conn

EN_FAN131

FAN +5VS DROOP

EN_FAN1

R5 100_040 2_5%R5 100_040 2_5%

+VCC_FA N1

1 2

FAN_SPE ED131

+5VS

1

C4

C4
2200P_0 402_50V7K

2200P_0 402_50V7K

2

C3 10U _0805_10V4ZC3 10U _0805_10V4Z

1 2

U2

U2

1

VEN

2

VIN

3

VO

4

VSET

G996P11 U_SO8

G996P11 U_SO8

+3VS

12

R7

R7
10K_040 2_5%

10K_040 2_5%

1

C7

C7
1000P_0 402_50V7K

1000P_0 402_50V7K

2

GND
GND
GND
GND

8
7
6
5

+VCC_FA N1

40mil

+5VS

12

@

@

D1

D1
1SS355T E-17_SOD323-2

1SS355T E-17_SOD323-2

D2 BAS16_SOT2 3-3@D2 BAS16_S OT23-3@

1 2

C5 1U_ 0603_10V4ZC5 1U_ 0603_10V4Z

1 2

C6 0.1U _0402_16V4ZC6 0.1U _0402_16V4Z

1 2

1
2
3

4
5

JFAN1

JFAN1

1
2
3

GND

ME@

ME@

GND

E&T_380 1-F03N-01R

E&T_380 1-F03N-01R

Security Class ification

Security Class ification

Security Class ification

2008/03/ 25 2008/04/

2008/03/ 25 2008/04/

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2008/03/ 25 2008/04/

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

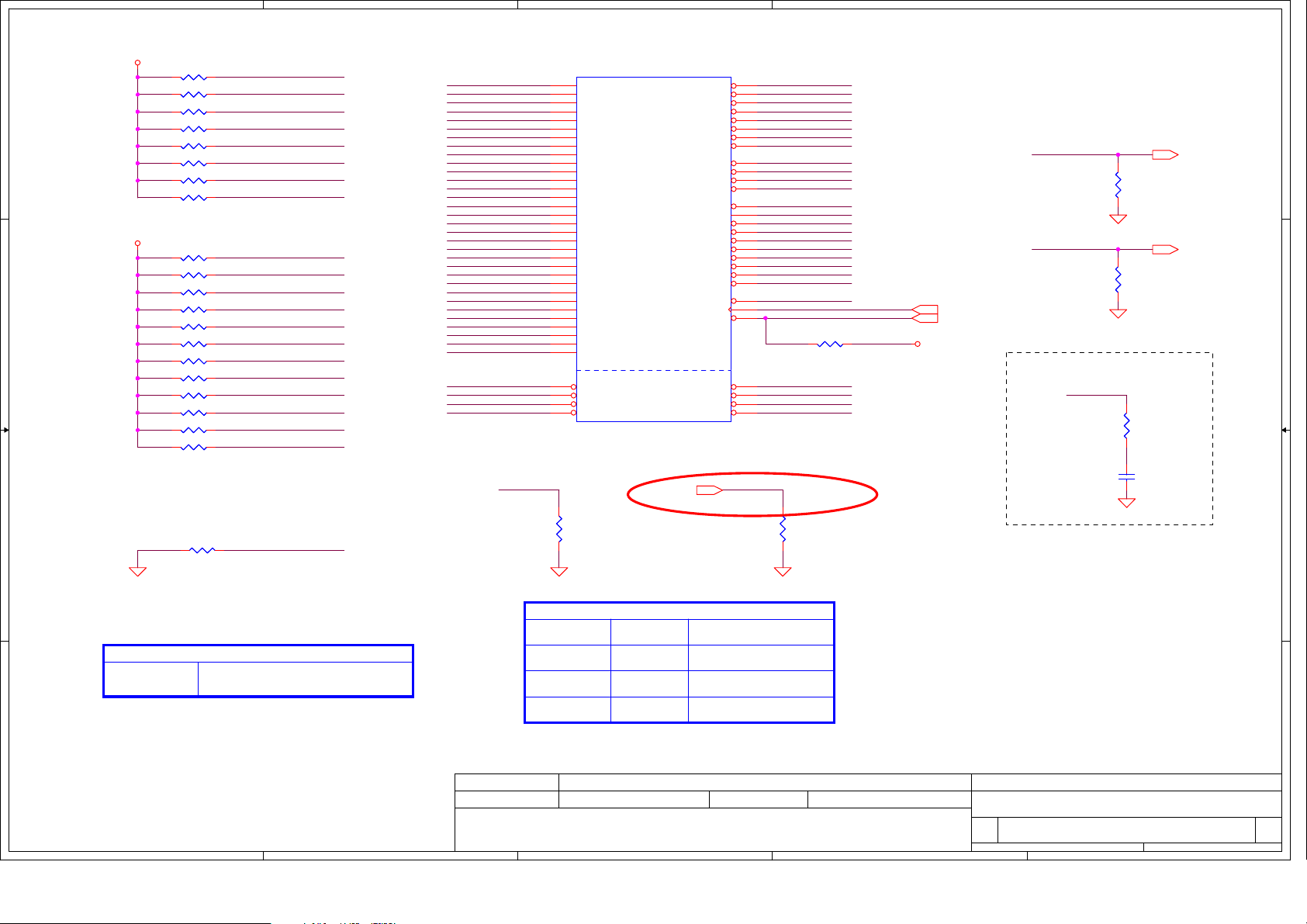

Penryn(1/3)

Penryn(1/3)

Penryn(1/3)

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

2

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

Date: Sheet of

Date: Sheet of

Date: Sheet of

4 43Wednesd ay, June 24, 20 09

4 43Wednesd ay, June 24, 20 09

4 43Wednesd ay, June 24, 20 09

1

1.0

1.0

1.0

5

ME@

ME@

JCPU1B

D D

C C

H_D#[0..15 ]7

H_DSTBN #07
H_DSTBP #07
H_DINV#07

H_D#[16..3 1]7

H_DSTBN #17
H_DSTBP #17
H_DINV#17

R14 1K_0402 _5%@R14 1K_0402 _5%@

1 2

R16 1K_0402 _5%@R16 1K_0402 _5%@

1 2

CPU_BSE L016
CPU_BSE L116
CPU_BSE L216

T1T1
T2T2
T3T3
T4T4
T5T5

H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_DSTBN #0
H_DSTBP #0
H_DINV#0

H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_DSTBN #1
H_DSTBP #1
H_DINV#1

+CPU_GT LREF

TEST1
TEST2
TEST3
TEST4
TEST5
TEST6

TEST7
CPU_BSE L0
CPU_BSE L1
CPU_BSE L2

Trace Close CPU < 0.5'

Width=4 mil ,

B B

Spacing: 15mil
(55Ohm)

E22
F24
E26

G22

F23

G25

E25
E23
K24

G24

H22
F26
K22
H23

H26
H25

N22
K25
P26
R23
L23

M24

L22

M23

P25
P23
P22
T24

R24

L25
T25

N25

L26
M26
N24

AD26

C23
D25
C24

AF26

AF1

A26

B22

B23
C21

J24
J23

J26

C3

JCPU1B

D[0]#
D[1]#
D[2]#
D[3]#
D[4]#
D[5]#
D[6]#
D[7]#
D[8]#
D[9]#
D[10]#
D[11]#
D[12]#
D[13]#
D[14]#
D[15]#
DSTBN[0]#
DSTBP[0]#
DINV[0]#

D[16]#
D[17]#
D[18]#
D[19]#
D[20]#
D[21]#
D[22]#
D[23]#
D[24]#
D[25]#
D[26]#
D[27]#
D[28]#
D[29]#
D[30]#
D[31]#
DSTBN[1]#
DSTBP[1]#
DINV[1]#

GTLREF
TEST1
TEST2
TEST3
TEST4
TEST5
TEST6
TEST7
BSEL[0]
BSEL[1]
BSEL[2]

Penryn

Penryn

layout note: Route TEST3 & TEST5 traces on ground referenced layer to the TPs

+1.05VS

12

R19

R19
1K_0402 _1%

1K_0402 _1%

Layout note: Z0=55 ohm

0.5" max for GTLREF.

A A

+CPU_GT LREF

12

R20

R20
2K_0402 _1%

2K_0402 _1%

4

H_D#32

Y22

DATA GRP 0

DATA GRP 0

MISC

MISC

DATA GRP 1

DATA GRP 1

D[32]#
D[33]#
D[34]#
D[35]#
D[36]#
D[37]#
D[38]#
D[39]#
D[40]#

DATA GRP 2DATA GRP 3

DATA GRP 2DATA GRP 3

D[41]#
D[42]#
D[43]#
D[44]#
D[45]#
D[46]#

D[47]#
DSTBN[2]#
DSTBP[2]#

DINV[2]#

D[48]#

D[49]#

D[50]#

D[51]#

D[52]#

D[53]#

D[54]#

D[55]#

D[56]#

D[57]#

D[58]#

D[59]#

D[60]#

D[61]#

D[62]#

D[63]#
DSTBN[3]#
DSTBP[3]#

DINV[3]#

COMP[0]
COMP[1]
COMP[2]
COMP[3]

DPRSTP#

DPSLP#

DPWR#

PWRGOOD

SLP#

PSI#

AB24
V24
V26
V23
T22
U25
U23
Y25
W22
Y23
W24
W25
AA23
AA24
AB25
Y26
AA26
U22

AE24
AD24
AA21
AB22
AB21
AC26
AD20
AE22
AF23
AC25
AE21
AD21
AC22
AD23
AF22
AC23
AE25
AF24
AC20

R26
U26
AA1
Y1

E5
B5
D24
D6
D7
AE6

COMP0
COMP1
COMP2
COMP3

H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_DSTBN #2
H_DSTBP #2
H_DINV#2

H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63
H_DSTBN #3
H_DSTBP #3
H_DINV#3

H_DPRST P#
H_DPSLP #
H_DPW R#
H_PW RGOOD
H_CPUSL P#
H_PSI#

TRACE CLOSELY CPU < 0.5'

COMP0, COMP2 layout : Width 18mils and Space 25mils (27.4Ohms)
COMP1, COMP3 layout : Width 5mils and Space 25mils (55Ohms)

FSB

BCLK BSEL2 BSEL1 BSEL0

533

667

800

133

166

200

0 0 1

1067 266 0 0 0

H_D#[32..4 7] 7

H_DSTBN #2 7
H_DSTBP #2 7
H_DINV#2 7

H_D#[48..6 3] 7

H_DSTBN #3 7
H_DSTBP #3 7

R13 27.4_040 2_1%R13 27.4_040 2_1%

1 2

R15 54.9_040 2_1%R15 54.9_040 2_1%

1 2

R17 27.4_040 2_1%R17 27.4_040 2_1%

1 2

R18 54.9_040 2_1%R18 54.9_040 2_1%

1 2

H_DINV#3 7

H_DPRST P# 8,20,40
H_DPSLP # 20
H_DPW R# 7
H_PW RGOOD 20
H_CPUSL P# 7

H_PSI# 40

110

1 00

3

2

M

M

E@

E@

JCPU1D

JCPU1D

A4

VSS[001]

A8

VSS[002]

A11

VSS[003]

A14

VSS[004]

A16

VSS[005]

A19

VSS[006]

A23

VSS[007]

AF2

VSS[008]

B6

VSS[009]

B8

VSS[010]

B11

VSS[011]

B13

VSS[012]

B16

VSS[013]

B19

VSS[014]

B21

VSS[015]

B24

VSS[016]

C5

VSS[017]

C8

VSS[018]

C11

VSS[019]

C14

VSS[020]

C16

VSS[021]

C19

VSS[022]

C2

VSS[023]

C22

VSS[024]

C25

VSS[025]

D1

VSS[026]

D4

VSS[027]

D8

VSS[028]

D11

VSS[029]

D13

VSS[030]

D16

VSS[031]

D19

VSS[032]

D23

VSS[033]

D26

VSS[034]

E3

VSS[035]

E6

VSS[036]

E8

VSS[037]

E11

VSS[038]

E14

VSS[039]

E16

VSS[040]

E19

VSS[041]

E21

VSS[042]

E24

VSS[043]

F5

VSS[044]

F8

VSS[045]

F11

VSS[046]

F13

VSS[047]

F16

VSS[048]

F19

VSS[049]

F2

VSS[050]

F22

VSS[051]

F25

VSS[052]

G4

VSS[053]

G1

VSS[054]

G23

VSS[055]

G26

VSS[056]

H3

VSS[057]

H6

VSS[058]

H21

VSS[059]

H24

VSS[060]

J2

VSS[061]

J5

VSS[062]

J22

VSS[063]

J25

VSS[064]

K1

VSS[065]

K4

VSS[066]

K23

VSS[067]

K26

VSS[068]

L3

VSS[069]

L6

VSS[070]

L21

VSS[071]

L24

VSS[072]

M2

VSS[073]

M5

VSS[074]

M22

VSS[075]

M25

VSS[076]

N1

VSS[077]

N4

VSS[078]

N23

VSS[079]

N26

VSS[080]
VSS[081]P3VSS[162]

Penryn

Penryn

VSS[082]
VSS[083]
VSS[084]
VSS[085]
VSS[086]
VSS[087]
VSS[088]
VSS[089]
VSS[090]
VSS[091]
VSS[092]
VSS[093]
VSS[094]
VSS[095]
VSS[096]
VSS[097]
VSS[098]
VSS[099]
VSS[100]
VSS[101]
VSS[102]
VSS[103]
VSS[104]
VSS[105]
VSS[106]
VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]

VSS[163]

1

P6
P21
P24
R2
R5
R22
R25
T1
T4
T23
T26
U3
U6
U21
U24
V2
V5
V22
V25
W1
W4
W23
W26
Y3
Y6
Y21
Y24
AA2
AA5
AA8
AA11
AA14
AA16
AA19
AA22
AA25
AB1
AB4
AB8
AB11
AB13
AB16
AB19
AB23
AB26
AC3
AC6
AC8
AC11
AC14
AC16
AC19
AC21
AC24
AD2
AD5
AD8
AD11
AD13
AD16
AD19
AD22
AD25
AE1
AE4
AE8
AE11
AE14
AE16
AE19
AE23
AE26
A2
AF6
AF8
AF11
AF13
AF16
AF19
AF21
A25
AF25

.

.

Close to CPU pin AD26
within 500mils.

5

4

Security Class ification

Security Class ification

Security Class ification

2007/10/ 15 2008/10/ 15

2007/10/ 15 2008/10/ 15

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/ 15 2008/10/ 15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

B

B

B

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

Penryn (2/3)

Penryn (2/3)

Penryn (2/3)

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

5 43Wednesd ay, June 24, 20 09

5 43Wednesd ay, June 24, 20 09

5 43Wednesd ay, June 24, 20 09

1

1.0

1.0

1.0

5

+CPU_CO RE +CPU_CO RE

D D

C C

B B

A10
A12
A13
A15
A17
A18
A20

B10
B12
B14
B15
B17
B18
B20

C10
C12
C13
C15
C17
C18

D10
D12
D14
D15
D17
D18

E10
E12
E13
E15
E17
E18
E20

F10
F12
F14
F15
F17
F18
F20
AA7

AA9
AA10
AA12
AA13
AA15
AA17
AA18
AA20

AB9
AC10
AB10
AB12
AB14
AB15
AB17
AB18

A7
A9

B7
B9

C9

D9

E7
E9

F7
F9

M

M

E@

E@

JCPU1C

JCPU1C

VCC[001]
VCC[002]
VCC[003]
VCC[004]
VCC[005]
VCC[006]
VCC[007]
VCC[008]
VCC[009]
VCC[010]
VCC[011]
VCC[012]
VCC[013]
VCC[014]
VCC[015]
VCC[016]
VCC[017]
VCC[018]
VCC[019]
VCC[020]
VCC[021]
VCC[022]
VCC[023]
VCC[024]
VCC[025]
VCC[026]
VCC[027]
VCC[028]
VCC[029]
VCC[030]
VCC[031]
VCC[032]
VCC[033]
VCC[034]
VCC[035]
VCC[036]
VCC[037]
VCC[038]
VCC[039]
VCC[040]
VCC[041]
VCC[042]
VCC[043]
VCC[044]
VCC[045]
VCC[046]
VCC[047]
VCC[048]
VCC[049]
VCC[050]
VCC[051]
VCC[052]
VCC[053]
VCC[054]
VCC[055]
VCC[056]
VCC[057]
VCC[058]
VCC[059]
VCC[060]
VCC[061]
VCC[062]
VCC[063]
VCC[064]
VCC[065]
VCC[066]
VCC[067]

Penryn

Penryn

VCC[068]
VCC[069]
VCC[070]
VCC[071]
VCC[072]
VCC[073]
VCC[074]
VCC[075]
VCC[076]
VCC[077]
VCC[078]
VCC[079]
VCC[080]
VCC[081]
VCC[082]
VCC[083]
VCC[084]
VCC[085]
VCC[086]
VCC[087]
VCC[088]
VCC[089]
VCC[090]
VCC[091]
VCC[092]
VCC[093]
VCC[094]
VCC[095]
VCC[096]
VCC[097]
VCC[098]
VCC[099]
VCC[100]

VCCP[01]
VCCP[02]
VCCP[03]
VCCP[04]
VCCP[05]
VCCP[06]
VCCP[07]
VCCP[08]
VCCP[09]
VCCP[10]
VCCP[11]
VCCP[12]
VCCP[13]
VCCP[14]
VCCP[15]
VCCP[16]

VCCA[01]
VCCA[02]

VID[0]
VID[1]
VID[2]
VID[3]
VID[4]
VID[5]
VID[6]

VCCSENSE

VSSSENSE

AB20
AB7
AC7
AC9
AC12
AC13
AC15
AC17
AC18
AD7
AD9
AD10
AD12
AD14
AD15
AD17
AD18
AE9
AE10
AE12
AE13
AE15
AE17
AE18
AE20
AF9
AF10
AF12
AF14
AF15
AF17
AF18

+1.05VS

AF20

G21
V6
J6
K6
M6
J21
K21
M21
N21
N6
R21
R6
T21
T6
V21
W21

B26
C26

AD6
AF5
AE5
AF4
AE3
AF3
AE2

AF7

AE7

.

.

1

+

+

C34

C34
330U_D2 _2VY_R7M

330U_D2 _2VY_R7M

2

CPU_VID0 40
CPU_VID1 40
CPU_VID2 40
CPU_VID3 40
CPU_VID4 40
CPU_VID5 40
CPU_VID6 40

VCCSENS E

VSSSENS E

NEAR PIN B26

20mils

1

C51

C51

2

VCCSENS E 40

VSSSENS E 4 0

The trace width/space/other is 18/7/25.

Layout Note:
Route VCCSENSE and VSSSENSE traces at

27.4 Ohms with 50 mil spacing.
Place PU and PD within 1 inch of CPU.
Length matched to within 25 mils.

4

+CPU_CO RE

330U_D2 _2VY_R7M

330U_D2 _2VY_R7M

330U_D2 _2VY_R7M

1

+

+

C15

C14

C14

Place these capacitors on L1
(North side,Secondary Layer)

Place these capacitors on L1
(North side,Secondary Layer)

Place these capacitors on L1
(South side,Secondary Layer)

+1.5VS

Place these capacitors on L1

1

C52

C52

2

0.01U_0402_16V7K

0.01U_0402_16V7K

10U_0805_10V4Z

10U_0805_10V4Z

(South side,Secondary Layer)

Mid Frequence Decoupling

+CPU_CO RE

C15

2

330U_D2 _2VY_R7M

330U_D2 _2VY_R7M

change highly to H1.9 for thermal type issue.

R21

R21
100_040 2_1%

100_040 2_1%

1 2

R22

R22
100_040 2_1%

100_040 2_1%

1 2

330U_D2 _2VY_R7M

1

+

+

2

VCCSENS E

VSSSENS E

1

C16

C16

2

@

@

+CPU_CO RE

1

2

+CPU_CO RE

1

2

+CPU_CO RE

1

2

+CPU_CO RE

1

2

+

+

C17

C17

330U_D2 _2VY_R7M

330U_D2 _2VY_R7M

3/20 EVT

C18

C18

10U_080 5_6.3V6M

10U_080 5_6.3V6M

C26

C26

10U_080 5_6.3V6M

10U_080 5_6.3V6M

C35

C35

10U_080 5_6.3V6M

10U_080 5_6.3V6M

C43

C43

10U_080 5_6.3V6M

10U_080 5_6.3V6M

3

1

+

+

2

1

C19

C19

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C27

C27

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C36

C36

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C44

C44

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

+1.05VS

Place these inside socket cavity on L8
(North side Secondary)

1

C8

C8

0.1U_040 2_10V6K

0.1U_040 2_10V6K

2

1

C20

C20

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C28

C28

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C37

C37

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C45

C45

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C9

C9

0.1U_040 2_10V6K

0.1U_040 2_10V6K

2

1

C21

C21

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C29

C29

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C38

C38

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C46

C46

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

2

1

2

C10

C10

0.1U_040 2_10V6K

0.1U_040 2_10V6K

1

C22

C22

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C30

C30

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C39

C39

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C47

C47

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C11

C11

0.1U_040 2_10V6K

0.1U_040 2_10V6K

2

1

2

1

2

1

C40

C40

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C48

C48

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

2

C23

C23

10U_080 5_6.3V6M

10U_080 5_6.3V6M

C31

C31

10U_080 5_6.3V6M

10U_080 5_6.3V6M

C12

C12

0.1U_040 2_10V6K

0.1U_040 2_10V6K

1

C24

C24

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C32

C32

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C41

C41

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C49

C49

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

1

C13

C13

0.1U_040 2_10V6K

0.1U_040 2_10V6K

2

1

C25

C25

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C33

C33

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C42

C42

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

1

C50

C50

10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

Close to CPU pin
within 500mils.

A A

Security Class ification

Security Class ification

Security Class ification

2007/10/ 15 2008/10/ 15

2007/10/ 15 2008/10/ 15

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/ 15 2008/10/ 15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

Penryn (3/3)

Penryn (3/3)

Penryn (3/3)

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

1

of

6 43Wednesd ay, June 24, 20 09

6 43Wednesd ay, June 24, 20 09

6 43Wednesd ay, June 24, 20 09

1.0

1.0

1.0

5

4

3

2

1

D D

H_D#[0..63 ]5

C C

B B

H_RESET #4
H_CPUSL P#5

H_D#0
H_D#1
H_D#2
H_D#3
H_D#4
H_D#5
H_D#6
H_D#7
H_D#8
H_D#9
H_D#10
H_D#11
H_D#12
H_D#13
H_D#14
H_D#15
H_D#16
H_D#17
H_D#18
H_D#19
H_D#20
H_D#21
H_D#22
H_D#23
H_D#24
H_D#25
H_D#26
H_D#27
H_D#28
H_D#29
H_D#30
H_D#31
H_D#32
H_D#33
H_D#34
H_D#35
H_D#36
H_D#37
H_D#38
H_D#39
H_D#40
H_D#41
H_D#42
H_D#43
H_D#44
H_D#45
H_D#46
H_D#47
H_D#48
H_D#49
H_D#50
H_D#51
H_D#52
H_D#53
H_D#54
H_D#55
H_D#56
H_D#57
H_D#58
H_D#59
H_D#60
H_D#61
H_D#62
H_D#63

H_SW NG
H_RCOMP

H_RESET #
H_CPUSL P#

H_VREF

M11

N12

P13

N10

AD14

Y10
Y12
Y14

AA8

AA13

AA9
AA11
AD11
AD10
AD13
AE12

AE9

AA2

AD8

AA3

AD3

AD7
AE14

AF3

AC1

AE3

AC3
AE11

AE8

AG2
AD6

C12

E11

A11

B11

U3A

U3A

F2

G8

F8
E6

G2

H6
H2
F6
D4
H3

M9

J1
J2

J6
P2
L2
R2
N9
L6

M5

J3
N2
R1
N5
N6

N8
L7

M3

Y3

Y6

Y7

W2

Y9

C5
E3

H_D#_0
H_D#_1
H_D#_2
H_D#_3
H_D#_4
H_D#_5
H_D#_6
H_D#_7
H_D#_8
H_D#_9
H_D#_10
H_D#_11
H_D#_12
H_D#_13
H_D#_14
H_D#_15
H_D#_16
H_D#_17
H_D#_18
H_D#_19
H_D#_20
H_D#_21
H_D#_22
H_D#_23
H_D#_24
H_D#_25
H_D#_26
H_D#_27
H_D#_28
H_D#_29
H_D#_30
H_D#_31
H_D#_32
H_D#_33
H_D#_34
H_D#_35
H_D#_36
H_D#_37
H_D#_38
H_D#_39
H_D#_40
H_D#_41
H_D#_42
H_D#_43
H_D#_44
H_D#_45
H_D#_46
H_D#_47
H_D#_48
H_D#_49
H_D#_50
H_D#_51
H_D#_52
H_D#_53
H_D#_54
H_D#_55
H_D#_56
H_D#_57
H_D#_58
H_D#_59
H_D#_60
H_D#_61
H_D#_62
H_D#_63

H_SWING
H_RCOMP

H_CPURST#
H_CPUSLP#

H_AVREF
H_DVREF

CANTIGA ES _FCBGA1329

CANTIGA ES _FCBGA1329

H_ADSTB#_0
H_ADSTB#_1

H_BREQ#

H_DEFER#

HOST

HOST

H_DBSY#

HPLL_CLK

HPLL_CLK#

H_DPWR#

H_DRDY#

H_LOCK#
H_TRDY#

H_DINV#_0
H_DINV#_1
H_DINV#_2
H_DINV#_3

H_DSTBN#_0
H_DSTBN#_1
H_DSTBN#_2
H_DSTBN#_3

H_DSTBP#_0
H_DSTBP#_1
H_DSTBP#_2
H_DSTBP#_3

H_REQ#_0
H_REQ#_1
H_REQ#_2
H_REQ#_3
H_REQ#_4

H_A#_3
H_A#_4
H_A#_5
H_A#_6
H_A#_7
H_A#_8

H_A#_9
H_A#_10
H_A#_11
H_A#_12
H_A#_13
H_A#_14
H_A#_15
H_A#_16
H_A#_17
H_A#_18
H_A#_19
H_A#_20
H_A#_21
H_A#_22
H_A#_23
H_A#_24
H_A#_25
H_A#_26
H_A#_27
H_A#_28
H_A#_29
H_A#_30
H_A#_31
H_A#_32
H_A#_33
H_A#_34
H_A#_35

H_ADS#

H_BNR#

H_BPRI#

H_HIT#

H_HITM#

H_RS#_0
H_RS#_1
H_RS#_2

A14
C15
F16
H13
C18
M16
J13
P16
R16
N17
M13
E17
P17
F17
G20
B19
J16
E20
H16
J20
L17
A17
B17
L16
C21
J17
H20
B18
K17
B20
F21
K21
L20

H12
B16
G17
A9
F11
G12
E9
B10
AH7
AH6
J11
F9
H9
E12
H11
C9

J8
L3
Y13
Y1

L10
M7
AA5
AE6

L9
M8
AA6
AE5

B15
K13
F13
B13
B14

B6
F12
C8

H_A#3
H_A#4
H_A#5
H_A#6
H_A#7
H_A#8
H_A#9
H_A#10
H_A#11
H_A#12
H_A#13
H_A#14
H_A#15
H_A#16
H_A#17
H_A#18
H_A#19
H_A#20
H_A#21
H_A#22
H_A#23
H_A#24
H_A#25
H_A#26
H_A#27
H_A#28
H_A#29
H_A#30
H_A#31
H_A#32
H_A#33
H_A#34
H_A#35

H_ADS#
H_ADSTB #0
H_ADSTB #1
H_BNR#
H_BPRI#
H_BR0#
H_DEFER #
H_DBSY#
CLK_MCH _BCLK
CLK_MCH _BCLK#
H_DPW R#
H_DRDY#
H_HIT#
H_HITM#
H_LOCK#
H_TRDY#

H_DINV#0
H_DINV#1
H_DINV#2
H_DINV#3

H_DSTBN #0
H_DSTBN #1
H_DSTBN #2
H_DSTBN #3

H_DSTBP #0
H_DSTBP #1
H_DSTBP #2
H_DSTBP #3

H_REQ#0
H_REQ#1
H_REQ#2
H_REQ#3
H_REQ#4

H_RS#0
H_RS#1
H_RS#2

H_A#[3..35 ] 4

H_ADS# 4
H_ADSTB #0 4
H_ADSTB #1 4
H_BNR# 4
H_BPRI# 4
H_BR0# 4
H_DEFER # 4
H_DBSY# 4
CLK_MCH _BCLK 16
CLK_MCH _BCLK# 16
H_DPW R# 5
H_DRDY# 4
H_HIT# 4
H_HITM# 4
H_LOCK# 4
H_TRDY# 4

H_DINV#0 5
H_DINV#1 5
H_DINV#2 5
H_DINV#3 5

H_DSTBN #0 5
H_DSTBN #1 5
H_DSTBN #2 5
H_DSTBN #3 5

H_DSTBP #0 5
H_DSTBP #1 5
H_DSTBP #2 5
H_DSTBP #3 5

H_REQ#0 4
H_REQ#1 4
H_REQ#2 4
H_REQ#3 4
H_REQ#4 4

H_RS#0 4
H_RS#1 4
H_RS#2 4

Layout Note:
H_RCOMP / H_VREF / H_SWNG
trace width and spacing is 10/20

12

R23

R23
1K_0402 _1%

1K_0402 _1%

12

R25

R25
2K_0402 _1%

2K_0402 _1%

1

C53

C53

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

12

within 100 mils from NB

H_RCOMP H_SW NGH_VREF

R26

R26

24.9_040 2_1%

24.9_040 2_1%

+1.05VS+1.05VS

12

12

R24

R24
221_060 3_1%

221_060 3_1%

R27

R27
100_040 2_1%

100_040 2_1%

Near B3 pin

1

C54

C54

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

A A

Security Class ification

Security Class ification

Security Class ification

2007/10/ 15 2008/10/ 15

2007/10/ 15 2008/10/ 15

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/ 15 2008/10/ 15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

Cantiga GMCH(1/6)-GTL

Cantiga GMCH(1/6)-GTL

Cantiga GMCH(1/6)-GTL

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

7 43Wednesd ay, June 24, 20 09

7 43Wednesd ay, June 24, 20 09

7 43Wednesd ay, June 24, 20 09

1

1.0

1.0

1.0

5

Strap Pin Table

011 = FSB667

CFG[2:0]

Internal pull-up

CFG5

Internal pull-up

CFG6

D D

Internal pull-up

CFG7

Internal pull-up

CFG9

Internal pull-up

CFG10

CFG[13:12]

Internal pull-up

Internal pull-up

CFG16

Internal pull-do wn

CFG19

CFG20

Internal pull-do wn

(PCIE/SDVO select)

C C

B B

+1.05VS

12

R35

R35

54.9_0402_1%

54.9_0402_1%

@

@

MCH_TSATN# MCH_TSATN_EC#

ICH_POK21

VGATE21,40

PLT_RST#19,24,29

E

E

3 1

Q1

Q1
MMBT3904_SOT23-3

MMBT3904_SOT23-3

@

@

Layout Note:
V_DDR_MCH_REF trace
width and spacing is 20/20.

A A

CLOSE TO PIN.AV21

+DDR_MCH_REF

010 = FSB800
000 = FSB1067

0 = DMI x 2
1 = DMI x 4

0 = iTPM Host Interface is enabled

1 = iTPM Host Interface is Disabled

0 = Intel Management Engine Crypto Transport Layer Security
(TLS) cipher suite with no confidentiality

1 = Intel Management Engine Crypto TLS cipher suite with
confidentiality

0 = Lane Reversal Enable
1 = Normal Operation (Default)

0 = PCIe Loopback Enable
1 = Disable*(Default)

01 = All Z Mode Enabled
00 = Reserved
10 = XOR Mode Enabled
11 = Normal Operation

0 = Dynamic ODT Disabled
1 = Dynamic ODT Enabled

0 = Normal Operation
1 = DMI Lane Reversal Enable

(Default)

*

*

(Default)

*

*

(Default)

(Default)

*

can support disble by SW.

(Default)

*

(Default)

*

0 = Only PCIE or [SDVO/DP/HDMI] is operational.

1 = PCIE/[SDVO/DP/HDMI] are operating simu.

+3VS

12

B

B

2

12

5

+3VS

R33

R33
1K_0402_5%

1K_0402_5%

@

@

C

C

R47

R47
10K_0402_5%

10K_0402_5%

R51 0_0402_5%R51 0_0402_5%

R53 0_0402_5%@R53 0_0402_5%@

R54 100_0402_5%R54 100_0402_5%

1 2

1 2

1 2

1

C61

C61

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

12

R36

R36
1K_0402_5%

1K_0402_5%

@

@

12

R48

R48
10K_0402_5%

10K_0402_5%

+1.5V

12

12

PM_EXTTS#0
PM_EXTTS#1

R58

R58
10K_0402_5%

10K_0402_5%

R64

R64
10K_0402_5%

10K_0402_5%

+3VS

PM_POK_R

PLT_RST#_R

R38 2.21K_0402_1%@R38 2.21K_0402_1 %@
R39 2.21K_0402_1%@R39 2.21K_0402_1 %@
R40 2.21K_0402_1%@R40 2.21K_0402_1 %@

R41 2.21K_0402_1%@R41 2.21K_0402_1 %@
R42 2.21K_0402_1%@R42 2.21K_0402_1 %@

R44 2.21K_0402_1%@R44 2.21K_0402_1 %@
R45 2.21K_0402_1%@R45 2.21K_0402_1 %@

R46 2.21K_0402_1%@R46 2.21K_0402_1 %@

R49 4.02K_0402_1%@R49 4.02K_0402_1 %@
R50 4.02K_0402_1%@R50 4.02K_0402_1 %@

MCH_CLKSEL016
MCH_CLKSEL116
MCH_CLKSEL216

1 2
1 2
1 2

1 2
1 2

1 2
1 2

1 2

1 2
1 2

PM_BMBUSY#21

H_DPRSTP#5,20,40

PM_EXTTS#014,15

H_THERMTRIP#4,20

DPRSLPVR21,40

4

4

*

(Default)

MCH_CLKSEL0
MCH_CLKSEL1
MCH_CLKSEL2

MCH_CFG_5
MCH_CFG_6
MCH_CFG_7

MCH_CFG_9
MCH_CFG_10

MCH_CFG_12
MCH_CFG_13

MCH_CFG_16

MCH_CFG_19
MCH_CFG_20

PM_BMBUSY#
H_DPRSTP#
PM_EXTTS#0
PM_EXTTS#1
PM_POK_R
PLT_RST#_R
H_THERMTRIP#
DPRSLPVR

M36
N36
R33

AH9
AH10
AH12
AH13

AL34
AK34
AN35
AM35

AY21

BG23

BF23
BH18

BF18

R25

C25
N24
M24

C23
C24
N21

R20
M20

H21

R28

R29

N33

AT40

AT11

R32

BG48

BF48
BD48
BC48
BH47
BG47
BE47
BH46

BF46
BG45
BH44
BH43

BH6
BH5
BG4
BH3
BF3
BH2
BG2
BE2
BG1
BF1
BD1
BC1

U3B

U3B

T33

K12

T24

B31

B2

M1

T25

P25
P20
P24

E21

P21
T21

L21

P29

T28

B7

P32

T20

F1

A47

3

M_CLK_DDR0

AP24

RSVD1
RSVD2
RSVD3
RSVD4
RSVD5
RSVD6
RSVD7
RSVD8
RSVD9
RSVD10
RSVD11
RSVD12
RSVD13
RSVD14

RSVD15
RSVD16
RSVD17

RSVD20

RSVD22
RSVD23
RSVD24
RSVD25

CFG_0
CFG_1
CFG_2
CFG_3
CFG_4
CFG_5
CFG_6
CFG_7
CFG_8
CFG_9
CFG_10
CFG_11
CFG_12
CFG_13
CFG_14
CFG_15
CFG_16
CFG_17
CFG_18
CFG_19
CFG_20

PM_SYNC#
PM_DPRSTP#
PM_EXT_TS#_0
PM_EXT_TS#_1
PWROK
RSTIN#
THERMTRIP#
DPRSLPVR

NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
NC_21
NC_22
NC_23
NC_24
NC_25
NC_26

CANTIGA ES_FCBGA1329

CANTIGA ES_FCBGA1329

RSVD CFG PM NC

RSVD CFG PM NC

DDR CLK/ CONTROL/ COMPENSATIONHDA

DDR CLK/ CONTROL/ COMPENSATIONHDA

CLKDMIGRAPHICS VIDMEMISC

CLKDMIGRAPHICS VIDMEMISC

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

SA_CK_0
SA_CK_1
SB_CK_0
SB_CK_1

SA_CK#_0
SA_CK#_1
SB_CK#_0
SB_CK#_1

SA_CKE_0
SA_CKE_1
SB_CKE_0
SB_CKE_1

SA_CS#_0
SA_CS#_1
SB_CS#_0
SB_CS#_1

SA_ODT_0
SA_ODT_1

SB_ODT_O

SB_ODT_1

SM_RCOMP

SM_RCOMP#

SM_RCOMP_VOH

SM_RCOMP_VOL

SM_VREF

SM_PWROK

SM_REXT

SM_DRAMRST#

DPLL_REF_CLK

DPLL_REF_CLK#

DPLL_REF_SSCLK

DPLL_REF_SSCLK#

PEG_CLK

PEG_CLK#

DMI_RXN_0
DMI_RXN_1
DMI_RXN_2
DMI_RXN_3

DMI_RXP_0
DMI_RXP_1
DMI_RXP_2
DMI_RXP_3

DMI_TXN_0
DMI_TXN_1
DMI_TXN_2
DMI_TXN_3

DMI_TXP_0
DMI_TXP_1
DMI_TXP_2
DMI_TXP_3

GFX_VID_0
GFX_VID_1
GFX_VID_2
GFX_VID_3
GFX_VID_4

GFX_VR_EN

CL_CLK

CL_DATA

CL_PWROK

CL_RST#
CL_VREF

DDPC_CTRLCLK

DDPC_CTRLDATA

SDVO_CTRLCLK

SDVO_CTRLDATA

CLKREQ#

ICH_SYNC#

TSATN#

HDA_BCLK
HDA_RST#

HDA_SDI

HDA_SDO

HDA_SYNC

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

M_CLK_DDR1

AT21

M_CLK_DDR2

AV24

M_CLK_DDR3

AU20

M_CLK_DDR#0

AR24

M_CLK_DDR#1

AR21

M_CLK_DDR#2

AU24

M_CLK_DDR#3

AV20

DDR_CKE0_DIMMA

BC28

DDR_CKE1_DIMMA

AY28

DDR_CKE2_DIMMB

AY36

DDR_CKE3_DIMMB

BB36

DDR_CS0_DIMMA#

BA17

DDR_CS1_DIMMA#

AY16

DDR_CS2_DIMMB#

AV16

DDR_CS3_DIMMB#

AR13

M_ODT0

BD17

M_ODT1

AY17

M_ODT2

BF15

M_ODT3

AY13

SMRCOMP

BG22

SMRCOMP#

BH21

SMRCOMP_VOH

BF28

SMRCOMP_VOL

BH28

+DDR_MCH_REF

AV42

SM_PWROK

AR36

SM_REXT

BF17

SM_DRAMRST#

BC36

CLK_MCH_DREFCLK

B38

CLK_MCH_DREFCLK#

A38

MCH_CLKDREFSSC

E41

MCH_CLKDREFSSC#

F41

CLK_MCH_3GPLL

F43

CLK_MCH_3GPLL#

E43

DMI_TXN0

AE41

DMI_TXN1

AE37

DMI_TXN2

AE47

DMI_TXN3

AH39

DMI_TXP0

AE40

DMI_TXP1

AE38

DMI_TXP2

AE48

DMI_TXP3

AH40

DMI_RXN0

AE35

DMI_RXN1

AE43

DMI_RXN2

AE46

DMI_RXN3

AH42

DMI_RXP0

AD35

DMI_RXP1

AE44

DMI_RXP2

AF46

DMI_RXP3

AH43

For independent Power Rail : connect to PWM CORE VID
For Common Power Rail : left it No Connect

B33
B32
G33
F33
E33

C34

For AMT function

CL_CLK0

AH37

CL_DATA0

AH36

CL_PWROK

AN36

CL_RST#

AJ35

CL_VREF

AH34

N28

DP_DATA

M28

SDVO_SCLK

G36
E36

MCH_CLKREQ#

K36

MCH_ICH_SYNC#

H36

MCH_TSATN#

B12

B28
B30
B29
C29
A28

R57 56_0402_5%R57 56_0402_5%

Notice: Please check HDA power rail to select HDA controller.

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

M_CLK_DDR0 14
M_CLK_DDR1 14
M_CLK_DDR2 15
M_CLK_DDR3 15

M_CLK_DDR#0 14
M_CLK_DDR#1 14
M_CLK_DDR#2 15
M_CLK_DDR#3 15

DDR_CKE0_DIMMA 14
DDR_CKE1_DIMMA 14
DDR_CKE2_DIMMB 15
DDR_CKE3_DIMMB 15

DDR_CS0_DIMMA# 14
DDR_CS1_DIMMA# 14
DDR_CS2_DIMMB# 15
DDR_CS3_DIMMB# 15

M_ODT0 14
M_ODT1 14
M_ODT2 15
M_ODT3 15

1 2

R29 80.6_0402_1%R29 80.6_0402_1%

SM_DRAMRST# 14,15

CL_CLK0 21
CL_DATA0 21

M_PWROK 21
CL_RST# 21

MCH_CLKREQ# 16
MCH_ICH_SYNC# 21

1 2

2

20mil

R30 0_0402_5%R30 0_0402_5%

1 2

CLK_MCH_DREFCLK 16

CLK_MCH_DREFCLK# 16

MCH_CLKDREFSSC 16

MCH_CLKDREFSSC# 16

CLK_MCH_3GPLL 16
CLK_MCH_3GPLL# 16

DMI_TXN0 21
DMI_TXN1 21
DMI_TXN2 21
DMI_TXN3 21

DMI_TXP0 21
DMI_TXP1 21
DMI_TXP2 21
DMI_TXP3 21

DMI_RXN0 21
DMI_RXN1 21
DMI_RXN2 21
DMI_RXN3 21

DMI_RXP0 21
DMI_RXP1 21
DMI_RXP2 21
DMI_RXP3 21

1

2

(Internal pull-down)

(Internal pull-down)

+1.05VS

2

For DDR3 : 1.5V power rail
For DDR2 : 1.8V power rail

+1.5V

12

R28

R28

80.6_0402_1%

80.6_0402_1%

For Crestline: 20ohm
For Calero: 80.6ohm
For Cantiga: 80.6ohm

1.5V_PGOOD 3 9

R31 10K_0402_5%@R31 10K_0402_5%@

1 2

R32 499_0402_1%R32 499_0402_1%

1 2

SM_DRAMRST# is only for DDR3.
DDR2 left it No Connect

SMRCOMP_VOH

SMRCOMP_VOL

+1.05VS

12

R52

R52
1K_0402_1%

1K_0402_1%

R55

C59

C59

0.1U_0402_16V4Z

0.1U_0402_16V4Z

R55
499_0402_1%

499_0402_1%

Strap Pin Table

SDVO_CTRLDATA

0 = SDVO interface disabled
1 = SDVO interface enabled

0 = Digital display (iHDMI/DP) interface disabled
1 = Digital display (iHDMI/DP) interface enabled

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

KIUE0_LA-5191P

KIUE0_LA-5191P

Date: Sheet of

Date: Sheet of

Date: Sheet

KIUE0_LA-5191P

1

+1.5V

12

R34

R34
1K_0402_1%

1K_0402_1%

1

C55

C55

0.01U_0402_25V7K

0.01U_0402_25V7K

2

1

C57

C57

0.01U_0402_25V7K

0.01U_0402_25V7K

2

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Cantiga(2/7)-DMI/DDR/STRP

Cantiga(2/7)-DMI/DDR/STRP

Cantiga(2/7)-DMI/DDR/STRP

SDVO_SCLK

1

C56

C56

2.2U_0603_6.3V4Z

2.2U_0603_6.3V4Z

2

1

C58

C58

2.2U_0603_6.3V4Z

2.2U_0603_6.3V4Z

2

(Default)

*

R56

@R56

@

1

2.2K_0402_5%

2.2K_0402_5%

12

8 43Wednesday, June 24, 2009

8 43Wednesday, June 24, 2009

8 43Wednesday, June 24, 2009

12

R37

R37

3.01K_0402_1%

3.01K_0402_1%

12

R43

R43
1K_0402_1%

1K_0402_1%

of

(Default)DDPC_CTRLDATA

*

+3VS

1.0

1.0

1.0

5

D D

U3D

DDR_A_D [0..63]14 DDR_A_B S[0..2] 14

C C

B B

DDR_A_D 0
DDR_A_D 1
DDR_A_D 2
DDR_A_D 3
DDR_A_D 4
DDR_A_D 5
DDR_A_D 6
DDR_A_D 7
DDR_A_D 8
DDR_A_D 9
DDR_A_D 10
DDR_A_D 11
DDR_A_D 12
DDR_A_D 13
DDR_A_D 14
DDR_A_D 15
DDR_A_D 16
DDR_A_D 17
DDR_A_D 18
DDR_A_D 19
DDR_A_D 20
DDR_A_D 21
DDR_A_D 22
DDR_A_D 23
DDR_A_D 24
DDR_A_D 25
DDR_A_D 26
DDR_A_D 27
DDR_A_D 28
DDR_A_D 29
DDR_A_D 30
DDR_A_D 31
DDR_A_D 32
DDR_A_D 33 DDR_A_D QS#0
DDR_A_D 34
DDR_A_D 35
DDR_A_D 36
DDR_A_D 37
DDR_A_D 38
DDR_A_D 39
DDR_A_D 40
DDR_A_D 41
DDR_A_D 42
DDR_A_D 43
DDR_A_D 44
DDR_A_D 45
DDR_A_D 46
DDR_A_D 47
DDR_A_D 48
DDR_A_D 49
DDR_A_D 50
DDR_A_D 51
DDR_A_D 52
DDR_A_D 53
DDR_A_D 54
DDR_A_D 55
DDR_A_D 56
DDR_A_D 57
DDR_A_D 58
DDR_A_D 59
DDR_A_D 60
DDR_A_D 61
DDR_A_D 62
DDR_A_D 63

AJ38
AJ41

AN38

AM38

AJ36

AJ40
AM44
AM42

AN43
AN44
AU40
AT38
AN41
AN39
AU44
AU42
AV39
AY44
BA40
BD43
AV41
AY43
BB41
BC40
AY37
BD38
AV37
AT36
AY38
BB38
AV36

AW36

BD13
AU11
BC11
BA12
AU13
AV13
BD12
BC12

BB9
BA9

AU10

AV9

BA11

BD9
AY8
BA6
AV5
AV7
AT9
AN8
AU5
AU6
AT5

AN10

AM11

AM5

AJ9
AJ8

AN12

AM13

AJ11

AJ12

U3D

SA_DQ_0
SA_DQ_1
SA_DQ_2
SA_DQ_3
SA_DQ_4
SA_DQ_5
SA_DQ_6
SA_DQ_7
SA_DQ_8
SA_DQ_9
SA_DQ_10
SA_DQ_11
SA_DQ_12
SA_DQ_13
SA_DQ_14
SA_DQ_15
SA_DQ_16
SA_DQ_17
SA_DQ_18
SA_DQ_19
SA_DQ_20
SA_DQ_21
SA_DQ_22
SA_DQ_23
SA_DQ_24
SA_DQ_25
SA_DQ_26
SA_DQ_27
SA_DQ_28
SA_DQ_29
SA_DQ_30
SA_DQ_31
SA_DQ_32
SA_DQ_33
SA_DQ_34
SA_DQ_35
SA_DQ_36
SA_DQ_37
SA_DQ_38
SA_DQ_39
SA_DQ_40
SA_DQ_41
SA_DQ_42
SA_DQ_43
SA_DQ_44
SA_DQ_45
SA_DQ_46
SA_DQ_47
SA_DQ_48
SA_DQ_49
SA_DQ_50
SA_DQ_51
SA_DQ_52
SA_DQ_53
SA_DQ_54
SA_DQ_55
SA_DQ_56
SA_DQ_57
SA_DQ_58
SA_DQ_59
SA_DQ_60
SA_DQ_61
SA_DQ_62
SA_DQ_63

CANTIGA ES _FCBGA1329

CANTIGA ES _FCBGA1329

4

DDR_A_B S0

BD21

SA_BS_0
SA_BS_1
SA_BS_2

SA_RAS#
SA_CAS#

SA_WE#

SA_DM_0
SA_DM_1
SA_DM_2
SA_DM_3
SA_DM_4
SA_DM_5
SA_DM_6
SA_DM_7

SA_DQS_0
SA_DQS_1
SA_DQS_2
SA_DQS_3
SA_DQS_4
SA_DQS_5
SA_DQS_6
SA_DQS_7

SA_DQS#_0
SA_DQS#_1
SA_DQS#_2
SA_DQS#_3
SA_DQS#_4
SA_DQS#_5
SA_DQS#_6
SA_DQS#_7

SA_MA_0
SA_MA_1
SA_MA_2
SA_MA_3

DDR SYSTEM MEMORY A

DDR SYSTEM MEMORY A

SA_MA_4
SA_MA_5
SA_MA_6
SA_MA_7
SA_MA_8

SA_MA_9
SA_MA_10
SA_MA_11
SA_MA_12
SA_MA_13
SA_MA_14

BG18
AT25

BB20
BD20
AY20

AM37
AT41
AY41
AU39
BB12
AY6
AT7
AJ5

AJ44
AT44
BA43
BC37
AW12
BC8
AU8
AM7

AJ43
AT43
BA44
BD37
AY12
BD8
AU9
AM8

BA21
BC24
BG24
BH24
BG25
BA24
BD24
BG27
BF25
AW24
BC21
BG26
BH26
BH17
AY25

DDR_A_B S1
DDR_A_B S2

DDR_A_R AS#
DDR_A_C AS#
DDR_A_W E#

DDR_A_D M0
DDR_A_D M1
DDR_A_D M2
DDR_A_D M3
DDR_A_D M4
DDR_A_D M5
DDR_A_D M6
DDR_A_D M7

DDR_A_D QS0
DDR_A_D QS1
DDR_A_D QS2
DDR_A_D QS3
DDR_A_D QS4
DDR_A_D QS5
DDR_A_D QS6
DDR_A_D QS7

DDR_A_D QS#1

DDR_A_D QS#2
DDR_A_D QS#3
DDR_A_D QS#4
DDR_A_D QS#5
DDR_A_D QS#6
DDR_A_D QS#7

DDR_A_M A0

DDR_A_M A1

DDR_A_M A2

DDR_A_M A3

DDR_A_M A4

DDR_A_M A5

DDR_A_M A6

DDR_A_M A7

DDR_A_M A8

DDR_A_M A9

DDR_A_M A10

DDR_A_M A11

DDR_A_M A12

DDR_A_M A13

DDR_A_M A14

DDR_A_R AS# 14
DDR_A_C AS# 14
DDR_A_W E# 14

DDR_A_D M[0..7] 14

DDR_A_D QS[0..7] 14

DDR_A_D QS#[0..7] 14

DDR_A_M A[0..14] 1 4

3

DDR_B_D [0..63]15 DDR_B_B S[0..2] 15

DDR_B_D 0
DDR_B_D 1
DDR_B_D 2
DDR_B_D 3
DDR_B_D 4
DDR_B_D 5
DDR_B_D 6
DDR_B_D 7
DDR_B_D 8
DDR_B_D 9
DDR_B_D 10
DDR_B_D 11
DDR_B_D 12
DDR_B_D 13
DDR_B_D 14
DDR_B_D 15
DDR_B_D 16
DDR_B_D 17
DDR_B_D 18
DDR_B_D 19
DDR_B_D 20
DDR_B_D 21
DDR_B_D 22
DDR_B_D 23
DDR_B_D 24
DDR_B_D 25
DDR_B_D 26
DDR_B_D 27
DDR_B_D 28
DDR_B_D 29
DDR_B_D 30
DDR_B_D 31
DDR_B_D 32
DDR_B_D 33
DDR_B_D 34
DDR_B_D 35
DDR_B_D 36
DDR_B_D 37
DDR_B_D 38
DDR_B_D 39
DDR_B_D 40
DDR_B_D 41
DDR_B_D 42
DDR_B_D 43
DDR_B_D 44
DDR_B_D 45
DDR_B_D 46
DDR_B_D 47
DDR_B_D 48
DDR_B_D 49
DDR_B_D 50
DDR_B_D 51
DDR_B_D 52
DDR_B_D 53
DDR_B_D 54
DDR_B_D 55
DDR_B_D 56
DDR_B_D 57
DDR_B_D 58
DDR_B_D 59
DDR_B_D 60
DDR_B_D 61
DDR_B_D 62
DDR_B_D 63

AK47
AH46
AP47
AP46

AJ46

AJ48
AM48
AP48
AU47
AU46
BA48
AY48

AT47
AR47
BA47
BC47
BC46
BC44
BG43

BF43
BE45
BC41

BF40

BF41
BG38

BF38
BH35
BG35
BH40
BG39
BG34
BH34
BH14
BG12
BH11

BG8

BH12

BF11

BF8

BG7

BC5
BC6
AY3
AY1
BF6
BF5
BA1
BD3
AV2
AU3
AR3
AN2
AY2
AV1
AP3
AR1
AL1
AL2
AJ1

AH1
AM2
AM3

AH3

AJ3

2

U3E

U3E

SB_DQ_0
SB_DQ_1
SB_DQ_2
SB_DQ_3
SB_DQ_4
SB_DQ_5
SB_DQ_6
SB_DQ_7
SB_DQ_8
SB_DQ_9
SB_DQ_10
SB_DQ_11
SB_DQ_12
SB_DQ_13
SB_DQ_14
SB_DQ_15
SB_DQ_16
SB_DQ_17
SB_DQ_18
SB_DQ_19
SB_DQ_20
SB_DQ_21
SB_DQ_22
SB_DQ_23
SB_DQ_24
SB_DQ_25
SB_DQ_26
SB_DQ_27
SB_DQ_28
SB_DQ_29
SB_DQ_30
SB_DQ_31
SB_DQ_32
SB_DQ_33
SB_DQ_34
SB_DQ_35
SB_DQ_36
SB_DQ_37
SB_DQ_38
SB_DQ_39
SB_DQ_40
SB_DQ_41
SB_DQ_42
SB_DQ_43
SB_DQ_44
SB_DQ_45
SB_DQ_46
SB_DQ_47
SB_DQ_48
SB_DQ_49
SB_DQ_50
SB_DQ_51
SB_DQ_52
SB_DQ_53
SB_DQ_54
SB_DQ_55
SB_DQ_56
SB_DQ_57
SB_DQ_58
SB_DQ_59
SB_DQ_60
SB_DQ_61
SB_DQ_62
SB_DQ_63

CANTIGA ES _FCBGA1329

CANTIGA ES _FCBGA1329

1

DDR_B_BS0

BC16

SB_BS_0
SB_BS_1
SB_BS_2

SB_RAS#
SB_CAS#

SB_WE#

SB_DM_0
SB_DM_1
SB_DM_2
SB_DM_3
SB_DM_4
SB_DM_5
SB_DM_6
SB_DM_7

SB_DQS_0
SB_DQS_1
SB_DQS_2
SB_DQS_3
SB_DQS_4
SB_DQS_5
SB_DQS_6
SB_DQS_7

SB_DQS#_0
SB_DQS#_1
SB_DQS#_2
SB_DQS#_3
SB_DQS#_4
SB_DQS#_5
SB_DQS#_6
SB_DQS#_7

SB_MA_0
SB_MA_1
SB_MA_2

DDR SYSTEM MEMORY B

DDR SYSTEM MEMORY B

SB_MA_3
SB_MA_4
SB_MA_5
SB_MA_6
SB_MA_7
SB_MA_8

SB_MA_9
SB_MA_10
SB_MA_11
SB_MA_12
SB_MA_13
SB_MA_14

BB17
BB33

AU17
BG16
BF14

AM47
AY47
BD40
BF35
BG11
BA3
AP1
AK2

AL47
AV48
BG41
BG37
BH9
BB2
AU1
AN6

AL46
AV47
BH41
BH37
BG9
BC2
AT2
AN5

AV17
BA25
BC25
AU25
AW25
BB28
AU28
AW28
AT33
BD33
BB16
AW33
AY33
BH15
AU33

DDR_B_B S1
DDR_B_B S2

DDR_B_R AS#
DDR_B_C AS#
DDR_B_W E#

DDR_B_D M0
DDR_B_D M1
DDR_B_D M2
DDR_B_D M3
DDR_B_D M4
DDR_B_D M5
DDR_B_D M6
DDR_B_D M7

DDR_B_D QS0
DDR_B_D QS1
DDR_B_D QS2
DDR_B_D QS3
DDR_B_D QS4
DDR_B_D QS5
DDR_B_D QS6
DDR_B_D QS7

DDR_B_D QS#0
DDR_B_D QS#1
DDR_B_D QS#2
DDR_B_D QS#3
DDR_B_D QS#4
DDR_B_D QS#5
DDR_B_D QS#6
DDR_B_D QS#7

DDR_B_M A0
DDR_B_M A1
DDR_B_M A2
DDR_B_M A3
DDR_B_M A4
DDR_B_M A5
DDR_B_M A6
DDR_B_M A7
DDR_B_M A8
DDR_B_M A9
DDR_B_M A10
DDR_B_M A11
DDR_B_M A12
DDR_B_M A13
DDR_B_M A14

DDR_B_R AS# 15
DDR_B_C AS# 15
DDR_B_W E# 15

DDR_B_D M[0..7] 15

DDR_B_D QS[0..7] 15

DDR_B_D QS#[0..7] 15

DDR_B_M A[0..14] 1 5

A A

Security Class ification

Security Class ification

Security Class ification

2007/10/ 15 2008/10/ 15

2007/10/ 15 2008/10/ 15

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/ 15 2008/10/ 15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

B

B

B

Date: Sheet of

Date: Sheet of

2

Date: Sheet

Compal Electronics, Inc.

Cantiga GMCH (2/6)-DDRII

Cantiga GMCH (2/6)-DDRII

Cantiga GMCH (2/6)-DDRII

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

9 43Wednesd ay, June 24, 20 09

9 43Wednesd ay, June 24, 20 09

9 43Wednesd ay, June 24, 20 09

1

1.0

1.0

1.0

of

5

4

3

2

1

Place the resistor within 500mils

+3VS

R65 10K_040 2_5%R65 10K_040 2_5%

D D

C C

1 2

R66 10K_040 2_5%R66 10K_040 2_5%

1 2

1 2

R69 2.2K_040 2_5%R69 2.2K_04 02_5%

1 2

R70 2.2K_040 2_5%R70 2.2K_04 02_5%

For Cantiga:2.37kohm
For Crestline:2.4kohm
For Calero: 1.5Kohm

Note: All LVDS data
signals/and it's compliments
should be routed
Differentially

L_CTRL_ CLK

L_CTRL_ DATA

LVDS_SC L

LVDS_SD A

Layout Note: Place 150 Ω termination

B B

resistors close to GMCH

R71 150_040 2_1%R71 150_040 2_1%

1 2

R72 150_040 2_1%R72 150_040 2_1%

1 2

R73 150_040 2_1%R73 150_040 2_1%

1 2

GMCH_CR T_HSYNC18

GMCH_CR T_VSYNC18

change R74,R75 from 33ohm to 30ohm
by checklist2.0 & CRB1.0 05/08/08

GMCH_CR T_R
GMCH_CR T_G
GMCH_CR T_B

EVT 0324 Reverse GMCH DPST

DPST_PW M17
GMCH_EN BKL1 7

LVDS_SC L1 7
LVDS_SD A17
GM_ENVD D17

LVDS_AC LK#17
LVDS_AC LK17

LVDS_A0 #17
LVDS_A1 #17
LVDS_A2 #17

LVDS_A017
LVDS_A117
LVDS_A217

R481 75_04 02_5%R481 75_04 02_5%

1 2

R482 75_04 02_5%R482 75_04 02_5%

1 2

R483 75_04 02_5%R483 75_04 02_5%

1 2

GMCH_CR T_B1 8

GMCH_CR T_G18

GMCH_CR T_R18

GMCH_CR T_CLK18
GMCH_CR T_DATA18

R74 30_0402_1%R74 30_0402_1%

R75 30_0402_1%R75 30_0402_1%

DPST_PW M
GMCH_EN BKL
L_CTRL_ CLK
L_CTRL_ DATA
LVDS_SC L
LVDS_SD A
GM_ENVD D

1 2

R68 2.37K_04 02_1%R68 2.37K _0402_1%

LVDS_AC LK#
LVDS_AC LK

LVDS_A0 #
LVDS_A1 #
LVDS_A2 #

LVDS_A0
LVDS_A1
LVDS_A2

TVA_DAC
TVB_DAC
TVC_DAC

GMCH_CR T_B

GMCH_CR T_G

GMCH_CR T_R

GMCH_CR T_CLK
GMCH_CR T_DATA
CRT_HSYNC _R

20mil

CRT_VSYNC _R

L32
G32
M32
M33

K33

J33

M29

C44

B43

E37

E38

C41

C40

B37

A37

H47

E46
G40

A40

H48

D45

F40

B40

A41

H38
G37

J37

B42
G38

F37

K37

F25

H25

K25

H24

C31

E32

E28

G28

J28

G29

H32

J32
J29

E29

L29

12

R78

R78

1.02K_04 02_1%

1.02K_04 02_1%

U3C

U3C

L_BKLT_CTRL
L_BKLT_EN
L_CTRL_CLK
L_CTRL_DATA
L_DDC_CLK
L_DDC_DATA
L_VDD_EN

LVDS_IBG
LVDS_VBG
LVDS_VREFH
LVDS_VREFL

LVDSA_CLK#
LVDSA_CLK
LVDSB_CLK#
LVDSB_CLK

LVDSA_DATA#_0
LVDSA_DATA#_1
LVDSA_DATA#_2
LVDSA_DATA#_3

LVDSA_DATA_0
LVDSA_DATA_1
LVDSA_DATA_2
LVDSA_DATA_3

LVDSB_DATA#_0
LVDSB_DATA#_1
LVDSB_DATA#_2
LVDSB_DATA#_3

LVDSB_DATA_0
LVDSB_DATA_1
LVDSB_DATA_2
LVDSB_DATA_3

TVA_DAC
TVB_DAC
TVC_DAC

TV_RTN

TV_DCONSEL_0
TV_DCONSEL_1

CRT_BLUE

CRT_GREEN

CRT_RED

CRT_IRTN

CRT_DDC_CLK
CRT_DDC_DATA
CRT_HSYNC
CRT_TVO_IREF

CRT_VSYNC

CANTIGA ES _FCBGA1329

CANTIGA ES _FCBGA1329

PEG_COMPI

PEG_COMPO

PEG_RX#_0
PEG_RX#_1
PEG_RX#_2
PEG_RX#_3
PEG_RX#_4
PEG_RX#_5
PEG_RX#_6
PEG_RX#_7
PEG_RX#_8
PEG_RX#_9

LVDS TV VGA

LVDS TV VGA

PEG_RX#_10
PEG_RX#_11
PEG_RX#_12
PEG_RX#_13
PEG_RX#_14
PEG_RX#_15

PEG_RX_0
PEG_RX_1
PEG_RX_2
PEG_RX_3
PEG_RX_4
PEG_RX_5
PEG_RX_6
PEG_RX_7
PEG_RX_8

PEG_RX_9
PEG_RX_10
PEG_RX_11
PEG_RX_12
PEG_RX_13
PEG_RX_14
PEG_RX_15

PEG_TX#_0
PEG_TX#_1
PEG_TX#_2
PEG_TX#_3
PEG_TX#_4
PEG_TX#_5
PEG_TX#_6
PEG_TX#_7
PEG_TX#_8

PCI-EXPRESS GRAPHICS

PCI-EXPRESS GRAPHICS

PEG_TX#_9

PEG_TX#_10
PEG_TX#_11
PEG_TX#_12
PEG_TX#_13
PEG_TX#_14
PEG_TX#_15

PEG_TX_0
PEG_TX_1
PEG_TX_2
PEG_TX_3
PEG_TX_4
PEG_TX_5
PEG_TX_6
PEG_TX_7
PEG_TX_8

PEG_TX_9
PEG_TX_10
PEG_TX_11
PEG_TX_12
PEG_TX_13
PEG_TX_14
PEG_TX_15

(1.27mm)of the (G)MCH

PEGCOMP trace width
and spacing is 20/25 mils.

T37
T36

H44
J46
L44
L40
N41
P48
N44
T43
U43
Y43
Y48
Y36
AA43
AD37
AC47
AD39

H43
J44
L43
L41
N40
P47
N43
T42
U42
Y42
W47
Y37
AA42
AD36
AC48
AD40

J41
M46
M47
M40
M42
R48
N38
T40
U37
U40
Y40
AA46
AA37
AA40
AD43
AC46

J42
L46
M48
M39
M43
R47
N37
T39
U36
U39
Y39
Y46
AA36
AA39
AD42
AD46

PEGCOMP

1 2

R67 49 .9_0402_1%R67 49.9_04 02_1%

+VCC_PE G

Please check Power
source if want
support IAMT

For Cantiga:1.02kohm

A A

Security Class ification

Security Class ification

Security Class ification

2008/03/ 25 2008/04/

2008/03/ 25 2008/04/

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2008/03/ 25 2008/04/

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

For Crestline:1.3kohm
For Calero: 255ohm

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

Cantiga(3/6)-VGA/LVDS/TV

Cantiga(3/6)-VGA/LVDS/TV

Cantiga(3/6)-VGA/LVDS/TV

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

10 43W ednesday, June 24, 2009

10 43W ednesday, June 24, 2009

10 43W ednesday, June 24, 2009

1

1.0

1.0

1.0

5

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C62

C62

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C71

C71

2

R92

R92

1 2

0_0603_5%

0_0603_5%

0.022U_0402_16V7K

0.022U_0402_16V7K

+3VS_DAC_CRT

0.022U_0402_16V7K

0.022U_0402_16V7K

1

C63

C63

2

+3VS_DAC_BG

0.022U_0402_16V7K

0.022U_0402_16V7K

1

C72

C72

2

+3VS_TVDAC

1

C105

C105

2

10U_0805_10V4Z

10U_0805_10V4Z

1

C64

C64

2

10U_0805_10V4Z

10U_0805_10V4Z

C73

C73

1

2

+1.05VS

220U_D2_4VY_R15M

220U_D2_4VY_R15M

1

C106

C106

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

+1.5VS_PEG_BG: 0.414mA
(0.1UF*1)

220UF_D

1 2

1

+

+

C90

C90

2

0_0603_5%

0_0603_5%

VCCA_CRT_DAC: 73mA (0.1UF*1, 0.01UF*1)

CCA_DAC_BG: 2.68mA (0.1UF*1, 0.01UF*1)

V

+1.5VS_PEG_BG

R85

R85

0_0603_5%

0_0603_5%

C91

C91

12

1

2

C95

C95

1

2

12

4.7U_0805_10V4Z

4.7U_0805_10V4Z
C92

C92

+1.05VS_A_SM_CK

1U_0402_6.3V4Z

1U_0402_6.3V4Z

10U_0805_10V4Z

10U_0805_10V4Z

1

C96

C96

2

+1.5VS

R88

R88

0_0805_5%

0_0805_5%

10U_0805_10V4Z

10U_0805_10V4Z

R89

R89

+3VS

1 2

R79

R79
0_0603_5%

0_0603_5%

+3VS

D D

1 2

R82

R82
0_0603_5%

0_0603_5%

VCCA_SM:720mA

22UF*2, 4.7UF*1, 1UF*1)

(

C C

VCCA_SM_CK: 220mA
(22UF*1, 2.2UF*1, 0.1UF*1)

+3VS

B B

4

+3VS_DAC_CRT

+3VS_DAC_BG

+1.05VS_DPLLA

+1.05VS_DPLLB

+1.05VS_HPLL

+1.8V_TXLVDS

+1.05VS_MPLL

+1.05VS_PEGPLL

+1.05VS_A_SM

1

1U_0603_10V4Z

1U_0603_10V4Z

2

1U_0603_10V4Z

1U_0603_10V4Z

C98

C98

+3VS_TVDAC

+1.05VS_PEGPLL

1

C76

C76

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

2

+1.5VS_TVDAC

+1.5VS_QDAC

+1.05VS_HPLL

+1.8V_LVDS

1000P_0402_50V7K

1000P_0402_50V7K

1

C83

C83

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

C97

C97

1

2

+3VS_TVDAC: 40mA
(0.1UF*1, 0.01UF*1 for
each DAC)

20 mils

1

C93

C93

2

U3H

U3H

B27

VCCA_CRT_DAC_1

A26

VCCA_CRT_DAC_2

A25

VCCA_DAC_BG

B25

VSSA_DAC_BG

F47

VCCA_DPLLA

L48

VCCA_DPLLB

AD1

VCCA_HPLL

AE1

VCCA_MPLL

J48

VCCA_LVDS

J47

VSSA_LVDS

AD48

VCCA_PEG_BG

AA48

VCCA_PEG_PLL

AR20

VCCA_SM_1

AP20

VCCA_SM_2

AN20

VCCA_SM_3

AR17

VCCA_SM_4

AP17

VCCA_SM_5

AN17

VCCA_SM_6

AT16

VCCA_SM_7

AR16

VCCA_SM_8

AP16

VCCA_SM_9

AP28

VCCA_SM_CK_1

AN28

VCCA_SM_CK_2

AP25

VCCA_SM_CK_3

AN25

VCCA_SM_CK_4

AN24

VCCA_SM_CK_5

AM28

VCCA_SM_CK_NCT F_1

AM26

VCCA_SM_CK_NCT F_2

AM25

VCCA_SM_CK_NCT F_3

AL25

VCCA_SM_CK_NCT F_4

AM24

VCCA_SM_CK_NCT F_5

AL24

VCCA_SM_CK_NCT F_6

AM23

VCCA_SM_CK_NCT F_7

AL23

VCCA_SM_CK_NCT F_8

B24

VCCA_TV_DAC_1

A24

VCCA_TV_DAC_2

A32

VCC_HDA

M25

VCCD_TVDAC

L28

VCCD_QDAC

AF1

VCCD_HPLL

AA47

VCCD_PEG_PLL

M38

VCCD_LVDS_1

L37

VCCD_LVDS_2

CRTPLLA LVDSA PEG

CRTPLLA LVDSA PEG

POWER

POWER

A SM

A SM

TV

TV

HDA

HDA

LVDS D TV/CRT

LVDS D TV/CRT

VTT_1
VTT_2
VTT_3
VTT_4
VTT_5
VTT_6
VTT_7
VTT_8

VTT_9
VTT_10
VTT_11
VTT_12
VTT_13
VTT_14

VTT

VTT

VTT_15
VTT_16
VTT_17
VTT_18
VTT_19
VTT_20
VTT_21
VTT_22
VTT_23
VTT_24
VTT_25

VCC_AXF_1
VCC_AXF_2
VCC_AXF_3

AXF

AXF

VCC_SM_CK_1
VCC_SM_CK_2
VCC_SM_CK_3
VCC_SM_CK_4

SM CK

SM CK

VCC_TX_LVDS

A CK

A CK

VCC_HV_1
VCC_HV_2
VCC_HV_3

HV

HV

VCC_PEG_1
VCC_PEG_2
VCC_PEG_3
VCC_PEG_4
VCC_PEG_5

VCC_DMI_1
VCC_DMI_2
VCC_DMI_3
VCC_DMI_4

DMI PEG

DMI PEG

VTTLF1
VTTLF2
VTTLF3

VTTLF

VTTLF

CANTIGA ES_FCBGA1329

CANTIGA ES_FCBGA1329

U13
T13
U12
T12
U11
T11
U10
T10
U9
T9
U8
T8
U7
T7
U6
T6
U5
T5
V3
U3
V2
U2
T2
V1
U1

B22
B21
A21

BF21
BH20
BG20
BF20

K47

C35
B35
A35

V48
U48
V47
U47
U46

AH48
AF48
AH47
AG47

A8
L1
AB2

3

+1.05VS

+1.8V_TXLVDS

+VCC_DMI

VCC_DMI: 456mA
(0.1UF*1)

20mils

1

C111

C111

2

220UF_D

220U_D2_4VM

220U_D2_4VM

1

+

+

C65

C65

2

1

C740.47U_0402_6.3V6K C740.47U_0402_6.3V6K

2

+V1.05VS_AXF

+1.5V_SM_CK

+VCC_PEG

0.47U_0402_6.3V6K

0.47U_0402_6.3V6K

1

C112

C112

2

2

20 mils

220UF_D

20 mils

+V1.05VS_AXF

10U_0805_10V4Z

10U_0805_10V4Z

+1.5VS_TVDAC

C87

C87

1000P_0402_50V7K

1000P_0402_50V7K

C101

C101

1

2

+VCC_PEG+1.05VS_PEGPLL

220U_D2_4VM

220U_D2_4VM

1

C104

C104

+

+

2

+VCC_DMI

1U_0603_10V4Z

1U_0603_10V4Z

C114

C114

1

2

C69

C69

1

2

0.022U_0402_16V7K

0.022U_0402_16V7K

1

2

+1.8V_TXLVDS

C102

C102

C109

C109

C115

C115

+1.05VS

+3VS

+1.05VS_DPLLA

+1.05VS_HPLL

0.1U_0402_16V4Z

0.1U_0402_16V4Z

+1.05VS_MPLL

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2 1

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C67

C67

2

+1.05VS_DPLLB

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C77

C77

2

1

C84

C84

2

1

C99

C99

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

C107

C107

1

2

+VCCP_D

D3

@D3

@

CH751H-40PT_SOD323-2

CH751H-40PT_SOD323-2

4.7U_0805_10V4Z

4.7U_0805_10V4Z

1

C66

C66

@

@

2

4.7U_0805_10V4Z

4.7U_0805_10V4Z

1

C75

C75

2

+3VS_HV

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C103

C103

2

0.47U_0402_6.3V6K

0.47U_0402_6.3V6K

0.47U_0402_6.3V6K

0.47U_0402_6.3V6K

1

C113

C113

2

R80

R80

1 2

10U_0805_10V4Z

10U_0805_10V4Z

MCK3225151YZF 1210

MCK3225151YZF 1210

1

C68

C68

2

+1.05VS_DPLLA
+1.05VS_DPLLB: 64.8mA
(470UF*1, 0.1UF*1)

R83

R83

1 2

10U_0805_10V4Z

10U_0805_10V4Z

MCK3225151YZF 1210

MCK3225151YZF 1210

1

C78

C78

2

+1.05VS_HPLL: 24mA
(4.7UF*1, 0.1UF*1)

L12

L12

MBK2012121YZF_2P

MBK2012121YZF_2P

1

C85

C85

2.2U_0603_6.3V4Z

2.2U_0603_6.3V4Z

2

1.05VS_MPLL: 139.2mA

L13

L13

(22UF*1, 0.1UF*1)

MBK2012121YZF_2P

MBK2012121YZF_2P

1

C100

C100

2.2U_0603_6.3V4Z

2.2U_0603_6.3V4Z

2

L1

L1

BLM18PG121SN1D_0603

BLM18PG121SN1D_0603

1

C108

C108

2.2U_0603_6.3V4Z

2.2U_0603_6.3V4Z

2

R95

@R95

@

12

10_0402_5%

10_0402_5%

+1.05VS

+1.05VS

12

+1.05VS

12

+1.05VS

+1.5VS_PEG_PLL: 50mA
(0.1UF*1)

12

+1.05VS

R96

R96

12

0_0402_5%

0_0402_5%

+3VS_HV

1U_0603_10V4Z

1U_0603_10V4Z

+1.5V_SM_CK

C79

C79

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C88

C88

2

10U_0805_10V4Z

10U_0805_10V4Z

1

2

10U_0805_10V4Z

10U_0805_10V4Z

1

2

10U_0805_10V4Z

10U_0805_10V4Z

1

2

C70

C70

1

2

10U_0805_10V4Z

10U_0805_10V4Z

1

2

1

C89

C89

2

R91

R91

0_0603_5%

0_0603_5%

C116

C116

1

2

1

1 2

10U_0805_10V4Z

10U_0805_10V4Z

12

0_0805_5%

0_0805_5%

10U_0805_10V4Z

10U_0805_10V4Z

VCC_AXF: 321.35mA
(10UF*1, 1UF*1)

+1.05VS

R81

R81

0_0603_5%

0_0603_5%

VCC_SM_CK: 119.85mA
(10UF*1, 0.1UF*1)

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

2

VCCD_TVDAC: 58.696mA
(0.1UF*1, 0.01UF*1)

+1.8V_TXLVDS: 118.8mA
(22UF*1, 1000PF*1)

R93

R93

R94

R94

0_0805_5%

0_0805_5%

R84

R84

1 2

0_0805_5%

0_0805_5%

C80

C80

R87

R87

0_0603_5%

0_0603_5%

+1.8VS

12

12

+1.5V

+1.5VS

12

+1.05VS

+1.05VS

1

C117

C117

C118

C118

2

VCCD_QDAC: 48.363mA
(0.1UF*1, 0.01UF*1)

R97

R97

0_0603_5%

0_0603_5%
10U_0805_10V4Z

10U_0805_10V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

1

C119

C119

2

2

5

+1.8V_LVDS

12

+1.5VS

10U_0805_10V4Z

10U_0805_10V4Z

1

C120

C120

2

+1.5VS_QDAC

1U_0402_6.3V4Z

1U_0402_6.3V4Z

A A

1.8V_LVDS: 60.311111mA
(1UF*1)

R98

R98

0_0603_5%

0_0603_5%
1U_0603_10V4Z

1U_0603_10V4Z

C121

C121

1

2

12

+1.8VS

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DR AWING IS THE PR OPRIETARY PROPER TY OF COMPAL ELECT RONICS, INC. AND CONTAINS CON FIDENTIAL

THIS SHEET OF ENGINEERING DR AWING IS THE PR OPRIETARY PROPER TY OF COMPAL ELECT RONICS, INC. AND CONTAINS CON FIDENTIAL

THIS SHEET OF ENGINEERING DR AWING IS THE PR OPRIETARY PROPER TY OF COMPAL ELECT RONICS, INC. AND CONTAINS CON FIDENTIAL
AND TRAD E SECRET INFOR MATION. THIS SHEET M AY NOT BE TRANSF ERED FROM T HE CUSTODY OF THE COMPETEN T DIVISION OF R&D

AND TRAD E SECRET INFOR MATION. THIS SHEET M AY NOT BE TRANSF ERED FROM T HE CUSTODY OF THE COMPETEN T DIVISION OF R&D

AND TRAD E SECRET INFOR MATION. THIS SHEET M AY NOT BE TRANSF ERED FROM T HE CUSTODY OF THE COMPETEN T DIVISION OF R&D
DEPARTMEN T EXCEPT AS AUT HORIZED BY COMPA L ELECTRONICS, INC . NEITHER THIS SHE ET NOR THE INF ORMATION IT CONT AINS

DEPARTMEN T EXCEPT AS AUT HORIZED BY COMPA L ELECTRONICS, INC . NEITHER THIS SHE ET NOR THE INF ORMATION IT CONT AINS

DEPARTMEN T EXCEPT AS AUT HORIZED BY COMPA L ELECTRONICS, INC . NEITHER THIS SHE ET NOR THE INF ORMATION IT CONT AINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, IN C.

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, IN C.

4

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, IN C.

3

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Crestline GMCH (4/6)-VCC

Crestline GMCH (4/6)-VCC

Crestline GMCH (4/6)-VCC

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

1

1.0

1.0

11 43Wednesday, June 24, 2009

11 43Wednesday, June 24, 2009

11 43Wednesday, June 24, 2009

1.0

5

D D

0.22U_0402_10V4Z

0.22U_0402_10V4Z

0.22U_0402_10V4Z

0.22U_0402_10V4Z

10U_0805_10V4Z

10U_0805_10V4Z

C C

B B

A A

C127

C127

1

2

1

1

C126

C126

2

2

+1.05VS

0.1U_0402_16V4Z

0.1U_0402_16V4Z

C133

C133

C128

C128

1

2

AG34
AC34
AB34
AA34

AM33
AK33

AJ33
AG33
AF33

AE33
AC33
AA33

W33

AH28
AF28
AC28
AA28

AJ26
AG26
AE26
AC26
AH25
AG25
AF25
AG24

AJ23
AH23
AF23

U3G

U3G

VCC_1
VCC_2
VCC_3
VCC_4

Y34

VCC_5

V34

VCC_6

U34

VCC_7
VCC_8
VCC_9
VCC_10
VCC_11
VCC_12

VCC_13
VCC_14
VCC_15

Y33

VCC_16
VCC_17

V33

VCC_18

U33

VCC_19
VCC_20
VCC_21
VCC_22
VCC_23
VCC_24
VCC_25
VCC_26
VCC_27
VCC_28
VCC_29
VCC_30
VCC_31
VCC_32
VCC_33
VCC_34

T32

VCC_35

VCC CORE

VCC CORE

POWER

POWER

VCC NCTF

VCC NCTF

CANTIGA ES_FCBGA1329

CANTIGA ES_FCBGA1329

4

VCC_NCTF_1
VCC_NCTF_2
VCC_NCTF_3
VCC_NCTF_4
VCC_NCTF_5
VCC_NCTF_6
VCC_NCTF_7
VCC_NCTF_8

VCC_NCTF_9
VCC_NCTF_10
VCC_NCTF_11
VCC_NCTF_12
VCC_NCTF_13
VCC_NCTF_14
VCC_NCTF_15
VCC_NCTF_16
VCC_NCTF_17
VCC_NCTF_18
VCC_NCTF_19
VCC_NCTF_20
VCC_NCTF_21
VCC_NCTF_22
VCC_NCTF_23
VCC_NCTF_24
VCC_NCTF_25
VCC_NCTF_26
VCC_NCTF_27
VCC_NCTF_28
VCC_NCTF_29
VCC_NCTF_30
VCC_NCTF_31
VCC_NCTF_32
VCC_NCTF_33
VCC_NCTF_34
VCC_NCTF_35
VCC_NCTF_36
VCC_NCTF_37
VCC_NCTF_38
VCC_NCTF_39
VCC_NCTF_40
VCC_NCTF_41
VCC_NCTF_42
VCC_NCTF_43
VCC_NCTF_44

AM32
AL32
AK32
AJ32
AH32
AG32
AE32
AC32
AA32
Y32
W32
U32
AM30
AL30
AK30
AH30
AG30
AF30
AE30
AC30
AB30
AA30
Y30
W30
V30
U30
AL29
AK29
AJ29
AH29
AG29
AE29
AC29
AA29
Y29
W29
V29
AL28
AK28
AL26
AK26
AK25
AK24
AK23

+1.05VS

1782mA

+1.5V

1U_0603_10V4Z

1U_0603_10V4Z

220UF_D

C132

C132

0.1U_0402_16V4Z

0.1U_0402_16V4Z

EMI +1.5V decoupling

1

C134

C134

C135

C135

2

220U_D2_4VM_R15

220U_D2_4VM_R15

220UF_D

3

220U_D2_4VM_R15

220U_D2_4VM_R15

1

C124

C124

+

+

2

1

2

@

@

10U_0805_10V4Z

10U_0805_10V4Z

1

+

+

C136

C136

2

C125

C125

1

2

1

C139

C139

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

@

@

1

C137

C137

2

10U_0805_10V4Z

10U_0805_10V4Z

10U_0805_10V4Z

10U_0805_10V4Z

+1.05VS

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C138

C138

2

2

U3F

U3F

AP33

VCC_SM_1

AN33

VCC_SM_2

BH32

VCC_SM_3

0.01U_0402_16V7K

0.01U_0402_16V7K

2

1

1

2

BG32

VCC_SM_4

BF32

VCC_SM_5

BD32

VCC_SM_6

BC32

C131

C131

T11T11
T12T12

BB32
BA32
AY32

AW32

AV32
AU32
AT32
AR32
AP32
AN32
BH31
BG31
BF31
BG30
BH29
BG29
BF29
BD29
BC29
BB29
BA29
AY29

AW29

AV29
AU29
AT29
AR29
AP29

BA36
BB24
BD16

BB21
AW16
AW13

AT13

AE25

AB25

AA25

AE24

AC24

AA24

AE23

AC23

AB23

AA23

AJ21
AG21
AE21
AC21
AA21

AH20
AF20
AE20
AC20
AB20
AA20

AM15

AL15
AE15

AJ15
AH15
AG15
AF15
AB15
AA15

AN14
AM14

AJ14
AH14

Y26

Y24

Y21

T17
T16

Y15
V15
U15

U14
T14

VCC_SM_7
VCC_SM_8
VCC_SM_9
VCC_SM_10
VCC_SM_11
VCC_SM_12
VCC_SM_13
VCC_SM_14
VCC_SM_15
VCC_SM_16
VCC_SM_17
VCC_SM_18
VCC_SM_19
VCC_SM_20
VCC_SM_21
VCC_SM_22
VCC_SM_23
VCC_SM_24
VCC_SM_25
VCC_SM_26
VCC_SM_27
VCC_SM_28
VCC_SM_29
VCC_SM_30
VCC_SM_31
VCC_SM_32
VCC_SM_33
VCC_SM_34
VCC_SM_35

VCC_SM_36/NC
VCC_SM_37/NC
VCC_SM_38/NC
VCC_SM_39/NC
VCC_SM_40/NC
VCC_SM_41/NC
VCC_SM_42/NC

VCC_AXG_1
VCC_AXG_2
VCC_AXG_3
VCC_AXG_4
VCC_AXG_5
VCC_AXG_6
VCC_AXG_7
VCC_AXG_8
VCC_AXG_9
VCC_AXG_10
VCC_AXG_11
VCC_AXG_12
VCC_AXG_13
VCC_AXG_14
VCC_AXG_15
VCC_AXG_16
VCC_AXG_17
VCC_AXG_18
VCC_AXG_19
VCC_AXG_20
VCC_AXG_21
VCC_AXG_22
VCC_AXG_23
VCC_AXG_24
VCC_AXG_25
VCC_AXG_26
VCC_AXG_27
VCC_AXG_28
VCC_AXG_29
VCC_AXG_30
VCC_AXG_31
VCC_AXG_32
VCC_AXG_33
VCC_AXG_34
VCC_AXG_35
VCC_AXG_36
VCC_AXG_37
VCC_AXG_38
VCC_AXG_39
VCC_AXG_40
VCC_AXG_41
VCC_AXG_42

VCC_AXG_SENSE
VSS_AXG_SENSE

VCC_AXG_NTCF_1
VCC_AXG_NCTF_2
VCC_AXG_NCTF_3
VCC_AXG_NCTF_4
VCC_AXG_NCTF_5
VCC_AXG_NCTF_6
VCC_AXG_NCTF_7
VCC_AXG_NCTF_8

VCC SM

VCC SM

VCC_AXG_NCTF_9
VCC_AXG_NCTF_10
VCC_AXG_NCTF_11
VCC_AXG_NCTF_12
VCC_AXG_NCTF_13
VCC_AXG_NCTF_14
VCC_AXG_NCTF_15
VCC_AXG_NCTF_16
VCC_AXG_NCTF_17
VCC_AXG_NCTF_18
VCC_AXG_NCTF_19
VCC_AXG_NCTF_20
VCC_AXG_NCTF_21
VCC_AXG_NCTF_22
VCC_AXG_NCTF_23
VCC_AXG_NCTF_24
VCC_AXG_NCTF_25
VCC_AXG_NCTF_26
VCC_AXG_NCTF_27
VCC_AXG_NCTF_28
VCC_AXG_NCTF_29
VCC_AXG_NCTF_30
VCC_AXG_NCTF_31
VCC_AXG_NCTF_32
VCC_AXG_NCTF_33
VCC_AXG_NCTF_34
VCC_AXG_NCTF_35
VCC_AXG_NCTF_36
VCC_AXG_NCTF_37
VCC_AXG_NCTF_38
VCC_AXG_NCTF_39
VCC_AXG_NCTF_40
VCC_AXG_NCTF_41
VCC_AXG_NCTF_42
VCC_AXG_NCTF_43

VCC GFX NCTF

VCC GFX NCTF

VCC_AXG_NCTF_44
VCC_AXG_NCTF_45
VCC_AXG_NCTF_46
VCC_AXG_NCTF_47
VCC_AXG_NCTF_48
VCC_AXG_NCTF_49
VCC_AXG_NCTF_50
VCC_AXG_NCTF_51
VCC_AXG_NCTF_52

POWER

POWER

VCC_AXG_NCTF_53
VCC_AXG_NCTF_54
VCC_AXG_NCTF_55
VCC_AXG_NCTF_56
VCC_AXG_NCTF_57
VCC_AXG_NCTF_58
VCC_AXG_NCTF_59
VCC_AXG_NCTF_60

VCC GFX

VCC GFX

VCC_SM_LF1
VCC_SM_LF2
VCC_SM_LF3
VCC_SM_LF4
VCC_SM_LF5
VCC_SM_LF6
VCC_SM_LF7

VCC SM LF

VCC SM LF

CANTIGA ES_FCBGA1329

CANTIGA ES_FCBGA1329

W28
V28
W26
V26
W25
V25
W24
V24
W23
V23
AM21
AL21
AK21
W21
V21
U21
AM20
AK20
W20
U20
AM19
AL19
AK19
AJ19
AH19
AG19
AF19
AE19
AB19
AA19
Y19
W19
V19
U19
AM17
AK17
AH17
AG17
AF17
AE17
AC17
AB17
Y17
W17
V17
AM16
AL16
AK16
AJ16
AH16
AG16
AF16
AE16
AC16
AB16
AA16
Y16
W16
V16
U16

AV44
BA37
AM40
AV21
AY5
AM10
BB13

+1.05VS

VCCSM_LF1
VCCSM_LF2
VCCSM_LF3
VCCSM_LF4
VCCSM_LF5
VCCSM_LF6
VCCSM_LF7

Check : power

C123

C123

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

2

C141 0.1U_0402_16V4ZC141 0.1U_0402_16V4Z

C140 0.1U_0402_16V4ZC140 0.1U_0402_16V4Z

1

1

2

2

1

C129

C129

0.22U_0402_10V4Z

0.22U_0402_10V4Z

C130

C130

1

1

2

PLACE AS CLOSE PIN AS COULD.

C142 0.22U_0402_10V4 ZC142 0.22U_0402_10V4Z

1

1

2

2

C143 0.22U_0402_10V4 ZC143 0.22U_0402_10V4Z

C144 0.47U_0402_6.3V6KC144 0.47U_0402_6.3V6K

1

2

4.7U_0603_6.3V6K

4.7U_0603_6.3V6K

2

C145 1U_0402_6.3V4ZC1 45 1U_0402_6.3V4Z

1

1

2

2

C146 1U_0402_6.3V4ZC1 46 1U_0402_6.3V4Z

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

Crestline GMCH (5/6)-VCC

Crestline GMCH (5/6)-VCC

Crestline GMCH (5/6)-VCC

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

12 43Wednesday, June 24, 2009

12 43Wednesday, June 24, 2009

12 43Wednesday, June 24, 2009

1

1.0

1.0

1.0

5

U3I

U3I

AU48

VSS_1

AR48

VSS_2

AL48

VSS_3

BB47

VSS_4

AW47

VSS_5

AN47

VSS_6

AJ47

VSS_7

AF47

VSS_8

AD47

VSS_9

AB47

VSS_10

Y47

VSS_11

T47

BD46
BA46
AY46
AV46
AR46
AM46

BF44
AH44
AD44
AA44

BC43
AV43
AU43
AM43

BG42
AY42
AT42
AN42

AJ42

AE42

BD41
AU41
AM41
AH41
AD41
AA41

BG40
BB40
AV40
AN40

AT39
AM39

AJ39

AE39

BH38
BC38
BA38
AU38
AH38
AD38
AA38

BF37
BB37

AW37

AT37
AN37

AJ37

BG36
BD36
AK15
AU36

G47

V46
R46
P46
H46
F46

Y44
U44
T44
M44
F44

C43

N42

Y41
U41
T41
M41
G41
B41

H40
E40

N39

B39

Y38
U38
T38

F38
C38

H37
C37

N47
L47

J43

L42

L39

J38

VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85
VSS_86
VSS_87
VSS_88
VSS_89
VSS_90
VSS_91
VSS_92
VSS_93
VSS_94
VSS_95
VSS_96
VSS_97
VSS_98
VSS_99

CANTIGA ES_FCBGA1329

CANTIGA ES_FCBGA1329

VSS

VSS

D D

C C

B B

A A

VSS_100
VSS_101
VSS_102
VSS_103
VSS_104
VSS_105
VSS_106
VSS_107
VSS_108
VSS_109
VSS_110
VSS_111
VSS_112
VSS_113
VSS_114
VSS_115
VSS_116
VSS_117
VSS_118
VSS_119
VSS_120
VSS_121
VSS_122
VSS_123
VSS_124
VSS_125
VSS_126
VSS_127
VSS_128
VSS_129
VSS_130
VSS_131
VSS_132
VSS_133
VSS_134
VSS_135
VSS_136
VSS_137
VSS_138
VSS_139
VSS_140
VSS_141
VSS_142
VSS_143
VSS_144
VSS_145
VSS_146
VSS_147
VSS_148
VSS_149
VSS_150
VSS_151
VSS_152
VSS_153
VSS_154
VSS_155
VSS_156
VSS_157
VSS_158
VSS_159
VSS_160
VSS_161
VSS_162
VSS_163
VSS_164
VSS_165
VSS_166
VSS_167
VSS_168
VSS_169
VSS_170
VSS_171
VSS_172
VSS_173
VSS_174
VSS_175
VSS_176
VSS_177
VSS_178
VSS_179
VSS_180
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199

AM36
AE36
P36
L36
J36
F36
B36
AH35
AA35
Y35
U35
T35
BF34
AM34
AJ34
AF34
AE34
W34
B34
A34
BG33
BC33
BA33
AV33
AR33
AL33
AH33
AB33
P33
L33
H33
N32
K32
F32
C32
A31
AN29
T29
N29
K29
H29
F29
A29
BG28
BD28
BA28
AV28
AT28
AR28
AJ28
AG28
AE28
AB28
Y28
P28
K28
H28
F28
C28
BF26
AH26
AF26
AB26
AA26
C26
B26
BH25
BD25
BB25
AV25
AR25
AJ25
AC25
Y25
N25
L25
J25
G25
E25
BF24
AD12
AY24
AT24
AJ24
AH24
AF24
AB24
R24
L24
K24
J24
G24
F24
E24
BH23
AG23
Y23
B23
A23
AJ6

4

U3J

U3J

BG21

VSS_199

L12

VSS_200

AW21

VSS_201

AU21

VSS_202

AP21

VSS_203

AN21

VSS_204

AH21

VSS_205

AF21

VSS_206

AB21

VSS_207

R21

VSS_208

M21

VSS_209

J21

VSS_210

G21

VSS_211

BC20

VSS_212

BA20

VSS_213

AW20

VSS_214

AT20

VSS_215

AJ20

VSS_216

AG20

VSS_217

Y20

VSS_218

N20

VSS_219

K20

VSS_220

F20

VSS_221

C20

VSS_222

A20

VSS_223

BG19

VSS_224

A18

VSS_225

BG17

VSS_226

BC17

VSS_227

AW17

VSS_228

AT17

VSS_229

R17

VSS_230

M17

VSS_231

H17

VSS_232

C17

VSS_233

BA16

VSS_235

AU16

VSS_237

AN16

VSS_238

N16

VSS_239

K16

VSS_240

G16

VSS_241

E16

VSS_242

BG15

VSS_243

AC15

VSS_244

W15

VSS_245

A15

VSS_246

BG14

VSS_247

AA14

VSS_248

C14

VSS_249

BG13

VSS_250

BC13

VSS_251

BA13

VSS_252

AN13

VSS_255

AJ13

VSS_256

AE13

VSS_257

N13

VSS_258

L13

VSS_259

G13

VSS_260

E13

VSS_261

BF12

VSS_262

AV12

VSS_263

AT12

VSS_264

AM12

VSS_265

AA12

VSS_266

J12

VSS_267

A12

VSS_268

BD11

VSS_269

BB11

VSS_270

AY11

VSS_271

AN11

VSS_272

AH11

VSS_273

Y11

VSS_275

N11

VSS_276

G11

VSS_277

C11

VSS_278

BG10

VSS_279

AV10

VSS_280

AT10

VSS_281

AJ10

VSS_282

AE10

VSS_283

AA10

VSS_284

M10

VSS_285

BF9

VSS_286

BC9

VSS_287

AN9

VSS_288

AM9

VSS_289

AD9

VSS_290

G9

VSS_291

B9

VSS_292

BH8

VSS_293

BB8

VSS_294

AV8

VSS_295

AT8

VSS_296

CANTIGA ES_FCBGA1329

CANTIGA ES_FCBGA1329

VSS

VSS

3

VSS NCTF

VSS NCTF

VSS SCB

VSS SCB

NC

NC

VSS_297
VSS_298
VSS_299
VSS_300
VSS_301
VSS_302
VSS_303
VSS_304
VSS_305
VSS_306
VSS_307
VSS_308
VSS_309
VSS_310
VSS_311
VSS_312
VSS_313
VSS_314
VSS_315
VSS_316
VSS_317
VSS_318
VSS_319
VSS_320
VSS_321
VSS_322
VSS_323
VSS_324
VSS_325

VSS_327
VSS_328
VSS_329
VSS_330
VSS_331
VSS_332
VSS_333
VSS_334
VSS_335
VSS_336
VSS_337
VSS_338
VSS_339
VSS_340
VSS_341
VSS_342
VSS_343
VSS_344
VSS_345
VSS_346
VSS_347
VSS_348
VSS_349
VSS_350

VSS_351
VSS_352
VSS_353
VSS_354

VSS_NCTF_1
VSS_NCTF_2
VSS_NCTF_3
VSS_NCTF_4
VSS_NCTF_5
VSS_NCTF_6
VSS_NCTF_7
VSS_NCTF_8

VSS_NCTF_9
VSS_NCTF_10
VSS_NCTF_11
VSS_NCTF_12
VSS_NCTF_13
VSS_NCTF_14
VSS_NCTF_15
VSS_NCTF_16

VSS_SCB_1
VSS_SCB_2
VSS_SCB_3
VSS_SCB_4
VSS_SCB_5

NC_26
NC_27
NC_28
NC_29
NC_30
NC_31
NC_32
NC_33
NC_34
NC_35
NC_36
NC_37
NC_38
NC_39
NC_40
NC_41
NC_42

AH8
Y8
L8
E8
B8
AY7
AU7
AN7
AJ7
AE7
AA7
N7
J7
BG6
BD6
AV6
AT6
AM6
M6
C6
BA5
AH5
AD5
Y5
L5
J5
H5
F5
BE4

BC3
AV3
AL3
R3
P3
F3
BA2
AW2
AU2
AR2
AP2
AJ2
AH2
AF2
AE2
AD2
AC2
Y2
M2
K2
AM1
AA1
P1
H1

U24
U28
U25
U29

AF32
AB32
V32
AJ30
AM29
AF29
AB29
U26
U23
AL20
V20
AC19
AL17
AJ17
AA17
U17

BH48
BH1
A48
C1
A3

E1
D2
C3
B4
A5
A6
A43
A44
B45
C46
D47
B47
A46
F48
E48
C48
B48

2

1

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

Cantiga GMCH (6/6)-GND

Cantiga GMCH (6/6)-GND

Cantiga GMCH (6/6)-GND

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

13 43Wednesday, June 24, 2009

13 43Wednesday, June 24, 2009

13 43Wednesday, June 24, 2009

1

1.0

1.0

1.0

5

DDR_A_DQS#[0..7]9

DDR_A_D[0..63]9

DDR_A_DM[0..7]9

DDR_A_DQS[0..7]9

DDR_A_MA[0..14]9

D D

C C

+1.5V

1

+

+

2

+1.5V

1

2

DDR_A_BS[0..2]9

@

@

C152

C152
470U_D2_2.5VM_R15

470U_D2_2.5VM_R15

C154

C154
10U_0805_6.3V6M

10U_0805_6.3V6M

1

C148

C148
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C155

C155

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C149

C149
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C156

C156

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C150

C150
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C157

C157

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C151

C151
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C158

C158

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

Layout Note: Place these 4 Caps near Command
and Control signals of JDDR1

B B

+0.75VS

A A

+0.75V is controller by SUSP for saving power on S3

1

C161

C161
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C162

C162
1U_0603_10V4Z

1U_0603_10V4Z

2

1

C163

C163
1U_0603_10V4Z

1U_0603_10V4Z

2

1

C164

C164
1U_0603_10V4Z

1U_0603_10V4Z

2

Layout Note:

1

C165

C165
1U_0603_10V4Z

1U_0603_10V4Z

2

Place near VTT1&VTT2

5

4

1

C147

C147

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C153

C153
10U_0805_6.3V6M

10U_0805_6.3V6M

2

Layout Note:
Place near JDDR1

4

+1.5V

12

12

R99

R99
100_0402_1%

100_0402_1%

R100

R100
100_0402_1%

100_0402_1%

+3VS

+V_DDR3_DIMM_REF

1

C166

C166

2.2U_0603_6.3V4Z

2.2U_0603_6.3V4Z

2

3

+V_DDR3_DIMM_REF

DDR_A_D0
DDR_A_D1

DDR_A_DM0

DDR_A_D2
DDR_A_D3

DDR_A_D8
DDR_A_D9

DDR_A_DQS#1
DDR_A_DQS1

DDR_A_D10
DDR_A_D11

DDR_A_D16
DDR_A_D17

DDR_A_DQS#2
DDR_A_DQS2

DDR_A_D18
DDR_A_D19

DDR_A_D24
DDR_A_D25

DDR_A_DM3

DDR_A_D26
DDR_A_D27

DDR_CKE0_DIMMA8

M_CLK_DDR08
M_CLK_DDR#08

DDR_A_WE#9
DDR_A_CAS#9 M_ODT0 8

DDR_CS1_DIMMA#8

1

C167

C167

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

DDR_CKE0_DIMMA

DDR_A_BS2

DDR_A_MA12
DDR_A_MA9

DDR_A_MA8
DDR_A_MA5

DDR_A_MA3
DDR_A_MA1

M_CLK_DDR0
M_CLK_DDR#0

DDR_A_MA10
DDR_A_BS0

DDR_A_WE#
DDR_A_CAS#

DDR_A_MA13
DDR_CS1_DIMMA#

DDR_A_D32
DDR_A_D33

DDR_A_DQS#4
DDR_A_DQS4

DDR_A_D34
DDR_A_D35

DDR_A_D40
DDR_A_D41

DDR_A_DM5

DDR_A_D42
DDR_A_D43

DDR_A_D48
DDR_A_D49

DDR_A_DQS#6
DDR_A_DQS6

DDR_A_D50
DDR_A_D51

DDR_A_D56
DDR_A_D57

DDR_A_DM7

DDR_A_D58
DDR_A_D59

R102 10K_0402_5%R102 10K_0402_5%

1 2

R103 10K_0402_5%R103 10K_0402_5%

1 2

3

+1.5V +1.5V

JDDR1

JDDR1

VREF_DQ1VSS1

3

VSS2

5

DQ0

7

DQ1

9

VSS4

11

DM0

13

VSS5

15

DQ2

17

DQ3

19

VSS7

21

DQ8

23

DQ9

25

VSS9

27

DQS#1
DQS129RESET#
VSS1131VSS12

33

DQ10

35

DQ11
VSS1337VSS14

39

DQ16

41

DQ17
VSS1543VSS16

45

DQS#2

47

DQS2

49

VSS18

51

DQ18

53

DQ19

55

VSS20

57

DQ24

59

DQ25
VSS2261DQS#3

63

DM3
VSS2365VSS24

67

DQ26

69

DQ27
VSS2571VSS26

73

CKE0

75

VDD1

77

NC1

79

BA2

81

VDD3

83

A12/BC#

85

A9

87

VDD5

89

A8

91

A5

93

VDD7

95

A3

97

A1

99

VDD9

101

CK0

103

CK0#

105

VDD11

107

A10/AP

109

BA0

111

VDD13

113

WE#

115

CAS#

117

VDD15

119

A13

121

S1#

123

VDD17

125

NCTEST

127

VSS27

129

DQ32

131

DQ33

133

VSS29

135

DQS#4

137

DQS4

139

VSS32

141

DQ34

143

DQ35

145

VSS34

147

DQ40

149

DQ41

151

VSS36

153

DM5

155

VSS37

157

DQ42

159

DQ43

161

VSS39

163

DQ48

165

DQ49

167

VSS41

169

DQS#6

171

DQS6

173

VSS44

175

DQ50

177

DQ51

179

VSS46

181

DQ56

183

DQ57

185

VSS48

187

DM7

189

VSS49

191

DQ58

193

DQ59

195

VSS51

197

SA0

199

VDDSPD

201

SA1

203

VTT1

205

G1

ME@

ME@

Compal Secret Data

Compal Secret Data

2007/09/29 2007/09/29

2007/09/29 2007/09/29

2007/09/29 2007/09/29

Compal Secret Data

DQ4
DQ5

VSS3

DQS#0

DQS0

VSS6

DQ6
DQ7

VSS8
DQ12
DQ13

VSS10

DM1

DQ14
DQ15

DQ20
DQ21

DM2

VSS17

DQ22
DQ23

VSS19

DQ28
DQ29

VSS21

DQS3

DQ30
DQ31

CKE1
VDD2

A15
A14

VDD4

A11

A7

VDD6

A6
A4

VDD8

A2
A0

VDD10

CK1

CK1#

VDD12

BA1

RAS#

VDD14

S0#

ODT0

VDD16

ODT1

NC2

VDD18

VREF_CA

VSS28

DQ36
DQ37

VSS30

DM4

VSS31

DQ38
DQ39

VSS33

DQ44
DQ45

VSS35
DQS#5

DQS5

VSS38

DQ46
DQ47

VSS40

DQ52
DQ53

VSS42

DM6

VSS43

DQ54
DQ55

VSS45

DQ60
DQ61

VSS47
DQS#7

DQS7

VSS50

DQ62
DQ63

VSS52

EVENT#

SDA

SCL

VTT2

FOX_AS0A626-U4RN-7F

FOX_AS0A626-U4RN-7F

G2

Deciphered Date

Deciphered Date

Deciphered Date

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72

74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
202
204

206

2

DDR_A_D4
DDR_A_D5

DDR_A_DQS#0
DDR_A_DQS0

DDR_A_D6
DDR_A_D7

DDR_A_D12
DDR_A_D13

DDR_A_DM1
SM_DRAMRST#

DDR_A_D14
DDR_A_D15

DDR_A_D20
DDR_A_D21

DDR_A_DM2

DDR_A_D22
DDR_A_D23

DDR_A_D28
DDR_A_D29

DDR_A_DQS#3
DDR_A_DQS3

DDR_A_D30
DDR_A_D31

DDR_CKE1_DIMMA

DDR_A_MA14

DDR_A_MA11
DDR_A_MA7

DDR_A_MA6
DDR_A_MA4

DDR_A_MA2
DDR_A_MA0

M_CLK_DDR1
M_CLK_DDR#1

DDR_A_BS1
DDR_A_RAS#

DDR_CS0_DIMMA#
M_ODT0

M_ODT1

DDR_VREF_CA_DIMMA

DDR_A_D36
DDR_A_D37

DDR_A_DM4

DDR_A_D38
DDR_A_D39

DDR_A_D44
DDR_A_D45

DDR_A_DQS#5
DDR_A_DQS5

DDR_A_D46
DDR_A_D47

DDR_A_D52
DDR_A_D53

DDR_A_DM6

DDR_A_D54
DDR_A_D55

DDR_A_D60
DDR_A_D61

DDR_A_DQS#7
DDR_A_DQS7

DDR_A_D62
DDR_A_D63

PM_EXTTS#0
CLK_SMBDATA
CLK_SMBCLK

+0.75VS

2

R101 0_0402_5%R101 0_0402_5%

PM_EXTTS#0 8,15

+0.75VS

1

SM_DRAMRST# 8,15

DDR_CKE1_DIMMA 8

M_CLK_DDR1 8
M_CLK_DDR#1 8

DDR_A_RAS# 9

DDR_CS0_DIMMA# 8

M_ODT1 8

1 2

+V_DDR3_DIMM_REF

1

C159

C159

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C160

C160

2.2U_0805_16V4Z

2.2U_0805_16V4Z

2

DDR3 SO-DIMM A
REVERSE TYPE
(5.2mm)

CLK_SMBDATA 15,16
CLK_SMBCLK 15,16

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet

Compal Electronics, Inc.

DDRIII-SODIMM SLOT1

DDRIII-SODIMM SLOT1

DDRIII-SODIMM SLOT1

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

14 43Wednesday, June 24, 2009

14 43Wednesday, June 24, 2009

14 43Wednesday, June 24, 2009

1

of

1.0

1.0

1.0

5

DDR_B_DQS#[0..7]9

DDR_B_D[0..63]9

DDR_B_DM[0..7]9

DDR_B_DQS[0..7]9

D D

DDR_B_MA[0..14]9

DDR_B_BS[0..2]9

C C

+1.5V

1

+

+

@

@

C172

C172
470U_D2_2.5VM_R15

470U_D2_2.5VM_R15

2

+1.5V

1

C174

C174
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C168

C168
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C175

C175

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C169

C169
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C176

C176

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C170

C170
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C177

C177

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C171

C171
10U_0805_6.3V6M

10U_0805_6.3V6M

2

1

C178

C178

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

Layout Note: Place these 4 Caps near Command
and Control signals of JDDR2

B B

+0.75VS

1

2

A A

+0.75V is controller by SUSP for saving power on S3

C181

C181
10U_0805_6.3V6M

10U_0805_6.3V6M

1

C182

C182
1U_0603_10V4Z

1U_0603_10V4Z

2

1

C183

C183
1U_0603_10V4Z

1U_0603_10V4Z

2

1

C184

C184
1U_0603_10V4Z

1U_0603_10V4Z

2

1

C185

C185
1U_0603_10V4Z

1U_0603_10V4Z

2

Layout Note:
Place near VTT1&VTT2

5

4

1

C173

C173
10U_0805_6.3V6M

10U_0805_6.3V6M

2

Layout Note:
Place near JDDR2

4

DDR_B_D0
DDR_B_D1

DDR_B_DM0

DDR_B_D2
DDR_B_D3

DDR_B_D8
DDR_B_D9

DDR_B_DQS#1
DDR_B_DQS1

DDR_B_D10
DDR_B_D11

DDR_B_D16
DDR_B_D17

DDR_B_DQS#2
DDR_B_DQS2

DDR_B_D18
DDR_B_D19

DDR_B_D24
DDR_B_D25

DDR_B_DM3

DDR_B_D26
DDR_B_D27

DDR_CKE2_DIMMB

DDR_B_BS2

DDR_B_MA12
DDR_B_MA9

DDR_B_MA8
DDR_B_MA5

DDR_B_MA3
DDR_B_MA1

M_CLK_DDR2
M_CLK_DDR#2

DDR_B_MA10
DDR_B_BS0

DDR_B_WE#
DDR_B_CAS#

DDR_B_MA13
DDR_CS3_DIMMB#

DDR_B_D32
DDR_B_D33

DDR_B_DQS#4
DDR_B_DQS4

DDR_B_D34
DDR_B_D35

DDR_B_D40
DDR_B_D41

DDR_B_DM5

DDR_B_D42
DDR_B_D43

DDR_B_D48
DDR_B_D49

DDR_B_DQS#6
DDR_B_DQS6

DDR_B_D50
DDR_B_D51

DDR_B_D56
DDR_B_D57

DDR_B_DM7

DDR_B_D58
DDR_B_D59

1 2

1 2

3

+1.5V

2007/09/29 2007/09/29

2007/09/29 2007/09/29

2007/09/29 2007/09/29

3

JDDR2

JDDR2

1

VREF_DQ

3

VSS

5

DQ0

7

DQ1

9

VSS

11

DM0

13

VSS

15

DQ2

17

DQ3

19

VSS

21

DQ8

23

DQ9

25

VSS

27

DQS1#

29

DQS1

31

VSS

33

DQ10

35

DQ11

37

VSS

39

DQ16

41

DQ17

43

VSS

45

DQS2#

47

DQS2

49

VSS

51

DQ18

53

DQ19

55

VSS

57

DQ24

59

DQ25

61

VSS

63

DM3

65

VSS

67

DQ26

69

DQ27

71

VSS

73

CKE0

75

VDD

77

NC

79

BA2

81

VDD

83

A12/BC#

85

A9

87

VDD

89

A8

91

A5

93

VDD

95

A3

97

A1

99

VDD

101

CK0

103

CK0#

105

VDD

107

A10/AP

109

BA0

111

VDD

113

WE#

115

CAS#

117

VDD

119

A13

121

S1#

123

VDD

125

TEST

127

VSS

129

DQ32

131

DQ33

133

VSS

135

DQS4#

137

DQS4

139

VSS

141

DQ34

143

DQ35

145

VSS

147

DQ40

149

DQ41

151

VSS

153

DM5

155

VSS

157

DQ42

159

DQ43

161

VSS

163

DQ48

165

DQ49

167

VSS

169

DQS6#

171

DQS6

173

VSS

175

DQ50

177

DQ51

179

VSS

181

DQ56

183

DQ57

185

VSS

187

DM7

189

VSS

191

DQ58

193

DQ59

195

VSS

197

SA0

199

VDDSPD

201

SA1

203

VTT

205

GND1

207

BOSS1

FOX_AS0A626-U2SN-7F

FOX_AS0A626-U2SN-7F

+0.75VS

ME@

ME@

Compal Secret Data

Compal Secret Data

Compal Secret Data

VSS
DQ4
DQ5
VSS

DQS0#

DQS0

VSS
DQ6
DQ7

VSS
DQ12
DQ13

VSS

DM1

RESET#

VSS
DQ14
DQ15

VSS
DQ20
DQ21

VSS

DM2

VSS
DQ22
DQ23

VSS
DQ28
DQ29

VSS

DQS3#

DQS3

VSS
DQ30
DQ31

VSS

CKE1

VDD

A15
A14

VDD

A11

A7

VDD

A6
A4

VDD

A2
A0

VDD

CK1

CK1#

VDD

BA1

RAS#

VDD

S0#

ODT0

VDD
ODT1

NC

VDD

VREF_CA

VSS
DQ36
DQ37

VSS

DM4

VSS
DQ38
DQ39

VSS
DQ44
DQ45

VSS

DQS5#

DQS5

VSS
DQ46
DQ47

VSS
DQ52
DQ53

VSS

DM6

VSS
DQ54
DQ55

VSS
DQ60
DQ61

VSS

DQS7#

DQS7

VSS
DQ62
DQ63

VSS

EVENT#

SDA

SCL
VTT

GND2

BOSS2

Deciphered Date

Deciphered Date

Deciphered Date

2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72

74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
152
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
198
200
202
204

206
208

+1.5V

+V_DDR3_DIMM_REF

DDR_CKE2_DIMMB8

M_CLK_DDR28
M_CLK_DDR#28

DDR_B_WE#9
DDR_B_CAS#9

DDR_CS3_DIMMB#8

+3VS

1

C186

C186

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

R105 10K_0402_5%R105 10K_0402_5%

R106 10K_0402_5%R106 10K_0402_5%

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2

DDR_B_D4
DDR_B_D5

DDR_B_DQS#0
DDR_B_DQS0

DDR_B_D6
DDR_B_D7

DDR_B_D12
DDR_B_D13

DDR_B_DM1
SM_DRAMRST#

DDR_B_D14
DDR_B_D15

DDR_B_D20
DDR_B_D21

DDR_B_DM2

DDR_B_D22
DDR_B_D23

DDR_B_D28
DDR_B_D29

DDR_B_DQS#3
DDR_B_DQS3

DDR_B_D30
DDR_B_D31

DDR_CKE3_DIMMB

DDR_B_MA14

DDR_B_MA11
DDR_B_MA7

DDR_B_MA6
DDR_B_MA4

DDR_B_MA2
DDR_B_MA0

M_CLK_DDR3
M_CLK_DDR#3

DDR_B_BS1
DDR_B_RAS#

DDR_CS2_DIMMB#
M_ODT2

M_ODT3

DDR_VREF_CA_DIMMB

DDR_B_D36
DDR_B_D37

DDR_B_DM4

DDR_B_D38
DDR_B_D39

DDR_B_D44
DDR_B_D45

DDR_B_DQS#5
DDR_B_DQS5

DDR_B_D46
DDR_B_D47

DDR_B_D52
DDR_B_D53

DDR_B_DM6

DDR_B_D54
DDR_B_D55

DDR_B_D60
DDR_B_D61

DDR_B_DQS#7
DDR_B_DQS7

DDR_B_D62
DDR_B_D63

PM_EXTTS#0
CLK_SMBDATA
CLK_SMBCLK

+0.75VS

2

SM_DRAMRST# 8,14

DDR_CKE3_DIMMB 8

M_CLK_DDR3 8
M_CLK_DDR#3 8

DDR_B_RAS# 9

DDR_CS2_DIMMB# 8
M_ODT2 8

M_ODT3 8

R104 0_0402_5%R104 0_0402_5%

1 2

PM_EXTTS#0 8,14
CLK_SMBDATA 14,16
CLK_SMBCLK 14,16

1

C179

C179

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet

Date: Sheet of

Date: Sheet of

1

+V_DDR3_DIMM_REF

1

C180

C180

2.2U_0805_16V4Z

2.2U_0805_16V4Z

2

DDR3 SO-DIMM B
STANDARD TYPE
(4.0 mm)

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

DDRIII-SODIMM SLOT2

DDRIII-SODIMM SLOT2

DDRIII-SODIMM SLOT2

KIUE0_LA-5191P

KIUE0_LA-5191P

KIUE0_LA-5191P

15 43Wednesday, June 24, 2009

15 43Wednesday, June 24, 2009

15 43Wednesday, June 24, 2009

1

1.0

1.0

1.0

of

5

PCI

SRC

CPU

CLKSEL1

0

FSA

CLKSEL0

MHz

266

MHz

1000

MHz

MHz

33.30

14.318 96.0 48.0

DOT_96
MHz

USB
MHz

FSC FSB REF

CLKSEL2

0 1000 133 33.31 14.318 96.0 48.0

0 1001 200 33.30 14.318 96.0 48.0

D D

0 1001 166 33.31 14.318 96.0 48.0

1 1000 333 33.30 14.318 96.0 48.0

1 1000 100 33.31 14.318 96.0 48.0

1 1001 400 33.30 14.318 96.0 48.0

1 1 1

R115 2.2K_ 0402_5%R115 2.2K_0402_5%

FSA

CPU_BSEL05

C C

CPU_BSEL15

B B

CPU_BSEL25

12

@

@

R144

R144
10K_0402_5%

10K_0402_5%

12

R147

R147

A A

10K_0402_5%

10K_0402_5%

R117 0_0402_5%R117 0_0402_5%

R127 0_0402_5%R127 0_0402_5%

R132 10K_0 402_5%R132 10K_0402_5%

FSC

R138 0_0402_5%R138 0_0402_5%

+3VS+3VS +3VS

12

@

@

R145

R145
10K_0402_5%

10K_0402_5%

12

R148

R148
10K_0402_5%

10K_0402_5%

1 2

1 2

1 2

1 2

12

FSB

12

R146

R146
10K_0402_5%

10K_0402_5%

12

@

@

R149

R149
10K_0402_5%

10K_0402_5%

+1.05VS

+1.05VS

+1.05VS

@

@

R114

R114
56_0402_5%

56_0402_5%

1 2

FSA_BSEL0

12

@

@

R119

R119
1K_0402_5%

1K_0402_5%

12

@

@

R123

R123
1K_0402_5%

1K_0402_5%

12

@

@

R128

R128
0_0402_5%

0_0402_5%

12

@

@

R129

R129
1K_0402_5%

1K_0402_5%

FSC_BSEL2

12

R141

R141
0_0402_5%

0_0402_5%

Reserved

R116 1K_0402_5%R116 1K_0402_5%

1 2

R125 1K_0402_5%R125 1K_0402_5%

1 2

R133 1K_0402_5%R133 1K_0402_5%

1 2

C201 2 2P_0402_50V8JC201 22P_040 2_50V8J

14.31818MHZ_16PF _DSX840GA

14.31818MHZ_16PF _DSX840GA

C205 2 2P_0402_50V8JC205 22P_040 2_50V8J

MCH_CLKSEL0 8

MCH_CLKSEL1 8

MCH_CLKSEL2 8

Y1

Y1

Routing the trace at least 10mil

For ITP_EN, 0 =SRC8/SRC8#(100MHz); 1 = ITP/ITP#(266MHz)

For PCI4_SEL, 0 = Pin24/25 : DOT96 / DOT96#
Pin28/29 : LCDCLK / LCDCLK#(UMA)

1 = Pin24/25 : SRC_0 / SRC_0#
Pin28/29 : 27M/27M_SS(DISCRETE)

5

CLK_XTAL_INITP_EN PCI4_SEL PCI2_TME

12

CLK_XTAL_OUT

4

R107 0_0805_5%R107 0_0805_5%

+3VS

R111 0_0805_5%@R111 0_0805_5%@

+1.5VS

R112 0_0805_5%R112 0_0805_5%

+1.05VS

CLK_48M_CR25

CLK_48M_ICH21

CLK_14M_ICH21

CLK_14M_SIO32

CK_PWRGD21

H_STP_CPU#21

H_STP_PCI#21

CLK_PCI_DB32

CLK_PCI_LPC31

CLK_PCI_ICH19

4

+3VSM_CK505

1 2

1 2

1 2

1

C187

C187
10U_0805_10V4Z

10U_0805_10V4Z

2

+VDD_CK505

1

C194

C194
10U_0805_10V4Z

10U_0805_10V4Z

2

SA000020K00 (Silego : SLG8SP556VTR )
SA000020H00 (ICS : ICS9LPRS387AKLFT)

@

@

R121 12_0402_5%

R121 12_0402_5%

1 2

R122 33_0402_5%R122 33_0402_5%

1 2

R124 33_0402_5%R124 33_0402_5%

1 2

R126 33_0402_5%@R126 33_0402_5%@

1 2

R292 0_0402_5%R292 0_0402_5%

1 2

R294 10K_0402_5%

R294 10K_0402_5%

+3VSM_CK505

C202 2 2P_0402_50V8J@C202 2 2P_0402_50V8J

@

place CAPs near Resistors of U10
For 3G RF noise .

1 2

@

@

@

@

R136 33_0402_5%

R136 33_0402_5%

1 2

R142 33_0402_5%R142 33_0402_5%

1 2

R143 33_0402_5%R143 33_0402_5%

1 2

CLK_48M_CR

CLK_48M_ICH

CLK_14M_ICH

CLK_14M_SIO LAN_CLKREQ#

C206 2 2P_0402_50V8J@C206 2 2P_0402_50V8J

C203 2 2P_0402_50V8J@C203 2 2P_0402_50V8J

C204 2 2P_0402_50V8J@C204 2 2P_0402_50V8J

1

1

1

1

@

@

@

2

2

2

2

EVT0319

1

C188

C188

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

2

+3VSM_CK505

+VDD_CK505

CLK_14M_SIO_R

CK_PWRGD

PM_STP_CPU#

PM_STP_PCI#

CLK_XTAL_IN

CLK_XTAL_OUT

3

1

C189

C189

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

C195

C195

0.1U_0402_16V4Z

0.1U_0402_16V4Z

U5

U5

55

6

12

72

19

27

66

31

62

52

23

38

FSA

20

FSB

2

FSC

7

8

1

11

53

54

5

4

13

PCI2_TME

14

15

PCI4_SEL

16

ITP_EN

17

18

3

22

26

69

30

34

59

42

73

SLG8SP556VTR_QFN72_10X10

SLG8SP556VTR_QFN72_10X10

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING D RAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING D RAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING D RAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

1

2

1

C196

C196

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

VDD_SRC

VDD_REF

VDD_PCI

VDD_CPU

VDD_48

VDD_PLL3

VDD_CPU_IO

VDD_PLL3_IO

VDD_SRC_IO

VDD_SRC_IO

VDD_IO

VDD_SRC_IO

USB_0/FS_A

FS_B/TEST_MODE

REF_0/FS_C/TEST_

REF_1

CKPWRGD/PD#

NC

CPU_STOP#

PCI_STOP#

XTAL_IN

XTAL_OUT

PCI_1

PCI_2

PCI_3

PCI_4/SEL_LCDCL

PCIF_5/ITP_EN

VSS_PCI

VSS_REF

VSS_48

VSS_IO

VSS_CPU

VSS_PLL3

VSS_SRC

VSS_SRC

VSS_SRC

VSS

C190

C190

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C191

C191

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C197

C197

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

SRC_0#/DOT_96#

LCDCLK#/27M_SS

SRC_8#/CPU_ITP#

USB_1/CLKREQ_A#

2008/03/25 2008/04/

2008/03/25 2008/04/

2008/03/25 2008/04/

1

C198

C198

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

SDA

SCL

CPU_0

CPU_0#

CPU_1

CPU_1#

SRC_0/DOT_96

LCDCLK/27M

SRC_2

SRC_2#

SRC_3

SRC_3#

SRC_4

SRC_4#

SRC_6

SRC_6#

SRC_7

SRC_7#

SRC_8/CPU_ITP

SRC_9

SRC_9#

SRC_10

SRC_10#

SRC_11

SRC_11#

CLKREQ_3#

CLKREQ_4#

CLKREQ_6#

CLKREQ_7#

CLKREQ_9#

SLKREQ_10#

CLKREQ_11#

Compal Secret Data

Compal Secret Data

Compal Secret Data

1

C192

C192

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

2

9

10

71

70

68

67

24

25

28

29

32

33

35

36

39

40

57

56

61

60

64

63

44

45

50

51

48

47

37

41

58

65

43

49

46

21

Deciphered Date

Deciphered Date

Deciphered Date

2

1

C193

C193

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

C199

C199

0.1U_0402_16V4Z

0.1U_0402_16V4Z

CLK_SMBDATA

CLK_SMBCLK

CLK_CPU_BCLK

CLK_CPU_BCLK#

CLK_MCH_BCLK

CLK_MCH_BCLK#

CLK_MCH_DREFCLK

CLK_MCH_DREFCLK#

MCH_CLKDREFSSC

MCH_CLKDREFSSC#

CLK_MCH_3GPLL

CLK_MCH_3GPLL#

CLK_PCIE_EXP

CLK_PCIE_EXP#

CLK_PCIE_WLAN1

CLK_PCIE_WLAN1#

CLK_PCIE_LAN

CLK_PCIE_LAN#

CLK_PCIE_ICH

CLK_PCIE_ICH#

CLK_PCIE_SATA

CLK_PCIE_SATA#

EXP_CLKREQ#

WLAN_CLKREQ1#

SATA_CLKREQ#_R

MCH_CLKREQ#_R

2

1

C200

C200

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

R150 0_0402_5%R150 0_0402_5%

R151 0_0402_5%R151 0_0402_5%

CLK_SMBDATA 14,15

CLK_SMBCLK 14 ,15

CLK_CPU_BCLK 4

CLK_CPU_BCLK# 4

CLK_MCH_BCLK 7

CLK_MCH_BCLK# 7

CLK_MCH_DREFCLK 8

CLK_MCH_DREFCLK# 8

MCH_CLKDREFSSC 8

MCH_CLKDREFSSC# 8

CLK_MCH_3GPLL 8

CLK_MCH_3GPLL# 8

CLK_PCIE_EXP 29

CLK_PCIE_EXP# 29

CLK_PCIE_WLAN1 29

CLK_PCIE_WLAN1# 29

CLK_PCIE_LAN 24

CLK_PCIE_LAN# 24

CLK_PCIE_ICH 21

CLK_PCIE_ICH# 21

CLK_PCIE_SATA 20

CLK_PCIE_SATA# 20

EXP_CLKREQ# 29

WLAN_CLKREQ1# 29

LAN_CLKREQ# 24

1 2

1 2

1

+3VS

@

R108 0_0402_5%R108 0_0402_5%

1 2

2N7002DW-T/R7_SOT36 3-6

2N7002DW-T/R7_SOT36 3-6

ICH_SMBDATA21,29

ICH_SMBCLK21,29

6 1

@ Q2A

@

+3VS

@ Q2B

@

3

2N7002DW-T/R7_SOT36 3-6

2N7002DW-T/R7_SOT36 3-6

R113 0_0402_5%R113 0_0402_5%

1 2

2

5

@

R109

R109

2.2K_0402_5%

2.2K_0402_5%

Q2A

Q2B

4

CPU

NB

NB(96MHz)

NB_SSC(100MHz)

SRC PORT LIST

MCH_PEGPLL

NEWCARD

SRC0
SRC2
SRC3

DEVICEPORT

MCH_DREFCLK
MCH_3GPLL

PCIE_EXP#
SRC4
SRC6
SRC7

PCIE_WLAN1
SRC8

WLAN

LAN

ICH-DMIPCIE

ICH-SATA

SRC9
SRC10
SRC11

SATA_CLKREQ#_R
EXP_CLKREQ#
WLAN_CLKREQ1#
MCH_CLKREQ#_R

REQ PORT LIST

REQ_3#

PCIE_LAN

PCIE_ICH

PCIE_SATA

R130 10K_0402_5%R130 10K_0402_5%

R131 10K_0402_5%R131 10K_0402_5%

R134 10K_0402_5%R134 10K_0402_5%

R135 10K_0402_5%R135 10K_0402_5%

PCIE_EXP#
REQ_4#
REQ_6#
REQ_7#
REQ_9#

PCIE_WLAN1

PCIE_LAN
REQ_10#
REQ_11#
REQ_A#

SATA_CLKREQ# 21

MCH_CLKREQ# 8

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

Clock Generator CK505

Clock Generator CK505

Clock Generator CK505

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

KIUE0_LA-5191P

Date: Sheet of

Date: Sheet of

Date: Sheet

PCIE_SATA

MCH_3GPLL

1

DEVICEPORT

@

@

R110

R110

2.2K_0402_5%

2.2K_0402_5%

CLK_SMBDATA

CLK_SMBCLK

12
12
12
12

16 4 3Wednesday, June 24, 2009

16 4 3Wednesday, June 24, 2009

16 4 3Wednesday, June 24, 2009

+3VS

1.0

1.0

1.0

of

5

4

3

2

1

LCD POWER CIRCUIT

+LCDVDD

12

R152

D D

2N7002_SOT23

2N7002_SOT23

GM_ENVDD10

R152
150_0603_1%

150_0603_1%

13

D

D

2

G

G

Q3

Q3

S

S

DTC124EK

2

IN

+5VALW

12

R153

R153
100K_0402_5%

100K_0402_5%

1 2

220K_0402_5%

220K_0402_5%

1

OUT

Q5

Q5
S TR PDTC124EK NPN SC59-3

S TR PDTC124EK NPN SC59-3

GND

3

R154

R154

C209

C209

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

2

4.7U_0805_10V4Z

4.7U_0805_10V4Z

W=60mils

2

Q4

Q4

C207

C207

+3VS

S

S

G

G

SI2301BDS-T1-E3_SOT23-3

SI2301BDS-T1-E3_SOT23-3

D

D

1 3

1

2

1

C210

C210

4.7U_0805_10V4Z

4.7U_0805_10V4Z

2

+LCDVDD

W=40mils

FBMA-L11-201209-221LMA30T_0805

FBMA-L11-201209-221LMA30T_0805

1

C208

C208

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

+3VS

12

R157

R157

4.7K_0402_5%

D4

BKOFF#31

GMCH_ENBKL10

+LCDVDD_L

L2

L2

12

EVT0319

BKOFF# DISPOFF#EN_LCDVDD_LOWEN_LCDVDD_LOW_Q

D4

21

CH751H-40PT_SOD323-2

CH751H-40PT_SOD323-2

R158 0_0402_5%R158 0_0402_5%

12

4.7K_0402_5%

ENBKL

R159

R159

100K_0402_1%

100K_0402_1%

1 2

change from 10K to 100K
5/8 by checklist

ENBKL 31

470P_0402_50V7K

470P_0402_50V7K

1

C212

@C212

@

2

For EMI

INVT_PWM

DISPOFF#

1

C214

2

470P_0402_50V7K

470P_0402_50V7K

@C214

@

PANEL Logic Power 250mA (typ 3.15v)

C C

CMOS Camera POWER CIRCUIT

+5VS +5V_CAM

12

R385

R385
10K_0402_5%

10K_0402_5%

1

OUT

CMOS_OFF#31

B B

A A

2

IN

GND

3

4

NC7SZ14P5X_NL_SC70-5

NC7SZ14P5X_NL_SC70-5

DPST_PWM

U27

U27

CMOS1

Q17

Q17
S TR PDTC124EK NPN SC59-3

S TR PDTC124EK NPN SC59-3

+3VS

1

5

P

NC

A2Y

G

3

@

@

1 2

R298 0_0402_5%

R298 0_0402_5%

@

@

DPST_PWMINVTPWM

INVTPWM

S

S

D

D

13

G

G

Q15

Q15

2

SI2301BDS-T1-E3_SOT23-3

SI2301BDS-T1-E3_SOT23-3

1

C416

@C416

@

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

For GMCH DPST

C401

C401

10U_0805_10V4Z

10U_0805_10V4Z

PVT0618

DPST_PWM 10

EVT 0324 Reverse GMCH DPST

1

1

C399

C399

0.1U_0402_16V4Z

2

0.1U_0402_16V4Z

2

ESD PROTECT
CLOSE TO JLVDS1

KB_LIGHT#

2

3

D36

D36

1

PESD5V0U2BT 3P C/C SOT23 ESD

PESD5V0U2BT 3P C/C SOT23 ESD

+5VALW

1ST SOURCE: SCA00000T00
2

ND SOURCE: SCA00000G00

USE SCA00000G00 SYMBOL

PVT0618

4

50mA (9~20V)

B+

L3

L3

FBMA-L11-201209-221LMA30T_0805

FBMA-L11-201209-221LMA30T_0805

400mA

+5V_CAM

(60 MIL)

12

4.7U_0805_25V6-K

4.7U_0805_25V6-K

(20 MIL) 135mA MAX

+5V_CAM

+LEDVDD

C215

C215

COMBINE CABLE LEFT for LVDS/KB_LI/CMOS
LCD/PANEL BD. Conn.

+LCDVDD_L

(40 MIL)

+3VS

R278 300_04 02_5%R278 300_0402_5%

KB_LIGHT#31

+5V_CAM_LV

USB20_N221
USB20_P221

R296 0_040 2_5%R296 0_0402_5%

1 2

LVDS_SCL

LVDS_SDA
LVDS_A0#
LVDS_A0

LVDS_A1#
LVDS_A1

LVDS_A2#
LVDS_A2

LVDS_ACLK#
LVDS_ACLK

+5VALW_LV

1 2

USB20_N2

USB20_P2

INVTPWM

DISPOFF#

3/23 EVT Change LVDS Conn to JAE

LVDS_SCL10
LVDS_SDA10
LVDS_A0#10
LVDS_A010

LVDS_A1#10
LVDS_A110

LVDS_A2#10
LVDS_A210

LVDS_ACLK#10
LVDS_ACLK10

+5VALW

1 2

R174 0_040 2_5%R174 0_0402_5%

+LEDVDD

1

2

PANEL_PWM31

For LED PANEL Back light Control

EVT0319

JLVDS1

JLVDS1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

30

30

G1

31

31

G2

32

32

G3

33

33

G4

34

34

G5

35

35

G6

36

36

G7

37

37

G8

38

38

G9

39

39

G10

40

40

G11

JAE_FI-G40SB-VF25-DT

JAE_FI-G40SB-VF25-DT

ME@

ME@

41
42
43
44
45
46
47
48
49
50
51

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

B

B

B

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

LVDS & DVI Connector

LVDS & DVI Connector

LVDS & DVI Connector

KIUE0_LA-5191P

17 43Wednesday, June 24, 2009

17 43Wednesday, June 24, 2009

17 43Wednesday, June 24, 2009

1

1.0

1.0

1.0

A

B

C

D

E

CRT Connector

CLOSE TO CONN

R160 0_0402_ 5%R160 0_0402_ 5%

GMCH_CR T_R10

1 1

GMCH_CR T_G10

GMCH_CR T_B1 0

2 2

GMCH_CR T_HSYNC10

GMCH_CR T_VSYNC10

3 3

GMCH_CR T_DATA10

GMCH_CR T_CLK10

4 4

1 2

R161 0_0402_ 5%R161 0_0402_ 5%

1 2

R162 0_0402_ 5%R162 0_0402_ 5%

1 2

C

LOSE TO CONN

CLOSE TO CONN

CLOSE TO CONN

12

R163

R163
150_040 2_1%

150_040 2_1%

1

C223

C223

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

GMCH_CR T_HSYNC

1

C226

C226

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

GMCH_CR T_VSYNC

+3VS

12

R169

R169

2.2K_040 2_5%

2.2K_040 2_5%

12

R164

R164
150_040 2_1%

150_040 2_1%

+CRT_VC C

5

A2Y

3

+CRT_VC C

5

A2Y

3

12

P

G

P

G

R170

R170

2.2K_040 2_5%

2.2K_040 2_5%

CRT_R_1

CRT_G_1

CRT_B_1

12

R165

R165
150_040 2_1%

150_040 2_1%

12

1

4

OE#

U7

U7
SN74AHC T1G125DCKR_S C70-5

SN74AHC T1G125DCKR_S C70-5

1

4

OE#

U8

U8
SN74AHC T1G125DCKR_S C70-5

SN74AHC T1G125DCKR_S C70-5

+3VS

4

2

Q6B

Q6B
2N7002D W-T/R7_SOT3 63-6

2N7002D W-T/R7_SOT3 63-6

61

Q6A

Q6A
2N7002D W-T/R7_SOT3 63-6

2N7002D W-T/R7_SOT3 63-6

1

@

@

C216

C216
10P_040 2_50V8J

10P_040 2_50V8J

2

R166

R166
1K_0402 _5%

1K_0402 _5%

CRT_HSYNC _1

CRT_VSYNC _1

5

3

L4 FCM 1608CF-121T03 _2PL4 FCM 1608CF-121T03 _2P

1 2

L5 FCM 1608CF-121T03 _2PL5 FCM 1608CF-121T03 _2P

1 2

L6 FCM 1608CF-121T03 _2PL6 FCM 1608CF-121T03 _2P

1 2

1

@

@

C217

C217
10P_040 2_50V8J

10P_040 2_50V8J

2

+5VS +5 VS +5VS

3

2

+5VS +5 VS

3

2

+CRT_VC C

12

R171

R171

2.2K_040 2_5%

2.2K_040 2_5%

1

@

@

C218

C218
10P_040 2_50V8J

10P_040 2_50V8J

2

3

1

@

@

D6

D6
BAT54S-7 -F_SOT23-3

BAT54S-7 -F_SOT23-3

1

@

@

D9

D9
BAT54S-7 -F_SOT23-3

BAT54S-7 -F_SOT23-3

L7 FCM1608 CF-121T03_2PL7 FCM1608 CF-121T03_2P

1 2

L8 FCM1608 CF-121T03_2PL8 FCM1608 CF-121T03_2P

1 2

12

R172

R172

2.2K_040 2_5%

2.2K_040 2_5%

1

@

@

C227

C227
100P_04 02_50V8J

100P_04 02_50V8J

2

2

@

@

D7

D7
BAT54S-7 -F_SOT23-3

BAT54S-7 -F_SOT23-3

3

2

@

@

D10

D10
BAT54S-7 -F_SOT23-3

BAT54S-7 -F_SOT23-3

CRT_DDC _DAT

CRT_DDC _CLK

1

@

@

C228

C228
68P_040 2_50V8K

68P_040 2_50V8K

2

1

JVGA_VSJVGA_HS

1

1

C219

C219
10P_040 2_50V8J

10P_040 2_50V8J

2

1

@

@

C224

C224
10P_040 2_50V8J

10P_040 2_50V8J

2

3

2

1

C220

C220
10P_040 2_50V8J

10P_040 2_50V8J

2

REDGREENBLUE

1

@

@

D8

D8
BAT54S-7 -F_SOT23-3

BAT54S-7 -F_SOT23-3

JVGA_HS

JVGA_VS

1

C225

@C 225

@

10P_040 2_50V8J

10P_040 2_50V8J

2

RED

GREEN

BLUE

1

C221

C221
10P_040 2_50V8J

10P_040 2_50V8J

2

+5VS

D5

D5

2 1

RB491D_ SC59-3

RB491D_ SC59-3

W=40mils

RED

CRT_DDC _DAT
GREEN

JVGA_HS
BLUE

JVGA_VS

CRT_DDC _CLK

PIN ASSIGMENT

D-SUB FUNCTION

9
1
6
2

7

3

8
14
10 GND
13
11
12
15

4

5,

+CRT_VC C

21

F1

F1

1.1A_6V_ SMD1812P110T F

1.1A_6V_ SMD1812P110T F

6

11

1
7

12

2
8

13

3
9

14

4
10
15

5

SUYIN_070546 FR015S265ZR

SUYIN_070546 FR015S265ZR

1

C222

C222

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

+CRT_VCC

RED
GND

GREEN

GND

BLUE

GND

VSYNC

HSYNC
SENSE

M_DAT

S
SM_CLK

PIN4

JCRT1

JCRT1

ME@

ME@

16
17

Security Class ification

Security Class ification

Security Class ification

2007/10/ 15 2008/10/ 15

2007/10/ 15 2008/10/ 15

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/ 15 2008/10/ 15

C

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

D

Date: Sheet of

Compal Electronics, Inc.

CRT & TV-OUT Connector

CRT & TV-OUT Connector

CRT & TV-OUT Connector

KIUE0_LA-5191P

18 43W ednesday, June 24, 2009

18 43W ednesday, June 24, 2009

18 43W ednesday, June 24, 2009

E

1.0

1.0

1.0

5

+3VS

1 2

R175 8.2K_0402_5%R175 8.2K_0402_5%

1 2

R176 8.2K_0402_5%R176 8.2K_0402_5%

1 2

D D

C C

B B

R177 8.2K_0402_5%R177 8.2K_0402_5%

1 2

R178 8.2K_0402_5%R178 8.2K_0402_5%

1 2

R179 8.2K_0402_5%R179 8.2K_0402_5%

1 2

R180 8.2K_0402_5%R180 8.2K_0402_5%

1 2

R181 8.2K_0402_5%R181 8.2K_0402_5%

1 2

R183 8.2K_0402_5%R183 8.2K_0402_5%

+3VS

1 2

R184 8.2K_0402_5%R184 8.2K_0402_5%

1 2

R185 8.2K_0402_5%R185 8.2K_0402_5%

1 2

R187 8.2K_0402_5%R187 8.2K_0402_5%

1 2

R188 8.2K_0402_5%R188 8.2K_0402_5%

1 2

R189 8.2K_0402_5%R189 8.2K_0402_5%

1 2

R190 8.2K_0402_5%R190 8.2K_0402_5%

1 2

R192 8.2K_0402_5%R192 8.2K_0402_5%

1 2

R193 8.2K_0402_5%R193 8.2K_0402_5%

1 2

R194 8.2K_0402_5%R194 8.2K_0402_5%

1 2

R195 8.2K_0402_5%R195 8.2K_0402_5%

1 2

R196 8.2K_0402_5%R196 8.2K_0402_5%

1 2

R198 8.2K_0402_5%R198 8.2K_0402_5%

1 2

R201 1K_0 402_5%@R201 1K_0402_5%@

PCI_DEVSEL#

PCI_STOP#

PCI_TRDY#

PCI_FRAME#

PCI_PLOCK#

PCI_IRDY#

PCI_SERR#

PCI_PERR#

PCI_PIRQA#

PCI_PIRQB#

PCI_PIRQC#

PCI_PIRQD#

PCI_PIRQE#

PCI_PIRQF#

PCI_PIRQG#

PCI_PIRQH#

PCI_REQ0#

PCI_REQ1#

PCI_REQ2#

PCI_REQ3#

PCI_GNT3#

4

U9B

PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31

PCI_PIRQA#
PCI_PIRQB#
PCI_PIRQC#
PCI_PIRQD#

PCI_GNT0#

U9B

D11

AD0

C8

AD1

D9

AD2

E12

AD3

E9

AD4

C9

AD5

E10

AD6

B7

AD7

C7

AD8

C5

AD9

G11

AD10

F8

AD11

F11

AD12

E7

AD13

A3

AD14

D2

AD15

F10

AD16

D5

AD17

D10

AD18

B3

AD19

F7

AD20

C3

AD21

F3

AD22

F4

AD23

C1

AD24

G7

AD25

H7

AD26

D1

AD27

G5

AD28

H6

AD29

G1

AD30

H3

AD31

J5

PIRQA#

E1

PIRQB#

J6

PIRQC#

C4

PIRQD#

ICH9-M ES_FCBGA676

ICH9-M ES_FCBGA676

12

@

@

R199

R199
1K_0402_5%

1K_0402_5%

3

PCI

PCI

REQ1#/GPIO50

GNT1#/GPIO51

REQ2#/GPIO52

GNT2#/GPIO53

REQ3#/GPIO54

GNT3#/GPIO55

PCIRST#

DEVSEL#

FRAME#

PLTRST#

Interrupt I/F

Interrupt I/F

SB_SPI_CS#121

PIRQE#/GPIO2

PIRQF#/GPIO3
PIRQG#/GPIO4
PIRQH#/GPIO5

REQ0#
GNT0#

C/BE0#
C/BE1#
C/BE2#
C/BE3#

IRDY#

PAR

PERR#

PLOCK#

SERR#

STOP#
TRDY#

PCICLK

PME#

F1
G4
B6
A7
F13
F12
E6
F6

D8
B4
D6
A5

D3
E3
R1
C6
E4
C2
J4
A4
F5
D7

C14
D4
R2

H4
K6
F2
G2

SB_SPI_CS#1

PCI_REQ0#
PCI_GNT0#
PCI_REQ1#
PCI_GNT1#
PCI_REQ2#
PCI_GNT2#
PCI_REQ3#
PCI_GNT3#

PCI_CBE#0
PCI_CBE#1
PCI_CBE#2
PCI_CBE#3

PCI_IRDY#
PCI_PAR
PCI_RST#
PCI_DEVSEL#
PCI_PERR#
PCI_PLOCK#
PCI_SERR#
PCI_STOP#
PCI_TRDY#

PCI_FRAME#

PLT_RST#
CLK_PCI_ICH
PCI_PME#

1 2

R191 10K_0402_5%@R 191 10K_0402_5%@

PCI_PIRQE#
PCI_PIRQF#
PCI_PIRQG#
PCI_PIRQH#

12

@

@

R200

R200
1K_0402_5%

1K_0402_5%

2

CLK_PCI_ICH 16
PCI_PME# 31

+3VALW

Internal Pull-up

1

PCI_RST#

PLT_RST#

12

R182

R182
100K_0402_5%

100K_0402_5%

12

R186

R186
100K_0402_5%

100K_0402_5%

PCI_RST# 31,32

PLT_RST# 8,24,29

Place closely pin D4 (PCICLK)

CLK_PCI_ICH

@

@

R197

R197
10_0402_5%

10_0402_5%

1 2

1

@

@

C229

C229

8.2P_0402_50V

8.2P_0402_50V

2

Boot BIOS Strap

PCI_GNT#0 SPI_CS#1 Boot BIOS Loaction

A16 Swap Override Strap

PCI_GNT#3

A A

5

Low= A16 swap override Enable
High= Default*

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN C ONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN C ONSENT OF COMPAL ELECTRONICS, INC.

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN C ONSENT OF COMPAL ELECTRONICS, INC.

0

1 1

1 SPI

01

PCI

LPC*

Compal Secret Data

Compal Secret Data

3

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Docum ent Number Rev

Size Docum ent Number Rev

Size Docum ent Number Rev

Date: Shee t of

Date: Shee t of

2

Date: Shee t of

Compal Electronics, Inc.

ICH9M(1/4)-PCI

ICH9M(1/4)-PCI

ICH9M(1/4)-PCI

KIUE0_LA-5191P

19 43Wednesday, June 24, 2009

19 43Wednesday, June 24, 2009

19 43Wednesday, June 24, 2009

1

1.0

1.0

1.0

5

+RTCVCC

R203 330K_04 02_1%R203 330K_0 402_1%

LAN100_S LP

1 2

R205 1M_040 2_5%R205 1M_040 2_5%

SM_INTRU DER#

1 2

R207 330K_04 02_1%R207 330K_0 402_1%

D D

C C

ICH_INTVR MEN

1 2

HDD PORT0

SSD PORT1

+RTCVCC

2

1

R211

R211

1 2

100_0603_1 %

100_0603_1 %

C232

C232

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

HDA_BITC LK_CODEC

1

C470

C470
12P_0402_5 0V8J

12P_0402_5 0V8J

2

@

@

SATA_DT X_C_IRX_N023
SATA_DT X_C_IRX_P023

SATA_ITX_ DRX_N023
SATA_ITX_ DRX_P023

SATA_DT X_C_IRX_N129
SATA_DT X_C_IRX_P129

SATA_ITX_ DRX_N129
SATA_ITX_ DRX_P129

DRIVE_LE D#30

32.768KHZ_ 12.5P_1TJS125BJ2 A251

32.768KHZ_ 12.5P_1TJS125BJ2 A251

+RTCBAT T

DRIVE_LE D#

SATA_DT X_C_IRX_N0
SATA_DT X_C_IRX_P0
SATA_ITX_ DRX_N0

SATA_DT X_C_IRX_N1
SATA_DT X_C_IRX_P1
SATA_ITX_ DRX_N1
SATA_ITX_ DRX_P1

+RTCVCC

HDA_BITC LK_CODEC26

HDA_SYNC_ CODEC26

HDA_RST _CODEC#26

HDA_SDIN 226

HDA_SDO UT_CODEC26

+3VS

4

1 2

C230 12P_040 2_50V8JC230 12 P_0402_50V8J

Y2

Y2

2

3

1 2

C231 12P_040 2_50V8JC231 12 P_0402_50V8J

1 2

R209 20K_0402_ 5%R20 9 20K_040 2_5%

@

@

1

IN

NC

4

OUT

NC

CLRJP

CLRJP

2 1

2MM

2MM

1 2

C233 1U_0603_1 0V4ZC233 1U_0603_1 0V4Z

close to RAM door

+1.5VS

1 2

R215 24.9_ 0402_1%R 215 24.9_0402_1%

1 2

R216 33_0 402_5%R216 33_0402_5%

1 2

R218 33_0 402_5%R218 33_0402_5%

1 2

R219 33_0 402_5%R219 33_0402_5%

1 2

R221 33_0 402_5%R221 33_0402_5%

1 2

R222 10K _0402_5%R222 10K_040 2_5%

1 2
1 2

1 2
1 2

SATA_LED #

D11CH751H-40PT_SOD 323-2 D 11CH751H-40 PT_SOD323-2

2 1

C237 0.01U _0402_16V7KC237 0.01U_0402_ 16V7K
C239 0.01U _0402_16V7KC239 0.01U_0402_ 16V7K

C240 0.01U _0402_16V7KC240 0.01U_0402_ 16V7K
C241 0.01U _0402_16V7KC241 0.01U_0402_ 16V7K

ICH_RTCX 1

12

R206

R206
10M_0402_ 5%

10M_0402_ 5%

ICH_RTCX 2

ICH_RTCR ST#
ICH_SRTC RST#
SM_INTRU DER#

ICH_INTVR MEN
LAN100_S LP

SATA_ITX_ C_DRX_N0
SATA_ITX_ C_DRX_P0SATA _ITX_DRX_P0

SATA_ITX_ C_DRX_N1
SATA_ITX_ C_DRX_P1

GLAN_COM P

HDA_BITC LK_R

HDA_SYNC_ R

HDA_RST _R#

HDA_SDO UT_R

U9A

U9A

C23

RTCX1

C24

RTCX2

A25

RTCRST #

F20

SRTCRS T#

C22

INTRUDE R#

B22

INTVRME N

A22

LAN100_S LP

E25

GLAN_CLK

C13

LAN_RST SYNC

F14

LAN_RXD 0

G13

LAN_RXD 1

D14

LAN_RXD 2

D13

LAN_TXD _0

D12

LAN_TXD _1

E13

LAN_TXD _2

B10

GPIO56

B28

GLAN_COM PI

B27

GLAN_COM PO

AF6

HDA_BIT_ CLK

AH4

HDA_SYNC

AE7

HDA_RST #

AF4

HDA_SDIN 0

AG4

HDA_SDIN 1

AH3

HDA_SDIN 2

AE5

HDA_SDIN 3

AG5

HDA_SDO UT

AG7

HDA_DOC K_EN#/GPIO33

AE8

HDA_DOC K_RST#/GPIO34

AG8

SATALED #

AJ16

SATA0RX N

AH16

SATA0RX P

AF17

SATA0TX N

AG17

SATA0TX P

AH13

SATA1RX N

AJ13

SATA1RX P

AG14

SATA1TX N

AF14

SATA1TX P

ICH9-M ES_ FCBGA676

ICH9-M ES_ FCBGA676

3

RTC

RTC

LAN / GLAN

LAN / GLAN

IHDA

IHDA

SATA

SATA

LPCCPU

LPCCPU

FWH0/LA D0
FWH1/LA D1
FWH2/LA D2
FWH3/LA D3

FWH4/LF RAME#

LDRQ0#

LDRQ1#/GPIO2 3

A20GATE

A20M#

DPRSTP #

DPSLP#

FERR#

CPUPW RGD

IGNNE#

INIT#

INTR

RCIN#

SMI#

STPCLK#

THRMTR IP#

TP12

SATA4RX N
SATA4RX P
SATA4TX N
SATA4TX P

SATA5RX N
SATA5RX P
SATA5TX N
SATA5TX P

SATA_CL KN
SATA_CL KP

SATARBIA S#

SATARBIA S

NMI

2

LPC_AD0

K5

LPC_AD1

K4

LPC_AD2

L6

LPC_AD3

K2

LPC_FRA ME#

K3

LPC_DRQ0 #

J3
J1

GATEA20

N7

H_A20M#

AJ27

AJ25

H_DPSLP #

AE23

H_FERR# _S

AJ26

H_PWR GOOD

AD22

H_IGNNE#

AF25

H_INIT#

AE22

H_INTR

AG25

KB_RST#

L3

H_NMI

AF23

H_SMI#

AF24

H_STPCL K#

AH27

THRMTR IP_ICH#

AG26

AG27

SATA_DT X_C_IRX_N4

AH11

SATA_DT X_C_IRX_P4

AJ11

SATA_ITX_ C_DRX_N4

AG12

SATA_ITX_ C_DRX_P4 S ATA_ITX_DRX_P 4

AF12

SATA_DT X_C_IRX_N5

AH9

SATA_DT X_C_IRX_P5

AJ9

SATA_ITX_ C_DRX_N5

AE10

SATA_ITX_ C_DRX_P5 S ATA_ITX_DRX_P 5

AF10

CLK_PCIE _SATA#

AH18

CLK_PCIE _SATA

AJ18
AJ7

SATARBIA S

AH7

LPC_AD[0..3 ] 31,32

LPC_FRA ME# 31,32

LPC_DRQ0 # 32

GATEA20 31
H_A20M# 4

R212 0_0402 _5%R212 0_0402_ 5%

R223 24.9_04 02_1%R2 23 24.9_0402_1%

12

R214 56_0402 _5%R214 56_04 02_5%

1 2

H_PWR GOOD 5

H_IGNNE# 4

H_INIT# 4
H_INTR 4

KB_RST# 31

H_NMI 4
H_SMI# 4

H_STPCL K# 4

R220 54.9_0402 _1%R2 20 54.9_0402_1%

1 2

CLK_PCIE _SATA# 16
CLK_PCIE _SATA 16

1 2

H_DPRST P#H_DPRST P_R#

+1.05VS

12

C2340.0 1U_0402_16V7K C2340.01U _0402_16V7K

12

C2350.0 1U_0402_16V7K C2350.01U _0402_16V7K

12

C2360.0 1U_0402_16V7K C2360.01U _0402_16V7K

12

C2380.0 1U_0402_16V7K C2380.01U _0402_16V7K

12

10mils width less than 500mils

H_DPRST P# 5,8,40
H_DPSLP # 5

1

GATEA20

KB_RST#

H_DPRST P#

H_DPSLP #

+1.05VS

12

R213

R213
56_0402_5%

56_0402_5%

10K_0402_5 %

10K_0402_5 %

10K_0402_5 %

10K_0402_5 %

R202

R202

R204

R204

R208

56_0402_5%

56_0402_5%

R210

56_0402_5%

56_0402_5%

H_FERR# 4

+3VS

12

12

+1.05VS

@R208

@

12

@R210

@

12

R220 need to pla ce within 2" of ICH9M

R217 must be pla ce within 2" of R220 w/o stub.

R217

R217
56_0402_5%

56_0402_5%

H_THERM TRIP#

SATA_ITX_ DRX_N4

SATA_ITX_ DRX_N5

H_THERM TRIP# 4,8

E-SATA

SATA_DT X_C_IRX_N4 23
SATA_DT X_C_IRX_P4 23
SATA_ITX_ DRX_N4 23
SATA_ITX_ DRX_P4 23

SSD PORT2

SATA_DT X_C_IRX_N5 29
SATA_DT X_C_IRX_P5 29
SATA_ITX_ DRX_N5 29
SATA_ITX_ DRX_P5 29

B B

HDA_SDO UT_R

A A

5

4

Need check

+3VS

R224

R224
1K_0402_5%

1K_0402_5%

@

@

1 2

XOR Chain Entrance Strap

HDA_SDOUTICH_TP3 Description

0

0

1

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

RSVD

0

Enter XOR Chain

1

Normal Operation

0

Set PCIE port config bit 1

11

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

SATA PORT LIST

DEVICEPORT

HDD

0
1

Mini-Card SSD PORT1
E-SATA

4
5

Mini-Card SSD PORT2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

ICH9M(2/4)-LAN,IDELPC,RTC

ICH9M(2/4)-LAN,IDELPC,RTC

ICH9M(2/4)-LAN,IDELPC,RTC

KIUE0_LA-5191P

1

1.0

1.0

20 43Wednesday, June 24, 200 9

20 43Wednesday, June 24, 200 9

20 43Wednesday, June 24, 200 9

1.0

5

4

3

2

1

+3VALW

+3VALW

12

D D

H_STP_PCI#16
H_STP_CPU#16

VGATE8,40

C C

CLK_ENABLE#40

B B

EC_RSMRST#31

@

@

R280

R280

2.2K_0402_5%

2.2K_0402_5%

1 2

USB PORT LIST

DEVICEPORT

RIGHT USB0

1

CMOS

2

3G

3

A A

4

LEFT USB/ESATA

5

BT

6
7

CARD READER
WIRELESS

8

Finger Print

9

NEW CARD

10
11

RIGHT USB CONN

12

R234

R234
R232

R232

10K_0402_5%

10K_0402_5%

10K_0402_5%

10K_0402_5%

+3VS

12

@

@

@

R237

R237
10K_0402_5%

10K_0402_5%

1 2

2

G

G

@

R241

R241
10K_0402_5%

10K_0402_5%

VGATE

EVT0319

+3VS

Reverse for VRMPWRGD

@

@

R283

R283
330_0402_5%

330_0402_5%

1 2

R284 0_0402_5%@R284 0_0402_5%@

1 2

13

D

D

@

@

Q9

Q9
RHU002N06_SOT323

RHU002N06_SOT323

S

S

RSMRST circuit

R277

@R277

@

0_0402_5%

0_0402_5%

1 2

E

BAV99DW-7_SOT363

BAV99DW-7_SOT363

D13B

D13B

R281

R281

1 2

2.2K_0402_5%

2.2K_0402_5%

E

B

B

4

5

1

2

3

6

5

ICH_SMBCLK16,29

ICH_SMBDATA16,29

XDP_DBRESET#4

PM_BMBUSY#8

EC_LID_OUT#31

R247 0_0402_5%R247 0_0402_5%

1 2

ICH_PCIE_WAKE#29

R254 0_0402_5%R 254 0_0402_5%

1

2

1 2

C60

C60
1000P_0402_50V7K

1000P_0402_50V7K

R269 1K_0402_5%@R269 1K_0402_5%@

1 2

MCH_ICH_SYNC#8

C

C

EC_RSMRST#R

123

Q8

Q8
MMBT3906_SOT23-3

MMBT3906_SOT23-3

1 2

R279 4.7K_0402_5%R279 4.7K_0402_5%

D13A

D13A
BAV99DW-7_SOT363

BAV99DW-7_SOT363

PCIE PORT LIST

DEVICEPORT

1

NEW CARD
2
3

WLAN
4
5
6

LAN

PORT0 PORT1

UHCI#1
UHCI#2
UHCI#3
UHCI#4
UHCI#5
UHCI#6

PORT2 PORT3
PORT4 PORT5
PORT6 PORT7
PORT8 PORT9
PORT10 PORT11

EHCI#1

EHCI#2

EC_THERM#31

EX_CPPE#29

EC_SMI#31
EC_SCI#31

SATA_CLKREQ#16

SB_SPKR26

VRMPWRGD

SERIRQ31,32

+3VALW

12

R243 0_0402_5%R243 0_0402_5%

R229

R229

2.2K_0402_5%

2.2K_0402_5%

LINKALERT#
ME__EC_CLK1
ME__EC_DATA1

ICH_RI#

XDP_DBRESET#

PM_BMBUSY#

1 2

H_STP_PCI#
R_STP_CPU#

PCI_CLKRUN#

ICH_PCIE_WAKE#
SERIRQ
EC_THERM#

VRMPWRGD

T14T 14

OCP#

GPIO7
EC_SMI#
EC_SCI#
GPIO13
GPIO17
GPIO18
GPIO20
GPIO22
GPIO27

T16T 16

GPIO38
GPIO39
GPIO48
GPIO49
GPIO57

SB_SPKR
MCH_ICH_SYNC#

ICH_RSVD

T17T 17
T18T 18
T19T 19

12

R230

R230

2.2K_0402_5%

2.2K_0402_5%

LID_OUT#

SST_CTL

SATA_CLKREQ#

U9C

U9C

G16

SMBCLK

A13

SMBDATA

E17

LINKALERT#/GPIO60/CLGPIO4

C17

SMLINK0

B18

SMLINK1

F19

RI#

R4

SUS_STAT#/LPCPD#

G19

SYS_RESET#

M6

PMSYNC#/GPIO0

A17

SMBALERT#/GPIO11

A14

STP_PCI#

E19

STP_CPU#

L4

CLKRUN#

E20

WAKE#

M5

SERIRQ

AJ23

THRM#

D21

VRMPWRGD

A20

TP11

AG19

GPIO1

AH21

GPIO6

AG21

GPIO7

A21

GPIO8

C12

GPIO12

C21

GPIO13

AE18

GPIO17

K1

GPIO18

AF8

GPIO20

AJ22

SCLOCK/GPIO22

A9

GPIO27

D19

GPIO28

L1

SATACLKREQ#/GPIO35

AE19

SLOAD/GPIO38

AG22

SDATAOUT0/GPIO39

AF21

SDATAOUT1/GPIO48

AH24

GPIO49

A8

GPIO57/CLGPIO5

M7

SPKR

AJ24

MCH_SYNC#

B21

TP3

AH20

TP8

AJ20

TP9

AJ21

TP10

ICH9-M ES_FCBGA676

ICH9-M ES_FCBGA676

SMB

SMB

SYS / GPIOGPIOMISC

SYS / GPIOGPIOMISC

SATA

SATA

clocks

clocks

Power MGT

Power MGT

GPIO10/SUS_PWR_ACK

GPIO14/AC_PRESENT

Controller Link

Controller Link

Place closely pin B2 Place closely pin AC1

CLK_14M_ICHCLK_48M_ICH

12

R238

R238
10_0402_5%

10_0402_5%

@

@

1

C243

C243
10P_0402_50V8J

10P_0402_50V8J

@

@

2

RP1

RP1

45
36
27
18

10K_1206_8P4R_5%

10K_1206_8P4R_5%

RP2

RP2

45
36
27
18

10K_1206_8P4R_5%

10K_1206_8P4R_5%

RP3

RP3

45
36
27
18

10K_1206_8P4R_5%

10K_1206_8P4R_5%

USB_OC#6
USB_OC#1
USB_OC#2
USB_OC#4

USB_OC#5
USB_OC#7
USB_OC#9
USB_OC#0

USB_OC#8
USB_OC#3
USB_OC#10
USB_OC#11

4

12

@

@

R235

R235
10_0402_5%

10_0402_5%

1

@

@

C242

C242
10P_0402_50V8J

10P_0402_50V8J

2

+3VALW

SATA0GP/GPIO21
SATA1GP/GPIO19
SATA4GP/GPIO36
SATA5GP/GPIO37

GPIO

GPIO

SLP_S3#
SLP_S4#
SLP_S5#

S4_STATE#/GPIO26

DPRSLPVR/GPIO16

BATLOW#

PWRBTN#

LAN_RST#

RSMRST#

CK_PWRGD

CLPWROK

CL_CLK0
CL_CLK1

CL_DATA0
CL_DATA1

CL_VREF0
CL_VREF1

CL_RST0#
CL_RST1#

MEM_LED/GPIO24

WOL_EN/GPIO9

CLK14
CLK48

SUSCLK

PWROK

SLP_M#

+3VS

R231

R231

8.2K_0402_5%

AH23
AF19
AE21
AD20

H1
AF3

P1

C16
E16
G17

C10

G20

M2

B13

R3

D20

D22

R5

R6

B16

F24
B19

F22
C19

C25
A19

F21
D18

A16
C18
C11
C20

ICH_POK_EC31

8.2K_0402_5%

1 2

CLK_14M_ICH
CLK_48M_ICH

ICH_SUSCLK

SLP_S3#
SLP_S4#
SLP_S5#

S4_STATE#

ICH_POK

R250 499_0402_1%R250 499_0402_1%

ICH_LOW_BAT#

PBTN_OUT#

CK_PWRGD_R CK_PWRGD

M_PWROK

CL_VREF0_ICH
CL_VREF1_ICH

CL_RST#

GPIO14

WOL_EN

SPOK36,38

NEW CARD

WLAN

LAN

SPI not used, Left NC

CLK_14M_ICH 16
CLK_48M_ICH 16

T13T 13

SLP_S3# 31
SLP_S4# 31
SLP_S5# 31

1 2

CL_CLK1

CL_DATA1

SB_INT_FLASH_SEL 30

+3VALW

change from 100k to 10k ohm 5/8

PCIE_RXN129
PCIE_RXP129
PCIE_TXN129
PCIE_TXP129

PCIE_IRX_PTX_N624
PCIE_IRX_PTX_P624
PCIE_ITX_C_PRX_N624
PCIE_ITX_C_PRX_P624

SB_SPI_CS#119

Security Classification

Security Classification

Security Classification

3

DPRSLPVR

PBTN_OUT# 31

R258 0_0402_5%R 258 0_0402_5%

1 2

1 2

T15T 15

R259 0_0402_5%R 259 0_0402_5%

CL_CLK0 8

CL_DATA0 8

CL_RST# 8

D12 CH751H-40PT_SOD323-2

D12 CH751H-40PT_SOD323-2

2 1

12

R271

R271

VGATE

SPOK

PCIE_RXN329
PCIE_RXP329
PCIE_TXN329
PCIE_TXP329

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

10K_0402_5%@

10K_0402_5%@

1 2

R456 4.7K_0402_5%@R456 4.7K_0402_5%@

D27 C H751H-40PT_SOD323-2D27 CH 751H-40PT_SOD323-2

D28 C H751H-40PT_SOD323-2D28 CH 751H-40PT_SOD323-2

D35 C H751H-40PT_SOD323-2D35 CH 751H-40PT_SOD323-2

SPI strap pin

Issued Date

Issued Date

Issued Date

R272 0_0402_5%@R272 0_0402_5%@

C249 0.1U_0402_10V7KC249 0.1U_0402_10V7K
C250 0.1U_0402_10V7KC250 0.1U_0402_10V7K

C247 0.1U_0402_10V7KC247 0.1U_0402_10V7K
C248 0.1U_0402_10V7KC248 0.1U_0402_10V7K

C251 0.1U_0402_10V7KC251 0.1U_0402_10V7K
C252 0.1U_0402_10V7KC252 0.1U_0402_10V7K

R285 22.6_0402_1%R285 22.6_0402_1%

+3VALW

12

@

@

R242

R242
10K_0402_5%

10K_0402_5%

R245 100_0402_5%@R245 100_0402_5%@

1 2

DPRSLPVR 8,40

EC_RSMRST#REC_RSMRST#R

M_PWROK 8

VGATE

@

@

ACIN

12

ICH_POK

21

1 2

21

R436

R436

21

USB_OC#028

USB_OC#423

USB_OC#1128

1 2

Within 500 mils

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

M_PWROK

1

C244

C244

@

@

1000P_0402_50V7K

1000P_0402_50V7K

2

1 2

R256 10K_0402_5%R256 10K_0402_5%

1 2

CK_PWRGD 16

1

C245

C245

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C246

C246

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

ACIN 31,35

EVT 3/26

ICH_POK 8

+3VS

4.7K_0402_5%

4.7K_0402_5%

DVT 05/12 ICH_POK glitch

PCIE_RXN1
PCIE_RXP1
PCIE_C_TXN1
PCIE_C_TXP1

PCIE_RXN3
PCIE_RXP3
PCIE_C_TXN3
PCIE_C_TXP3

PCIE_IRX_PTX_N6
PCIE_IRX_PTX_P6
PCIE_ITX_PRX_N6
PCIE_ITX_PRX_P6

SB_SPI_CS#1

USB_OC#0
USB_OC#1
USB_OC#2
USB_OC#3
USB_OC#4
USB_OC#5
USB_OC#6
USB_OC#7
USB_OC#8
USB_OC#9
USB_OC#10
USB_OC#11

USBRBIAS

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

M_PWROK

R248

R248

10K_0402_5%@

10K_0402_5%@

5/15 reserve,close D28

VGATEICH_POK_EC

U9D

U9D

N29

PERN1

N28

PERP1

P27

PETN1

P26

PETP1

L29

PERN2

L28

PERP2

M27

PETN2

M26

PETP2

J29

PERN3

J28

PERP3

K27

PETN3

K26

PETP3

G29

PERN4

G28

PERP4

H27

PETN4

H26

PETP4

E29

PERN5

E28

PERP5

F27

PETN5

F26

PETP5

C29

PERN6/GLAN_RXN

C28

PERP6/GLAN_RXP

D27

PETN6/GLAN_TXN

D26

PETP6/GLAN_TXP

D23

SPI_CLK

D24

SPI_CS0#

F23

SPI_CS1#GPIO58/CLGPIO6

D25

SPI_MOSI

E23

SPI_MISO

N4

OC0#/GPIO59

N5

OC1#/GPIO40

N6

OC2#/GPIO41

P6

OC3#/GPIO42

M1

OC4#/GPIO43

N2

OC5#/GPIO29

M4

OC6#/GPIO30

M3

OC7#/GPIO31

N3

OC8#/GPIO44

N1

OC9#/GPIO45

P5

OC10#/GPIO46

P3

OC11#/GPIO47

AG2

USBRBIAS

AG1

USBRBIAS#

ICH9-M ES_FCBGA676

ICH9-M ES_FCBGA676

2

R260 3.24K_0402_1%R260 3. 24K_0402_1%

1 2

12

R262

R262
453_0402_1%

453_0402_1%

R266 3.24K_0402_1%R266 3. 24K_0402_1%

1 2

12

R270

R270
453_0402_1%

453_0402_1%

G3 state ICH_POK

13

D

D

SUSP

S

S

SPI

SPI

2

G

G

Q39

Q39
2N7002_SOT23

2N7002_SOT23

PCI - Express

PCI - Express

USB

USB

@

@

DMI0RXN
DMI0RXP
DMI0TXN
DMI0TXP

DMI1RXN
DMI1RXP
DMI1TXN
DMI1TXP

DMI2RXN
DMI2RXP
DMI2TXN
DMI2TXP

DMI3RXN
DMI3RXP
DMI3TXN
DMI3TXP

DMI_CLKN
DMI_CLKP

DMI_ZCOMP

Direct Media I nterface

Direct Media I nterface

DMI_IRCOMP

USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N

USBP9P
USBP10N
USBP10P
USBP11N
USBP11P

SUSP 34,39

+3VS

R225 10K_0402_5%R225 10K_0402_5%

1 2

R226 8.2K_0402_5%R226 8.2K_0402_5%

1 2

R227 10K_0402_5%@R227 10K_0402_5%@

1 2

R228 8.2K_0402_5%@R228 8.2K_0402_5%@

1 2

R233 10K_0402_5%R233 10K_0402_5%

1 2

R239 8.2K_0402_5%@R239 8.2K_0402_5%@

1 2

R236 10K_0402_5%@R236 10K_0402_5%@

1 2

R240 10K_0402_5%R240 10K_0402_5%

1 2

+3VALW

R244 10K_0402_5%R244 10K_0402_5%

1 2

R246 10K_0402_5%@R246 10K_0402_5%@

1 2

R249 10K_0402_5%R249 10K_0402_5%

1 2

R251 10K_0402_5%R251 10K_0402_5%

1 2

R252 1K_0402_5%R252 1K_0402_5%

1 2

R253 8.2K_0402_5%R253 8.2K_0402_5%

1 2

R255 10K_0402_5%R255 10K_0402_5%

1 2

R257 10K_0402_5%R257 10K_0402_5%

+3VS

+3VALW

DMI_RXN0

V27

DMI_RXP0

V26

DMI_TXN0

U29

DMI_TXP0

U28

DMI_RXN1

Y27

DMI_RXP1

Y26

DMI_TXN1

W29

DMI_TXP1

W28

DMI_RXN2

AB27

DMI_RXP2

AB26

DMI_TXN2

AA29

DMI_TXP2

AA28

DMI_RXN3

AD27

DMI_RXP3

AD26

DMI_TXN3

AC29

DMI_TXP3

AC28

CLK_PCIE_ICH#

T26

CLK_PCIE_ICH

T25

AF29
AF28

USB20_N0

AC5

USB20_P0

AC4

USB20_N1

AD3

USB20_P1

AD2

USB20_N2

AC1

USB20_P2

AC2

USB20_N3

AA5

USB20_P3

AA4

USB20_N4

AB2

USB20_P4

AB3

USB20_N5

AA1

USB20_P5

AA2

USB20_N6

W5

USB20_P6

W4

USB20_N7

Y3

USB20_P7

Y2

USB20_N8

W1

USB20_P8

W2

USB20_N9

V2

USB20_P9

V3

USB20_N10

U5

USB20_P10

U4

USB20_N11

U1

USB20_P11

U2

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Date: Sheet of

Date: Sheet of

Date: Sheet of

1 2

+3VS

R261 10K_0402_5%R261 10K_0402_5%

1 2

R263 10K_0402_5%R263 10K_0402_5%

1 2

R264 10K_0402_5%@R264 10K_0402_5%@

1 2

R265 10K_0402_5%@R265 10K_0402_5%@

1 2

R267 10K_0402_5%R267 10K_0402_5%

1 2

R268 10K_0402_5%R268 10K_0402_5%

1 2

+3VS

R273 10K_0402_5%@R273 10K_0402_5%@

1 2

R274 100K_0402_5%@R274 100K_0402_5%@

1 2

R275 100K_0402_5%@R275 100K_0402_5%@

1 2

R276 1K_0402_5%@R276 1K_0402_5%@

1 2

DMI_RXN0 8

DMI_RXP0 8
DMI_TXN0 8
DMI_TXP0 8

DMI_RXN1 8

DMI_RXP1 8
DMI_TXN1 8
DMI_TXP1 8

DMI_RXN2 8

DMI_RXP2 8
DMI_TXN2 8
DMI_TXP2 8

DMI_RXN3 8

DMI_RXP3 8
DMI_TXN3 8
DMI_TXP3 8

CLK_PCIE_ICH# 16

DMI_IRCOMP

CLK_PCIE_ICH 16

R282 24.9_0402_1%R282 24.9_0402_1%

1 2

USB20_N0 28
USB20_P0 28

USB20_N2 17
USB20_P2 17
USB20_N3 29
USB20_P3 29
USB20_N4 23
USB20_P4 23

USB20_N6 28
USB20_P6 28
USB20_N7 25
USB20_P7 25
USB20_N8 29
USB20_P8 29
USB20_N9 33
USB20_P9 33
USB20_N10 29
USB20_P10 29
USB20_N11 28
USB20_P11 28

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

ICH9M(3/4)-USB,GPIO,PCIE

ICH9M(3/4)-USB,GPIO,PCIE

ICH9M(3/4)-USB,GPIO,PCIE

KIUE0_LA-5191P

Within 500 mils

RIGHT USB

CMOS
3G Card
LEFT USB/ESATA

BT
Card Reader
WLAN
Finger Printer
New Card

RIGHT USB CONN

1

SERIRQ

PCI_CLKRUN#

GPIO38

EC_THERM#

OCP#

PM_BMBUSY#

GPIO39

GPIO48

LINKALERT#

CL_RST#

XDP_DBRESET#

ICH_RI#

ICH_PCIE_WAKE#

ICH_LOW_BAT#

LID_OUT#

WOL_EN

GPIO7

GPIO13

GPIO17

GPIO18

GPIO20

GPIO22

SB_SPKR

GPIO57

DPRSLPVR

ICH_RSVD

21 43Wednesday, June 24, 2009

21 43Wednesday, June 24, 2009

21 43Wednesday, June 24, 2009

+1.5VS

1.0

1.0

1.0

5

+RTCVCC

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

D D

R286

R286

100_0402_5 %

100_0402_5 %

R288

R288

100_0402_5 %

100_0402_5 %

C C

R289

R289

1 2

+1.5VS

0_0805_5%

220UF_D

+1.5VS

B B

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

A A

+1.5VS

0_0805_5%

220U_D2_4 VM

220U_D2_4 VM

L15 M BK1608301YZF_2PL15 M BK1608301YZF_2P

1 2

+1.5VS

C286

C286

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

+3VS

C289

C289

L17 MBK160830 1YZF_2PL17 M BK1608301YZF_2P

1 2

1

2

1

1

C255

C254

C254

+5VS +3VS

C255

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

2

21

D14

D14
CH751H-40 PT_SOD323-2

CH751H-40 PT_SOD323-2

ICH_V5RE F_RUN

1

C259

C259

1U_0603_1 0V4Z

1U_0603_1 0V4Z

2

+3VALW+5VA LW

21

D15

D15
CH751H-40 PT_SOD323-2

CH751H-40 PT_SOD323-2

ICH_V5RE F_SUS

1

C265

C265

1U_0603_1 0V4Z

1U_0603_1 0V4Z

2

40 mils

1

+

+

C269

C269

C268

C268

2

10U_0805_ 10V4Z

10U_0805_ 10V4Z

1

C278

C278

2

1U_0603_10V4Z

1U_0603_10V4Z

+1.5VS

1

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

L16 MBK160830 1YZF_2PL16 M BK1608301YZF_2P

+1.5VS

(10UF*1, 2.2UF*1)

VCCGLAN 1_5_ICH

1

C292

C292

4.7U_0805_1 0V4Z

4.7U_0805_1 0V4Z

2

5

20 mils

20 mils

10U_0805_ 10V4Z

10U_0805_ 10V4Z

1

C270

C270

2

1

C279

C279

2

10U_0805_10V4Z

10U_0805_10V4Z

C287

C287

1 2

1

2

C290

C290

20 mils

ICH_V5RE F_RUN

ICH_V5RE F_SUS

1.5_ICH_COR E

1

1

C271

C271

2

2

2.2U_0603_6 .3V4Z

2.2U_0603_6 .3V4Z

VCCSAT APLL

+1.5VS

1

C277

C277

1U_0603_1 0V4Z

1U_0603_1 0V4Z

1U_0603_1 0V4Z

1U_0603_1 0V4Z

+1.5VS

1U_0603_1 0V4Z

1U_0603_1 0V4Z

+1.5VS

C280

C280

C284

C284

2

1

2

1

2

close to AC7

VCC_LAN 1_05_INT_ICH_1

T22T22

VCC_LAN 1_05_INT_ICH_2 VCCCL1_ 05_ICH

T23T23

VCCGLAN PLL_ICH

1

1

2.2U_0603_6 .3V4Z

2.2U_0603_6 .3V4Z

C291

C291

2

2

10U_0805_ 10V4Z

10U_0805_ 10V4Z

+3VS

4

U9F

U9F

A23

VCCRTC

A6

V5REF

AE1

V5REF_S US

AA24

VCC1_5_B [01]

AA25

VCC1_5_B [02]

AB24

VCC1_5_B [03]

AB25

VCC1_5_B [04]

AC24

VCC1_5_B [05]

AC25

VCC1_5_B [06]

AD24

VCC1_5_B [07]

AD25

VCC1_5_B [08]

AE25

VCC1_5_B [09]

AE26

VCC1_5_B [10]

AE27

VCC1_5_B [11]

AE28

VCC1_5_B [12]

AE29

VCC1_5_B [13]

F25

VCC1_5_B [14]

G25

VCC1_5_B [15]

H24

VCC1_5_B [16]

H25

VCC1_5_B [17]

J24

VCC1_5_B [18]

J25

VCC1_5_B [19]

K24

VCC1_5_B [20]

K25

VCC1_5_B [21]

L23

VCC1_5_B [22]

L24

VCC1_5_B [23]

L25

VCC1_5_B [24]

M24

VCC1_5_B [25]

M25

VCC1_5_B [26]

N23

VCC1_5_B [27]

N24

VCC1_5_B [28]

N25

VCC1_5_B [29]

P24

VCC1_5_B [30]

P25

VCC1_5_B [31]

R24

VCC1_5_B [32]

R25

VCC1_5_B [33]

R26

VCC1_5_B [34]

R27

VCC1_5_B [35]

T24

VCC1_5_B [36]

T27

VCC1_5_B [37]

T28

VCC1_5_B [38]

T29

VCC1_5_B [39]

U24

VCC1_5_B [40]

U25

VCC1_5_B [41]

V24

VCC1_5_B [42]

V25

VCC1_5_B [43]

U23

VCC1_5_B [44]

W24

VCC1_5_B [45]

W25

VCC1_5_B [46]

K23

VCC1_5_B [47]

Y24

VCC1_5_B [48]

Y25

VCC1_5_B [49]

AJ19

VCCSAT APLL

AC16

VCC1_5_A [01]

AD15

VCC1_5_A [02]

AD16

VCC1_5_A [03]

AE15

VCC1_5_A [04]

AF15

VCC1_5_A [05]

AG15

VCC1_5_A [06]

AH15

VCC1_5_A [07]

AJ15

VCC1_5_A [08]

AC11

VCC1_5_A [09]

AD11

VCC1_5_A [10]

AE11

VCC1_5_A [11]

AF11

VCC1_5_A [12]

AG10

VCC1_5_A [13]

AG11

VCC1_5_A [14]

AH10

VCC1_5_A [15]

AJ10

VCC1_5_A [16]

AC9

VCC1_5_A [17]

AC18

VCC1_5_A [18]

AC19

VCC1_5_A [19]

AC21

VCC1_5_A [20]

G10

VCC1_5_A [21]

G9

VCC1_5_A [22]

AC12

VCC1_5_A [23]

AC13

VCC1_5_A [24]

AC14

VCC1_5_A [25]

AJ5

VCCUSB PLL

AA7

VCC1_5_A [26]

AB6

VCC1_5_A [27]

AB7

VCC1_5_A [28]

AC6

VCC1_5_A [29]

AC7

VCC1_5_A [30]

A10

VCCLAN1 _05[1]

A11

VCCLAN1 _05[2]

A12

VCCLAN3 _3[1]

B12

VCCLAN3 _3[2]

A27

VCCGLAN PLL

D28

VCCGLAN 1_5[1]

D29

VCCGLAN 1_5[2]

E26

VCCGLAN 1_5[3]

E27

VCCGLAN 1_5[4]

A26

VCCGLAN 3_3

ICH9-M ES_ FCBGA676

ICH9-M ES_ FCBGA676

4

VCCA3GP

VCCA3GP

ARX

ATX

ATXARX

USB CORE

USB CORE

GLAN POWER

GLAN POWER

CORE

CORE

VCCP_CORE

VCCP_CORE

PCI

PCI

VCCSUS HDA

VCCSUS 1_05[1]
VCCSUS 1_05[2]

VCCSUS 1_5[1]

VCCSUS 1_5[2]

VCCSUS 3_3[01]
VCCSUS 3_3[02]
VCCSUS 3_3[03]
VCCSUS 3_3[04]

VCCPSUS

VCCPSUS

VCCSUS 3_3[05]

VCCSUS 3_3[06]
VCCSUS 3_3[07]
VCCSUS 3_3[08]
VCCSUS 3_3[09]
VCCSUS 3_3[10]
VCCSUS 3_3[11]
VCCSUS 3_3[12]
VCCSUS 3_3[13]
VCCSUS 3_3[14]
VCCSUS 3_3[15]
VCCSUS 3_3[16]

VCCPUSB

VCCPUSB

VCCSUS 3_3[17]
VCCSUS 3_3[18]
VCCSUS 3_3[19]
VCCSUS 3_3[20]

VCCCL3_ 3[1]
VCCCL3_ 3[2]

VCC1_05[0 1]
VCC1_05[0 2]
VCC1_05[0 3]
VCC1_05[0 4]
VCC1_05[0 5]
VCC1_05[0 6]
VCC1_05[0 7]
VCC1_05[0 8]
VCC1_05[0 9]
VCC1_05[1 0]
VCC1_05[1 1]
VCC1_05[1 2]
VCC1_05[1 3]
VCC1_05[1 4]
VCC1_05[1 5]
VCC1_05[1 6]
VCC1_05[1 7]
VCC1_05[1 8]
VCC1_05[1 9]
VCC1_05[2 0]
VCC1_05[2 1]
VCC1_05[2 2]
VCC1_05[2 3]
VCC1_05[2 4]
VCC1_05[2 5]
VCC1_05[2 6]

VCCDMIP LL

VCC_DM I[1]
VCC_DM I[2]

V_CPU_IO[1]
V_CPU_IO[2]

VCC3_3[01 ]
VCC3_3[02 ]
VCC3_3[07 ]

VCC3_3[03 ]
VCC3_3[04 ]
VCC3_3[05 ]
VCC3_3[06 ]

VCC3_3[08 ]
VCC3_3[09 ]
VCC3_3[10 ]
VCC3_3[11 ]
VCC3_3[12 ]
VCC3_3[13 ]
VCC3_3[14 ]

VCCHDA

VCCCL1_ 05

VCCCL1_ 5

1

C253

C253

2

+3VS

1

2

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

+3VALW

+3VS

3

1

C256 0.1U_040 2_16V4ZC2 56 0.1U_ 0402_16V4Z

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

0.01U_0402_ 16V7K

0.01U_0402_ 16V7K

1

C258 10U_08 05_6.3V6MC2 58 10U _0805_6.3V6M

C257

C257

2

C260 10U_0 805_10V4ZC260 10U_0805_ 10V4Z

C267

C267

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

1

C272

C272

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

T20T20

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

T21T21

R293

R293
0_0402_5%

0_0402_5%

+3VALW

1

1

C282

C282

C283

C283

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

2

1

C285

C285

4.7U_0603_6 .3V6K

4.7U_0603_6 .3V6K

2

T24T24

1

C288

C288
1U_0603_1 0V4Z@

1U_0603_1 0V4Z@

2

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

3

L14

L14

1 2

MBK16083 01YZF_2P

MBK16083 01YZF_2P

1

2

+1.05VS

1

2

+3VS

1

C266

C266

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

1

C276

C276

2

12

1

(SATA)

2

1

C273

C273

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

VCCSUS 1_5_ICH_R

1

C281

C281

4.7U_0603_6 .3V6M

4.7U_0603_6 .3V6M

2

Compal Secret Data

Compal Secret Data

Compal Secret Data

+1.5VS

+3VS

(DMI)

C261

C261

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

+3VS

VCCHDA

1

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z
C275

C275

2

Deciphered Date

Deciphered Date

Deciphered Date

1

2

+1.05VS

A15
B15
C15
D15
E15
F15
L11
L12
L14
L16
L17
L18
M11
M18
P11
P18
T11
T18
U11
U18
V11
V12
V14
V16
V17
V18

R29

W23
Y23

AB23
AC23

AG29
AJ6
AC10

AD19
AF20
AG24
AC20

B9
F9
G3
G6
J2
J7
K7

AJ4

AJ3

AC8
F17

VCCSUS 1_5_ICH_1

AD8

VCCSUS 1_5_ICH_2

F18

A18
D16
D17
E22

AF1

T1
T2
T3
T4
T5
T6
U6
U7
V6
V7
W6
W7
Y6
Y7
T7

G22
G23

A24
B24

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

+1.05VS

4.7U_0603_6.3V6M

4.7U_0603_6.3V6M

C262

C262

1

2

C274

C274

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

0_0402_5%

0_0402_5%

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

2

R290

R290

0_0402_5%

0_0402_5%

R291

R291

2

+1.5VS

+1.5VS

1

U9E

U9E

AA26

VSS[001]

AA27

VSS[002]

AA3

VSS[003]

AA6

VSS[004]

AB1

VSS[005]

AA23

VSS[006]

AB28

VSS[007]

AB29

VSS[008]

AB4

VSS[009]

AB5

VSS[010]

AC17

VSS[011]

AC26

VSS[012]

AC27

VSS[013]

AC3

VSS[014]

AD1

VSS[015]

AD10

VSS[016]

AD12

VSS[017]

AD13

VSS[018]

AD14

VSS[019]

AD17

VSS[020]

AD18

VSS[021]

AD21

VSS[022]

AD28

VSS[023]

AD29

VSS[024]

AD4

VSS[025]

AD5

VSS[026]

AD6

VSS[027]

AD7

VSS[028]

AD9

VSS[029]

AE12

VSS[030]

AE13

VSS[031]

AE14

VSS[032]

AE16

VSS[033]

AE17

VSS[034]

AE2

VSS[035]

0.1U_0402_16V4Z

0.1U_0402_16V4Z

C264

C264

C263

C263

1

2

1 2

@

@

1 2

AE20

VSS[036]

AE24

VSS[037]

AE3

VSS[038]

AE4

VSS[039]

AE6

VSS[040]

AE9

VSS[041]

AF13

VSS[042]

AF16

VSS[043]

AF18

VSS[044]

AF22

VSS[045]

AH26

VSS[046]

AF26

VSS[047]

AF27

VSS[048]

AF5

VSS[049]

AF7

VSS[050]

AF9

VSS[051]

AG13

VSS[052]

AG16

VSS[053]

AG18

VSS[054]

AG20

VSS[055]

AG23

VSS[056]

AG3

VSS[057]

AG6

VSS[058]

AG9

VSS[059]

AH12

VSS[060]

AH14

VSS[061]

AH17

VSS[062]

AH19

VSS[063]

AH2

VSS[064]

AH22

VSS[065]

AH25

VSS[066]

AH28

VSS[067]

AH5

VSS[068]

AH8

VSS[069]

AJ12

VSS[070]

AJ14

VSS[071]

AJ17

VSS[072]

AJ8

VSS[073]

B11

VSS[074]

B14

VSS[075]

B17

VSS[076]

B2

VSS[077]

B20

VSS[078]

B23

VSS[079]

B5

VSS[080]

B8

VSS[081]

C26

VSS[082]

C27

VSS[083]

E11

VSS[084]

E14

VSS[085]

E18

VSS[086]

E2

VSS[087]

E21

VSS[088]

E24

VSS[089]

E5

VSS[090]

E8

VSS[091]

F16

VSS[092]

F28

VSS[093]

F29

VSS[094]

G12

VSS[095]

G14

VSS[096]

G18

VSS[097]

G21

VSS[098]

G24

VSS[099]

G26

VSS[100]

G27

VSS[101]

G8

VSS[102]

H2

VSS[103]

H23

VSS[104]

H28

VSS[105]

H29

VSS[106]

ICH9-M ES_ FCBGA676

ICH9-M ES_ FCBGA676

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet

Compal Electronics, Inc.

ICH9M(4/4)-POWER&GND

ICH9M(4/4)-POWER&GND

ICH9M(4/4)-POWER&GND

KIUE0_LA-5191P

VSS_NCT F[01]
VSS_NCT F[02]
VSS_NCT F[03]
VSS_NCT F[04]
VSS_NCT F[05]
VSS_NCT F[06]
VSS_NCT F[07]
VSS_NCT F[08]
VSS_NCT F[09]
VSS_NCT F[10]
VSS_NCT F[11]
VSS_NCT F[12]

VSS[107]
VSS[108]
VSS[109]
VSS[110]
VSS[111]
VSS[112]
VSS[113]
VSS[114]
VSS[115]
VSS[116]
VSS[117]
VSS[118]
VSS[119]
VSS[120]
VSS[121]
VSS[122]
VSS[123]
VSS[124]
VSS[125]
VSS[126]
VSS[127]
VSS[128]
VSS[129]
VSS[130]
VSS[131]
VSS[132]
VSS[133]
VSS[134]
VSS[135]
VSS[136]
VSS[137]
VSS[138]
VSS[139]
VSS[140]
VSS[141]
VSS[142]
VSS[143]
VSS[144]
VSS[145]
VSS[146]
VSS[147]
VSS[148]
VSS[149]
VSS[150]
VSS[151]
VSS[152]
VSS[153]
VSS[154]
VSS[155]
VSS[156]
VSS[157]
VSS[158]
VSS[159]
VSS[160]
VSS[161]
VSS[162]
VSS[163]
VSS[164]
VSS[165]
VSS[166]
VSS[167]
VSS[168]
VSS[169]
VSS[170]
VSS[171]
VSS[172]
VSS[173]
VSS[174]
VSS[175]
VSS[176]
VSS[177]
VSS[178]
VSS[179]
VSS[180]
VSS[181]
VSS[182]
VSS[183]
VSS[184]
VSS[185]
VSS[186]
VSS[187]
VSS[188]
VSS[189]
VSS[190]
VSS[191]
VSS[192]
VSS[193]
VSS[194]
VSS[195]
VSS[196]
VSS[197]
VSS[198]

1

H5
J23
J26
J27
AC22
K28
K29
L13
L15
L2
L26
L27
L5
L7
M12
M13
M14
M15
M16
M17
M23
M28
M29
N11
N12
N13
N14
N15
N16
N17
N18
N26
N27
P12
P13
P14
P15
P16
P17
P2
P23
P28
P29
P4
P7
R11
R12
R13
R14
R15
R16
R17
R18
R28
T12
T13
T14
T15
T16
T17
T23
B26
U12
U13
U14
U15
U16
U17
AD23
U26
U27
U3
V1
V13
V15
V23
V28
V29
V4
V5
W26
W27
W3
Y1
Y28
Y29
Y4
Y5
AG28
AH6
AF2
B25

A1
A2
A28
A29
AH1
AH29
AJ1
AJ2
AJ28
AJ29
B1
B29

1.0

1.0

1.0

of

22 43Wednesday, June 24, 200 9

22 43Wednesday, June 24, 200 9

22 43Wednesday, June 24, 200 9

A

B

C

D

E

F

G

H

SATA HDD Conn.

JSATA1

JSATA1

1

SATA_ITX_ DRX_P020

1 1

2 2

SATA_ITX_ DRX_N020

SATA_DT X_C_IRX_N020
SATA_DT X_C_IRX_P020

SATA_ITX_ DRX_P0
SATA_ITX_ DRX_N0

SATA_DT X_C_IRX_N0
SATA_DT X_C_IRX_P0

C295 0.01U _0402_16V7KC295 0.01U_0402_ 16V7K

1 2

C300 0.01U _0402_16V7KC300 0.01U_0402_ 16V7K

1 2

+3VS

+5VS

SATA_DT X_IRX_N0
SATA_DT X_IRX_P0

1 2

R86

R86

0_0603_5%

0_0603_5%

R90

R90

1 2

0_0805_5%

0_0805_5%

EVT0319
PVT0618

+HDD_3V S

+HDD_5V S

GND

2

A+

3

A-

4

GND

5

B-

6

B+

7

GND

8

V33

9

V33

10

V33

11

GND

12

GND

13

GND

14

V5

15

V5

16

V5

17

GND

18

Reserved

19

GND

20

V12

21

V12

22

V12

SUYIN_127072 FR022G210ZR_RV

SUYIN_127072 FR022G210ZR_RV

ME@

ME@

+HDD_5V S +HDD_3V S

1

C296

C296
1000P_0402 _50V7K

1000P_0402 _50V7K

2

1

C297

C297

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

1

C298

C298
1U_0603_1 0V4Z

1U_0603_1 0V4Z

2

1

C293

C293
10U_0805_ 10V4Z

10U_0805_ 10V4Z

2

1

C299

C299
10U_0805_ 10V4Z

10U_0805_ 10V4Z

2

1

C294

C294

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

PVT0618

+USB_VC CB

+USB_VC CB

1

+

+

C302

C302

150U_D2_6 .3VM

150U_D2_6 .3VM

2

3 3

SATA_ITX_ DRX_P420
SATA_ITX_ DRX_N420 USB_OC#4 21

SATA_DT X_C_IRX_N420
SATA_DT X_C_IRX_P420

4 4

A

SATA_DT X_C_IRX_P4

B

W=80mils

1

C301

C301

470P_0402_ 50V7K

470P_0402_ 50V7K

2

USB20_N 421
USB20_P421

SATA_ITX_ DRX_P4
SATA_ITX_ DRX_N4

SATA_DT X_IRX_N4SATA_DT X_C_IRX_N4

12

C3030.01U _0402_16V7K C3030.01U_0 402_16V7K

SATA_DT X_IRX_P4

12

C3040.01U _0402_16V7K C3040.01U_0 402_16V7K

C

ESATA and USB Conn.

JESATA

JESATA

USB

USB

1

USB20_N 4
USB20_P4

VBUS

2

D-

3

D+

4

GND

5

GND

6

A+

ESATA

ESATA

7

A-

8

GND

9

B-

10

B+

11

GND

12

GND

13

GND

14

GND

15

GND

TYCO_1759576-1

TYCO_1759576-1

ME@

ME@

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

D

A+ = RXP
A- = RXN

B- = TXN
B+ = TXP

+5VALW

U10

U10

1

F

GND

2

IN

3

IN

4

EN

G547F1P11U _SO8

G547F1P11U _SO8

C305 0.1U_0402_16V4 ZC305 0.1U_0402_16V4 Z

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

E

12

USB_ON2 8,31

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

USB_ON

3/26 Remove ESD Diode ,by Andy YL

+USB_VC CB

8

OUT

7

OUT

6

OUT

5

OC#

1

C306

C306

1000P_0402 _50V7K@

1000P_0402 _50V7K@

2

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

B

B

B

Date: Sheet of

Date: Sheet of

Date: Sheet

Compal Electronics, Inc.

HDD & ODD Connector

HDD & ODD Connector

HDD & ODD Connector

KIUE0_LA-5191P

G

1.0

1.0

1.0

of

23 43Wednesday, June 24, 200 9

23 43Wednesday, June 24, 200 9

23 43Wednesday, June 24, 200 9

H

5

PCIE_IRX_PTX_P621

PCIE_IRX_PTX_N621

PCIE_ITX_C_PRX_P621

D D

C C

B B

EN_WOL#31

A A

EVT0319

+3VS

DVT 0518

R173 100K_0402_5%R173 100K_0402_5%

C311 0.1U_0402_16V4ZC311 0.1U_0402_16V4Z

1 2

C312 0.1U_0402_16V4ZC312 0.1U_0402_16V4Z

1 2

C314 0.1U_0402_16V4ZC314 0.1U_0402_16V4Z

1 2

C317 0.1U_0402_16V4ZC317 0.1U_0402_16V4Z

1 2

+3VALW

EN_WOL#

1 2

DVT0512 RC Soft Start
PVT0618

1 2

R304

R304

10K_0402_5%

10K_0402_5%

PCIE_ITX_C_PRX_N621

LAN_CLKREQB

1K_0402_1%

1K_0402_1%

15K_0402_5%

15K_0402_5%

27P_0402_50V8J

27P_0402_50V8J

EVT0324 delete pull +LAN_DVDD12 ,it is useless part

EVT0324 Change to PMOS for BOM cost and pwr saving

L9

@L9

@

1 2

MBK3216260YZF_2P

MBK3216260YZF_2P

S

S

D

D

13

G

G

Q24

Q24

2

SI2301BDS-T1-E3_SOT23-3

SI2301BDS-T1-E3_SOT23-3

1

C325

C325

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

C307 0.1U_0402_16V7KC307 0.1U_0402_16V7K

C308 0.1U_0402_16V7KC308 0.1U_0402_16V7K

+LAN_DVDD12

+3VS

12

RL6

RL6

ISOLATEB

RL7

RL7

25MHz_20pF_6X25000017

25MHz_20pF_6X25000017

1

CL17

CL17

2

+3V_LAN

1 2

RL2 100K_0402_5%

RL2 100K_0402_5%

@

@

3VLANOUT

4

UL1

MCT1
MX1+

MX1-

MCT2
MX2+

MX2-

MCT3
MX3+

MX3-

MCT4
MX4+

MX4-

24
23
22

21
20
19

18
17
16

15
14
13

UL1

20

HSOP

21

HSON

15

HSIP

16

HSIN

25

CLKREQB

17

REFCLK_P

18

REFCLK_N

27

PERSTB

48

VCTRL12A/SROUT12

4

NC/FB12

43

NC/ENSWREG

46

RSET

26

LANWAKEB

28

ISOLATEB

41

CKTAL1

42

CKTAL2

45

VCTRL12D/VDDSR

7

GND

14

GND

31

GND

47

GND

RTL8111DL-GR_LQFP48_7X7

RTL8111DL-GR_LQFP48_7X7

RJ45_MIDI3+LAN_MDI3+
RJ45_MIDI3-

MCT2
RJ45_MIDI2+
RJ45_MIDI2-

MCT1
RJ45_MIDI1+
RJ45_MIDI1-

MCT0
RJ45_MIDI0+

2

C322

C322

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

PCIE_IRX_C_PTX_P6

PCIE_IRX_C_PTX_N6

LAN_CLKREQ#16

CLK_PCIE_LAN16

CLK_PCIE_LAN#16

PLT_RST#8,19,29

LAN_WAKE#31

YL1

YL1

LAN_X2LAN_X1

12

CL18

CL18

27P_0402_50V8J

27P_0402_50V8J

EVT0319

LAN_WAKE#

LAN_MDI3-

LAN_MDI2+

LAN_MDI2-

LAN_MDI1+

LAN_MDI1-

LAN_MDI0+
LAN_MDI0- RJ45_MIDI0-

EVT0319

R118 0_0603_5%R118 0_0603_5%

1 2

LAN_CLKREQB

+LAN_CTRL12A

+3V_LAN

1 2

RL5 2.49K_0402_1%RL5 2.49K_0402_1%

LAN_WAKE#

ISOLATEB

LAN_X1

LAN_X2

+LAN_CTRL12VDD

1

2

T26

T26

TCT

1

TCT1

2

TD1+

3

4
5
6

7
8
9

10
11
12

IH-060-A

IH-060-A

2

1

TD1-

TCT2
TD2+
TD2-

TCT3
TD3+
TD3-

TCT4
TD4+
TD4-

C321

C321
10U_0805_10V4Z

10U_0805_10V4Z

TCT

TCT

TCT

LED3/EEDO

LED2/EEDI

LED1/EESK

NC/MDIP2
NC/MDIN2
NC/MDIP3
NC/MDIN3

VDDTX/EVDD12

NC/VDDSR

NC/AVDD33

DVDD12/AVDD12

NC/AVDD12

+LAN_DVDD12 +LAN_AVDD12

1

C323

C323

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

EECS

LED0

MDIP0
MDIN0
MDIP1
MDIN1

DVDD12
DVDD12
DVDD12

VDD33
VDD33

AVDD33

NC/GPO

EGND

NC

LAN_DI

34

LAN_SK

35

LAN_CS

32

LAN_ACTIVITY#

38

LAN_MDI0+

2

LAN_MDI0-

3

LAN_MDI1+

5

LAN_MDI1-

6

LAN_MDI2+

8

LAN_MDI2-

9

LAN_MDI3+

11

LAN_MDI3-

12

13
30
36

19

29
37

+LAN_CTRL12VDD

44

1
40

10

39

23
24

22

1 2

RL8 0_0603_5%RL8 0_0603_5%

1

C324

C324
1U_0603_10V4Z

1U_0603_10V4Z

2

+3V_LAN

LAN_DO

33

3

1 2

RL1 3.6K_0402_5%RL1 3.6K_0402_5%

Warnning :Remove ROM function ,because of layout spcace not enough

+LAN_DVDD12

+LAN_EVDD12

+3V_LAN

+LAN_DVDD12

T25T 25

R299 75_0402_5%R299 75_0402_5%

R300 75_0402_5%R300 75_0402_5%

R302 75_0402_5%R302 75_0402_5%

R303 75_0402_5%R303 75_0402_5%

+3V_LAN

12

12

12

12

+3V_LAN

Wide =60mil

+LAN_CTRL12A

1U_0402_6.3V4Z

1U_0402_6.3V4Z

RJ45_GNDMCT3

L21 Close to Pin 48
CL10,CL12 Close to L21

L21

L21

4.7UH_1008HC-472EJFS-A_5%_1008

4.7UH_1008HC-472EJFS-A_5%_1008

1 2

22U_0805_6.3V6M

22U_0805_6.3V6M

+LAN_EVDD12

1

2

LAN_SK

100P_0402_50V8J

100P_0402_50V8J

LAN_ACTIVITY#

100P_0402_50V8J

100P_0402_50V8J

1

2

C315

C315

C310

C310

@

@

CL14

CL14
1U_0402_6.3V4Z

1U_0402_6.3V4Z

1

2

CL13

CL13

2

CL10

CL10

1

2

@

@

1

2

1 2

LL2 0_0603_5%LL2 0_0603_5%

+3V_LAN

0.01U_0402_16V7K

0.01U_0402_16V7K

+3V_LAN

0.01U_0402_16V7K

0.01U_0402_16V7K

+LAN_AVDD12

2

CL12

CL12

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

+LAN_AVDD12

1

C316

C316

2

1

C313

C313

2

1

+3V_LAN

1 2

CL10.1U_0402_16V4Z CL10.1U_0402_16V4Z

1 2

CL40.1U_0402_16V4Z CL40.1U_0402_16V4Z

1 2

CL30.1U_0402_16V4Z CL30.1U_0402_16V4Z

1 2

CL50.1U_0402_16V4Z CL50.1U_0402_16V4Z

+LAN_DVDD12

1 2

CL60.1U_0402_16V4Z CL60.1U_0402_16V4Z

1 2

CL70.1U_0402_16V4Z CL70.1U_0402_16V4Z

1 2

CL80.1U_0402_16V4Z CL80.1U_0402_16V4Z

1 2

CL90.1U_0402_16V4Z CL90.1U_0402_16V4Z

1 2

CL110. 1U_0402_16V4Z CL110.1U_0402_16V4Z

Wide =40mil

+LAN_CTRL12VDD

0.1U_0402_16V4Z

0.1U_0402_16V4Z

LL3 MURAT_BLM21AG601SN1D_2P Current ONLY
200mA ,BUT +LAN_CTRL12VDD MAX Icc12=289mA
NEED DOUBLE CHECK!!

R301

R301

330_0402_5%

330_0402_5%

RJ45_MIDI3-

RJ45_MIDI3+

RJ45_MIDI1-

RJ45_MIDI2-

RJ45_MIDI2+

RJ45_MIDI1+

RJ45_MIDI0-

RJ45_MIDI0+

R297 330_0402_5%R297 330_0402_5%

C318

C318

1000P_1206_2KV7K

1000P_1206_2KV7K

12

12

1 2

1

CL15

CL15

2

JRJ1

JRJ1

10

Green LED-

9

Green LED+

1

PR4-

2

PR4+

3

PR2-

4

PR3-

5

PR3+

6

PR2+

7

PR1-

8

PR1+

12

Yellow LED-

11

Yellow LED+

FOX_JM74113-P2101-7F

FOX_JM74113-P2101-7F

ME@

ME@

LANGNDRJ45_GND

1

CL16

CL16

2

22U_0805_6.3V6M

22U_0805_6.3V6M

0_0402_5%

0_0402_5%

LL3

LL3

1 2

0_0805_5%

0_0805_5%

EVT:Add GND pin

GND

GND

G2

G1

C319

C319

+3V_LAN

16

15

14

13

2

1

2

1

C320

C320
0_0402_5%

0_0402_5%

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

5

4

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

3

2008/03/25 2008/04/

2008/03/25 2008/04/

2008/03/25 2008/04/

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

RTL8111DL-GR_LQFP48_7X7

RTL8111DL-GR_LQFP48_7X7

RTL8111DL-GR_LQFP48_7X7

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

Date: Sheet of

Date: Sheet of

Date: Sheet of

KIUE0_LA-5191P

1

24 43Wednesday, June 24, 2009

24 43Wednesday, June 24, 2009

24 43Wednesday, June 24, 2009

1.0

1.0

1.0

5

keep supply 3. 3V to 3V3_IN w hen S3

C326

C326

4.7U_0603_6.3V6K

D D

C C

47P_0402_50V8J

47P_0402_50V8J

4.7U_0603_6.3V6K

R306 0_0603_5%

R306 0_0603_5%

+3VS

R307 0_0603_5%R 307 0_0603_5%

+3VALW

R308

R308
100K_0402_5%

100K_0402_5%

1 2

Vender suggest tion

1

C330

C330
1U_0402_6.3V4Z

1U_0402_6.3V4Z

2

1

C333

@C333

@

2

1

2

1 2

@

@

1 2

RST#

MODE_SEL

12

R313

R313
0_0402_5%

0_0402_5%

1

C329

C329

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

RTS5159: R313 = 0 Ohm
RTS5158E :R313 = Open

+XDPWR_SDPWR_MSPWR

USB20_N721
USB20_P721

R314

R314

6.19K_0402_1%

6.19K_0402_1%

C327

C327

0.1U_0402_16V4Z

0.1U_0402_16V4Z

3V3_IN
RST#
MODE_SEL
XTLO
XTLI

1 2

12

USB20_N7
USB20_P7

11
33

44
45
47
48

14

12
32

46

R315

R315

0_0402_5%

0_0402_5%

1 2

4

R305 0_0402_5%R305 0_0402_5%

U11

U11

1

AV_PLL

3

NC

7

NC

9

CARD_3V3
D3V3
D3V3

8

3V3_IN
RST#
MODE_SEL
XTLO
XTLI

4

DM

5

DP
GPIO0

2

RREF

DGND
DGND

6

AGND
AGND

RTS5159-GR_LQFP48_7X7

RTS5159-GR_LQFP48_7X7

12

VREG

MS_D4

XD_CLE_SP19
XD_CE#_SP18
XD_ALE_SP17

SD_DAT2/XD_RE#_SP16

SD_DAT3/XD_WE#_SP15

XD_RDY_SP14

SD_DAT4/XD_WP#/MS_D7_SP13

SD_DAT5/XD_D0/MS_D6_SP12
SD_CLK/XD_D1/MS_CLK_SP11
SD_DAT6/XD_D7/MS_D3_SP10

MS_INS#_SP9
SD_DAT7/XD_D2/MS_D2_SP8
SD_DAT0/XD_D6/MS_D0_SP7
SD_DAT1/XD_D3/MS_D1_SP6

XD_D5_SP5

XD_D4/SD_DAT1_SP4

SD_CD#_SP3

SD_WP_SP2

XD_CD#_SP1

XTAL_CTR

MS_D5

EEDO
EECS

EESK

SD_CMD

C328 1U_0603_16V4ZC328 1U_0603_16V4Z

1 2

10
22
30

NC

43
42
41
40
39
38

SDDAT4_XDWP#_MSD7

37

SDDAT5_XDD0_MSD6

35
34

SDDAT6_XDD7_MSD3

31
29

SDDAT7_XDD2_MSD2

28

SDDAT0_XDD6_MSD0

27

SDDAT1_XDD3_MSD1

26
25
23
21
20
19
18

EEDI

XTAL_CTR 3V3_IN

13
24

15
16
17
36

XDCLE
XDCE#

XDALE
SDDAT2_XDRE#
SDDAT3_XDWE#

XD_RDY

MS_INS#

XDD5_MSBS

XDD4_SDDAT1

SDWP

SD_CMD

3

3V3_IN and D3V 3 both need to
connect to 3. 3V power sourc e together

SDCLK_XDD1_MSCLKSDCLK_XDD1_MSCLK_R

12

R309 0_0402_5%R309 0_0402_5%

SDCD

XDCD

12

R3110_0603_5%@R3110_0603_5%

@

CLK_48M_CR

12

R312

R312

@

@

33_0402_5%

33_0402_5%

1

C332

C332

22P_0402_50V8J@

22P_0402_50V8J@

2

EMI

2

CLK_48M_CR16

CLK_48M_CR

R310 0_0603_5%

R310 0_0603_5%

1 2

@

@

C331

C331

1 2

6P_0402_50V8D

6P_0402_50V8D

C334

C334

1 2

6P_0402_50V8D

6P_0402_50V8D

Y3

Y3

12MHZ_16PF_6X12000012

12MHZ_16PF_6X12000012

XTLI

12

XTLO

1

SD_DAT1 connec t to RTS5159's pin23

+XDPWR_SDPWR_MSPWR

SDWP
XDD4_SDDAT1

@

@

10U_0805_10V4Z

10U_0805_10V4Z

1

C336

C336

2

4

SDDAT0_XDD6_MSD0

XDD5_MSBS
SDCLK_XDD1_MSCLK
SDDAT1_XDD3_MSD1

SDDAT7_XDD2_MSD2

MS_INS#
SDDAT6_XDD7_MSD3
SD_CMD
SDCLK_XDD1_MSCLK

SDDAT3_XDWE#

SDDAT2_XDRE#
SDCD

B B

SDCLK_XDD1_MSCLK SDDAT0_XDD6_MSD0

1

C337

C337

22P_0402_50V8J@

22P_0402_50V8J@

2

A A

5

JCR1

JCR1

1

SD-WP

2

SD-DAT1

3

SD-DAT0

4

SD-GND

5

MS-GND

6

MS-BS

7

SD-CLK

8

MS-DAT1

9

MS-DAT0

10

SD-VCC

11

MS-DAT2

12

SD-GND

13

MS-INS

14

MS-DAT3

15

SD-CMD

16

MS-SCLK

17

MS-VCC

18

SD-DAT3

19

MS-GND

20

SD-DAT2

GND1

21

SD-CD

GND2

TAITW_R009-025-LR_NR

TAITW_R009-025-LR_NR

ME@

ME@

No EMI concern to chassis GND

22
23

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

3

2008/03/25 2008/04/

2008/03/25 2008/04/

2008/03/25 2008/04/

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

2

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

RTS5159-VCC-GRT CARD READER

RTS5159-VCC-GRT CARD READER

RTS5159-VCC-GRT CARD READER

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

KIUE0_LA-5191P

Date: Sheet of

Date: Sheet of

Date: Sheet of

1

25 43Wednesday, June 24, 2009

25 43Wednesday, June 24, 2009

25 43Wednesday, June 24, 2009

1.0

1.0

1.0

5

L18

L18

12

MBV2012301YZF_0805

MBV2012301YZF_0805

+5VS

L19

L19

MBV2012301YZF_0805

MBV2012301YZF_0805

D D

C C

10U_0805_10V4Z

10U_0805_10V4Z

ESD PROTECT
CLOSE TO MIC1

2

3

1

PESD5V0U2BT 3P C/C SOT23 ESD

PESD5V0U2BT 3P C/C SOT23 ESD

USE SCA00000G00 SYMBOL

Internal MIC

MIC1

MIC1

WM-64PCY_2P

WM-64PCY_2P

45@

45@

P

LINE-OUT (Pin35/36)

B B

Capless HP-OUT (Pin32/33)

LINE1 (Pin23/24)

M

IC1(Pin21/22)

MONO-OUT(Pin37)

MIC2(Pin16/17)

PC Beep

CH751H-40PT_SOD323-2

CH751H-40PT_SOD323-2

EC Beep

A A

BEEP#31

0.1U_0402_16V4Z@

0.1U_0402_16V4Z@

SB_SPKR21

ICH Beep

C368

C368

Adjustable Output

C343

C343

0.1U_0402_16V4Z

0.1U_0402_16V4Z

+MIC2_VREFO

U12

1

IN

2

GND

3

SHDN

G9191-475T1U_SOT23-5

G9191-475T1U_SOT23-5

12

R333

R333

2.2K_0402_5%

2.2K_0402_5%

1

C358

C358
47P_0402_50V8J

47P_0402_50V8J

2

GNDA

12

1

1

C342

C342

2

2

INT_MIC_R

GNDA

D30

D30

1ST SOURCE: SCA00000T00
2

ND SOURCE: SCA00000G00

INT_MIC_R

1

GNDA

2

in Assignment

D26

D26

10K_0402_5%

10K_0402_5%

2 1

C367

C367

R349

R349

12

1 2

1

2

1U_0603_10V4Z

1U_0603_10V4Z

1U_0603_10V4Z

1U_0603_10V4Z

C369

C369

5

560_0402_5%

560_0402_5%

1 2

12

560_0402_5%

560_0402_5%

R351

R351

5

4

PVT0618

+5VDDA_CODEC

@

@

1

C344

C344

2

0.01U_0402_16V7K

0.01U_0402_16V7K

@U12

@

OUT

BYP

PVT0618

Location Function

Internal

External

External

External

Internal

Internal

+3VS

+5VDDA_CODEC

12

R348

R348

12

20K_0402_5%

R352

R352

20K_0402_5%

1

C

C

Q13

Q13

2

B

B

E

E

3

2SC2411K_SOT23-3

2SC2411K_SOT23-3

D17

D17
CH751H-40PT_SOD323-2

CH751H-40PT_SOD323-2

2 1

@

@

1

C349

C349

2

4.7U_0805_10V4Z

4.7U_0805_10V4Z

Int Speaker

H

eadphone out

NOT USE

Mic in

NOT USE

Internal Mic

C366 1U_0603_10V4ZC366 1U_0603_10V4Z

12

1 2

R350

R350

2.4K_0402_1%

2.4K_0402_1%

EVT0324 Pc beep noise solution.

4

CH751H-40PT_SOD323-2

CH751H-40PT_SOD323-2

4.7K_0402_5%

4.7K_0402_5%

external MIC

EXT_MIC_L27

EXT_MIC_R27

HDA_BITCLK_CODEC

PC_BEEPPC_BEEP1

4

+MIC1_VREFO_L

21

21

D16

D16

D20

D20
CH751H-40PT_SOD323-2

CH751H-40PT_SOD323-2

12

12

R323

R323

R326

R326

4.7K_0402_5%

4.7K_0402_5%

INT_MIC_R

C356 22P_0402_50V8JC356 22P_0402_50V8J

1 2

1 2

R332 22_0402_5%R332 22_0402_5%

MIC Sense
R516 place near pin13
Capless HP Sense
R517 place near pin34

R340

R340

1 2

R343

R343

1 2

R345

R345

1 2

EVT0319

1 2

MIC_JD27

PLUG_IN27

0_0402_5%

0_0402_5%

0_0402_5%

0_0402_5%

0_0402_5%

0_0402_5%

3

+3VS +3VDD_CODEC +IOVDD_CODEC

L20

L20

12

MBV2012301YZF_0805

MBV2012301YZF_0805

1

1

C339

C339

C338

C338

2

2

10U_0805_10V4Z

10U_0805_10V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

Place near Pin1

+5VDDA_CODEC

U13

U13

14

LINE2-L

15

LINE2-R

16

MIC2_L

17

MIC2_R

23

LINE1_L

24

LINE1_R

21

MIC1_L

22

MIC1_R

12

BEEP_IN

6

BITCLK

5

SDATA_OUT

8

SDATA_IN

11

RESET#

10

SYNC

2

GPIO0/DMIC_DATA1/2

3

GPIO1/DMIC_DATA3/4

13

SENSE A

34

SENSE B

47

EAPD

43

NC

4

DVSS

7

DVSS

S IC ALC272-VA2-GR LQFP 48P CODEC

S IC ALC272-VA2-GR LQFP 48P CODEC

R3251K_0402_5% R3251K_0402_5%

1 2

1 2

HDA_BITCLK_CODEC20

HDA_SDOUT_CODEC20

HDA_RST_CODEC#20

HDA_SYNC_CODEC20

R3281K_0402_5% R3281K_0402_5%

R3301K_0402_5% R3301K_0402_5%

C355 4.7U_0805_10V4ZC355 4.7U_0805_10V4Z

HDA_SDIN220

C354 4.7U_0805_10V4ZC354 4.7U_0805_10V4Z

1 2

EAPD31

C3532.2U_0603_16V6K C3532.2U_0603_16V6K

12

C3512.2U_0603_16V6K C3512.2U_0603_16V6K

12

1 2

1 2

HDA_BITCLK_CODEC

1 2

R334 22_0402_5%R334 22_0402_5%

R33620K_0402_1% R33620K_0402_1%

12

R3375.1K_0402_1% R3375.1K_0402_1%

1 2

R338 0_0402_5%R338 0_0402_5%

MIC_INL

MIC_INR

MIC_EXTL

MIC_EXTR

PC_BEEP

SENSEA

SENSEB

GNDAG ND

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

3

2008/03/25 2008/04/

2008/03/25 2008/04/

2008/03/25 2008/04/

+3VDD_CODEC

38

AVDD125AVDD2

Compal Secret Data

Compal Secret Data

Compal Secret Data

@

@

+IOVDD_CODEC

9

1

DVDD

DVDD_IO

LOUT1_L

LOUT1_R

LOUT2_L

LOUT2_R

SPDIFO1

SPDIFO2

HPOUT_L

HPOUT_R

MONO_OUT

DMIC_CLK1/2

DMIC_CLK3/4

LINE2_VREFO

LINE1_VREFO

MIC1_VREFO

MIC2_VREFO

CPVREF

Deciphered Date

Deciphered Date

Deciphered Date

2

1

1

C340

C340

C345

C345

2

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

lace near Pin9

1 2

R322 0_0402_5%R322 0_0402_5%

C_LINE_OUTL

35

C_LINE_OUTR

36

39

41

48

45

HPOUTL_272

33

HPOUTR_272

32

37

46

44

20

18

28

19

31

+VREF_272

27

VREF

+JVREF_272

40

JDREF

30

CBN

29

CBP

26

AVSS1

42

AVSS2

2

@

@

10U_0805_10V4Z

10U_0805_10V4Z

Place near Pin25 Place near Pin38P

EVT0319

C350 0.1U_0603_25V7KC350 0.1U_0603_25V7K

C352 0.1U_0603_25V7KC352 0.1U_0603_25V7K

+MIC1_VREFO_L

+MIC2_VREFO

1 2

C357 2.2U_0603_10V6KC357 2.2U_0603_10V6K

1 2

C359 2.2U_0603_10V6KC359 2.2U_0603_10V6K

1

+5VDDA_CODEC

1

1

C346

C346

C347

C347

2

2

10U_0805_10V4Z

10U_0805_10V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

+1.5VS

1 2

1 2

R329

R329

63.4_0402_1%

63.4_0402_1%

12

12

63.4_0402_1%

63.4_0402_1%

R331

R331

12

R339

R339
20K_0402_1%

20K_0402_1%

+3VS

12

@

@

1

C363

C363

2

@

@

22P_0402_50V8J

22P_0402_50V8J

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

HD Audio Codec_ALC272

HD Audio Codec_ALC272

HD Audio Codec_ALC272

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

C

C

C

KIUE0_LA-5191P

Date: Sheet of

Date: Sheet of

Date: Sheet of

1

1

C348

C348

C341

C341

2

2

10U_0805_10V4Z

10U_0805_10V4Z

0.1U_0402_16V4Z

0.1U_0402_16V4Z

LINE_OUTL

LINE_OUTR

HP_OUTL 27

HP_OUTR 27

Headphone

add a 64 ohm serial resistor

R341

R341

4.7K_0402_5%

4.7K_0402_5%

C364

C364

@

@

22P_0402_50V8J

22P_0402_50V8J

LINE_OUTL 27

LINE_OUTR 27

2

1

C360

C360

C361

C361

1

2

10U_0805_10V4Z

10U_0805_10V4Z

HDA_RST_CODEC#

HDA_SYNC_CODEC

HDA_SDOUT_CODEC

1

1

C365

C365

2

2

@

@

22P_0402_50V8J

22P_0402_50V8J

1

0.1U_0402_16V4Z

0.1U_0402_16V4Z

Close Pin27

EMI

Internal Speaker

26 43Wednesday, June 24, 2009

26 43Wednesday, June 24, 2009

26 43Wednesday, June 24, 2009

1.0

1.0

1.0

5

GAIN0 GAIN1
0 0 6dB
0 1 10dB
1 0 15.6dB
1 1 21.6dB

+5VAMP +5VAMP

D D

R397

@ R397

@

100K_04 02_1%

100K_04 02_1%

1 2

R402

R402

100K_04 02_1%

100K_04 02_1%

1 2

Audio Jack

EXT_MIC_L26

C C

EXT_MIC_R26

MIC_JD26

B B

HP_OUTL26

HP_OUTR26

PLUG_IN26

A A

R398

R398

100K_04 02_1%

100K_04 02_1%

1 2

GAIN1GAIN0

R399

R399

100K_04 02_1%

100K_04 02_1%

@

@

1 2

EXT_MIC_L

EXT_MIC_R

MIC_JD

1K_0402 _5%

1K_0402 _5%

HP_OUTL

HP_OUTR

PLUG_IN

SM01001 8110

SM01001 8110

1 2

R393 S SUPPRE_ KC FBM A-L10-160808-80 0LMT 0603

R393 S SUPPRE_ KC FBM A-L10-160808-80 0LMT 0603

1

C409

C409

47P_040 2_50V8J

47P_040 2_50V8J

2

GNDA

SM01001 8110

SM01001 8110

1 2

R394 S SUPP RE_ KC FBMA-L10 -160808-800LMT 0 603

R394 S SUPP RE_ KC FBMA-L10 -160808-800LMT 0 603

1

C411

C411

47P_040 2_50V8J

47P_040 2_50V8J

2

GNDA

12

R395

@R 395

@

4

LINE_OUTL26

LINE_OUTR26

EXT_MIC_L -2

1

C410

@C 410

@

10P_040 2_50V8J

10P_040 2_50V8J

2

GNDA

EXT_MIC_R -2

1

C412

@C 412

@

10P_040 2_50V8J

10P_040 2_50V8J

2

GNDA

1

C41310P_040 2_50V8J@C41310P_040 2_50V8J

@

2

GNDA

220P_04 02_50V7K

220P_04 02_50V7K

12

R396

@R 396

@

1K_0402 _5%

1K_0402 _5%

GNDAGNDA

1 2

R400 S SUPPRE_ KC FBM A-L10-160808-80 0LMT 0603R400 S S UPPRE_ KC FBMA -L10-160808-800L MT 0603

1 2

R401 S SUPPRE_ KC FBM A-L10-160808-80 0LMT 0603R401 S S UPPRE_ KC FBMA -L10-160808-800L MT 0603

GNDA

C414

C414

1 2

PL-OUT

PR-OUT

GNDA

3

+5VAMP+5V S

12

R3880_0603 _5% R 3880_0603_5%

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

PVT0618

LINE_OUTL

LINE_OUTR

Audio Jack

JMIC1

JMIC1

6

1
2

3

4

GNDA

5

SINGA_2SJ -0960-D06

SINGA_2SJ -0960-D06

PCB Footp rint = SINGA_2 SJ-0960-D06_6P -T

PCB Footp rint = SINGA_2 SJ-0960-D06_6P -T

220P_04 02_50V7K

220P_04 02_50V7K

C415

C415

1 2

6

1
2

3

4

5

PCB Footp rint = SINGA_2 SJ-0960-D06_6P -T

PCB Footp rint = SINGA_2 SJ-0960-D06_6P -T

1

C402

C402

2

MIC IN

Headphone

JHP1

JHP1

SINGA_2SJ -0960-D06

SINGA_2SJ -0960-D06

@

@

1

C403

C403

4.7U_080 5_10V4Z

4.7U_080 5_10V4Z

2

12

R391

R391

10K_0402_5%

10K_0402_5%

@

@

ME@

ME@

ME@

ME@

W=40mil

12

R392

R392

10K_0402_5%

10K_0402_5%

16

6

15

GAIN0

GAIN1

1

C406

C406

0.1U_060 3_25V7K

0.1U_060 3_25V7K

2

17

1

C408

C408

0.1U_060 3_25V7K

0.1U_060 3_25V7K

2

2

3

5

9

7

ESD PROTECT

R_SPK_R 1-

R_SPK_R 2+

2

3

D31

D31

1

PESD5V0 U2BT 3P C/C SOT2 3 ESD

PESD5V0 U2BT 3P C/C SOT2 3 ESD

USE SCA00000G00 SYMBOL

SPK_R1­SPK_R2+
SPK_L1­SPK_L2+

2

R389

R389

10K_040 2_5%

10K_040 2_5%

@

U20

U20

VDD
PVDD
PVDD

GAIN0

GAIN1

LIN-

RIN-

LIN+

RIN+

1ST SOURCE: SCA00000T00
2ND SOURCE: SCA00000G00

NC

SHUTDOWN

LOUT-

ROUT-

LOUT+

ROUT+

GND
GND
GND
GND
GND

BYPASS

TPA6017 A2PWPR_TS SOP20

TPA6017 A2PWPR_TS SOP20

@

12

AMP_OFF # EC_MUTE#

19

SPK_L1-

8

SPK_R1-

14

SPK_L2+

4

SPK_R2+

18

1
11
13
20
21

10

3

1

SPEAKER JACK

20MIL

Near JP14

R_SPK_R 1-

12

R_SPK_R 2+

R4040_0603_ 5% R4040_06 03_5%

12

R_SPK_L 1-

R4050_0603_ 5% R4050_06 03_5%

12

R_SPK_L 2+

R4060_0603_ 5% R4060_06 03_5%

12

R4070_0603_ 5% R4070_06 03_5%

+5VAMP

3/23 EVT

Change +3VALW to +5VAMP

1 2

R390

R390

1 2

0_0402_ 5%

0_0402_ 5%

20mil

1

C407

C407

4.7U_080 5_10V4Z

4.7U_080 5_10V4Z

2

R_SPK_L 1-

R_SPK_L 2+

2

D32

D32

1ST SOURCE: SCA00000T00
2ND SOURCE: SCA00000G00

PESD5V0 U2BT 3P C/C SOT2 3 ESD

PESD5V0 U2BT 3P C/C SOT2 3 ESD

JSPKR

JSPKR

1

1

2

2

3

3

4

4

5

GND

6

GND

ACES_87 212-04G0

ACES_87 212-04G0

ME@

ME@

1

EC_MUTE # 31

3/23 EVT

Security Class ification

Security Class ification

Security Class ification

2008/03/ 25 2008/04/

2008/03/ 25 2008/04/

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2008/03/ 25 2008/04/

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

AMP,Audio speaker CONN

AMP,Audio speaker CONN

AMP,Audio speaker CONN

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

KIUE0_LA-5191P

27 43W ednesday, June 24, 2009

27 43W ednesday, June 24, 2009

27 43W ednesday, June 24, 2009

1

1.0

1.0

1.0

A

B

C

D

E

+USB_VC CA+5VALW

U18

U18

1

C393 0.1 U_0402_16V4ZC39 3 0 .1U_0402_16V4 Z

1 1

12

USB_ON23,3 1

USB_ON

GND

2

IN

3

IN

4

EN

G547F1P 11U_SO8

G547F1P 11U_SO8

USB20_N 021
USB20_P 021

OUT
OUT
OUT
OC#

8
7
6
5

1

C397

C397

2

USB_OC# 0 21

1000P_0 402_50V7K@

1000P_0 402_50V7K@

+USB_VC CA

USB20_N 0
USB20_P 0

USB Conn

2 2

3/26 Remove ESD Diode ,by Andy YL

5/14 Change to +5VALW for floating

SI2301BDS -T1-E3_SOT23-3

+5VS

+5VALW

12

3 3

BT_OFF#31

4 4

R403

R403

10K_040 2_5%

10K_040 2_5%

12

R387

@R38 7

@

10K_040 2_5%

10K_040 2_5%

BT_OFF# _B

1

30mils

OUT

2

IN

Q18

Q18

GND

S TR PDTC 124EK NPN SC59 -3

S TR PDTC 124EK NPN SC59 -3

3

BT_LED#33

SI2301BDS -T1-E3_SOT23-3

+3VS

S

S

G

G

PVT 0618

D

D

13

Q16

Q16

2

1

C404

@C404

@

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

1

OUT

GND

3

+3VS_BT

USB20_P 621
USB20_N 621

3/20 EVT

Q14

Q14
S TR PDTC 124EK NPN SC59 -3

S TR PDTC 124EK NPN SC59 -3

2

IN

BT MODULE CONN

A

+USB_VC CA

+USB_VC CA

1

+

+

C395

C395
150U_D2 _6.3VM

150U_D2 _6.3VM

2

JUSB1

JUSB1

1

1

2

2

3

3

4

4

5

GND

6

GND

7

GND

8

GND

SUYIN_020173 MR004S558ZL

SUYIN_020173 MR004S558ZL

ME@

ME@

30mils

1

C400

C400

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

USB20_P 6

USB20_N 6
BT_PRI
WLAN _ACT
BTON_LE D

BTON_LE D

B

U19

W=60mils

1

C394

C394
470P_04 02_50V7K

470P_04 02_50V7K

2

C396

C396

12

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

USB_ON

U19

1

GND

2

IN

3

IN

4

EN

G547F1P 11U_SO8

G547F1P 11U_SO8

Wire USB

+3VS_GE N

RG1

RG1

1 2

47_0402 _5%

12

RG3

RG3

10K_040 2_5%

10K_040 2_5%

@

@

12

RG6

RG6

100K_04 02_5%

100K_04 02_5%

47_0402 _5%

ME@

ME@

ACES_88 231-08001

ACES_88 231-08001

10

GND2

9

GND1

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

JBT1

JBT1

1

2

CG1

CG1

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

G_SELFT EST31

1

1

CG3

CG3
10U_080 5_6.3V6M

10U_080 5_6.3V6M

2

2

CG2

CG2
1U_0603 _10V4Z

1U_0603 _10V4Z

Need update symbol to RS LIS34AL
Pin 8 for RS LIS34AL

Security Class ification

Security Class ification

Security Class ification

2006/08/ 18 2007/8/1 8

2006/08/ 18 2007/8/1 8

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2006/08/ 18 2007/8/1 8

C

Compal Secret Data

Compal Secret Data

Compal Secret Data

EC_GENP D31

ST

Deciphered Date

Deciphered Date

Deciphered Date

+3VS_ITES _R

+USB_VC CD+5VALW

8

OUT

7

OUT

6

OUT

5

OC#

1

C398

C398

1000P_0 402_50V7K@

1000P_0 402_50V7K@

2

USB20_P 1121

USB20_N 112 1

QG1

QG1
SI2301BDS _SOT23

SI2301BDS _SOT23

1 3

D

D

CG4

CG4

1 2

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

UG1

UG1

2

ST

14

Vs

15

Vs

3

COM

5

COM

6

COM

7

COM

S IC LIS244ALT R LGA 16P G-SENS OR

S IC LIS244ALT R LGA 16P G-SENS OR

2

12

Xout
Yout

NC
NC
NC
NC
NC
NC
NC

D

USB_OC# 11

S

S

G

G

RG2

RG2

100K_04 02_5%

100K_04 02_5%

RG4 0_0402_5 %R G4 0_04 02_5%

12

Y

RG5 0_0402_5 %R G5 0_04 02_5%

10

1
4

RG7 0_0402_5 %

RG7 0_0402_5 %

8

@

@

9
11
13
16

1

+

+

C392

C392
150U_D2 _6.3VM

150U_D2 _6.3VM

2

1

1

2

2

W=60mils

1

2

VOUTXX
VOUTY

VOUTZZ

CG8

CG8

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

E

+USB_VC CD

C391

C391
470P_04 02_50V7K

470P_04 02_50V7K

VOUTX 31
VOUTY 31

VOUTZ 31

+USB_VC CD

USB_OC# 11 21

JUSB2

JUSB2

1

1

2

2

3

5

3

+USB_VC CD

+3VS

1

CG5

CG5

1U_0603 _10V4Z

1U_0603 _10V4Z

2

1 2
1 2

1 2

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

Date: Sheet of

Date: Sheet of

Date: Sheet of

G1

4

6

4

G2

ACES_88 266-04001

ACES_88 266-04001

ME@

ME@

G-Sensor

1

CG6

@CG6

@

2

CG7

CG7

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Compal Electronics, Inc.

USB/CMOS/BT/G-SENSOR

USB/CMOS/BT/G-SENSOR

USB/CMOS/BT/G-SENSOR

KIUE0_LA-5191P

1.0

1.0

1.0

28 43W ednesday, June 24, 2009

28 43W ednesday, June 24, 2009

28 43W ednesday, June 24, 2009

A

Mini-Express Card(Slot 3-WWAN 3G ) 4.0 mm high

3G Only With USB2.0 Interface

Wake-up signal of 3G is high active!?

SATA_ITX_DRX_P520

1 1

SATA_ITX_DRX_N520

SATA_DTX_C_IRX_P520
SATA_DTX_C_IRX_N520

SATA_DTX_C_IRX_P120
SATA_DTX_C_IRX_N120

SATA_ITX_DRX_N120
SATA_ITX_DRX_P120

SSD_DET#31

EVT 0324 SSD Pin Define
please pull high by EC internal

ICH_PCIE_WAKE#21

EVT0324 ,just only use one channel

SATA_ITX_DRX_P5
SATA_ITX_DRX_N5

SATA_DTX_C_IRX_P5
SATA_DTX_C_IRX_N5

SATA_DTX_C_IRX_P1
SATA_DTX_C_IRX_N1

SATA_ITX_DRX_N1
SATA_ITX_DRX_P1

ICH_PCIE_WAKE#

R354 0_0402_5%

R354 0_0402_5%

1 2

R355 0_0402_5%

R355 0_0402_5%

1 2

@

@
@

@

@

@

@

@

C371 0.01U_0402_16V7K

C371 0.01U_0402_16V7K

1 2

C372 0.01U_0402_16V7K

C372 0.01U_0402_16V7K

1 2

C373 0.01U_0402_16V7KC373 0.01U_0402_16V7K

1 2

C374 0.01U_0402_16V7KC374 0.01U_0402_16V7K

1 2

R360 0_0402_5%R360 0_0402_5%

1 2

R362 0_0402_5%R362 0_0402_5%

1 2

T28T 28

12

R366

R366

0_0402_5%

0_0402_5%

R381

R381

+3VS

SSD Pin Table

2 2

Mini-Express Card(Slot 2-WIRELESS) 4.0 mm high

3 3

4 4

Pin Number

11

13

17

19

23

25

30

31

32

33

WLAN_CLKREQ1#16

2005/09/27 modified.
Base on OPTION GTM351E Datasheet Rev0.1

Vcc 3.3V +/- 8%
Peak Icc 2750mA
with max supply droop 50mA
Average Icc 1000mA

CLK_PCIE_WLAN1#16

CLK_PCIE_WLAN116

PCIE_RXN321
PCIE_RXP321

PCIE_TXN321
PCIE_TXP321

EC_TX_P80_DATA31
EC_RX_P80_CLK31

A

ICH_PCIE_WAKE#

WLAN_CLKREQ1#

SATA Assignment

+B (port 1)

-B (port 1)

DA/DSS

-A (port 1)

Presence Detection

+A (port 1)

@

@

R379 0_0603_5%@R379 0_0603_5%@

R378 0_0603_5%@R378 0_0603_5%@

3/34 Leakage

Q12

Q12
2N7002_SOT23

2N7002_SOT23

D

S

D

S

1 3

+3VS

G

G

2

+3VS

DEBUG80D

1 2

DEBUG80C

1 2

DVT Change footprint

DA/DSS_NEW

SSD_DET#_NEW

1 2

100K_0402_5%

100K_0402_5%

JPCIE2

JPCIE2

1
3
5
7

9
11
13
15

17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51

53
54

ME@

ME@

1
3
5
7
9
11
13
15

17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51

GND
GND

Q27

Q27

@

@

2N7002_SOT23

2N7002_SOT23

D

D

1 3

2

+3VS

SSD_DET#

P-TWO_A54402-A0G16-N

P-TWO_A54402-A0G16-N

S

S

G

G

2A+
2A#

2B+
2B#

1B+
1B#

1A#
1A+

2
4
6

8
10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

B

3/34 Leakage

JPCIE1

+3VS

1

2

2
4
6
8
10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

JPCIE1

1

1

3

3

5

5

7

7

9

9

11

11

13

13

15

15

17

17

19

19

21

21

23

23

25

25

27

27

29

29

31

31

33

33

35

35

37

37

39

39

41

41

43

43

45

45

47

47

49

49

51

51

53

GND

54

GND

P-TWO_A54402-A0G16-N

P-TWO_A54402-A0G16-N

+3VS +1.5VS

C377

C377

0.1U_0402_16V4Z

0.1U_0402_16V4Z

1

C378

C378

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

+3VS

+1.5VS

R369 0_0402_5%R369 0_0402_5%

R370 0_0402_5%@R370 0_0402_5%@
R371 0_0402_5%@R371 0_0402_5%@

R373 0_0402_5%@R373 0_0402_5%@
R374 0_0402_5%@R374 0_0402_5%@

@

@

R375 300_0402_5%

R375 300_0402_5%

1 2
1 2

R376 300_0402_5%R376 300_0402_5%

3/34 Leakage

WLAN_LED_R# WLAN_LED#

WIMAX_LED# WLAN_LED#

5/12 revser WWAN LED

B

2
4
6

8
10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

2Watt

1 2

1 2
1 2

1 2
1 2

2
4
6
8
10
12
14
16

18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

PLT_RST#

WLAN_LED_R#

2N7002_SOT23

2N7002_SOT23

S

S

+3VS

2N7002_SOT23

2N7002_SOT23

S

S

+3VS

+3VS

+1.5VS

2Watt

+UIM_PWR

+UIM_PWR 15mil

UIM_DATA
UIM_CLK
UIM_RST
UIM_VPP

R356 0_0402_5%R356 0_0402_5%

1 2

1 2

1 2

T29T 29

1

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

WL_OFF# 31

R357 0_0402_5%@ R357 0_0402_5%@

WLAN_LED# 33

JPE1_RST#

R358 0_0402_5%R358 0_0402_5%

DA/DSS

USB20_N3
USB20_P3

WIMAX_LED#

2005/09/27 modified.
Base on OPTION GTM351E Datasheet Rev0.1

Vcc 3.3V +/- 8%
Peak Icc 2750mA
with max supply droop 50mA
Average Icc 1000mA

1

C380

C380

C379

C379

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

+3VS

1

C385

C385

0.1U_0402_16V4Z@

0.1U_0402_16V4Z@

2

+3VALW
+3VS

ICH_SMBCLK 16,21
ICH_SMBDATA 16,21

USB20_N8 21
USB20_P8 21

Q37

Q37

D

D

13

G

G

2

Q38

Q38

@

@

D

D

13

G

G

2

C

+3VS

+3VS

1

2

PLT_RST#

T27T 27

C370

C370

0.1U_0402_16V4Z

0.1U_0402_16V4Z

3G_OFF# 31

PLT_RST# 8,19,24

USB20_N3 21
USB20_P3 21

UIM_VPP
UIM_DATA

+UIM_PWR

D

JSIM1

JSIM1

4

GND

5

VPP

6

I/O

7

DET

12

R363

R363

10K_0402_5%

10K_0402_5%

TAITW_PMPAT6-06GLBS7N14N0

TAITW_PMPAT6-06GLBS7N14N0

Del SIM holder backup solution.

New Card 34mm Socket (Left/TOP)

Express Card Power Switch

+1.5VS

1

C383

C383

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

+3VS

1

C387

C387

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

+3VALW

1

C390

C390

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

MAY BE USED BY OR DISCLOSED TO ANY THI RD PARTY WITHOUT PRIOR WRIT TEN CONSENT OF COMPAL ELECTRONICS, INC .

C

+3VALW

+3VALW

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

+3VS

R367

R367

+1.5VS

0_1206_5%

0_1206_5%

1 2

+3VALW

EX_CPPE#21

R368

R368

1 2

100K_0402_5%

100K_0402_5%

R380

R380

1 2

100K_0402_5%@

100K_0402_5%@

SYSON31,34,36,39

SUSP#31,34,36,39

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

D

PLT_RST#

EXC_SYSON

EXC_SUSP#

CPUSB#

EX_CPPE#

SYSON

SUSP#

D18

@D18

@

CM1293-04SO_SOT23-6

CM1293-04SO_SOT23-6

1

2

3

USB20_N1021

USB20_P1021

+1.5VS_CARD1

+3VALW_CARD1

EXP_CLKREQ#16

CLK_PCIE_EXP#16
CLK_PCIE_EXP16

CH4

CH1

Vp

Vn

CH3

CH2

USB20_N10
USB20_P10

ICH_SMBCLK
ICH_SMBDATA

ICH_PCIE_WAKE#

+3VS_CARD1

PCIE_RXN121
PCIE_RXP121

PCIE_TXN121
PCIE_TXP121

U14

U14

12

1.5Vin

14

1.5Vin

2

3.3Vin

4

3.3Vin

AUX_IN17AUX_OUT

6

SYSRST#

20

SHDN#

1

STBY#

10

CPPE#

9

CPUSB#

18

RCLKEN

G577NSR91U_QFN20

G577NSR91U_QFN20

R372 0_0402_5%R372 0_0402_5%

1 2

R377 0_0402_5%R377 0_0402_5%

1 2

E

4

5

6

VCC
RST
CLK

GND
GND

ME@

ME@

CPUSB#

PERST#

EX_CPPE#

1.5Vout

1.5Vout

3.3Vout

3.3Vout

PERST#

OC#

NC

GND

+3VS

DAN217T146_SC59-3

40mil

+UIM_PWR

1

UIM_RST

2

UIM_CLK

3

8
9

C375, C376 close to JSIM1 pin1.

JEXP1

JEXP1

1

GND

2

USB_D-

3

USB_D+

4

CPUSB#

5

RSV

6

RSV

7

SMB_CLK

8

SMB_DATA

9

+1.5V

10

+1.5V

11

WAKE#

12

+3.3VAUX

13

PERST#

14

+3.3V

15

+3.3V

16

CLKREQ#

17

CPPE#

18

REFCLK-

19

REFCLK+

20

GND

21

PERn0

22

PERp0

23

GND

24

PETn0

25

PETp0

26

GND

27

GND
GND28GND

SANTA_130801-5_RT

SANTA_130801-5_RT

ME@

ME@

+1.5VS_CARD1

11
13

+3VS_CARD1

3
5

+3VALW_CARD1

15

19

PERST#

8

16

7

EXC_SYSON

EXC_SUSP#

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

DAN217T146_SC59-3

1

1

1

C375

C375

C376

C376

2

2

0.1U_0402_16V4Z

0.1U_0402_16V4Z

4.7U_0805_10V4Z

4.7U_0805_10V4Z

30

GND

29

3/23 EVT

(NEW)

40mil

+1.5VS_CARD1

Imax = 0.75A

1

C381

C381
10U_0805_10V4Z

10U_0805_10V4Z

2

60mil

+3VS_CARD1

Imax = 1.35A

1

C384

C384
10U_0805_10V4Z

10U_0805_10V4Z

2

40mil

+3VALW_CARD1

Imax = 0.275A

1

@

@

C388

C388
10U_0805_10V4Z

10U_0805_10V4Z

2

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Mini-Card/3G/TV /BT

Mini-Card/3G/TV /BT

Mini-Card/3G/TV /BT

KIUE0_LA-5191P

E

@ D19

@

10K_0402_5%

10K_0402_5%

3

2

D19

1

C382

C382

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C386

C386

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

1

C389

C389

0.1U_0402_16V4Z

0.1U_0402_16V4Z

2

@

@

+3VS

+UIM_PWRUIM_DATA

12

R353

R353

1.0

1.0

29 43Thursday, June 25, 2009

29 43Thursday, June 25, 2009

29 43Thursday, June 25, 2009

1.0

INPUT

A B

L L

H L

L H

H H

+5VS

+5VALW

+3VALW

R486

R486

FRD#SPI_ SO31

OUTPUT
Y

L

H

H

H

1 2

R429 470_0402_5%R429 470_0402_5%

1 2

R418 470_0402_5%R418 470_0402_5%

1 2

R485 470_0402_5%R485 470_0402_5%

1 2

R484 470_0402_5%R484 470_0402_5%

SD0342430 80

SD0342430 80

1 2

243_0402_1 %

243_0402_1 %

1

C418

C418

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

2

FRD#SPI_ SO SPI_S O

2 1

2 1

2 1

2 1

LED7

LED7

2 1

S LED HT-19 1UD5 0603 AMBE R

S LED HT-19 1UD5 0603 AMBE R

SC5000077 00

SC5000077 00

R409 15_0402 _5%R409 15_04 02_5%

INT_SPI_CS #

SB_INT_FL ASH_SEL21

LED8

LED8

S LED HT-F 196BP5 0603 WH ITE

S LED HT-F 196BP5 0603 WH ITE

LED4

LED4

S LED HT-F 196BP5 0603 WH ITE

S LED HT-F 196BP5 0603 WH ITE

LED6

LED6

S LED HT-F 196BP5 0603 WH ITE

S LED HT-F 196BP5 0603 WH ITE

LED5

LED5

S LED HT-F 196BP5 0603 WH ITE

S LED HT-F 196BP5 0603 WH ITE

1 2

INT_SPI_CS #

R414 15_040 2_5%R414 15_ 0402_5%

1 2

FOR EC 16M SPI ROM

+3VALW

OR Gate

MC74VHC 1G32DFT2G_SC7 0-5

MC74VHC 1G32DFT2G_SC7 0-5

FSEL#SPIC S#
SPI_SO

TPLOCK_LE D# 31

DRIVE_LE D# 20

CHARGE_ LED0# 31

PWR_L ED# 31

CHARGE_ LED1# 31

20mils

U21

U21

1

CS#

2
3
4

VCC

SO

HOLD#

WP#

SCLK

GND

SI

MX25L160 5AM2C-12G_SO8

MX25L160 5AM2C-12G_SO8

+3VALW

5

U22

U22

INB

4

O

INA

3

@

@

1 2

R415 0_0402_ 5%R41 5 0_040 2_5%

JP13

JP13

112
334
556
778

E&T_2941-G 08N-00E~DME@

E&T_2941-G 08N-00E~DME@

R408

R408

10K_0402_5 %

10K_0402_5 %

8
7
6

SPI_SI FW R#SPI_SI

5

INT_FLASH _EN#

1

P

FSEL#SPIC S#

2

G

+3VALW

2

INT_FLASH _EN#

4

SPI_CLK_R

6

SPI_SI

8

White LED(Vf)

Amber LED(Vf)

PVT 6/18

1 2

R410

R410
R411 15_0402 _5%R411 15_04 02_5%

100K_0402_ 5%

100K_0402_ 5%

+5VLAW
470 ohm

1 2
1 2

@

@

1 2

FSEL#SPIC S# 31

typ max

KC FBMA -10-100505-101T 0402

KC FBMA -10-100505-101T 0402

R413

R413

SPI_CLKSPI_CLK_R

SPI_CLK 31

FWR#S PI_SI 31

2.8 3.15

current 4.6mA 3.9mA

+3.3 VALW
243 ohm

typ max

1.9 2.4

current 5.7mA 3.7mA

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

SPI_CLK_R

@ R443

@

@

@

FOR EMI

SPI_CLK

C419

C419

10P_0402_5 0V8J

10P_0402_5 0V8J

FOR 3G

EVT 3/26

PTH

2.8mm

3.2mm

4.2mm

12

R443
0_0402_5%

0_0402_5%

1

C435

C435
12P_0402_5 0V8J

12P_0402_5 0V8J

2

1

@

@

2

Close EC P in

FD1FD1

1

5.6*3.6 mm

3.6*5.6 mm

6.0mm

H9
HOLEAH9HOLEA

1

H16

H16
HOLEA

HOLEA

1

H19

H19
HOLEA

HOLEA

1

FD2FD2

1

1

H10

H10
HOLEA

HOLEA

1

H17

H17
HOLEA

HOLEA

1

H20

H20
HOLEA

HOLEA

1

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

B

B

B

Date: Sheet of

Date: Sheet of

Date: Sheet of

FD4FD4

FD3FD3

1

H26

H26
HOLEA

HOLEA

1

H24

H24
HOLEA

HOLEA

1

H4

H3

HOLEAH4HOLEA

HOLEAH3HOLEA

1

1

H11

H11

H12

H12

HOLEA

HOLEA

HOLEA

HOLEA

1

1

H21

H21

H22

H22

HOLEA

HOLEA

HOLEA

HOLEA

1

1

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

H6

H5

HOLEAH6HOLEA

HOLEAH5HOLEA

1

1

H13

H13

H14

H14

HOLEA

HOLEA

HOLEA

HOLEA

1

1

3.6mm

LED/EC SPI ROM

LED/EC SPI ROM

LED/EC SPI ROM

KIUE0_LA-5191P

Non PTH

3.6 mm

PVT 6/24

PVT 6/18

H7
HOLEAH7HOLEA

1

H15

H15
HOLEA

HOLEA

1

H1
HOLEAH1HOLEA

H18

H18
HOLEA

HOLEA

1

H8
HOLEAH8HOLEA

1

1

30 43Wednesday, June 24, 200 9

30 43Wednesday, June 24, 200 9

30 43Wednesday, June 24, 200 9

1.0

1.0

1.0

L10

L10
FBMA-L11 -160808-601LMT_2P

FBMA-L11 -160808-601LMT_2P

+3VALW +EC_AVC C

+3VALW

LAN_W AKE#24

PCI_PME#19

+3VALW

+5VALW

+3VS

12

1

2

1 2

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

1 2

L11

L11
FBMA-L11 -160808-601LMT_2P

FBMA-L11 -160808-601LMT_2P

12

C428 22P_0402_50V8 J@C42 8 22P_0402_ 50V8J@

1 2

R421 47K_0402_ 5%R42 1 47K_040 2_5%

0.1U_0402_1 6V4Z

0.1U_0402_1 6V4Z

1 2

R431 0_ 0402_5%R431 0_0402_5%

1 2

R434 0_0402_5%@R434 0_0402_5%@

S

S

+3VALW

1 2

R437 100K_0402_1%@R437 100K_0402_1%@

1 2

R438 100K_0402_1%@R438 100K_0402_1%@

1 2

R440 10K_0402_5%@R44 0 10K_ 0402_5%@

1 2

R441 4.7K_0402_5%R441 4.7K_0402_5%

1 2

R444 4.7K_0402_5%R444 4.7K_0402_5%

R446

R446

2.7K_0402_5 %

2.7K_0402_5 %

@

@

C437

C437
100P_0402_ 50V8J

100P_0402_ 50V8J

FRD#SPI_ SO

FSEL#SPIC S#

KSO17

EC_SMB _CK1

EC_SMB _DA1

12

R447

R447

2.7K_0402_5 %

2.7K_0402_5 %

EC_SMB _CK2
EC_SMB _DA2

1

@

@

C438

C438
100P_0402_ 50V8J

100P_0402_ 50V8J

2

C424

C424

KB_RST#20

C429

C429

D

D

13

G

G

2N7002_SO T23

2N7002_SO T23

2

2

1

C425

C425

1000P_0402 _50V7K

ECAGND

2

1

1000P_0402 _50V7K

2

R419 0_ 0402_5%R419 0_0402_5%

CH751H-40 PT_SOD323-2

CH751H-40 PT_SOD323-2

12

10_0402_5%@

10_0402_5%@

R420

R420

KB_LIGHT#1 7

EVT0319

KSO[0..15]32

KSI[0..7]32

1

For ENE issue

+3VALW

+3VALW

R430

R430
10K_0402_5 %

10K_0402_5 %

1 2

Q19

@

Q19

@

+3VALW

32.768KHZ_ 12.5P_1TJE125DP 1A000M

32.768KHZ_ 12.5P_1TJE125DP 1A000M

1 2

@

@

D21

D21

2 1

1 2

R422 47K_0402_ 5%R42 2 47K_040 2_5%

1 2

R423 47K_0402_ 5%R42 3 47K_040 2_5%

EC_PME #

EVT0319

1 2

R439 100K_0402_1%R 439 100 K_0402_1%

1 2

R442 100K_0402_1%R 442 100 K_0402_1%

1 2

R445 100K_0402_1%R 445 100 K_0402_1%

0.1U_0402_16V4Z

0.1U_0402_16V4Z

C420

0.1U_0402_16V4Z

C420

0.1U_0402_16V4Z

1

2

GATEA2020

SERIRQ21,32

LPC_FRA ME#20,32

LPC_AD320,32
LPC_AD220,32
LPC_AD120,32
LPC_AD020,32

CLK_PCI_L PC16

PCI_RST#1 9,32

EC_SCI#21

1 2

R451 0_ 0402_5%R451 0_0402_5%

1 2

R450 0_ 0402_5%@R450 0_ 0402_5%@

KSO[0..15]

KSI[0..7]

KSO1

KSO2

EC_SMB _CK136
EC_SMB _DA136
EC_SMB _CK24
EC_SMB _DA24

SLP_S3#21
SLP_S5#21

EC_SMI#21

LID_SW #33

+3VALW

R432 4.7K_040 2_5%R432 4.7K_04 02_5%

+3VALW

R433 4.7K_040 2_5%R433 4.7K_04 02_5%

KILL_SW #33

FAN_SPE ED14

3G_OFF#29
EC_TX_P 80_DATA29
EC_RX_P 80_CLK29

ON/OFF#33
PWR_ON _LED33
NUM_LED #33

LID_SW #

MUTE_B TN#

USER_BT N#

12

C436 15P_0402_ 50V8JC436 15P_0402_ 50V8J

12

X1

X1

12

C439 15P_0402_ 50V8JC439 15P_0402_ 50V8J

+3VALW

C423

0.1U_0402_16V4Z

C423

0.1U_0402_16V4Z

C422

0.1U_0402_16V4Z

C422

0.1U_0402_16V4Z

C421

C421

1

2

1 2
1 2

12

@

@

R448

R448
20M_0603_ 5%

20M_0603_ 5%

KSI0
KSI1
KSI2
KSI3
KSI4
KSI5
KSI6
KSI7
KSO0
KSO1
KSO2
KSO3
KSO4
KSO5
KSO6
KSO7
KSO8
KSO9
KSO10
KSO11
KSO12
KSO13
KSO14
KSO15
KSO16
KSO17

EC_SMI#
LID_SW #

FAN_SPE ED1

EC_TX_P 80_DATA
EC_RX_P 80_CLK

ON/OFF#
PWR_ON _LED
NUM_LED #

XCLKI
XCLKO

1

1

2

2

XCLKO

XCLKI

1
2
3
4
5
7
8

10

12
13
37
20
38

55
56
57
58
59
60
61
62
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
81
82

77
78
79
80

6
14
15
16
17
18
19
25
28
29
30
31
32
34
36

122
123

KB_L#DA

KB_RST# _EC

LPC_AD3
LPC_AD2
LPC_AD1 BATT_TEM PA
LPC_AD0

EC_RST#
EC_SCI#
KB_LIGHT#
KB_LIGHT#D A

EC_SMB _CK1
EC_SMB _DA1
EC_SMB _CK2
EC_SMB _DA2

C427

1000P_0402_50V7K

C427

1000P_0402_50V7K

C426

1000P_0402_50V7K

C426

1000P_0402_50V7K

KB926QFA1 _LQFP128

KB926QFA1 _LQFP128

1

1

2

2

U23

U23

GA20/GPIO00
KBRST#/GP IO01
SERIRQ#
LFRAME #
LAD3
LAD2
LAD1

LPC & MISC

LPC & MISC

LAD0

PCICLK
PCIRST#/GP IO05
ECRST#
SCI#/GPIO0E
CLKRUN #/GPIO1D

KSI0/GPIO30
KSI1/GPIO31
KSI2/GPIO32
KSI3/GPIO33
KSI4/GPIO34
KSI5/GPIO35
KSI6/GPIO36
KSI7/GPIO37
KSO0/GPIO20
KSO1/GPIO21
KSO2/GPIO22
KSO3/GPIO23
KSO4/GPIO24

Int. K/B

Int. K/B

KSO5/GPIO25

Matrix

Matrix

KSO6/GPIO26
KSO7/GPIO27
KSO8/GPIO28
KSO9/GPIO29
KSO10/GPIO2A
KSO11/GPIO2B
KSO12/GPIO2C
KSO13/GPIO2D
KSO14/GPIO2E
KSO15/GPIO2F
KSO16/GPIO48
KSO17/GPIO49

SCL1/GPIO44
SDA1/GPIO45
SCL2/GPIO46
SDA2/GPIO47

PM_SLP_ S3#/GPIO04
PM_SLP_ S5#/GPIO07
EC_SMI#/GP IO08
LID_SW #/GPIO0A
SUSP#/GPIO0 B
PBTN_OUT #/GPIO0C
EC_PME #/GPIO0D
EC_THER M#/GPIO11
FAN_SPE ED1/FANFB1/GPIO14
FANFB2/GP IO15
EC_TX/GPIO1 6
EC_RX/GPIO1 7
ON_OFF/GPIO18
PWR_L ED#/GPIO19
NUMLED #/GPIO1A

XCLK1
XCLK0

SM Bus

SM Bus

+3VALW

52

1

P

P

IN+

IN+

3

IN-

IN-

G

G

U32

U32

@

@

MAX4490A XK+T_SC70-5

MAX4490A XK+T_SC70-5

9

22

33

96

111

VCC

VCC

VCC

VCC

VCC

PWM Output

PWM Output

AD Input

AD Input

DA Output

DA Output

PS2 Interface

PS2 Interface

SPI Device Interface

SPI Device Interface

SPI Flash ROM

SPI Flash ROM

GPIO

GPIO

GPIO

GPIO

GND

GND

GND

GND

11

24

35

94

KB_LIGHT#D A

4

O

O

+EC_AVC C

67

125

VCC

AVCC

INVT_PW M/PWM1/GPIO0 F

BEEP#/PW M2/GPIO10

FANPW M1/GPIO12

ACOFF/FAN PWM2/GPIO13

BATT_TEM P/AD0/GPIO38

BATT_OVP /AD1/GPIO39

ADP_I/AD2/G PIO3A

AD3/GPIO3B

AD4/GPIO42

SELIO2#/AD5 /GPIO43

DAC_BRIG /DA0/GPIO3C

EN_DFAN 1/DA1/GPIO3D

IREF/DA2/GP IO3E

DA3/GPIO3F

PSCLK1/GP IO4A
PSDAT1/GP IO4B
PSCLK2/GP IO4C

PSDAT2/GP IO4D

TP_CLK/PS CLK3/GPIO4E

TP_DATA /PSDAT3/GPIO4F

SDICS#/GPX OA00
SDICLK/GPX OA01

SDIDO/GPXOA 02

SDIDI/GPXID0

SPIDI/RD#

SPIDO/WR #

SPICLK/GPIO5 8

CIR_RX/GPIO4 0

CIR_RLC_ TX/GPIO41

FSTCHG/SE LIO#/GPIO50

BATT_CH GI_LED#/GPIO52

CAPS_LE D#/GPIO53

BATT_LOW _LED#/GPIO54

SUSP_LE D#/GPIO55

SYSON/GPIO56

VR_ON/XC LK32K/GPIO57

AC_IN/GPIO59

EC_RSM RST#/GPXO03
EC_LID_OU T#/GPXO04

EC_ON/GPX O05

EC_SW I#/GPXO06

ICH_PW ROK/GPXO06

GPO

GPO

BKOFF#/GPX O08

WL_OFF #/GPXO09

PM_SLP_ S4#/GPXID1

ENBKL/GPX ID2

GPI

GPI

AGND

GND

69

113

D3 version

A00001J580

S

ECAGND

C

C

2

B

B

E

E

Q7

@

Q7

@

3 1

MMBT39 04_SOT23-3

MMBT39 04_SOT23-3

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COM PAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFER ED FROM THE CUSTOD Y OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS

DEPARTMENT EXCE PT AS AUTHORIZED BY COMPAL ELECTRO NICS, INC. NEITHER THIS SHEET NOR T HE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

SPICS#

GPXO10
GPXO11

GPXID3
GPXID4
GPXID5
GPXID6
GPXID7

V18R

FOR TEST, NO STUFF

R452 39K_0402_1%@R452 3 9K_0402_1%@

1 2

PANEL_P WM

21

BEEP#

23

NOVO#

26

ACOFF

27

63

BATT_OVP

64
65
66
75

BRD_IN

76

KB_L#DA

68

EN_FAN1

70

IREF

71
72

83

USB_ON

84

G_SELFTE ST

85

TPLOCK_LE D#

86

TP_CLK

87

TP_DATA

88

97
98
99
109

FRD#SPI_ SO

119

FWR#S PI_SI

120

SPI_CLK

126

FSEL#SPIC S#

128

SSD_DET #

73

EC_GENP D

74

FSTCHG

89

CHARGE_ LED0#

90

CAPS_LE D#

91

CHARGE_ LED1#

92

PWR_L ED#

93

SYSON

95

VR_ON

121

ACIN

127

EC_RSM RST#

100

EC_LID_OU T#

101

EC_ON

102

MUTE_B TN#

103

ICH_POK_E C

104

BKOFF#

105

WL_OFF #

106

BATT_SE L_EC

107

EC_PROC HOT

108

110

ENBKL

112

EAPD

114

EC_THER M#

115

SUSP#

116

PBTN_OUT #

117
118

124

C433

C433

1

4.7U_0603_6 .3V6K

4.7U_0603_6 .3V6K

2

KB_L#DA

2007/10/15 2008/10/15

2007/10/15 2008/10/15

2007/10/15 2008/10/15

PANEL_P WM 17
BEEP# 26
NOVO# 33
ACOFF 3 7

BATT_TEM PA 36
BATT_OVP 37
ADP_I 37
VOUTX 28
VOUTY 28

EN_FAN1 4
IREF 37
CHGVADJ 37

EC_MUT E#

EC_MUT E# 27
USB_ON 23,28
G_SELFTE ST 28

TPLOCK_LE D# 30

TP_CLK 32

TP_DATA 32

EN_WOL # 24
USER_BT N# 33
CMOS_OFF # 17

FRD#SPI_ SO 3 0

FWR#S PI_SI 30

FSEL#SPIC S# 30

SSD_DET # 29

EC_GENP D 28

FSTCHG 37

CHARGE_ LED0# 30

CAPS_LE D# 33

CHARGE_ LED1# 30

PWR_L ED# 30

SYSON 29,34,36,39
VR_ON 40
ACIN 21,35

EC_RSM RST# 21
EC_LID_OU T# 21
EC_ON 33
MUTE_B TN# 33
ICH_POK_E C 21

BKOFF# 17
WL_OFF # 29
BATT_SE L_EC 37
EC_PROC HOT 4

SLP_S4# 21
ENBKL 17

EAPD 26

EC_THER M# 21

SUSP# 29,34,3 6,39
PBTN_OUT # 21
BT_OFF# 28

Compal Secret Data

Compal Secret Data

Compal Secret Data

R428 4.7K_0 402_5%@R428 4.7K_04 02_5%@

1 2

SPI_CLK 30

Deciphered Date

Deciphered Date

Deciphered Date

R426 10K_0 402_5%@R4 26 10K_0402_5%@

BRD_IN

1 2

USB_ON

EVT0319

EVT 3/26

SUSP#

BRD_IN

1 2

R455 0_ 0402_5%

R455 0_ 0402_5%

@

@

+3VALW

R427 10K_040 2_5%R427 10K_040 2_5%

1 2

KB926 SPI STRAP PIN

EVT 3/25

EVT0319
Move to Q34

1

@

@

C434

C434
1000P_0402 _50V7K

1000P_0402 _50V7K

2

ESD PROTECT
CLOSE TO BATTERY CONN SIDE

USE SCA00000G00 SYMBOL

VOUTZ 28

TP_CLK

R424 4.7K_040 2_5%R424 4.7K_04 02_5%

1 2

R425 4.7K_040 2_5%R425 4.7K_04 02_5%

1 2

1 2

C430 100P_0402 _50V8JC 430 100P_ 0402_50V8J

1 2

C431 100P_0402 _50V8JC 431 100P_ 0402_50V8J

1 2

C432 100P_0402 _50V8JC 432 100P_ 0402_50V8J

1 2

+EC_AVC C_R

+3VALW

TP_DATA

BATT_OVP

BATT_TEM PA

ACIN

R449 0_ 0402_5%R449 0_0402_5%

FOR POWER

EC_SMB _CK1

EC_SMB _DA1

2

3

D33

D33

1ST SOURCE: SCA00000T00
2ND SOURCE: SCA00000G00

@

@

1

PESD5V0 U2BT 3P C/C SOT23 ESD

PESD5V0 U2BT 3P C/C SOT23 ESD

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

BIOS & EC I/O Port

BIOS & EC I/O Port

BIOS & EC I/O Port

KIUE0_LA-5191P

31 43Wednesday, June 24, 200 9

31 43Wednesday, June 24, 200 9

31 43Wednesday, June 24, 200 9

+5VS

1.0

1.0

1.0

5

4

3

2

1

D D

C C

INT_KBD Conn.

KSI[0..7]

KSO[0..15]

KSO2

C440 100P_0402_50 V8J@C 440 10 0P_0402_50V8J@

KSO15

KSO6

KSO8

KSO13

KSO12

KSO11

KSO10

KSO3

KSO4

KSI0

KSO0

1 2

C442 100P_0402_50 V8J@C 442 10 0P_0402_50V8J@

1 2

C444 100P_0402_50 V8J@C 444 10 0P_0402_50V8J@

1 2

C446 100P_0402_50 V8J@C 446 10 0P_0402_50V8J@

1 2

C448 100P_0402_50 V8J@C 448 10 0P_0402_50V8J@

1 2

C450 100P_0402_50 V8J@C 450 10 0P_0402_50V8J@

1 2

C452 100P_0402_50 V8J@C 452 10 0P_0402_50V8J@

1 2

C454 100P_0402_50 V8J@C 454 10 0P_0402_50V8J@

1 2

C456 100P_0402_50 V8J@C 456 10 0P_0402_50V8J@

1 2

C458 100P_0402_50 V8J@C 458 10 0P_0402_50V8J@

1 2

C460 100P_0402_50 V8J@C 460 10 0P_0402_50V8J@

1 2

C462 100P_0402_50 V8J@C 462 10 0P_0402_50V8J@

1 2

KSI[0..7] 31

KSO[0..15] 31

KSO1

KSO7

KSI2

KSO5

KSI3

KSO14

KSI7

KSI6

KSI5

KSI4

KSO9

KSI1

C441 100P_0402_50 V8J@C 441 10 0P_0402_50V8J@

1 2

C443 100P_0402_50 V8J@C 443 10 0P_0402_50V8J@

1 2

C445 100P_0402_50 V8J@C 445 10 0P_0402_50V8J@

1 2

C447 100P_0402_50 V8J@C 447 10 0P_0402_50V8J@

1 2

C449 100P_0402_50 V8J@C 449 10 0P_0402_50V8J@

1 2

C451 100P_0402_50 V8J@C 451 10 0P_0402_50V8J@

1 2

C453 100P_0402_50 V8J@C 453 10 0P_0402_50V8J@

1 2

C455 100P_0402_50 V8J@C 455 10 0P_0402_50V8J@

1 2

C457 100P_0402_50 V8J@C 457 10 0P_0402_50V8J@

1 2

C459 100P_0402_50 V8J@C 459 10 0P_0402_50V8J@

1 2

C461 100P_0402_50 V8J@C 461 10 0P_0402_50V8J@

1 2

C463 100P_0402_50 V8J@C 463 10 0P_0402_50V8J@

1 2

KSO0
KSO1
KSO2
KSO3
KSO4
KSO5
KSO6
KSO7
KSO8
KSO9
KSO10
KSO11
KSO12
KSO13
KSO14
KSO15

KSI7
KSI6
KSI5
KSI4
KSI3
KSI2
KSI1
KSI0

JKB1

JKB1

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

G1

26

G2

ACES_85 202-24051

ACES_85 202-24051

ME@

ME@

CONN PIN define need double check

+5VS

B B

To TP/B Conn.

C464

C464

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

TP_DATA31
TP_CLK31

1

C465

C465
100P_04 02_50V8J

100P_04 02_50V8J

2

TP_DATA
TP_CLK

1

C466

C466
100P_04 02_50V8J

100P_04 02_50V8J

2

ME@

ME@

6
5
4
3
2
1

7

6

GND

8

5

GND
4
3
2
1

JTP1

JTP1

E&T_691 6-Q06N-00R

E&T_691 6-Q06N-00R

3/23 EVT

EC DEBUG PORT

EVT0319

Delete this conn ector.
It same as MiniP CIE Debug Card.

FOR LPC SIO DEBUG PORT

JP17

JP17

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

ACES_85 201-2005

ACES_85 201-2005

ME@

ME@

+5VS

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRA ME#
LPC_DRQ 0#
PCI_RST#

CLK_PCI_D B
SERIRQ

+3VS

CLK_14M _SIO 16
LPC_AD0 20,31
LPC_AD1 20,31
LPC_AD2 20,31
LPC_AD3 20,31

LPC_FRA ME# 20,31
LPC_DRQ 0# 20
PCI_RST# 19,31

CLK_PCI_D B 16
SERIRQ 21,31

R453 10 K_0402_5%

R453 10 K_0402_5%

12

@

@

ESD PROTECT
CLOSE TO JTP1

TP_DATA

TP_CLK

2

3

D34

D34

1ST SOURCE: SCA00000T00

A A

@

@

USE SCA00000G00 SYMBOL

5

2ND SOURCE: SCA00000G00

1

PESD5V0 U2BT 3P C/C SOT2 3 ESD

PESD5V0 U2BT 3P C/C SOT2 3 ESD

Security Class ification

Security Class ification

Security Class ification

2007/10/ 15 2008/10/ 15

2007/10/ 15 2008/10/ 15

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/10/ 15 2008/10/ 15

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

B

B

B

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

KB /SW /LPC Debug Conn.

KB /SW /LPC Debug Conn.

KB /SW /LPC Debug Conn.

KIUE0_LA-5191P

32 43W ednesday, June 24, 2009

32 43W ednesday, June 24, 2009

32 43W ednesday, June 24, 2009

1

1.0

1.0

1.0

Lid Switch

+3VALW

1

C468

C468

0.1U_040 2_16V4Z

0.1U_040 2_16V4Z

2

FP Board Conn 4 pin

USB20_N 921

USB20_P 921

OUTPUT

USB20_N 9
USB20_P 9

2

A3212EL HLT-T_SOT23W -3

A3212EL HLT-T_SOT23W -3

VDD

3

GND

U24

U24

1

+3VS

1
2
3
4

ACES_85 201-04051

ACES_85 201-04051

ME@

ME@

EVT0319

JFP1

JFP1

1
2
3
4

GND
GND

LID_SW #

2

10P_040 2_50V8J

10P_040 2_50V8J

1

5
6

C469

C469

LID_SW # 31

PVT0618

3/26 EVT

ESD PROTECT

6

+3VS

5

4

3/26 Please CLose JFP1

Kill Switch

+3VALW

KILL_SW #31

1000P_0 402_50V7K

1000P_0 402_50V7K

U30

U30

CH3

Vp

CH4

CM1293-0 4SO_SOT23-6

CM1293-0 4SO_SOT23-6

CH2

CH1

Vn

@

@

R607 100K _0402_5%R607 100K_0 402_5%

1 2

1

C335

C335

EVT0319

3

2

1

2

USB20_N 9USB20_P 9

EE parts.
1st: DE100000100
2nd: DE100000I00

SW2

SW2

3

3

2

2

1

1

1BS003-1 211L_3P

1BS003-1 211L_3P

ON/OFF switch

DVT 0512

R460 ,R461 Close to D23

@

@

1 2

R460 0_0402_5%

R460 0_0402_5%

1 2

R461

R461

0_0402_5%

@

0_0402_5%

@

ON/OFFBT N#

EC_ON31

R459

R459

10K_0402_5%

10K_0402_5%

EC_ONEC_ONE C_ONEC_ON

12

1 2

R458 0_0402_5%R458 0_0402_5%

13

D

D

2

G

G

Q21

@

Q21

@

S

S

2N7002_ SOT23-3

2N7002_ SOT23-3

EVT0319

PWR_ ON_LED31
CAPS_LE D#31
NUM_LED #31
BT_LED#28
WLAN _LED#29

EVT0324 for debug only

+3VALW

R454

R454
100K_04 02_5%

IN

100K_04 02_5%

1 2

1

OUT

Q20

Q20
2N7002_ SOT23-3

2N7002_ SOT23-3

GND

3

ON/OFF#

51_ON#

2

@

@

C467

C467
1000P_0 402_50V7K

1000P_0 402_50V7K

1

D23

D23

3

1

DAN202U T106_SC70-3

DAN202U T106_SC70-3

2

2

Power Board Conn. 10 pin

+5VALW

PWR_ ON_LED
CAPS_LE D#
NUM_LED #
BT_LED#
WLAN _LED#

EVT0319
Change pin defined.

PESD24V S2UT 3P C/A SOT2 3

PESD24V S2UT 3P C/A SOT2 3

NOVO_BT N#
ON/OFFBT N#

@D 25

@

D25

2

3

1

ACES_85 201-1005N

ACES_85 201-1005N

10
11
12

1
2
3
4
5
6
7
8
9

JPW R_B

JPW R_B

1
2
3
4
5
6
7
8
9
10
GND
GND

ME@

ME@

ON/OFF# 3 1

12

@

@

D24

D24
GLZ20A L L34

GLZ20A L L34

USER SWITCH Board Conn. 4 pin

ME@

ME@

ACES_85 201-04051

ACES_85 201-04051

4

4

MUTE_BT N#31
USER_BT N#31

MUTE_BT N#
USER_BT N#

Reverse for CABLE Pin define

3
2
1

GND

3

GND
2
1

JMUTE1

JMUTE1

+3VALW

R606

R606
100K_04 02_5%

100K_04 02_5%

D29

6
5

Security Class ification

Security Class ification

Security Class ification

2008/03/ 25 2008/04/

2008/03/ 25 2008/04/

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2008/03/ 25 2008/04/

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

NOVO#31

51_ON#35,38

NOVO#

51_ON#

1 2

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Compal Electronics,Ltd.

Title

Title

Title

Audio Jack & SW connector

Audio Jack & SW connector

Audio Jack & SW connector

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

D29

2

3

DAN202U T106_SC70-3

DAN202U T106_SC70-3

1

NOVO_BT N#

KIUE0_LA-5191P

1.0

1.0

1.0

33 43W ednesday, June 24, 2009

33 43W ednesday, June 24, 2009

33 43W ednesday, June 24, 2009

A

B

C

D

E

+3VALW TO +3VS+5VALW TO +5VS

+5VALW

U25

U25

8

D

1

C471

C471
10U_0805_10V4Z

2

G

G

B+

13

D

D

S

S

2

R465

R465
20K_0402_5%

20K_0402_5%

10U_0805_10V4Z

Q25

Q25
2N7002_SOT23

2N7002_SOT23

1 1

SUSP

7

D

6

D

5

D

SI4800BDY-T1-E3_SO8

SI4800BDY-T1-E3_SO8

1 2

S
S
S

G

R468

R468
0_0402_5%

0_0402_5%

@

@

+5VS

1
2

1
3
4

2

1

C480

C480

0.1U_0603_25V7K

0.1U_0603_25V7K

2

C472

C472
10U_0805_10V4Z

10U_0805_10V4Z

1

C473

C473
1U_0603_10V4Z

1U_0603_10V4Z

2

12

R462

R462
470_0603_5%

470_0603_5%

13

D

D

S

S

SUSP

2

G

G

Q22

Q22
2N7002_SOT23

2N7002_SOT23

SUSP

B+

2

G

G

1

C474

C474
10U_0805_10V4Z

10U_0805_10V4Z

2

12

R466

R466
47K_0402_5%

47K_0402_5%

13

D

D

Q26

Q26
2N7002_SOT23

2N7002_SOT23

S

S

+3VALW

U26

U26

8
7
6
5

SI4800BDY-T1-E3_SO8

SI4800BDY-T1-E3_SO8

1 2

D
D
D
D

3VS_GATE5VS_GATE

R469

R469
0_0402_5%

0_0402_5%

@

@

S
S
S
G

+3VS

1
2

1
3
4

2

1

C481

C481

0.1U_0603_25V7K

0.1U_0603_25V7K

2

C475

C475
10U_0805_10V4Z

10U_0805_10V4Z

1

C476

C476
1U_0603_10V4Z

1U_0603_10V4Z

2

12

13

D

D

S

S

R463

R463
470_0603_5%

470_0603_5%

SUSP

2

G

G

Q23

Q23
2N7002_SOT23

2N7002_SOT23

+1.5V to +1.5VS

2 2

B+

R476

R476
150K_0402_5%

150K_0402_5%

Q33

Q33

13

D

SUSP

2N7002_SOT23

2N7002_SOT23

3 3

4 4

D

2

G

G

S

S

1

C483

C483
10U_0805_10V4Z

10U_0805_10V4Z

2

R477

R477
0_0402_5%

0_0402_5%

1 2

SUSP21,39

+1.5V

U28

U28

8

S

D

7

S

D

6

S

D

5

G

D

SI4800BDY-T1-E3_SO8

SI4800BDY-T1-E3_SO8

1.5VS_GATE

1

@

@

C486

C486

2

@

@

0.1U_0603_25V7K

0.1U_0603_25V7K

RTCVREF

12

R478

R478
100K_0402_5%

100K_0402_5%

SUSP

S TR PDTC124EK NPN SC59-3

S TR PDTC124EK NPN SC59-3

+1.5VS

1
2
3
4

1

C487

C487

0.1U_0603_25V7K

0.1U_0603_25V7K

2

Q34

Q34

2

IN

1

C484

C484
10U_0805_10V4Z

10U_0805_10V4Z

2

+5VALW

12

@

@

R479

R479
100K_0402_5%

100K_0402_5%

1

OUT

GND

3

1

C485

C485
1U_0603_10V4Z

1U_0603_10V4Z

2

12

R471

R471
470_0603_5%

470_0603_5%

13

D

D

Q28

Q28

S

S

2N7002_SOT23

2N7002_SOT23

+1.5V+1.05VS+1.8VS +0.75VS

12

R473

R473
470_0603_5%

470_0603_5%

13

D

D

S

S

SYSON#SUSP SUSPSUSP

2

G

G

Q30

Q30
2N7002_SOT23

2N7002_SOT23

12

R480

R480
100K_0402_5%

100K_0402_5%

1

OUT

GND

3

12

R474

R474
470_0603_5%

470_0603_5%

13

D

D

S

S

2

G

G

Q31

Q31
2N7002_SOT23

2N7002_SOT23

12

R472

R472
470_0603_5%

SUSP

2

G

G

SYSON29,31,36,39SUSP#29,31,36,39

470_0603_5%

13

D

D

G

G

Q29

Q29

S

S

2N7002_SOT23

2N7002_SOT23

SYSON#

SYSON

S TR PDTC124EK NPN SC59-3

S TR PDTC124EK NPN SC59-3

2

+5VALW

Q35

Q35

2

IN

12

R475

R475
470_0603_5%

470_0603_5%

13

D

D

S

S

2

G

G

Q32

Q32
2N7002_SOT23

2N7002_SOT23

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION O F R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION O F R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION O F R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONS ENT OF COMPAL ELECTRONICS, INC.

2006/08/18 2007/8/18

2006/08/18 2007/8/18

2006/08/18 2007/8/18

C

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

D

Date: Sheet of

Compal Electronics, Inc.

DC Interface

DC Interface

DC Interface

KIUE0_LA-5191P

E

1.0

1.0

34 43Wednesday, June 24, 2009

34 43Wednesday, June 24, 2009

34 43Wednesday, June 24, 2009

1.0

A

B

C

D

1 1

Reverse for CABLE Pin define

2 2

DC030006J00

JDCIN

JDCIN
4602-Q04C-09R 4P P 2.5ME@

4602-Q04C-09R 4P P 2.5ME@

VIN

PF101

PF101

7A_24VDC_429007.W RML

APDIN

4

4

3

3

2

2

1

1

7A_24VDC_429007.W RML

21

APDIN1

12

12

PC112

PC112

0.018U_0603_50V7J@

0.018U_0603_50V7J@

SMB3025500YA_2P

SMB3025500YA_2P

1 2

12

PC101

PC101

PC102

PC102

1000P_0402_50V7K

1000P_0402_50V7K

PL101

PL101

100P_0402_50V8J

100P_0402_50V8J

12

12

12

VIN

100P_0402_50V8J

100P_0402_50V8J

PC103

PC103

PC104

PC113

PC113

0.018U_0603_50V7J@

0.018U_0603_50V7J@

PC104

1000P_0402_50V7K

1000P_0402_50V7K

PC106

PC106

1000P_0603_50V7K

1000P_0603_50V7K

12

VINDE-1

12

PR103

PR103

84.5K_0402_1%

84.5K_0402_1%

12

PR107

PR107

Vin Detector

High 17.944 17.706 17.470
Low 16.242 16.027 15.808

PR102

PR102
1M_0402_1%

1M_0402_1%

1 2

VINDE-2

PR106

PR106

90.9K_0402_1%

90.9K_0402_1%

1 2

22K_0402_1%

22K_0402_1%

12

VINDE-3

PC107

PC107

0.1U_0402_16V7K

0.1U_0402_16V7K

3

+

2

-

PR109

PR109
10K_0402_1%

10K_0402_1%

VS

8

P

O

G

PU102A

PU102A
LM393DG_SO8

LM393DG_SO8

4

12

12

1

RTCVREF

PC105

PC105

0.01U_0402_25V7K

0.01U_0402_25V7K

3.3V

VIN

12

PR105

12

PR108

PR108

PR105
10K_0402_1%

10K_0402_1%

1 2

PACIN

10K_0402_1%

10K_0402_1%

ACIN 21,31

PACIN 36

PR104

PR104

10K_0805_5%

10K_0805_5%

12

PD102

PD102

RLZ4.3B_LL34

RLZ4.3B_LL34

VIN

PD105

PD105

LL4148_LL34-2

LL4148_LL34-2

PD101

PD101

LL4148_LL34-2

LL4148_LL34-2

PR101

PR101

200_0603_5%

200_0603_5%

1 2

100K_0402_1%

100K_0402_1%

PR113

PR113

22K_0402_1%

22K_0402_1%

1 2

12

12

PR112

PR112

PQ101

PQ101

68_1206_5%

TP0610K-T1-E3_SOT23- 3

TP0610K-T1-E3_SOT23- 3

51ON-2

12

PC108

PC108

1 2

0.22U_0603_25V7K

0.22U_0603_25V7K

51ON-3

68_1206_5%

2

VSB

BATT+

3 3

CHGRTCP

51_ON#33,38

RTC Battery

JRTC

JRTC

- +

MAXEL_ML1220T10

MAXEL_ML1220T10

ME@

ME@

12

+RTCBATT

PD104

PD104

1 2

RB751V-40TE17_SOD323- 2

RB751V-40TE17_SOD323- 2

+CHGRTC

PR115

PR115

560_0603_5%

560_0603_5%

1 2

RTCVREF-1

PR116

PR116

560_0603_5%

560_0603_5%

1 2

RTCVREF

3.3V

12

PC110

PC110
10U_0805_6.3V6M

10U_0805_6.3V6M

<BOM Struct ure>

<BOM Struct ure>

PU101

PU101

G920AT24U_SOT89-3

G920AT24U_SOT89-3

3

OUT

GND

1

IN

CHGRTCIN

2

12

PC111

PC111
1U_0805_25V4Z

1U_0805_25V4Z

PR110

PR110

13

12

PR114

PR114
200_0603_5%

200_0603_5%

PD103

PD103

LL4148_LL34-2

LL4148_LL34-2

1 2

51ON-1

12

12

12

PC109

PC109

0.1U_0603_25V7K

0.1U_0603_25V7K

PR111

PR111
68_1206_5%

68_1206_5%

VS

4 4

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

A

B

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/09/20 2008/09/20

2007/09/20 2008/09/20

2007/09/20 2008/09/20

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

C

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size D ocument Number Rev

Size D ocument Number Rev

Size D ocument Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

DCIN & DETECTOR

DCIN & DETECTOR

DCIN & DETECTOR

35 42Wednesday, June 24, 2009

35 42Wednesday, June 24, 2009

D

35 42Wednesday, June 24, 2009

0.1

0.1

0.1

A

B

C

D

PH1 under CPU botten side :

CPU thermal protection at 92 degree C

VMB2

JBATT1

JBATT1

GND
GND

1

1

2

2

EC_SMCA

3

3

EC_SMDA

4

4

TS

5

5

6

6

7

7

8
9

1 1

ME@

ME@

SUYIN_200082MR007G100ZR

SUYIN_200082MR007G100ZR

2 2

PF201

PF201
12A_65V_451012MRL

12A_65V_451012MRL

21

12

PR201

PR201

100_0402_5%

100_0402_5%

1 2

PR206

PR206

6.49K_0402_1%

6.49K_0402_1%

1 2

PR209

PR209
10K_0402_1%

10K_0402_1%

12

PR203

PR203

100_0402_5%

100_0402_5%

VMB

SMB3025500YA_2P

SMB3025500YA_2P

12

PC201

PC201
1000P_0402_50V7K

1000P_0402_50V7K

+3VALWP

BATT_TEMPA 31

BATT_SEL_HW 37

PL201

PL201

1 2

12

PC202

PC202

0.01U_0402_25V7K

0.01U_0402_25V7K

EC_SMB_CK1 3 1

EC_SMB_DA1 3 1

A/D

BATT+

BATT+ VIN

Recovery at 56 degree C

VL

12

PH201

PH201

100K_0603_1%_TSM1A104F4361RZ

100K_0603_1%_TSM1A104F4361RZ

PR205

PR205

13.7K_0402_1%

13.7K_0402_1%

TM-1

12

PC203

PC203

0.22U_0603_25V7K

0.22U_0603_25V7K

1 2

TM_REF1

12

12

PR207

PR207

15.4K_0402_1%

15.4K_0402_1%

PC204

PC204

1000P_0402_50V7K

1000P_0402_50V7K

PR204

PR204

47K_0402_1%

47K_0402_1%

TM-2

1 2

5

+

6

-

PR208

PR208

12

100K_0402_1%

100K_0402_1%

PR210

PR210
100K_0402_1%

100K_0402_1%

8

P

O

G

LM393DG_SO8

LM393DG_SO8

4

12

7

PU102B

PU102B

VL

VL

PR202

PR202
47K_0402_1%

47K_0402_1%

1 2

TM-3

2

G

G

13

D

D

PQ201

PQ201
2N7002KW_S OT323-3

2N7002KW_S OT323-3

S

S

MAINPWO N 3 8

PR211

PR211

100K_0402_1%

100K_0402_1%

1 2

PR212

PR212

22K_0402_1%

22K_0402_1%

1 2

3 3

SYSON29,31,34,39

4 4

2

G

G

SPOK21,38

SUSP#29,31,34,39

13

D

D

PQ203

PQ203

2N7002KW_S OT323-3

2N7002KW_S OT323-3

S

S

A

ACES_85205-02001

ACES_85205-02001

2

1SS355_SOD323-2

1SS355_SOD323-2

4.53K_0603_1%

4.53K_0603_1%

1K_0603_1%

1K_0603_1%

JBTT2

JBTT2

1

2
GND
GND

PR217

PR217

100K_0402_1%

100K_0402_1%

1 2

PQ207

PQ207

2N7002KW_S OT323-3

2N7002KW_S OT323-3

PR215

PR215

PR218

PR218

1
2
3
4

2

G

G

PD202

PD202

1 3

1 2

12

12

13

PACIN 35

D

D

S

S

TP0610K-T1-E3_SOT23-3

TP0610K-T1-E3_SOT23-3

PQ202

PQ202

PR219

PR219

100K_0402_1%

100K_0402_1%

1 2

VSB1

@

@

PC205

PC205

0.1U_0402_16V7K

0.1U_0402_16V7K

PD201

PD201
1SS355_SOD323-2

1SS355_SOD323-2

1 2

12

PR213

PR213

9.09K_0603_1%

9.09K_0603_1%

13

D

D

2

G

G

12

S

S

100K_0402_1%@

100K_0402_1%@

100K_0402_1%

100K_0402_1%

13

D

D

2

G

G

S

S

PQ208

PQ208

2N7002KW_S OT323-3

2N7002KW_S OT323-3

B

S

S

12

PR214

PR214

S

S

12

PR216

PR216

PQ206

PQ206
2N7002KW_S OT323-3

2N7002KW_S OT323-3

D

D

13

G

G

PQ204

PQ204

2

TP0610K-T1-E3_SOT23- 3

TP0610K-T1-E3_SOT23- 3

PD203

PD203

SSM34PT_SMA-2

D

D

13

G

G

PQ205

PQ205

2

TP0610K-T1-E3_SOT23- 3

TP0610K-T1-E3_SOT23- 3

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

SSM34PT_SMA-2

12

B+

VSB

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

C

2009/12/202008/12/20

2009/12/202008/12/20

2009/12/202008/12/20

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size D ocument Number Rev

Size D ocument Number Rev

Size D ocument Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

Compal Electronics, Inc.

BATTERY CONN / OTP

BATTERY CONN / OTP

BATTERY CONN / OTP

36 42Wednesday, June 24, 2009

36 42Wednesday, June 24, 2009

D

36 42Wednesday, June 24, 2009

0.1

0.1

0.1

A

PQ301

PQ301
FDS6675BZ_SO8

FDS6675BZ_SO8

1 2

1 2

PR320

PR320

100K_0402_1%

100K_0402_1%

1 2

24751_VREF

12

PR323

PR323

200K_0402_1%

200K_0402_1%

24751_OCP-2

13

D

D

S

S

12

PC330

PC330

0.01U_0402_25V7K

0.01U_0402_25V7K

OVP-2

8
7

5

4

PR307

PR307
340K_0402_1%

340K_0402_1%

1 2

PR309

PR309

54.9K_0402_1%

54.9K_0402_1%

1 2

SI2301BDS-T1-E3_SOT23- 3

SI2301BDS-T1-E3_SOT23- 3

2

ACSET

24751_OCP-3 24751_ACGOOD#

13

D

D

PQ308

PQ308

2

2N7002KW_S OT323-3

2N7002KW_S OT323-3

G

G

S

S

PQ309

PQ309
2N7002KW_S OT323-3

2N7002KW_S OT323-3

VMB2

12

PR331

PR331

OVP-1

340K_0402_1%

340K_0402_1%

12

PR334

PR334

499K_0402_1%

499K_0402_1%

12

PR336

PR336

105K_0402_1%

105K_0402_1%

VIN

PR301

PR301

3.3_1210_5%

3.3_1210_5%

1 1

2.2U_0805_25V6K

2.2U_0805_25V6K

2 2

PR304

PR304

3.3_1210_5%

3.3_1210_5%

PC306

PC306

BK-1 BK-2

1 2

1 2
12

54.9K_0402_1%

54.9K_0402_1%

1 2

PC301

PC301

0.01U_0402_25V7K

0.01U_0402_25V7K

PR308

PR308

340K_0402_1%

340K_0402_1%

PR314

PR314

CP Point Setting

CP point=Iadapter*85%
65W adapter
Vacset=3.3*(115K/(150K+115K))=1.432V
CP Point=(Vacset/Vvdac)*(0.1/PR302)=2.89A

Input OVP : 22.3V
ACIN detect : 17.26V
Fsw : 300KHz

24751_VREF

12

PR325

PR325

100K_0402_1%

100K_0402_1%

3 3

ACOFF 24751_O CP-1

1 2

PC327

PC327

0.1U_0402_16V7K

0.1U_0402_16V7K

340K_0402_1%

340K_0402_1%

PR328

PR328

12

2

G

G

VS

BATT_OVP

PR335

PR335
10K_0402_1%

10K_0402_1%

12

A/D

4 4

1

OVP-3

0

8

3

P

+

2

-

G

PU301A

PU301A

4

LM358DR_SO8

LM358DR_SO8

BRD_IN

PQ302

PQ302
FDS6675BZ_SO8

FDS6675BZ_SO8

1

1

2

2

36

3 6

4

12

PC303

PC303

1 2

100K_0402_1%

100K_0402_1%

PR305

PR305

0.01U_0402_25V7K

0.01U_0402_25V7K

PR311

PR311

150K_0402_1%

150K_0402_1%

24751_VREF ACSET

1 2

PC317

PC317

0.01U_0402_25V7K@

0.01U_0402_25V7K@

CP setting

24751_VREF

PQ307

PQ307

12

PC331

PC331

0.01U_0402_25V7K

0.01U_0402_25V7K

PR341

PR341
10K_0402_1%

10K_0402_1%

1 3

1 2

0.1U_0603_25V7K

0.1U_0603_25V7K

PC323

PC323

PC325

PC325

12

12

1U_0603_6.3V6M

1U_0603_6.3V6M

A/D

A

B

24751_PVCC

PR302

0.015_1206_1%

0.015_1206_1%

1

2

PC304

PC304

0.1U_0402_16V7K

0.1U_0402_16V7K

1 2

12

24751_ACDRV#

PR313

PR313

115K_0402_1%

115K_0402_1%

+EC_AVCC_R

CHGVADJ31

OVP-5

8

5

P

+

6

-

G

PU301B

PU301B

4

LM358DR_SO8

LM358DR_SO8

B

PR302

4

3

12

24751_ACN

24751_ACP

24751_ACOP

1 2

PC318

PC318

0.47U_0603_16V7K

0.47U_0603_16V7K

24751_OVPSET

1 2

PR321

PR321
0_0402_5%

0_0402_5%

VADJ

/BATDRV

210K_0402_1%

210K_0402_1%

1 2

VSB1

12

PR339

PR339

12

PR340

PR340

CHGEN#

PU302

PU302

1

CHGEN

PC305

PC305

0.1U_0603_25V7K@

0.1U_0603_25V7K@

2

ACN

3

ACP

4

ACDRV

ACDET

5

ACDET

6

ACSET

7

ACOP

8

OVPSET

9

AGND

10

VREF

PR319

0_0402_5%@

PR319

0_0402_5%@

24751_VDAC

11

1 2

VDAC

12

VADJ

13

ACGOOD

14

BATDRV

BQ24751ARHDR_QFN28_5 X5

BQ24751ARHDR_QFN28_5 X5

REGN

PR330

PR330

12

PR329

PR329
0_0402_5%@

0_0402_5%@

VADJ

12

PR333

PR333

499K_0402_1%

499K_0402_1%

28

PVCC

27

BTST

26

HIDRV

25

PH

24

REGN

23

LODRV

22

PGND

21

LEARN

20

CELLS

19

SRP

18

SRN

17

BAT

29

TP

16

SRSET

15

IADAPT

100P_0402_50V8J

100P_0402_50V8J

12

PC329

PC329

1000P_0402_50V7K

1000P_0402_50V7K

"CHGVADJ" connect to EC DA pin

LI-3S :13.5V----BATT-OVP=1.5V
BATT-OVP=0.1112*BATT+

806K_0603_1%

806K_0603_1%

12

0.01U_0402_25V7K

0.01U_0402_25V7K
PC332

PC332

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

133K_0603_1%

133K_0603_1%

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

8
7

B+_IN CHG_B+

5

PC308

PC308

0.1U_0603_25V7K

0.1U_0603_25V7K

12

12

RTCVREF

12

PR322

PR322

100K_0402_1%

100K_0402_1%

7

0

OVP-4

B+

PC307

PC307

0.1U_0805_25V6K

0.1U_0805_25V6K

1 2

PR306

PR306

24751_BTST-1

0_0402_5%

0_0402_5%

1 2

24751_HIDRV

24751_PH

24751_LODRV

ACOFF

24751_SRP

24751_SRN

IADAPT

10_0603_5%

10_0603_5%

LL4148_LL34-2

LL4148_LL34-2

REGN

12

PC316

PC316
1U_0603_10V6K

1U_0603_10V6K

12

PC324

PC324

0.1U_0603_25V7K

0.1U_0603_25V7K

SRSET

1 2

PR326

PR326

PC328

PC328

24751_BTST

12

PD301

PD301

ACOFF 31

12

12

CHGVADJ Pre Cell

3.3V 4.35V

0V 4V

C

PJ301

PJ301

2

112

JUMP_43X118@

JUMP_43X118@

1 2

PC312

PC312

0.1U_0603_25V7K

0.1U_0603_25V7K

CELLS

PR316

PR316
0_0402_5%@

0_0402_5%@

ICHG setting

12

PR327

PR327
180K_0402_1%

180K_0402_1%

ADP_I 31

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

C

1 2

PC309

PC309

PQ303

PQ303

3 5

241

SIS412-T1-E3_PAK1212-8

SIS412-T1-E3_PAK1212-8

10U_LF919AS-100M-P3_4. 5A_20%

10U_LF919AS-100M-P3_4. 5A_20%

12

24751_SNB

PQ305

PQ305

3 5

241

54.9K_0402_1%

54.9K_0402_1%

12

PC326

PC326

0.01U_0402_25V7K

0.01U_0402_25V7K

@

@

PR324

PR324

12

SI7716DN-T1-E3_PAK1212-8

SI7716DN-T1-E3_PAK1212-8

12

IREF Current

2.842V 3.3A

FSTCHG31

1 2

PC310

PC310

4.7U_1206_25V6K

4.7U_1206_25V6K

PL301

PL301

1 2

PR312

PR312

4.7_1206_5%

4.7_1206_5%

PC319

PC319

680P_0603_50V8J

680P_0603_50V8J

IREF 31

2009/05/212008/05/21

2009/05/212008/05/21

2009/05/212008/05/21

1 2

4.7U_1206_25V6K

4.7U_1206_25V6K

24751_SW- 1

24751_VREF

2

G

G

D

12

PR303

PR303
100K_0402_1%

PC302

PC302

0.01U_0402_25V7K

0.01U_0402_25V7K

PC311

PC311

4.7U_1206_25V6K

4.7U_1206_25V6K

/BATDRV

PR310

PR310

0.02_1206_1%

0.02_1206_1%

1

2

12

PC313

PC313

10U_1206_25V6M

10U_1206_25V6M

PC320

PC320

0.1U_0402_16V7K

0.1U_0402_16V7K

1 2

12

PC321

PC321

0.1U_0603_25V7K

0.1U_0603_25V7K

PR337

PR337

100K_0402_1%

100K_0402_1%

CELLS

PQ311

PQ311

2N7002KW_S OT323-3

2N7002KW_S OT323-3

PR332

PR332
100K_0402_1%

100K_0402_1%

1 2

CHGEN#

13

D

D

PQ310

PQ310
2N7002KW_S OT323-3

2N7002KW_S OT323-3

S

S

Title

Title

Title

Size D ocument Number Rev

Size D ocument Number Rev

Size D ocument Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

100K_0402_1%

1 2

4

3

24751_VREF

1 2

13

D

D

2

G

G

S

S

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

CHARGER

CHARGER

CHARGER

12

PC322

PC322

0.1U_0603_25V7K

0.1U_0603_25V7K

@

@

PR315

PR315
100K_0402_1%

100K_0402_1%

1 2

PQ306

PQ306
2N7002KW_S OT323-3

2N7002KW_S OT323-3

13

D

D

G

G

S

S

D

36

578

12

BAT_SEL

2

241

PC314

PC314

10U_1206_25V6M

10U_1206_25V6M

PQ304

PQ304
FDS6675BZ_SO8

FDS6675BZ_SO8

BATT+

12

PC315

PC315

10U_1206_25V6M

10U_1206_25V6M

12

PR317

PR317
0_0402_5%@

0_0402_5%@

12

PR318

PR318
0_0402_5%

0_0402_5%

37 42Wednesday, June 24, 2009

37 42Wednesday, June 24, 2009

37 42Wednesday, June 24, 2009

BATT_SEL_HW 36

BATT_SEL_EC 31

0.1

0.1

0.1

5

4

3

2

1

ISL6237_B+

12

12

PC405

PC405

PC404

PC404

4.7U_1206_25V6K

4.7U_1206_25V6K

4.7U_1206_25V6K

4.7U_1206_25V6K

PL402

PL402

4.7UH_PCMC063T-4R 7MN_5.5A_20%

4.7UH_PCMC063T-4R 7MN_5.5A_20%

SIS412DN-T1-E3_PAK1212-8

SIS412DN-T1-E3_PAK1212-8

12

PR404

PR404

4.7_1206_5%

4.7_1206_5%

5V_SNB

12

PC415

PC415

680P_0603_50V8J

680P_0603_50V8J

SI7716DN-T1-E3_PAK1212-8

SI7716DN-T1-E3_PAK1212-8

PJ402

PJ402

2

JUMP_43X118@

JUMP_43X118@

PJ403

PJ403

2

JUMP_43X118@

JUMP_43X118@

12

PC406

PC406

2200P_0402_50V7K

2200P_0402_50V7K

12

PR407

PR407

PR409

PR409

SPOK 21,36

112

112

12

PC426

PC426

PC425

PC425

1 2

2200P_0402_50V7K

2200P_0402_50V7K

0.1U_0603_25V7K

0.1U_0603_25V7K

+5VALWP

1

+

+

PC413

PC413

2

150U_D2_6.3VY_R15M

150U_D2_6.3VY_R15M

61.9K_0402_1%@

61.9K_0402_1%@

1 2

1 2

0_0402_5%

0_0402_5%

PC403

PC403

12

2200P_0402_50V7K

2200P_0402_50V7K

ISL6237_B+

PQ401

PQ401

SIS412DN-T1-E3_PAK1212-8

SIS412DN-T1-E3_PAK1212-8

PQ403

PQ403

SI7716DN-T1-E3_PAK1212-8

SI7716DN-T1-E3_PAK1212-8

PR412

PR412

100K_0402_1%

100K_0402_1%

1 2

PR418

PR418

0_0402_5%

0_0402_5%

PR401

PR401

0_0402_5%

0_0402_5%

1 2

VL

PC407

PC407

0.1U_0603_25V7K

0.1U_0603_25V7K

3 5

241

BST3A-1

PC411

PC411

0.1U_0603_25V7K

0.1U_0603_25V7K

1 2

3 5

241

PR403

PR403

2.2_0603_5%

2.2_0603_5%

UG3

SW3

LG3

FB3

VL

1 2

33

TP

26

UGATE2

BST3A BST5A

12

24

BOOT2

25

PHASE2

23

LGATE2

30

OUT2

32

REFIN2

2VREF_ISL6237

PR413

PR413

200K_0402_5%

200K_0402_5%

1 2

PC417

PC417

0.22U_0603_25V7K

0.22U_0603_25V7K

1 2

1 2

PC416

PC416

0.22U_0603_25V7K

0.22U_0603_25V7K

EN_LDO

3/5V_EN1

3/5V_EN2

1

8

20

4

14

27

REF

LDOREFIN

NC

EN_LDO

EN1

EN2

VL

PR416

PR416
0_0402_5%

0_0402_5%

PR419

PR417

PR417

12

PR419

47K_0402_5%@

47K_0402_5%@

1 2

806K_0603_1%

806K_0603_1%

1 2

12

PC419

PC419

0.047U_0402_16V7K

0.047U_0402_16V7K

1 2

12

2VREF_ISL6237

PC420

PC420

0.047U_0402_16V7K@

0.047U_0402_16V7K@

1 2

PC408

PC408

3/5V_VIN

3/5V_VCC

3

6

VIN

TON

NC

2

5

3/5V_NC

12

3/5V_TON

12

PC418

PC418

PR420

PR420
0_0402_5%

0_0402_5%

1U_0603_6.3V6M

1U_0603_6.3V6M

1U_0603_10V6K

1U_0603_10V6K

7

PVCC

LDO

VCC

UGATE1

BOOT1

PHASE1

LGATE1

PGND

OUT1

POK2

POK1

ILIM1

ILIM2

GND

21

12

PC409

PC409

4.7U_0805_6.3V6K

4.7U_0805_6.3V6K

19

HG5

15

17

SW5

16

LG5

18

22

10

FB5

11

FB1

9

BYP

5V_SKIP

29

SKIP

28

13

ILM1

12

ILIM2

31

PU401

PU401
TPS51427_QFN32_5X5

TPS51427_QFN32_5X5

PC410

PC410

1U_0603_10V6K

1U_0603_10V6K

1 2

PR405

PR405

2.2_0603_5%

2.2_0603_5%

0_0402_5%@

0_0402_5%@

1 2

PR410

PR410
0_0402_5%@

0_0402_5%@

1 2

PR411

PR411
0_0402_5%

0_0402_5%

12

BST5A-1

1 2

PC412

PC412

0.1U_0603_25V7K

0.1U_0603_25V7K

PR424

PR424

12

PR414

PR414
301K_0402_1%

301K_0402_1%

PR415

PR415
301K_0402_1%

301K_0402_1%

2VREF_ISL6237

12

12

12

PQ402

PQ402

3 5

241

PQ404

PQ404

3 5

241

VL

PR421

PR421
100K_0402_1%

100K_0402_1%

+3VALWP +3VALW

+5VALWP +5VALW

2VREF_ISL6237

B+

PJ401

PJ401
JUMP_43X118@

JUMP_43X118@

2

112

D D

+3VALWP

1

+

+

PC421

150U_D2_6.3VY_R15M

150U_D2_6.3VY_R15M

C C

B B

VSB

51_ON#33,35

PC421

LL4148_LL34-2@

LL4148_LL34-2@

100K_0402_1%@

100K_0402_1%@

PR423

PR423

22K_0402_1%@

22K_0402_1%@

1 2

PD404

PD404

PR422

PR422

1 2

2

1 2

VS

12

12

1 2

@

@

12

12

PC401

PC424

PC424

0.1U_0603_25V7K

0.1U_0603_25V7K

1 2

PD402

PD402

RLZ4.3B_LL34

RLZ4.3B_LL34

PQ405

PQ405

PC401

4.7U_1206_25V6K

4.7U_1206_25V6K

2200P_0402_50V7K

2200P_0402_50V7K

PL401

PL401

PR402

PR402

4.7_1206_5%

4.7_1206_5%

PC414

PC414

680P_0603_50V8J

680P_0603_50V8J

EN_LDO-1

2

MAINPWO N36

PC423

PC423

1 2

4.7UH_PCMC063T-4R 7MN_5.5A_20%

4.7UH_PCMC063T-4R 7MN_5.5A_20%

PR406

0_0402_5%

PR406

0_0402_5%

PR408

PR408

10K_0402_1%

10K_0402_1%

@

@

1 2

TP0610K-T1-E3_SOT23- 3@

TP0610K-T1-E3_SOT23- 3@

PC422

PC422

0.22U_0603_25V7K

0.22U_0603_25V7K

12

PC402

PC402

4.7U_1206_25V6K

4.7U_1206_25V6K

12

3V_SNB

12

PD401

PD401

RB751V-40TE17_SOD323- 2

RB751V-40TE17_SOD323- 2

1 2

PD403

PD403

RB751V-40TE17_SOD323- 2

RB751V-40TE17_SOD323- 2

1 2

13

A A

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2007/06/22 2008/06/22

2007/06/22 2008/06/22

2007/06/22 2008/06/22

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

3VALW/5VALW

Size D ocument Number Rev

Size D ocument Number Rev

Size D ocument Number Rev

Wednesday, June 24, 2009

Wednesday, June 24, 2009

Wednesday, June 24, 2009

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

38 42

38 42

38 42

1

0.1Custom

0.1Custom

0.1Custom

5

1.5V_TON

PR502

PR502

0_0402_5%

SUSP#29,31,34,36

100_0603_1%

100_0603_1%

1 2

1U_0603_10V6K

1U_0603_10V6K

SUSP21,34

0_0402_5%

1 2

PR504

PR504

300_0603_1%

300_0603_1%

1 2

PC508

PC508

1U_0603_10V6K

1U_0603_10V6K

21K_0402_1%

21K_0402_1%

PR510

PR510

100K_0402_1%

100K_0402_1%

1 2

PR513

PR513

PC519

PC519

12

@

@

12

PR508

PR508

12

1 2

0.1U_0402_16V7K

0.1U_0402_16V7K

5

PC504

PC504

0.1U_0402_16V7K

0.1U_0402_16V7K

PC509

PC509

47P_0402_50V8J@

47P_0402_50V8J@

1 2

PR507

PR507

22K_0402_1%

22K_0402_1%

1 2

12

+1.5VP

12

PC515

PC515

0.22U_0402_6.3V6K

0.22U_0402_6.3V6K

PC520

PC520

47P_0402_50V8J@

47P_0402_50V8J@

1 2

PR515

PR515

13.3K_0402_1%

13.3K_0402_1%

1 2

PR516

PR516

30.1K_0402_1%

30.1K_0402_1%

4.7U_0805_6.3V6K

4.7U_0805_6.3V6K

PR518

PR518

0_0402_5%

0_0402_5%

1 2

PC527

PC527

@

@

12

PC523

PC523

1 2

PR521

PR521
100K_0402_1%

100K_0402_1%

VCCP_V5FILT

VCCP_FB

+1.5V

1

2

12

13

D

D

2

G

G

S

S

1.5V_EN

1.5V_V5FILT

1.5V_FB

VCCP_TON

VCCP_EN

PJ503

PJ503

1

JUMP_43X79

JUMP_43X79

@

@

2

1K_0402_1%

1K_0402_1%

1K_0402_1%

1K_0402_1%

PQ505

PQ505

2N7002KW_SOT323-3

2N7002KW_SOT323-3

2

3

4

5

6

12

PC528

PC528

0.1U_0402_16V7K

0.1U_0402_16V7K

@

@

2

TON

3

VOUT

4

V5FILT

5

VFB

6

PGOOD

PR517

PR517

PR520

PR520

TON

VOUT

V5FILT

VFB

PGOOD

12

0.75V_REF

12

0.1U_0402_16V7K

0.1U_0402_16V7K

D D

SYSON

+5VALW

C C

+5VS

B B

A A

240K_0402_5%

240K_0402_5%

1 2

1

EN_PSV

1.5V_PGOOD 8

240K_0402_5%

240K_0402_5%

1 2

1

EN_PSV

GND7PGND

0.75V_IN

PC525

PC525

4

PR501

PR501

BST_1.5V

1 2

14

15

TP

VBST

DRVH

LL

TRIP

V5DRV

DRVL

GND7PGND

8

PU501

PU501
TPS51117RGYR_QFN14_3. 5x3.5

TPS51117RGYR_QFN14_3. 5x3.5

PR509

PR509

2.2_0603_5%

2.2_0603_5%

BST_VCCP

1 2

14

15

TP

VBST

13

DRVH

12

LL

11

TRIP

10

V5DRV

9

DRVL

8

PU502

PU502
TPS51117RGYR_QFN14_3. 5x3.5

TPS51117RGYR_QFN14_3. 5x3.5

PU503

PU503

VIN1VCNTL

2

GND

3

VREF

4

VOUT

APL5331KAC-TRL_SO8

APL5331KAC-TRL_SO8

12

12

PC526

PC526
10U_0805_6.3V6M

10U_0805_6.3V6M

4

PR503

PR503

2.2_0603_5%

2.2_0603_5%

UG_1.5V

13

SW_1.5V

12

1.5V_TRIP

11

10

LG_1.5V

9

PR511

PR511

UG_VCCP

SW_VCC P

VCCP_TRIP

1 2

12K_0402_1%

12K_0402_1%

LG_VCCP

+0.75VSP

BST_1.5V-1

1 2

PR505

PR505

17.8K_0402_1%

17.8K_0402_1%

1 2

BST_VCCP-1

PR514

PR514

6

5

NC

7

NC

8

NC

9

TP

PD501

PD501
1SS355_SOD323-2@

1SS355_SOD323-2@

1 2

PC503

PC503

1 2

0.1U_0603_25V7K

0.1U_0603_25V7K

+5VALW

12

PD502

PD502
1SS355_SOD323-2@

1SS355_SOD323-2@

PC514

PC514

1 2

0.1U_0603_25V7K

0.1U_0603_25V7K

+5VS

12

PC521

PC521

4.7U_0805_10V6K

4.7U_0805_10V6K

3

PJ501

12

PC534

PC534

1 2

0.1U_0603_25V7K

0.1U_0603_25V7K

12

PC537

PC537

PC536

PC536

0.1U_0603_25V7K

0.1U_0603_25V7K

4.7U_0805_6.3V6K

4.7U_0805_6.3V6K

PC533

PC533

Deciphered Date

Deciphered Date

Deciphered Date

PJ501

2

112

JUMP_43X79@

JUMP_43X79@

PC535

PC535

2200P_0402_50V7K

2200P_0402_50V7K

1

+

+

PC505

PC505

2

220U_D2_4VY_R15M

220U_D2_4VY_R15M

PJ502

PJ502

2

112

JUMP_43X79@

JUMP_43X79@

2200P_0402_50V7K

2200P_0402_50V7K

1

+

+

PC516

PC516

2

+3VS

PC529

PC529

2

G

G

12

1.5V_IN

12

12

+5VALW

PQ501

PQ501

3 5

241

PQ502

PQ502

3 5

PC511

PC511

4.7U_0805_10V6K

4.7U_0805_10V6K

+5VS

+3VALW

12

PC524

PC524
1U_0603_6.3V6M

1U_0603_6.3V6M

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

241

VCCP_IN

578

PQ503

PQ503

3 6

241

SI4686DY-T1-E3_SO8

SI4686DY-T1-E3_SO8

786

5

4

PQ504

PQ504

123

SI4634DY-T1-E3_SO8

SI4634DY-T1-E3_SO8

3

PC502

PC502

4.7U_1206_25V6K

4.7U_1206_25V6K

1.5UH_PCMC063T-1R 5MN_9A_20%

1.5UH_PCMC063T-1R 5MN_9A_20%

SIS412DN-T1-E3_PAK1212-8

SIS412DN-T1-E3_PAK1212-8

SI7716DN-T1-E3_PAK1212-8

SI7716DN-T1-E3_PAK1212-8

1 2

12

PR506

PR506

4.7_1206_5%

4.7_1206_5%

1.5V_SNB

12

PC510

PC510

680P_0603_50V7K

680P_0603_50V7K

12

12

PC513

PC513

PC512

PC512

4.7U_1206_25V6K

4.7U_1206_25V6K

PL502

PL502

1.5UH_PCMC063T-1R 5MN_9A_20%

1.5UH_PCMC063T-1R 5MN_9A_20%

1 2

12

PR512

PR512

4.7_1206_5%

4.7_1206_5%

VCCP_SNB

12

PC522

PC522

680P_0603_50V7K

680P_0603_50V7K

SUSP2 1,34

PC501

PC501

4.7U_1206_25V6K

4.7U_1206_25V6K

PL501

PL501

1 2

4.7U_1206_25V6K

4.7U_1206_25V6K

PR523

PR523

31.6K_0402_1%

31.6K_0402_1%

1 2

0.1U_0402_16V7K

0.1U_0402_16V7K

Compal Secret Data

Compal Secret Data

Compal Secret Data

2

B+

12

12

PC507

PC507

PC506

PC506

10U_0805_6.3V6M

10U_0805_6.3V6M

B+

12

12

PC517

PC517

10U_0805_6.3V6M

10U_0805_6.3V6M

220U_D2_4VY_R15M

220U_D2_4VY_R15M

1

PJ507

PJ507

1

JUMP_43X79

JUMP_43X79

2

2

12

PR522

PR522

1K_0402_1%

1K_0402_1%

13

D

D

PR524

S

S

PR524

PQ506

PQ506

2N7002KW_SOT323-3

2N7002KW_SOT323-3

2008/11/122007/11/12

2008/11/122007/11/12

2008/11/122007/11/12

2

+1.5VP

1000P_0402_50V7K

1000P_0402_50V7K

+VCCPP

PC518

PC518

1000P_0402_50V7K

1000P_0402_50V7K

LDO_1.8V_IN

12

LDO_1.8V_REF

12

0.1U_0402_16V7K

0.1U_0402_16V7K

1.24K_0402_1%

1.24K_0402_1%

PC531

PC531

1

PJ504

PJ504

+VCCPP +1.05VS

+1.5VP +1.5V

PU504

PU504

VIN1VCNTL

2

GND

3

VREF

4

VOUT

APL5331KAC-TRL_SO8

APL5331KAC-TRL_SO8

12

+1.8VSP

12

PC532

PC532
10U_0805_6.3V6M

10U_0805_6.3V6M

Title

Title

Title

Size D ocument Number Rev

Size D ocument Number Rev

Size D ocument Number Rev

Date: Sheet of

Date: Sheet of

Date: Sheet of

2

112

JUMP_43X118

JUMP_43X118

@

@

PJ505

PJ505

2

112

JUMP_43X118

JUMP_43X118

@

@

PJ506

PJ506

2

112

JUMP_43X79@

JUMP_43X79@

PJ508

PJ508

2

112

JUMP_43X79@

JUMP_43X79@

6

5

NC

7

NC

8

NC

9

TP

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

1.5V / 0.9V / VCCP / 1.8V

1.5V / 0.9V / VCCP / 1.8V

1.5V / 0.9V / VCCP / 1.8V

12

1

+5VS

PC530

PC530
1U_0603_6.3V6M

1U_0603_6.3V6M

+0.75VS+0.75VSP

+1.8VS+1.8VSP

0.1

0.1

39 42Wednesday, June 24, 2009

39 42Wednesday, June 24, 2009

39 42Wednesday, June 24, 2009

0.1

5

VR_ON31

12

PR866

1 2

PR832

PR832
0_0402_5%@

0_0402_5%@

1U_0603_10V6K

1U_0603_10V6K

CPU_DROOP

CPU_VREF

CPU_CSP1-2

CPU_CSP1-2

CPU_CSN1-1

CPU_CSN1-1

CPU_CSN2-1

CPU_CSN2-1

CPU_CSP2-2

CPU_CSP2-2

CPU_GNDSNS

CPU_VSNS

CPU_THERM

12

12

PR845

0_0402_5%

PR845

0_0402_5%

12

PR847

PR847
100_0402_5%

100_0402_5%

6

VCCSENSE

+CPU_CORE

PR866

PC824

PC824

PR849

PR849
20K_0402_5%

20K_0402_5%

VGATE8,21

PC836

PC836

PC837

PC837

100_0402_5%

100_0402_5%

1 2

1 2

CLK_ENABLE#21

PR843

PR843

CPU_VREF

1 2

PR839

PR839

4.3K_0402_1%

4.3K_0402_1%

1 2

PC825 68P_0402_50V8JPC825 6 8P_0402_50V8J

1 2

PC826 0.22U_0603_10V7KPC826 0.22U_0603_10V7K

1 2

PC828 33P_0402_50V8KPC828 33P_0402_50V8K

1 2

PC830 33P_0402_50V8KPC830 33P_0402_50V8K

1 2

PC832 33P_0402_50V8KPC832 33P_0402_50V8K

1 2

PC833 33P_0402_50V8KPC833 33P_0402_50V8K

12

PR844

0_0402_5%

PR844

0_0402_5%

12

VSSSENSE

D D

C C

CPU_CSP1

PR861 470_0402_1%PR861 470_0402_1%

CPU_CSN1

PR862 470_0402_1%PR862 470_0402_1%

CPU_CSN2

PR863 470_0402_1%PR863 470_0402_1%

CPU_CSP2

PR864 470_0402_1%PR864 470_0402_1%

B B

12

100P_0402_50V8J

100P_0402_50V8J

12

12

100P_0402_50V8J

100P_0402_50V8J

12

+3VS

12

12

PR830

PR830

1.91K_0402_1%

1.91K_0402_1%

1.91K_0402_1% @

1.91K_0402_1% @

+3VS +5VS

PR834

0_0402_5%@

PR834

0_0402_5%@

12

CPU_V5FILT

41

40

GND

V5FILT

1

DROOP

2

VREF

3

GND

4

CSP1

5

CSN1

6

CSN2

7

CSP2

8

GNDSNS

9

VSNS

10

THERM

VR_TT#11DPRSTP#12PSI#13VID614VID515VID416VID317VID218VID119VID0

6

4

PR831

PR831

10K_0402_5%@

10K_0402_5%@

12

12

PR865

0_0402_5%

PR865

0_0402_5%

12

CPU_VREF

12

12

PR833 124K_0402_1%PR833 124K_0402 _1%

PR835 0_0402_5%PR835 0_0402 _5%

PR836 0_0402_5%PR836 0_0402 _5%

CPU_TONSEL

CPU_TRIPSEL

CPU_ISLEW

CPU_OSRSEL

38

37

39

36

ISLEW

TONSEL

OSRSEL

TRIPSEL

PU801

PU801

TPS51620RHAR_QFN40_6X6

TPS51620RHAR_QFN40_6X6

VID5

VID6

PSI#

CPU_DPRSTP#

12

12

1 2

1 2

PR855 0_0402_5%PR855 0_0402_5%

PR852 0_0402_5%PR852 0_0402_5%

PR853 0_0402_5%PR853 0_0402_5%

PR854 0_0402_5%PR854 0_0402_5%

H_PSI#

CPU_VID5

CPU_VID66CPU_VID4

H_DPRSTP#

3

8,21

31

VR_ON

DPRSLPVR

12

1 2

PR837 0_0402_5%PR837 0_0402 _5%

PR838 0_0402_5%PR838 0_0402 _5%

CPU_VR_ON

CPU_DPRSLPVR

CPU_CLK_EN#

34

32

35

33

31

VR_ON

PGOOD
DRVH1

CLK_EN#

PWRMON

DPRSLPVR

DRVL1

PGND

DRVL2

VBST2

DRVH2

20

VID0

VID1

VID2

VID3

VID4

1 2

1 2

PR856 0_0402_5%PR856 0_0402_5%

5,8,20

1 2

5

PR857 0_0402_5%PR857 0_0402_5%

CPU_VID3

1 2

PR858 0_0402_5%PR858 0_0402_5%

PR859 0_0402_5%PR859 0_0402_5%

6

CPU_VID26CPU_VID16CPU_VID0

1 2

PR860 0_0402_5%PR860 0_0402_5%

6

VBST

V5IN

30

29

28

LL1

27

26

25

24

23

LL2

22

21

6

UGATE_CPU1

BOOT_CPU1

PHASE_CPU1

LGATE_CPU1

LGATE_CPU2

PHASE_CPU2

BOOT_CPU2

UGATE_CPU2

1 2

2.2_0603_5%

2.2_0603_5%

1 2

PC831 10U_0805_6.3V6M

PC831 10U_0805_6.3V6M

6

PR841

PR841

+5VS

PR846

PR846

1 2

2.2_0603_5%

2.2_0603_5%

TPCA8030-H_SOP-AD VANCE8-5

TPCA8030-H_SOP-AD VANCE8-5

+5VS

TPCA8028-H_SOP-AD VANCE8-5

TPCA8028-H_SOP-AD VANCE8-5

PD801

PD801
1SS355_SOD323-2

1SS355_SOD323-2

1 2

BOOT_CPU1-1

1 2

PC827

PC827

0.22U_0603_10V7K

0.22U_0603_10V7K

1 2

PC834

PC834

0.22U_0603_10V7K

0.22U_0603_10V7K

1 2

PD802

PD802
1SS355_SOD323-2

1SS355_SOD323-2

TPCA8028-H_SOP-AD VANCE8-5

TPCA8028-H_SOP-AD VANCE8-5

TPCA8030-H_SOP-AD VANCE8-5

TPCA8030-H_SOP-AD VANCE8-5

+5VS

PQ801

PQ801

PQ802

PQ802

PQ803

PQ803

PQ804

PQ804

4

4

4

4

12

PC808

PC808

PC804

PC804

10U_1206_25V6M

10U_1206_25V6M

123 5

12

PR819

PR819

4.7_1206_5%

4.7_1206_5%

CPU1_SNB

12

PC815

PC815
680P_0603_50V8J

123 5

680P_0603_50V8J

12

PC817

PC817

123 5

123 5

12

10U_1206_25V6M

10U_1206_25V6M

12

PC818

PC818

10U_1206_25V6M

10U_1206_25V6M

12

PR829

PR829

4.7_1206_5%

4.7_1206_5%

CPU2_SNB

12

PC823

PC823
680P_0603_50V8J

680P_0603_50V8J

2

+CPU_B+

0.1U_0603_25V7K

0.1U_0603_25V7K

1 2

+CPU_B+

12

PC843

PC843

PC840

PC840

2200P_0402_50V7K

2200P_0402_50V7K

12

0.1U_0603_25V7K

0.1U_0603_25V7K

PR801

PR801

17.8K_0402_1%

17.8K_0402_1%

PR848

PR848

17.8K_0402_1%

17.8K_0402_1%

PC841

PC841

CPU_CSP1-1

12

PR842

PR842

28.7K_0402_1%

28.7K_0402_1%

CPU_CSP1

CPU_CSP2-1

12

PR851

PR851

28.7K_0402_1%

28.7K_0402_1%

CPU_CSP2

12

12

PC809

PC809

PC838

PC838

2200P_0402_50V7K

2200P_0402_50V7K

1000P_0402_50V7K

1000P_0402_50V7K

12

PC842

PC842

1 2

PC839

PC839

1000P_0402_50V7K

1000P_0402_50V7K

10U_1206_25V6M

10U_1206_25V6M

PL801

PL801

HCB4532KF-800T90_1812

HCB4532KF-800T90_1812

1 2

PC805

2200P_0402_50V7K

2200P_0402_50V7K

PL802

PL802

0.36UH_PCMC104T-R 36MN1R17_30A_20%

0.36UH_PCMC104T-R 36MN1R17_30A_20%

1

2

PR840

PR840

69.8K_0402_1%

69.8K_0402_1%

1 2

CPU_SN-1

1 2

1 2

PC829

PC829

0.033U_0402_16V7K

0.033U_0402_16V7K

PL803

PL803

0.36UH_PCMC104T-R 36MN1R17_30A_20%

0.36UH_PCMC104T-R 36MN1R17_30A_20%

1

2

PR850

PR850

69.8K_0402_1%

69.8K_0402_1%

1 2

CPU_SN-2

1 2

1 2

PC835

PC835

0.033U_0402_16V7K

0.033U_0402_16V7K

PC805

4

3

1 2

4

3

1 2

1

1

+

+

2

100U_25V_M

100U_25V_M

<BOM Structure>

<BOM Structure>

PH801

PH801

100K_0603_1% TSM1A104F4361R Z

100K_0603_1% TSM1A104F4361R Z

CPU_CSN1

PH803

PH803

100K_0603_1% TSM1A104F4361R Z

100K_0603_1% TSM1A104F4361R Z

CPU_CSN2

B+

+CPU_CORE

A A

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

3

2008/05/21 2009/05/21

2008/05/21 2009/05/21

2008/05/21 2009/05/21

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size D ocument Number Rev

Size D ocument Number Rev

Size D ocument Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

+CPU_CORE

+CPU_CORE

+CPU_CORE

Wednesday, June 24, 2009

Wednesday, June 24, 2009

Wednesday, June 24, 2009

0.1

0.1

40 42

40 42

40 42

1

0.1

5

4

3

2

Version change list (P.I.R. List) Page 1 of 2

for PWR

Reason for change Rev. PG# Modify List Date PhaseFixed IssueItem

1

D D

1

2

3

4

5

Change design Change design

Change design Change design

Change design Change design

Change design Change design

6

7

C C

8

9

10

11

12

13

14

15

B B

Change design Change design

Change design Change design

Change design

Change design

Change design

add bridge battery charge circuit

Change designChange design

Change designChange design

Change designChange design

Change designChange design

Change designChange design

Modify bridge battery charge current

Modify 1.5V output voltage

For bridge battery can work in S3

P.37

P.36

P.37

P.37

P.39

P.40

P.41

P.40

P.38

P.41

P.40

P.38

P.37

P.40

P.39

add PR215 and PR218 and change PR213
from 2K to 2.2K

JDCIN turn off 180 degree

change JBTT2 from lie to stand

add PR219 and PC205

change PR403 and PR405 from 0 to 2.2 ohm

change PR503 and PR511 from 0 to 2.2 ohm

change PR841 and PR846 from 0 to 2.2 ohm

change PR514 from 15.4K to 12K ohm

add PR339 PR340 PR341 and PC332

change PR839 from 5.76K to 4.3K ohm

change PR504 and PR513 from 422 to 300 ohm

delect PR338

change PR213 from 2.2k to 9.09k and
PR215 from 1.21k to 4.53k

change PR507 from 21k to 22k

change PD402 from RLZ5.1B to RLZ4.3B

2009.3.20

2009.3.20

2009.3.24

2009.3.25

2009.3.25

2009.3.25

2009.3.25

2009.3.25

2009.5.5

2009.5.15

2009.5.15

2009.6.18

2009.6.18

2009.6.18

2009.6.18

DVTChange design

DVT

DVT

DVT

DVT

DVT

DVT

DVT

PVT

PVT

PVT

Pre_MP

Pre_MP

Pre_MP

Pre_MP

16

17

18

19

A A

20

21

Security Classification

Security Classification

Security Classification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2007/09/20 2008/09/20

2007/09/20 2008/09/20

2007/09/20 2008/09/20

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size D ocument Number Rev

Size D ocument Number Rev

Size D ocument Number Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

PIR (PWR)

PIR (PWR)

PIR (PWR)

KIWAX_LA-5081P

KIWAX_LA-5081P

KIWAX_LA-5081P

0.1

0.1

41 42Wednesday, June 24, 2009

41 42Wednesday, June 24, 2009

41 42Wednesday, June 24, 2009

1

0.1

5

4

3

2

1

NO DATE PAGE MODIFICATION LIST PURPOSE

-----------------------------------------------------------------------------------------------------------------------------------------------

EVT modify 20090319

1. 03/19 P.17: C hange EDID volt age to +3VS rai l.

2. 03/19 P.23: H DD power +3VS + 5VS add resisto rs for measure.

3. 03/19 P.24: L ANREQB is low a ctive. Don't ne ed unnecessary c ircuit.

4. 03/19 P.24: N et LAN_WAKE# is double pull-up . del RL2.

5. 03/19 P.24: + 3V_LAN add a re sistor for meas ure.

6. 03/19 P.32: D el JP15. It sam e as MiniPCIE D ebug Card.

D D

7. 03/19 P.26: R 322 add, R321 d el. For HDA int erface.

8. 03/19 P.33: C hange Finger pr inter from Egis to Upek. Power rail is +3VS of Upek.

9. 03/19 P.16: A void glitch of H_STP_PCI#, pul l-up PCI_STP# di rectly.

10. 03/19 P.29: For debug card issue. And add R378, R379, R295 100K.

11. 03/19 P.21: For Waveform ad d C60.

12. 03/19 P.26: For EMI R345.

13. 03/19 P.31: KB light change to pin38 GPIO1 D.

14. 03/19 P.31: Add EC pin34 GP IO19 PWR_ON_LED to page.33 powe r board connect or.

15. 03/19 P.31: Add EC pin85 GP IO4C G_SELFTEST to page.28 G-se nsor ST pin.

16. 03/19 P.33: Add C335 for Ki ll-switch.

17. 03/19 P.33: Change JPWR_B c onn Pin define

EVT modify 20090320

18. 03/20 P.6: C 16 NC,for Pwr c onfirm

19. 03/20 P.28: Change JBT1 pin define for BT spec updated

EVT modify 20090323

20. 03/23 P.29: Change JEXP1 ;J LVDS1; JTP1 Con n by ME

EVT modify 20090324

21. 03/24 P.17: Reverse GMCH DP ST function

22. 03/24 P.29: Reverse MINI CA RD SATA Lane

C C

23. 03/24 P.29: Change Pin Defi ne for SSD

24. 03/24 P.29: Reveerse JPCIE1 PLT_RST#

EVT modify 20090325

25. 03/25 P.4 : Add thermal pro tection Circuit by lenvono

26. 03/25 P.21 : S0 to G3 state ,abnormal shud own

27. 03/25 P.21 : Change New CAR D PCI-E port 4 to Port 1 for po wr saving

28. 03/25 P.33 : ADD EMI&ESD so lution

29. 03/25 P.24 : Delete Mac ROM Circuit ,Becau se of layout spa ce not enough

30. 03/25 P.24 : Change Q24 to PMOS From NMOS, to saving bom co st

31. 03/25 P.26 : modify PC-BEEP circuit aviod Signal and Pwr n oise

B B

A A

Security Class ification

Security Class ification

Security Class ification

2006/08/ 18 2007/8/1 8

2006/08/ 18 2007/8/1 8

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

5

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2006/08/ 18 2007/8/1 8

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HW PIR

HW PIR

HW PIR

KIUE0_LA-5191P

42 43W ednesday, June 24, 2009

42 43W ednesday, June 24, 2009

42 43W ednesday, June 24, 2009

1

1.0

1.0

1.0

5

4

3

2

1

Page 1 of 1

Version change list (P.I.R. List)

Reason for change Rev. PG# Modify List Date PhaseFixed IssueItem

1

Detect Bridge Bettery life

2

D D

Esay rework for PORT 80

3

BT Pwer MOS Floating

Can't detect Bridge bettery 0.3 31 5/5 DVTADD R455

Not easy debug with system builded 0.3 29 CHANGE R378,R379 SIZE From 0402 to 0603 (NC) 5/13 DVT

0.3 28 NC R387, ADD R403BT Pwr MOS Floating

for EE

5/13 DVT

4

5

6

7

8 ICH_POK Glitch

C C

9 EMI Solution

10 Soft Start circuit

11 Debug use only

12 BOM Option

13

14 BOM Option

15 BOM Modify

16 Stepping to V1.0

B B

17 Soft START Circuit

18 Mic Pull high change

WWAN Noise Solution

Material LT

DFB Design

WWLAN LED

BOM Option

0.3

LIS34ALTR LT more than 4 months 0.3 28 CHANGE UG1 From LIS34ALTR to LIS244ALTR

COST DOWN 0.3 17 DELETE R167,R168,R287,R361

ADD C470 (NC)Reserve C470

5/13

5/13 DVT

5/13 DVT

Reverse WWAN LED SWITCH 0.3 29 ADD Q38 (NC) 5/13 DVT

Glitch will cause abnormal Power sequence

EMI issue 0.3 17 ADD D36

0.3 21 ADD D35,Q39 (NC),R456 (NC)

5/13

5/13

OCP 0.3 24 ADD R304,C325 (NC),C122 5/13 DVT

0.3 33 DELETE J3,J4,SW1,ADD R460 (NC),R461(NC)

5/13 DVT

Reserve R121 0.3 16 CHANGE R122 From 12 Ohm to 33 Ohm 5/16 DVT

0.3 20

CHANGE SA00002CI00 to SA00002CI10ALC272-GR EOL 5/25 DVT

DELETE ROHM MATERIAL FROM 1st BOM 0.3 CHANGE SBX01240010 to SB00000AG00 5/25 DVT

1.0 23

Update LA5191PR10 to Stepping to V1.0 1.0 01

CHANGE R90 SIZE From 0603 to 0805, DELETE R335,R342,R416

Update DAZ P/N to V1.0 and ADD Sub-Bard P/N LS5191/LS5192/LS5193/LS5194

6/23 PVT

6/23 PVT

OCP for LAN 1.0 24 Change R304 from 0 Ohm to 10K Ohm , Delete C122 6/23 PVT

1.0 26 Change R333 From 4.7K Ohm to 2.2K Ohm 6/23 PVT

DVT

DVT

DVT

19

AUDIO LINE OUT CAP

20 EMI SOLUTION

Soft START Circuit

21

21 Soft START Circuit

A A

5

Remove Duplicated Cap 1.0 27 DELETE C404,C405 6/23 PVT

SPI CLK 1.0 30

Change R410 From 15 Ohm to KC FBMA-10-100505-101T 0402

6/23 PVT

OCP for Bluetooth 1.0 28 ADD C404 (NC) 6/23 PVT

OCP for CAMERA 1.0 17 ADD C416 (NC) 6/23 PVT

Security Class ification

Security Class ification

Security Class ification

Issued Date

Issued Date

Issued Date

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

4

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

2006/08/ 18 2007/8/1 8

2006/08/ 18 2007/8/1 8

2006/08/ 18 2007/8/1 8

3

Compal Secret Data

Compal Secret Data

Compal Secret Data

Deciphered Date

Deciphered Date

Deciphered Date

Compal Electronics, Inc.

Compal Electronics, Inc.

Title

Title

Title

Size Document N umber Rev

Size Document N umber Rev

Size Document N umber Rev

Custom

Custom

Custom

Date: Sheet of

Date: Sheet of

2

Date: Sheet of

Compal Electronics, Inc.

HW PIR

HW PIR

HW PIR

KIUE0_LA-5191P

43 43Thursd ay, June 25, 2009

43 43Thursd ay, June 25, 2009

43 43Thursd ay, June 25, 2009

1

1.0

1.0

1.0
