Lenovo IdeaPad 4187-34U, IdeaPad 4187-33U, IdeaPad 4187-32U, IdeaPad 4187-DRU, IdeaPad 4187-39U Specifications

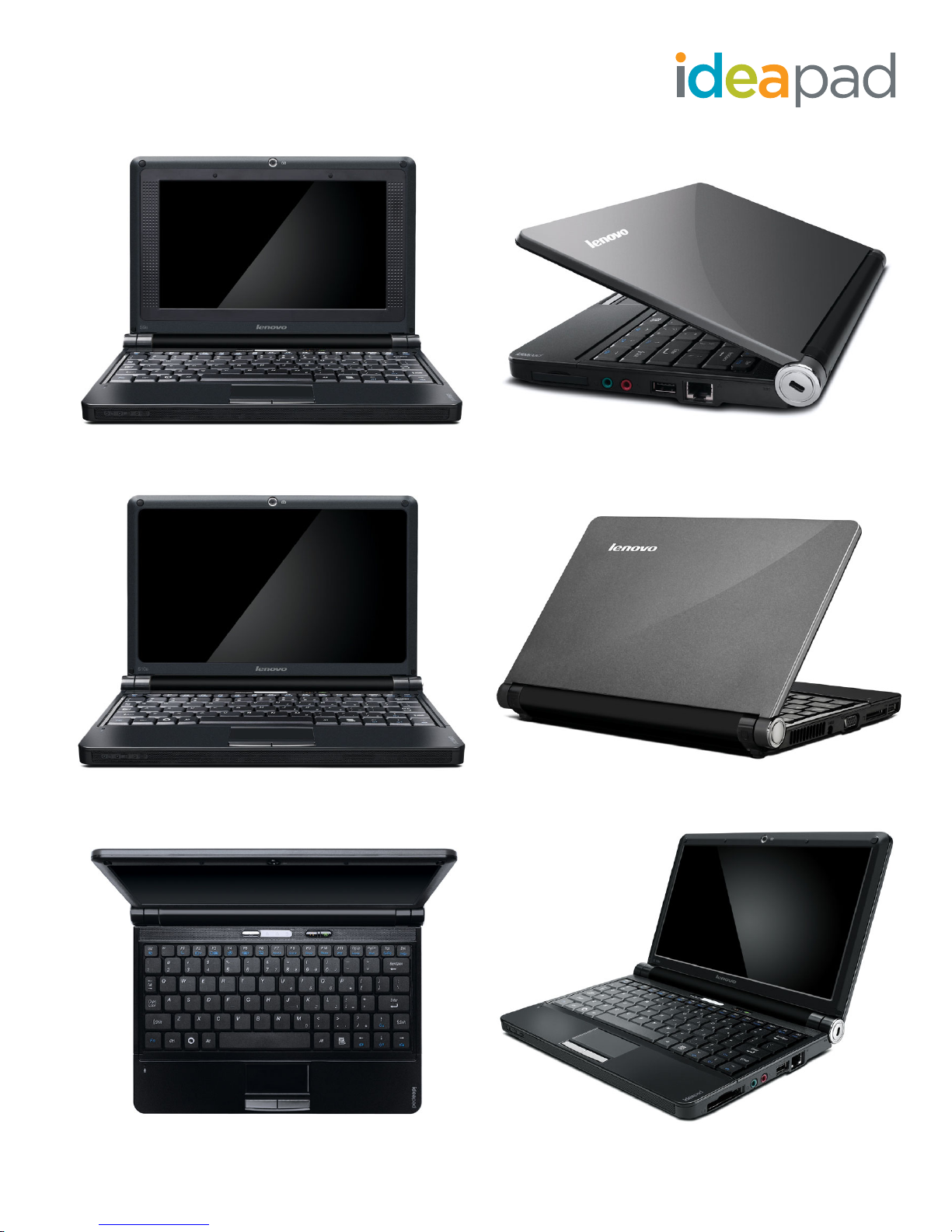

Lenovo IdeaPad S9eLenovo IdeaPad S9e

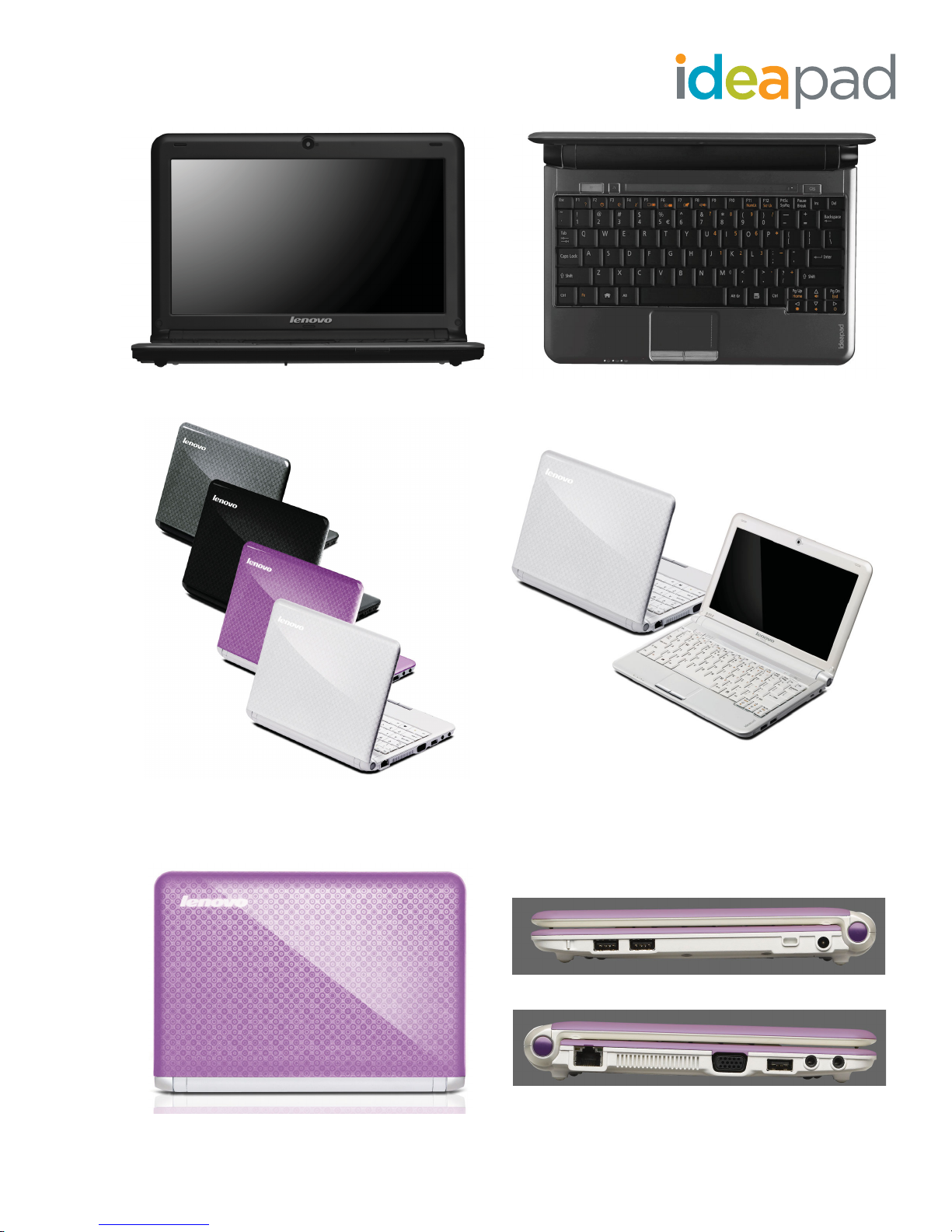

Lenovo IdeaPad S10e

Lenovo IdeaPad S10e

Lenovo IdeaPad S10e

Lenovo IdeaPad S10e

IdeaPad™ S9e (4187)

Personal Systems Reference (PSREF)

Cam-

Type-model

Processor

GHz

Widescreen

displayMemory Disk

era

Integrated

graphics

4187-34U Atom N270 1.60 512MB 8.9" WSVGA Cam GMA 80GB2 HDD 11b/g11 Gray 3-cell XP Home Nov 08
4187-33U Atom N270 1.60 1GB 8.9" WSVGA Cam GMA 80GB

Mini PCIe

802.11

wireless Preload

HDD 11b/g Gray Blue 6-cell XP Home Dec 08

Blue­tooth

Color Battery

Avail

date

• Lenovo's netbook: smaller and lighter than a notebook

• 8.9" widescreen display with LED backlight

• Super-slim (starting at 0.9 inches thin), ultra-light (starting at 2.43 pounds)

• ExpressCard slot for WWAN card

• Touch pad supports multi-touch function (pinch, expansion, chiral motion)

• Integrated camera

• Lenovo® Quick Start: Utility for quick access to Web, music, photos, chat,

and Skype® without booting Windows

Positioning
Processor

Memory

External combo
SATA disk

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

Weight

3

2

Case color

Case material
Battery - type
Battery - life10

Chipset

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

512MB or 1GB std / 1.5GB * max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
* Windows XP Home models can only be shipped with maximum of 1GB in memory
Italics: standard memory 512MB soldered to systemboard, 512MB in socket;
no sockets available;
Non-italics: standard memory 512MB soldered to systemboard; one socket available

None

80GB (5400 rpm) HDD / SATA 1.5Gb/s, 9.5mm high, 2.5" wide, not removable

8.9" (226.1mm) WSVGA (1024x600) TFT color, LED backlight,

180 nits, 16:10 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 0.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, Fn keys, Novo key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3-cell:
6-cell:

(WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm

(WxDxH): 9.8" x 7.7" x 0.9-1.4"; 250mm x 196mm x 22-36mm
3-cell with HDD: starting at 2.65 lb (1.2kg)
6-cell with HDD: starting at 2.87 lb (1.3kg)
Top: dark gray
Bottom: dark gray

Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell 2600 mAH or 6-cell 4800 mAH
3-cell: up to 2.5 hr; 6-cell: up to 5.0 hr

Mobile Intel 945GSE Express Chipset (

Graphics Memory Controller Hub),

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• ThinkVantage® System Update

• Norton Internet Security™

(90 days of virus defi nitions)

• Adobe Flash® Player

• Windows Live™ Toolbar

• Microsoft Offi ce 2007 Trial (60-day)

(HDD models only)

• Adobe® Reader® (HDD models only)

• PC-Doctor™ (diagnostics)

(HDD models only)

20

ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

ExpressCard/34
Multicard reader
Por ts

TV tuner
Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
US models announced November 25 or December 9, 2008

ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MMC, Memory Stick®, Memory Stick PRO™, Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless
Some: Bluetooth 2.1 wireless, LED indicator

4

, Mini PCIe adapter, Broadcom® BCM4312

None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole
None

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ Split warranty:
1-year for display, disk, systemboard;
90-day for other parts

➫ EasyServ
➫ International Warranty Service17
➫ 24x7

issues during the warranty period
via 800-426-7378

™ depot repair service

16

toll-free support for warranty

(KRL1-1) June 2009

19

12

© Lenovo

IdeaPad™ S9e (4187) - Linux

Personal Systems Reference (PSREF)

Mini PCIe

802.11

wireless Preload

Blue­tooth

Color Battery

Avail

date

Type-model

Processor

GHz

Cam-

Widescreen

displayMemory Disk

era

Integrated

graphics

4187-32U Atom N270 1.60 512MB 8.9" WSVGA Cam GMA 4GB2 SSD 11b/g11 Gray None 3-cell SLED10 Nov 08
4187-DRU Atom N270 1.60 1GB 8.9" WSVGA Cam GMA 4GB SSD 11b/g Gray None 6-cell SLED10 Dec 08

• Lenovo's netbook: smaller and lighter than a notebook

• 8.9" widescreen display with LED backlight

• Super-slim (starting at 0.9 inches thin), ultra-light (starting at 2.43 pounds)

• ExpressCard slot for WWAN card

• Touch pad supports multi-touch function (pinch, expansion, chiral motion)

• Integrated camera

Positioning
Processor

Memory

External combo
EIDE disk

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

Weight

3

2

Case color
Case material

Battery - type
Battery - life10

Chipset

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

512MB or 1GB std / 1.5GB max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
Italics: standard memory 512MB soldered to systemboard, 512MB in socket;
no sockets available;
Non-italics: standard memory 512MB soldered to systemboard; one socket available

None

4GB Solid State Drive (SSD) / EIDE, not removable

8.9" (226.1mm) WSVGA (1024x600) TFT color, LED backlight,

180 nits, 16:10 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 0.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, Fn keys, Novo key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3-cell:
6-cell:

(WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm

(WxDxH): 9.8" x 7.7" x 0.9-1.4"; 250mm x 196mm x 22-36mm
3-cell with SSD: starting at 2.43 lb (1.1kg)
6-cell with SSD: starting at 2.65 lb (1.2kg)
Top: dark gray
Bottom: dark gray

Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell 2600 mAH or 6-cell 4800 mAH
3-cell: up to 2.5 hr; 6-cell: up to 5.0 hr

Mobile Intel 945GSE Express Chipset (

Graphics Memory Controller Hub),

Preloaded operating system

- SUSE® Linux™ Enterprise
Desktop10 Service Pack 2

Preloaded applications

• Firefox® Web Browser

• OpenOffi ce

• Evolution® email client

• Pidgin instant messaging client

• Network Manager

• GNOME™ Power Manager

• AppArmor® Firewall

• F-Spot photo software

• GIMP image editor

• Banshee® music player

• RealPlayer

• ClamAV™

• Adobe® Reader

®

®

• System Backup Utility

20

14

ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

ExpressCard/34
Multicard reader
Ports

TV tuner
Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
US models announced November 25 or December 9, 2008

ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MMC, Memory Stick®, Memory Stick PRO™, Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
None
None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek

®

ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole
None

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ Split warranty:
1-year for display , disk, systemboard;
90-day for other parts

➫ EasyServ
➫ International Warranty Service17
➫ 24x7

issues during the warranty period
via 800-426-7378

™ depot repair service

16

toll-free support for warranty

(KRL1-2) February 2009

19

12

© Lenovo

IdeaPad™ S10e (4187)

Personal Systems Reference (PSREF)

Mini PCIe

802.11

wireless Preload

Color

Blue­tooth

Battery

cells

Quick

Start

Type-model

Processor

GHz

Widescreen

displayMemory

Cam-

era

Integrated

graphics

Disks

HDD SSD

4187-39U Atom N270 1.60 512MB 10.1" WSVGA Cam GMA 80GB2 11b/g11 Gray 3-cell Quick XP Home Nov 08
4187-3AU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 80GB 11b/g Gray Blue 6-cell Quick XP Home Dec 08
4187-2PU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Gray 3-cell Quick XP Home Mar 09
4187-2SU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Gray 6-cell Quick XP Home Mar 09

☞

4187-2NU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Gray Blue 6-cell Quick XP Home Mar 09
4187-4MU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Black 3-cell Quick XP Home Apr 09

☞

4187-4LU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Black 6-cell Quick XP Home Apr 09

☞

4187-4KU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Black Blue 6-cell Quick XP Home Apr 09

☞

4187-2QU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 4GB 11b/g Gray 3-cell XP Home Mar 09

• Lenovo's netbook: smaller and lighter than a notebook

• 10.1" widescreen display with LED backlight

• Super-slim (starting at 0.9 inches thin), ultra-light (starting at 2.43 pounds)

• ExpressCard slot for WWAN card

• Touch pad supports multi-touch function (pinch, expansion, chiral motion)

• Integrated camera

• (Select models) Lenovo® Quick Start: Utility for quick access to Web, music, photos, chat,

and Skype® without booting Windows

Positioning
Processor

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

Memory

512MB or 1GB std / 1.5GB* max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
* Windows XP Home models can only be shipped with maximum of 1GB in memory
Italics: standard memory 512MB soldered to systemboard, 512MB in socket;
no sockets available;
Non-italics: standard memory 512MB soldered to systemboard; one socket available

External combo
SATA disk

None
80GB (5400 rpm) or 160GB (5400 rpm) HDD /
SATA 1.5Gb/s, 9.5mm high, 2.5" wide, not removable

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

2

Weight

Case color

Case material
Battery - type
Battery - life10

Chipset

ExpressCard/34
Multicard reader
Por ts

TV tuner
Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
☞ US models announced March 24 or April 7, 2009;
previous models on November 25 or December 9, 2008, or March 17, 2009

10.1" (256.5mm) WSVGA (1024x576) TFT color, LED backlight,
200 nits, 16:9 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, Fn keys, Novo key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3

3-cell:
6-cell:

(WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm

(WxDxH): 9.8" x 7.7" x 0.9-1.4"; 250mm x 196mm x 22-36mm
3-cell: starting at 2.65 lb (1.2 kg)
6-cell: starting at 3.09 lb (1.4 kg)
Top: dark gray or black
Bottom: dark gray or black

Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell 2600 mAH or 6-cell 4800 mAH
3-cell: up to 2.5 hr; 6-cell: up to 5.0 hr

Mobile Intel 945GSE Express Chipset (
ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

Graphics Memory Controller Hub),

ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MMC, Memory Stick®, Memory Stick PRO™, Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
Some: Bluetooth 2.1 wireless, LED indicator
None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole
None

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• ThinkVantage® System Update

• Norton Internet Security™

(90 days of virus defi nitions)

• Adobe Flash® Player

• Windows Live™ Toolbar

• Microsoft Offi ce 2007 Trial (60-day)

(HDD models only)

• Adobe® Reader® (HDD models only)

• PC-Doctor™ (diagnostics)

(HDD models only)

4187-2QU: SSD model without Offi ce
2007 Trial, Adobe Reader,
and PC-Doctor

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ Split warranty:
1-year for display, disk, systemboard;
90-day for other parts

➫ EasyServ
➫ International Warranty Service17
➫ 24x7

issues during the warranty period
via 800-426-7378

™ depot repair service

16

toll-free support for warranty

(KRL1-5) June 2009

20

© Lenovo

Avail

date

19

12

IdeaPad™ S10e (4187) - May 2009

Personal Systems Reference (PSREF)

Mini PCIe

Disk

802.11

wireless Preload

Color

Bluetooth

Battery

cells

Quick

Start

Avail

date

Type-model

Processor

GHz

Widescreen

displayMemory

Cam-

era

Integrated

graphics

4187-RVU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB2 11b/g Black Bluetooth 6-cell Quick XP Home May 09
4187-RWU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Black 6-cell Quick XP Home May 09
4187-RXU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Black 3-cell Quick XP Home May 09

• Lenovo's netbook: smaller and lighter than a notebook

• 10.1" widescreen display with LED backlight

• Super-slim (starting at 0.9 inches thin), ultra-light (starting at 2.43 pounds)

• ExpressCard slot for WWAN card

• Touch pad supports multi-touch function (pinch, expansion, chiral motion)

• Integrated camera

• (Select models) Lenovo® Quick Start: Utility for quick access to Web, music, photos, chat,

and Skype® without booting Windows

Positioning
Processor

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

Memory

1GB std / 1GB max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
* Windows XP Home models can only be shipped with maximum of 1GB in memory
Non-italics: standard memory 1GB in socket; no socket available

External combo
SATA disk

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

2

Weight

Case color

Case material
Battery - type
Battery - life10

Chipset

ExpressCard/34
Multicard reader
Por ts

TV tuner
Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
US models announced May 19, 2009

None

160GB (5400 rpm) HDD / SATA 1.5Gb/s, 9.5mm high, 2.5" wide, not removable

10.1" (256.5mm) WSVGA (1024x576) TFT color, LED backlight,

200 nits, 16:9 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, Fn keys, Novo key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3

3-cell:
6-cell:

(WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm

(WxDxH): 9.8" x 7.7" x 0.9-1.4"; 250mm x 196mm x 22-36mm
3-cell: starting at 2.65 lb (1.2 kg)
6-cell: starting at 3.09 lb (1.4 kg)
Top: dark gray or black
Bottom: dark gray or black

Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell 2600 mAH or 6-cell 4800 mAH
3-cell: up to 2.5 hr; 6-cell: up to 5.0 hr

Mobile Intel 945GSE Express Chipset (
ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

Graphics Memory Controller Hub),

ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MMC, Memory Stick®, Memory Stick PRO™, Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
Some: Bluetooth 2.1 wireless, LED indicator
None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole
None

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• ThinkVantage® System Update

• Norton Internet Security™

(90 days of virus defi nitions)

• Adobe Flash® Player

• Windows Live™ Toolbar

• Adobe® Reader® (HDD models only)

• PC-Doctor™ (diagnostics)

(HDD models only)

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ Split warranty:
1-year for display, disk, systemboard;
90-day for other parts

➫ EasyServ
➫ International Warranty Service17
➫ 24x7

issues during the warranty period
via 800-426-7378

™ depot repair service

16

toll-free support for warranty

(KRL1-7) June 2009

20

19

12

© Lenovo

IdeaPad™ S10e (4187) - Linux

Personal Systems Reference (PSREF)

Mini PCIe

802.11

wireless Preload

Blue­tooth

Color Battery

Avail

date

Type-model

Processor

GHz

Cam-

Widescreen

displayMemory Disk

era

Integrated

graphics

4187-ERU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 4GB2 SSD 11b/g11 Gray None 6-cell SLED10 Dec 08

• Lenovo's netbook: smaller and lighter than a notebook

• 10.1" widescreen display with LED backlight

• Super-slim (starting at 0.9 inches thin), ultra-light (starting at 2.43 pounds)

• ExpressCard slot for WWAN card

• Touch pad supports multi-touch function (pinch, expansion, chiral motion)

• Integrated camera

Positioning
Processor

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

Memory

1GB std / 1.5GB max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
Italics: standard memory 512MB soldered to systemboard, 512MB in socket;
no sockets available

External combo
EIDE disk

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

2

Weight
Case color
Case material

Battery - type
Battery - life10

Chipset

ExpressCard/34
Multicard reader
Ports

TV tuner
Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
US model announced December 9, 2008

None

4GB Solid State Drive (SSD) / EIDE, not removable

10.1" (256.5mm) WSVGA (1024x576) TFT color, LED backlight,

200 nits, 16:9 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, Fn keys, Novo key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3

3-cell:
6-cell:

(WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm

(WxDxH): 9.8" x 7.7" x 0.9-1.4"; 250mm x 196mm x 22-36mm
3-cell with SSD: starting at 2.43 lb (1.1kg)
6-cell with SSD: starting at 2.87 lb (1.3kg)
Top: dark gray
Bottom: dark gray

Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell 2600 mAH or 6-cell 4800 mAH
3-cell: up to 2.5 hr; 6-cell: up to 5.0 hr

Mobile Intel 945GSE Express Chipset (
ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

Graphics Memory Controller Hub),

ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MMC, Memory Stick®, Memory Stick PRO™, Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
None
None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole
None

Preloaded operating system

- SUSE® Linux™ Enterprise
Desktop10 Service Pack 2

Preloaded applications

• Firefox® Web Browser

• OpenOffi ce

• Evolution® email client

• Pidgin instant messaging client

• Network Manager

• GNOME™ Power Manager

• AppArmor® Firewall

• F-Spot photo software

• GIMP image editor

• Banshee® music player

• RealPlayer

• ClamAV™

• Adobe® Reader

®

®

• System Backup Utility

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ Split warranty:
1-year for display , disk, systemboard;
90-day for other parts

➫ EasyServ
➫ International Warranty Service17
➫ 24x7

issues during the warranty period
via 800-426-7378

™ depot repair service

16

toll-free support for warranty

(KRL1-6) February 2009

20

14

19

12

© Lenovo

IdeaPad™ S9e, S10e Accessories

Partial list of accessories supported on:
IdeaPad S9e and S10e

Memory

1 GB PC2-5300 DDR2 SODIMM 40Y7734 ann 01/05/06

Storage and removable storage

USB 2.0 Essential Memory Key 2GB 41U4944 ann 01/23/07
USB 2.0 Essential Memory Key 4GB 45J7904 ann 06/24/08
USB 2.0 Essential Memory Key 8GB 45J7905 ann 07/15/08
USB 2.0 CD-RW/DVD-ROM Combo II Drive 40Y8637 ann 01/05/06
USB 2.0 Super Multi-Burner Drive 41N5565 ann 01/23/07
USB 2.0 Portable 500GB Hard Disk 45K1690 ann 05/26/09

Expansion

USB 2.0 Lenovo Enhanced Port Replicator 43R8770 ann 02/26/08

Mouse

Lenovo Wireless Laser Mouse (blk, via USB) 45K1696 ann 11/25/08
Lenovo Wireless Laser Mouse (red, via USB) 51J0198 ann 11/25/08
Laser Tilt Wheel Travel Mouse (Bluetooth)

45

Requires Bluetooth enabled IdeaPad systems

Security

Kensington Cable Lock from Lenovo 73P2582 ann 12/29/03
Kensington Twin Head Cable Lock 45K1620 ann 09/30/08

Multimedia

USB 2.0 Lenovo Multimedia Headset 40Y8518 ann 06/27/06
USB 2.0 Lenovo Webcam 40Y8519 ann 08/29/06

Modem

USB 2.0 Lenovo Modem 43R1814 ann 02/26/08

45

41U5008 ann 01/22/08

Personal Systems Reference (PSREF)

Batteries

IdeaPad S Series Li-Ion Battery 3-cell (blk) 45K1274 ann 11/25/08
IdeaPad S Series Li-Ion Battery 6-cell (blk) 45K1275 ann 11/25/08
IdeaPad S Series Li-Ion Battery 3-cell (wht) 51J0398 ann 12/16/08
IdeaPad S Series Li-Ion Battery 6-cell (wht) 51J0399 ann 12/16/08
IdeaPad S Series 40W AC Adapter 41R4441 ann 11/25/08

Carrying Cases

IdeaPad S9e/S10e Case Sleeve 45K1609 ann 11/25/08
Lenovo Carrying Case - Messenger Max 41U5253 ann 05/01/07
Lenovo Standard Case 45K1697 ann 11/25/08
Lenovo Standard Backpack 45K1698 ann 11/25/08

Monitors

Lenovo® D185 Wide 18.5" Monitor 6318HB1 ann 01/27/09
Lenovo L215 Wide 21.5" Monitor 6325HB1 ann 01/27/09
Lenovo L215p Wide 21.5" Monitor 6325HC1 ann 01/27/09
ThinkVision® L174 17" Monitor 9227AE1 ann 04/15/08
ThinkVision L1700p 17" Monitor 9417HE2 ann 09/17/08
ThinkVision L1940p Wide 19" Monitor 4424HB6 ann 09/17/08
ThinkVision L200p Wide 20.1" Monitor 4438HB6 ann 04/15/08
ThinkVision L2240p Wide 22" Monitor 4422HB6 ann 09/17/08
ThinkVision L2440p Wide 24" Monitor 4420HB2 ann 09/17/08
ThinkVision L2440x Wide 24" Monitor 4421HB2 ann 09/17/08

Monitor Accessories

46

ThinkVision USB Soundbar 40Y7616 ann 08/23/05
ThinkVision Soundbar 45K1263 ann 09/16/08
Kensington Cable Lock from Lenovo 73P2582 ann 12/29/03
Kensington Twin Head Cable Lock 45K1620 ann 09/30/08
ThinkPad Convertible Monitor Stand 40Y7620 ann 01/05/06
Radial Arm 19K4464 ann 05/05/00

46

Compatible on selected ThinkVision monitors.

Consumer monitors

Lenovo L195 Wide 19" LCD Monitor 4418HC1 ann 09/02/08
Lenovo L222 Wide 22" LCD Monitor 4432HF1 ann 09/02/08

Other accessories at http://www.lenovo.com/accessories

Accessories Guide pdf at

http://www.lenovo.com/accessoriesguide

(O-KRL) February 2009

© Lenovo

IdeaPad® S9e, S10e - Lenovo CareSM Services

Partial list of Lenovo® Care Services22
for IdeaPad® S9e, S10e

For more information see:

http://www.lenovo.com/services_warranty/us/en/index.html

Lenovo Care service upgrade options
IdeaPad® S9e, S10e with Split warranty

Mail in = Mail In repair, ADP = Accidental Damage Protection,
HDDR = Hard Drive Retention

2-year Mail In
3-year Mail In
4-year Mail In
1-year Mail In
2-year Mail In
3-year Mail In
4-year Mail In
1-year
2-year
3-year
4-year

LOR = Lenovo Onsite Repair, ADP = Accidental Damage Protection,
HDDR = Hard Drive Retention

1-year LOR 9x5 Next Business Day
2-year LOR 9x5 Next Business Day
3-year LOR 9x5 Next Business Day
4-year LOR 9x5 Next Business Day
1-year LOR 9x5 Next Business Day
2-year LOR 9x5 Next Business Day
3-year LOR 9x5 Next Business Day
4-year LOR 9x5 Next Business Day
1-year LOR 9x5 Next Business Day
2-year LOR 9x5 Next Business Day
3-year LOR 9x5 Next Business Day
4-year LOR 9x5 Next Business Day

Mail In
Mail In
Mail In
Mail In

warranty
warranty
warranty
warranty
warranty
warranty
warranty
warranty
warranty
warranty
warranty

9x5 55Y3556
9x5 55Y3557
9x5 55Y3558
9x5 with ADP 55Y3559
9x5 with ADP 55Y3560
9x5 with ADP 55Y3561
9x5 with ADP 55Y3562

9x5 with HDDR 55Y3571
9x5 with HDDR 55Y3572
9x5 with HDDR 55Y3573
9x5 with HDDR 55Y3574

55Y3563
55Y3564
55Y3565
55Y3566
with ADP 55Y3567
with ADP 55Y3568
with ADP 55Y3569
with ADP 55Y3570
with HDDR 55Y3599
with HDDR 55Y3600
with HDDR 55Y3601
with HDDR 55Y3602

Personal Systems Reference (PSREF)

ThinkPlus Secure Business

Lenovo Online Data Backup

• Secure offsite data storage

• 256-bit Advanced Encryption System

• Data recovery or access in case of an unforeseen event

• Automatic, remote management

• Choose which business critical data to back up

1-year Lenovo Online Data Backup - 10GB 51J0787
1-year Lenovo Online Data Backup - 25GB 51J0795
1-year Lenovo Online Data Backup - 50GB 45K5849
1-year Lenovo Online Data Backup - Unlimited 45K5870

Note: Suppported only on Microsoft® Windows® operating systems

(S-IP) February 2009

© Lenovo

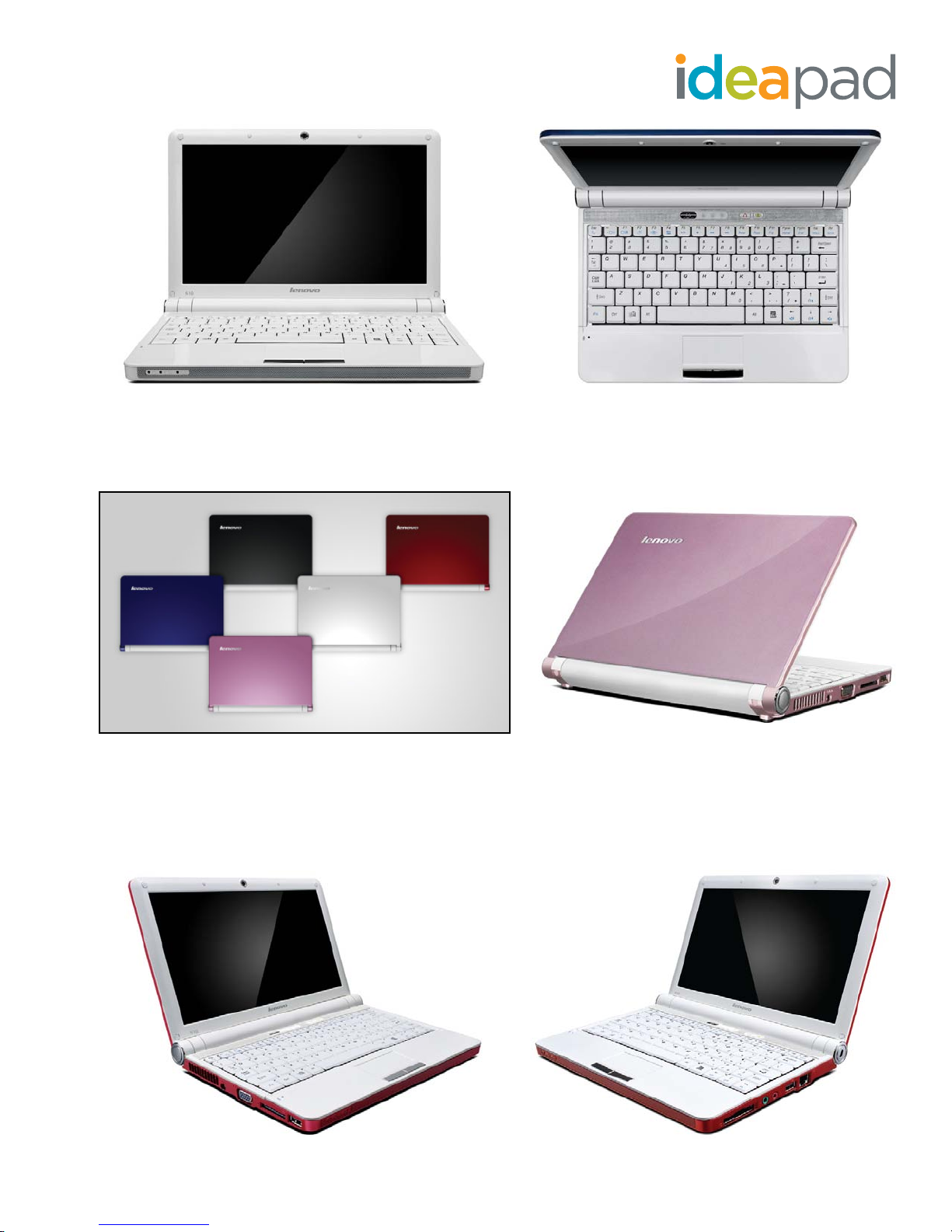

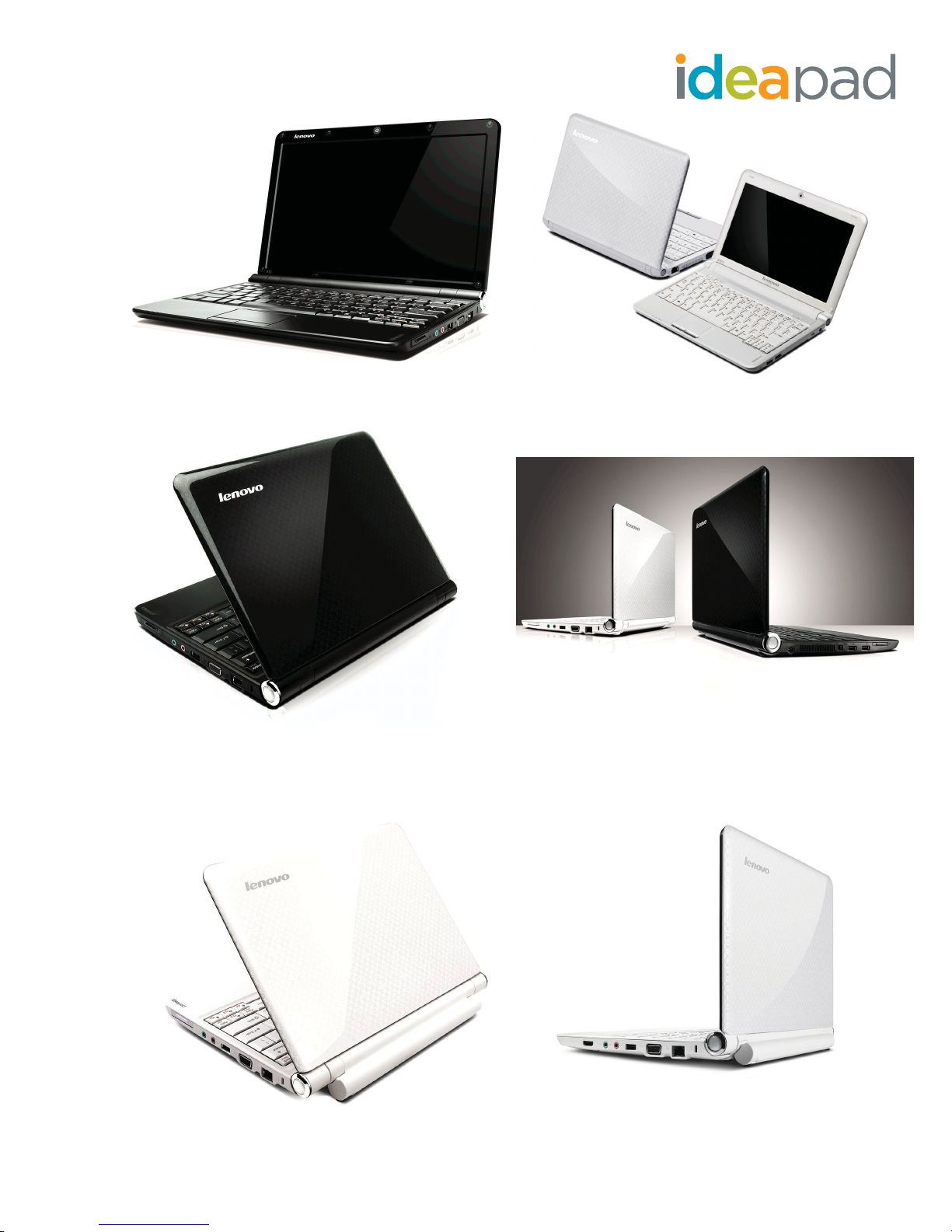

Lenovo IdeaPad S10

Classic White

Lenovo IdeaPad S10

Deep Blue

Lenovo IdeaPad S10

Bold Black, Ruby Red,

Deep Blue, Classic White, Pastel Pink

Lenovo IdeaPad S10

Ruby Red

Lenovo IdeaPad S10

Pastel Pink

Lenovo IdeaPad S10

Ruby Red

IdeaPad™ S10 (4231)

Personal Systems Reference (PSREF)

Type-model

Processor

GHz

Widescreen

displayMemory

Cam-

era

Integrated

graphics

SATA

disk

Mini PCIe

802.11

wireless Preload

Color Battery

Blue­tooth

Avail

date

4231-2BU Atom N270 1.60 512MB 10.2" WSVGA Cam GMA 80GB8 11b/g11 Black None 3-cell XP Home Aug 08
4231-3AU Atom N270 1.60 512MB 10.2" WSVGA Cam GMA 80GB 11b/g Black None 3-cell XP Home Sep 08
4231-2CU Atom N270 1.60 512MB 10.2" WSVGA Cam GMA 80GB 11b/g White None 3-cell XP Home Aug 08
4231-2DU Atom N270 1.60 512MB 10.2" WSVGA Cam GMA 80GB 11b/g Red None 3-cell XP Home Aug 08
4231-36U Atom N270 1.60 512MB 10.2" WSVGA Cam GMA 80GB 11b/g Blue None 3-cell XP Home Oct 08
4231-2AU Atom N270 1.60 512MB 10.2" WSVGA Cam GMA 80GB 11b/g Pink None 3-cell XP Home Dec 08

☞

4231-3CU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Black None 3-cell XP Home Sep 08
4231-3DU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Black None 3-cell XP Home Sep 08
4231-35U Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Black None 3-cell XP Home Dec 08

☞

4231-34U Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g White None 3-cell XP Home Dec 08

☞

4231-33U Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Red None 3-cell XP Home Dec 08

☞

4231-37U Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Blue None 3-cell XP Home Oct 08
4231-32U Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Pink None 3-cell XP Home Dec 08

☞

• Lenovo's netbook: smaller and lighter than a notebook

• 10.2" widescreen, anti-glare display with LED backlight

• Super-slim (starts at 0.9 inches thin), ultra-light (weighs just over 2.43 pounds)

• Multiple color choices: black, white, red, blue, or pink (piano fi nish for red, blue, pink)

• Touch pad supports multi-touch function to enhance the experience of user control

• Integrated 1.3 megapixel camera

• OneKey™ Rescue System includes OneKey Recovery with press of recovery key

Positioning
Processor

Memory

Diskette drive
External combo
SATA disk

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

512MB or 1GB std / 1.5GB max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
Italics: standard memory 512MB soldered to systemboard, 512MB in socket;
no sockets available;
Non-italics: standard memory 512MB soldered to systemboard; one socket available

None
None

80GB (5400 rpm) or 160GB (5400 rpm) /

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• Lenovo® OneKey Recovery

• Norton Internet Security™

(90 days of virus defi nitions)

• Adobe® Reader

• Windows Live™ Toolbar

• Lenovo Energy Management

Software

20

SATA 1.5Gb/s, 9.5mm high, 2.5" platter, not removable

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

2

Weight
Case color

Case material
Battery - type
Battery - life10

Chipset

ExpressCard/34
Multicard reader

Por ts
TV tuner

Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
☞ US models announced December 10, 2008; previous models on August 19, September 9, or October 7, 2008

10.2" (259.1mm) WSVGA (1024x600) TFT color, anti-glare, LED backlight,
200 nits, 16:10 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, multimedia Fn keys, recovery key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3

(WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm
3-cell: starting at 2.43 lb (1.1 kg)
Top: multiple color choices: black, white, red, blue, or pink

(piano fi nish for red, blue, pink)
Bottom: color matches top color
Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell 2600 mAH
3-cell: up to 3.0 hr

Mobile Intel 945GSE Express Chipset (

Graphics Memory Controller Hub),
ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,
ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MultiMedia Card, Memory Stick®, Memory Stick PRO™,
Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
None
None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole,
None

Available at these retailers

• lenovo.com

• Fry's

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor
➫ Depot repair service
➫ Service upgrade options

(in eligible locations):

• 1-year accidental damage

19

9

protection via depot 43R8885

• 3-year Lenovo Onsite Repair

9x5 Next Business Day 43R8883

• 3-year Lenovo Onsite Repair

9x5 Next Business Day
with accidental
damage protection 43R8884

16

➫ 24x7
issues during the warranty period
via 877-453-6686

toll-free support for warranty

© Lenovo

(MRA1-1) June 2009

13

13

12

IdeaPad™ S10 (4231) - March 2009

Personal Systems Reference (PSREF)

Type-model

Processor

GHz

Widescreen

displayMemory

Cam-

era

Integrated

graphics

SATA

disk

Mini PCIe

802.11

wireless Preload

Color Battery

Blue­tooth

Avail

date

4231-A8U Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB8 11b/g11 Black None 3-cell XP Home Mar 09
4231-A9U Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g White None 3-cell XP Home Mar 09
4231-AAU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Pink None 3-cell XP Home Mar 09
4231-ABU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Red None 3-cell XP Home Mar 09
4231-ACU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Blue None 3-cell XP Home Mar 09
4231-ADU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Pink None 6-cell XP Home Mar 09
4231-AEU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Red None 6-cell XP Home Mar 09
4231-AFU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g White None 6-cell XP Home Mar 09
4231-AGU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Black None 6-cell XP Home Mar 09
4231-AJU Atom N270 1.60 1GB 10.2" WSVGA Cam GMA 160GB 11b/g Blue None 6-cell XP Home Mar 09

• Lenovo's netbook: smaller and lighter than a notebook

• 10.2" widescreen, anti-glare display with LED backlight

• Super-slim (starts at 0.9 inches thin), ultra-light (weighs just over 2.43 pounds)

• Multiple color choices: black, white, red, blue, or pink (piano fi nish for red, blue, pink)

• Touch pad supports multi-touch function to enhance the experience of user control

• Integrated 1.3 megapixel camera and Lenovo's VeriFace™ face recognition software

helps control access to your notebook by recognizing your face.

• OneKey™ Rescue System includes OneKey Recovery with press of recovery key

• Lenovo® Quick Start: Utility for quick access to Web, music, photos, chat,

and Skype® without booting Windows

Positioning
Processor

Memory

Diskette drive
External combo
SATA disk

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

Weight

3

2

Case color

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

1GB std / 1GB max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
Non-italics: standard memory 1GB in socket; no socket available

None
None
160GB (5400 rpm) /
SATA 1.5Gb/s, 9.5mm high, 2.5" platter, not removable

10.2" (259.1mm) WSVGA (1024x600) TFT color, anti-glare, LED backlight,
200 nits, 16:10 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, multimedia Fn keys, recovery key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3-cell: (WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm
6-cell: (WxDxH): 9.8" x 7.7" x 0.9-1.4"; 250mm x 196mm x 22-36mm
3-cell: starting at 2.43 lb (1.1 kg)

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• Lenovo® OneKey Recovery

• Norton Internet Security™

(90 days of virus defi nitions)

• Adobe® Reader

• Windows Live™ Toolbar

• Lenovo Energy Management

Software

• VeriFace™ Facial Recognition

20

6-cell: starting at 2.87 lb (1.3 kg)
Top: multiple color choices: black, white, red, blue, or pink

(piano fi nish for red, blue, pink)

Case material
Battery - type
Battery - life10

Chipset

Bottom: color matches top color
Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell or 6-cell
3-cell: up to 3.0 hr; 6-cell: up to 6.0 hr

Mobile Intel 945GSE Express Chipset (

Graphics Memory Controller Hub),
ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

ExpressCard/34
Multicard reader

Por ts
TV tuner

Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
US models announced March 17, 2009

ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MultiMedia Card, Memory Stick®, Memory Stick PRO™,
Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
None
None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole,
None

Available at these retailers

• lenovo.com

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ 1-year parts and labor
➫ Depot repair service
➫ Service upgrade options

(in eligible locations):

• 1-year accidental damage

protection via depot 43R8885

• 3-year Lenovo Onsite Repair

9x5 Next Business Day 43R8883

• 3-year Lenovo Onsite Repair

19

9

13

13

9x5 Next Business Day
with accidental
damage protection 43R8884

16

➫ 24x7
issues during the warranty period
via 877-453-6686

toll-free support for warranty

(MRA1-3) June 2009

12

© Lenovo

IdeaPad™ S10 (4333)

Personal Systems Reference (PSREF)

Type-model

Processor

GHz

Widescreen

displayMemory

Cam-

era

Integrated

graphics

Mini PCIe

Disk

wireless Preload

802.11

Mini PCIe

WWAN

Color

Bluetooth

Battery

cells

Quick

Start

Avail

date

4333-22U Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB2 11b/g11 WWAN Black 3-cell Quick XP Home May 09
4333-25U Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g WWAN Black 6-cell Quick XP Home May 09
4333-2TU Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g WWAN Black Bluetooth 6-cell Quick XP Home May 09

• Lenovo's netbook: smaller and lighter than a notebook

• 10.1" widescreen display with LED backlight

• Super-slim (starting at 0.9 inches thin), ultra-light (starting at 2.43 pounds)

• Integrated WWAN adapter

• Touch pad supports multi-touch function (pinch, expansion, chiral motion)

• Integrated camera

• (Select models) Lenovo® Quick Start: Utility for quick access to Web, music, photos, chat,

and Skype® without booting Windows

Positioning
Processor

Memory

External combo
SATA disk

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

Weight

3

2

Case color

Case material
Battery - type
Battery - life10

Chipset

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

1GB std / 2GB* max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket;
* Windows XP Home models can only be shipped with maximum of 1GB in memory
Non-italics: standard memory 1GB soldered to systemboard; one socket available

None
80GB (5400 rpm) or 160GB (5400 rpm) HDD /
SATA 1.5Gb/s, 9.5mm high, 2.5" wide, not removable

10.1" (256.5mm) WSVGA (1024x576) TFT color, LED backlight,
200 nits, 16:9 aspect ratio, 300:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
6-row, 80-key, 85% size, Fn keys, Novo key, wireless on/off button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3-cell:
6-cell:

(WxDxH): 9.8" x 7.2" x 0.9-1.1"; 250mm x 183mm x 22-27.5mm

(WxDxH): 9.8" x 7.7" x 0.9-1.4"; 250mm x 196mm x 22-36mm
3-cell: starting at 2.65 lb (1.2 kg)
6-cell: starting at 3.09 lb (1.4 kg)
Top: black
Bottom: black

Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell 2600 mAH or 6-cell 4800 mAH
3-cell: up to 2.5 hr; 6-cell: up to 5.0 hr

Mobile Intel 945GSE Express Chipset (

Graphics Memory Controller Hub),

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• Norton Internet Security™
(90 days of virus defi nitions)

• Adobe® Reader

• Windows Live™ Toolbar

• Lenovo Energy Management

Software

• VeriFace™ Facial Recognition

• Lenovo Quick Start

• Ericsson Connection Manager

20

ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

ExpressCard/34
Multicard reader
Por ts

TV tuner
Mini PCI Express

28

11b/g
WWAN
Bluetooth™
Modem
Ethernet
Audio support

Security

Fingerprint reader

See footnotes for important warranty information
US models announced May 27, 2009

ethernet MAC)
None
4-in-1 reader (MMC, Memory Stick®, Memory Stick PRO™, Secure Digital Card)
Two USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
Two Mini PCI Express slots
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
Wireless WAN, Ericsson chipset, Mini PCIe adapter, GPRS/WCDMA/HSPA
Some: Bluetooth 2.1 wireless, LED indicator
None
10/100 ethernet, Broadcom® BCM5906, PCI 2.3
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm)
Power-on password, supervisor password, security keyhole
None

40-watt AC adapter
RoHS-compliant

Limited Warranty12

➫ Split warranty:
1-year for display, disk, systemboard;
90-day for other parts

➫ EasyServ
➫ International Warranty Service17
➫ 24x7

issues during the warranty period
via 800-426-7378

™ depot repair service

16

toll-free support for warranty

(KRL2-1) June 2009

19

12

© Lenovo

Lenovo IdeaPad S10-2

Gray

Lenovo IdeaPad S10-2

Gray

Lenovo IdeaPad S10-2

Black, White, Gray, and Pink

Lenovo IdeaPad S10-2

Pink

Lenovo IdeaPad S10-2

White

Lenovo IdeaPad S10-2

Pink

IdeaPad™ S10-2 (2957)

Personal Systems Reference (PSREF)

Type-model

Processor

GHz

Widescreen

displayMemory

Cam-

era

Integrated

graphics

SATA

disk

Mini PCIe

802.11

wireless Preload

Color Battery

Blue­tooth

Avail

date

2957-22U Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB8 11b/g11 Black None 6-cell XP Home May 09
2957-23U Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Gray None 6-cell XP Home May 09
2957-24U Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g White None 6-cell XP Home May 09
2957-25U Atom N270 1.60 1GB 10.1" WSVGA Cam GMA 160GB 11b/g Pink None 6-cell XP Home May 09

• Lenovo's netbook: smaller and lighter than a notebook

• 10.1" widescreen, glossy display display with LED backlight

• Super-slim (starts at 0.8 inches thin), ultra-light (weighs just over 2.20 pounds)

• Multiple color choices: black, white, gray, or pink, with fashion pattern

• Touch pad supports multi-touch function to enhance the experience of user control

• Integrated 1.3 megapixel camera and Lenovo's VeriFace™ face recognition software

helps control access to your notebook by recognizing your face.

• OneKey™ Rescue System includes OneKey Recovery with press of recovery key

• Lenovo® Quick Start: Utility for quick access to Web, music, photos, chat,

and Skype® without booting Windows

Positioning
Processor

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

Memory

1GB std / 2GB max* / PC2-5300 667MHz DDR2 (operating at 533MHz), non-parity,
single-channel, one 200-pin SO-DIMM socket;
* Windows XP Home models can only be shipped with maximum of 1GB in memory
Non-italics: standard memory 1GB in socket; no socket available

Diskette drive
External combo
SATA disk

None
None
160GB (5400 rpm) /
SATA 1.5Gb/s, 9.5mm high, 2.5" platter, not removable

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

2

Weight

Case color

10.1" (256.5mm) WSVGA (1024x600) TFT color, VibrantView (glossy);
LED backlight, 200 nits, 16:9 aspect ratio, 300:1 contrast ratio

Camera on top of screen, 1.3-megapixel, fi xed focus
Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
89% full size keyboard, Fn keys, recovery key, Quick Start button

Two-button touch pad with scroll feature (no TrackPoint®), multi-touch

3

3-cell: (WxDxH): 10.2" x 7.2" x 0.7-1.0"; 258mm x 183mm x 18-25.4mm
6-cell: (WxDxH): 10.2" x 7.6" x 0.7-1.8"; 258mm x 194mm x 18-44.7mm
3-cell: starting at 2.20 lb (1.0 kg)
6-cell: starting at 2.65 lb (1.2 kg)
Top: black, white, gray, or pink, with fashion pattern
Palm rest: color matches top color

Case material
Battery - type
Battery - life10

Chipset

Bottom: black for black and gray top, white for white and pink top
Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell or 6-cell
3-cell: up to 3.0 hr; 6-cell: up to 6.0 hr

Mobile Intel 945GSE Express Chipset (

Graphics Memory Controller Hub),

ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

ExpressCard/34
Multicard reader

Por ts
TV tuner

Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

ethernet MAC)
None
4-in-1 reader (MultiMedia Card, Memory Stick
Secure Digital Card)

®

, Memory Stick PRO™,

Three USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)
None

Two Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
None
None
10/100 ethernet, RealTek® RTL8103EL, PCI 2.3
High Defi nition (HD) Audio, RealTek ALC272 codec / two stereo speakers (1.5 watt) /
microphone, microphone input jack (3.5 mm),

Security

Fingerprint reader

See footnotes for important warranty information
US models announced May 27, 2009

stereo headphone jack (3.5 mm), Dolby® Headphone™ certifi cated
Power-on password, supervisor password, security keyhole
None

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• Lenovo® OneKey Recovery

• Norton Internet Security™

(90 days of virus defi nitions)

• Adobe® Reader

• Windows Live™ Toolbar

• Lenovo Energy Management

Software

• VeriFace™ Facial Recognition

• Lenovo Quick Start

• Microsoft Offi ce 2007 Trial (60-day)

Available at these retailers

• lenovo.com

40-watt AC adapter
Wireless on/off switch
ENERGY STAR® 5.0-compliant
RoHS-compliant

Limited Warranty12

➫ 1-year warranty*:
* 1- year on major electronic
components (including battery),
90-day on keyboard, hinges,
plastics, power cord, AC adapter

➫ Mail In repair service
➫ Service upgrade options

(in eligible locations):

• 2-year depot warranty 45K5425

• 3-year depot warranty 55Y3371

• 1-year accidental damage
protection via depot 55Y3373

• 2-year accidental damage
protection via depot 55Y3375

• 3-year accidental damage
protection via depot 55Y3377

16

➫ 24x7
issues during the warranty period
via 877-453-6686

toll-free support for warranty

(MRA2-1) May 2009

20

9

12

© Lenovo

Lenovo IdeaPad S12 Black

with 3-cell battery

Lenovo IdeaPad S12 White

with 3-cell battery

Lenovo IdeaPad S12 Black

with 3-cell battery

Lenovo IdeaPad S12 White

with 6-cell battery

Lenovo IdeaPad S12 White and Black

with 3-cell battery

Lenovo IdeaPad S12 White

with 6-cell battery

IdeaPad™ S12 (2959)

Personal Systems Reference (PSREF)

Type-model

Processor

GHz

Widescreen

displayMemory

Cam-

era

Integrated

graphics

SATA

disk

Mini PCIe

802.11

wireless Preload

Color Battery

Blue­tooth

Avail

date

2959-55U Atom N270 1.60 1GB 12.1" WXGA Cam GMA 160GB8 11b/g11 White None 6-cell XP Home Jun 09
2959-54U Atom N270 1.60 1GB 12.1" WXGA Cam GMA 160GB 11b/g Black None 6-cell XP Home Jun 09

• A 12" netbook provides full size keyboard with standard touchpad for good
user experience

• 12.1" widescreen, glossy display with LED backlight

• Integrated 1.3 megapixel camera and Lenovo's VeriFace™ face recognition software

helps control access to your notebook by recognizing your face.

• OneKey™ Rescue System includes OneKey Recovery with press of recovery key

• Lenovo® Quick Start: Utility for quick access to Web, music, photos, chat,

and Skype® without booting Windows

Positioning
Processor

Netbook; consumer markets

Intel® Atom™ Processor N270 with single-core,
Hyper-Threading technology, 533MHz system bus, and 512KB L2 cache

Memory

1GB std / 2GB max7 / PC2-5300 667MHz DDR2, non-parity,
single-channel, one 200-pin SO-DIMM socket
Non-italics: standard memory 1GB soldered to systemboard; one socket available

Diskette drive
External combo
SATA disk

None
None
160GB (5400 rpm) /
SATA 1.5Gb/s, 9.5mm high, 2.5" platter, not removable

Widescreen
display
Camera

Graphics
Keyboard

Touch pad
Dimensions

2

Weight

Case color

12.1" (307mm) WXGA (1280x800) TFT color, VibrantView (glossy), LED backlight,
200 nits, 16:10 aspect ratio, 500:1 contrast ratio
Camera on top of screen, 1.3-megapixel, fi xed focus

Intel Graphics Media Accelerator 950 (GMA 950), in 945GSE
Full size keyboard, Fn keys, recovery key, Quick Start button

Two-button touch pad with scroll feature (no TrackPoint®)

3

3-cell: (WxDxH): 11.5" x 8.5" x 0.9-1.1"; 292mm x 216mm x 22-28.9mm
6-cell: (WxDxH): 11.5" x 9.1" x 0.9-1.4"; 292mm x 230mm x 22-36mm
3-cell: starting at 3.09 lb (1.4 kg)
6-cell: starting at 3.42 lb (1.55 kg)
Top: black or white, with fashion pattern
Palm rest: color matches top color

Case material
Battery - type
Battery - life10

Chipset

Bottom: color matches top color
Polycarbonate/Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic
Lithium Ion, 3-cell or 6-cell
3-cell: up to 3.0 hr; 6-cell: up to 6.0 hr

Mobile Intel 945GSE Express Chipset (

Graphics Memory Controller Hub),

ICH7M I/O Controller Hub (SATA 1.5Gb/s, USB 2.0, PCI Express® 1.1, PCI 2.3,

ExpressCard/34
Multicard reader

Por ts
TV tuner

Mini PCI Express

28

11b/g
Bluetooth™
Modem
Ethernet
Audio support

ethernet MAC)
One slot (ExpressCard/34)
4-in-1 reader (MultiMedia Card, Memory Stick®, Memory Stick PRO™,
Secure Digital Card)
Three USB 2.0, external monitor (VGA DB-15), ethernet (RJ-45)

None
One Mini PCI Express slot
11b/g wireless4, Mini PCIe adapter, Broadcom® BCM4312
None
None
10/100 ethernet, Broadcom® BCM5784M
High Defi nition (HD) Audio, RealTek® ALC269 codec / two stereo speakers (1.5 watt)
/ microphone, microphone input jack (3.5 mm), stereo headphone jack (3.5 mm) with

Security

Fingerprint reader

See footnotes for important warranty information
US models announced June 24, 2009

Dolby® Headphone™ certifi cation
Power-on password, supervisor password, harddisk password, security keyhole
None

Preloaded operating system

- Microsoft® Windows® XP Home
Edition

Preloaded applications14

• Lenovo® OneKey Recovery

• Norton Internet Security™

(90 days of virus defi nitions)

• Adobe® Reader

• Windows Live™ Toolbar

• Lenovo Energy Management

Software

• VeriFace™ Facial Recognition

• Lenovo Quick Start

Available at these retailers

• lenovo.com

40-watt AC adapter
wireless on/off switch
EPEAT™ Silver rating
ENERGY STAR

®

5.0-compliant

RoHS-compliant

Limited Warranty12

➫ 1-year warranty*:
* 1- year on major electronic
components (including battery),
90-day on keyboard, hinges,
plastics, power cord, AC adapter

➫ Mail In repair service
➫ Service upgrade options

(in eligible locations):

• 2-year depot warranty 45K5425

• 3-year depot warranty 55Y3371

• 1-year accidental damage
protection via depot 55Y3373

• 2-year accidental damage
protection via depot 55Y3375

• 3-year accidental damage
protection via depot 55Y3377

16

➫ 24x7
issues during the warranty period
via 877-453-6686

toll-free support for warranty

20

9

12

© Lenovo

(MC1-1) June 2009

Availability: All offers subject to

availability. Lenovo reserves the right to
alter product offerings and specifi cations
at any time, without notice. Lenovo is
not responsible for photographic or
typographic errors.

Warranty: For a copy of applicable

product warranties, write to: Warranty
Information, P.O. Box 12195, RTP, NC,
27709, Attn: Dept ZPYA/B676. Lenovo
makes no representation or warranty
regarding third party products or services.

Footnotes:

1

Power management, including Intel®

SpeedStep® Technology, reduces

processor speed when in battery mode.

2

Weight includes battery and standard
optical drive; weight may vary due to
vendor components, manufacturing
process and options.

3

Thinness may vary at certain points on
the system.

4

Wireless capability: Requires com­patible wireless-enabled options sold
separately.

5

Post-warranty annual maintenance
agreement: Service begins at the end

of the base warranty or the end of any
other applied warranty and maintenance
option, whichever occurs last. Service
delivery is not available the same day the
maintenance agreement is purchased.
Maintenance agreements must be
purchased and the registration success­fully completed prior to the service being
available.

6

Public network download modem
speeds are limited to 53Kbps. Upload

speeds are limited to 48Kbps for V.92
modems. Actual speeds depend on
many factors and are often less than the
maximum possible. V.92 functions and
speeds require compatible phone line
and server equipment. Check with your
telephone and ISP service providers for
availability.

7

Maximum memory capacity may
require the replacement of standard

component with largest supported
component available. On ThinkPad
systems, even though it is possible to

physically install 4GB of memory, the ac-

tual amount of memory addressable by

a 32-bit operating system will be limited

to 3GB. This limitation does not exist with

64-bit operating systems Windows XP

Professional 64-bit and Windows Vista

64-bit Editions.

8

Hard drive: GB = billion bytes,

TB = trillion bytes. Accessible capacity is

less; up to 4GB is service partition.

8

Service upgrade options: Service
period begins with the equipment date
of purchase. Service must be purchased
during the original limited product war­ranty period. Service levels are response
time objectives and are not guarantees.

10

Battery: These model numbers achieved
the battery life based on MobileMark®
2007 during testing. Battery life (and
recharge times) will vary based on many
factors including screen brightness, ap­plications, features, power management,
battery conditioning, and other customer
preferences.

11

Wireless: Based on IEEE 802.11a,

802.11b, and 802.11g respectively. An
adapter with 11a/b, 11b/g, or 11a/b/g can
communicate on either/any of these
listed formats respectively, the actual
connection will be based on the access
point to which it connects.

12

Limited warranty: Support unrelated to
a warranty issue may be subject to

additional charges.

13

Onsite Repair: If a machine is listed as
having “On-site”, this means that on-site
service is available for the replacement
of parts for warranty repairs. Certain
parts, referred to as Customer Replace­able Unit (“CRU”) parts, are easy to install
and require little or no tools or technical
knowledge. Some examples of CRU
parts are mice, keyboards, hard disk
drives, speakers, and memory. If your
problem can be resolved with a CRU, the
Support Center will offer to ship the part
to you for you to install.

14

Included software may differ from its
retail version (if available), and may not
include user manuals or all program
functionality. Software license agree­ments may apply.

15

Modem speeds: Public network
download speeds are limited to 53Kbps.
Upload speeds are limited to 48Kbps for
V.92 modems. Actual speeds depend on
many factors and are often less than the
maximum possible. V.92 functions and
speeds require compatible phone line

and server equipment. Check with your

telephone and ISP service providers for
availability.

16

Response times may vary. May exclude

some holidays. Telephone support may
be subject to additional charges.

17

International Warranty Service is avail­able for most products in any country in
which this product is sold and serviced.
Service delivery methods and parts avail­ability vary by country, may be different
from that in the country of purchase, and
are subject to change without notice.
Fees and restrictions may apply in some
countries.

18

Telephone support may be subject to
additional charges, even during the limit­ed warranty period. Response times may
vary and may exclude some holidays.

19

Depot repair service: In the United

States call 1-877-453-6686. The cus­tomer may be asked certain diagnostic
questions before a courier is sent. Your
purchase includes this depot repair
service, available in the U.S. during the
limited warranty period.

20

Operating System: Level of support var­ies by operating system. Operating sys­tems not preloaded on the system may
not provide full feature functionality. Refer
to lenovo.com/pc/support and enter your
machine type and model number for
more information.

21

For combination drives, maximum
possible speeds only are given in the
following order: CD write, CD rewrite, CD
read, DVD read.

22

Lenovo Care Services: These services
are available for machines normally
used for business, professional, or trade
purposes, rather than personal, family,
or household purposes. Not all machine
types and models are covered. Service
period begins with the equipment date
of purchase. Service must be purchased
during the original limited product war­ranty period. Service levels are response
time objectives and are not guarantees.
If the machine problem turns out to be a
Customer Replaceable Unit (CRU), a part
can be express shipped to you for quick
replacement. For notebooks requiring
LCD or other component replacement,
Lenovo may choose to perform service
at the depot repair center. Calls must be
received by 5 pm local time in order to
qualify for Next Business Day service.
P&L means parts and labor. P/U means
pick-up. See terms and conditions for
complete details and restrictions.

25

Wireless WAN Cards: Wireless data
service requires separate agreement with
Verizon Wireless. Verizon Wireless, not
Lenovo, is solely responsible for service.
Monthly and airtime charges may apply.
Service may not be available in all areas;
purchaser is responsible for verifying with
Verizon Wireless that service is available
for the intended location before the pur­chase of the card. For complete details,
including service plans, additional re­quired hardware or software, and service
coverage, visit www.verizonwireless.com.

28

The IEEE 802.11n specifi cation
(MIMO) has not been fi nalized and is

currently in draft release. The Lenovo
11a/b/g/n (11n) Wireless LAN Mini PCI
Express Adapters are based on the Draft
Release, Version 1.0, of the IEEE 802.11n
specifi cation. The maximum speed
depends on the access point device and
the number of integrated antenna used
for connection. An adapter with 11a/b,
11a/b/g, or 11a/b/g/n can communicate
on any of its supported formats.

This publication was developed for prod­ucts and services offered in the United
States. Lenovo may not offer the products,
services or features discussed in this
document in other countries. Lenovo may
withdraw an offering at any time. Informa­tion is subject to change without notice.
Consult your local representative for infor­mation on offerings available in your area.

Lenovo reserves the right to change
specifi cations or other product information
without notice. Lenovo is not responsible
for photographic or typographical errors.
LENOVO PROVIDES THIS PUBLICATION
“AS IS,” WITHOUT WARRANT Y OF ANY
KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. Some jurisdic­tions do not allow disclaimer of express or
implied warranties in certain transactions,
therefore this disclaimer may not apply to
you.

Trademarks: Lenovo, the Lenovo logo,

New World. New Thinking., Access Con­nections, Rescue and Recovery, ThinkVan­tage, and ThinkVision are trademarks of
Lenovo. Microsoft, Windows, and Vista are
registered trademarks of Microsoft Corpo­ration. Intel, the Intel logo, Intel Inside logo,
Intel Atom, Intel Core and Core Inside are
trademarks of Intel Corporation in the US
and other countries. Other company, prod­uct, or service names may be trademarks
or service marks of others.

ENERGY STAR: As an ENERGY STAR
Partner, Lenovo has determined that this
product meets the ENERGY STAR
guidelines for energy effi ciency.

Visit www.lenovo.com/safecomputing
periodically for the latest information on
safe and effectiv

e computing.

Visit www.lenovo.com/psref
for the latest version of
Personal Systems Reference.

© Lenovo, 2009.

All rights reserved.

Lenovo
1009 Think Place
Morrisville, NC 27560
U.S. A.

June 2009
ipbook.pdf
